MRI background parenchymal enhancement in patients with invasive lobular carcinoma: Endocrine hormonal treatment effect

Abstract

OBJECTIVES:

High background parenchymal enhancement (BPE) levels and asymmetric distribution could cause diagnostic uncertainty due to morphological similarity to breast cancer, especially invasive lobular carcinoma (ILC). We investigated BPE in ILC patients, its association with the tumor hormonal profile, and the effect of endocrine treatment (ET).

METHODS:

The analysis included all MRI examinations performed at our institution between 2010 and 2019 for ILC-diagnosed patients. Baseline study and the first follow-up study were reviewed. Digital medical records were reviewed to retrieve demographics/pathology results/treatment information. BPE and fibroglandular tissue were assessed qualitatively on the contralateral breast according to the criteria of the Breast Imaging Reporting and Data System (BI-RADS).

RESULTS:

The study included 129 patients. Most (91%) had pure ILC. All received ET; 12% also received chemotherapy; 90% had surgery first; 70% by breast conservation. On the baseline MRI, 70% had mild or moderate BPE; whereas, on the follow-up study, the majority (59%) had minimal BPE. Most BPE reductions were by 2 degrees. In the baseline study, additional biopsies were required in 59% of cases, and in 17%, a short-term follow-up was recommended. In the follow-up study, biopsies were recommended in 10%, and a short-term follow-up was requested in 16%. A correlation between progesterone receptor intensity index and baseline BPE level was observed (r = 0.3, p = 0.004).

CONCLUSION:

ILC patients usually exhibit high BPE. ET decreases BPE, and therefore may decrease false-positive interpretations. Additional research is needed to explore whether study can be performed on ET without compromising sensitivity.

Key points:

∙ High background parenchymal enhancement levels reduces breast MRI sensitivity, yielding high false positive rates especially when reporting cases of invasive lobular carcinoma [ILC].

∙Treatment of ILC with endocrine therapy reduces background parenchymal enhancement and thus could decrease these false-positive interpretations.

Keywords

Breast cancer carcinoma lobular MRI scans retrospective study

1. Introduction

Background parenchymal enhancement (BPE) is defined as enhancement of the fibroglandular breast tissue (FGT) on intravenous contrast-enhanced breast MRI. This enhancement represents benign physiologic and hyperplastic processes and is affected by many factors, most prominently, menopausal status [1]. BPE may vary in degree and distribution among patients, as well as in the same patient over time [2]. High BPE levels and asymmetric distribution can pose a diagnostic dilemma due to morphological similarity to breast cancer [1–4]. Especially challenging are cases of invasive lobular carcinoma (ILC), which commonly presents as regional or multifocal enhancement on MRI [5]. ILC accounts for 10–15% of invasive breast cancers. Immunohistochemically, ILC is characterized by the absence of e-cadherin. Microscopically, it is characterized by small cells invading the stroma and fat in a single file pattern circling the ducts, and by minimal desmoplastic reaction. Low grade, estrogen receptor (ER) and progesterone receptor (PgR) expression, and no human epidermal growth factor receptor 2 [HER2]/neu amplification are common features of ILC [6,7]. Therefore, these tumors are less likely to respond to chemotherapy, and ILC patients benefit more from endocrine therapy alone compared to patients with invasive ductal carcinoma (IDC) [6,7]. In ILC-diagnosed patients, MRI studies identify additional ipsilateral and contralateral cancers; however, false positive rates can be as high as 40–70% [3,8–11]. Thus, the current evidence indirectly suggests that endocrine treatment inhibits BPE and thus could lower false-positive MRI interpretation, as well as provide a beneficial anti-cancer effect [12,13].

The aims of our study were to investigate BPE levels in ILC patients, to examine, the association to the tumor hormonal profile, and the effect of endocrine treatment.

2. Materials and methods

This was a retrospective, single-center study. The study was approved by the institutional review board, which waived the need for informed consent.

2.1. Study population

The analysis included all MRI examinations performed at our institution between 2010 and 2019 for women diagnosed with ILC. Baseline study at the time of diagnosis and the first follow-up study were reviewed. All patients were treated with endocrine therapy (adjuvantly or neoadjuvantly). The follow-up MRI study was performed on endocrine treatment, pre-surgically in the neoadjuvant protocol, or as first follow-up in the adjuvant protocol. Cases where only the baseline study was available were used solely for assessing baseline BPE. Cases with prior history of breast cancer, or cases where data was lacking were excluded.

2.2. Patient data collection

Patient demographics, pathology results including hormone receptors and adjuvant treatment regimens, were all retrieved from the digital patient records. Staining intensity index was used to semiquantitatively represent hormonal receptor status [14].

2.3. MRI technique

Breast MRI was carried out with a 3T or 1.5T machine (3T Ingenia and 1.5T Achieva, Philips Medical Systems). Patients were examined in the prone position using a bilateral, 16-channel breast coil (Mammotrak, Philips Medical Systems). Initially, an axial T2w turbo spin-echo (TSE) sequence was used for both field strengths, with TE 120 msec, in-plane resolution 1 mm, and slice width 3 mm with zero gap. This was followed by a T2w TSE sequence with SPAIR fat suppression. For 3T imaging, a 2D sequence was used with the same resolution and TE 70 msec. At 1.5T, a 3D Vista sequence was used with TR/TE 2000/280 msec, in-plane resolution 0.8 mm, and slice width 2 mm reconstructed to 1 mm. The dynamic 3D sequence with SPAIR fat suppression was performed using 6 dynamics with approximately 64 sec per dynamic for both field strengths. At 3T, the flip angle was 12 degrees with TR/TE 6.3/3.0 msec, in-plane resolution 0.8 mm, and slice width 1.8 mm reconstructed to 0.9 mm. At 1.5T, the flip angle was 10 degrees with TR/TE 6.6/3.2 msec, in-plane resolution 1.2 mm, and slice width 1.8 mm reconstructed to 0.9 mm.

2.4. Image interpretation

BPE and FGT were assessed qualitatively on the unaffected contralateral breast according to the criteria of the Breast Imaging Reporting and Data System (BI-RADS), based on the amount of tissue and of its enhancement on the first post-contrast images, subtraction and maximum intensity projection images. BPE was categorized into 4 types: minimal, mild, moderate, and marked. FGT was categorized as fatty, scattered, heterogeneously dense, and dense. The assessment was performed by 2 fellowship-trained breast radiologists in a consensus (A.G., Y.R. 13 and 8 years’ experience in breast radiology). Lesion characterization was recorded according to the BI-RADS lexicon, as a mass, focus, or non-mass enhancement.

2.5. Statistical analysis

Descriptive statistics was used to characterize the cohort. Pearson correlation coefficient and regression analysis were used to examine the association between ordinal variables and ordinal or continuous variables. Kappa coefficient was used to assess interobserver agreement. All analyses were performed using SAS (version 9.0, SAS Institute). p < 0.05 was considered statistically significant.

3. Results

The analysis included 129 female patients with ILC who underwent breast MRI as part of the workup at the time of diagnosis. The mean age was 61 years (range, 39–87 years; SD, 11.3 years). For 77 (60%) of these patients, both baseline and follow-up MRIs were available, whereas for 52 (40%) only the baseline MRI was available (range age, 41–79 years). Most of the patients had pure ILC (118 patients, 91%), and a minority had ductal carcinoma in situ and/or IDC components as well (11 patients, 9%). Medical treatment included endocrine therapy for 123 patients (95%); whereas 16 patients (12%) received chemotherapy as well, 4 (3%) patients were not treated medically. Overall, 115 patients (90%) underwent surgery first, and 14 (10%) were treated neoadjuvantly. Surgery information was available for 122 patients, of whom 85 (70%) underwent breast-conserving surgery (BCS), and the remaining 37 (30%) underwent mastectomy (Table 1).

Table 1
Patient demographics, tumor characteristics, and treatment

Characteristic N = 129

Mean age (SD), years 61 (11)

Pathology, n (%)

Pure ILC 118 (91%)

Mixed ILC and IDC and/or DCIS 11(9%)

Mean (SD) hormonal intensity index

Estrogen receptor 2.5 (0.7)

Progesterone receptor 1.4 (1.1)

Treatment, n (%)

SERM 43 (33%)

AI 75 (58%)

LHRH agonist combined with SERM or AI 4 (3%)

Chemo∖biological therapy 16(12%)

Baseline MRI indication, n (%)

Extent of disease 122 (95%)

Clinical or imaging findings assessment 7 (5%)

MRI lesion enhancement findings, n (%)

Mass 102 (79%)

Non mass 60 (47%)

Surgery, n (%)^a

Mastectomy 37 (30%)

Breast conserving surgery 85 (70%)

Characteristic	N = 129
Mean age (SD), years	61 (11)
Pathology, n (%)
Pure ILC	118 (91%)
Mixed ILC and IDC and/or DCIS	11(9%)
Mean (SD) hormonal intensity index
Estrogen receptor	2.5 (0.7)
Progesterone receptor	1.4 (1.1)
Treatment, n (%)
SERM	43 (33%)
AI	75 (58%)
LHRH agonist combined with SERM or AI	4 (3%)
Chemo∖biological therapy	16(12%)
Baseline MRI indication, n (%)
Extent of disease	122 (95%)
Clinical or imaging findings assessment	7 (5%)
MRI lesion enhancement findings, n (%)
Mass	102 (79%)
Non mass	60 (47%)
Surgery, n (%)^a
Mastectomy	37 (30%)
Breast conserving surgery	85 (70%)

^a Data were available for 122 patients.AI, aromatase inhibitors; DCIS, ductal carcinoma in situ; IDC, invasive ductal carcinoma; ILC, invasive lobular carcinoma; LHRH, gonadotropin releasing hormone analog (LHRH) agonist; SERM, selective estrogen receptor modulator.

3.1. Distribution of BPE levels

The majority of patients had mild or moderate BPE on the baseline MRI. Of the 129 patients with baseline MRI, 26 (20%), 61 (47%), 29 (23%), and 13 (10%) had minimal, mild, moderate, and marked BPE, respectively. Follow-up MRI demonstrated an expected decrease in BPE in all patients, with the majority of patients having minimal BPE, and none presenting marked BPE. Of the 77 patients with follow-up MRI, 45 (58%), 28 (37%), and 4 (5%), had minimal, mild, and moderate BPE, respectively. The most common BPE level reductions from baseline to the follow-up MRI, was by 2 degrees (i.e. marked to mild, or moderate to minimal). Of the 77 patients with both baseline and follow-up MRI, 16 (21%) had the same BPE level in both studies, in 26 (34%) BPE levels decreased by one degree, in 27 (35%) by 2 degrees, and in 7 (9%) by 3 degrees (Fig. 1). Reader interobserver agreement was substantial for both BPE and FDG levels readings (Table 2).

Fig. 1.

Post contrast dynamic T1W and subtraction axial images in one case of ILC patient who exhibited decreased BPE by 2 levels following endocrine therapy. (a) Left breast spiculated mass, lower central quadrant (white arrow). (b) Baseline study central level of the breast, showing marked BPE. (c) Follow-up MRI after 5 months of treatment with tamoxifen showing minimal BPE.

Table 2

Interobserver agreement between 2 fellowship-trained breast radiologists

	Kappa coefficient	SD	p-value
BPE pre-treatment	0.62	0.04	0.01
BPE post-treatment	0.67	0.08	0.8
FGT pre-treatment	0.7	0.04	0.2

BPE, background parenchymal enhancement; FGT, fibroglandular tissue.

3.2. MRI findings and diagnostic performance

Of the 129 patients with baseline MRI, 22 (17%) had a single finding on MRI, and in 107 (83%), additional lesions were noted on MRI. In 31 patients (24%), MRI studies were concluded as BIRADS 5–6, in 76 (59%) the report indicated that additional biopsies are required, and in 22 (17%), a short-term follow-up study was recommended. Of the 77 patients with follow-up MRI studies, 57 (74%) were discharged as BIRADS 2 (benign findings), biopsies were recommended in only 8 patients (10%), and short-term follow-up was requested in 12 patients (16%).

On baseline MRI, the most frequent finding was a mass (102 patients, 79%). Non mass enhancement (NME) was demonstrated in 60 patients (47%) (Table 1), and both a mass and NME were reported in 32 patients (25%).

PgR intensity index and baseline BPE levels were found to be correlated (r = 0.3, p = 0.004). ER intensity index did not correlate with either baseline or follow-up BPE levels. (Table 3, Fig. 2).

Table 3
Spearman correlation coefficients between hormonal status and BPE

Pretreatment BPE Post treatment BPE

r p-value r p-value

ER intensity index 0.1 0.25 0.05 0.067

PgR intensity index 0.3 0.004 0.008 0.94

	Pretreatment BPE	Post treatment BPE
ER intensity index	0.1	0.25	0.05	0.067
PgR intensity index	0.3	0.004	0.008	0.94

BPE, background parenchymal enhancement; ER, estrogen receptor; PgR, progesterone receptor.

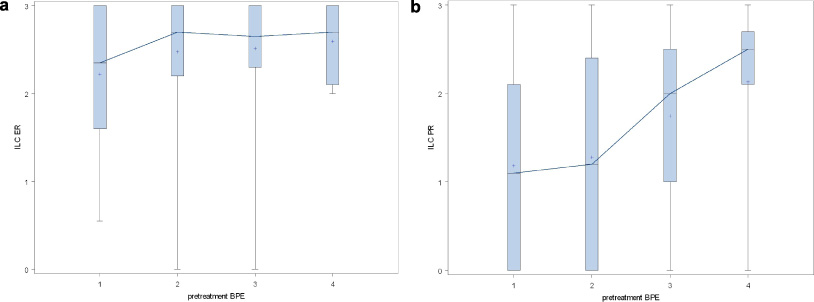

Fig. 2.

Spearman correlation between ER and PgR intensity indexes and BPE levels (1 minimal, 2 mild, 3 moderate, 4 marked) on baseline MRI studies. (a) ER (r = 0.1, p = 0.25). (b) PgR (r = 0.3, p = 0.004).

4. Discussion

In this retrospective study involving 129 ILC patients who underwent breast MRI, we demonstrated that ILC patients usually exhibited mild or moderate BPE, and that endocrine treatment decreased BPE by at least one degree in the majority of patients.

The use of MRI for evaluating the extent of disease in ILC patients is well established [15]. It has been shown that MRI use reduces re-excision rates, and identifies a significant number of ipsilateral and contralateral findings [16]. The association of BPE with hormonal status is well recognized, as BPE changes along the menstrual cycle and decreases after menopause [1–4]. Anti-cancer treatment plays a role as well, and both endocrine therapy and chemotherapy are associated with a significant BPE decrease [12,13,17]. Most of our patients were postmenopausal and were not scheduled to undergo the MRI study according to menstruation. Consistent with previous reports [12,13], baseline moderate-to-marked BPE levels decreased to mostly minimal level following endocrine treatment, suggesting that estrogen causes high baseline BPE levels in postmenopausal ILC patients.

High BPE levels were found to be associated with higher abnormal interpretation rates [3,18,19]. Indeed, in more than half of our baseline MRIs, additional biopsies were required for additional MRI findings. In the follow-up MRIs (which were performed while the patients were on endocrine treatment), the number of abnormal readings decreased significantly, as expected [13,18], and the BPE decreased as well. A recent study investigated whether the high abnormal interpretation rates on baseline MRI with high BPE could mask additional foci of cancer and found that the presence of additional in situ cancer was associated with higher risk of repeat surgery in ILC; however, BPE levels were not [20]. Moreover, a more recent study showed that in a matched cohort of ILC patients, preoperative MRI did not change recurrences or survival scores [21], valuing diligent extraction of suspicious findings from scattered low-risk foci. Notably, although opposers of preoperative MRI state that such MRI could lead to higher mastectomy rates, the high abnormal interpretation rate on our baseline MRIs does not support that (the mastectomy rate in our study was 30%, concordant with rates reported in literature [22–24]).

The relationship between BPE and tumor subtypes has been examined with conflicting results. Whereas one cohort study identified a positive correlation, albeit with a borderline significance, between ER positivity and moderate/marked BPE, another study linked luminal B, ER and PgR positive and HER2-negative tumors to mild BPE, and triple negative tumors to moderate BPE [25,26]. We found week but significant correlation with between the baseline BPE and PgR. The impact of PgR expression is less clear than that of the ER, which provides significant prognostic information, and is the target of inhibition by endocrine therapy [27]. Quantitative BPE assessment has been shown to outperform radiologist qualitative assigned category in terms of breast cancer risk prediction, consequently it may be better for evaluating the association between BPE and tumor hormonal status and subtypes [28,29].

Our study is limited by its retrospective, single-arm design, which may lead to selection bias, and by its relatively small sample size that may have obscured statistical significance. Also, the BPE level was graded subjectively, which could also be a source of bias. We tried to overcome this by having 2 experience readers reach a consensus while adhering to the BI-RADS criteria. Future studies could benefit from applying technology to quantitate the BPE.

In conclusion, ILC patients usually exhibit BPE, which contributes to high abnormal interpretation rates. Our study demonstrated that endocrine therapy decreases BPE, and therefore may reduce abnormal interpretation rates. Further studies are needed to investigate whether performing the MRI study after a short period of endocrine therapy and consequently BPE inhibition would lower the false positive rates without compromising sensitivity.

Abbreviations

BI-RADS

Breast Imaging Reporting and Data System

BPE

Background parenchymal enhancement

Estrogen receptor

FGT

Fibroglandular breast tissue

HER2

Human epidermal growth factor receptor 2

IDC

Invasive ductal carcinoma

ILC

Invasive lobular carcinoma

NME

Non mass enhancement

PgR

Progesterone receptor

TSE

Turbo spin-echo

References

Giess

, Yeh

, Raza

, Birdwell

, Background parenchymal enhancement at breast MR imaging: Normal patterns, diagnostic challenges, and potential for false-positive and false-negative interpretation, Radiographics , 34(1): 234–247, 2014.

Kuhl

, Bieling

, Gieseke

, Healthy premenopausal breast parenchyma in dynamic contrast-enhanced MR imaging of the breast: Normal contrast medium enhancement and cyclical-phase dependency, Radiology , 203(1): 137–144, 1997.

DeMartini

, Liu

, Peacock

, Eby

, Gutierrez

, Lehman

, Background parenchymal enhancement on breast MRI: Impact on diagnostic performance, AJR Am J Roentgenol , 198(4): W373–380, 2012.

King

, Gu

, Kaplan

, Brooks

, Pike

, Morris

, Impact of menopausal status on background parenchymal enhancement and fibroglandular tissue on breast MRI, Eur Radiol , 22(12): 2641–2647, 2012.

Weinstein

, Orel

, Heller

, MR Imaging of the breast in patients with invasive lobular carcinoma, Am J Roentgenol , 176(2): 399–406, 2001.

Rakha

, El-Sayed

, Powe

, Invasive lobular carcinoma of the breast: Response to hormonal therapy and outcomes, Eur J Cancer , 44(1): 73–83, 2008.

Pramod

, Nigam

, Basree

, Comprehensive review of molecular mechanisms and clinical features of invasive lobular cancer, Oncologist , 2021. Epub ahead of print.

Parvaiz

, Yang

, Razia

, Breast MRI in invasive lobular carcinoma: A useful investigation in surgical planning? Breast J , 22(2): 143–150, 2016.

Stivalet

, Luciani

, Pigneur

, Invasive lobular carcinoma of the breast: MRI pathological correlation following bilateral total mastectomy, Acta Radiol , 53(4): 367–375, 2012.

10.

Kuhl

, Keulers

, Strobel

, Schneider

, Gaisa

, Schrading

, Not all false positive diagnoses are equal: On the prognostic implications of false-positive diagnoses made in breast MRI versus in mammography/digital tomosynthesis screening, Breast Cancer Res , 20(1): 13, 2018.

11.

Amin

, Sack

, Larson

, Does the addition of breast MRI add value to the diagnostic workup of invasive lobular carcinoma? J Surg Res , 257: 144–152, 2021.

12.

King

, Kaplan

, Pike

, Impact of tamoxifen on amount of fibroglandular tissue, background parenchymal enhancement, and cysts on breast magnetic resonance imaging, Breast J , 18(6): 527–534, 2012.

13.

Hruska

, Hunt

, Conners

, Impact of short-term low-dose tamoxifen on molecular breast imaging background parenchymal uptake: A pilot study, Breast Cancer Res , 21(1): 38, 2019.

14.

Cohen

, Dabbs

, Cooper

, Interobserver agreement among pathologists for semiquantitative hormone receptor scoring in breast carcinoma, Am J Clin Pathol , 138(6): 796–802, 2012.

15.

Morris

, Diagnostic breast MR imaging: Current status and future directions, Radiol Clin North Am , 45(5): 863–880, 2007.

16.

Wanis

, Wong

, Rodriguez

, Rate of re-excision after breast-conserving surgery for invasive lobular carcinoma, Am Surg , 79(10): 1119–1122, 2013.

17.

Chen

, Yu

, Hsu

, Mehta

, Carpenter

, Su

, Background parenchymal enhancement of the contralateral normal breast: Association with tumor response in breast cancer patients receiving neoadjuvant chemotherapy, Trans Oncol , 8(3): 204–209, 2015.

18.

Sippo

, Rutledge

, Mercaldo

, Impact of background parenchymal enhancement on diagnostic performance in screening breast MRI, Acad Radiol , 27(5): 663–671, 2020.

19.

Vreemann

, Dalmis

, Bult

, Amount of fibroglandular tissue FGT and background parenchymal enhancement BPE in relation to breast cancer risk and false positives in a breast MRI screening program: A retrospective cohort study, Eur Radiol , 29(9): 4678–4690, 2019.

20.

Preibsch

, Richter

, Bahrs

, Repeated surgeries in invasive lobular breast cancer with preoperative MRI: Role of additional carcinoma in situ and background parenchymal enhancement, Eur J Radiol , 90: 181–187, 2017.

21.

, Chae

, Cha

, Kim

, Shin

, Choi

, Long-term survival outcomes in invasive lobular carcinoma patients with and without preoperative MR imaging: A matched cohort study, Eur Radiol , 29(5): 2526–2534, 2019.

22.

Miller

, Abbott

, Tuttle

, The influence of preoperative MRI on breast cancer treatment, Ann Surg Oncol , 19(2): 536–540, 2012.

23.

Araout

, Catley

, Booth

, Use of preoperative magnetic resonance imaging for breast cancer: A Canadian population-based study, JAMA Oncol , 1(9): 1238–1250, 2015.

24.

Houssami

, Turner

, Morrow

, Preoperative magnetic resonance imaging in breast cancer: Meta-analysis of surgical outcomes, Ann Surg , 257(2): 249–255, 2013.

25.

Kim

, Choi

, Yang

J-H

, Yoo

, Park

, Background parenchymal enhancement on breast MRI and mammographic breast density: Correlation with tumour characteristics, Clin Radiol , 70(7): 706–710, 2015.

26.

Dilorenzo

, Telegrafo

, La Forgia

, Stabile Ianora

, Moschetta

, Breast MRI background parenchymal enhancement as an imaging bridge to molecular cancer sub-type, Eur J Radiol , 113: 148–152, 2019.

27.

Boland

, Ryan

, Dunne

, Meta-analysis of the impact of progesterone receptor status on oncological outcomes in oestrogen receptor-positive breast cancer, Br J Surg , 107(1): 33–43, 2020.

28.

Mema

, Mango

, Guo

, Does breast MRI background parenchymal enhancement indicate metabolic activity? Qualitative and 3D quantitative computer imaging analysis, J Magn Reson Imaging , 47(3): 753–759, 2018.

29.

Niell

, Abdalah

, Stringfield

, Quantitative measures of background parenchymal enhancement predict breast cancer risk, AJR Am J Roentgenol , 2020. Epub ahead of print.
