Clinical significance of Notch receptors in triple negative breast cancer 1

Abstract

BACKGROUND:

The Notch signaling pathway is an evolutionary conserved cell signaling pathway that plays an indispensable role in essential developmental processes. Aberrant activation of Notch pathway is known to initiate wide array of diseases and cancers.

OBJECTIVE:

To evaluate the clinical significance of Notch receptors in Triple Negative Breast Cancer.

METHODS:

We evaluated the association between Notch receptors and clinicopathological parameters including disease-free survival and overall survival of one hundred TNBC patients by immunohistochemistry.

RESULTS:

Positive expression of nuclear Notch1 receptor (18%) was found be significantly correlated with positive lymph node (p = 0.009), high BR score (p = 0.02) and necrosis (p = 0.004) while cytoplasmic expression of Notch2 receptor (26%) was significantly correlated with metastasis (p = 0.05), worse DFS (p = 0.05) and poor OS (p = 0.02) in TNBC patients. Membrane (18%) and cytonuclear (3%) Notch3 expression were significantly associated with poorly differentiated tumors (p = 0.007), high BR score (p = 0.002) and necrosis (p = 0.03) respectively. However, cytoplasmic Notch3 and Notch4 expression were negatively correlated with poor prognostic factors.

CONCLUSIONS:

Our data indicated that Notch receptors play a key role in promoting TNBC and mainly, Notch2 may contribute to poor prognosis of the disease. Hence, it is implicated that Notch2 may serve as a potential biomarker and therapeutic target for TNBC.

Keywords

Notch receptors Triple Negative Breast Cancer immunohistochemistry

1. Introduction

Breast cancer is the most commonly diagnosed type of cancer, accounting for 24.5% newly registered cases in women and 11.7% newly registered cases in both sexes in a year (https://gco.iarc.fr/today/data/factsheets/populations/900-world-fact-sheets.pdf). Globally, it is second leading cause of death in women after lung cancer (https://gco.iarc.fr/today/data/factsheets/populations/900-world-fact-sheets.pdf). Breast cancer is a phenotypically and biologically heterogeneous disease with diverse response to the treatments offered [35]. Immunohistochemical profiling categorizes breast cancer into four molecular subtypes – luminal A, luminal B, Her2 enriched and Triple negative breast cancer [3]. Luminal A, luminal B and Her2 enriched subtypes are characterized by hormone receptor positivity and better prognosis than TNBC. Triple negative breast cancer is defined by the lack of expression of hormone receptors (ER-, PR-, HER2-), which accounts for 15–20% of breast cancer cases [15,28]. TNBC subtype has unfavorable prognosis and patients with TNBC are at greater risk of disease relapse or distant metastasis [17]. TNBC is characterized as an aggressive form of cancer which includes features such as higher tumor size, high histological grade, advanced stage and lymph node involvement [6]. Currently treatment available for TNBC comprises of surgery, traditional chemotherapy with anthracyclines, taxanes, platinum agents and radiotherapy [30]. Recently, Poly (ADP-Ribose) Polymerase (PARP) inhibitors are used as targeted therapy for TNBC patients with BRCA1/2 gene mutations and programmed death-ligand 1 (PD-L1) positive TNBC patients with locally advanced or metastatic disease are benefited from PD-L1 inhibitors [24,27]. Nonetheless, these therapies are beneficial to a small number of TNBC population.

The Notch signaling pathway is a highly conserved pathway which regulates fundamental developmental processes such as cellular differentiation, proliferation, organ formation, morphogenesis and apoptosis [34]. The Notch signaling pathway is constitutively activated by the interaction of transmembrane Notch receptors and cell-surface ligands on adjacent cells [33]. Upon ligand activation, cascade of events is triggered which includes sequential cleavage by tumor necrosis factor alpha (TNF) converting enzyme (TACE) and gamma-secretase complex, releasing the Notch intracellular domain (NICD). The cleaved NICD translocates to the nucleus and binds with transcriptional regulators such as CBF-1/RBPjk, Suppressor of Hairless, and Lag-1 (CSL), Mastermind-like (MAML), p300 in order to initiate the expression Notch target genes [10,14]. Abnormal expression of Notch receptors is known to play a crucial role in malignant transformation in haemopoietic malignancies as well as solid tumors [31]. Notch signaling pathway is responsible for normal development of mammary glands and the deregulation of Notch signaling pathway is involved in breast carcinogenesis [18]. Studies have frequently shown that Notch1, Notch3 and Notch4 are responsible for aggressiveness of TNBC by contributing to increased cell proliferation, anti-apoptotic activity and stem cell maintenance while few studies have reported tumor suppressive role of Notch2 receptors [1]. However, the role of Notch receptors in TNBC is quite debatable. The present study evaluated Notch1, Notch2, Notch3 and Notch4 expression by immunohistochemistry and their clinical significance in TNBC.

2. Materials and methods

2.1. Patients

One hundred female patients diagnosed with TNBC who had undergone surgery and treatment at a research institute, in Ahmedabad during 2014 to 2019 were enrolled in this retrospective study. Detailed clinical history of the patients including age, menopausal status, tumor size, nodal involvement, American Joint Committee on Cancer (AJCC) TNM stage, histological type, histological grade and treatment offered was noted from the institutional records. Table 2 depicts the clinicopathological characteristics of the patients. Patients who had received chemotherapy or radiotherapy prior to the surgery were excluded from the study. Formalin fixed paraffin embedded (FFPE) blocks were retrieved from archives of Histopathology Department of the institute where the blocks were stored and preserved under optimal conditions. This study was approved by Scientific Review and Ethics committees of the institute.

2.2. Immunohistochemistry

Immunohistochemical analysis was used to detect the presence of Notch1, Notch2, Notch3 and Notch4 receptors in formalin fixed paraffin embedded (FFPE) blocks of TNBC patients. 4 μm sections from FFPE tumor tissue blocks were taken using a microtome (Leica Biosystems, Germany) and the sections were mounted on 3-Aminopropyl triethoxysilane (APES) coated slides. Immunohistochemistry was performed using autoimmunostainer instrument, Ventana Benchmark XT (Ventana Medical Biosystems, USA) and Ventana reagents according to the manufacturer’s protocol. Briefly, the protocol includes deparaffinization with EZ prep solution, antigen retrieval using cell conditioning solution (CC1) at 95 °C, followed by incubation with Ultra view DAB inhibitor for 4 min, 100 μl of respective primary antibody for Notch1 (Monoclonal, 1:50, Invitrogen) for 32 min, Notch2 (Polyclonal, 1:25, Invitrogen) for 60 min, Notch3 (Polyclonal, 1:50, Invitrogen) for 60 min and Notch4 (Polyclonal, 1:150, Invitrogen) for 32 min, incubation with Ultra view Horseradish peroxidase (HRP) multimer for 8 min. The detection of antigen-antibody complex was carried out by 3,3’-diaminobenzidine (DAB), counterstaining using haematoxylin for 8 min and post counterstaining with bluing reagent for 4 min. Ultra view DAB detection kit was used for staining of Notch2, Notch3, Notch4 receptors and Opti view DAB detection kit was used for staining of Notch1. The protocol of Opti view DAB detection kit includes additional incubation with HQ linker for 8 min, counterstaining and post counterstaining for 16 min and 8 min respectively. The slides were later mounted using Dibutylphthalate Polystyrene Xylene (DPX) and xylene. Table 1 represents the details of antigen retrieval and antibodies used.

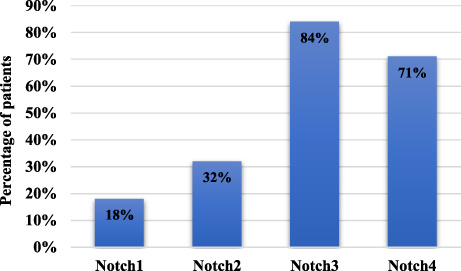

Fig. 1.

Total cases expressing Notch receptors.

2.3. Evaluation of immunohistochemistry

Expression of Notch receptors (Notch1, Notch2, Notch3 and Notch4) was assessed by semiquantitative scoring method by employing Immunoreactive scoring (IRS) system. The percentage positive cells were graded as 0(negative staining), 1(<10% positive cells), 2(10%–50% positive cells), 3(51%–80% positive cells) and 4(>80% positive cells). Further, staining intensity of the cells was ranked as 0(negative), 1+(weak), 2+(moderate) and 3+(strong). The immunoreactive score (IRS) for each case was obtained by multiplying the percentage of positive cells and the staining intensity which gives the range of 0–12. Median score was calculated and cases below the median score were considered as negative or low expression and cases above the median score were considered as over expression.

2.4. Statistical analysis

Statistical analysis was performed using SPSS 26.0 (SPSS, Inc., Chicago, USA). The Chi-square test was to used determine the association between the expression of Notch receptors and clinicopathological parameters and the association between the Notch receptors. The correlation between the two parameters was determined by Pearson’s correlation coefficient (r). Yate’s continuity correction value and Fisher’s exact test were used where values were less than 5 in cells of 2 × 2 tables and 2 × 3 tables respectively. Disease-free survival (DFS) time was calculated from date of diagnosis of the patient to date of disease relapse or date of last follow-up. Overall survival (OS) time was calculated from date of diagnosis of the patient to last follow-up or date of death due to cancer. Univariate survival analysis was performed by Kaplan-Meier method and significance of survival differences was calculated using log-rank test. Multivariate survival analysis was performed by Cox regression model with forward stepwise selection, Wald’s statistics and hazard ratio (HR) with 95% confidence interval (CI) were calculated to estimate the prognostic significance. P value ≤0.05 was interpreted as statistically significant.

3. Results

3.1. Correlation of Notch receptors with clinical and pathological parameters

Notch receptors were found to be localized in membrane, cytoplasm and nucleus of the tumor cells. As shown in Fig. 1, positive expression of Notch1 was observed in 18 patients (18%), Notch2 in 31 patients (31%), Notch3 in 84 patients (84%) and Notch4 in 71 patients of TNBC (71%).

3.1.1. Notch1 receptor expression

Notch1 receptor was found to be predominantly localized only in the nucleus of the tumor cells of 18% patients as represented in Fig. 2 and Fig. 3a. As shown in Table 3, Notch1 nuclear positivity was significantly associated with lymph node positive status (60%, 03/05, p = 0.009), high BR score (27%, 17/62,p = 0.02) and necrosis (31%, 13/42, p = 0.004).

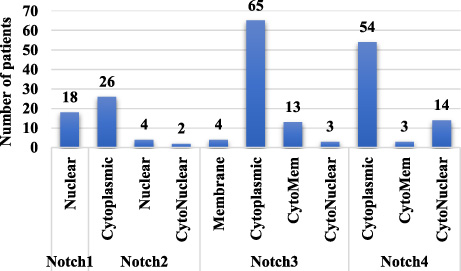

Fig. 2.

Localization of Notch receptors.

Fig. 3a.

Representative image of Notch1 nuclear staining.

Table 1

Antigens and antibodies details used in IHC

Antigen	Antigen retrieval	Antibody dilution	Incubation time	Staining pattern
Notch1	Standard	1:50	32 min at 37 °C	Nucleus
Notch2	Standard	1:25	60 min at RT	Cytoplasm and/or Nucleus
Notch3	Standard	1:50	60 min at RT	Membrane and/or Cytoplasm and/or Nucleus
Notch4	Mild	1:150	32 min at RT	Membrane and/or Cytoplasm and/or Nucleus

Table 2

Clinical and pathological data of TNBC patients (N = 100)

Characteristics		N	(%)
Age	<47	50	50
(Median age: 47 years)	>47	50	50
Menopausal status	Premenopausal	46	46
	Postmenopausal	47	47
	Perimenopausal	07	07
Tumor size	T1	08	08
	T2	77	77
	T3	11	11
	T4	04	04
Lymph node status	N0	57	57
	N1	24	24
	N2	14	14
	N3	05	05
Stage	I	02	02
	II	75	75
	III	23	23
	IV	00	00
Histological type	IDC	81	81
	IDC + DCIS	17	17
	IDC + Medullary	02	02
Histological grade	I	01	01
	II	26	26
	III	66	66
	Unknown	07	07
BR score	Low (3–5)	02	02
	Intermediate (6–7)	27	27
	High (8–9)	62	62
	Unknown	09	09
Perinodal extension	Positive	21	21
	Negative	79	79
Perineural invasion	Positive	06	06
	Negative	94	94
Necrosis	Positive	42	42
	Negative	58	58
Metastasis	Metastasis	15	15
	Remission	85	85
Survival	Dead	15	15
	Alive	85	85

T1 (≤2 cm), T2 (2–5 cm), T3 (>5 cm), T4 (Tumor of any size growing into chest wall or skin). N0 (Negative), N1 (1–3 axillary lymph nodes and/or cancer is found in internal mammary lymph nodes), N2 (4–9 axillary lymph nodes or cancer has enlarged the internal mammary lymph nodes), N3 (Cancer has spread to 10 or more axillary lymph nodes, with at least one area of cancer spread greater than 2 mm).

Table 3

Correlation of Notch1 and clinicopathological characteristics

Characteristics	Notch1 (IRS median = 0)
	Low expression		High expression		𝜒²	r	p
	N	%	N	%
Age (Median = 47)
<47 years	40	80	10	20	0.27	−0.05	0.60
>47 years	42	84	08	16
Menopausal status
Premenopausal	36	78	10	22
Perimenopausal	05	71	02	29	2.14^∗	−0.04	2.96
Postmenopausal	41	87	06	13
Tumor size
T1	08	100	00	00
T2	61	79	16	21	2.04^∗	0.001	0.55
T3	09	82	02	18
T4	04	100	00	00
Lymph node status
N0	49	86	08	14
N1	18	72	07	28	10.53^∗	0.12	0.009
N2	13	100	00	00
N3	02	40	03	60
Stage
I	02	100	00	00
II	62	83	13	17	0.55^∗	0.07	0.83
III	18	78	05	22
Histopathology
IDC	68	84	13	16
IDC + DCIS	12	71	05	29	1.99^∗	0.07	0.44
IDC + Medullary	02	100	00	00
Grade
I	01	100	00	00
II	24	92	02	08	3.18^∗	0.18	0.29
III	51	77	15	23
BR score
Low (3–5)	02	100	00	00
Intermediate (6–7)	26	96	01	04	7.33^∗	0.27	0.02
High (8–9)	45	73	17	27
Perinodal extension
Negative	66	84	13	16	0.21^∗a	0.07	0.64
Positive	16	76	05	24
Perineural invasion
Negative	77	82	17	18	0.001^∗a	−0.009	1.00
Positive	05	83	01	17
Necrosis
Negative	53	91	05	09	8.23	0.28	0.004
Positive	29	69	13	31
Metastasis
No	69	81	16	19	0.02^∗a	−0.05	0.88
Yes	13	87	02	13

^∗Fisher’s exact test, ^∗a Yate’s continuity correction value. T1 (≤2 cm), T2 (2–5 cm), T3 (>5 cm), T4 (Tumor of any size growing into chest wall or skin). N0 (Negative), N1 (1–3 axillary lymph nodes and/or cancer is found in internal mammary lymph nodes), N2 (4–9 axillary lymph nodes or cancer has enlarged the internal mammary lymph nodes), N3 (Cancer has spread to 10 or more axillary lymph nodes, with at least one area of cancer spread greater than 2 mm).

3.1.2. Notch2 receptor expression

Notch2 was localized in cytoplasm of tumor tissue of 26% patients (Fig. 3b) and in nucleus of 4% patients. In 2% patients, coexistent cytoplasmic and nuclear expression of Notch2 was detected. As shown in Table 4, the incidence of cytoplasmic Notch2 expression was significantly higher in patients with local or distant metastasis (47%, 7/15, p = 0.05), while there was no significant association observed between nuclear and cytonuclear expression of Notch2 and clinicopathological parameters.

Fig. 3b.

Representative image of Notch2 cytoplasmic staining.

Table 4

Correlation of cytoplasmic Notch2 and clinicopathological characteristics

Characteristics	Notch2 (IRS median = 0)
	Negative		Positive		𝜒²	r	p
	N	%	N	%
Age (Median = 47)
<47 years	37	74	13	26	0.001	0.001	1.00
>47 years	37	74	13	26
Menopausal status
Premenopausal	36	78	10	22
Perimenopausal	06	86	01	14	1.57^∗	0.04	4.86
Postmenopausal	32	68	15	32
Tumor size
T1	05	62	03	38
T2	56	73	21	27	2.35^∗	−0.11	0.50
T3	10	91	01	09
T4	03	75	01	25
Lymph node status
N0	45	79	12	21
N1	16	67	08	23	2.36^∗	0.09	0.49
N2	09	64	05	36
N3	04	80	01	20
Stage
I	02	100	00	00
II	56	75	19	25	0.67^∗	0.07	0.78
III	16	70	07	30
Histopathology
IDC	61	75	20	25
IDC + DCIS	11	65	06	35	1.28^∗	0.02	0.50
IDC + Medullary	02	100	00	00
Grade
I	01	100	00	00
II	22	85	04	15	1.77^∗	0.13	0.45
III	48	73	18	28
BR score
Low (3–5)	02	100	00	00
Intermediate (6–7)	21	78	06	22	0.77^∗	0.10	0.78
High (8–9)	44	71	18	29
Perinodal extension
Negative	59	75	20	25	0.09	0.03	0.76
Positive	15	71	06	29
Perineural invasion
Negative	69	73	25	26	0.03^∗a	−0.05	0.95
Positive	05	83	01	17
Necrosis
Negative	42	72	17	28	0.18	−0.07	0.67
Positive	32	78	09	22
Metastasis
No	66	78	19	22	3.55^∗a	0.19	0.05
Yes	08	53	07	47

3.1.3. Notch3 receptor expression

It was observed that Notch3 receptor was found to be most frequently localized in the cytoplasm (65%) (Fig. 3d), while 4% patients exhibited membrane expression (Fig. 3c), 14% patients and 3% patients exhibited cytomembrane and cytonuclear expression (Fig. 3e) respectively. Although, membrane Notch3 expression was found in few patients, it was observed that tumors which were poorly differentiated exhibited high membrane Notch3 levels (23%, 15/62, p = 0.008). Also, a significant association of Notch3 expression was observed in patients with high BR score (24%, 15/62, p = 0.002) (Table 5). Moreover, cytoplasmic Notch3 expression was more frequently detected in patients with well differentiated to moderately differentiated tumors (43%, 16/37, p = 0.02), low BR score tumors (52%, 14/27, p = 0.04), lymph node negative status (51%, 29/57, p = 0.006) and perinodal extension negative status (44%, 35/79, p = 0.03). Further, a trend of significant association was observed between high cytoplasmic expression and early TNM stage (100%, 02/02, p = 0.06) (Table 6). It was observed that cytonuclear Notch3 positivity was strongly correlated with necrosis (07%, 03/43, p = 0.03) (Table 7).

Fig. 3c.

Representative image of Notch3 membrane staining.

Fig. 3d.

Representative image of Notch3 cytoplasmic staining.

Fig. 3e.

Representative image of Notch3 nuclear staining.

Table 5

Correlation of membrane Notch3 and clinicopathological characteristics

Characteristics	Notch3 Mem (IRS median = 0)
	Negative		Positive		𝜒²	r	p
	N	%	N	%
Age (Median = 47)
<47 years	39	78	11	22	1.08	−0.10	0.29
>47 years	43	86	07	14
Menopausal status
Premenopausal	36	78	10	22
Perimenopausal	06	86	01	14	0.80^∗	−0.08	0.77
Postmenopausal	40	85	07	15
Tumor size
T1	08	100	00	00
T2	62	80	15	20	4.38^∗	0.13	0.15
T3	10	91	01	09
T4	02	50	02	50
Lymph node status
N0	47	83	10	17
N1	20	83	04	17	1.95^∗	0.05	0.58
N2	12	86	02	14
N3	03	60	02	40
Stage
I	02	100	00	00
II	62	83	13	17	0.55^∗	0.07	0.83
III	18	78	05	22
Histopathology
IDC	67	83	14	17
IDC + DCIS	13	77	04	23	0.74^∗	0.13	0.67
IDC + Medullary	02	100	00	00
Grade
I	01	100	00	00
II	26	100	00	00	8.75^∗	0.27	0.007
III	51	77	15	23
BR score
Low (3–5)	01	50	01	50
Intermediate (6–7)	27	100	00	00	11.07^∗	0.19	0.002
High (8–9)	47	76	15	24
Perinodal extension
Negative	67	85	12	15	1.20^∗a	0.14	0.27
Positive	15	71	06	29
Perineural invasion
Negative	76	81	18	19	0.40^∗a	−0.11	0.52
Positive	06	100	00	00
Necrosis
Negative	49	83	10	17	0.57	0.07	0.44
Positive	33	80	08	20
Metastasis
No	72	85	13	15	1.72^∗a	0.16	0.18
Yes	10	67	05	33

^∗Fisher’s exact test, ^∗a Yate’s continuity correction value. T1 (≤2 cm), T2 (2–5cm), T3 (>5 cm), T4 (Tumor of any size growing into chest wall or skin). N0 (Negative), N1 (1–3 axillary lymph nodes and/or cancer is found in internal mammary lymph nodes), N2 (4–9 axillary lymph nodes or cancer has enlarged the internal mammary lymph nodes), N3 (Cancer has spread to 10 or more axillary lymph nodes, with at least one area of cancer spread greater than 2 mm).

Table 6

Correlation of cytoplasmic Notch3 and clinicopathological characteristics

Characteristics	Notch3 Cyto (IRS median = 4)
	Low expression		High expression		𝜒²	r	p
	N	%	N	%
Age (Median = 47)
<47 years	29	58	21	42	0.37	−0.06	0.53
>47 years	32	64	18	16
Menopausal status
Premenopausal	26	57	20	43
Perimenopausal	04	57	03	43	1.01^∗	−0.06	0.65
Postmenopausal	31	66	16	34
Tumor size
T1	04	50	04	50
T2	47	61	30	29	0.85^∗	−0.08	0.90
T3	07	64	04	26
T4	03	75	01	25
Lymph node status
N0	28	49	29	51
N1	20	83	04	17	11.61^∗	−0.23	0.006
N2	08	57	06	43
N3	05	100	00	00
Stage
I	00	00	02	100
II	44	58	31	42	4.38^∗	−0.18	0.06
III	17	74	06	26
Histopathology
IDC	49	60	32	40
IDC + DCIS	11	65	06	35	0.49^∗	−0.009	0.90
IDC + Medullary	01	50	01	50
Grade
I	00	00	01	100
II	11	42	15	58	6.55^∗	−0.26	0.02
III	45	68	21	32
BR score
Low (3–5)	01	50	01	50
Intermediate (6–7)	13	48	14	52	5.33^∗	−0.22	0.04
High (8–9)	45	73	17	27
Perinodal extension
Negative	44	56	35	44	4.44	−0.21	0.03
Positive	17	81	04	19
Perineural invasion
Negative	57	61	37	39	0.001^∗a	−0.02	1.00
Positive	04	67	02	23
Necrosis
Negative	37	63	22	37	0.06	0.02	0.79
Positive	24	58	17	42
Metastasis
No	50	59	35	41	1.12	−0.10	0.28
Yes	11	73	04	27

Table 7

Correlation of nuclear Notch3 and clinicopathological characteristics

Characteristics	Notch3 Nuc (IRS median = 0)
	Negative		Positive		𝜒²	r	p
	N	%	N	%
Age (Median = 47)
<47 years	48	96	02	04	0.001^∗a	−0.05	1.00
>47 years	49	98	01	02
Menopausal status
Premenopausal	45	98	01	02
Perimenopausal	06	86	01	14	3.11^∗	0.11	0.19
Postmenopausal	46	98	01	02
Tumor size
T1	08	100	00	00
T2	75	97	02	03	2.72^∗	0.68	0.54
T3	10	91	01	09
T4	04	100	00	00
Lymph node status
N0	55	97	02	03
N1	23	96	01	04	1.11^∗	−0.06	1.00
N2	14	100	00	00
N3	05	100	00	00
Stage
I	02	100	00	00
II	73	97	02	03	1.71^∗	0.04	0.58
III	22	96	01	04
Histopathology
IDC	78	96	03	04
IDC + DCIS	17	100	00	00	1.36^∗	−0.08	1.00
IDC + Medullary	02	100	00	00
Grade
I	01	100	00	00
II	26	100	00	00	2.42^∗	0.11	0.57
III	63	96	03	04
BR score
Low (3–5)	02	100	00	00
Intermediate (6–7)	27	100	00	00	1.94^∗	0.12	0.58
High (8–9)	59	95	03	05
Perinodal extension
Negative	76	96	03	04	0.03^∗a	−0.09	0.85
Positive	21	100	00	00
Perineural invasion
Negative	91	97	03	03	0.001^∗a	−0.04	1.00
Positive	06	100	00	00
Necrosis
Negative	57	100	00	00	4.27^∗a	0.20	0.03
Positive	40	93	03	07
Metastasis
No	82	96	03	04	0.001^∗a	−0.07	1.00
Yes	15	100	00	00

3.1.4. Notch4 receptor expression

Localization of Notch4 receptor was observed in cytoplasm of 54% cases (Fig. 3f), cytonuclear expression was observed in 13% cases and cytomembrane expression was observed in 4% cases. As represented in Table 8, low incidence of cytoplasmic Notch4 expression was detected in younger patients (72%, 36/50,p = 0.02) and necrotic tumors (72%, 31/43, p = 0.04). However, cytomembrane and cytonuclear expression of Notch4 did not show any significant correlation with clinicopathological parameters. The association between Notch4 and clinicopathological parameters is listed in Table 8.

3.2. Intercorrelation of Notch receptors

As depicted in Table 9, it was observed that expression of Notch2 and Notch3 receptors was significantly correlated with expression of Notch4 receptor. Patients with increased levels of Notch2 expression exhibited increased levels of Notch4 receptor (84%, r = 0.19,p = 0.05) and similarly, higher levels of Notch4 receptor were detected in patients with positive Notch3 expression (76%, r = 0.26, p = 0.008). In addition, Notch1 expression was strongly correlated with nuclear expression of Notch3 (99%, r = 0.22, p = 0.02). Further, it was seen that patients with increased levels of Notch1 receptor had decreased levels of cytoplasmic Notch3 receptor (95%, r = −0.26, p = 0.007).

Fig. 3f.

Representative image of Notch4 cytoplasmic staining.

Table 8

Correlation of cytoplasmic Notch4 and clinicopathological characteristics

Characteristics	Notch4 (IRS median = 4)
	Low expression		High expression		𝜒²	r	p
	N	%	N	%
Age (Median = 47)
<47 years	36	72	14	28	5.08	0.22	0.02
>47 years	25	50	25	50
Menopausal status
Premenopausal	32	70	14	30
Perimenopausal	05	71	02	29	3.59^∗	0.10	0.15
Postmenopausal	24	51	23	49
Tumor size
T1	05	62	03	08
T2	47	61	30	39	0.62^∗	−0.01	0.94
T3	06	54	05	46
T4	03	75	01	25
Lymph node status
N0	35	61	22	39
N1	14	58	10	42	0.30^∗	−0.003	0.98
N2	09	64	05	36
N3	03	60	02	40
Stage
I	01	50	01	50
II	45	60	30	40	0.58^∗	−0.05	0.90
III	15	65	08	35
Histopathology
IDC	52	64	29	36
IDC + DCIS	07	41	10	59	3.96^∗	0.08	0.10
IDC + Medullary	02	100	00	00
Grade
I	01	100	00	00
II	14	54	12	46	1.37^∗	−0.05	0.68
III	42	64	24	36
BR score
Low (3–5)	01	50	01	50
Intermediate (6–7)	14	52	13	48	1.65^∗	−0.11	0.49
High (8–9)	40	64	22	36
Perinodal extension
Negative	48	61	31	39	0.009	−0.01	0.92
Positive	13	62	08	38
Perineural invasion
Negative	57	61	37	39	0.001^∗a	−0.02	1.00
Positive	04	67	02	33
Necrosis
Negative	31	52	28	48	4.10^∗a	−0.19	0.04
Positive	30	72	11	28
Metastasis
No	51	60	34	40	0.23	−0.04	0.63
Yes	10	67	05	33

Table 9

Intercorrelation between Notch receptors

Markers	Notch1	Notch2	Notch3	Notch4
Notch1	–	r = 0.02	r = 0.06	r = −0.04
		p = 0.81	p = 0.53	p = 0.65
Notch2	–	–	r = −0.002	r = 0.19
			p = 0.98	p = 0.05
Notch3	–	–	–	r = 0.26
				p = 0.008
Notch4	–	–	–	–

3.3. Univariate survival analysis for expression of Notch receptors in TNBC

The association between expression of Notch receptors and disease-free survival time and overall survival time of TNBC patients was investigated using Kaplan-Meier survival curves. The mean follow-up time was 37.05 months and maximum follow-up time was 75 months. During this period, 15 (15%) patients had local or distant metastasis and 15 (15%) patients had died due to the disease. As depicted in Fig. 4, with regard to disease-free survival, patients expressing higher cytoplasmic Notch2 (27%, 7/26, 50.71 ± 4.50 months) had worse disease-free survival than patients expressing lower cytoplasmic Notch2 (11%, 8/74, 66.83 ± 2.71 months, 𝜒² = 3.77, df = 1, p = 0.05). As depicted in Fig. 5, with regard to overall survival, it was observed that patients with higher incidence of cytoplasmic expression of Notch2 (31%, 8/26, 50.60 ± 3.87 months) had poor overall survival than patients with low expression of cytoplasmic Notch2 (10%, 7/74, 67.93 ± 2.48 months, 𝜒² = 5.44, df = 1, p = 0.02). Expression of other Notch receptors did not show any statistically significant relationship with disease-free survival and overall survival.

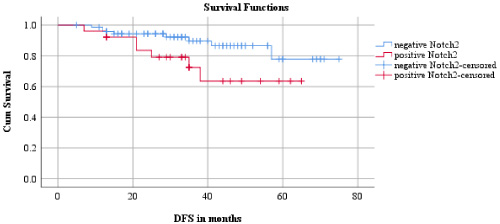

Fig. 4.

Relationship between disease-free survival and Notch2.

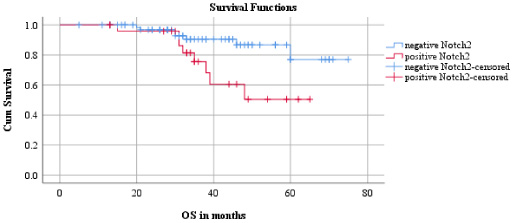

Fig. 5.

Relationship between overall survival and Notch2.

3.4. Multivariate survival analysis

Multivariate survival analysis using Cox regression model with forward selection method (likelihood ratio) revealed that, with regard to disease-free survival advanced TNM stage (Wald = 9.36, HR = 0.19, 95% CI = 0.066–0.551, p = 0.002) entered at step 1 and high BR score (Wald = 7.94, HR = 4.93, 95% CI = 1.626–14.977, p = 0.005) entered at step 2, indicating their role as poor prognostic factors. With respect to overall survival, greater tumor size (Wald = 10.69, HR = 0.57, 95% CI = 0.10–0.321, p = 0.001) entered at step 1, positive lymph node status (Wald = 5.482, HR = 7.209, 95% CI = 1.380–37.676, p = 0.019) entered at step 2, high BR score (Wald = 8.355, HR = 7.787, 95% CI = 1.936–31.317, p = 0.004) entered at step 3 and higher grade (Wald = 8.762, HR = 0.012, 95% CI = 0.001–0.223,p = 0.003) entered at step 4. Multivariate analysis carried out by Cox regression model to evaluate the prognostic role of Notch receptors expression, independent of clinicopathological parameters revealed that with respect to overall survival, cytoplasmic expression of Notch2 (Wald = 4.87, HR = 3.152, 95% CI = 1.138–8.734, p = 0.027) entered at step 1.

4. Discussion

Notch signaling pathway is known to play a vital role in normal development and growth. Notch signaling pathway is involved in embryonic development, cellular differentiation, proliferation, homeostasis and apoptosis. Numerous studies have reported that aberrant Notch expression is involved in neoplastic transformation and tumorigenesis. There are four known Notch paralogs which display different patterns in their expression and function across different malignancies. Oncogenic role of Notch signaling was first reported in T-ALL [7] and later reported in lung cancer, ovarian cancer, breast cancer, colorectal cancer [2,21,25,37,39] while tumor suppressive role of Notch signaling was reported in pancreatic cancer and hepatocellular carcinoma. [8,32]. However, research about relationship between Notch receptors and TNBC, and the association among the Notch receptors is limited and unclear.

In this study, we have examined the role of Notch receptors in TNBC cohort by analyzing the cellular localization of all four known Notch receptors by immunohistochemistry. We observed that Notch1 was expressed in the nucleus of tumor cells suggesting the translocation and accumulation of Notch intracellular domain (NICD1) in the nucleus of tumor cells. The accumulation of NICD1 in the nucleus was strongly correlated with positive lymph node status, high BR score and necrosis, indicating the tumor aggravating role of Notch1. Our data was in concordance with studies reporting the association of high-grade tumors and poor prognosis of TNBC patients with up-regulated Notch1. [13,26,38].

Furthermore, upon examination of Notch2 protein it was revealed that Notch2 was localized in the cytoplasm and nucleus of tumor cells. Despite, various studies showing evidence of tumor suppressive role of Notch2, [9,12,36] our data suggests that Notch2 receptor plays a tumor promoting role in TNBC. It was observed that high cytoplasmic Notch2 expression was significantly correlated with local or distant metastasis, however nuclear and cytonuclear expression of Notch2 did not show any statistical significance with clinicopathological parameters. Nonetheless, our study was in line with evidence presented by Lee et al. and Sehrawat et al., stating that inhibition of Notch2 was responsible for anti-apoptotic activity and inhibition of migration in TNBC cells [5,20]. Also, our study demonstrated that high levels of cytoplasmic Notch2 was positively correlated with worse disease-free survival and poor overall survival proving its tumor promoting role. Earlier studies regarding Notch pathway emphasized that nuclear translocation of NICD was required in order to trigger the downstream target genes. Although, recently it has been demonstrated that in non-canonical Notch pathway, nuclear translocation is not necessary for the pathway to be activated and it may interact with other molecules in the cytoplasm to activate the pathway [29]. Therefore, it may be suggested that the association between cytoplasmic Notch2 expression and poor prognosis of the patients might be due to non-canonical Notch pathway.

Moreover, our data represents that majority of TNBC samples exhibited high Notch3 protein levels in the cytoplasm. Along with cytoplasmic expression, membrane, cytomembrane and cytonuclear protein expression were also detected. Notably, it was revealed that up-regulated cytoplasmic Notch3 expression in tumors was associated with well differentiated tumors, low BR score tumors, lymph node negative status and perinodal extension negative status indicating that patients with up-regulated cytoplasmic Notch3 might have favorable prognosis. Our data was in line with studies demonstrating tumor suppressive role of Notch3. Zhang and colleagues observed that high expression of Notch3 inhibited cellular proliferation and tumorigenesis by activating PTEN resulting in better prognosis of breast cancer patients [40]. Another study by Chen and colleagues provided evidence that overexpression of Notch3 inhibited cell cycle progression by upregulating levels of Cdh1 in MDA-MB-231 cell lines [11]. However, contrary to above findings, it was observed that membrane and cytonuclear expression of Notch3 were strongly correlated with high BR score, poorly differentiated tumors and necrosis respectively. Although, cytonuclear expression of Notch3 was not detected frequently it was strongly associated with necrotic tumors suggesting the role of nuclear translocation in tumor promoting activity of Notch3. These results were parallel to the findings of Choy and colleagues that revealed the involvement of nuclear Notch3 expression in tumor promotion [23]. The association of increased levels of Notch3 with poorly differentiated tumors might be due to the non-canonical pathway, where membrane-bound Notch3 may have interacted with cell regulators present in the cytoplasm. These results of Notch3 suggests that nuclear translocation of Notch3 is potentially involved in promoting tumor aggravating activity, whereas membrane-bound Notch3 may act as an oncogene via activation of non-canonical pathway which does not essentially require nuclear translocation. However, the strong association of high cytoplasmic Notch3 expression with well differentiated tumors, low BR score tumors, lymph node negative status and perinodal extension negative status might be due the immature state of the receptor (as it was not translocated to the nucleus) or interaction of cytoplasmic Notch3 with tumor suppressing molecules which might be responsible for favorable prognosis of TNBC patients.

In addition, in the majority of the patients expressing Notch4 receptor, it was frequently detected in the cytoplasm. This study revealed that high levels of cytoplasmic Notch4 were negatively associated with younger age and necrotic tumors. Contrary, to studies which stated that Notch4 was associated with poor prognosis for TNBC patients [20,22], our data represents that Notch4 is inversely correlated to poor prognostic factors of the disease and may function as a good prognosticator. Concurrently, few studies have presented over expression of Notch4 receptor as tumor suppressive in melanoma and endometrial cancer [4,16]. Nonetheless, a significant association was not seen between Notch4 and survival time and therefore, the role of Notch4 in TNBC needs to be further evaluated in a larger cohort.

Further, we evaluated the co-expression patterns of Notch receptors in TNBC patients. It was observed that Notch2 and Notch3 receptors showed positive correlation with Notch4 receptor. These results were in line with the findings of Song et al. which revealed that Notch2 and Notch4 were positively correlated in pancreatic adenocarcinoma [19]. This may be interpreted as Notch receptors are significantly associated with each other and even though Notch4 might function as a good prognostic factor, together with Notch2 they may contribute to tumor promotion and poor survival of TNBC patients since, multivariate survival analysis revealed that Notch2 appeared to be a dominant receptor in relation to Notch4 and patients with Notch2 expression had worse disease-free survival and poor survival. Moreover, it was observed that nuclear expression of Notch3 was positively associated with nuclear expression of Notch1 suggesting the oncogenic role of nuclear localization of both Notch1 and Notch3 receptors. Additionally, it was noted that nuclear Notch1 expression was negatively correlated with the cytoplasmic Notch3 expression indicating opposing role of both the receptors based on their localization, as cytoplasmic Notch3 is associated with better prognosis and nuclear Notch1 is linked to poor outcome of the disease. Therefore, our results imply that interplay of Notch receptors is rather complex mechanism.

In conclusion, our study demonstrated that Notch receptors exhibit a pleiotropic role in TNBC. Notch1 and Notch2 receptors play a tumor promoting role and contribute to poor outcome in TNBC patients. It was also revealed that although membrane and cytonuclear Notch3 had tumor aggravating effects, cytoplasmic Notch3 had tumor suppressive effect. It is implicated that the tumor promoting activity of Notch receptors might be due to the canonical Notch signaling pathway which essentially requires the nuclear translocation of NICD to trigger the transcriptional regulation of target genes or it might be due to the non-canonical pathway which is activated through the interaction of Notch receptors with transcriptional regulators present in the cytoplasm to exert its effects. The tumor suppressive effect of cytoplasmic Notch3 expression may be due to the inactive state of the receptor or its interaction with tumor suppressive molecules in the cytoplasm. Therefore, it is important to assess the subcellular localization of the Notch receptors as they are ubiquitously distributed in the cells in order to evaluate their individual effects in TNBC. Hence, our results strongly indicate that Notch receptors are involved in promoting TNBC and chiefly, Notch2 receptor may serve as a potential prognostic marker and therapeutic target for patients with TNBC.

Footnotes

Acknowledgements

This research work was supported by The Gujarat Cancer Society and The Gujarat Cancer & Research Institute. The authors have no conflict of interest.

Conflicts of interest

The authors declare no conflicts of interest.

References

Edwards

, Brennan

, Notch signalling in breast development and cancer, Front Cell Dev Biol , 9: 1709, 2021..

Nandi

, Chakrabarti

, The many facets of Notch signaling in breast cancer: toward overcoming therapeutic resistance, Genes Dev , 34: 1422–1438, 2020.

Rick

, Cammie

, Burke

, Gansler

, Gapstur

, Gaudet

, Breast cancer facts & figures 2013–2014, Am Cancer Soc , 38, 2014.

Sasnauskienė

, Jonušienė

, Krikštaponienė

, Butkytė

, Dabkevičienė

, Kanopienė

, NOTCH1, NOTCH3, NOTCH4, and JAG2 protein levels in human endometrial cancer, Medicina , 50: 14–18, 2014.

Sehrawat

, Sakao

, Singh

, Notch2 activation is protective against anticancer effects of zerumbone in human breast cancer cells, Breast Cancer Res Treat , 146: 543–555, 2014.

Carey

, Carey

, Understanding and treating triple-negative breast cancer, Oncology , 22: 1233–1243, 2008.

Weng

, Ferrando

, Lee

, Morris

, Silverman

, Sanchez-Irizarry

, Activating mutations of NOTCH1 in human T cell acute lymphoblastic leukemia, Science , 306: 269–271, 2004.

Lobry

, Oh

, Aifantis

, Oncogenic and tumor suppressor functions of Notch in cancer: it’s NOTCH what you think, J Exp Med , 208: 1931–1935, 2011.

Parr

, Watkins

, Jiang

, The possible correlation of Notch-1 and Notch-2 with clinical outcome and tumour clinicopathological parameters in human breast cancer, Int J Mol Med , 14: 779–786, 2004.

10.

Sanchez-Irizarry

, Carpenter

, Weng

, Pear

, Aster

, Blacklow

, Notch subunit heterodimerization and prevention of ligand-independent proteolytic activation depend, respectively, on a novel domain and the LNR repeats, Mol Cell Biol , 24: 9265–9273, 2004.

11.

Chen

, Dou

, Liang

, Lin

, Bai

, Zhang

, Notch3 overexpression causes arrest of cell cycle progression by inducing Cdh1 expression in human breast cancer cells, Cell Cycle , 15: 432–440, 2016.

12.

O’Neill

, Urs

, Cinelli

, Lincoln

, Nadeau

, León

, Notch2 signaling induces apoptosis and inhibits human MDA-MB-231 xenograft growth, Am J Pathol , 171: 1023–1036, 2007.

13.

Kim

, Lee

, Kang

, Kim

, Yoo

, Oh

, Notch1 in tumor microvascular endothelial cells and tumoral miR-34a as prognostic markers in locally advanced triple-negative breast cancer, J Breast Cancer , 22: 562–578, 2019.

14.

Maier

, The evolution of transcriptional repressors in the Notch signaling pathway: a computational analysis, Hereditas , 156: 1–18, 2019.

15.

Renan Gomes

, Otoni

, Histological and molecular classification of breast cancer: what do we know? Mastology , 302020.

16.

Rad

, Hammerlindl

, Wels

, Popper

, Menon

, Breiteneder

, Notch4 signaling induces a Mesenchymal–Epithelial–like transition in melanoma cells to suppress malignant behaviors, Cancer Res , 76: 1690–1697, 2016.

17.

Marmé

, Schneeweiss

, Targeted therapies in triple-negative breast cancer, Breast Care , 10: 159–166, 2015.

18.

Dontu

, Jackson

, McNicholas

, Kawamura

, Abdallah

, Wicha

, Role of Notch signaling in cell-fate determination of human mammary stem/progenitor cells, Breast Cancer Res , 6: 1–11, 2004.

19.

Song

, Wang

, Lan

, Zhang

, Expression of Notch receptors and their ligands in pancreatic ductal adenocarcinoma, Exp Ther Med , 16: 53–60, 2018.

20.

Lee

, Sehrawat

, Singh

, Withaferin A causes activation of Notch2 and Notch4 in human breast cancer cells, Breast Cancer Res Treat , 136: 45–56, 2012.

21.

Groeneweg

, Foster

, Growdon

, Verheijen

, Rueda

, Notch signaling in serous ovarian cancer, J Ovarian Res , 7: 1–12, 2014.

22.

Wang

, Wei

, Dou

, Huang

, Du

, Zhang

, The association between Notch4 expression, and clinicopathological characteristics and clinical outcomes in patients with breast cancer, Oncol Lett , 15: 8749–8755, 2018.

23.

Choy

, Hagenbeek

, Solon

, French

, Finkle

, Shelton

, Constitutive NOTCH3 signaling promotes the growth of basal breast cancers, Cancer Res , 77: 1439–1452, 2017.

24.

Beniey

, Haque

, Hassan

, Translating the role of PARP inhibitors in triple-negative breast cancer, Oncoscience , 6: 287, 2019.

25.

Brzozowa-Zasada

, Piecuch

, Michalski

, Segiet

, Kurek

, Harabin-Słowińska

, Notch and its oncogenic activity in human malignancies, Eur Surg , 49: 199–209, 2017.

26.

Reedijk

, Odorcic

, Chang

, Zhang

, Miller

, McCready

, High-level coexpression of JAG1 and NOTCH1 is observed in human breast cancer and is associated with poor overall survival, Cancer Res , 65: 8530–8537, 2005.

27.

Shen

, Pan

, Chen

, Xu

, Yang

, Wu

, A review of current progress in triple-negative breast cancer therapy, Open Med , 15: 1143–1149, 2020.

28.

Eliyatkın

, Yalçın

, Zengel

, Aktaş

, Vardar

, Molecular classification of breast carcinoma: from traditional, old-fashioned way to a new age, and a new way, J Breast Health , 11: 59, 2015.

29.

Andersen

, Uosaki

, Shenje

, Kwon

, Non-canonical Notch signaling: emerging role and mechanism, Trends Cell Biol , 22: 257–265, 2012.

30.

Kumar

, Aggarwal

, An overview of triple-negative breast cancer, Arch Gynecol Obstet , 293: 247–269, 2016.

31.

Ntziachristos

, Lim

, Sage

, Aifantis

, From fly wings to targeted cancer therapies: a centennial for notch signaling, Cancer Cell , 25: 318–334, 2014.

32.

Viatour

, Ehmer

, Saddic

, Dorrell

, Andersen

, Lin

, Notch signaling inhibits hepatocellular carcinoma following inactivation of the RB pathway, J Exp Med , 208: 1963–1976, 2011.

33.

Kopan

, Notch signaling, Cold Spring Harbor Perspect Biol , 4: a011213, 2012.

34.

Artavanis-Tsakonas

, Md

, Lake

, Notch signaling: cell fate control and signal integration in development, Science , 284: 770–776, 1999.

35.

Sørlie

, Wang

, Xiao

, Johnsen

, Naume

, Samaha

, Distinct molecular mechanisms underlying clinically relevant subtypes of breast cancer: gene expression analyses across three different platforms, BMC Genom , 7: 1–15, 2006.

36.

Strati

, Kotoula

, Kostopoulos

, Manousou

, Papadimitriou

, Lazaridis

, Prognostic subcellular Notch2, Notch3 and Jagged1 localization patterns in early triple-negative breast cancer, Anticancer Res , 37: 2323–2334, 2017.

37.

Yuan

, Wu

, Xu

, Han

, Chu

, Yu

, Meta-analysis reveals the correlation of Notch signaling with non-small cell lung cancer progression and prognosis, Sci Rep , 5: 1–12, 2015.

38.

Yuan

, Zhang

, Wu

, Xu

, Han

, Chu

, Expression of Notch1 correlates with breast cancer progression and prognosis, PLoS One , 10: e0131689, 2015.

39.

Zhang

, Li

, Ji

, Zheng

, Notch1 regulates the growth of human colon cancers, Cancer , 116: 5207–5218, 2010.

40.

Zhang

, Liang

, Wu

, Chen

, Li

, Notch3 inhibits cell proliferation and tumorigenesis and predicts better prognosis in breast cancer through transactivating PTEN, Cell Death Dis , 12: 1–16, 2021.
