Articular cartilage response to a sliding load using two different-sized spherical indenters 1

Abstract

Background:

Cartilage surface contact geometry influences the deformational behavior and stress distribution throughout the extracellular matrix (ECM) under load.

Objective:

To test the correlation between the mechanical and cellular response of articular cartilage when loaded with two different-sized spherical indenters under dynamic reciprocating sliding motion.

Methods:

Articular cartilage explants were subjected to a reciprocating sliding load using a 17.6 mm or 30.2 mm spherical ball for 2000 cycles at 10 mm/s and 4 kg axial load. Deformation of the cartilage was recorded and contact parameters were calculated according to Hertzian theory. After mechanical loading cartilage samples were collected and analyzed for ECM collagen damage, gene regulation and proteoglycan (PG) loss.

Results:

Significantly higher ECM deformation and strain and lower dynamic effective modulus were found for explants loaded with the smaller diameter indenter whereas contact radius and stress remained unaffected. Also, the 17.6 mm indenter increased PG loss and significantly upregulated genes for ECM proteins and enzymes as compared to the 30.2 mm indenter.

Conclusion:

Sliding loads that increase ECM deformation/strain were found to induce enzyme-mediated catabolic processes in articular cartilage explants. These observations provide further understanding of how changes in cartilage contact mechanics under dynamic conditions can affect the cellular response.

Keywords

Contact mechanics indenter size mechanobiology gene regulation proteoglycan loss

1. Introduction

From decades of research on the mechanical and biological responses of cartilage to various stimuli, it is clear that mechanical factors have considerable influence on cartilage health and disease [1–3]. Strains and stresses have long been identified as parameters influencing chondrocyte metabolism and extracellular matrix (ECM) integrity. Forces within a physiological range are associated with normal ECM turnover and an effort of the chondrocytes to adapt the ECM in response to the loading conditions [4,5]. On the other hand, non-physiological forces have been shown to lead to ECM damage that manifests itself in proteoglycan (PG) loss and collagen fiber disruption [6] and an increase in catabolic enzymes such as matrix metalloproteinases (MMPs) and disintegrin and metalloproteinase with thrombospondin motifs (ADAMTS’) [7–10]. Also, the increase in other proteins that are associated with degenerative changes of the ECM have been reported, such as fibronectin and cartilage oligomeric matrix protein (COMP) [11–13]. How the chondrocytes within the cartilage ECM respond to mechanical forces, that is anabolic or catabolic biosynthesis, will depend on the magnitude of the strains and stresses within the ECM. Based on these described mechanism, we would expect that relative to the larger diameter indenter, the smaller indenter would cause increased surface fibrillation, increased enzyme gene expressions for MMP-3, MMP-13, ADAMTS-4 and ADAMTS-5, and increased protein gene expression for collagen type II, aggrecan, fibronectin and COMP. From biomechanical studies it is known that these parameters are functions of loading rate and duration and also the location-dependent mechanical properties of the ECM [14–17].

A further factor influencing contact mechanics and local ECM strains and stresses is the geometry of the contacting cartilage surfaces [18]. The two cartilage surfaces engaging in relative motion are never perfectly congruent, and as a consequence geometrical differences will influence the deformational behavior and stress distribution throughout the ECM, ultimately influencing the mechanobiological response of the tissue. In fact, studies have shown that the degree of congruence between the opposing cartilage surfaces can influence cartilage contact parameters in the ECM, and even small variations in geometry can lead to significant changes in contact mechanics which have been correlated with osteoarthritis (OA)-related changes [18,19]. However, the vast majority of such studies were patient-specific and based on imaging techniques in combination with finite element models (FEM). While these data provide valuable epidemiological information, general information on how the mechanobiological reaction of articular cartilage to changing contact geometries during joint motion is difficult to obtain. A limited number of in vitro studies have analyzed the mechanical response of articular cartilage to different indenter curvatures under dynamic sliding loads. These found that by using spherical indenters the contact radius was a function of indenter curvature and sliding speed [20–22]. Hence, indenter shape and size are crucial factors governing the contact mechanics, and the change of either can lead to alterations in ECM strains and stresses. Thus, the aim of this study was to investigate the influence of indenter curvature (spherical radius) on contact mechanics (strains and stresses) during reciprocating sliding motion and how this affected the metabolic response of the chondrocytes evoked through changes in the mechanical environment.

We hypothesized that the application of a sliding load with a small diameter spherical indenter, compared to a large diameter spherical indenter, would result in increased cartilage damage, catabolic gene up-regulation and PG loss. We postulated that the main mechanical mechanisms for this mechanobiological response were due to the increased ECM strains and stresses that arise from the reduced contact area between the smaller diameter indenter and the cartilage surface [23]. Based on this damage mechanism, we hypothesized that relative to the larger diameter indenter the smaller indenter would cause increased surface fibrillation, increased enzyme gene expressions for MMP-3, MMP-13, ADAMTS-4 and ADAMTS-5, and increased protein gene expression for collagen type II, aggrecan, fibronectin and COMP.

In order to test our hypotheses, we applied a dynamic reciprocating sliding load on the surface of articular cartilage explants using two different-sized spherical indenters. We then calculated the contact mechanical parameters of the tissue during loading and correlated these results with the biological responses. We believe that the findings from this type of dynamic in vitro mechanobiological model will be useful for studying degenerative changes occurring during the early phases of OA.

2. Methods

Unless otherwise indicated, all chemicals were purchased from Thermo Fisher Scientific, Waltham, MA.

2.1. Tissue acquisition

Skeletally mature bovine knees (>18 months) were obtained from a local abattoir within twenty-four hours of death. The intact joint capsule was opened and the femoral condyles covered with gauze soaked in phosphate buffered saline (PBS) containing 1% antibiotic/antimycotic (ab/am) to prevent drying and degradation. The condyles were then removed using an electrical saw, the condyles rinsed with PBS + 1% ab/am to remove blood and bone marrow, covered with gauze soaked in culture medium (Dulbecco’s modified eagle’s medium (DMEM) without phenol red, supplemented with 1% ab/am, 10 mM Hepes buffer, 1 mM sodium pyruvate and 4 mM L-glutamin), and stored in an incubator overnight at 37°C for testing on the next day.

2.2. Sliding experiments

As previously described, a condyle was mounted into a custom-designed dynamic articular cartilage test system (DACTS) [16] with a continuous flow of sterile culture medium applied to the cartilage surface for the duration of the experiment.

To obtain the curvature of the specimen, the indenter was repeatedly lowered onto the cartilage surface yielding a force-deformation response. Force in the y-direction and displacements in the x- and y-directions were recorded using a load cell and two linear variable differential transducers (LVDTs), respectively (Fig. 1(A)). The resulting force-deformation curve at each location along the surface was used to calculate the surface location (at contact), which was later used to calculate the cartilage thickness after the cartilage was removed from the underlying subchondral bone. After a 20-minute recovery period the sliding protocol was applied by lowering the indenter onto the apex ( $x = 0$ ) of the condyle. A 39.2 N axial force was applied and the indenter cyclically slid over the cartilage for 40 mm ( $x = \pm 20$ mm) in the x-direction at 10 mm/s sliding speed for 2000 cycles (Fig. 1). To obtain the location of the true cartilage surface during sliding, the coordinates of the ball center at surface contact along the path of motion were fitted using a 3rd order polynomial and used to calculate the curvature of the condyle and deformation of the cartilage, as previously described [16]. Two different-sized indenters, 17.6 mm and 30.2 mm diameter, (Delrin) were used to load the cartilage (Fig. 1(B) and (C)). Indenters were approximated from curvatures of human mandibular condylar heads (5th and 95th percentile). Immediately after 2000 cycles, full-depth cartilage specimens where removed for analyses (Fig. 1(D)). Thereafter, the entire cartilage layer was removed, the bone surface mapped as described above and used to calculate the cartilage layer thickness.

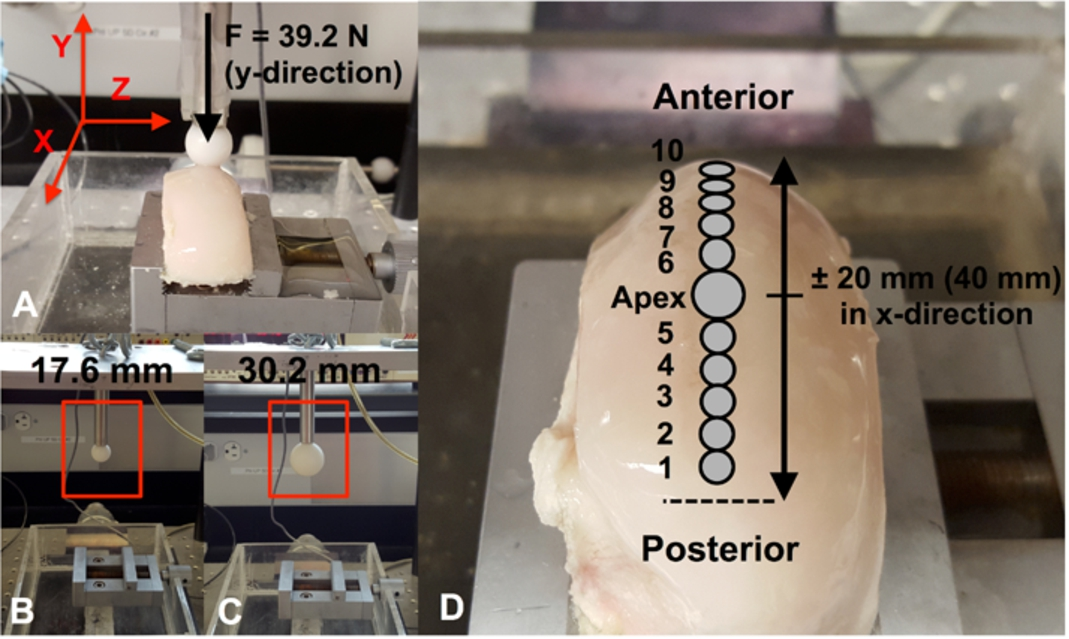

Fig. 1.

(A) The Dynamic Articular Cartilage Test System (DACTS) is shown with the 39.2 N force positioned at the apex of the condyle and the load applied in the y-direction. Two different-sized indenters were used in this study ((B) and (C)). (D) The locations along the condyle loading path where biological specimens are collected for analysis after the application of the sliding load. Specimens from the corresponding unloaded control where removed from the same areas on the condyle.

2.3. Mechanical analysis

For each loading cycle a 3rd order polynomial was fit to the deformed articular surface and corrected for curvature as described above. The initial thickness and deformation of the cartilage during the cyclic loading was calculated using a Matlab (MathWorks, Natick, MA) routine to determine the minimum distance between the cartilage surface and underlying subchondral bone. Total strain (ϵ) was calculated from the deformation (δ) divided by the initial thickness ( $l_{0}$ ) $\begin{matrix} (1) & (ε = \frac{δ}{l_{0}}) . \end{matrix}$

Contact radius, maximum stress and dynamic effective modulus were calculated using Hertzian theory of elastic deformation [23]. The contact radius (a) between the indenter and the cartilage was calculated using $\begin{matrix} (2) & a = \sqrt{δ \cdot R^{'}} \end{matrix}$ where the reduced radius ( $R^{'}$ ) for the indenter (radius $R_{a}$ ) and condyle (radius $R_{b}$ ) is given by $1 / R^{'} = 1 / R_{a} + 1 / R_{b}$ . The condyle radius was calculated from the polynomial fit to the cartilage surface given by $\begin{matrix} (3) & R_{b} = \frac{{[1 + {(\frac{d y}{d x})}^{2}]}^{\frac{3}{2}}}{| \frac{d^{2} y}{d x^{2}} |} \end{matrix}$

The maximum contact stress ( $σ_{max}$ ) and dynamic effective modulus ( $E^{*}$ ) where then calculated at each location along the sliding path on the condyle for each individual cycle using Hertzian theory. We modeled the cartilage layer as a thin elastic compressible layer bonded to a rigid substrate (bone), which was considered incompressible. The effective modulus ( $E^{*}$ ) was calculated using $\begin{matrix} (4) & E^{*} = \frac{3 \cdot F \cdot R^{^{'} - 0.5} \cdot δ^{- 1.5}}{4} \end{matrix}$ and the maximum contact stress ( $σ_{max}$ ) calculated from $\begin{matrix} (5) & σ_{max} = \frac{2 \cdot F}{π \cdot a^{2}} \end{matrix}$ both formulas for spherical indentation of a thin layer on a rigid substrate from Jaffar [24]. While the effective modulus $E^{*}$ is not a true material property for cartilage (it depends on several factors, such as the material properties of the cartilage and Delrin sphere, the sliding speed, deformation rate, and the reduced radius), it does provide a measure for relative changes between the different indenters in this study.

2.4. Biological analysis

Eight knees (16 condyles) were used in this study; four were used for PG loss analysis (knee 1–4) and four for gene expression analysis (knee 5–8). For each indenter, a medial or lateral condyle was loaded, with the contralateral unloaded condyle serving as a control (Table 1). To investigate the biological response of the cartilage to the two different-sized indenters, a 5 mm cartilage specimen for histological staining was removed from the apex of the condyle immediately after loading and put in 10% buffered formalin (Pharmco-Aaper, Brookfield, CT) + 1% cetylpyridinium chloride (Sigma-Aldrich, St. Louis, MO). In order to correlate the mechanical parameters to chondrocyte gene expression and PG loss along the loading path, ten 3 mm diameter cartilage specimens were removed from the loading path and incubated in culture medium at 37°C as described below (Fig. 1). The specimens were collected at known locations.

Table 1
Sampling location and number of specimens used for pooling for different analyses

Condyles Indenter radius Sample size Test used

Proteoglycan loss 4 knees (8 condyles) 1 × loaded medial 18 mm 10 Two-tailed Student’s t-test (medial and lateral samples analyzed individually)

1 × loaded lateral 18 mm 10

1 × control medial 18 mm 10

1 × control lateral 18 mm 10

1 × loaded medial 32 mm 10

1 × loaded lateral 32 mm 10

1 × control medial 32 mm 10

1 × control lateral 32 mm 10

mRNA analysis 4 knees (8 condyles) 2 × loaded (medial + lateral) 18 mm 20 Two-tailed Student’s t-test (medial and lateral samples pooled)

2 × control (medial + lateral) 18 mm 20

2 × loaded (medial + lateral) 32 mm 20

2 × control (medial + lateral) 32 mm 20

Mechanical analysis 4 knees (8 condyles) 2 × medial + 2 × lateral 18 mm 44 Two-tailed Student’s t-test (medial and lateral samples pooled, incl. apex)

2 × medial + 2 × lateral 32 mm 44

	Condyles	Indenter radius	Sample size	Test used
Proteoglycan loss 4 knees (8 condyles)	1 × loaded medial	18 mm	10	Two-tailed Student’s t-test (medial and lateral samples analyzed individually)
1 × loaded lateral	18 mm	10
1 × control medial	18 mm	10
1 × control lateral	18 mm	10
1 × loaded medial	32 mm	10
1 × loaded lateral	32 mm	10
1 × control medial	32 mm	10
1 × control lateral	32 mm	10
mRNA analysis 4 knees (8 condyles)	2 × loaded (medial + lateral)	18 mm	20	Two-tailed Student’s t-test (medial and lateral samples pooled)
2 × control (medial + lateral)	18 mm	20
2 × loaded (medial + lateral)	32 mm	20
2 × control (medial + lateral)	32 mm	20
Mechanical analysis 4 knees (8 condyles)	2 × medial + 2 × lateral	18 mm	44	Two-tailed Student’s t-test (medial and lateral samples pooled, incl. apex)
2 × medial + 2 × lateral	32 mm	44

2.4.1. Histology

Immediately after collection cartilage specimens were put into formalin for 3 hours, washed 3 times with tap water and stored in 70% ethanol at 4°C for further processing. The samples were dehydrated using a gradient of ethanol from 70% to 100%, 2 steps of xylene and 3 steps of hot molten paraffin. The tissue was embedded in paraffin, cut at 5 μm thickness and mounted on a coverslip. In order to enhance attachment of the section to the glass slide, they were heated to 56°C overnight. Before staining, paraffin sections are rehydrated with 2 washes of xylene and a gradient of ethanol from 100% to 70%. As described below, sections were stained using safranin-O and picrosirius red for PG and collagen contents, respectively. Following staining, sections were rehydrated in a gradient of ethanol up to 100%, washed in xylene, air-dried, and cover-slipped using mounting medium. The sections were viewed via light microscopy with a polarizing filter added to view the collagen structure in the picrosirius red stained sections [25]. Matrix damage in the loaded cartilage was qualitatively assessed by visually comparing the loaded cartilage histology sections to similarly prepared histology sections of healthy cartilage. No grading system was used.

Safranin-O. Sections were stained in Mayer’s Hematoxylin for 7 minutes and washed in running tap water. Next, sections were counterstained in Fast Green (Sigma-Aldrich, St. Louis, MO) solution for 15 minutes, and quickly rinsed with 1% acetic acid solution for 15 seconds before staining in 0.1% safranin-O (Sigma-Aldrich) solution for 20 minutes.

Picrosirius red. Sections were stained in Fast Green for 10 minutes, transferred to 1% acetic acid for 2 minutes and quickly rinsed in tap water. Next, sections were stained in picrosirius red (Sigma-Aldrich) for 30 minutes before being rinsed in tap water.

2.4.2. Proteoglycan loss

To investigate proteoglycan loss, medial and lateral condyles were analyzed separately. The 3 mm cartilage specimens were incubated in 700 μl culture medium at 37°C for 48 hours. After 24 hours, medium was collected, frozen at −20°C for further analysis and replaced with new culture medium. After 48 hours, culture medium was again collected and the cartilage specimen digested in 1 mg/mL proteinase K (MP Biomedical, Santa Ana, CA) for 16 hours at 56°C. Digests and conditioned media samples were used to determine the proteoglycan content using the dimethylmethylene blue (DMMB) assay [26]. The initial proteoglycan concentration of each sample was calculated by adding the loss after 24 and 48 hours to the proteoglycan measured in the tissue.

2.4.3. Gene expression analysis

Cartilage specimens for gene expression analysis were incubated in culture medium at 37°C for 4 hours after loading was applied and subsequently frozen in liquid nitrogen for further analysis. Total RNA was extracted using the phenol-chloroform extraction method [27]. Genes for ECM proteins (aggrecan, type II collagen, fibronectin, cartilage oligomeric matrix protein (COMP)) and catabolic enzymes (MMP-3/-13 and ADAMTS-4/-5) were analyzed. Glyceraldehyde-3-phospahte dehydrogenase (GAPDH) and ribosomal protein L13a (RPL13a) were used as calibrator genes and delta–delta Ct (ΔΔCt) values were calculated for each gene. Forward and reverse primers for all genes used in this study can be found in Table 2.

Table 2
Forward and reverse primers

Gene Forward Reverse

GAPDH GGGTCATCATCTCTGCACCT GGTCATAAGTCCCTCCACGA

RPL13a GCCTACTCGCAAGTTTGCCT GCCGTTACTGCCTGGTACTT

Aggrecan GGGAGGAGACGACTGCAATC CCCATTCCGTCTTGTTTTCTG

Collagen II GCTTCCACTTCAGCTATGGA CAGGTAGGCAATGCTGTTCT

Fibronectin CTACCCTCACGTTGTGGGAC TTCCAGGAACTCGGAACTGT

COMP ACCCAGACCAGCGAAATACG ATCTGAGTTGGGCACCTTGG

MMP-3 GCAAGCCATTAAGACCACATCA TTCTAGATATTGCTGAACAAGCTCC

MMP-13 TCCAGTTTGCAGAGAGCTACC CTGCCAGTCACCTCTAAGCC

ADAMTS-4 CATCCTACGCCGGAAGAGTC CATGGAATGCCGCCATCTTG

ADAMTS-5 TGGAAAGGGACGATTCGGTG AGAGGTCAAAGACTGCCAGC

Gene	Forward	Reverse
GAPDH	GGGTCATCATCTCTGCACCT	GGTCATAAGTCCCTCCACGA
RPL13a	GCCTACTCGCAAGTTTGCCT	GCCGTTACTGCCTGGTACTT
Aggrecan	GGGAGGAGACGACTGCAATC	CCCATTCCGTCTTGTTTTCTG
Collagen II	GCTTCCACTTCAGCTATGGA	CAGGTAGGCAATGCTGTTCT
Fibronectin	CTACCCTCACGTTGTGGGAC	TTCCAGGAACTCGGAACTGT
COMP	ACCCAGACCAGCGAAATACG	ATCTGAGTTGGGCACCTTGG
MMP-3	GCAAGCCATTAAGACCACATCA	TTCTAGATATTGCTGAACAAGCTCC
MMP-13	TCCAGTTTGCAGAGAGCTACC	CTGCCAGTCACCTCTAAGCC
ADAMTS-4	CATCCTACGCCGGAAGAGTC	CATGGAATGCCGCCATCTTG
ADAMTS-5	TGGAAAGGGACGATTCGGTG	AGAGGTCAAAGACTGCCAGC

2.5. Statistics

Average values for all measured parameters are given as the mean ± standard deviation unless otherwise indicated. To increase parameter numbers for statistical analysis, pooling of medial and lateral condyle data was performed only when no statistical differences were found (mechanical and nRNA data) by one-way ANOVA between the sampling locations, as described below and in Table 1. Two-tailed Student’s t-tests were used to compare the means between loaded and unloaded control groups and the two different indenters under the assumption that the variances of the populations are equal. The relationship between mechanical parameters and gene expression was assessed with univariate linear regression analysis using r-squared ( $r^{2}$ ) to explain the response variability and the slope of the curve to determine if the predictor is significant. The results were considered statistically significant when the significance level (α) was ⩽0.05. Multiple comparisons were adjusted by the Tukey’s range test.

3. Results

Each unloaded knee (medial or lateral control condyle) was analyzed for differences in PG loss and gene expression along the loading path, and also for differences between the knees. For each knee there were no significant differences in PG loss and gene expression found for the different sampling locations along the loading path. However, significant differences in PG loss but not for gene expression were found between controls of medial and lateral condyles (Figs 2 and 3).

3.1. Mechanics

For each knee, the mechanical parameters for the loaded condyles did not differ along the sliding path. However differences in mechanical parameters were found between medial and lateral condyles loaded with the same indenter size (see Tables 3 and 4). Figure 4 shows the statistical analysis of mechanical parameters averaged over the sampling path (locations 1–10) (medial and lateral condyles were pooled only for the mechanical analysis). Sliding with the smaller 17.6 mm diameter indenter resulted in larger deformations ( $p < 0.0001$ ), strains ( $p = 0.003$ ) and dynamic effective moduli ( $p = 0.0002$ ) compared to the 30.2 mm diameter indenter, while the contact radius and stress remained unaffected by indenter size. The individual mean ± standard deviations for the mechanical parameters used for correlation with the gene expression and PG loss are given in Tables 3 and 4, respectively.

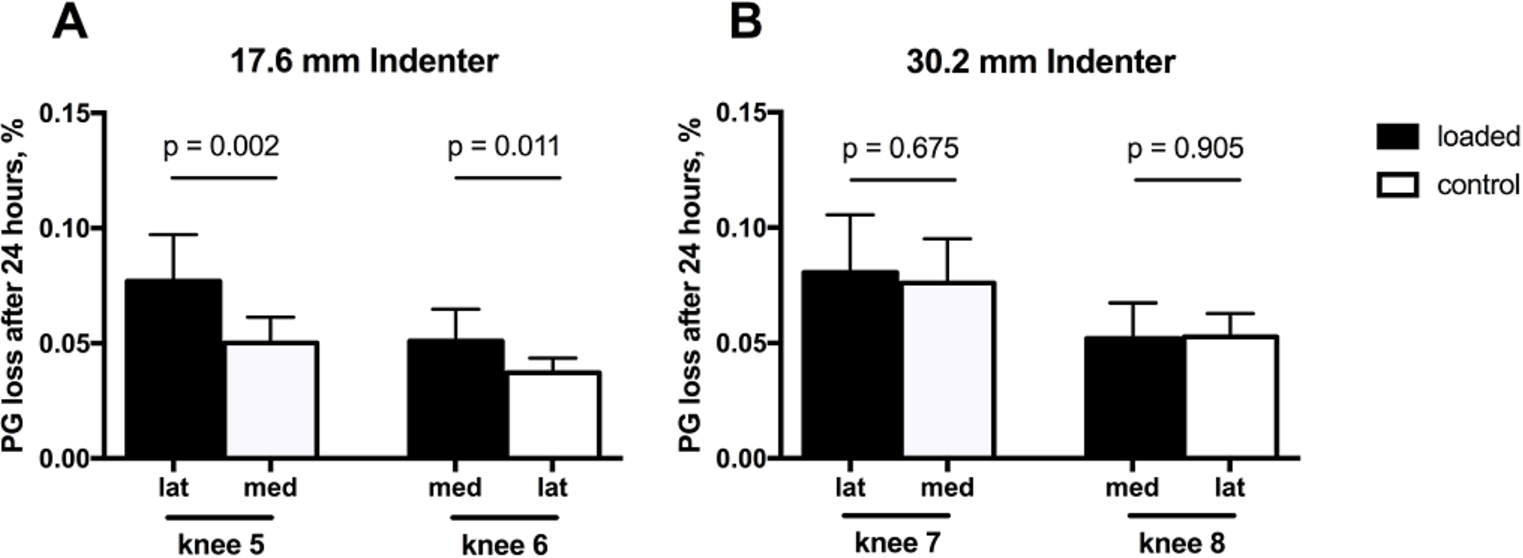

Fig. 2.

PG loss (percent of total PG content) for each knee in loaded and control specimens after 24 hrs incubation for the (A) 17.6 mm diameter and (B) 30.2 mm diameter indenters. Each bar represents the mean ± SD ( $N = 10$ ).

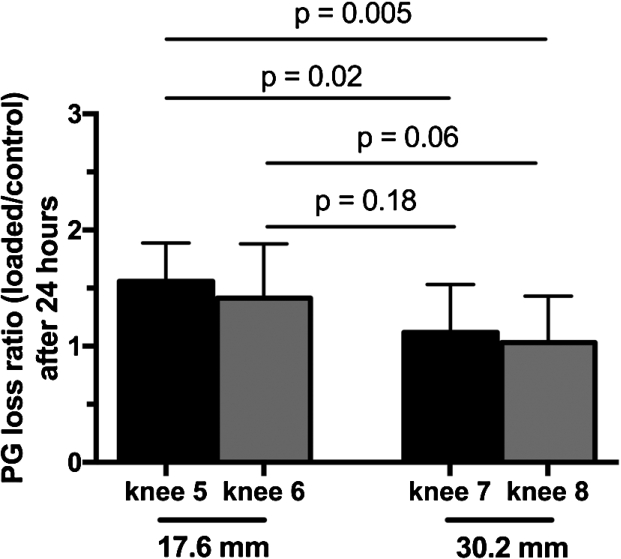

Fig. 3.

PG loss ratio (loaded/control) after 24 hours. Each bar represents the mean ± SD ( $N = 10$ ).

Table 3

Mechanical parameters from loaded condyles used for gene expression analysis

Knee #	Condyle	Indenter diameter (mm)	Deformation (mm)	Strain (%)	Contact radius (mm)	Contact stress (MPa)	Dynamic effective modulus (MPa)
1	Lateral	17.6	0.31 ± 0.05	28.69 ± 8.91	1.38 ± 0.16	12.56 ± 2.65	66.37 ± 16.44
2	Medial	17.6	0.36 ± 0.04	27.97 ± 7.55	1.49 ± 0.09	10.66 ± 1.32	51.97 ± 7.43
3	Lateral	30.2	0.22 ± 0.07	17.47 ± 5.64	1.53 ± 0.26	11.50 ± 4.87	76.22 ± 18.62
4	Medial	30.2	0.24 ± 0.06	23.74 ± 4.46	1.60 ± 0.20	10.07 ± 3.27	70.58 ± 16.17

Data presented as Mean ± SD.

Table 4

Mechanical parameters from loaded condyles used for PG loss analysis

Knee #	Condyle	Indenter diameter (mm)	Deformation (mm)	Strain (%)	Contact radius (mm)	Contact stress (MPa)	Dynamic effective modulus (MPa)
5	Lateral	17.6	0.47 ± 0.08	26.23 ± 4.93	1.74 ± 0.10	7.85 ± 1.00	35.01 ± 8.49
6	Medial	17.6	0.36 ± 0.06	27.57 ± 3.79	1.51 ± 0.11	10.56 ± 1.64	54.03 ± 13.00
7	Lateral	30.2	0.33 ± 0.13	30.60 ± 5.83	1.88 ± 0.40	7.95 ± 3.42	60.45 ± 38.80
8	Medial	30.2	0.23 ± 0.07	21.78 ± 4.92	1.46 ± 0.21	12.04 ± 4.04	76.84 ± 25.08

Data presented as Mean ± SD.

Fig. 4.

Calculated mechanical parameters for the small and large spherical indenters for the last cycle of the loading phase. Each bar represents the mean ± standard deviation of four condyles with 11 sampling locations per condyle ( $N = 44$ ).

3.2. Biology

3.2.1. Histology

No visual differences in Safranin-O stain intensity, a measure of PG content, was observed between loaded and control samples for either indenter. In addition, picrosirius red stained sections, which highlight collagen when analyzed under polarized light microscopy, showed no collagen disruption at the articular surface or change in collagen alignment and orientation within the ECM between the different indenters or controls.

3.2.2. Gene expression

No differences in gene regulation were found for control samples with respect to sampling location and between medial and lateral condyles. Therefore, controls from different locations and corresponding condyles of each indenter group were averaged ( $n = 20$ ) and the loaded samples normalized by the control mean values in order to get relative fold changes in gene expression (Fig. 5). Gene expressions for matrix proteins were significantly increased relative to their controls when loaded with the 17.6 mm but not with the 30.2 mm indenter. The only enzymes that were significantly up-regulated were MMP-3 and ADAMTS-5 when loaded with the 17.6 mm indenter. No difference in the gene expressions for MMP-13 and ADAMTS-4 was observed between the loaded and control samples.

Fig. 5.

Relative gene expression level (loaded/control) of genes for ECM proteins: (A) aggrecan, (B) collagen type II, (C) fibronectin and (D) COMP, and catabolic enzymes: (E) MMP-3, (F) MMP-13, (G) ADAMTS-4 and (H) ADAMTS-5. Each bar represents the mean ± SD for two condyles ( $N = 20$ ).

A univariate regression analysis was performed between the mechanical parameters and gene expressions that were significantly affected (up-regulated) by the indenter size (Table 5). Several of the genes were found to be significantly correlated with deformation (AGG, COLL2, FN, COMP, MMP-3) and dynamic effective modulus (AGG, COLL2, FN) (Figs 6, 7 and 8). However, only collagen type II was correlated with strain (Table 5).

Table 5

Univariate regression analysis between mechanical parameters and gene expression that were significantly affected by indenter size. R-squared explains the response variability while the p-value determines the significance of the predictor ( $N = 40$ )

	Aggrecan	Collagen Type II	Fibronectin	COMP	MMP-3	ADAMTS-5
Deformation
Equation	$Y = 4.378 * X + 0.3195$	$Y = 8.248 * X - 1.032$	$Y = 8.406 * X - 0.5348$	$Y = 13.74 * X - 1.266$	$Y = 2.663 * X + 0.8048$	$Y = 1.028 * X + 1.373$
Slope (95% CI)	2.098 to 6.658	5.107 to 11.39	4.271 to 12.54	5.657 to 21.82	0.005344 to 5.32	−3.247 to 5.302
R square	0.28	0.43	0.31	0.24	0.10	0.01
P-value	0.0004	<0.0001	0.0002	0.0014	0.049	0.63
Strain
Equation	$Y = 0.02098 * X + 1.055$	$Y = 0.1058 * X - 1.267$	$Y = 0.03149 * X + 1.093$	$Y = 0.04222 * X + 1.621$	$Y = 0.02626 * X + 0.9221$	$Y = 0.01254 * X + 1.359$
Slope (95% CI)	−0.004957 to 0.04692	0.08349 to 0.1281	−0.01692 to 0.0799	−0.04888 to 0.1333	−0.0002224 to 0.05275	−0.02996 to 0.05503
R square	0.07	0.71	0.04	0.02	0.10	0.01
P-value	0.11	<0.0001	0.20	0.35	0.05	0.55
Dynamic effective modulus
Equation	$Y = - 0.009296 * X + 2.246$	$Y = - 0.0278 * X + 3.23$	$Y = - 0.02317 * X + 3.491$	$Y = - 0.02889 * X + 4.73$	$Y = - 7.241 e - 005 * X + 1.639$	$Y = 0.0126 * X + 0.8798$
Slope (95% CI)	−0.02154 to 0.002951	−0.04543 to −0.01016	−0.04579 to −0.0005516	−0.07287 to 0.01508	−0.01328 to 0.01313	−0.008072 to 0.0332
R square	0.06	0.23	0.11	0.05	0.00	0.04
P-value	0.13	0.003	0.04	0.19	0.99	0.22

Fig. 6.

Scatterplots of the regression analysis between deformation and the investigated genes ( $N = 40$ ).

Fig. 7.

Scatterplots of the regression analysis between strain and the investigated genes ( $N = 40$ ).

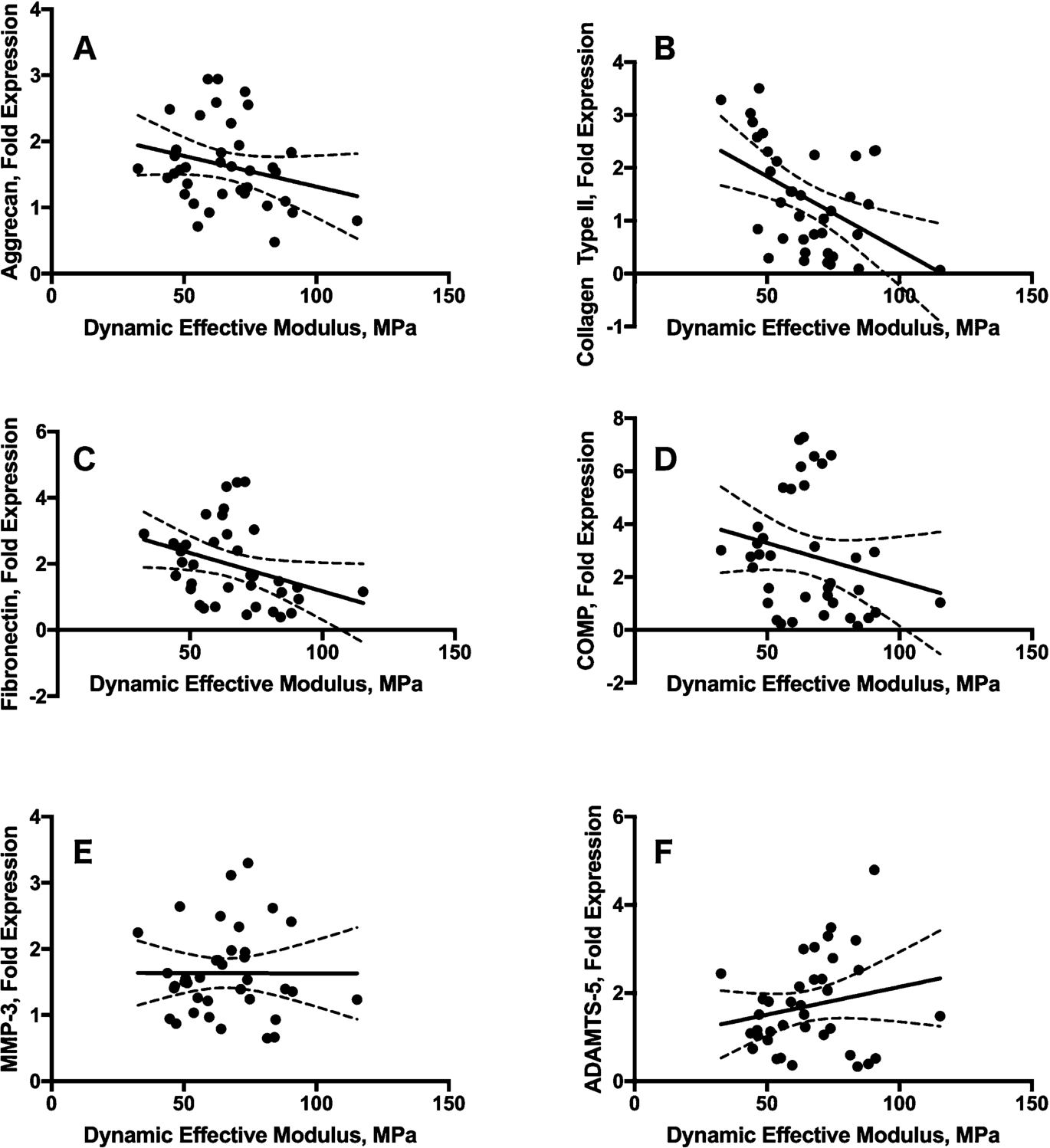

Fig. 8.

Scatterplots of the regression analysis between dynamic effective modulus and the investigated genes ( $N = 40$ ).

3.2.3. Proteoglycan loss (DMMB assay)

Proteoglycan loss from the loaded and control cartilage samples was determined after 24 and 48 hours post-testing. After 24 hours condyles loaded with the 17.6 mm diameter indenter lost 7.7% (lateral) and 5.1% (medial) of the total proteoglycan, corresponding to a 1.6-fold and 1.4-fold PG loss compared to the unloaded control (Fig. 2(A)). On the other hand, condyles loaded with the 30.2 mm indenter lost 8.1% (lateral) and 5.2% (medial) of proteoglycan to the medium after 24 hours (Fig. 2(B)). However, this loss was not different from the control condyles (1.1-fold for both). After 48 hours, proteoglycan loss significantly increased only for the medial condyle loaded with the smaller indenter ( $p = 0.04$ ), all remaining samples were not different from the unloaded controls (data not shown).

4. Discussion

Under reciprocating sliding conditions, contact parameters between two opposing joint surfaces depend on intrinsic (or genetic) factors, such as material properties of the cartilage and the geometry of the joint surfaces, and also external factors such as compressive forces and relative translation speed [9,10,16,28–30]. The influence of compressive forces and sliding speeds have already been investigated and deformations, contact stresses and dynamic moduli found to be functions of axial load and sliding speed [16]. The objective of the present study was to investigate the influence of joint geometry (curvature), modeled using two different-sized spherical indenters, on the mechanical and biological behavior of articular cartilage explants under reciprocating sliding load. We hypothesized that the application of a sliding load with a small diameter spherical indenter, compared to a large diameter spherical indenter, would result in increased cartilage damage, catabolic gene up-regulation and PG loss due to the increased ECM strains and stresses that arise from the reduced contact area. We found that the size of the spherical indenter indeed influences the deformational behavior of articular cartilage and unfavorable contact geometries might induce enzyme-mediated catabolic processes in the tissue.

The two opposing surfaces of a joint are never perfectly congruent, resulting in more or less favorable geometries for optimal force distribution and attenuation [18,19]. In the present study, contact parameters were calculated according to Hertz’s model of elastic deformation [23] and an adjustment of the theory for elastic layers bonded to a rigid substrate (Eqs (2), (4) and (5)) [24].

Sliding with the smaller indenter (17.6 mm) resulted in higher ECM deformations than with the larger indenter (30.2 mm). This can be explained due to (1) the smaller indenter having a smaller contact area, larger contact stress and therefore greater ECM deformation, and (2) while we used the Hertz and Jaffar models [23,24] to calculate the contact parameters, articular cartilage is not an elastic solid but rather a poroviscoelastic layer bonded to a rigid substrate (underlying bone). Therefore the subchondral bone will have a stiffening effect on the cartilage ECM that becomes more pronounced with a larger contact area, therefore restricting the total amount of ECM deformation [31]. Thus, the slightly larger contact area for the 30.2 mm diameter indenter (Fig. 4(C)) might explain the ∼28% higher dynamic elastic modulus (Fig. 4(E)) compared to the smaller indenter (17.6 mm diameter). This trend confirms earlier results from Bonnevie et al. [29] where they found a 30 % lower modulus for their 0.8 mm indenter compared to a 3.2 mm indenter.

Due to the spherical shape of the indenter the resulting contact area between the indenter and the cartilage is a function of penetration depth and curvature of the femoral condyle (Eq. (2)). In general, larger deformations with the small indenter result in similar contact radii than smaller deformations with the large indenter. In a similar manner this affects the contact stresses (Eq. (4)) and explains the insignificant differences in the contact stresses for the different indenters. This leaves ECM deformation, strain and dynamic effective modulus as the only significantly different mechanical parameters between the two indenters and these possibly are the parameters responsible for the biological differences observed (Figs 2, 3 and 5).

The biological response of the articular cartilage to the sliding load applied by the two different indenter sizes was quantified by (1) direct damage to the ECM as visualized with histology staining, (2) changes in the chondrocyte’s metabolic activity by gene expression analysis, and (3) PG loss from the ECM post-sliding. Even though the sliding contact stresses were on the high end of the physiological range [32–34], no immediate damage (PG loss and collagen fiber disruption) was observed between the loaded and control groups, or between the two indenters. It is known that the deformational response highly depends on the parallel organization of the collagen fibers in the superficial zone of the cartilage [35–37]. Also, fluid redistribution may greatly differ in samples where a large portion of the ECM (relative to the loading area) is still intact (greater presence of interstitial fluid to shield the PGs and collagen fibers) [38]. All of these factors potentially contribute to enhanced mechanical response of larger tissue explants.

In this study condyles loaded with the 17.6 mm indenter were found to have significant up-regulation of all genes for ECM proteins compared to controls and the 30.2 mm diameter indenter. The up-regulation of aggrecan and collagen type II suggests a possible attempt by the chondrocytes to adapt the ECM to new mechanical requirements imposed by the smaller indenter, as has been well-documented in previous studies [4,39]. The up-regulation of fibronectin and COMP possibly indicates a shift from an anabolic to the catabolic gene expression as these proteins are known to be present in damaged cartilage [13,40]. Further evidence for the initiation of catabolic processes is the enhanced presence of MMP-3 and ADAMTS-5 in the cartilage loaded with the smaller indenter. While the sole up-regulation of the genes does not automatically imply enzyme synthesis (presence or activation in the ECM), it does indicate a shift in chondrocyte phenotype [41,42]. No change in the expression of MMP-13 and ADAMTS-4 was found. As it is known that gene regulation is a time-dependent process, a post-loading incubation time of 4 hours might not be enough to show up-regulation of certain enzymes [8]. Also, these enzymes could not be affected by the magnitude of loading applied in this study.

A potential indication for the presence and activation of ECM enzymes is the fact that PG loss was significantly enhanced in condyles loaded with the smaller compared to the larger indenter. Since no direct mechanical damage was histologically observed and the synthesis for new PGs takes more than 12 days [43], it is likely that the loss of PGs detected in the culture medium was enzyme-induced.

Finally, even though contact stresses are known as major regulators of the biological response, we did not find any significant differences in contact stresses between the two indenter groups. When a regression analysis was performed between the mechanical parameters and the significantly up-regulated genes, several of the genes are significantly correlated with deformation (AGG, COLL2, FN, COMP, MMP-3) and dynamic effective modulus (AGG, COLL2, FN) (Figs 6, 7 and 8). Only collagen type II was correlated with strain (Table 5).

This study has a few limitations that need to be taken into account and could have affected the study finding. First of all, the Delrin indenter is several times stiffer (3 orders of magnitude) than the layer of cartilage that normally articulates against the femoral condyle. As a consequence, all deformations that occur in the condyle would under in vivo conditions be shared (what results in larger strains and the violation of Hertz’ theory). In return, this setup does model cases where one part of the joint was replaced with an artificial bearing material. Also, even though the curvatures and contact dimensions are rather small for the joints of the lower body (ankle, knee hip), they represent physiological values for the temporomandibular joint (TMJ). Second, the loading tests were conducted at room temperature which has been shown to influence gene regulation [44]. But even though basal gene regulation is temperature sensitive, it is not clear to what extent temperature affects the relative expression levels between loaded and unloaded controls.

A further limitation in our study was the use of a 10 mm/s sliding velocity. In a previous study [16] we measured the mechanical response of cartilage to different sliding velocities of 1, 2, 5, 10 and 20 mm/s. We found that an increase in sliding speed resulted in decreased cartilage deformations and strains, higher contact stresses, and increased dynamic effective modulus. The speed-dependency of these mechanical parameters was attributed to the poroviscoelastic properties of articular cartilage. In the present study we used only one speed, 10 mm/s, to avoid velocity dependent effects. Anderst and Tashman [45,46] measured peak knee contact velocities of over 100 mm/s in dogs and humans during running on a treadmill. In in vitro human knee gait simulator studies, Gilbert et al. [47] measured peak sliding velocities on the tibial plateaus as high as 100 mm/s; however over most of the stance phase the velocities were much lower, less than 25 mm/s (unpublished data, personal communication courtesy of Dr. Tony Chen). Thus our sliding speed of 10 mm/s would be representative of slower walking speeds or the slower velocity portions of the stance phase. While we did find significant differences in gene expression at 10 mm/s sliding velocity compared to controls, we cannot extrapolate these results to higher sliding velocities.

In addition, it needs to be mentioned that the assumption of independent observations for the 10 samples per condyle can be disputed as the samples are from the same condyle and therefore are correlated.

Despite these limitations, this study can be regarded as a model for investigating the effect of using different indenter curvatures on contact mechanics and consequently cartilage’s metabolic response under biomimetic sliding conditions. The study clearly demonstrates that the size of the spherical indenter influences the deformational behavior of articular cartilage. Even though contact parameters were influenced to a lesser extent than hypothesized, other mechanical factors such as deformation (strain) and dynamic elastic modulus proved to affect the biological response of cartilage under dynamic sliding conditions. The up-regulation of MMP-3 and ADAMTS-5 suggests that unfavorable contact geometries might induce enzyme-mediated catabolic processes in articular cartilage, which are common in diseases such as OA. Even taking these limitations into consideration, our results provide further understanding of cartilage contact biomechanics under dynamic migrating-load conditions. Still, further studies with greater numbers of specimens are required as the rather small number of condyles limited data analysis. Nonetheless, these results can be particularly interesting for design of prostheses where one part needs to be replaced or to surgically alleviate stress concentrations that arose after traumatic incidents such as fractures. In addition, for tissue engineering approaches it might be useful to know what contact dimensions are important to grow functional and sustainable tissue constructs.
