Basal and Luminal Molecular Subtypes in Naturally-Occurring Canine Urothelial Carcinoma are Associated with Tumor Immune Signatures and Dog Breed

Abstract

BACKGROUND:

Improved therapies are needed for patients with invasive urothelial carcinoma (InvUC). Tailoring treatment to molecular subtypes holds promise, but requires further study, including studies in pre-clinical animal models. Naturally-occurring canine InvUC harbors luminal and basal subtypes, mimicking those observed in humans, and could offer a relevant model for the disease in people.

OBJECTIVE:

To further validate the canine InvUC model, clinical and tumor characteristics associated with luminal and basal subtypes in dogs were determined, with comparison to findings from humans.

METHODS:

RNA sequencing (RNA-seq) analyses were performed on 56 canine InvUC tissues and bladder mucosa from four normal dogs. Data were aligned to CanFam 3.1, and differentially expressed genes identified. Data were interrogated with panels of genes defining luminal and basal subtypes, immune signatures, and other tumor features. Subject and tumor characteristics, and outcome data were obtained from medical records.

RESULTS:

Twenty-nine tumors were classified as luminal and 27 tumors as basal subtype. Basal tumors were strongly associated with immune infiltration (OR 52.22, 95%CI 4.68–582.38, P = 0.001) and cancer progression signatures in RNA-seq analyses, more advanced clinical stage, and earlier onset of distant metastases in exploratory analyses (P = 0.0113). Luminal tumors were strongly associated with breeds at high risk for InvUC (OR 0.06, 95%CI 0.01 –0.37, P = 0.002), non-immune infiltrative signatures, and less advanced clinical stage.

CONCLUSIONS:

Dogs with InvUC could provide a valuable model for testing new treatment strategies in the context of molecular subtype and immune status, and the search for germline variants impacting InvUC onset and subtype.

Keywords

Muscle invasive bladder cancer animal model subtype T-cell-inflamed breed RNA-seq

INTRODUCTION

Urinary bladder cancer is newly diagnosed in more than 80,000 people each year in the United States, with 18,000 deaths expected in 2020 [1]. Muscle invasive bladder cancer, specifically invasive urothelial carcinoma (InvUC) is a particularly aggressive form of bladder cancer, and is lethal in approximately half of patients [2]. The treatment of InvUC has typically involved cystectomy and platinum-based chemotherapy, with five-year survival rates ranging from 5 –79%depending on the stage at diagnosis [3]. The management of InvUC, however, is rapidly evolving [3 –5]. Multiple immune checkpoint inhibitors have been approved for use in patients with InvUC, and these drugs are inducing durable remission of highly advanced cancer, albeit in small subsets of patients [3 –6]. Another recent advancement has been the identification of tumor RNA expression patterns that segregate InvUC into molecular subtypes, with cancer behavior and treatment responses differing between subtypes [7 –11]. There is strong interest in developing strategies that apply subtype information to build predictors of patient outcomes and to select optimal therapies in individual patients.

The molecular subtypes of InvUC are defined at the highest level as luminal and nonluminal, with subgroupings within each subtype [7 –13]. Subgroups within the nonluminal group can include basal/squamous, small cell / neuroendocrine, and stroma-rich tumors (mesenchymal like) [12]. Within luminal tumors, urothelial and genomically unstable subgroups have been described. In initial studies of molecular subtypes and in studies in which the tumors have been divided into only two subtypes, nonluminal tumors are often referred to as basal subtype tumors [8, 12].

Women with InvUC have a higher prevalence of basal subtype cancer, which is inherently more aggressive. Basal InvUC is often associated with advanced stage and metastatic disease at presentation as well as shorter overall survival [10, 11]. In contrast, luminal InvUC appears to be inherently less aggressive, and is enriched with FGFR3 mutations that can be targeted for therapy [10, 11]. Patients with basal tumors appear to receive more clinical benefit from platinum-based neoadjuvant chemotherapy compared to patients with luminal tumors [9–11 , 15]. Finally, basal InvUC is also characteristically more immune infiltrated [9–11 , 15–17], and is typically more responsive to immunotherapies than luminal tumors [10, 14].

Multiple new therapeutic strategies including combination therapies in the context of molecular subtypes are being developed. The numbers of patients eligible for clinical trials, however, is insufficient to complete even a portion of the trials needed to test these strategies. This underscores the importance and need for studies in relevant pre-clinical animal models to select promising strategies to move to humans. Experimental animal models utilized in well-controlled studies are clearly essential in advancing bladder cancer research, however, these models often lack many of the complexities of human cancer [18, 19]. As a complementary model approach, dogs develop naturally-occurring InvUC which mimics human InvUC in clinical signs, cellular and pathological features of disease including high grade, tumor heterogeneity, local invasion, distant metastases, response to chemotherapy, and important for this discussion, luminal and basal molecular subtypes [20 –22]. Interestingly, the development of InvUC in dogs is strongly associated with the breed of the dog. Compared to mixed breed dogs, Scottish Terriers have a 20-fold increased risk for InvUC, and West Highland White Terriers, Shetland Sheepdogs, Wire Hair Fox Terriers and Beagles have a three- to six-fold increased risk for the cancer [22, 23]. Another intriguing finding is that the majority of cases harbor a BRAF^V595E mutation, the canine homologue of BRAF^V600E that is a common driver of many types of human cancer [24, 25]. Although BRAF mutations are uncommon in human bladder cancer, such mutations have been noted in patients with especially aggressive bladder cancer [7, 26]. Interestingly, while BRAF mutations are common in canine InvUC and uncommon in human InvUC, in both species similar molecular subtypes are observed [21].

While the presence of luminal and basal subtypes have been described in an initial group of dogs [21], the clinical and pathological features associated with the subtypes have not been reported. This information would be important in validating the canine model. The purpose of this study, therefore, was to determine clinical features and tumor characteristics associated with luminal and basal subtypes in canine InvUC, and to compare findings to those reported in humans. The study demonstrates multiple instances in which the clinical features and tumor characteristics associated with subtype in dogs are consistent with those reported in humans. The association between immune signatures and subtype was especially compelling. The study also revealed a strong association between subtype and dog breed which could be exploited in future studies to expand the understanding of genomic drivers of InvUC.

MATERIAL AND METHODS

Canine tissue samples

All tissues from dogs were collected with the approval of the Purdue Animal Care and Use Committee (protocol approval #1111000169). Canine InvUC tissues were collected by cystoscopic biopsy, surgical biopsy, or necropsy of dogs presenting to the Purdue University Veterinary Teaching Hospital for evaluation and treatment of bladder cancer. The samples were stored in trizol (Invitrogen, Carlsbad, CA) at –80°C, and tissues with histopathologic confirmation of InvUC were processed for RNA isolation. Of the 56 cases included in this study, the RNA-sequencing (RNA-seq) data from 29 tumors has been published previously [21]. Normal canine bladder tissue samples (n = 4) were collected from dogs that were being euthanized for conditions other than bladder-related diseases. The urothelial layer was stripped from full thickness bladder using fine dissection and stored immediately in trizol at –80°C for subsequent RNA isolation.

RNA-seq of canine InvUC tumor samples and normal canine bladder mucosa

Total RNA was isolated following manufacturer’s instructions (Invitrogen, Carlsbad, CA) and purified using RNAeasy (Qiagen, Valencia, CA). The samples were processed for RNA-seq and sequenced at the Biomedical Genomics Core at Nationwide Children’s Hospital, Columbus, Ohio. The quantity and quality of total RNA was evaluated using NanoDrop spectrophotometer (NanoDrop Technologies, Wilmington, DE) and Agilent Bioanalyzer (Agilent Technologies, Santa Clara, CA). RNA quality was considered acceptable if the RNA integrity number was seven or greater. Ribosomal-RNA was removed from total RNA with Ribo-ZeroTM rRNA removal kit (Illumina), and mRNA libraries were constructed (ScriptSeqTM v2 RNA-Seq library preparation kit, Epicentre Biotech, Madison, WI). Di-tagged cDNA was amplified by limit-cycle PCR and purified using AMPure XP System (Beckman Coulter) [21, 27]. Paired-end 150 bp sequence reads were generated using Illumina HiSeq 4000 platform to obtain an average of 50 million reads/sample. Raw reads were cleaned for PCR artifacts and adapter trimmed, and then aligned to the CanFam 3.1 reference genome. COBWeb was used to obtain expression levels for annotated genes and isoforms (Strand NGS, v3.1, Build 235027, Agilent Technologies). Analyses were conducted using genes published to be of importance in human InvUC described below, and the canine orthologs were mapped and used for analyses. The orthologous genes were mapped using ensembl biomart service in combination with Strand NGS. Non-orthologous genes were not considered.

RNA-seq data analyses

RNA-seq analyses were performed using Strand NGS (Agilent Technologies). Pairwise comparison between normal and InvUC samples was used to detect differential expression of genes by applying DESEQ2 on DESEQ normalized data and edge R on TMM normalized data (fold change≥2, p corr < 0.05) [28, 29] The differentially expressed genes in the RNA-seq data were specifically interrogated for genes used to assign human InvUC into molecular subtypes, e.g. luminal and basal using a previously reported 60-gene prediction panel [21]. This panel was established using Support Vector Machine algorithm, validation parameters with 100,000 iterations, and the validation type “Leave One Out” to generate the validation algorithm outputs as previously described [21].

To confirm the stability of the subtype assignment, consensus clustering was performed using R-package ConsensusClusterPlus (1000 bootstraps, 80%subsamples, MaxK = 10) using the 60-gene panel and the log2FC values (normal vs. tumor) applying a range from K = 2 to K = 10 [30]. The consensus score matrix was visualized as a heatmap.

The data were also interrogated for genes used to characterize the tumor immune status [31], and other gene panels [17 , 31–33] using the canine orthologs. The immune-related genes were those reported to classify human bladder cancer as non-T-cell-inflamed (not infiltrated by T lymphocytes, immune “cold”), or T-cell-inflamed (infiltrated by T lymphocytes, immune “hot”) [31]. The data were visualized in heatmap format using R package pheatmap. Rows (genes) were grouped by hierarchical clustering based on Euclidean distance and “complete” agglomeration method. A semi-quantitative approach based on the percentage of immune genes expressed in each tumor was used to assign each tumor an “RNA-seq immune score” from 1 to 5 with 1 being the coldest tumor score, and 5 being the hottest tumor score as follows: score of 1 = 0–15%of genes, score of 2 = 16–30%of genes, score of 3 = 31–50%of genes, score of 4 = 51–70%of genes, and score of 5 = >70%of genes overexpressed. In additional analyses, the data were interrogated for genes associated with cancer progression across cancer types (nCounter® PanCancer Progression Gene Panel, n = 770 genes, Nanostring Technologies, Seattle, WA) [34]. Gene ontology analyses were conducted in Strand NGS applying Fisher test with multiple test correction (Bonferroni), and the top 20 GO terms (p corr < 0.001) compiled [35].

SNP detection was performed on RNA-seq data to assign BRAF^V595E mutation status using Strand NGS. Briefly, dbSNP ensembl was used as annotation for SNP detection. The filters applied for SNP detection were: SB50TR100 (percent strand bias > 50 and total reads > 100), SRP4 (supporting reads %<4), HomPolyFilter in which in homopolymer stretches indels below 25%supporting reads were removed even with total number of reads > 40, LowBQ (low base quality where average base quality is < 15), IndelSR20 (indels with supporting reads below 20%), and TotalReadsFilter (total reads filtered below 20). In addition, reference locations with coverage below 10 and split and partial reads were ignored.

Clinical and pathological data

The following information was compiled from the dogs’ medical records: sex, neuter status, breed, age at diagnosis, tumor location and size, treatments received, TNM stage at diagnosis and death, time of the onset of distant metastases, and overall survival time defined as the time between cancer diagnosis and death from any cause. Tumor stage was assessed by thoracic and abdominal radiography, abdominal ultrasonography with standardized cystosonography, and necropsy when available. The TNM stage was classified following WHO criteria for canine tumors [36]. High-risk breeds for the development of InvUC were defined as Scottish Terrier, West Highland White Terrier, Wire Hair Fox Terrier, Shetland Sheepdog, and Beagle [23, 37]. Non-high risk breeds were defined as other breeds and mixed breed dogs.

All tumor samples were reviewed by a single pathologist (JRV). The InvUC grade was assigned following a four-tier grading system based on criteria described by Cheng et al., with grade 4 being the highest grade [38].

CD3 immunohistochemistry (IHC)

CD3 IHC (CD3 antibody A0452, Agilent Technologies) was performed to detect tumor infiltrating lymphocytes (TILs) on formalin fixed paraffin-embedded sections as previously described [39, 40]. The percentage of CD3 + cells / 100 tumor cells in the most immune infiltrated area of the section was scored as follows: 1 = 1–10%; 2 = 11–25%; 3 = 26–50%, and 4 = >50%CD3 cells / 100 tumor cells. Intraepithelial and stromal TILs were scored separately.

Sample size and statistical analyses

The goal was to analyze tumor samples from a minimum of 54 dogs, as this was expected to provide at least 20 dogs each with luminal tumors and basal tumors for correlative clinical study [21]. Logistic regression analysis was performed to assess relationships between subtype and the following variables: age, sex, neuter status, high-risk breed for InvUC, tumor stage, tumor grade, tumor size, tumor location, presence of BRAF^V595E mutation, RNA-seq immune score, and IHC immune score. Variables with a P-value of less than 0.05 in the univariable model were introduced to a multivariable model using stepwise progression. In exploratory analyses, the same variables were analyzed in relation to overall survival time, and the time from diagnosis to development of detectable distant metastases using Cox proportional models. The TNM stage at death and overall survival time were recorded, but were also considered secondary exploratory endpoints, as the dogs were not in a specific therapeutic trial, and the treatments varied between dogs. All analyses were performed using StataSE 16 (StataCorp. 2019. Stata Statistical Software: Release 16. College Station, TX: StataCorp LLC.).

RESULTS

Subject and tumor characteristics

RNA-seq data from 56 dogs with InvUC were analyzed for this study. Characteristics of the dogs and their tumors are summarized in Table 1. Forty-nine dogs were presented with clinical signs typical of canine InvUC including hematuria, stranguria, and increased frequency of urination. Seven dogs had been participating in a bladder cancer screening study and had no clinical signs of urinary disease. In these dogs, masses were detected by ultrasonography, and subsequent cystoscopic biopsy confirmed InvUC. In subset analyses, tumors in dogs in the screening study were similar to those observed in other dogs with a potential exception related to the immune state discussed below.

Table 1

Subject and tumor characteristics for the 56 dogs in the study

Characteristic	Findings
Age	Median: 10.4 years (range 6.3 –15.0 years)
Sex and neuter status	Female, spayed: 39 dogs
	Female, intact: 1 dog
	Male, neutered: 14 dogs
	Male, intact: 2 dogs
Breed^a	19 Scottish Terriers
	11 Mixed breed dogs
	6 Beagles
	2 West Highland White Terriers
	2 Shih Tzus
	2 German Shorthair Pointers
	2 Border Collies
	One each of: Shetland Sheepdog, Norfolk Terrier, Airedale Terrier, Welsh Springer Spaniel, Chesapeake Bay Retriever, Bluetick Hound, Boxer, Wheaten Terrier, Miniature Schnauzer, Miniature Pinscher, Labrador Retriever, and Norwegian Elkhound.
Treatments received prior to tumor tissue collection	None: 38 dogs Cyclooxygenase inhibitor: 17 dogs Chemotherapy: 1 dog
Methods of tumor tissue collection	Cystoscopy: 47 dogs Surgery: 7 dogs Necropsy: 2 dogs^b
TNM stage at diagnosis according to criteria for CANINE tumors^c	T2N0M0:40 dogs T2N1M0:3 dogs T2N0M1:2 dogs T2N1M1:2 dogs T3N0M0:8 dogs Incomplete staging information: 1 dog
TNM stage at death according to criteria for CANINE tumors, available on 47 dogs^c	T0N0M0:1 dog T2N0M0:15 dogs T2N1M0:4 dogs T2N0M1:4 dogs T2N1M1:5 dogs T3N0M0:4 dogs T3N1M0:1 dog T3N0M1:2 dog T3N1M1:6 dogs Partial staging information: T2N1MNA: 2 dogs T2NNAM0:1 dog T3N1MNA: 1 dog T3NNAMNA: 1 dog
Tumor location	Bladder trigone: 36 dogs
	Urethra: 31 dogs
	Mid bladder: 28 dogs
	Bladder apex: 20 dogs
	Prostate: 6 dogs
	Tumor in more than one site: 43 dogs
Cancer grade^d	Grade 2:3 dogs
	Grade 3:12 dogs
	Grade 4:39 dogs
	Not available: 2 dogs
Molecular subtype	Luminal: 29 dogs
	Basal: 27 dogs
Urine BRAF^V595E mutation	Mutation present: 42 dogs
	BRAF wild type: 14 dogs
Immune score –RNA-seq	1:11 dogs
	2:15 dogs
	3:11 dogs
	4:9 dogs
	5:10 dogs

^aBreeds at high-risk for InvUC were defined as Scottish Terriers, West Highland White Terriers, Shetland Sheepdogs, Wirehair Fox Terriers, and Beagles [22, 23]. ^bThe owners of two dogs requested euthanasia of their dog following diagnosis, and did not pursue further evaluation and treatment. One of these dogs had received deracoxib. The other dog was untreated. ^cThe TNM classification system for canine InvUC differs from the classification system for human bladder tumors. In dogs, T2 tumors are invasive into the bladder wall, and T3 tumors extend through the bladder wall to the outside of the bladder or invade adjacent organs [36]. These would be classified at T3 and T4, respectively, in human bladder tumor classification schemes. ^dCancer grade was assigned following criteria described by Cheng et al. [38].

Of the 56 tumors, 29 tumors were classified as luminal and 27 tumors as basal subtype (Fig. 1, Fig. 2) with the 60-gene classifier genes listed in Supplementary Table S1. The stability of the subtype assignment was verified by calculating their co-clustering frequency in iterative hierarchical clustering by applying consensus clustering independent of the published class prediction model (Fig. 2). Two distinct clusters containing 90%of the samples with high (>0.8) consensus score were observed, while approximately ∼10%of the samples were unstable with low (<0.8) consensus score. Consensus clustering was also performed with up to K = 10, i.e. forcing the creation of maximum 10 groups, and approximately 60%of the samples were retained into two distinct groups indicating high stability of the groups.

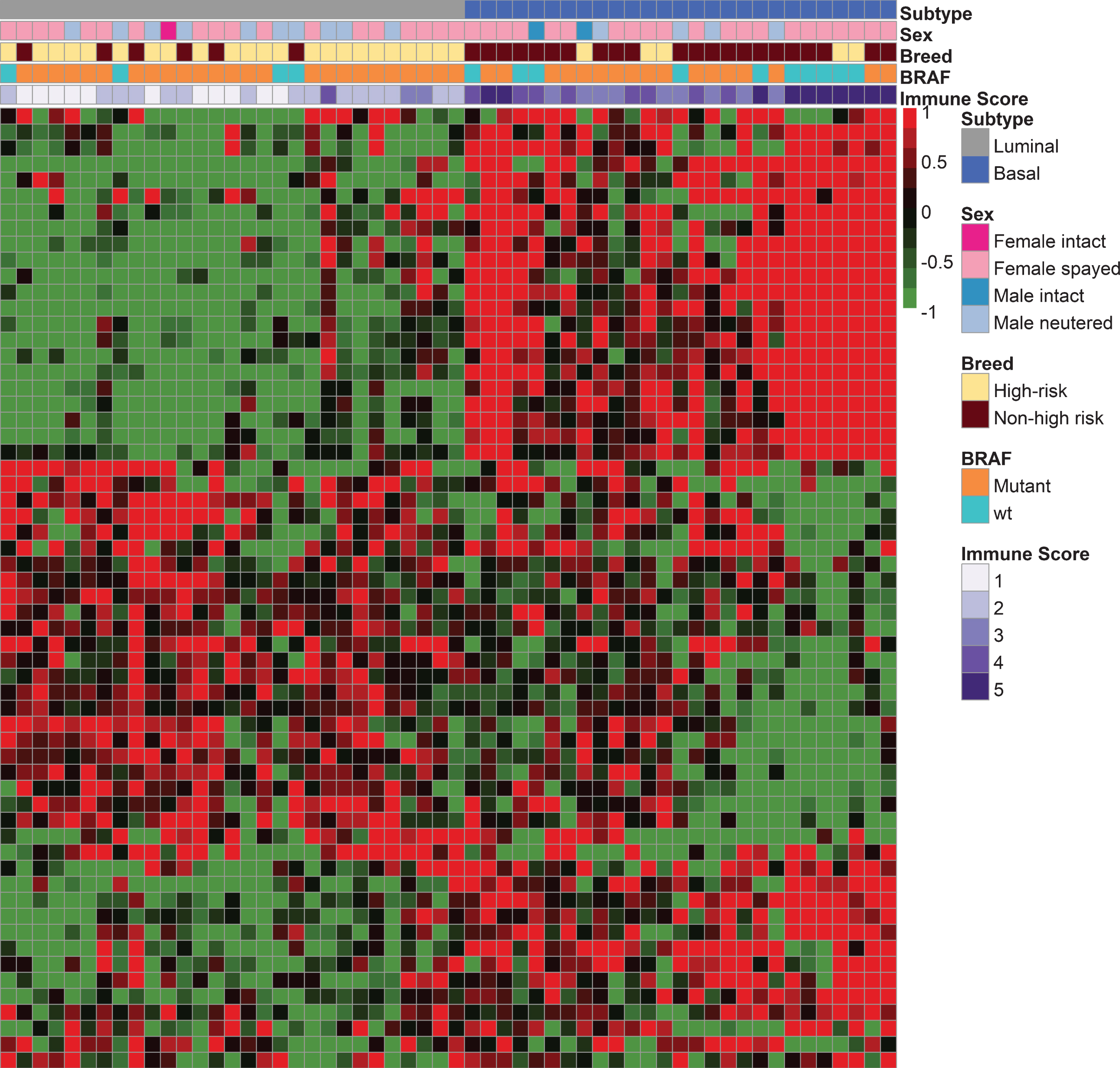

Fig. 1

Canine InvUC RNA-seq analyses demonstrating the presence of luminal (n = 29 cases) and basal (n = 27 cases) subtypes. A previously published 60-gene class prediction model was used for subtype assignment [21] of canine InvUC samples (n = 56) with comparison to canine normal bladder mucosa samples from dogs with no evidence of bladder disease (n = 4). In the heatmap, each column represents data from one sample, and each row represents a specific gene. The genes are listed in Supplementary Table S1 in the same order as they appear in the heatmap. Information regarding subtype, sex, breed, BRAF status (mutated or not), and immune score is provided in the color bars above the heatmap. Note the segregation of tumor samples into two main groups identified as luminal and basal, with multiple subgroups within each subtype. Dogs in breeds with high genetic risk for InvUC were more likely to have luminal tumors, and dogs in other breeds to have basal tumors (OR 0.06 for basal tumors in high-risk breeds, 95%CI 0.01 –0.37, P = 0.002). Basal tumors were strongly associated with immune infiltration (OR 52.22, 95%CI 4.68–582.38, P = 0.001) as indicated by purple bars, with darker shades indicating higher T-cell infiltration. There was an association between the BRAF^V595E mutation and the luminal subtype, and between wild type BRAF and the basal subtype (OR 0.27 for basal tumors having BRAF^V595E, 95%CI 0.07 –1.01, P = 0.0424).

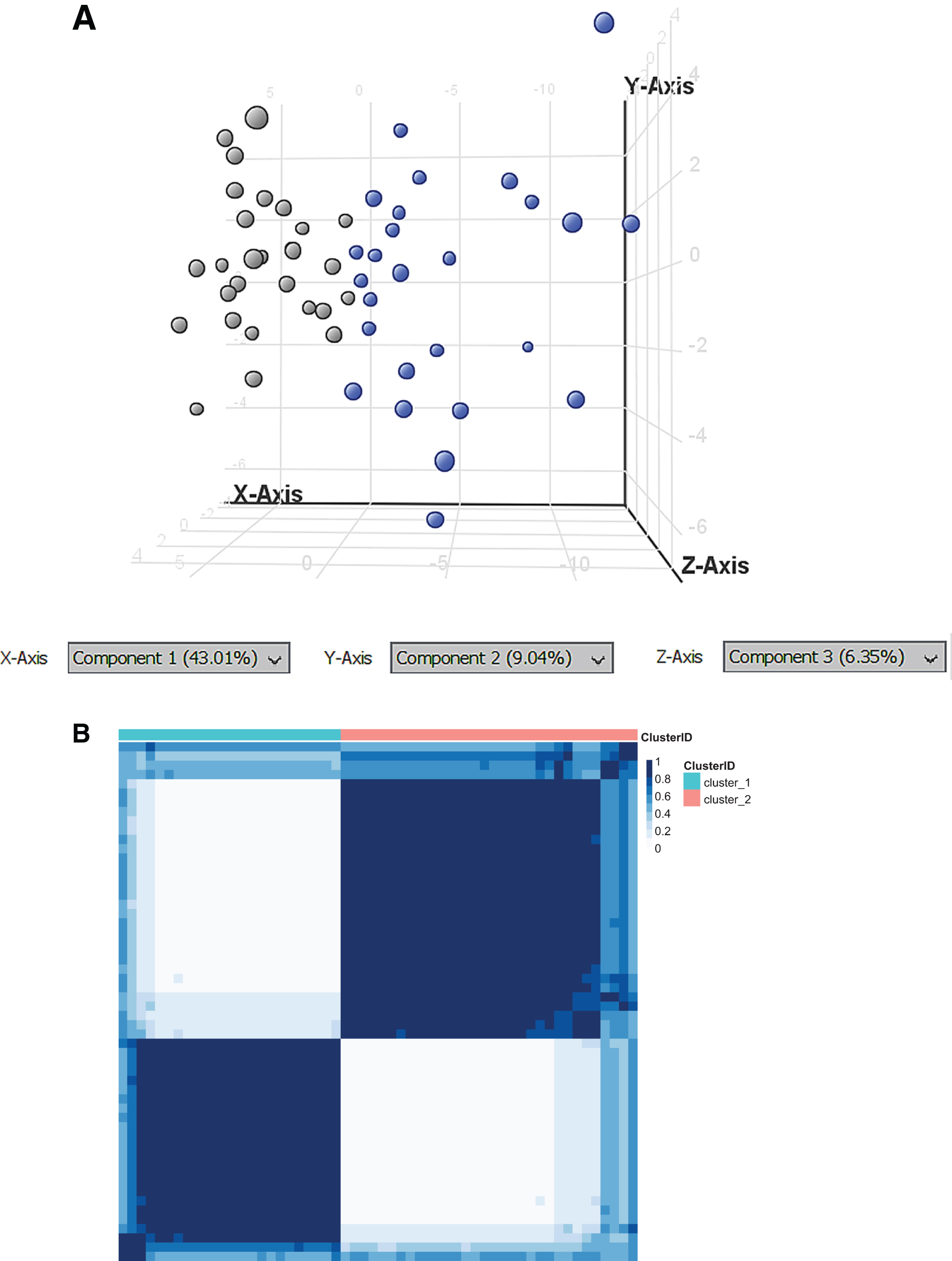

Fig. 2

Two subtypes identified as luminal and basal within canine InvUC samples. A. PCA plot using the 60-gene prediction model [21] demonstrates separation of the subtypes into two distinct groups. B. Consensus clustering demonstrates the stability of the two subtypes. Stability of subtypes assignment was verified by calculating their co-clustering frequency in iterative hierarchical clustering by applying consensus clustering (k = 2, 1000 bootstraps, 80%subsamples), independent of the published class prediction model [30]. Results of the consensus clustering are displayed in the figure. The consensus score is denoted with values ranging from 0 (never clustered together) to 1 (always clustered together) and marked by white to dark blue colors. Two distinct clusters containing 90%of the samples with high (>0.8) consensus score were observed. Approximately ∼10%of the samples were unstable with low (<0.8) consensus score. Consensus clustering was also performed with up to K = 10, forcing the creation of maximum 10 groups. Approximately 60%of the samples were retained in the two distinct groups indicating high stability.

As with human InvUC, heterogeneity was common within and between samples, and smaller subgroupings within subtypes were observed (Fig. 1). The associations between subtype and clinical and pathologic variables are summarized in Table 2 and discussed below.

Table 2

Association between subtype and clinical and pathological variables listed. The data are reported in relation to the basal subtype

Variable	Level	Odds Ratio	95%CI	P-value
Univariable analyses
High Risk Breed	Yes	0.06	0.02 –0.22	<0.0001
Sex	Male	0.54	0.17 –1.78	0.308
Age	Years	1.22	0.94 –1.59	0.114
Bladder cancer screening	Yes	0.38	0.07 –2.17	0.2584
BRAF	BRAF^V595E mutant	0.27	0.07 –1.01	0.0424
RNA-seq immune score	Score 4-5 (T-cell- inflamed) compared to scores of 1 to 3	56.00	6.53 –480.35	<0.0001
Tumor grade	Higher grade compared to lower grade	0.99	0.39 –2.52	0.9873
T stage at diagnosis	T3	1.79	0.44 –7.18	0.4140
N stage at diagnosis	N1	1.08	0.20 –5.89	0.9262
M stage at diagnosis	M1	3.50	0.34 –35.90	0.2573
M stage at death	M1	2.53	0.71 –8.97	0.1465
Apex	Yes	1.12	0.37 –3.34	0.8420
Mid bladder	Yes	1.56	0.54 –4.49	0.4096
Trigone	Yes	1.68	0.55 –5.08	0.3579
Urethra	Yes	1.36	0.47 –3.91	0.5706
Prostate	Yes	0.50	0.06 –4.47	0.5308
More than 1 location	Yes	3.60	0.86 –15.12	0.0639
Tumor volume	Larger volume (cm3)	1.01	0.96 –1.06	0.6939
Multivariable analyses
High-Risk Breed	Yes	0.06	0.01 –0.37	0.002
RNA-seq immune score	Score 4-5 compared to score of 1–3	52.22	4.68 –582.38	0.001

Association between dog breed and molecular subtype

There was a very strong association between breed-risk for InvUC and molecular subtype in the univariable and multivariable analyses (Fig. 1, Table 2). Of 28 dogs in high-risk breeds, 23 dogs (82.1%) had luminal tumors, and five dogs (17.9%) had basal tumors (OR 0.06 for basal tumors, 95%CI 0.01 –0.37, P = 0.002). Of 28 dogs in the non-high risk breeds, six dogs (21.4%) had luminal tumors, and 22 dogs (78.6%) had basal tumors. Luminal tumors were present in 14 of 19 Scottish Terriers, six of six Beagles, two of two West Highland White Terriers, and one of one Shetland Sheepdog.

It was noted that the non-high risk breed group included two Border Collies, and one each of Norfolk Terrier, Airedale Terrier, Wheaten Terrier, Miniature Schnauzer, and Norwegian Elkhound. These breeds are either closely related to the defined high-risk breeds or have been considered as high-risk in some, although not all studies [22, 37]. The tumors in these seven dogs included four basal tumors and three luminal tumors. When assessing the subtype in all terriers (n = 24 dogs), 18 dogs (75.0%) had luminal tumors, and six dogs (25.0%) had basal tumors.

Analyses of other clinical and pathological variables and molecular subtype

Sex

Of 27 dogs with basal tumors, 21 dogs (77.8%) were female, and six dogs (22.2%) were male. Of 29 dogs with luminal tumors, 19 dogs (65.5%) were female, and 10 dogs (34.5%) were male. Basal tumors comprised 52.2%of the tumors in females and 37.5%of the tumors in males. There was not a significant association between sex and subtype (OR 0.54 for male dogs having basal tumors, 95%CI0.17–1.78, P = 0.30807).

Location

When evaluating any one specific location such as apex, mid-bladder, trigone, urethra, or prostate, there was no association with subtype (Table 2). Two other findings related to location were noted. First, the cancer was present in more than one location in 20 of 29 dogs with luminal tumors (69.0%) and in 23 of 27 dogs with basal tumors (85.2%) (OR 3.60. 95%CI 0.86 –15.12, P = 0.064). Second, tumors not in the trigone / urethra / prostate, i.e. limited to the apex and mid-bladder, were more often of the luminal subtype. Of 16 dogs with tumors limited to the apex and mid-bladder, five tumors (31.2%) were basal, and 11 tumors (68.7%) were luminal, although the result was not significant. Tumors in the trigone and urethra were comprised of 55.0%basal tumors and 45.0%luminal tumors.

Tumor stage and grade

At diagnosis, six of ten dogs (60.0%) with tumors extending through the serosa to the outside of the bladder or with spread to adjacent organs (T3 in canine tumor staging system), had basal tumors, and four dogs (40.0%) had luminal tumors. Of 46 tumors invading into the bladder wall, but not penetrating through the serosa (T2 in canine tumor staging system), 21 tumors (45.7%) were basal, and 25 tumors (54.3%) were luminal. The N stage did not differ between luminal and basal tumors (Table 2). Of four dogs with distant metastases (stage M1) at diagnosis, three dogs (75.0%) had basal tumors, and one dog (25%) had a luminal tumor.

The TNM stage at death was an exploratory endpoint. Although the monitoring and staging procedures were similar across cases, and no dogs underwent cystectomy, and the general type of medical therapies were similar between dogs, the specific drug protocol varied between cases. The T stage and N stage at death did not differ between dogs with basal or luminal tumors. Distant metastases (M1) were present in 17 of 43 dogs with staging information available at death. At the time of death, distant metastases were present in eight of 26 dogs (30.8%) with luminal tumors, and nine of 17 (52.9%) dogs with basal tumors (OR 2.53, 95%CI 0.71 –8.97, P = 0.1465). The median survival was 349 days for all dogs, and did not differ between dogs with luminal vs basal tumors. In other exploratory analyses, the median time between diagnosis and the detection of distant metastasis was significantly shorter in nine dogs with basal tumors (median 110 days, range 0 –356 days) than in eight dogs with luminal tumors (median 394 days, range 0 –1752 days) (P = 0.0113) (Supplementary Figure S1).

The aggressive nature of the basal tumors was also demonstrated by examining RNA-seq data for the expression of genes associated with aggressive cancer behavior across cancer types (nCounter PanCancer Progression Genes) (Fig. 3) with the genes in the panel listed in Supplementary Table S2. The top 20 gene ontology (GO) terms associated with these genes are provided in Fig. 4.

Fig. 3

Canine InvUC RNA-seq analyses. In the heatmap, the luminal and basal subtype tumors (gray and blue column headings, respectively) were defined by class prediction model [21]. The data were interrogated for genes associated with cancer progression across cancer types (nCounter® PanCancer Progression Gene Panel, n = 770 genes, Nanostring Technologies, Seattle, WA). Genes enriched in canine InvUC tumors were queried against these genes (canine orthologs identified for n = 669 genes) which are listed in Supplementary Table S2 in the same order as in the heatmap. Note the strong enrichment for genes associated with cancer progression in the canine InvUC samples. The top most significant gene ontology (GO) terms associated with these genes (n = 20) are summarized in Fig. 4.

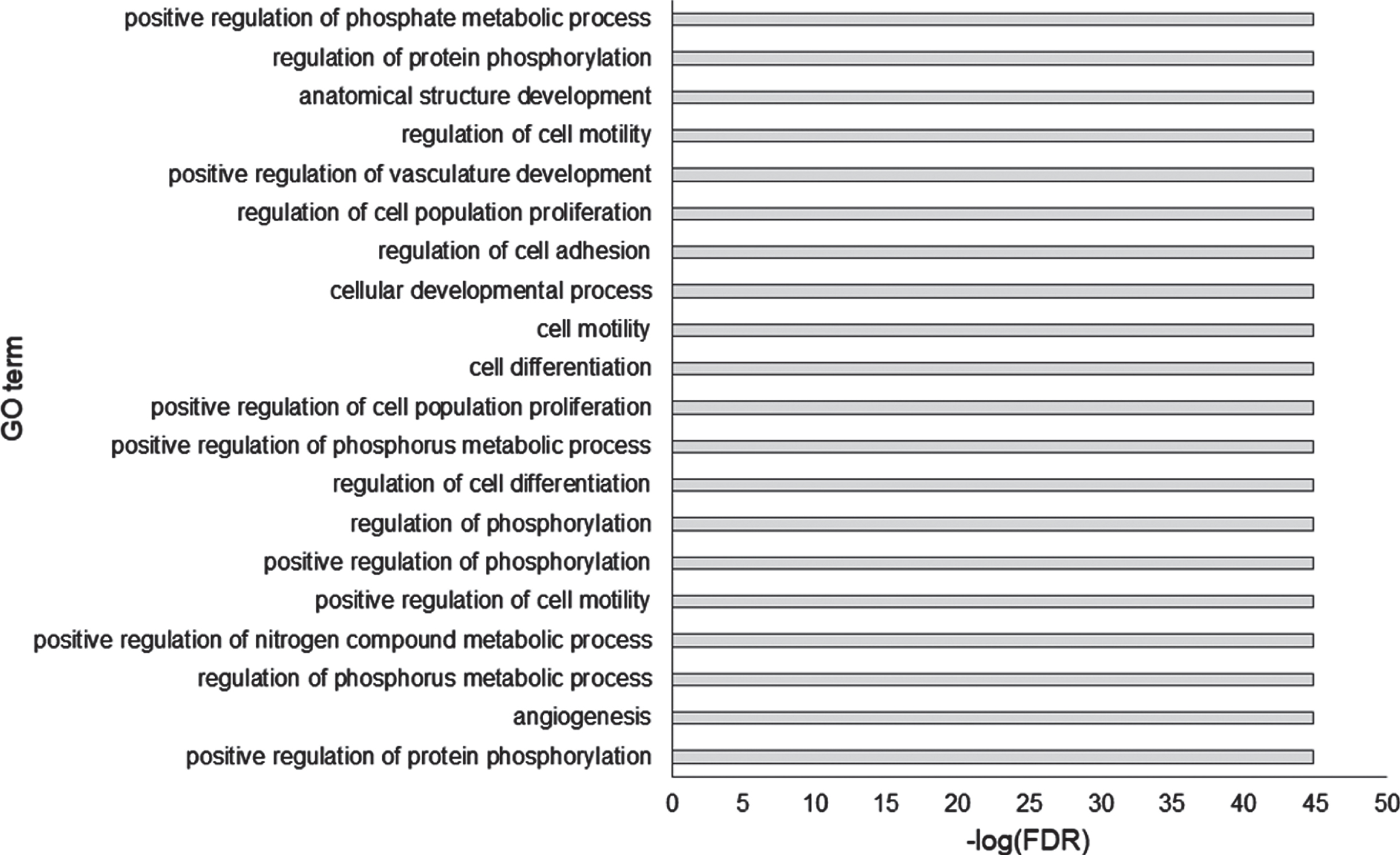

Fig. 4

Gene ontology (GO) analyses of the 669 cancer progression genes in Fig. 3. GO analyses were conducted in Strand NGS applying Fisher exact test with multiple test correction (Bonferroni) [35]. The top 20 GO terms (p corr < 0.001) associated with biological processes were compiled. The x-axis indicates –log(FDR) values associated with the GO terms indicated on the y-axis.

The cancer grade did not differ between basal and luminal tumors. The median grade was 4 in tumors in both subtypes.

Association between RNA-seq immune score and molecular subtype

The immune scores consisted of: 11 cases with a score of 1 (non-T-cell-inflamed), 15 cases with a score of 2, 11 cases with a score of 3, 9 cases with a score of 4, and 10 cases with a score of 5 (highest T-cell-inflamed). The basal subtype was strongly associated with a T-cell-inflamed (immune infiltrated) signature in RNA-seq analyses (Fig. 5) with the genes in Fig. 5 listed in Supplementary Table S3. Of 27 basal tumors, 18 tumors (66.7%) were immune-infiltrated with RNA-seq immune scores of 4-5, and the remaining nine tumors (33.3%) had an immune score of 3. Of 29 luminal tumors, one tumor (3.4%) had an immune score of 4, two tumors (6.9%) had an immune score of 3, and 26 tumors (89.6%) were non-T-cell-inflamed with immune scores of 1-2. In multivariable analyses, dogs with a tumor immune score of 4-5 were much more like to have basal tumors (OR 52.22, 95%CI 4.68–582.38, P = 0.001). To further investigate changes in immune and related genes, heatmaps were generated using panels of specific genes involved in enhancing or suppressing the immune response to InvUC (Supplementary Figure S2), interferon-inducible genes (Supplementary Figure S3, Supplementary Table S4), and TGF-β pathway related genes (Supplementary Figure S4, Supplementary Table S5). Overexpressed immune-related genes included ones which typically enhance the immune response as well as others which keep the immune response in check (Supplementary Figure S2). CD8 expression was prominent, especially in basal tumors. Thirty-nine tumors across subtypes expressed at least one checkpoint gene: B7X, PD-L1, PD-1 or LAG-3. Interferon-inducible gene signatures were mixed in the luminal and basal tumors, although some enrichment of IFNγ genes in basal tumors was noted (Supplementary Figure S3,). TGF-β pathway signatures were enriched in basal tumors (Supplementary Figure S4).

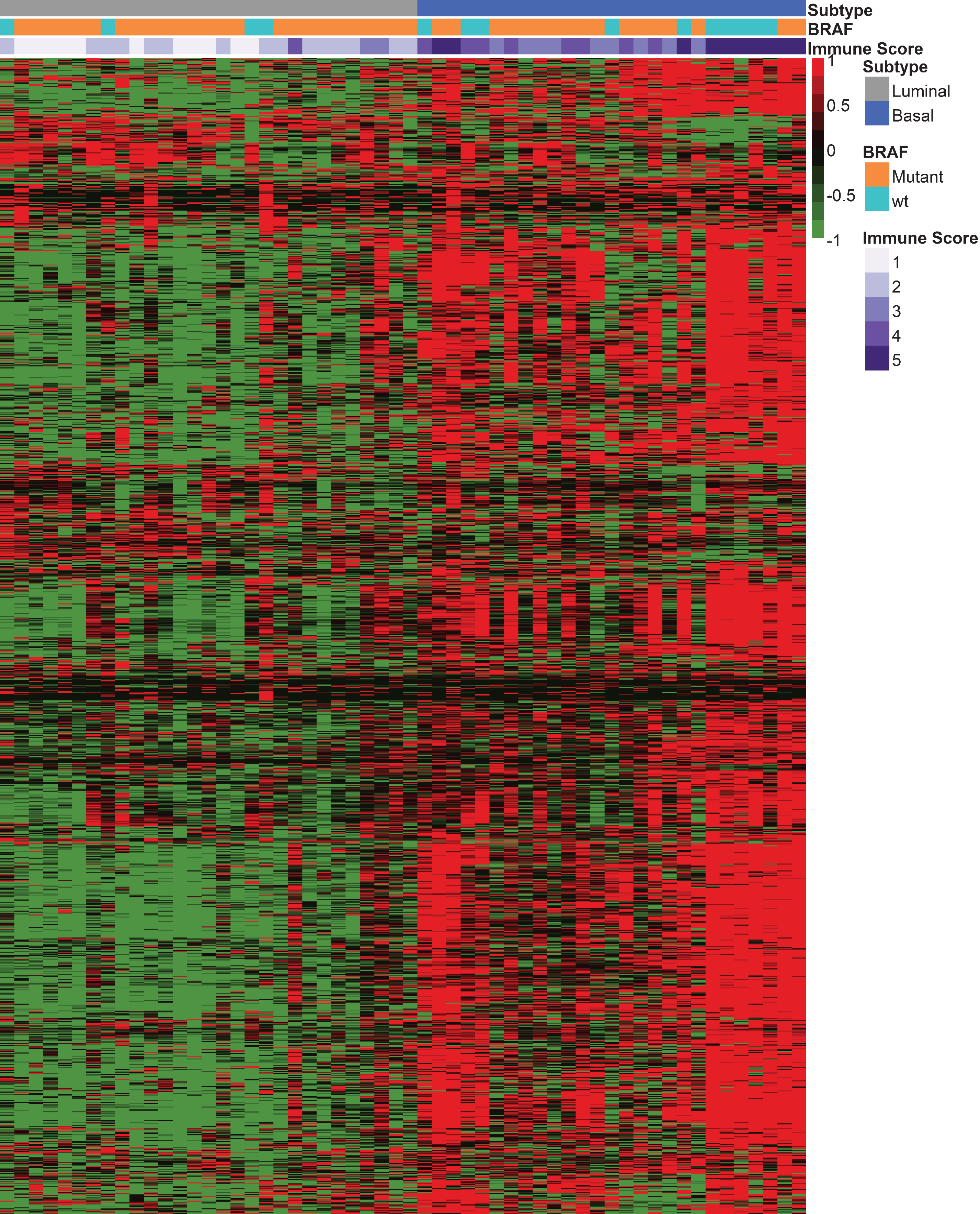

Fig. 5

Canine InvUC RNA-seq analyses. In the heatmap, the luminal and basal subtype samples (gray and blue column headings, respectively) were defined by class prediction model [21]. The data were interrogated for genes that classify human InvUC as T-cell-inflamed (n = 1797) [31]. Note that the expression of genes related to immune infiltration (red color in the heatmap) predominate in the basal subtype tumors (OR 52.22, 95%CI 4.68–582.38, P = 0.001). The genes in the heatmap are listed in Supplementary Table S3 in the same order as they appear in the figure.

Dogs in high-risk breeds were more likely to have low tumor immune scores (non-T-cell-inflamed), and dogs in non-high risk breeds were more likely to have higher tumor immune scores (T-cell-inflamed) (Mann Whitney U test, P = 0.0002). Within high-risk breed dogs, the immune scores were: 1 (n = 9 dogs), 2 (n = 11 dogs), 3 (n = 4 dogs), 4 (n = 2 dogs), and 5 (n = 2 dogs). Within non-high risk breed dogs, the immune scores were: 1 (n = 2 dogs), 2 (n = 4 dogs), 3 (n = 7 dogs), 4 (n = 7 dogs), and 5 (n = 8 dogs). The association between RNA-seq immune score and subtype was present across breeds. Amongst the 28 high-risk breed dogs, T-cell-inflamed tumors (immune score 4-5) were much more likely to be basal than luminal (OR 33.00, 95%CI 2.25–484.45, P = 0.0047). Within the 28 non-high risk breed dogs, all 15 T-cell-inflamed tumors were also in the basal subtype. The 13 non-T-cell-inflamed tumors in the non-high risk breed dogs included six luminal tumors and seven basal tumors, although a significant association between immune score and subtype within non-high risk breed dogs was not found. An association between the CD3 IHC findings and the RNA-seq immune patterns was not detected, and the CD3 IHC immune score did not correlate with subtype.

Seven Scottish Terriers had bladder cancer identified through screening, and of those seven dogs, three (42.7%) had T-cell-inflamed tumors with immune scores of 4-5, two (28.6%) had an immune score of 3, and two (28.6%) had non-T-cell-inflamed tumors with immune scores of 1-2. Twelve Scottish Terriers had not undergone screening and were presented with urinary signs. This included two dogs (16.7%) with T-cell-inflamed tumors with immune scores of 4-5, two dogs (16.7%) with an immune score of 3, and eight dogs (66.7%) with immune scores of 1-2. With the small numbers of dogs, the potential association between higher immune scores in dogs screened for InvUC was not significant (OR 2.4, 95%CI 0.42 –3.57, P = 0.3026).

Association between BRAF^V595E mutation and molecular subtype

The BRAF^V595E mutation was present in the tumor in 42 (75%) of the 56 dogs. There was an association between the BRAF^V595E mutation and the luminal subtype, and between wild type BRAF and the basal subtype in univariable analyses (OR 0.27 for basal tumors having BRAF^V595E, 95%CI 0.07 –1.01, P = 0.0424). Of 14 tumors with wild type BRAF, 10 tumors (71.4%) were basal, and four tumors (28.6%) were luminal. Of 42 tumors with the BRAF^V595E mutation, 17 tumors (40.5%) were basal, and 25 tumors (59.5%) were luminal.

Tumors with the BRAF^V595E mutation were often present in dogs in high-risk breeds. A total of 28 dogs were in high-risk breeds, 23 of which (82%) had the BRAF^V595E mutation. Of 24 terriers, 21 (87.5%) had the BRAF^V595E mutation. The BRAF^V595E mutation was also present in 67.9%of dogs not in high-risk breeds. There was evidence, however, that the breed-related effect on subtype as discussed above persisted in wild type and mutant tumors. Of 19 dogs in low-risk breeds, i.e. breeds associated with basal tumors above, 14 had basal tumors even in the presence of BRAF mutations. Similarly, of five dogs in high risk breeds, i.e. breeds associated with luminal tumors above, three of five dogs had luminal tumors even in the presence of wild type BRAF. In a subset analysis, the tumors in seven Scottish Terriers screened for bladder cancer did not differ from the tumors in 12 Scottish Terriers not screened for bladder cancer in regards to subtype or BRAF mutation status.

When interrogating the InvUC RNA-seq data with specific panels of genes reported to be enriched in tumors with the BRAF^V595E mutation, or in wild type BRAF tumors [33], the gene expression patterns followed the published results (Supplementary Figure S5) with genes listed in Supplementary Table S6. These gene expression patterns around mutation status were not affected by breed-risk or subtype.

DISCUSSION

This study demonstrated several similarities between dogs and humans regarding clinical and tumor characteristics related to InvUC subtypes. One of the most critical findings was the association between the molecular subtype and immune signatures. T-cell-inflamed signatures were strongly associated with the basal subtype, and non-T-cell-inflamed signatures were associated with the luminal subtype. These findings in dogs parallel findings in InvUC in humans in which tumors in the basal subtype have increased infiltration of CD8 + T cells and T-cell-inflamed signatures in RNA-seq analysis [9 , 15–17]. The association between a T-cell-inflamed state and the basal subtype was present in dogs from high-risk breeds for InvUC, as well as in dogs in other breeds. This result is especially important in light of the fact that the immune state of the tumor can strongly affect whether the patient responds or fails to respond to multiple different types of cancer therapies [7 , 26]. Immune infiltrated tumors are more sensitive to immunotherapies, as well as chemotherapy and radiation therapy, whereas non-infiltrated tumors are typically less responsive [9 , 41]. This indicates that the canine InvUC model could be informative in multiple ways. Dogs could be included in studies to optimize therapies in the context of T-cell-inflamed tumors. Dogs with non-T-cell-inflamed tumors could be included in other studies to test strategies to promote the infiltration of immune cells into the tumor, i.e. to convert immune cold tumors to immune hot tumors in order to improve treatment responses.

As anticipated, the immune infiltrative signatures included the expression of genes which would enhance the immune response against the cancer as well as genes which would dampen the immune response. Both are typically present in T-cell-inflamed tumors in humans [31 , 42]. A mixture of pro-immune processes along with the expression of immune checkpoints and TGF-β pathway genes was noted in the canine samples. This suggests that the canine tumors could be well-suited for the study of checkpoint inhibitors, other immunotherapies, and combination therapies in an environment similar to that in human InvUC.

The expression of TGF-β in the canine tumors was considered an important finding in relation to recent attention to the effects of stromal cell expression of TGF-β in preventing the infiltration of immune cells into the tumor and limiting the activity of immune checkpoint inhibitors [11, 43]. Future single-cell sequencing studies could provide an expanded understanding of this pathway and others in the dog tissues. In addition to the effects of stromal TGF-β, for example, TGF-β expressed in the tumor cells can inhibit the growth of early bladder cancer and drive the progression of later cancer [11 , 43–45].

An interesting finding, albeit with small numbers of dogs for study, was the immune signature in dogs in which the cancer was identified through screening rather than after clinical signs emerged. Of seven Scottish Terriers with cancer detected through screening, five dogs (71.4%) had immune scores of 3–5, and two dogs (28.6%) had immune scores of 1-2. Of 12 Scottish Terriers who were presented with typical “symptomatic” cancer, only four dogs (33.3%) had immune scores of 3–5, and eight dogs (66.7%) had immune scores of 1-2. This finding, if confirmed in larger numbers of dogs, could be in line with the expectation that antitumor immune processes in early tumors are more active than in later stage cancers [46].

The numbers of tumor infiltrating lymphocytes identified by CD3 IHC did not correlate with the RNA-seq immune score, although this was not surprising. IHC findings would be based on the tissue slice where the tumor was cut for slide preparation, whereas the RNA-seq score would be representative of multiple layers through the tissue. It is possible that the IHC findings could be more representative if several slides from each tumor were examined, but this was not usually possible due to the small size of cystoscopic biopsies which can be obtained from dogs. In this study with limited size biopsies, the RNA-seq analyses were prioritized over IHC as the RNA-seq analyses were expected to provide considerably more information. Another current limitation in using IHC to characterize the immune cells in canine tissues is the lack of important antibodies for formalin-fixed specimens, such as the lack of specific antibodies to canine CD8.

Another key finding from the study was the very strong association between subtype and dog breed, specifically the association between dogs in high-risk breeds for InvUC and luminal subtype cancer. This strongly suggests that inherited genetic variation influences the subtype of InvUC that develops. This is not entirely unexpected. In human breast cancer, in which luminal and basal molecular subtypes were first described, germline variants along with patient exposures, such as physiological changes associated with breast feeding, have been linked to the development of specific subtypes of the cancer [47]. In other work, the ancestry of patients and ancestry-related genes have been linked to multiple types of human cancer including bladder cancer, and these analyses are especially informative when focused at the level of molecular subtypes [48]. While germline mutations have been incriminated in ∼14%of cases of InvUC in humans, a possible link between these specific germline mutations and the emergence of specific cancer subtypes has not been reported [49, 50]. Work has been focused more on mutation signatures related to exposure to cigarette smoke and chemicals [51].

There is strong interest in better defining inherited, as well as acquired genetic variants that increase InvUC risk in order to develop new strategies to prevent InvUC and to manage it more effectively when it develops. The diversity of germline genes in humans creates challenges in defining specific inherited variants that are most important in a given disease process. Dogs in specific breeds, however, offer a unique opportunity to study genetic variations linked to cancer [52 –54]. Most dog breeds have been established in the last 300 years, with many breeds derived from a small number of founder dogs, and most having undergone strong artificial selection for specific traits such as size, shape, fur type, etc. [52, 53]. Deleterious alleles can “hitch-hike” along with those linked to desired traits defined by dog breeders. The registration process for dogs in specific breeds has contributed heavily to a relatively closed gene pool within each breed. This has inadvertently led to a high level of breed-associated genetic disease including cancer [52 –54]. With the compressed lifespan of dogs, tracking environmental exposures can also be accomplished more effectively than in humans [23, 54]. Thus, dogs offer important models to discover the genomics driving cancer susceptibility, subtypes, and behavior, as well as models for targeted therapies and immunotherapies [54].

Several clinical features that have been associated with a specific subtype of human InvUC were assessed in the dogs in the study. Women, for example, are more likely than men to have basal subtype InvUC [7 –9]. Female dogs were overrepresented in dogs with basal tumors with 78%percent of dogs being female, although 65%of dogs with luminal tumors were also female. Of 40 female dogs, however, 39 dogs had been spayed, and this could have impacted potential effects of sex on subtype, as well as the consistent predilection for female dogs in the development of InvUC in general [22, 23].

In humans, the basal subtype of InvUC is associated with more advanced stage at diagnosis, and more frequent development of distant metastases [7 –9]. Although distant metastases at diagnosis were uncommon in dogs in this study, it was noted that three of four dogs with distant metastases at diagnosis had basal tumors. The presence of distant metastases at death was considered an exploratory endpoint because treatments differed between dogs, yet it was noted that 53%of dogs with basal tumors had distant metastases, compared to 32%dogs with luminal tumors. The presence of distant metastases early in the disease course is another indicator of the aggressiveness of the cancer. In exploratory analyses, the median time between diagnosis and the detection of distant metastasis was approximately three times longer in dogs with luminal tumors compared to dogs with basal tumors (P = 0.0113). Clearly, studies of larger numbers of dogs and groups of dogs treated with a specific treatment protocol are indicated to further assess the relationship between subtype, cancer stage, and case outcomes.

The BRAF^V595E mutation in InvUC was detected in 75%of the dogs in this study, which is consistent with earlier studies [24, 25]. The BRAF^V595E mutation was significantly associated with the luminal subtype, and wild type BRAF with the basal subtype, although there was clearly overlap between the groups. The mutation, for example was present in 86%of dogs with luminal tumors, but was also present in 63%of dogs with basal tumors. Similarly, of 14 dogs with wild type tumors, 10 dogs (71%) had basal tumors, and four dogs (29%) had luminal tumors. Genes that are oppositely regulated between BRAF^V595E mutant and BRAF wild type InvUC samples in dogs have been described, and the patterns of expression of these genes around BRAF status was confirmed in the current study [33].

This study focused on the major subtypes of luminal and basal tumors. In human InvUC subgroupings within the luminal and basal subtypes are consistently reported, such as luminal papillary/uroA, luminal infiltrated/p53-like, luminal/genomically unstable, basal squamous, and neuroendocrine [7 –11]. It is likely that similar subgroupings could occur in canine InvUC, and in fact there was evidence for the presence of subgrouping within the tumors in this study. Analyses with larger numbers of cases will help further elucidate the subgrouping in canine tumors.

In addition to the results of the analyses reported here, the data from this study, as well as additional canine InvUC data from other work have been deposited in the National Cancer Institute’s Integrated Canine Data Commons (https://datacommons.cancer.gov/repository/integrated-canine-data-commons), a cloud based resource in which many different types of data including genomic, clinical, outcome, and pharmacokinetic data are accessible. These canine data sets are available along with data from the human Cancer Data Commons, offering the opportunity for robust cross species comparisons in the cloud based system. Building on the existing data and data currently being generated, several key questions could be addressed in the future related to the effects of subtype on specific therapies, the effects of specific therapies in modulating subtype, i.e. switching from one subtype to another, and the effects of germline variants in the emergence of specific subtypes. The immunological findings will be of additional importance when immunotherapies such as immune checkpoint inhibitors, and others are established and are made available for canine studies. In conclusion, this study demonstrated clinical and tumor characteristics that were associated with molecular subtypes across canine and human samples, and provides further support for the value for the naturally-occurring canine InvUC model for translational research.

Footnotes

ACKNOWLEDGMENTS

The authors wish to thank the dedicated clinicians and staff of the Purdue Comparative Oncology Program for their work on this study, and the dog owners who allowed their dogs to participate and provided support for bladder cancer research at Purdue University.

FUNDING

National Institutes of Health, P30 Administrative Supplement Award: “Advancing immunology in dogs with naturally-occurring invasive bladder cancer, a relevant model to improve immunotherapy across molecular cancer subtypes in humans” to Parent CCSG Project: P30CA023168, Purdue University Center for Cancer Research, Investigators TL Ratliff and DW Knapp.

AUTHOR CONTRIBUTIONS

Breann C. Sommer: conception, performance of work, interpretation and analysis of data, writing the article. Deepika Dhawan: conception; performance of work, interpretation and analysis of data, writing the article. Audrey Ruple: performance of work, interpretation and analysis of data, writing the article. José A. Ramos-Vara: performance of work, interpretation and analysis of data, writing the article. Noah M. Hahn: conception, interpretation and analysis of data, writing the article. Sagar M. Utturkar: performance of work, interpretation and analysis of data, writing the article. Elaine A Ostrander: interpretation and analysis of data, writing the article. Heidi G. Parker: interpretation and analysis of data, writing the article. Christopher M. Fulkerson: performance of work, interpretation of data, writing the article. Michael O. Childress: performance of work, interpretation of data, writing the article. Lindsey M. Fourez: performance of work, writing the article. Alexander W. Enstrom: performance of work, writing the article. Deborah W. Knapp: conception, performance of work, interpretation and analysis of data, writing the article. All authors had access to the data.

CONFLICT OF INTEREST

Breann C. Sommer, Deepika Dhawan, Audrey Ruple, José A. Ramos-Vara, Sagar M. Utturkar, Elaine A Ostrander, Heidi G. Parker, Christopher M. Fulkerson, Michael O. Childress, Lindsey M. Fourez, Alexander W. Enstrom, and Deborah W. Knapp have nothing to disclose. Dr. Hahn reports personal fees and non-financial support from Genentech, personal fees and non-financial support from Merck, non-financial support from BMS, personal fees and non-financial support from Seattle Genetics, personal fees and non-financial support from Incyte, non-financial support from Inovio, personal fees and non-financial support from Janssen, personal fees and non-financial support from Pieris, personal fees from Boehringer Ingelheim, personal fees from Glaxo Smith Kline, personal fees from Bladder Cancer Academy, personal fees from Ferring, non-financial support from AstraZeneca, non-financial support from HTG Molecular, personal fees from Pfizer, outside the submitted work.

The supplementary material is available in the electronic version of this article: .
