Abstract
BACKGROUND:
Inchworm sign is a finding on diffusion-weighted magnetic resonance imaging (DWI-MRI) and is used to better stratify T-staging in muscle invasive (MIBC) and non-muscle-invasive bladder cancer (NMIBC). An uninterrupted low submucosal signal on DWI, defined as inchworm sign (IS), indicates NMIBC.
OBJECTIVE:
We aimed to define the diagnostic accuracy of IS in primary bladder cancer, as well as find agreement between the urologists and the radiologist.
METHODS:
Between December 2018 and December 2020, we retrospectively analyzed 95 primary bladder cancer patients who had undergone multiparametric-MRI before transurethral resection. Patients with former bladder cancer history, tumors smaller than 10 mm, and MRI without proper protocol, as well as patients who did not attend follow-up, were excluded. In total, 71 patients’ images were evaluated by a genitourinary specialist radiologist and two urologists. Sensitivity, specificity, positive and negative predictive values of IS and VI-RADS in differentiating MIBC and NMIBC, and interreader agreement between the radiologist and urologists were analyzed.
RESULTS:
During follow-up, 38 patients (53.5%) were IS-positive, while 33 patients (46.5%) were negative. Among the 33 patients with negative IS, 14 patients (42.4%) had MIBC. Meanwhile, two out of the 38 IS-positive patients (5.3%) had MIBC (p = 0.00). Sensitivity, specificity, and positive and negative predictive values of IS in predicting MIBC were 87.5%, 63.6%, 41.2%and 94.6%, respectively. The interobserver agreement between the urologists and radiologist was almost perfect ( K = 0.802 and K = 0.745)
CONCLUSION:
The absence of IS on DWI is useful in differentiating MIBC from NMIBC. It is a simple finding that can be interpreted by urologists.
INTRODUCTION
Multiparametric magnetic resonance imaging (mpMRI) for bladder cancer (BC) is becoming widespread today. Its diagnostic accuracy in optimizing primary tumor staging has been proven by many studies. A meta-analysis by Huang et al. showed that preoperative multiparametric MRI for BC can differentiate between muscle invasive bladder cancer (MIBC) and non-muscle invasive bladder cancer (NMIBC) with a sensitivity of 91%and a specificity of 96%[1]. In 2018, Panebianco et al. used the Vesical Imaging Reporting and Data System (VI-RADS) to standardize multiparametric bladder MRI reporting, increase interreader agreement rates, improve sensitivity, and specificity determinig muscle invasion [2]. VI-RADS consists of a scoring system of five points given to T2-weighted MRI, diffusion-weighted imaging (DWI), and dynamic contrast enhancement. Recently, some validation studies have been carried out. A recent meta-analysis determined the sensitivity of VI-RADS to be 90%, with a specificity of 90%[3]. EAU guidelines refer to the high diagnostic accuracy of VI-RADS as needing more validation [4].
Some authors advocate for a combination of T2-weighted images and DWI to improve the accuracy of muscle invasion diagnosis. Some authors have found the diagnostic performances of DWI and T2-weighted imaging to be similar, although DWI shows a better interobserver agreement and some authors found the sensitivity and specificity of DWI to be similar to VI-RADS [5, 6].
Inchworm sign (IS) was defined by Takeuchi et al. in reference to a finding on a DWI magnetic resonance image. It refers to an uninterrupted low submucosal signal on DWI, made up of a mixture of edematous submucosa, fibrous tissue, capillaries, and inflammatory cells, which indicate NMIBC [7]. Yajima et al. showed that the absence of IS was a significant predictor of the progression of T1-high-grade tumors [8].
In this study, we investigated the diagnostic value of IS in differentiating between MIBC and NMIBC. Our secondary aim was to evaluate the compatibility of DWI-MRI evaluations by urologists compared with radiologists.
MATERIALS AND METHODS
Between December 2018 and December 2020, we retrospectively analyzed 95 primary BC patients who underwent DWI-MRI before the transurethral resection of bladder tumor (TUR-BT). Patients with former BC history, tumors smaller than 10 mm, and DWI-MRI without proper protocol, as well as patients who hadn’t had a follow-up, were excluded (Fig. 1). Patients without muscularis propria sampling were also not included in our study. Muscularis propria was sampled either at initial TUR-BT, at second TUR-BT, or at cystectomy. In order to optimally evaluate the bladder muscle layer, only primary patients were included in our study. Prior studies mentioned that previous treatments like TUR-BT, intravesical BCG or chemotherapy instillations, and pelvic radiotherapy may cause fibrosis, inflammation, and edema and make it difficult to distinguish between lesions [9, 10]. Lesions smaller than 10 mm may not have a stalk yet and have a similar signal intensity in T2 images, which may prevent us from understanding the characteristics of the lesion. Since the main evaluation in this study was whether the lesions had a stalk or not, this group of patients was excluded in order to not cause overestimation. In order not to cause bias, TUR-BT was performed by a urologist other than the urologists making the analysis. In total, 71 patients’ images were evaluated by a genitourinary specialist radiologist and two urologists, independently.

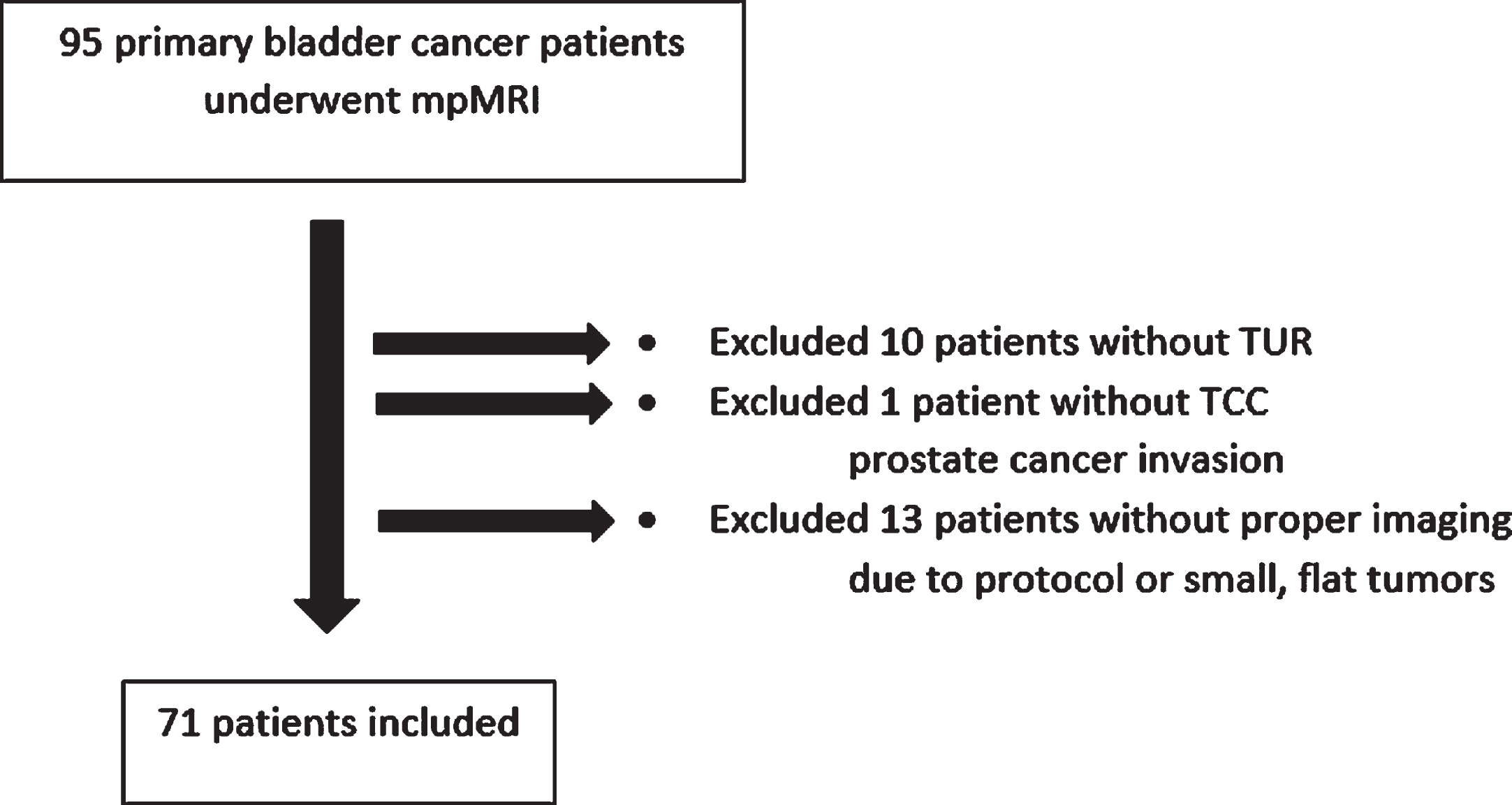

Patient diagram.
All patients underwent TUR with monopolar or bipolar electrocautery under white light within two weeks. The specimens were evaluated by an expert uropathologist according to the 2004 WHO/ISUP consensus classification and the TNM classification system. According to EAU guidelines, follow-up with cystoscopy, cytology or second TUR was performed with or without intravesical therapy in accordance with EAU risk groups. After the proper staging of patients with muscle-invasive disease, high-risk NMIBC patients, and those with tumors that could not be completed with TUR-BT, radical cystectomy and pelvic lymph node dissection was performed in eligible patients. Patients with muscle-invasive disease and those suitable for cisplatin received neoadjuvant chemotherapy.
For NMIBC, definitions of recurrence and progression were assessed according to the EORTC and CUETO risk scorings [11, 12]. Recurrence was assessed as the first recurrence of bladder cancer proven by pathology during follow-up. Progression was assessed as upstaging to MIBC or to a higher disease in the bladder. For MIBC, recurrence was defined as local surgical site recurrence, and progression was defined as a newly diagnosed lymph node or distant metastatis.
While assessing the DWI, three observers evaluated them separately, blind to the pathology reports and to each other. The first observer was a specialist radiologist with ten years of DWI-MRI evaluation experience and two years of VI-RADS assessment experience. The second observer was a urologist with two years of DWI-MRI evaluation experience and five years of TUR experience. The third observer was another urologist with six months of DWI-MRI evaluation experience and two years of TUR experience.
IS was identified according to the criteria defined by Takeuchi et al. [7]. An uninterrupted low submucosal signal, which consisted of edematous tissue, fibrous material, capillaries, and a high signal intensity on the stalk, was determined to be the tumor itself (Fig. 2). A third person, who made the statistical analysis, matched the highest grade tumor in pathology mapping with the reader’s assessment of this particular lesion. If one of the multiple tumors in the bladder was pT2, that particular lesion was evaluated in the radiological evaluation. To compare the diagnostic power of IS, we also analyzed the VI-RADS. This was assessed only by the radiologist.
T2-weighted and Diffusion-weighted Images of patients with and without Inchworm sign. A. Axial MR images of a male patient with a 3 cm tumor on the posterior bladder wall. a. T2-weighted image b. Diffusion-weighted image tumor with high SI area with a low SI stalk, as an inchworm sign. TUR-BT revealed pT1 high grade papillary urothelial carcinoma without muscle invasion. B. Axial MR images of a male patient with 4.1 cm tumor on the posterior bladder wall. a. T2- weighted image b. Diffusion-weighted image tumor without inchworm sign. TUR-BT revealed T2 high grade papillary urothelial carcinoma and Radical cystectomy was performed, pathology resulted as pT3 high grade.
The local ethics committee approved this study (2019/0542). Informed consent was obtained from all individual participants included in the study.
Imaging protocol
The patients were scanned using the 1.5 Tesla GE Optima MR450w (General Electric, Chicago, Illinois, USA) system. For the purpose of adequate bladder filling and distension, patients were instructed not to void 1–2 hours before imaging and to drink 500–1000 mL of water in the one hour before the examination. An intramuscular antispasmodic agent was injected to avoid motion and susceptibility artifacts from bowel peristalsis. T2-weighted images were obtained in multiplanar (axial, coronal, and sagittal) reformat. The images were obtained via two-dimensional fast-spin-echo sequences. Diffusion-weighted images were acquired in the axial plane with high b values (b = 0–800–1000–1500 s/mm2).
A gadolinium-based contrast agent, adjusted as per body weight (0.1 mmol/kg), was administered via the antecubital vein using an automatic injector system. Initial contrast enhanced images were acquired 30 s after the start of injection and repeated four times with the same sequences at every 30 s to show the early enhancement of the inner layer.
The parameter settings for 1.5 Tesla MRI (including T2-weighted/diffusion-weighted sequences and apparent diffusion coefficient mapping) were as follows: TR values of 3000, 7000, and 6 ms, respectively; TE values of 100, 35, and 1.5 ms, respectively; flip angles of 160, 160, and 12 degrees, respectively; FOV of 24, 26, and 35 cm, respectively; a matrix of 320×320, 128×128, and 288×288, respectively; slice thickness of 3, 4, and 3 mm, respectively; slice gaps of 1, 1, and 0 mm, respectively; and number of excitations of 2.5, 2-10-10, and 1, respectively. The b values were set at 50, 800, 1000 s/mm2 for DWI.
Statistical analysis
Associations between IS and demographic/tumor characteristics were analyzed via chi-square tests and independent samples t-tests. Bonferroni correction was applied in the presence of three or more variables in the chi-square test. The interobserver agreement was evaluated by performing a consistency test and calculating the weighted kappa value (Cohen’s kappa coefficient). P-value < 0.05 was considered significant. When evaluating the factors affecting the survival Cox regression analysis and evaluating the survival plots, Kaplan Meier analysis was used. These analyses were performed using SPSS (v. 22, IBM).
RESULTS
Primary outcome: Patients and tumor characteristics
A total of 71 patients, 38 patients with IS and 33 patients without IS, were included. Both groups had similar demographic characteristics. The mean follow-up time was 10.8 months (Table 1).
Demographic characteristics
BMI: Body Mass Index, CCI: Charlson Comorbidity Index, ‡: Chi-Square Test, †: Independent-Samples T test, SD: Standart Deviation.
Both groups had similar tumor sizes according to radiological measurements (mean 39.9 (10–85 mm) vs 30.7 mm (10–100 mm), p = 0.069). However, IS-negative tumors were more likely to be solid in structure (33.3%vs 10.5%, p = 0.05). Complete TUR-BT was achieved more frequently in the group with positive IS (84.2%vs 60.6, p = 0.02).
The pT stage of initial TUR-BT was seen as Ta or T1 in most of the IS-positive group tumors (97.4%vs 63.6%). Meanwhile, MIBC was seen with a higher rate in the IS-negative group at initial TUR-BT (36.4%vs 2.6%, p = 0.00). At the final stage, pathology muscle invasion was seen in 16 patients, and the majority of them were IS-negative (42.4%vs 5.3%, p = 0.001). The incidence of variant histology was lower in those with IS-positive tumors (7.9%vs 36.4%, p = 0.03). While eight (24.2%) IS-negative patients underwent cystectomy, only two (5.3%) patients with IS underwent cystectomy (p = 0.022), the group with positive IS received intravesical treatment more frequently (68.4%vs 9.1%, p = 0.00) (Table 2).
Tumour characteristics
†: Independent-Samples T test, ‡: Chi-Square Test, f: Fisher’s Exact Test, SD: Standart Deviation.
The diagnostic performance of IS on predicting muscle invasion was shown in Table 3. IS has a sensitivity, specificity, positive predictive value, and negative predictive value of 87.5%, 63.6%, 41.2%, 94.6%, respectively (Table 3).
Inchworm sign and VI-RADS on predicting muscle invasive bladder cancer
AUC: Area under curve, NPV: Negative predictive value, PPV: Positive predictive value.
In the NMIBC group, recurrence and progression were seen more frequently in IS-negative patients (recurrence = 31.6%vs. 8.3%, p = 0.027 and progression = 31.6%vs. 2.8%, p = 0.002) (Table 2). In this group, patients with negative IS had worse recurrence-free survival (RFS) than IS-positive patients (2-year RFS: 61.5%vs 88.4%, p = 0.016) (Fig. 3). Patients without IS had also worse progression-free survival (PFS) than those with positive IS (2-year PFS: 63.8%vs. 88.6%, p = 0.019) (Fig. 4). In NMIBC, factors affecting recurrence-free and progression-free survival were analyzed. IS was found as a factor affecting RFS in the univariate analysis. Gender, tumor size, and variant histology were independent risk factors affecting RFS. Gender, variant histology and IS were found as independent risk factors affecting PFS in NMIBC (Table 5).

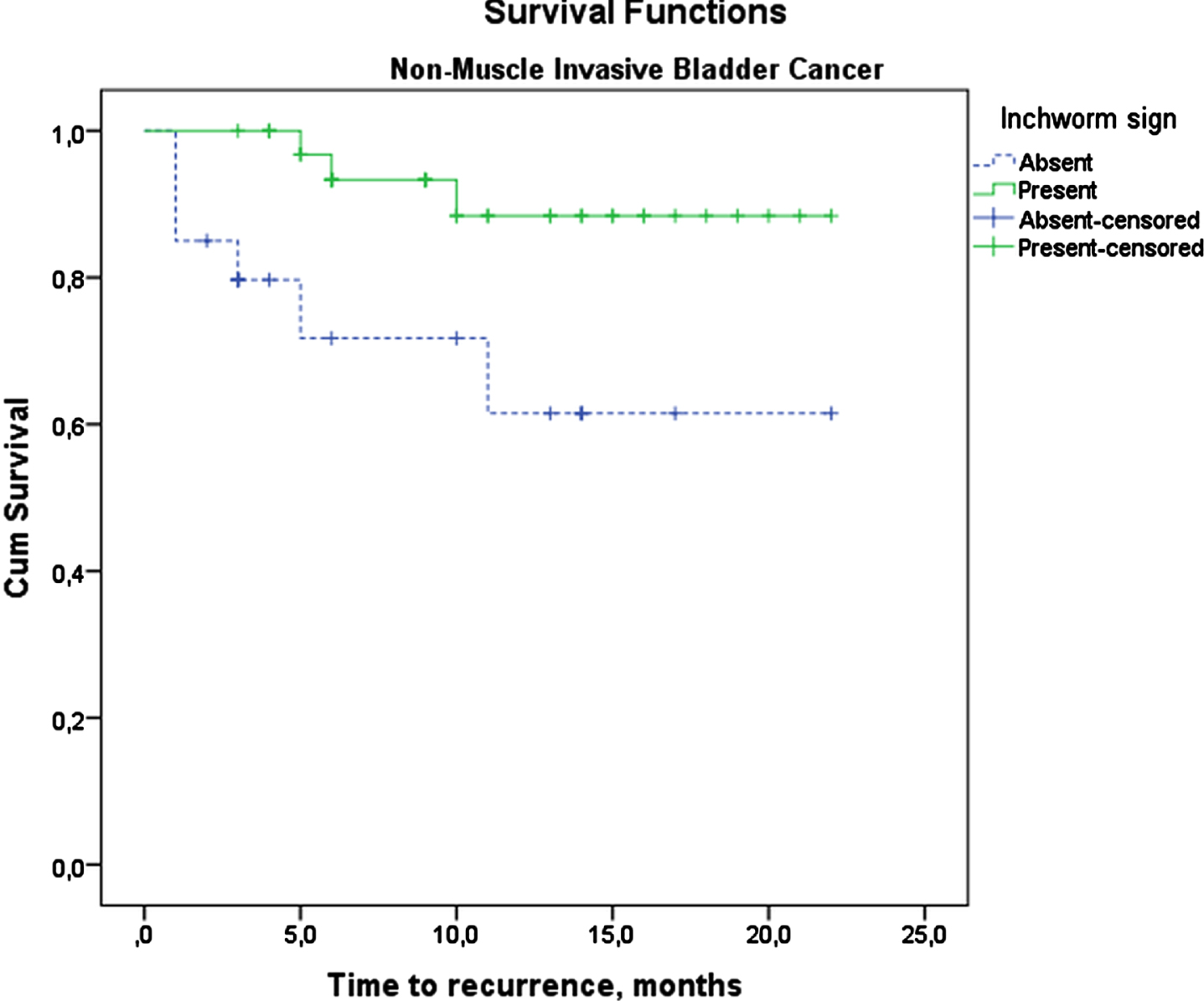

Recurrence-free Kaplan-Meier Survival Analysis of Non-Muscle Invasive Bladder Cancer patients.

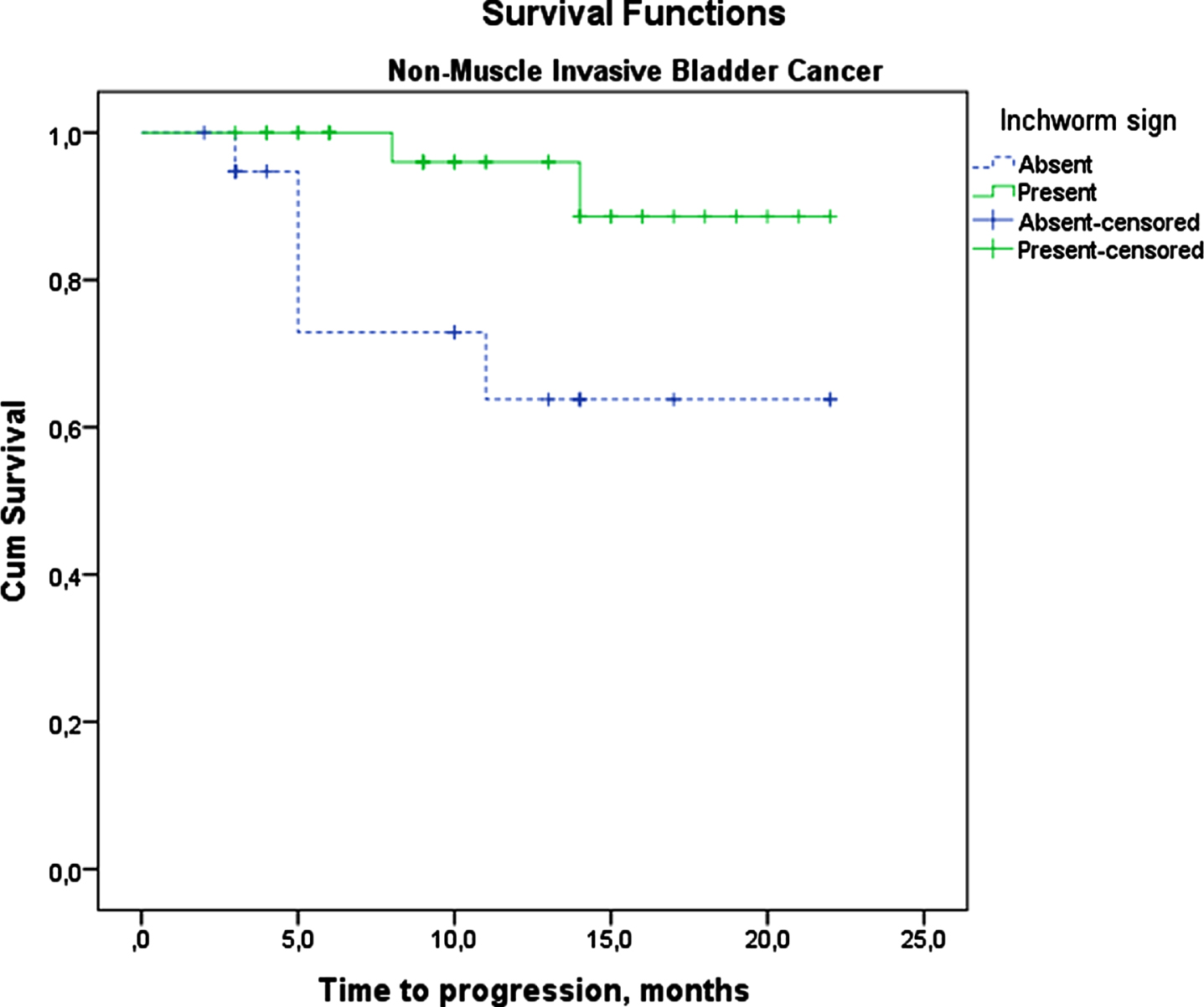

Progression-free Kaplan-Meier Survival Analysis of Non-Muscle Invasive Bladder Cancer patients.
Factors affecting recurrence-free and progression-free survivals in non-muscle invasive bladder cancer
Cox-Regression Analysis.*: p < 0.05,#: Male is the indicating value.
Secondary outcome: Interobserver agreement between radiologist and urologists
When predicting muscle invasion with IS, there are similar results in terms of sensitivity, specificity, positive predictive value, and negative predictive value between the radiologist’s analysis and the urologists’ analyses. Comparing the results of IS and VI-RADS, VI-RADS had higher sensitivity than IS in terms of predicting muscle invasion; however, both have similar areas under curves (0.79 vs. 0.76) (Table 3). Out of 71 patients, the radiologist and first urologist disagreed about seven patients. The kappa coefficient between the radiologist and urologist was 0.802, which indicates strong agreement. The radiologist and the second urologist also have a high agreement rate (kappa = 0.745) (Table 4).
Interobserver agreement between radiologist and urologists
K : Kappa Coefficient.
DISCUSSION
Muscle invasive and non-muscle invasive BC have quite different characteristics, especially in terms of prognosis. Proper preoperative staging is essential in primary BC and is becoming more and more important. Recently, with the introduction of VI-RADS gradually taking place in the proper and standardized staging, MRI has started to play an important role in the local staging of primary BC. In this study, we found that the evaluation of IS in DWI has a high diagnostic value in determining muscle invasive disease in primary BC. It is very important to predict muscle invasive disease only with IS without the need for detailed scoring. In addition, with the VI-RADS evaluation, IS was shown to have very similar diagnostic values (sensitivity = 93.8%vs. 87.5%, specificity = 63.6%vs 63.6%).
IS was first used by Takeuchi et al. to differentiate MIBC from NMIBC with DWI-MRI. IS was described as a high signal intensity (SI) tumor with a low signal intensity submucosal stalk or a thickened submucosa, which is an archlike shape similar to an inchworm. A histopathological analysis of the submucosal stalk, which has low SI corresponding to the tumor, revealed smooth muscle, capillaries, and edematous tissue. Saito et al. also analyzed the submucosal stalk histopathology and found edema, inflammatory cells, capillaries, and fibrous connective tissue [13]. Takeuchi et al. found that the accuracy of T2-weighted images differentiating T2-T4 tumors from Tis-T1 tumors increased from 79%to 96%when DWI was added. Moreover, the interobserver agreement between radiologists increased from 70%to 88%[7].
The current study showed that MIBC could be differentiated from NMIBC with great accuracy only by evaluating IS on DWI-MRI. In our study, sensitivity and specificity were 87.5%and 63.6%, respectively. Huang et al. reviewed 17 studies in a meta-analysis and found the sensitivity and specificity of DWI-MRI to be 86%and 92%at differentiating stage T2 or higher from, T1 or lower tumors [1]. The recently proposed VI-RADS for multiparametric bladder MRI is obtained by scoring T2-weighted, diffusion-weighted (DW), and dynamic contrast-enhanced (DCE) sequences on a 5-point Likert scale. Panebianco et al. defined VI-RADS; according to their classification, tumors with a stalk were considered DWI group 1 and 2, which were considered IS in our study [2]. Various studies showed heterogeneous sensitivities and specificities in terms of differentiating MIBC from NMIBC. Sensitivity values vary between 78%and 95%, while specificity varies between 44%96%[6, 14–19]. Some of these authors evaluated each MRI sequence separately. Wang et al. and Arita et al. showed that DWI has the same sensitivity and specificity as VI-RADS [6, 19]. Makboul et al. found lower sensitivity of DWI, but a similar specificity to VI-RADS [15]. In our study, VI-RADS had slightly higher sensitivity than IS, and they had similar specificities. The area under the curves were also quite similar to each other, when 4 is used as the cut-off point. One of the limitations of VI-RADS, as stated by the EAU, is that there is no consensus regarding the cut-off value. Therefore, each study analyzed both cut-off values. Our sensitivity results of DWI and final VI-RADS evaluation were similar to other studies; however, specificity was lower. Four out of six studies had a specificity higher than 0.80, while one study had a specificity of 0.44. It is a fact that these studies are very valuable in terms of developing standards for bladder multiparametric MRI, and more homogeneous results will occur with the expansion of the literature. It is an important advantage that IS has similar results with VI-RADS and can be evaluated more quickly without the need for additional scoring. IS will be very advantageous in terms of its use in clinical practice.
In our study, NMIBC patients without IS had higher recurrence and progression rates. The study by Yajima et al. evaluated the effect of IS on the recurrence or progression of pT1 bladder tumors. They found that the absence of IS is an independent risk factor for progression, but has no impact on recurrence. In our study, NMIBC patients without IS had worse 2-year RFS (61.5%vs 88.4%, p = 0.016) and PFS (63.8%vs. 88.6%, p = 0.019). In the regression analysis, IS was found to be an independent risk factor affecting PFS. In the univariate analysis, IS was also a factor affecting RFS in univariate analysis. We showed that IS-negative patients have worse prognostic features in terms of both recurrence and progression compared to positive patients.
Yajima et al. found that tumors without IS had a higher rate of non-papillary tumor structure. In our study, we obtained a similar result: the accompaniment of a solid tumor structure and the absence of IS was more frequent [8]. Another finding observed in our study was the relationship between incomplete TUR rates and the absence of IS. This can be explained by the fact that tumors without IS often have irregular margins and are more invasive tumors. Variant histology should be evaluated in the same way, as it is known that tumors with variant histology are more commonly encountered as muscle invasive disease.
The interreader agreement between the radiologist and the urologist in our study showed an “almost perfect” agreement, which was calculated through Cohen’s kappa coefficient ( K = 0.802). Another and less experienced urologist had substantial agreement with the radiologist ( K = 0.745). Yajima et al. found excellent agreement between a radiologist and a urologist in defining IS ( K = 0.95), without specifying sensitivity and specificity of muscle invasion [8]. Kobayashi et al. found an excellent agreement for DWI-MRI between two radiologists ( K = 0.88); however, there was only moderate agreement for T2-weighted sequences ( K = 0.67) [5]. Arita et al. evaluated the interreader agreement of VI-RADS and its sequences between two radiologists and two urologists. Between the urologists and radiologists, agreement for DWI-MRI was higher than agreement for T2-weighted and DCE-MRI ( K = 0.88 vs 0.80 and 0.70) and equal to VI-RADS [19].
IS is a simple finding on DWI-MRI that may provide urologists means to interpret the primary staging. The strength of our study is that it shows the similar diagnostic power of IS with VI-RADS and the diagnostic accuracy of urologists in terms of muscle invasion using only a simple IS in patients with primary bladder tumors.
However, there are several limitations to our study. It used a small sample size, especially regarding patients who underwent cystectomy. Some of the patients who underwent cystectomy received neoadjuvant chemotherapy, meaning cystectomy pathology was not included for them. Depending on the clinical approach and certain contraindications, patients had to receive different treatments such as intravesical treatments during patient management. The ideal interobserver variability is evaluated through the same disciplines, but the secondary aim of this study was to assess agreement between urologists and radiologists in terms of IS. Therefore, we evaluated the compatibility between a radiologist and urologists with different levels of experience. We also analyzed recurrence and progression, though the follow-up period was short.
CONCLUSION
IS on DWI-MRI is simple and accurate in terms of differentiating NMBIC from MIBC according to both radiologists and urologists.
