The effect of direct vertebral rotation on the spine parameters (coronal and sagittal) in adolescent idiopathic scoliosis

Abstract

BACKGROUND:

Idiopathic scoliosis is accompanied by postural alterations, instability of gait, and functional disabilities. The objective was to verify radiographic parameters (coronal and sagittal) of adolescents with idiopathic scoliosis (AIS) pre- and post-surgery with direct vertebral rotation (DVR), associated with type 1 osteotomies in all segments (except the most proximal) and type 2 in the periapical vertebrae of the curves.

METHODS:

A prospective study design was employed in which 41 AIS were evaluated and compared pre- and post-surgery. Scoliosis was confirmed by a spine X-ray exam (Cobb angle). Eight radiographic parameters were measured: Cobb angles (thoracic proximal and distal), segmental kyphosis, total kyphosis, lumbar lordosis, pelvic incidence, sacral slope, and pelvic tilt.

RESULTS:

The Cobb angle averaged 51.3 ${}^{\circ}$ $\pm$ 14.9 ${}^{\circ}$ . Post-surgery, there were significant reductions for the following spine measurement parameters: Cobb angle thoracic proximal ( $p=$ 0.003); Cobb angle thoracic distal ( $p=$ 0.001); Cobb angle lumbar ( $p=$ 0.001); kyphosis (T5-T12, $p=$ 0.012); and kyphosis (T1-T12, $p=$ 0.002). These reductions showed the effectiveness of surgical correction to reduce Cobb angles and improve thoracic kyphosis. The values obtained for lumbar lordosis, pelvic incidence, sacral slope, and pelvic tilt were not significantly different pre- and post-surgery.

CONCLUSION:

The surgical technique of DVR in AIS proved to be effective in the coronal and sagittal parameters directed at Cobb angles and thoracic kyphosis in order to favor the rehabilitation process.

Keywords

Idiopathic scoliosis adolescents surgery spine

1. Introduction

Adolescent idiopathic scoliosis (AIS) is considered a three-dimensional spinal deformity most prevalent in children between the ages of 10 and 16 years in 80% to 90% of the cases [1, 2]. The spine shows lateral curvature in the coronal plane, thoracic hypokyphosis in the sagittal plane, and intravertebral and intervertebral rotation in the transverse plane [3, 4]. The ideal surgical procedure provides maximal correction and spinal balance with minimal fusion levels [4, 5, 6]. Three-dimensional deformities of both curves should be corrected [5].

In the literature, studies have used segmental pedicle screws with a spinal defeat maneuver in most scoliosis surgeries for the past two decades [4, 5, 6, 7]. During the surgical correction of adolescent scoliosis, direct vertebral rotation (DVR) in combination with rod derotation after pedicle screw instrumentation enables correction of rotational vertebral body deformity, achieving a sufficient correction angle with a reduced fusion level while minimizing aggravated deformity and complications due to patient growth [7, 8]. In the late 1990s, the literature showed use of the new method: DVR designed to foster rotational correction [3, 4, 7, 8, 9]. The choice of an inappropriate fusion level may result in under- or overcorrection of major and compensatory curves, in turn potentially causing serious problems, such as trunk imbalance and decompensation [10].

Variety of techniques have been introduced to assist screw insertion and to reduce the prevalence of pedicle violation, given the clinical complications that may occur during and after the surgical procedure, such as the conventional free-hand technique is currently employed with the fluoroscopy-guided method as the primary method of pedicle screw implantation [4] and robot-assisted systems have been developed to address the issue of pedicle screw malposition [5]. An important issue that must be considered on AIS is a complex three-dimensional spinal deformity in the coronal, sagittal, and transverse planes [7, 8, 9]. The strong postero-medialization of rod derotation is known to provide three-dimensional correction and has been generally used for treating idiopathic scoliosis [3, 4, 7, 8, 9]. However, there is a controversy regarding its rotational correction, reported studies demonstrated that the posterior hook instrumentation system could not generate sufficient torque for improving the vertebral rotation because the axis of the hook was posterior to that of vertebral rotation [6, 7, 8, 10, 11, 12, 13, 14, 15, 16]. A deformity of the right thoracic curve results in the apical and periapical vertebrae being rotated clockwise in the transverse plane [10, 11]. To correct the intervertebral rotation, the direction of DVR should be opposite that of the rotational deformity, i.e., counter-clockwise in the transverse plane [11]. The direction of rod derotation (clockwise rotation) should be opposite that of DVR (counter-clockwise rotation) in the apical and periapical vertebrae of the right thoracic curve [8, 9, 10]. The direction of DVR in the lowest instrumented vertebra (LIV) and its effect on the uninstrumented curve are still undetermined [4, 10, 11]. It has been thought that the direction of DVR in the LIV might differ depending on the lumbar modifier, as described by Lenke et al. [12, 13, 14].

The authors of recent studies have focused on the radiologic outcomes of DVR in scoliosis surgery [9, 10, 11, 12, 13, 14]. However, its efficacy and safety remain to be determined. Some suggest that DVR creates hypokyphosis on thoracic kyphosis, presents an increased risk of screw pullout, and prolongs operative time without benefits [15, 16, 17]. Surgical treatment can lead to improvements in self-confidence, self-image, cosmetic and life satisfaction, and back pain [10, 11, 12, 13, 14]. Thoracic curves of $>$ 50 ${}^{\circ}$ and the lumbar component of a double major curve will progress into adult life, especially in those with more apical rotation. Thoracolumbar curves do not affect pulmonary function but they do produce marked cosmetic deformity and increasing, although not disabling, back pain, often associated with a transitional shift of the vertebrae and a tendency to progress over time, often continuing after the end of spinal growth. Surgical treatment of these curves when they reach 50 ${}^{\circ}$ is therefore justified [4, 14].

The objective of the surgery in the treatment of AIS is to improve spine parameters and function with low complication rates and few long-term complications, according to the literature, especially in the DVR with the three-dimensional, corrective surgical technique [15, 16, 17]. However, due to the few studies on the specificity of this technique, little is understood about these parameters after surgical correction in patients with idiopathic scoliosis. Thus, the objective of this study was to verify radiographic parameters (coronal and sagittal) of AIS pre- and post-surgery with DVR associated with type 1 osteotomies in all segments (except the most proximal) and type 2 in the periapical vertebrae of the curves, according to the Schwab classification [18].

2. Methods

2.1 Study design and participants

This study was prospective and observational, and it included 41 AIS volunteer participants who were evaluated pre-surgery (a day before) and post-surgery (one month after). It is worth mentioning that the data presented in this study are cross-sectional, but the patient has been followed by assessments every three months, until completing the period one year after surgery. Recruitment was conducted through the Public Hospital in the State of Sao Paulo/SP, Brazil, between January 2018 and December 2019. The study procedure was reviewed and approved by the Departmental Research Committee of the Institute of Medical Assistance to the State Public Hospital Servant (registration number: 533.756), in accordance with the Helsinki Declaration and relevant guidelines and regulations. All participants our responsible parents provided their informed consent and then underwent radiographic assessment.

All the patients with AIS were determined, radiographically, to have a single thoracic curve (Lenke 1–6) with Cobb angles of 51.3 ${}^{\circ}$ $\pm$ 14.9 ${}^{\circ}$ . The eligibility criteria were as follows: each participant could not have any other deformity or pathology of the spine other than AIS, as well as orthopedic pathologies on the hip, pelvis, or lower limbs; and each participant must have had no other musculoskeletal disorders, such as neuropathies, obesity, rheumatoid arthritis and/or back pain for more than three consecutive months. In addition, they could not have prostheses and/or orthoses in the lower limbs (i.e., they had to have good general health), so as not to generate bias in the interpretation of pace evaluations [14, 15, 16].

2.2 Radiographic evaluations: Panoramic X-rays

Fulllength, free-standing spine radiographs with fists on clavicles were obtained in all subjects and measured by experienced radiation technologists. The radiographs were centered on T12 during inspiration, with a 2-meter distance between the film and the focus. All images were transferred to a computer as digital images and evaluated using the image software Surgimap Spine (Nemaris Inc., New York, USA) [4, 5, 7, 9].

Eight sagittal alignment and spinopelvic alignment parameters were analyzed on the radiographs of the 41 participants: Cobb angle thoracic proximal, Cobb angle thoracic distal, segmental kyphosis (T5-T12), total kyphosis (T1-T12), lumbar lordosis, pelvic incidence, sacral slope and pelvic tilt. Segmental kyphosis was measured as the angle between the upper endplate of T5 and the lower endplate of T12; total thoracic kyphosis was measured using the T1 and T12 plateaus. Lumbar lordosis was measured using the angle formed between the upper endplate of L1 and S1. The pelvic incidence corresponded to the angle between the perpendicular to the upper S1 level passing through its center and the line connecting this point to the axis of the femoral head [19]. Sacral slope was defined as the angle formed by the upper endplate of S1 and the horizontal plane. Pelvic tilt was defined as the angle between the vertical plane and the straight line of the union between the femoral heads and the midpoint of the upper endplate of S1 [20]. The radiographic evaluations were always performed by the same radiologist to maintain a standard in the X-ray images. The images after the surgical procedure were after a period of one month, in this time interval, the patients were not yet undergoing rehabilitation treatment. After this period, everyone was referred to physiotherapy for rehabilitation treatment.

Data reliability analysis

To verify the degree of reliability of the intra-examiner analysis, a single examiner (doctor experienced in evaluations) measured the sagittal angles and spine parameter (degree) with an interval of one week between the first and second X-ray assessments to ensure that there would be no memorization of the angles.

2.3 Surgical procedure and technique

The posterior route with classic access in the midline was used. After subperiosteal dissection of the musculature, a Schwab type 1 osteotomy was performed at all levels of arthrodesis, except at the most proximal level and Schwab type 2 osteotomies in periapical vertebrae, according to the subjective assessment of the curve reducibility during the procedure [18]. All osteotomies were performed with a drill and Kerrison forceps (we did not use an osteotomy and hammer). Pedicle screws were used exclusively. The entry point and the insertion of uniplanar screws in the periapical and polyaxial vertebrae in the others was performed by anatomical parameters (“free-hand”) [4]. All screws were checked by fluoroscopy; cobalt chrome rods were used and we did not use “cross-linking.”

After placing the first hypermolded nail according to the patient’s pelvic incidence, the block was defeated by the concave side of the deformity, followed by the placement of the second molded bar, according to the desired kyphosis, planned in the preoperative period. Then, direct vertebral defeat was performed at all levels (except for the neutral vertebrae) in the opposite direction of the rotation of the vertebra. In all cases, a suction drain was used, which was removed only at hospital discharge. Patients were encouraged to move early and orthotics were not prescribed in the postoperative period.

2.4 Statistical analysis

The data were analyzed using SPSS version 20.0 (SPSS Inc., Chicago, IL). Calculation of the sample size on 41 patients was conducted based on the mean of the Cobb angle preoperative, using the G-Power 3.0 software. A moderate effect size ( $f=$ 0.25), an 80% power, and a 5% significance level were used in the calculation. The normality of the data was verified using the Shapiro-Wilk test. The anthropometric variables and radiographic measurements were compared pre- and post-surgery using a Student’s $t$ -test. To assess the intra examiner reliability of the radiographic measurements, the intraclass correlation coefficient (ICC) was used. To calculate the ICC equation type (1, 1) for the intra-examiner analysis, measurements were made one week apart by the same examiner. The ICC was considered excellent if greater than 0.75, moderate between 0.74 and 0.40, and poor if less than 0.39. The Standard Error of Measurement (SEM) was calculated as the ratio between the variability (standard deviation) of the mean differences between the two assessment moments (inter-test and retest) and the $\surd$ 2. In addition, to calculate the effect size, Cohen’s d was used, for which the values of 0.2, 0.5, and 0.8 were considered to be small, medium, and large effect sizes, respectively. A significance level of 5% for all tests was considered as significant.

3. Results

Of the 41 volunteers with AIS evaluated, 13 were male and 28 were female and they were compared on demographic characteristics, in pre- and post-surgery period, which did not show statistical differences for any of the anthropometric variables evaluated ( $p>$ 0.05), as observed in Table 1.

Table 1
Demographic characteristics in comparisons between the groups (pre and post-surgery) of the patients with AIS

Demographic characteristics	Pre-surgery	Post-surgery	$p$
Age (years)	17.6 $\pm$ 7.1	18.8 $\pm$ 7.2	0.421
Height (cm)	158.8 $\pm$ 8.2	159.2 $\pm$ 7.8	0.721
Mass (kg)	52.7 $\pm$ 9.3	53.0 $\pm$ 8.9	0.548
Risser (signs)	3.9 $\pm$ 1.2	4.3 $\pm$ 0.8	0.267

${}^{*}$ Based on Student’s $t$ -test – dependent measures (pre- and post-surgery), considering differences of $p<$ 0.05 as significant.

Table 2

Spine parameters measured by X-ray in comparisons between groups: pre and post-surgery and effect size of the patients with AIS

Spine parameters (degree)	Pre-surgery		Post-surgery		Effect size	$p$
Cobb angle thoracic proximal (degree)	207	$\pm$ 9.1	119	$\pm$ 66	1.1	0.003 ${}^{*}$
Cobb angle thoracic distal (degree)	513	$\pm$ 149	165	$\pm$ 7.5	2.9	0.001 ${}^{*}$
Cobb angle lumbar (degree)	440	$\pm$ 16.0	122	$\pm$ 7.3	2.5	0.001 ${}^{*}$
Kyphosis (T5-T12, degree)	234	$\pm$ 125	287	$\pm$ 87	0.5	0.012 ${}^{*}$
Kyphosis (T1-T12, degree)	359	$\pm$ 118	428	$\pm$ 91	0.6	0.002 ${}^{*}$
Lumbar lordosis (degree)	578	$\pm$ 105	570	$\pm$ 11.0	0.1	0.375
Pelvic incidence (degree)	495	$\pm$ 94	491	$\pm$ 92	0.05	0.550
Sacral slope (degree)	421	$\pm$ 9.0	417	$\pm$ 9.2	0.04	0.419
Pelvic tilt (mm)	73	$\pm$ 51	75	$\pm$ 54	0.04	0.443

${}^{*}$ Based on Student’s $t$ -test – dependent measures (pre- and post-surgery), considering differences of $p<$ 0.05 as significant.

Figure 1.

Representation of the improvement of radiographic parameters of the Cobb Angle proximal Thoracic (Cobb Ta), Cobb Angle distal Thoracic (Cobb Tb) and Cobb Angle Lumbar (Cobb L).

Figure 2.

Demonstration of the increase in thoracic kyphosis (T Kypho T5-T12) and no improvement for the lumbar lordosis parameter (L Lordo L1-S1).

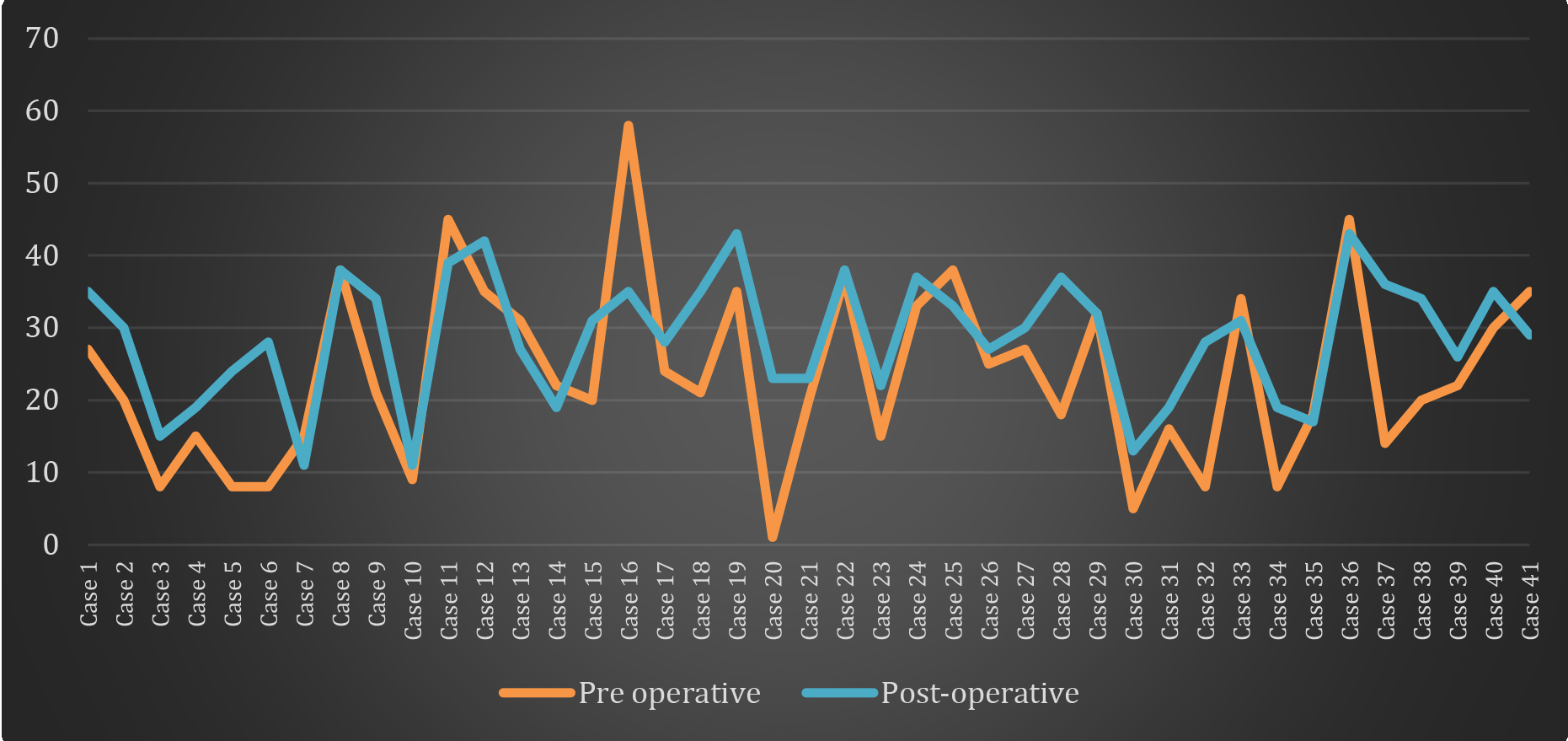

Figure 3.

The evolution and improvement in degrees of the thoracic kyphosis, between the pre and postoperative period of the DVR surgical technique, of all patients evaluated.

Inter-observer reliability was high for eight spine parameters: ICC $=$ 0.90; SEM $=$ 1.5 (Cobb angles); ICC $=$ 0.89; SEM $=$ 1.7 (kyphosis angles); lumbar lordosis (ICC $=$ 0.93; SEM $=$ 1.2); pelvic incidence (ICC $=$ 0.91; SEM $=$ 0.44); sacral slope (ICC $=$ 0.92; SEM $=$ 0.44); and pelvic tilt (ICC $=$ 0.92; SEM $=$ 0.54). The measurements were considered as acceptable.

Table 2 shows the means and standard deviations found for the eight radiographic measurements pre- and post-surgery for all participants. The results show that post-surgery, there were significant reductions for the following spine measurement parameters: Cobb angle thoracic proximal (large effect $=$ 1.1; $p=$ 0.003); Cobb angle thoracic distal (large effect $=$ 2.9; $p=$ 0.001); Cobb angle lumbar (large effect $=$ 2.5; $p=$ 0.001); kyphosis (T5-T12, medium effect $=$ 0.5; $p=$ 0.012); and kyphosis (T1-T12, medium effect $=$ 0.6; $p=$ 0.002). These reductions showed the effectiveness of surgical correction in reducing Cobb angles and thoracic kyphosis. The DVR surgical technique associated with an osteotomy, showed a 68% correction of the main thoracic curve was observed in the coronal plane, with positive and significant improvement. The clinical relevance of this study was positive effect of the DVR technique associated with osteotomy in improving the parameters of thoracic kyphosis, specially, in eight patients with hypokyphotic predominance (T5-T12 $<$ 10 ${}^{\circ}$ , mean of the 6.8 ${}^{\circ}$ ), which increased to 20.1 ${}^{\circ}$ in the post-surgery period. The values obtained for lumbar lordosis, pelvic incidence, sacral slope, and pelvic tilt were not significantly different pre- and post-surgery with extremely small effect (between 0.05 to 0.04).

Figure 1 shows the improvement obtained by the surgical procedure with the DVR technique for the radiographic parameters of Cobb angle thoracic proximal (degree), Cobb angle thoracic distal (degree) and Cobb angle lumbar (degree). Figure 2 shows the improvement in thoracic kyphosis (T5-T12, degree) and no change in the parameters of lumbar lordosis in the patients evaluated. Figure 3 shows the evolution and improvement in degrees of the thoracic kyphosis, between the pre- and postoperative period of the DVR surgical technique, of all patients evaluated.

4. Discussion

In this study we aimed to analyze the coronal and sagittal parameters after surgical treatment of AIS by the technique of DVR with type 1 and type 2 Schwab osteotomies. The main results showed that use of the technique yielded significant improvements in sagittal and coronal parameters, such as reductions in the proximal and distal Cobb angles as well as with the lumbar Cobb angle, in addition to an increase in segmental (T5-T12) and total thoracic kyphosis (T1-T12). The surgical technique for DVR is popular for correcting AIS, with efficacy on clinical and radiological parameters. However, the literature offers little with regard to its effectiveness in adolescents with AIS before and after the surgical procedure with DVR.

Using the DVR surgical technique associated with an osteotomy, a 68% correction of the main thoracic curve was observed in the coronal plane, with positive and significant improvement. This is similar to that observed in the study performed by Urbanski et al. [21], in which the authors evaluated 21 patients who underwent the DVR surgical procedure with researchers observing a 69% correction of the main thoracic curves. However, the divergence among related studies has been debated, especially with regard to sample standardization, surgical correction technique, and fixation materials used, as well as standardized surgery time for evaluations. These points lead to difficult comparisons. Thus, there is still a large divergence in post-surgical results using the DVR technique.

A recent meta-analysis carried out by Son et al. [22] has shown benefits with the DVR technique when compared to the simple spinal defeat technique. In this study, the association of the DVR technique with osteotomy was beneficial for increasing the correction of the thoracic curvature with an increase in kyphosis, but the risk-benefit of their choice must be weighed, given the possible post-surgical complications. Such care for surgical consideration is based on studies in which the authors did not find improvement in thoracic kyphosis using Schwab’s type 2 osteotomy [23, 24, 25], but rather increased rates of bleeding during the procedure. Despite this, Seki et al. [11], using uniplanar screws, showed gains in correction of intervertebral rotation with the association of periapical Schwab type 2 osteotomies in relation to facetectomies, especially at lumbar levels. In this study, despite not having considered the parameters of rotational correction, we can observe benefits of performing osteotomy for the correction of thoracic kyphosis, in that it may benefit the patient’s lung capacity.

Another important finding observed in this study was in the sagittal plane, with a considerable gain in segmental and total thoracic kyphosis, especially in patients classified by Lenke et al. [14] as hypokyphotic (eight patients with thoracic kyphosis T5-T12 $<$ 10 ${}^{\circ}$ ) with a preoperative average of 6.8 ${}^{\circ}$ of kyphosis to 20.1 ${}^{\circ}$ postoperatively. It is worth reiterating that all patients reached the normal range of kyphosis, according to the classification by Lenke et al. [14]. A study carried out in the past decade by Bernhart [26] revealed an important discussion about normality values for thoracic kyphosis (T3-T12) being between 9 ${}^{\circ}$ and 53 ${}^{\circ}$ , while Stagnara [27] referred to the range of 7 ${}^{\circ}$ and 43 ${}^{\circ}$ . The Spinal Deformity Study Group [28] offered a reference of 10 ${}^{\circ}$ to 40 ${}^{\circ}$ (T5-T12). Although the purpose of this study was not to verify normality parameters, the correction of the coronal and sagittal parameters among adolescents was positive, except for the parameters of lumbar lordosis, pelvic incidence, sacral slope, and pelvic tilt. These points can be explained by the DVR technique associated with osteotomy, since when correcting thoracic kyphosis, little change affects the region of the lumbar spine and pelvic segment. These findings are in agreement with the study by Urbanski et al. [21], in which the authors also did not observe significant changes in lumbar lordosis, but an increase in thoracic kyphosis with DVR in patients with AIS.

The use of DVR has been a source of disagreement regarding the maintenance or increase of thoracic kyphosis. Mladenov et al. [29] observed a decrease in thoracic kyphosis and lumbar lordosis in patients undergoing DVR compared to patients undergoing simple vertebral defeat. Urbanski et al. [21] showed improvement in the coronal plane with the DVR technique, but without differences in the sagittal plane compared to the group of patients submitted to simple defeat. Kim et al. [10], evaluating patients undergoing DVR, observed a lower number of arthrodesis and a lesser amount of intraoperative bleeding, despite not seeing significant differences in postoperative kyphosis in relation to the control group. In a review study with meta-analysis, Son et al. [22] reported no significant differences in post-surgery thoracic kyphosis between the groups undergoing DVR and those undergoing simple defeat. The differential of this study in relation studies of the literature was to observe that perhaps the improvement of thoracic kyphosis was primarily due osteotomy associating with the DVR technique, since none of the authors of the studies mentioned previously found significant increases in thoracic kyphosis using only the DVR technique. Therefore, the findings of the present study suggest that posterior hook instrumentation system can generate sufficient torque for improving the vertebral rotation in patients with AIS.

One of the limitations of this study was that we did not consider postural parameters referring to the symmetry of the shoulders, nor did we consider the different types of AIS according to Lenke’s classification. Consideration was not given to the rotation of the vertebrae in the pre- and postoperative periods or their implications for improving the quality of each patient’s life and/or respiratory function.

The clinical relevance of this study points to the positive effect of the DVR technique associated with osteotomy in improving the parameters of thoracic kyphosis in patients with hypokyphotic predominance (T5-T12 $<$ 10 ${}^{\circ}$ ). According to Johnston et al. [30], hypokyphotic patients are associated with decreased lung function, especially in early onset curves. Still in this line of reasoning, Fuji et al. [31] observed an improvement in the pulmonary functioning of a patient with severe scoliosis (main thoracic curve of 96 ${}^{\circ}$ ) with hypokyphosis (T5-T12: 6 ${}^{\circ}$ ), with correction of the curve to 28 ${}^{\circ}$ in the coronal plane and to 14 ${}^{\circ}$ of kyphosis (T5-T12), while in this study we found 6.8 ${}^{\circ}$ of kyphosis which increased to 20.1 ${}^{\circ}$ in the postoperative period in hypokyphotic patients.

5. Conclusion

The surgical technique of direct vertebral defeat in adolescents with idiopathic scoliosis proved to be effective in reducing the coronal parameters and improving the sagittal parameters directed at Cobb angles and thoracic kyphosis, respectively, in order to emphasizing even more in the rehabilitation the importance of exercises that subsequently improve thoracic kyphosis, given the size of the moderate effect post-surgery. It is important to determine an appropriate treatment plan based on a more accurate assessment of clinical onset and rehabilitation.

Author contributions

All authors were involved in drafting the article or revising it critically for important intellectual content, and all authors approved the final version to be published. Study conception, writing and design: CEGB, CABBJ and APR. Acquisition of data and Statistics: CEGB and APR. Analysis and interpretation of data: CABBJ, RMA APT and APR.

Consent for publication

All patients provided written informed consent for publication.

Ethics approval and consent to participate

This study was conducted in approved by the Departmental Research Committee of the Institute of Medical Assistance to the State Public Hospital Servant (number: 533.756), in accordance with the Declaration of Helsinki and relevant guidelines and regulations and all patients had provided written informed consent prior to surgery.

Footnotes

Acknowledgments

The authors acknowledge for help and support of the all the participants and Spine Group of the Institute of Medical Assistance to the State Public Hospital Servant, in the state of Sao Paulo/SP, Brazil, during study.

Conflict of interest

The authors declare that they have no competing interests.

References

Adobor

Rimeslatten

Steen

Brox

. School screening and point prevalence of adolescent idiopathic scoliosis in 4000 Norwegian children aged 12 years. Scoliosis. 2011; 24(6): 23. doi: 10.1186/1748-7161-6-23.

Lee

Suk

Chung

. Direct vertebral rotation: a new technique of three-dimensional deformity correction with segmental pedicle screw fixation in adolescent idiopathic scoliosis. Spine. 2004; 29: 343–349. doi: 10.1097/01.brs.0000109991.88149.19.

Kim

Suk

. Effect of direct vertebral rotation on the uninstrumented lumbar curve in thoracic adolescent idiopathic scoliosis. Asian Spine J. 2017; 11(1): 127–137. doi: 10.4184/asj.2017.11.1.127.

Aoude

Fortin

Figueiredo

, et al. Methods to determine pedicle screw placement accuracy in spine surgery: a systematic review. Eur Spine J. 2015; 24: 990–1004. doi: 10.1007/s00586-015-3853.

Devito

Kaplan

Dietl

, et al. Clinical acceptance and accuracy assessment of spinal implants guided with spineassist surgical robot: retrospective study. Spine. 2010; 35: 2109–15. doi: 10.1097/BRS.0b013e3181d323ab.

Suk

Lee

Kim

Chung

Park

. Segmental pedicle screw fixation in the treatment of thoracic idiopathic scoliosis. Spine. 1995; 20: 1399–405.

Huang

Wang

Yang

, et al. Vertebral derotation by vertebral column manipulator improves postoperative radiographs outcomes of Lenke 5C patients for follow-up of minimum 2 years. Clin Spine Surg. 2016; 29: E157–E161. doi: 10.1097/BSD.0000000000000123.

Okada

Watanabe

Pang

, et al. Posterior correction and fusion surgery using pedicle-screw constructs for Lenke type 5C adolescent idiopathic scoliosis: a preliminary report. Spine. 2015; 40: 25–30. doi: 10.1097/BRS.0000000000000652.

Ries

Harpole

Graves

, et al. Selective thoracic fusion of Lenke I and II curves affects sagittal profiles but not sagittal or spinopelvic alignment: a case-control study. Spine. 2015; 40: 926–934. doi: 10.1097/BRS.0000000000000861.

10.

Kim

Yang

Chang

, et al. Effect of direct vertebral rotation in single thoracic adolescent idiopathic scoliosis: better 3-dimensional deformity correction. World Neurosurg. 2019; 129: e401–e408. doi: 10.1016/j.wneu.2019.05.164.

11.

Seki

Kawaguchi

Nakano

Makino

Mine

Kimura

. Rod rotation and differential rod contouring followed by direct vertebral rotation for treatment of adolescent idiopathic scoliosis: effect on thoracic and thoracolumbar or lumbar curves assessed with intraoperative computed tomography. Spine J. 2016; 16(3): 365–371. doi: 10.1016/j.spinee.2015.11.032.

12.

de Araujo

Marcon

Cristante

de Barros

TEP

Letaif

. Rotation assessment in adolescent idiopathic scoliosis with rod derotation. Acta Ortop Bras. 2019; 27(1): 42–45. doi: 10.1590/1413-785220192701191874.

13.

Sun

Song

Liu

Zhou

. Bilateral apical vertebral derotation technique by vertebral column manipulation compared with vertebral coplanar alignment technique in the correction of Lenke type 1 idiopathic scoliosis. BMC Musculoskelet Disord. 2013; 14: 175. doi: 10.1186/1471-2474-14-175.

14.

Lenke

Betz

Harms

, et al. Adolescent idiopathic scoliosis: a new classification to determine extent of spinal arthrodesis. J Bone Joint Surg Am. 2001; 83: 1169–81.

15.

Bridwell

. Surgical treatment of adolescent idiopathic scoliosis: the basics and the controversies. Spine. 1994; 19: 1095–100. doi: 10.1097/00007632-199405000-00020.

16.

Krismer

Bauer

Sterzinger

. Scoliosis correction by Cotrel-Dubousset instrumentation: the effect of derotation and threedimensional correction. Spine. 1982; 17: S263–9.

17.

Di Silvestre

Lolli

Bakaloudis

Maredi

Vommaro

Pastorelli

. Apical vertebral derotation in the posterior treatment of adolescent idiopathic scoliosis: myth or reality? Eur Spine J. 2013; 22: 313–23. doi: 10.1007/s00586-012-2372-2.

18.

Schwab

Blondel

Chay

Demakakos

Lenke

Tropiano

, et al. The comprehensive anatomical spinal osteotomy classification. Neurosurgery. 2014; 74(1): 112–20. doi: 10.1227/NEU.0000000000000182o.

19.

Legaye

Duval-Beaupère

Hecquet

Marty

. Pelvic incidence: a fundamental pelvic parameter for three-dimensional regulation of spinal sagittal curves. Eur Spine J. 1998; 7(2): 99–103. doi: 10.1007/s005860050038.

20.

Le Huec

Hasegawa

. Normative values for the spine shape parameters using 3D standing analysis from a database of 268 asymptomatic Caucasian and Japanese subjects. Eur Spine J. 2015; 25(11): 3630–7. doi: 10.1007/s00586-016-4485-5.

21.

Urbanski

Wolanczyk

Jurasz

Kulej

Morasiewicz

Dragan

, et al. The impact of direct vertebral rotation (DVR) on radiographic outcome in surgical correction of idiopathic scoliosis. Arch Orthop Trauma Surg. 2017; 137(7): 879–85. doi: 10.1007/s00402-017-2700-4.

22.

Son

Choi

Goh

Park

Lee

. Efficacy and safety of direct vertebral rotation in the surgical correction of scoliosis: a meta-analysis. World Neurosurg. 2019; 124: e641–8. doi: 10.1016/j.wneu.2018.12.170.

23.

Halanski

Cassidy

. Do multilevel ponte osteotomies in thoracic idiopathic scoliosis surgery improve curve correction and restore thoracic kyphosis? J Spinal Disord Tech. 2013; 26(5): 252–5. doi: 10.1097/BSD.0b013e318241e3cf.

24.

Pizones

Izquierdo

Sánchez-Mariscal

Álvarez

Zúñiga

Gómez

. Does wide posterior multiple level release improve the correction of adolescent idiopathic scoliosis curves? J Spinal Disord Tech. 2010; 23(7): 24–30. doi: 10.1097/BSD.0b013e3181c29d16.

25.

Koerner

Patel

Zhao

Schoenberg

Mishra

Vives

, et al. Blood loss during posterior spinal fusion for adolescent idiopathic scoliosis. Spine. 2014; 39(18): 1479–87. doi: 10.1097/BRS.0000000000000439.

26.

Bernhardt

Bridwell

. Segmental analysis of the sagittal plane alignment of the normal thoracic and lumbar spines and thoracolumbar junction. Spine. 1989; 14(7): 717–721. doi: 10.1097/00007632-198907000-00012.

27.

Stagnara

De Mauroy

Dran

, et al. Reciprocal angulation of vertebral bodies in a sagittal plane: approach to references for the evaluation of kyphosis and lordosis. Spine. 1982; 7(4): 335–342. doi: 10.1097/00007632-198207000-00003.

28.

O’Brien

Kulklo

Blanke

Lenke

. Radiographic Measurement Manual. Spinal Deform Study Gr Radiogr Meas Man 2008; 120p.

29.

Mladenov

Vaeterlein

Stuecker

. Selective posterior thoracic fusion by means of direct vertebral derotation in adolescent idiopathic scoliosis: effects on the sagittal alignment. Eur Spine J. 2011; 20(7): 11147. doi: 10.1007/s00586-011-1740-7.

30.

Johnston

Stephens Richards

Sucato

Bridwell

Lenke

Erickson

. Correlation of preoperative deformity magnitude and pulmonary function tests in adolescent idiopathic scoliosis. Spine. 2011; 36(14): 1096102. doi: 10.1097/BRS.0b013e3181f8c931.

31.

Fujii

Watanabe

Toyama

Matsumoto

. Pulmonary function recovery demonstrated by ventilation-perfusion scan after posterior vertebral column resection for severe adolescent idiopathic scoliosis: a case report. Spine. 2014; 39(19): 11904. doi: 10.1097/BRS.0000000000000458.
