Effects of vibration-based biofeedback on multifidus muscle activity and pelvic tilt angle in subjects with hip flexion limitation

Abstract

BACKGROUND:

Sedentary work may lead to low back pain. In particular, a slumped sitting position may exacerbate low back pain because of tissue damage caused by excessive lumbar flexion and posterior pelvic tilting. Subjects with low back pain may have excessive changes in the lumbopelvic posture and back muscle activity in the sitting position.

OBJECTIVE:

The purpose of this study was to compare the effects of vibration-based biofeedback using a motion sensor belt and no biofeedback on multifidus (MF) muscle activity and pelvic tilt angle during typing.

METHODS:

Thirty subjects with low back pain accompanied by hip flexion limitation (15 each in the biofeedback and non-biofeedback groups) were enrolled. Electromyography was used to investigate MF muscle activity before and after typing for 30 min. Pelvic tilt was measured after typing in a sitting position for 30 min. Independent t-tests were used to compare MF muscle activity, and pelvic and second sacrum tilt angles, between the biofeedback and non-biofeedback groups.

RESULTS:

After typing for 30 min, changes in MF muscle activity (11.45% and $-$ 7.19% for the biofeedback and nonbiofeedback groups, respectively) and pelvic and second sacrum tilt angles (3.15 ${}^{\circ}$ and 4.12 ${}^{\circ}$ for the biofeedback group and $-$ 11.05 ${}^{\circ}$ and $-$ 18.16 ${}^{\circ}$ for the non-biofeedback group, respectively) were significantly smaller in the biofeedback than non-biofeedback group ( $p<$ 0.05).

CONCLUSION:

Vibration-based biofeedback minimizes the reduction in MF muscle activity and changes in pelvic and second sacrum tilt angles during typing in individuals with low back pain accompanied by hip flexion limitation.

Keywords

Biofeedback multifidus pelvis sacrum typing

1. Introduction

Most people experience low back pain at least once in their lifetime [1]. In particular, individuals who work in a sitting position are prone to low back pain [1]. A slumped sitting position can exacerbate low back pain [2]. Prolonged sitting reduces the lumbar lordotic curve and activity of trunk muscles, such as erector spinae [3, 4], leading to abnormal posture. Individuals with low back pain have difficulties in maintaining the normal lumbar lordotic curve and anterior pelvic tilt during sitting [5]. Previous studies showed that an upright sitting posture is maintained by appropriate lumbar lordosis and anterior pelvic tilt in the lumbopelvic region, which activates the multifidus (MF) muscles [1]. The upright sitting posture may change to the slumped sitting position if there is reduced activation of the active muscles, such as the spinal stabilizing muscles (including the MF muscles). The subsequent increase in involvement of passive structures, such as ligaments, leads to a backward shift of spinal load. Over the long term, this may cause low back pain [1].

Flexibility of the hip joint is required for daily life functions such as squatting, cycling, and putting on shoes [3]. The hip flexion angle required for performing functional activities is 120 ${}^{\circ}$ [3]. Because both the hip joint and lumbar vertebrae are adjacent to the pelvic bones, hip flexion limitation is a risk factor for excessive stress in the lumbopelvic region and musculoskeletal pain [4]. According to previous studies, insufficient hip joint mobility may cause low back pain during forward bending or prolonged sitting [3]. The hip flexion occurring in the sitting position is related to functions in daily life such as typing, driving and putting on socks [6]. Low back pain and hip joint flexibility are closely related, and it is necessary to consider how hip flexion limitation affects the sitting position alignment and low back pain with kinematic changes in the lumbopelvic region.

To manage low back pain, appropriate anterior pelvic tilt, lumbar lordosis, and a neutral sitting position are required [7]. When postural control is insufficient during sitting, and conscious effort is required to maintain a good posture, posture may deteriorate with prolonged sitting position [8]. According to previous studies, biofeedback on the sitting position using various taping techniques improved conscious control over the lumbopelvic region and was effective for maintenance of the alignment of the vertebral joints [9, 10, 11]. Compared to the group without taping, the group with taping had improved postural muscle activity, less pain associated with posteriorly tilted lumbar vertebrae, and less lumbar flexion [9].

However, taping has limited ability to increase active muscle activity because the tape is directly attached to the skin and assists the passive structures, such as ligaments. Therefore, in the present study, vibration-based biofeedback was used, which improves the functions of active structures, such as the MF muscles. A literature review revealed that no study has investigated the effect of vibration-based biofeedback using a motion sensor belt that detects vibration from the sacrum on the pelvic tilt angle in subjects with low back pain and hip flexion limitation while typing in a sitting position. The purpose of this study was to investigate the effect of biofeedback using vibration on the activity of the MF muscles, pelvic tilt angle, and second sacrum tilt angle in subjects with low back pain during typing in a sitting position for 30 min. We hypothesized that changes in the MF muscle activity and pelvic and second sacrum tilt angles during 30 min would be significantly smaller in the group with than without biofeedback.

Table 1
Subject characteristics

Variables	Mean $\pm$ Standard deviation		$t$ -value	$p$ -value
	Biofeedback group	Non biofeedback group
Gender	M $=$ 10, F $=$ 5	M $=$ 9, F $=$ 6	N/A	N/A
Age (y)	25.13 $\pm$ 5.67	26.42 $\pm$ 4.98	$-$ 2.42	0.35
Height (cm)	171.23 $\pm$ 8.41	169.13 $\pm$ 7.43	2.15	0.27
Weight (kg)	65.15 $\pm$ 5.29	64.15 $\pm$ 6.37	1.87	0.16
Duration of low-back pain (yr)	2.7 $\pm$ 0.9	2.9 $\pm$ 1.2	$-$ 1.75	0.14
Visual analog scale (mm)	3.5 $\pm$ 1.2	3.7 $\pm$ 1.4	$-$ 1.81	0.15
Passive hip flexion angle ( ${}^{\circ}$ )	105.71 $\pm$ 5.74	104.59 $\pm$ 6.41	1.98	0.18

${}^{*}p<$ 0.05, by independent $t$ -test. ${}^{*}$ Statistically significant at the level of $p<$ 0.05.

2. Methods

2.1 Participants

Thirty subjects with low back pain accompanied by hip flexion limitation were enrolled in this study (15 each in the biofeedback and non-biofeedback groups). We included subjects who had experienced non-specific chronic low back pain for at least 3 months that was exacerbated in the lumbar flexion posture, exhibited loss of lumbar lordosis in the painful region [12], and showed a limited passive hip flexion angle of 90–110 ${}^{\circ}$ [12]. The passive hip flexion angle during knee flexion was evaluated in the supine position to measure the length of the gluteus maximus [12]. The length of gluteus maximus decreased by at least 3 mm on the visual analog scale [13, 14]. Participants were excluded (1) if they had undergone hip joint injury within the past 6 months; (2) had undergone lower extremity or lower back surgery; (3) had lumbar pain that was exacerbated by exercise; (4) experienced lumbar or hip joint contractures; (5) had neurological disorders; exhibited excessive lordosis; exhibited inflammation; (6) had diseases of the intervertebral disc or facet joint [6, 7]. Table 1 presents the baseline information of the subjects. Prior to the study, the study protocol was approved by the Hoseo University Institutional Review Board (1041231-220105-HR-140-02). The experimental procedure was explained in detail and informed consent was obtained from all participants.

2.2 Electromyography (EMG) and data analysis

The MF muscle activity was measured using a surface EMG device. Two channels of EMG data were collected using EMG analytical hardware (Noraxon TeleMyo 2400T; Noraxon, Scottsdale, AZ, USA) and analyzed using the bundled software (MyoResearch XP Master Edition 1.06; Noraxon). The EMG data were sampled at 1,000 Hz with the bandpass set to 20–250 Hz. For the surface EMG patches, disposable electrodes of bipolar Ag/AgCl were placed on both sides of the MF muscles. Before applying the electrodes, the skin was shaved and washed with alcohol to reduce the surface resistivity [15]. The electrodes were applied to the MF muscles (2 cm lateral to the spinous process of lumbar vertebra 4) [16]. Changes in MF muscle EMG activity were quantified by subtracting the measured value before typing from that after typing for 30 min. The EMG data were measured for 5 s and data for the middle 3 s were used. For subjects with low back pain, the EMG device was used to measure isometric sub-maximal voluntary contraction (sub-MVIC) of the MF muscles during the double leg raise exercise [17]. Subjects were asked to flex both knees to 90 ${}^{\circ}$ in the prone position and lifted both knees 5 cm above the ground for 3 s. Data were obtained on three occasions and the subjects rested for 10 s after each test [17].

2.3 Measurement of pelvic tilt angle using a palpation meter (PALM)

The tilt angle between the anterior superior iliac spine (ASIS) and posterior sacroiliac spine (PSIS) was measured using a pelvic tilt meter (PALM, Performance Attainment Associates, St Paul, MN, USA). The tiltmeter includes semicircular arcs that can be moved at intervals of 1 ${}^{\circ}$ within the range of 0–30 ${}^{\circ}$ in any direction from the midline. The intra- and inter-test reliabilities of PALM were reported as 0.90 and 0.85, respectively [18]. For the initial posture, the pelvic tilt angle was set to 0 ${}^{\circ}$ based on the sagittal plane between the ASIS and PSIS. Pelvic tilt was measured after typing for 30 min in a sitting position. Protrusions of the ipsilateral ASIS and PSIS were palpated using the index finger to measure the pelvic tilt angle in the sagittal plane. The anterior pelvic tilt showed a positive value, whereas the posterior pelvic tilt showed a negative value. After 30 min of typing, the tilt angle between the ipsilateral ASIS and PSIS was measured with the PALM.

2.4 Polhemus Liberty – device for measuring changes in sacral tilt

The Polhemus Liberty ${}^{\text{TM}}$ device (Kaiser Aerospace, Colchester, VT, USA) was used for electromagnetic motion analysis, including measurement of the posterior tilt angle of the sacrum. A magnetic sensor was attached to the second spinous process of the sacrum. The three-dimensional position and orientation were measured using the motion analyzer. The data were recorded on a personal computer and processed at a sampling rate of 120 Hz. For the source and sensor, the X-, Y-, and Z-axes were defined as the forward, rightward and downward directions in the coordinate system, respectively [19, 20]. The intra-test reliability was 0.94. The changes were calculated in the sagittal plane during typing for 30 min in a sitting position. Data were recorded for 5 s before starting typing and 5 s after completing typing using the motion analyzer and then averaged. The preferred position of each subject was the starting position of the test [19, 20]. Sacral tilt was measured with 1 degree of freedom (flexion-extension angle) relative to the sagittal plane. The tilt of the attached sensor was used to determine the relative tilt angle values of the second spinous process of the sacrum in the vertical (gravity) direction [21]. There was no interference between the motion sensors of the Polhemus Liberty device and belt. A negative angle indicates posterior sacral tilt, whereas a positive angle indicates anterior sacral tilt. Changes in posture, i.e., in tilt relative to the sagittal plane, were determined by calculating movement values before the start and after completion of the typing task.

2.5 Vibration-based biofeedback using a motion sensor belt

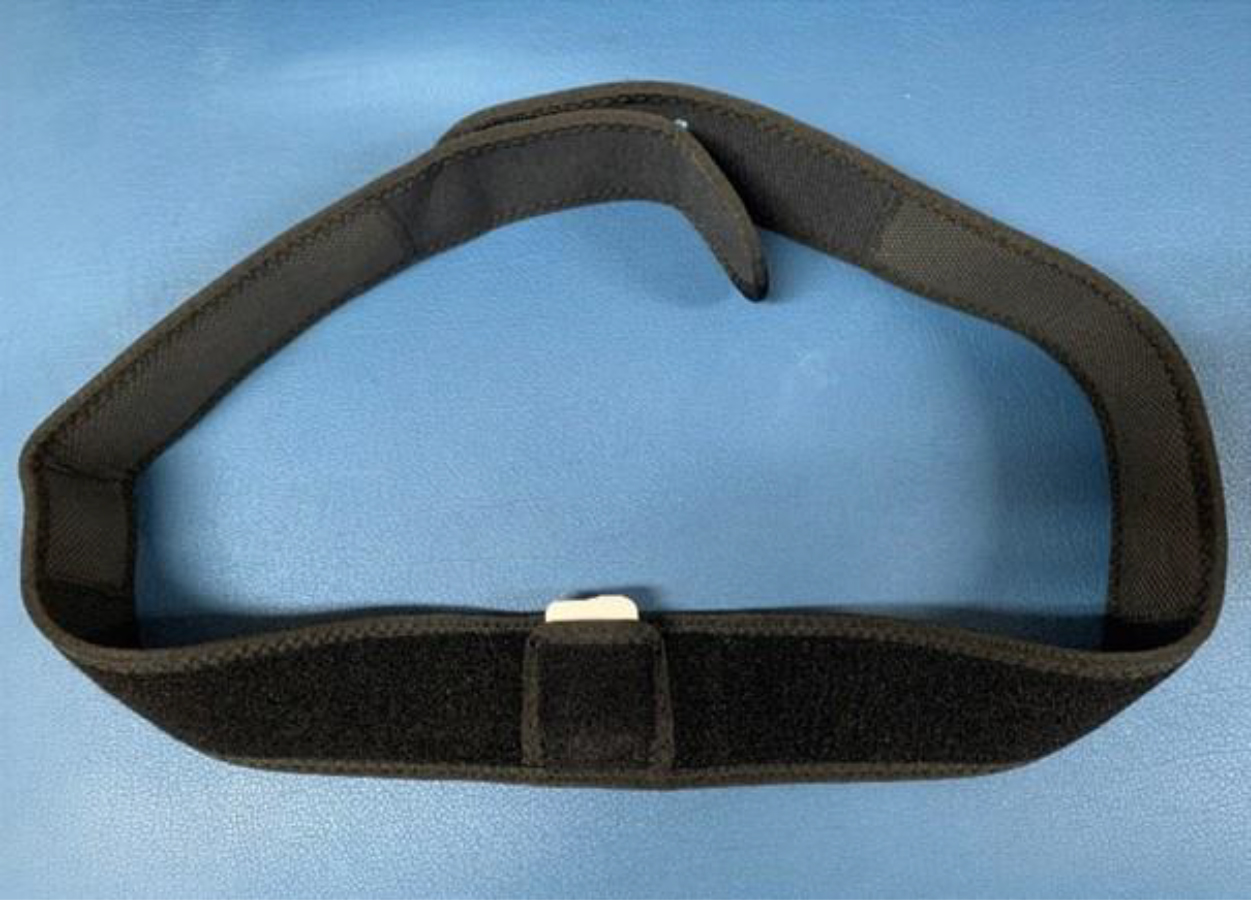

Figure 1.

Vibration-based biofeedback using a motion sensor belt.

A motion sensor belt providing vibration-based biofeedback was worn by the subjects during typing in a sitting position. The motion sensor belt was worn at the level of a line connecting the ASIS and PSIS in the sitting position; the sensor was located at the second spinous process of the sacral region, which corresponds to the center of the belt, so that the reference value could be calibrated at a certain angle of the sacrum. The magnetic sensor used to measure the tilt angle of the second spinous process of the sacrum was attached to the skin under the motion sensor belt. The neutral sitting position was defined as that in which the body weight was supported by the ischial tuberosities on both sides [15], the lumbopelvic region was not inclined to any side, appropriate lumbar lordosis was maintained, and the torso was comfortably erect [1]. In addition, the ASIS and PSIS angles in the sagittal plane were adjusted to 0 ${}^{\circ}$ using the PALM in the neutral sitting position before typing. The vibration-based biofeedback was provided by the motion sensor when the tilt angle exceeded 10 ${}^{\circ}$ in the posterior direction along the sagittal plane relative to the neutral sitting position in the biofeedback group, while no feedback was provided in the non-biofeedback group (Fig. 1).

Figure 2.

The typing posture with vibration-based biofeedback using a motion sensor belt.

2.6 Experimental procedure

Height-adjustable desks and chairs were used. The heights of the chairs and desks were adjusted so that the elbow flexion angle was 90 ${}^{\circ}$ when the upper arm was parallel to the torso [20, 21]. The hip and knee joint angles were measured using a protractor. The chair was adjusted so that the hip and knee joints were bent at 90 ${}^{\circ}$ relative to the feet, which were placed on the floor in the starting position [20, 21]. The experimental group wore a motion sensor belt before typing on a laptop. The laptop was placed at a distance of 10 cm from the edge of the desk. Both groups were provided with footrests so that the feet were comfortably placed on the floor (Fig. 2). There was no difference in the starting sitting position between the groups. EMG and three-dimensional measurement data were recorded twice (before the start of typing and after 30 min of typing).

2.7 Statistical analysis

SPSS software (ver. 18.0; IBM Corp., Armonk, NY, USA) was used for the statistical analysis. The Kolmogorov-Smirnov test was used to assess the normality of the data. Changes in the MF muscle activity and pelvic and second sacrum tilt angles were compared between the biofeedback and non-biofeedback groups using independent t-tests. Statistical significance was set to $\alpha<$ 0.05.

Table 2
Comparison of the changing value of the multifidus muscle activity in subjects with and without the biofeedback

Variables	Mean $\pm$ Standard deviation		$t$ -value	$p$ -value
	Biofeedback group	Non biofeedback group
%Sub-MVIC (%)	11.45 $\pm$ 7.15	$-$ 7.19 $\pm$ 4.43	$-$ 5.12	$<$ 0.05 ${}^{*}$

${}^{*}p<$ 0.05, by independent $t$ -test. ${}^{*}$ Statistically significant at the level of $p<$ 0.05.

Table 3

Comparison of the changing value of the pelvic tilting angle in subjects with and without the biofeedback

Variables	Mean $\pm$ Standard deviation		$t$ -value	$p$ -value
	Biofeedback group	Non biofeedback group
Pelvic tilting angle ( ${}^{\circ}$ )	3.15 $\pm$ 1.09	$-$ 11.05 $\pm$ 2.15	$-$ 3.37	$<$ 0.05 ${}^{*}$

${}^{*}p<$ 0.05, by independent $t$ -test. ${}^{*}$ Statistically significant at the level of $p<$ 0.05.

Table 4

Comparison of the changing value of the 2 ${}^{\text{nd}}$ sacrum angle in subjects with and without the biofeedback

Variables	Mean $\pm$ Standard deviation		$t$ -value	$p$ -value
	Biofeedback group	Non biofeedback group
2 ${}^{\text{nd}}$ Sacrum tilting angle ( ${}^{\circ}$ )	4.12 $\pm$ 2.04	$-$ 18.16 $\pm$ 4.12	$-$ 6.62	$<$ 0.05 ${}^{*}$

${}^{*}p<$ 0.05, by independent $t$ -test. ${}^{*}$ Statistically significant at the level of $p<$ 0.05.

3. Results

During typing, changes in the MF muscle activity and pelvic and second sacrum tilt angles were significantly smaller in the biofeedback than non-biofeedback group ( $p<$ 0.05) (Tables 2–4). However, changes in the visual analogue scale score were significantly greater in the non-biofeedback group (from 3.7 to 5.4; increase of 1.7) than biofeedback group (from 3.5 to 3.2; decrease of 0.3) ( $p<$ 0.05).

4. Discussion

This study investigated the effects of vibration-based biofeedback using a motion sensor belt on changes in MF muscle activity and pelvic and second sacrum tilt angles in subjects with low back pain accompanied by hip flexion limitation after typing for 30 min.

The changes in MF muscle activity and pelvic and second sacrum tilt angles were significantly different between the groups. In the biofeedback group, there were smaller changes in the MF muscle activity and pelvic and second sacrum tilt angles compared to the non-biofeedback group. The reasons for the group differences in lumbopelvic movements and changes in MF muscle activity are considered below.

In subjects with low back pain accompanied by hip flexion limitation, typing for 30 min without vibration-based biofeedback may lead to compensatory changes caused by insufficient flexibility of the hip joint in a sitting position. Although a large hip flexion angle is not required during typing in the upright sitting position, accompanying insufficient flexibility of the hip joint may lead to postural changes in the lumbopelvic region and a progressively slumped sitting position over time [22]. In addition, previous studies have shown that compensatory changes in the lumbopelvic region occur frequently in subjects with hip joint limitation [3]. In particular, when hip flexion exercise is performed in the sitting position, compensatory changes such as posterior pelvic tilt and lumbar flexion increased due to increased tension in the hip joint extensors and stiffness of the posterior joint capsule [3]. Although direct comparison of the results of the present and previous studies is not appropriate because the present study investigated changes in hip flexion occurring in the sitting position during typing rather than a hip flexion exercise, previous studies suggested that lumbar flexion and increased posterior pelvic tilt represent compensatory changes in response to insufficient flexibility of the hip joint [3]. Vibration-based feedback may minimize any subconscious increase in flexion of the lumbopelvic region and lumbopelvic posterior tilt in subjects with hip flexion limitation during typing for 30 min. When typing is performed in a sitting position, biofeedback might promote awareness of posture changes in the lumbopelvic region, thus minimizing posture changes in the lumbopelvic region and improving pain and other musculoskeletal disorders.

Subjects with low back pain accompanied by hip flexion limitation tend to develop a slumped sitting position during prolonged sitting because of insufficient anterior pelvic tilt to maintain hip flexion [22]. In this study, when typing was performed in a slumped sitting position, lumbar lordosis decreased and posterior pelvic tilt occurred. Consequently, the lumbar spine was flexed so that the MF muscles were lengthened and had less activity [3, 12]. In our non-biofeedback group, there was reduced MF muscle activity and increased tension in the ligaments, which are non-contractile tissues. We attempted to minimize excessive lumbar flexion in the end range of motion. Although there is a small postural change in the lumbopelvic region in the neutral sitting posture, it may be useful to maintain activity of contractile tissues, such as the MF muscles, and to reduce the tension in non-contractile tissues such as ligaments [21]. Accordingly, in the slumped sitting position, the positions of the sacral and pelvic regions need to be shifted to the neutral position so that the MF muscles are actively contracted. Vibration-based biofeedback from the motion sensor belt improved the sitting posture by providing proprioceptive sensory information during typing. Without vibration-based biofeedback, subjects may develop posterior pelvic tilt in the sitting posture because of insufficient sensory information.

MF muscle activity was maintained in subjects who received real-time vibration biofeedback in response to a posterior second sacrum tilt of 10 ${}^{\circ}$ in the sitting position. The MF muscle activity was maintained because the second sacrum was placed in the neutral position [23]. A previous study showed that postural taping of the lumbopelvic region promoted maintenance of MF muscle activity compared to a group without taping during sitting for 30 min [11]. Although the present study provided biofeedback using vibration, as opposed to the postural taping used in previous studies, similar results were obtained in the present and previous studies because both methods improved proprioceptive sensory information from the lumbopelvic region. A previous study showed that subjects with low back pain had poor proprioception while sitting in the neutral sitting position. Proprioception is important for accurate repositioning of the lumbar spine to the neutral position when the posture is changed [22]. Sitting posture and lumbar lordosis depend on the position and tilt angle of the pelvis, including the sacrum [24]. Because vibration-based biofeedback was provided in real time in this study, changes in the posterior pelvic and second sacrum tilt angles were minimized compared to the non-biofeedback group and the values measured in the starting position were maintained during typing. In the present study, subjects with hip flexion limitation who did not receive vibration-based biofeedback exhibited compensatory flexion in the lumbopelvic region, instead of maintaining the hip flexion and lumbar lordotic curve, during typing for 30 min. However, subjects who received vibration-based biofeedback exhibited minimal compensatory changes, such as lumbar flexion and pelvic posterior tilt, because of conscious changes in the lumbopelvic region. These changes may improve the slumped sitting position such that the optimal neutral posture is achieved [10, 22]. Therefore, vibration-based biofeedback helped the subjects with low back pain and hip flexion limitation to maintain a neutral sitting position during typing for 30 min.

There were several limitations to this study. First, the findings cannot be generalized to individuals with other diagnoses. In future studies, it will be necessary to investigate whether biofeedback is useful for patients with low back pain of different etiologies, such as disc herniation and facet joint syndrome. Second, biofeedback was only provided for 30 min during typing. In future studies, it will be necessary to investigate the effects of biofeedback during longer working times. Third, this study only enrolled young subjects with low back pain. Follow-up studies of individuals in other age groups are needed. Fourth, motion analysis of changes in the sitting position was performed only for the pelvis and sacrum, i.e., where the motion sensor belt was worn. In future studies, analysis of the entire spine should be performed.

5. Conclusions

Vibration-based biofeedback using a motion sensor belt minimized changes in MF muscle activity and pelvic and second sacrum tilt angles during typing in subjects with low back pain accompanied by hip flexion limitation. Vibration-based biofeedback can be recommended to minimize any reduction in MF muscle activity and changes in the pelvic and second sacrum tilt angles in subjects with low back pain accompanied by hip flexion limitation.

Ethical approval

The study protocol was approved by the Hoseo University Institutional Review Board (1041231-220105-HR-140-02).

Informed consent

All subjects provided signed informed consent for their inclusion in the research.

Author contributions

Conception and design, or acquisition, or analysis and interpretation of data: JIC. Drafting the article or revising it critically for important intellectual content: JTJ, JIC. Final approval of the version to be published: JTJ, JIC.

Footnotes

Acknowledgments

This research was supported by the Academic Research fund of Hoseo University in 2020 (No. 20200424). The authors express their gratitude to all participants for their valuable time and dedicated participation in the study.

Conflict of interest

We wish to confirm that there are no known conflicts of interest associated with this publication. We confirm that the manuscript has been read and approved by all named authors and that there are no other persons who satisfied the criteria for authorship but are not listed. We further confirm that the order of authors listed in the manuscript has been approved by all of us.

References

O’Sullivan

Dankaerts

Burnett

Farrell

Jefford

Naylor

O’Sullivan

. Effect of different upright sitting postures on spinal-pelvic curvature and trunk muscle activation in a pain-free population. Spine. 2006; 31(19): E707-E712.

Lee

Yoo

. The mechanical effect of anterior pelvic tilt taping on slump sitting by seated workers. Industrial Health. 2011; 49(4): 403-409.

Kim

Kwon

Cynn

Park

. Lumbopelvic motion during seated hip flexion in subjects with low-back pain accompanying limited hip flexion. European Spine Journal. 2014; 23(1): 142-148.

Makhsous

Lin

Bankard

Hendrix

Hepler

Press

. Biomechanical effects of sitting with adjustable ischial and lumbar support on occupational low back pain: evaluation of sitting load and back muscle activity. BMC Musculoskeletal Disorders. 2009; 10: 17.

Burnett

Cornelius

Dankaerts

O’sullivan

. Spinal kinematics and trunk muscle activity in cyclists: a comparison between healthy controls and non-specific chronic low back pain subjects-a pilot investigation. Manual Therapy. 2004; 9(4): 211-219.

Dankaerts

O’Sullivan

Burnett

Straker

. Differences in sitting postures are associated with nonspecific chronic low back pain disorders when patients are subclassified. Spine. 2006; 31(6): 698-704.

O’Sullivan

Dankaerts

. Investigating the effect of real-time spinal postural biofeedback on seated discomfort in people with non-specific chronic low back pain. Ergonomics. 2013; 56(8); 1315-1325.

O’Sullivan

Burnett

Floyd

Gadsdon

Logiudice

Miller

Quirke

. Lumbar repositioning deficit in a specific low back pain population. Spine. 2003; 28(10); 1074-1079.

Greig

Bennell

Briggs

Hodges

. Postural taping decreases thoracic kyphosis but does not influence trunk muscle electromyographic activity or balance in women with osteoporosis. Manual Therapy. 2008; 13(3); 249-257.

10.

Kang

Choi

. Postural taping applied to the low back influences kinematics and EMG activity during patient transfer in physical therapists with chronic low back pain. J Electromyogr Kinesiol. 2013; 23(4): 787-793.

11.

Kim

Kwon

Ahn

Jeon

Choung

. Effect of taping on lumbar kinematics and muscle activities during typing in Individuals with nonspecific chronic low back pain. Physical Therapy Korea. 2015; 22(1): 93-102.

12.

Sahrmann

. Diagnosis and Treatment of Movement Impairment Syndromes. St Louis: Mosby. 2002.

13.

Leitner

Mair

Paul

Wick

Mittermaier

Sycha

Ebenbichler

. Reliability of posturographic measurements in the assessment of impaired sensorimotor function in chronic low back pain. J Electromyogr Kinesiol. 2009; 19(3); 380-390.

14.

Marshall

Murphy

. Delayed abdominal muscle onsets and self-report measures of pain and disability in chronic low back pain. J Electromyogr Kinesiol. 2010; 20(5); 833-839.

15.

Jung

. Effects of indirect pelvic floor muscle activation exercise using a pressure biofeedback unit on trunk muscle activity in sitting position. Journal of Musculoskeletal Science and Technology. 2020; 4(1); 18-24.

16.

Claus

Hides

Moseley

Hodges

. Different ways to balance the spine: subtle changes in sagittal spinal curves affect regional muscle activity. Spine. 2009; 34(6); E208-E214.

17.

Dankaerts

O’Sullivan

Burnett

Straker

Danneels

. Reliability of EMG measurements for trunk muscles during maximal and sub-maximal voluntary isometric contractions in healthy controls and CLBP patients. J Electromyogr Kinesiol. 2004; 14(3): 333-342.

18.

Petrone

Guinn

Reddin

Sutlive

Flynn

Garber

. The accuracy of the Palpation Meter (PALM) for measuring pelvic crest height difference and leg length discrepancy. J Orthop Sports Phys Ther. 2003; 33(6): 319-325.

19.

Burnett

Barrett

Marshall

Elliott

Day

. Three-dimensional measurement of lumbar spine kinematics for fast bowlers in cricket. Clin Biomech. 1998; 13(8): 574-583.

20.

Korakakis

O’Sullivan

Whiteley

O’Sullivan

Korakaki

Kotsifaki

Giakas

. Notions of “optimal” posture are loaded with meaning. Perceptions of sitting posture among asymptomatic members of the community. Musculoskelet Sci Pract. 2021; 51: 102310.

21.

O’Sullivan

Mitchell

Bulich

Waller

Holte

. The relationship beween posture and back muscle endurance in industrial workers with flexion-related low back pain. Man Ther. 2006; 11(4): 264-271.

22.

O’Sullivan

Burnett

Floyd

Gadsdon

Logiudice

Miller

Quirke

. Lumbar repositioning deficit in a specific low back pain population. Spine. 2003; 28(10): 1074-1079.

23.

Panjabi

. The stabilizing system of the spine. Part II. Neutral zone and instability hypothesis. Journal of Spinal Disorders. 1992; 5(4): 390-397.

24.

Vaz

Roussouly

Berthonnaud

Dimnet

. Sagittal morphology and equilibrium of pelvis and spine. European Spine Journal. 2002; 11(1): 80-87.
