Orientation of lipids in solid supported lipid bilayers studied by polarized ATR-FTIR spectroscopy 1

Abstract

Solid supported lipid bilayers (SSLB) play an important role as biomimetic membranes to study protein-membrane interactions. We investigated the orientation of lipids in SSLBs at different temperatures and over time. Especially the stability of the lipid bilayer and structural changes upon lipid phase transition were analyzed by polarized ATR-FTIR spectroscopy and with SSLBs of different lipid compositions. The integrity of a lipid bilayer consisting of POPC or a 1:1 mixture of POPC and POPG is conserved over a wide temperature range and over several hours. Furthermore, we were able to monitor changes in the orientation of the lipid alkyl chains upon lipid phase transition for DMPC and DSPC. This study shows that the combination of solid supported lipid bilayers and polarized ATR-FTIR spectroscopy is very powerful to characterize lipid membranes under different environmental conditions. The sensitivity of this technique will be exploited in future studies to analyze the effect of protein-membrane interaction on lipid orientation.

Keywords

Solid supported lipid bilayers polarized ATR-FTIR lipid phase transition membrane integrity molecular orientation

Abbreviations

ATR

attenuated total reflection

DMPC

1,2-dimyristoyl-sn-glycero-3-phosphocholine

DSPC

1,2-distearoyl-sn-glycero-3-phosphocholine

FTIR

Fourier-transform infrared

IRE

internal reflection element

SSLB

solid supported lipid bilayer

POPC

1-palmitoyl-2-oleoyl-sn-glycero-3-phosphocholine

POPG

1-palmitoyl-2-oleoyl-sn-glycero-3-phospho-rac-(1′-glycerol)

1. Introduction

Membranes play a crucial role in structure and function of living cells. Many essential processes including signaling or transport take place at cell membranes. Most membranes are phospholipid bilayers consisting of different lipids and embedded proteins. In order to investigate the properties of membranes upon their interaction with proteins, solid supported lipid bilayers (SSLB) are widely used as biomimetic membranes [2,11,16,21,23], for example, in aggregation studies of proteins upon membrane interaction [6,7,13,25]. The properties of SSLBs can be varied by choosing different lipids. Since SSLBs are formed on a solid surface, one obtains a fixed anisotropic system that, in comparison to studies using liposomes, allows the determination of molecular orientations. This is shown schematically in Fig. 1. In order to determine molecular orientations, it is crucial that this membrane is stable over the course of one experiment. This requires stability over several hours as well as over the temperature range of interest. It is also important to know if the orientation of the lipids changes upon lipid phase transition. Phospholipid membranes have a gel and a liquid phase. The gel phase is found below, and the liquid phase above the phase transition temperature. The liquid phase is described to be a more disordered state than the gel phase [18].

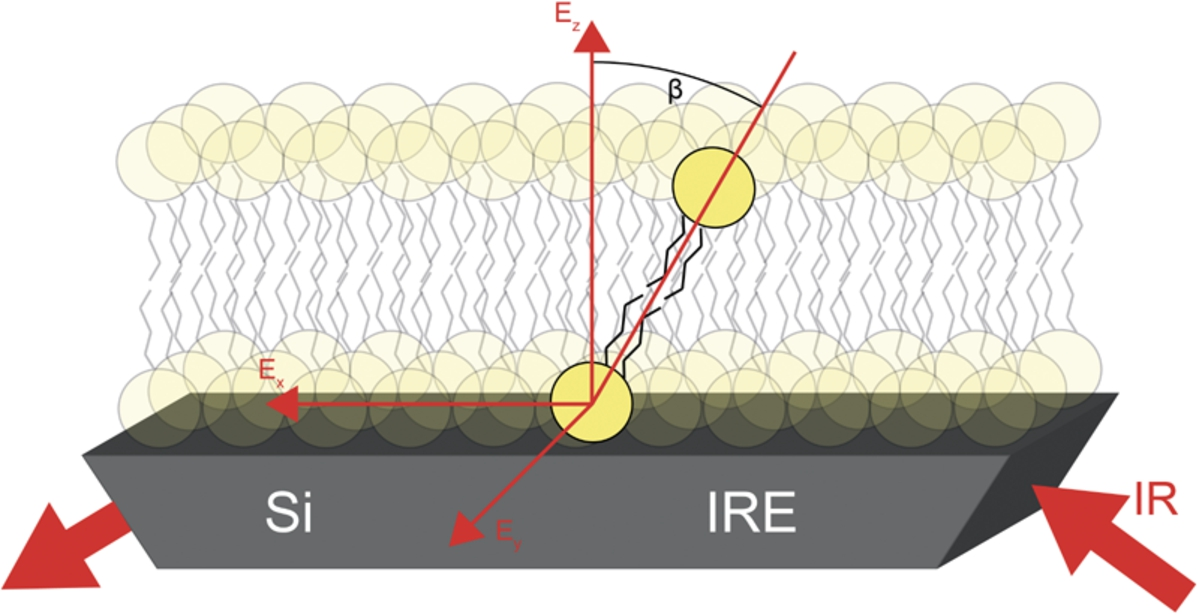

Fig. 1.

Schematic representation of the lipid orientation within a SSLB. The determined average angle β is illustrated at a highlighted lipid molecule. $E_{x y z}$ are the components of the electric field vector of the evanescent IR wave. β represents an average value for all lipids present in the sample.

There are numerous techniques used to study lipid membranes like nuclear magnetic resonance (NMR) [12], small angle X-ray scattering (SAXS) [5], atomic force microscopy (AFM) [3] or Fourier-transform infrared (FTIR) spectroscopy [16]. Characteristic vibrational modes of lipids and of proteins can be distinguished. Thus, besides analyzing lipid membranes, FTIR spectroscopy is also well suited to study protein-membrane interaction and to monitor conformational changes of the protein and the membrane simultaneously. By using polarized light, information on the orientation of lipid molecules or other molecular groups present in the sample can be obtained [20]. We studied SSLBs by polarized Attenuated Total Reflection (ATR) FTIR spectroscopy. The internal reflection element (IRE) of the ATR-cell is used as the substrate on which the SSLB is formed. Due to the high sensitivity of this experimental method, even small changes in the orientation of the lipids can be detected. Vibrational modes can also be used to determine the phase transition temperature of lipids, for example the change in band position of the asymmetric CH₂ stretching vibration of the lipid alkyl chains. This band shifts to higher wavenumbers upon phase transition from the gel phase into the liquid phase. Thus, the band position yields information about the current phase of the studied lipids and the frequency shift can be used to determine the phase transition temperature [15].

In this study, the focus was set to analyze the stability of SSLBs. Therefore, SSLBs of pure POPC and of a 1:1 mixture of POPC and POPG were used and polarized ATR-FTIR measurements were performed. The orientation of the lipid alkyl chains was determined at different temperatures in the range of 15°C–50°C. Furthermore, the orientation of the lipid alkyl chains was monitored in dependence of time after SSLB formation. Polarized ATIR-FTIR spectra were recorded over 12 h and at room temperature. In order to analyze the effect of the lipid phase transition, we detected the lipid orientation of DMPC and DSPC below and above the phase transition temperature. Measurements with DMPC were performed in the range of 15°C–50°C as well as measurements with DSPC in the range of 35°C–80°C.

2. Materials and methods

Solid supported lipid bilayers were prepared via lipid vesicle spreading on an ATR-crystal [11,16]. In order to prepare the vesicles, DMPC (1,2-dimyristoyl-sn-glycero-3-phosphocholine), DSPC (1,2-distearoyl-sn-glycero-3-phosphocholine), POPC (1-palmitoyl-2-oleoyl-sn-glycero-3-phosphocholine) and POPG (1-palmitoyl-2-oleoyl-sn-glycero-3-phospho-rac-(1′-glycerol)) were purchased from Avanti Polar Lipids, USA. For storage, the lipids were dissolved in chloroform (25 mg/ml). 200 μl containing 5 mg of lipids have been taken from the stock solution and were transferred into a glass bottle. Chloroform was removed by drying the sample under a nitrogen stream for 5 minutes. Subsequently, the glass bottle was placed into a vacuum chamber for two hours. Afterwards, the lipids were resuspended in 1 ml Tris-HCl (10 mM, 5 mM MgCl, pH 7.4) and incubated at room temperature for 30 minutes. In order to obtain small unilamellar vesicles, the lipid solution was treated with a tip sonificator (Hielscher Ultrasound Technology, Germany) followed by extrusion using a handheld extruder from Avanti Polar Lipids with a 30 nm polycarbonate membrane. It was important to prepare small unilamellar vesicles because large unilamellar vesicles are supposed to spread incompletely [16].

For bilayer formation, the silicon crystal (IRE) of the ATR-cell was polished using a smooth cloth and polishing paste and incubated with H₂SO₄ (95%) three times for 10 minutes each. Subsequently, the IRE was rinsed with water and dried under a gentle nitrogen stream after each incubation step. Afterwards, the prepared vesicles were added to the crystal. The formation of the bilayer was monitored spectroscopically over 40 minutes at 25°C. After this, the IRE was rinsed using buffer to remove vesicles from the supernatant and the surface. Spectra were recorded to validate if the bilayer is still intact.

Measurements were performed using a multi-reflection silicon IRE (Bio-ATR II, Bruker Optics, Germany), a Vertex 70v spectrometer (Bruker Optics, Germany) and an infrared polarizer (PIKE Technologies, USA). The incidence angle was 45° which results in an efficient penetration depth of 0.47 μm for perpendicular polarized light and 0.84 μm for parallel polarized light at 1650 cm⁻¹ [9]. The sample volume was 25 μl. The sample chamber was flushed with dry air during the experiments. For each IR spectrum, 32 scans were recorded with a resolution of 4 cm⁻¹. Fourier-transformation was performed using a Mertz phase correction and Blackman-Harris-3-term apodization. Background measurements were taken for each temperature in parallel and perpendicular polarization with only buffer on the crystal surface.

In order to control the temperature during the experiment, the Bio-ATR II cell was connected to a water bath with an integrated E300 immersion thermostat (LAUDA-Brinkmann, USA). After setting a new temperature, the system was given 10 minutes of equilibration time before new spectra have been recorded.

For the calculation of the average angle, the absorption bands of the symmetric (∼2850 cm⁻¹) and asymmetric (∼2920 cm⁻¹) stretching vibration of the CH₂-group and the stretching vibration of the C=O ester bond (∼1730 cm⁻¹) were used [20]. The average angle is defined as the angle between the lipid alkyl chains and the surface normal. The integrated absorbance is the area under the corresponding absorption band [9] and was determined using Opus 7.5 (Bruker Optics, Germany). Because the lipids are able to rotate around a vector parallel to the lipid alkyl chains, the orientation of the C=O-bond is expected to be isotropic. The absorbance of the C=O stretching vibration was used to determine $R_{iso}$ , which is a weighting coefficient to correct for dichroitic effects of the spectrometer optics as well as for the different polarization-dependent penetration depths of the IR beam into the sample. $R_{iso}$ is defined as $R_{iso} = A_{90} / A_{0}$ , where $A_{90}$ and $A_{0}$ are the integrated absorbances determined for parallel (0°) and perpendicular polarized (90°) light respectively [26]. The integrated absorbances of the stretching vibration of the CH₂-groups were used to determine the dichroic ratio $R_{\exp} = (A_{0} R_{iso}) / A_{90}$ . The order parameter S is calculated using $S = \frac{2 (E_{x}^{2} - R_{\exp} E_{y}^{2} + E_{z}^{2})}{(3 {(cos α)}^{2} - 1) (E_{x}^{2} - R_{\exp} E_{y}^{2} - 2 E_{z}^{2})}$ [8], where $E_{x y z}$ are components of the electric field vector of the evanescent wave and α is the angle between the transition dipole moment and the long axis of lipid alkyl chain. The order parameter is then used to calculate the average angle β of the long axis of the lipid alkyl chain with respect to the surface normal by using $S = \frac{3 {(cos β)}^{2} - 1}{2}$ [8,9,22]. The components of the electric field vector and the average angle of the lipid alkyl chains are illustrated in Fig. 1.

In order to determine the phase transition temperature, the data for the average angle at different temperatures were fitted using the sigmoidal function $y = \frac{A_{1} - A_{2}}{1 + e^{(x - x_{0}) / d x}} + A_{2}$ . In this fit function, $A_{1}$ corresponds to the average angle below the phase transition temperature, $A_{2}$ to the average angle above the phase transition temperature, x to the temperature, $x_{0}$ to the phase transition temperature, which is determined to be the temperature at the point of inflection and dx corresponds to the slope at the point of inflection. The phase transition temperature was additionally determined from the band positions of the asymmetric stretching vibration. The data were fitted using the same function as above-mentioned. In the latter case, $A_{1}$ and $A_{2}$ correspond to the band positions below and above the phase transition temperature. Fits were performed using the software Origin 2015G (OriginLab, USA).

3. Results and discussion

3.1. Lipid bilayer stability

In order to investigate thermal stability, solid supported lipid bilayers were prepared and measured at different temperatures (15°C–50°C). To investigate stability over time, measurements were performed during 12 h after the formation of the bilayer and at 25°C. Pure POPC and a 1:1 mixture of POPC and POPG have been used as SSLBs. POPC is often applied to study lipid membranes or membrane-protein interaction and it has been shown before that it forms SSLBs via lipid vesicle spreading [11]. POPC consists of a neutrally charged headgroup and two fatty acid tails. The fatty acid tails contain 18 and 16 carbon atoms with one unsaturated bond in the 18-carbon tail. In comparison, POPG has the same fatty acid tails, but the headgroup is negatively charged. The 1:1 mixture of POPC and POPG was under investigation because charged model membranes are often required to mimic physiological conditions, for example in aggregation studies of alpha-synuclein [7,19].

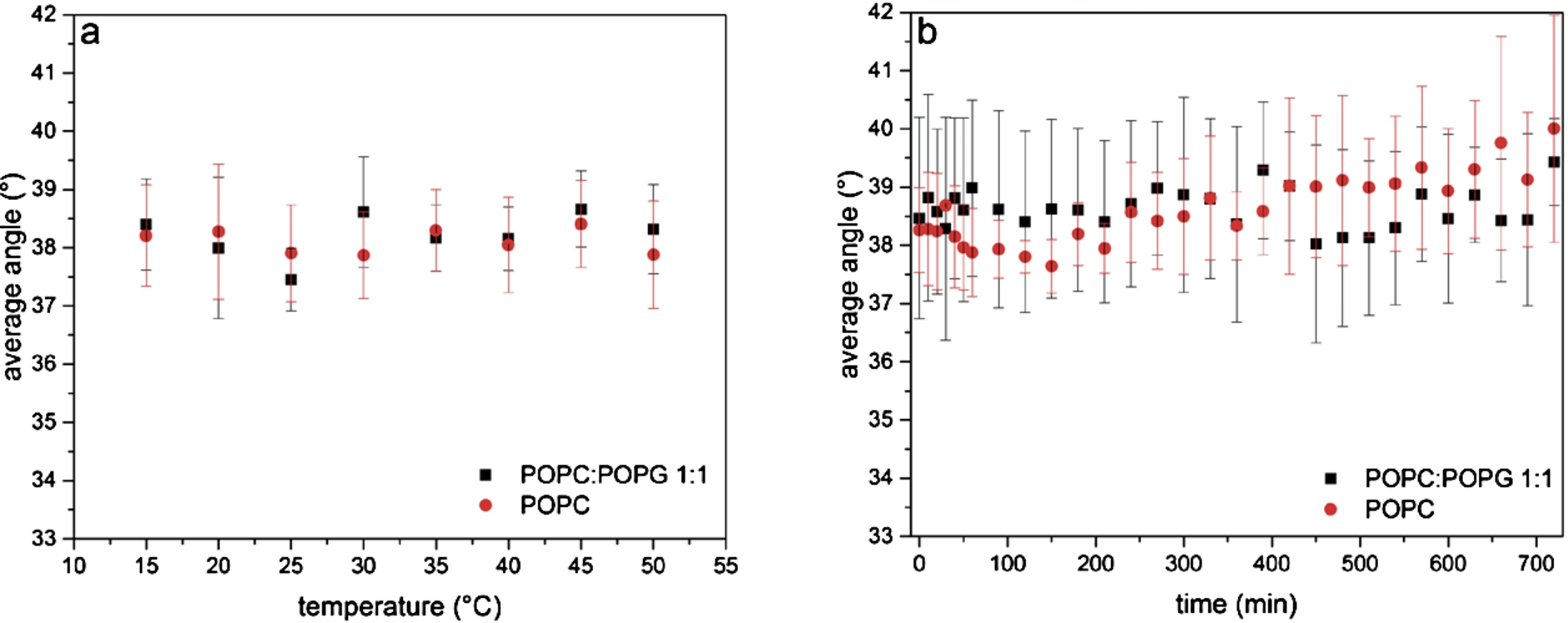

Fig. 2.

Stability of SSLBs at different temperatures and over time. The orientation of the lipid alkyl chains with respect to the surface normal of a mixture of POPC and POPG (black squares) and of pure POPC (red circles) is shown (a) for different temperatures and (b) over 12 h at 25°C.

The results of the measurements at different temperatures are presented in Fig. 2a. The orientation of the lipids with respect to the surface normal shows basically no changes over the whole temperature range. The determined angles (average values over the whole temperature range) are $β = 38.1 °$ for POPC and $β = 38.2 °$ for POPC:POPG. Therefore, there is no significant difference in the average angle between a membrane of pure POPC and a 1:1 mixture of POPC and POPG. Both lipids are expected to be well above their phase transition temperature and in their liquid phase. The phase transition occurs at −2°C [24] for POPC and close to or below 0°C for POPG [17]. Furthermore, we could prove with our measurements that the orientation of the SSLB stays constant over a wide temperature range as long as it stays in the liquid lipid phase. This is of high relevance when it comes to the investigation of protein-membrane interaction at different temperatures.

The same bilayers were used to study their stability over 12 h. As shown in Fig. 2b, there is no significant change in the orientation of the lipid alkyl chains over this long period of time for both membranes. Several measurements were performed and averaged. The average angle was determined to be 38.6° for pure POPC and 39.2° for the 1:1 mixture of POPC and POPG. The stability is crucial for long-lasting experiments using SSLBs as biomimetic membranes.

3.2. Effect of lipid phase transition on orientation of lipids

Since we were able to show that the orientation of lipids in POPC and POPC:POPG SSLBs does not change as long as the temperature stays above the phase transition temperature, we wanted to investigate the effect of the phase transition. For that, we used DMPC and DSPC because their phase transition temperatures lie in an experimentally accessible temperature range. DMPC consists of a neutrally charged headgroup and two fully saturated fatty acid tails containing 14 carbon atoms. DSPC consists of the same headgroup but the fatty acid tails contain 18 carbon atoms. The fatty acid tails of DSPC are also fully saturated. The corresponding phase transition temperatures are 24°C for DMPC [14] and 55°C for DSPC [10].

The average angle of the lipid alkyl chains of DMPC and DSPC with respect to the surface normal was calculated for different temperatures. In Fig. 3a the results of these measurements are shown. Two phases become visible, above and below the phase transition temperatures as well as the transition in between. The phase transition temperatures were determined to be 26.1°C for DMPC and 57.5°C for DSPC.

Fig. 3.

Changes upon lipid phase transition of DMPC and DSPC. Investigation of (a) the orientation of the lipid alkyl chain and (b) the frequency position of the band corresponding to the asymmetric stretching vibration of the CH₂-groups ( $ν_{as, CH 2}$ ) in the lipid alkyl chain for DMPC (black squares) and DSPC (red circles) respectively. The data were fitted to determine the phase transition temperature and the difference in the average angle for both phases (Δ°).

Upon phase transition, the orientation of the lipids in the DMPC bilayer changes by Δ° = 2.5° and the orientation of the lipids in the DSPC bilayer by Δ° = 3.4°. For DMPC the average angle was 36.6° ± 0.3° below the phase transition temperature and 39.1° ± 0.4° above the phase transition temperature. For DSPC the corresponding average angles were at 35.2° ± 0.3° and 38.6° ± 0.3°. The errors were determined as the standard deviation of the average angles above and below the phase transition temperature and are an order of magnitude smaller than the angle change Δ°. This means that the here detected small changes of about 3° upon phase transition are significant because we were able to determine the angles very precisely.

Our results show that the lipids are oriented slightly closer to the surface normal in the gel phase than in the liquid phase. The liquid phase is described to be more disordered than the gel phase [18]. In a more disordered membrane, it can be assumed that the lipids can move more freely and thus are able to tilt away from the surface normal. Our technique is sensitive enough to detect and quantify this tilt.

It is striking that the errors for DMPC and DSPC are smaller than the errors for POPC and POPC:POPG. In comparison to DMPC and DSPC, POPC and POPG contain unsaturated bonds. This results in a less tightly packing in the bilayer and a higher mobility of the single lipid molecules. A higher mobility could cause a higher variance around the average angle compared to the DMPC and DSPC lipids with fully saturated alkyl chains.

In Fig. 3b the position of the band corresponding to the asymmetric stretching vibration of the CH₂-groups is shown. These data were extracted from the same spectra used for the calculation of the average angles in Fig. 3a. The phase transition temperatures were determined to be 27.0°C for DMPC and 56.4°C for DSPC.

The transition temperatures derived from our experiments are slightly higher than the literature values given above. A reason for this could be a non-homogeneous heat transfer from the surrounding casing of the Bio-ATR II cell to the sample.

We analyzed the phase transition temperatures by the average angle of the lipid alkyl chains with respect to the surface normal and by the position of the band corresponding to the asymmetric stretching vibration of the CH₂ group. The results for both of these methods are in good agreement with each other. Thus, we were able to show that the phase transition has an effect on the orientation of the lipids inside a lipid membrane. This agrees with recent studies that reported a molecular tilt at the phase transition temperature using synchrotron diffuse x-ray scattering [14]. With polarized ATR-FTIR measurements, it is furthermore possible to quantify the angle by which the lipid alkyl chains are tilting.

Knowledge about the effect of the phase transition on the orientation of lipids in SSLBs might be useful for comparison to changes induced by protein interaction since it has been observed that at least membrane proteins can alter the phase transition of lipid membranes [1,4]. It also proves the sensitivity of this technique to detect even small changes in the orientation of the lipids.

4. Conclusions

Polarized ATR-FTIR spectroscopy proves to be a powerful tool to investigate the orientation of the lipids inside SSLBs. We were able to show that POPC and POPG:POPC SSLBs are stable at different temperatures and over several hours. As long as no phase transition occurs, the orientation of the lipids remains unaffected by changes in the temperature. This is of high relevance for protein-membrane studies that are using SSLBs as biomimetic membranes.

Furthermore, we were able to show that the lipid phase transition is reflected in the orientation of the lipids inside a lipid membrane and we could quantify this small effect for different lipids. Polarized ATR-FTIR is highly sensitive to detect differences of only a few degrees in the lipid orientation. Since it has been reported that membrane proteins can alter the phase transition of the surrounding membrane, it would be interesting to analyze if protein-membrane interaction can have a similar effect. This might be an implication if the protein stays at the interphase or inserts into the membrane.
