Expression and genetic polymorphism of necroptosis related protein RIPK1 is correlated with severe hepatic ischemia-reperfusion injury and prognosis after hepatectomy in hepatocellular carcinoma patients

Abstract

OBJECTIVES:

The goal of our study was to assess the prognostic impact of the necroptosis relative protein RIPK1 genetic polymorphism in ischemia-reperfusion injury and survival after hepatectomy in hepatocellular carcinoma (HCC) patients.

METHODS:

In this study, expression of RIPK1 and its genetic polymorphism(rs2272990) were examined in plasma of 44 HCC patients. All these patients were undergoing partial hepatectomy. The prognostic values of RIPK1 genetic polymorphism for tumor development and survival, and ischemia-reperfusion injury after hepatectomy were further determined.

RESULTS:

Plasma RIPK1 expressions were significantly increased in HCC patients, compared to the healthy control group. Totally 19 patients have the GA $+$ AA genotype in the RIPK1 rs2272990 SNP site and 25 have GG genotype. There were no statistically significant intergroup differences observed in age, gender, AFP value, HBV positive, tumor size or cirrhosis. GG genotype had positive correlation with TNM classification ( $p=$ 0.033) and lymphatic metastasis ( $p=$ 0.027) and was significantly associated with severe hepatic ischemia-reperfusion injury and decreased survival rate after hepatectomy.

CONCLUSION:

In conclusion, the RIPK1 polymorphism is an indicator of hepatic injury and a novel prognostic biomarker for tumor development and survival of HCC recipients after hepatectomy.

Keywords

Hepatectomy ischemia-reperfusion polymorphism RIPK1 prognosis

1. Introduction

Hepatocellular carcinoma (HCC) is the fifth most common cancer worldwide and the second leading cause of cancer death in China [1]. Currently, partial hepatectomy and orthotopic liver transplantation (OLT) have been considered as the most effective treatment methods for HCC [2]. During major hepatectomy, intermittent clamping of the hepatoduodenal ligament is commonly performed to reduce intraoperative blood loss. However, this procedure may lead to hepatic ischaemia-reperfusion injury [3]. The common pathology of ischaemia-reperfusion injury is that the transient disruption of the normal blood supply to target organs followed by reperfusion induces an acute generation of reactive oxygen and nitrogen species subsequent to reoxygenation upon vascular reopening. These changes initiate a chain of deleterious cellular responses leading to inflammation, cell death and eventually causing post-hepatectomy liver failure [4]. Previous studies have demonstrated that severe ischemia-reperfusion injury (IRI) at early-phase after hepatectomy or live transplant not only promotes tumor growth but also provides a favorable environment for tumor progression and invasion [5]. Therefore, it was considered that biomarkers for the early-phase IRI might also play an prognostic role on the late late-phase tumor recurrence of HCC patients.

Animal experiments and clinical studies have indicated that cell death is closely related to ischaemia-reperfusion injury. Apoptosis, autophagy-related death and necrosis are the major processes of mammalian cell death. Anti-apoptosis has been largely reported to protect the organs from ischaemia-reperfusion induced injury [6, 7, 8], and increasing evidence indicates that modulation of autophagy is a novel therapeutic strategy for this disorder [8, 9]. Recently, the programmed necrosis or ’necroptosis’ cell death pathway has attracted much interest because of its implication in multiple pathologies, including inflammatory diseases and the cell death arising from ischaemia-reperfusion injuries [10]. The most terminal-known obligate effectors in the necroptosis pathway, receptor (TNFRSF)-interacting protein kinase 1 (RIPK1), RIPK3 and mixed lineage kinase domain – like protein (MLKL), hold particular appeal because of their known function as a mediator of necroptotic cell death [11]. RIPK1 rs2272990 SNP site was located in the coding region in 6 Chromosome. The major allele of this site was G, and the mutant allele was A. This SNP site has been identified recently as a potential indicator for survival after curative resection in patients with colorectal cancer [12]. However, the SNPs with significance should be confirmed in a larger study and need to be validated in more kinds of cancers. The goal of our study was to assess the prognostic impact of the necroptosis relative protein RIPK1 expression and genetic polymorphism in ischemia-reperfusion injury and tumor development and survival after hepatectomy in HCC patients.

Figure 1.

Comparing the (A) mRNA and (B) protein level between HCC patients and healthy controls.

2. Material and methods

2.1 Clinical subjects

HCC patients in Chinese People’s Liberation Army (PLA) 309 hospital and normal volunteers who did not differ from the HCC patients by age, gender, or BMI, were included in this subject. The study was approved by the Ethics Committee of the 309th Hospital of PLA and informed consent was obtained from all patients before participation. The 7th edition TNM staging system for hepatocellular carcinoma was used in this work in accordance with previous report [13]. All the experiments were carried out according to principles of Helsinki Declaration [14]. Blood biochemistry, coagulation function, chest X-ray, and electrocardiogram were performed to assess the patient’s bodily functions. Transabdominal ultrasound, CT angiography, multislice spiral computed tomography and three-dimensional reconstruction system were used to ascertain the size and location of the lesion. ICG retention rate at 15 min (ICGR15), which has been reported to be effective for preoperative evaluation of hepatic functional reserve [15], was used here to evaluate liver function.

During the liver parenchyma resection surgery, the portal triad was clamped using a silastic catheter. Blood samples were collected at the following time point: A) before surgery (PRE), B) after surgery (AS), C) six hours after surgery (AS 6), D) postoperative days 1 (Day 1), 3 (Day 3), 5 (Day 5). Then liver functions was assessed by monitoring ALT, AST, total bilirubin (TBIL), and direct bilirubin (DBIL).

2.1.1 Blood total protein extraction

Blood samples were extracted according to previous description [3]. Briefly, blood samples were suspended in ice-cold lysis buffer (50 mM Tris (pH 7.4), 5 mM EDTA, 250 mM NaCl, 0.1% Triton X-100, 1 mM phenylmethylsulfonyl fluoride, 5 $\mu$ g/ml aprotinin, 5 $\mu$ g/ml leupeptin, and 1 mM sodium orthovanadate), homogenized, and incubated in ice for 20 min. Samples were centrifuged at 14,000 r.p.m. for 10 min, and the supernatants were collected, quantified by Bradford assay (Bio-Rad Laboratories, Hercules, CA).

2.1.2 Western blotting assay

Fifty microgram aliquots of lysates were loaded on a sodium dodecylsulfate (SDS) polyacrylamide 10% gradient gel and transferred to a polyvinylidene difluoride membrane. The membranes were blocked with 5% nonfat dry milk in Tris-buffered saline, pH 7.4, containing 0.05% Tween 20, and were incubated with primary antibodies (1:200; Santa Cruz, Delaware Avenue, CA, USA) and horseradish peroxidase-conjugated secondary antibodies (1:5000; Santa Cruz) according to the manufacturer’s instructions. The protein of interest was visualized using an enhanced chemiluminescence (ECL) Western blotting substrate (Pierce) and the Chemidoc XRS Gel Documentation System (BioRad). Antibodies against RIPK1(#3493) was obtained from cell signal.

Table 1
Relationship between Plasma RIPK1 expression and clinicopathologic characteristics in HCC patients ( $n=$ 44)

Total RIPK1 low group RIPK1 high group P value

Total 44 19 25

Gender 0.472

Male 31 14 17

Female 13 5 8

Age 0.459

$>$ 50 17 8 9

$\leqslant$ 50 27 11 16

TNM classification 0.033

I or II 22 6 16

III or IV 22 13 9

Lymphatic metastasis 0.027

Yes 13 9 4

No 33 10 21

AFP(ng/ml) 0.467

$>$ 400 24 11 13

$\leqslant$ 400 20 8 12

HBV 0.195

Positive 34 13 21

Negative 10 6 4

Tumor size 0.104

$>$ 5 31 11 20

$\leqslant$ 5 13 8 5

Cirrhosis 0.459

Yes 27 11 16

No 17 8 9

	Total	RIPK1 low group	RIPK1 high group	P value
Total	44	19	25
Gender				0.472
Male	31	14	17
Female	13	5	8
Age				0.459
$>$ 50	17	8	9
$\leqslant$ 50	27	11	16
TNM classification				0.033
I or II	22	6	16
III or IV	22	13	9
Lymphatic metastasis				0.027
Yes	13	9	4
No	33	10	21
AFP(ng/ml)				0.467
$>$ 400	24	11	13
$\leqslant$ 400	20	8	12
HBV				0.195
Positive	34	13	21
Negative	10	6	4
Tumor size				0.104
$>$ 5	31	11	20
$\leqslant$ 5	13	8	5
Cirrhosis				0.459
Yes	27	11	16
No	17	8	9

2.1.3 Blood total mRNA extraction and RT-PCR assay

Total RNA extraction of blood samples from human was performed using TRIzol (Invitrogen) according to the manufacturer’s instructions. Subsequently, RT-qPCR was carried out with the PrimeScript RT-PCR kit (Takara) using $\beta$ -actin as an internal control. Reverse transcription reactions were performed using the following parameters: 16 ${}^{\circ}$ C for 30 min, 42 ${}^{\circ}$ C for 30 min and 84 ${}^{\circ}$ C for 5 min. The sequences of primers used were as following:

RIPK1 forward 5 $\prime$ -AGGCTTTGGGAAGGTGTC TC-3 $\prime$ ; RIPK1 reverse 5 $\prime$ - CGGAGTACTCATCTCGGCT TT-3 $\prime$ ; $\beta$ – actin forward, 5 $\prime$ -GGCACCCAGCACAATG AAG-3 $\prime$ ; $\beta$ – actin reverse, 5 $\prime$ -GCCGATCCACACGGAG TACT-3 $\prime$ .

The following PCR cycle was used: 95 ${}^{\circ}$ C for 20 sec, 40 cycles of 95 ${}^{\circ}$ C for 1 sec and 60 ${}^{\circ}$ C for 20 sec. The 2 ${}^{-\Delta\Delta\text{Cq}}$ method was used for normalization.

2.1.4 Genotyping of RIPK1 rs2272990 SNP polymorphism

Genomic DNA was extracted from blood samples of patients using DNeasy Blood & Tissue Kit (QIAGEN; Germany) according to the manufacturer’s guidelines. The rs2272990 genotypes for the patients were determined using Sequenom MassARRAY according to the previous report [12]. Briefly, the biotin-labeled PCR product was captured with streptavidin-coated paramagnetic beads (Dynal Biotech Inc., Lake Success, NY, USA), and the single-strand DNA was isolated by denaturing the bound PCR product with NaOH and washing with a buffer. After removing the wash solutions, a PROBE reaction mixture was added [1 U Thermosequenase (Amersham Pharmacia Biotech, Inc., Piscataway, NJ, USA), 26 mM Tris–HCl pH 9.5, 6.5 mMMgCl2, 50 Meach assay-specific dNTP/ddNTP, and 10 M PROBE primer]. The incubation temperatures were identical for all the tests (80 ${}^{\circ}$ C for 30 s, three cycles at 40 ${}^{\circ}$ C for 15 s, 72 ${}^{\circ}$ C for 30 s, and a final temperature of 25 ${}^{\circ}$ C). After washing the beads with a conditioning solution (Sequenom, Inc., San Diego, CA, USA), the diagnostic extension products were dissociated using an alkaline solution. Then 10 nL of the extension product was then arrayed on silicon chips (Sequenom, Inc.). The MALDI-TOF MS was performed using a MassARRAY system (Sequenom, Inc.), and the genotypes were automatically scored and stored in a relational database using SpectroTYPER software (Sequenom, Inc.).

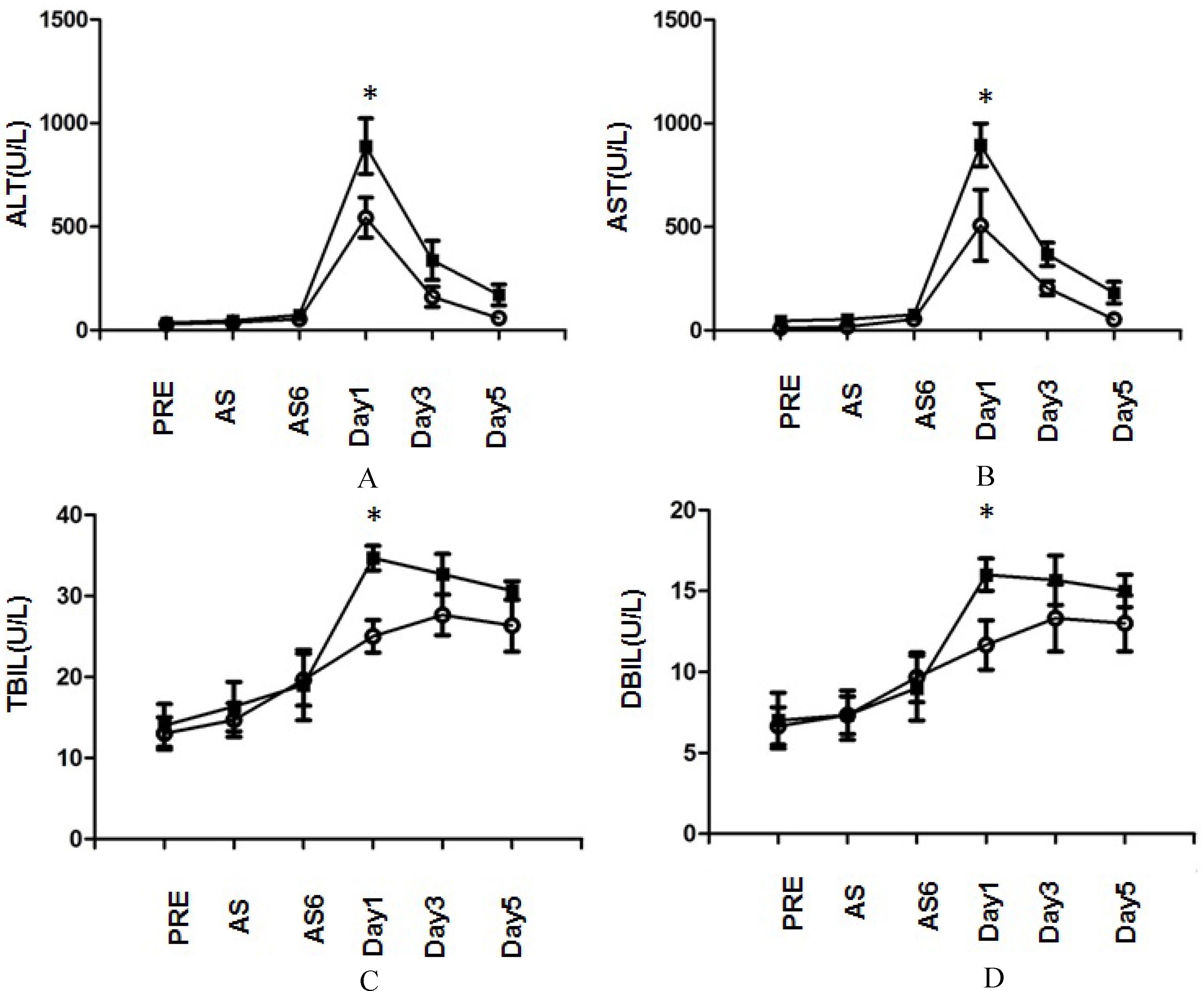

Figure 2.

Plasma (A) ALT, (B) AST, (C) TBIL and (D) DBIL levels after partial hepatectomy under continuous inflow occlusion of HCC patients with different genetic polymorphism at RIPK1 rs2272990 SNP site. $\bullet$ : GG genotype; $\bigcirc$ : GA $+$ AA genotype.

2.2 Statistical analysis

Normality test indicated that all the results was are normally distributed, so the results are expressed as means $\pm$ SD from at least 3 separate experiments performed in triplicate. The differences between groups were determined using two-tailed Student’s t-test, using SPSS software (Armonk, NY, USA). P values of less than 0.05 were considered significant. The Chi-square test or Fisher’s exact test was used to analyze the relationship between corresponding protein expression and the clinicopathological features. A Pearson chi-square test was used to estimate the genotype distribution of the deviation from Hardy-Weinberg equilibrium in the control group.

3. Results

3.1 Plasma RIPK1 expression was increased in HCC patients

The clinical characteristics of HCC patients were shown in Table 1. The HCC group consisted of 44 subjects (13 women). Totally 14 healthy volunteers (4 women) were included in this work. There were no significant differences between the groups regarding the age, gender and body mass index (BMI).

RT-PCR (Fig. 1(A)) and western blotting (Fig. 1(B)) assay demonstrated that the mRNA and protein expressions of plasma RIPK1 were significantly increased in HCC patients, compared to the healthy control group. To evaluate the relationship between RIPK1 expression and the clinical features of HCC, we divided the HCC patients into the high (25 cases) and low (19 cases) RIPK1 expression groups according with the optimal cut-off value (Relative mRNA value $=$ 2.32) based on the RT-PCR results. As shown in Table 1, plasma RIPK1 expression had correlation with TNM classification ( $p=$ 0.033) and lymphatic metastasis ( $p=$ 0.027). Meanwhile, there was no significant association between RIPK1 expression and the other clinical features, including patient age, AFP value, HBV positive, tumor size or Cirrhosis.

3.2 Genetic polymorphism of RIPK1 was correlated with liver injury after hepatectomy

Totally 17 patients have the GA $+$ AA genotype (13 cases of GA and 4 cases of AA) in the RIPK1 rs2272990 SNP site and 27 have GG genotype. The genotype distribution in the RIPK1 polymorphisms were in accordance with Hardy-Weinberg equilibrium ( $p=$ 0.215). We then evaluated the prognostic significance of frequencies of each genotype of RIPK1 in hepatic ischemia-reperfusion injury among these patients. At the time point of PRE and AS, there was no significant difference between the GG genotype and GA $+$ AA genotype patients of serum levels of ALT, AST, TBIL and DBIL. ALT and AST value significantly increased after surgery, peaking at day 1, and then decreased from day 3 to day 5. GG genotype group had significant higher ALT and AST value than GA $+$ AA genotype group after the time point at AS6 (Figs 2(A–B)). Similar results were also seen in TBIL and DBIL value (Figs 2(C–D)). Above data indicated that GG genotype positively correlated with greater severity more severe of hepatic ischemia-reperfusion injury.

3.3 Genetic polymorphism of RIPK1 predicted survival of HCC recipients after hepatectomy

To investigate the relationship between genetic polymorphism of RIPK1 and clinical prognosis, the above 44 HCC patients were followed up. The 1-year, 3-year and 5-year overall survival rate (OS) were 63.6% (28/44), 31.8% (14/44) and 13.6% (6/44), respectively, for all of the patients in this study. Kaplan-Meier survival analyses demonstrated that GG genotype had an unfavorable overall survival prognosis (Fig. 3(A), $p=$ 0.0465) and a shorter disease-free survival than those with GG genotype (Fig. 3B, $p=$ 0.0439).

Figure 3.

Kaplan-Meier curves for time to (A)recurrence and (B)overall survival of patients with different genetic polymorphism at RIPK1 rs2272990 SNP site. Blue line: GG genotype; Red line: GA+AA genotype.

4. Discussion

Cancer development is tightly associated with various cell deaths [16]. While the mechanisms underlying apoptosis have been well characterized over recent decades, another regulated cell death event, necroptosis, remains poorly understood. Accumulating evidence indicates that necroptosis is involved in the regulation of cancer through pro-inflammatory cytokine production and anti-tumor immune response, and characterization of the signal transduction pathways underlying necroptosis was therefore thought to highlight therapeutic targets [17]. RIPK1 was recently identified as a key effector molecule of necroptosis, and the role has been associated to the TNF $\alpha$ -dependent signaling pathway [18]. Chae et al. demonstrated that RIPK1 genetic polymorphism correlate with prognosis in colorectal cancer patients [12] and diffuse large B cell lymphoma patients [19], indicating that RIPK1 might serve as a candidate tumor regulator and a potential prognostic biomarker for various cancers. The highlight of our research was that we found the plasma RIPK1 expression was increased in HCC patients, compared to the healthy control group, and it had relation with TNM classification and lymphatic metastasis of HCC patients. Furthermore, GG genotype of RIPK1 rs2272990 SNP site was associated with poor prognosis in HCC cancer patients. These results indicated that RIPK1 polymorphisms might be related to the alteration of TNF/RIP-induced necroptosis and would appear to be an important prognostic component in HCC patients after hepatectomy.

As we know, hepatic IRI is the major complication at early-phase after hepatectomy [20], and the main mechanism is the condition of oxidative stress that can induce cell and organ dysfunction. Among the different mechanisms of oxidative stress involved in the IRI damage, cell death is an important biological process that is believed to have a central role in intestinal IRI. Necroptosis represents a newly discovered form of programmed cell death that combines the features of both apoptosis and necrosis, and it has been implicated in the development of a range of inflammatory diseases [21]. Dvoriantchikova et al. reported that treatment with necrostatin-1 (Nec-1), a selective RIPK1 inhibitor, suppresses induction of pro-inflammatory responses in retinal IRI [22]. Hong et al.’s report indicated that necroptosis regulates hepatic damage during IRI, which was involved in the autophagy process [23]. Shashaty et al. reported that plasma RIPK3, an essential mediator of necroptosis, was associated with acute kidney injury in critically ill trauma patients [24]. Interestingly, our results also demonstrated that GG genotype of RIPK1 rs2272990 SNP site was associated with poor outcome in IRI after hepatectomy. The principal biochemical parameters used as indicators of hepatocyte damage after liver resection are ALT and AST. In this study, ALT and AST in the GA $+$ AA group were significantly lower than those in GG group after resection. As we know, oxidative stress mediated inflammatory response has the characteristic of overexpression of TNF $\alpha$ gene and is the major initiator of IRI, and TNF $\alpha$ excess enhances ROS production and promotes necroptosis through the RIP1-RIP3-MLKL kinase pathway. Our results suggested that necroptosis might play an important role in alleviating the IRI.

Footnotes

Acknowledgments

This work was financially supported by the China postdoctoral science foundation (2015M572724) and the Youth cultivation project of PLA (15QNP048).

Conflict of interest

None declared.

References

Torre

L.A.

Bray

Siegel

R.L.

et al., Global cancer statistics, 2012, CA Cancer J Clin. 65 (2015), 87–108.

Liu

G.Y.

Wang

Jia

W.D.

et al., Protective effect of S-adenosylmethionine on hepatic ischemia-reperfusion injury during hepatectomy in HCC patients with chronic HBV infection, World J Surg Oncol. 12 (2014), 27.

Witort

Capaccioli

Becatti

et al., Albumin Cys34 adducted by acrolein as a marker of oxidative stress in ischemia-reperfusion injury during hepatectomy, Free Radic Res. 50 (2016), 831–839.

Datta

Fuller

B.J.

and Davidson

B.R.

, Molecular mechanisms of liver ischemia reperfusion injury: insights from transgenic knockout models, World J Gastroenterol. 19 (2013), 1683–1698.

Ling

C.C.

K.T.

Shao

et al., Post-transplant endothelial progenitor cell mobilization via CXCL10/CXCR3 signaling promotes liver tumor growth, Journal of Hepatology. 60 (2014), 103–109.

Isik

Tuncyurek

Zengin

N.I.

et al., Antithrombin prevents apoptosis by regulating inflammation in the liver in a model of cold ischemia/warm reperfusion injury, Hepatogastroenterology 59 (2012), 453–457.

Kong

Gao

Sun

et al., The strategy of combined ischemia preconditioning and salvianolic acid-B pretreatment to prevent hepatic ischemia-reperfusion injury in rats, Dig Dis Sci. 54 (2009), 2568–2576.

Fan

Asare

P.F.

et al., Danshensu alleviates cardiac ischaemia/reperfusion injury by inhibiting autophagy and apoptosis via activation of mTOR signalling, J Cell Mol Med. 20 (2016), 1908–1919.

Hermann

Vélez

D.E.

Rusiecki

T.M.

et al., Effects of 3-methyladenine on isolated left atria subjected to simulated ischaemia-reperfusion, Clin Exp Pharmacol Physiol. 42(1) (2015), 41–51.

10.

Wen

Ling

Yang

et al., Necroptosis is a key mediator of enterocytes loss in intestinal ischaemia/reperfusion injury, J Cell Mol Med. (2016), 12987.

11.

Legarda

Justus

S.J.

Ang

R.L.

et al., CYLD proteolysis protects macrophages from TNF-mediated auto-necroptosis induced by LPS and licensed by type I IFN, Cell Rep. 15 (2016), 2449–2461.

12.

Chae

Y.S.

Kim

J.G.

Sohn

S.K.

et al., RIPK1and CASP7 polymorphism as prognostic markers for survival in patients with colorectal cancer after complete resection, J Cancer Res Clin Oncol. 137 (2011), 705–713.

13.

Kee

K.M.

Wang

J.H.

Lin

C.Y.

et al., Validation of the 7th edition TNM staging system for hepatocellular carcinoma: an analysis of 8,828 patients in a single medical center.[J], Digestive Diseases and Sciences 58 (2013), 2721–2728.

14.

World Medical Association. World Medical Association Declaration of Helsinki: ethical principles formedical research involving human subjects, JAMA. 310 (27 Nov 2013), 2191–2194.

15.

Hiwatashi

Ueno

Sakoda

et al., The Evaluation of Liver Function and Surgical Influence by ICGR15 after Chemotherapy for Colorectal Liver Metastases[J], Journal of Cancer. 7(5) (2016), 595–599.

16.

Radogna

Dicato

and Diederich

, Cancer-type-specific crosstalk between autophagy, necroptosis and apoptosis as a pharmacological target, Biochem Pharmacol. 94 (2015), 1–11.

17.

Meng

M.B.

Wang

H.H.

Cui

Y.L.

et al., Necroptosis in tumorigenesis, activation of anti-tumor immunity, and cancer therapy, Oncotarget. 2016. doi: 10.18632/oncotarget.10548.

18.

Legarda

Justus

S.J.

Ang

R.L.

et al., CYLD Proteolysis Protects Macrophages from TNF-Mediated Auto necroptosis Induced by LPS and Licensedby Type I IFN, Cell Rep. 15(11) (14 Jun 2016), 2449–2461.

19.

Chae

Y.S.

Kim

J.G.

Sohn

S.K.

et al., Lymphotoxin alfa and receptor-interacting protein kinase 1 gene polymorphisms may correlate withprognosis in patients with diffuse large B cell lymphoma treated with R-CHOP, Cancer Chemother Pharmacol. 65 (2010), 571–577.

20.

Simillis

Robertson

F.P.

Afxentiou

et al., A network meta-analysis comparing perioperative outcomes of interventions aiming to decreaseischemia reperfusion injury during elective liver resection, Surgery. 159 (2016), 1157–1169.

21.

Linkermann

Hackl

M.J.

Kunzendorf

et al., Necroptosis in immunity and ischemia-reperfusion injury.

22.

Dvoriantchikova

Degterev

and Ivanov

, Retinal ganglion cell (RGC) programmed necrosis contributes to ischemia-reperfusion-induced retinal damage, Exp. Eye Res. 123, 1–7.

23.

Hong

J.M.

Kim

S.J.

and Lee

S.M.

, Role of necroptosis in autophagy signaling during hepatic ischemia and reperfusion, Toxicol Appl Pharmacol. 308 (2016), 1–10.

24.

Shashaty

M.G.

Reilly

J.P.

Sims

C.A.

et al., Plasma Levels of Receptor Interacting Protein Kinase-3 (RIP3), an Essential Mediator of Necroptosis, are Associated with Acute Kidney Injury in Critically Ill Trauma Patients, Shock. 46(2) (Aug 2016), 139–143.
