Tumor-infiltrating lymphocytes are associated with β -catenin overexpression in breast cancer

1. Introduction

Despite the improvement of its overall 5-year survival rate in the past 3 decades, breast cancer is still the most prevalent cancer among females worldwide [1]. It is also the leading cause of cancer death among women in less developed regions and the second cause of cancer death in more developed regions [2], posing great threat to women’s health. The interaction between tumor cells and immune system is critical for the development and progression of cancer [3]. Although breast cancer (BC) is not traditionally considered as immunogenic, an increasing number of retrospective and prospective studies have shown that high level of lymphocytes infiltration in BC is associated with improved outcome of patients, particularly in triple negative and HER2-enriched early breast cancer [4, 5, 6]. Moreover, the presence of TILs could favorably influence treatment responsiveness to neoadjuvant chemotherapy [7]. An association between higher levels of TILs and increased trastuzumab benefit in HER2 + breast cancer has also been reported [8]. Accordingly, inhibition of lymphocytes infiltration and activity in the tumor microenvironment may impair antitumor immune response and limit treatment responsiveness in breast cancer.

Wnt pathway plays a key role in the development and function of hematopoietic system [9, 10, 11]. In peripheral immunity, canonical Wnt/ β -catenin signaling is critical for the polarization, differentiation and survival of mature T lymphocytes [12]. It has been reported that the activation of Wnt/ β -catenin pathway could negatively regulate the naive-to-effector T cell differentiation in human T lymphocytes [13, 14]. Wnt/ β -catenin signaling also inhibits the pro-inflammatory cytokine induction of dendritic cells (DCs) in response to toll like receptor ligands and promotes DC generation of FOXP3 + (forkhead box P3) regulatory T cells, thus reprogramming DC responses for immune tolerance [15]. Wnt signaling is frequently activated in various cancers [16], and their immune suppressive and tolerogenic effects on T cells and DCs may contribute to tumor immune evasion and cancer progression. In melanoma, accumulation of β -catenin in tumor cells and tissues upregulated IL-10 expression by directly binding to the IL-10 promoter, which impaired DC maturation and induced regulatory phenotype among DCs. Moreover, the anti-tumor effect of melanoma-specific cytotoxic CD8 + T cells was inhibited by Wnt/ β -catenin activity in vitro and in vivo [17]. Emerging evidence from clinical data suggest that immunotherapeutic strategies, including checkpoint blockade, are predominantly effective in patients with a pre-existing T cell-inflamed tumor microenvironment [18, 19, 20]. Spranger and colleagues [21] reported that melanoma intrinsic Wnt/ β -catenin signaling prevented T-cell infiltration in tumor microenvironment and resulted in the resistance to anti-PD-L1/anti-CTLA-4 monoclonal antibody therapy. However, the effects of Wnt/ β -catenin on tumor immunity remain controversial. Wnt/ β -catenin signaling is proved to be required for the reconstitution and quiescence of hematopoietic stem cells (HSC) [22, 23]. In a mouse model, activation of the Wnt pathway prevented CD8 + T cells from differentiating into effector T cells, and generated a population of CD8 + T cell subset showing a young/memory phenotype similar to stem cell memory T cells (T 𝑆𝐶𝑀 ), which showed higher proliferation and antitumor activity than central memory T cells (T 𝐶𝑀 ) or effector memory T cells (T 𝐶𝑀 ). Furthermore, Wnt/ β -catenin signaling improved the persistence of human CD8 + T cells by overexpression of Bcl-2 and absence of active caspase-3 [24]. These findings revealed that Wnt/ β -catenin pathway might contribute to the maintenance of stemness in mature CD8 + T cells, indicating the potential value of Wnt/ β -catenin pathway in adoptive T cell therapy for cancer. Taken together, whether Wnt/ β -catenin pathway plays a positive or negative role in anti-tumor immunity is open to question and requires further investigation.

High β -catenin activity has been reported to correlate with poor prognosis and tumor progression in breast cancer [25, 26]. Our previous findings also suggest that Wnt/ β -catenin pathway is abnormally activated in breast cancer, and may be of mechanistic and pharmatheutical significance in the disease [27]. However, the involvement of Wnt/ β -catenin signaling in tumor immune microenvironment has not been clearly established.

In this study, we seek to further explore the clinicalpathological factors that affect T lymphocytes infiltration in breast cancer and the correlation between components of tumor inflammatory infiltrates and Wnt/ β -catenin pathway activity, as measured by β -catenin expression in tumor tissues. Various reports have suggested that infiltration of CD8 + T cells in breast cancer has antitumor activity as judged by their favorable effect on patients’ survival, while high levels of FOXP3 + Tregs predict reduced survival in overall breast cancer with exception for TNBC [28, 29, 30, 31, 32], indicating clinical significance for these two subsets. Thus we further assessed the infiltration of these two TIL subsets and their association with β -catenin expression in breast cancer. Here, we provide the novel findings that rather than excluding TILs from tumor microenvironment, activation of intrinsic Wnt/ β -catenin signaling in breast cancer is positively associated with high levels of total lymphocyte infiltration as well as the number of CD8 + or FOXP3 + TIL subsets.

2. Materials and methods

3. Results

4. Discussion

TILs that interact with other immune infiltrates in the tumor microenvironment are mainly responsible for intratumoral immune responses. Detection of TILs by immunohistochemical techniques may be an indicator of immune responses to cancer development. In addition, presence of TILs shows predictive value for patients’ responses to neoadjuvant chemotherapy and can potentially help oncologists to identify the subgroup of patients that will receive greater benefit from the therapy [40, 41]. Rather than showing clinical significance among overall breast cancer population, the prognostic or predictive values of TILs seems to be restricted for certain molecular subtypes of breast cancer, mainly TNBC and HER2-enriched subtypes [42, 43]. Our clinicopathological data revealed significant correlations between ER/PR status and stromal TILs. ER/PR negative BC i.e. TNBC or HER2-positive BC tends to have higher level of lymphocytes infiltration, while in luminal type A and B, the percentage is much lower. These results are partly consistent with previous data form other studies [5, 8] showing that the clinical value of TILs should be emphasized in hormone receptor negative BC, i.e. TNBC and HER2 - enriched BCs. We suggest that not only using hormone receptors for defining cancer subtypes, further research into how hormone activity may affect lymphocytes recruitment in BC is warranted.

β -catenin is the central player in canonical Wnt/ β -catenin pathway. It is mainly involved in regulation of cell-cell adhesion and transcription for a wide rage of genes. In the absence of Wnt signaling, the β -catenin protein is constitutively degraded by the β -catenin destruction complex. When activated by Wnt ligands, co-activation of the Frizzled and low-density lipoprotein receptor-related proteins (LRP) receptors induces the inhibition of the destruction complex and the consequent stabilization of β -catenin in the cytoplasm. β -catenin eventually translocates in nuclear, where it modulates expression of a broad range of target genes [44]. β -catenin accumulates in various malignant tumors, which is related to abnormal activation of the Wnt/ β -catenin pathway during carcinogenesis and tumor progression [45, 46]. Alterations of Wnt/ β -catenin signaling also present in more than 60% of breast cancer and may predict unfavorable disease outcome [47].

Wnt/ β -catenin pathway provides important proliferative and maintenance signals, which regulate self-renewal of hematopoietic stem cells and the development of lymphocytes [11, 48, 49, 50, 51]. Later on, increasing studies indicated that Wnt/ β -catenin signaling exerts significant effects on tumor immune system. It induces immune suppression and resistance by regulating some key cytokines [17] and the function of immune cells [52]. In melanoma, tumour-intrinsic activation of β -catenin signalling results in T-cell exclusion and resistance to anti-PD-L1/anti-CTLA-4 monoclonal antibody immunotherapy [21]. These findings suggested that deregulation of Wnt/ β -catenin pathway in malignant tumors may contribute to cancer immune evasion and resistance to immunotherapies.

By IHC staining of β -catenin in breast cancer specimens, we first report an association between Wnt/ β -catenin signaling and lymphatic infiltration in human breast cancer. Cytoplasmic and/or nuclear accumulation of β -catenin in tumor nest was observed in all the 96 invasive breast cancer samples. By consecutive section staining, we noticed that rather than preventing T cell infiltration into tumor site, overexpression of β -catenin in cancer cells was associated with higher TILs density in the stroma. Moreover, a linear correlation between β -catenin expression and TILs level was identified ( r = 0.710, 0.001). These results are surprisingly inconsistent with current knowledge reported in melanoma [21] . This can be partly explained by the fact that Wnt- β -catenin pathway may function differently depending on the distinct biological backgrounds of cancers. Besides, comparative gene expression profiling instead of IHC staining for TILs was used in their study, which may lead to different results as well. However, our observations again raised the question whether tumor intrinsic Wnt- β -catenin signaling only displays unfavorable effects on anti-tumor immune response. According to studies of Forget et al.[24] and Gattinoni et al.[49], Wnt/ β -catenin signaling plays a key role in the maintenance of stemness and promoted T 𝑆𝐶𝑀 subset in mature memory CD8 + T cells from both TILs and the periphery, indicating that the function of Wnt/ β -catenin pathway in vivo may be beneficial for the improvement of adoptive immunotherapies. Since the H&E staining method only locates mononuclear TILs but is limited in revealing the functional status of lymphocytes, further investigations concerning the biology characteristics of human TILs and its correlation with Wnt/ β -catenin activity are required.

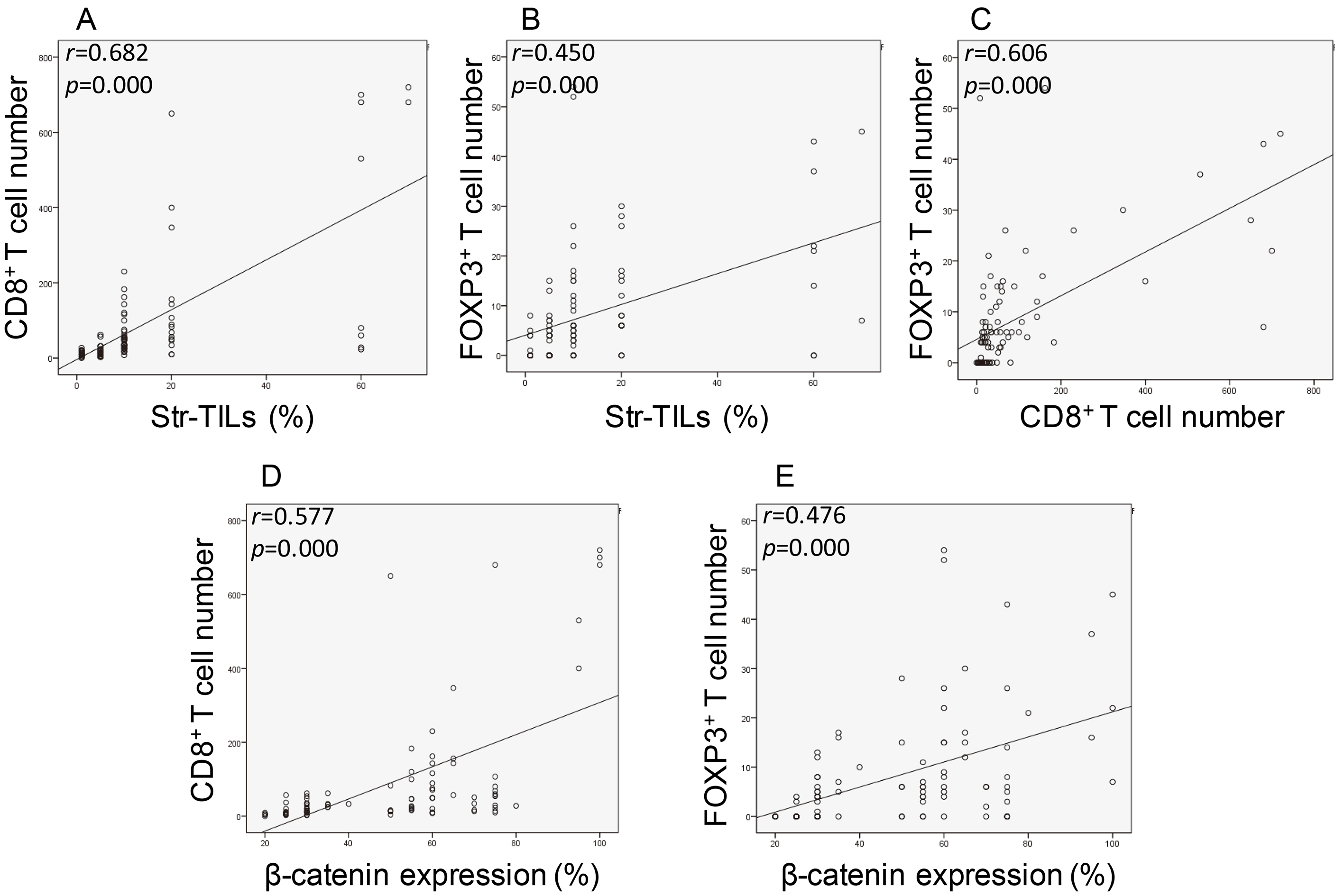

Different subgroups of the immune complex within tumor site may exert diverse functions. For example, DCs, Th1 CD4 + T cells and cytotoxic CD8 + T cells are found to be involved in anticancer immunosurveillance. In contrast, Th17 CD4 + T cells and FOXP3 + CD4 + regulatory T cells (Tregs) function in the context of protumorigenic inflammation [54]. In recent years, the bulk of studies suggested that distinct infiltrating cell types have distinct prognostic and potentially predictive significance [54]. In BC, high level of CD8 + lymphocyte infiltration indicates better prognosis of patients, while high density of FOXP3 + Tregs are often associated with poor survival outcomes [42]. These findings suggest the possibility that Wnt/ β -catenin pathway may function differently on these two TIL subsets. We found that in all the 96 specimens, densities of CD8 + T cells are much higher than FOXP3 + lymphocytes. Both CD8 + and FOXP3 + TILs densities were positively correlated with total stromal TILs ( r = 0.682, 0.001; r = 0.450, 0.001). West et al. [55] argued that despite the well-accepted fact that FOXP3 + and CD8 + T cells function contradictorily during anti-tumour immune responses, the prognostic value of FOXP3 + TILs for breast cancer is dependent of the presence of CD8 + TILs. Notably, our results indicated that FOXP3 + TILs number is significantly associated with the total CD8 + infiltrates in tumor stroma ( r = 0.606, 0.001), which is consistent with the previous report [52]. It is unclear at present why CD8 + TILs still exert anti-tumor effects and are associated with better prognosis when co-infiltrating with a large number of FOXP3 + Tregs. According to some in vitro models, Tregs require close contact with target cells to induce immune suppression [56]. Besides, the interactions of TILs with tumor cells and stromal cells within tumor microenvironment are extremely complicated. When using CD25 as the molecular marker of Tregs, Prat et al. [57] demonstrated that markers of dendritic cell activation, inflammatory cytokine production and CD8 + T-cell cytotoxicity were enriched in CD25-high breast tumors, suggesting a complex of anti-tumour immunity can be active in breast tumors despite the presence of Tregs. In our case, the analysis of Tregs-CD8 + TILs interaction within tumor site is demanded in order to interpret the functional status of TILs. And looking into multiple components of TILs instead of focusing on certain lymphocytes should be considered. At last, we analyzed the correlation between CD8 + /FOXP3 + TIL subsets and tumor intrinsic β -catenin over-expression. Based on our findings, it can not be concluded whether Wnt/ β -catenin pathway functions differently on these two TIL subgroups, since both the number of CD8 + T cells ( r = 0.577, 0.001) and FOXP3 + T cells ( r = 0.476, 0.001) are positively associated with abnormal β -catenin expression in breast cancer. Moreover, our results did not support the report that activation of Wnt/ β -catenin signaling excluded T-cell infiltration in tumor [21]. Nevertheless, our findings demonstrated a significant association of Wnt/ β -catenin pathway with total TILs and two TIL subgroups in breast cancer, indicating that Wnt/ β -catenin pathway is potentially involved in tumor immunosurveillance and anti-tumor immunity. Further studies are demanded to verify these findings and to explore the underlined mechanisms.

To sum up, our results demonstrated that lymphocytes infiltration in tumor stroma varies with hormone receptor status, tumor grade and different molecular subtypes of breast cancer. Both stromal lymphocytes infiltration and β -catenin expression were more enriched in TNBC and HER2 positive BCs. Rather than excluding lymphocytes infiltration as reported in melanoma, we found that high levels of TILs were associated with β -catenin overexpression in BC. And both the number of CD8 + CTLs and FOXP3 + T cells were positively associated with abnormal β -catenin expression. Further studies to explore the effects of Wnt/ β -catenin pathway on breast cancer immunity and the functional status of CTLs and Tregs in different breast cancer subtypes will lead us to better understand tumor-TILs interaction mechanisms and provide therapeutic targets for the improvement of immunotherapy of breast cancer.
