First evaluation of Neighbor of Punc E11 (NOPE) as a novel marker in human hepatocellular carcinoma

Abstract

BACKGROUND:

Hepatocellular carcinoma (HCC) is the second most common cause of cancer death worldwide and the search for clinically useful biomarkers is ongoing. Neighbor of Punc E11 (NOPE) is an established biomarker of murine HCC that remains undetectable in normal liver and at preneoplastic stages.

OBJECTIVE:

The aim of our study was to evaluate the presence of NOPE in human HCC.

METHODS:

Histologically confirmed HCC and corresponding non-tumor liver samples from 20 patients were analyzed for expression of NOPE using qRT-PCR and mRNA-in-situ technology in a conserved tissue context.

RESULTS:

In our cohort, 30% of HCC samples were expressing NOPE which proved particularly useful in non-cirrhotic HCC samples with up to 155-fold higher expression than in adult liver. Using mRNA-in-situ technology, NOPE was clearly identified within epithelial tumor cells of NOPE positive human HCCs. In our analyzed cohort, the combination of AFP with NOPE did not reach more than 40% sensitivity while GPC-3 and NOPE were complementary to each other reaching a combined sensitivity of 85.7%.

CONCLUSIONS:

This is the first characterization of NOPE as a potential biomarker for human HCC. Our results underline the value of NOPE as a complementing biomarker for human HCC.

Keywords

Human HCC biomarker IGDCC4 mRNA-in situ technology AFP GPC-3

1. Introduction

The World Health Organization (WHO) lists hepatocellular carcinoma (HCC) as the second leading cause of cancer death worldwide [1]. In general, HCC development is based on the interaction between genetic and environmental factors and is diagnosed primarily in patients with chronic hepatitis B virus (HBV) infection, nonalcoholic steatohepatitis (NASH) or in patients with a chronic liver disease that has already progressed to liver cirrhosis [2].

According to the classification of the Barcelona Clinic Liver Cancer (BCLC), the prognosis strongly depends on the stage of HCC at the time of diagnosis. Patients with HCC in very early and early stages can be curatively treated with a median overall survival of 60 months and a 5-year-survival rate of 40–70% [3]. In patients diagnosed with terminal HCC, treatment is limited to best supportive care and overall survival is reduced to less than 3 months [4, 5].

Biomarkers have become a very valuable tool in diagnosis and prognosis as well as in prediction and monitoring of treatment outcome in clinical oncology. In HCC, the most prominent biomarker is alpha-fetoprotein (AFP), which is strongly expressed during fetal liver development and diminishes after birth and in adulthood. The AFP serum level may increase again with evolving HCC progresses [6], but 80% of small HCCs are not identified by AFP in serum [7]. In addition, the marker shows a low distinctiveness since patients with HBV and cirrhosis also show high levels of AFP without HCC [8] and the distinction between HCC and intrahepatic cholangiocarcinoma is not reliable [9]. Due to its low sensitivity and specificity in serum, both the European and American guidelines for HCC do not recommend AFP for screening or diagnosis. The membrane protein Glypican 3 (GPC-3) is an additional marker that is widely used in histological analysis [10]. It has been studied as a tissue marker mainly for the diagnosis of hepatitis B virus (HBV)/HCV-related HCC [11]. A diagnostic marker panel combining GPC-3 with heat shock protein 70 and glutamine synthetase reaches a sensitivity of 58.7% and a specificity of 100% respectively for the diagnosis of virus-based HCC population [12].

MicroRNAs such as mi-R122 and various proteins such as Golgi protein 73, AFP-L3 and DCP have also been described to identify HCC at different stages [13, 14, 15]. So far, they are all in the process of further research into combinational diagnostics, but none of them are used in clinical routine. Therefore, the search for clinically useful biomarkers, in particular for screening and early diagnosis of HCC, is not yet complete.

The oncofetal stem/progenitor cell marker Neighbor of Punc E11 (NOPE) was first identified in the liver by microarray analysis of murine fetal liver [16]. Like AFP and GPC-3, NOPE is strongly expressed during fetal liver development, but not in healthy adult hepatocytes, but reappears when the liver is exposed to severe damage. Recently, we have shown that NOPE is expressed in adult depolarized hepatocytes of mice after cholestatic liver injury [17]. Our results suggest a possible role for NOPE as a histochemical biomarker for stage-specific stratification of cholestatic liver diseases with or without parenchymal hepatocyte involvement. In a mouse model of HCC development, we have shown that NOPE is specifically expressed in HCC but remains undetectable in normal liver and at preneoplastic stages [18]. In contrast to AFP and GPC-3, NOPE was detectable in all HCC specimens. These results were more recently confirmed by Kim et al. in a cell culture HCC mouse model with diethylnitrosamine (DEN) for the induction of HCC [19]. In our study, we could also show that murine hepatoma cell lines like Hepa1-6 and Hepa 126 and human hepatoma cell lines such as HepG2, Hep3b, Huh7, Huh6, Huh1, PLC/PRF/5, WRL68 and KMCH also express NOPE up to 229 times higher than adult liver [18]. First data from Oncomine Microarray predicted the applicability to the human system. Therefore, we suggested that NOPE could also be a promising marker for clinical application in humans [18].

The present study is the first evaluation of NOPE in human HCC samples. We analyzed NOPE mRNA levels in comparison to AFP and GPC-3 in human HCC and the corresponding non-tumor liver samples of a cohort of 20 patients. Since specific immunohistochemically-based antibodies against human NOPE are not commercially available, we evaluated the sensitivity and specificity of NOPE expression through a histological approach using qRT-PCR and RNA-Scope technology to specifically detect NOPE mRNA on-slide in a conserved tissue context.

Table 1
Patient cohort

	LCI	Fibrosis	Underlying	HCC	TNM	Age	Sex	NON-T
	Y/N	I-IV	disease	grade	classification	years	f/m	Y/N
1	N	II	HBV	G2	pT3	45	m	Y
2	N	III	Unknown	G3	pT3	70	f	Y
3	N	I-II	Unknown	G3	pT3	67	m	Y
4	N	I	Unknown	G2	pT1	65	m	Y
5	N	I	HCV	G2	pT2	77	m	Y
6	N	I	HBV	G2	pT1	72	m	N
7	N	I	Unknown	G2	pT3	38	f	N
8	N	I-II	Unknown	G2	pT3	72	m	Y
9	N	I	Unknown	G1-2	pT3	69	m	N
10	N	I	$\alpha 1$ AT deficiency	G2-G3	pT2	74	f	Y
11	N	I	hemochromatosis	G2	pT3	73	m	Y
12	N	II	HBV	G2	pT2	60	f	Y
13	Y	IV	HBV	G3	pT3	73	f	Y
14	Y	IV	HCV	G2	pT1	69	m	Y
15	Y	IV	Nutritive toxic	G2	pT3	68	m	Y
16	Y	IV	HCV	G2-G3	pT3	63	m	Y
17	Y	IV	HCV	G2-3	pT4	52	m	N
18	Y	IV	HCV	G3	pT3	76	m	Y
19	Y	IV	HCV	G2	pT1	68	m	Y
20	Y	IV	Posthepatic cirrhosis	G2	pT3	53	f	N

Abbreviations: LCI: liver cirrhosis; HCC: hepatocellular carcinoma; TNM: tumor, nodus, metastasis; T: tumor; Y/N: Yes/No; f/m: female/male.

2. Material and methods

2.1 Patients and specimens

Cryopreserved tumor samples and the corresponding non-tumor liver specimens were taken from 20 patients who had resected histologically confirmed HCC in a single center (University Hospital Cologne) between 1997 and 2006. None of the selected patients underwent preoperative cancer treatment. The surgical samples were cut into small pieces and immediately stored under aseptic conditions in liquid nitrogen. The procedures were performed in accordance with the ethical standards formulated in the Helsinki Declaration of 1975 (and revised in 1983). Patients gave their written consent to the use of their tumor samples, an approval was obtained by the Ethics Committee of the University of Cologne (reference number: 13-091).

2.2 RNA extraction

The total RNA from all samples was extracted with the RNeasy Mini Kits (RNeasy Minikit (50)-Set Qiagen Shredder and RNAse-Free Dnase, QIAGEN Cat No. 74104) according to the manufacturer’s instructions. The amount of RNA was measured with a Nanodrop ND-1000 spectrophotometer (NanoDrop Technologies, Wilmington, USA).

2.3 Reverse transcription of isolated RNA to cDNA

The reverse transcription of the isolated RNA into cDNA was performed by Super ScriptTm III First Strand Synthesis for RT-PCR kit (Invitrogen Cat. No.18080-051) according to the manufacturer’s instructions. For each sample, 5 $\mu$ g RNA per assay were used.

2.4 Quantitative real-time reverse transcriptase polymerase chain reaction

The differential expression of NOPE, AFP and GPC-3 was analyzed using quantitative real-time reverse transcriptase polymerase chain reaction (qRT-PCR). We performed a two-step qRT-PCR with SYBR Green Master Mix and the iQ5 System (BioRad Laboratories, Munich, Germany). Hypoxanthine Phosphoribosyltransferase (HPRT) was used as reference gene. Oligonucleotide primers are listed in Supplementary Table 1 (Table S1). The amplification protocol was as follows: 95 ${}^{\circ}$ C for 3 minutes, followed by 40 cycles of 95 ${}^{\circ}$ C for 15 seconds and 1 minute at 60 ${}^{\circ}$ C, supplemented by a dissociation curve to identify false positive amplicons.

The relative expression level of each gene was calculated using formula 2 ${}^{(-\Delta\Delta\text{CT})}$ [20]. The adult liver (AL) was used as the standard control and all samples were tested in triplicates.

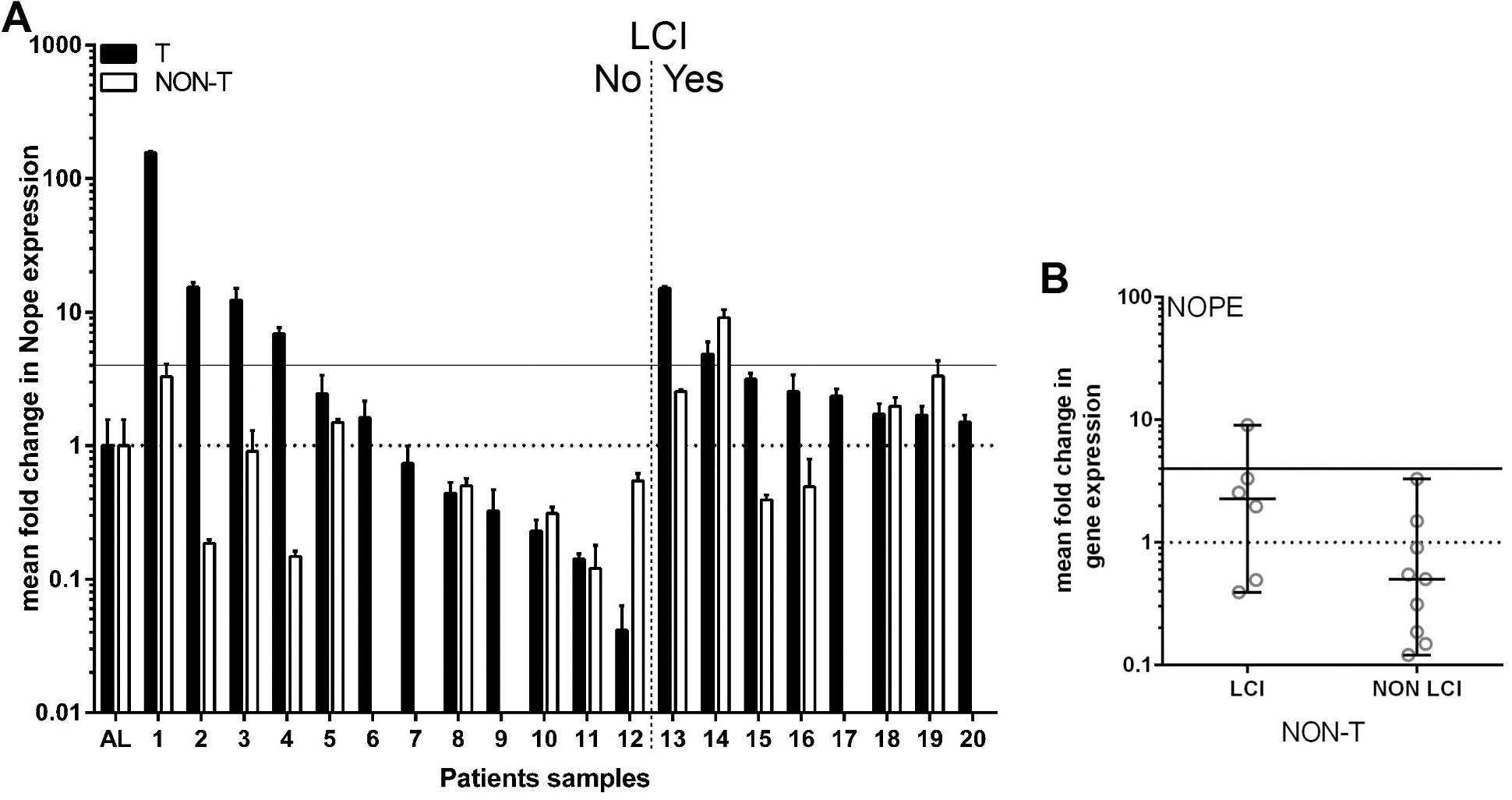

Figure 1.

Expression of NOPE by qRT-PCR. A) The expression levels of NOPE were analyzed in HCC (T, black bars) and NON-T(umorous, white bars) tissue samples by qRT-PCR. A horizontal dashed line indicates the NOPE expression level in the healthy adult liver (AL), defined as 1. With regard to the cut-off level of 4 times higher expression than AL, indicated by the continuous horizontal line, 30% of tumor samples were NOPE positive, while all NON-T samples except one were NOPE negative. NOPE expression was not measurable in 5 NON-T samples. B) The median expression levels of NOPE in Non-T samples were calculated in cirrhotic (LCI) and non-cirrhotic (NON LCI) samples showing a higher expression level of NOPE in cirrhotic liver samples. The median is below the cut off of 4 in cirrhotic and non-cirrhotic NON-T tissue, confirming its utility for differentiation of NON-T from tumor samples.

2.5 RNA-in-situ (RNA-Scope)

The RNA-Scope assay was performed according to manufacturer’s instructions [21, 22]. In brief, paraffin-embedded TMA blocks were cut into 5 $\mu$ m sections, pretreated according to extended protocol (30 minutes for pretreatment 2 and 3), digested and hybridized at 40 ${}^{\circ}$ C in the HybEZ oven with human NOPE mRNA probe provided by Advanced Cell Diagnostics Europe. The incubation time with Hematoxylin was 10 seconds. Target expression was compared with both negative (dapB) and positive (PPIB) controls. The scoring of the signals was performed according to the manufacturer’s recommendations with no staining or less than one molecule per 10 cells $=$ score 0, 1–3 dots/cell $=$ score 1, 4–9 dots/cell $=$ score 2, 10–15 dots/cell $=$ score 3 and $>$ 15 dots/cell $=$ score 4. DapB score was 0 and PPIB score was 2. Positivity was defined as a score $>$ 0.

2.6 Statistical analysis

The differential gene expression was analyzed by unpaired t-test analysis using GraphPad Prism (version 6.07 for Windows, La Jolla California USA, www.graphpad.com). The $p$ -values shown are uncorrected and two-tailed and $\alpha<$ 0.05 was considered as statistically significant. The correlations were analyzed using Microsoft Office Excel (2014).

3. Results

3.1 Patient characteristics

The patient cohort consisted of 70% male and 30% female patients aged 38 to 77 (median 68.5) years (Table 1). According to histological studies, 40% of the patients developed HCC in the background of a cirrhotic liver, while 60% showed varying degrees of liver fibrosis but no established cirrhosis. In non-cirrhotic patients, 25% of HCC developed due to chronic hepatitis B (Table 1). Tumor differentiation grade II was identified in 60% of specimens, followed by differentiation grade III in 20% of the samples and differentiation grade II-III in 15% of the samples.

3.2 Expression level of NOPE in tumor and non-tumor specimens by qRT-PCR

The expression level of NOPE was measured in all tumor and corresponding non-tumor specimens by qRT-PCR and adult liver served as reference (Fig. 1A).

Across all 20 tumor samples, the maximum expression level of NOPE was 155 times higher than that of AL (Fig. 1A). NOPE was not measurable in 5 non-tumor samples excluded from further analysis. The remaining non-tumorous liver samples from cirrhotic and non-cirrhotic livers were examined for their expression level of NOPE. The non-cirrhotic non-tumorous liver samples showed no significant difference to AL ( $p=$ 0.18), and were between 0.12 to 3.38 times. The cirrhotic non-tumor samples were slightly, but not significantly ( $p=$ 0.27) increased compared to AL in a range of 0.39 to 9-fold (Fig. 1B). We have defined that the level of expression in a tumor sample must be at least 4 times higher than in AL to be interpreted as positive for NOPE. With respect to this definition, 30% of all tumor samples were NOPE positive. 66.7% of NOPE positive samples came from HCC in non-cirrhotic livers, resulting in 33% sensitivity and 100% specificity in non-cirrhotic livers (Fig. 1A). In cirrhotic livers, only 25% of HCC samples were positive ( $=$ 25% sensitivity) and the specificity was 84% because a non-tumor liver sample from a cirrhotic liver showed 9-fold higher expression than AL (Fig. 1A).

Figure 2.

Identification of NOPE by mRNA-in-situ technology. A) With mRNA-in-situ technology, NOPE mRNA (red dots) can be specifically identified in carcinoma cells in a conserved tissue context (400-fold magnification, arrows point to NOPE positive cells). However, carcinoma cells reveal only low NOPE mRNA expression levels with an mRNA-Score of 1, i.e. 1-3 dots per tumor cell (see inlet). B) Carcinoma cells which were evaluated to be negative for NOPE were surrounded by NOPE mRNA-positive tumor-related inflammatory cells.

3.3 mRNA-in-situ single cell expression analysis

In addition, we analyzed five different NOPE positive human HCCs using mRNA-in-situ technology to measure NOPE mRNA in a conserved tissue context. Three out of five HCCs were evaluated positive for NOPE, i.e. they confirmed signals of NOPE mRNA within the epithelial carcinoma cells (Fig. 2A). However, all carcinoma cells showed only low NOPE mRNA expression levels with an mRNA-Score of 1, i.e. 1–3 dots per tumor cell (Supplement Fig. 2). In addition, we found NOPE mRNA in tumor-related inflammatory cells surrounding carcinoma cells that were evaluated to be negative for NOPE by mRNA-in-situ technology (Fig. 2B).

3.4 Comparison of NOPE with AFP

At a 4-fold cut-off compared to AL, 5 of the tumor specimens were AFP positive (sensitivity 25%) (Fig. 3A), but 2 non-cirrhotic non-tumor samples were also AFP-positive (specificity 86.7%). 60% of AFP positive tumor samples came from HCC in cirrhotic livers, resulting in 37.5% sensitivity and 100% specificity. In non-cirrhotic livers, 22.2% of the HCC samples were AFP positive ( $=$ 22.2% sensitivity) with only 77.8% specificity.

Figure 3.

Correlation of NOPE, AFP and GPC-3 by qRT-PCR. A horizontal dashed line indicates the expression level of NOPE and AFP in healthy adult liver (AL) defined as 1. Samples originating in a cirrhotic liver are highlighted in black. With regard to the cut-off threshold of 4 times higher expression than AL indicated by the continuous horizontal line, 6 HCC samples were identified by NOPE, 2 of which originating in a cirrhotic liver. AFP was expressed in 3 of the NOPE positive samples, 1 of these originating in a cirrhotic liver. However, AFP identifies only 2 NOPE negative HCC samples, both originating in a cirrhotic liver. 5 HCC samples were identified by NOPE, 2 of which originating in a cirrhotic liver. GPC-3 was expressed in 3 of the NOPE positive samples, 1 of these originating in a cirrhotic liver. However, GPC-3 identifies additional 6 NOPE negative HCC samples, originating from cirrhotic as well as non-cirrhotic liver.

50% of NOPE-positive samples were AFP-positive and 50% were AFP-negative. AFP identified two additional HCC samples (both 6-fold), which were NOPE negative (1.7-fold) (Fig. 3A). In contrast, NOPE identified 3 additional HCC samples (5-, 7-and 12-fold) which were AFP negative (0.9-, 0.7- and 0.03-fold). On average, AFP expression in positive samples was 17.6 times higher than in AL, while NOPE expression in positive tumor samples was 35 times higher than in AL (Supplementary Fig. 1).

Nevertheless, the correlation coefficient between both markers had a value of 0.93 which suggests a very high correlation.

3.5 Comparison of NOPE with GPC-3

At a 4-fold cut-off compared to AL, 9 of the tumor specimens were GPC-3 positive (sensitivity 60%) (Fig. 3B), but 2 cirrhotic non-tumor samples were also GPC-3-positive (specificity 91.6%). 44.44% of GPC-3 positive tumor samples came from HCC in cirrhotic livers, resulting in 66.66% sensitivity and 83.3% specificity. In non-cirrhotic livers, 55.55% of the HCC samples were GPC-3 positive ( $=$ 55.5% sensitivity) with 100% specificity.

60% of NOPE-positive samples were GPC-3-positive and 40% were GPC-3-negative. GPC-3 identified six additional HCC samples (average 104-fold), which were NOPE negative (average 1.8-fold) (Fig. 3B). In contrast, NOPE identified 2 additional HCC samples (12-and 15-fold) which were GPC-3 negative (0.5-and 0.6-fold). On average, GPC-3 expression in positive samples was 77 times higher than in AL, while NOPE expression in positive tumor samples was 35 times higher than in AL (Supplementary Fig. 1).

The correlation coefficient between both markers had a value of $-$ 0.17, indicating that no correlation exists, rather a complementation. Consequently, the combination of both markers identifies all but 2 HCC, resulting in a combined sensitivity of 85.7%.

4. Discussion

In this study, we confirm NOPE as a potential biomarker for human HCC by qRT-PCR and RNA-Scope analysis. With the RNA-Scope analysis, we were able to describe for the first time the expression of NOPE in epithelial tumor cells of NOPE-positive human HCC. Furthermore, we were able to demonstrate a limited expression of NOPE mRNA in inflammatory cells (Kupffer cells) surrounding NOPE negative carcinoma cells.

In the analyzed cohort of HCC samples, NOPE expression in HCC has been shown to be up to 155 times higher than in AL, which served as a control. With a stringent cut-off of 4-fold higher expression than AL, we identified 30% of the HCC samples as NOPE positive. We had previously calculated a similar detection rate of NOPE in human HCC using preliminary data from Oncomine microarray studies [18].

The ideal biomarker for HCC in cirrhotic and non-cirrhotic liver has not been identified. Besides the high sensitivity and the reliable and specific detection of early stages in carcinogenesis, the limited expression in normal tissue and the independency from the underlying disease are further attributes of ideal tumor markers. Interestingly, NOPE is expressed during fetal liver development and not in the healthy adult liver, which is also true for the established oncofetal marker protein AFP and GPC-3. However, AFP identified only 50% of the NOPE positive samples. Our current data show that HCC derived from cirrhotic or non-cirrhotic liver tissue has differences in the sensitivity of biomarkers: NOPE had a higher sensitivity in non-cirrhotic tissue and AFP a higher detection rate in cirrhotic tissue. 62.5% of these cirrhotic samples had a chronic hepatitis-C-virus (HCV) infection as the underlying disease, which correlates with high serum levels of AFP according to literature [23, 24]. Indeed, geographical differences in underlying liver diseases causing HCC, e.g. predominantly HBV in Asia versus NASH in western countries, also reflect differences in the reliability of biomarkers used in diagnostics [25]. AFP not only has limited sensitivity, but also limited specificity, since high levels of expression also occur in damaged and existing pathological diseases [8]. In contrast, NOPE was not detectable in preneoplastic stages of murine HCC, allowing a precise identification of tumor tissue [18].

GPC-3 is described to be a more reliable marker than AFP in HCC diagnosis [12]. Indeed, our data show 60% sensitivity for HCC samples. The most striking result was the combination of NOPE and GPC3 resulting in an 85.7% sensitivity. Thereby, the combination shows a higher sensitivity than combinations with hock shock protein 70 and glutamine synthetase (58.7–72%) [26, 27, 28] or the triple combination with arginase-1, hepatocyte paraffin-1 and GPC-3 (79.3%) [29].

Although NOPE is not assigned to any enzyme class, the cytosolic domain shows possible binding sites for kinases of the serine/threonine kinase class. One of the predicted possible interacting kinases is Protein kinase C (PKC). NOPE is located at the plasma membrane and conventional PKC isoenzymes are translocated to the plasma membrane upon activation, making an interaction probable. The isoenzyme PKC alpha has been described as highly expressed in murine mesenchymal, chemoresistant HCC cells that show sensitivity to PKC inhibitors [30].

Interestingly, while we have shown that NOPE is expressed in fetal and adult liver stem/progenitor cells [31], the expression of PKC has also been described in stem/progenitor or stem-cell enriched (de-differentiated) cell populations that retain their stem-cell properties [32].

Although NOPE appears to be promising, we have not yet developed a valid method to detect NOPE in human sera. The identification of NOPE is therefore based on tissue samples that are not routinely available, as most HCC can be diagnosed by imaging alone. A further limitation is the fact that we had to use RNA-Scope as a histological method with specially developed probes responding to NOPE-mRNA to confirm our findings. Therefore, investigations on a specific antibody for serum detection and immunohistochemically analysis would complement and strengthen our results.

NOPE appears to be more useful in non-cirrhotic HCC tissue, admittedly, the majority of our analyzed cohort was non-cirrhotic HCC. The analyzed cohort presented a broad range of possible underlying diseases and reflected the gender distribution of HCC patients, but does not reflect the distribution pattern in the real world. To confirm our results, further assessment with larger cohorts is required.

The poor prognosis for patients underlines the urgent need for practicable biomarkers in clinical diagnostics. Since all potential biomarkers for HCC are deficient in meeting the requirements for an optimal biomarker, combined screening settings with other early-stage biomarkers appear to be a reasonable solution at this time.

In conclusion, this is the first characterization of NOPE as a potential biomarker for human HCC samples with high specificity, in particular for non-cirrhotic HCC samples. Our results underline the additional value of integrating NOPE as a complementing biomarker. Further investigations with extended cohorts need to be done.

Footnotes

Acknowledgments

We are grateful to Gisela Holz, Elisabeth Konze and Wiebke Jeske for excellent technical assistance.

Supplementary data

Supplementary Table S1

Human oligonucleotide primer sequences used for quantitative RT-PCR

Gene name	ID	Primer sequence	Amplicon length (bp)	Previous publication
NOPE	57722	5’-TGGGCCAAATTCGAAATAAC-3’	109	Marquardt 2007
		5’-GATGCTTTCAGGGTTTGAGG-3’
AFP	174	5’-AAGGCCAGGAACAGGAAGTC-3’	127	Marquardt 2007
		5’-CACACCGAATGAAAGACTCG-3’
GPC-3	2719	5’-CTACAGCACCCTGTGGTCTTC-3‘	107	Marquardt 2007
		5’-TCCTCTACTTCATGGCTGGAG-3’
HPRT	3251	5’-GACCAGTCAACAGGGGACAT-3’	95
		5’-GTGTCAATTATATCTTCCACAATCAAG-3’

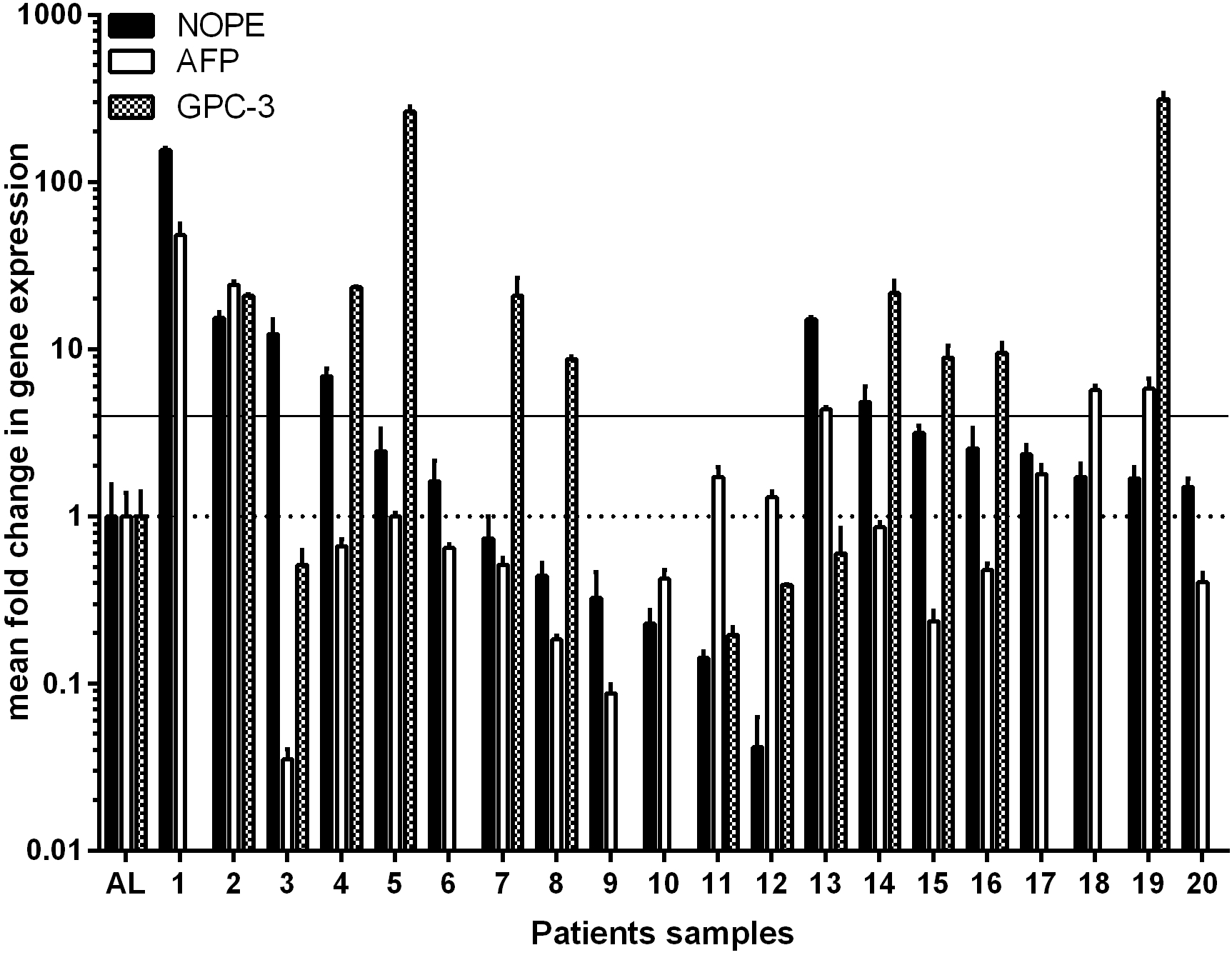

Supplementary Fig. S1.

Expression of NOPE, AFP and GPC-3 in HCC positive samples. A horizontal dashed line shows the level of expression of NOPE and AFP in healthy adult liver (AL) defined as 1. In terms of the cut-off level of 4 times higher expression than AL, indicated by the continuous horizontal line, 6 HCC samples were identified by NOPE. AFP was expressed in 3 of the NOPE positive samples. However, AFP identified only 2 NOPE negative HCC samples, both originating in a cirrhotic liver (samples 13 – 20). GPC-3 was also expressed in 3 of the NOPE positive samples. Interestingly, GPC-3 identified 6 NOPE negative HCC samples, originating from cirrhotic as well as non-cirrhotic liver.

Supplementary Fig. S2.

Identification of NOPE by mRNA-in-situ technology. A–C) mRNA-in-situ analysis of NOPE-positive HCC tissues corroborate low NOPE mRNA expression levels with an mRNA-Score of 1, i.e. 1-3 dots per tumor cell. The arrows point to NOPE positive cells.

References

Ferlay

Soerjomataram

Dikshit

Eser

Mathers

Rebelo

Parkin

D.M.

Forman

and Bray

, Cancer incidence and mortality worldwide: sources, methods and major patterns in GLOBOCAN 2012, Int J Cancer 136 (2015), E359–386.

Gomes

M.A.

Priolli

D.G.

Tralhao

J.G.

and Botelho

M.F.

, Hepatocellular carcinoma: epidemiology, biology, diagnosis, and therapies, Rev Assoc Med Bras (1992) 59 (2013), 514–524.

Forner

Llovet

J.M.

and Bruix

, Hepatocellular carcinoma, Lancet 379 (2012), 1245–1255.

Tunissiolli

N.M.

Castanhole-Nunes

M.M.U.

Biselli-Chicote

P.M.

Pavarino

E.C.

da Silva

R.F.

da Silva

R.C.

and Goloni-Bertollo

E.M.

, Hepatocellular carcinoma: a comprehensive review of biomarkers, clinical aspects, and therapy, Asian Pac J Cancer Prev 18 (2017), 863–872.

Forner

Gilabert

Bruix

and Raoul

J.L.

, Treatment of intermediate-stage hepatocellular carcinoma, Nat Rev Clin Oncol 11 (2014), 525–535.

Spangenberg

H.C.

Thimme

and Blum

H.E.

, Serum markers of hepatocellular carcinoma, Semin Liver Dis 26 (2006), 385–390.

Saffroy

Pham

Reffas

Takka

Lemoine

and Debuire

, New perspectives and strategy research biomarkers for hepatocellular carcinoma, Clin Chem Lab Med 45 (2007), 1169–1179.

Lok

A.S.

and Lai

C.L.

, alpha-Fetoprotein monitoring in Chinese patients with chronic hepatitis B virus infection: role in the early detection of hepatocellular carcinoma, Hepatology 9 (1989), 110–115.

Tao

L.Y.

Cai

X.D.

Liu

and Qu

, Comparison of serum tumor markers for intrahepatic cholangiocarcinoma and hepatocellular carcinoma, Am Surg 76 (2010), 1210–1213.

10.

Capurro

Wanless

I.R.

Sherman

Deboer

Shi

Miyoshi

and Filmus

, Glypican-3: a novel serum and histochemical marker for hepatocellular carcinoma, Gastroenterology 125 (2003), 89–97.

11.

Saber

M.A.

M.M.A.

Khorshed

F.E.

Aboushousha

T.S.

Hamdy

H.E.

Seleem

M.I.

and Soliman

A.H.

, Differential Expression of Glypican-3 and Insulin-Like Growth Factor-II mRNAs and Alpha-Fetoprotein and Ki-67 Markers in HCV Related Hepatocellular Carcinomas In Egyptian Patients, Asian Pac J Cancer Prev 18 (2017), 121–127.

12.

Zhou

Shang

and Tian

, Glypican-3: A promising biomarker for hepatocellular carcinoma diagnosis and treatment, Med Res Rev 38 (2018), 741–767.

13.

M.C.

Long

Tang

Y.Q.

and Cui

S.Z.

, GP73 expression and its significance in the diagnosis of hepatocellular carcinoma: a review, Int J Clin Exp Pathol 5 (2012), 874–881.

14.

Feng

and Ho

, Glypican-3 antibodies: A new therapeutic target for liver cancer, FEBS Lett 588 (2014), 377–382.

15.

Bartel

D.P.

, MicroRNAs: genomics, biogenesis, mechanism, and function, Cell 116 (2004), 281–297.

16.

Nierhoff

Levoci

Schulte

Goeser

Rogler

L.E.

and Shafritz

D.A.

, New cell surface markers for murine fetal hepatic stem cells identified through high density complementary DNA microarrays, Hepatology 46 (2007), 535–547.

17.

Bowe

Zweerink

Muck

Kondylis

Schulte

Goeser

and Nierhoff

, Depolarized Hepatocytes Express the Stem/Progenitor Cell Marker Neighbor of Punc E11 After Bile Duct Ligation in Mice, J Histochem Cytochem (2018), 22155418768230.

18.

Marquardt

J.U.

Quasdorff

Varnholt

Curth

H.M.

Mesghenna

Protzer

Goeser

and Nierhoff

, Neighbor of Punc E11, a novel oncofetal marker for hepatocellular carcinoma, Int J Cancer 128 (2011), 2353-2363.

19.

Kim

Y.H.

Kwak

K.A.

and Kang

J.S.

, Expression of neighbor of Punc E11 in hepatocarcinogenesis induced by diethylnitrosamine, Oncol Rep 32 (2014), 1043–1049.

20.

Livak

K.J.

and Schmittgen

T.D.

, Analysis of relative gene expression data using real-time quantitative PCR and the 2(-Delta Delta C(T)) Method, Methods 25 (2001), 402–408.

21.

Cheng

S.Q.

Wang

Chen

Y.F.

and Gao

C.F.

, Serum microRNAs as biomarkers for hepatocellular carcinoma in Chinese patients with chronic hepatitis B virus infection, PLoS One 6 (2011), e28486.

22.

Wang

Flanagan

Wang

L.C.

Bui

Nielson

H.T.

X.J.

and Luo

, RNAscope: a novel in situ RNA analysis platform for formalin-fixed, paraffin-embedded tissues, J Mol Diagn 14 (2012), 22–29.

23.

Tateyama

Yatsuhashi

Taura

Motoyoshi

Nagaoka

Yanagi

Abiru

Yano

Komori

Migita

Nakamura

Nagahama

Sasaki

Miyakawa

and Ishibashi

, Alpha-fetoprotein above normal levels as a risk factor for the development of hepatocellular carcinoma in patients infected with hepatitis C virus, J Gastroenterol 46 (2011), 92–100.

24.

Kumada

Toyoda

Kiriyama

Tanikawa

Hisanaga

Kanamori

Tada

Tanaka

and Yoshizawa

, Predictive value of tumor markers for hepatocarcinogenesis in patients with hepatitis C virus, J Gastroenterol 46 (2011), 536–544.

25.

Schutte

Schulz

Link

and Malfertheiner

, Current biomarkers for hepatocellular carcinoma: Surveillance, diagnosis and prediction of prognosis, World J Hepatol 7 (2015), 139–149.

26.

Di Tommaso

Destro

Seok

J.Y.

Balladore

Terracciano

Sangiovanni

Iavarone

Colombo

Jang

J.J.

Jin

S.Y.

Morenghi

Park

Y.N.

and Roncalli

, The application of markers (HSP70 GPC3 and GS) in liver biopsies is useful for detection of hepatocellular carcinoma, J Hepatol 50 (2009), 746–754.

27.

Di Tommaso

Franchi

Park

Y.N.

Fiamengo

Destro

Morenghi

Montorsi

Torzilli

Tommasini

Terracciano

Tornillo

Vecchione

and Roncalli

, Diagnostic value of HSP70, glypican 3, and glutamine synthetase in hepatocellular nodules in cirrhosis, Hepatology 45 (2007), 725–734.

28.

Tremosini

Forner

Boix

Vilana

Bianchi

Reig

Rimola

Rodriguez-Lope

Ayuso

Sole

and Bruix

, Prospective validation of an immunohistochemical panel (glypican 3, heat shock protein 70 and glutamine synthetase) in liver biopsies for diagnosis of very early hepatocellular carcinoma, Gut 61 (2012), 1481–1487.

29.

Timek

D.T.

Shi

Liu

and Lin

, Arginase-1, HepPar-1, and Glypican-3 are the most effective panel of markers in distinguishing hepatocellular carcinoma from metastatic tumor on fine-needle aspiration specimens, Am J Clin Pathol 138 (2012), 203–210.

30.

Sreekumar

Emaduddin

Al-Saihati

Moutasim

Chan

Spampinato

Bhome

Yuen

H.M.

Mescoli

Vitale

Cillo

Rugge

Primrose

Abu Hilal

Thirdborough

Tulchinsky

Thomas

Mirnezami

and Sayan

A.E.

, Protein kinase C inhibitors override ZEB1-induced chemoresistance in HCC, Cell Death & Disease 10 (2019).

31.

Schievenbusch

Sauer

Curth

H.M.

Schulte

Demir

Toex

Goeser

and Nierhoff

, Neighbor of Punc E 11: expression pattern of the new hepatic stem/progenitor cell marker during murine liver development, Stem Cells Dev 21 (2012), 2656–2666.

32.

Kramer

I.M.

, Chapter 9 – Protein Kinase C in Oncogenic Transformation and Cell Polarity, Academic Press Signal Transduction (Third Edition), 2016, pp. 529–588.
