Downregulation of ASF1B inhibits tumor progression and enhances efficacy of cisplatin in pancreatic cancer

Abstract

Pancreatic cancer is an aggressive and lethal cancer with the highest mortality rate. Hence, the development of new targeting and innovative treatment strategies is needed. Recent studies reported that the histone chaperone anti-silencing function 1B (ASF1B) can be used as a diagnosis and prognosis cancer biomarker. However, functional studies of ASF1B in pancreatic cancer have not been performed. This study compared expression levels of ASF1B in pancreatic cancer specimens with those of normal tissues using publicly available online databases. We found that ASF1B was commonly overexpressed in pancreatic cancer specimens, which is associated with poor prognosis. ASF1B downregulation in pancreatic cancer cells reduced their colony formation, proliferation, migration, and invasion abilities, and inhibited MMP9 activity. Furthermore, ASF1B expression downregulation increased cell cycle S-phase arrest and DNA damage though activation of the checkpoint kinases Chk1 and Chk2 pathways. Additionally, increased caspase (caspases-3 and -9) activation and PARP cleavage led to enhanced caspase-dependent apoptosis and improved cisplatin sensitivity. Collectively, our results indicate that ASF1B may serve as a potential biomarker of pancreatic cancer and a novel therapeutic target.

Keywords

ASF1B pancreatic cancer cisplatin biomarker therapeutic target

ï»¿

1. Introduction

Pancreatic cancer is the seventh leading cause of cancer-associated death in both men and women worldwide. Pancreatic cancer is an extremely malignant tumor with a poor prognosis and almost equal incidence and mortality [1]. A recent European study predicted pancreatic cancer to be the third-leading cause of cancer-related deaths by 2025 [2]. Despite ongoing research into cancer screening and treatment, the five-year survival estimates of pancreatic cancer patients is still less than 10% [3]. Therefore, discovering biomarkers for the prediction of pancreatic cancer progression and potential targets for treatment is urgent.

Nucleosomes are sections of DNA wrapped around histone proteins and are the basic organizational unit of the genome. They act as barriers to DNA-related processes such as gene transcription, DNA repair, and DNA replication, which require the disassembly and assembly of nucleosomes [4, 5]. It has been reported that histone alterations are related to tumor progression and development [6]. Histone chaperones are an heterogeneous group of proteins that perform a variety of functions, such as storing, transporting, modifying, or depositing histones in DNA [6, 7]. ASF1 (anti-silencing function 1) is a highly conserved chaperone that participates in the assembly or disassembly of H3 and H4 heterodimers [8, 9, 10, 11]. Higher eukaryotes possess two isoforms of ASF1, ASF1A and ASF1B, which only differ in the C-terminal domain (30% of the sequence) [12, 13]. Both of these isoforms have been reported to be altered in various cancers. ASF1A is upregulated in human malignancies such as liver, lung, prostate or stomach cancer, since it is required for the indefinite proliferation of cancer cells [14, 15]. Silencing or removal of ASF1A causes DNA damage and cellular senescence, and higher sensitivity to doxorubicin [16]. ASF1B is overexpressed in breast and lung cancer patients, where it acts as a marker of poor prognosis [15, 17]. On the contrary, ASF1A is not dysregulated in lung cancer or associated with the survival of patients [17]. In cervical cancer, ASF1B inhibition induces cell cycle arrest and apoptosis, whereas ASF1B overexpression enhances cancer cell proliferation [18]. These findings suggest the potential use of ASF1A and ASF1B as biomarkers and attractive biological targets for innovative anticancer therapies.

Herein, we explored whether high expression of ASF1B is associated with poor prognosis for overall survival. It was found that downregulation of ASF1B significantly reduced colony formation, proliferation, migration, and invasion of pancreatic cancer cells and increased the sensitivity to cisplatin, indicating the potential value of ASF1B as a prognostic indicator and treatment target in pancreatic cancer.

2. Results

2.1 Elevated expression of ASF1B in pancreatic cancer correlates with poor survival outcome

We first identified clinical pancreatic cancer and normal specimens from The Cancer Genome Atlas (TCGA) ( $n=$ 179) and GTEx data ( $n=$ 171) via the publicly available database Gene Expression Profiling Interactive Analysis (GEPIA) and determined the mRNA expression levels of ASF1A and ASF1B in pancreatic cancer patients. ASF1A and ASF1B were upregulated in pancreatic tissue from tumor patients compared to those in normal tissues (Fig. 1A). We then evaluated the relationship between mRNA expression and clinicopathological variables using survival analysis (Kaplan-Meier curves) and observed that higher expression of ASF1B was associated with lower overall survival (Fig. 1B, ASF1B). However, differences in ASF1A expression were not associated with differences in overall survival (Fig. 1B, ASF1A).

Figure 1.

ASF1A and ASF1B expression patterns and association with survival outcome in pancreatic cancer patients. A, Expression levels of ASF1A and ASF1B mRNA in tumor ( $n=$ 179) and normal tissues ( $n=$ 171) from TCGA and GTEx databases analyzed using GEPIA. ${}^{*}P<$ 0.005. B, Overall survival of pancreatic cancer patients using TCGA database. Each dot represents the expression level of ASF1A and ASF1B in one sample. Overall survival of pancreatic cancer patients was analyzed according to the expression level of ASF1A and ASF1B using the Kaplan-Meier method and log rank test. The median overall survival is indicated by the thick solid line. A dotted line above the median indicates samples with an expression level higher than the median of TPM (the high expression cohort), and the dotted line low indicates a sample with an expression level below the median value of TPM (the low expression cohort). TCGA, The Cancer Genome Atlas; TPM, Transcripts Per Million. C, The expression level of ASF1A and ASF1B in different tumor stages of pancreatic cancer tissues. GEPIA comparison of expression of ASF1A and ASF1B at different stages of pancreatic cancer tissue using pathological stage plots derived from gene expression data.

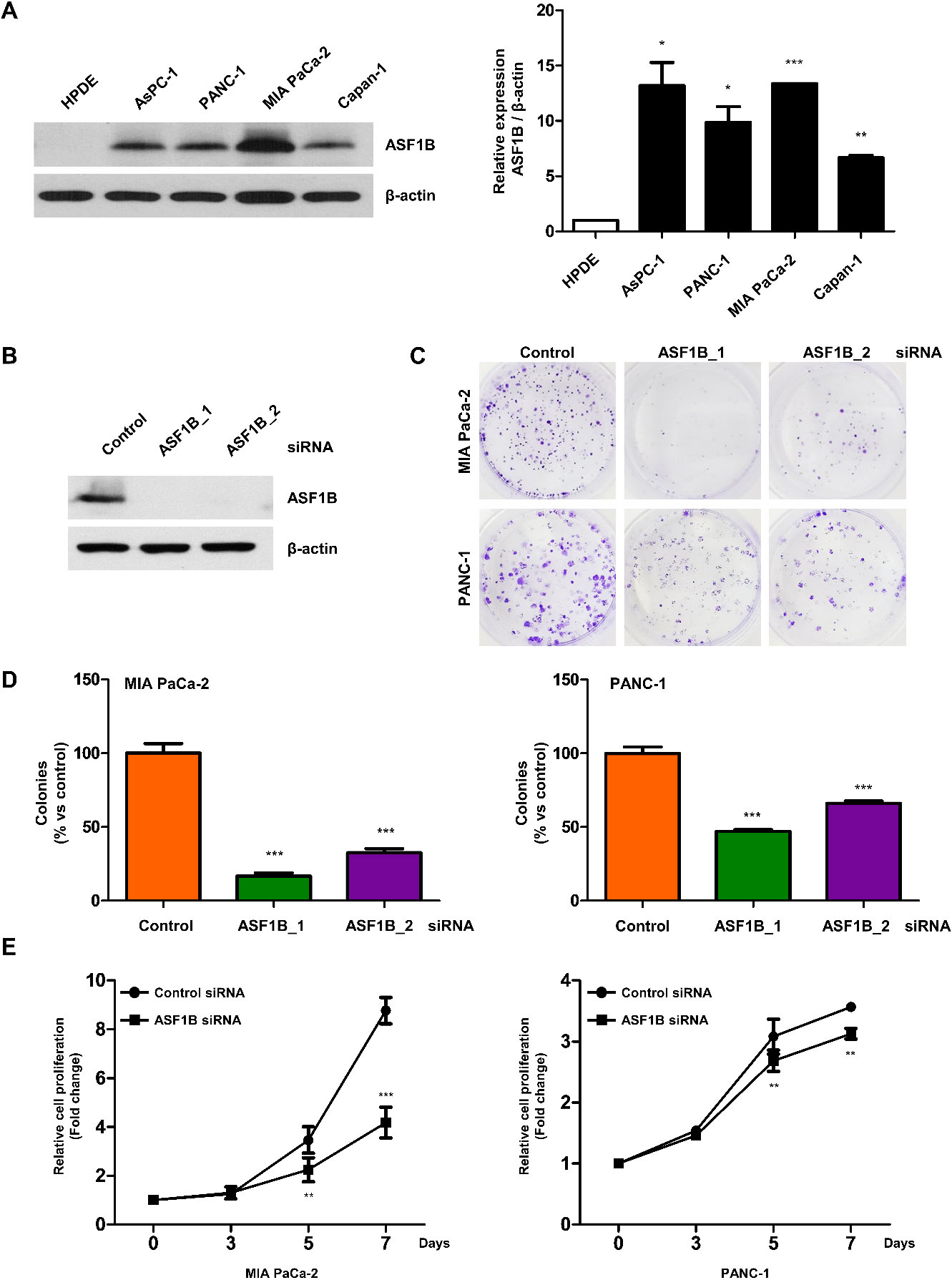

Figure 2.

ASF1B-downregulated pancreatic cancer cells show reduced colony formation and cell proliferation capacity. A, Analysis of ASF1B protein expression levels in HPDE and pancreatic cancer cell lines (AsPC-1, PANC-1, MIA PaCa-2, and Capan-1). The ASF1B/ $\beta$ -actin ratio was determined by densitometry analysis using ImageJ software and error bars represent the standard deviation of the mean of three biological replicates. Values represent means $\pm$ SEMs. ${}^{*}P<$ 0.005, ${}^{**}P<$ 0.001, ${}^{***}P<$ 0.0001. Results were analyzed using unpaired $t$ -tests. B, The expression level of ASF1B protein as measured by Western blotting 48 hours after transfection of two different siRNAs targeting ASF1B into MIA PaCa-2 cells. C–D, Colony formation assay on MIA PaCa-2 cells transfected with either control or two ASF1B siRNAs (ASF1B siRNA_1 and siRNA_2). Values represent mean $\pm$ SEM. ${}^{***}P<$ 0.0001. Results were analyzed using unpaired $t$ -tests. E, MTT assay for proliferation of control and ASF1B downregulated MIA PaCa-2 or PANC-1 cells from 0 to 7 days. Curves were constructed based on biological triplicates with values expressed as means $\pm$ SEMs. ${}^{**}P<$ 0.001, ${}^{***}P<$ 0.0001. Results were analyzed by two-way analysis of variance with Bonferroni’s multiple comparison tests.

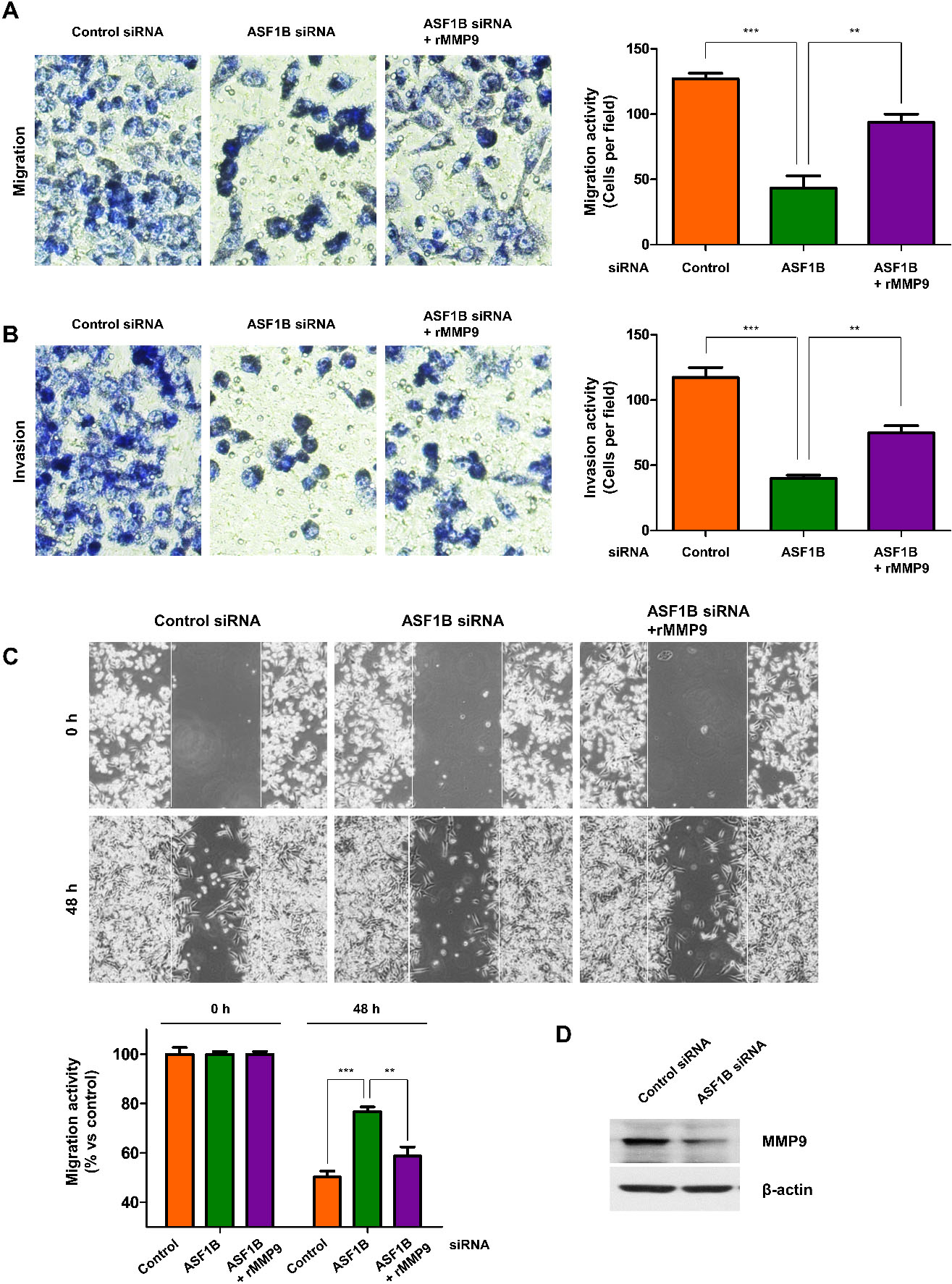

Figure 3.

Downregulation of ASF1B in pancreatic cancer cells is observed to reduce migration, invasion, and wound-healing abilities. A–B, Migration and invasion assay of MIA PaCa-2 cells transfected with control siRNA or ASF1B siRNA, and treated with rMMP9 (recombinant MMP9, 50 ng/ml) for 48 hours. Values represent means $\pm$ SEMs. ${}^{**}P<$ 0.001, ${}^{***}P<$ 0.0001. Results were analyzed by one-way analysis of variance followed by Bonferroni’s multiple comparison tests. C, Wound-healing assays of MIA PaCa-2 cells transfected with control or ASF1B siRNA, and treated with rMMP9 for 48 hours. Values represent mean $\pm$ SEM. ${}^{***}P<$ 0.0001. Results were analyzed by one-way analysis of variance followed by Bonferroni’s multiple comparison tests. D, Western blotting to determine the levels of MMP9, and $\beta$ -actin in MIA PaCa-2 cells after transfection with control or ASF1B siRNA for 48 hours.

In addition, 50 genes with co-expression pattern similar to ASF1B mRNA in 177 pancreatic cancer patients were selected from the co-expression network analysis from the publicly accessible TCGA database at the cBioPortal portal (Supplementary Fig. 1A). To further understand the functions and pathways of these genes, including ASF1B, we performed GO and KEGG analysis using the web-based DAVID tools (2021 Update) [19, 20]. As a result, GO terms classified into three types: cell components (CC), biological process (BP), and molecular function (MF), and analyzed by arranging them into the 33 categories with the highest number of genes (Supplementary Fig. 1B). The KEGG pathway analysis resulted in six categories (Supplementary Fig. 1C).

We also considered the mRNA expression levels of ASF1B in various tumor stages of pancreatic cancer using the GEPIA data set. The expression levels of ASF1B varied at different tumor stages and were associated with the tumor stage. However, this was not the case for ASF1A (Fig. 1C). Based on these results, we hypothesized that ASF1B, but not ASF1A, was related to the growth of pancreatic cancer cells.

2.2 Downregulation of ASF1B inhibits colony formation and proliferation of pancreatic cancer cells

We compared protein expression levels of ASF1B in normal human pancreatic duct epithelial (HPDE) cells and various pancreatic cancer cell lines, AsPC-1, PANC-1, MIA PaCa-2, and Capan-1 cells using Western blotting. AF1B protein levels were higher in all pancreatic cancer cell lines compared to those in HPDE cells (Fig. 2A). To further investigate the role of ASF1B in pancreatic cancer, we downregulated it and evaluated effects on pancreatic cancer progression using several cellular assays. To achieve the silencing of ASF1B, we used two distinct siRNAs, both of which inhibited the expression of the ASF1B protein and found that both ASF1B siRNAs inhibited the protein expression of ASF1B (Fig. 2B). Subsequent colony formation revealed that downregulation of ASF1B significantly reduced clonogenic survival in two pancreatic cancer cell lines (both MIA PaCa-2 and PANC-1 cells). In particular, ASF1B_1 siRNA was more effective in suppressing clonogenic survival than ASF1B_2 siRNA (Fig. 2C and D). Therefore, we chose to use ASF1B_1 siRNA for subsequent experiments. Furthermore, after 5–7 days of ASF1B downregulation in MIA-PaCa-2 and PANC-1 cells, we monitored cell proliferation and viability using the MTT assay. The cell proliferation of ASF1B-downregulated cells was greatly reduced in both pancreatic cancer cell lines (Fig. 2E). These results indicate that ASF1B plays a central role in the ability to form colonies and proliferate of pancreatic cancer cells.

2.3 Downregulation of ASF1B expression inhibits migration and invasiveness of pancreatic cancer cells

To investigate the inhibitory influence of ASF1B on the cell phenotype, we transiently transfected pancreatic cancer cells with ASF1B siRNA and control siRNA and analyzed the effect of downregulation of ASF1B in pancreatic cancer cells on the migratory capacity of cells. For this purpose, cell growth was repressed by culturing in low fetal bovine serum (FBS) conditions, and the migrating ability of cells was measured using a transwell assay. Downregulation of ASF1B greatly decreased the number of migratory cells compared to those observed in the control group (Fig. 3A). We evaluated the influence of ASF1B downregulation on cell invasion ability, where the transwell inserts were Matrigel-coated wells. Consistent with the results of the cell migration assay, the invasion capacity of ASF1B-downregulated pancreatic cancer cells was significantly lower than that in the control cells (Fig. 3B). Next, downregulation of ASF1B in pancreatic cancer cells showed to delay wound-healing capacity, effect that was especially prominent after 48 hours (Fig. 3C). Also, ASF1B-downregulated pancreatic cancer cells presented decreased expression levels of matrix metalloproteinase9 (MMP9) (Fig. 3D).

Finally, to determine whether MMP9 is responsible for cell migration, invasion, and wound healing ability, ASF1B-downregulated pancreatic cancer cells were treated with recombinant MMP9 protein (rMMP9). As shown in Fig. 3A–C, rMMP9 rescued the inhibitory effects caused by downregulation of ASF1B on migration, invasion, and wound healing ability in pancreatic cancer cells (Fig. 3A–C). Altogether, these results suggest that ASF1B plays an important role in migration and invasiveness by MMP9 activation in pancreatic cancer cells.

2.4 Downregulation of ASFB1 in pancreatic cancer cells induces S-phase cell cycle arrest and increases DNA damage

To determine the influence of ASF1B on cell cycle progression of the pancreatic cancer cells, we evaluated the cellular population percentage at different stages of the cell cycle (G1, S and G2/M) using flow cytometry analysis. Downregulation of ASF1B in pancreatic cancer cells resulted in no significant differences in cell cycle at 48 hours post-downregulation. However, at 72 hours, ASF1B-downregulated pancreatic cancer cells showed an increased fraction of cells in S-phase compared to the control group cells, and the G1 population decreased in a concentration-dependent manner in ASF1B-downregulated pancreatic cancer cells (Fig. 4A and B). To decipher the molecular mechanism associated with the observed cell cycle dysregulation, we measured expression levels of cyclin A2, an S phase regulator, using Western blotting. The level of cyclin A2 was significantly increased in ASF1B-downregulated pancreatic cancer cells 24 hours post-transfection (Fig. 4C).

In addition, to measure the effect of ASF1B downregulation on DNA damage, we analyzed expression levels of phosphorylated H2AX ( $\gamma$ -H2AX), a biomarker of DNA double-strand breaks, using Western blotting and immunofluorescence analyses. Both assays indicated that the expression of $\gamma$ -H2AX in ASF1B-downregulated pancreatic cancer cells was elevated (Fig. 4C–E). To further elucidate the signaling pathway associated with the DNA damaged, we analyzed phosphorylation levels of Chk1 and Chk2 using Western blotting. The phosphorylation expression of Chk1 kinase showed a slight difference at 12 hours post-downregulation of ASF1B expression. It was observed that the phosphorylation expression of Chk2 kinase was significantly increased at 8 and 12 hours post-downregulation of ASF1B expression (Fig. 4C). These results indicated that downregulation of ASF1B increased DNA damage through the signaling pathways of p-Chk1 and p-Chk2 and induced cell cycle arrest at the S-phase.

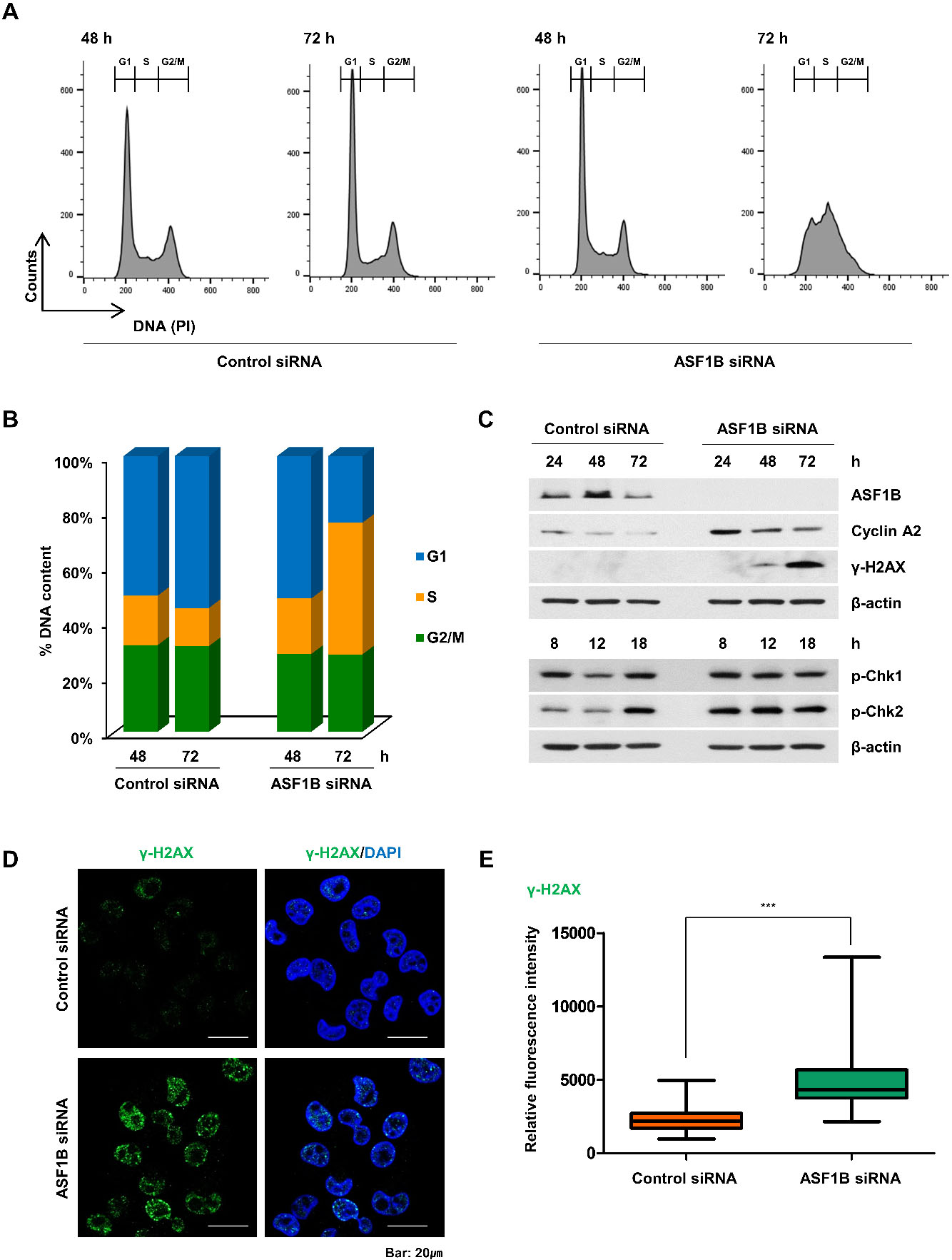

Figure 4.

S-phase arrest and increased DNA damage were observed in ASF1B-downregulated pancreatic cancer cells. A, Flow cytometry analysis of MIA PaCa-2 cells transfection with control or ASF1B siRNA after 48 and 72 hours. The flow cytometry plots and data are representative of at least three independent experiments. B, Percentages of cells in G1 (blue), S (orange), and G2/M (green) phases. C, Western blotting to determine the levels of ASF1B, cyclin A2, $\gamma$ -H2AX, p-Chk1, p-Chk2 and $\beta$ -actin in MIA PaCa-2 cells after transfection with control or ASF1B siRNA for 8, 12, 18, or 24, 48, and 72 hours. D, The levels of DNA damage were detected and visualized by immunofluorescent staining for $\gamma$ -H2AX (green) and DNA (blue). E, Comparison of $\gamma$ -H2AX expression in ASF1B siRNA-transfected cells versus control siRNA-transfected cells. Values represent mean $\pm$ SEM. ${}^{***}P<$ 0.0001. Results were analyzed using unpaired $t$ -tests.

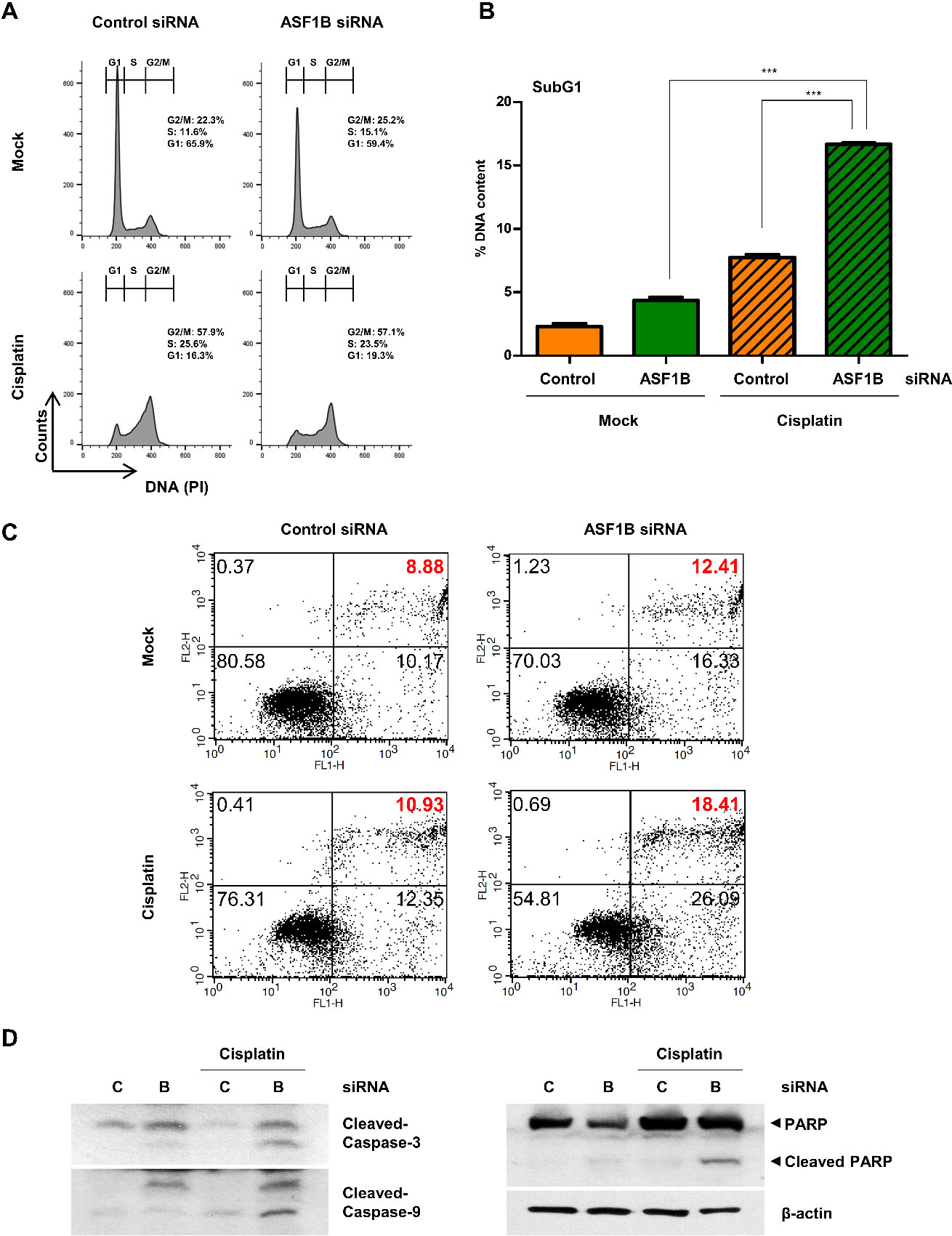

Figure 5.

ASF1B-downregulated pancreatic cancer cells had increased sensitivity to cisplatin. A, Flow cytometry analysis of MIA PaCa-2 cells transfection with control or ASF1B siRNA, treated with cisplatin (1 $\mu$ g/mL) for 48 hours. The flow cytometry plots and data are representative of at least three independent experiments. Percentages of cells in G1 (blue), S (orange), and G2/M (green) phases. B, Percentages of cells in subG1 phase. C, Apoptosis analysis of MIA PaCa-2 cells transfected with control and ASF1B, treated with cisplatin (1 $\mu$ g/mL) for 48 hours. Flow cytometric determination of apoptosis by annexin V/PI double staining. D, Western blotting to determine the levels of caspase-3, caspase-9, PARP, and $\beta$ -actin in MIA PaCa-2 cells after transfection with control or ASF1B siRNA, treated with cisplatin (1 $\mu$ g/mL) for 72 hours.

2.5 Downregulation of ASF1B in pancreatic cancer cells increases the sensitivity to cisplatin

To determine whether downregulation of ASF1B expression could reverse the resistance to cisplatin, a platinum-based anticancer drug in pancreatic cancer cells, we used MIA PaCa-2 that was reported to be resistant to platinum drugs [21]. After downregulation of ASF1B, cells were treated with cisplatin, and consequences in the cell cycle distribution and apoptotic cells were assessed via flow cytometry analysis. Cisplatin-treated ASF1B-downregulated cells presented an increase in subG1 (apoptotic fraction) compared to that of cells without cisplatin treatment, whereas there was no significant difference in cell cycle phase distribution (Fig. 5A and B). To further determine whether ASF1B-downregulated pancreatic cancer cells died through apoptosis or necrosis, cells were dual-stained with annexin V and propidium iodide (PI) and phenotypic changes in dying cells were assessed. The proportion of late-apoptotic cells (annexin V-positive and annexin V/PI-positive) was greatly higher in cisplatin-treated ASF1B-downregulated pancreatic cancer cells compared to cells not treated with cisplatin (Fig. 5C, upper right quadrant). Finally, Western blotting revealed that the cleaved forms of caspase-3, caspase-9, and poly ADP ribose polymerase (PARP) were highly expressed in cisplatin-treated ASF1B-downregulated pancreatic cancer cells compared to cells not treated with cisplatin (Fig. 5D). These results suggested that ASF1B confers cellular resistance to platinum-based drugs, including cisplatin.

3. Discussion

It was found that ASF1B is upregulated in pancreatic cancer tissues and cell lines, and is associated with poor prognosis. Functional studies using several pancreatic cancer cell lines showed that downregulation of ASF1B reduced cell proliferation, migration, and invasiveness of pancreatic cancer cells. Moreover, it induced cell cycle arrest and DNA damage through the Chk1 and Chk2 pathway, and enhanced the sensitivity to cisplatin of cancer cells. These results imply that ASF1B contributes to pancreatic cell progression, and support its use as a prognosis biomarker.

Our results are consistent with previous studies that have evaluated the importance of ASF1B in cancer. Our current study evaluated the expression level of ASF1B in pancreatic cancer tissues and cells and found that high expression of ASF1B was associated with poor prognosis. We subsequently investigated its function in the growth, metastasis, and migration of pancreatic cancer by inducing downregulation of ASF1B expression. We observed that downregulation of ASF1B expression reduced the cell proliferation and colony formation ability of pancreatic cancer cells and demonstrated inhibition of migration and invasion. A recent study reported that ASF1B is highly expressed in multiple cancers, including pancreatic cancer and is associated with poor prognosis in patients [22, 23]. These results were consistent with those reported in studies on cervical cancer, lung adenocarcinoma, and myeloma [17, 18, 24, 25]. In cervical cancer, ASF1B knockdown is associated with cell proliferation and clonogenic survival, and ASF1B overexpression promotes cell proliferation [18]. Furthermore, in breast cancer and lung adenocarcinoma cells, it has been reported that overexpression of ASF1B promotes proliferation and metastasis, suggesting an association with poor prognosis [15, 17]. Additionally, in several cancers such as breast cancer, lung cancer, and esophageal carcinoma, the expression of ASF1B is higher in tumors at stage IV than in tumors at stage I, suggesting that the expression of ASF1B is related to the stage of tumor progression [22]. In the present study, we show that the expression of ASF1B was higher as the stage progressed, highlighting the need of further research into this issue. However, in the case of ASF1A, the expression was higher in pancreatic cancer than that in normal tissues, but it was not related to overall survival or to tumor stage. In line with these results, a previous study also reported that ASF1A was not significantly related to progression-free survival and overall survival in lung adenocarcinoma [22]. These discrepant results suggest that ASF1A and ASF1B do not perform the same cellular functions.

Using different molecular analyses, we could observe that downregulation of ASF1B caused S-phase cell cycle delay and increased DNA damage response through the activation of Chk1 and Chk2 signaling pathway. In cervical cancer and prostate cancer, knockdown of ASF1B causes G1 or G2/S-phase cell cycle arrest and cell death owing to its action on Bcl-2, Bax and caspase-3 [18, 26]. ASF1B forms a stable complex with CDK9, a member of the cyclin-dependent kinase family, and thereby promotes cell proliferation [18]. These results suggest the potential use of ASF1B as a novel proliferation marker in pancreatic cancer, aiding diagnosis and prognosis prediction, and potentially supporting the discovery of new drugs in pancreatic cancer. However, further validation using tissue samples obtained directly from pancreatic cancer patients is still necessary to confirm the validity of the results from this study.

Cisplatin is one of the most commonly used anticancer drugs and DNA-damaging agents since it was first discovered as an inhibitor of bacterial cell growth. This platinum drug is a very effective treatment of patients with a wide variety of solid malignancies, including lung, ovarian, head and neck, and gastric cancers [27, 28, 29]. The mode of action of cisplatin relies on the activation of DNA damage responses and the creation of DNA lesions following induction of mitochondrial apoptosis [30]. However, it is known that pancreatic cancer cells develop cisplatin resistance associated with mechanisms involving inactivation/transport of drug, DNA damage response, DNA damage-specific repair, and regulation of apoptosis [31]. In this study, it was observed that ASF1B inhibition in cisplatin-resistant pancreatic cancer cells resulted in increased apoptosis through the increase of caspase-3/9 activation and PARP cleavage. This suggests that the high expression level of ASF1B in pancreatic cancer cells may have contributed to the cisplatin resistance development. Further in vivo analyses are required to demonstrate the effect of high ASF1B expression on anti-cancer drug resistance in pancreatic cancer.

In conclusion, our study established that interfering with ASF1B can significantly inhibit the growth of pancreatic cancer cells by regulating cell growth inhibition, migration, and metastasis, as well as increase the death of cancer cells and its sensitivity to cisplatin. Our results reveal a potential target for novel pancreatic cancer treatment strategies, as well as strategies to reverse the acquired cisplatin-resistance of cancer cells, a pressing topic in ongoing cancer research.

4. Materials and methods

4.1 Cell culture and transfection

The human pancreatic cancer cell lines MIA PaCa-2 (ACTT number: CRL-1420) and PANC-1 (ACTT number: CRL-1469) were obtained from the American Type Culture Collection (ATCC, Manassas, VA, USA). Cells were cultured in Dulbecco’s Modified Eagle Medium (DMEM) contained high glucose. AsPC-1 and Capan-1 were cultured in Roswell Park Memorial Institute (RPMI) medium. Noncancerous immortalized HPDE cells, obtained from Joo Kyung Park, MD (Samsung Medical Center, Seoul, South Korea), were grown in defined Keratinocyte-Serum Free Medium (K-SFM). Cell culture mediums were used including 100 U/ml penicillin, 100 $\mu$ g/ml streptomycin, and 10% FBS, (Gibco, Life Technologies, Grand Island, NY, USA). To downregulate ASF1B expression, the cells were transfected with specific siRNA using Lipofectamine RNAiMAX transfection reagent (Invitrogen, Carlsbad, CA, USA) and then were performed according to the manufacturer’s instructions. Two different ASF1B siRNAs were prepared [32, 33]. The two ASF1B siRNAs and control siRNA were acquired from Cosmo Bio Co., Ltd. (Tokyo, Japan).

4.2 Cell proliferation and colony formation assay

The cells were transfected with ASF1B siRNA or control siRNA, after adhesion for 24 hours. For colony formation assays, the MIA PaCa-2 and PANC-1 cells were seeded into 6-well plates at a density of 500–1000 cells/well and incubated for 14 days. The colonies were fixed in 100% methanol, stained with 10% crystal violet, and counted. For cell proliferation assays, MIA PaCa-2 and PANC-1 cells were seeded into 12-well plates at a density of 1 $\times$ 10 ${}^{4}$ cells/well or 4 $\times$ 10 ${}^{4}$ cells/well and tested using 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) solution. Each assay was performed in triplicate.

4.3 Cell migration, invasion, and wound-healing assays

Abilities of migration and invasion under downregulation of ASF1B expression were evaluated using Trans-well plates (Corning, Corning, NY, USA). For the cell migration assay, 5 $\times$ 10 ${}^{4}$ cells in 5% serum DMEM (200 $\mu$ L) were seeded directly into each well of the Trans-well chambers with 8.0 Î¼m pore membranes. For the cell invasion assay, the cells were seeded in the Trans-well chambers coated with Matrigel (Corning), and medium containing 10% FBS was added to the lower chamber. After incubation for 48 hours, the medium in the upper chamber was removed, and the migrated cells were fixed and stained using the Differential Quik III Stain Kit. The cells adhering to the upper surface of the membrane were removed using a cotton applicator. The number of cells on the lower side of the membrane was counted. All experiments were performed in triplicate.

The motility of ASF1B siRNA and control siRNA transfected cells was examined by a wound-healing assay. The cells were seeded in 6-well plates at 5 $\times$ 10 ${}^{5}$ cells/well. After 24 hours, wounds were created in cell monolayers in each well using a P1000 pipette tip. The cells were then rinsed once with phosphate-buffered saline (PBS) and cultured until 48 hours. Cell motility was expressed as the cell migration rate. The human recombinant MMP9 was purchased from Sigma-Aldrich (St. Louis, MO, USA).

4.4 Western blot and antibodies

Whole cells were washed once with cold 1 $\times$ PBS and then collected. Cells were lysed with 1 $\times$ RIPA lysis buffer, and protein concentration was measured using BCA Protein Assay Kit (Pierce, Rockford, IL, USA). Protein extracts were resuspended in 4 $\times$ sample buffer containing 10% of 2-mercaptoethanol, boiled for 5 minutes, and subjected to 8–15% sodium SDS-PAGE (dodecyl sulfate-polyacrylamide gel electrophoresis) and electro-transferred to a Trans-blot nitrocellulose membrane (Whatman International Ltd, Madestone, UK). Transferred membranes were blocked in 5% skim milk in TBS-T buffer (10 mM Tris [pH 8.0], 150 mM NaCl, 0.05% Tween 20) and incubated with primary antibodies at 4 ${}^{\circ}$ C overnight. The primary antibodies were purchased from commercial sours: anti-ASF1B (Cell Signaling Technology, Danvers, MA, USA), anti-MMP9 (Cell Signaling Technology), anti-cyclin A2 (Cell Signaling Technology), anti-phosphorylated H2AX at S139 ( $\gamma$ -H2AX) (Millipore, Temecula, CA, USA), anti-phospho-Chk1 (Ser345) (133D3) (Cell Signaling technology), anti-phospho-Chk2 (Thr68) (C13C1) (Cell Signaling technology), anti-caspase-3 (Cell Signaling Technology), anti-caspase-9 (Cell Signaling technology), anti-PARP (Cell Signaling Technology), and anti- $\beta$ -actin (Sigma-Aldrich). Protein expressions analyzed chemiluminescent signals activated by SuperSignal West Pico Chemiluminescent Substrate (Pierce) reacted with horse radish peroxidase tagged secondary antibodies (Jackson Immunoresearch Laboratories West Grove, PA, USA).

4.5 Fluorescence-assisted cell sorting (FACS) analysis

For cell cycle and DNA content measurements, whole cells were collected, and washed in 1 $\times$ PBS and fixed with 70% ethanol at 4 ${}^{\circ}$ C overnight before being stained with PI (Sigma-Aldrich) 50 $\mu$ g/ml and 100 U RNase (Ribonuclease A from bovine pancreas, Sigma-Aldrich). The analysis rate was 300–500 cells/sec. Data were assessed in three independent experiments. Analysis was performed using FACS Calibur (BD Biosciences, San Diego, CA, USA) according to standard protocols.

Apoptosis was also analyzed by FACS using FITC (fluorescein isothiocyanate)-conjugated annexin V (BD Biosciences) and PI (Sigma-Aldrich) staining. The analysis was performed with a FACS Calibur (BD Biosciences) instrument according to the standard protocol.

4.6 Immunofluorescence

Cells were grown on Thermo Scientific Nunc Lab-Tek II Chamber Slides & trade, fixed with 4% paraform-aldehyde for 15 minutes, and permeabilized with 0.5% Triton X-100 for 5 minutes. The fixed cells were incubated for 1 hours with 3% bovine serum albumin and then incubated overnight at 4 ${}^{\circ}$ C with primary antibody, then the next day add the fluorophore-conjugated secondary antibody for 2 hours. Samples were mounted in Vectashield Mounting Medium with DAPI (Vector laboratories, CA, USA), and the results were observed under a confocal microscope (Zeiss LSM 800, software ZEN). The primary antibodies were acquired from commercial sours: anti- $\gamma$ -H2AX (Millipore).

4.7 Statistical analysis

All data will be represented central tendency or typical value obtained in form two or three independent replicate experiments. The data of the experiments were statistically analyzed using GraphPad Prism (version 5.0, GraphPad Software Inc., San Diego, CA, USA) and presented as means $\pm$ standard errors of the means (SEMs). Statistical analysis was performed using unpaired $t$ -tests, one-way, or two-way analysis of variance (ANOVA) followed by Bonferroni’s multiple comparison analysis tests.

Author contributions

Conception: Jae Hyeong Kim, Ji Kon Ryu, Jin-Hyeok Hwang.

Interpretation or analysis of data: Jae Hyeong Kim.

Preparation of the manuscript: Jae Hyeong Kim.

Revision for important intellectual content: Jae Hyeong Kim, Yuna Youn, Jong-chan Lee, Jaihwan Kim.

Supervision: Jin-Hyeok Hwang.

Ethics declarations

The authors declare no competing interests.

Supplementary data

The supplementary files are available to download from https://dx-doi-org.web.bisu.edu.cn/10.3233/CBM-210490.

sj-pdf-1-cbm-10.3233_CBM-210490.pdf - Supplemental material

Supplemental material, sj-pdf-1-cbm-10.3233_CBM-210490.pdf

Footnotes

Acknowledgments

This research was funded by grant nos. NRF-2021R1A2C200708811 from the National Research Foundation of Korea (NRF) and the 2021 Seoul National University Research Fund. We would like to thank Editage (www.editage.co.kr) for English language editing.

References

Sung

Ferlay

R.L.

Siegel

Laversanne

Soerjomataram

Jemal

et al., Global Cancer Statistics 2020: GLOBOCAN Estimates of Incidence and Mortality Worldwide for 36 Cancers in 185 Countries, CA: A Cancer Journal for Clinicians 71 (2021), 209–249.

Ferlay

Partensky

and F.

Bray

, More deaths from pancreatic cancer than breast cancer in the EU by 2017, Acta Oncologica (Stockholm, Sweden) 55 (2016), 1158–1160.

Jooste

Dejardin

Bouvier

Arveux

Maynadie

Launoy

et al., Pancreatic cancer: Wait times from presentation to treatment and survival in a population-based study, International Journal of Cancer 139 (2016), 1073–1080.

Ransom

B.K.

Dennehey

and J.K.

Tyler

, Chaperoning histones during DNA replication and repair, Cell 140 (2010), 183–195.

Groth

Rocha

Verreault

and G.

Almouzni

, Chromatin challenges during DNA replication and repair, Cell 128 (2007), 721–733.

R.J.

Burgess

and Z.

Zhang

, Histone chaperones in nucleosome assembly and human disease, Nature Structural & Molecular Biology 20 (2013), 14–22.

Z.A.

Gurard-Levin

J.P.

Quivy

and G.

Almouzni

, Histone chaperones: Assisting histone traffic and nucleosome dynamics, Annual Review of Biochemistry 83 (2014), 487–517.

J.M.

Cote

Y.M.

Kuo

R.A.

Henry

Scherman

D.D.

Krzizike

and A.J.

Andrews

, Two factor authentication: Asf1 mediates crosstalk between H3 K14 and K56 acetylation, Nucleic Acids Research 47 (2019), 7380–7391.

T.H.

Huang

Fowler

C.C.

Chen

Z.J.

Shen

Sleckman

and J.K.

Tyler

, The Histone Chaperones ASF1 and CAF-1 Promote MMS22L-TONSL-Mediated Rad51 Loading onto ssDNA during Homologous Recombination in Human Cells, Molecular cell 69 (2018), 879–92.e5.

10.

Mousson

Ochsenbein

and C.

Mann

, The histone chaperone Asf1 at the crossroads of chromatin and DNA checkpoint pathways, Chromosoma 116 (2007), 79–93.

11.

Zhang

Tao

and S.Y.

Huang

, Dynamics and Mechanisms in the Recruitment and Transference of Histone Chaperone CIA/ASF1, International Journal of Molecular Sciences, 2019; 20.

12.

Abascal

Corpet

Z.A.

Gurard-Levin

Juan

Ochsenbein

Rico

et al., Subfunctionalization via adaptive evolution influenced by genomic context: The case of histone chaperones ASF1a and ASF1b, Molecular Biology and Evolution 30 (2013), 1853–1866.

13.

H.H.

Silljé

and E.A.

Nigg

, Identification of human Asf1 chromatin assembly factors as substrates of Tousled-like kinases, Current Biology: CB 11 (2001), 1068–1073.

14.

Björkholm

and D.

, ASF1a inhibition induces p53-dependent growth arrest and senescence of cancer cells, Cell Death & Disease 10 (2019), 76.

15.

Corpet

De Koning

Toedling

Savignoni

Berger

Lemaître

et al., Asf1b, the necessary Asf1 isoform for proliferation, is predictive of outcome in breast cancer, The EMBO Journal 30 (2011), 480–493.

16.

J.S.

Keaton

K.Y.

Lee

Kumar

Park

and A.

Dutta

, ATR checkpoint kinase and CRL1βTRCP collaborate to degrade ASF1a and thus repress genes overlapping with clusters of stalled replication forks. Genes & Development 28 (2014), 875–887.

17.

Feng

Zhang

Zheng

Wang

Min

and T.

Tian

, Elevated expression of ASF1B correlates with poor prognosis in human lung adenocarcinoma, Personalized Medicine 18 (2021), 115–127.

18.

Liu

Song

Zhang

Wang

Sun

Feng

et al., ASF1B promotes cervical cancer progression through stabilization of CDK9, Cell Death & Disease 11 (2020), 705.

19.

Dennis

Jr. B.T.

Sherman

D.A.

Hosack

Yang

Gao

H.C.

Lane

et al., DAVID: Database for annotation, visualization, and integrated discovery. Genome Biology 4 (2003), P3.

20.

D.W.

Huang

B.T.

Sherman

Tan

J.R.

Collins

W.G.

Alvord

Roayaei

et al., The DAVID gene functional classification tool: A novel biological module-centric algorithm to functionally analyze large gene lists, Genome Biology 8 (2007), R183.

21.

Banerjee

Kong

A.S.

Azmi

Wang

Ahmad

Sethi

et al., Restoring sensitivity to oxaliplatin by a novel approach in gemcitabine-resistant pancreatic cancer cells in vitro and in vivo , International Journal of Cancer 128 (2011), 1240–1150.

22.

Zhu

Zhang

and X.

, Comprehensive analysis of pan-cancer reveals potential of ASF1B as a prognostic and immunological biomarker, Cancer medicine, 2021.

23.

Han

and K.

, Comprehensive pan-cancer analysis and the regulatory mechanism of ASF1B, a gene associated with thyroid cancer prognosis in the tumor micro-environment, Frontiers in Oncology 11 (2021), 711756.

24.

Cai

Lin

Zhang

and A.

, Bioinformatics analysis of the circRNA-miRNA-mRNA network for non-small cell lung cancer, The Journal of International Medical Research 48 (2020), 300060520929167.

25.

Wang

Jiang

and Y.

Liu

, LINC00665 promotes the progression of multiple myeloma by adsorbing miR-214-3p and positively regulating the expression of PSMD10 and ASF1B, OncoTargets and Therapy 13 (2020), 6511–6522.

26.

Han

Zhang

Liu

et al., Knockdown of anti-silencing function 1B histone chaperone induces cell apoptosis via repressing PI3K/Akt pathway in prostate cancer, International Journal of Oncology 53 (2018), 2056–2066.

27.

Cvitkovic

and J.L.

Misset

, Chemotherapy for ovarian cancer, The New England Journal of Medicine 334 (1996), 1269; author reply 70.

28.

Koizumi

Narahara

Hara

Takagane

Akiya

Takagi

et al., S-1 plus cisplatin versus S-1 alone for first-line treatment of advanced gastric cancer (SPIRITS trial): A phase III trial, The Lancet Oncology 9 (2008), 215–221.

29.

Rosenberg

Vancamp

and T.

Krigas

, Inhibition of cell division in escherichia coli by electrolysis products from a platinum electrode, Nature 205 (1965), 698–699.

30.

Dent

and S.

Grant

, Pharmacologic interruption of the mitogen-activated extracellular-regulated kinase/mitogen-activated protein kinase signal transduction pathway: Potential role in promoting cytotoxic drug action, Clinical Cancer Research: An Official Journal of the American Association for Cancer Research 7 (2001), 775–783.

31.

Mezencev

L.V.

Matyunina

G.T.

Wagner

and J.F.

McDonald

, Acquired resistance of pancreatic cancer cells to cisplatin is multifactorial with cell context-dependent involvement of resistance genes, Cancer Gene Therapy 23 (2016), 446–453.

32.

Groth

Corpet

A.J.

Cook

Roche

Bartek

Lukas

et al., Regulation of replication fork progression through histone supply and demand, Science (New York, NY) 318 (2007), 1928–1931.

33.

J.H.

Seol

T.Y.

Song

S.E.

Choi

Kim

et al., Identification of small molecules that inhibit the histone chaperone Asf1 and its chromatin function, BMB Reports 48 (2015), 685–690.
