Optimization strategy of neural networks based on rational agents

Abstract

Lately, a lot of research has been conducted on the automatic design of artificial neural networks (ADANNs) using evolutionary algorithms, in the so-called neuro-evolutive algorithms (NEAs). Many of the presented proposals are not biologically inspired and are not able to generate modular, hierarchical and recurrent neural structures [25, 28, 26], such as those often found in living beings capable of solving intricate survival problems. Bearing in mind the idea that a nervous system’s design and organization is a constructive process carried out by genetic information encoded in DNA, this paper proposes a biologically inspired NEA that evolves ANNs using these ideas as computational design techniques. In order to do this, we propose a Lindenmayer System with memory that implements the principles of organization, modularity, repetition (multiple use of the same sub-structure), hierarchy (recursive composition of sub-structures), minimizing the scalability problem of other methods. In our method, the basic neural codification is integrated to a Genetic Algorithm (GA) that implements the constructive approach found in the evolutionary process, making it closest to biological processes. Thus, the proposed method, is a Decision-Making (DM) process, capable to evolve ANNs architectures with optimal number of neurons and appropriate topology for any given problem. Our method was initially tested on a simple, but non-trivial, XOR problem. We also submit our method to two other problems of increasing complexity: time series prediction that represents consumer price index and prediction of the effect of a new drug on breast cancer. In most cases, our NEA outperformed the other methods, delivering the most accurate classification. These superior results are attributed to the improved effectiveness and efficiency of NEA in the decision-making process. The result is an optimized neural network architecture for solving classification problems.

Keywords

Evolutionary computation neural networks grammatical evolution hybrid intelligent systems

1. Introduction

The design of an Artificial Neural Network (ANN) can be considered a complex Decision Making process, that frequently relies on the user experience. In general, this ANN design task is a trial and error process, where a number of different transfer functions and amount of hidden neurons should be adjusted in order to solve a specific problem. As the design of ANN is still being done, manually, by human experts, the automation of this design process will benefit the decision-making process done by human experts [2].

Bio-inspired algorithms have shown efficient in different nonlinear optimization problems [3, 4, 12, 32, 36, 37, 39]. Due to their efficiency and adaptability, the interest in research in the field of neuroevolution (i.e. evolutionary approach to design ANNs) has increased lately. The core issue in neuroevolution is to build an efficient indirect encoding scheme [5, 6, 7, 8, 9]. Which means that the evolutionary algorithm evolves a compressed description of the ANN rather than the ANN itself [7].

These approaches are biologically motivated by the fact, that in case of the human brain, there are more neurons than nucleotides in the genome. Moreover, in biological genetic encoding the mapping between genotype and phenotype is indirect. The phenotype typically contains orders of magnitude more structural components than the genotype contains genes. Nevertheless, neuroevolution has not so far addressed that the development and evolution of neurons is carried out by genetic information encoded in DNA and when followed will generate the final shape of the organs including the brain.

To this end, we propose a new NEA, a biologically inspired artificial hybrid system called Artificial Development and Evolution of ANNs (ADEANN). The ADEANN integrates two components. The first is a generative representation that represents genotypes (a set of production rules of a Lindenmayer system) by a compact Indirect Encoding System (IES). The IES also conducts and controls the process of mapping the genotypes to the phenotypes (complex neural morphologies). To mimic the DNA encoding scheme and enable scalability, our IES leverages the phenotype representation to a smaller genotype. Thus, the search process is carried out in a lower-dimensional solution space. In addition, our IES implements the organizational principles of hierarchy, modularity, and gene reuse (allowing compact representation of complex phenotypes). The second component is a genetic algorithm (GA), a simplified representation of natural evolution. In local search problems based on GAs, a bit string is called a chromosome (the genotype). Each bit on the chromosome is a gene, and a gene set represents the parameters of a function to be optimized. Each string is assigned a fitness that indicates the quality of its encoded solution (the phenotype). To improve the biological realism of GA, the GA in our approach evolves the generative representation. The evolutionary process can be regarded as the temporal genetic changes in the hypothetical DNAs of a population of individuals, regulated by an artificial selection mechanism. The above biological inspiration underlies the originality of our approach. To our knowledge, we report the first attempt to generate recurrent neural networks from combined metaphors.

The main contribution of our method is the genotype representation by our proposed IES. Using a compact DNA encoding, we codify a parametric Lindenmayer system (L-system) with memory, which implements the principles of organization, modularity, repetition, and hierarchy to achieve complex neural architectures (multilayer and recurrent networks). [40, 41] adopted L-systems, although [41], used DNA encoding, their study was restricted to feedforward neural networks, whereas our approach is extended to recurrent networks. In the IES used by [40], the genotypes encode twenty rewrite rules of an L-system. Our DNA encoding system encodes a parametric L-system with memory using 10 production rules. Therefore, our IES is more compact than Hornby’s method[40], and reduces the search space of all feasible solutions. In addition, the memory mechanism in our approach enables the reuse of phenotypic structures (rewrite of nodes and connections) at different stages of development. Such reuse is an important capability of NEAs.

This paper is organized as follows. Section 2 discusses the state of the art. In Section 3 we describe a new approach to formalize the problem of ADANNs (artificial development and evolution of ANNs) as a local search based on rational agents. Section 4 introduces a biologically inspired method for automatic design of ANNs. In Section 5, the experimental setup and results are presented. Lastly, a discussion and conclusions are presented in Sections 6 and 7, respectively.

2. State of the art

This section discusses existing research on NEAs. Most NEAs use direct encoding systems (DESs) [11], which specify every connection and node in the genotype that will appear in the phenotype (ANN).

These methods are simply implemented, but the size of the connectivity matrix scales as the square of the number of nodes. In NEAT [5], the DES incorporates a few biologically plausible entities, and alters both the weighting parameters and structures of the networks. [27] developed a novel multi-objective optimization for a hierarchical genetic algorithm (MOHGA) based on the micro-GA approach. However, this method was not tested in other applications such as temporal series forecasting.

As discussed by [1], the increasing complexity of evolutionary computation demands more sophisticated methods than direct mapping from genotype to phenotype. At the other extreme are indirect encoding systems (IESs) [6, 26, 25, 7, 8, 9, 15, 28]. In an IES, the network generation is indirectly specified by the genotype. The solution description is compressed, enabling complex topologies of ANNs.

ES-HyperNEAT [9, 16] has shown promising results enabling the development of complex regular plastic ANNs. The encoding scheme adopted by HyperNEAT [7, 17] and ES-HyperNEAT [9] does not shape itself to the biological development process, including the nervous system. The CPPN in HyperNEAT plays the role of DNA in nature, but at a much higher level of abstraction; in effect it encodes a pattern of weights that is painted across the geometry of a network. Furthermore, in these methods both the genotype and phenotype are neural networks, which is not biologically plausible. The ES-HyperNEAT [9] is an improvement over HyperNEAT [7]. While the location of the hidden nodes in the substrate, had to be decided by the designer on the original HyperNEAT. ES-HyperNEAT showed that the decision might in fact be automated. In the HyperNEAT, CPPN encodes an infinite number of weights within the Hypercube, from which a subset should be chosen to be incorporated into the ANN. [9] consider other important information is the density of nodes from which an additional increase of the same does not offer any advantage. For more details about state of the art, query the authors’ research [18].

The following methods [6, 8, 28, 37] belong to the class of GDSs using grammatical evolution (GE). Lee et al. [8] sought inspiration from the DNA, in their research, information is coded using the symbols A, G, T and C. A sequence of three of these symbols is known as a codon. The sequence of codons between these delimiters is translated into a production rule for developing a neural controller. The production rules of the L-System used by [8] is context-free and does not allow to generate recurrent networks. A similar idea [6] using binary strings also exists in which the process of reading and translating bits can be repeated from different bits in the string to produce different production rules. The ANE proposed by [6] has one disadvantage that is the difficulty to set the parameters of the fitness function of Genetic Algorithm to direct the search for minimum architectures.

The data structure of NEAT [5], which represents the genotype, grows linearly with the number of edges between two nodes. (MOHGA) [27] cannot yield the (RNNs). Despite the novel capabilities of HyperNEAT, the user must manually place the hidden nodes at the substrate, which substantially disadvantages the original HyperNEAT. The applicability of the method proposed by [28] to other applications, such as temporal series-forecasting, was not tested, and the model cannot yield RNNs.

Figure 1.

A neuro-evolutive algorithm, adapted from [21].

3. ADANNs as a problem of local search

Little effort has been made to formalize the problem of ADANNs as a local search strategy. Simon [19] mentions that the most important part of a decision-making process is that concerning the structuring and formulation of the decision problem. Simon [19] also mentions that decision-making is a problem of choosing a course of action from available alternatives, in other words, it consists in finding a sequence of actions that transforms current situation into another, desired one.

Considering these assumptions, this section describes a formalization of the problem of ADANNs based on rational agents. The approach presented here is based on a prototype proposed by Russell [20] called a problem-solving-agent, see Function ARP. Problem-solving agents decide what to do by finding sequences of actions that lead to desirable states. Given a precise definition of the problem, the state space is defined, each state is an ANN, and the way the algorithm finds the solution is by means of a local search strategy: the agent calls the procedure SEARCH in Line 5 of Function ARP, as is described below.

Function ARP (percept) return action
1:	input: percept
2:	var: state (set of states), problem, population,
	generations, episodes
3:	state $\leftarrow$ update (state, percept)
4:	problem $\leftarrow$ formulate-problem (state, fitness-
	function)
5:	action $\leftarrow$ SEARCH (problem, state, population,
	generations, episodes)
6:	return action

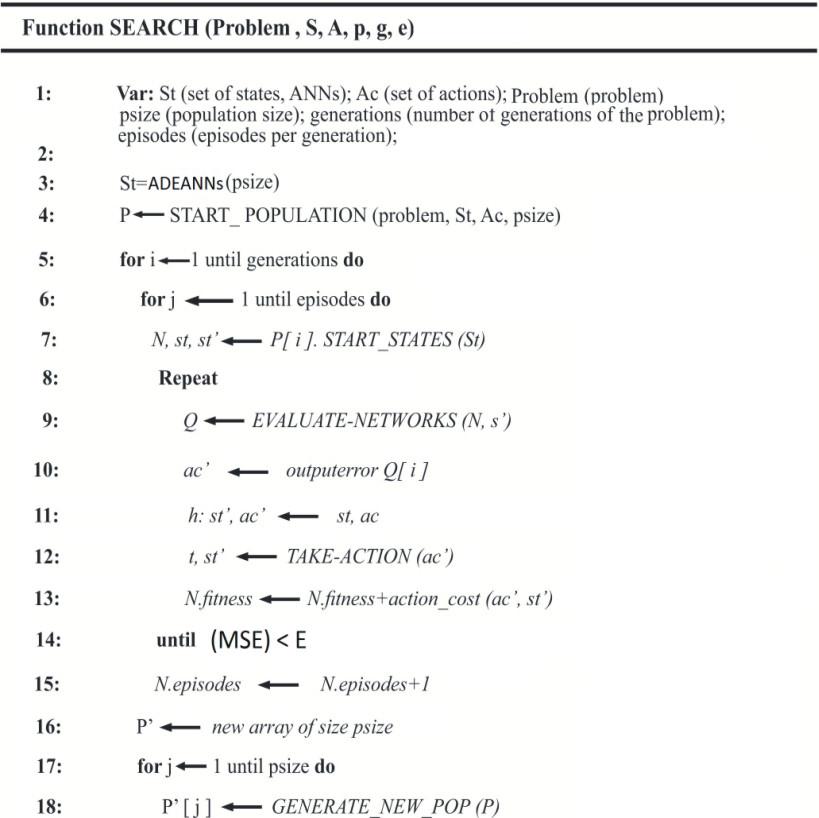

The procedure SEARCH shown in Fig. 1 contains a high-level description of a neuroevolutionary method (search strategy) that evolves action-selection ANNs. It takes a problem as input and returns a solution in the form of an ANN. Once a solution is found, the actions it recommends can be carried out. This is called the execution phase. Thus, we have a simple (formulate, search, execute) approach to designing the agent, as shown in Fig. 1.

It begins by creating a population of ANNs (Line 4) generated by an artificial development system based on L-System randomly generated (Line 3). This process is described in Subsection 4.1, where St is the set of states, Ac the set of actions, and psize the population size. It repeatedly iterates in each generation over the current population (Line 5). After each episode, the next ANN is trained (Line 7), where st means the current state nearest to the previous state. After training, the current ANN is evaluated on the current state (s), using the square error at the output of the network (Line 9) and the number of hidden neurons Eq. (4.3), Subsection 4.3. In each stage of a given episode, the agent selects the next action (ac’) (Line 10) according to the square error in the output of the current ANN. The following notation is used: (st’) and (ac’) are the current state and action while (st) and (ac) are the previous ones (Line 11). After that, it performs the action TAKE-ACTION (ac’): it updates the weights, modifies the learning rate (Line 12) and makes the transition to a new state; here, the weights are updated by the method of steepest descent. The fitness is updated according to the cost of the action (Line 13). The stop condition is tested: namely, that the mean square error (MSE) be less than a desired value (E) (Line 14). A new ANN is trained (Line 7), until all the ANNs of a determined generation have been trained. After each generation, the function SEARCH creates a new population by repeatedly calling GENERATE-NEW-POP(P) (Line 18), which generates a new population of networks from highly fit parents, according to the selection criteria and genetic operators described in Subsection 4.3. In the next section we describe a method for ADANN.

4. Biologically inspired NEA

The general structure of ADEANN is shown in Fig. 2. The optimization process of ADEANN proceeds through several stages. The GA starts with a population of individuals randomly initialized with 0 s and 1 s Fig. 2a. Second, the bits of each individual of the population are subjected to transcription Fig. 2b and translation Fig. 2c, following valid production rules. Both processes are performed by the function Rule-Extraction-with-GA, presented in Subsection 4.2. After finding the appropriate production rules (Table 1), the rewriting system generates the genotypes Fig. 2d. All of the genotypes are mapped to phenotypes (ANN architectures) Fig. 2e. The ANNs are then trained Fig. 2f and validated, and tests are carried out. The classification accuracy of each ANN is measured from its fitness Fig. 2g, calculated by Eqs (4) or (4.3). The latter equation implements a penalty approach that rewards economical ANNs with stronger generalization capacity and greater ease of implementation. The genotypes are classified by the performances of their ANNs Fig. 2h. The GA selects the best individuals Fig. 2i for mutation and crossover operations Fig. 2j, which provide the new population Fig. 2k. The previous steps are repeated through $n$ generations.

Table 1
The production rules of the parametric L-system with memory

Rule	Rule
identifier
1, 2	S $\rightarrow$ . (axiom) (2) . $\rightarrow$ ( $f\ldots f$ ) $n$
3	(3.1) $f\rightarrow$ [ $f$ (3.2) $f\rightarrow fFf$ (3.3) $f\rightarrow fF$
	(3.4) $f\rightarrow n$
3, 4, 5	(3.5) $f\rightarrow f$ (3.6) $f\rightarrow fB$ (4) [ $\rightarrow$ [ $F f$ ] (5) $f\rightarrow f*$

4.1 Neural structure codification with L-System

To mimic the mechanism of grown structures, including neurons, we adopt a parametric L-system with memory. It comprises a set of rules created from an alphabet. This system can be described as a grammar $G=\left\{\Sigma,\Pi,\alpha\right\}$ , where the alphabet consists of the elements of the set $\Sigma=\{.,f,F,n,[,],*,B\}$ , and the production rules ( $\Pi$ ) described in Table 1. The axiom $\alpha=.$ is the starting point of the developmental process, where $f$ denotes a neuron and $F$ is a connection between neurons, $[$ and $]$ indicate storage and recovery, respectively, of the current state of the development, $*$ denotes that the string is recovered from storage, and $B$ is the connection of a neuron with a block of neurons. The second rule $.\rightarrow(f\ldots f)n$ , means replace the start point by the neurons of the input layer. Rule 3.1 $(f\rightarrow[f)$ means to store the position of the current neuron, so as to start a new ramification from it. Rule 3.2 $(f\rightarrow fFf)$ means establish a connection between two neurons. Rule 3.3 $(f\rightarrow fF)$ means establishing a connection from a specific neuron. Rule 3.4 $(f\rightarrow n)$ means replace a provisional neuron with a permanent neuron. Rule 3.5 $(f\rightarrow f)$ means to maintain a specific neuron during development. Rule 3.6 $(f\rightarrow fB)$ means connect a neuron to a block of neurons. Rule 4 $([\rightarrow[Ff])$ means start the development of a new ramification from a specific neuron and recover the previous state. Rule 5 $(f\rightarrow f$ * $)$ means recover a previous ramification stored for use.

Figure 2.

ADEANN links three computational paradigms: GA, an L-system, and an ANN. The evolutionary processes are defined as temporal genetic changes in the hypothetical DNAs, regulated by a selection mechanism. The hypothetical DNA of each individual encodes a set of production rules of an L-system, which coordinates the growth of artificial neurons. Each ANN is trained to solve a given problem and is thereafter tested to check its generalization or prediction capability.

Table 2

The genetic code from the perspective of mRNA, translated as in Fig. 4B. In the same table, the DNA’s metaphor

	00 (U)	01 (C)	10 (G)	11 (A)
00 (U)	f (UUU)	F (UCU)	n (UAU)	. (UGU)	00 (U)
00 (U)	n (UUC)	. (UCC)	f (UAC)	F (UGC)	01 (C)
00 (U)	F (UUA)	f (UCA)	B (UAA)	f (UGA)	10 (A)
00 (U)	[ (UUG)	n (UCG)	[ (UAG)	* (UGG)	11 (G)
01 (C)	f (CUU)	] (CCU)	n (CAU)	* (CGU)	00 (U)
01 (C)	* (CUC)	F (CCC)	f (CAC)	F (CGC)	01 (C)
01 (C)	] (CUA)	f (CCA)	* (CAA)	[ (CGA)	10 (A)
01 (C)	f (CUG)	* (CCG)	B (CAG)	] (CGG)	11 (G)
10 (A)	* (AUU)	] (ACU)	n (AAU)	f (AGU)	00 (U)
10 (A)	f (AUC))	B (ACC)	f (AAC)	B (AGC)	01 (C)
10 (A)	F (AUA)	[ (ACA)	B (AAA)	n (AGA)	10 (A)
10 (A)	* (AUG)	f (ACG)	* (AAG)	] (AGG)	11 (G)
11 (G)	] (GUU)	[ (GCU)	F (GAU)	n (GGU)	00 (U)
11 (G)	n (GUC)	B (GCC)	[ (GAC)	. (GGC)	01 (C)
11 (G)	f (GUA)	] (CGA)	B (GAA)	F (GGA)	10 (A)
11 (G)	B (GUG)	f (GCG)	* (GAG)	[ (GGG)	11 (G)

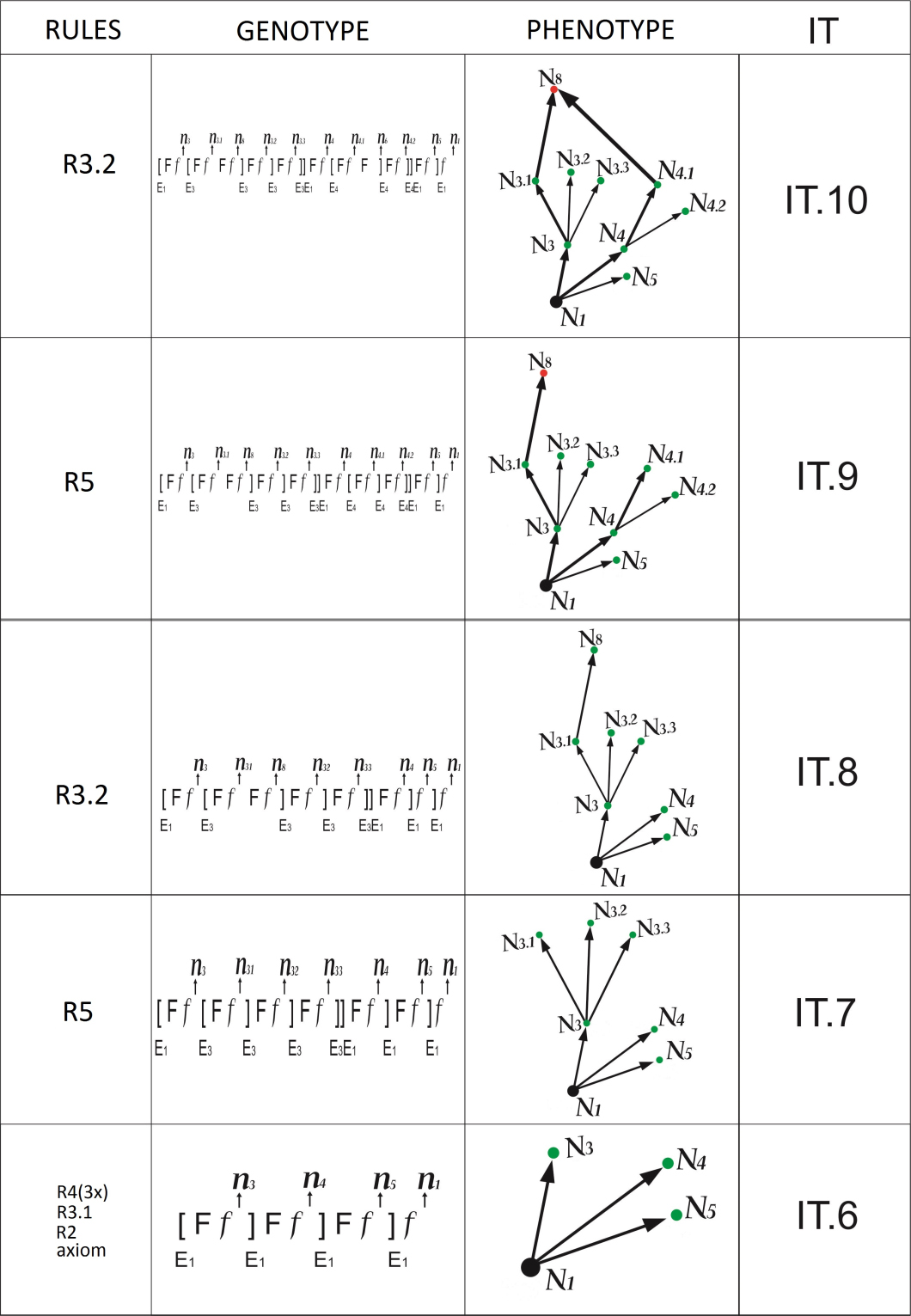

Figure 3.

A simple example of the construction process of a branch of an iterated ANN using the rules of the L-system is illustrated in Table 1.

As a simple example, Fig. 3 illustrates the construction process of one branch of an ANN. Suppose that starting with the axiom $(\alpha=.)$ and applying the second production rule $.\rightarrow f$ to the axiom, the resulting string is f. Applying the third rule (3.1) $f\rightarrow[f$ to string f yields a new string, [f. After one, two, and three applications of the fourth rule $[\rightarrow[Ff]$ on string [f, the strings become [Ff]f, [Ff]Ff]f, and [Ff]Ff]Ff]f, respectively. The last string, which is stored for later use, represents a branch with three neurons (see last row, third column of Fig. 3). Rule (5), $f\rightarrow f$ * (which means $f\rightarrow f[Ff]Ff]Ff]$ , where $*$ denotes that the string is recovered from storage), is applied to the first f of the previous string [Ff]Ff]Ff]f. The resulting string is [Ff[Ff]Ff]Ff]]Ff]Ff]f, representing the phenotype shown in the fourth row and third column of Fig. 3. This phenotype begins a new branch from N3. Here, we have used the principle of reuse phenotypic structure, which produces a variation of an existing structural theme. Applying Rule (3.2) to the second f of the previous string, the resulting string is [Ff[FfFf]Ff]Ff]]Ff]Ff]f, with phenotype shown in the third row and third column of Fig. 3. This phenotype creates a new neuron N8. The development continues by recursively iterating Rules (5) and (3.2). First, Rule (5) is applied to the sixth f of the previous string [Ff[FfFf]Ff]Ff]]Ff]Ff]f, yielding [Ff[FfFf]Ff]Ff]]Ff]Ff]Ff]]Ff]f. Consequently, a new branch begins from N4. Here, we have used the second principle of reuse, which creates separate developmental pathways from the same gene. Second, Rule (3.2) is applied to the seventh f of the previous string, yielding [Ff[FfFf]Ff]Ff]]Ff]FfF]Ff]]Ff]f. This step creates a synapse from N4 to N8. Figure 3 also shows the mapping between genotypes and phenotypes. Our indirect encoding method, presented in Subsection 4.2, generates ANNs with variable numbers of neurons in the range [ $X, Y$ ], where $X$ and $Y$ are computed by Eqs (4.1) and (4.1), respectively. The classes of admissible ANNs generated by the L-Systems are direct and recurrent neural networks, with the recurrent output layer. The encoding rule is described by the rules presented in Table 1.

$\displaystyle X=[\textit{Ninputs}+\textit{Ninputs}*\textit{random}(\textit{% NRmin})$ $\displaystyle\quad∼{}+\textit{Noutputs}]$ (1) $\displaystyle Y=[\textit{Ninputs}+\textit{Ninputs}*\textit{random}(\textit{% NRmax})$ $\displaystyle\quad∼{}+\textit{Noutputs}]$ (2)

Here, Ninputs and Noutputs are the numbers of neurons in the input and output layers of the ANN, respectively, and NR is the number of neurons at each ramification.

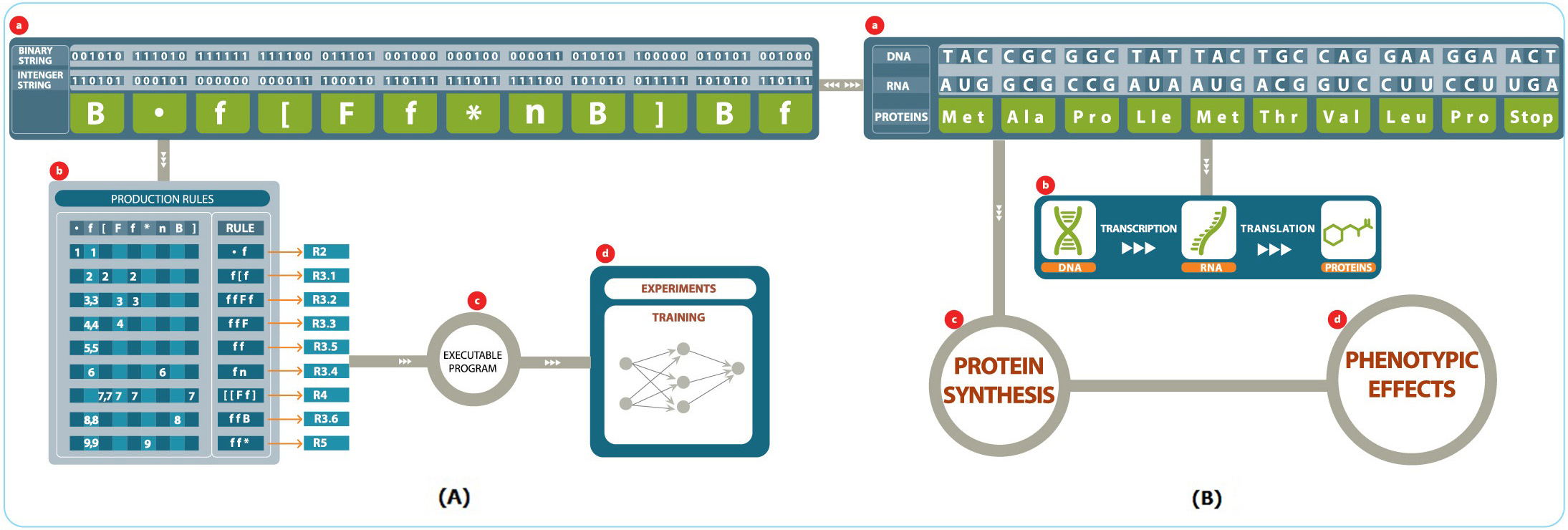

Figure 4.

(A) In the analogous artificial process, a binary string is transcribed into an integer string and the string is translated into the production rules of the L-system. (B) DNA transcription into RNA and translation of RNA into protein.

4.2 Rule extraction by genetic algorithms

This subsection is dedicated to rule extraction by GAs. The neurons generated in the previous subsection are developed after the following process. To formulate a biologically realistic GA, we let the genes of the chromosomes (sequences of hypothetical DNA) encode a recipe (the production rules of the L-system described in Subsection 4.1 and illustrated in Table 1). The recursive rules in Table 1 drive the developmental stages of the neurons (Fig. 3).

In biological genetic processing Fig. 4B, DNA is transcribed into ribonucleic acid (RNA), and the RNA is translated into proteins. The proteins are derived from linear sequences of amino acids encoded by codons (groups of three nucleotides selected among U, G, A, and G of the genetic code (Table 2). Table 2 specifies the translation products of different codons; for example, the codon UUU is translated into phenylalanine (Phe), and UUA is translated into leucine (Leu). In Fig. 4B, the protein is formed by a sequence of amino acids starting with methionine (Met) and ending with proline (Pro). Such protein synthesis triggers all stages of the neuronal development (phenotypic effects), as shown in Fig. 4B.

The elements of the alphabet $\Sigma=\{.,f,F,n,[,],*,$ $B\}$ , of the L-system, described in Subsection 4.1 and displayed in bold font in Table 2, are a metaphor of the genetic code. Each two-bit sequence represents one nucleotide; for example, the set (00, 01, 10, 11) symbolizes (U, C, A, G) in the original genetic code. Accordingly, six bits represent three nucleotides; that is, (000000, 011111) symbolizes (UUU, CGG). Below we present the function Rule-Extraction-with-GA, which attempts to mimic DNA transcription and RNA translation as discussed in the previous paragraph.

As usual, GAs are slow; however, they are efficient for dealing with large and complex search space. Moreover, in this study, we investigate the possibilities of using biological inspiration in a local search problem.

Steps 1 and 2 of the function Rule-extraction-with-GA mimic the DNA transcription process into RNA, as shown in Fig. 4B. These Steps are repeated for all individuals in the population. All the integer strings obtained after Step 4 of this process see Fig. 4A are stored in the array ‘D’ and evaluated in Step 5. Step 5 translates the integer string to valid production rules of the L-system (Table 1) proposed in Subsection 4.1. Steps 5, 5.1 and 5.2 mimic the translation process of RNA into protein. The above Steps are repeated for all rows in table ‘D’.

Figure 4A illustrates the rule extraction for a single individual of the population. In this figure, the transcription string yields the integer string B.f[Ff.nB]Bf. We seek the shortest string containing all valid rules; in this case, .f[Ff *nB]. Steps 5, 5.1 and 5.2 identify the minimum substring .f[Ff *nB] within the larger string B.f[Ff.nB]Bf. After finding the minimum string, we identify the positions at which the rules were found see Fig. 4A. For example, Rule 2 (. $\rightarrow$ f), symbolically represented by (.f), is found at positions 1 and 2 of the string .f[Ff *nB]. Rule 3.1 f $\rightarrow$ [f is found at positions 1–3 and 5.

Collectively, these rules form a kind of executable program that prepares the artificial neurons for development. Once a set of valid production rules has been determined for each line of table ‘D’, the neuronal development presented in Subsection 4.1 is initiated. The development process is illustrated in Fig. 3. The resulting population of ANNs is trained and the fitness of each ANN is calculated by Eq. (4.3).

The ordered sequences of alphabetical characters (valid production rule: .f[Ff *nB]) are analogous to the sequences of amino acids that join into a protein (Fig. 4B). Protein synthesis triggers all stages of biological development. As the function Rule-Extraction-with-GA begins the string reading from different positions and in both directions, the implicit parallelism level of the GA increases, alleviating the scalability problem.

Function Rule-Extraction-with-GA
Step 1	Dynamically allocate an array of integers ‘B’ with dimension [ $I\times G$ ], where $I$ is the number of individuals in the population and $G$ is the number of desired genes. Randomly assign 0 or 1 to each position $(i,g)$ in the array.
Step 2	Obtain the complementary array ‘B’ For $i=$ 1 to $G$ : For $g=$ 1 to $i$ if B[ $i, g$ ] $==$ 0 B[ $i, g$ ] $=$ 1 else B[ $i, g$ ] $=$ 0;
Step 3	Dynamically allocate an array of characters ‘D’ with dimension [ $I\times(G/6)$ ], where $I$ is the number of individuals in the population and $G$ is the number of desired genes.
Step 4	For each chromosome (individual) of the population (each line of the binary array ‘B’), read six-bit sequences, starting from the first one. Each group of six bits must be converted to a symbol of the alphabet defined by the grammar (L-system) described in Subsection 4.1. This conversion, which must obey Table 2, generates a string. To determine the character encoded by each six-bit sequence, Table 2 is read in the following order: (1) Determine which of the four rows on the left corresponds to the first two bits of the string; (2) choose the column matching the central two bits; (3) choose the row on the right corresponding to the last two bits. For example, the strings 001000, and 111111 translate into characters $*$ and $[$ , respectively. To each position $(i^{\prime},g^{\prime})$ of the array ‘D’, assign the values converted from the binary characters in this Step. Each line in array ‘D’ is represented by a integer string as illustrated in Fig. 4A.
Step 5	For each (row) of Table ‘D’ obtained in Step 4, find the substring encoding the valid production rules, reading each row from the first character and continuing along contiguous or non-contiguous positions.
Step 5.1	Discard unnecessary characters until the substring .f[Ff *nB] is obtained.

Step 5.2

Repeat Step 5, beginning the read of the current line of array ‘D’ from other positions; for example, from the start to the end and vice versa. Individuals in the population with invalid rules are assigned zero fitness.

4.3 Fitness evaluation and selection mechanism

The fitness of an ANN can be appropriately measured by the mean square error (MSE) given by Eq. (3). The MSE measures the expected squared distance between the predicted and true values. As such, it measures the quality of a predictor. The system adjusts the weights of its neural networks to minimize the MSE in the training and test sets. ADEANN aims not only to minimize the MSE of the ANN in the training set but also to generalize and properly predict in the test set. In Eq. (3), $q$ is the number of test samples.

$\displaystyle\textit{MSE}(k)=\frac{\sum_{p=1}^{q}(d_{p}-o_{kp})^{2}}{q}$ (3)

where $d_{p}$ and $o_{kp}$ are the desired output and the output of individual $k$ for pattern $p$ , respectively. In our system, we propose a penalty approach that prevents the algorithm from unnecessarily producing ANNs with a large number of hidden neurons. To this end, our system compares two fitness functions, given by Eqs (4) and (4.3) below:

$\displaystyle f1=\left(\frac{A1}{\textit{MSE}}+\frac{A2}{\textit{NNHL}}\right)$ (4) $\displaystyle f2=\bigg{[}\exp(-\textit{MSE})\times\exp(-\textit{NNHL})\>+$ $\displaystyle\quad∼{}\frac{1}{(\textit{MSE}\times\textit{NNHL})}\bigg{]}$ (5)

In this paper, the reproducing individuals are selected by tournament selection [11]. The fitness difference between the mating pool and the population reflects the selection intensity ( $I$ ), given by Eq. (6). Tournament selection is expected to improve the fitness of each subsequent generation [29]. To calculate the selection intensity, we must evaluate Eq. (6). The approximate solution is given by Eq. (7), where $x$ and $y$ are the fitness values of the population and $t$ is the tournament size.

$\displaystyle I=\int_{-\infty}^{\infty}tx\frac{1}{2\pi}e^{\frac{-x^{2}}{2}}\!% \left(\int_{-x}^{\infty}\frac{1}{\sqrt{2\pi}}e^{\frac{-y^{2}}{2}}dy\right)^{t-% 1}dx$ (6) $\displaystyle I\approx\sqrt{2(\ln(t)-\ln(\sqrt{4.44\ln(t)}))}$ (7) $\displaystyle\textit{LD}(t)=t^{\frac{-1}{t-1}}-t^{\frac{-t}{t-1}}$ (8)

In tournament selection, larger tournament sizes t is lead to higher expected loss of diversity (LD) [29]. Diversity is important in GAs because crossing over a homogeneous population does not yield new solutions. Accordingly, the tournament size t of ADEANN is set to 3, meaning that three chromosomes compete with each other, and the best chromosome among these three is selected for reproduction.

5. Experimental setup and results with ADEANN

In this section we evaluate the performance of the ADEANN in evolving the architectures of ANNs.

5.1 Experimental setup

ADEANN parameters. The parameter values were empirically determined from the results of several XOR experiments. Experiments were run on a V14T-5470-A60 Core i7 computer with 8 GB memory, operating at 3.2 GHz. The various combinations of the parameter values are listed in Table 4. The first column specifies the numbers of the experiments, generations, and individuals per population. The second column states the neural network solution returned by the search process. The third, fourth, and fifth columns, respectively, specify the chromosome length, the number of crossover and mutation points, and the crossover rate. The last four columns present the simulations results: the average ( $\mu$ ) and standard deviation ( $\sigma$ ) of the number of neurons in the hidden layer, the MSE in the generalization phase, and the percentage of production rules. The superior settings are given in Table 3.

Table 3
Parameters used in the experiments

Pop.size ( $\upsilon$ )	Generations	$C_{r}$	$P_{m}$	$P_{\textit{elit}}$
[30–100]	[50–500]	[0.3, 0.9]	0.1	2%

Table 4

Genetic algorithm parameters and simulation results of 20 experiments of the XOR problem. ANN $=(X,Y,Z)$ , where $X, Y$ , and $Z$ are the number of neurons in the input, hidden and output layers, respectively

GxP	ANN	CL	(c, m)	Cr	$\mu$	$\sigma$	MSE	PR %
E1-50x30	(2, 8, 1)	180	(9, 3)	0.6	6.50	1.50	0.000046	6.67
E2-50x30	(2, 7, 1)	216	(10, 3)	0.6	4.80	2.32	0.000049	16.67
E3-50x30	(2, 5, 1)	252	(12, 4)	0.6	4.80	1.72	0.000048	25
E4-60x30	(2, 6, 1)	252	(12, 4)	0.9	3.86	1.81	0.000032	23.33
E5-50x20	(2, 6, 1)	276	(13, 5)	0.6	6.00	1.94	0.000029	20.28
E6-50x30	(2, 2, 1)	180	(18, 3)	0.3	5.67	2.62	0.000076	9
E7-50x30	(2, 2, 1)	180	(18, 3)	0.6	3.20	0.75	0.000075	13.40
E8-50x30	(2, 2, 1)	180	(18, 3)	0.9	4.50	2.18	0.000051	11.33
E9-50x20	(2, 2, 1)	216	(32, 28)	0.6	6.00	2.07	0.000056	22.33
E10-50x20	(2, 2, 1)	216	(32, 28)	0.9	3.71	2.43	0.000056	21.53
E11-50x30	(2, 2, 1)	252	(37, 33)	0.6	3.89	3.65	0.000056	28.67
E12-60x30	(2, 2, 1)	252	(37, 33)	0.9	4.36	1.72	0.000055	26.73
E13-50x30	(2, 2, 1)	300	(45, 40)	0.6	3.31	1.65	0.000053	51.20
E14-60x30	(2, 2, 1)	300	(45, 40)	0.9	3.77	2.01	0.000053	41.93
E15-50x30	(2, 2, 1)	360	(54, 48)	0.6	3.69	2.14	0.000056	50.73
E16-50x30	(2, 2, 1)	360	(54, 48)	0.9	3.71	1.87	0.000056	54.33
E17-50x30	(2, 2, 1)	390	(58, 52)	0.6	3.79	1.61	0.000053	63.33
E18-50x30	(2, 2, 1)	390	(58, 52)	0.9	5.10	2.05	0.000053	63.40
E19-100x30	(2, 2, 1)	516	(77, 68)	0.9	5.28	2.03	0.000024	96.67
E20-100x30	(2, 2, 1)	516	(77, 68)	0.6	4.15	2.17	0.000025	90

Table 5

Comparison between ADEANN and other methods in the XOR problem

Problem	NEAT	ADEANN	DENN
XOR	$-$ 2.35	98.84% ${}^{\rm a}$ 3.31 ${}^{\rm b}$	98.97% $-$
	2.553 $-$	1.65 ${}^{\rm c}$ 0.000024 ${}^{\rm d}$	${-}$ 0.004865

${}^{\rm a}$ Average classification accuracy, ${}^{\rm b}$ Average number of hidden neurons, ${}^{\rm c}$ Standard deviation of the number of hidden neurons, ${}^{\rm d}$ MSE, DENN [30].

The results of the XOR problem after twenty experiments are summarized in Table 4. In the last fifteen simulations, the fitness given by Eq. (4.3) automatically prevents the algorithm from unnecessarily producing complex ANNs with a large number of hidden neurons, and encourages smaller topologies. This constraint improves the generalization capacity of the ANNs. All networks returned by the search process contained two neurons in the input layer, two in the hidden layer, and one in the output layer, and can be described by ANN $=$ (2, 2, 1). This structure is not guaranteed by the fitness function Eq. (4), because the appropriate coefficients for this equation are determined by a problem dependent, time-consuming process that obtains A1 and A2 by trial-and-error. Furthermore, there is no guarantee that the search will return a small network. In the first five experiments (summarized in the first five lines of Table 4), all of the ANNs returned by the search process contained 8, 7, 6, or 5 neurons in the hidden layer. The results of the best (19th) and worst (first) experiments, in terms of small MSE and minimum number of hidden neurons, are highlighted in bold in Table 4.

The results of the best (19th) and worst (first) experiments, in terms of small MSE and minimum number of hidden neurons, are highlighted in bold in Table 4. NEAT [5] finds a structure for XOR in 32 generations (4.755 networks evaluated, $\sigma=$ 2.553). The average number of hidden nodes in the solution network was $\mu=$ 2.35. The 13th experiment (Table 4) yielded the closest solution, with $\mu=$ 3.31 and $\sigma=$ 1.65 in 50 generations. ADEANN has a similar average classification accuracy to DENN [30], but more accurately estimates the best network in the search process (MSE $=\leqslant$ 0.000024). ADEANN easily solves the XOR problem while maintaining a small architecture. The numbers of nodes and connections were close to optimal, considering that the smallest ANN had a single hidden unit. Moreover, the ADEANN always found a solution. The total number of ANNs trained in the experiments was 30,100.

Figure 5.

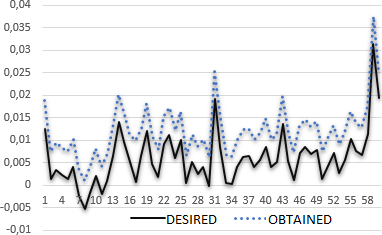

Generalization capacity obtained by the ANN with a MSE $\leqslant$ 0.0001.

Table 6

Normalized values for CPI in the period of Jan. 1998 to May 2010. Source, Central Bank of Brazil

	JAN	FEV	MAR	APR	MAI	JUN
1998	0.0126	0.0014	0.0033	0.0023	0.0014	0.0041
1999	0.0064	0.0141	0.0095	0.0052	0.0008	0.0065
2000	0.0101	0.0005	0.0051	0.0025	0.004	$-$ 0.0001
2001	0.0064	0.004	0.0056	0.0086	0.0041	0.0052
2002	0.0079	0.0014	0.0042	0.0071	0.0028	0.0055
2003	0.0232	0.0137	0.0106	0.0112	0.0069	$-$ 0.0016
2004	0.0108	0.0028	0.0046	0.0031	0.0071	0.0078
2005	0.0085	0.0043	0.007	0.0088	0.0079	$-$ 0.0005
2006	0.0065	0.0001	0.0022	0.0034	$-$ 0.0019	$-$ 0.004
2007	0.0069	0.0034	0.0048	0.0031	0.0025	0.0042
2008	0.0097	0.0056	0.0045	0.0072	0.0087	0.0077
2009	0.0083	0.0021	0.0061	0.0047	0.0039	0.0012
2010	0.0129	0.0068	0.0086	0.0076	0.0021	–
	JUL	AUG	SEP	OCT	NOV	DEC
1998	$-$ 0.0025	$-$ 0.0052	$-$ 0.0017	0.002	$-$ 0.0019	0.0009
1999	0.012	0.0048	0.0019	0.0092	0.0112	0.006
2000	0.0191	0.0086	0.0004	0.0002	0.004	0.0062
2001	0.0136	0.0054	0.0012	0.0071	0.0085	0.007
2002	0.0103	0.0076	0.0066	0.0114	0.0314	0.0194
2003	0.0034	0.0013	0.0076	0.0021	0.0033	0.0043
2004	0.0059	0.0079	0.0001	0.001	0.0037	0.0063
2005	0.0013	$-$ 0.0044	0.0009	0.0042	0.0057	0.0046
2006	0.0006	0.0016	0.0019	0.0014	0.0024	0.0063
2007	0.0028	0.0042	0.0023	0.0013	0.0027	0.007
2008	0.0053	0.0014	$-$ 0.0009	0.0047	0.0056	0.0052
2009	0.0034	0.002	0.0018	0.0001	0.0026	0.0024

Table 7

The effect of 26 drugs on 15 experimental tumor and on a tumor in a patient with breast cancer

	T1	2	3	4	5	6	7	8	9	T0	11	12	13	14	15	TC
D1	1	1	0.5	0.5	1	0.5	1	1	0.5	0.5	0.5	1	1	1	0.5	1
2	1	1	1	1	1	1	1	1	0	1	0	1	1	1	1	1
3	1	1	1	1	0	0	1	1	0	1	0	1	1	1	1	0
4	1	1	0.5	0	0	0.5	1	0.5	0.5	0.5	0.5	1	1	0.5	0.5	1
5	1	1	1	0	1	0	1	1	0	1	0	0	1	0	1	1
6	1	1	0	1	0	0.5	1	1	1	0	0	0	1	1	0.5	1
7	1	1	0	1	0	0.5	1	1	1	0	0	0	1	1	0.5	1
8	0	1	0	1	0	0.5	0	1	1	0	0	1	0	0.5	1	1
9	1	1	1	0	0	0	0	0	1	0	0.5	1	0	0	1	1
10	1	1	1	1	1	0	1	1	1	0	1	0	0	0	1	1
11	1	1	1	0	0	0.5	0	0	0.5	0	0.5	1	1	0	0.5	1
12	1	0.5	1	0.5	0	0.5	0	0	0.5	0	1	0.5	1	0.5	0.5	1
13	0	0	1	0	1	0	0.5	0.5	0.5	0	0.5	1	1	0.5	0.5	0
14	1	1	1	0	0.5	0.5	0	0.5	0	0	0	0.5	0.5	0.5	0	0
15	1	0.5	1	1	0	0	1	1	0	0	0	0	01	0	0	0
16	1	0.5	0.5	1	1	1	0	0.5	1	1	0.5	0.5	1	0.5	1	1
17	1	0	0.5	1	1	0.5	1	0.5	0.5	1	0.5	0.5	0	0.5	0.5	1
18	1	0.5	1	0.5	0	0.5	1	1	0.5	0	0.5	1	1	0.5	0.5	1
19	0	0	1	1	0.5	1	1	1	0.5	0	0.5	0.5	1	0.5	0.5	1
20	1	1	1	0	0	0.5	0	1	0.5	0.5	0.5	0.5	1	1	1	0
21	1	1	1	1	0	0	1	0	0	1	1	0	1	1	1	1
22	1	0	0.5	1	0.5	1	0	0.5	1	1	0.5	0.5	1	0	1	1
23	1	0	0	1	1	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0	0.5	0.5	1
24	1	0.5	0.5	0.5	0	0.5	1	0.5	0.5	0	0.5	1	0.5	0.5	0.5	1
25	0	0	0.5	0.5	0	0	1	1	1	0.5	0.5	1	0	1	1	1
26	0	0.5	0.5	0	0	0.5	1	0.5	1	0.5	0.5	0	0.5	0.5	1	0.5

5.2 Consumer price index – CPI problem

To verify the viability of the method for large problems, we carried out experiments for the prediction of the time series of the consumer price index (CPI), for the period of Jan. 1998 to May 2010 (source, Central Bank of Brazil, as seen in Table 6). The CPI quantifies the costs of products at different moments. In other words, it measures changes through time in the price level of consumer goods and services purchased by households and is useful for the calculation of the inflation rate.

In five runs, the best experiment shows that the ADEANN system finds an ANN for CPI in 50 generations (1500 networks evaluated, std $\sigma=$ 4.39) and MSE $=$ 0.000015972. On average, a solution network has $\mu=$ 5.21 hidden nodes. The worst performance takes 1500 evaluations, or about 50 generations, the standard deviation was $\sigma=$ 5.42, the average $\mu=$ 9.78 for the number of hidden nodes and MSE $=$ 0.0000159912. Since the fitness function Eq. (4.3) takes into account the minimal number of neurons in the hidden layer (NNHL) and a minimal mean squared error (MSE). ADEANN solves the CPI problem without trouble. The lowest ANN for that problem has the following specification: (1, 3, 1). Figure 5 illustrates the generalization capacity obtained by that ANN with a MSE $\leqslant$ 0.0001. The largest ANN obtained for the CPI problem has the specification (1, 18, 1), i.e., with 18 neurons in the hidden layer. It had a MSE $=$ 0.000015733 and good generalizability, with MSE $\leqslant$ 0.0001 and is better than the ANN (1, 3, 1). However as the fitness, as given by Eq. (4.3), favors the smaller ANNs with good generalization capacity, the ANN (1, 3, 1) is ranked the best.

Table 8
Testing results for the ANN for predicting the effect of 15 new drugs on malignant breast cancer. Eleven test examples are used. If a threshold of 1.0 is chosen to decide on an active neuron, the effects of all the new drugs tested are correctly predicted

Obtained output	Desired output	Error
0.999700	1.0	0.000000045
0.998717	1.0	0.000000823
0.999973	1.0	0.000000000
0.999963	1.0	0.000000001
0.999546	1.0	0.000000103
0.998482	1.0	0.000001153
0.996649	1.0	0.000005616
0.997020	1.0	0.000004441
0.007759	0.0	0.000030104
0.999862	1.0	0.000000000
0.999046	1.0	0.000000455

5.3 Prediction of the effect of a new drug on breast cancer (BC)

The problem of predicting the effect of a new drug on breast cancer [24] is to find an analogous mapping between the set of 15 experimentally induced tumors and a clinical tumor (malignant breast cancer), based on their known reactions to the same drugs, so that we are able to predict the effect of a new drug on the clinical tumor after having studied the experimental tumors. The solution is based on the presumed similarity between this tumor and a set of experimental tumors. Table 7 illustrates the dataset used for training, which contains the known effect of 26 established drugs on 15 experimental tumors and on a clinical tumor.

In five runs, the best experiment shows that the ADEANN system finds an ANN for BC in 100 generations (3000 networks evaluated, std $\sigma=$ 1.206) and MSE $=$ 0.000005. On average, a solution network has $\mu=$ 6.83 hidden nodes. The minimal neural network which was found has the following specification (neurons in the input layer, neurons in the hidden layer, neurons in the output layer) $=$ (15, 6, 1). The testing results for that network are shown in Table 8. In the method of [24], on average a solution network had $\mu=$ 3.6 neurons in the hidden layer, std $\sigma=$ 1.1 and MSE $=$ 0.015.

6. Discussion

The first challenge that we have addressed was the scalability problem. Our approach includes improvements to our previous proposal [6]. First, the chromosome used by the GA in our research has a variable length, from 180 to 516 bits, in contrast to before, when it had a fixed length of 1024 bits. For this reason, our current approach evolves a compressed description of the ANN that reduces the search space of the GA. Furthermore, it reduces the scalability problem of other methods [25, 26]. In the section about the experiments we present results that confirm these improvements.

The method of [26], as described in [6], improved the scalability problem presented by the method of [25], since an ANN with $N$ neurons will result in a binary string of $(N(N+1)/2)$ in contrast to the method of [25], which has a quadratic behavior $N^{2}$ . If the two methods [25, 26] had used the chromosome length that we used in the experiments described in Section 5, which are in the interval [180, 516], the methods of [25, 26] would generate ANNs with a maximal number of neurons in the intervals [13, 22, 18, 31] respectively. Depending on the value of NR, our L-System can generate larger ANNs than the methods of [25, 26].

Another challenge we have addressed is how to evolve minimal solutions. Our method also enables network optimization. As discussed in Subsection 4.3, the fitness function Eq. (4.3) automatically implements a penalty approach that rewards economical ANNs with better generalization capacities and ease of implementation (see the last fifteen lines and the second column of Table 4). This function selects networks by two criteria: the number of hidden-layer neurons, and the MSE. Therefore, smaller networks score higher fitness values than larger networks with the same performance. RNN-evolving NEAs are rarely reported in the literature. Our ADEANN system partially fills this gap, and provides accurate, automatic direct and recurrent ANNs for pattern recognition problems and dynamical systems simulations. Many methods don’t worry, as stated by [21], about avoiding optimizing overly complex topologies. Thus, at least part of the evolutionary search will be conducted in an unnecessarily high dimensional space, which is not desirable, as in some situations, less complex topologies can simulate the same task with the same precision.

7. Conclusion

ADEANN constitutes an automatic system to simulate tasks of pattern recognition, without any previous knowledge from the user. Also, two modifications of an earlier method [6] have been evaluated. The first one involves the fitness function, given by Eq. (4.3). It explicitly rewards smaller solutions. Our approach solves the three problems presented previously, in Section 5, without trouble in finding small topologies. The second, our L-System, presented in Subsection 4.2, enables generating more complex, direct, recurrent and multilayer networks, than the previous one [6]. Only the method of [14] formalizes the problem of ADANNs as a local search strategy. In Section 3 we described a new approach to formalizing the problem of ADANNs as a local search based on rational agents. Our approach increases the level of implicit parallelism of GA, which evolves a compressed description of the L-rules and enables generating more complex, direct, recurrent and multilayer networks than the previous one [6].

NEAs that evolve recurrent neural networks are rarely found in the literature [40]. To partially fill this gap, we designed ADEANN as an accurate automatic method for designing direct and recurrent ANNs and thereby solving pattern recognition problems and simulating dynamical systems.

Ultimately, the biological inspiration addressed in our research, makes it original. The merits of our Bio-Inspired algorithm compared to conventional algorithms are: flexibility, performance, scalability, flexibility in decision making and improvement scope. In future work, we will tackle other challenges, such as partially connected networks and ANNs that use Hebbian learning, thus exploiting aspects of neural plasticity.

References

Stanley

K.O.

and Miikkulainen

, A taxonomy for artificial embryogeny, Artificial Life 9 (2003), 93–130.

Bukhtoyarov

and Semenkin

, Evolutionary three-stage approach for designing of neural networks ensembles for classification problems, in: Advances in Swarm Intelligence Tan

Shi

and Mo

, eds, Vol. 7928 of Lecture Notes in Computer Science, Springer Berlin Heidelberg, 2013, pp. 467–477.

Krömer

Platoš

and Snášel

, Nature-inspired meta-heuristics on modern gpus: State of the art and brief survey of selected algorithms, Int J Parallel Program 42(5) (2014), 681–709.

Park

and Tran

, Development of a biology inspired manufacturing system for machining transmission cases, International Journal of Automotive Technology 14(2) (2013), 233–240.

Stanley

K.O.

and Miikkulainen

, Evolving neural networks through augmenting topologies, Evolutionary Computation 10(2) (2002), 99–127.

de Campos

Roisenberg

and de Oliveira

, Automatic design of neural networks with l-systems and genetic algorithms – a biologically inspired methodology, in: Neural Networks (IJCNN), The 2011 International Joint Conference on (2011), 1199–1206.

Gauci

and Stanley

K.O.

, Autonomous evolution of topographic regularities in artificial neural networks, Neural Comput 22(7) (2010), 1860–1898.

Lee

D.-W.

Kong

and Sim

K.-B.

, Evolvable neural networks based on developmental models for mobile robot navigation, in: Neural Networks, 2005, IJCNN ’05, Proceedings, 2005 IEEE International Joint Conference on 1 (2005), 337–342.

Risi

and Stanley

K.O.

, An enhanced hypercube-based encoding for evolving the placement, density, and connectivity of neurons, Artif Life 18(4) (2012), 331–363.

10.

Benardos

and Vosniakos

G.-C.

, Optimizing feedforward artificial neural network architecture, Engineering Applications of Artificial Intelligence 20(3) (2007), 365–382.

11.

Miller

G.F.

Todd

P.M.

and Hegde

S.U.

, Designing neural networks using genetic algorithms, in: Proceedings of the Third International Conference on Genetic Algorithms, Morgan Kaufmann Publishers Inc., San Francisco, CA, USA (1989), 379–384.

12.

Zhang

J.-R.

Zhang

Lok

T.-M.

and Lyu

M.R.

, A hybrid particle swarm optimization-back-propagation algorithm for feedforward neural network training, Applied Mathematics and Computation 185(2) (2007), 1026–1037. Special Issue on Intelligent Computing Theory and Methodology.

13.

Zhang

and Sun

, Evolved neural network based intelligent trading system for stock market, in: Advances in Swarm Intelligence Tan

Shi

and Mo

, eds, Vol. 7928 of Lecture Notes in Computer Science, Springer Berlin Heidelberg, 2013, pp. 478–488.

14.

Donate

J.P.

Sanchez

G.G.

and De Miguel

A.S.

, Time series forecasting, a comparative study between an evolving artificial neural networks system and statistical methods, International Journal on Artificial Intelligence Tools 21(01) (2012), 1250010.

15.

Clune

Mouret

J.-B.

and Lipson

, The evolutionary origins of modularity, arxiv:1207.2743.

16.

Risi

and Stanley

K.O.

, A unified approach to evolving plasticity and neural geometry, in: IJCNN, IEEE (2012), 1–8.

17.

Lee

Yosinski

Glette

Lipson

and Clune

, Evolving gaits for physical robots with the hyperneat generative encoding: The benefits of simulation, in: Applications of Evolutionary Computation Esparcia-Alcázar

, eds, Vol. 7835 of Lecture Notes in Computer Science, Springer Berlin Heidelberg, 2013, pp. 540–549.

18.

Campos

L.M.L.d.

and Oliveira

R.C.L.d.

, A comparative analysis of methodologies for automatic design of artificial neural networks from the beginnings until today, in: Proceedings of the 2013 BRICS Congress on Computational Intelligence and 11th Brazilian Congress on Computational Intelligence, BRICS-CCI-CBIC ’13, IEEE Computer Society, Washington, DC, USA (2013), 453–458.

19.

Simon

H.A.

, The Sciences of the Artificial – 3rd Edition, The MIT Press, Cambridge, MA, 1996.

20.

Russell

S.J.

Norvig

Candy

J.F.

Malik

J.M.

and Edwards

D.D.

, Artificial intelligence: A modern approach, Prentice-Hall, Inc., Upper Saddle River, NJ, USA (1996).

21.

Whiteson

, Evolutionary computation for reinforcement learning, in: Reinforcement Learning: State of the Art Wiering

and van Otterlo

, eds, Springer, Berlin, Germany, 2012, pp. 325–355.

22.

Dawkins

, The blind watchmaker, Longman Scientific and Technical (1986).

23.

Prusinkiewicz

and Runions

, Computational models of plant development and form, New Phytologist 193(3) (2012), 549–569.

24.

Islam

Yao

and Murase

, A constructive algorithm for training cooperative neural network ensembles, Neural Networks, IEEE Transactions on 14(4) (2003), 820–834.

25.

Kitano

, Designing neural networks by genetic algorithms using graph generation system, Complex Systems Journal 4 (1990), 461–476.

26.

Boozarjomehry

R.B.

and Svrcek

, Automatic design of neural networks structures, Computers and Chemical Engineering 25(7) (2001), 1075–1088.

27.

Sánchez

and Melin

, Optimization of modular granular neural networks using hierarchical genetic algorithms for human recognition using the ear biometric measure, Engineering Applications of Artificial Intelligence 27 (Jan 2014), 41–56.

28.

Kazaryan

D.E.

and Savinkov

A.V.

, Grammatical evolution for neural network optimization in the control system synthesis problem, Procedia Computer Science 103 (2017), 14–19.

29.

Oladele

R.O.

and Sadiku

J.S.

, Genetic algorithm performance with different selection methods in solving multi-objective network design problem, International Journal of Computer Applications 70 (2013), 5–9.

30.

Ilonen

Kamarainen

J.-K.

and Lampinen

, Differential evolution training algorithm for feed-forward neural networks, Journal of Neural Processing Letter (2003), 93–105.

31.

Abd Elrahman

S.M.

and Abraham

, Class imbalance problem using a hybrid ensemble approach, Intelligent Journal of Hybrid Intelligent Systems 12(4) (2015), 219–227.

32.

Ojha

V.K.

Dutta

Chaudhuri

and Saha

, Understating continuous ant colony optimization for neural network training: A case study on intelligent sensing of manhole gas components, Intelligent Journal of Hybrid Intelligent Systems 12(4) (2015), 185–202.

33.

Abd Elrahman

S.M.

and Abraham

, Class imbalance problem using a hybrid ensemble approach, Intelligent Journal of Hybrid Intelligent Systems 12(4) (2015), 219–227.

34.

dos Santos

G.A.M.

Ferrão

V.T.

Vinhal

C.D.N.

and da Cruz

, Performance analysis for a novel adaptive algorithm for realtime point cloud ground segmentation, Intelligent Journal of Hybrid Intelligent Systems 12(4) (2015), 229–243.

35.

Samuel

O.W.

Asogbon

G.M.

Sangaiah

A.K.

Fang

and Li

, An integrated decision support system based on ANN and Fuzzy_AHP for heart failure risk prediction, Expert Systems with Applications 68 (2017), 163–172. ISSN 0957-4174.

36.

Sanz

S.S.

, Modern meta-heuristics based on nonlinear physics processes: A review of models and design procedures, Physics Reports 655 (2016), 1–70. ISSN 0370-1573.

37.

Kazaryan

D.E.

and Savinkov

A.V.

, Grammatical evolution for neural network optimization in the control system synthesis problem, in: Procedia Computer Science 103 (2017), 14–19. ISSN 1877-0509.

38.

and Cai

, A hybrid generic algorithm for dynamic data mining in investment decision making, International Journal on Data Science and Technology 2(6) (2016), 62–71.

39.

Vivekanandan

and Iyengar

N.C.S.N.

, Optimal feature selection using a modified differential evolution algorithm and its effectiveness for prediction of heart disease, Computers in Biology and Medicine, Available online 19 September 2017. ISSN 0010-4825.

40.

Hornby

G.S.

and Pollack

J.B.

, Creating high-level components with a generative representation for body-brain evolution, Artificial Life 8 (2002), 223–246.

41.

Lee

D.W.

Seo

S.-W.

and Sim

K.-B.

, Evolvable neural networks based on developmental models for mobile rôbot navigation, International Journal of Fuzzy Logic and Intelligent Systems 7 (2007), 176–181.

	T1	2	3	4	5	6	7	8	9	T0	11	12	13	14	15	TC
D1	1	1	0.5	0.5	1	0.5	1	1	0.5	0.5	0.5	1	1	1	0.5	1
2	1	1	1	1	1	1	1	1	0	1	0	1	1	1	1	1
3	1	1	1	1	0	0	1	1	0	1	0	1	1	1	1	0
4	1	1	0.5	0	0	0.5	1	0.5	0.5	0.5	0.5	1	1	0.5	0.5	1
5	1	1	1	0	1	0	1	1	0	1	0	0	1	0	1	1
6	1	1	0	1	0	0.5	1	1	1	0	0	0	1	1	0.5	1
7	1	1	0	1	0	0.5	1	1	1	0	0	0	1	1	0.5	1
8	0	1	0	1	0	0.5	0	1	1	0	0	1	0	0.5	1	1
9	1	1	1	0	0	0	0	0	1	0	0.5	1	0	0	1	1
10	1	1	1	1	1	0	1	1	1	0	1	0	0	0	1	1
11	1	1	1	0	0	0.5	0	0	0.5	0	0.5	1	1	0	0.5	1
12	1	0.5	1	0.5	0	0.5	0	0	0.5	0	1	0.5	1	0.5	0.5	1
13	0	0	1	0	1	0	0.5	0.5	0.5	0	0.5	1	1	0.5	0.5	0
14	1	1	1	0	0.5	0.5	0	0.5	0	0	0	0.5	0.5	0.5	0	0
15	1	0.5	1	1	0	0	1	1	0	0	0	0	01	0	0	0
16	1	0.5	0.5	1	1	1	0	0.5	1	1	0.5	0.5	1	0.5	1	1
17	1	0	0.5	1	1	0.5	1	0.5	0.5	1	0.5	0.5	0	0.5	0.5	1
18	1	0.5	1	0.5	0	0.5	1	1	0.5	0	0.5	1	1	0.5	0.5	1
19	0	0	1	1	0.5	1	1	1	0.5	0	0.5	0.5	1	0.5	0.5	1
20	1	1	1	0	0	0.5	0	1	0.5	0.5	0.5	0.5	1	1	1	0
21	1	1	1	1	0	0	1	0	0	1	1	0	1	1	1	1
22	1	0	0.5	1	0.5	1	0	0.5	1	1	0.5	0.5	1	0	1	1
23	1	0	0	1	1	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0	0.5	0.5	1
24	1	0.5	0.5	0.5	0	0.5	1	0.5	0.5	0	0.5	1	0.5	0.5	0.5	1
25	0	0	0.5	0.5	0	0	1	1	1	0.5	0.5	1	0	1	1	1
26	0	0.5	0.5	0	0	0.5	1	0.5	1	0.5	0.5	0	0.5	0.5	1	0.5

	T1	2	3	4	5	6	7	8	9	T0	11	12	13	14	15	TC
D1	1	1	0.5	0.5	1	0.5	1	1	0.5	0.5	0.5	1	1	1	0.5	1
2	1	1	1	1	1	1	1	1	0	1	0	1	1	1	1	1
3	1	1	1	1	0	0	1	1	0	1	0	1	1	1	1	0
4	1	1	0.5	0	0	0.5	1	0.5	0.5	0.5	0.5	1	1	0.5	0.5	1
5	1	1	1	0	1	0	1	1	0	1	0	0	1	0	1	1
6	1	1	0	1	0	0.5	1	1	1	0	0	0	1	1	0.5	1
7	1	1	0	1	0	0.5	1	1	1	0	0	0	1	1	0.5	1
8	0	1	0	1	0	0.5	0	1	1	0	0	1	0	0.5	1	1
9	1	1	1	0	0	0	0	0	1	0	0.5	1	0	0	1	1
10	1	1	1	1	1	0	1	1	1	0	1	0	0	0	1	1
11	1	1	1	0	0	0.5	0	0	0.5	0	0.5	1	1	0	0.5	1
12	1	0.5	1	0.5	0	0.5	0	0	0.5	0	1	0.5	1	0.5	0.5	1
13	0	0	1	0	1	0	0.5	0.5	0.5	0	0.5	1	1	0.5	0.5	0
14	1	1	1	0	0.5	0.5	0	0.5	0	0	0	0.5	0.5	0.5	0	0
15	1	0.5	1	1	0	0	1	1	0	0	0	0	01	0	0	0
16	1	0.5	0.5	1	1	1	0	0.5	1	1	0.5	0.5	1	0.5	1	1
17	1	0	0.5	1	1	0.5	1	0.5	0.5	1	0.5	0.5	0	0.5	0.5	1
18	1	0.5	1	0.5	0	0.5	1	1	0.5	0	0.5	1	1	0.5	0.5	1
19	0	0	1	1	0.5	1	1	1	0.5	0	0.5	0.5	1	0.5	0.5	1
20	1	1	1	0	0	0.5	0	1	0.5	0.5	0.5	0.5	1	1	1	0
21	1	1	1	1	0	0	1	0	0	1	1	0	1	1	1	1
22	1	0	0.5	1	0.5	1	0	0.5	1	1	0.5	0.5	1	0	1	1
23	1	0	0	1	1	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0	0.5	0.5	1
24	1	0.5	0.5	0.5	0	0.5	1	0.5	0.5	0	0.5	1	0.5	0.5	0.5	1
25	0	0	0.5	0.5	0	0	1	1	1	0.5	0.5	1	0	1	1	1
26	0	0.5	0.5	0	0	0.5	1	0.5	1	0.5	0.5	0	0.5	0.5	1	0.5

Optimization strategy of neural networks based on rational agents

Abstract

Keywords

1. Introduction

2. State of the art

4. Biologically inspired NEA

Table 1 The production rules of the parametric L-system with memory

4.3 Fitness evaluation and selection mechanism

5.1 Experimental setup

Table 3 Parameters used in the experiments

Table 8 Testing results for the ANN for predicting the effect of 15 new drugs on malignant breast cancer. Eleven test examples are used. If a threshold of 1.0 is chosen to decide on an active neuron, the effects of all the new drugs tested are correctly predicted

6. Discussion

7. Conclusion

References

Table 1
The production rules of the parametric L-system with memory

Table 3
Parameters used in the experiments

Table 8
Testing results for the ANN for predicting the effect of 15 new drugs on malignant breast cancer. Eleven test examples are used. If a threshold of 1.0 is chosen to decide on an active neuron, the effects of all the new drugs tested are correctly predicted

	T1	2	3	4	5	6	7	8	9	T0	11	12	13	14	15	TC
D1	1	1	0.5	0.5	1	0.5	1	1	0.5	0.5	0.5	1	1	1	0.5	1
2	1	1	1	1	1	1	1	1	0	1	0	1	1	1	1	1
3	1	1	1	1	0	0	1	1	0	1	0	1	1	1	1	0
4	1	1	0.5	0	0	0.5	1	0.5	0.5	0.5	0.5	1	1	0.5	0.5	1
5	1	1	1	0	1	0	1	1	0	1	0	0	1	0	1	1
6	1	1	0	1	0	0.5	1	1	1	0	0	0	1	1	0.5	1
7	1	1	0	1	0	0.5	1	1	1	0	0	0	1	1	0.5	1
8	0	1	0	1	0	0.5	0	1	1	0	0	1	0	0.5	1	1
9	1	1	1	0	0	0	0	0	1	0	0.5	1	0	0	1	1
10	1	1	1	1	1	0	1	1	1	0	1	0	0	0	1	1
11	1	1	1	0	0	0.5	0	0	0.5	0	0.5	1	1	0	0.5	1
12	1	0.5	1	0.5	0	0.5	0	0	0.5	0	1	0.5	1	0.5	0.5	1
13	0	0	1	0	1	0	0.5	0.5	0.5	0	0.5	1	1	0.5	0.5	0
14	1	1	1	0	0.5	0.5	0	0.5	0	0	0	0.5	0.5	0.5	0	0
15	1	0.5	1	1	0	0	1	1	0	0	0	0	01	0	0	0
16	1	0.5	0.5	1	1	1	0	0.5	1	1	0.5	0.5	1	0.5	1	1
17	1	0	0.5	1	1	0.5	1	0.5	0.5	1	0.5	0.5	0	0.5	0.5	1
18	1	0.5	1	0.5	0	0.5	1	1	0.5	0	0.5	1	1	0.5	0.5	1
19	0	0	1	1	0.5	1	1	1	0.5	0	0.5	0.5	1	0.5	0.5	1
20	1	1	1	0	0	0.5	0	1	0.5	0.5	0.5	0.5	1	1	1	0
21	1	1	1	1	0	0	1	0	0	1	1	0	1	1	1	1
22	1	0	0.5	1	0.5	1	0	0.5	1	1	0.5	0.5	1	0	1	1
23	1	0	0	1	1	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0	0.5	0.5	1
24	1	0.5	0.5	0.5	0	0.5	1	0.5	0.5	0	0.5	1	0.5	0.5	0.5	1
25	0	0	0.5	0.5	0	0	1	1	1	0.5	0.5	1	0	1	1	1
26	0	0.5	0.5	0	0	0.5	1	0.5	1	0.5	0.5	0	0.5	0.5	1	0.5
