Modal identification of building structures under unknown input conditions using extended Kalman filter and long-short term memory

Abstract

Various system identification (SI) techniques have been developed to ensure the sufficient structural performance of buildings. Recently, attempts have been made to solve the problem of the excessive computational time required for operational modal analysis (OMA), which is involved in SI, by using the deep learning (DL) algorithm and to overcome the limited applicability to structural problems of extended Kalman filter (EKF)-based SI technology through the development of a method enabling SI under unknown input conditions by adding a term for the input load to the algorithm. Although DL-based OMA methods and EKF-based SI techniques under unknown input conditions are being developed in various forms, they still produce incomplete identification processes when extracting the identification parameters. The neural network of the developed DL-based OMA method fails to extract all modal parameters perfectly, and EKF-based SI techniques has the limitations of a heavy algorithm and an increased computational burden with an input load term added to the algorithm. Therefore, this study proposes an EKF-based long short-term memory (EKF-LSTM) method that can identify modal parameters. The proposed EKF-LSTM method applies modal-expanded dynamic governing equations to the EKF to identify the modal parameters, where the input load used in the EKF algorithm is estimated using the LSTM method. The EKF-LSTM method can identify all modal parameters using the EKF, which is highly applicable to structural problems. Because the proposed method estimates the input load through an already trained LSTM network, there is no problem with computational burden when estimating the input load. The proposed EKF-LSTM method was verified using a numerical model with three degrees of freedom, and its effectiveness was confirmed by utilizing a steel frame structure model with three floors.

Keywords

System identification operational modal analysis modal parameter extended Kalman filter deep learning long short-term memory

1. Introduction

The structural performance of buildings deteriorates continuously owing to earthquakes and typhoons that occur during their life cycles and the continuous aging of structural members. Severe deterioration in structural performance can cause enormous damage to life and property and even the collapse of social systems. Considering this situation, various system identification (SI) techniques have been developed in structural engineering to evaluate the structural performance of buildings [1, 2, 3, 4, 5, 6, 7, 8, 9, 10]. The SI technique enables the identification of modal parameters representing the dynamic characteristics, such as the natural frequency, mode shape, and modal damping ratio, as well as system parameters based on spatial properties determined by the shape, size, and joints of the building, including the mass, stiffness, and damping. Because changes in natural frequency and mode shape can appear by changes in mass and stiffness, these parameters can be used as intuitive indicators of the structural performance of a building [11, 12, 13]. Furthermore, the modal damping ratio and damping are important parameters for reducing the vibration of a building and are generally determined by complex actions such as material damping of structural materials and structural system design and connection after the building has been completed. This structural phenomenon is called structural damping, and these damping parameters determine the acceleration response level of the building in ambient conditions and resonance peak by the dominant frequency. Therefore, the modal damping ratio and damping parameters can be considered as indicators affecting structural performance in terms of both safety and serviceability [14, 15, 16].

The SI technique was mainly developed as an operational modal analysis (OMA) method to identify modal parameters during the operation of the building [11, 13]. This method does not use information about the input load applied to the building, but rather, only the structural response measured from the building to identify the modal parameters, thereby being evaluated as a practical method in terms of applicability for the actual building [2, 17]. Representative OMA methods include frequency-domain decomposition (FDD), proposed by [18], and covariance-driven stochastic subspace identification (SSI-COV), an SSI-data driven method, proposed by [19, 20]. Simultaneously with the OMA study, the SI technique research using the extended Kalman filter (EKF) has been conducted to identify system parameters [21, 22]. The EKF has the advantage of enabling continuous observation of changes in system parameters as it is easy to apply to structural problems and enables real-time estimation, which is the main characteristic of the EKF [23, 24, 25, 26, 27]. To identify system parameters, dynamic governing equations are derived as state space representations and applied to the EKF algorithm to estimate the system parameters in real time [28, 29, 30, 31, 32]. Representative studies include the methods estimating the change of parameters in real-time by determining the state variables as stiffness or damping parameters [33, 34, 35, 36, 37], the adaptive EKF methods enabling the convergence of state vectors adaptively by sudden stiffness decrease [32, 38, 39, 40], and recently, the hybrid EKF method enabling optimized estimation through optimal selection of the initial parameters for the EKF [41].

Although various SI techniques have been developed to evaluate the structural performance of buildings, the problems of excessive computational time and input load usage have persisted [42, 43, 44, 45, 46]. The OMA method for identifying modal parameters has the advantage of not requiring input load information due to the characteristics of output-only data, but it still has the disadvantage of high computational cost as more accurate modal parameter results can be obtained only by performing modal analysis after accumulating a certain amount of measurement data [20, 42, 46]. EKF-based SI approaches to estimate system parameters have the limitation of needing to use an input load [44, 47, 48] Because performing SI using EKF requires assuming that the input load is known, there may be limitations in building applicability [43]. When an earthquake load is applied, the input load information can be determined by measuring the ground acceleration with an acceleration sensor installed on the ground to gather the input load information. However, not all structures necessarily have sensors for measuring ground acceleration, or it may be difficult to measure the input load due to sensor loss and damage [43]. Therefore, the EKF-based SI method that uses an input load may have limitations in building applications.

Recently, deep learning (DL)-based OMA methods have been developed to solve this problem, identifying the modal parameters through a pre-trained neural network without utilizing algorithms such as decomposition functions and inverse Fourier transform in the OMA method. These approaches seem to be effective in overcoming the issue of excessive computational time [49, 50]. Furthermore, scholars investigating system parameter identification have added the input load term to the Kalman filter algorithm to identify the system parameters under unknown input conditions, solving the problem of restrictions on the use of input load [34, 43, 45, 48, 51]

Although DL-based modal parameter identification technique and system parameter identification technique under unknown input conditions is being developed in various forms [6, 52, 53, 54, 55, 56, 57], the identification processes are still incomplete when extracting identification parameters [49, 50]. Even though the modal parameter identification method using the recently developed DL-based convolution neural network (CNN) identifies the natural frequency, it fails to identify subsequent parameters, such as mode shape and modal damping ratio [49]. In addition, the modal parameter identification technique using a deep neural network (DNN) identifies the modal response and mode shape, but the conventional SI method is used to identify the natural frequency and modal damping ratio [50]. As can be seen from the previous studies, DL-based modal parameter identification does not fully identify all parameters with a neural network and produces incomplete identification results. In addition, in studies on identifying system parameters under unknown input conditions, the input load term is included in the EKF algorithm and identified through the process, and the algorithm becomes heavy, requiring additional computational effort [43, 45, 58] Accordingly, there is a need for additional research to enable full identification of the modal parameters and use of an EKF while satisfying the unknown input condition without causing a computational burden.

Therefore, the objective of this study was to develop an EKF-based long short-term memory (EKF-LSTM) method that can identify modal parameters. The developed EKF-LSTM method uses LSTM, a type of DL algorithm, to execute an EKF under an unknown input. The LSTM method is a DL algorithm specialized for sequence and time series data, which is suitable for data characteristics where time order is important. The structural acceleration response, obtained as a time history response, is used as an input of the LSTM to configure the training network, and the ground acceleration response obtained from the ground is utilized as the output of the LSTM. Because the input load is estimated immediately through the already trained LSTM network, the unknown input is satisfied without causing a computational burden. Furthermore, the dynamic governing equation is modally expanded to form a state space equation as the proposed EKF-LSTM method estimates the modal parameters. Therefore, the state variables estimated by the EKF can be estimated by determining the modal responses, natural frequency, and modal damping ratio. Owing to the high applicability of the EKF method to structural problems, the modal parameters can be completely identified by constructing a state vector with the modal parameters. A detailed description of the EKF-LSTM method is provided in Section 2. The remainder of this paper is organized as follows. Section 2 introduces the fundamental theory used in the EKF-LSTM method proposed in this study and a schematic procedure of how the EKF-LSTM method works. Sections 3 and 4 respectively provide verifications of the numerical model and EKF-LSTM method through a three-story steel frame structure model. Finally, Section 5 summarizes the conclusions.

2. Methodology

This section introduces the method of applying the dynamic governing equation extended to modal coordinates to the EKF for applying the EKF-LSTM method proposed in this study and describes the procedure for estimating input load using LSTM.

2.1 Fundamental algorithm of extended Kalman filter

The Kalman filter is a recursive filter algorithm developed by [59]. It performs estimation by updating the state vector while correcting the residual between the sensor response and predicted response. Hoshiya and Saito [28] attempted to estimate system parameters using the EKF algorithm by expressing the dynamic governing equation as a state space equation. Until recently, the EKF algorithm has been actively used in SI, and this section briefly introduces the EFK algorithm. The state space equation of a nonlinear dynamic system to which an earthquake load is applied can be expressed as shown in Eq. (1):

$\displaystyle\dot{\textbf{X}}(t)=\textbf{f}(\textbf{X}(t),\ddot{\textbf{u}}_{g% }(t))+\textbf{w}(t)$ (1)

In Eq. (1), $\textbf{X}(t)$ denotes the state vector for continuous time and $\ddot{\textbf{u}}_{g}(t)$ denotes the ground acceleration applied to the dynamic system. $\textbf{w}(t)$ denotes the process noise vector with a covariance matrix $\textbf{Q}(t)$ . The measurement equation can be expressed as follows:

$\displaystyle\textbf{Y}_{k}=\textbf{h}(\textbf{X}_{k})+\textbf{v}_{k}$ (2)

In Eq. (2), $\textbf{Y}_{k}$ denotes the output vector at $t=k\Delta t$ for discrete time and $\textbf{X}_{k}$ denotes the state vector at $t=k\Delta t$ . $\textbf{v}_{k}$ denotes the measurement noise vector with a measurement covariance matrix $\textbf{R}_{k}$ . The state space equation for continuous time in Eq. (1) must be expressed in discrete time for interaction with the measurement equation. When $t=k\Delta t$ , the state vector for discrete time can be obtained for every section $(k+1)\Delta t$ through integration. Therefore, the predicted state space equation can be evaluated as shown in Eq. (3):

$\displaystyle\hat{\textbf{X}}_{k+1/k}=\hat{\textbf{X}}_{k/k}+\int_{k\Delta t}^% {(k+1)\Delta t}\!\!\!{\textbf{f}(\hat{\textbf{X}}_{t/k},\hat{\textbf{u}}_{g}(t% ))}\,\mathrm{d}t$ (3)

where the superscript of the state vector $\hat{\textbf{X}}$ indicates the predicted state. In addition, the subscript $k+1/k$ indicates an uncorrected state vector. The predicted error covariance matrix used in Kalman gain for state correction can be calculated by applying Eq. (4):

$\displaystyle\textbf{P}_{k+1/k}=\textbf{F}_{k+1/k}\textbf{P}_{k/k}\textbf{F}_{% k+1/k}^{T}+\textbf{Q}_{k}$ (4)

Here, $\textbf{F}_{k+1/k}$ denotes a state transient matrix, and in order to update the state transient matrix, a Jacobian matrix is calculated using Eq. (5):

$\displaystyle\textbf{F}_{k+1/k}=\textbf{I}+\Delta t\left[\frac{\partial\textbf% {f}(\textbf{X}(t),\hat{\textbf{u}}_{g}(t))}{\partial\textbf{X}(t)}\right]_{% \textbf{X}_{(}t)=\hat{\textbf{X}}_{k/k}}$ (5)

The predicted measurement vector can be obtained by utilizing Eq. (6), which represents the state vector corresponding to the measurement sensor response in Eq. (3), which is the uncorrected predicted state:

$\displaystyle\hat{\textbf{Y}}_{k+1}=\textbf{h}(\hat{\textbf{X}}_{k+1/k})$ (6)

In order to update the predicted state vector of Eq. (3), the Kalman gain is calculated as shown in Eq. (7). $\textbf{H}_{k+1}$ in Eq. (7) is a Jacobian matrix that is a partial derivative of the measurement vector $\textbf{h}(\textbf{X}_{k+1})$ with respect to the state vector $\textbf{X}_{k}$ , which is given by Eq. (10). The predicted state vector in Eq. (3) is updated as shown in Eq. (8) by correcting the residual of the sensor measurement data $\textbf{Y}_{k+1}$ and the predicted measurement vector $\hat{\textbf{Y}}_{k+1}$ with Kalman gain, and the updated error covariance matrix can be calculated by applying Eq. (9):

$\displaystyle\textbf{K}_{k+1}=\textbf{P}_{k+1/k}\textbf{H}_{k+1}^{T}(\textbf{H% }_{k+1}\textbf{P}_{k+1/k}\textbf{H}_{k+1}^{T}$ (7) $\displaystyle\qquad\quad\,\,\,+\,\textbf{R}_{k+1})^{-1}$ $\displaystyle\hat{\textbf{X}}_{k+1/k+1}=\hat{\textbf{X}}_{k+1/k}\!+\!\textbf{K% }_{k+1}(\textbf{Y}_{k+1}-\hat{\textbf{Y}}_{k+1})$ (8) $\displaystyle\textbf{P}_{k+1/k+1}\!=\![\textbf{I}-\textbf{K}_{k+1}\textbf{H}_{% k+1}]\textbf{P}_{k+1/k}[\textbf{I}-\textbf{K}_{k+1}$ (9) $\displaystyle\qquad\qquad\quad\textbf{H}_{k+1}]^{T}+\textbf{K}_{k+1}\textbf{R}% _{k+1}\textbf{K}_{k+1}^{T}$ $\displaystyle\textbf{H}_{k+1}=\left.{\frac{\partial\textbf{h}(\textbf{X}_{k+1}% )}{\partial\textbf{X}_{k+1}}}\right|_{\textbf{X}_{k+1}=\hat{\textbf{X}}_{k+1/k}}$ (10)

2.2 Application of the modal extended dynamic system to the extended Kalman filter

The dynamic governing equation of the multi-degrees of freedom system for earthquake load is as shown in Eq, (11).

$\displaystyle\textbf{M}\ddot{\textbf{u}}+\textbf{C}\dot{\textbf{u}}+\textbf{K}% \textbf{u}=-\textbf{M}\ddot{\textbf{u}}_{g}$ (11)

M is the mass matrix, C the damping matrix, and K the stiffness matrix. In addition, $\ddot{\textbf{u}}$ , $\dot{\textbf{u}}$ , u, and $\ddot{\textbf{u}}_{\textbf{g}}$ indicated the acceleration, velocity, displacement, and ground acceleration of the system, respectively. To estimate the modal parameters, Eq. (11) is expanded into modal coordinates.

$\displaystyle[\textbf{K}-\omega_{j}^{2}\textbf{M}]\textbf{v}_{j}=0$ (12)

The eigenvector (mode shape) v acquired through eigen value analysis by the determinant of Eq. (12) can be represented as the modal matrix $\mathbf{\Phi}$ for all modes. After multiplying this to both side of Eq. (11) and superpositioning the mode, the modal equation for the $j$ th mode can be presented as shown in Eq. (13).

$\displaystyle\ddot{q}_{j}+2\zeta_{j}\omega_{j}\dot{q}_{j}+\omega_{j}^{2}q_{j}=% -L_{j}\ddot{u}_{g}$ (13)

Here, $\omega$ is the natural angular frequency and $\zeta$ the modal damping ratio. The base $j$ denotes the $j$ th mode. $L_{j}$ is the modal participation factor, and $\ddot{q}$ , $\dot{q}$ , and $q$ represent the modal response of the acceleration, velocity, and displacement, respectively.

Applying the modal equation of Eq. (13) that was expanded to modal coordinates to the EKF algorithm requires the sensor measurement vector of Eq. (8) $\textbf{Y}_{k+1}$ for updating the state vector in EKF must be obtained as a modal response. However, acquiring the modal response without additional filtering process is difficult. Therefore, the predicted measurement vector of Eq. (6) $\hat{\textbf{Y}}_{k+1}$ must be acquirable with the system response for application in reality. Using Eq. (14), the modal response can be represented as the system response.

$\displaystyle\ddot{u}_{i}=\sum_{j=1}^{n}{\phi_{ij}\ddot{q}_{j}}=\phi_{i1}\ddot% {q}_{1}+\phi_{i2}\ddot{q}_{2}+\phi_{i3}\ddot{q}_{3}\cdots\phi_{ij}\ddot{q}_{j}$ (14)

In Eq. (14), $\phi_{ij}$ indicates the $j$ th mode eigenvector element from the $i$ th degree of freedom. Additionally, $n$ is the total number of MDOF system’s degree of freedom. Eq. (14) implies that the physical behavior of the MDOF system at the $i$ th degree of freedom is equal to the results of the total sum of modal responses of $j=$ 1, …, $n$ . In Eq. (14), $\phi_{ij}$ multiplied by $\ddot{q}_{j}$ separates by each degree of freedom the modal response $\ddot{q}_{j}$ that includes the response of all degrees of freedom. Thus, the modal response separated for each degree of freedom is represented by Eq. (15).

$\displaystyle\ddot{u}_{ij}=\phi_{ij}\ddot{q}_{j}$ (15)

Based on Eq. (15), the following Eq. (16) is obtained by multiplying $\phi_{ij}$ to both sides of Eq. (13).

$\displaystyle\ddot{u}_{ij}+2\zeta_{j}\omega_{j}\ddot{u}_{ij}+\omega_{j}^{2}% \ddot{u}_{ij}\!=\!-\phi_{ij}L_{j}\ddot{u}_{g}\!=\!\Gamma\ddot{u}_{g}$ (16)

In Eq. (16), $\Gamma$ is the modal participation factor separated for each degree of freedom, and Eq. (16) is a modal equation separated for each degree of freedom from the modal equation of Eq. (13).

Therefore, to convert the predicted measurement vector of Eq. (6) into the form of system response for each degree of freedom, Eq. (16) was developed into an equation for the acceleration, which was reproduced into Eq. (17) as an expression of the sum of the acceleration.

$\displaystyle\ddot{u}_{i}=\sum\limits_{j=1}^{n}(\Gamma\ddot{u}_{g}-2\zeta_{j}% \omega_{j}\dot{u}_{ij}-\omega_{j}^{2}u_{ij})$ (17)

The number of modes in Eq. (17) depends on the total number of the degree of freedom in the direction of the sensor’s measurement. Therefore, n can be up to as many as the degree of freedom. The predicted measurement vector $\hat{\textbf{Y}}_{k+1}$ of Eq. (6) can be determined by the following Eq. (18) through Eq. (17).

$\displaystyle\hat{\textbf{Y}}_{k+1}=\textbf{h}(\hat{\textbf{X}}_{k+1/k})=\sum_% {j=1}^{n}(\Gamma\ddot{u}_{g}-2\zeta_{j}\omega_{j}\dot{u}_{ij}-\omega_{j}^{2}u_% {ij})$ (18)

The predicted measurement vector $\hat{\textbf{Y}}_{k+1}$ of Eq. (16) is determined by the sum of modal response. Therefore, $\hat{\textbf{Y}}_{k+1}$ can be obtained by the system response instead of the modal response. This research uses the top floor response as the system response of Eq. (8). The reason for this is because in general the modal responses of the top floor responses have higher the modal participation ratio in system response with a mode of a lower degree. The following Eq. (19) is the state vector of the structure with three degrees of freedom. In this case, the mode occurs up to the third mode, for which $n$ =3 determined for Eq. (18) and the predicted measurement vector $\hat{\textbf{Y}}_{k+1}$ is determined as $\sum_{i=1}^{3}{\ddot{u}_{ij}}$ if the acceleration response is obtained at the top floor. Additionally, to estimate the state variables of $\omega$ and $\zeta$ , the composition of the state vector that includes $\omega$ and $\zeta$ is as shown in Eq. (19).

$\displaystyle\textbf{X}\!=\!\left[{u_{i1}}\ {\dot{u}_{i1}}\ {\omega_{1}}\ {% \zeta_{1}}\ {\Gamma_{1}}\ \ldots\ {u_{i3}}\ {\dot{u}_{i3}}\ {\omega_{3}}\ {% \zeta_{3}}\ {\Gamma_{3}}\right]^{T}$ (19)

The state space equation for Eq. (19) is as shown in Eq. (20).

$\displaystyle\dot{\textbf{X}}\!=\!\left\{\begin{array}[]{c}{\dot{u}_{i1}}\\ {\ddot{u}_{i1}}\\ {\dot{\omega}_{1}}\\ \dot{\zeta}_{1}\\ \dot{\Gamma}_{1}\\ \vdots\\ {\dot{u}_{i3}}\\ {\ddot{u}_{i3}}\\ {\dot{\omega}_{3}}\\ \dot{\zeta}_{3}\\ \dot{\Gamma}_{3}\end{array}\right\}\!=\!\left\{\begin{array}[]{c}{\dot{u}_{i1}% }\\ {\Gamma_{1}\ddot{u}_{g}\!-\!2\zeta_{1}\omega_{1}\dot{u}_{i1}\!-\!\omega_{1}^{2% }u_{i1}}\\ 0\\ 0\\ 0\\ \vdots\\ {\dot{u}_{i3}}\\ {\Gamma_{3}\ddot{u}_{g}\!-\!2\zeta_{3}\omega_{3}\dot{u}_{i3}\!-\!\omega_{3}^{2% }u_{i3}}\\ 0\\ 0\\ 0\end{array}\right\}$ (20)

2.3 LSTM network for input load estimation

The EKF-LSTM approach developed in this study is a method of estimating the input load by constructing a network between the structural response and input load as an LSTM algorithm. Therefore, the input load becomes the output data in the LSTM algorithm and the structural response becomes the input data. Figure 1 shows a schematic diagram of the specific EKF-LSTM method developed in this study. In Fig. 1, the LSTM unit can be determined by the time series length or the number of time steps. In addition, in the LSTM unit, information about the time sequence of training data is transmitted through the cell state and hidden state. Regarding the learning process in Fig. 1, structural responses as long as the time series are input into the LSTM unit as input data. After passing through the learning layers of the LSTM layers, fully connected layer, and regression layer, the predicted output and output of the input load, which constitute the output data, are compared with a loss function, and the weight of the LSTM unit is updated using the optimizer. As learning by batch progresses, learning state information of time series data between batches is delivered by stateful. Therefore, the time series of the training data is learned dependently regardless of the batch. Further details on the LSTM algorithm can be found in the literature [60, 61]. Furthermore, the loss function used in this research as the mean square error is determined by Eq. (21).

$\displaystyle\frac{1}{2S}\sum_{t=1}^{S}\sum_{d=1}^{R}{(x_{t,d}-\hat{y}_{t,d})^% {2}}$ (21)

In Eq. (21), $S$ is the sequence length of the train data and $R$ the dimension of the output data.

In addition, the adaptive moment estimation (Adam) optimizer applied for optimizing the weight value was proposed by [62]. The weight value update of the train network is determined by the following Eq. (22).

$\displaystyle\theta_{t+1}=\theta_{t}-\frac{\eta}{\sqrt{\hat{v}_{t}}+\epsilon}% \hat{m}_{t}$ (22)

$\theta$ is the weight, bias parameter, $\eta$ the learning rate, $\hat{m}$ the estimate of the first moment (the mean) of the gradients, and $\hat{v}$ the second moment (the uncentered variance) of the gradients. $\epsilon$ as the default value is proposed as 10 ${}^{-8}$ [62, 63].

Figure 1.

Schematic of LSTM for the estimation process of input loads.

2.4 EKF-LSTM

The general flowchart for EKF-LSTM is as shown in Fig. 2. To compose the LSTM network that can estimate the input load, the structural response and the input load, which is the ground acceleration, are acquired from the SI target structure. The network using the obtained structural response and input load as training data is trained through LSTM as shown in Fig. 1. Training proceeds only for the initially set max epoch. The initial state vector is established to use the EKF method for SI. The input load that was estimated through the LSTM network trained during the calculation of the predicted state space equation is used. This study is composed of a state vector that includes the modal responses, frequency, and damping ratio for estimating the modal parameters as shown in Eq. (19). In addition, as mentioned in Section 2.2, the sensor measurement data $\textbf{Y}_{k+1}$ for application to Eq. (8) uses only the top floor responses for proceeding with the EKF.

Figure 2.

Flowchart for EKF-LSTM.

Figure 3.

Training data obtained in numerical verification model: (a) System parameters of 3-DOF model; (b) Structural response used for the input; (c) Ground acceleration used for the output.

3. Numerical verification

3.1 3-DOF numerical model

To verify the proposed method, a dynamic system model with three 3-DOF was constructed and structural responses were obtained through Newmark numerical analysis. The specific system parameters for the model included a mass of 5 kg for each of the first, second, and third floors, with each floor having a stiffness of 1000 N/m. When the model was subjected to eigen value decomposition (EVD), the natural angular frequency was approximately 6.29 rad/s, 17.63 rad/s, and 25.48 rad/s for the first, second, and third modes, respectively, and the damping ratio for each mode was assumed to be 1%. The applied load was a white-noise input load. Furthermore, the sampling frequency is 100 Hz. Figure 3 shows the training data used as input and output data. To divide the training data shown in Fig. 3 into the input and output datasets, 200 pieces of data were generated for each dataset and used for LSTM learning. The learning rate was 0.001, minibatch size was 20, maximum epoch was 5,000, and maximum number of iterations was 50,000. The gradual decrease of the loss function in Fig. 4 indicates that the LSTM network was trained normally.

Figure 4.

Loss function of long short-term memory (LSTM).

Figure 5.

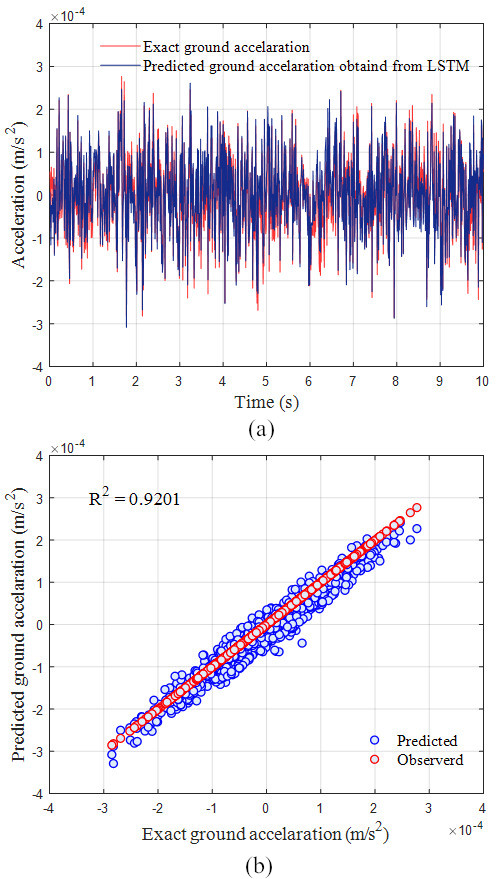

Estimated ground acceleration from LSTM: (a) Comparison between the estimated and the exact ground accelerations, and (b) Scatter plot of predicted and exact results.

Figure 5a compares the estimated and exact ground acceleration results. As shown on the time axis of Fig. 3b, the training was conducted with a time series length of 100 s, but the LSTM algorithm showed results over 10 s. As such, the LSTM algorithm enabled estimation regardless of time. To compare the similarity between the exact ground acceleration and input load estimated by LSTM, the RMS results were compared. The RMS results can be used as a good index for representing the average for the signal that intersects the 0-axis. The root-mean-square (RMS) result for the exact ground acceleration was 9.8739e $-$ 05 m/s ${}^{2}$ , and the estimated result was 1.0336e $-$ 04 m/s ${}^{2}$ . It can be observed that the relative error of the two for RMS is estimated to be approximately 4.6%. Figure 5b shows a scatter plot between the results estimated by LSTM and the observed (measured) results. The more the predicted results in the scatter plot match the observed results, the more linear the plot. In addition, if an estimated result in Fig. 5a shows a shifted bias error off the axis of 0, the scatter plot result will appear as a parallel translation result. In Fig 5b, the results estimated by using the LSTM algorithm show a similar gradient to the observed results, with no bias error. Furthermore, the R-squared value, representing the scale of regression between the predicted and observed results, was 0.9201, indicating a similarity of approximately 92%. Therefore, the input load estimation using the LSTM network proposed in this study proceeded normally, suggesting that EKF-based SI was possible under unknown input using LSTM.

Table 1

Modal parameter results identified as EKF-LSTM and EKF

Methods	Mode	Natural angular frequency (rad/s)				Modal damping ratio
		Exact	Identified without noise	SNR 20 dB	Error (%)	Exact	Identified without noise	SNR 20 dB	Error (%)
EKF-LSTM (EKF)	1	6.29	6.29 (6.28)	6.23 (6.27)	0.00
(0.15)	0.01	0.0101 (0.0103)	0.0096 (0.0097)	1.0 (3.0)
	2	17.63	17.64 (17.59)	18.15 (18.05)	0.06 (0.22)	0.01	0.0099 (0.0101)	0.0095 (0.0096)	1.0 (1.0)
	3	25.48	25.60 (25.44)	24.03 (24.52)	0.47 (0.15)	0.01	0.0098 (0.0103)	0.0118 (0.0116)	2.0 (3.0)

Figure 6.

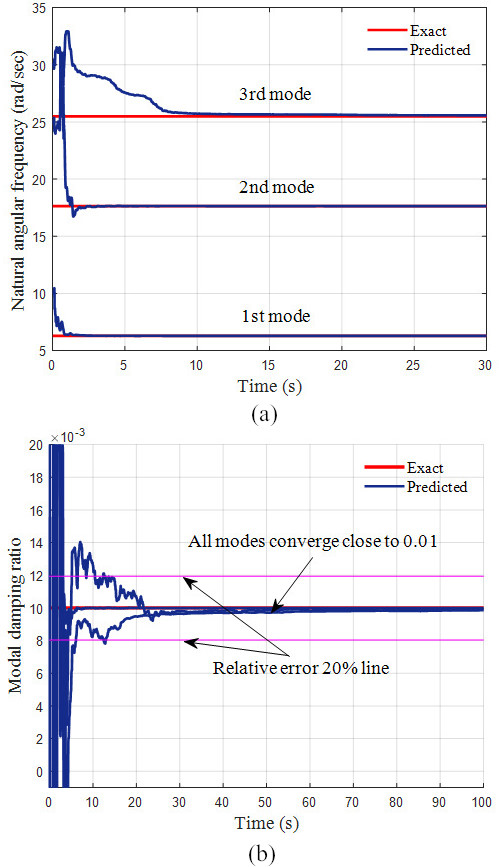

Natural frequency estimation and relative error plots. (a) Natural frequency and (b) Modal damping ratio.

As it is necessary to set the initial values of the state variables of the initial state vector to execute EKF-based SI, the initial values for modal responses up to the third mode were set to zero, the natural angular frequencies and the modal damping ratios were set to $\omega_{1}=$ 10 rad/s, $\omega_{2}=$ 25 rad/s, $\omega_{3}=$ 30 rad/s and $\zeta_{1}=\zeta_{2}=\zeta_{3}=$ 0.5, respectively. The initial error covariance matrix P ${}_{0}$ was set to diag{1, 1, 10 ${}^{10}$ , 10 ${}^{10}$ , 10 ${}^{10}$ , 1, 1, 10 ${}^{10}$ , 10 ${}^{10}$ , 10 ${}^{10}$ , 1, 1, 10 ${}^{10}$ , 10 ${}^{10}$ , 10 ${}^{10}$ }, process noise covariance matrix Q to 10 ${}^{-4}$ I ${}_{15}$ , and measurement noise covariance matrix R to 10 ${}^{-4}$ I ${}_{1}$ . The input load was estimated using LSTM for 100 s, equal to the time series length of the training data, and was applied to EKF for SI. Figure 6 presents the SI results obtained by using the EKF-LSTM method. Figure 6a shows only the convergence results up to 30 s, as the obtained natural angular frequency is a constant value after 30 s. The RMS natural angular frequency after 20 s estimated by the EKF was identified to be 6.29 rad/s, 17.64 rad/s, and 25.60 rad/s for the first, second, and third modes, respectively. The EVD results were approximately 6.29 rad/s, 17.63 rad/s, and 25.48 rad/s, with an identification error of less than 1%. The modal damping ratio was identified as 0.0101, 0.0099, and 0.0098 for the first, second, and third modes, respectively, after 20 s. The damping ratio was identified with a maximum relative error of 2%. Considering the error at the fourth decimal place in the damping result, even the damping result, which showed a relatively large error, also provided similar estimation results, proving the effectiveness of the EKF-LSTM method developed in this study. Regarding the convergence speed of the state vector, the convergence speed to the correct value of the natural angular frequency and modal damping ratio can be determined by the P ${}_{0}$ matrix. If the P ${}_{0}$ matrix values are greater than the determined values in this research, the convergence speed could be improved, but the state vector stability will decrease. Moreover, the Q and R matrices are initial parameters determined by the process noise and measurement noise, and they are one of the critical parameters along with the P ${}_{0}$ matrix that determine the state vector convergence. Accordingly, the P ${}_{0}$ , Q, and R matrices were determined through the customary trial and error method. The individual optimization method of the initially set EKF parameters can be found in the following reference [41].

Figure 7.

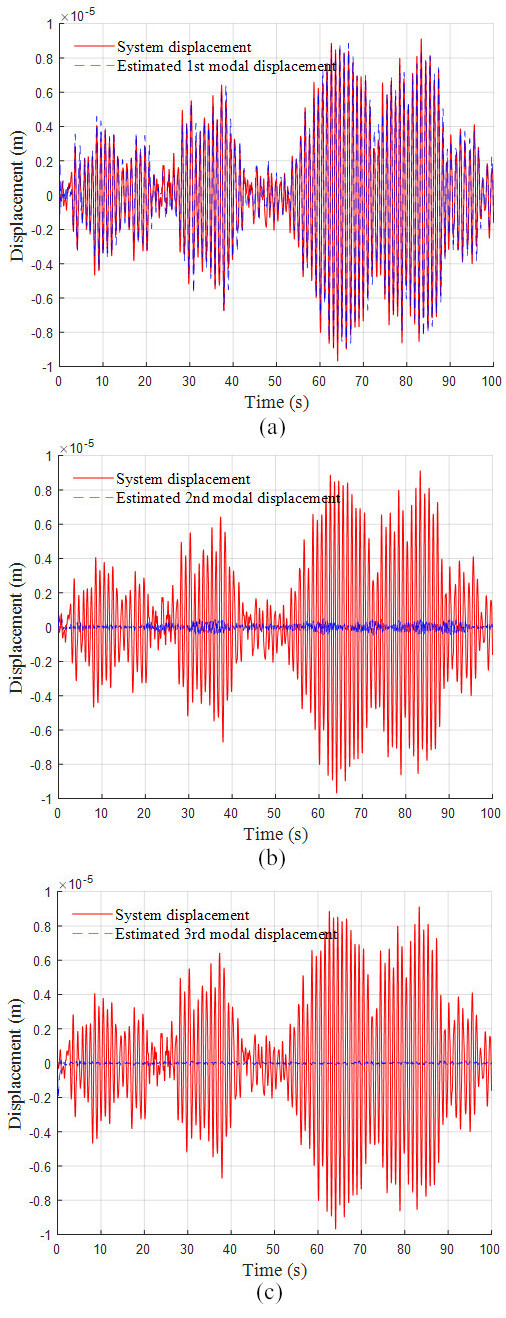

System response estimation: (a) 1 ${}^{\text{st}}$ modal response of displacement, (b) 2 ${}^{\text{nd}}$ modal response of displacement, (c) 3 ${}^{\text{rd}}$ modal response of displacement.

Table 1 presents the identification results using the EKF-LSTM and conventional EKF methods. To examine the impact of noise on the EKF-LSTM method, results for the case of the signal noise ratio (SNR) or the input and structural response being 20 dB was included. The LSTM network for estimating the input load when SNR $=$ 20 dB was additionally composed, and the training data having SNR $=$ 20 dB and no noise was applied. The learning data and max epoch for training was identical to the value set above. Additionally, the error listed on the table was relative error, which was indicative for the results of identification without noise. The results of EKF-LSTM and conventional EKF methods were obtained within the relative error of 1%. No significant difference was presented between the two methods, other than the EKF method using accurate values obtained from numerical analysis of the input load but the EKF-LSTM method using input load estimated by the LSTM network not generating noticeable error from the estimated results. Thereby, the accuracy of the input load estimation by the LSTM network was demonstrated, which accentuates the advantages of the use of the EKF-LSTM method for unknown inputs. Additionally, the application of the LSTM method eliminates computational time issues that may occur during input load estimation. In the case of SNR $=$ 20 dB noise being included, the error rate of convergence results tended to increase in all primary to tertiary modes. In particular, the error of the third mode increased significantly, which was attributed to the noise and high uncertainty of the third mode response because the top floor response was used. Further, the error of the EKF-LSTM and conventional EKF methods increased. In this study, noise was not included in the previously trained LSTM network. Therefore, the LSTM network that was trained without noise did not generate good results for responses including noise. However, the LSTM network that uses responses with and without noise as training data was able to estimate the input load up to regression scale of R square 93% both when SNR $=$ 20 dB and noise was absent. Further studies on the impact of noise are required in detail for the application of this method in real buildings because noise problems can occur due to environmental impact. Specific analysis regarding this issue is discussed in subsequent research on real building application.

Furthermore, the EKF-LSTM method can estimate the modal response because it is composed of state variables, as indicated in Eq. (19). Figure 7 presents the modal displacement responses of the first through third modes estimated on the third floor. Figure 7a shows the first modal displacement response, which is already similar to the system displacement response with only the first mode. This indicates that the contribution of the first modal response to the system response was large. Because the sum of the first through third modal displacement responses represents the system displacement response, the RMS result of adding all the modal responses obtained from the EKF-LSTM method was estimated to be 3.3149e $-$ 06 m. The RMS result of the system displacement response was 3.2834e $-$ 06 m, and the relative error with the estimated result was identified as being less than 0.96%. This result was smaller than the 4.6% error of the input load estimated by using the LSTM algorithm. Because the RMS error of the input load was approximately 4.6%, the estimated response could also have an error of approximately 4%, but the correction effect obtained through the Kalman gain of the EKF algorithm seemed to have led to a more accurate estimation. Thus, the EKF-LSTM method proposed in this study was also effective in system response estimation.

Figure 8.

Steel-frame structure model design: (a) Front view, (b) Side view, (c) Experiment model.

4. Experimental verification

4.1 Experiment verification using steel-frame structure

In this section, the structural response was obtained by performing excitation experiments on the steel frame structure model, and the effectiveness of the EKF-LSTM method was verified using this response. The design information about the steel frame structure used in the study is provided in Fig. 8. The accelerometer used was a PCB333B50 sensor from PCB, which had a sensitivity of 1000 mV/g and a full-scale range of $\pm$ 5 g. The data logger was an IOtech 640u from NI Instruments. The shaker was an APS400 from APS Dynamics capable of long strokes and low-frequency excitations. To verify the EKF-LSTM method, measurement data were acquired at a sampling frequency of 256 Hz, and the measurements were performed for approximately 300 s.

The responses for approximately 235 s were used as the training data by selecting only the responses with white noise from the measurement data for the initial 300 s. Figure 9 shows the acquired training data.

The obtained response was subjected to a fast Fourier transform (FFT) to obtain the natural frequency and mode vector of the steel frame structure model. When the FFT was performed, the natural frequencies were obtained as 4.48 Hz, 14.08 Hz, and 20.09 Hz for the first, second, and third modes, corresponding to 28.148 rad/s, 88.467 rad/s, and 126.229 rad/s, respectively. Because the mode vector result corresponding to the natural frequency showed the first through third eigen shapes in Fig. 10b, the measurements seemed to have been performed accurately.

Figure 9.

Training data: (a) Acceleration for the input and (b) ground acceleration for the output.

Figure 10.

Modal parameters of steel frame model.

The modal assurance criterion (MAC) was calculated based on the acquired mode vector to apply the FDD method, and the modal damping ratio was identified using a spectral bell function of MAC 0.9 or higher. The modal damping ratios obtained through the FDD method were 0.0113, 0.0055, and 0.0033 for the first, second, and third modes, respectively. To use the training data in Fig. 9 for learning, the 60,000 data points for the total time series were divided into groups of 400 data points, yielding 150 training data sets. Among them, 30 data sets (20%) were used as test data. As for the hyperparameter settings for learning, the learning rate was set to 0.0001, batch size to 60, and maximum epoch to 200,000. Figure 11 shows the loss function of the trained LSTM network. As the learning progressed 400,000 times, the loss function curve gradually converged, suggesting that the learning had progressed normally.

There were 30 test datasets in total, and considering that each dataset had 400 data points and the sampling frequency was 256 Hz, each dataset corresponded to approximately 1.56 s. Therefore, the test data had a time series length of approximately 46 s, and Fig. 12a shows the ground acceleration predicted by the LSTM network for 46 s. In the R-squared result representing the regression scale of the scatter plot in Fig. 12b, approximately 93% of the curve fitting is shown.

Figure 11.

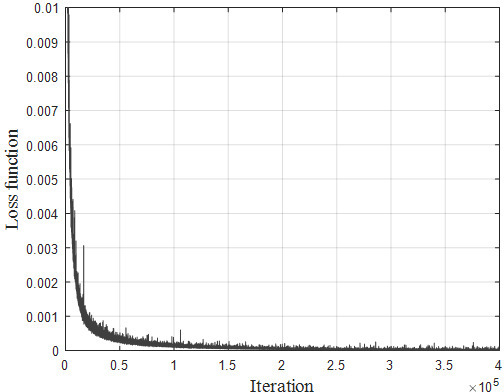

Loss function plot as a function of the number of iterations.

Figure 12.

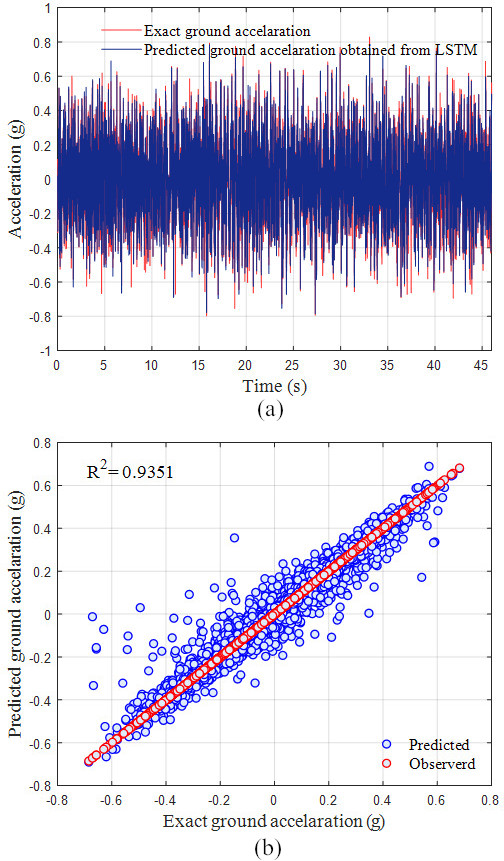

Estimated ground acceleration based on LSTM: (a) Acceleration plot as a function of time, and (b) Scatter plot.

SI was performed using the predicted ground acceleration in Fig. 12 for the EKF. To execute the EKF, the initial modal responses up to the third mode were set to zero, the natural angular frequencies and the modal damping ratios were set to $\omega_{1}=$ 40 rad/s, $\omega_{2}=$ 100 rad/s, $\omega_{3}=$ 150 rad/s, and $\zeta_{1}=\zeta_{2}=\zeta_{3}=$ 0.5. The initial error covariance matrix P was set to diag{1, 1, 10 ${}^{6}$ , 10 ${}^{6}$ , 10 ${}^{6}$ , 1, 1, 10 ${}^{6}$ , 10 ${}^{6}$ , 10 ${}^{6}$ , 1, 1, 10 ${}^{6}$ , 10 ${}^{6}$ , 10 ${}^{6}$ }, process noise covariance matrix Q to 10 ${}^{-4}$ I ${}_{4}$ , and measurement noise covariance matrix R to $10^{-1}$ I ${}_{1}$ .

Figure 13.

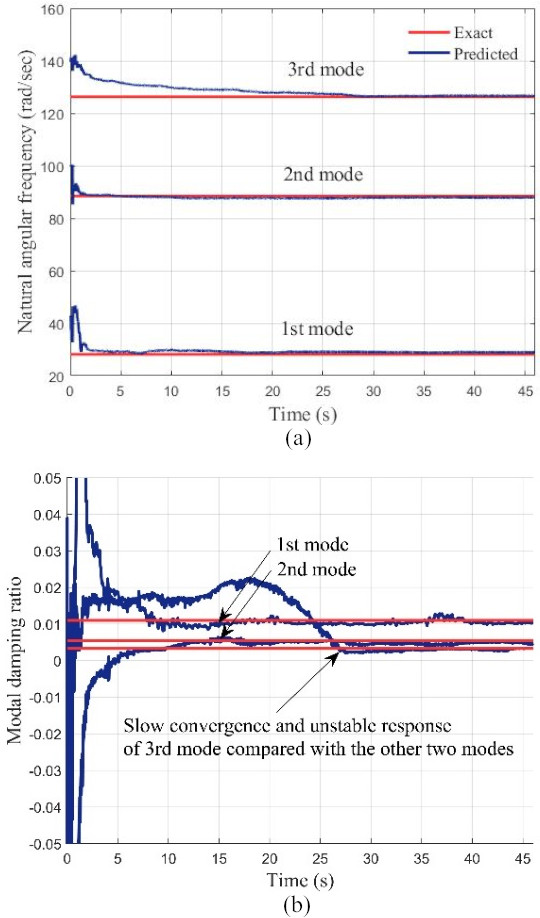

Modal parameters of steel frame structure (a) Estimated natural frequencies, and (b) Modal damping ratio.

Table 2

Modal parameters identified from each method

Mode	Natural angular frequency (rad/s)			Modal damping ratio
	EKF-LSTM	FDD	Error (%)	EKF-LSTM	FDD	Error (%)
1	28.360	28.148	0.75	0.0105	0.0113	7.1
2	88.710	88.467	0.2	0.0051	0.0055	7.2
3	126.882	126.229	0.5	0.0028	0.0033	15

Figure 14.

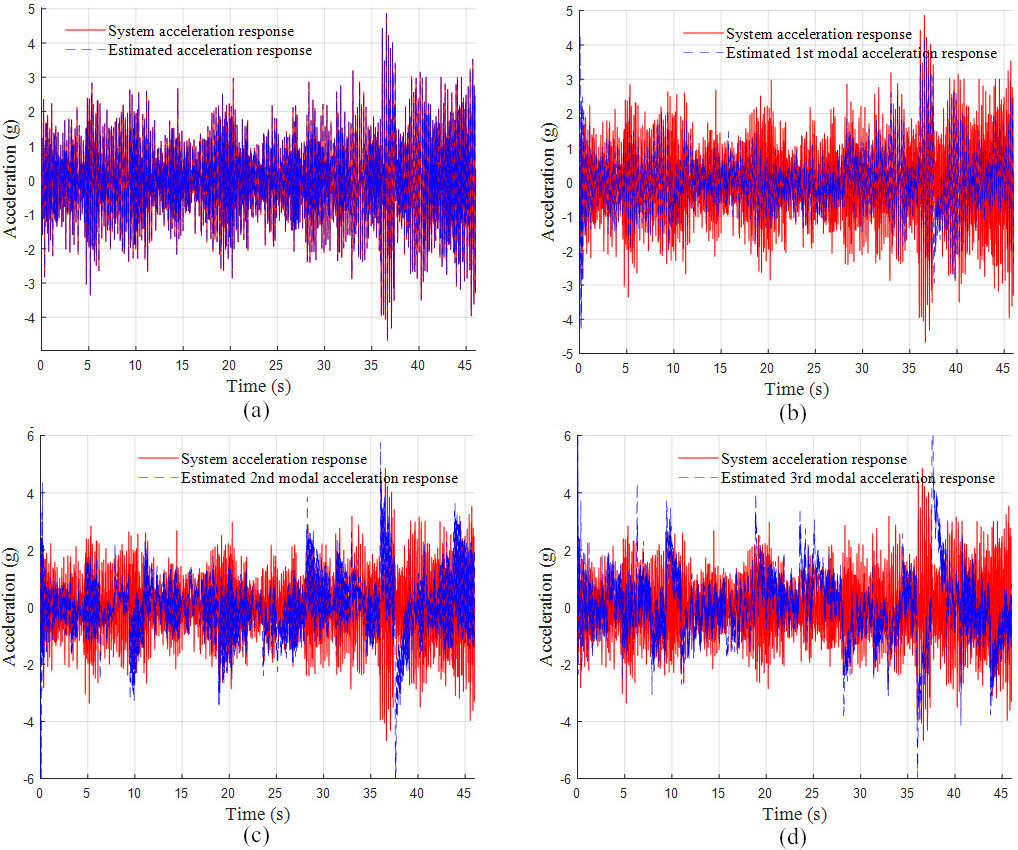

Estimated responses: (a) system and estimated acceleration responses, and corresponding responses for the (b) 1st, (c) 2nd, (d) 3rd modal accelerations

Figure 13 shows the modal parameters estimated by the EKF-LSTM method. As shown in Fig. 13a, the natural angular frequency was calculated to be 28.148 rad/s, 88.467 rad/s, and 126.229 rad/s for the first, second, and third modes, respectively. The predicted first natural angular frequency was 28.36 rad/s when the RMS was averaged after 10 s, showing a relative error of 0.75% from the results obtained by FFT. In addition, the predicted second natural angular frequency was 88.71 rad/s, indicating a relative error of approximately 0.2%. The predicted third natural angular frequency showed a slower convergence rate than the first and second modes, which may have been due to the low contribution of the third mode to the top floor response, as described in Section 2.2. The predicted third natural angular frequency was 126.882 rad/s from the RMS average at approximately 30 s, showing a relative error of approximately 0.5%. Figure 13b depicts the modal damping ratios, and the RMS results were identified as being 0.0105 and 0.0051 for the first and second modes, respectively, after approximately 10 s. These results indicated a difference of approximately 7% between the results identified by the FDD method and the maximum relative error. Considering the uncertainty of the modal damping ratio, the EKF-LSTM method seemed to show effective performance in the identification of the modal damping ratio. The third mode converged more slowly than the other modes, showing an unstable convergence curve, similar to the natural angular frequency result. This instability may have been due to the fact that the third mode had a low contribution to the system response. The RMS result from approximately 25 s after convergence was identified to be 0.0028.

Figure 14 shows the modal acceleration response estimated by the EKF. In the modal responses in Fig. 14b–d, the mode contribution to the system response changes with increasing mode order. In Fig. 14a, the response by adding all the first to third modal responses appears in a shape similar to the system acceleration response. The relative error between the average RMS result in Fig. 14a, which is the sum of the estimated modal responses, and the system response was calculated to be less than 1%. Table 2 summarizes the modal parameter estimation results by comparing the EKF-LSTM and FDD methods. To explain further, the modal response should show the shape of a sinusoidal wave, where the response scale becomes smaller for a higher mode. This tendency was not observed in Fig. 14b–d as the data were shuffled when composing the training data.

Figure 15.

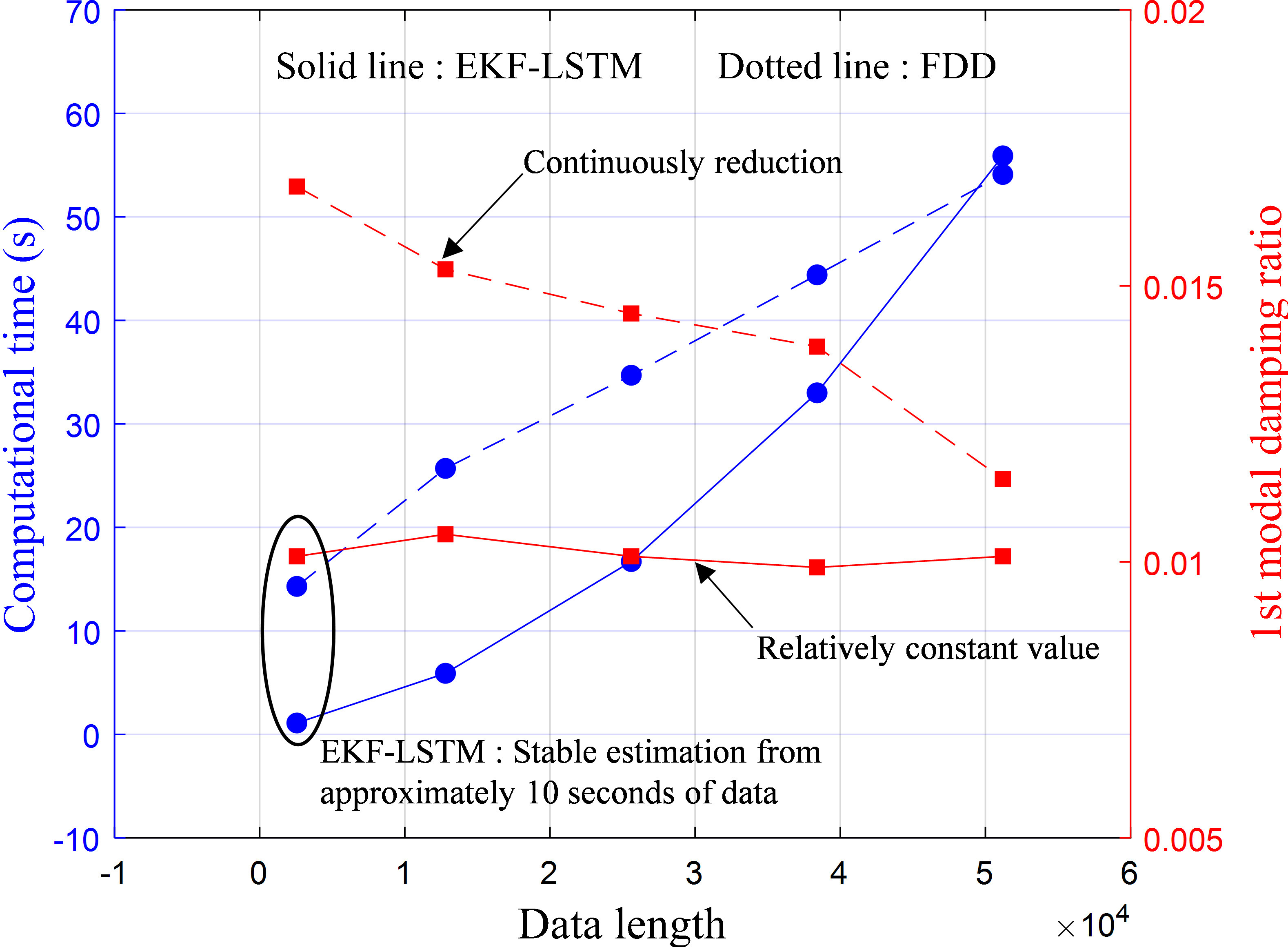

Computational time for each method.

Figure 15 compares the computational time according to data length of the EKF-LSTM and FDD methods. In the application of EKF-LSTM, data was accumulated and the change in computational time had a parabolic form. The FDD method showed a linear pattern in the change in computational time, and this method could be considered to be more efficient. However, the results of the modal damping ratio of the FDD method shows a continuous decrease which approximated to about 0.01 from 200 s and above. Therefore, data for 200 s or above must be used for the application of the FDD method. In the application of the EKF-LSTM method, results of about 0.01 is obtained relatively constantly from about 10 s data. Thus, the computation of EKF-LSTM method was concluded to be more efficient. This method based on the EKF algorithm is able to estimate data real-time for each discrete time delta $t$ . Meanwhile, the FDD method uses all measurement data at once for modal analysis, and identification is impossible until the analysis is complete.

To summarize the results obtained for the steel frame structure model using the EKF-LSTM method, the estimated natural angular frequency showed an error of less than 1%; the modal damping ratio, which has a relatively large error, shows an error within about 15%. Furthermore, the sum of the modal response showed an estimation result of less than 1% error compared with the displacement response. Among the results of the modal parameters, the modal damping ratio showed a rather large error of 15%, but it was still judged to be reliable considering the uncertainty of the modal damping ratio. Therefore, the effectiveness of the EKF-LSTM method proposed in this study is demonstrated in actual structural applications.

5. Conclusions

This research proposes the EKF-LSTM method that discerns the modal parameters with unknown input and without computational burden. This method was verified through the 3 DOF dynamic system model, and all modal parameters were distinguished with less than 2% maximum relative error. Further, less than 1% identification of natural angular frequency was shown in the validation through the steel frame structure model with 3 floors. For the modal damping ratio, a somewhat large difference of 15% was shown in the third mode. Only the top floor responses were used, which is why the contribution of the third mode was low and error had occurred. Considering the uncertainty of the modal damping ratio and that the difference was at the third decimal digit, the modal damping ratio results can be identified as a valid result. Additionally, the EKF-LSTM method shows that the modal damping ratio converges to a certain value from 10 seconds of data length from computational time according to the data length. Therefore, it was found to be advantageous in terms of the computational time in comparison to the conventional identification method.

The EKF-LSTM method only uses the top floor responses, and the estimation results lose accuracy as it approaches higher modes. If additional research could complement this drawback, the method will be practically applicable in actual buildings. The input load and structural response training data must be acquired before LSTM training for EKF-LSTM application in actual buildings. In actual buildings, input load and structural response may be impossible to obtain because ground loading is difficult. Therefore, to apply the EKF-LSTM method to real buildings, additional research must verify whether the input load and structural response obtained from the model updated finite element model that mocks the actual structural behavior can be used as training data. Further, research on the applicability of the input load as an alternative to the unobtainable ground acceleration is required by transforming the input load into the load of each floor.
