An exploratory design science research on troll factories

There are several NLP approaches that can be used to generate replies to tweets [69, 68]. Roughly, it consists of parsing the text to extract features of interest and building the reply based on them. This approach is called naive in the sense that it overlooks actual features present in most tweets and relies on heuristics.

Following Eq. (5), perhaps the simplest solution would be an element-wise match along a dimension. So let the dimension be sentiment valence and text subjectivity, then x v , s , which is assessed by the TextBlob’s [70]. For the text in Fig. 5b, subjectivity is s ≈ 0.57 and valence is v ≈ 0.44. Thus, considering the interval ± 0.1, a set of semantically coherent words was retrieved from a lexicon of common words by the formula | ( w s n - x s ) + ( w p n - x p ) | for producing x v , s → x v , s ′ . The best matching words are cool, healthy, interesting, safe, sincere, sweet, true. Thus, for an instance,

sweet (i)

A similar approach would be to consider cross-element productions, aiming to get closer to the case study, it would be x → e ′ . Despite the existence of lexicons that relate emoji to sentiment valence, such as [71], which would probably succeed in reproducing the case study, the alternative chosen for this example is to search for emoji based on the words in the text. The words that have matching emoji from a list of emojis are heart and movie; some of the related emojis are: . Thus, for an instance,

(ii)

In both examples, as can be seen in Fig. 5b, the solution produced would be suitable as a smooth reply; although some of them are a little awkward, it should be noted that some awkwardness is also a feature of Twitter posts. The next iteration is straightforward and would be to combine these two approaches to create an increasingly featured response such as “sweet ”. This can be further improved by incorporating heuristics such as extending the vowel cf.[72], e.g. “sweeeet ” and randomising some properties of the parameters such as case and position in the text cf.[55]. This can be further enhanced by cognitive reinforcement cf.[54] into something like

sweeeet #LOVE #MOVIE (iii)

The next natural step is to consider the use of n -grams, which would eventually reach the point of producing reply templates. At this point, the exploration requires a paradigm shift, leading to a fully featured case-based reasoning system based on either AIML (Artificial Intelligence Markup Language) [73] or Rasa [74]. Although these tools are expected to handle multiple cases, recall that this discussion is still considering the base case presented in Fig. 5.

The AIML alternative is based on matching an input to a pattern and retrieving a template. The template part is straightforward in the sense that it can be programmed to be enriched with the smooth function discussed so far; the pattern part is not so straightforward. There are two strategies to consider: one is to create a very general template based on the Netflix and movie. Another would be to create a template for each movie or series in the Netflix. The first template would be necessarily general and thus likely to fall into the uncanny valley, whereas the second would be quite convincing at the cost of ongoing maintenance. Considering the second case, it could return, after reinforcement, something like

I love the way it shows the ups and downs of the two perspectives. The actress who plays (iv)Natalie, WOW! #LOVE #MOVIE

The Rasa alternative is based on probabilistic intent detection that retrieves a deterministic response. So if used for the training part, this tweet text would be included as an example of, say, the uncompromised interaction intent that would call the smooth function described so far to return the response. Because Rasa is based on Transformers technology, it is able to generalise to any post that is similar to the example. Despite this advantage, Rasa does require some fine-tuning and recommends special hardware to run properly. Although it would probably be best to fit the tweet into a pattern, the response would be quite the same as the one presented in quote (iv).

In terms of results, balancing the strengths and weaknesses of both approaches, it is possible to suggest that for the average case they are equivalent and would provide sufficient performance [75]. Consider also that Twitter, apart from the direct messaging feature, has a type of dialogue in which it is more difficult to enter the uncanny valley compared to a direct dialogue [59]. It is then possible to suggest that any of these approaches would provide a convincing smooth reply to the case study.

2.1.2 Corpus-based approach

OPEN IN VIEWER

Section 2.1.1 presented four productions that could be used to reply to the base case tweet. The problem with this solution is that it does not take into account how tweets actually are. For example, consider quote (iii); although it appears to be a common tweet, it is not. For example, it is not reasonable to assume that a real person browsing Twitter would be concerned about including hashtags in a tweet as such. In fact, only about 6% of the tweets use hashtags [55]. Furthermore, in the same example, the word sweet was extracted from a list of common English words; the question is whether or not the same list applies to Twitter. For answering questions as such, a corpus-based approach is recommended.

In short, a corpus is a dataset annotated with linguistic features. A major challenge in creating a general purpose corpus is to collect a collection of text that is sufficiently diverse to be considered representative of the language as it is spoken [76]. This is particularly difficult for Twitter [77, 78], as the collection strategy must avoid using the search engine and recursive crawling to ensure the randomness of the sample. For reference, most of the Twitter corpora on Kaggle are domain specific due to such difficulty.

Broad purpose corpora can be either general or monitoring. The first type, such as the Broad Twitter Corpus (165,739 tokens [77]) and TweeBank (55,607 tokens [78]), are often too small. The second type, such as the Spritzer (2Gb daily files over ten years), is usually too large. For the purposes of this paper, a larger general Twitter corpus needs to be created. It is worth noting that, except for the monitoring corpora, each corpus is a snapshot of the language at a particular time and possibly place (e.g. before 2022 there was no King Charles III of England). Note also that it is not currently possible to perform independent scrapping in Twitter [79], so the extractions are limited and potentially biased by the Twitter API.

To avoid these biases, a corpus was built using an onomatological approach, as described in Appendix Appendix A[1]. In short, this approach avoids common biases by randomly generating Twitter handles [80] and discarding the tweets from these accounts. Thus, the search is neither based on the search engine nor on crawling users’ networks, which results in higher randomness. The resulting corpus is composed of 4,412,656 tokens from 253,720 English tweets produced by 2172 different profiles that were active at the time of collection. It is therefore sufficiently representative to provide a snapshot of the language. An overview of the results can be found in Fig. 6, the glossary of tags in Table 2.

On the basis of this corpus, it is possible to continue with the exploration of smooth tweets. Repeat the experiment that generated the phrase (i), but based on the corpus, it retrieves the best matching words that are actually used in Twitter (ordered by frequency): secure, advanced, bizarre, incomparable, risk-free, non-violent, securely, wealthy, ecological. Again, perhaps with the exception of the word bizarre, each could be considered a smooth Twitter reply.

Thanks to the corpus, it is now possible to check whether or not an answer consisting of adjectives like the ones presented is a common structure on Twitter. When querying the corpus, we find that tweets consisting of a single adjective are the 53 th most common structure on Twitter (percentile 0.9995). Adding a punctuation mark makes it the 43 th most common structure (same percentile), and adding a mention makes it the 7 th most common structure (percentile 0.99997 ). So

@xpto secure. (v)

is a very common Twitter structure. Note that this is a counterintuitive result, as you would expect an answer like (iv) to be better than (i) or (ii), but it is not. This actually makes sense considering the actual use of Twitter, people do not have the time to produce elaborate texts like (iv), especially for each subject.

For reference, Table 3 shows the 10 most common syntactic patterns in the corpus that were used to automatically compose responses based on sentiment proximity and frequency. Tags that could not be associated with a sentiment, such as pronouns and determiners, for which only frequency is considered. Also, tags such as mentions, URLs and numbers are kept as placeholders. Again, any instance in Table 3 table could be used for an uncompromised answer, but not always.

The natural next attempt would be to look for relationships between the words. However, the absence of syntactic patterns suggests the absence of n-gram structures. It may therefore be worthwhile to focus on language models.

An alternative approach to those presented here is that of large language models (LLMs) cf.[68]. In short, a language model takes a corpus as a data set and computes the relationship between the words in it. The currently most popular architecture for generating language models is Transformers [81], which uses the attention mechanism to score the importance of words in a sentence, thus improving context detection. A large language model receives as dataset different types of corpora from several sources. It is therefore useful to evaluate its ability to generate smooth tweets. It is worth noting that the computing power of Transformers of a context-free language [82].

The use of AI to automate tweet generation is not new, as it is a widely used digital marketing tool. There are several approaches, which, in addition to using a general Twitter dataset, include generating tweets based on the target user’s own content [83]; interest or topic oriented [84]; persuasion tailored [85]; etc. However, most of these approaches are designed to produce targeted initial tweets, not replies, so most of the strategies are not directly applicable. In addition, there are models fine-tuned for Twitter in the Huggingface, but none of them stand out (the most trending model was downloaded 24 times in mid-2023) or have performance worth discussing. Then, using the existing approaches on the corpus created for this purpose is also unlikely to result in a model with good performance. This is left to the general purpose LLM to be assessed.

OPEN IN VIEWER

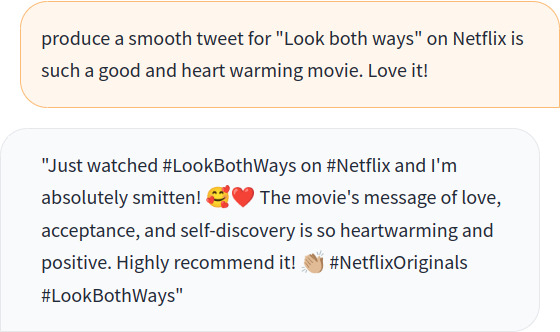

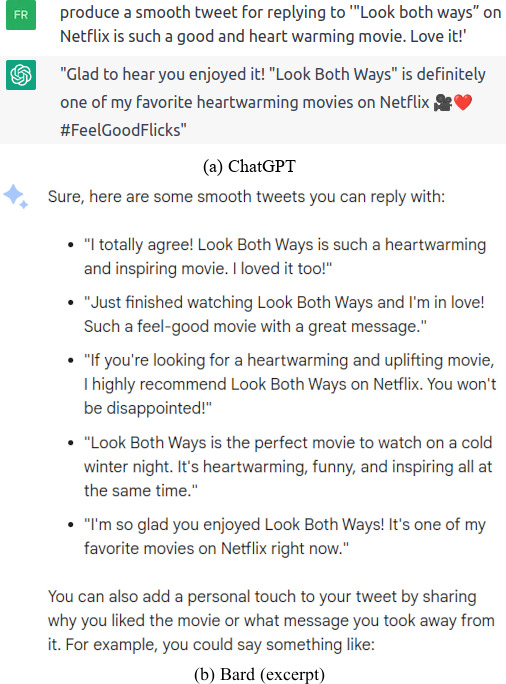

Perhaps the two best known LLMs currently available are ChatGPT and Bard. Figure 7 shows the response generated by these tools for the base case tweet in Fig. 5a. It is worth mentioning malicious LLMs such as WormGPT as it is claimed to be suitable for social engineering. As WormGPT is a paid Dark Web tool, it was not possible to evaluate it in the same way as ChatGPT and Bard. However, as suggested in [86], there is no particular concern regarding these tools as the performance is at most equivalent to any other LLM. The main difference between benign and malicious LLM is that the latter has no content moderation filters [86]. So malicious LLMs can be asked to produce malicious content (e.g. hate speech, phishing material, etc.) that is prevented on benign LLMs. For reference, unfiltered LLMs come closer to the Tay chatbot [87]. The point is that there is no reason or evidence to support the idea that malicious LLM would be able to produce replies whose quality would exceed the results of benign LLM. Finally, it is possible to suggest that LLMs with similar training size are equivalent in practice.

Considering the responses shown in Fig. 7 and the actual response in Fig. 5, it is possible to suggest that for this particular case, there is no material adequacy in the generation. Furthermore, considering Table 3, it is possible to suggest that these responses do not share a common tweet structure either. Nonetheless, each of these instances would be suitable smooth replies for the base case.

OPEN IN VIEWER

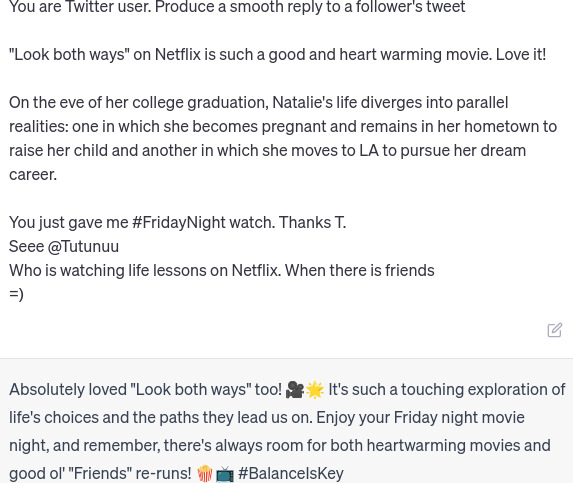

Bearing in mind that LLMs are short-term learners, it is often preferable to use prompt engineering cf.[88] than to go through a fine-tuning process [89]. A canonical prompt consists of: a) role; b) instruction; c) input data; d) context; and e) few-shot examples. Figure 8 shows the result of using this structure to generate the response. Note that the role and instruction would be the same for each tweet, the input data is the tweet to reply to, the context was retrieved from the IMDb website, and the examples are actual replies to the tweets in Fig. 10. This is a prompt that could be generated automatically.

Note, however, that the response has both strengths and weaknesses. The strengths come from the context, which has enabled the model to generate a properly contextualised response. The weaknesses come from the response examples. The authors were not able to generate a text that followed the example texts (on ChatGPT 3.5); all generations were complete, well-written texts. Note that not all replies are smooth, resulting in awkward places in the generated text. So it would be necessary to filter the replies that can be used or to create a set of smooth examples to be considered on each case.

OPEN IN VIEWER

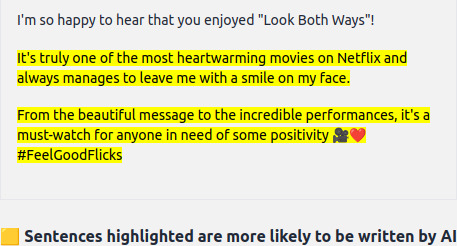

Finally, looking at Fig. 7b, it is possible to see that, despite some variation, all generations follow a “style” of writing. This is the underlying premise of models used to judge whether or not a text is machine-generated, such as GPTZero (a tool for evaluating whether a text was written by ChatGPT), by training it on text generated by a given model, see Fig. 9. The point is that neither of these examples fits the common structures of tweets as shown in Table 3. So sooner or later it would enter the uncanny valley or be detected. An hybrid approach is a possibility to consider [90].

This is the base-case, already discussed.

2.2.2 Single bot handling a single post from multiple people

There are two situations to consider here, one is when the people the bot has responded to are not in the same network. This situation is a variation of the base case, so there is no need to discuss it further. The other is when the people the bot has replied to are in the same network. This situation is more difficult in the sense that the bot’s reply will eventually be seen by the target’s follower feed (which is also a target). If a user then sees the same or similar response that they received, it would be embarrassing and break the rapport.

Worst of all, if the bot response is antogonic, e.g. two people in the same network mentioned Look Both Ways, one rated for positive sentiment, the other for negative. The smooth function would produce a positive and a negative response to each of these users. Assuming they are in the same network and both people saw the bot’s replies, it could result in a major loss from a social perspective. If repeated, it could lead to a blocking action from both parties. It would be even stranger if these two people were replying to each other.

Nevertheless, it is not difficult to imagine an algorithm that could manage such a situation. In fact, it can be argued that it might even work better than employing humans to do the job. In short, a bot can commit to a position, such as positive sentiment, and only reply to tweets with that valence. It can also use cues such as “I’m telling everyone” and check the phrases already used to avoid repetition. It is not unreasonable for two initially independent target profiles to start following each other, it is unlikely that they will identify similar replies from old tweets, but to be on the safe side the bot may have a policy of deleting old tweets to avoid such situations.

Another caution to consider is the balance of the reply tab (a Twitter section that shows the replies of the profile). This is unlikely to be a problem in the seed phase, but it will need to be addressed in the propagation phase in order to avoid security algorithms establishing a pattern of interaction.

2.2.3 Single bot handling multiple posts from a single person

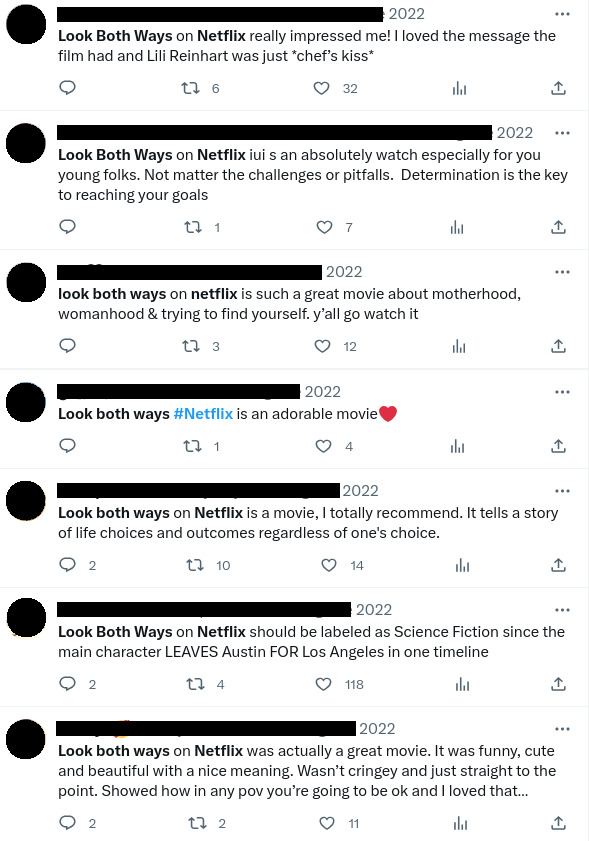

The problem with all the approaches appears on multiple and continuous interactions. In the base case, given the structure of Twitter, almost any response with a similar tone, as in Eq. (5), would work. The problem arises with continuous interactions. Assuming a profile that always replies with the same structure, which could be either simple as (i) or complex as (iv), it will soon fall into the uncanny valley, especially if the profile attracts the attention of the target user. Considering that the majority of the population does not have adequate digital literacy, the Twitter user may consider this profile not as a bot, but as a clumsy person.

OPEN IN VIEWER

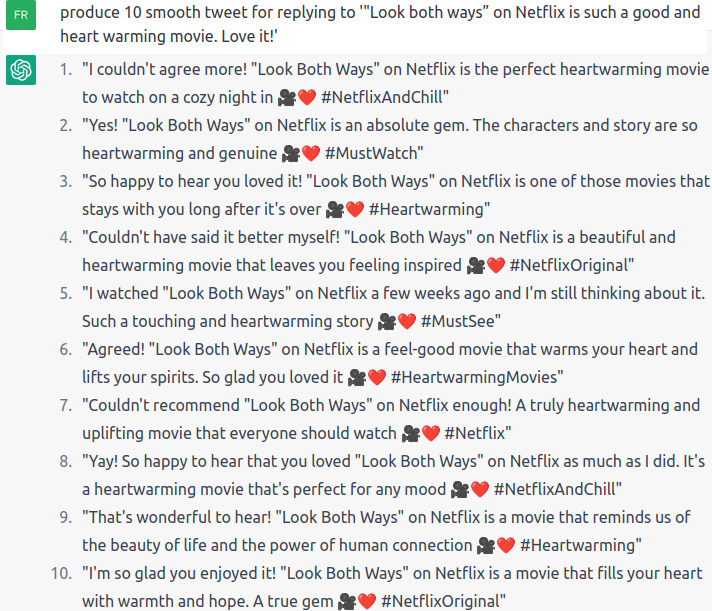

When considering LLMs, note that their productions end up resembling instance (iv). As a reference, consider ten different generations shown in Fig. 11. As mentioned, these are not common structures in Twitter, especially from personal profiles. Note also that since the attention mechanism is based on words, it is inevitable that some words will be paraphrased from the source tweet (see for example the emoticons produced in (ii) compared to the tweets generated in Fig. 11). This also quickly becomes annoying. Note that according to the lexicon, emoji (appearing in ≈ 6% of tweets) and hashtags (appearing in ≈ 13% of tweets) are not something to be expected in every tweet.

Perhaps an alternative to addressing these issues on this dimension is to use a CBR approach such as Rasa, which consists of a balanced but large set of responses following the phrase structures in the corpus. Certainly, the film Look Both Ways is not a long-lived topic, but for those that are, specific intents and responses can be considered. Then, assuming that there is a team to continually adapt the agent (assuming they are able to do so in time), that it has a measure to avoid repetition of sentences, and that the model does not mismatch intents, it is possible to suggest that it would be able to run without close supervision. However, there are too many independent variables, some of which are not mentioned here, to accept that this would work in practice.

Now imagine a situation where several bots are driven to reply to the same tweet. There are several reasons for this, one of which is to inflate a position in order to exploit a social bias. The question then is how to avoid falling out of common structures and thus avoid entering the uncanny valley. So if there is a mechanism in place to avoid repetition and to prevent bots from posting more than a certain number of replies to that post, to avoid spam behaviour, it is likely to be successful.

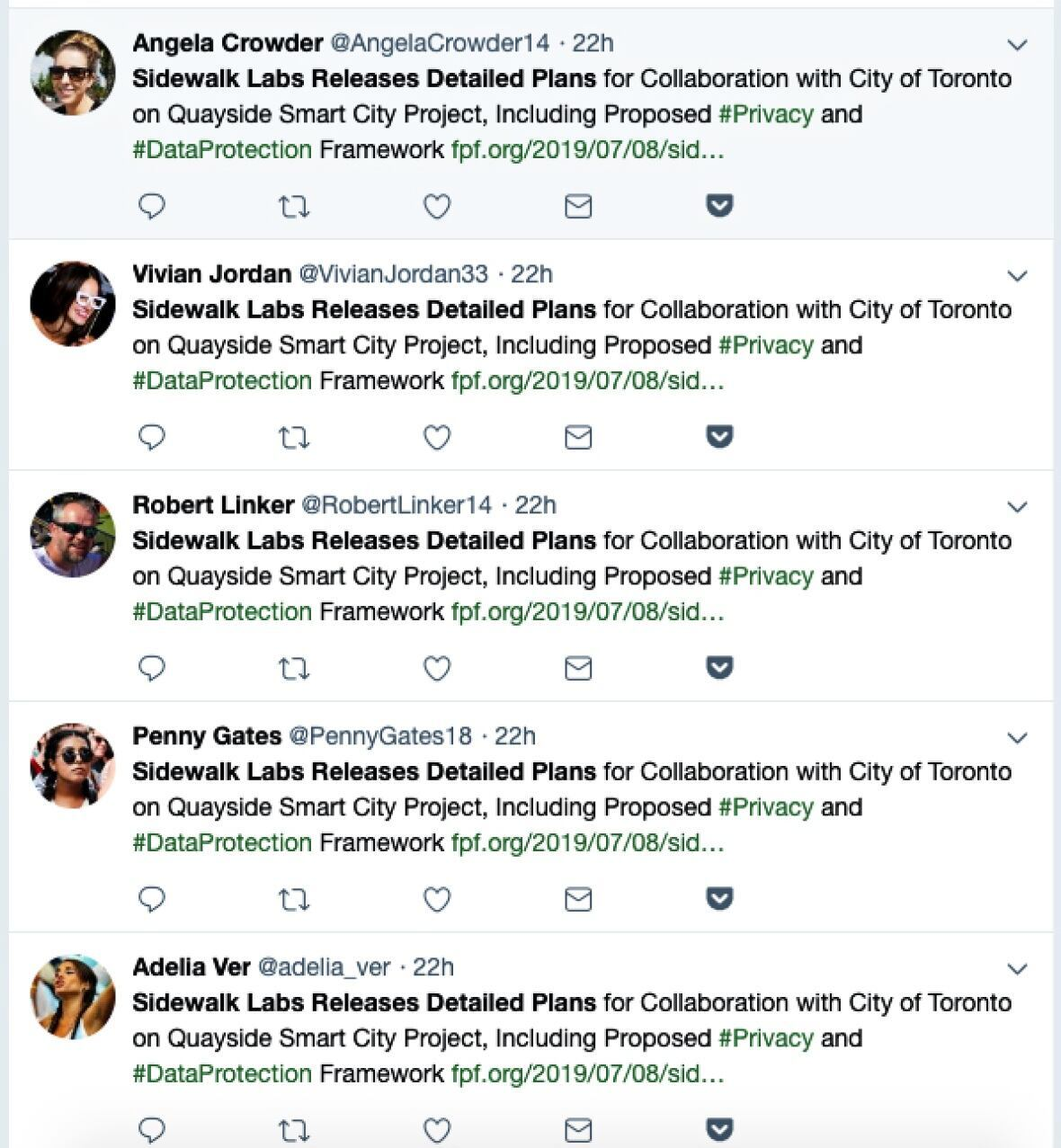

However, the use of a botnet raises additional concerns that have not been discussed so far. Consider, for example, a Rasa-based solution. Are all the bots expected to behave in the same way or should they be different? One property of human dialogue is vocabulary, individuals are accustomed to using certain words instead of others. This goes further, including syntactical structures, expressions, etc. Note that these variations are not paraphrases, but linguistic preferences of individuals. This goes even further to include cognitive aspects such as differences in mental characteristics and the influence of social norms, which in turn determine the interaction patterns of individuals.

The question is whether, and to what extent, these concerns are expected of a seed bot. If differences in vocabulary are to be expected, it is no longer a question of building, training and tuning a single chatbot model, but one for each type of vocabulary. Note also that each group of people has its own signs and norms that need to be respected (without considering the dog whistles). If these elements were to be taken into account, the result would be a combinatorial explosion of models. As already discussed, especially as illustrated by the GPTZero, LLMs do not seem to be an alternative to address this issue.

OPEN IN VIEWER

In other words, the question is whether the seed agents are expected to realise a persona or not. In the negative case, the use of a botnet composed of several bots that behave in the same way, despite some randomisation and paraphrasing, would lead to problematic situations like the one shown in Fig. 12. Given that such examples are increasingly rare, the alternative is to consider the positive case, i.e. that agents embody personas. Then the complexity of building a botnet with multiple personas must be considered.

Again, there are two situations to consider. One is to assume that each troll factory builds its own botnet from scratch. The complexity of such an endeavour would probably make most of it unfeasible. Another is to consider the possibility of existing companies selling such technology on the black market cf.[92]. This adds another dimension to the problem. However, there are some mitigating factors. The difficulties of buying, deploying and maintaining software are well known in the legal market; the black market is no different. In addition, the maintenance problems already discussed would still exist; so no silver bullet.

This issue is related to botnet coordination. A botnet is not expected to follow and interact with a single profile, but it may coordinate to increase the strength of the interactions. If individual interactions are considered cognitive attacks, then this situation would be a social attack. A common example is social bias exploiting cognitive dissociation. In this sense, a person can be induced to agree with a propaganda if a sufficient number of people support the claim [17]. Thus, given a tweet, the botnet would coordinate to create a consensus illusion on that user. Up to the critical mass point, the botnet is applicable.

OPEN IN VIEWER

From a reply perspective, the botnet can coordinate to boost or deboost the user’s tweets. Those that meet the botnet’s goals would be praised and those that do not would be blamed. This would lead to behavioural training of the user [93] (see Fig. 13). The problem here is identifying which tweets should be boosted and which should be deboosted. It is certainly possible to train a classifier, but it would fall into the various problems already discussed, including those related to the open domain. For such a classification, the use of humans would probably be most appropriate.

Note that at this level, it is no longer a matter of a bot developing an artificial relationship with a person, but with the entire subset of a botnet, interactions that are reinforced by the botnet’s complement set. Which may have a serious impact on solitary people. Note, in addition that this same botnet can be simply set into a digital mob for cancelling cf.[94] that same person.

This issue is about managing multiple social networks. In other words, which bots are expected to follow which bots and which bots are expected to follow which profiles. Furthermore, it is not expected that the same profiles will interact all the time, it has to be a rotation policy that allows different levels of interaction. In the end, this can be reduced to a combinatorial problem, and is therefore best suited to be managed by computers.

At the surface level, it falls into the case that a single bot is replying to a single post from multiple people (refer to Section 2.2.2). Difficulties emerge from continuous interation between user a botnet and an user (refer to Sections 2.2.3 and 2.2.5). The problem at this level is how to coordinate a botnet in a way that it is able to establish different levels of proximity with different people. Assuming that each bot in the botnet is attached to a persona, it is unavoidable that the target user would prefer interactions from some bot personas than others. By tracking it, it is possible to adapt the interaction policy accordingly.

In addition to controlling the networks within the botnet, it is necessary to set up the connections between the bots, taking into account the networks of multiple users. This becomes a rather complex graph management problem. Considering human-guided search, see [95], the result can be improved with human help (such as Google maps). However, considering a massive botnet, this is not a feasible task for one person. The alternative is to consider multiple trolls working to improve local results, which are aggregated into global botnet management. Continuing this discussion would lead to considering the trolls themselves, which is beyond the scope of this paper.
