Exploratory evaluation of muscle strength and skin surface temperature responses to contemporary cryotherapy modalities in sport

1. Introduction

It is commonplace within sport to see ice being applied at varying times throughout competition to enable the continuation of competitive play. Aetiological risk factors strongly associated with non-contact musculoskeletal injury at the knee include reductions in strength [1, 2, 3]. Research has detailed the immediate detrimental effect icing protocols may have on muscle strength [4, 5] and knee joint kinematics [6, 7]. These detrimental effects being shown to exist for $>$ 20-min post application [5, 6]. Evidencing that during competition, such as half-time, consideration needs to be given to the potential injury risk exposure an athlete may be subjected to post ice application. This provides sports medicine practitioners with the dilemma of immediate therapeutic advantages, against potential increased or further injury risk. Contemporary pneumatic cryo-compression devices aim to replicate similar reduced skin surface temperatures (T s ⁢ k ) of between 10–15 ∘ C, such as those induced by wetted ice (WI) [8], and although investigations into technological advances in cooling devices are acknowledged [9], the effects of such modalities on biomechanical function are limited within the available literature.

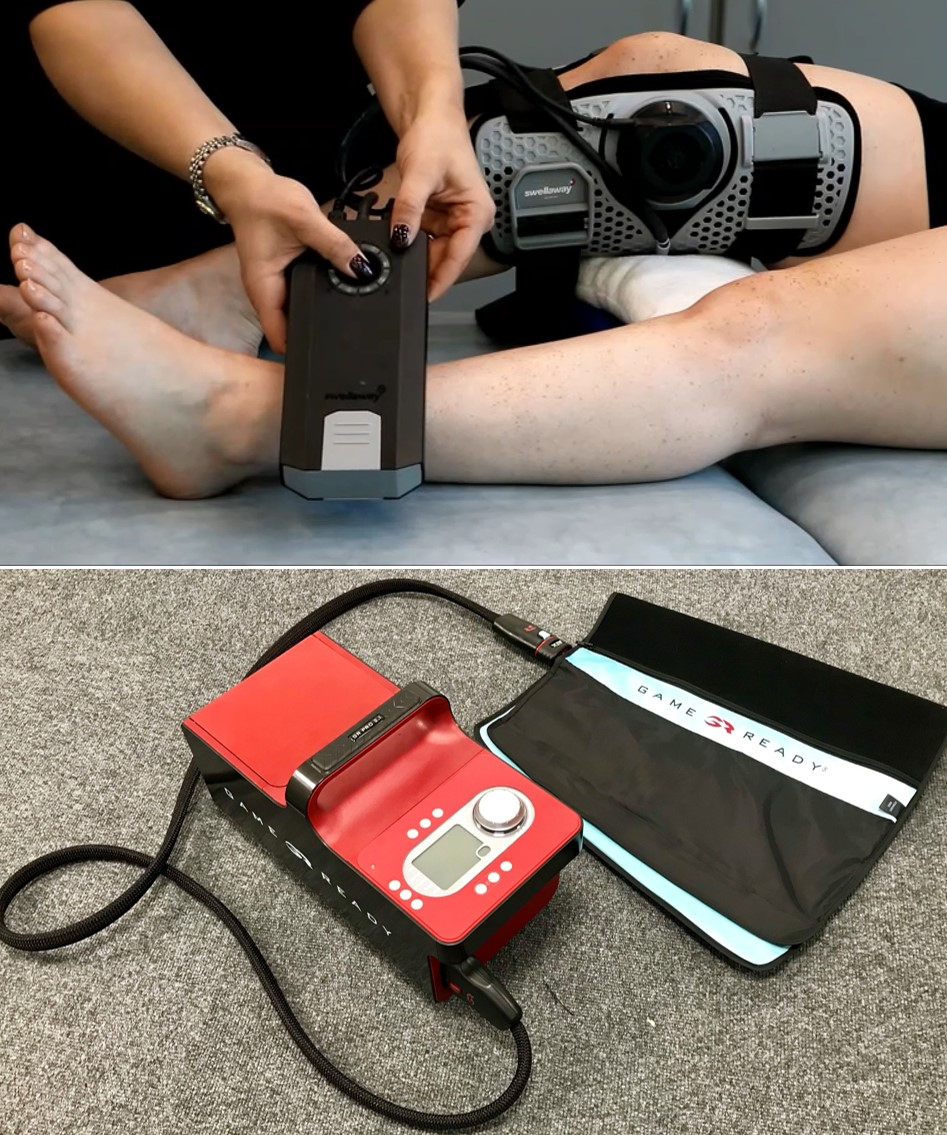

Historically, literature compares traditional cooling modalities such as gel packs, cold spray, crushed ice, frozen peas and WI [10, 11, 12]. Although, modern devices that combine cooling capabilities in conjunction with compression, such as the GameReady ® (GR), Squid Go ® and AIRCAST ® Cryo/Cuff have gained prominence in the literature [8, 13, 14, 15]. Evidence considers the addition of compression alongside cooling more effective at reducing T s ⁢ k [13, 16], increasing oxygenation within tendons [17] and muscle [13], and the magnitude of cooling [13, 18], compared to the application of cooling alone. The comparison of contemporary cryo-compressive modalilties with intermittent vs consistent pressure demonstrated equivalent intramuscular temperatures decreases during applications [15], interestingly differences in T s ⁢ k were reported between modalities [15]. Similar findings are recently reported [13] for T s ⁢ k following varying levels of pressure and considered to be a key mechanism response for physiological processes to occur. Despite the known impact on physiological measures that additional compression influences, studies are still negligible that compare contemporary cooling devices with compression capabilities on strength parameters. This is most likely due to the lack of consensus individually for optimal cryotherapy or compression, including the length of application (minutes), which informs the rationale for the combined therapeutic use of cryo-compressive devices. Consequently, agreement as to what may be the ‘optimum’ application of such cryo-compressive devices are not yet determined. Contemporary developments in electronic pneumatic cryo-compressive devices include Swellaway ® (SA) (Swellaway.com), claimed to be a targeted local cooling device, and the GR (GameReady.co.uk), which provides intermittent compression with circumferential cooling.

Physiological measures of T s ⁢ k through infrared thermography (IRT) and functional strength quantifications of the lower limb musculature, via isokinetic dynamometry (IKD) support the understanding of potential effects local cryotherapy may have on objective markers of function [5, 18, 19]. The relationship between reduction of T s ⁢ k and intramuscular temperature (T i ⁢ m ) is previously reported [11], with a suggested quadratic relationship aiding to the understanding of the potential strength changes as reported in some studies following local cryotherapy applications [5, 10, 19, 20]. Varying metrics have been utilised within literature to quantify muscle strength, including peak moment (PM) [1, 3, 5]. Utilisation of PM metrics provides practitioners with an overview of the athletes peak strength within one degree of movement. The effects of icing on biomechanical function are evident, yet not fully understood in relation to PM when comparing multiple cooling modalities. Methodologies differ however in the location of cooling application on mechanical properties of muscle and strength responses, with some studies applying only distal joint cooling [21, 22], and others directly over soft tissue structures [23]. Recent literature reported that regardless of cooling location (quadriceps vs knee joint cooling) concentric muscle strength of the quadriceps decreased after exposure to WI application [5]. Further understanding however of contemporary cryo-compressive devices such as the SA and GR and their effects on biomechanical mechanisms, may support the progression of evidence necessary in helping to define optimum cryotherapy protocols for sports injury rehabilitation and recovery. Therefore, the aim of the present study is to compare the effect of cooling through the applications of WI, SA and GR on T s ⁢ k and the PM.

3. Results

4. Discussion

The purpose of the study was to investigate the effects of three different cryotherapy modalities on concentric knee extensor strength over a re-warming period. Findings report significant differences in the amount of PM output between GR, SA and WI modalities when applied to the knee for the same exposure period of 15-min. With WI having the greatest effect on strength reduction across multiple time points. Optimal cryotherapy protocols in sporting contexts are yet to be established. In consideration of the known immediate and latent effects on strength, a key aetiological risk factor associated with non-contact musculoskeletal injury [1, 2, 3], it is important to investigate and compare the biomechanical responses across different cryotherapy modalities to help best inform practical application in sport. This is the first study to the authors knowledge that compares contemporary cryo-compressive devices offering circumferentical or targeted applications to traditional WI methods. Results within the present study are largely consistent with previous work, displaying reductions within strength parameters immediately [5] and up to 20-min post cooling [22]. Yet, findings suggest the effects may be influenced through choice of cooling modality.

It was found that WI had the greatest effect on strength and for a longer period compared to the GR or SA devices, with significant reductions identified immediately and at 20-min post-intervention. Interestingly, when observing the two contemporary cryo-compressive modalities utilised in this study (GR/SA) they were both associated with significant knee extension strength reductions immediately, but not at 20-min, post-intervention. It is evidenced that intramuscular temperatures continue to decrease after removal of cooling [10, 11]. We might assume therefore that due to the efficacy of WI to conduct thermal energy this resulted in the significant reduction of strength at 20-min in the current study. A disruption to neuromuscular response through joint cooling previously suggests this may be a contributing factor to muscle strength loss in surrounding tissues such as the quadriceps [22]. Current data is representative of these presumptions and suggests that different neuromuscular responses occurred between modalities. Known physiological changes that ensue when therapeutic range is met, such as a reduction in nerve conduction velocity which influences joint receptor feedback [32] may not have been affected at 20-min post GR or SA applications. It is thought that this may be due to a) inadequate length of application exposure (time) to initiate response, and b) smaller, targeted region of joint cooling of the SA device compared to WI. The authors acknowledge literature that suggests exposure (time) should be ideally altered in consideration of adipose tissue levels [8] or target tissue [33] to induce physiological responses. In the current study however the same length of exposure (15-min) was applied across all particiants and between modalities to ensure standardisation of that particular variable, and was not the main focus of investigation in this study. Contrasting characteristics between modalities and the phase-change capability of material may advocate the results reported and contribute to the differences in strength output. Consequently this has implications on modality choice in terms of therapeutic treatment target.

Significant effects were observed in the current study for the speed of test, challenging findings in previous work questioning the use of a variety of speeds within research [34, 35]. It is considered that higher velocity speeds more closely reflect the functional demands of multidirectional movements which require increased control at the knee to perform. Furthermore, injury risk is heighted through functional movements performed at higher velocity speeds. In the current study, at speeds of 180 ∘ /s, significant effects on PM for time and modality compared to only time for the lower speed of 60 ∘ /s were reported. Reductions of strength noted at higher speeds compared to lower speed following the application of local knee joint cooling may suggest greater implications on functional control exist when observing PM parameters, and be influenced by modality choice. This requires further investigation, however practitioners might consider choice of cooling modality and length of rewarming periods to help mitigate the effects on functional control at the knee following local cooling applications.

Across all three modalities a typical re-warming curve in T s ⁢ k was noted, replicating earlier literature [25], with T s ⁢ k having not returned to baseline measures at 20-min post-intervention. When comparing devices on their ability to reduce T s ⁢ k differences were noted, and may therefore rationalise the differences in muscle strength changes observed in the current study. Notably T s ⁢ k reductions were significantly greater for WI compared to the GR or SA devices. In line with previous research, it is assumed from the reduction in strength at 20-min post removal of WI, intramuscular temperatures were more adversely affected compared to the GR or SA applications, of the same length of exposure (15-min). Current findings are representative of previous work that suggests that a quadratic relationship may exist between T s ⁢ k and T i ⁢ m post cooling [10] and that reductions in intra-articular temperatures may continue after the removal of cooling [36]. Although this is only an assumption as intra-articular temperature measures were not in the current study. Considering the continuing reductions possible in the intra-articular knee joint following removel of such cooling devices and applications; with therapeutic advantages of maintaining tissue temperature reductions, comes the increased potential for risk of further injury through reduced joint control, due to detrimental responses in surrounding muscle strength and meuromuscular responses to cooling [5, 22]. WI cooled T s ⁢ k to a lower temperature, over a larger area compared to the SA device and as a result unsurprisingly negatively affected strength for a prolonged period post removal. The targeted cooling application of the SA device demonstrated the ability to reduce a local region of T s ⁢ k that was in direct contact with the Peltier cell, to within the therapeutic range (10–15 ∘ C) [25] without diminishing PM 20-min post-application removal. It is important to note that a much smaller targeted area of cooling via the SA device may only be achieved without any indication of cooling spread in the adjacent skin away from the Peltier cell contact, in comparison to the other modalities, with cooling targeted over medial and lateral knee joint lines in the current study protocol. Although T s ⁢ k varied between medial and lateral locations (Table 1), T s ⁢ k reduced to within therapeutic range (10–15 ∘ C) over both contact areas (medial and lateral knee joint lines) via Peltier cells, the cooling mechanism behind the SA device. This may be beneficial for targeted intervention applications, as no spread of cooling outside Peltier cell skin contact occurs, however as a result circumferential cooling cannot be achieved in comparison to the other modalities such as the GR or WI bags. Therefore the aim of treatment is important to identify prior to application of cooling modality choice. The rapid re-warming of T s ⁢ k observed by the SA modality may be advantageous in the development of identifying parameters of safer return to activity post cooling, as no detrimental muscle strength losses were reported at 20-min post. It may be beneficial however to determine the effects of such device on joint kinematics, perception of pain and other physiological mechanisms to strengthen or dispute these findings further.

The 15-min exposure time application and target temperature setting of 10 ∘ C applied in the current study, reflecting pitch side or recovery applications of cooling appeared inadequate for the GR device to achieve a typical T s ⁢ k range of between 10–15 ∘ C immediately post removal (Table 1). Previous evidence demonstrates the ability of this device to cool to within therapeutic range [20] yet methodological differences in target temperature between studies as a rationale for the duifferences, appear to differentiate between agreement in results, which is unsurprising.

Despite similar presentations in strength responses for GR and SA devices at 20-min post it is assumed unlikely that detrimental changes in muscle strength would be reported for the GR. Previous literature applied an exposure time of 30-min for the GR device [14], but the authors felt this was not representative of shorter exposures of cryotherapy utilised in sport pitch-side, at half-time or intermittent stoppages in play, hoped to be investigated in the current study. The shorter application time for the GR device in the current study, reduced the capability of comparison to previous methodologies limiting evaluation of outcomes measured in the current study to others. Future investigations might observe longer periods of applications or cooler target temperatures for the GR ( ∼ 30 min) as represented in manufacturers’ protocol options. This would aid as a dosage comparison and to ensure physiological changes, notably in analgesia are sufficiently induced. That said, the current findings highlight important differences in strength responses that therefore occur between cooling modalities of the same length of exposure (time). Current results suggest that both beneficial and disadvantageous differences arise between modalities, however as to which modality represents best practice is determined upon the aim of treatment and justification of use within the applied sport setting.

One application difference between the modalities in the current study was the adjunct of compression, that being manual-consistent pressure offered with WI (via plastic wrap), pneumatic-consistent pressure for the SA device, and pneumatic-intermittent pressure of the GR. Furthermore, the level of compression was not quantified and may be a limitation in the ability to justify the outcomes of the findings. It may be possible that the results of the GR were in fact due to the differences in compression adjunct (in term of intermittent vs consistent pressure) given that previous literature suggests it can produce similar levels of cooling compared to other cooling modalities [14, 20]. Direct comparison to earlier studies is difficult due to differences in the modalities investigated. Further exploration of different methods of compression adjuncts offered by contemporary cooling modalities is warranted to understand the full extent of the impact it may have on physiological and biomechanical responses.

Choice of cryotherapy modality is an important part of clinical decision making. The phase-change capability of modalities is of note when comparing the efficacy of cryotherapeutic modalities, a panacea of variables influences this, including metabolic changes associated with injury, modality temperature and compressive adjunct, alongside length of exposure (time). Future research should consider the differences in material properties and length of exposure (time) of contemporary cooling applications on biomechanical functions. Subsequently the addition of eccentric muscle strength and joint position sense measures may be beneficial to develop a body of evidence around optimal protocols of contemporary cooling applications in sport. Sports medicine and performance practitioners should however continue to consider the differences and deleterious effects some applications of cooling may have on strength following lower limb cooling. A reduction in muscle strength and consequently performance suggests joint stability feedback mechanisms could also be compromised, as reported in previous literature [5, 6]. Therefore, contemporary cooling devices that offer targeted local cooling, such as the SA device may be useful in comparison to circumferential joint cooling (GR) and vice versa, dependent on injury presentation, rehabilitation or recovery aim. The findings of the study are qualified by the homogeneous sample which limit the transferability of findings to female or injured populations. Further research is required to address this issue and to provide sports medicine practitioners with evidenced based rationale for application of such modalities.

Author contributions

CONCEPTION: Jill Alexander, James Selfe, Olivia Greenhalgh and David Rhodes.

PERFORMANCE OF WORK: Jill Alexander, Olivia Greenhalgh and David Rhodes.

INTERPRETATION OR ANALYSIS OF DATA: Jill Alexander, James Selfe, Olivia Greenhalgh and David Rhodes.

PREPARATION OF THE MANUSCRIPT: Jill Alexander, James Selfe, Olivia Greenhalgh and David Rhodes.

REVISION FOR IMPORTANT INTELLECTUAL CONTENT: Jill Alexander, James Selfe, Olivia Greenhalgh and David Rhodes.

SUPERVISION: James Selfe and David Rhodes.

Ethical considerations

All experiments were undertaken with the understanding and written consent of each subject, and the study conformed with The Code of Ethics of the World Medical Association (Declaration of Helsinki, 2013), approved by the University of Central Lancashire ethics committee (STEMH: approval date: September 2019).

Funding

The authors report no funding.
