Isometric hip abduction and adduction strength ratios: A literature review with quantitative synthesis

1. Introduction

Measurements of motor abilities, such as muscular strength, are of paramount importance in strength and conditioning [1] as well in clinical practice [2]. While the knee joint is perhaps the most commonly assessed [3, 4, 5], the strength and power of the hip joint play an important role in a plethora of movements, including (but not limited to) vertical jumping [6, 7], running and walking [8, 9, 10], changes of direction [11] and balance tasks [12]. Furthermore, several studies have shown the importance of muscular strength in athletic performance [13] and association between inadequate hip and lower limb muscle strength and increased injury risk in different sports (soccer, ice hockey, rugby etc.) [14, 15]. Additionally, evaluation of hip and lower limb muscle strength is also relevant for prevention and treatment of frailty in older individuals [16]. For application of hip strength measurements in clinical practice, there is a need for a comprehensive database that clinicians and coaches can use for decision-making.

Raw normative values in the literature, apart from recent attempts pertaining to knee joint [5], are very scarce [17, 18]. In addition, using different measurement methods (isokinetic dynamometry – considered the gold standard, hand-held dynamometry, externally fixed portable dynamometry, manual muscle testing); different units of measurement (force or torque) and (non)normalization of the measurements to body mass represent a source of heterogeneity that makes it difficult to establish a consistent normative. Clinicians may thus turn their attention to inter-muscular strength ratios. Regarding the bilateral (i.e., inter-limb) asymmetries, more than 10–15 % difference is typically considered as clinically relevant [19, 20]. Additionally, agonist to antagonist ratios are specific to joint and movement tasks. In this case as well, the research has focused almost exclusively on the knee joint, wherein the hamstring-to-quadriceps ratio has been considered as injury predictor [21, 22]. However, less is known about optimal agonist to antagonist ratios for other joints, including the hip. In particular, the ratio between hip abduction (ABD) and adduction (ADD) could be of interest in research and practice in different populations. For instance, ABD strength has been suggested as a factor in running-related injury risk [23], the medio-lateral stability of unilateral balance tasks [24, 25] and landings [26]. ADD strength has been extensively researched in association with groin pain [27, 28, 29].

While hip ABD and ADD strength is clearly important for athletic performance and carrying out the activities of daily living, there is no clear consensus on how ABD and ADD compare in strength in different populations. Therefore, the purpose of this paper is to collect the available isometric strength data (measured either with isokinetic, hand-held, or externally fixed dynamometry) from the existing literature and perform a quantitative synthesis of comparisons between isometric hip ABD and ADD strength in different populations.

2. Methods

3. Results

OPEN IN VIEWER

OPEN IN VIEWER

OPEN IN VIEWER

Through a literature review we found that hip ABD and ADD strength was mostly measured either in the supine (in 50% of studies) or in the side-lying position. Additionally, in the vast majority of studies, hip ABD or ADD strength was measured in neutral hip position in all anatomical planes with only minor differences in the frontal plane (0–10 ∘ of hip abduction). Only one study measured hip ABD and ADD strength in 45 ∘ of hip flexion (with neutral position in other two planes) [34].

4. Discussion

The purpose of this paper was to collect the available data and perform a quantitative synthesis of isometric hip ABD and ADD strength ratios in different populations. To the best of our knowledge, this is the first attempt at pooling hip ABD and ADD strength data and obtaining ABD and ADD strength ratios by performing comprehensive review of the literature. Only one similar study [36] was conducted on hip muscle strength, which aimed to (i) systematically review studies assessing isokinetic hip muscle strength and determine their quality of evidence and (ii) summarize and pooled data of normative values for hip muscle strength. However, the authors concluded that the absolute reference values for hip muscle strength in isokinetic tests are mostly unclear and that pooling isokinetic data from the reviewed studies was not possible. Similarly, it has proven difficult to pool absolute (raw) hip ADD and ABD isometric strength values, mainly due to inconsistencies in the use of strength output units in different studies (authors mostly used either normalized or non-normalized force and torque [N, Nm, N/kg, Nm/kg]; to a lesser extent, results were also reported in % bodyweight).

We collected the data for the following groups: healthy adults (further sub-grouped by gender and athletic status) (40 studies, 47 groups), healthy older adults (5 studies, 6 groups) and adults with injuries/ pathologies (14 studies, 18 groups). Overarching analysis on healthy adult populations and healthy older adults showed no difference between the isometric hip strength of ABD and ADD. However, when subgroups were analyzed, there were significant differences between the sexes (male groups tended to have stronger hip ADD, whereas the opposite was true for females; consequently, the mixed-sample groups had the same ABD and ADD strength). Further analysis showed that only male athletes tended to have significantly stronger ADD muscles, while non-athletic males generally had the same ADD and ABD hip muscle strength. In addition, the testing position has also been shown to affect the comparison of hip ADD and ABD strength, both in healthy athletic and non-athletic populations. The difference is generally greater (in favor of ADD) in the side-lying position compared to supine position due to the effect of gravity. This indicates that the results from side-lying position need to be gravity corrected to make them more relevant and comparable to measurements in other testing positions. In clinical practice, the supine position is therefore probably preferable, as the examiner does not need an additional measurement to gravity correct the result afterwards. However, only a few studies in our review mentioned that the results were actually gravity corrected. To sum up, results of our study suggest that the gender, athletic status and testing position of the subjects should be considered when interpreting the results of hip ABD and ADD strength measurements.

There may be several reasons why athletes tend to have stronger ADD than ABD. First, different sport movement demands could alter the hip ADD:ABD strength ratio in athletes. For example, in soccer, a large number of kicks are performed with the inside part of the foot, which cause high muscle force and stress of the hip adductors [37]. A large accumulation of muscle-specific load throughout the season(s) could preferentially increase hip ADD strength and consequently increase the hip ADD:ABD ratio. Secondly, athletes are advised to specifically strengthen the hip adductors as part of injury prevention training [38], as weakness of these muscles has been shown to be one of the key contributing factors for (adductor-related) groin injuries [39]. Groin injuries are a major problem in sports, especially ice hockey and soccer [40, 41, 42]. Specifically, a 15-year long prospective study involving 47 elite European soccer teams and 3055 players showed that groin pain accounts for 14% of all injuries and affects ∼ 20% of soccer players each season [43]. Several studies have shown that lower hip ADD strength and ADD:ABD strength ratio are two of the main risk factors for occurrence of groin injuries; elite ice hockey player were 17 times more likely to sustain an adductor muscle strain when adductor strength was less than 80% of abductor strength [40]; healthy soccer players have significantly higher isometric [44] and isokinetic concentric [45] ADD:ABD strength compared to players with groin pain; elite soccer players should aim for a hip ADD:ABD strength ratio of 1.25–1.6 to reduce the risk of groin injury [46]. On the other hand, our analysis of 4 studies with patients with hip and groin pathology showed no difference in hip ADD and ABD strength (only a slight tendency for hip ABD to be stronger than ADD). However, none of these 4 studies specifically looked at players with an adductor-related groin injury, but rather at general hip (and groin) related pain or femoroacetabular impingement syndrome. The hip ADD:ABD strength ratio is likely to be most reduced in players with adductor-related groin injuries and less so in other cases of groin pain (e.g. hip joint-, hip flexors-, lower abdomen/inguinal- or pubic-related groin pain, which do not necessarily affect the hip ADD strength as much).

An important new finding of this study is that females generally tend to have stronger ABD compared to ADD in isometric conditions. One possible reason for such strength ratio in the female sports population may be a greater emphasis on hip ABD strengthening to reduce valgus stress and thus the risk of anterior cruciate ligament injuries (the incidence in females can be ∼ 3 times higher than in males [47]). A systematic review [36] of isokinetic hip strength included 7 studies and revealed a very wide range of hip ABD:ADD strength ratio data (measured at low velocities at 30 and 60 ∘ /sec): (i) 3 studies on young females (measured in a side-lying position) showed a ratio between 0.62–0.65, whereas one study on older females showed a much higher ratio of 1.41; (ii) 2 studies on young females (measured in standing position) showed a ratio of 0.91 and 1.57, whereas one study on older females showed a ratio of 0.94. Additionally, direct comparison of males vs. females under isokinetic eccentric conditions showed that female recreational athletes had a significantly higher ADD:ABD ratio compared with male recreational athletes (1.56 vs 1.41, respectively), whereas the ratio under isometric conditions did not differ significantly between male and female soccer players (0.96 vs 0.98, respectively [48]). These heterogeneous study results suggest further research is needed to investigate the differences in hip ADD:ABD strength ratio between males and females, using more standardized measurement protocols and more homogeneous participant groups. At the same time, it is currently hard to reach a consensus on the normal/optimal hip ADD:ABD strength ratio in different groups of men and women.

It is not clear whether the aforementioned differences in hip ABD and ADD strength ratio between studies with similar populations (in terms of gender, age, athletic status, etc.) are due to different types of muscle contractions (concentric vs. eccentric vs. isometric), different measurement positions (standing vs. side-lying), different measurement devices, or something else. In clinical practice and research, hip strength is measured using different methods (manual muscle testing, hand-held dynamometry, isokinetic dynamometry), use of novel devices [34, 35], in a variety of body positions (supine, prone, side-lying, standing, seating), unilateral or bilateral. Even in the same body position, the positions of the measured and unmeasured joints may differ significantly (e.g., isometric strength of hip ADD may be measured supine with hip and knee in neutral/anatomical position, hip in 10–30 ∘ abduction, hip and knee in 45 ∘ or 90 ∘ flexion, etc.) [49, 50]. The position of the hip in the sagittal plane could affect the hip ADD strength. Indeed, several studies [49, 50, 51, 52] have shown different values for maximal muscle activity of the hip adductors and maximal torques achieved during the isometric hip ADD exercises with different hip flexion/extension angle. For example, Delahunt et al. [50] have shown that maximal torque and maximum muscle activity of the hip adductors is achieved at 45 ∘ of hip flexion (compared to either 0 ∘ or 90 ∘ ). Therefore, to facilitate direct comparison between the results of different (future) studies measuring isometric strength of hip ADD and ABD, it would be necessary to standardize the position of the measured joint in all anatomical planes as much as possible, as well as the position of the body.

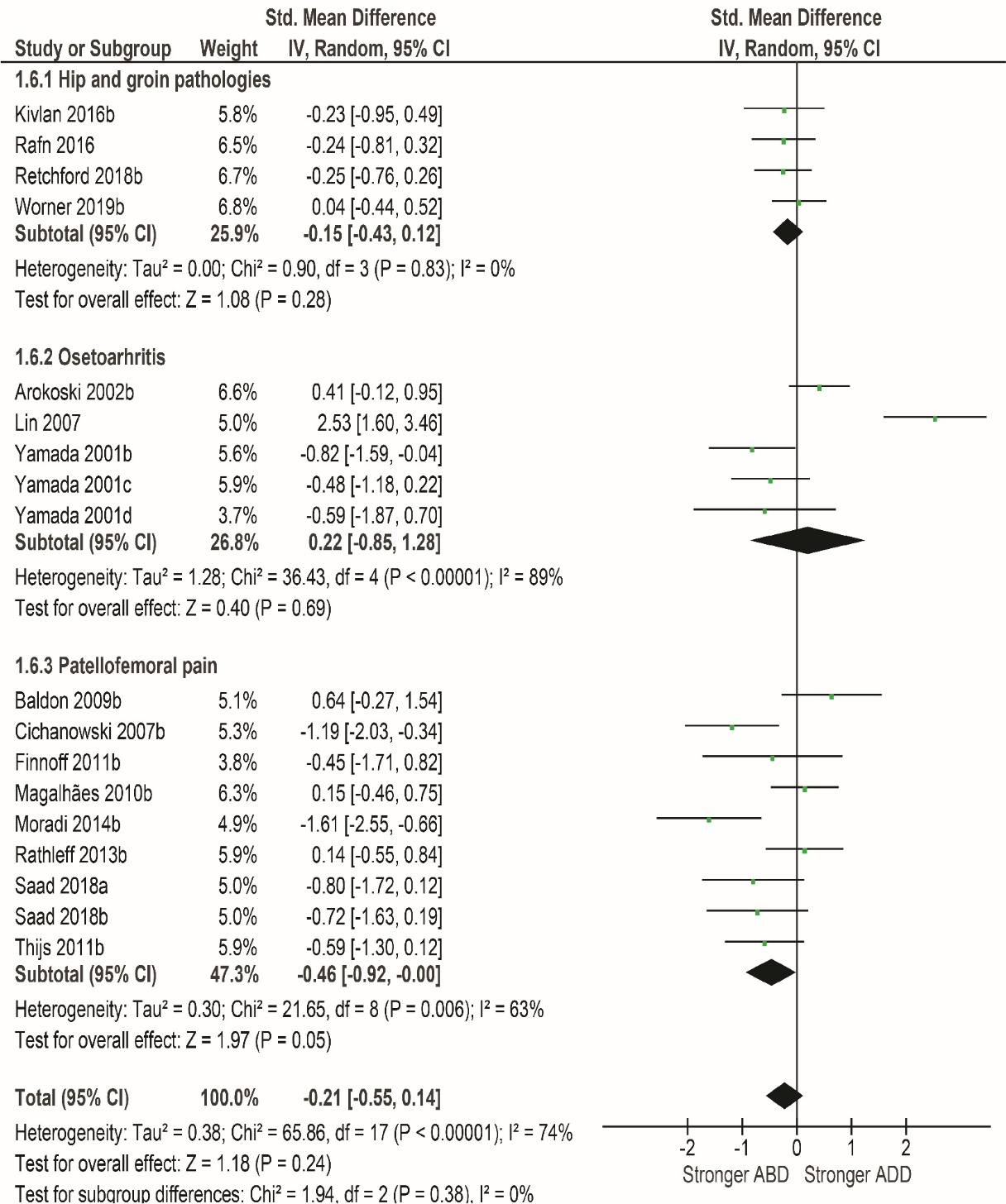

A limited number of studies have investigated hip ABD and ADD strength in patients with musculoskeletal injuries. While we found no indication that either ABD or ADD is stronger in patients with groin/adductor injury, groups with patellofemoral pain tended to have moderately larger hip ABD than ADD strength values. Although hip abductors are paramount for the control of the hip in the frontal plane as well as knee valgus [53, 54], which could be related to knee injury risk [55], epidemiological data seem to agree with our results. Specifically, isometric hip ABD was moderately associated with patellofemoral pain incidence in adolescents, but not in adults [56]. It was suggested that increased ABD strength could be an adaptation to the increased physical demands, that also contribute to injury [57]. Further prospective studies are needed to elucidate if hip ABD and ADD strength, and the ratio between the two, are significant risk factors for musculoskeletal injuries.

Some limitations of this review must be acknowledged and discussed. First, although the authors conducted the review with the utmost care and scrutiny, the relevant body of literature is extensive, and it possible that some studies were omitted. In addition, only one database was searched. Nevertheless, we believe that a substantial proportion of the relevant studies were included in the review, and that the addition of further individual studies would have little or no impact on the pooled results. Another limitation of this study is that the sample included only adult and elderly populations. Therefore, the results cannot be used to infer the relationship between hip ABD and ADD strength in younger populations.
