Shoulder rotator strength in judo athletes: A cross-sectional study with different experience levels

Abstract

BACKGROUND:

Judo practice requires high effort from athletes, mainly focused on the upper limbs, involving the shoulder complex.

OBJECTIVE:

To compare the shoulder internal (IR) and external (ER) rotation peak torque and conventional ratio (ER: IR) between judo athletes from different experience levels (novice vs. advanced) and to verify the distribution of athletes according to the ER: IR ratio classification.

METHODS:

Thirty-nine male judo athletes were divided into two groups (advanced: 20.5 $\pm$ 2.8 years and novice: 22.1 $\pm$ 5.5 years). The athletes performed a shoulder isokinetic protocol to measure IR and ER strength and the ER: IR ratio in novice and advanced groups. Chi-square tests were used to investigate the distribution of athletes according to the different groups of ER: IR ratio classification, and t-tests were used to compare the IR and ER peak torque and the ER: IR ratio between novice and advanced groups, with the level of significance set at 5%.

RESULTS:

The main results showed higher values of IR peak torque (77.3 $\pm$ 15.7 N $\cdot$ m in advanced vs. 48.2 $\pm$ 8.4 N $\cdot$ m in novices; $p=$ 0.013), and a lower ER: IR conventional ratio in advanced athletes compared to novices (0.63 $\pm$ 0.1 advanced vs. 0.73 $\pm$ 0.2 in novice; $p=$ 0.01). When individual values were analyzed, advanced athletes presented higher imbalance ( $<$ 0.66 ER: IR ratio) than novices ( $p=$ 0.023).

CONCLUSION:

Advanced athletes presented higher shoulder IR peak torque, but higher imbalance in the ER: IR ratio than novices, probably because the long-term training induced an increase in IR strength without concomitant development in ER strength. Coaches and strength and conditioning trainers should monitor shoulder rotator strength in judo athletes to avoid muscle imbalances in this region, which is frequently employed in judo training routines.

Keywords

Isokinetic ratio torque combat sports imbalance

1. Introduction

Sports performance in combat modalities requires a combination of various components to achieve success [1], such as aspects related to motor-specific performance, and physiological, psychological, and neuromuscular attributes [2, 3, 4]. In the case of judo, athletes seek to combine these aspects in order to beat the opponent from three perspectives: throwing to the ground, immobilizations, chocks, or joint locks, or by athlete disqualification [5]. It is important to highlight that judo efforts can last for four minutes or for an unlimited time (in the case of the golden score), requiring high physiological demands and strength due to the varied technical-tactical actions [6]. As a result, there is great focus on the upper limbs, especially involving the shoulder complex [7, 8, 9], for example, during the grip dispute, judo throwing techniques (e.g. seoi-nage, tai-otoshi, etc.), transition to groundwork fight, and groundwork techniques (particularly arm locks).

Repetitive movements (overuse) involving the shoulder through long-term training and several competitive seasons can cause some harmful effects on the shoulder complex, such as imbalance in the strength ratio between internal and external rotator muscles [8], asymmetry between limbs [10], and weakness of the auxiliary muscles in the shoulder region (i.e., rotator cuff muscles) [7]. Consequently, injuries in the shoulder complex are common, regardless of the judo environment (training or competition) [11, 12, 13, 14, 15].

The glenohumeral joint anatomy per se is a factor related to the occurrence of injuries, due to its instability, as it is only sustained by ligaments and musculotendinous units [16]. In this sense, the muscles of the shoulder complex play a fundamental role in the production of strength, power, and stabilization of the joint [17]. Imbalances between shoulder internal and external rotator muscles have been considered important risk factors for shoulder injuries in overhead sports [17, 18, 19, 20]. In judo, some evidence suggests that specific training [8, 21] and/or previous shoulder injury [7] induce imbalance in the strength ratio of shoulder internal and external rotator muscles (ER: IR) (usually weakness in the external rotator). Ruivo et al. [8] found a lower shoulder ER: IR ratio than recommended (from 0.66–0.75) [16, 22] in judokas compared to non-judokas, demonstrating that judokas present a selective increase in the internal rotation strength, without concomitant development in the external rotation. When comparing the ER: IR ratio between advanced and novice judo athletes, Detanico et al. [21] found a lower ER: IR ratio in advanced athletes compared to novices (0.72 and 0.83, respectively), suggesting greater balance between shoulder internal and external strength in experienced athletes compared to novices. However, these findings still need further analysis with a larger sample size.

Identifying shoulder strength parameters (e.g. peak torque, ER: IR ratio) in judo athletes from different competitive levels (e.g., novice vs. advanced) may provide important information on the role of judo systematic practice in shoulder strength balance. Moreover, preventive programs to reduce the probability of shoulder musculoskeletal injuries in judo athletes may be elaborated from the starting point of identification of the shoulder strength profile in athletes from different groups. Therefore, the aim of the current study was to compare the shoulder internal and external rotation peak torque and ER: IR conventional ratio between judo athletes from different experience levels (novice vs. advanced) and to verify the distribution of athletes according to the classification of the ER: IR ratio. The main hypothesis was that advanced athletes would have higher shoulder internal and external peak torque than novice athletes, but higher imbalance in the ER: IR ratio due to the specific muscle adaptation caused by long-term practice.

2. Materials and methods

Table 1
Comparison of age, anthropometric variables, and judo experience between novice and advanced groups

	Novice ( $n=$ 17, 44%)	Advanced ( $n=$ 22, 56%)	$p$	Cohen’s d
Age (years)	22.1 $\pm$ 5.5	20.5 $\pm$ 2.8	0.195	0.39
Height (cm)	174.6 $\pm$ 7.5	173.6 $\pm$ 7.4	0.655	0.13
Body Mass (kg)	77.2 $\pm$ 13.6	70.5 $\pm$ 16.2	0.143	0.44
Experience (years)	4.4 $\pm$ 3.5	10.9 $\pm$ 3.8 ${}^{*}$	$<$ 0.001	1.71

${}^{*}p<$ 0.05, different from novice.

2.1 Participants

Thirty-nine male judo athletes participated in the study, divided into two groups based on their level of experience (novice and advanced). Levels of experience were defined based on two criteria: a) judo graduation (belts), with the novice group composed of athletes with orange, green, and purple belts, and the advanced athletes with purple, brown, and black belts [21] and; b) time of experience, considered as the years of judo formal training. The t-test showed higher time of experience in advanced athletes ( $\sim$ 11 years) compared to novices ( $\sim$ 4 years) ( $p<$ 0.01) (Table 1). The characteristics of the groups are presented in Table 1. The selection of athletes was non-random, since athletes were invited to participate in the current study from clubs affiliated with the local state Judo Federation. For the inclusion criteria all athletes were required to train regularly (technical-tactical training) 2–3 times per week ( $\sim$ 2 hours each session) during the evaluation period, compete at the state or national level during the regular year, and have been engaged in formal training and competition for at least 1 year (inclusion criteria). The participants could not report current musculoskeletal disorders or injuries that may influence their maximal physical performance during the assessments (exclusion criteria); however, previous injury (if any) was not considered as an exclusion criterion. All participants and responsible individuals (parents and teacher) received a detailed verbal explanation of the purpose, methods, and potential risks/benefits of the study, before signing a written informed consent form agreeing to participate in the study. The study was approved by the local ethics committee (Protocol number 119.014) of the Federal University of Santa Catarina, Santa Catarina, Brazil.

2.2 Design

This is a cross-sectional study, in which athletes performed a shoulder rotator strength test using an isokinetic dynamometer. First, we assessed anthropometric variables (height and body mass), age, judo practice, and graduation (belt at that moment). Subsequently, an isokinetic protocol for shoulder internal and external rotation was performed in the dominant upper limb in all athletes.

2.3 Shoulder isokinetic assessment protocol

Participants were seated on an isokinetic dynamometer (Biodex Multi-Joint System- Pro 4; Biodex Inc., Shirley, NY, USA) chair and stabilized with restraining straps placed around their chest and hips. The athletes’ arms were weighted to provide gravity compensation. Shoulder external and internal rotation torque was measured with the arm positioned at 45 ${}^{\circ}$ abduction. The dominant arm was assessed, and all participants presented right dominance, according to their writing preference. Based on a reference position (0 ${}^{\circ}$ ) with the forearm in the vertical position, the range of motion was set at 70 ${}^{\circ}$ . Rotation movements were performed considering 0 ${}^{\circ}$ as the beginning of internal rotation and 70 ${}^{\circ}$ as the end of internal rotation/beginning of external rotation.

Before the evaluation, the athletes performed an initial set of three to four submaximal trials to familiarize themselves with the shoulder internal and external rotator concentric contraction, which were also used as warm-up exercises for the upper limbs. After a 3-min passive recovery, participants then performed one set of five maximal shoulder external and internal rotations in concentric/concentric mode at 180 ${}^{\circ}$ /s (3.14 rad/s) of angular velocity. This velocity has been used in previous studies in judo athletes [8, 9, 21], and is considered safe for this type of movement [16]. All participants were encouraged, through both visual feedback and strong verbal support, to give maximal effort for each action.

2.4 Data analysis

The torque data were exported from the Biodex Advantage software and filtered using a fourth order low pass Butterworth filter at 20 Hz. We considered the highest value (of three trials, the first and last trials were excluded) of shoulder internal rotation peak torque, shoulder external rotation peak torque, and the conventional ratio (ER: IR), defined as the quotient between peak torque of external rotators and peak torque of internal rotators. The relative reliability (consistency) of isokinetic peak torque was calculated for the trials and Intraclass Correlation Coefficient (ICC) indices of 0.98 and 0.99 were found for internal and external rotation torque, respectively.

2.5 Statistical analysis

Data are presented as mean and standard deviation (SD) and individual values for the athletes. The Shapiro-Wilk test was used to verify the data normality. Chi-square tests were used to test the association between group distribution (novice and advanced) and classification of the ER: IR ratio: low ( $<$ 0.66) normal (0.66–0.75), and high ( $>$ 0.75) [16, 22]. T-tests were used to compare the shoulder rotation torques and ER: IR ratio between different groups (novice and advanced). For the t-tests, effect sizes were calculated using Cohen’s $d$ : 0.0–0.2 as trivial, 0.21–0.6 as small, 0.61–1.2 as moderate, 1.21–2.0 as large, and 2.1–4.0 as very large [23]. JASP software (version 0.11.1, JASP team, University of Amsterdam) was used for all analyses, with a significance level set at 5%.

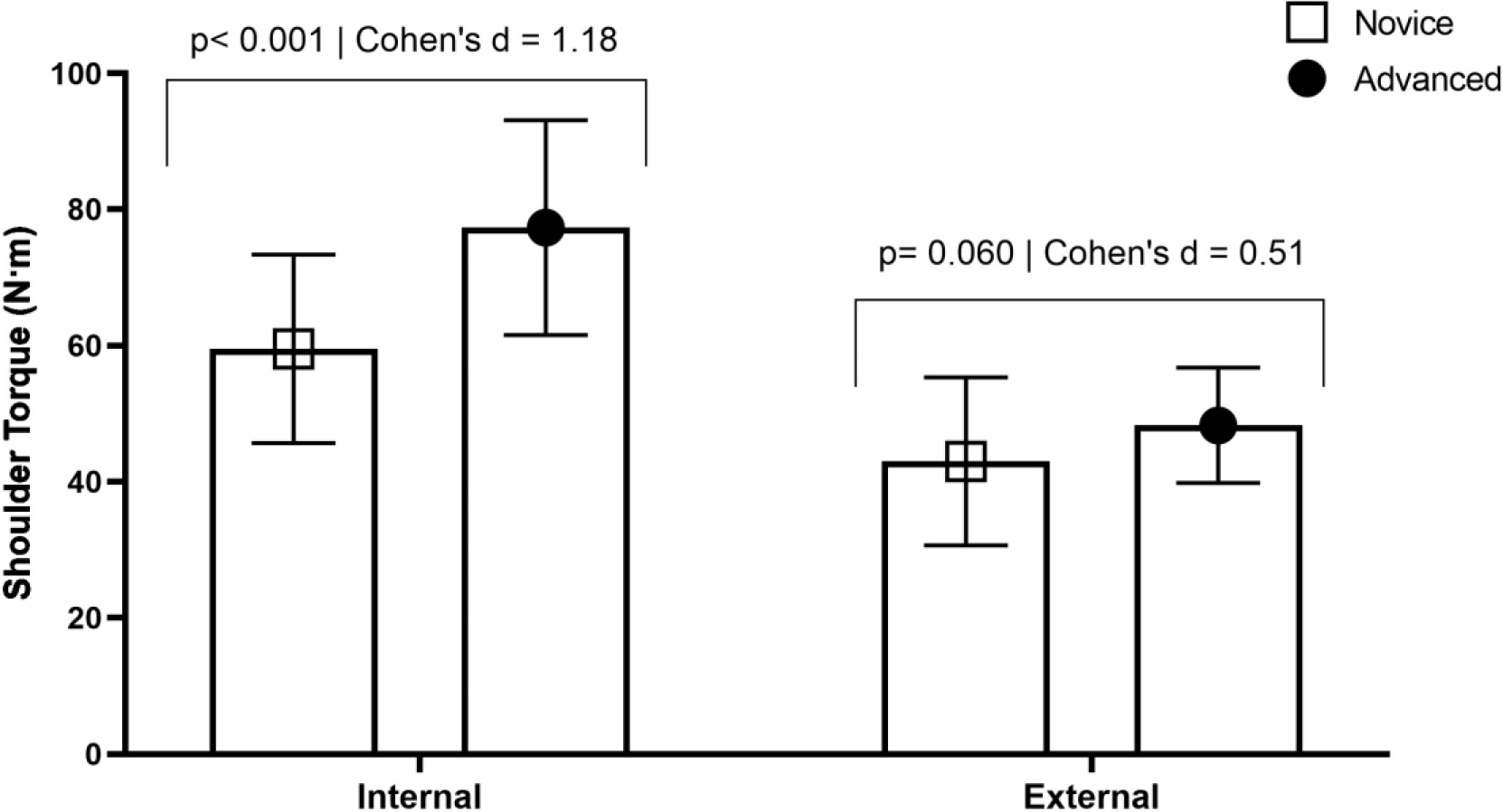

Figure 1.

Comparison of shoulder internal and external peak torque performance between novice and advanced judo athletes.

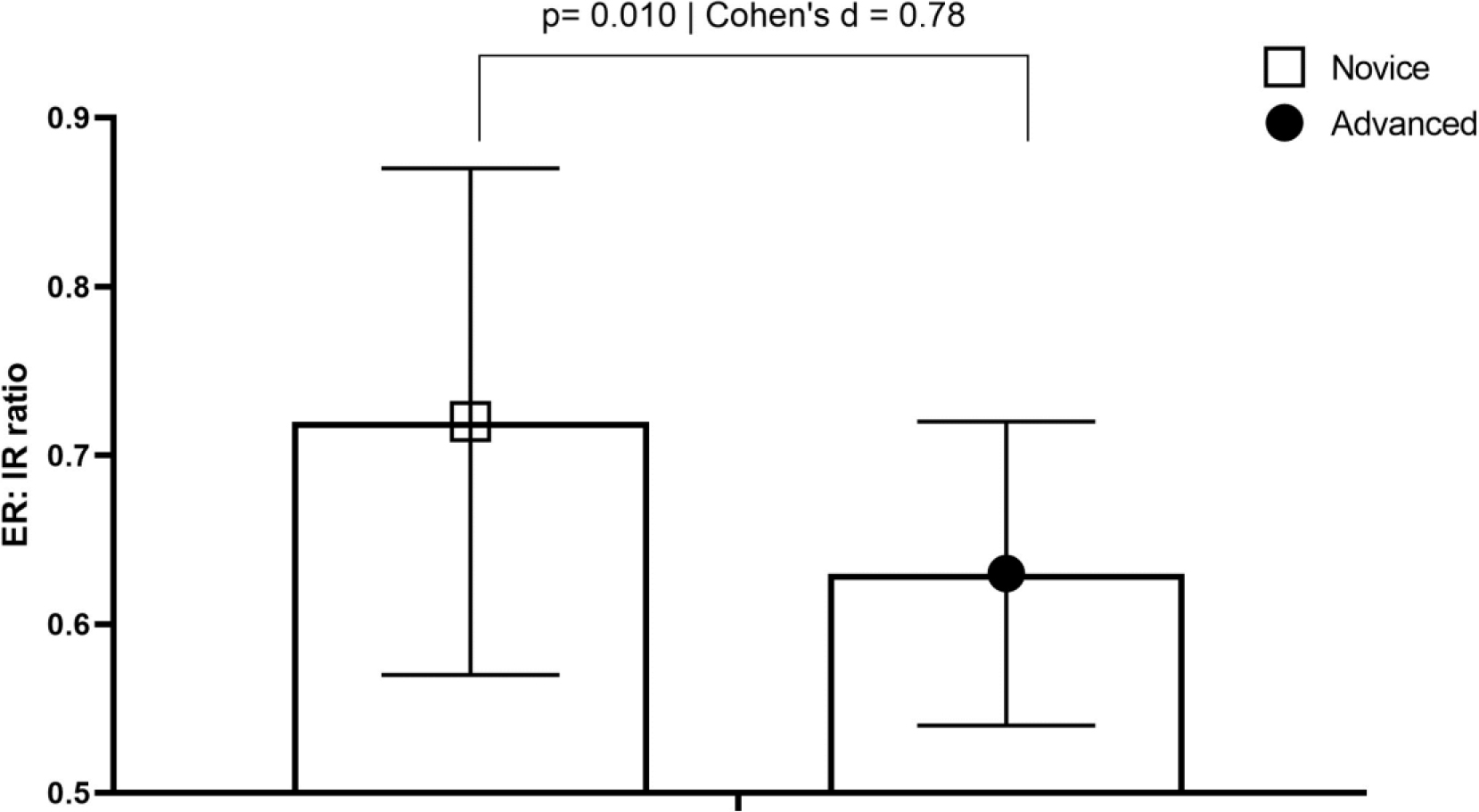

Figure 2.

Comparison of ER: IR ratio between novice and advanced judo athletes.

3. Results

3.1 Shoulder rotator torque and ER: IR ratio between novice and advanced groups

Figure 1 presents the values of shoulder internal and external isokinetic torque between advanced and novice athletes. There was a significant difference in the shoulder internal peak torque between novice and advanced athletes, with higher values in advanced athletes compared to novices (moderate effect). No significant difference was found for shoulder external peak torque between groups.

Figure 2 presents the comparison of the ER: IR ratio between novice and advanced athletes. The results showed higher ER: IR values for novice athletes (0.73 $\pm$ 0.15) (moderate effect) compared to advanced judo athletes (0.63 $\pm$ 0.10).

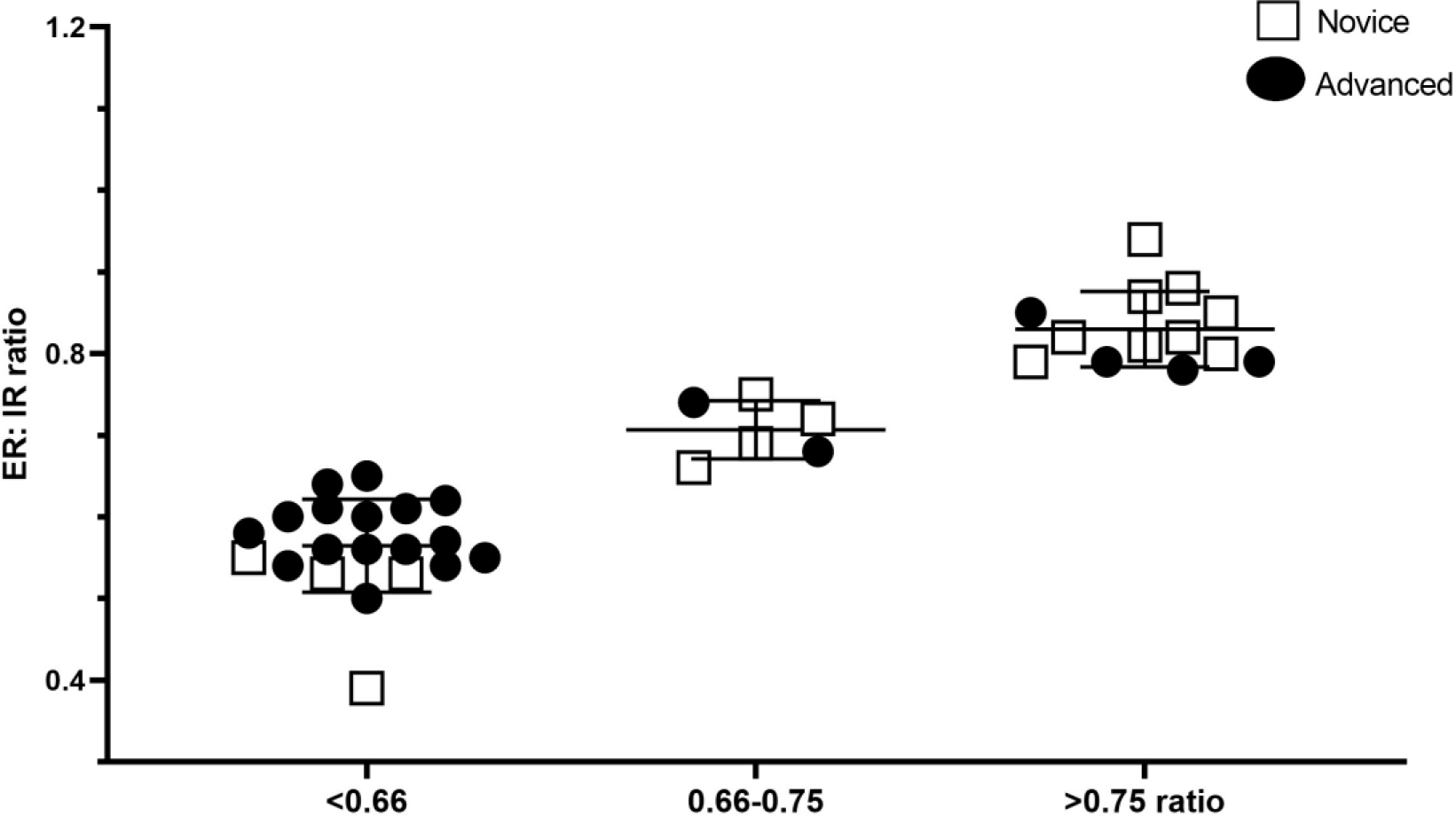

Figure 3.

Individual values of ER: IR ratio between novice and advanced judo athletes according to classification groups.

3.2 Individual ER: IR conventional ratio classification

Figure 3 presents the individual values of the ER: IR ratio based on the following classification: low ( $<$ 0.66), normal (0.66–0.75), and high ( $>$ 0.75). A significant association was found between groups (novice and advanced) and classification ( $\chi^{2}_{(2)}=$ 7.53; $p=$ 0.023). When separated by experience level, the majority of athletes in the novice group were allocated as having a high ER: IR ratio (4 low, 4 normal, and 9 high), while in the advanced group the majority of athletes were allocated as having a low ER: IR ratio (16 low, 2 normal, and 4 high).

4. Discussion

The current study aimed to compare the shoulder internal and external rotation peak torque and ER: IR conventional ratio between judo athletes with different experience levels (novice vs. advanced), and verify the distribution of athletes according to the ER: IR ratio classification. The hypothesis of this study was accepted, as the advanced athletes showed higher values of shoulder internal peak torque than novice athletes and presented higher imbalance in the ER: IR ratio, probably due to the increase in internal rotation strength without development of external rotation strength.

Advanced athletes presented higher values of shoulder internal rotation torque than novices, without differences in the external rotation torque between groups. Similar results were found by Detanico et al. [21], as higher shoulder internal rotation peak torque was verified in the advanced group compared to the novice group, without difference in the external rotation torque. Although some judo actions also require efforts from the shoulder external rotation muscles (e.g. pulling the sleeve to attack or counterattack) [24], most of the effort during the training and competition is performed by shoulder internal rotator muscles (e.g. grip disputes and execution of several judo throwing techniques) [21]. Therefore, it is suggested that judo practice may induce selective increases in internal rotation strength without concomitant development of external rotation strength, causing high shoulder imbalance in the advanced group. The current literature shows that high shoulder imbalance can impair joint instability and, consequently, increase the risk of injuries [17, 18, 19, 20].

When analyzing individual values of the ER: IR ratio classification, the majority of athletes in the novice group were allocated as having a high ER: IR ratio ( $>$ 0.75), and in the advanced group the majority of athletes were allocated as having a low ER: IR ratio ( $<$ 0.66). These results confirm the higher development of shoulder internal strength without proportional development of external rotation strength in the advanced group. It is known that a decrease in the ER: IR ratio is described in individuals with glenohumeral impingement and instability [18, 25]. For this reason, it is important to have an appropriate balance between shoulder internal and external rotator muscles. Most novice athletes presented ER: IR ratio values a little above ( $>$ 0.75) those recommended in the literature [16, 22], demonstrating the need to increase both shoulder internal and external rotation muscles.

The shoulder complex comprises a group of muscles denominated the rotator cuff, which are very important for dynamic stabilization of the shoulder, mainly in sports tasks involving shoulder abduction and flexion above 90 ${}^{\circ}$ (i.e. overhead) [17, 18, 19, 20, 25]. During judo practice, athletes commonly execute various overhead movements (e.g. arm throwing techniques), thus, proper strengthening of rotator cuff muscles is vital for smooth, coordinated movements of the glenohumeral joint [16, 22]. Equally important is the strengthening of the shoulder muscles in order to protect against excessive forces generated during high-intensity contractions, grip disputes, and specific techniques, commonly used during matches and training sessions [26].

As practical applications, coaches and strength and conditioning (S&C) trainers should monitor shoulder rotator strength (e.g. conventional and functional ER: IR ratio) in judo athletes to prevent muscle imbalance (i.e. outside the normal ratio), which is a risk factor for shoulder strains and joint instability [17, 18, 19, 20]. Other factors, such as training overload, pain episodes, shoulder instability, and injury history should also be monitored to help identify shoulder rotator imbalance. Preventive exercise programs (unilateral and bilateral) for upper limbs to strengthen the rotator cuff muscles in concentric and eccentric contractions are recommended to promote shoulder stability [20]. Stretching exercises should also be used to improve or maintain the range of motion in the upper limbs to improve mobility, essential for good technical performance and injury prevention [27].

Finally, some limitations can be highlighted in this study. First, no other shoulder assessments were performed considering functional tests (e.g. upper quarter Y balance test, modified closed kinetic chain upper extremity stability test, and unilateral seated shot put test), and no eccentric contraction was investigated, which could help to further explain the injury-related mechanisms in the shoulder complex. Second, only the dominant side was evaluated, meaning it was not possible to verify asymmetry between the upper limbs, which could provide important results related to muscular adaptation in the shoulders of judo athletes. Third, we did not have access to information on the athletes’ previous shoulder injuries, which could influence the ER: IR conventional ratio.

5. Conclusion

In conclusion, advanced judo athletes performed better in the shoulder internal peak torque than novice athletes, but presented higher imbalance in the ER: IR ratio. Therefore, in the current study, judo practice induced selective increases in internal rotation strength, without concomitant development in external rotation strength, inducing high imbalance in the shoulder rotator muscles.

Author contributions

CONCEPTION: Daniele Detanico and Rafael L. Kons.

PERFORMANCE OF WORK: Daniele Detanico, Rafael L. Kons, Marina Saldanha da S. Athayde and Rodrigo G. Gheller.

INTERPRETATION OR DATA ANALYSIS: Daniele Detanico, Rafael L. Kons.

PREPARATION OF THE MANUSCRIPT: Daniele Detanico, Rafael L. Kons, Marina Saldanha da S. Athayde and Rodrigo G. Gheller.

REVISION FOR IMPORTANT INTELLECTUAL CONTENT: Daniele Detanico, Rafael L. Kons.

SUPERVISION: Daniele Detanico and Rafael L. Kons.

Ethical considerations

The study was approved by the local ethics committee (Protocol number 119.014) of the Federal University of Santa Catarina, Santa Catarina, Brazil. Before the assessment, every participant received the same detailed information about the testing procedure and signed the informed consent.

Funding

This work was financed by Coordenação de Aperfeiçoamento de Pessoal de Nível Superior – Brazil (CAPES) – Finance Code 001.

Footnotes

Acknowledgments

None.

Conflict of interest

The authors certify that there is no conflict of interest.

References

Franchini

Matsushigue

Vecchio

, et al. Physiological profiles of elite judo athletes. Sports Med. 2011; 41(2): 147-166.

Franchini

Artioli

Brito

. Judo combat: time-motion analysis and physiology. Int J Perform. 2013; 13(3): 624-641.

Ziv

Lidor

. Psychological preparation of competitive judokas – a review. J Sports Sci Med. 2013; 12(3): 371-380.

Kons

Dal Pupo

Gheller

Costa

, et al. Effects of successive judo matches on interlimb asymmetry and bilateral deficit. Phys Ther Sport. 2021; 47: 15-22.

International Judo Federation-IJF [Accessed 10 Oct 2021]. Avaible: wwwijforg.

Barreto

LBM

Aedo-Muñoz

Soto

DAS

, et al. Road to Tokyo Olympic Games: Do new judo rules change the technical-tactical behaviour of elite male athletes? Int J Perform. 2021; 6: 1140-1148.

Delorme

Blache

Degot

Rogowski

. Factors affecting the shoulder functional profile in elite judo athletes. Eur J Sport Sci. 2022; 19: 1-8.

Ruivo

Pezarat-Correia

Carita

. Elbow and shoulder muscles strength profile in judo athletes. Isok Exerc Sci. 2012; 20(1): 41-45.

Kons

Junior

JNDS

Follmer

, et al. Validity of judo-specific tests to assess neuromuscular performance of judo athletes. Sports Biomech. 2021; 20(2): 178-189.

10.

Detanico

Arins

Pupo

Santos

. Strength parameters in judo athletes: an approach using hand dominance and weight categories. Hum Mov. 2012; 13(4): 330-336.

11.

Akoto

Lambert

Maurice Balke

, et al. Epidemiology of injuries in judo: a cross-sectional survey of severe injuries based on time loss and reduction in sporting level. Br J Sports Med. 2018; 52(17): 1109-1115.

12.

Blach

Smolders

Rydzik

, et al. Judo Injuries Frequency in Europe’s Top-Level Competitions in the Period 2005–2020. J Clin Med. 2021; 10(4): 1-8.

13.

Pocecco

Gerhard

Nemanja

, et al. Injuries in judo: a systematic literature review including suggestions for prevention. Br J Sports Med. 2013; 47(18): 1139-1143.

14.

Kim

K-S

Park

Lee

, et al. Injuries in national Olympic level judo athletes: an epidemiological study. Br J Sports Med. 2015; 49(17): 1144-1150.

15.

Kons

da Silva Athayde

Antunes

, et al. Injuries in judo athletes with disabilities: prevalence, magnitude, and sport-related mechanisms. J Sport Rehabil. 2022; 31(7): 904-910.

16.

Ellenbecker

Davies

. The application of isokinetics in testing and rehabilitation of the shoulder complex. J Athl Train. 2000; 35(3): 338-350.

17.

Escamilla

Andrews

. Shoulder muscle recruitment patterns and related biomechanics during upper extremity sports. Sports Med. 2009; 39(7): 569-590.

18.

Stickley

Hetzler

Freemyer

Kimura

. Isokinetic peak torque ratios and shoulder injury history in adolescent female volleyball athletes. J Athl Train. 2008; 43(6): 571-577.

19.

Edouard

Degache

Oullion

Plessis

Gleizes-Cervera

Calmels

. Shoulder strength imbalances as injury risk in handball. Int J Sports Med. 2013; 34(7): 654-660.

20.

Hadzic

Sattler

Veselko

Markovic

Dervisevic

. Strength asymmetry of the shoulders in elite volleyball players. J Athl Train. 2014; 49(3): 338-344.

21.

Detanico

Dal Pupo

Graup

, et al. Vertical jump performance and isokinetic torque discriminate advanced and novice judo athletes. Kinesiology. 2016; 48(2): 223-228.

22.

Ivey

, Jr. Calhoun

Rusche

Bierschenk

. Normal values for isokinetic testing of shoulder strength. Arch Phys Med Rehabil. 1985; 66(6): 384-6.

23.

Cohen

. Statistical Power for the Social Sciences. Hillsdale, NJ Laurence Erlbaum Assoc. 1988.

24.

Kashiwagura

Courel-Ibáñez

Kashiwagura

, et al. Judo technical-tactical dynamics: Analysis of attack system effectiveness in high-level athletes. Int J Perform. 2021; 21(6): 922-933.

25.

Wilk

Meister

Andrews

. Current concepts in the rehabilitation of the overhead throwing athlete. Am J Sports Med. 2002; 30: 136-51.

26.

Marcondes

Castropil

Schor

, et al. Shoulder isokinetic performance in healthy professional judo athletes: normative data. Acta Ortop Bras. 2019; 27(6): 308-12.

27.

Madaleno

Verhagen

Ferreira

Ribeiro

, et al. Normative reference values for handgrip strength, shoulder and ankle range of motion and upper-limb and lower limb stability for 137 youth judokas of both sexes. J Sci Med Sport. 2021; 24(1): 41-45.
