Temporal cross-correlation between Polar ® heart rate monitor interface board and ECG to measure RR interval at rest

Abstract

BACKGROUND:

A Polar heart rate monitor is a device that measures RR intervals, but has not been correlated to accurately measure the series of RR interval signals between the ECG and the Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ Heart Rate Monitor Interface (HRMI) Board at rest.

OBJECTIVE:

The aim of the study was to evaluate the temporal cross-correlations between the Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ HRMI Board and an ECG to measure the series of RR intervals at rest.

METHODS:

The sample consisted of eighteen healthy male subjects and they were instructed to lie in the supine position at rest while breathing normally and a time window of the last 2 min was recorded to analyse RR intervals were obtained for each subject with a Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ HRMI Board and an ECG. Cross-correlation analysis of RR interval signals between methods and reliability was expressed by Bland and Altman analysis.

RESULTS:

The cross-correlation was excellent, resulting in a mean of 0.98 $\pm$ 0.01 and no lag or delay between the signals. The bias was 0.03 $\pm$ 0.08 s or 8.0% for MeanRRi from Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ HRMI Board and ECG, no significant difference.

CONCLUSIONS:

The Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ HRMI Board is acceptable for assessment of serial RR intervals. The results support the reliability of the Mean RR interval compared to a resting ECG.

Keywords

Bland and Altman heart rate variability RR interval electrocardiograph.

1. Introduction

Heart rate variability (HRV) is a non-invasive tool used to assess the autonomic control of heart rate fluctuations [1]. In the sports field, HRV has been found to be a valuable measure in a variety of sports settings with the measurement of many factors including overtraining [2], heart dynamics and efforts recovery [3], exercise prescription [4], identification of anaerobic thresholds [5] and determination of an athlete’s fitness level [6].

The use of electrocardiogram (ECG) has been used to study HRV analysis, but the high cost, difficulty of application in situations outside the laboratory environment, such as in physical training conditions [7, 8] make this a rather impractical tool for use outside the laboratory. As an alternative, the Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ Heart Rate Monitor Interface Board has overcome these difficulties, but it is basically a heart rate monitor that records the beat-to-beat RR intervals (RRi) of the ECG signal [9, 10]. The device is able to generate an output of a of 1 ms pulse, indicating a cardiac contraction [11].

Previous studies have investigated the correlation between commercial ECG systems at rest [12, 13, 14, 15, 16, 17] and during exercise [18, 19, 20, 21, 22] based on HRV. In addition, none of these studies investigated the use of the cross-correlation to accurately measure the series of RR intervals between the ECG and the Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ HRMI Board at rest, which is still an open area for investigation.

The cross-correlation function [23] estimates the correlation between the series allocated at time ( $t$ ) and the second series at time ( $t+k$ ), where $k$ is the delay or number of lags in the series according to Eq. (1).

$\displaystyle R_{xy}(k)=\sum_{k=-\infty}^{\infty}X(t)Y(t+k)$ (1)

Cross-correlation is a way of measuring the degree of similarity between a time series and a lagged version of another time series [24] or the interdependence between the signals [25]. It can also be used to determine phase differences, extract hidden signals, and reveal frequency content [25]. Thus, the aim of the study was to temporal cross-correlation between Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ Heart Rate Monitor Interface Board and ECG to measure RR interval at rest.

2. Methods and materials

2.1 Subjects

The sample consisted of eighteen adult male athletes 20 to 25 yrs of old, who volunteered for this study. All subjects were physical education students, non-smokers, with no history of cardiopulmonary disease and none was taking any medication, randomly selected during an anthropometric evaluation in the Physical Education course at the Federal University of Amapá (UNIFAP) between May and December 2022 in the period from 08:00 to 10:00 hours.

The study protocol was approved by the local Human Research Ethics Committee of the Federal University of Amapá (CAAE: 50150121.1.0000.0003, n ${}^{\circ}$ 5.121.013), and an informed written consent was obtained from all subjects. This study was conducted in accordance with the instructions of the Helsinki Declaration of 2008 and in accordance with Resolution 510/2016 of the National Health Council.

2.2 Anthropometric measurements

Potential volunteers were given a verbal explanation of the testing procedures and the time commitment required to participate in this study during an orientation session. Data collection and the anthropometric variables were performed by the same and experienced evaluator throughout the study. For both weight and height measurements, participants were kept barefoot, wearing light clothes and not carrying any object. The height was measured in centimeters and body weight in kilograms using certified and calibrated mechanical scales (Filizola, Brazil).

2.3 Data collection

The tests were conducted in a quiet room with temperature maintained at 22 ${}^{\circ}$ C. All subjects were instructed to avoid strenuous activity in the 24-h prior to each testing session and to avoid alcohol, caffeine, and the consumption of large meals for at least 3-h prior to testing. At the first visit to the laboratory, all subjects were instructed to lie in the supine position for 5-min at rest while breathing normally and a time window of the last 2-min was recorded for analysis RR intervals were obtained for each subject using a Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ HRMI Board and ECG.

The skin was prepared by shaving the hair, abrasion with sandpaper and alcohol cleaning. The ECG signal was measured by an electrocardiograph MCL07 (Ecafix, Brazil) in the modified lead CM5 to improve signal quality and R-wave amplitudes and surface electrodes of silver-silver chloride (Ag/AgCl) disposable Kendall Meditrace 200 (The Ludlow, Chicopee, USA). Additionally, cardiac pulses were also collected through Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ HRMI Board (Sparkfun, USA). Pulses were transmitted to the HRMI by a Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ (T31, Kenpele, Finland) belt placed around the chest of each subject. All signals were acquired and simultaneously digitized using a data acquisition Board model NIUSB-6008 (National Instruments, USA), with a 12-bit resolution analog-to-digital converter and a dynamic range $\pm$ 5 V, providing a quantization error of 1.22 $\mu$ V with the gain 1000, at a sampling rate of 1000 Hz and stored on a microcomputer for off-line processing. All procedures for the acquisition and control data were performed in the software DAS [26], built in LabVIEW version 5.0 (National Instruments, USA) in a microcomputer with Windows 7 operating system (Microsoft, USA).

2.4 Signal processing

All signal processing was analyzed with programs written in Matlab version 2020.b (The MathWorks, USA). To measure the RRi of the ECG, the signal was preprocessed by a 2th order Butterworth band-pass filter with cutoff frequencies of 5 and 20 Hz, applied in both the direct and reverse directions of the signals to avoid phase distortions. The times of the peaks of R-waves were detected by the zero crossing of the derivative of the filtered signal. Thus, the algorithm selected all signal peaks above a threshold of 0.5 V and removed the peaks whose refractory period was less than 250 ms. In addition, the algorithm allowed manual editing with visual inspection, in order to exclude ectopic heartbeats and exported as RR intervals in seconds.

A pulse train of peaks from the Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ HRMI Board was then generated to measure the RRi from the Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ HRMI Board. First, the algorithm selected all signal peaks above an established threshold, derived the signal and divided the result by the sampling frequency to find the RRi, which were automatically corrected using a moving average filter. The detected RRi were manually assessed to ensure that they had been correctly detected. Ectopic beats were noted and corrected by the Outliers RR module based on the first and third quartile intervals. All records of sample data had less than 2% error and were then saved to .txt files and exported as RR intervals in seconds.

2.5 Time series analysis

The cross-correlation analysis [24] between the RR interval signals from the ECG and the Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ HRMI Board at rest in the time domain according to Eq. (2):

$\displaystyle C_{\textit{iRRECG},\textit{iRRPolar}}(t)=$

(2) $\displaystyle\quad\sum_{k=-\infty}^{\infty}\textit{iRRECG}(t)\textit{iRRPolar}% (t+k)$

where $k$ is the time lag.

For each participant, the mean of the RR intervals (MeanRRi) from the Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ HRMI Board and the ECG at rest was processed and finally the reliability between the HRV parameter in the time domain was studied.
2.6 Statistical analysis

Descriptive data were expressed as mean $\pm$ standard deviation (SD). The Lilliefors test confirmed the normality of the sample distribution. Post hoc power analysis (1 $-$ beta error level) was used to determine the effect size [27] using G*Power software version 3.1.9.2 (University of Kiel, Germany). The MeanRRi data obtained from the Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ HRMI Board and ECG were estimated for each subject as absolute and relative numbers. Subsequently, the Student t-test for dependent samples was used to test the differences between the MeanRRi absolute data obtained from the Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ HRMI Board and an ECG with subjects at rest. To analyze the agreement of the MeanRRi data for each subject at rest obtained from the Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ Heart Rate Monitor Interface Board compared to an ECG, we followed the method Bland and Altman method [28] calculating the limits of agreement (LOA) at 95 % based on the mean difference, expressed as $\pm$ 2 SD. All procedures assumed $p\leqslant$ 0.05 for statistical significance. All data were processed in Matlab version 2020.b (The MathWorks, USA).

3. Results

Table 1
Anthropometric and physical characteristics and mean RRi obtained from ECG and Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ HRMI Board of participants at rest

Variables	Mean $\pm$ SD	CI95%	$P$ -value
Age (years)	23.8 $\pm$ 2.9	22.0–25.6	0.15
Height (cm)	176.1 $\pm$ 6.9	172.0–180.3	0.14
Body mass (kg)	80.6 $\pm$ 11.5	73.7–87.5	0.79
MeanRRi ECG	0.88 $\pm$ 0.12	0.82–0.94	0.26
MeanRRi Polar	0.91 $\pm$ 0.11	0.85–0.96	0.08

Values are mean $\pm$ standard deviation (SD), CI95% is confidence intervals 95% and $P$ -value of Lilliefors test.

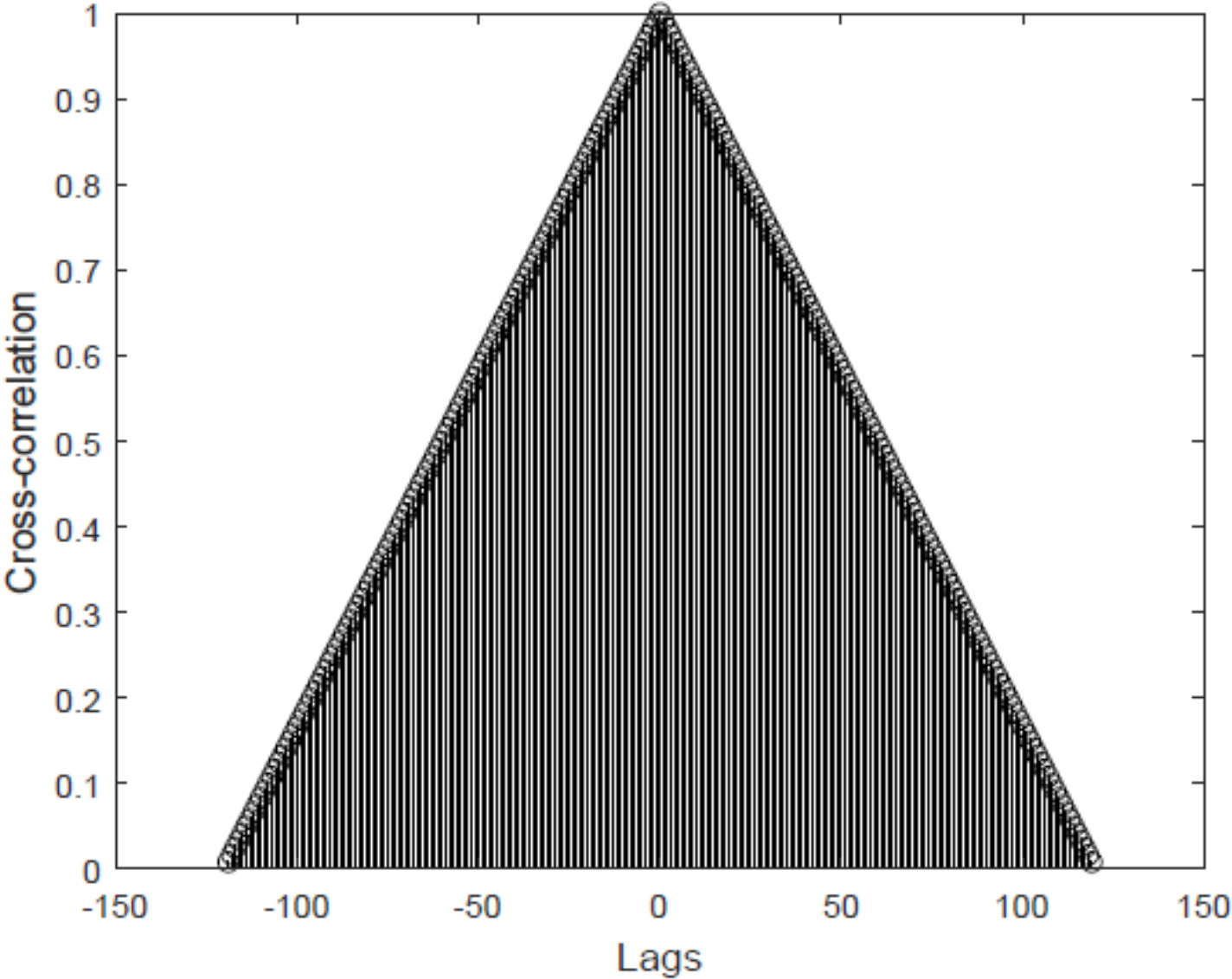

Figure 1.

Cross-correlation RR interval signals between Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ HRMI Board and ECG in one subject. Lags is $N$ $-$ 1: $N$ $+$ 1 and $N$ is the total sample.

Anthropometric, physical characteristics and MeanRRi from the Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ HRMI Board and ECG during rest of the participants are presented in Table 1, for all the variables was a Gaussian distribution ( $p\geqslant$ 0.05). The sample size effect was considered large with an actual power of 0.99.

The MeanRRi data obtained from the Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ HRMI Board and ECG varied for each subject in both absolute and relative terms, resulting in a mean difference of 0.03 $\pm$ 0.08 s or 8.0%, which was not significantly different ( $p=$ 0.46).

Cross-correlation between Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ HRMI Board and ECG RR interval signals was excellent, resulting in means of 0.98 $\pm$ 0.01 and no lag or delay between the signals, as shown in Fig. 1.

The Bland and Altman [28] plot analyzed the agreement resting MeanRRi data between the Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ HRMI Board and the ECG. Regardless of the reliable 95% LOA, only 5.5% of the coordinates of the MeanRRi variable on the HRV parameters were expressed outside the LOA, homoscedasticity of the data as shown in Fig. 2.

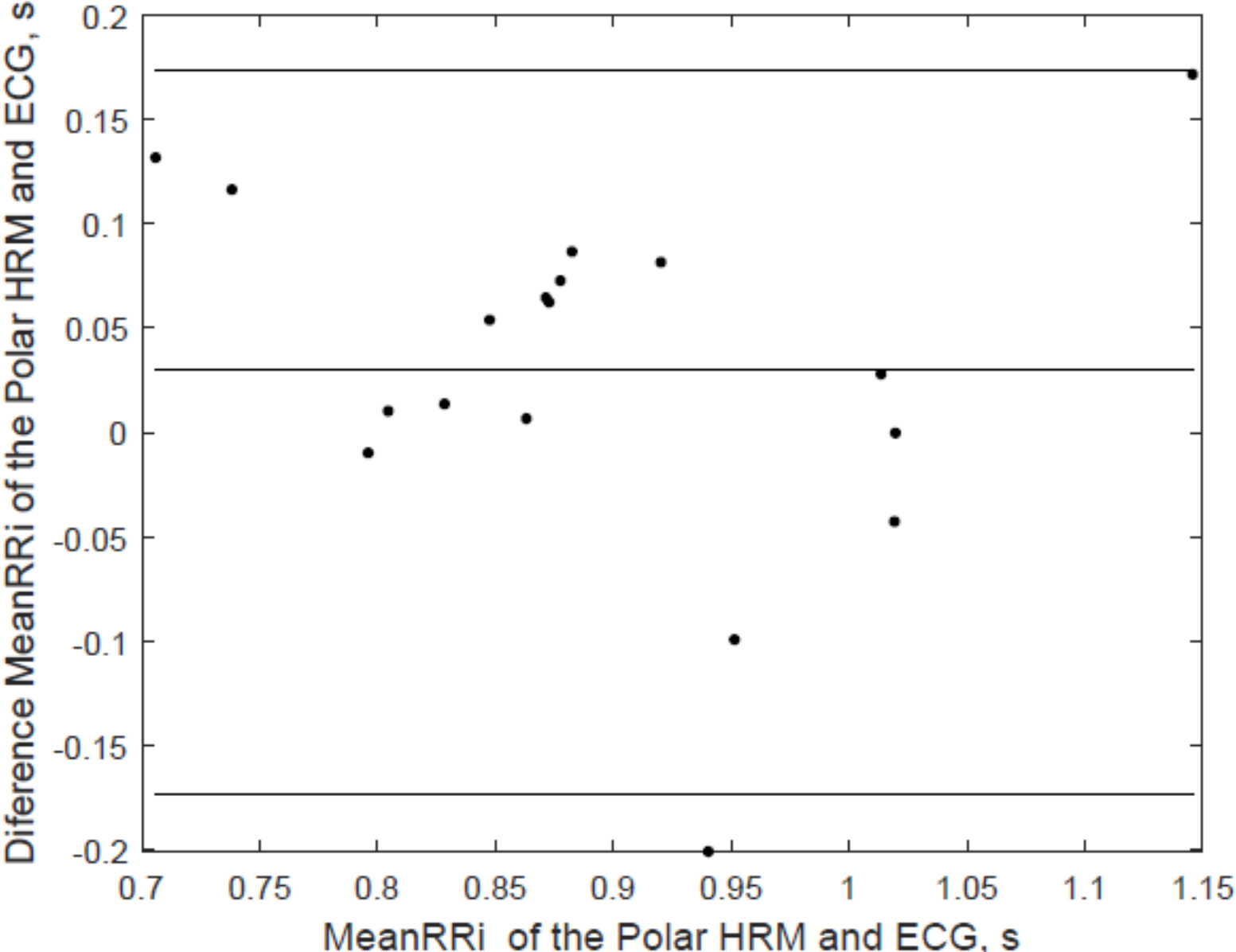

Figure 2.

Bland and Altman [25] plot of the MeanRRi HRV parameter between Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ HRMI Board and ECG, where the middle line represents the mean difference between the methods and the outer lines represent the 95% limit of agreement (LOA), calculated as $\pm$ 2 standard deviations.

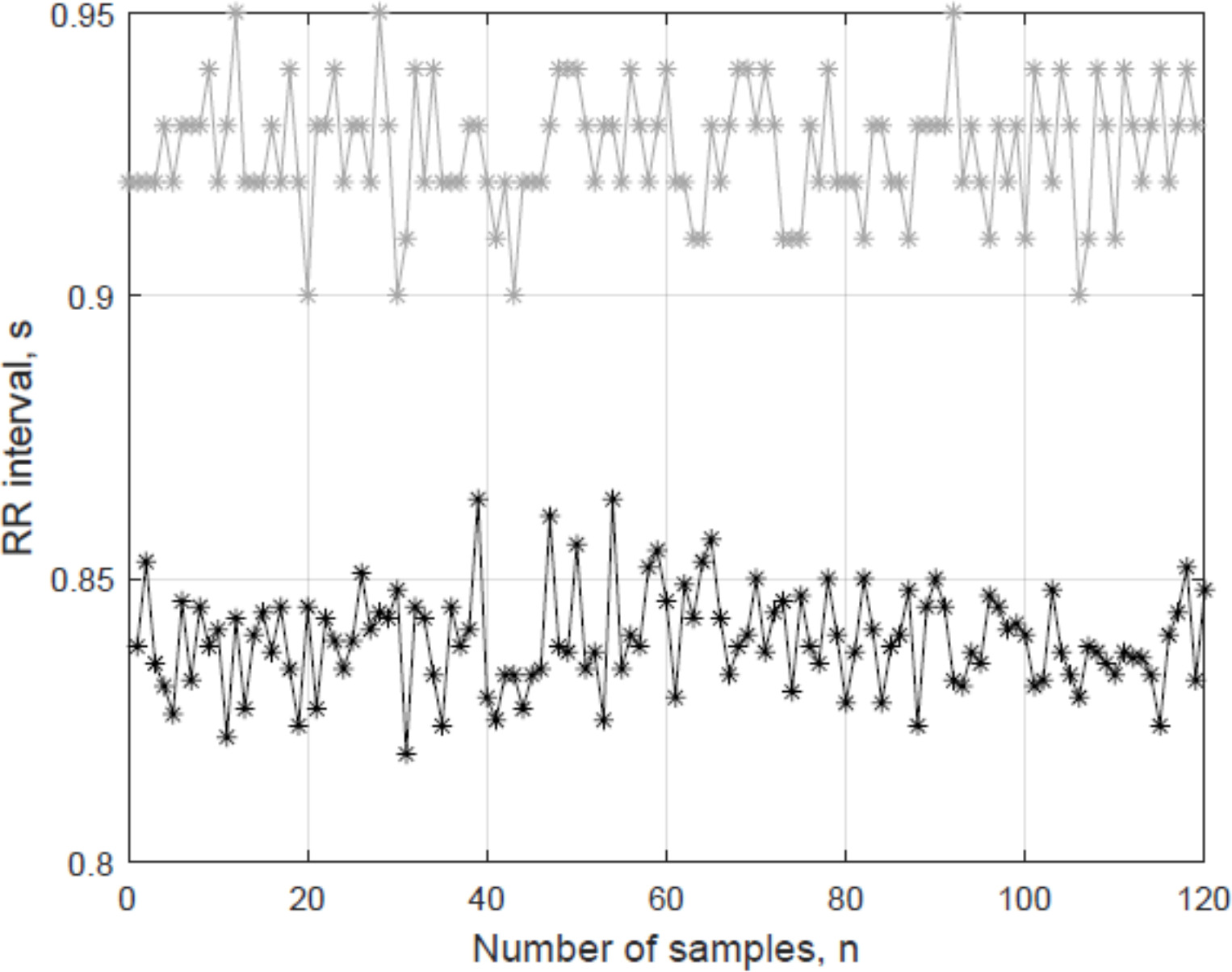

Figure 3.

RR interval signals between Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ HRMI Board (gray) and ECG (black) in one subject during the last 2 minutes at rest.

4. Discussion

The purpose of this study was to determine the temporal cross-correlation between the Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ Heart Rate Monitor Interface Board and ECG to measure RR intervals at rest. It was hypothesized that the correlation is essential to accurately measure the series of RR intervals between the ECG and the Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ HRMI Board.

Previous studies [12, 13, 14, 15, 16, 17] support the validity of the Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ HRMI Board for measuring RR intervals and make the subsequent resting HRV analysis. However, in contrast to the present study, none of these studies investigated the temporal cross-correlations between the Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ HRMI Board and the ECG to measure serial RR intervals.

The time domain analysis based on the cross-correlation between these RR interval signals shows the presence of correlation between the rhythms, as it resulted in excellent cross-correlation, with an average of 0.98 $\pm$ 0.01 peak values and, no lag or delay between the signals. The results suggest that the Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ HRMI Board can produce RR interval recordings is consistent with an ECG and that the MeanRRi HRV parameter derived from these recordings is comparable in adult male athletes at rest.

The RR interval is the time elapsed between two successive R-waves of the QRS signal on the ECG is a function of the intrinsic properties of the sinus node as well as autonomic influences [29]. For this reason, MeanRRi is the average RR interval duration in a measurement. Autonomic cardiovascular regulation can be studied by quantifying MeanRRi as assessed under steady state conditions of health [30, 31] or disease [32, 33] when compared to other HRV parameters, which justifies the use of the MeanRRi HRV parameter in the study. However, no statistically significant difference was found when testing the differences in the MeanRRi HRV parameter obtained during at rest between the Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ HRMI Board and an ECG recorder.

Bland and Altman [34] have investigated about the use of correlation is misleading, an alternative approach, based on graphical techniques and simple calculations is described along with the relationship between this analysis and the assessment of repeatability. Therefore, the Bland and Altman [28] plot illustrates the coordinates of MeanRRi of the HRV parameter, which showed a low variability and few coordinates outside the limits of agreement, expressed as 95% LOA, indicating homoscedasticity or homogeneity of variances.

Figure 3 illustrates the RR interval signals between the Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ HRMI Board and ECG in one subject during the last 2 minutes at rest, as observed greater amplitude variation RR interval data of the Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ HRMI Board when compared to an ECG recorder, the mean RR differences between devices in this subject was about 0.1 s, but the difference in means was of 0.03 $\pm$ 0.08 s or a mean relative error of 8.0%. Since the Polar ${}^{\text{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ HRMI Board system did not satisfactorily detect errors or provide valid HRV values for certain groups, it is concluded that traditional ECGs should be used whenever possible for both acquisition and processing of HRV data [35].

The present study was limited to the study of the MeanRRi HRV parameter alone in the time domain. Future research should address the limitations of the present study by employing a sample of different age and both sexes, analysis of HRV parameters in the frequency domain with respiratory rate control [36] and control group by investigating the associations between these parameters HRV values and cardiovascular risk factors.

5. Conclusions

The Polar ${}^{\mbox{\@setsize{\scriptsize}{8pt}{\viipt}{\@viipt}\textregistered}}$ HRMI Board is considered acceptable to assess the series RR intervals and the findings support the reliability to produce MeanRRi recordings consistent when compared with an ECG at rest.

References

Zhu

Liu

. Heart rate variability monitoring for emotion and disorders of emotion. Physiol Meas. 2019; 40(6): 064004. doi: 10.1088/1361-6579/ab1887.

Sun

. Heart Rate Variability-Based Subjective Physical Fatigue Assessment. Sensors (Basel). 2022; 22(9): 3199. doi: 10.3390/s22093199.

Arduini

Gomez-Cabrera

Romagnoli

. Reliability of different models to assess heart rate recovery after submaximal bicycle exercise. J Sci Med Sport. 2011; 14(4): 352-7. doi: 10.1016/j.jsams.2011.02.012.

Gronwald

Rogers

Hoos

. Fractal Correlation Properties of Heart Rate Variability: A New Biomarker for Intensity Distribution in Endurance Exercise and Training Prescription? Front Physiol. 2020; 11: 550572. doi: 10.3389/fphys.2020.550572.

Rogers

Giles

Draper

Hoos

Gronwald

. A New Detection Method Defining the Aerobic Threshold for Endurance Exercise and Training Prescription Based on Fractal Correlation Properties of Heart Rate Variability. Front Physiol. 2021; 11: 596567. doi: 10.3389/fphys.2020.596567.

Berkoff

Cairns

Sanchez

Moorman

3rd . Heart rate variability in elite American track-and-field athletes. J Strength Cond Res. 2007; 21(1): 227-31. doi: 10.1519/00124278-200702000-00041.

Bulková

. Long-term ECG monitoring. Vnitr Lek. 2021; 67(1): 16-21.

McStay

. Recording a 12-lead electrocardiogram (ECG). Br J Nurs. 2019; 28(12): 756-760. doi: 10.12968/bjon.2019.28.12.756.

Gillinov

Etiwy

Wang

Blackburn

Phelan

Gillinov

Houghtaling

Javadikasgari

Desai

. Variable Accuracy of Wearable Heart Rate Monitors during Aerobic Exercise. Med Sci Sports Exerc. 2017; 49(8): 1697-1703. doi: 10.1249/MSS.0000000000001284.

10.

Hernando

Roca

Sancho

Alesanco

Bailón

. Validation of the Apple Watch for Heart Rate Variability Measurements during Relax and Mental Stress in Healthy Subjects. Sensors (Basel). 2018; 18(8): 2619. doi: 10.3390/s18082619.

11.

Giles

Draper

Neil

. Validity of the Polar V800 heart rate monitor to measure RR intervals at rest. Eur J Appl Physiol. 2016; 116(3): 563-71. doi: 10.1007/s00421-015-3303-9.

12.

Cilhoroz

Giles

Zaleski

Taylor

Fernhall

Pescatello

. Validation of the Polar V800 heart rate monitor and comparison of artifact correction methods among adults with hypertension. PLoS One. 2020; 15(10): e0240220. doi: 10.1371/journal.pone.0240220.

13.

Gilgen-Ammann

Schweizer

Wyss

. RR interval signal quality of a heart rate monitor and an ECG Holter at rest and during exercise. Eur J Appl Physiol. 2019; 119(7): 1525-1532. doi: 10.1007/s00421-019-04142-5.

14.

Plews

Scott

Altini

Wood

Kilding

Laursen

. Comparison of Heart-Rate-Variability Recording With Smartphone Photoplethysmography, Polar H7 Chest Strap, and Electrocardiography. Int J Sports Physiol Perform. 2017; 12(10): 1324-1328. doi: 10.1123/ijspp.2016-0668.

15.

Barbosa

da Silva

de Azevedo

Pastre

Vanderlei

. Comparison of Polar® RS800G3™heart rate monitor with Polar® S810i™and electrocardiogram to obtain the series of RR intervals and analysis of heart rate variability at rest. Clin PhysiolFunct Imaging. 2016; 36(2): 112-7. doi: 10.1111/cpf.12203.

16.

Wallén

Hasson

Theorell

Canlon

Osika

. Possibilities and limitations of the Polar RS800 in measuring heart rate variability at rest. Eur J Appl Physiol. 2012; 112(3): 1153-65. doi: 10.1007/s00421-011-2079-9.

17.

Vanderlei

Silva

Pastre

Azevedo

Godoy

. Comparison of the Polar S810i monitor and the ECG for the analysis of heart rate variability in the time and frequency domains. Braz J Med Biol Res. 2008; 41(10): 854-9. doi: 10.1590/s0100-879x2008005000039.

18.

Gamelin

Berthoin

Bosquet

. Validity of the polar S810 heart rate monitor to measure R-R intervals at rest. Med Sci Sports Exerc. 2006; 38(5): 887-93. doi: 10.1249/01.mss.0000218135.79476.9c.

19.

Caminal

Sola

Gomis

Guasch

Perera

Soriano

Mont

. Validity of the Polar V800 monitor for measuring heart rate variability in mountain running route conditions. Eur J Appl Physiol. 2018; 118(3): 669-677. doi: 10.1007/s00421-018-3808-0.

20.

Hernando

Garatachea

Almeida

Casajús

Bailón

. Validation of Heart Rate Monitor Polar RS800 for Heart Rate Variability Analysis During Exercise. J Strength Cond Res. 2018; 32(3): 716-725. doi: 10.1519/JSC.0000000000001662.

21.

Giles

Draper

. Heart Rate Variability During Exercise: A Comparison of Artefact Correction Methods. J Strength Cond Res. 2018; 32(3): 726-735. doi: 10.1519/JSC..

22.

Kingsley

Lewis

Marson

. Comparison of Polar 810s and an ambulatory ECG system for RR interval measurement during progressive exercise. Int J Sports Med. 2005; 26(1): 39-44. doi: 10.1055/s-2004-817878.

23.

Caldwell

. Coefficient of cross correlation and the time domain correspondence. J Electromyogr Kinesiol. 1999; 9(6): 385-9. doi: 10.1016/s1050-6411(99)00012-7.

24.

Materko

Facanha

CCDR

Sadala

Dias

MFS

Costa

Pureza

Alberto

AAD

. Cardiorespiratory synchronism is associated in the maximal cardiopulmonary exercise test in male athletes of the University of Malaga. Medicinadello Sport. 2022; 75(2): 198-205. doi: 10.23736/S0025-7826.22.04147-3.

25.

Materko

Nadal

Sá

AMFLM

. Investigating cardiolocomotor synchronization during running in trained and untrained males. Research on Biomedical Engineering. 2015; 31: 176-186. doi: 10.1590/2446-4740.0623

26.

Pino

Kagami

Jandre

Giannella-Neto

. DAS – a program acquisition and signal processing for pulmonary engineering. In: Proceedings of the III CLAEB. 2004. pp. 765-768.

27.

Kang

. Sample size determination and power analysis using the G*Power software. J Educ Eval Health Prof. 2021; 18: 17. doi: 10.3352/jeehp.2021.18.17.

28.

Bland

Altman

. Statistical methods for assessing agreement between two methods of clinical measurement. Lancet. 1986; 1(8476): 307-10.

29.

Scherz

Seepold

Madrid

Crippa

Ortega

. RR interval analysis for the distinction between stress, physical activity and no activity using a portable ECG. Annu Int Conf IEEE Eng Med Biol Soc. 2020; 2020: 4522-4526. doi: 10.1109/EMBC44109.2020.9175458.

30.

Materko

Bartels

Peçanha

Lima

JRP

Carvalho

ARS

Nadal

. Maximum oxygen uptake prediction model based on heart rate variability parameters for young healthy adult males at rest. Open Acc BiostatBioinform. 2018; 2(3): OABB.000536. doi: 10.31031/OABB.2018.02.000536.

31.

Materko

. Stratification of the level of aerobic fitness based on heart rate variability parameters in adult males at rest. Motricidade. 2018; 14(1): 51-57.

32.

Materko

Sadala

Fernandes

Pureza

Alberto

AAD

Pena

FPS

. Evaluation on heart rate variability parameters in elderly with type 2 diabetes mellitus using principal component analysis. Gazz Med Ital – Arch Sci Med. 2022; 181: 879-84. doi: 10.23736/S0393-3660.22.04782-9.

33.

Materko

Fernandes

Façanha

CCR

Dias

MFS

Costa

Pureza

Alberto

AAD

. A machine learning approach to developing an accurate stratification of the type 2 diabetes mellitus based on heart rate variability parameters using the K-means clustering technique in elderly women. Gazz Med Ital – Arch Sci Med. 2023; in press.

34.

Bland

Altman

. Agreed statistics: measurement method comparison. Anesthesiology. 2012; 116(1): 182-5. doi: 10.1097/ALN.0b013e31823d7784.

35.

Wallén

Hasson

Theorell

Canlon

Osika

. Possibilities and limitations of the Polar RS800 in measuring heart rate variability at rest. Eur J Appl Physiol. 2012; 112(3): 1153-65. doi: 10.1007/s00421-011-2079-9.

36.

Materko

Bartels

Motta-Ribeiro

Lopes

Nadal

Carvalho

ARS

. Influence of the respiratory signal in heart rate variability analysis in the respiratory pattern in healthy elderly and with COPD. International Journal of Engineering Technologies and Management Research. 2018; 5(10): 1-8. doi: 10.5281/zenodo.1473834.
