A Novel Antibody Targeting Tau Phosphorylated at Serine 235 Detects Neurofibrillary Tangles

INTRODUCTION

Alzheimer’s disease (AD) is characterized pathologically by the extracellular accumulation of amyloid plaques, the intracellular accumulation of neurofibrillary tangles (NFTs), and extensive neuronal cell death. NFTs are also the primary pathology observed in related tauopathies, including frontotemporal lobar degeneration-tau (FTLD-tau), corticobasal degeneration, and progressive supranuclear palsy. The major constituent of NFTs is the microtubule-associated protein tau which has undergone hyperphosphorylation and self-aggregation to form insoluble fibers known as straight and paired helical filaments.

Using phosphorylated tau (p-tau)-specific antibodies and silver staining, three morphological stages of NFT formation have been distinguished: 1) pre-NFTs, 2) intraneuronal NFTs (iNFTs), and 3) extraneuronal NFTs (eNFTs) [1]. Pre-NFTs are defined by diffuse, sometimes punctate, tau staining within the cytoplasm of otherwise normal-looking neurons, with well-preserved dendrites and a central nucleus; they are reactive with anti-tau antibodies but not silver stain [2]. iNFTs contain aggregated filamentous structures and are found within the cytoplasm of neurons which have a definable but frequently displaced nucleus. Typically, the dendrites of iNFT-affected neurons appear to have deteriorated but retain their position. Finally, eNFTs result from the death of the tangle-bearing neurons, and are identifiable by the absence of neuronal nuclei and stainable cytoplasm [2]. Previous studies have shown that antibodies specific for tau phosphorylated at Thr153, Ser262, and Thr231 and certain conformational epitopes recognized by the antibodies MC1 and ALZ50 label pre-NFTs, whereas AT8 (Ser202/Thr205) and PHF1 (Ser396/Ser404) antibodies preferentially identify iNFTs and eNFTs [1].

A previously uncharacterized tau epitope, phosphorylated Ser235 (p-Ser235), which is located in the proline-rich region of tau, has also been shown to be elevated in AD [3]. Furthermore, in vitro studies have demonstrated that phosphorylation of Ser235 abolishes the ability of tau to polymerize tubulin into microtubules [4], which could be due to disturbances in the local secondary structure of tau upon phosphorylation at this site [5, 6]. An antibody specific for p-Ser235 may therefore be useful for the characterization of tau pathology. Here, we demonstrate that a novel anti-pSer235 antibody, RN235, specifically detects tau aggregates consistent with the transition from iNFTs to eNFTs, suggesting that phosphorylation of this site is associated with late p-tau changes.

MATERIALS AND METHODS

RESULTS

RN235 is specific for tau phosphorylated at serine 235

It has been reported that phosphorylation of tau at Thr231 and Ser235 is increased in patients with AD [3]. We generated a murine monoclonal antibody against a peptide with the dual phosphorylation. Dot blot analysis revealed that the antibody was specific to p-tau, with no detectable reactivity to the non-phosphorylated protein (Fig. 1A). This was further confirmed by ELISA (Fig. 1B). The calculated EC50 of RN235 to the dual phosphorylated peptide was 0.41 nM (Fig. 1C). This was consistent with the EC50 calculated against the peptide phosphorylated at Ser235 alone (0.63 nM), suggesting that RN235 only requires Ser235 phosphorylation and that binding is not disrupted when Thr231 is phosphorylated (Fig. 1C). The EC50 against the p-Thr231 peptide was considerably lower (407 nM), confirming that RN235 is essentially p-Ser235 specific, displaying only a weak interaction with p-Thr231 (Fig. 1C).

OPEN IN VIEWER

Fig.1

RN235 monoclonal antibody specifically recognizes tau phosphorylated at Ser235. Dot blot analysis (A) and ELISA (B) reveal that RN235 is specific for phosphorylated tau and has no cross-reactivity with non-phosphorylated tau when compared to a pan-tau antibody, tau5, or a non-specific control antibody. C) The binding activity of RN235 was determined by ELISA using plates coated with dual phospho-peptide (pThr231/Ser235) or individual phospho-peptides (pThr231 or pSer235). The EC50 of the RN235 to pThr231 was calculated to be 407 nM, whereas the EC50s of RN235 to the dual phospho-peptide and pSer235 were much higher (0.41 nM and 0.63 nM, respectively).

RN235 detects compact neuronal aggregates

To determine if RN235 is capable of detecting p-tau in brain tissue, postmortem cortical samples from human AD and FTLD-tau patients were analyzed (Fig. 2A). RN235 bound to dense tau aggregates without a definable nucleus in the AD and FTLD-tau tissue, with no binding observed in the control tissue (Fig. 2A). These aggregates exhibited collapsed or displaced dendrites consistent with those of iNFTs and eNFTs (Fig. 2A). Similar aggregates were also observed in the brain tissue from human tau transgenic mice (K3, rTg4510, ALZ17 and pR5), but were absent in tau knockout and wild-type tissue (Fig. 2B). Although present, RN235 labeling in the pR5 mice was very sparse, possibly due to the low expression of human tau and comparatively subtle tau pathology in these mice (Fig. 2B). To better characterize the NFT stage that RN235 detects, co-labeling was conducted in K3 brain tissue with a p-Thr231 antibody, AT180, which preferentially detects pre-NFTs, and with a p-Ser202/205 antibody, AT8, which preferentially detects iNFTs and eNFTs (Fig. 2C). RN235 labeling differed from the heterogeneous labeling observed with AT180, which frequently produced a more diffuse cytoplasmic tau staining within neurons with detectable nuclei, consistent with the presence of pre-NFTs, and less frequently co-localized with RN235 (Fig. 2C). On the other hand, AT8 labeling was consistent with that of RN235 and co-localization was frequently observed (Fig. 2C).

OPEN IN VIEWER

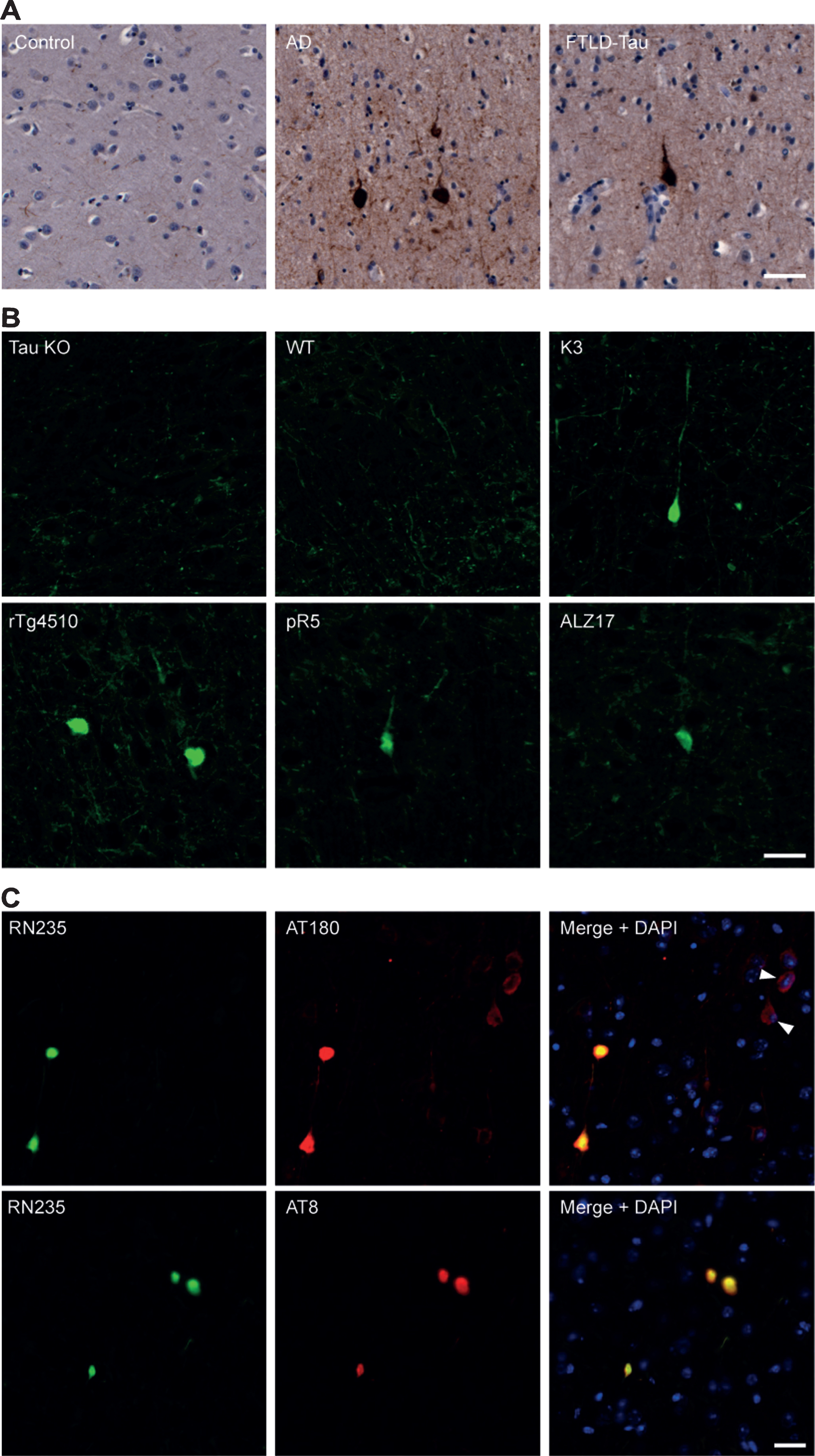

Fig.2

RN235 detects tau NFTs in human and mouse tissue. A) RN235 detects NFTs which lack a definable nucleus in human cortical tissue from patients with Alzheimer’s disease (AD; n = 2; mean age = 84.5 years) and frontotemporal lobar degeneration-tau (FTLD-tau; n = 2; mean age = 88.5 years) but not in control tissue (control; n = 2; mean age = 73 years). B) Similar aggregates are also detected in the cortical tissue of rTg4510 (4 months), ALZ17 (12 months), and pR5 (6 months) tau transgenic mice but not in tau knockout mice (tau KO; 6 months) or wild-type (WT) animals (n = 3). C) Comparison of RN235 (green) labeling to that of the p-Thr231 antibody, AT180, and the p-Ser202/205 antibody, AT8 (both red), in cortical tissue of a 3-month-old K3 mouse, revealing that RN235 labeling is consistent with that of AT8 and detects NFTs without a definable nucleus, whereas AT180 labeling is frequently more diffuse (arrowhead) and the nucleus is clearly observed, consistent with pre-NFTs. Nuclear staining is shown with DAPI (blue). Scale bars = 25μm.

RN235 detects a progressive tau pathology

As phosphorylation of tau at Ser235 is elevated in disease [3], we next wanted to confirm that the tau aggregates detected by RN235 represented a progressive pathology. K3 mice typically exhibit progressive NFT formation from 2 months of age [9]. This was confirmed with Bielschowsky’s silver staining which demonstrated an approximate 2-fold increase in NFTs in the cortex of K3 mice between 2 and 14 months (Fig. 3A). In a similar pattern, RN235 labeling revealed that this epitope was approximate 2-fold more abundant in the older mice (Fig. 3B), with the RN235 labeling co-localizing with that of AT8 (Fig. 3B). This demonstrates that RN235, similar to AT8, detects a pathological epitope which increases with disease progression.

OPEN IN VIEWER

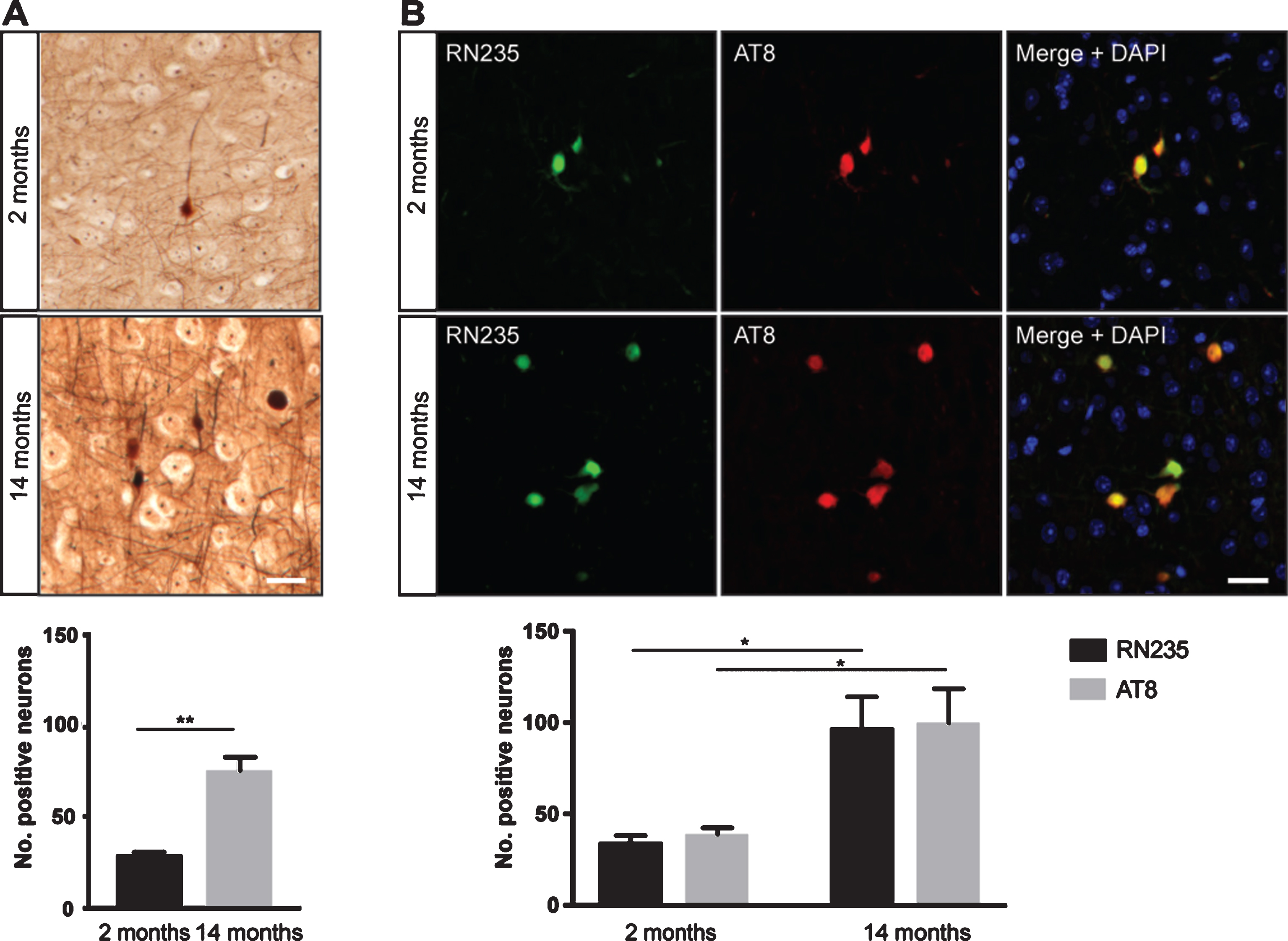

Fig.3

RN235 detects a progressive tau pathology. A) Between 2 and 14 months, K3 mice exhibit a 2-fold increase in Bielschowsky’s silver-stained NFTs in the cortex (n = 3; mean + SEM; ^**p < 0.01, Student’s unpaired t-test). B) The number of RN235-positive NFTs also significantly increased from 2 to 14 months of age and is consistent with AT8 labeling (n = 3; mean + SEM; ^*p < 0.05 Two-way ANOVA with Tukey’s multiple comparisons test). Scale bars = 25μm.

DISCUSSION

The progression of hyperphosphorylated tau aggregation from pre-fibrillar aggregates to NFTs can be characterized histologically using p-tau antibodies and silver staining. Here we have demonstrated in both human post-mortem tissue and transgenic mice, that a novel monoclonal antibody, RN235, which is specific for tau phosphorylated at Ser235, detects compact tau aggregates without a definable nucleus and with displaced to collapsed dendrites, consistent with intraneuronal and extraneuronal NFTs. Labeling was dominant in more advanced stages of disease and was rarely observed in mice at young ages or those with only a subtle tau pathology.

Ser235 is commonly phosphorylated in conjunction with Thr231 [11] and both undergo phosphorylation by the kinases GSK-3β, cyclin-dependent kinase 5, and cyclic-AMP-dependent protein kinase. As the activity of GSK-3β is enhanced by tau priming, whereby an amino acid in the n + 4 site has already been phosphorylated, it has previously been suggested that phosphorylation of Ser235 primes the phosphorylation of Thr231 [11, 12]. If this were the case, it would be expected that RN235 labeling would be similar to that of AT180, an antibody which detects p-Thr231. Instead, we have shown that RN235 labeling co-localizes with that of AT8 but rarely with AT180, suggesting that phosphorylation of Thr231 occurs early in disease, whereas p-Ser235 is associated with late stage p-tau changes consistent with the phosphorylation of Ser202/205. This is in agreement with a more recent study which demonstrated that GSK-3β acts on Thr231 in the absence of priming of Ser235 but is instead dependent on the phosphorylation at Thr175 [13]. Interestingly, an antibody specific to p-Thr175 has previously been shown to detect pre-NFTs, similar to AT180 [1].

Although immunotherapy targeting p-tau epitopes has proven to be successful in multiple pre-clinical studies, one would not expect the therapeutic potential of RN235 to be great, as the disease would be too far advanced for it to have an effect. Here we have shown, however, that the RN235 monoclonal antibody is ideal as a research tool for characterizing NFT formation in both human and mouse tissue.
