Combined Biomarker Prognosis of Mild Cognitive Impairment: An 11-Year Follow-Up Study in the Alzheimer’s Disease Neuroimaging Initiative

INTRODUCTION

Biomarkers inform predictive prognosis in mild cognitive impairment (MCI) and are under consideration for wider use in clinical [1] and research [2, 3] settings. Incorporation of available biomarkers into research and clinical frameworks requires long-term follow-up studies, which are rare, given the field’s rapid evolution and only recent development of such biomarkers.

Combining across biomarkers may allow biological staging in Alzheimer’s disease (AD). Longitudinal studies of unimpaired individuals demonstrated that amyloid positivity may appear years before clinically relevant decline [4] and does not predict decline as well alone as it does in combination with abnormal tau [5, 6], suggesting a benefit to evaluating multiple biomarkers. In MCI, the combination of medial temporal lobe atrophy, memory impairment, and abnormal amyloid and tau predicts near-term conversion to dementia [7]. Within amyloid positive individuals, hippocampal atrophy, alone [8] and in the presence of abnormal tau [9], predicts progression to dementia.

It remains unknown how stable these biomarker-based predictions of progression from MCI to dementia are over the long term. The question of stability is vital to future clinical applications, such as how frequently biomarkers would need to be reassessed to maintain predictive power. The current study follows to dementia conversion or dropout an established cohort of MCI patients from the Alzheimer’s Disease Neuroimaging Initiative (ADNI) [10] that was characterized at baseline using cognitive, volumetric magnetic resonance imaging (vMRI), and cerebrospinal fluid (CSF) biomarker cutoffs. In this long-term follow-up investigation, we examined the performance of each baseline assessment of risk for decline, with attention to time-to-progression to dementia and stability of a negative biomarker result.

METHODS

RESULTS

Subject demographics and clinical characteristics, split by conversion status, are summarized in Table 1. In this study 185 MCI subjects were followed longitudinally for a mean (SD) 4.3 (2.8) years. 59% of participants converted to dementia within the follow-up period, with a median dementia-free survival time of 2.8 years (95% CI, 2.5–3.7). Subjects who did not convert to dementia were lost to follow-up at an average of 3.8 years. Sex was not a significant predictor of conversion when included as a covariate in the analysis for any single biomarker or biomarker combination. While the Cox proportional hazard analyses controlled for age, it was only a significant predictor of conversion in the HOC positive, CSF negative combination (HR 1.1, 95% CI, 1.0–1.2) and the CSF negative, AVLT positive combination (HR 1.1, 95% CI, 1.0–1.2). There was no significant difference in APOE ɛ4 allele carriers by conversion status. However, there was a significant relationship between APOE ɛ4 allele dose and age at conversion (Supplementary Figure 1). Of the subjects who did not complete their 11-year visit but retained an MCI diagnosis at their last completed clinical evaluation, the time to censoring was associated with risk factor group (FDR-corrected p < 0.05), with subjects in the positive risk group for HOC, HC % ICV, t-tau, p-tau/Aβ ratio, p-tau, t-tau/Aβ ratio, or Aβ remaining in the study an average 1.6 years shorter than their negative risk counterparts.

Each individual risk factor predicted conversion to dementia, with HRs ranging from 1.9 to 3.7 (Table 2). Figure 1 shows Kaplan-Meier survival curves for subjects stratified into positive and negative risk groups based on individual vMRI and CSF measures and AVLT scores. HOC (HR 3.7) and the t-tau/Aβ ratio (HR 3.6) outperformed HC % ICV (HR 2.4) and any other CSF measure (HR 1.9–3.5), and were therefore the vMRI and CSF measure, respectively, used in joint risk analyses.

OPEN IN VIEWER

Fig. 1

Kaplan-Meier survival curves for each individual risk factor. Kaplan-Meier survival curves, which estimate the probability that a subject will remain dementia free at a given time, are displayed for the entire cohort and stratified by positive (red) or negative (blue) risk for each individual risk factor. The y-axis shows the proportion of stable subjects. The x-axis shows time in years. Vertical drops indicate conversion. Tick marks indicate censoring. Shading represents 95% confidence intervals. Only subjects who have not yet converted or dropped out are considered at risk at a given time point. AVLT, sum of scores from the 5 immediate learning trials of the Rey Auditory Verbal Learning Test; HOC, hippocampal occupancy score; HC % ICV, hippocampal volume as a percent of intracranial volume.

The joint presence of any two risk factors increased risk for conversion (HR 7.1–11.0), with the presence of both medial temporal lobe atrophy and memory impairment on the AVLT showing the greatest risk for decline. Figure 2 shows Kaplan-Meier survival curves for subjects stratified into positive and negative risk groups based on combinations of joint HOC, t-tau/Aβ ratio, and AVLT risk.

Concordant HOC, AVLT, and t-tau/Aβ ratio risk was associated with the highest risk for conversion to dementia (HR 15.1) (Fig. 2). Subjects with concordant positive risk on all three factors (n = 54) converted to dementia at a median 1.3 (95% CI, 0.9–1.8) years (Fig. 3). The 13% of concordant positive subjects who did not convert were lost to follow-up at a mean (SD) 1.7 (1.3) years, and their subsequent cognitive status is therefore unknown.

OPEN IN VIEWER

Fig. 2

Kaplan-Meier survival curves stratified by risk factor combinations. Kaplan-Meier survival curves estimate the probability that a subject will remain dementia free at a given time. The y-axis shows the proportion of stable subjects. The x-axis shows time in years. Vertical drops indicate conversion. Tick marks indicate censoring. Shading represents 95% confidence intervals. Only subjects who have not yet converted or dropped out are considered at risk at a given time point. AVLT, sum of scores from the 5 immediate learning trials of the Rey Auditory Verbal Learning Test; HOC, hippocampal occupancy score.

OPEN IN VIEWER

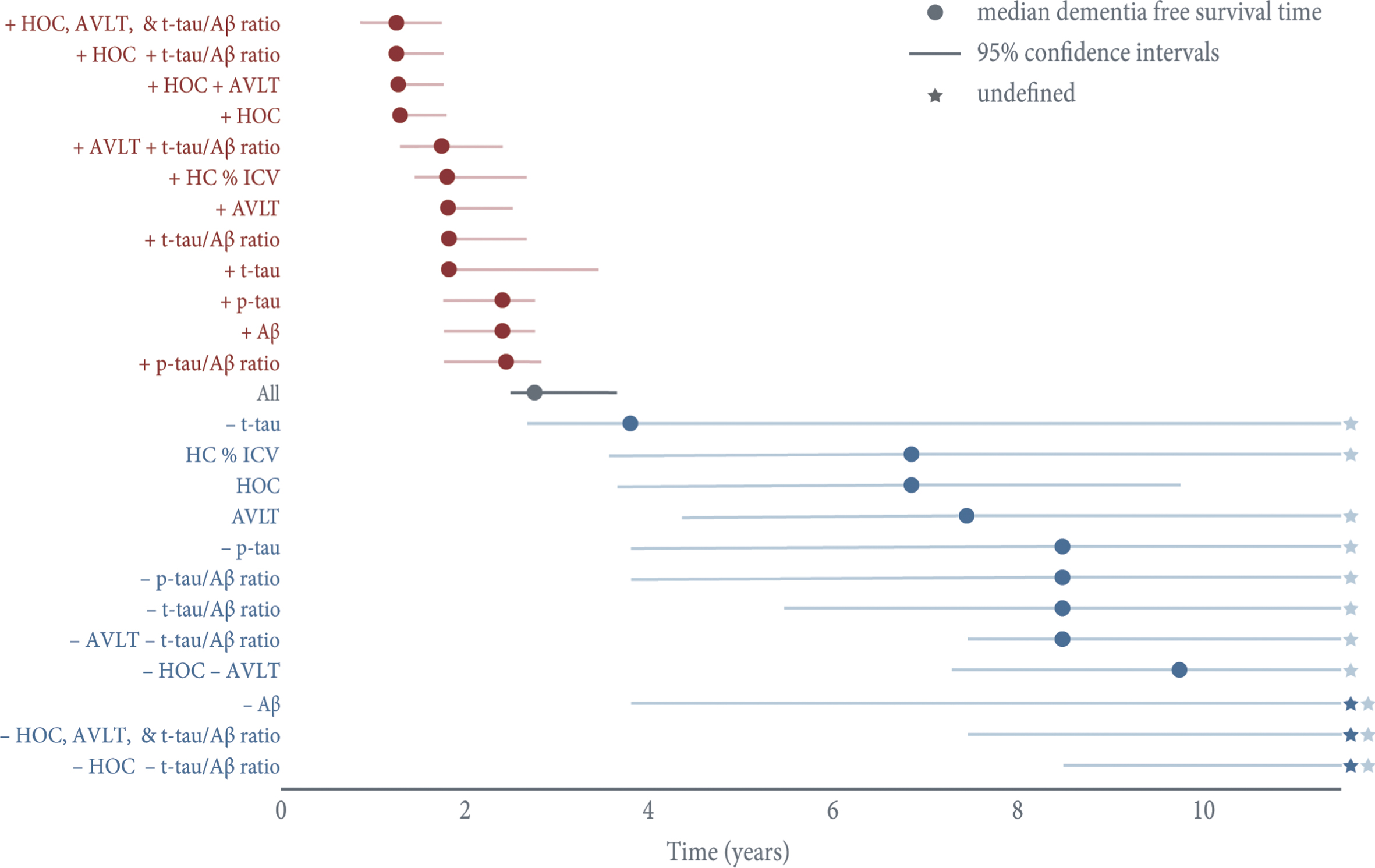

Fig. 3

Median dementia-free survival time stratified by individual risk factors and risk factor combinations. All combinations represent concordant positive or negative risk. The x-axis shows time in years. Error bars represent 95% confidence intervals. Positive risk factors are displayed with dashed error bars; negative risk factors are displayed with dotted error bars. Due to high survival, three groups (– Aβ; – HOC, AVLT, and t-tau/Aβ ratio; – HOC – t-tau/Aβ ratio) never reached a median dementia-free survival time, and in several groups the upper limit of the 95% confidence interval was undefined past the last timepoint of 11.5 years. Stars represent such undefined estimates past the study completion. AVLT, sum of scores from the 5 immediate learning trials of the Rey Auditory Verbal Learning Test; HOC, hippocampal occupancy score; HC % ICV, hippocampal volume as a percent of intracranial volume.

As was previously reported, [7] the presence of medial temporal lobe atrophy was associated with the shortest median dementia-free survival time, both alone (1.3 [95% CI, 1.3–1.8] years) and in combination with AVLT impairment (1.3 [95% CI, 1.2–1.8] years), abnormal CSF (1.3 [95% CI, 1.2–1.8] years), or both (1.3 [95% CI, 0.9–1.8] years). When limited to those with prodromal AD, atrophy remained predictive of conversion (HR 2.5 [95% CI, 1.6–3.8]), shifting median dementia-free survival time over 2 years (1.3 [95% CI, 1.2–1.8] years HOC+, 3.5 [95% CI, 2.5–7.3] years HOC–).

Conversely, the presence of two negative biomarkers at baseline was associated with long-term stability. Individuals testing negative for AVLT and either CSF t-tau/Aβ ratio or medial temporal lobe atrophy risk retained their MCI diagnosis for a median 8.5 (95% LCI 7.5) or 9.8 (95% LCI 7.3) years, respectively. Due to the high survival of subjects with joint negative HOC and t-tau/Aβ ratio risk and concordant negative HOC, AVLT, and t-tau/Aβ subjects, the median time to conversion is undefined greater than the last study timepoint (11.5 years). 78% of subjects with concordant negative HOC, AVLT, and t-tau/Aβ ratio risk (n = 18) remained stable over the follow-up period. The mean (SD) time to conversion in the four concordant negative subjects who received diagnoses of dementia was 6.2 (2.2) years. Two of these subjects remained amyloid negative on florbetapir (AV-45) scans acquired an average 4.5 years after baseline, suggesting a dementing amyloid negative illness.

DISCUSSION

In this longitudinal investigation, we demonstrate the stability of baseline cognitive, biofluid, and neuroimaging biomarker-assisted predictive prognosis in MCI. While each individual risk factor predicted conversion to dementia, individuals with three risk factors were at higher risk of conversion than individuals with only one or two risk factors. Subjects with concordant positive risk on all three factors (n = 54) converted to dementia at a median 1.3 (95% CI, 0.9–1.8) years, while subjects with concordant negative risk had such high survival that they retained their MCI diagnoses for a median time that is undefined greater than the last study timepoint (11.5 years). These findings align with the mounting body of evidence suggesting the predictive prognostic benefit of assessing multiple complementary biomarkers, which may provide nonoverlapping information about disease progression.

Subjects with medial temporal lobe atrophy showed the greatest hazard of converting to dementia and, as previously demonstrated, those with medial temporal lobe atrophy remained dementia free for the shortest amount of time [7]. Neurodegeneration— as measured by atrophy in MRI— better correlates with clinical impairment and progression from MCI to dementia than does amyloid plaque burden [7, 17]. Neither neurodegeneration nor progression to dementia is AD specific. Nevertheless, atrophy on MRI provides a useful indication that the underlying disease process is neurodegenerative and is the most effective predictor of near-term clinical progression. Even within subjects with prodromal AD, time to conversion shifted over 2 years with the amount of baseline atrophy.

Within the amyloid positive MCI subjects in this cohort (n = 139), 31% did not convert to dementia over the follow-up period, a mean (SD) 3.2 (2.0) years after baseline. Converging evidence suggests the pathologic changes underlying AD occur continuously over a long period. Reports indicate 10–65% [14, 18–20] of healthy older adults are amyloid positive, a figure that increases with age from 10–18% of those in their 60s to 40–65% of those in their 80s. If the goal is to identify individuals at greatest risk for cognitive decline, amyloid status alone fails to provide the clinician guidance regarding near-term outcomes, and, in fact, in this slowly developing disease, may lead to misattribution of the current complaint to AD with possible distraction from concurrent treatable etiologies.

International Working Group 2 (IWG-2) research diagnostic criteria consider the combination of elevated tau and low Aβ in CSF to be in vivo evidence of AD pathology [21], noting the improved predictive and discriminative accuracy of such a combination over CSF Aβ alone. In normal controls followed longitudinally, only those with both low amyloid and elevated tau had significantly greater cognitive decline than those without either [5]. This aligns with converging evidence that amyloid is necessary but not sufficient for AD dementia, and that both Aβ-associated neurodegeneration [22] and clinical decline [23] occur only in the presence of tau. Here, we find the ratio of t-tau to Aβ predicts risk for decline better than any other CSF measure.

In patients with progressive or persistent unexplained MCI, amyloid positron emission tomography (PET) positivity is said to increase the certainty that this impairment represents early AD [24]. However, the patient’s MCI may not be solely caused by or even related to this amyloid positivity, and, hence, even in the setting of a positive amyloid test and cognitive impairment, it remains imperative to screen for presence of disease mimics and retain vigilance for concurrent depression, sleep apnea, polypharmacy (e.g., opiate or anticholinergic medications), and other frequent causes of cognitive impairment in older adults. Conversely, amyloid negative status was the strongest single predictor of stability in this cohort, with the caveat that, in the broader context of clinical practice, a significant proportion of individuals destined for dementia are amyloid negative [25–27].

Despite interest in identifying underlying pathology, the question of highest clinical relevance in current practice is whether or not a patient will progress and decline. In the current study, eight of the twelve amyloid negative subjects with medial temporal lobe atrophy at baseline converted to dementia at a mean (SD) 1.6 (1.3) years. To ensure the amyloid negative status of these subjects was not merely a consequence of our CSF cutoff selection, we used Cohen’s kappa to quantify the agreement between positive and negative classifications for CSF and PET measures, taking agreement by chance into account. For subjects who eventually underwent an AV-45 scan (n = 52, mean (SD) 4.6 (0.7) years after baseline), there was excellent agreement between PET categorization (SUVRs calculated using a whole cerebellum reference region, cutoff 1.11) [28] and baseline Aβ CSF risk group (Cohen’s kappa = 0.92). Consistent with the results from Heister et al. [7], subjects with this biomarker profile, which has come to be labeled suspected non-Alzheimer’s pathophysiology (SNAP), [29] showed risk for decline that warrants close monitoring. In clinical trials, focus may be placed on the earliest changes, such as amyloid deposition, rather than those most proximal to cognitive decline. While the approach may change when disease modifying therapies are available, identification of subgroups likely to progress in the near term provides valuable information in clinical decision-making. Biomarker-informed prognostic information, distinct from amyloid status, may be particularly valuable to individuals in prodromal stages of dementing amyloid negative illnesses, who might otherwise have little information about their likelihood of progression, and it may also provide clinicians with improved risk-benefit analysis for patients when treatments become available. In moving toward incorporating precision medicine techniques, additional information such as genetic background might be incorporated to better understand how outcomes differ in these biomarker-defined groups.

Structural imaging is already used in clinical assessment to rule out potentially treatable etiologies and, with small modifications to protocols, images can be collected that allow for fully-automated segmentation [12, 17]. Implementing vMRI in clinical practice allows for the assessment of AD-predominant structural changes, such as medial temporal lobe atrophy, and should improve predictive prognosis for patients with MCI. Algorithms can be trained to identify AD patterns of brain atrophy in non-demented subjects that correlate with poorer cognitive performance and aid in predictive prognosis [30–32]. Such patterns, perhaps difficult for most community radiologists to consistently identify, could be built into algorithms to allow standard imaging devices to assist in their detection. Their refinement can leverage the wealth of clinical informatics now available, allowing the algorithm to gain enduring experience that extends well beyond any individual clinician.

One important limitation to this study is that the highly selected amnestic MCI cohort in ADNI does not represent the variety of underlying pathologies seen in clinical practice. Yet, biomarker-assisted predictive prognosis might be expected to yield better performance in cohorts matching clinical practice, where greater heterogeneity of MCI is seen. Further, 97% of the converters in this cohort received a clinical diagnosis of probable AD, but without neuropathological confirmation it is unknown what mixture of underlying pathologies is truly present in these subjects as heterogeneity is common, even within amnestic MCI cohorts [25]. In our sample, time to censoring is biased by a few, disproportionately biomarker negative subjects who continue ADNI visits for a decade or longer without converting to dementia. Nevertheless, time to censoring is not significantly different between risk groups before year 10. As subjects in biomarker positive risk groups are more likely to convert to dementia and were observed for a shorter period of time, our results represent a conservative estimate in these latest timepoints. There is also a need for diversity in cohorts to generalize these findings beyond the well-educated subjects of European ancestry who make up both this cohort and the ones upon which the cutoffs used here were initially established. Further, while there is a need to establish cut-points in certain cases, such as to determine eligibility in clinical trials, it is also clear that AD is a continuum and potentially relevant information is lost when biomarkers are reduced to a binary classification of positive or negative.

The current study demonstrates that predictive prognosis in MCI is more accurate when supplemented by an assessment of baseline cognitive, biofluid, and neuroimaging biomarkers and supports incorporating multiple complementary biomarkers in future clinical and research frameworks. Our data demonstrate the long-term stability of such baseline biomarker-assisted predictive prognosis in MCI.
