Biomarker Localization,Analysis,Visualization,Extraction,and Registration (BLAzER) Methodology for Research and Clinical Brain PET Applications

INTRODUCTION

Positron emission tomography (PET) neuroimaging applications have increased in both research and clinical setting in recent years. PET provides the ability to study functional and molecular processes in the brain in vivo, allowing exploration of an array of normal and pathological states, including neurodegenerative disorders, psychiatric conditions, and neuro-oncology. Quantitation of PET data is well-established for research applications but less so in routine clinical settings. Recent research demonstrates the utility of quantification to supplement visual assessment for clinical PET, especially in Alzheimer’s disease (AD) using the glucose analogue 2-deoxy-2-[¹⁸F]fluoro-D-glucose (FDG) and amyloid PET tracers [1–4]. Quantification of targeted brain regions of interest (ROIs) [5, 6] is enabled using 3-dimensional maps of regional brain anatomy generated by automated magnetic resonance imaging (MRI) segmentation algorithms, such as the widely used reference standard in research, FreeSurfer (FS) [7–9], or the FDA-cleared and ISO-certified Neuroreader (NR) [10–13]. By registering the segmentation map with the PET scan, ROIs can be defined for PET measurements without laborious and potentially imprecise or biased manual delineation methods [6, 14]. Barriers to the use of this approach to quantitation of brain PET, particularly for clinical applications, include computationally intensive software, time-consuming analysis procedures, the need for real-time visualization of the primary and processed data for clinical interpretation and quality control, and limited availability of FDA-cleared software suitable for this purpose.

Accuracy and precision are key features of effective image analysis methods to ensure that the extracted biomarker data can provide reliable in vivo information of the physiological state or disease process of interest. However, efficiency, ease of use, and availability are also essential features for widespread and routine implementation of quantitative brain PET. Many current techniques require lengthy post-processing time [2, 15] and/or heavy computational workload [16, 17]. Incorrect segmentation of the brain MRI data and misregistration between PET and segmented brain regions are potential sources of error when extracting regional PET data based on ROIs defined through fully automated segmentation [15]. Additionally, although qualitative and quantitative assessment can be performed separately, the ability to easily visualize images in real-time at different states of processing and registration can provide an important degree of quality control and allow for user input to correct problematic studies. Many of the current fully automated processing methodologies that involve only inputs and outputs to optimize speed can be liable to unidentified errors because there is no opportunity to visualize the processed images [18, 19]. Finally, other barriers to routine implementation of quantitative brain PET include the lack of versatility in existing tools to analyze images acquired or processed by different platforms, radiotracers, and segmentation algorithms. Radiotracers commonly used for brain PET analysis in AD include [¹¹C]Pittsburgh compound B (PiB) [20], [¹⁸F]florbetapir [21, 22], [¹⁸F]florbetaben [23], and [¹⁸F]flutemetamol [24] for amyloid-β (Aβ), [¹⁸F]flortaucipir for tau [25–28], and [¹⁸F]FDG [29, 30] for glucose metabolism. Multicenter clinical trials and longitudinal studies can benefit from a versatile methodology to standardize PET quantification [31].

Although a number of effective research methodologies exist for regional brain PET analysis that combine one or more of the previously discussed features [8, 32– 35], quantification still has not been widely implemented in routine clinical brain PET for AD, which relies primarily on visual assessment and components validated for routine clinical use. FDA clearance and ISO-certification are key features of NR, a commercial service that provides automated brain MRI segmentation for clinical use, and MIM, a commercial software package for image visualization and quantification. Combining features of such tools could help lower the barriers between clinical and research applications. However, to the best of our knowledge, no method exists that is efficient and easy for physicians and technologists to use, automatically segments ROIs in a customizable fashion, consists of FDA-cleared components, and allows for both qualitative and quantitative assessment of brain PET data in a clinical environment.

We present here a novel brain Biomarker Localization, Analysis, Extraction, and Registration (BLAzER) methodology for analysis of PET based on segmented brain MRI. We demonstrate that BLAzER works well for both global and regional PET quantification of brain amyloid- and tau-PET, respectively, in Alzheimer’s Disease Neuroimaging Initiative (ADNI) participants spanning normal cognition, mild cognitive impairment (MCI), and AD dementia. Although this report focuses on AD biomarkers, BLAzER could be applied to any PET neuroimaging study that utilizes MR-based segmentation for defining ROIs. Additionally, we compare two different inputs for segmentation, FS and NR, which could be used with BLAzER for research and clinical applications, respectively.

METHODS

Image analysis

The key components needed to implement the BLAzER methodology are summarized in the Supplementary Materials, and the custom-built MIM workflows used for the BLAzER analyses in this work are available for download.

MRI segmentation

Volumetric MRI images were segmented by either FreeSurfer v6.0.0 (Boston, MA) or Neuroreader (Brainreader, Horsens, Denmark). FS, an open-source software, has been validated as a tool to measure brain volumes in various neurological diseases when compared to either manual delineation [6] or other algorithms [14]. FS uses a complex algorithm with a series of normalization and motion-correction approaches prior to even starting its intensity-based approach to parcellate the brain into not only the larger cortical structures, but also subregions to allow targeted measurement of specific ROIs [8, 9]. FS segmentation produces detailed ROIs, which allow for spatial delineation of brain regions beyond the main lobar cortical and subcortical brain structures. Customization of brain regions is particularly useful in analysis of tau-PET studies in Alzheimer’s disease where pathology follows characteristic Braak staging regions [37].

NR’s separation of gray matter, white matter, and cerebrospinal fluid uses an intensity-based approach along with a template, similar to other available approaches [38, 39] such as the widely used Automatic Anatomic Labeling (AAL) template [19]. Similar to AAL, NR is highly efficient, with segmentation of an individual case processed in approximately 15 min compared to 8 to 12 h for FS. However, segmented brains from NR provide larger cortical and subcortical brain regions compared to FS, limiting customization beyond anatomical boundaries defined by their atlas. NR’s atlas differs from FS’s Deskian/Killiany atlas but is held as proprietary information by Neuroreader.

FS studies were loaded onto a supercomputer environment (Cheaha, Birmingham, AL) in order to run all 184 volumetric MRI input files simultaneously through parallel computing. For efficient parallel processing via FreeSurfer, DICOM images were converted to NIfTI using MRIcron, Release 2May2016 (https://www.nitrc.org/projects/mricron). Upon completion of segmentation, parcellated, segmented brain images were converted from MGZ to DICOM format using 3DSlicer v4.5.0 (Boston, MA). Alternatively, NR automatically produced segmented brains in DICOM format for the same MPRAGE scans without requiring conversion between file formats. Each of the segmentation output files along with source volumetric MRI and pre-processed PET scans were then visualized and quantified using a customized workflow in the commercial, multi-modal FDA-cleared imaging software – MIM v6.6.13 (MIM Software Inc., Cleveland, OH). Through a graphical user interface (GUI), MIM allows the user to design customized, automated algorithms (called workflows) for processing primary imaging data without the need for advanced computational skills.

PET analysis

We developed workflows that could use segmentation data from FS or NR as inputs for ROI definition on the PET data sets. For BLAzER, we selected the segmented brain dataset, brain PET, and volumetric brain MRI images for analysis, then ran a user-defined and customizable workflow in MIM that registered the images, defined ROIs within the original volumetric MR and PET using the segmented brain dataset, and delivered the quantification in an array of customizable outputs while allowing for visual inspection during the workflow for quality control. The workflows in MIM were developed and customized to the specific segmentation methods (FS and NR) and PET radiotracers through a GUI interface where steps in the protocol were simply selected from a menu similar to Porcupine [40], such that users were not limited by their computational skillset to analyze large, multi-modal image datasets.

A key aspect of the MIM workflows is assigning ROIs to specific brain regions based on the segmented brain dataset that can be applied to the PET and volumetric MR images for quality control and quantitative analysis as shown schematically in Fig. 1. In both FS and NR, each brain region represented in the segmentation dataset is assigned a unique pixel value that is atlas-specific. For example in FS, all pixels that constitute the left precuneus are assigned the arbitrary value 1025. The workflow defines each ROI based on these atlas-specific values and then applies each ROI to the co-registered PET and volumetric MRI data sets. In some cases, multiple segmented brain ROIs are combined to define a larger brain ROI (e.g., lobar cortical regions, Braak staging regions). The pixel values defining each ROI as well as how the smaller ROIs are combined into larger ROIs are readily customizable in the workflows to match atlas-specific segmentation definitions and the intended application.

OPEN IN VIEWER

Fig.1

Schematic diagram of key steps in the semi-automated BLAzER methodology. The 3D volumetric MRI (1) is used to generate the Freesurfer (FS, shown in this figure) or Neuroreader (NR) segmentation (2) in DICOM format. Brain regions defined by pixel values in the FS segmentation map are generated in MIM and applied to the original MRI (3). Quality control is performed (4) to ensure both registration and segmentation are correct. In an example from a different research subject, a cortical region in the anteromedial left temporal lobe is not included in the FS-defined segmentation (red circle showing left temporal cortex not outlined by blue line). Once any errors are corrected, the PET and MRI data are fused (5). The FS-defined regions are transferred to the PET data set (6) which are then used to extract static or dynamic regional PET data (7).

In summary, in the BLAzER methodology, we 1) segmented the MRI to generate a 3D brain segmentation map using either FS or NR; 2) transferred the segmentation to MIM and selected corresponding volumetric MRI and PET for analysis; 3) automatically co-registered the brain segmentation map to volumetric MRI; 4) utilized the segmentation map to delineate the various brain ROIs based on the pixel intensities for each region as defined by FS or NR; 5) performed quality control through visualization and corrected registration, if necessary; and 6) fused PET scans to MRI/brain segmentation maps to extract, visualize, and quantify PET data from the workflow-defined ROIs (Fig. 1).

The methodology suspended the automated process before transferring the contours to allow the user to verify accurate image registration and identify any segmentation errors. The original volumetric MRI with the segmentation-based ROIs superimposed were used for quality control measure to assure that the rigid registration method used to align the images had been performed properly and the brain segmentation were correct. If needed, the user could manually correct the registration and/or ROIs at this step. We did not manually change any ROIs for any studies in the data analysis presented in this manuscript even when minor segmentation errors were apparent. This review step was employed for all cases but is optional and could be omitted to provide a more automated process. Inter-operator variability for BLAzER was assessed by having two individuals independently process the same randomly selected subsets of 40 amyloid-PET, 30 tau-PET, and 40 volumetric MRI studies and then comparing the quantitative results between the two operators.

Anatomical definitions of brain regions

In BLAzER, all SUVRs extracted are automatically weighted by the volumes of the individual subregions comprising each ROI. Amyloid-PET ROIs were normalized to the entire cerebellum to extract SUVRs for all regions that comprised the cerebral cortex: frontal lobe, temporal lobe, parietal lobe, and cingulate (BLAzER-FS, as defined by ADNI) or frontal, temporal, parietal, and occipital lobes (BLAzER-NR, as defined by Neuroreader). BLAzER-FS matched UC Berkeley’s ADNI-defined cortical regions exactly while BLAzER-NR included the entire cortex. For head-to-head comparisons between BLAzER and ADNI, BLAzER-FS delineation was based on UC Berkeley’s ADNI-defined brain subregions. However, for comparisons between BLAzER-FS and BLAzER-NR, BLAzER-FS anatomical regions were modified to match the NR-based regions of entire cortex. We denote this distinction as BLAzER-FS*. Specific FreeSurfer subregions are detailed below as well as listed in Supplementary Table 1.

Specifically, BLAzER-FS subregions were defined as follows: caudal middle frontal, lateral orbitofrontal, medial orbitofrontal, pars opercularis, pars orbitalis, pars triangularis, rostral middle frontal, superior frontal, and frontal pole (frontal); caudal anterior cingulate, isthmus cingulate, posterior cingulate, and rostral anterior cingulate (cingulate); inferior parietal, precuneus, superior parietal, and supramarginal (parietal); middle temporal and superior temporal (temporal). In contrast, BLAzER-FS* regions were defined as follows: caudal middle frontal, lateral orbitofrontal, medial orbitofrontal, pars opercularis, pars orbitalis, pars triangularis, rostral middle frontal, superior frontal, frontal pole, paracentral gyrus, precentral gyrus, caudal anterior cingulate, posterior cingulate, and rostral anterior cingulate, and insula (frontal); inferior parietal, precuneus, superior parietal, supramarginal, postcentral gyrus, and isthmus cingulate (parietal); bankssts, entorhinal, fusiform, inferior temporal, middle temporal, parahippocampal, superior temporal, temporal pole, and transverse temporal (temporal); cuneus, lateral occipital, lingual, and pericalcarine (occipital).

Tau-PET SUVRs were calculated similarly to the amyloid-PET defined ROIs with two main differences. Tau-PET was normalized to the cerebellar gray matter instead of the entire cerebellum [37] and UC Berkeley’s ADNI-defined ROIs for BLAzER-FS methodology followed the pathologic Braak staging regions [41]: entorhinal cortex (Braak 1); hippocampus (Braak 2); parahippocampal, fusiform, lingual, and amygdala (Braak 3); middle temporal, caudal anterior cingulate, rostral anterior cingulate, posterior cingulate, isthmus cingulate, insula, inferior temporal, and temporal pole (Braak 4); superior frontal, lateral orbitofrontal, medial orbitofrontal, frontal pole, caudal middle frontal, rostral middle frontal, pars opercularis, pars orbitalis, pars triangularis, caudate, putamen, lateral occipital, parietal supramarginal, inferior parietal, superior temporal, pallidum, superior parietal, precuneus, superior temporal sulcus, nucleus accumbens, and transverse temporal (Braak 5); pericalcarine, postcentral, cuneus, precentral, and paracentral (Braak 6). As NR’s anatomical atlas only includes major cortical and subcortical regions, we defined BLAzER-NR and BLAzER-FS* tau-PET regions the same as for amyloid-PET: frontal, temporal, parietal, and occipital cortices.

The previously processed ADNI data from the UC Berkeley group was used as the reference standard. The reported values in the ADNI data set were based on brain segmentations performed using FS v5.3.0. SUV and SUVR data was extracted using SPM5 after co-registration of PET and MR data. Key differences between BLAzER and the ADNI method are summarized in Table 2.

OPEN IN VIEWER

Table 2

Key differences in post-processing methods summarized between BLAzER and the ADNI reference standard

BLAzER-FS	ADNI
Segmentation using FS v6.0.0	Segmentation using FS v5.3.0
One MPRAGE scan utilized for segmentation	Two independent MPRAGE scans utilized for segmentation
Registration performed by MIM	Registration performed by SPM
Visualization step for quality control to ensure adequate registration and manual/automated editing if necessary	Registration fully automated
Dichotomized data both using ADNI’s 1.11 cutoff as well as performing regression to determine corresponding “BLAzER” units	Derived cutoff autopsy studies of Clark et al. (34). Converted their 1.10 cutoff to 1.11 “ADNI” units based on regression analysis

RESULTS

MRI volumetric measurements

As BLAzER’s regional PET extraction depends on accurate MRI-based anatomic segmentation and registration, we first compared BLAzER measurements of regional MRI volumes to the ADNI reference standard. Global cortical volume measured by the BLAzER methodology was highly correlated to that measured by ADNI (r = 0.9749, p < 0.001, Fig. 2A) with small systematic difference (1.61%) and tight 95% confidence interval (CI) (Fig. 2B). Regional comparisons across the frontal, cingulate, parietal, and temporal lobes for CN, MCI, and AD subjects showed similar results (r > 0.92, p < 0.0001, Supplementary Table 2).

OPEN IN VIEWER

Fig.2

Comparison of MRI cortical volumes determined by BLAzER-FS versus ADNI. Global cerebral cortical volumes are based on frontal, temporal, parietal, and cingulate cortices as defined by the UC Berkeley analysis in ADNI. A) Univariate Pearson correlation, with regression line (r = 0.97, solid black), identity line (dotted), and cases coded by group. B) Bland-Altman plots with mean percent difference (0.98%, solid line) and 95% confidence intervals ([– 5.43 to 7.38], dotted lines), coded by age cohort.

Amyloid-PET SUVR and dichotomization

BLAzER showed strong agreement with the ADNI reference standard when measuring diffuse cortical binding of amyloid-PET. Global SUVRs were similar between BLAzER and ADNI (r = 0.9922, p < 0.0001, Fig. 3A). Additionally, the slope of linear regression and y-intercept (y = 1.0012x + 0.01816, R² = 0.9844, Table 4) showed a near one-to-one correspondence between BLAzER and ADNI. There was a slight systematic difference in global SUVR, which was on average 1.6% higher with BLAzER than in the ADNI dataset (Fig. 3B). This may be due to a systematic reduction in the reference region mean, which was observed in the cerebellum. Regional comparisons across the frontal, cingulate, parietal, and temporal lobes for CN, MCI, and AD subjects showed similar results (r > 0.94, p < 0.0001, Supplementary Table 3).

OPEN IN VIEWER

Fig.3

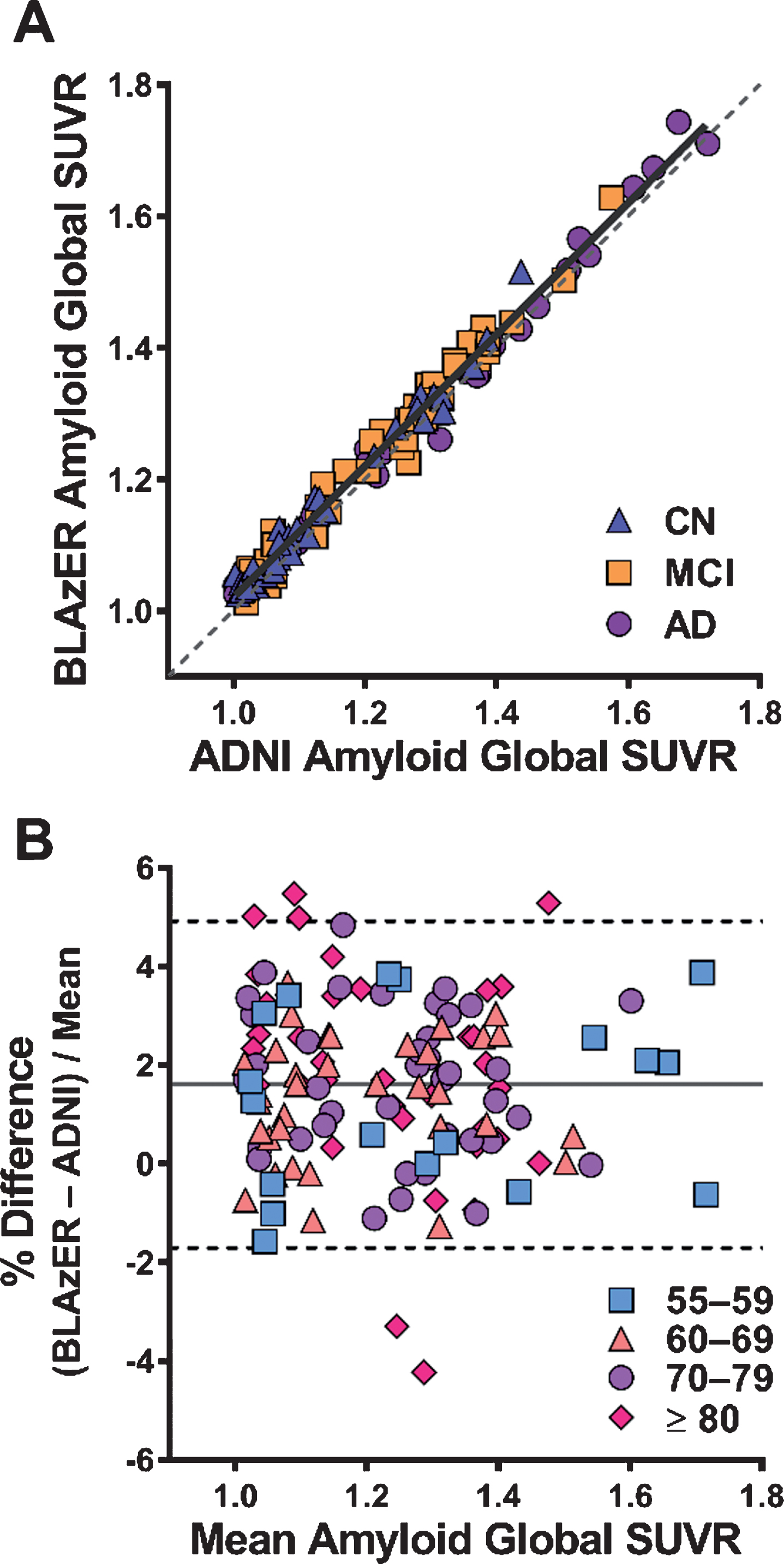

Comparison of florbetapir-PET global cerebral cortical SUVR determined by BLAzER-FS versus ADNI. A) Univariate Pearson correlation with regression line (r = 0.99, solid black), identity line (dotted), and cases coded by group. B) Bland-Altman plots with mean percent difference (1.61%, solid line) and 95% confidence intervals ([– 1.70% to 4.92% ], dotted lines), coded by age cohort.

OPEN IN VIEWER

Table 4

Dichotomization results for amyloid-PET for BLAzER-FS versus ADNI. Number discrepant represent the total number of individuals whose dichotomous classification differed between BLAzER-FS and ADNI out of 127 total cases. Dichotomization performed by (top row) applying ADNI’s unadjusted autopsy-derived cutoff of 1.11 and (bottom row) translating this cutoff by performing a regression against the ADNI data (y = mx + b)

	Number Discrepant	Cutoff	m(x)	b
BLAzER-FS using ADNI cutoff	4/127	1.11	–	–
BLAzER-FS using regression-adjusted cutoff	2/127	1.13	1.0012	0.01816

We also the examined the dichotomous classification of individuals as amyloid-positive versus negative based on SUVR cutoffs. Because BLAzER SUVRs were slightly higher than ADNI on average, a few more of the 127 subjects were classified as amyloid-positive when BLAzER SUVRs were dichotomized using the ADNI cutoff of 1.11 with all 4 of these cases lying near the cutoff (BLAzER versus ADNI range: [1.113 to 1.125] versus [1.060 to 1.098], respectively, Table 4). However, translating 1.11 “ADNI units” into 1.13 “BLAzER units” by linear regression (Equations 1 and 2) provided the same dichotomization as ADNI for these 4 cases, but 2 different cases were discrepant out of the 127 total at this cutoff. These 2 cases had SURVs of 1.113 versus 1.125 and 1.113 versus 1.115 for BLAzER-FS versus ADNI, respectively.

SUVR = SUV target region SUV whole cerebellum

SUVR BLAzER = SUVR ADNI * slope BLAzER + intercept BLAzER

Regional brain tau-PET comparison

BLAzER showed strong agreement with the ADNI reference standard when looking at regional binding of tau-PET with flortaucipir. Despite slightly lower correlation coefficients and wider 95% confidence intervals than with amyloid-PET (as expected because of the smaller regions defined for analysis), BLAzER correlated strongly with the ADNI reference standard across all six Braak stage regions (r > 0.97, p < 0.0001, Fig. 4). Further demonstrating regional accuracy, BLAzER showed tight 95% CI (<10%) and small differences (–1.5 to 3.6%) across all regions (Fig. 5), and all cognitive statuses (r > 0.91, p < 0.0001, Supplementary Table 3).

OPEN IN VIEWER

Fig.4

Comparison of flortaucipir-PET measured by BLAzER-FS versus ADNI across the regions representing the pathological Braak stages. (A) through (F) represent the regions for Braak stages 1 thru 6, respectively. See Methods for details on which anatomic regions were included in each stage. Univariate Pearson correlation with regression line (solid black), identity line (dotted), and cases coded by group.

OPEN IN VIEWER

Fig.5

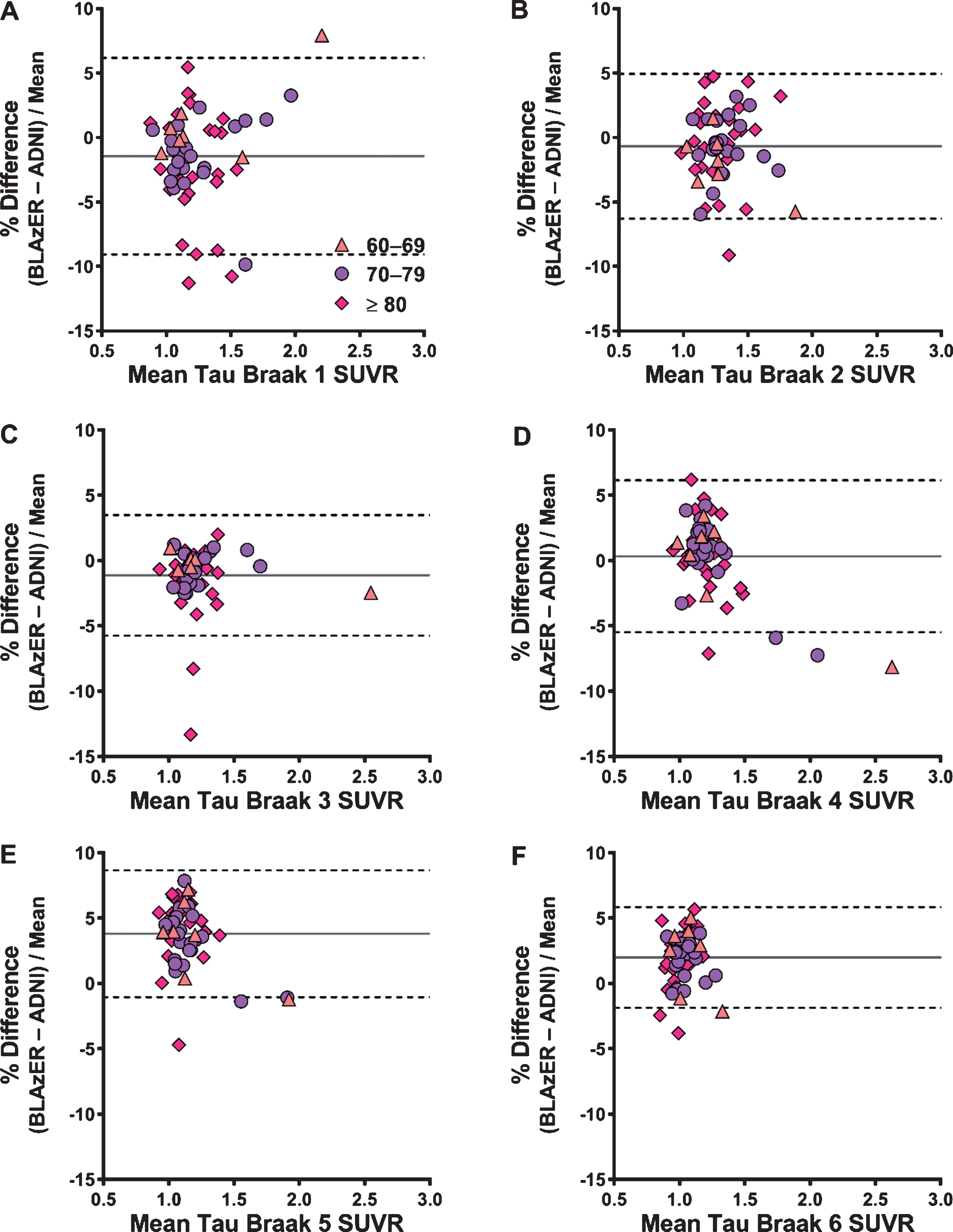

Comparison of flortaucipir-PET measured by BLAzER-FS versus ADNI across the regions representing the pathological Braak stages. (A) through (F) represent the regions for Braak stages 1 thru 6, respectively (see Methods for details on which anatomic regions were included in each stage), Bland Altman plots with mean percent difference (solid line) and 95% confidence intervals (dotted lines), coded by age cohort.

Amyloid and tau PET quantitation based on NR segmentation

Next we compared the performance of a different segmentation platform, comparing BLAzER-FS with BLAzER-NR. To enable a more direct comparison, we first adjusted FS’s anatomical subregions to match NR’s composite regions (FS*, see Methods). BLAzER-NR highly correlated with BLAzER-FS* at a global level for amyloid-PET (r = 0.9841, p < 0.001, Fig. 6A). However, BLAzER-NR values had higher SUVR than BLAzER-FS* as shown by the systematic difference (4.0%) and shifted 95% CI (–0.7% to 8.7%, Fig. 6B). This is likely due to BLAzER-NR segmentation including more PET signal from white matter, which has high florbetapir non-specific binding, due to a slightly thicker definition of cortical regions with NR compared to FS. Dichotomization results paralleled these findings (Table 5). Directly applying ADNI’s cutoff of 1.11 led to 12 out of 127 cases being discrepant between BLAzER-NR and BLAzER-FS* (range of SUVRs: [1.092 to 1.180] versus [1.049 to 1.111], respectively). After applying regression analysis for both BLAzER-NR to ADNI (y = 0.9845x + 0.0.05658, R² = 0.9587) and BLAzER-FS to ADNI (y = 0.8947x + 0.1158, R² = 0.9482), the new SUVR cutoff obtained was 1.15 for BLAzER-NR while BLAzER-FS* remained unchanged. The adjusted cutoff reduced the number of discrepant cases to 7 out of 127 (NR versus FS range: [1.0923 to 1.180] versus [1.088 to 1.120], respectively). This discrepancy reflects the differences between the segmentation provided by NR and FS which in turn affects SUVRs.

OPEN IN VIEWER

Fig.6

Comparison of global amyloid PET SUVR for Neuroreader (BLAzER-NR) versus FreeSurfer (BLAzER-FS*). A) Univariate Pearson correlation with regression line (r = 0.98, solid black), identity line (dotted), and cases coded by group. B) Bland-Altman plots with mean percent difference (4.01%, solid line) and 95% confidence intervals ([– 0.70% to 8.72% ], dotted lines), coded by age cohort.

OPEN IN VIEWER

Table 5

Dichotomization results for Neuroreader (BLAzER-NR) versus FreeSurfer (BLAzER-FS*). Number discrepant represent the total number of individuals whose dichotomous classification differed between BLAzER-NR and BLAzER-FS* out of 127 total cases. Dichotomization performed by (top row) applying ADNI’s unadjusted autopsy-derived cutoff of 1.11 and (bottom row) translating this cutoff by performing a regression against the ADNI data (y = mx + b). BLAzER-FS* indicates that the BLAzER methodology used FS segmentation with brain region ROIs matched as closely as possible to those defined by NR segmentation

	BLAzER-NR				BLAzER-FS*
	Number Discrepant	Cutoff	m(x)	b	Cutoff	m(x)	b
Unadjusted	12/127	1.11	–	–	1.11	–	–
Regression adjusted	7/127	1.15	0.9845	0.05658	1.11	0.8947	0.1158

Regional analysis for both amyloid- and tau-PET across different cognitive statuses and brain regions revealed excellent correlations between BLAzER-NR and BLAzER-FS* (r > 0.85, p < 0.0001, Supplementary Table 4) although not as high as the correlations between BLAzER-FS and the ADNI reference values, again reflecting differences in the segmentation between the NR and FS platforms.

DISCUSSION

Measurement of the regional brain distribution of PET tracers is a cornerstone of data analysis in molecular neuroimaging and is growing in importance for clinical applications, particularly in the evaluation of patients with cognitive impairment. A number of imaging processing methodologies exist that perform quantification of regional brain PET data [8, 32– 35]. However, there are few if any analysis tools that perform well for both clinical and research applications, utilize FDA-cleared components, define ROIs and extract regional PET data automatically, provide both quantitative and real-time visual assessment, and work quickly and efficiently without need for advanced coding skills. Our evaluation of BLAzER with validation through comparison to the ADNI database and head-to-head comparison of two segmentation methods demonstrates an approach that addresses this unmet need.

Quantitative brain PET data from BLAzER correlated very closely with the results in ADNI for florbetapir- and flortaucipir-PET analyzed using FreeSurfer-defined regional volumes. We also demonstrated that the regional brain volumes provided by FS and NR were in close agreement with ROIs defined through BLAzER with less than 2% error between the original volumes and those output by BLAzER. BLAzER and ADNI produced nearly identical dichotomous classification of amyloid-PET participants as positive or negative, especially when using regression analysis to account for systematic differences. It is important to acknowledge that our analysis was completed before the most recent ADNI update, which includes a new partial volume corrected set of values based on modified reference regions. Thus, any partial volume effect (PVE), or inaccuracies that result from low PET spatial resolution [43], affected both BLAzER and our reference ADNI set similarly. In addition to PVE, off-target-binding in non-specific regions can be problematic for accurate PET quantification. Recent evidence has shown non-specific flortaucipir uptake in the basal ganglia [44, 45]. In the most recent ADNI updates, the caudate and putamen have been removed from the Braak 5 staging regions for flortaucipir. However, we kept our results consistent by comparing BLAzER to the original dataset that included the caudate and putamen. In future work, BLAzER-FS regions can be modified to account for PVE and off-target-binding if desired.

We observed slightly larger systematic differences and CIs for flortaucipir-PET compared to florbetapir-PET. As pathological cortical tau distribution is more regionally localized and restricted than pathological cortical amyloid which tends to be diffuse throughout the cerebral cortex [28], differences in segmentation and image alignment are expected to have a greater effect on PET measures of regional brain tau compared to regional brain amyloid.

Potential sources of the small differences between BLAzER and the ADNI data set include different FS versions, source volumetric MR images, and registration methods. For our study, FS v6.0.0 was used while v5.3.0 was used for the ADNI data set, which could affect anatomical volume measurements and brain segmentation which in turn would affect ROI definition for PET quantitation [46]. Additionally, the ADNI dataset used two volumetric MR scan input files for FS to produce the segmented brain while we chose to use only one volumetric brain MR to reflect our standard research and clinical protocols. Within ADNI, each subject undergoes two volumetric MR scans during a single scanning session with some subject datasets having slightly different imaging parameters. In order to align the PET and MR images, ADNI utilized SPM to register the images automatically while we used MIM. BLAzER utilizes a rigid-registration algorithm that allows only translation and rotation. Additionally, we utilize a three-step system of registration where the segmentation is first registered with its original, template volumetric MR and then with the PET after the rigid-registration quality control-check. We believe that this visual assessment and option for manual correction minimizes sources of error that can arise from fully automated registration methods (Fig. 1) [2]. Additionally, we believe that our results are generalizable across the ADNI population due to our selection of individuals that represent the range of amyloid and tau pathology in ADNI.

Our implementation of BLAzER for research studies utilizes a high-throughput, supercomputing cluster for segmentation (by FS) along with a commercially available multimodality image viewing and analysis software program (MIM) with customized methodologies to use and process the segmentation data. This methodology can be adapted to other segmentation algorithms by customizing the visualization software workflow with minimal change in the user experience. This methodology allows the user to register and process brain segmentation maps with brain PET and brain MRI in a single viewing environment for quality control, manual correction if needed, data extraction, and real-time visual assessment. Utilizing parallel computing strategies with FS allows segmentation of over 100 studies in approximately 12 h which is suitable for use with clinical trials and large imaging datasets. We chose MIM due to its efficiency and relative ease of use compared to existing tools that are either dependent on relatively heavy computational skills [16, 17] or require significant image processing input [2, 15]. MIM’s GUI-interface is most similar to Porcupine [40], enabling analysis of large, multi-modal image datasets by users without a sophisticated computational skillset. Similar to other existing methodologies [2, 47– 49], BLAzER allows for automatic delineation of PET ROIs. However, an important advantage of BLAzER is that it can accept brain segmentation data sets from multiple sources, including FDA-cleared algorithms such as NR. This potential integration of completely FDA-cleared components when utilizing BLAzER helps overcome barriers between clinical and research applications of BLAzER. This method can accept any brain segmentation map in DICOM format as in the case of NR or segmentation maps that can be converted to DICOM format as in the case of FS.

While the present work focuses on the use of this methodology for amyloid- and tau-PET, it is applicable for the analysis of other brain PET imaging studies. This flexibility combined with visualization software familiar to physicians and technologists facilitates implementation of quantitative PET neuroimaging in routine clinical practice with a wide range of segmentation algorithms and PET tracers. As BLAzER can accommodate any DICOM dataset, other neuroimaging modalities, such as ioflupane-SPECT for Parkinson’s disease or functional MRI and diffusion tensor imaging for schizophrenia, could be processed along with PET neuroimaging biomarkers of neuroinflammation [50–52] by adapting the BLAzER methodology. Although not performed in this study, BLAzER could be used for analysis of dynamic PET data sets as well as centiloid analysis of amyloid-PET data. The centiloid process uses a 0 to 100 unit scale with healthy controls (<45 years of age) to set the 0 unit anchor and amyloid-positive studies from individuals with typical AD to set the 100 unit anchor. A key advantage of centiloid scales is the ability to combine data from different PET scanners, amyloid-PET tracers, and analysis methods. Although not performed in the current study, the BLAZeR parameters including brain regions of interest and SUVR scaling could be adapted to match the centiloids methodology described by Klunk et. al. to provide results on a centiloid scale [53].

Another major strength of the BLAzER methodology is the ability to use any brain segmentation map in DICOM format for defining PET ROIs and extracting PET measurements. However, in contrast to our inter-methodology comparison between BLAzER-FS and ADNI, our intra-methodology comparison between BLAzER-FS* and BLAzER-NR demonstrated subtle differences between the segmentation methods, yet still showed excellent correlations for both global and regional comparisons. Our results showed that NR provides slightly higher SUVRs when compared to FS across large cortical structures, where dichotomous classification revealed 7 discrepant individuals out of 127 total cases even after regression adjustment. These findings, which contrast with the nearly identical dichotomization between BLAzER-FS and ADNI comparison, emphasize the effect that differences in segmentation can have on amyloid dichotomization. Of note, the discrepant dichotomous classifications of amyloid status using both FS and NR segmentation involved cases with SUVRs very close to the cut-off value. Despite our best efforts to match BLAzER-NR’s cortical anatomical boundaries with rearrangement of BLAzER-FS* regions, BLAzER-NR and BLAzER-FS* have slightly different anatomical definitions of brain subregions across cortical structures not only from each other but also from ADNI (unlike BLAzER-FS), which noticeably affects correlation and dichotomization. Additionally, the methods utilize different segmentation algorithms in separating gray from white matter, leading to slightly thicker cortical ROIs with NR than with FS. As florbetapir binds non-specifically to white matter even in cognitively normal individuals [54], we believe that a greater contribution of PET signal from white matter in BLAzER-NR contributes to the systematically larger SUVRs when compared to BLAzER-FS*. Based on our observed results, the selection of the appropriate segmentation input depends on the application. For rapid analysis of large major cortical or subcortical structures in a clinical setting, NR and similar algorithms might be preferred. In contrast, FS provides more versatility for brain segmentation due its ability to provide smaller ROIs compromised of multiple subregions which may be more appropriate for research and analysis of PET tracers with spatially-restricted distributions.

There are limitations to the current implementation of BLAzER. First, the only file format accepted by the commercial software MIM is DICOM, while other file formats (e.g., NIfTI) are often used in the research community when working with large imaging data sets. Thus, file format conversion is required if the output of a brain segmentation methodology is not in DICOM format as in the case of FS. Second, there are manual components to the quality control that require user review and confirmation to proceed. Many of these user inputs could be removed as intervention is only needed when an error is identified, but the quality of the resulting PET quantification and the identification of segmentation errors would likely suffer. Finally, the use of commercial software in the BLAzER methodology increases the cost when compared to some other software options for brain PET analysis. However, time savings in terms of user training and study processing should be factored into the comparison between costs of different methodologies. Additionally, the use of FDA-cleared software, often more expensive than software used for research only, is important when considering implementing this methodology for quantification of PET data into routine clinical studies.

In conclusion, BLAzER is a streamlined image processing methodology for efficient registration, visualization, and extraction of brain PET data. We successfully validated the accuracy and reproducibility of BLAzER using ADNI as the reference standard for amyloid-PET and tau-PET analyses. We also showed how two different segmentation inputs, NR and FS, can be used with BLAzER and that the cortical ROIs extracted by BLAzER remain consistent with the original MR volumes. This versatile methodology can reduce barriers to quantitative brain PET and MR analysis for a wide range of research and clinical applications.
