Mitochondrial DNA Manipulations Affect Tau Oligomerization

Abstract

Background:

Mitochondrial dysfunction and tau aggregation occur in Alzheimer’s disease (AD), and exposing cells or rodents to mitochondrial toxins alters their tau.

Objective:

To further explore how mitochondria influence tau, we measured tau oligomer levels in human neuronal SH-SY5Y cells with different mitochondrial DNA (mtDNA) manipulations.

Methods:

Specifically, we analyzed cells undergoing ethidium bromide-induced acute mtDNA depletion, ρ0 cells with chronic mtDNA depletion, and cytoplasmic hybrid (cybrid) cell lines containing mtDNA from AD subjects.

Results:

We found cytochrome oxidase activity was particularly sensitive to acute mtDNA depletion, evidence of metabolic re-programming in the ρ0 cells, and a relatively reduced mtDNA content in cybrids generated through AD subject mitochondrial transfer. In each case tau oligomer levels increased, and acutely depleted and AD cybrid cells also showed a monomer to oligomer shift.

Conclusion:

We conclude a cell’s mtDNA affects tau oligomerization. Overlapping tau changes across three mtDNA-manipulated models establishes the reproducibility of the phenomenon, and its presence in AD cybrids supports its AD-relevance.

Keywords

Alzheimer’s disease mitochondria mitochondrial DNA oligomers tau

INTRODUCTION

Alzheimer’s disease (AD) brains contain tau-derived neurofibrillary tangles and perturbed mitochondria [1, 2], and tau-mitochondria relationships exist. Hyperphosphorylated, caspase cleaved, or N-terminal fragment tau associate with mitochondria and impair their physiology [3 –6]. Reciprocally, mitochondrial uncoupling or respiratory chain inhibition increases tau phosphorylation, alters tau mRNA splicing, and promotes tau aggregation [7 –13].

While current data do not implicate a role for exogenous mitochondrial toxins in AD, data from cytoplasmic hybrid (cybrid) studies indicate mitochondrial DNA (mtDNA) does contribute to altered AD mitochondrial function [2, 14]. This raises the question of whether mtDNA-dependent mitochondrial parameters affect tau biology, as mtDNA-determined mitochondrial function is arguably more relevant to AD than exogenous toxin-driven mitochondrial dysfunction.

To address this question, we assessed the status of tau oligomers in human neuronal SH-SY5Y cells that modeled different mtDNA manipulations. Specifically, we analyzed cells undergoing ethidium bromide (EtBr)-induced acute mtDNA depletion, ρ0 cells with chronic mtDNA depletion, and cybrid cell lines containing mtDNA from AD subjects. Our focus was on tau oligomerization instead of phosphorylation because SH-SY5Y tau is extensively phosphorylated at baseline, tau oligomerization is an intermediate step in the tangle deposition pathway, and tau oligomers may themselves interact with mitochondria [15, 16]. To provide insight into functional overlap and differences across the models we further characterized select mitochondria-relevant endpoints.

MATERIALS AND METHODS

ρ0 cell line, cybrid cell lines, and human autopsy brains

These studies used the mtDNA-depleted, human neuronal SH-SY5Y ρ0 cell line originally created by Miller et al. and further modified as described in Swerdlow et al. [17, 18]. The cybrid cell lines used in these studies were generated by transferring platelet mitochondria to SH-SY5Y ρ0 cells as previously described [18]. The platelet donors included human subjects diagnosed with AD or designated as cognitively normal (CN). All subjects were members of the University of Kansas Alzheimer’s Disease Research Center (KU ADRC) clinical cohort and AD or CN status was verified through longitudinal clinical and neuropsychological evaluations. The AD subjects met current McKhann et al. criteria [19]. The cybrid lines used in this study were generated by the KU ADRC Mitochondrial Genomics and Metabolism Core and include 11 cybrid lines created through AD subject platelet mitochondria transfer (“AD cybrids”), and 11 cybrid lines created through CN subject platelet mitochondria transfer (“CN cybrids”). The mean age of the AD mtDNA donors was 74±2.0, and for the CN mtDNA donors it was 71±2.2. Seven AD and 5 CN mtDNA donors were male.

The KU ADRC Neuropathology Core provided frozen frontal cortex obtained from rapid autopsies of 8 AD and 7 CN KU ADRC clinical cohort decedents. The mean age of the AD brain donors was 79±3.3, and for the CN brain donors it was 79±3.5. Five AD and 5 CN brain donors were male.

All human subjects who donated mtDNA to create cybrid lines provided informed consent. KU ADRC clinical cohort participants with AD are required to have a study partner and informed consent was further obtained from each subject’s study partner. For subjects who donated brains, a separate informed consent was obtained from the donor prior to death and from the donor’s study partner. All human participation protocols and consents were approved by the University of Kansas Institutional Review Board.

Cell culture

Native human neuronal SH-SY5Y (ρ+) cells, EtBr-treated SH-SY5Y cells, and ρ0 SH-SY5Y cells were grown in 25 mM glucose Dulbecco’s modified Eagle medium (DMEM) supplemented with 10% fetal bovine serum (FBS), 1% penicillin/streptomycin, 100μg/mL sodium pyruvate, and 50μg/mL uridine. For acute mtDNA depletion, EtBr (Millipore) was added to the cell culture medium at a concentration of 3μg/mL. The EtBr-containing medium was made fresh just prior to treatment and changed daily. Cells were cultured in the presence of EtBr for 1, 3, or 7 days. Cybrid cell lines were cultured in 5 mM glucose DMEM supplemented with 10% FBS and 1% penicillin/streptomycin, and the medium was changed daily.

Cell differentiation

We used a staurosporine protocol to differentiate SH-SY5Y cells [20]. Briefly, cells were cultured in media containing 6 nM staurosporine for 7 days. EtBr treatment occurred during differentiation, with the 3-day EtBr treatment beginning at differentiation day 4 and the 1-day EtBr treatment beginning at differentiation day 6.

Western blot immunochemistry

For whole cell lysate collection cells were seeded at similar confluency in 6-well dishes (Corning Costar #3516). The following day media was aspirated, cells were washed with phosphate buffered saline (PBS), and 150μL radioimmunoprecipitation assay (RIPA) lysis buffer was added to each well. The RIPA lysis buffer contained 10 mM tris-Cl (pH 8.0), 1 mM EDTA, 0.5 mM EGTA, 1% Triton X-100, 0.1% sodium deoxycholate, 0.1% SDS, and 140 mM NaCl. Thermo Halt Protease and Phosphatase inhibitor cocktail (Thermo #1861284) was added just prior to use. Cells were lysed on ice via scraping and lysates were incubated on ice for 20 min. Lysates were then centrifuged at 8,000×g for 10 min. Protein levels were quantified using a BCA assay (Pierce #23225). Samples were boiled at 95°C for 10 min in Laemmli buffer. Protein lysates were separated via sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE) at a constant voltage in tris/glycine/SDS running buffer (BioRad #1610772). For most targets, pre-cast 4–15% Criterion gels were used. 25μg protein was loaded per sample.

Protein was transferred to 0.45μM polyvinylidene difluoride (PVDF) membranes (GE Amersham Hybond #10600023) in tris/glycine transfer buffer (BioRad #1610771) containing 20% methanol, at a constant current of 400 amps for 1 h. Membranes were blocked for 1 h at room temperature in 5% dry milk in tris buffered saline with Tween-20 (TBST) or 5% bovine serum albumin (BSA) (Boston BioProducts P-753) in TBST. Membranes were incubated overnight at 4°C in primary antibody diluted with 5% dry milk in TBST or 5% BSA in TBST. Membranes were incubated in secondary antibody for 1 h at room temperature. Western blots were visualized using Supersignal West Femto Maximum Sensitivity Substrate (Thermo #34096) on a BioRad Chemidoc XRS+imager. Table 1 lists the antibodies used in these studies.

Table 1

Antibodies

Antibody	Dilution	Source
Tau Oligomeric Complex I (TOC1)	1:10,000	Dr. Nicholas Kanaan
Tau12	1:10,000	Dr. T. Chris Gamblin
MtCO2	1:2,000	Abcam (ab79393)
COX4I1	1:5,000	Cell Signaling (CST4850)
NDUFB8	1:1,000	Abcam (ab110242)
β-Actin	1:4,000	Cell Signaling (CST3700)
GSK3β	1:1,000	Cell Signaling (CST9315)
GSK3βser9	1:1,000	Cell Signaling (CST5558)
Tau serine 199 phosphorylation	1:10,000	Abcam (ab81268)
Tyrosine Hydroxylase	1:500	Abcam (ab137869)
HRP Conjugated Goat anti-Mouse IgG	1:4,000	Invitrogen #A28177
HRP Conjugated Goat anti-Rabbit IgG	1:4,000	Invitrogen #A27036
HRP Conjugated Goat anti-Mouse IgM	1:4,000	Invitrogen #PA84383

Dot blot immunochemistry

Cells were grown to 95% confluency in 6-well dishes. Media was aspirated and cells were washed in PBS. Cells were lysed in NP40 buffer: 1% IGEPAL (NP40), 50 mM tris-HCl pH 8.0, 150 mM NaCl, and Halt protease and phosphatase inhibitor cocktail. The protein extracts were incubated on ice for 20 min, then centrifuged at 8,000×g for 10 min. Protein concentration was quantified via BCA assay. Lysates were diluted with water to a concentration of 0.5μg/μL.

Brain tissue from the KU ADRC brain bank was lysed in a buffer containing 120 mM NaCl, 50 mM tris pH 8.0, and Halt protease and phosphatase inhibitor cocktail. 1 mL of ice-cold buffer was used per ∼250 mg brain tissue. Samples were lysed by 10 strokes in a glass Dounce homogenizer. The samples were then centrifuged at 17,000×g for 20 min at 4°C and the resulting supernatant containing soluble protein was collected and used for dot blots. Prior to loading on a dot blot, protein was quantified via BCA assay and samples were diluted with water to a concentration of 0.5μg/μL.

Our dot blot analysis used the TOC1 antibody (Table 1), which binds a unique tau conformation associated with soluble tau dimers and slightly larger oligomers [21, 22]; this study collectively refers to these soluble dimers and larger oligomers as tau oligomers. TOC1’s recognition of a specific conformational epitope necessitates the use of non-denaturing assays such as dot blots. Samples were loaded on 0.45μm nitrocellulose membranes (GE #10600002), with 2μg of protein lysate loaded per sample. Lysates were dotted onto the membrane 0.5μL at a time, allowing samples to dry completely between applications. The blot was blocked in 5% milk in TBST for 1 h at room temperature. Blots were incubated with primary antibody overnight at 4°C. Blots were incubated in secondary antibody for 1 h at room temperature. The dot blots were visualized using SuperSignal West Pico Plus Chemiluminescent Subtrate (Thermo #34580) on a BioRad Chemidoc XRS + imager. TOC1 density values were normalized to total protein measured by Amido Black, or to a density reading obtained with the Tau12 antibody. The Tau12 antibody recognizes a linear epitope in the amino terminus of tau (amino acids 9–18) and detects both monomer and oligomer tau [23].

DNA analyses

Cells were plated in 6 well dishes. Prior to harvest the medium was aspirated and cells were washed with PBS. Genomic DNA preparation was performed as described previously [24]. The DNA was then quantified and diluted to a concentration of 5 ng/μL.

To quantify mtDNA:nuclear DNA ratios via quantitative PCR (qPCR), 2μL of 5 ng/μL DNA was used per qPCR reaction for a total of 10 ng of DNA per reaction. mtDNA levels were measured using primers directed against MT-ND1 (forward primer: 5^′-CCA CCT CTA GCC TAG CCG TTT-3^′; reverse primer: 5^′-TGT TTG GGC TAC TGC TCG C-3^′). Nuclear DNA levels were measured using primers directed against β2 M (forward primer: 5^′-TGC TGT CTC CAT GTT TGA TGT ATC-3^′; reverse primer: 5^′-TCT CTG CTC CCC ACC TCT AAG T-3^′). Cycling parameters were chosen based on the manufacturer’s recommendations provided with the Powerup SYBR Green Master Mix (Applied Biosystems #A25742). qPCR reactions were run on an Applied Biosystems Quantstudio 7 Flex using a 384 well plate (Applied Biosystems #4309849) or an Applied Biosystems StepOne Plus Real Time PCR system using a 96 well plate (Applied Biosystems #4346906). Relative fold change was calculated using the ΔΔCt method with β2 M serving as the reference gene. We also performed a previously described assay that determines D-loop cycle thresholds [25].

RNA analyses

Cells were seeded in 6-well dishes and grown to 95% confluency. Prior to RNA extraction the medium was aspirated, and cells were washed with sterile PBS. Cells were solubilized in 500μL Trizol reagent (Ambion #15596018) and processed as described previously [26]. 1μg of RNA was loaded for reverse transcription reactions, and cDNA generation was performed according to the manufacturer’s instructions using 5× iScript reverse transcription supermix (BioRad #1708840).

For Taqman-based qPCR, 2μL of cDNA was used per reaction. We used Taqman primers to MAPT (Hs00902194_m1), COX4I1 (Hs00971639_m1), NDUFB8 (Hs00428204_m1), and 18s (Hs03003631_g1). Negative control reactions lacking complementary DNA (cDNA) were included on each plate. qPCR was run on an Applied Biosystems Quantstudio 7 Flex or Applied Biosystems StepOne Plus Real Time PCR system. Cycling parameters were chosen based on the manufacturer’s recommendations provided with the Taqman Universal Master Mix II with UNG (Applied Biosystems #4440038). Relative fold change was calculated using the ΔΔCt method with 18S serving as the reference gene.

Vmax assays

To determine cytochrome c oxidase (COX) Vmax activities cells were grown to 95% confluency in T75 flasks. After removing the medium and washing with calcium and magnesium free Hank’s buffered salt solution (HBSS) (Gibco #14025-092), cells were gently scraped in 8 mL of HBSS and the cell suspension was counted. The cells were pelleted and resuspended in HBSS at a concentration of 30 million cells per mL. 950μL 100 mM PBS, pH 7.4 and 20μL of 10 mg/mL β-maltoside (Sigma #D4641) were added to cuvettes and warmed to 30°C before taking a blank reading. 30μL of cell suspension was added to the cuvette, mixed well, and incubated at 30°C for 2 min. Reduced cytochrome c (Sigma #C7752) was then added to the cuvette using a Hamilton syringe and mixed well. The absorbance was read at 550 nm at 6 s intervals for 2 min. Potassium ferricyanide crystals (Sigma #702587) were added and the absorbance at 550 nm was recorded. To measure each sample’s total protein, 5μL of cell suspension was measured via BCA assay. The COX activity in s^–1 was calculated by subtracting the blank from the absorbance readings, then calculating the log of the absorbance readings and creating a scatter plot with “Time” as the X axis and “Log (Abs)” as the Y axis. The absolute value of the slope represented the COX Vmax activity, which was normalized to total protein.

Citrate synthase activity was measured using the same samples. 936μL of 100 mM tris pH 8.0, 4μL of 10% Triton X-100 (Sigma #1002841029), and 10μL of 10 mM 5,5^′-dithiobis-(2-nitrobenzoic acid) (DTNB) (Sigma #D8130) were mixed in a cuvette and warmed to 30°C. A blank reading of this mixture was taken. 30μL of cell suspension was added to the cuvette and incubated at 30°C for 2 min. 10μL of 50 mM oxaloacetate (Sigma #07753), made fresh in 10 mM tris-HCl pH 8.0, and 10μL of 5 mM acetyl-CoA (Sigma #A2181) were added to the cuvette and the reaction was mixed well. The absorbance was read at 412 nm at 6 s intervals for 2 min. To calculate CS activity, we plotted “Time” as the X-axis and “Absorbance minus blank” on the Y-axis. The slope of this line was multiplied by 60 to get the rate/minute, and then divided by 0.0136 (a constant that considers the extinction coefficient of the DTNB colorimetric reagent at 412 nm and the optical path length of the cuvette). The resulting value represented the CS Vmax activity of the sample in nmol/minute. We normalized CS Vmax activity to total protein.

To determine the complex I Vmax activity, cells were grown to 95% confluency in T180 flasks. After removing the medium and washing with PBS, cells were gently scraped in 8 mL of PBS. Enriched mitochondrial extracts were then prepared and assayed for complex I activity as described previously [27]. On the day of the assay mitochondrial pellets were thawed on ice and protein was quantified via BCA assay. 75μg of the enriched mitochondrial fraction was loaded per reaction.

Respiration and glycolysis flux analyses

We used a Seahorse XF96 Analyzer to determine cell respiration (oxygen consumption rate, OCR) and glycolysis (extracellular acidification rate, ECAR) fluxes. The day before the assay 40,000 cells were seeded per well in a Seahorse XF96 cell culture plate in 100μL complete medium. The next day, assay medium containing 25 mM glucose, 2 mM glutamine, and 1 mM pyruvate was prepared. The cells were washed twice in assay medium and brought to a final volume of 180μL. Plates were degassed at 37°C in a non-CO2 incubator for 45 min. Mitochondrial inhibitors were diluted in 3 mL of assay medium to the following concentrations (10×): oligomycin (Sigma #75351) 10μM, FCCP (Sigma #C2920) 0.25μM, and rotenone (Sigma #R8875) and antimycin A (Sigma #A8674) each to 5μM. The experiment was run on the Seahorse XF96 analyzer using an extracellular flux assay kit and following the mitochondrial stress test protocol. Results were normalized to protein concentration determined via DC protein assay (BioRad).

Cell cycling, morphology, and viability

Cell growth was measured using fluorescent activated cell sorting. Two million cells per sample were pelleted and resuspended in 1 mL of 0.9% NaCl in water. Cells were then fixed in cold 90% ethanol for 30 min. To prepare a working propidium iodide (Sigma #P4864) solution, a 500μg/mL stock was diluted 1 : 10 in PBS. Cells were resuspended in 1 mL of the propidium iodide working solution. 100μL of 1 mg/mL RNase A (DNase-free) (Thermo #EN0531) was added and samples were incubated at 37°C for 30 min. Samples were then analyzed using flow cytometry. To assess cellular morphology, cells were seeded in 96 well plates, fixed with 1% paraformaldehyde for 15 min, and grayscale images were taken using a Cytation imaging reader (BioTek) with a 20× objective. Cell viability was determined by monitoring the conversion of 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) to formazan as previously described [28].

Statistical analyses

Statistical analyses were conducted using GraphPad Prism. Individual cybrid cell line and brain tissue values each represent the average of three independent measurements. For experiments using SH-SY5Y ρ+ and SH-SY5Y ρ0 cells, twelve independent measurements were performed for each assay except for the respiration and glycolysis flux assays, where sixteen independent measurements were performed. For experiments in the staurosporine-differentiated SH-SY5Y cells, six independent measurements were performed. Data were summarized by means and standard errors (standard error of the mean; SEM). Brown-Forsythe and Welch one-way ANOVA tests were used to compare groups of three or more (comparing mtDNA content among ρ+, EtBr-treated, and ρ0 cells; comparing oxygen consumption data). Welch’s t-test was used for two-group comparisons. p values less than 0.05 were considered statistically significant.

RESULTS

We used the TOC1 antibody [21] to measure tau oligomer levels in human neuronal SH-SY5Y cells treated with EtBr. EtBr, a cationic DNA intercalator, can inhibit mtDNA replication at concentrations that do not prevent nuclear DNA replication [29]. We found 1, 3, and 7-day exposures to 3μg/mL EtBr respectively removed approximately 50%, 75%, and 95% of the SH-SY5Y ρ+ cell mtDNA. By comparison SH-SY5Y ρ0 cells originally generated through a much longer EtBr exposure, which model stable mtDNA depletion following the removal of EtBr, contained no or essentially no mtDNA (>99.9% reduction) (Fig. 1A). Western blots revealed a concomitant progressive reduction of mtDNA-encoded mtCO2 protein that was almost complete by EtBr day 7, as well as profound reductions of the nuclear-encoded NDUFB8 respiratory chain protein that exceeded those of the nuclear-encoded COX4I1 protein. ρ0 cells showed a pattern that reflected the 7-day EtBr-treated cells, as they contained no detectable mtCO2 or NDUFB8 protein, but only slightly less COX4I1 protein than the parent ρ+ line (Fig. 1B). COX4I1 mRNA levels were comparable in ρ+, EtBr-treated, and ρ0 cells. NDUFB8 mRNA levels did not change with the acute EtBr exposures but were slightly lower in the ρ0 cells (Fig. 1C). By MTT assay the acutely mtDNA-depleted cells appeared viable throughout and grossly showed at most subtle morphologic changes (Fig. 1D, E). The ρ0 cells continued to grow and divide, although their cell cycle rate was slightly reduced as compared to the parent SH-SY5Y line (Fig. 1F).

Fig.1

Extent of acute and chronic mtDNA depletion and its effects on respiratory chain protein and mRNA levels. A) 1, 3, and 7-day EtBr treatment reduced SH-SY5Y mtDNA levels by approximately 50%, 75%, and 95%. ρ0 cells displayed >99.9% relative mtDNA depletion. B) Representative western blots labeled with antibodies recognizing the mtDNA-encoded mtCO2, nuclear-encoded COX4I1, and nuclear-encoded NDUFB8 proteins. Actin is included as a loading control. C) COX4I1 and NDUFB8 mRNA levels were unaffected by the acute EtBr treatment, although the NDUFB8 mRNA level was slightly reduced in ρ0 cells. D) By MTT assay the acutely mtDNA-depleted cells appeared viable throughout. E) The acutely mtDNA-depleted cells grossly showed at most subtle morphologic changes. F) The ρ0 cell cycle rate was slightly reduced as compared to the parent SH-SY5Y line. **p < 0.01, ***p < 0.001, and ****p < 0.0001. Error bars represent SEM.

From a functional perspective the 1, 3, and 7-day EtBr exposures progressively decreased COX Vmax activities by 50%, 76%, and 100% and the complex I Vmax activities by 36%, 62%, and 91%. The CS Vmax did not change during this time. After 3 days of EtBr the relative decline in COX activity exceeded the relative decline in complex I activity (p = 0.004), and we again saw this relationship after 7 days of EtBr (p = <0.0001) (Fig. 2A). Oxygen consumption also progressively declined over the course of the EtBr treatment. Although after 7 days of EtBr the acutely manipulated cells and ρ0 cells both showed virtually no mitochondrial oxygen consumption, the ECAR was lower in the ρ0 cells than it was in the 7-day EtBr treated cells (p = 0.0002) (Fig. 2B). Figure 2C graphically summarizes metabolic flux patterns in the acute and chronic mtDNA-depleted groups and indicates energy needs or metabolism fundamentally differ between the chronic and acute models.

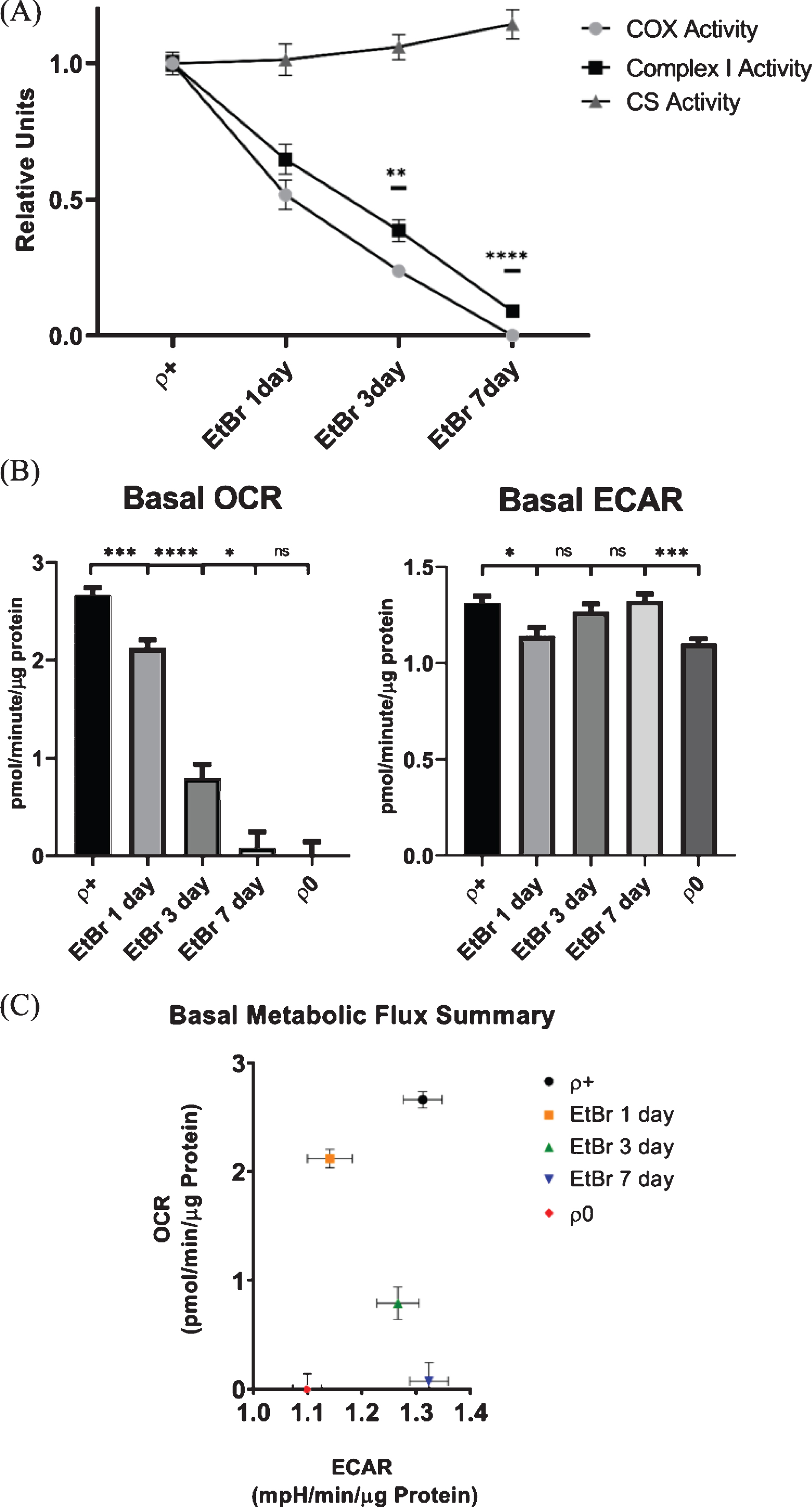

Fig.2

Effect of mtDNA depletion on mitochondrial enzyme Vmax activities and energy metabolism fluxes. A) A progressive decline in complex I and COX activities accompanied the progressive EtBr-induced mtDNA depletion, although after 3 and 7 days of EtBr COX activity fell to a greater extent than complex I activity. CS activity did not decline during this period. B) SH-SY5Y oxygen consumption rates also tracked mtDNA depletion, and as was the case with the ρ0 cells the mitochondrial OCR was essentially undetectable by EtBr exposure day 7. The EtBr-treated cell ECAR fell initially but recovered, and the EtBr exposure day 7 ECAR exceeded the ρ0 cell ECAR. n = 16 per group. C) Metabolic flux rates for the different groups; the EtBr day 7 cells and ρ0 cells both showed no or essentially no mitochondrial oxygen consumption, but the ρ0 cells uniquely lowered their glycolysis flux. *p < 0.05, **p < 0.01, ***p < 0.001, and ****p < 0.0001. Error bars represent SEM.

Tau mRNA levels were comparable across the ρ+, EtBr-treatment, and ρ0 groups (data not shown). Tau oligomers were unchanged after 1 day of EtBr but rose after 3 and 7 days of the treatment. TOC1 immunoreactivity increased regardless of whether the values were normalized to total protein or total tau (Fig. 3A). Increased oligomer to total tau ratios indicates that in addition to containing more tau oligomers, cells undergoing acute mtDNA depletion shift their monomer to oligomer balance in ways that favor the oligomer forms. Relative to ρ+ cell lysates, ρ0 cell lysates showed increased tau oligomers when normalized to total protein, but not when normalized to total tau. This suggests with chronic, total mtDNA depletion the monomer to oligomer equilibrium reverts to that of the ρ+ state (Fig. 3B).

Fig.3

Acute and chronic mtDNA depletion alters TOC1 staining. A) Representative dot blots of EtBr-treated SH-SY5Y lysates labeled with the TOC1 antibody, the Tau12 antibody, or Amido Black. Each day’s EtBR-treated samples were compared to control samples simultaneously prepared on that specific day. Densitometry analysis reveals no change in TOC1 staining after the 1-day EtBr treatment but following 3 and 7 days TOC1 staining increases whether normalized to total protein or total tau. B) Representative dot blots of SH-SY5Y ρ+ and ρ0 lysates labeled with the TOC1 antibody, the Tau12 antibody, or Amido Black. Densitometry analysis reveals a significant increase in TOC1 staining in ρ0 cells relative to ρ+ cells when normalized to total protein, but not to total tau. **p < 0.01, and ****p < 0.0001. Error bars represent SEM.

A range of kinases and phosphatases regulate tau phosphorylation. For cells undergoing acute mtDNA depletion one of these, the GSK3β kinase, exhibited increased levels of serine 9 phosphorylation (Fig. 4A). Absolute levels of tau serine 199 varied during acute mtDNA depletion and increased in ρ0 cells (Fig. 4B), but total tau levels also changed, and the ratio of serine 199-phosphorylated to total tau remained constant (Fig. 4C).

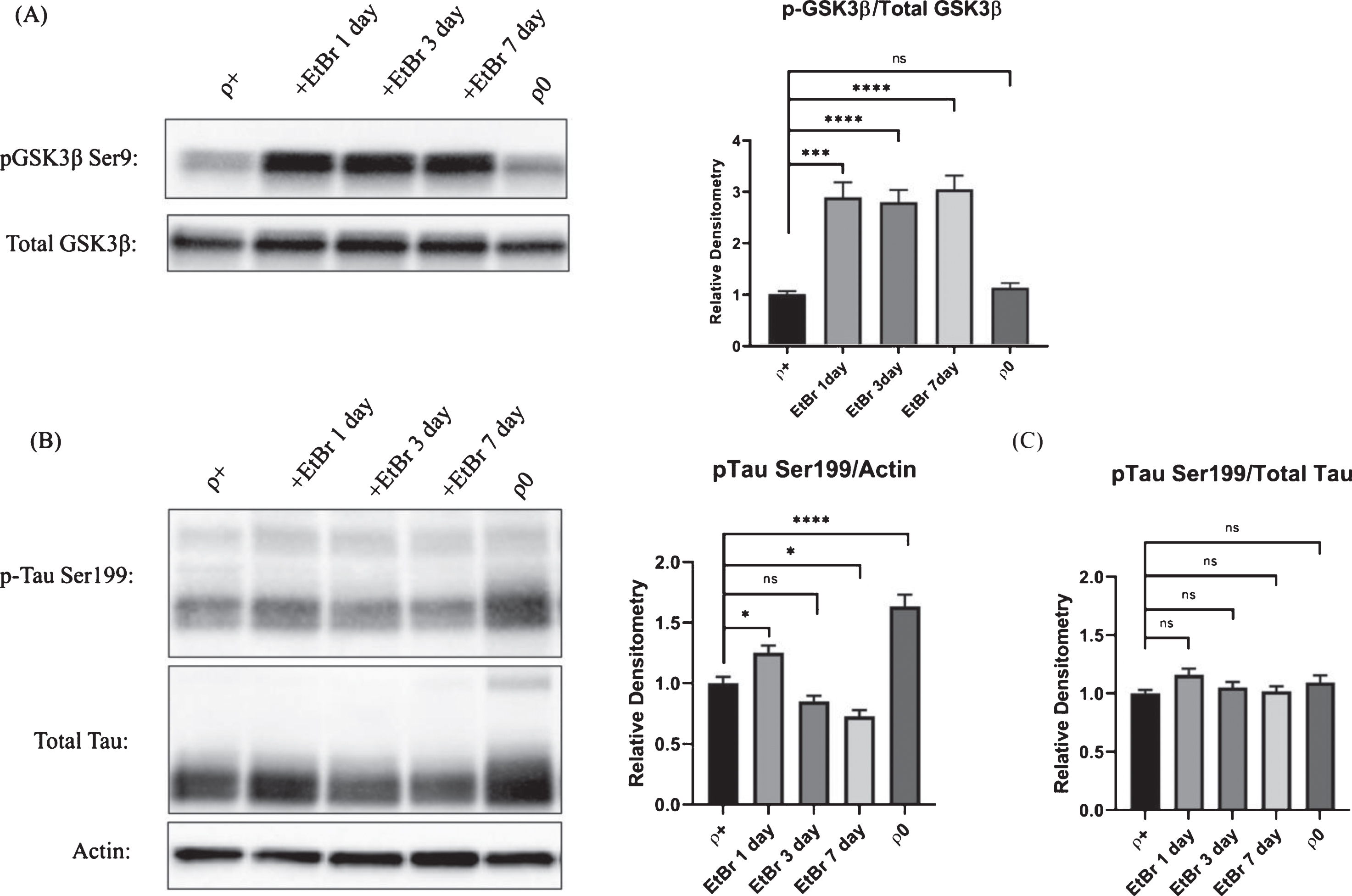

Fig.4

Tau phosphorylation in acutely and chronically mtDNA-depleted cells. A) The GSK3β kinase serine 9 phosphorylation level and the serine 9 phosphorylated to unphosphorylated ratio increased in cells undergoing acute but not chronic mtDNA depletion. B) Tau serine 199 phosphorylation levels varied during acute mtDNA depletion and increased in ρ0 cells. C) Serine 199 phosphorylated to total tau ratios remained constant. *p < 0.05, ***p < 0.001, and ****p < 0.0001. Error bars represent SEM.

To independently assess whether mtDNA can impact tau biology, we used the TOC1 antibody to measure tau oligomer levels in cybrid cell lines generated from AD and age-matched CN subjects. Normalizing each line’s TOC1 dot blot density to its dot blot total protein density revealed a 3.6-fold increase in the AD cybrid line mean (p = 0.02), and normalizing each line’s TOC1 dot blot density to its Tau12 total tau density showed a 5.7-fold mean increase (p = 0.04) (Fig. 5A). This pattern reflects that of acutely mtDNA-depleted cells and indicates in addition to containing more tau oligomers, AD cybrid cells shift their monomer to oligomer balance to favor the oligomer forms. Protein lysates derived from AD and control autopsy brains showed similar relationships, but with a more robust 14.2-fold increase in the AD brain tau oligomer to total protein ratio, and a more robust 9.3-fold increase in the tau oligomer to total tau ratio (Fig. 5B).

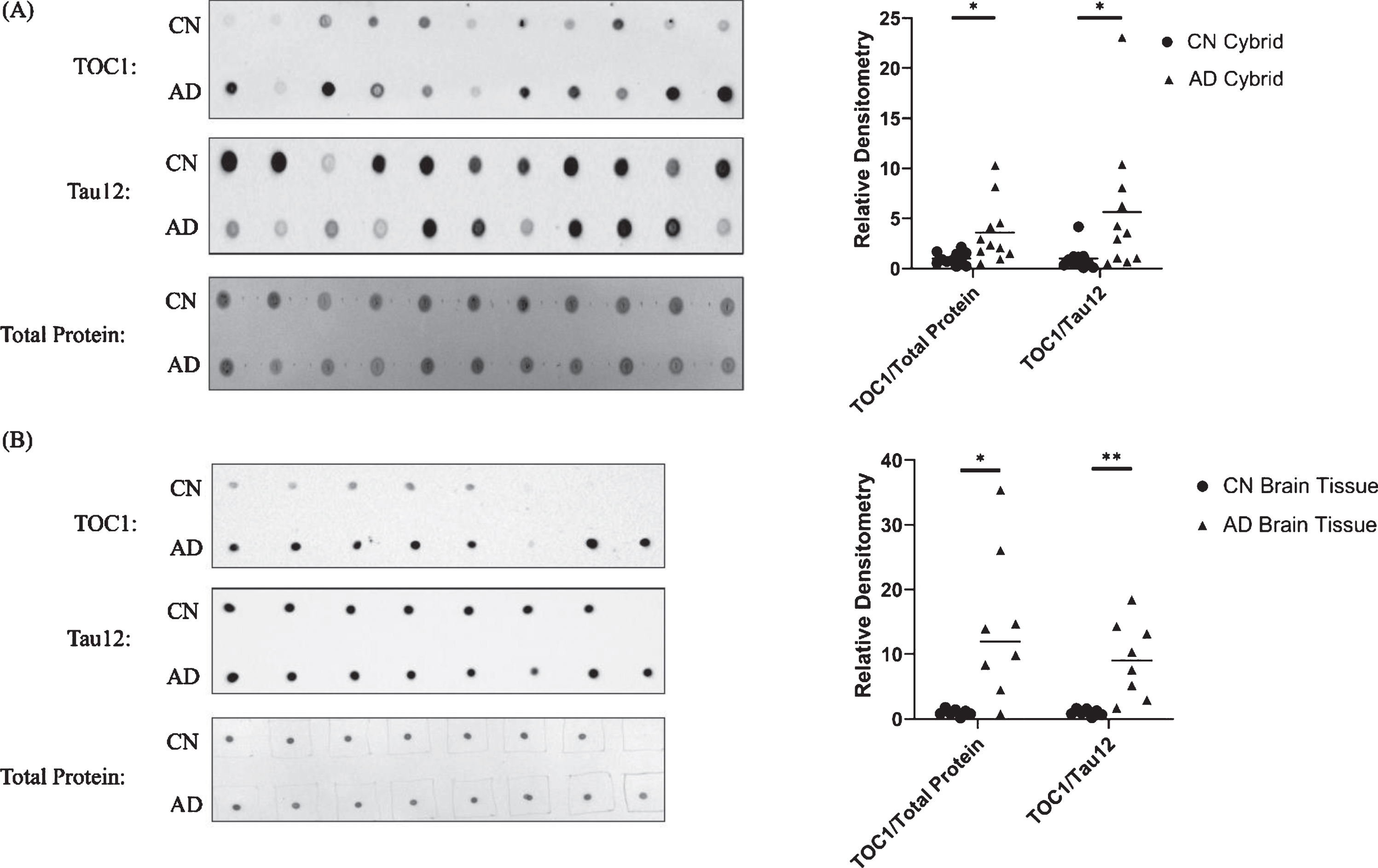

Fig.5

TOC1 staining in AD cybrids and AD brains. A) Normalized to total protein or total tau protein AD cybrids show more TOC1 staining than age-matched CN cybrids. The dot blots shown are actual representative data from a single experiment. Each datapoint in the graph represents the mean value from three independent measurements. n = 11 per group. B) Normalized to total protein or total tau protein AD brains show more TOC1 staining than age-matched brains from CN subjects. The dot blots shown are actual representative data from a single experiment. Each datapoint in the graph represents the mean value from three independent measurements. n = 8 AD and 7 CN brains. *p < 0.05, **p < 0.01.

Because our EtBr treatment and ρ0 models emphasize mtDNA depletion, we quantified cybrid line mtDNA levels using primers complementary to mtDNA ND1 and nuclear DNA β2M sequences. Relative to the CN group, cybrid lines containing mtDNA from AD subjects displayed a modest but significant 9% reduction in their mean mtDNA content (Fig. 6). We also determined mtDNA D-loop cycle thresholds, which estimates mtDNA synthesis rates [25], but on this measure group levels were comparable (data not shown).

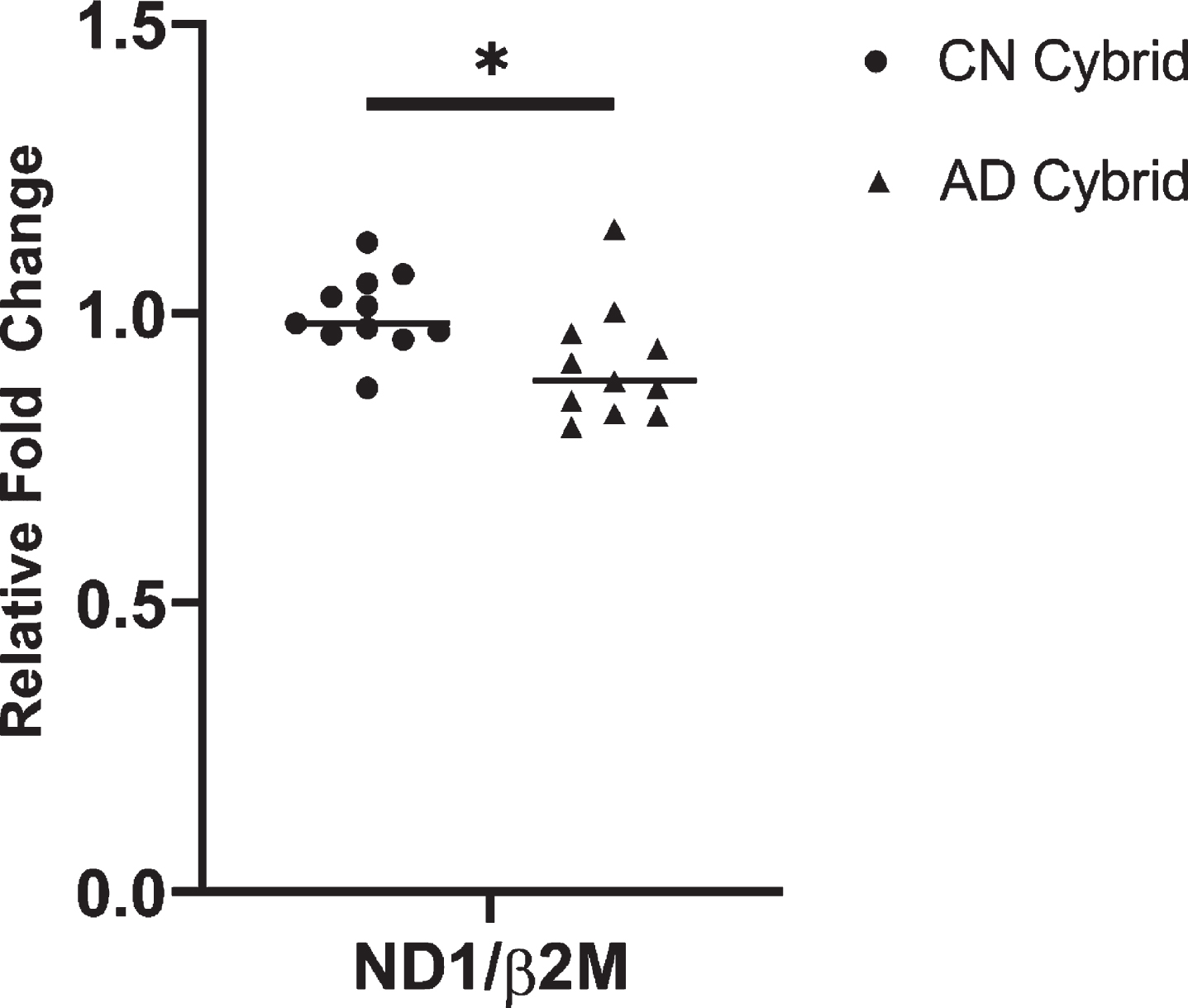

Fig.6

Cybrid cell line relative mtDNA content. AD cybrids maintain less mtDNA than CN cybrids; the AD cybrid mtDNA mean was 9% lower than the CN cybrid mean. Each datapoint in the graph represents the mean value from three independent measurements. n = 11 per group. *p < 0.05.

We measured tau oligomer levels in differentiated SH-SY5Y cells undergoing acute mtDNA depletion. Tyrosine hydroxylase protein, a marker of differentiation, increased in staurosporine-treated SH-SY5Y cells (Fig. 7A). EtBr reduced the differentiated cell mtDNA content, by 40% after 1 day of treatment and by 70% after 3 days (Fig. 7B). Reminiscent of the undifferentiated cells, tau oligomers increased in the mtDNA-depleted cells and we observed a monomer to oligomer shift (Fig. 7B–D).

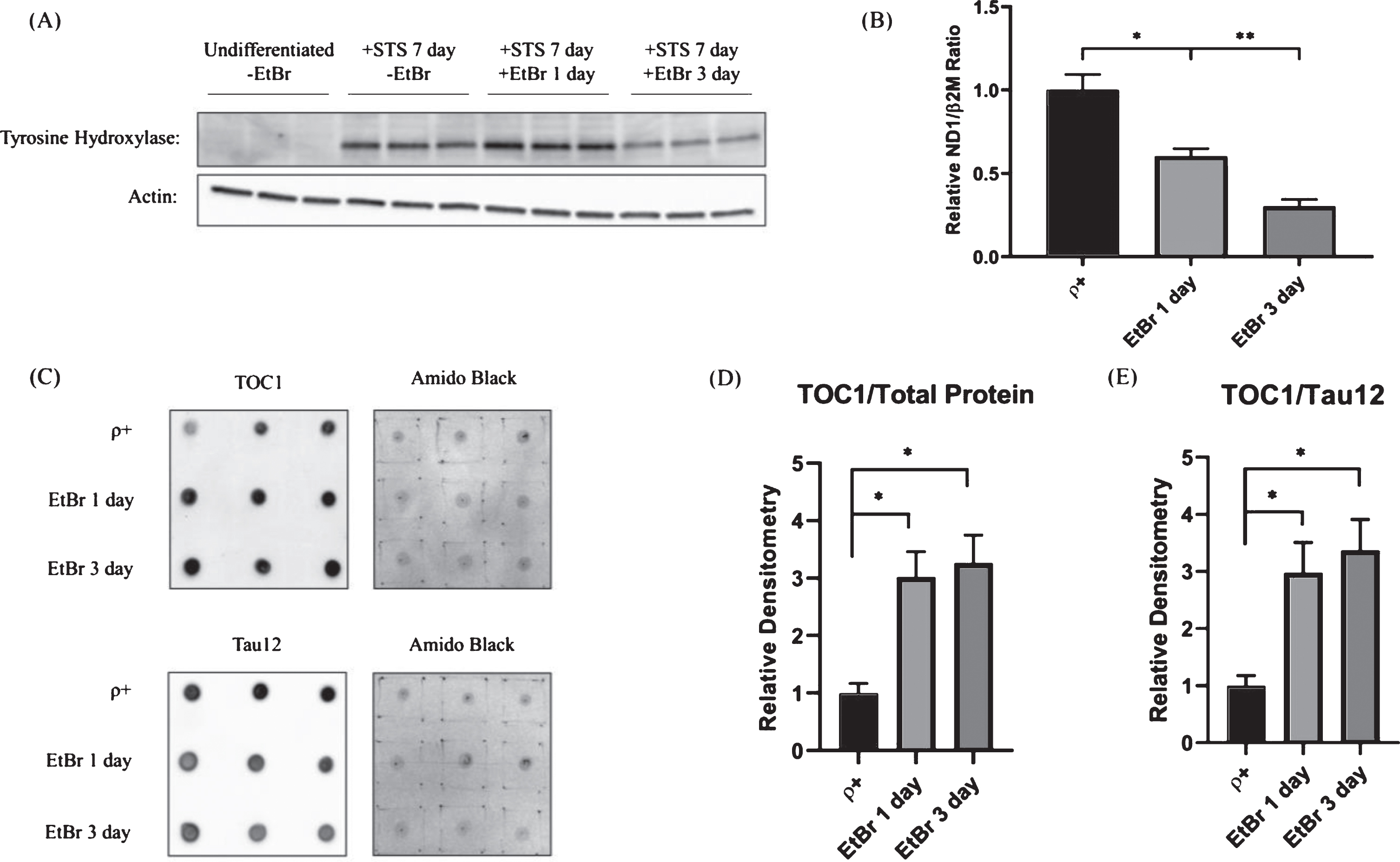

Fig.7

Acute mtDNA depletion alters TOC1 staining in differentiated SH-SY5Y cells. A) Tyrosine hydroxylase protein, a marker of differentiation, increased in staurosporine-treated SH-SY5Y cells. B) The amount of mtDNA progressively declined in EtBr-treated differentiated cells. C) Dot blots of differentiated SH-SY5Y cell lysates labeled with the TOC1 antibody, the Tau12 antibody, or Amido Black. Each day’s EtBR-treated samples were compared to control samples simultaneously prepared on that specific day. D) Densitometry analysis reveals after 1 and 3 days of EtBr, TOC1 staining increases when normalized to total protein. E) Densitometry analysis reveals after 1 and 3 days of EtBr, TOC1 staining increases when normalized to total tau protein, indicative of a monomer to oligomer shift. n = 6 per group. *p < 0.05, **p < 0.01. Error bars represent SEM.

DISCUSSION

Mitochondria influence tau biology [7 –13]. Here we build on previous reports by experimentally showing mtDNA-induced mitochondrial dysfunction can both increase tau oligomer levels and shift the oligomer-monomer equilibrium toward the oligomer state. We also saw elevated tau oligomers and a pro-oligomer shift in cybrid lines containing AD subject mtDNA, which supports the observation’s potential AD-relevance.

We specifically considered how acute and chronic mtDNA depletion affects tau biology. Few mtDNA editing options exist [30], and what to edit for a study of this nature is unclear. On the other hand, cationic DNA intercalators such as EtBr accomplish rapid mtDNA depletion while ρ0 cells model chronic depletion. A study from Nagy et al., which reported tangle-containing neurons lack mtCO2 protein, also informed our decision to evaluate the impact of mtDNA depletion [31].

The observed direct correlation between mtDNA content and cell respiration rates seems straightforward, as does the observed direct correlation between mtDNA content and mtDNA-encoded mtCO2 protein levels. How mtDNA depletion impacts nuclear encoded respiratory chain subunits is more complex. Our data certainly suggest mtDNA depletion affects nuclear-encoded subunit translation or protein degradation more than transcription or mRNA degradation. A loss of mtDNA-encoded proteins could perturb respiratory chain stoichiometry and induce an unfolded protein response that degrades nuclear-encoded subunits [32], or it could trigger an adaptive integrated stress response (ISR) [33]. Regardless, it is unclear why NDUFB8 protein was more sensitive than COX4I1 protein to acute and chronic mtDNA depletion.

Based on this and the fact that complex I contains more mtDNA-encoded respiratory chain subunits than COX, it seems counterintuitive that COX activity in our study was more sensitive to mtDNA depletion than complex I activity. Our Vmax data therefore suggest mtDNA-encoded proteins are more critical to COX function than complex I function. Consistent with this, other studies report COX activity is particularly linked to mtDNA copy number [34, 35].

Because mtDNA only encodes respiratory chain proteins, we suspect mtDNA copy number-related factors perturbed the respiratory chain, which initiated an indeterminately long string of events that eventually affected tau. It is likely one or more of these events were mitochondria non-autonomous, as the oligomer to total tau ratio increased in the acute but not the chronic mtDNA depletion model. Important differences exist between these models; at EtBr day 7 acutely depleted cells show reduced oxygen but preserved glycolysis fluxes, while both fluxes are reduced in ρ0 cells. This indicates mtDNA depletion eventually leads to an adaptative metabolic reprogramming.

Our cybrid analysis independently establishes a role for mtDNA in tau biology and does so within a clearly AD-relatable context. Cybrid lines generated via transfer of AD subject mtDNA to ρ0 cells stably model at least some characteristics of AD mitochondria [2 , 36]. While the mtDNA in AD cybrids presumably facilitates their ex vivo modelling of AD mitochondria, the responsible mtDNA characteristics are unclear. Because the mtDNA in our AD cybrids derives from platelets we suspect inherited variants are critical.

Multiple studies report AD brains contain less mtDNA than CN brains, or at least less PCR-amplifiable mtDNA [37 –43]. Blood cells from AD subjects may also contain reduced mtDNA copy numbers [41]. Our novel finding that AD cybrids collectively contain less mtDNA than age-matched CN cybrids suggests reduced AD mtDNA levels are determined at least partly by mtDNA itself, and are not entirely attributable to nuclear factors, classic AD histopathology phenomena, or neurodegeneration artifact. If correct, the responsible mtDNA signatures presumably reside within the mtDNA control region that initiates mtDNA replication. The mtDNA control region shows high inter-individual variability, varies among mtDNA haplogroups with different AD odds ratios, and in AD brains accumulates somatic mutations whose burden inversely relates to mtDNA copy number [44 –51].

We cannot establish whether reduced AD cybrid mtDNA drives AD cybrid tau changes, or simply serves as a marker of other responsible mtDNA features. Certainly the 9% reduction in the mean AD cybrid mtDNA copy level is much smaller than our EtBr-induced acute reduction, or its complete absence from ρ0 cells. Also, the pattern of tau changes in the acutely mtDNA-depleted cells more closely reflected the cybrid pattern of tau changes, even though the cybrids arguably model chronic mtDNA effects more closely than acute mtDNA effects.

SH-SY5Y neuronal cells express human tau at easily detectable levels but their tau biology differs from human brain tau biology. Most SH-SY5Y tau exists as the 03NR fetal isoform, while the adult human brain expresses six isoforms at relatively equal concentrations [15]. SH-SY5Y tau is also phosphorylated at many of the same sites as tau from AD brains [15]. We therefore narrowly conclude mtDNA-determined mitochondrial function can alter tau homeostasis, and this phenomenon applies in an ex vivo model of AD mitochondrial dysfunction.

We saw changes in the state of at least one kinase that phosphorylates tau during acute mtDNA depletion conditions, and tau phosphorylation at serine 199 changed under acute and chronic mtDNA depletion conditions. Total tau levels also changed, however, and proportionally tracked the phosphorylation changes so that the tau serine 199 phosphorylated to unphosphorylated ratio remained constant. We cannot say whether changes in tau phosphorylation affected tau oligomerization in our models. Multiple limitations apply to our models, for example SH-SY5Y cells are tumor cells whose tau protein is heavily phosphorylated at baseline. SH-SY5Y ρ0 cells do not differentiate well and we did not extend our analysis to differentiated cybrid lines, but reminiscent of undifferentiated SH-SY5Y cells undergoing mtDNA depletion, differentiated cells also exhibited a clear increase in tau oligomers and a monomer to oligomer shift.

Prior studies from our group and others found evidence of increased cytosolic and mitochondrial oxidative stress in AD cybrid cell lines [36 , 53]. We also previously reported AD cybrid cell lines decrease their NAD+/NADH ratio [54]. We did not determine whether oxidative stress or redox shifts contributed to the observed mtDNA-dependent tau oligomer increase; the exact biophysical drivers in this case remain unclear.

Parker et al. first identified reduced AD subject COX activity in 1990 and other reports followed [2 , 55–62]. Investigators subsequently applied a cybrid approach to address the origin of this deficit [36]. Multiple studies concluded mtDNA does contribute, but the responsible mtDNA signature remains unclear [2 , 64]. Data we now present potentially inform this question. Mitochondrial DNA copy numbers are reduced in AD cybrids, and COX activity appears particularly sensitive to mtDNA copy number. This suggests mtDNA control region variants that affect mtDNA replication could account, at least in part, for low AD COX activity. Overall, we conclude mtDNA influences mitochondrial function, which in turn can influence tau biology in ways that cause tau tangles to accumulate in the aging brain and to a greater extent in AD.

Footnotes

ACKNOWLEDGMENTS

This study was supported by the University of Kansas Alzheimer’s Disease Center (P30 AG035982) and the Mabel A. Woodyard Foundation. The TOC1 antibody was a gift from Dr. Nicholas Kanaan at Michigan State University (originally created by Lester Binder at Northwestern University). The KU Flow Cytometry Core we used is sponsored in part by P30 GM103326 and P30 CA168524.
