Abstract
Background:
Cerebral amyloid angiopathy (CAA) is one of the major causes of intracerebral hemorrhage and vascular dementia in older adults. Early diagnosis will provide clinicians with an opportunity to intervene early with suitable strategies, highlighting the importance of pre-symptomatic CAA biomarkers.
Objective:
Investigation of pre-symptomatic CAA related blood metabolite alterations in Dutch-type hereditary CAA mutation carriers (D-CAA MCs).
Methods:
Plasma metabolites were measured using mass-spectrometry (AbsoluteIDQ® p400 HR kit) and were compared between pre-symptomatic D-CAA MCs (n = 9) and non-carriers (D-CAA NCs, n = 8) from the same pedigree. Metabolites that survived correction for multiple comparisons were further compared between D-CAA MCs and additional control groups (cognitively unimpaired adults).
Results:
275 metabolites were measured in the plasma, 22 of which were observed to be significantly lower in theD-CAAMCs compared to D-CAA NCs, following adjustment for potential confounding factors age, sex, and APOE ε4 (p < 0.05). After adjusting for multiple comparisons, only spermidine remained significantly lower in theD-CAAMCscompared to theD-CAA NCs (p < 0.00018). Plasma spermidine was also significantly lower in D-CAA MCs compared to the cognitively unimpaired young adult and older adult groups (p < 0.01). Spermidinewas also observed to correlate with CSF Aβ40 (rs = 0.621, p = 0.024), CSF Aβ42 (rs = 0.714, p = 0.006), and brain Aβ load (rs = –0.527, p = 0.030).
Conclusion:
The current study provides pilot data on D-CAA linked metabolite signals, that also associated with Aβ neuropathology and are involved in several biological pathways that have previously been linked to neurodegeneration and dementia.
Keywords
INTRODUCTION
Sporadic cerebral amyloid angiopathy (CAA) is associated with the accumulation of amyloid-β (Aβ) in the cerebral vasculature and is one of the major causes of intracerebral hemorrhage and vascular de-mentia observed in older adults [1]. While the Boston criteria facilitates the diagnosis of possible and probable CAA, a definitive CAA diagnosis can only be achieved by postmortem neuropathological examination [2], impeding further research investigating pre-symptomatic CAA biomarkers. Identification of pre-symptomatic CAA biomarkers will enable early diagnosis, thereby enabling clinicians with an opportunity to inform patients on associated bleeding risks with intravenous thrombolysis or anticoagulation therapy.
The Dutch-type hereditary Cerebral Amyloid Angiopathy (D-CAA, also known as hereditary cere-bral hemorrhage with amyloidosis Dutch type, HCHWA-D) mutation carriers (MCs), predominantly found in a few families originating from the Katwijk and Scheveningen villages in the Netherlands, present a unique opportunity to study the pre-symptomatic phase of CAA. In D-CAA MCs, a point mutation on codon 693 (guanine to cytosine transversion, E693Q) of the amyloid precursor protein gene (APP), results in the accumulation of abnormal Aβ E22Q peptide and thereby severe CAA [3]. Given that inheritance of the D-CAA mutation results in 100%penetrance, pre-symptomatic individuals carrying the D-CAA mutation can be diagnosed by genetic analysis [4]. Further, D-CAA MCs manifest symptoms, particularly intracerebral hemorrhage, at a relatively young age (50–60 years), and therefore present as a suitable model to explore pre-symptomatic CAA-related changes, relatively close to symptom onset, with minimal influence of age associated co-morbidities.
Cerebrospinal fluid (CSF) Aβ levels and brain Aβ load via positron emission tomography (PET) have previously been evaluated as potential CAA markers using pre-symptomatic and symptomatic D-CAA and sporadic CAA cohorts. Lower CSF Aβ40 and Aβ42 concentrations and higher Aβ PET signals have been reported in pre-symptomatic and symptomatic D-CAA MCs and sporadic CAA individuals compared to non-carrier (D-CAA NCs) and control individuals, respectively [5–7]. However, due to the invasive nature of lumbar punctures and the costs involved with amyloid-PET, potential blood biomarkers for pre-symptomatic CAA need to be investigated, as less invasive and cost-effective measures to detect CAA in its pre-symptomatic phase.
Therefore, the aim of the current study was to utilize metabolomics to reveal systemic biochemical changes associated with pre-symptomatic CAA pathogenesis that could serve as potential blood biomarkers for early CAA diagnosis and also provide insight into the biological pathways associated with the pre-symptomatic stage of CAA, relevant to future preventative trials for both, D-CAA and sporadic CAA. Blood metabolite levels were compared between pre-symptomatic D-CAA MCs (n = 9) and NCs (n = 8). We hypothesized that individuals within the pre-symptomatic stage of CAA (i.e., prior to stroke and cognitive impairment) will have specific metabolite alterations in the blood compared to D-CAA NCs.
MATERIALS AND METHODS
Participants
Participants for comparison of plasma metabolites in D-CAA MCs versus D-CAA NCs from the same APP E693Q D-CAA pedigree whose ancestors migrated from the Netherlands to Australia, were enrolled in the Dominantly Inherited Alzheimer Network (DIAN) study at Edith Cowan University, Western Australia (n = 18). Upon DNA testing, ten participants were found to be positive for the mutation while eight were negative. One D-CAA MC had a history of stroke and was excluded from the current study in order to utilize a purely pre-symptomatic cohort. Therefore, eight D-CAA NCs and nine D-CAA MCs were included, and plasma metabolite concentrations were compared between these D-CAA NCs and D-CAA MCs from the same pedigree. Further, for the validation of plasma metabolites that survived correction for multiple comparisons analyses, two independent control groups of participants were employed for comparison against the D-CAA MCs. These independent control groups comprised cognitively unimpaired young adults without an autosomal dominant Alzheimer’s disease mutation who were also enrolled within the DIAN study, Australia (CU-1, n = 7) and cognitively unimpaired older adults from the Kerr Anglican Retirement Village Initiative in Ageing Health (KARVIAH) cohort, Australia (CU-2, n = 100) [8] (Supplementary Figure 1). The study was approved by the human research ethics committees at Macquarie University, Edith Cowan University, and Washington University. All participants provided informed written consent.
Plasma metabolite measurements
Endogenous metabolite concentrations were measured in fasted plasma samples employing a targeted metabolomics approach. The samples were collected and stored at –80°C prior to analysis as described previously by Bateman and colleagues [9]. The targeted metabolomics approach employed the AbsoluteIDQ® p400 HR kit (BIOCRATES Life Science AG, Innsbruck, Austria). Metabolites with >40%of measurements below the lower limit of detection (LLOD) were excluded from the analysis [10, 11]. Based on this, 275 metabolite species in the plasma were analyzed within the current study (See Supplementary Material for further details).
Neuropsychological assessments
Neuropsychological data were obtained from the DIAN and KARVIAH databases, respectively. Mini-Mental State Examination (MMSE), a measure of general cognitive function (for DIAN and KARVIAH cohorts) [12], as well as the Clinical Dementia Rating (CDR) scale, a semi-structured interview assessing dementia severity (DIAN cohort only) [13], were utilized as measures of cognitive status in the current study.
CSF Aβ concentration measurements
CSF Aβ (Aβ40, Aβ42) concentrations were obtained from the DIAN database for the D-CAA NCs and MCs from the same pedigree. CSF Aβ40 and Aβ42 concentrations were measured using INNOTEST® β-AMYLOID (1 –40) and INNOTEST® β-AMYLOID (1 –42) (Fujirebio, Ghent, Belgium) as described previously [9].
Neuroimaging
Brain Aβ load (measured via positron emission tomography (PET) using ligand 11C-Pittsburgh Compound B) represented by standard uptake value ratios (SUVR) were accessed from the DIAN database for the D-CAA NCs and MCs from the same pedigree. The SUVR utilized in the current study was calculated with FreeSurfer using the cortical mean (mean of the prefrontal, temporal, gyrus rectus and precuneus) as the region of interest with the cerebellar gray matter as the reference region, as described previously [14].
Statistical analysis
Descriptive statistics including means and standard deviations, or proportions were calculated for D-CAA MCs versus D-CAA NCs (from the same pedigree)/ CUs, with comparisons employing linear models or Chi-square tests as appropriate, in Table 1 and Supplementary Table 1. Composite scores were generated by taking the mean of the z-scores of the variables of interest. Linear models were employed to compare continuous variables (plasma metabolites concentrations and composite scores) between D-CAA MCs and D-CAA NCs from the same pedigree corrected for covariates age, sex and apolipoprotein E ɛ4 genotype (APOE ɛ4) status. Response variables were natural log transformed as necessary to better approximate normality and variance homogeneity. Adjustments for multiple comparisons were carried out using Bonferroni correction for metabolites compared between D-CAA MCs and D-CAA NCs, from the same pedigree, after correcting for covariates. Metabolites that survived correction for multiple comparison analyses (p < 0.00018), were further validated by comparing them between D-CAA MCs and independent control groups (CU-1 and CU-2). Spearman’s correlation (rs) was employed to evaluate the strength of the association between plasma metabolites (that survived correction for multiple comparisons) with CSF Aβ concentrations and brain Aβ load. All analyses were carried out on the platform R.
Study participant characteristics
Characteristics including sex, age, expected years to symptom onset (EYO) based on age at symptom onset of biological mutation carrier parent, APOE ɛ4 status, Mini-Mental State Examination (MMSE) scores, Clinical Dementia Rating (CDR) scale scores, history of stroke, cerebrospinal fluid (CSF) Aβ40 levels, CSF Aβ42 levels, CSF Aβ42/Aβ40 ratios, CSF total tau (t-tau) levels, CSF phosphorylated tau (p-tau) levels, CSF p-tau/t-tau ratios, plasma Aβ40, plasma Aβ42 levels and plasma Aβ42/Aβ40 ratios have been compared between Dutch-type hereditary cerebral amyloid angiopathy (D-CAA) mutation non-carriers (NCs) and pre-symptomatic carriers (MCs) from the same pedigree. Chi-square tests or linear models were employed as appropriate. CSF parameters presented were only compared between seven NCs and six MCs, due to missing data. CSF Aβ42 and Aβ40 were measured using the INNOTEST β-AMYLOID(1-40) and INNOTEST β-AMYLOID(1–42) (Fujirebio, Ghent, Belgium). Brain Aβ load was measured via Positron Emission Tomography and is presented as the standard uptake value ratio (SUVR) of the ligand, 11C-Pittsburgh Compound B, uptake in the cortical region (mean of the prefrontal, temporal, gyrus rectus and precuneus) as the region of interest with the cerebellar gray matter as the reference region. pa represents p-values adjusted for age, sex, and APOE ɛ4 carrier status. p < 0.05 were considered as significant.
RESULTS
Participant characteristics
Characteristics of D-CAA NCs and D-CAA MCs from the same pedigree are presented in Table 1, wherein no significant differences were observed between the D-CAA NCs and pre-symptomatic MCs, except for CSF Aβ concentrations (p < 0.05) and brain Aβ load (p < 0.05) as expected [6, 7].
Participant characteristics of D-CAA MCs compared to additional D-CAA mutation non-carrier groups (CU-1 and CU-2) are presented in Supplementary Table 1. No significant differences in demographic characteristics were observed between the D-CAA MCs and the additional D-CAA mutation non-carrier groups, except for age, wherein the D-CAA MCs were significantly older than CU-1 group participants (p < 0.0001) and significantly younger than CU-2 group participants (p < 0.0001).
Plasma metabolite differences between D-CAA mutation carriers and non-carriers
On investigating metabolite alterations in the D-CAA MCs compared with the D-CAA NCs from the same pedigree, 22 plasma metabolites out of the 275 metabolites measured, belonging to the biogenic amine, amino acid, hexose, acylcarnitine (AC), sphingomyelin (SM), and phosphatidylcholine (PC) classes, were observed to be significantly lower in the D-CAA MCs, following adjustment for potential confounding factors age, sex, and APOE ɛ4 genotype status at a significance level of p < 0.05 (Table 2, Fig. 1). However, after adjusting for multiple comparisons, only spermidine remained significantly different between D-CAA MCs and NCs (p < 0.00018). On comparing spermidine levels between D-CAA MCs and CUs, spermidine levels continued to be lower in the D-CAA MCs (CU-1: p = 0.008; CU-2: p < 0.0001, Table 3, Fig. 2).
Plasma metabolites altered between D-CAA mutation non-carriers and carriers
Metabolites measured in the plasma were compared between D-CAA mutation non-carriers (D-CAA NCs, n = 8) and pre-symptomatic mutation carriers (D-CAA MCs, n = 9) employing linear models. pa indicates p-values adjusted for age; pb indicates p values adjusted for age and sex; pc indicates p values adjusted for age, sex, and APOE ɛ4 status. Only metabolites with pc < 0.05 have been presented in the current table and were considered as statistically significant. All metabolite concentrations are presented in μM. SDMA, symmetric dimethyl arginine; PC-O, phospholipid with choline headgroup and presence of an alkyl ether substituent.

Plasma metabolites altered between D-CAA mutation non-carriers and carriers from the same pedigree. Metabolites measured in the plasma were compared between D-CAA mutation non-carriers (D-CAA NCs, n = 8) and pre-symptomatic mutation carriers (D-CAA MCs, n = 9) employing linear models. Composite scores for acylcarnitine (AC) and sphingomyelin (SM) were generated from the mean of the z-scores of AC and SM species, respectively, as listed in Table 2. Line segments within the plots represents the median and the error bars represent the interquartile range. *p < 0.05, **p≤0.005, ***p≤0.001. SDMA, symmetric dimethyl arginine; AC, acylcarnitine; SM, sphingomyelin; PC-O, phospholipid with choline headgroup and presence of an alkyl ether substituent.
Comparison of plasma spermidine levels between D-CAA and CU adults
Plasma spermidine levels (presented in mean±SD, μM) in D-CAA MCs were compared with plasma spermidine levels in cognitively unimpaired younger adults (CU-1) and cognitively unimpaired older adults (CU-2). p and padj represent univariate p-values before and after adjusting for age, sex and APOE ɛ4 carrier status. pa and pb represent pairwise comparisons between D-CAA MC and CU-1, D-CAA MC and CU-2, respectively.

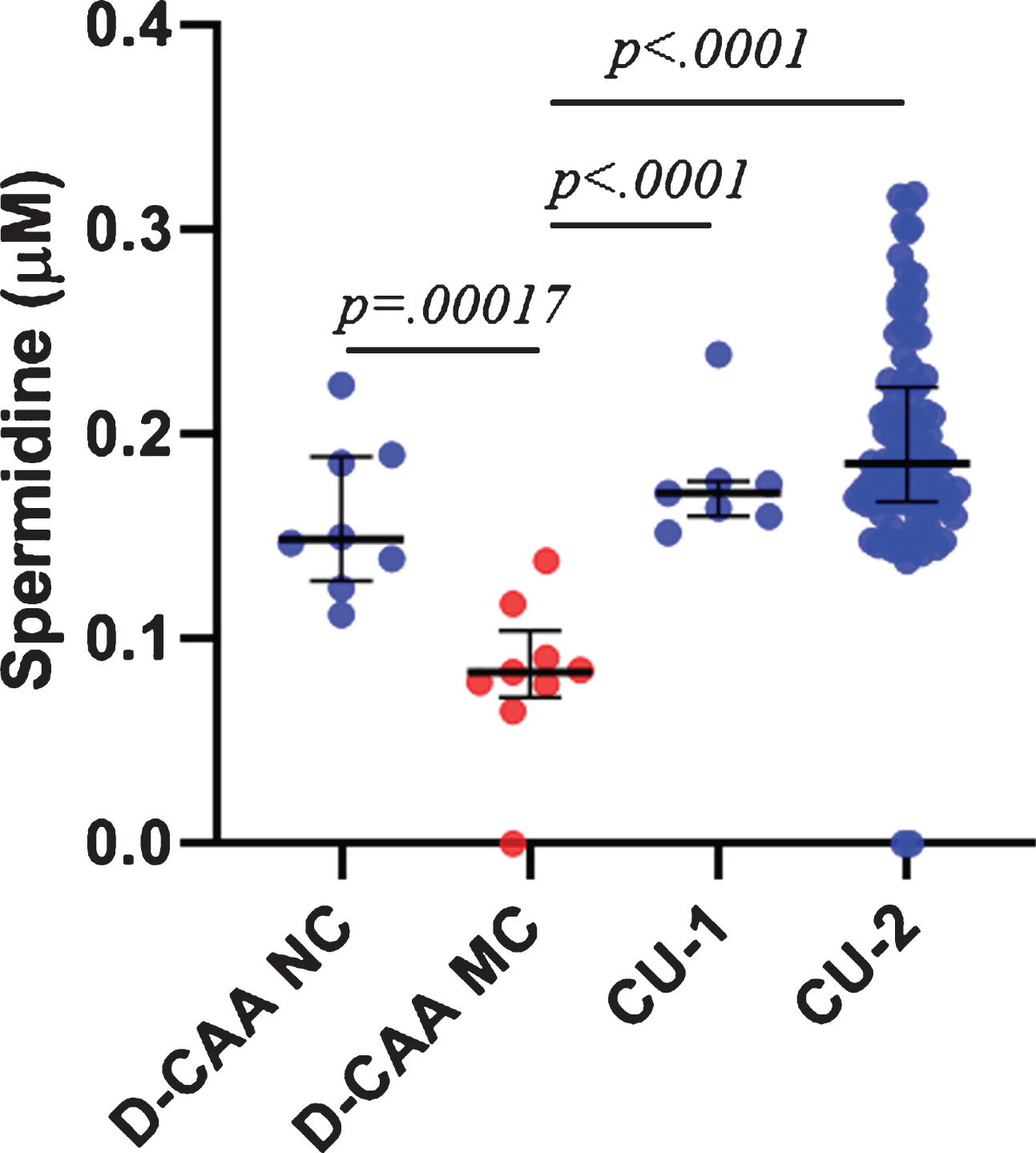

Comparison of plasma spermidine between D-CAA mutation carriers and non-carriers. Plasma spermidine levels were compared between D-CAA mutation carriers (D-CAA MC) and D-CAA mutation non-carrier groups (D-CAA NC from same pedigree as D-CAA MC, cognitively unimpaired young adults (CU-1) and cognitively unimpaired older adults (CU-2)) using general linear models. The line segment within the plot represents the median and the error bars represent the interquartile range.
Association of CSF Aβ with plasma spermidine
Within the D-CAA MCs and D-CAA NCs from the same pedigree, a significant positive association was observed between CSF Aβ40 and spermidine (rs = 0.621, p = 0.024). Further, a positive association was observed between CSF Aβ42 and spermidine (rs = 0.714, p = 0.006).
Association of brain Aβ load with plasma spermidine
Given that brain Aβ load was significantly higher in the D-CAA MCs compared to the NCs, we expected that spermidine will be inversely associated with brain Aβ load given that spermidine was significantly lower in D-CAA MCs. Indeed, an inverse association was observed between brain Aβ load and spermidine (rs = –0.527, p = 0.030) within the D-CAA MCs and D-CAA NCs from the same pedigree.
DISCUSSION
The current study is the first to report on blood metabolite alterations associated with the pre-symptomatic stage of D-CAA, i.e., prior to stroke and cognitive impairment. Currently, in addition to a lack of a treatment, there is also no early diagnostic test for CAA. Within the present study, two-hundred and seventy-five metabolite species in the blood were compared between D-CAA MCs and NCs, wherein 22 metabolites were observed to be significantly lower in the D-CAA MCs following adjustment for potential confounding factors. However, after adjusting for multiple comparisons, only spermidine remained significantly altered. Spermidine was also observed to have a positive association with CSF Aβ40 and Aβ42 and an inverse association with brain Aβ load.
The biogenic amine spermidine has been reported to manifest antioxidant and anti-inflammatory properties, promote mitochondrial metabolic function and respiration, and enhance proteostasis and chaperone activity [15]. Oral supplementation and dietary intake of spermidine has been reported to positively influence cognitive performance in older adults at risk of AD and inversely, with all-cause mortality [16, 17]. Furthermore, decreased spermidine levels in the plasma have been observed in AD patients compared to individuals with mild cognitive impairment and healthy controls [18]. While these observations are in line with the findings of lower spermidine levels in D-CAA MCs seen within the present study given that 80%of AD patients show CAA comorbidity [19], the exact mechanisms are currently not known. However, it is known that the neuroregulatory action of spermidine results from its interaction with ionotropic receptors, particularly N-methyl-D-aspartate (NMDA) receptors, and the neuroprotective properties of spermidine are posited to result from the inducement of autophagy in glial or neuronal cells and suppression of inflammation [15, 20]. The ability of spermidine to permeate the mammalian blood brain barrier remains elusive, however it has been suggested that spermidine may act through peripheral routes that involve modulating inflammation via cytokines and immune cells that can reach the cerebral tissue [15, 22].
Additionally, other metabolite alterations observed within the current study, although did not survive correction for multiple comparisons, have been reported to be associated with nitric oxide homeostasis, oxidative stress, inflammation, mitochondrial function, glucose and cell membrane lipid metabolism, biological pathways that have previously been implicated in neurodegenerative diseases [10, 23–29].
It is recognized that this study has limitations given its modest sample size and that further studies are required to validate these exploratory findings in independent groups comprising pre-symptomatic D-CAA MCs and age- and sex-matched NCs. Additionally, future studies also need to investigate whether similar metabolite alterations are present between individuals with pre-symptomatic sporadic CAA and age- and sex-matched controls. Furthermore, future studies also need to investigate whether similar metabolite alterations can differentiate individuals with pre-symptomatic CAA (D-CAA and sporadic) from age- and sex-matched individuals with preclinical AD (familial and sporadic, prior to symptom manifestation) and symptomatic AD (familial and sporadic). The consideration of longitudinal changes in metabolite alterations in the CAA pathology progression or CAA pathogenesis trajectory will also allow evaluation of metabolite alterations as prognostic markers to track disease severity and serve as potential novel therapeutic targets. Furthermore, while a few studies using proteomics and transcriptomics techniques on postmortem brain tissue with CAA have been carried out [30–32], employing similar proteomics and transcriptomics techniques in blood samples from patients with sporadic CAA and D-CAA will complement the CAA-associated metabolite alterations observed within the current study, contributing to efforts in developing a robust panel of pre-symptomatic blood markers for CAA.
It is also important to acknowledge the challenges involved in investigating biomarkers for pre-symptomatic CAA, given the rare incidence of D-CAA and thereby the inaccessibility to large independent D-CAA cohorts for validation, even though D-CAA MCs serve as a suitable model for such research. Further, access to blood samples from individuals within the pre-symptomatic stage of sporadic CAA may prove to be another challenging aspect. Additionally, expanding the current pilot observations to sporadic CAA will also be a future challenge given the presence of mixed pathologies and comorbid conditions in such cases, wherein there are usually traces of AD pathology in CAA brains and traces of CAA in AD brains [33], therefore raising the question of whether biomarker/metabolite alterations observed are associated with CAA pathology and/or AD pathology. To understand whether metabolite changes are associated with CAA pathology or AD pathology, studies employing “disconnected” cases (severe CAA with no or very mild AD, and vice versa) will be particularly informative. Further, age-related vascular comorbidities such as hypertension or diabetes may also contribute to mixed pathology in individuals with sporadic CAA and will therefore need to be accounted for.
To conclude, the current study provides pilot data on D-CAA linked metabolite signals, that also associated with Aβ neuropathology and are involved in several biological pathways that have previously been linked to neurodegeneration and dementia. Further studies are required to validate observations from the current study.
