Widespread Reduced Density of Noradrenergic Locus Coeruleus Axons in the App Knock-In Mouse Model of Amyloid-β Amyloidosis

Abstract

Background:

The locus coeruleus (LC), a brainstem nucleus comprising noradrenergic neurons, is one of the earliest regions affected by Alzheimer’s disease (AD). Amyloid-β (Aβ) pathology in the cortex in AD is thought to exacerbate the age-related loss of LC neurons, which may lead to cortical tau pathology. However, mechanisms underlying LC neurodegeneration remain elusive.

Objective:

Here, we aimed to examine how noradrenergic neurons are affected by cortical Aβ pathology in App^{NL-G-F/NL-G-F} knock-in mice.

Methods:

The density of noradrenergic axons in LC-innervated regions and the LC neuron number were analyzed by an immunohistochemical method. To explore the potential mechanisms for LC degeneration, we also examined the occurrence of tau pathology in LC neurons, the association of reactive gliosis with LC neurons, and impaired trophic support in the brains of App^{NL-G-F/NL-G-F} mice.

Results:

We observed a significant reduction in the density of noradrenergic axons from the LC in aged App^{NL-G-F/NL-G-F} mice without neuron loss or tau pathology, which was not limited to areas near Aβ plaques. However, none of the factors known to be related to the maintenance of LC neurons (i.e., somatostatin/somatostatin receptor 2, brain-derived neurotrophic factor, nerve growth factor, and neurotrophin-3) were significantly reduced in App^{NL-G-F/NL-G-F} mice.

Conclusion:

This study demonstrates that cortical Aβ pathology induces noradrenergic neurodegeneration, and further elucidation of the underlying mechanisms will reveal effective therapeutics to halt AD progression.

Keywords

Alzheimer’s disease amyloid-β locus coeruleus neurotrophic factors noradrenaline somatostatin tau

INTRODUCTION

The locus coeruleus (LC) is the major source of noradrenaline (NA) in the brain, and LC neurons innervate several brain regions that participate in a variety of brain functions, including cognition, sleep, emotion, and stress responses [1 –4]. Malfunction in the LC–NA system is implicated in several neurodegenerative diseases, including Alzheimer’s disease (AD) [3 , 5–10]. Degeneration of LC noradrenergic neurons is one of the earliest and most prominent features of AD brains, with a loss of up to 70%of these neurons in some cases [11 –17] and significant reductions in NA levels [14 , 18–20]. The degeneration of LC neurons correlates with the severity of dementia [16 , 21–23] and the progression of Braak stages in the brains of AD patients [24, 25]. Thus, neurodegeneration in the LC–NA system likely contributes to cognitive symptoms as well as agitation, aggression, and sleep disturbances that occur in preclinical and early-stage AD [26].

LC noradrenergic neurons have long, thin unmyelinated axons that project throughout the cortex [27 –29], where they are vulnerable to toxic insults and to tau pathology during normal aging [30 –32]. In AD, the amyloid-β (Aβ) plaques that accumulate in the cortex induce severe neuroinflammation [33, 34] that damages noradrenergic axons and may exacerbate tau pathology and neuronal death in the LC [3 , 10]. Indeed, the neurons in the LC that project to the cortex show severe neuron loss and tau pathology, whereas the neurons in the caudal region of the LC that innervate the cerebellum and spinal cord are relatively spared [15 , 36].

To gain insight into the mechanisms by which Aβ pathology induces neurodegeneration in LC noradrenergic neurons, we evaluated the brains of wild-type (WT) (C57BL/6J) and App knock-in mice, a model of Aβ amyloidosis without amyloid-β protein precursor (AβPP) overexpression, at 24 months of age when these mice have sufficiently undergone the aging process. App^{NL-G-F/NL-G-F} mice harbor three familial AD (FAD) mutations (Swedish [NL], Arctic [G], and Beyreuther/Iberian [F]) and exhibit cognitive deficits and severe neuroinflammation accompanied by progressive Aβ pathology in the brain parenchyma, whereas App^NL/NL mice carrying only the Swedish mutation overproduce human Aβ but have no apparent Aβ pathology up to 24 months [37 –41]. In this study, we found that App^{NL-G-F/NL-G-F} mice, but not App^NL/NL mice, undergo degeneration of noradrenergic afferents without prominent LC neuron loss, providing further evidence that formation of Aβ pathology in the brain parenchyma induces noradrenergic axonal degeneration. We also assessed the potential mechanisms underlying this event.

MATERIALS AND METHODS

Animals

The App-KI (App^{NL-G-F/NL-G-F} and App^NL/NL) mice on a C57BL/6J genetic background [37] were obtained from RIKEN Center for Brain Science (Wako, Japan) and maintained at the Institute for Animal Experimentation in National Center for Geriatrics and Gerontology as described previously [38, 39]. After weaning, all mice were housed socially in same-sex groups and only male mice were used for the experiments. The mice were kept in a controlled environment (constant temperature 22±1°C, humidity 50–60%, lights on 07:00–19:00), with food and water available ad libitum. All animal experimental procedures were performed according to the NIH Guide for the Care and Use of Laboratory Animals and other national regulations and policies with the approval of the Animal Care and Use Committee at National Center for Geriatrics and Gerontology, Japan (Approval number: 2–45).

Immunohistochemistry

Immunohistochemical staining was performed in male mice of the three genotypes (n = 3–5/genotype) for free-floating sections. At 12 and 24 months of age, mice were anesthetized by intraperitoneal administration of a combination of medetomidine (0.3 mg/kg), midazolam (4 mg/kg), and butorphanol (5 mg/kg) and then perfused intracardially with ice-cold saline followed by 4%paraformaldehyde (PFA) in 0.1 M phosphate buffer (PB), as previously described [39]. The whole brains were collected and immersed in the same fixative solution at 4°C overnight. For cryoprotection, the fixed brains were transferred into 20%and then 30%sucrose in 0.1 M PB at 4°C until the tissues sank. After frozen rapidly in cold isopentane, the brains were sliced coronally into 25μm sections using a cryostat (Leica CM3050; Leica Microsystems, Germany) and stored in a cryoprotectant solution (30%glycerol and 30%ethylene glycol in PBS) at –20°C until immunostaining. Two to six non-adjacent coronal sections (∼100μm apart) were selected at the level of prefrontal cortex (+2.10 to +1.70 mm from bregma), neocortex and hippocampus (–1.58 to –2.70 mm from bregma), entorhinal cortex (–4.24 to –4.60 mm from bregma), and LC (–5.34 to –5.68 mm from bregma) according to the mouse brain atlas [42]. After washing with PBS containing 0.1%Triton X-100 (PBS-T), the sections were blocked in a buffer containing 5%normal goat or donkey serum, 0.5%bovine serum albumin (BSA), and 0.3%Triton X-100 in PBS for 1 h, and then incubated overnight at 4°C with primary antibodies (Supplementary Table 1) in a dilution buffer containing 3%normal goat or donkey serum, 0.5%BSA and 0.3%Triton X-100 in PBS. After three washes with PBS-T were given, the sections were then incubated for 2–3 h with appropriate fluorescent secondary antibodies (Supplementary Table 1) in the dilution buffer. After three washes with PBS-T, the sections were incubated with DAPI (2μg/ml) for 5 min and mounted in Aqua-Poly/Mount (Polysciences Inc., USA). For Aβ staining, the sections stained with fluorescent secondary antibodies were incubated in 1-fluoro-2,5-bis (3-carboxy-4-hydroxystyryl) benzene (FSB) solution (10μg/ml in 50%EtOH) (F308; Dojindo, Japan) for 30 min and briefly washed with saturated lithium carbonate followed by 50%EtOH prior to mounting. Unstained sections and control sections without primary antibodies were processed to assess age-related autofluorescence and non-specific staining.

Image analysis and quantification

Immunofluorescence images of the sections were captured using either a LSM780 or LSM700 confocal laser-scanning microscope with a 10× or a 20× objective (Carl Zeiss, Germany). Laser and detector settings were maintained constant for each immunostaining. Image capturing and analyses was done independently by two experimenters blinded to mouse genotype in order to increase reproducibility. All image processing and analyses were performed with Fiji software.

Measurement of norepinephrine transporter (NET)-positive fiber length

For measuring length of NET-positive projecting fibers in cortical and hippocampal regions, we captured images using a LSM780 confocal microscopy with a 20× objective, and 10μm Z-stacks (0.85 μm interval between images) were reconstructed with a maximum intensity projection. For capturing the images from cortical regions, we set a capturing frame including layer II–IV using DAPI counterstaining as a guide in a consistent manner from section to section. The NET-positive fibers were segmented using an automated threshold algorithm (Otsu’s method) with adjustment of contrast and unsharp masking to sharpen and enhance the edge features. The resulting binary image was then skeletonized, and total skeleton length within the image was measured using Summarize Skeleton plugin. All images were processed with the same procedures. At least two Z-stack sets of images were reconstituted bilaterally per section and averaged over 4 sections in each mouse.

Counting of dopamine β-hydroxylase (DBH)-positive cell in the LC

For counting number of DBH-positive neurons in the LC, we captured images using a LSM780 confocal microscopy with a 10× objective to capture the entire region of the LC, and 25μm Z-stacks (2.88μm interval between images) were reconstructed with a maximum intensity projection. For unbiased estimation of LC neuron number, the total number of DBH-positive cells was quantified using evenly spaced counting frames (50×50μm; 25μm frame interval) within each image. The average number of counting frames per mouse was 19.78±0.85. For each mouse, one or two Z-stack sets of images were reconstituted per section and averaged over 4–6 sections. We chose the coronal sections including the LC perikarya evenly through rostral to caudal portions (–5.34 to –5.68 mm from bregma).

Measurement of immunoreactivity for somatostatin receptor 2 (SSTR2) and somatostatin (SST) in the LC

For acquisition of SSTR2 immunofluorescence in the LC, we captured images using a LSM700 confocal microscopy with a 10× objective to capture the entire tyrosine hydroxylase (TH)-positive area, and 25μm Z-stacks (3.45μm interval between images) was reconstituted with a maximum intensity projection. Two Z-stack sets of images were reconstituted per section and averaged over 2 sections in each mouse. For acquisition of SST immunofluorescence, we separately captured images using a LSM700 confocal microscopy with a 20× objective in one LC region (TH-positive) to clearly obtain punctate structures of SST immunofluorescence, and 15μm Z-stacks (0.96μm interval between images) were reconstructed with a maximum intensity projection. According to the size of TH-positive area in the stacked image, two to four Z-stack sets of images were reconstituted per section and averaged over two sections. A region of interest (ROI) was manually drawn for showing the LC region using TH counterstaining as a guide. After background subtraction, immunoreactivity for SSTR2 and SST in the LC was defined as numbers of signal-positive pixels within a defined ROI (# of positive pixels/mm²), which were determined from binarized images of immunofluorescence by thresholding with an automated threshold method (Otsu’s method). Pixels with sufficient fluorescence were assigned with a value of 1 and other pixels with subthreshold intensity were assigned with a value of 0. The same procedures were applied across all other images, and all binarized images were visually inspected to ensure adequate detection. The immunoreactivity for each signal (# of positive pixels/mm²) was expressed as a relative ratio to WT mice.

Measurement of cortical immunoreactivity for neurotrophic factors in the neocortex

For acquisition of immunofluorescence for brain-derived neurotrophic factor (BDNF), nerve growth factor (NGF), and neurotophin-3 (NT-3) in the neocortex, we captured images using a LSM700 confocal microscopy with a 20× objective, and 10μm Z-stacks (0.96μm interval between images) were reconstructed with a maximum intensity projection. For capturing the images from the neocortex, we set a capturing frame including layer II–IV using DAPI counterstaining as a guide in a consistent manner. Age-related autofluorescence was imaged in the blank red (594 wavelength) channel and reduced by subtraction from the green (488 wavelength) channel image. Immunoreactivity for BDNF, NGF, and NT-3 in the neocortex was defined as numbers of signal-positive pixels within an entire image (# of positive pixels/mm²), which were determined from binarized images of immunofluorescence by thresholding with an automated threshold method (Otsu’s method for BDNF and IsoData method for NGF and NT-3). Pixels with sufficient fluorescence were assigned with a value of 1 and other pixels with subthreshold intensity were assigned with a value of 0. The same procedures were applied across all other images, and all binarized images were visually inspected to ensure adequate detection. The immunoreactivity for each signal (# of positive pixels/mm²) was expressed as a relative ratio to WT mice. Four Z-stack sets of images were reconstituted per section and averaged over two sections in each mouse.

RNA extraction and quantitative real time PCR (qRT-PCR) analysis

For qRT-PCR analysis, frontal cortex from male mice of the 3 genotypes (n = 5–6/genotype) at 24 months of age were used. The mice were anesthetized by intraperitoneal administration of a combination of medetomidine (0.3 mg/kg), midazolam (4 mg/kg), and butorphanol (5 mg/kg), and perfused intracardially with ice-cold saline. Frontal cortex regions of brains were dissected and were flash frozen in liquid nitrogen. Total RNA was isolated using RNeasy Plus Mini Kit (Qiagen, USA) according to the manufacturer’s protocol and reverse-transcribed using PrimeScript RT-PCR kit (TaKaRa Bio, Japan). qRT-PCR was performed using Thunderbird SYBR qPCR Mix (Toyobo, Japan) on a CFX96 real time PCR detection system (Bio-Rad Laboratories, USA). Expression of genes of interest was standardized relative to Actb (β-actin). Relative expression values were determined by the ΔΔCT method. Primer sequences used in this study were listed in Supplementary Table 2.

Statistical analysis

As described previously [38, 39], one-way ANOVA followed by the Tukey’s post hoc tests was used for the comparisons of multiple means with genotypes as one independent variable. All statistical analyses were conducted using JMP software (version 11, SAS Institute Inc., USA). Data are presented as mean±SEM. All alpha levels were set at 0.05.

RESULTS

Widespread loss of noradrenergic axons in cortical and hippocampal regions in aged App^{NL-G-F/NL-G-F} mice

To determine how Aβ amyloidosis affects the noradrenergic system, we utilized App^{NL-G-F/NL-G-F} mice, which develop massive Aβ plaques and reactive gliosis in the brain parenchyma. We stained brain sections from 24-month-old App^{NL-G-F/NL-G-F}, App^NL/NL and WT control mice with an antibody against norepinephrine transporter (NET), a marker of noradrenergic axon terminals. In the neocortex and CA1 subfield of the hippocampus in 24-month-old App^{NL-G-F/NL-G-F} mice, the density of NET-positive fibers was significantly reduced compared with that in WT mice (Fig. 1A), and the remaining noradrenergic axons showed structural abnormalities consistent with axonal dystrophy (Fig. 1A, insets). Specifically, compared to App^NL/NL and WT mice, there was a significant decrease in the density of NET-positive fibers in both brain regions (Fig. 1B, C). By contrast, compared to WT control, the density of NET-positive fibers was not altered in App^NL/NL mice (Fig. 1A–C), which do not develop Aβ pathology despite elevated production of Aβ and other β-site cleavage products of AβPP. To ask whether noradrenergic afferents start to degenerate at an earlier time point, we analyzed the NET-positive fiber density in 12-month-old App^{NL-G-F/NL-G-F} mice (Fig. 1A). We found that the density of NET-positive fibers in the neocortex was similar between 12-month-old and 24-month-old App^{NL-G-F/NL-G-F} mice (Fig. 1B), while that in the CA1 subfield of the hippocampus was more preserved in 12-month-old than 24-month-old, and was equivalent to 24-month-old App^NL/NL and WT mice (Fig. 1C). These results suggest that Aβ pathology induces widespread loss of noradrenergic afferents in App^{NL-G-F/NL-G-F} mice.

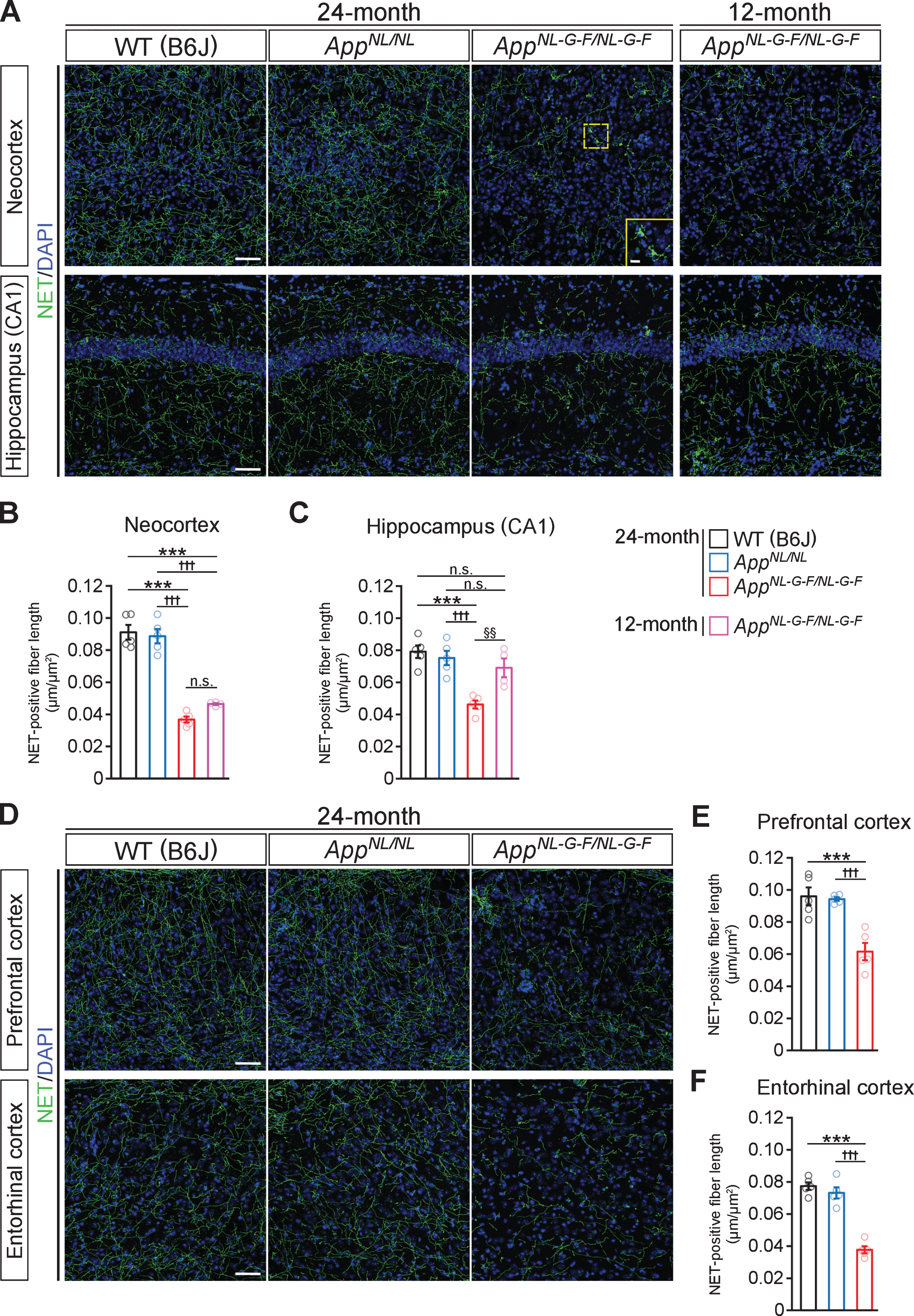

Fig. 1

Loss of noradrenergic afferents is observed in cortical and hippocampal regions in 12- and 24-month-old App^{NL-G-F/NL-G-F} mice. A) Representative images of the neocortex and hippocampal CA1 subfield from frozen coronal brain sections immunostained with anti-NET (indicated by green) were shown (blue indicated DAPI staining). B, C) Total length of NET-positive fiber was measured and expressed as fiber length per area (μm/μm²) in the neocortex (B) and hippocampal CA1 subfield (C). D) Representative images of the prefrontal and entorhinal cortices from frozen coronal brain sections immunostained with anti-NET (indicated by green) were shown (blue indicated DAPI staining). E, F) Total length of NET-positive fiber was measured and expressed as fiber length per area (μm/μm²) in the prefrontal cortex (E) and entorhinal cortex (F). Scale bars represent 50μm. In the inset image, scale bar represents 10μm. n = 4–5/group. ^***p < 0.001 versus WT (B6J); ^†††p<0.001 versus App^NL/NL; ^§§p < 0.01 versus 12-month-old App^{NL-G-F/NL-G-F}. n.s., not significant.

Since LC noradrenergic neurons send extensive projections throughout the brain, we further examined the density of NET-positive fibers in other LC-innervated regions known to be affected in AD (Fig. 1D). The reduced NET-positive fiber density was also observed in the prefrontal cortex (Fig. 1E) and entorhinal cortex (Fig. 1F) in 24-month-old App^{NL-G-F/NL-G-F} mice compared with App^NL/NL and WT mice.

Prominent neuron loss is not observed in the LC in aged App^{NL-G-F/NL-G-F} mice

To determine if the reduction in noradrenergic afferents in the cortex and hippocampus reflects neuron loss in the LC, we immunostained brain sections containing the LC perikarya from WT, App^NL/NL, and App^{NL-G-F/NL-G-F} mice by using an antibody against dopamine β-hydroxylase (DBH), a marker for noradrenergic neurons (Fig. 2A). Quantitative analysis revealed similar numbers of DBH-positive cells in the LC regions among all genotypes (Fig. 2B). These results indicate that the loss of noradrenergic afferents in App^{NL-G-F/NL-G-F} mice occurs in the absence of LC neuron loss.

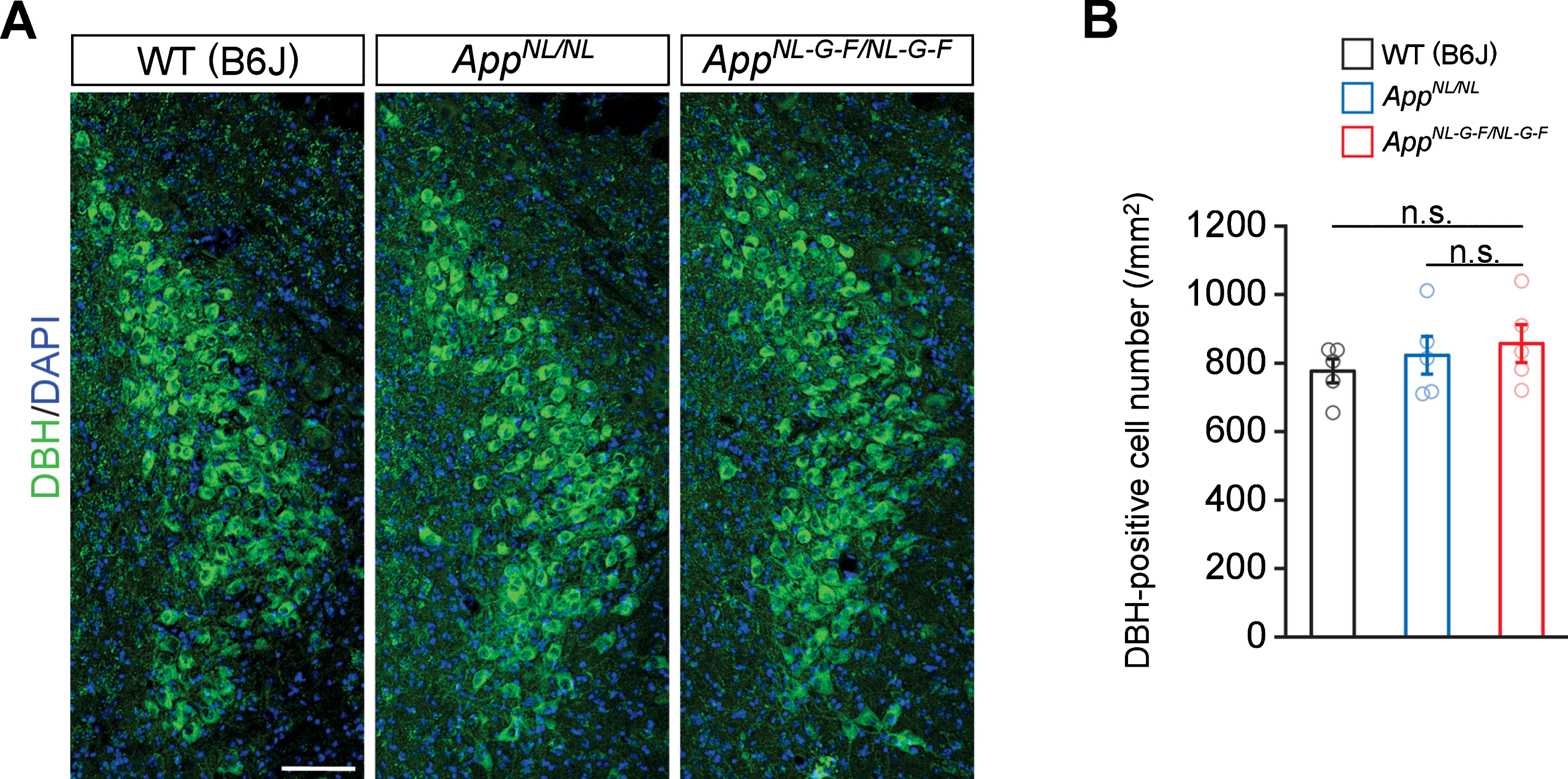

Fig. 2

No prominent neuron loss is detected in the LC in 24-month-old App^{NL-G-F/NL-G-F} mice. A) Representative images of the LC from frozen coronal brain sections immunostained with anti-DBH (indicated by green) were shown (blue indicated DAPI staining). B) Number of DBH-positive cells was measured and expressed as cell number per area (/mm²). Scale bar represents 100μm. n = 5/genotype. n.s., not significant.

Phospho-tau pathology is not associated with the LC–NA system in App^{NL-G-F/NL-G-F} mice

Since one of the first signs of AD-related pathology in human brains is the accumulation of hyperphosphorylated tau in LC noradrenergic neurons, we examined whether the dystrophic NET-positive fibers that we observed in App^{NL-G-F/NL-G-F} mouse brains (Fig. 1A, inset) were associated with an accumulation of AD-related phospho-tau. An antibody which recognizes tau phosphorylated at AD-related Ser202 and Thr205 (AT8 antibody) detects punctate structures surrounding Aβ plaques in App^{NL-G-F/NL-G-F} mice [43], and these AT8-positive phospho-tau signals did not colocalize with the dystrophic NET-positive fibers in the neocortex or hippocampus in App^{NL-G-F/NL-G-F} mice (Fig. 3A). Also, no phosphorylated tau was detected within the cell bodies of noradrenergic neurons in the LC (Fig. 3B). These results suggest that loss of noradrenergic afferents and axonal degeneration occur in the absence of prominent tau pathology in LC noradrenergic neurons in App^{NL-G-F/NL-G-F} mice.

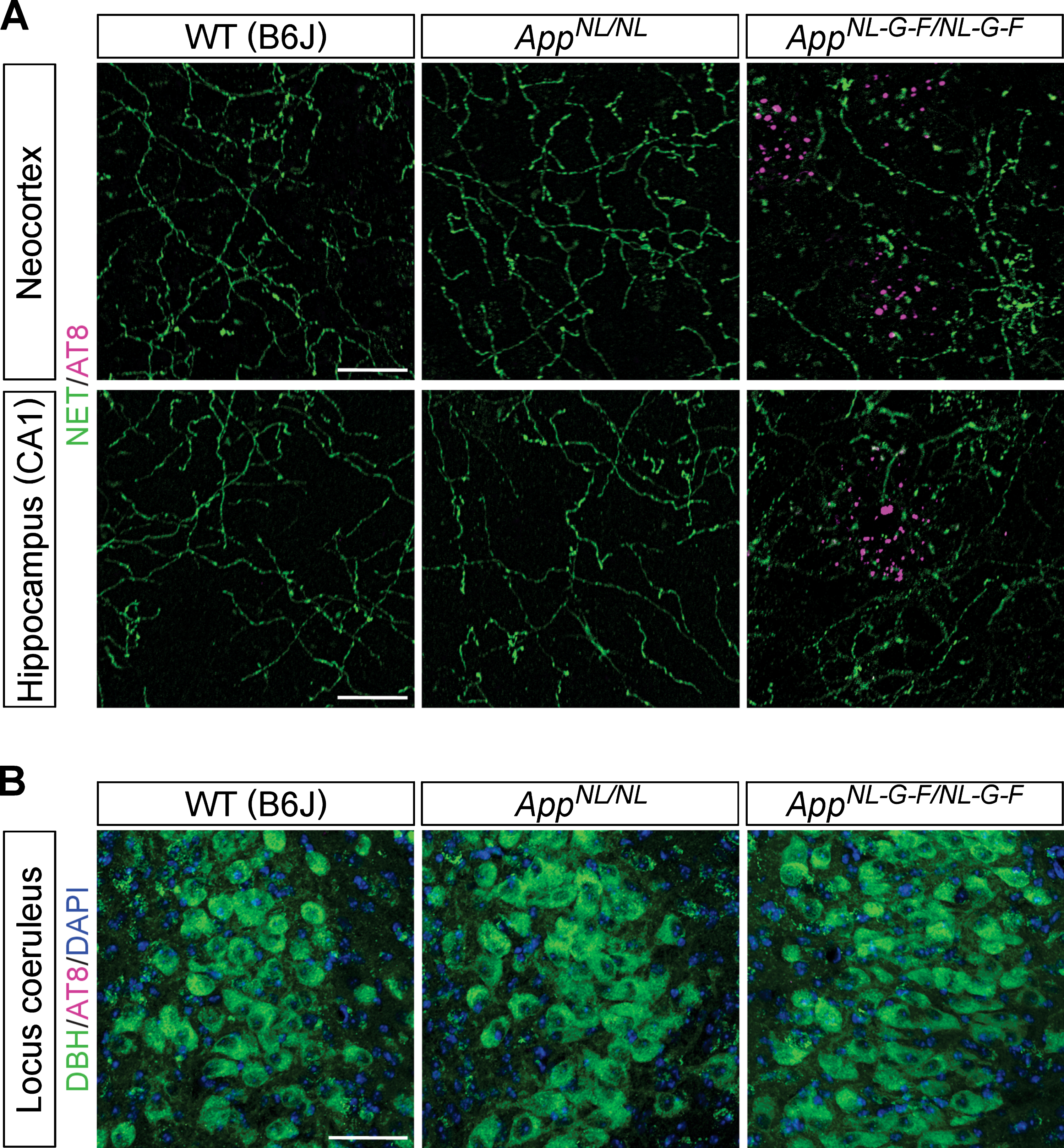

Fig. 3

Phospho-tau pathology is not associated with the LC-NA system. A) Representative images of the neocortex and hippocampal CA1 subfield from frozen coronal brain sections immunostained with anti-phospho tau (AT8) (indicated by magenta) and anti-NET (indicated by green) antibodies were shown. Scale bars represent 20μm. B) Representative images of the LC from frozen coronal brain sections immunostained with anti-phospho tau (AT8) (indicated by magenta) and anti-DBH (indicated by green) antibodies were shown (blue indicated DAPI staining). Scale bar represents 50μm. n = 3/genotype.

Loss of noradrenergic afferents is not limited to areas with Aβ plaques or reactive gliosis in App^{NL-G-F/NL-G-F} mice

Neuroinflammation is a common feature of brains of AD patients. As App^{NL-G-F/NL-G-F} mice develop massive reactive gliosis (microgliosis and astrocytosis) around Aβ plaques, we examined whether the observed loss of noradrenergic axons and the aberrant clusters occurred in proximity to Aβ plaques and regions of reactive gliosis. Immunohistochemical analyses revealed that regions with a low density of NET-positive fibers were not limited to areas near Aβ plaques or ionized calcium binding adaptor molecule 1 (Iba1)-positive microglia or glial fibrillary acidic protein (GFAP)-positive astrocytes in the neocortex (Fig. 4A) or hippocampus (Fig. 4B) of 24-month-old App^{NL-G-F/NL-G-F} mice. We also performed the same analysis in 12-month-old App^{NL-G-F/NL-G-F} mice and found that regions with reduced NET-positive fibers were not limited to areas near Aβ plaques or activated glial cells in the neocortex (Fig. 4A) and hippocampus (Fig. 4B). Interestingly, however, we noticed that areas with aberrant NET-positive fiber clusters were often associated with Aβ plaques surrounded by Iba1-positive microglia in the neocortex (Fig. 4A, white arrows, high-magnification views in insets) and hippocampus (Fig. 4B, white arrows, high-magnification views in insets), which is more evident in 12-month-old App^{NL-G-F/NL-G-F} mice. These data suggest a potential role of neuroinflammation in the formation of aberrant NET-positive fiber clusters in App^{NL-G-F/NL-G-F} mice brains.

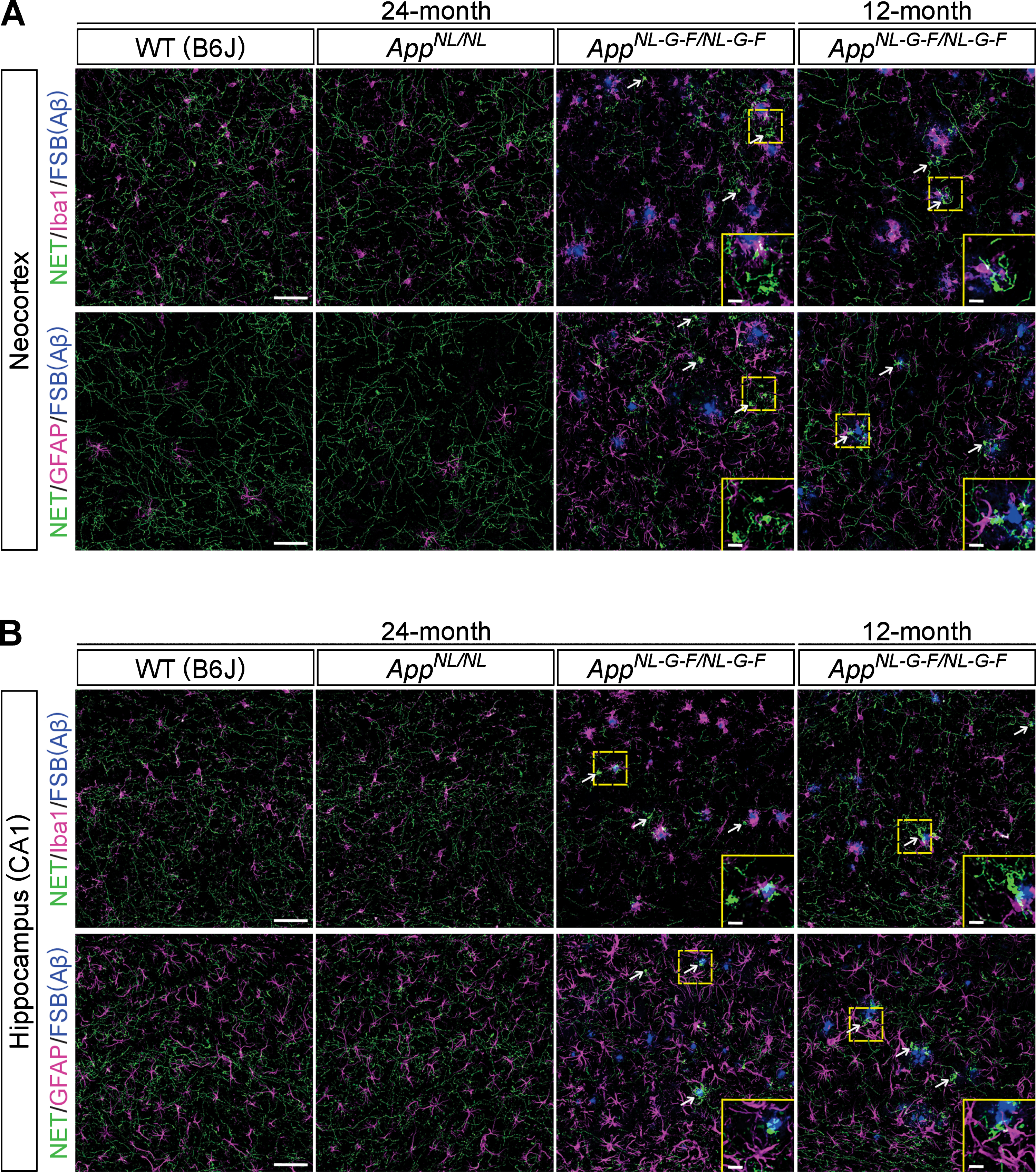

Fig. 4

Noradrenergic axonal degeneration is not limited to the vicinity of Aβ plaques and reactive gliosis. A, B) Representative images of the neocortex (A) and hippocampal CA1 subfield (B) from frozen coronal brain sections immunostained with anti-NET (indicated by green in A and B), anti-Iba1 (indicated by magenta in upper panels of A and B) and anti-GFAP (indicated by magenta in lower panels of A and B) antibodies were shown. FSB was used for detecting Aβ plaques (indicated by blue in A and B). White arrows point to representative examples of aberrant NET-positive fiber cluster. Insets show higher-magnification views in the corresponding dashed yellow squares. Scale bars represent 50μm. In the inset images, scale bars represent 10μm. n = 3/group.

Loss of glutamatergic synapses near Aβ plaques in App^{NL-G-F/NL-G-F} mice

Since cortical regions in AD brains exhibit reductions in vesicular glutamate transporter 1 (VGLUT1)-positive glutamatergic terminals [44], we examined the spatial relationship between the loss of glutamatergic terminals and Aβ plaques in cortical and hippocampal regions in our aged App^{NL-G-F/NL-G-F} mice. Immunohistochemical analysis revealed that immunoreactivity for VGLUT1-positive punctate structures was lost at the site of Aβ plaques, while larger aberrant (bulbous-like) shapes positive for VGLUT1, an evidence of dystrophic neurites, appeared around Aβ plaques in the neocortex (Fig. 5A, white arrows, higher-magnification images in the inset) and hippocampus (Fig. 5B, white arrows, higher-magnification images in the inset). In contrast, VGLUT1-positive glutamatergic terminals were spared in the areas distant from Aβ plaques in App^{NL-G-F/NL-G-F} mice (Fig. 5A, B), which were different from the widespread reduction of NET-positive fibers (Fig. 4). Immunostaining with an antibody against postsynaptic density protein 95 (PSD-95) similarly revealed reduced immunoreactivity at the site of Aβ plaques with large aberrant structures surrounding plaques in the neocortex (Fig. 5A, white arrows, higher-magnification images in the inset) and hippocampus (Fig. 5B, white arrows, higher-magnification images in the inset). These results indicate that, unlike noradrenergic afferents, glutamatergic terminals and synapses were lost in the vicinity of Aβ plaques in App^{NL-G-F/NL-G-F} mice.

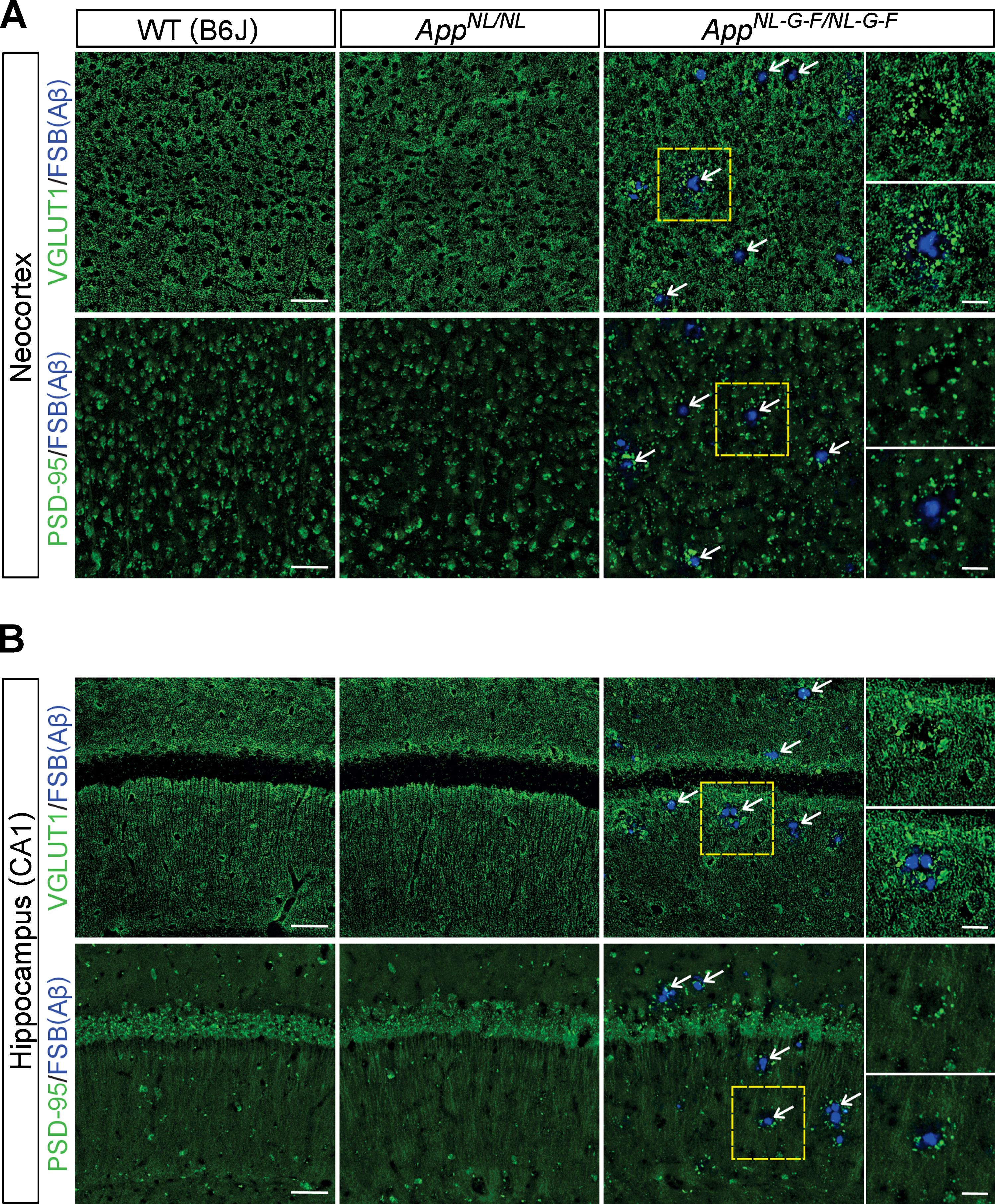

Fig. 5

Loss of glutamatergic synapses is associated with the vicinity of Aβ plaques. A, B) Representative images of the neocortex (A) and hippocampal CA1 subfield (B) from frozen coronal brain sections immunostained with anti-VGLUT1 and anti-PSD-95 antibodies (indicated by green in A and B) were shown. FSB was used for detecting Aβ plaques (indicated by blue in A and B). White arrows point to representative examples of Aβ plaque. Insets show higher-magnification views in the corresponding dashed yellow squares. Scale bars represent 50μm. In the inset images, scale bars represent 20μm. n = 3/genotype.

No prominent reduction of somatostatin or somatostatin receptor 2 in the LC in App^{NL-G-F/NL-G-F} mice

Somatostatin (SST) is known to control activity and growth of noradrenergic neurons through activation of somatostatin receptors (SSTRs) including SSTR2a, which is highly expressed in LC neurons. Levels of SSTR2a in the LC [45] as well as of SST in the cortex [46] are decreased in AD, and interestingly, LC noradrenergic axons degenerate in cortices of Sstr2 knockout mice [45]. Thus, impaired SST/SSTR signaling may cause an excitatory imbalance and/or disrupt trophic support in the LC, leading to subsequent axonal degeneration in AD. To test this possibility, we performed immunohistochemical analyses of LC neurons in aged mice with antibodies against SSTR2 and tyrosine hydroxylase (TH), a marker for noradrenergic neurons in the LC (Fig. 6A). We detected similar levels of SSTR2 expression in LC neurons of App^{NL-G-F/NL-G-F}, App^NL/NL, and WT mice (Fig. 6B). Furthermore, immunostaining for SST revealed no differences between the mouse groups in the LC areas containing SST-positive varicosities (Fig. 6C, D). These results suggest that somatostatinergic signaling in the LC is not dramatically altered in App^{NL-G-F/NL-G-F} mice.

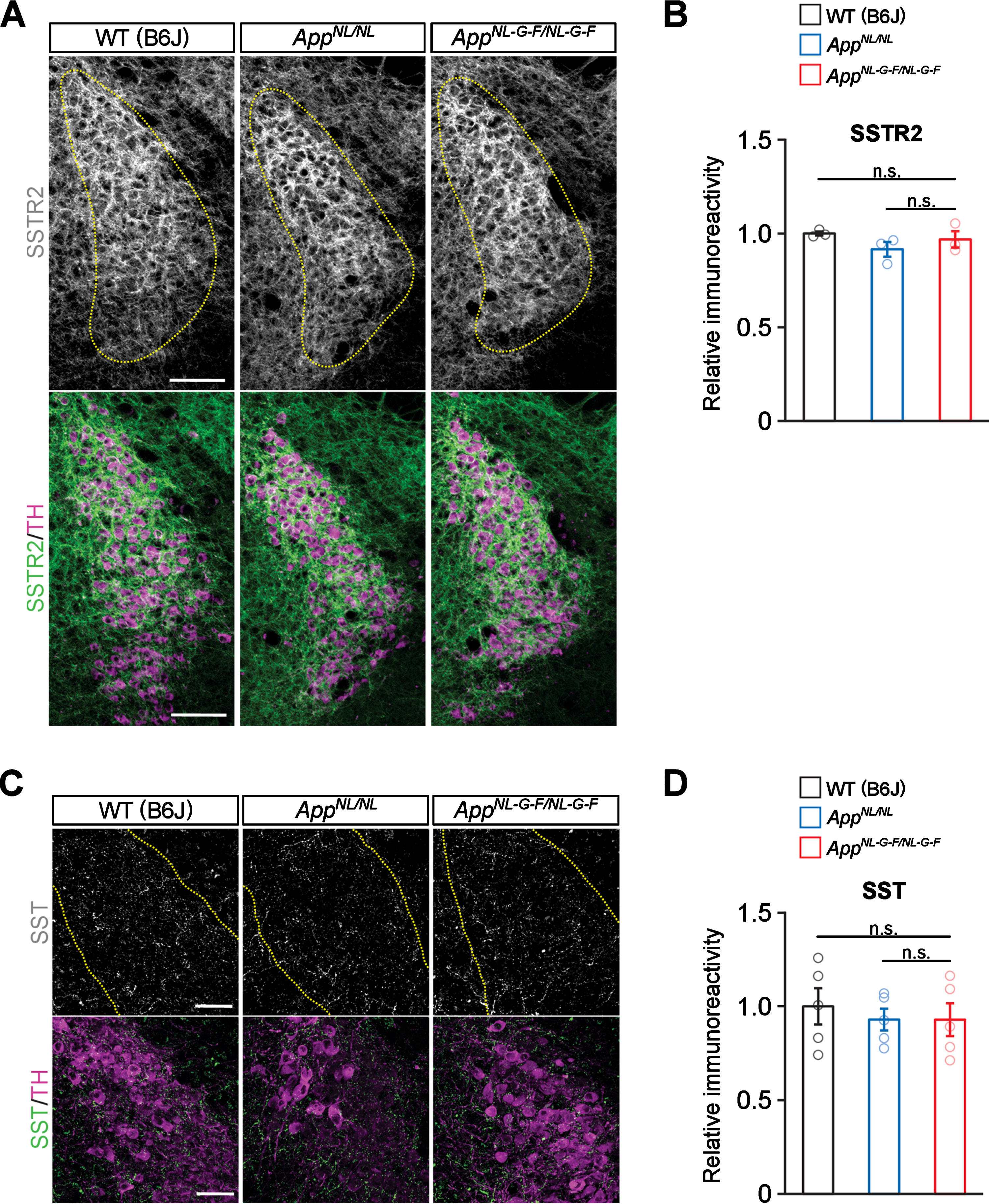

Fig. 6

No prominent reduction of somatostatin and somatostatin receptor 2 are detected in the LC. A) Representative images of the LC from frozen coronal brain sections immunostained with anti-SSTR2 (indicated by gray for single color images or green for multicolor images) and anti-TH (indicated by magenta for multicolor images) antibodies were shown. Scale bar represents 100μm. B) SSTR2 immunoreactivity in the TH-positive LC region (indicated by yellow dotted lines) was evaluated and expressed as a relative ratio to WT (B6J). C) Representative images of the LC from frozen coronal brain sections immunostained with anti-SST (indicated by gray for single color images or green for multicolor images) and anti-TH (indicated by magenta for multicolor images) antibodies were shown. Scale bar represents 50μm. D) SST immunoreactivity in the TH-positive LC region (indicated by yellow dotted lines) was evaluated and expressed as a relative ratio to WT (B6J). n = 3–5/genotype. n.s., not significant.

No prominent reduction in neurotrophic factors implicated in the development and/or maintenance of noradrenergic neurons in App^{NL-G-F/NL-G-F} mice

The neurotrophic factors, including BDNF, NGF, NT-3, and glial cell line-derived neurotrophic factor (GDNF), are crucial for the development, survival, and maintenance of noradrenergic neurons [5]. We thus examined whether the expression of BDNF and other trophic factors is altered in the neocortices of App^{NL-G-F/NL-G-F} mice. Quantitative RT-PCR (qRT-PCR) analysis revealed that mRNA levels of Bdnf, Ngf and Ntf3 were not altered in the cortex of App^{NL-G-F/NL-G-F} mice compared with WT or App^NL/NL mice, while Bdnf mRNA level was significantly lower in App^NL/NL mice compared to WT mice (Fig. 7A). In contrast, the mRNA expression level of Gdnf was too low to detect by our qRT-PCR analysis. We next performed immunohistochemical analyses and found that the expression pattern of BDNF was similar between App^{NL-G-F/NL-G-F}, App^NL/NL, and WT mouse brains (Fig. 7B), with no significant difference in the BDNF immunoreactivity (Fig. 7C). Similar expression patterns among the mouse groups were also observed for NGF (Fig. 7D) and NT-3 (Fig. 7E). Immunostaining without primary antibodies under the same settings of image capturing did not show any signals from brain sections, suggesting that observed signals represent expression of these neurotrophic factors (Fig. 7B). Taken together, these results suggest that the expression of trophic factors implicated in the maintenance of the LC is not significantly altered in App^{NL-G-F/NL-G-F} mice.

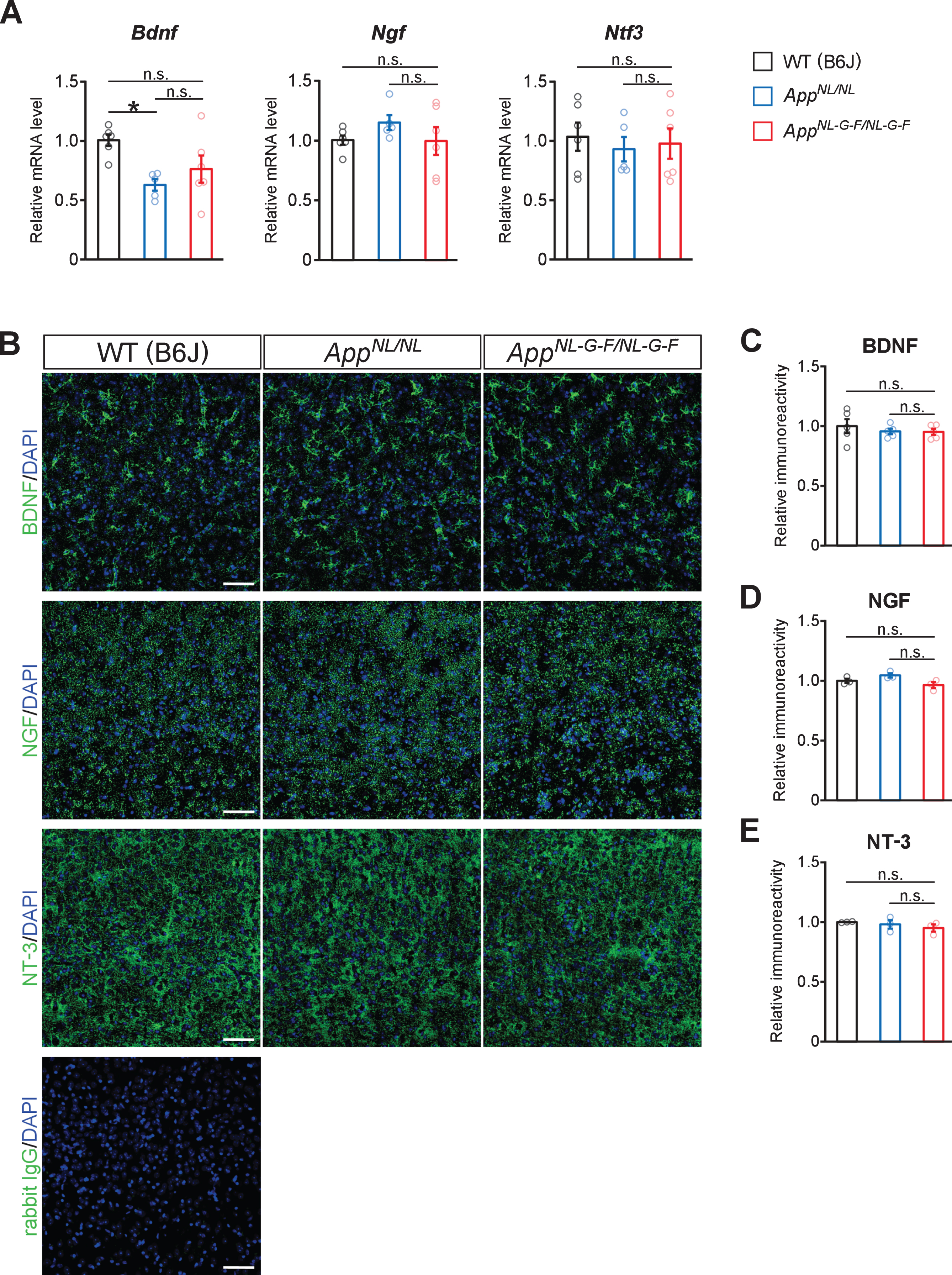

Fig. 7

No prominent reduction in neurotrophic factors for noradrenergic neurons are detected in the neocortex. A) mRNA levels of Bdnf, Ngf, and Ntf3 in the cortex were analyzed by qRT-PCR. n = 5–6/genotype. ^*p < 0.05 versus WT (B6J). B) Representative images of the neocortex from frozen coronal brain sections immunostained with anti-BDNF, anti-NGF, and anti-NT-3 antibodies (all indicated by green) were shown. Sections stained with secondary anti-rabbit IgG antibody (indicated by green) was served as a negative control (blue indicated DAPI staining). C–E) Immunoreactivity of BDNF (C), NGF (D), and NT-3 (E) were evaluated and expressed as a relative ratio to WT (B6J). Scale bars represents 50μm. n = 3–5/genotype. n.s., not significant.

DISCUSSION

Neuron loss in the LC in AD was hypothesized to result from retrograde degeneration of the cortical projections [29, 47]. LC neurons projecting to cortical regions are selectively affected in AD, whereas neurons without cortical projections show no pathology [35 , 48]. Accordingly, the reductions in noradrenergic afferents and NA content in forebrain LC target regions observed in early-stage AD [6 , 20] are followed by neuron loss in the LC at mid-to-advanced Braak stages [9 , 49]. Our findings are consistent with these reports, as App^{NL-G-F/NL-G-F} mice had significantly reduced densities of noradrenergic axons in the cortex without neuron loss in the LC (Figs. 1 2).

The degeneration of LC neurons in human brains has been associated with the accumulation of hyperphosphorylated tau [50 –52]. In the pathogenesis of AD, the accumulation of Aβ pathology in cortical areas is thought to drive tau pathology and neuron loss in the LC; however, the underlying mechanisms remain unknown. A recent study demonstrated that aberrant TH-positive noradrenergic and dopaminergic terminals were negative for phospho-tau in the cortices of AD brains [45]. Consistent with this, we found no tau pathology in areas with noradrenergic axonal degeneration in App^{NL-G-F/NL-G-F} mice (Fig. 3). These results suggest that axonal degeneration of LC neuron is initiated by Aβ pathology, which may exacerbate tau pathology independently formed in the LC and further damage LC neurons in AD pathogenesis.

Several studies have reported degeneration of the LC–NA system in transgenic mouse models. In APP^swe/PS1^ΔE9 mice overexpressing FAD-related mutant APP^swe and PS1^ΔE9, progressive Aβ pathology in the forebrain correlates with the progressive loss of TH-positive catecholaminergic axons, followed by atrophy of cell bodies and loss of TH-positive neurons in the LC in the absence of prominent tau pathology [53 –55]. Aβ pathology in these mice is modestly reduced by the administration of anti-Aβ antibodies, which also ameliorates the loss of TH-positive catecholaminergic axons, suggesting a causal link between Aβ pathology and catecholaminergic axonal degeneration [56]. In Tg2576 mice overexpressing FAD-related APP^swe, the volume of the LC and the number of DBH-positive neurons are reduced as Aβ pathology progresses [57], while PDAPP mice overexpressing FAD-related APP^V717F exhibit selective shrinkage only in the portion of the LC that projects to the cortex and hippocampus [58]. By contrast, neuronal hypertrophy in the LC was observed in immunohistochemical analyses of 6-month-old 5×FAD mice, which overexpress AβPP with the Swedish (K670N, M671L), Florida (I716V), and London (V717I) FAD mutations along with human presenilin 1 (PS1) harboring two FAD mutations, M146L and L286V [59]. In contrast, APP23 mice overexpressing FAD-related APP^swe exhibited no prominent loss of TH-positive LC neurons at 12 months of age [60]. Interestingly, a very recent study using App^{NL-G-F/NL-G-F} mice showed that a loss of TH-positive LC neurons at 9-month-old [61]; however, we did not detect a loss of DBH-positive neurons in these mice up to 24 months of age (Fig. 2). The reason for the inconsistent results between the studies may be related to the differences in calculation method for the number of LC neurons, experimental design for immunohistochemistry and laboratory-specific environmental conditions. Supporting this, Mehla et al. reported significant decline in spatial learning and memory in App^{NL-G-F/NL-G-F} mice at 6 months of age [61], while we and others did not detect prominent learning and memory deficits at the same age [38 , 63]. Despite the differences in degenerative phenotypes between mouse models and research groups, none of the models develop overt tau pathology in the LC, further supporting the notion that damage to LC neurons induced by Aβ pathology is independent of tau accumulation.

Axonopathy has been reported in different transgenic mouse models of Aβ amyloidosis, which often overexpress human AβPP [64 –68]. However, several studies have demonstrated that unphysiologically overexpressed AβPP proteins impair axonal transport by interacting with kinesin [69] through c-Jun amino-terminal kinase interacting proteins [70] and cause axonopathy [69 , 72]. These reports suggest that axonopathy observed in AβPP transgenic mice might be, at least in part, due to unphysiologically overexpressed AβPP proteins. In contrast, this study utilized App^{NL-G-F/NL-G-F} mice, which express physiological levels of AβPP under the innate promoter [37, 41], and demonstrated that Aβ pathology was required to induce noradrenergic axonal degeneration in mice brains. These results provide further evidence that App^{NL-G-F/NL-G-F} mice are useful models to investigate critical neurodegenerative processes at an early stage of AD.

It is not clear how Aβ pathology induces neurodegeneration of LC neurons in AD. Chronic neuroinflammation is induced by Aβ pathology and activated microglia and reactive astrocytes have been suggested to promote neurodegeneration by engulfing neuronal or synaptic structures in AD [73 –75]. Our histochemical analyses did not detect clear evidence that reactive gliosis played causative roles in reductions of NET-positive fibers. However, dystrophic noradrenergic fiber clusters were often associated with Aβ plaques surrounded by activated microglia (Fig. 4), suggesting a potential involvement of neuroinflammation in noradrenergic axonal degeneration in App^{NL-G-F/NL-G-F} mice. Elevated levels of inflammatory cytokines via microglial activation in the brain of APP^swe/PS1^ΔE9 mice were accompanied by the loss of LC–NA neuronal somas and axon terminals [76]. Since App^{NL-G-F/NL-G-F} mice also display massive microgliosis and elevated cytokine response in the cortex [77, 78], further investigation is required to delineate a role of neuroinflammation in noradrenergic neurodegeneration caused by Aβ pathology.

Several brain regions send SST-positive projections to the LC [79 –81], and reduced SST signaling in AD brains [46, 82] may disrupt inhibitory regulation of [83 –85] and/or trophic effects on [86 –88] noradrenergic neurons. Supporting this possibility, Sstr2 knock out results in the degeneration of LC noradrenergic axons in mouse cortex [45]. In addition, LC neuron development and survival depend on a variety of trophic factors [89 –94] that can be retrogradely transported from target regions [95]. For example, BDNF is involved in several aspects of LC neuronal development and maturation [96 –98], and a reduced level of BDNF promotes the degeneration of LC axons in 5×FAD mice [99]. However, neither SST innervation/SSTR2 levels in the LC (Fig. 6) nor cortical expression of trophic factors, including BDNF, NGF, and NT-3 (Fig. 7), were altered in App^{NL-G-F/NL-G-F} mice. These data suggest that cortical Aβ pathology induces noradrenergic axonal degeneration through an as-yet-unknown factor(s). Further studies are needed to elucidate the underlying mechanism(s), which will reveal how Aβ pathology initiates AD pathogenesis.

In conclusion, this study demonstrates that cortical Aβ pathology in LC target regions induces noradrenergic axonal degeneration. App^{NL-G-F/NL-G-F} mice used in this study harbor three FAD mutations to produce massive Aβ pathology in the brain parenchyma [37, 41], which is thought to play a central role in the pathogenesis of not only familial but also sporadic cases of AD. Given the critical roles of LC neurons in cognitive and physiological processes, as well as in AD pathogenesis, approaches to prevent axonal damage of LC noradrenergic neurons may be an effective way to prevent the onset and slow the progression of AD.

Footnotes

ACKNOWLEDGMENTS

This study was supported by JSPS KAKENHI Grant No. JP18K15381, the Uehara Memorial Foundation (JP) (to Y.S.), JSPS KAKENHI Grant No. JP20H03571, the Research Funding for Longevity Science from National Center for Geriatrics and Gerontology, Japan, Grant No. 19-7 and 21-13, DAIKO FOUNDATION (JP) (to K.M.I.), and the Research Funding for Longevity Science from National Center for Geriatrics and Gerontology, Japan, Grant No. 19-49 (to M.S.).

Authors’ disclosures available online ().

The supplementary material is available in the electronic version of this article: .
