Pre-Statistical Considerations for Harmonization of Cognitive Instruments: Harmonization of ARIC,CARDIA,CHS,FHS,MESA,and NOMAS

Cohort studies

Six NIH-funded, longitudinal cohort studies were included in the present study: The Atherosclerosis Risk in Communities Study (ARIC) [8], the Coronary Artery Risk Development in Young Adults Study (CARDIA) [9], the Cardiovascular Health Study (CHS) [10], the Framingham Offspring Study (FOS) [11], the Multi-Ethnic Study of Atherosclerosis (MESA) [12], and the Northern Manhattan Study (NOMAS) [13]. All participants provided informed consent. A description of each cohort study and the rationale for its inclusion in the larger study is available [1]. We selected these cohorts because all had repeated measures of cognition and BP using similar methods, high-quality data on dementia risk factors, overlapping cognitive instruments, physician-adjudicated dementia diagnosis, availability of brain magnetic resonance imaging, racial, ethnic, and geographic diversity, and included adults aged 18 and older. Four cohorts (NOMAS, ARIC, MESA, CARDIA) enrolled adults in early adulthood to mid-life, which is the time in the life course with the most consistent association between BP and later-life cognitive decline. The other two cohorts enrolled beginning in early life (FOS) and older adulthood (CHS).

Procedure

First, study neuropsychologists (EB, BG) identified cognitive instruments in each of the six cohort studies from documentation provided by each cohort, available published papers, and scrutiny of cognitive datasets. We considered all cognitive instruments at all study visits for inclusion in the harmonization, with the exception of measures of literacy and premorbid intellectual functioning that are relatively less sensitive to age-related cognitive decline.

After identifying available cognitive instruments, we contacted cohort study investigators to request unpublished administration, scoring, and procedural details of cognitive test batteries. Documentation provided by each cohort study included test forms, data entry forms, and administration and scoring instructions. Procedural details extracted from this process included the published test version, administration and scoring details (e.g., stopping rules; acceptable responses for specific items), possible/theoretical score ranges (based upon the instrument structure and number of items), and metrics available for each instrument (e.g., individual item data, raw and standardized summary scores). We reviewed available raw data for each instrument for score ranges and distributions.

When available and appropriate, we reviewed individual test items comprising cognitive instruments rather than composite/summary test scores (e.g., individual test items for the Mini-Mental State Examination [MMSE]; Telephone Interview for Cognitive Status [TICS], Modified Mini Mental State Examination [3MSE], or Montreal Cognitive Assessment [MoCA]). Decomposition of these instruments into their component items enabled us to identify additional common items between cohorts and to link telephone-administered test batteries with in-person test batteries.

Study neuropsychologists reviewed and categorized each cognitive instrument item into relevant cognitive domains (i.e., memory, executive functioning).

Comparability of items across cohort and language

We identified cognitive test items that were com-parable across cohorts based upon detailed documentation. For cohorts that offered test administration in Spanish, neuropsychologists considered the degree of linguistic and cultural equivalence based on the evidence base for individual cognitive instrument items. Items for which there was concern for non-equivalence across English and Spanish were considered separate items by language rather than comparable items.

Data augmentation

We employed several data augmentation strategies to adjust for differences uncovered during the pre-statistical harmonization process, including alignment of coding procedures, winsorization, and equipercentile equating. The decision of how to address each disparate test item was made on a case-by-case basis by an experienced epidemiologist in consultation with study neuropsychologists, based on the distribution of scores across tests and assuming that we properly identified test items that were comparable across cohorts, except for version or administration differences. To make these decisions, we meticulously scrutinized exploratory analyses of test scores (e.g., dotplots and histograms, stem and leaf plots, tables of minima, maxima, medians, and means) by cohort for every test item presumed to be comparable across cohorts. When procedural or distributional differences across cohorts in common test items were identified, we reviewed each item for possible data augmentation.

Summary of cognitive instrument items

We identified 34 cognitive instruments, 13 of which were common across two or more cohorts. Animal naming spanned all six cohorts, letter fluency spanned five cohorts, and four instruments (MMSE, Boston naming, digit span, and digit symbol substitution) spanned four cohorts (Table 1). From these 34 cognitive instruments, we identified 153 items (Supplementary Tables 1 and 2), 64 of which were common across at least two cohorts. A detailed review of instrument administration and scoring procedures across cohorts revealed several sources of procedural differences across cohorts, despite seemingly common tests (Supplementary Tables 1 and 2). Frequent sources of such heterogeneity included differences in instrument version, instrument adaptation, administration procedures, data (i.e., type of score provided for a cognitive instrument), and component items.

Instrument version

Differences in instrument version affected 10 of 13 common instruments. For example, four studies (ARIC, CHS, CARDIA, MESA) implemented a speeded task requiring transcription of symbols that corresponded to specific digits, titled Digit Symbol Substitution Test for the Wechsler Adult Intelligence Scale-Revised (WAIS-R) [14] published in 1981. Two studies (MESA and CARDIA) used an updated version, the Digit Symbol Coding Test, published in the test’s 1997 revision (Wechsler Adult Intelligence Scale- III; WAIS-III) [15]. Although these tests are nearly equivalent in structure, they had different times to complete (90 s for WAIS–R versus 120 s for WAIS–III) and a different number of possible items (93 items for WAIS–R versus 133 items for WAIS–III). Of note, a similarly-titled, but distinct, measure was administered in the NOMAS study (Symbol Digit Modalities Test; SDMT) [16], which allowed 90 s to transcribe numbers corresponding to distinct symbols. Scores on this test tend to be lower than for the digit symbol versions, possibly due to subtle differences in task demands [17]. For each of these tests, performance is quantified as the number of correct items completed; as such, an equivalent raw score is associated with a different level of performance (i.e., speed) across these studies. For example, 50 items completed with a 90 s time limit corresponds to 0.56 items/s, whereas 50 items completed within a 120 s time limit corresponds to 0.42 items/s.

Instrument adaptation

Adaptations from standard administration or scoring of tests impacted 8 of 13 common instruments. For example, the California Verbal Learning Test (CVLT) was administered in two cohorts (NOMAS, CHS Cognition Study). The CHS Cognition Study used the standard CVLT-1 administration procedures, with a list of 16 words and instructions to recall items on a shopping list. The NOMAS study, in contrast, used a list of 12 rather than 16 words; the words were presented via audio recording with a male or female voice, and respondents were required to recall the words and whether the word was presented in a male or female voice.

Administration procedures

Differences in administration procedures, such as stopping rules for timed tests, were noted in 6 of 13 common instruments. Some administration differences led to different raw score ranges across common tests. For example, the Trail Making Test, Part B had a maximum raw score of 240 s in the ARIC study due to their discontinuation rule of 240 s and/or 5 errors. This same test had a maximum raw score of 572 s in the CHS Cognition study and 600 s in the FOS study, for which stopping rules were not available in study documentation. Studies also varied with procedures for the items evaluating working memory (e.g., serial subtractions or spelling backwards) on the MMSE: NOMAS administered serial subtraction only when full credit was not awarded for spelling backwards; CHS studies administered both items and scored the higher of the two responses, whereas ARIC and NOMAS administered only the spelling backwards item.

Score type

Studies varied in the selection of summary scores provided for common instruments, and most instruments had several summary scores included in datasets. For 1 of 13 common instruments, there were no equivalent summary scores available for common instruments across studies. Specifically, for the digit span test, the FOS study provided the maximum string of digits correctly answered, whereas ARIC and MESA provided the total score for the measure, and CHS provided both metrics.

Scoring and coding procedures

Review of item scoring and coding procedures revealed several sources of heterogeneity across cohorts and affected items in 2 of 13 common instruments (MMSE and TICS), in addition to common items identified from other instruments (3MSE, Cognitive Abilities Screening Instrument (CASI), MoCA). Studies varied with regard to the degree of precision required by the respondent to award credit for an item. For example, for the orientation to season item, NOMAS awarded credit if respondents made an error during the first or last day of the month, whereas CHS, FOS, and ARIC required precise responses. Common items were also identified between the MMSE and other cognitive screening instruments (i.e., 3MSE, CASI, MoCA). Across these measures, differences with regard to scoring and coding were noted frequently across equivalent items. For example, when orientation to month was administered in the CASI (MESA), coding was as follows: 2 = accurate within 5 days; 1 = missed by 1 month, and 0 = missed by 2 + months; whereas coding of this item for MMSE and TICS (ARIC, CHS, NOMAS) was 1 = correct, 0 = incorrect (Supplementary Table 2).

Cultural and linguistic equivalence

We reviewed candidate comparable items that were administered across English and Spanish. We noted evidence of differential difficulty across language for some test items. For example, items from the Boston Naming Test have shown differential difficulty across English and Spanish [18]. Because of concern for possible non-equivalence in data interpretation across English and Spanish, we considered these test items as separate rather than comparable items.

Data augmentation

Supplementary Tables 1 and 2 describe the data augmentation strategies used for each item included in the harmonization. Of the 64 comparable items identified across cohorts, 55 required data augmentation. For some instruments, such as the letter fluency test and the Trail Making Test, we transformed scores to curtail outliers via winsorization (i.e., pulling in extreme values) (Supplementary Table 1). We coarsened more finely measured test scores in some cohorts in order to map them to other available test items in other cohorts (e.g., creating summary scores comprised of individual test items); for example, this was done for test items such as delayed word recall for 3MSE from the CHS study (Supplementary Table 2). For tests with completion time scores, such that higher scores are indicative of worse performance (e.g., Trail Making Test, Stroop Color and Word Test, Grooved Pegboard Test), we adjusted the direction of the scores to reflect higher scores indicative of better performance (Supplementary Table 1). We used equipercentile equating [19] to adjust the distributions of like test items across cohorts to be on a common scale for tests such as the CVLT and Digit Symbol Substitution Test/Digit Symbol Coding Test (Supplementary Table 1). To address differences in coding procedures for correct items (e.g., CASI items, MESA cohort), we recoded items to align across studies (Supplementary Table 2). To address differences in age distributions across cohorts, the age range was restricted to 53–80 years to develop the equating algorithm. The equating algorithm was then applied to the full sample.

To illustrate the impact of the sources of heterogeneity on cognitive data and data augmentation procedures, we selected data from the DSST/DSC instrument and the Block Design test (Fig. 1). As illustrated in Fig. 1B and 1E), instrument test version and adaptation differences were associated with markedly different raw score distributions across cohorts. To address these differences in raw scores (and given equivalence of construct assessed), we used equipercentile equating to align distributions (Fig. 1C and 1F).

OPEN IN VIEWER

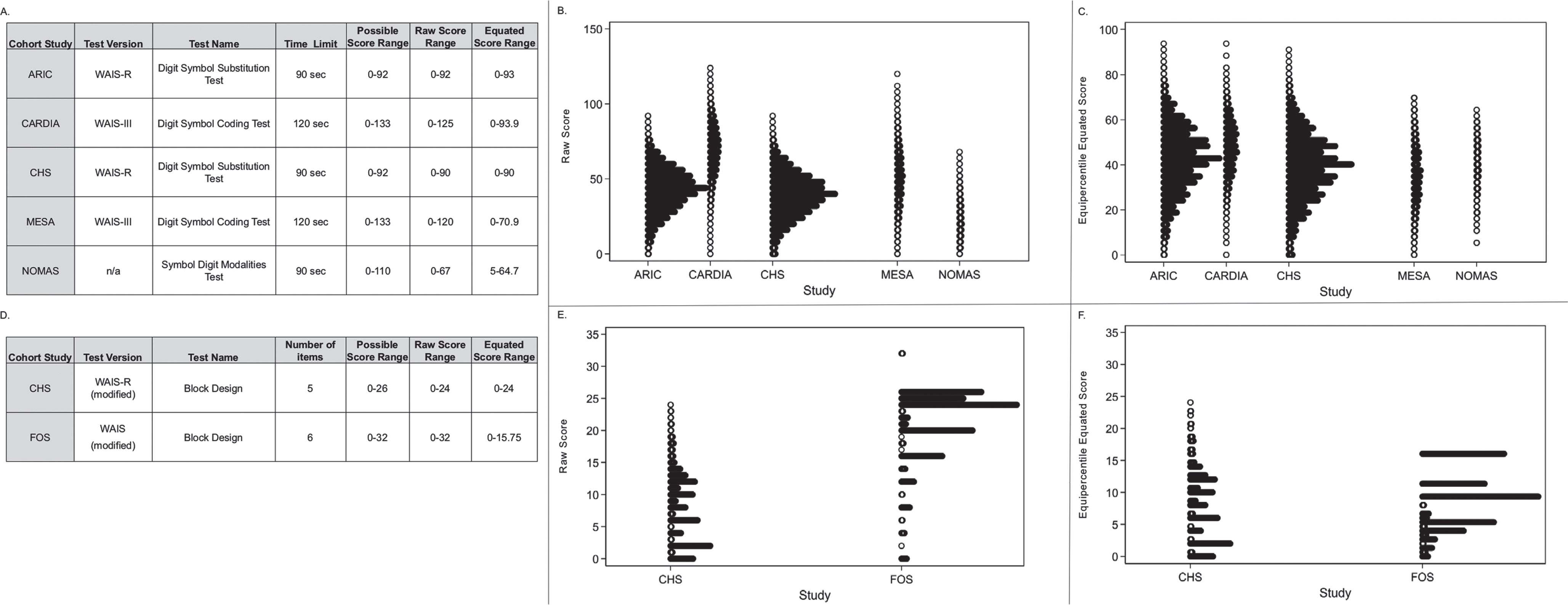

Fig. 1

Impact of procedural differences on digit symbol substitution test and block design test data across cohorts. Panels A and D summarize differences in test version, procedure, and raw score ranges across cohorts for the digit symbol substitution test (Panel A) and the block design test (Panel D). Panels B and E display the raw score distributions across cohorts for the digit symbol substitution test (Panel B) and the block design test (Panel E). Panels C and F display the equipercentile-equated distributions for the digit symbol substitution test (Panel C) and the block design test (Panel F). All scores are scaled on a T score metric (mean = 50, standard deviation = 10).
