Vitreous Humor Biomarkers Reflect Pathological Changes in the Brain for Alzheimer’s Disease and Chronic Traumatic Encephalopathy

Abstract

Background:

Patients with eye disease have an increased risk for developing neurodegenerative disease. Neurodegenerative proteins can be measured in the eye; however, correlations between biomarker levels in eye fluid and neuropathological diagnoses have not been established.

Objective:

This exploratory, retrospective study examined vitreous humor from 41 postmortem eyes and brain tissue with neuropathological diagnoses of Alzheimer’s disease (AD, n = 7), chronic traumatic encephalopathy (CTE, n = 15), both AD + CTE (n = 10), and without significant neuropathology (controls, n = 9).

Methods:

Protein biomarkers i.e., amyloid-β (Aβ_40,42), total tau (tTau), phosphorylated tau (pTau_181,231), neurofilament light chain (NfL), and eotaxin-1 were quantitatively measured by immunoassay. Non-parametric tests were used to compare vitreous biomarker levels between groups. Spearman’s rank correlation tests were used to correlate biomarker levels in vitreous and cortical tissue. The level of significance was set to α= 0.10.

Results:

In pairwise comparisons, tTau levels were significantly increased in AD and CTE groups versus controls (p = 0.08 for both) as well as AD versus AD+CTE group and CTE versus AD+CTE group (p = 0.049 for both). Vitreous NfL levels were significantly increased in low CTE (Stage I/II) versus no CTE (p = 0.096) and in low CTE versus high CTE stage (p = 0.03). Vitreous and cortical tissue levels of pTau ₂₃₁ (p = 0.02, r = 0.38) and t-Tau (p = 0.04, r = –0.34) were significantly correlated.

Conclusion:

The postmortem vitreous humor biomarker levels significantly correlate with AD and CTE pathology in corresponding brains, while vitreous NfL was correlated with the CTE staging. This exploratory study indicates that biomarkers in the vitreous humor may serve as a proxy for neuropathological disease.

Keywords

Alzheimer’s disease amyloid-beta amyloid-beta protein biomarker chemokine CCL11 chronic traumatic encephalopathy eotaxin-1 neurofilament protein tau protein vitreous humor

INTRODUCTION

The incidence of neurodegenerative disorders like Alzheimer’s disease (AD) and related dementias continues to rise. As of 2021, 6.2 million North Americans above 65 years of age are suffering from AD; however, this number is projected to reach 13.2 million by 2060 [1]. AD is the most frequent cause of dementia in Western countries [2]. Currently, the definitive diagnosis of AD is made by postmortem neuropathological examination [3]. In 2018, the framework of diagnosing AD shifted to defining it by its underlying pathophysiological processes using biomarkers such as amyloid-β (Aβ) and tau on imaging and cerebrospinal fluid (CSF) concentrations [4]. In AD, neuropathological changes occur decades before symptom onset, so by the time a patient is diagnosed the therapeutic effect is often limited. Similar to AD, chronic traumatic encephalopathy (CTE) is a tauopathy that shares homologous neuropathological characteristics such as neurofibrillary tangles and hyperphosphorylated tau protein aggregates [5] and post-mortem analysis is needed for definitive diagnosis [6]. Given the difficulty in diagnosis, novel sources of biomarkers that can aid in earlier diagnosis of these neurodegenerative diseases are of particular interest.

Interest in finding noninvasive diagnostic criteria of neurodegenerative diseases has led to studies on possible markers in the eye. Thinning of the retinal and choroidal layers have been previously demonstrated via noninvasive imaging with optical coherence tomography (OCT) in patients with AD compared to controls [7 –16]. However, the use of OCT as a diagnostic tool for AD is limited by common comorbidities such as aging, diabetes, hypertension, and glaucoma, most of which are associated with AD and contribute to retinal and choroidal thinning [10 , 18]. Even though patients with eye morbidities can commonly develop AD, they are excluded from studies investigating OCT and OCT angiography as a diagnostic device. Alternately, the amyloid, tau, and neurodegeneration (AT(N)) biomarker index in the eye may be of potential diagnostic value in neurodegenerative diseases [4]. The shared embryologic origin of the eye and the brain can improve our understanding of both neurological and ophthalmic disorders [19 –23]. Several studies have established a link between neurodegenerative diseases like AD and ophthalmic conditions like glaucoma, diabetic retinopathy, age-related macular degeneration, and cataracts [24 –27]. Therefore, patients with eye disease represent a population at increased risk for the development of AD, and the investigation of biomarkers in this target population will be important for early diagnosis and proper management. Our study group has previously reported biomarkers amyloid-β₄₀ (Aβ₄₀), Aβ₄₂, total tau, and neurofilament light chain (NfL) in the vitreous humor of the eye was significantly correlated with impaired cognitive function but not associated with presence of an eye disease [28, 29].

In this novel exploratory study, we aim to investigate the association of these neurodegenerative biomarkers in postmortem vitreous humor with postmortem pathological brain diagnosis, and cortical tissue in the corresponding brains.

METHODS

Autopsy participants were drawn from the Understanding Neurologic Injury and Traumatic Encephalopathy (UNITE) brain bank [30]. Inclusion criteria requires a history of repetitive head injury (RHI), including those from contact sport play, military service, physical violence, and other sources. The criteria were recently expanded to include a history of moderate to severe traumatic brain injury [30]. Donations with postmortem intervals greater than 72 hours were excluded. Brain donations are made by the next-of-kin who contacted the brain bank at the time of death. Other donations came through referrals from medical examiners and/or the Concussion Legacy Foundation. Consent for the use of tissue for research purposes was obtained from the legal healthcare proxy and the study was approved by the Boston University Medical Center Institutional Review Board (IRB H-37370). The study was performed in accordance with the ethical standards of the Committee on Human Experimentation of our institution and the Declaration of Helsinki. Herein, we conduct an exploratory retrospective clinical study examining 41 donated postmortem eyes and corresponding brains, which underwent neuropathologic examination during autopsy as described below. Vitreous samples were collected at the time of postmortem autopsy and were frozen at –80°C.

Neuropathological analysis

Neuropathological processing included comprehensive screening for neurodegenerative conditions following procedures established for the VA-BU-CLF brain bank [30, 31]. Briefly, all cases were evaluated based on paraffin-embedded tissue sections taken from standardized regions for histochemical and immunohistochemical staining. They were assessed for the extent of involvement/spread of cerebral Aβ, neurofibrillary tangles, and neuritic amyloid plaques. Those with intermediate/high AD neuropathologic change as per National Institute on Aging and Reagan Institute (NIA-RI) criteria were classified as having AD [32]. CTE was neuropathologically diagnosed using the NIH/NINDS consensus criteria, which include abnormal perivascular accumulations of hyperphosphorylated tau (p-tau) in neurons, with or without astrocytes, and cell processes concentrated at the sulcal depths [33, 34]. CTE is staged based on regional p-tau involvement [33, 35]. Controls were defined as those participants with a history of RHI, but without significant neurodegenerative disease (e.g., no CTE and no to low AD neuropathological changes).

Immunoassay measurement for amyloid, tau, NfL, and Eotaxin-1/CCL11 proteins

Protein biomarker levels were measured both in the vitreous humor of postmortem eyes and cortical tissue of the brain by Meso Scale Discovery (MSD, Rockville, MD, USA) quantitative immunoassays. Biomarkers measured include Aβ₄₀ and Aβ₄₂, total and phosphorylated tau (tTau, pTau₁₈₁, and pTau₂₃₁ respectively), NfL, and Eotaxin-1/CCL11. These markers were specifically chosen as they have been previously detected in antemortem human vitreous samples at significant levels in prior reports by our group [28, 29]. Vitreous samples were centrifuged for 15 min at 12,000 rpm to separate the cellular contents, aliquoted at 100μL, and frozen at –80°C. For all assays vitreous fluid was diluted 1:1 with 1% Blocker A (MSD #R3BA 4) in wash buffer for a total volume of 200μL. Samples were subsequently spun down at 17,000 g and 4°C for 15 min, and the supernatant was applied to the immunoassay. Brain tissue was diluted with five-fold volume of ice cold 5 M Guanidine Hydrochloride /50 mM Tris-HCL, pH 8.0, with protease inhibitors (Thermo Scientific, 78439) and phosphatase inhibitors (Sigma, P5726 and P0044). Tissue was homogenized using TissueLyser LT (Qiagen 85600) at 50 Hz speed for 5 min. The homogenates were shaken at room temperature overnight and then diluted with ice cold 1% Blocker A (MSD, #R93BA-4) in wash buffer by 1:300 and centrifuged at 17,000× g, for 15 min at 4°C. The supernatant was carefully removed and stored at –80°C until use. Immunoassay was performed using MSD platform following the manufacturer’ instructions and in duplicate (Meso Scale Discovery, Gaithersburg, MD). Assay kits we utilized for Aβ₄₀, and Aβ₄₂ (MSD #K15200E) and pTau₂₃₁ (K15121D). Tau antibodies BT2, AT270 and HT7 (Thermo Fisher Scientific, #MN1010, MN1050 and MN1000B) were used to capture/detect tTau and pTau₁₈₁. Measurements were performed using the multi-detection SPECTOR 6000 Imager (MSD).

Statistical methods

The level and spread of vitreous biomarker within each group were summarized by reporting medians and interquartile range (IQR). Non-parametric ANOVA - Kruskal-Wallis Rank sum test was performed to determine any significant differences in vitreous biomarker levels (Aβ₄₀, Aβ₄₂, tTau, pTau₁₈₁, pTau₂₃₁, NfL, Eotaxin-1/CCL11) by the pathology group. After finding significant differences using the Kruskal-Wallis test, post hoc analysis was done using Wilcoxon Rank Sum test to assess significant pairwise differences in vitreous biomarker levels between groups. Significant differences in vitreous biomarker levels among different stages of CTE, i.e., low (stage I and II) and high (stage III and IV) were also tested using non-parametric ANOVA - Kruskal-Wallis Rank sum test. Wilcoxon rank sum tests was performed for pairwise comparisons, with Benjamini & Hochberg method to adjust for multiple comparisons. Spearman’s rank correlation was used to compare biomarker levels in vitreous humor and cortical tissue. All p-values were adjusted for multiple comparisons using the Benjamini & Hochberg method [36], but we provide both unadjusted and adjusted p values in this study. Two-sided p values of less than 0.10 were considered statistically significant because of the exploratory nature and limited sample size of this study. Outlier data, defined as data beyond three times the IQR below and above the first and third quartile value, were removed for the results presented here. The results are not age adjusted because of the exploratory nature of the study with a small sample size with large variability.

RESULTS

A total of 41 brain and corresponding eye postmortem specimens were examined. The median age at death was 72 (65.0 to 81.0) years and 39 (95.1%) specimens were from male patients (Table 1). Out of the 41 specimens, 9 (21.95%) were controls, 7 (17.07%) had AD pathology only, 15 (36.59%) had CTE pathology only, and 10 (24.39%) were diagnosed with combined AD and CTE pathology (Table 1). Also, out of 41 specimens, 16 (39%) had no evidence of CTE, 5 (12.2%) had low CTE i.e., CTE stage I or II and 20 (48.8%) had high CTE i.e., CTE Stage III or IV (Table 1).

Table 1

Demographic characteristics of postmortem study specimens, by individual study groups and CTE staging

Study parameter	Entire	Controls,	AD only,	CTE only,	AD + CTE,
[Median (IQR)	cohort,	n = 9	n = 7	n = 15	n = 10
or n (%)]	n = 41
Age, y	72 (65–81)	63 (46–69)	81 (69.5–82.5)	69 (46.5–74.5)	81.5 (77.5–83.8)
Sex, Male	39 (95.1)	8 (88.9)	7 (100)	14 (93.3)	10 (100)
Braak Stage
0	10 (25.6)	5 (55.6)	0 (0)	5 (38.5)	0 (0)
I-II	4 (10.3)	3 (33.3)	0 (0)	1 (7.7)	0 (0)
III-IV	11 (28.2)	1 (11.1)	1 (14.3)	6 (46.2)	3 (30)
V-VI	14 (35.9)	0 (0)	6 (85.7)	1 (7.7)	7 (70)
CERAD Score
0	20 (48.8)	8 (88.9)	0 (0)	12 (80)	0 (0)
1	10 (24.4)	1 (11.1)	1 (14.3)	3 (20)	5 (50)
2	7 (17.1)	0 (0)	4 (57.1)	0 (0)	3 (30)
3	4 (9.8)	0 (0)	2 (28.6)	0 (0)	2 (20)
Study parameter	Entire	No CTE,		Low stage	High stage CTE
[Median (IQR)	cohort,	n = 16		CTE (Stage I	(Stage III or
or n (%)]	n = 41			or II), n = 5	IV), n = 20
Age, y	72 (65–81)	69 (58.8–75.8)		32 (27–46)	77.5 (69.8–83)
Sex, Male	39 (95.1)	15 (93.8)		5 (100)	19 (95)
Braak Stage
0	10 (25.6)	5 (31.2)		4 (80)	1 (5.6)
I-II	4 (10.3)	3 (18.8)		0 (0)	1 (5.6)
III-IV	11 (28.2)	2 (12.5)		0 (0)	9 (50)
V-VI	14 (35.9)	6 (37.5)		1 (20)	7 (38.9)
CERAD Score
0	20 (48.8)	8 (50)		4 (80)	8 (40)
1	10 (24.4)	2 (12.5)		0 (0)	8 (40)
2	7 (17.1)	4 (25)		1 (20)	2 (10)
3	4 (9.8)	2 (12.5)		0 (0)	2 (10)

IQR, Interquartile range; AD, Alzheimer’s disease; CTE, chronic traumatic encephalopathy.

Relationship between different vitreous biomarkers and pathological diagnosis

On the Kruskal-Wallis rank sum test, vitreous biomarker levels were significantly different between the neuropathological diagnoses for vitreous tTau (p = 0.02) and pTau₂₃₁ (p = 0.09). Further pairwise comparisons with adjustment for multiple comparisons revealed that the vitreous tTau was significantly increased in AD only (p = 0.08) and CTE (p = 0.08) groups compared to controls, and similarly increased in AD only (p = 0.049) and CTE (p = 0.049) groups compared to the AD+CTE group (Table 2, Fig. 1). There were statistically significant increases in levels of vitreous pTau181 in AD only and CTE only versus controls; vitreous pTau₂₃₁ levels in AD only and CTE only versus AD+CTE; and vitreous eotaxin-1 levels in controls and AD only versuss AD+CTE–all of which lost significance after adjustment for multiple comparisons (Table 2).

Table 2

Wilcox-Test results for pairwise comparisons between all study groups, unadjusted for multiple comparison and adjusted for multiple comparisons (Benjamini & Hochberg)

Vitreous	Control	Versus AD		Versus		Versus		AD only	Versus AD+CTE		Versus AD+CTE		CTE only	Versus AD+CTE		AD + CTE
Biomarker		only		CTE		AD+CTE
	Median	p	p ^#	p	p ^#	p	p ^#	Median	p	p ^#	p	p ^#	Median	p	p ^#	Median
	(IQR)							(IQR)					(IQR)			(IQR)
tTau, pg/mL	167000	0.054^*	0.08^*	0.04^**	0.08^*	0.82	0.98	1720000	>0.99	>0.99	0.016^**	0.049^**	2170000	0.015^**	0.049^**	194000
	(84400–1010000)							(1030000–4190000)					(27900–6780000)			(57700–710000)
	n = 8							n = 7					n = 15			n = 9
pTau₁₈₁, U/mL	102 (55–256)	0.09^*	0.28	0.056^*	0.28	0.96	0.96	364 (284–446)	0.49	0.59	0.46	0.59	273 (175–435)	0.31	0.59	120 (39.6–410)
	n = 8							n = 7					n = 15			n = 9
pTau₂₃₁, U/mL	2510 (836–9480)	0.28	0.42	0.17	0.33	0.48	0.58	23000 (5610–29000)	0.97	0.97	0.04^**	0.13	17800 (1840–36400)	0.04^**	0.13	1180 (198–5190)
	n = 8							n = 7					n = 14			n = 9
Aβ₄₀, pg/mL	484 (363–700)	0.61	0.74	0.15	0.71	0.54	0.74	482 (382–546)	0.24	0.71	0.84	0.84	358 (176–482)	0.52	0.74	458 (245–563)
	n = 8							n = 7					n = 15			n = 9
Aβ₄₂, pg/mL	29.6 (21.6–43)	0.54	0.64	0.10	0.60	0.32	0.64	30.0 (20.5–31.8)	0.24	0.64	>0.99	>0.99	18.1 (6.02–25.7)	0.48	0.64	30.2 (10.1–33.1)
	n = 8							n = 7					n = 15			n = 9
NfL, pg/mL	811 (577–9700)	0.53	0.96	0.80	0.96	0.52	0.96	2640 (1050–2650)	0.96	0.96	0.65	0.96	1730 (714–4750)	0.34	0.96	1130 (99.6–3480)
	n = 7							n = 5					n = 14			n = 6
Eotaxin-1, pg/mL	49.8 (39.5–92.1)	0.96	>0.99	0.87	>0.99	0.09^*	0.28	66.5 (20.9–115)	>0.99	>0.99	0.07^*	0.28	54.1 (22.4–162)	0.14	0.28	19.5 (13.5–46.4)
	n = 8							n = 7					n = 14			n = 9

p, unadjusted p value; p^#, p value after adjusting for multiple comparisons testing. ^*p < 0.10; ^**p < 0.05. IQR, interquartile range; AD, Alzheimer’s disease; CTE, chronic traumatic encephalopathy; Aβ, amyloid-β; tTau, total tau; pTau, phosphorylated tau; NfL, neurofilament; pg/mL, picograms per milliliter; U/mL, units per milliliter.

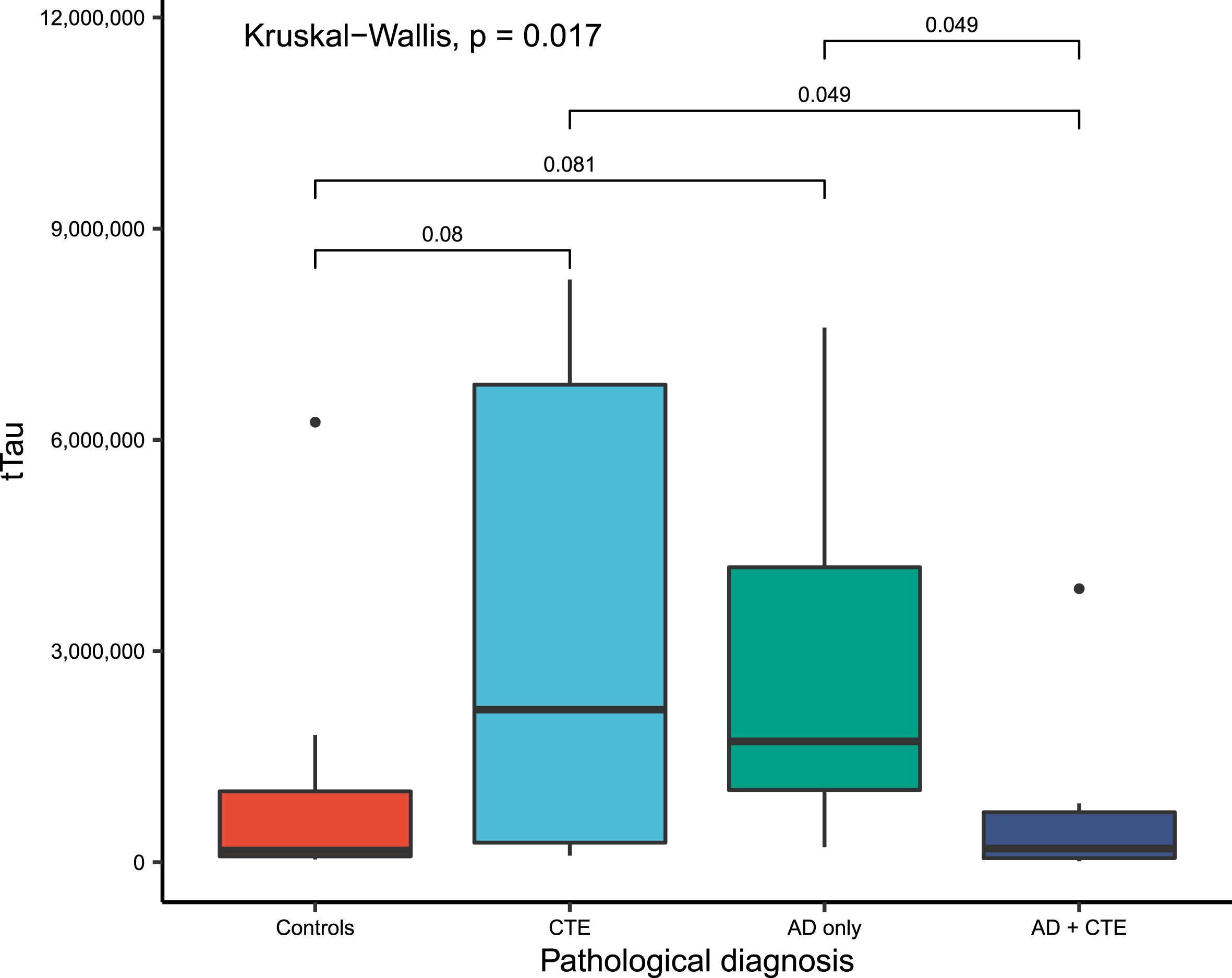

Fig. 1

Boxplots of vitreous fluid biomarkers levels of total Tau, by study groups, compared using Kruskal-Wallis rank sum test with p values adjusted for multiple comparisons and only statistically significant values (p < 0.10) mentioned. tTau, total tau proteins; CTE, chronic traumatic encephalopathy; AD, Alzheimer’s disease.

Relationship between various vitreous biomarker levels and pathological staging

Vitreous biomarkers were compared between groups having no CTE, low CTE (Stage I or II) and high CTE (Stage III or IV). In pairwise comparison adjusting for multiple comparisons, NfL was significantly increased in low stage CTE versus no CTE (p = 0.096) and versus high stage CTE (p = 0.03) (Table 3, Fig. 2). In pairwise comparison, Aβ₄₂ vitreous levels were significantly decreased in low CTE versus no CTE (p = 0.07); however, this association was lost after adjustment for multiple comparisons.

Table 3

Wilcox-Test results for pairwise comparisons between CTE stages, unadjusted for multiple comparison and adjusted for multiple comparisons (Benjamini & Hochberg)

Vitreous	No CTE	Versus CTE		Versus CTE		CTE Stage I/II	Versus CTE		CTE Stage III/IV
Biomarker		Stage I/II		Stage III/IV		(low stage)	Stage III/IV		(high stage)
	Median (IQR)	p	p ^#	p	p ^#	Median (IQR)	p	p ^#	Median (IQR)
tTau, pg/mL	743000	0.20	0.29	0.78	0.78	5340000	0.18	0.30	710000
	(167000– 2080000)					(661000– 7770000)			(112000– 3030000)
	n = 15					n = 5			n = 19
pTau₁₈₁, U/mL	260 (102– 424)	>0.99	>0.99	0.70	>0.99	196 (154– 207)	0.72	>0.99	290 (126– 466)
	n = 15					n = 5			n = 19
pTau₂₃₁, U/mL	7390 (1090– 24600)	0.40	0.58	0.58	0.58	15500 (5190– 20100)	0.29	0.58	3620 (410– 22200)
	n = 15					n = 5			n = 18
Aβ₄₀, pg/mL	482 (361– 612)	0.27	0.40	0.22	0.40	458 (98.4– 466)	0.95	0.95	417 (250– 535)
	n = 15					n = 5			n = 19
Aβ₄₂, pg/mL	30 (19– 34.8)	0.07^*	0.20	0.26	0.26	10.1 (2.07– 15.6)	0.21	0.26	21.9 (10.7– 32.3)
	n = 15					n = 5			n = 19
NfL, pg/mL	1020 (665– 2660)	0.06^*	0.096^*	0.27	0.27	6700 (4040– 16600)	0.01^**	0.03^**	848 (282– 2160)
	n = 12					n = 5			n = 15
Eotaxin-1, pg/mL	56.1 (25.9– 115)	>0.99	>0.99	0.17	0.50	51.7 (36– 120)	0.49	0.74	31.4 (14.8– 71.4)
	n = 15					n = 5			n = 18

p = unadjusted p value and p^# = p value after adjusting for multiple comparisons testing. ^*p < 0.10 and ^**p < 0.05. IQR, interquartile range; AD, Alzheimer’s disease; CTE, chronic traumatic encephalopathy; Aβ, amyloid-β; tTau, total tau; pTau, phosphorylated tau; NfL, neurofilament light; pg/mL, picograms per milliliter; U/mL, units per milliliter.

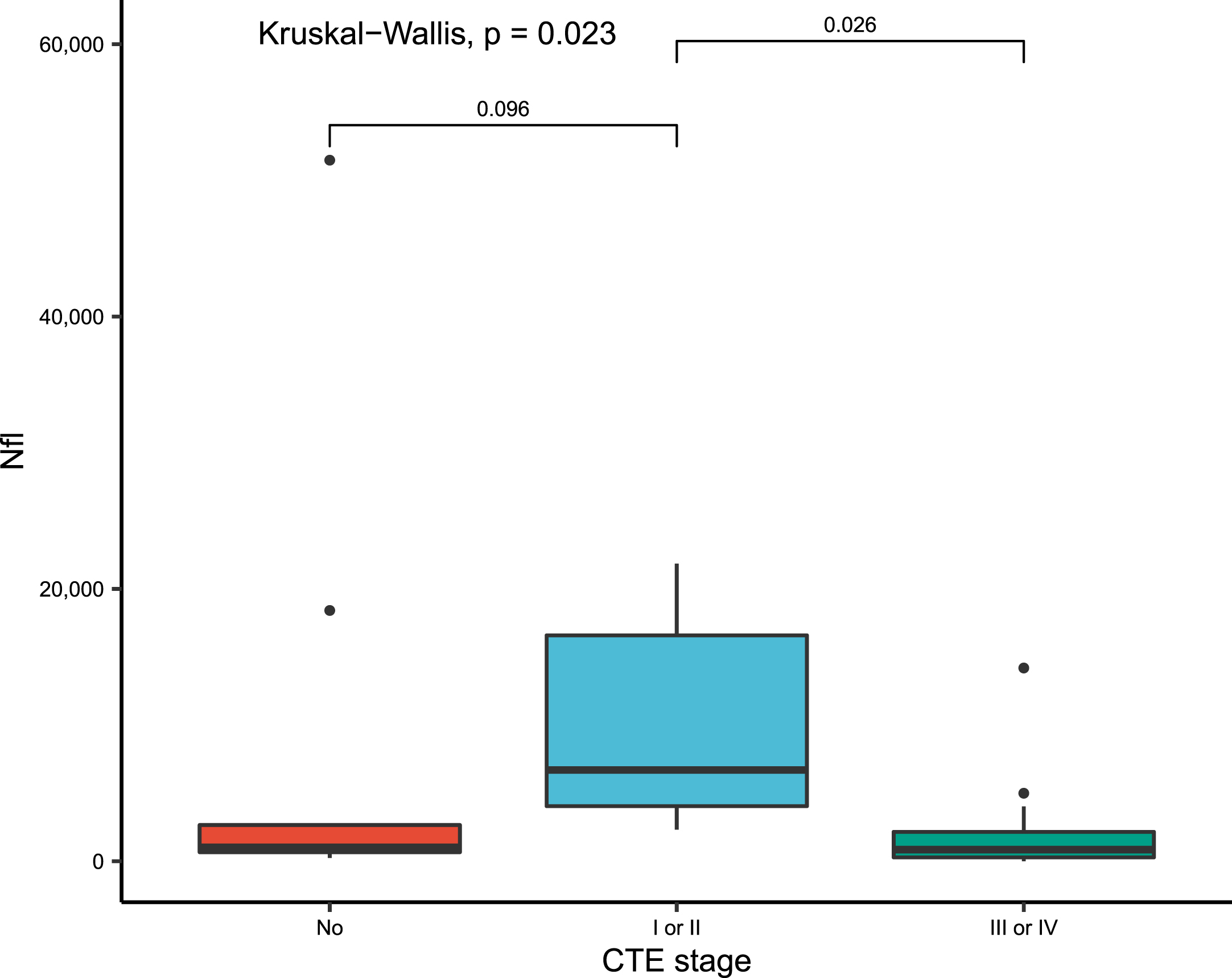

Fig. 2

Boxplots of vitreous fluid biomarkers levels of NfL, by CTE staging, compared using Kruskal-Wallis rank sum test with p values adjusted for multiple comparisons and only statistically significant values (p < 0.10) mentioned. NfL, neurofilament light chain; CTE, chronic traumatic encephalopathy.

Relationship between vitreous and cortical tissue biomarker levels

When assessing correlation between vitreous biomarker levels and corresponding cortical brain tissue biomarker levels, tTau (r = –0.34, p = 0.04, n = 37) and pTau₂₃₁ (r = 0.38, p = 0.02, n = 36) were significantly correlated (Fig. 3). tTau had a weak to moderate negative correlation whereas pTau₂₃₁ had a weak to moderate positive correlation between the vitreous and cortical levels.

Fig. 3

Scatter plot showing correlation between vitreous and cortical biomarker levels for (a) tTau and (b) pTau₂₃₁; assessed using Spearman’s correlation test and only statistically significant values (p < 0.10) mentioned. tTau, total tau proteins; pTau₂₃₁, phosphorylated tau 231.

DISCUSSION

Recent studies have investigated different ocular biomarkers to diagnose neurodegenerative disease such as neurodegenerative proteins in the retina [37] as well as the vitreous, aqueous, and tear fluids of the eye [38, 39]. A previous study from our group found an association of elevated Aβ₄₀, Aβ₄₂, and tTau in the vitreous humor of patients with lower MMSE scores, but no formal diagnosis of dementia at the time of participation [28]. In our current study we found that the postmortem vitreous humor levels of tTau were significantly associated with the neuropathological diagnoses of AD and CTE in postmortem brains. Vitreous levels of tTau were significantly elevated in AD and CTE groups when comparing to the AD+CTE group and controls. We additionally found that NfL levels were found to have a significant association with CTE stage. NfL was significantly increased in low stage CTE versus no CTE as well as low stage CTE versus high stage CTE. Finally, we found that vitreous levels of pTau231 and tTau were significantly correlated to cortical brain tissue levels of the same biomarkers. This is the first study to our knowledge to study the role of vitreous biomarkers in prognostication of neurodegenerative diseases and relationship with cortical biomarker levels. Our findings provide further evidence to support the potential role of vitreous biomarkers in early diagnosis and prognostication of neurodegenerative diseases like AD and CTE.

In CSF, tTau and pTau levels have been proven to be highly concordant with AD and helpful in making a diagnosis [40, 41]. Additionally, our group has recently demonstrated pTau₂₃₁ levels in CSF to be significantly higher in both low stage and high stage CTE groups compared to the controls or AD only group. Conversely Aβ_1 - 42 was significantly decreased in CTE, suggesting that the relationship between cortical and CSF Aβ levels is altered in CTE compared to AD [42]. Hence, the combination of these biomarkers could be useful in distinguishing CTE from AD. Previously, Olczak et. al. investigated biofluids including vitreous humor and tested levels of microtubule associated protein tau in patients with severe TBI at death, but only found elevated levels in urine and saliva [43]. The lack of change in the vitreous in that study may be due to the acute nature of the injury or due to the relatively small sample size. Hart de Ruyter et al. recently demonstrated that the pathological tau load in the retina was increased in patients with AD and correlated with the Braak stage for neurofibrillary tangles, hence correlating with the tau pathology in the brain [37]. In this study, we see that tTau levels in vitreous humor were significantly increased in both the AD only and CTE groups relative to controls, concordant with the prior literature on CSF changes in AD and CTE [5 , 44–46]. Interestingly, similar to results previously reported in postmortem CSF [42], vitreous levels of Aβ₄₂ were decreased in low stage CTE relative to no CTE, although significance was lost after adjustment for multiple comparisons. Similarly, low Aβ₄₂ CSF levels were also reported in a group of professional athletes who have experienced repetitive concussive traumatic brain injury, when compared to healthy controls [47]. Hence, these eye-based protein biomarkers could be a more accessible and cost-effective adjunct for diagnosis or prognostication in neuropathological disease diagnosis.

Also, this study reports a significant increase in vitreous tTau in both the AD only and CTE only groups compared to the AD+CTE group. Additionally, pTau₂₃₁ in vitreous humor was significantly increased in both the AD only and CTE only groups relative to the AD+CTE group on initial analysis. Eotaxin-1/CCL11 has previously been shown to be increased in frontal cortex and CSF in CTE, but not in AD [48]. We did not see this trend in vitreous fluid although preliminary analyses showed that levels of eotaxin-1/CCL11 were decreased in AD+CTE compared to controls and the AD only group. The relationship between various protein biomarkers in coexistent AD+CTE are not fully understood but these results indicate a decreasing trend of these biomarkers in groups with both AD+CTE compared to AD only or CTE only, which may be a result of greater disease burden with combined AD and CTE. These results could serve as a starting point to investigate the relationship between these two neuropathological entities and the resultant changes in vitreous humor.

NfL has been widely studied in both blood and CSF as a marker of traumatic brain injury (TBI) [49 –52]. Less is known about the association between NfL levels and CTE, a neurodegenerative disease linked with repetitive mild TBIs. However, preliminary studies also suggest that blood NfL levels increase with the severity of concussion as measured by decreased white matter integrity [49, 52] and in those with CTE [53]. Our group previously reported that NfL levels in the vitreous of cognitively normal patients with underlying eye disease are associated with AD markers such as Aβ₄₂, Aβ₄₀, and t-tau as well as other inflammatory and vascular cytokines [29]. This study did not find an association of vitreous NfL with the neuropathological diagnosis, but it was associated with CTE staging, consistent with prior studies in CSF. We saw statistically significant increase in NfL in low stage CTE versus controls as well as versus high stage CTE, which was retained on further adjustment for multiple comparisons. Further larger sample sized studies could be helpful to elucidate its role as a biomarker for CTE staging.

In this study, we additionally found a significant correlation between the vitreous and brain cortical levels of tTau (negative correlation) and pTau₂₃₁ (positive correlation). Tau proteins play a similar role in the brain and the eye – they regulate axonal and cytoskeletal transport in both organs and impact Aβ accumulation and cell-survival signaling in the retina and brain [54]. Although release of tTau from the brain is a possible source of this protein in the vitreous, several studies have found tau aggregates in the retina correlated to ophthalmic diseases such as age-related macular degeneration, retinitis pigmentosa, macular hole, diabetic retinopathy, and glaucoma [55, 56]. Further studies are needed to demonstrate correlation of vitreous and cortical levels with clinical diagnosis and pathology.

The potential utility of procuring eye fluid for immunoassay analyses, as a diagnostic marker for AD or CTE, is still being explored. Compared to CSF analysis, a sampling eye fluid may be potentially safer, quicker, and more accessible to obtain with a potentially less risk of adverse events. It may be done as an outpatient office procedure via aspiration with a needle tap and, depending on the type of eye fluid, it may not require surgical tools such as a mechanized biopsy with a vitrector. Ophthalmologic data on this procedure has demonstrated a high success rate for the diagnostic yield as well as similar safety profile compared to surgical vitreous biopsy [57, 58]. Furthermore, study of other ocular specimens such as aqueous humor or tear film as potential biomarkers of neurodegenerative diseases would further mitigate safety risks, especially tear fluid which can be obtained noninvasively.

Our findings build upon our previous work that vitreous fluid reflects pathological changes in the brain. In addition, this is the first study to find a link between vitreous biomarkers and CTE. These findings are foundational for future studies that may investigate the role of vitreous biomarkers and other eye fluid biomarkers in the diagnosis, prognostication, and management of diseases such as AD and CTE.

There were limitations to our study. First, we had a small sample size due to the reliance on donation of post-mortem brain and ocular tissue samples for our study methodology. Given this limitation, subdividing the samples into pathologic groups resulted in several mixed cases of both AD and CTE and the overlap in the pathology of these diseases could be potentially confounding. Future studies with larger numbers will also allow for consideration of vascular and white matter pathologies. Secondly, the median age of our control group was younger which might affect the levels of tTau, which is known to increase with aging. We were unable to adjust for age in our statistical analysis because of the small sample size and variability in age. As the AD only and AD+CTE groups are older than other groups, we should be cautious on interpreting the results when comparing these groups to others. Thirdly, our study uses controls with a history of RHI, and not true controls with no RHI or pathology, which potentially underestimates our effect and may bias towards null. Also, this study was retrospective by design, hence there is a possibility for selection bias; nearly all patients were male; thus, further longitudinal studies with larger sample sizes are needed to yield generalizable results to the patient population. Lastly, we did not have clinical information on any eye diseases which may have affected biomarker levels.

To summarize, this exploratory study found a link of several vitreous biomarkers with pathologically confirmed AD and CTE. Alterations of neurodegenerative proteins in the eye may reflect neuropathological changes in the brain and further support investigations into the eye’s potential role in the diagnosis of neurodegenerative diseases.

Footnotes

ACKNOWLEDGMENTS

The authors have no acknowledgments to report.

FUNDING

This work was supported by R03, National Institute of Health/National Institute of Aging/Extramural Research Program (NIH/NIA/ERP,1R03AG063255-01); United States (U.S.) Department of Veterans Affairs, Veterans Health Administration, Veterans Affairs Biorepository (BX002466); BLRD Merit Award (I01BX005933, I01BX005161); National Institute of Neurological Disorders and Stroke (U54NS115266, K23NS102399); National Institute of Aging Boston University AD Research Center (P30AG072978); and the Concussion Legacy Foundation. This work was also supported by unrestricted gifts from the Andlinger Foundation and WWE. This material is the result of work supported with resources and the use of facilities at the VA Bedford Healthcare System. The sponsor or funding organization had no role in the design or conduct of this research.

CONFLICT OF INTEREST

Weiming Xia, Michael L. Alosco, and Manju Subramanian are Editorial Board Members of this journal but were not involved in the peer-review process nor had access to any information regarding its peer-review.

All other authors have no conflict of interest to report.

DATA AVAILABILITY

The datasets generated during and/or analyzed during the current study are available from the corresponding author on reasonable request.
