Low-Dose Radiation Therapy Impacts Microglial Inflammatory Response without Modulating Amyloid Load in Female TgF344-AD Rats

Abstract

Background:

Low-dose radiation therapy (LD-RT) has demonstrated in preclinical and clinical studies interesting properties in the perspective of targeting Alzheimer’s disease (AD), including anti-amyloid and anti-inflammatory effects. Nevertheless, studies were highly heterogenous with respect to total doses, fractionation protocols, sex, age at the time of treatment and delay post treatment. Recently, we demonstrated that LD-RT reduced amyloid peptides and inflammatory markers in 9-month-old TgF344-AD (TgAD) males.

Objective:

As multiple studies demonstrated a sex effect in AD, we wanted to validate that LD-RT benefits are also observed in TgAD females analyzed at the same age.

Methods:

Females were bilaterally treated with 2 Gy×5 daily fractions, 2 Gy×5 weekly fractions, or 10 fractions of 1 Gy delivered twice a week. The effect of each treatment on amyloid load and inflammation was evaluated using immunohistology and biochemistry.

Results:

A daily treatment did not affect amyloid and reduced only microglial-mediated inflammation markers, the opposite of the results obtained in our previous male study. Moreover, altered fractionations (2 Gy×5 weekly fractions or 10 fractions of 1 Gy delivered twice a week) did not influence the amyloid load or neuroinflammatory response in females.

Conclusions:

A daily treatment consequently appears to be the most efficient for AD. This study also shows that the anti-amyloid and anti-inflammatory response to LD-RT are, at least partly, two distinct mechanisms. It also emphasizes the necessity to assess the sex impact when evaluating responses in ongoing pilot clinical trials testing LD-RT against AD.

Keywords

Alzheimer’s disease amyloid low-dose radiation therapy microglial response

INTRODUCTION

Alzheimer’s disease (AD) is a neurodegenerative disease that affects mainly memory. Extracellular amyloid deposits, due to abnormal metabolism of amyloid-β (Aβ) peptides, has been the first hallmark of the disease described by Alois Alzheimer. Those peptides are produced after a successive cleavage of the amyloid-β protein precursor (AβPP) by the β-secretase (also named BACE1) and a γ-secretase. The non-amyloidogenic pathway, involving an α-secretase instead of BACE1, allows the production of a soluble AβPPα fragment, among others, which has been shown to be neuroprotective [1]. The amyloid deposits are accompanied by abnormal hyperphosphorylation of the tau protein, neuroinflammation, and degeneration of neurons. The neuroinflammatory phenomena correspond to the response of astrocytes and microglial cells, that become reactive to brain homeostasis dysregulation [2 –4]. This reactive state is characterized for example by morphological and proteomic changes, with the upregulation of proteins such as GFAP and CD68 by astrocytes and microglia respectively.

Numerous risks factors have been identified, the most important being aging and sex with a higher incidence in women. The main hypothesis was initially that women generally live longer than men, reaching ages with higher risk to develop the pathology. However, growing evidence identifies sex hormones and estrogen dysregulation after menopause as specific disease modulators [5]. Despite this evidence, the sex effect in patient evaluation and treatment response is still generally under-evaluated and underreported in clinical studies [6].

Among the numerous therapeutical strategies developed against AD, low-dose radiation therapy (LD-RT) showed interesting results in animal models [7 –13]. Indeed, this strategy could allow to decrease two central players in AD, namely amyloid load and neuroinflammation. A reduction of the tauopathy has also been suggested in a study [8], but the results were not replicated in younger mice in the same model [12]. Importantly, the evaluation of LD-RT efficiency varies between pre-clinical studies in terms of irradiation protocols, age and duration of treatment, delay post LD-RT and animal models. It is consequently difficult to correctly interpret results. In a recent study, we observed an efficient reduction of amyloid load and inflammation markers after a daily treatment with 2 Gray (Gy) delivered in 5 fractions in 9-month-old male TgF344-AD (TgAD) rats [14]. The same regimen led to spatial memory improvement in aged female TgAD without modification of amyloid load nor inflammation [10]. In another study on female 3xTg-AD mice, where we applied the same treatment at a pre-symptomatic stage, we only observed a decrease of highly aggregated Aβ₄₂ peptides and a trend to the reduction of other forms. Neuroinflammation markers studied were not impacted by LD-RT. Altogether, these results suggest a possible sex effect in the treatment response, with a lower sensitivity of females at the neurochemical level, which however has never been specifically investigated.

To verify this hypothesis, we treated female TgAD rats at the same age and with the same regimen than TgAD male rats, with 5 daily fractions of 2 Gy (Total dose: 10 Gy). As benign degenerative inflammatory pathologies are also commonly treated with lower fractionation protocols [15], we also evaluated other fractionations to compare their anti-inflammatory effect of LD-RT (5 once-a-week fractions of 2 Gy or 10 fractions of 1 Gy delivered twice a week; Total dose = 10 Gy) to the reference regimen.

MATERIAL AND METHODS

Animals

Female TgF344-AD rats harboring the human APP_swedish and PS1dE9 transgenes on a Fisher 344 background [16] were treated at 9-month-old using different regimens of LD-RT and analyzed two-months later. Sham treated TgAD rats (sham) and sham treated non-transgenic littermates (wild type; WT) were used as controls. Animals were housed with food and water ad libitum in a 12-h light-dark cycle. Animals were randomly assigned to groups and tested in blind conditions (experimental treatment and genotype). All experimental procedures were approved by the Ethics Committee for Animal Experimentation of the Canton of Geneva, Switzerland.

Radiation treatment

Nine-month-old TgF344-AD rats received whole brain irradiation with a 6 MV direct radiation field under anesthesia (2% isoflurane) using a Truebeam^® Linear Accelerator (Varian Medical Systems) as previously described [17]. The first cohort was treated with 5 daily fractions of 2 Gy (Total dose: 10 Gy; RT1, n = 10), the second cohort was treated with 5 once-a-week fractions of 2 Gy (Total dose: 10 Gy; RT2, n = 9) and the third cohort was treated with 10 fractions of 1 Gy delivered twice a week for 5 weeks (Total dose: 10 Gy; RT3, n = 11). Sham treated TgAD animals (n = 15) and WT animals (n = 15) were randomly divided in the three cohorts (n = 4–6/cohort/genotype) and anesthetized accordingly. Animals were euthanized two months after the last treatment session.

Behavior

Alternative Y maze. The spatial working memory of animals assessed before treatment and 2 months after the last session of treatment using the alternative Y maze test. Rats were placed at the extremity of one arm of the device (50×50×10 cm) and video-tracked for 5 min. The number of good alternations between the 3 arms (success to the test) were automatically measured and analyzed using the EthoVision software (Noldus). Rats performing less than four entries during the session were excluded (n = 16/58).

Open field. This test was used to measure the general locomotion of animals before and after LD-RT. Rats were placed at the center of the square area (45×45×40 cm) and the total distance travelled was automatically measured during 1 h using a video tracking and EthoVision software.

Protein extraction

At the end of the behavioral session, animals were euthanized by decapitation under anesthesia. The brain was rapidly extracted, and the hemispheres were separated on ice. The half brain was dissected to collect the hippocampus and the frontal cortex, that were then snap frozen in liquid nitrogen. The rest of the cortex was also collected and snap frozen for mRNA analyses (see details below). Proteins were then extracted in a Triton X100 lysis buffer [50 mM Tris-HCl pH = 7.4, 150 mM NaCl, 1% Triton X-100 with 1× protease and phosphatase inhibitors (Pierce); 300 μl], centrifuged at 20,000 g for 20 min at 4°C. The supernatant contains Triton X100 (Tx)-soluble proteins. The pellet was re-suspended in a Guanidine lysis buffer [50 mM Tris-HCl pH = 8, 5 M Guanidine HCl with 1× protease and phosphatase inhibitors (Pierce); 180 μl], incubated for 3 h on ice and centrifuged at 20,000 g for 20 min at 4°C. The supernatant contains Guanidine (Gua)-soluble proteins. The total protein concentration was determined using the BCA test (Pierce). Manufacturer’s protocol was followed.

ELISA tests

A β measurements. Different forms of Aβ peptides were measured using the following kits: human Aβ₄₀ ELISA test (Life Technologies), human Aβ₄₂ ELISA test (Life Technologies). Cortical Tx-soluble samples were diluted at 1/300 in the diluent buffer provide in Aβ₄₀ kit, and at 1/100 in the diluent buffer for Aβ₄₂. Gua-soluble samples were diluted at 1/16 in guanidine buffer and then at 1/500 in diluent buffer for Aβ₄₀; 1/800 in guanidine buffer and then at 1/500 in diluent buffer for Aβ₄₂. Hippocampal Tx-soluble samples were diluted at 1/10 in the diluent buffer of Aβ₄₀ kit, and at 1/250 in the diluent buffer for Aβ₄₂. Gua-soluble samples were diluted at 1/6 in guanidine buffer and then at 1/500 in diluent buffer for Aβ₄₀; 1/300 in guanidine buffer and then at 1/500 in diluent buffer for Aβ₄₂. Manufacturer’s protocols were followed. Absorbances were measured at 450 nm using the EZ read 400 microplate reader (Biochrom). The absence of amyloid in WT was validated for all forms. Aβ concentrations were normalized to the total protein quantity (μg proteins).

sAβPPα and sAβPPβ measurements in the frontal cortex. Samples were diluted at 1/10 in the diluent provided in the ELISA kit of interest (Mybiosource). Manufacturer’s protocols were followed. The absorbance was measured at 450 nm using the EZ read 400 microplate reader (Biochrom) and concentrations were normalized to the total protein quantity (μg proteins).

Western blot

After a denaturation step (70°C, 10 min) in a 1× Laemmli buffer/2.5% β-mercaptoethanol, 40 μg of proteins from the hippocampus or frontal cortex and a protein ladder (All blue precision plus ladder, Biorad) were loaded onto in Criterion™ TGX™ precast midi protein gel (Biorad) and migrated at 150 V for 55 min with the manufacturer’s buffer (BioRad). Proteins were then transferred on a LF-PVDF membrane in 7 min at 2.5A constant, and up to 25 V in the manufacturer buffer using the Trans-blot Turbo machine (BioRad). Membrane was saturated in 5% non-fat dry milk/TBST (20 mM Tris, 150 mM NaCl, 0.1% Tween20, pH = 7.4) for 45 min and then incubated 48 h at 4°C with the following primary antibodies in 5% milk/TBST: CLUSTERIN (CLU; 1/250, mouse; R&D system), GFAP-Cy3 (1/250, mouse; Sigma), GAPDH (1/5000, rabbit; Cell signaling), SERPINA3 N (1/250, rabbit; Invitrogen), STAT3α (1/250, rabbit; Cell signaling). After 3 washes in TBST of 10 min at room temperature, the membrane was immerged in the appropriated Alexa Fluor-conjugated secondary antibody (Alexa-Fluor 488 or 555; Invitrogen) in 5% milk/TBST for 90 min. After 3 washes in TBST (10 min, room temperature), the fluorescence was detected using the iBright imaging system (ThermoFisher Scientific). The same membrane was reused after a new saturation step. Densitometry analysis was performed using ImageJ to quantify proteins and protein levels were normalized to GAPDH levels.

Immunofluorescence

The other half brain of each animal was post fixed in 4% paraformaldehyde overnight (O/N) and cryoprotected with a sucrose solution before to be frozen in isopentane. Coronal slices (35 μm) were cut using a cryostat and stored at –20°C until use. After washes in PBS0.1M, slices were mounted on gelatin slides and let dry O/N. After rehydration in PBS0.1M, slices were incubated in 20 μg/ml methoxy-XO4 (MXO4; Tocris) in PBS0.1M for 30 min at room temperature to label amyloid plaques. Slices were rinsed in PBS0.1M and incubated O/N at 4°C with the following primary antibodies: anti-4G8 (1/500, Mouse; Biolegend), anti-GFAP-Cy3 (1/1000, Mouse; Sigma), anti-CD68 (1/1000, Rabbit; Invitrogen) in 1% BSA/PBS0.1M/0.3% Triton X-100. After 3 washes in PBS0.1M, slices were incubated for 1 h at room temperature in the appropriate secondary antibody (1/250, Alexa Fluor) in 1% BSA/PBS0.1M/0.3% Triton X-100. Finally, slices were rinsed before being coverslipped with Fluorosave™ (Calbiochem).

Image analyses

Images were acquired at 10× with the Axioscan.Z1 scanner (Zeiss) and analyzed using ImageJ. The hippocampal subregions (subiculum, dorsal, ventral) were manually delimited and an intensity threshold, kept constant between subregions, was applied to quantify the percentage of the region of interest (ROI) positively stained with MXO4, 4G8, or GFAP. For CD68, an intensity and size threshold, kept constant between subregions, were used to automatically count the number of CD68⁺ cells, normalized by the size of the ROI. For correlation analyses of inflammation markers (GFAP or CD68) and amyloid plaques (MXO4 or 4G8), all groups were included as no differential effect was observed between TgAD groups.

RNA extraction and qPCR

Cortical samples were placed into 400 μl of Trizol. Samples were left at room temperature for 5 min and 1 volume of chloroform was added for 3 min. After a vortex and centrifugation at 12,000 g for 15 min at 4°C, the aqueous phase was collected and 1 volume of ethanol 70% was added. Samples were then transferred onto RNeasy columns (RNeasy micro kit, Qiagen) and the manufacturer’s protocol was followed. RNA was eluted with 15 μl of nuclease free water. M-MLV reverse transcriptase synthesis kit (Invitrogen) with random primers (Promega) was used to synthesized cDNA as described by the manufacturer. Samples were diluted at 1/10 in H₂O and mixed with 250 nM of primers and PowerUp™ SYBR™ Green Master Mix (Applied Biosystems) for qPCR. The following sequences of primers were used: Aif1-F: CAGAGCAAGGATTTGCAGGGA, Aif1-R: CAAACTCCATGTACTTCGTCTTG; Itgam-F: CTTGGTGAAACCCGAGTGGT, Itgam-R: TCGATCGTGTTGATGCTACCG; Trem2-F: CCTGTGGGTCACCTCTAACC, TREM2-R: GGCCAGGAGGAGAAGAATGG; Il1β-F: CACACTAGCAGGTCGTCATCATC, Il1 β-R: ATGAGAGCATCCAGCTTCAAATC; Il6-F: AGAGACTTCCAGCCAGTTGC, Il6-R: AGTCTCCTCTCCGGACTTGT; Tnf α-F: CAGAGCAATGACTCCAAAGTA, Tnf α-R: CAAGAGCCCTTGCCCTAA; Tgf- β-F: CCTGGAAAGGGCTCAACAC, Tgf- β-R: CAGTTCTTCTCTGTGGAGCTGA; Il10-F: GCAGTGGAGCAGGTGAAGAA, Il10-R: GTAGATGCCGGGTGGTTCAA; Il4-F: AGACGTCCTTACGGCAACAA, Il4-R: CACCGAGAACCCCAGACTTG; Ppia-F: ATGGCAAATGCTGGACCAAA, Ppia-R: GCCTTCTTTCACCTTCCCAAA. Undetermined Ct values were manually replaced by Ct = 40. Expression levels of genes of interest were normalized to the abundance of Ppia gene with the 2^–ΔΔCt method.

Statistics

Animals were randomly assigned to the different experimental groups. Analyses were performed in blind conditions and normality of residues was assessed with the Shapiro-Wilks test. For the comparison of two groups, an unpaired t-test was performed. One-way ANOVA followed by a Tukey’s multiple comparisons test or Kruskal-Wallis test followed by a Dunn’s comparisons test, were used to compare more than two groups. Two-way ANOVA (Group and genes as between factors) and Tukey’s multiple comparisons test were used to analyze qPCR data. Outliers were identified using the ROUT method (Maximal false discovery rate = 1%). All analyses were performed on GraphPad Prism 9.4.0. Statistical details are provided only if significance was reached.

RESULTS

A daily treatment did not decrease amyloid load in early AD females

Nine-month-old female TgAD were bilaterally treated with 5 consecutive fractions of 2 Gy delivered daily (named RT1 group in the rest of the manuscript; Fig. 1a). The effect of this regimen on different soluble or poorly aggregated Aβ peptides (Tx-soluble) and highly aggregated Aβ (Gua-soluble) was measured in the hippocampus and the frontal cortex of animals. LD-RT1 did not reduce Tx-soluble Aβ₄₀ and Aβ₄₂ (Fig. 1b, c) or Gua-soluble Aβ₄₀ and Aβ₄₂ (Fig. 1d, e) in the hippocampus of RT1-treated animals compared to sham-treated rats. Additionally, no effect on either of these Aβ peptides was observed in the frontal cortex (Fig. 1f–i). Using MXO4 and 4G8 antibody to label fibrillar dense-core [18] or both diffuse and dense-core plaques [19] respectively, we also quantified amyloid plaques in the hippocampal subregions. We can notice that the distribution of amyloid plaques was different within hippocampal subregions. Indeed, subiculum (Sub) showed higher plaques density (MXO4⁺ and 4G8⁺) than the dorsal hippocampus (dH) or the ventral hippocampus (vH) in sham TgAD rats (Fig. 1j–l; MXO4: One-way-ANOVA, F_{(1.064,8.509)} = 6.560, p = 0.0307, Tukey’s multiple comparisons test: p = 0.1455 Sub versus dH, p = 0.0739 Sub versus vH, p = 0.0528 dH versus vH; 4G8: One-way-ANOVA, F_{(1.601,12.80)} = 16.41, p < 0.0001, Tukey’s multiple comparisons test: p = 0.0403 Sub versus dH, p = 0.0032 Sub versus vH, p = 0.0180 dH versus vH). However, LD-RT1 did not impact the plaque density in the different subregions (Fig. 1 m, n). The absence of modulation of soluble AβPPβ (sAβPPβ) levels in the frontal cortex (Fig. 1o) confirms that LD-RT1 did not impact any forms of the amyloid or the amyloidogenic pathway in females. To go further, we also quantified soluble AβPPα (sAβPPα) as index of the non-amyloidogenic pathway. The same levels of sAβPPα were quantified in RT1-treated and sham-treated groups (Fig. 1p).

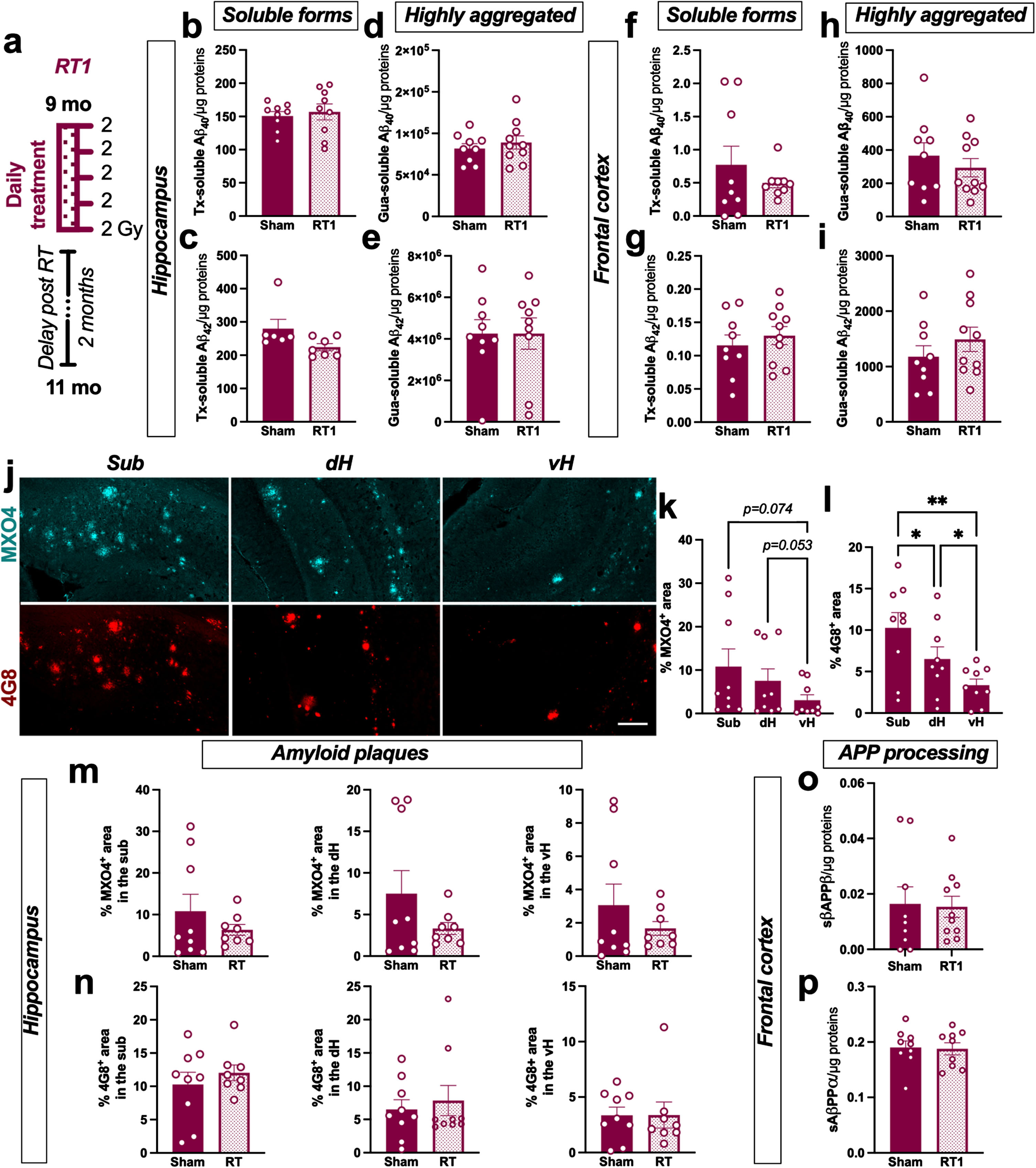

Fig. 1

LD-RT does not reduce amyloid load in early AD females. a) Female TgF344-AD were bilaterally treated by X-ray radiation (2 Gy×5 fractions delivered daily; RT1) at 9-month-old, modeling an early AD stage, and analyzed 2 months later. Sham-treated TgAD rats and WT were only anesthetized. Concentration of Aβ₄₀ (b) and Aβ₄₂ (c) measured in the triton (Tx) soluble fraction of the hippocampus by ELISA. Concentration of Aβ₄₀ (d) and Aβ₄₂ (e) measured in Gua-soluble fraction of the hippocampus by ELISA. (f–i) Concentration of the different Aβ peptides in the frontal cortex by ELISA. (j) Representative images of amyloid plaques labelled with Methoxy-XO4 (MXO4; blue) or 4G8 antibody (red) in hippocampal subregions in a sham treated TgAD rat. Scale bar = 150 μm. Distribution of MXO4⁺ (k) and 4G8⁺ (l) plaques in the hippocampal subregions (Sub, subiculum; dH, dorsal hippocampus; vH, ventral hippocampus) in sham animals. Quantification of MXO4⁺ (m) and 4G8⁺ (n) plaques in the different hippocampal subregions in sham and RT1-treated rats. Concentration of sAβPPβ (o) and sAβPPα (p) in the Tx-soluble fraction of the frontal cortex measured by ELISA. Unpaired t-test or One-way ANOVA and Tukey’s multiple comparisons test. ^*p < 0.005, ^**p < 0.01.

A daily treatment reduced microglial inflammatory response in early AD females

The anti-inflammatory effect of LD-RT1 was first evaluated using classical markers of inflammation overexpressed by reactive astrocytes. In the frontal cortex, sham-treated TgAD rats did not show any difference compared to WT regarding GFAP, STAT3α, and sCLU (Fig. 2a–c and Supplementary Figure 1). SERPINA3 N levels appeared even decreased in both RT1-treated and sham-treated groups (Fig. 2d; One-way ANOVA, F_(2,22) = 7.420, p = 0.0034; Tukey’s multiple comparisons test: p = 0.0035 WT versus sham, p = 0.0344 WT versus RT1, p = 0.7265 sham versus RT1). These results indicate that the pathology is not in place yet in this brain region. Only a significant increase of GFAP was measured after LD-RT1, suggesting a slight pro-inflammatory effect of the treatment (Fig. 2a; One-way ANOVA, F_(2,22) = 9.514, p = 0.0011; Tukey’s multiple comparisons test: p = 0.1426 WT versus sham, p = 0.0007 WT versus RT1, p = 0.0496 sham versus RT1). In the hippocampus, we observed an increase of GFAP levels in sham-treated TgAD rats compared to WT animals without effect of LD-RT1 treatment (Fig. 2e and Supplementary Figure 2; One-way ANOVA, F_(2,21) = 9.365, p = 0.002; Tukey’s multiple comparisons test: p = 0.0027 WT versus sham, p = 0.0031 WT versus RT1, p = 0.9212 sham versus RT1). The same pattern was measured for STAT3α (Fig. 2f; One-way ANOVA, F_(2,26) = 5.179, p = 0.0128; Tukey’s multiple comparisons test: p = 0.0120 WT versus sham, p = 0.6146 WT versus RT1, p = 0.0857 sham versus RT1) and sCLU (Fig. 2 g; One-way ANOVA, F_(2,27) = 13.35, p < 0.0001; Tukey’s multiple comparisons test: p = 0.0007 WT versus sham, p = 0.0002 WT versus RT1, p = 0.9021 sham versus RT1). However, SERPINA3 was unchanged between groups (Fig. 2 h). To go further, we used immunostaining to analyze the astrocyte reactivity in the different hippocampal subregions. A heterogeneous expression of GFAP was observed between subregions of the hippocampus in sham TgAD rats (Fig. 2i). Indeed, GFAP density (% GFAP⁺ area) was significantly higher in the subiculum (sub) than in the ventral hippocampus (vH), and intermediate levels were measured in the dorsal hippocampus (dH) (Fig. 2 j; One-way-ANOVA, F_{(1.315,3.287)} = 12.90, p = 0.0301; Tukey’s multiple comparisons test p = 0.1119 Sub versus dH, p = 0.0404 Sub versus vH, p = 0.1507 dH versus vH). A significant increase of GFAP density in the different subregions of the hippocampus was measured in sham-treated TgAD rats and in RT1-treated rats compared to WT (Fig. 2k; Sub: One-way ANOVA, F_(2,18) = 8.567, p = 0.0024; Tukey’s multiple comparisons test: p = 0.0172 WT versus sham, p = 0.0035 WT versus RT1, p = 0.9987 sham versus RT1; dH: One-way ANOVA, F_(2,20) = 18.41, p < 0.0001; Tukey’s multiple comparisons test: p = 0.0013 WT versus sham, p < 0.0001 WT versus RT1, p = 0.5137 sham versus RT1, vH: One-way ANOVA, F_(2,12) = 6.898, p = 0.0101; Tukey’s multiple comparisons test: p = 0.1744 WT versus sham, p = 0.0078 WT versus RT1, p = 0.5260 sham versus RT1). Surprisingly, LD-RT1 did not reduce the astrocytic response (Fig. 2k).

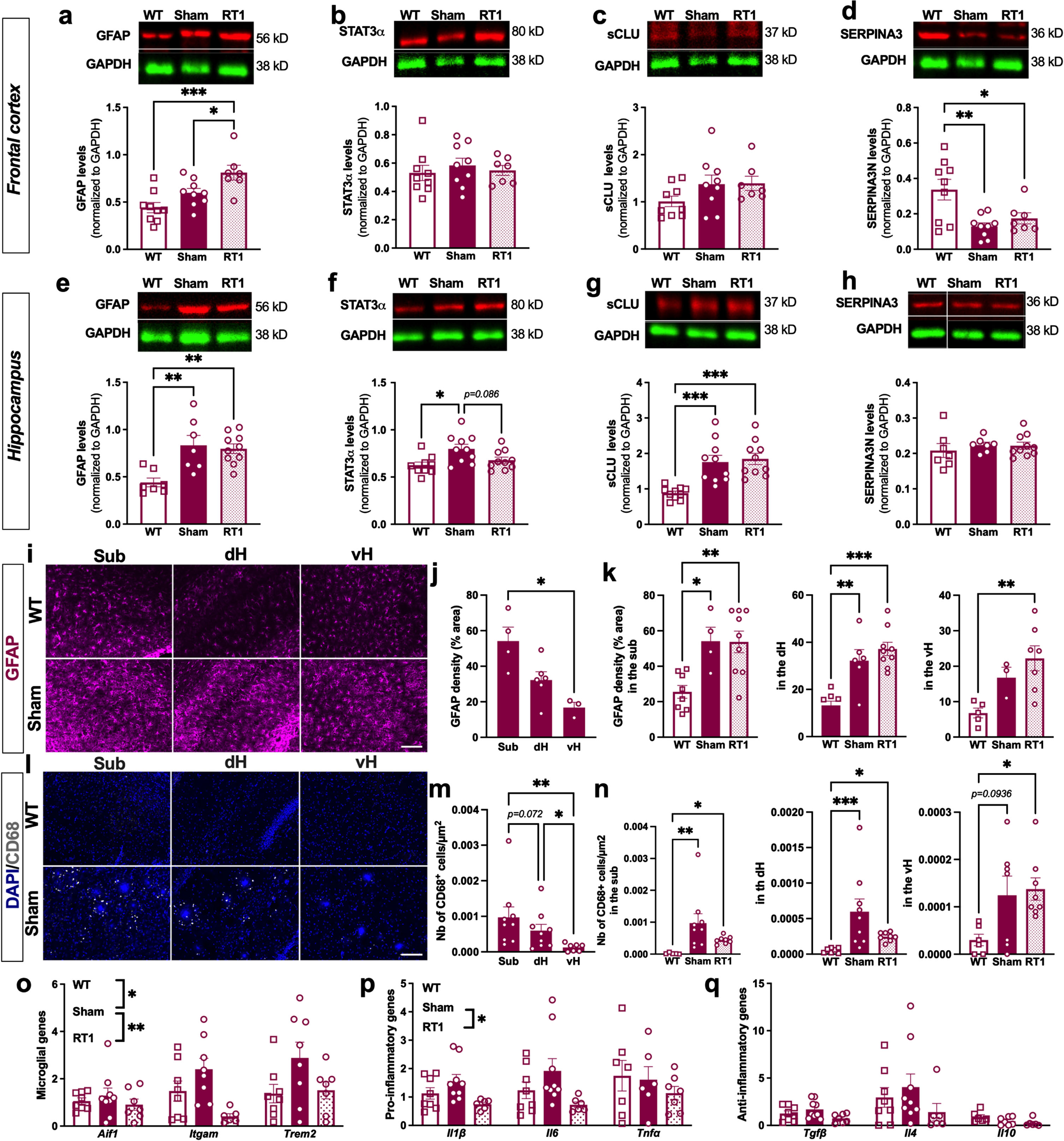

Fig. 2

LD-RT reduces microglial inflammation markers in early AD females. Quantification of astrocytic markers including GFAP (a), STAT3α (b), secreted CLUSTERIN (sCLU) (c), and SERPINA3 N (d) levels by western blot in the frontal cortex. Quantification of GFAP (e), STAT3α (f), secreted CLUSTERIN (sCLU) (g), and SERPINA3N (h) levels by western blot in the hippocampus. Data are normalized to GAPDH levels. One-way ANOVA and Tukey’ multiple comparisons test. i) Representative images of GFAP (magenta) staining in the subiculum (sub), dorsal hippocampus (dH) and ventral hippocampus (vH) of WT and sham treated TgAD rats. Scale bar = 100 μm. j) Quantification of the GFAP density (% positively stained area) in the Sub, dH and vH in sham-treated TgAD rats. k) Quantification of the GFAP density (% positively stained area) in the different groups in the sub, dH and vH. l) Representative images of CD68 (grey; merged with DAPI in blue) staining in the sub, dH and vH of WT and sham treated TgAD rats. Scale bar = 100 μm. m) Quantification of the number of CD68⁺ cells/μm² in sham-treated TgAD rats. n) Quantification of the number of CD68⁺ cells/μm² in the different groups in the sub, dH and vH. One-way ANOVA and Tukey’s multiple comparisons test or Kruskal-Wallis and Dunn’s multiple comparisons test. (o–q) mRNA levels quantified by qPCR in the cortex of animals. Two-way ANOVA (group and gene as between factors) and Tukey’s multiple comparisons test. # or ^*p < 0.05, ^**p < 0.01, ^***p < 0.001.

Regarding microglial cells, we did not observe CD68⁺ cells in the hippocampus of WT rats (Fig. 2l). However, a clear CD68 expression (number of CD68⁺ cells/μm²) was observed in sham-treated TgAD rats, mainly around amyloid plaques, showing also an inflammatory response from microglial cells in TgAD at an early AD stage (Fig. 2l). The number of CD68⁺ cells/μm² was also differentially distributed within hippocampal subregions, with higher number of positive cells in the subiculum than in the dH than in the vH (Fig. 2 m; One-way ANOVA, F_{(1.148,8.038)} = 8.987, p = 0.0151; Tukey’s multiple comparisons test: p = 0.0722 Sub versus dH, p = 0.0080 Sub versus vH, p = 0.0237 dH versus vH). The overexpression of CD68 in sham-treated TgAD rats compared to WT was also validated. Interestingly, LD-RT1 seems to reduce this overexpression (Fig. 2n; Sub: Kruskal-Wallis, p = 0.0004; Dunn’s multiple comparisons test: p = 0.0014 WT versus sham, p = 0.0408 WT versus RT1, p = 0.7834 sham versus RT1; dH: Kruskal-Wallis, p = 0.0007; Dunn’s multiple comparisons test: p = 0.0006 WT versus sham, p = 0.0153 WT versus RT1, p > 0.9999 sham versus RT1; vH: One-way ANOVA, F_(2,18) = 3.853, p = 0.0405; Tukey’s multiple comparisons test: p = 0.0936 WT versus sham, p = 0.0441 WT versus RT1, p = 0.9401 sham versus RT1). To further investigate a potential anti-inflammatory effect on microglial cells after LD-RT1, we performed qPCR in the cortex. The microglial response in TgAD rats was confirmed as demonstrated by the significant upregulation of microglial genes Aif1, Itgam and Trem2, but probably slight as there were no modulation of pro-(Il1β, Il6, Tnfα) or anti-inflammatory (Tgfβ, Il4, Il10) genes between those groups. Interestingly, LD-RT1 reduced the expression of microglial reactivity markers and pro-inflammatory genes, without affecting anti-inflammatory genes (Fig. 2o–q; Microglial genes: Two-way ANOVA, F_(2,64) = 7.144, p = 0.0016 for group main effect, F_(2,64) = 3.566, p = 0.0340 for gene main effect, F_(4,60) = 1.535, p = 0.2037 for group×gene interaction, Tukey’s multiple comparisons test: p = 0.0174 WT versus sham, p = 0.5278 WT versus RT1, p = 0.0010 sham versus RT1; Pro-inflammatory genes: Two-way ANOVA, F_(2,57) = 4.425, p = 0.0164 for group main effect, F_(2,57) = 0.8251, p = 0.4433 for gene main effect, F_(4,57) = 0.626 p = 0.7628 for group×gene interaction, Tukey’s multiple comparisons test: p = 0.4420 WT versus sham, p = 0.1797 WT versus RT1, p = 0.0120 sham versus RT1; Anti-inflammatory genes: Two-way ANOVA, F_(2,57) = 2.073, p = 0.1351 for group main effect, F_(2,57) = 6.727, p = 0.0024 for gene main effect, F_(4,57) = 0.6915, p = 0.6009 for group×gene interaction).

Altered fractionations did not induce an anti-amyloid effect in early AD females

Altered fractionations with lower doses or longer overall treatment time have demonstrated anti-inflammatory effects in peripheral pathologies. Consequently, to evaluate other treatment regimens that could increase the therapeutic effect, we also tested in early AD females the following schedules: one fraction of 2 Gy delivered once-a-week for 5 weeks (RT2) or with 10 fractions of 1 Gy delivered twice a week (RT3) (same total doses than RT1; Fig. 3a). First, we quantified the different concentrations in soluble or poorly aggregated forms of Aβ₄₀ and Aβ₄₂ (Fig. 3b, c) or the highly aggregated forms (Fig. 3d, e) in the hippocampus. However, as for LD-RT1 regimen, no effect was observed on Aβ₄₀ peptides or for Aβ₄₂ highly aggregated forms in RT2- or RT3-treated TgAD compared to sham-treated animals. Surprisingly, RT2 and RT3 regimens even significantly or tend to increase poorly aggregated forms of Aβ₄₂ compared to sham-treated animals (Fig. 3c; Kruskal-Wallis test, p = 0.0234, Dunn’s multiple comparisons test: p = 0.0338 Sham versus RT2, p = 0.0555 Sham versus RT3, p > 0.9999 RT2 versus RT3). The same measurements were realized in the frontal cortex without differences, including for Tx-soluble Aβ42 peptides (Fig. 3f–i). The quantification of MXO4⁺ plaque density (Fig. 3j) or 4G8⁺ plaque density (Fig. 3k) in the different subregions of the hippocampus reveals no effect of RT2 or RT3 regimens. The amyloidogenic (Fig. 3l) or the non-amyloidogenic (Fig. 3 m) pathways were not impacted by LD-RT treatments, showing that lower fractions did not differentially impact the amyloid load in early AD females.

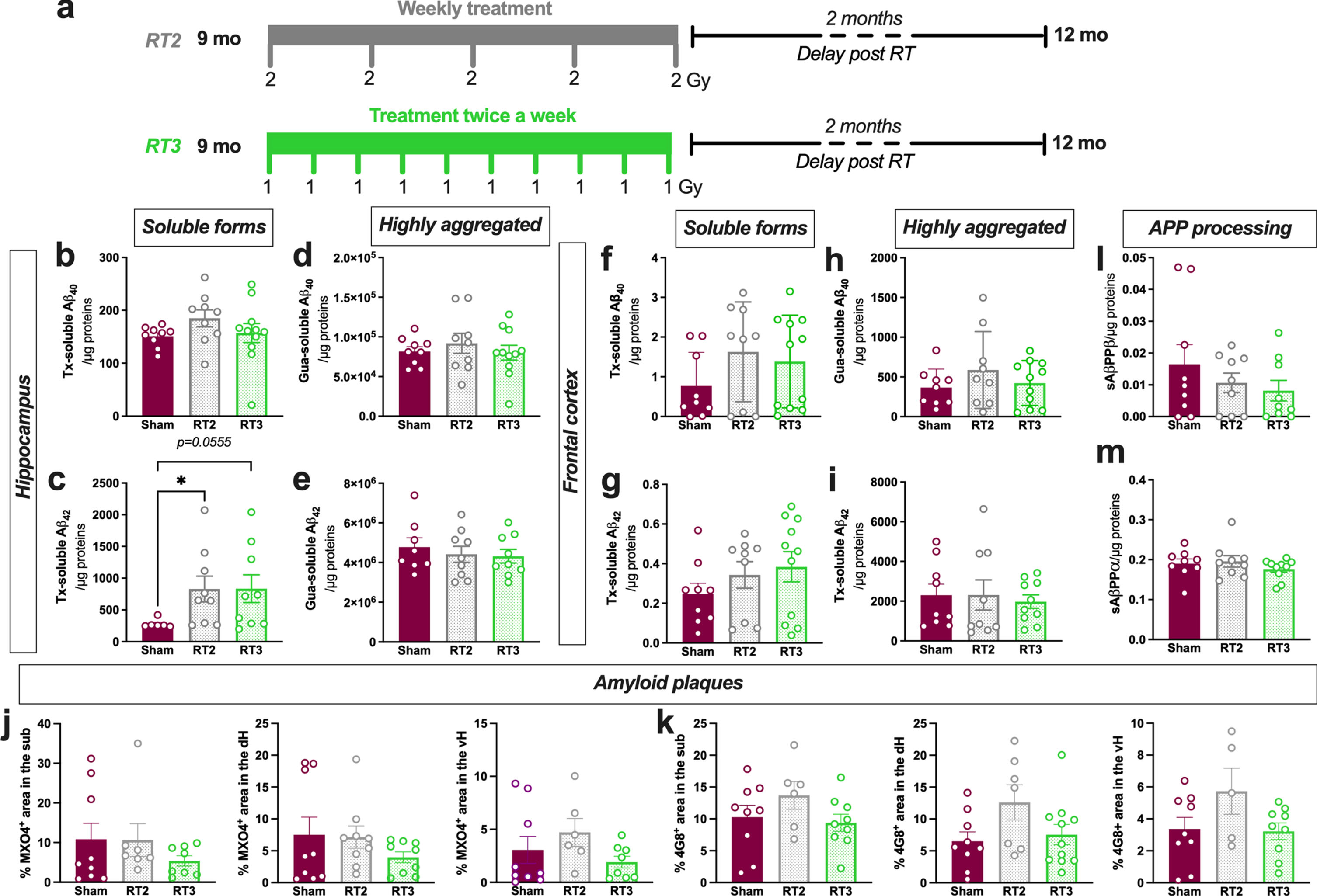

Fig. 3

Altered fractionations of radiation do not improve anti-amyloid effects in females. a) Female TgF344-AD rats were bilaterally treated by X-ray radiation (2 Gy×5 fractions delivered once-a-week; RT2 or 1 Gy×10 fractions delivered twice a week; RT3) at 9-month-old and analyzed 2 months later. Concentration of Aβ₄₀ (b) and Aβ₄₂ (c) measured in the triton (Tx) soluble fraction of the hippocampus by ELISA. Concentration of Aβ₄₀ (d) and Aβ₄₂ (e) measured in Gua-soluble fraction of the hippocampus by ELISA. (f–i) Concentration of different Aβ peptides in the frontal cortex by ELISA. Amyloid plaque density in the hippocampus stained using Methoxy-XO4 (MXO4⁺; j) or 4G8 antibody (k). Concentration of sAβPPβ (l) and sAβPPα (m) in the Tx-soluble fraction of the frontal cortex measured by ELISA. One-way ANOVA or Kruskal-Wallis and Dunn’s comparisons test. ^*p < 0.05.

Altered fractionations did not induce an anti-inflammatory effect in early AD females

Finally, we analyzed the astrocytic markers after LD-RT2 and LD-RT3 treatments. As in the other cohort, in the frontal cortex, no effect of LD-RT was observed whatever the treatment regimen studied (Fig. 4a–e and Supplementary Figure 3), and a reduction of SERPINA3 N was quantified in all TgAD cohorts compared to WT animals (Fig. 4e; One-way ANOVA, F_(3,29) = 11.00, p < 0.0001; Tukey’s multiple comparisons test: p = 0.0008 WT versus sham, p = 0.0003 WT versus RT2, p = 0.0004 WT versus RT3). In the hippocampus, we did not observe any effect of treatments on GFAP, STAT3α, sCLU neither (Fig. 4f–j and Supplementary Figure 4). LD-RT2 only reduced SERPINA3N levels in the hippocampus (Fig. 4j; One-way ANOVA, F_(3,24) = 3.595, p = 0.0282; Tukey’s multiple comparisons test: p = 0.0336 WT versus RT2). By immunohistology, we observed that GFAP density was not impacted by RT2 or RT3 schedules, whatever the subregion studied (Fig. 4k; Sub: One-way ANOVA, F_(3,22) = 4.930, p = 0.0091; Tukey’s multiple comparisons test: p = 0.0082 WT versus sham, p = 0.0844 WT versus RT2, p = 0.1348 WT versus RT3, p = 0.6728 sham versus RT2, p = 0.2920 sham versus RT3, p = 0.9328 RT2 versus RT3; dH: One-way ANOVA, F_(3,25) = 7.019, p = 0.0014; Tukey’s multiple comparisons test: p = 0.0144 WT versus sham, p = 0.0083 WT versus RT2, p = 0.0022 WT versus RT3, p = 0.9965 sham versus RT2, p = 0.9831 sham versus RT3, p = 0.9992 RT2 versus RT3; vH: One-way ANOVA, F_(3,15) = 3.062, p = 0.0605).

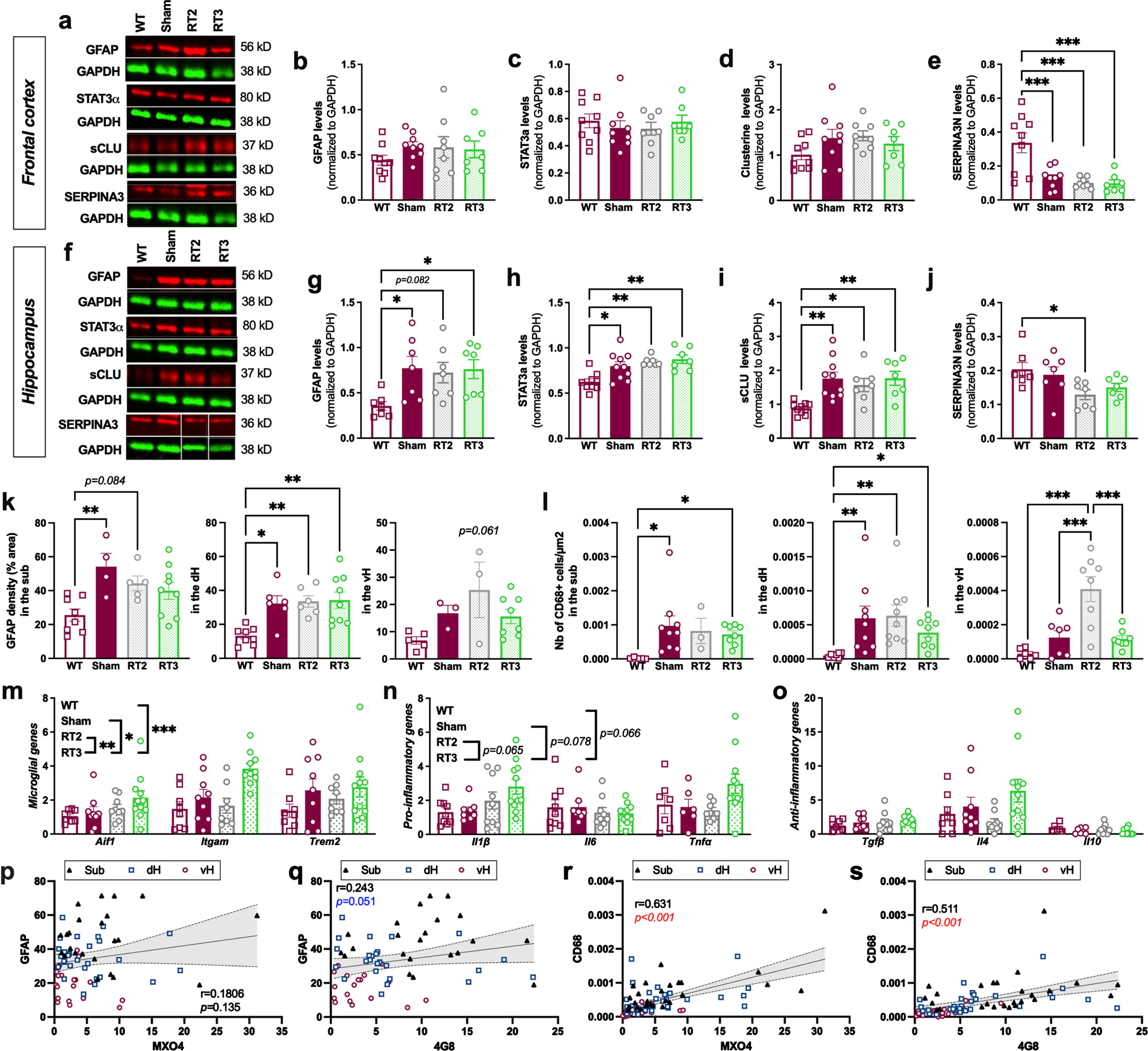

Fig. 4

Altered fractionations of radiation do not reduce inflammation markers in females. (a) Representative western blot images in the frontal cortex. Quantification of GFAP (b), STAT3α (c), secreted CLUSTERIN (sCLU) (d), and SERPINA3N (e) levels by western blot in the frontal cortex. (f) Representative western blot images in the hippocampus. Quantification of GFAP (g), STAT3α (h), sCLU (i), and SERPINA3N (j) levels by western blot in the hippocampus. Data are normalized to GAPDH levels. One-way ANOVA and Tukey’s multiple comparisons test. (k) Quantification of the GFAP density (% positively stained area) in the subiculum (sub), dorsal hippocampus (dH) and ventral hippocampus (vH) in the different groups. (l) Quantification of the number of CD68⁺ cells/μm² in the hippocampal subregions. One-way ANOVA and Tukey’s multiple comparison test or Kruskal-Wallis and Dunn’s multiple comparisons test. (m–o) mRNA levels quantified by qPCR in the cortex of animals. Two-way ANOVA (group and gene as between factors) and Tukey’s multiple comparison test. Correlation of GFAP density and % of MXO4⁺ plaques (p) or % of 4G8⁺ plaques (q) in the entire hippocampus. Correlation of the number of CD68⁺ cells/μm² and the % of MXO4⁺ plaques (r) or the % of 4G8⁺ plaques (s) in the entire hippocampus. Different symbols represent the subregions (Sub = magenta; dH = blue; vH = black). The Pearson coefficient (r) and the p value are indicated for the entire hippocampus. ^*p < 0.05, ^**p < 0.01, ^***p < 0.001.

We also investigated the microglial response in the hippocampal subregions after each treatment. LD-RT2 or LD-RT3 did not influence the number of CD68⁺ cells/μm², except in the vH where an increase of microglial reactivity was observed in RT2-treated rats compared to other groups, showing that both LD-RT regimens were not efficient to decrease microglial response in 9-month-old females (Fig. 4l; Sub: Kruskal-Wallis, p = 0.0090; Dunn’s multiple comparisons test: p = 0.0126 WT versus sham, p = 0.1406 WT versus RT2, p = 0.0171 WT versus RT3, p > 0.9999 sham versus RT2, p > 0.9999 sham versus RT3, p > 0.9999 RT2 versus RT3; dH: Kruskal-Wallis, p = 0.0011; Dunn’s multiple comparisons test: p = 0.0053 WT versus sham, p = 0.0012 WT versus RT2, p = 0.0360 WT versus RT3, p > 0.9999 sham versus RT2, p > 0.9999 sham versus RT3, p > 0.9999 RT2 versus RT3; vH: One-way ANOVA, F_(3,25) = 13.03, p < 0.0001; Tukey’s multiple comparisons test: p = 0.5355 WT versus sham, p < 0.0001 WT versus RT2, p = 0.5831 WT versus RT3, p = 0.0009 sham versus RT2, p = 0.9993 sham versus RT3, p = 0.0005 RT2 versus RT3). qPCR analyses in the cortex of animals even suggest an induction of a slight inflammatory response by RT3 (Fig. 4m–o, Microglial genes: Two-way ANOVA, F_(3,96) = 7.961, p < 0.0001 for group main effect, F_(2,96) = 4.023, p = 0.0210 for gene main effect, F_(6,96) = 1.072, p = 0.3845 for group×gene interaction, Tukey’s multiple comparisons test: p = 0.2179 WT versus sham, p = 0.6165 WT versus RT2, p < 0.0001 WT versus RT3, p = 0.8946 sham versus RT2, p = 0.0394 sham versus RT3, p = 0.0057 RT2 versus RT3; Pro-inflammatory genes: Two-way ANOVA, F_(3,94) = 3.345, p = 0.0224 for group main effect, F_(2,94) = 1.894, p = 0.1562 for gene main effect, F_(6,94) = 1.888, p = 0.0908 for group×gene interaction, Tukey’s multiple comparisons test: p > 0.9999 WT versus sham, p > 0.9999 WT versus RT2, p = 0.0664 WT versus RT3, p > 0.9999 sham versus RT2, p = 0.0778 sham versus RT3, p = 0.0646 RT2 versus RT3; Anti-inflammatory genes: Two-way ANOVA, F_(3,93) = 2.070, p = 0.1095 for group main effect, F_(2,93) = 14.82, p < 0.0001 for gene main effect, F_(6,93) = 2.138, p = 0.0562 for group×gene interaction).

To see if astrocyte and microglial reactivity were associated with the MXO4⁺ or 4G8⁺ plaques in the whole hippocampus, correlation analyses were performed. The GFAP density was not correlated with the % MXO4⁺ plaques (Fig. 4p; Pearson coefficient r = 0.181, p = 0.135) but tend to be positively associated with the % 4G8⁺ plaques in the hippocampus (Fig. 4q; r = 0.243, p = 0.051). However, the number of CD68⁺cells/μm² was positively correlated with both amount of MXO4⁺ plaques (Fig. 4r; r = 0.631, p < 0.001) and 4G8⁺ plaques (Fig. 4s; r = 0.511, p < 0.001).

No behavioral alteration in early AD females

The early timepoint of treatment was validated using classical behavioral tests, including the alternative Y maze to assess the spatial working memory and the open flied test to quantify the general locomotion. No difference was measured between WT and TgAD rats and none of the treatments influenced behavioral performances of animals (Fig. 5a, b).

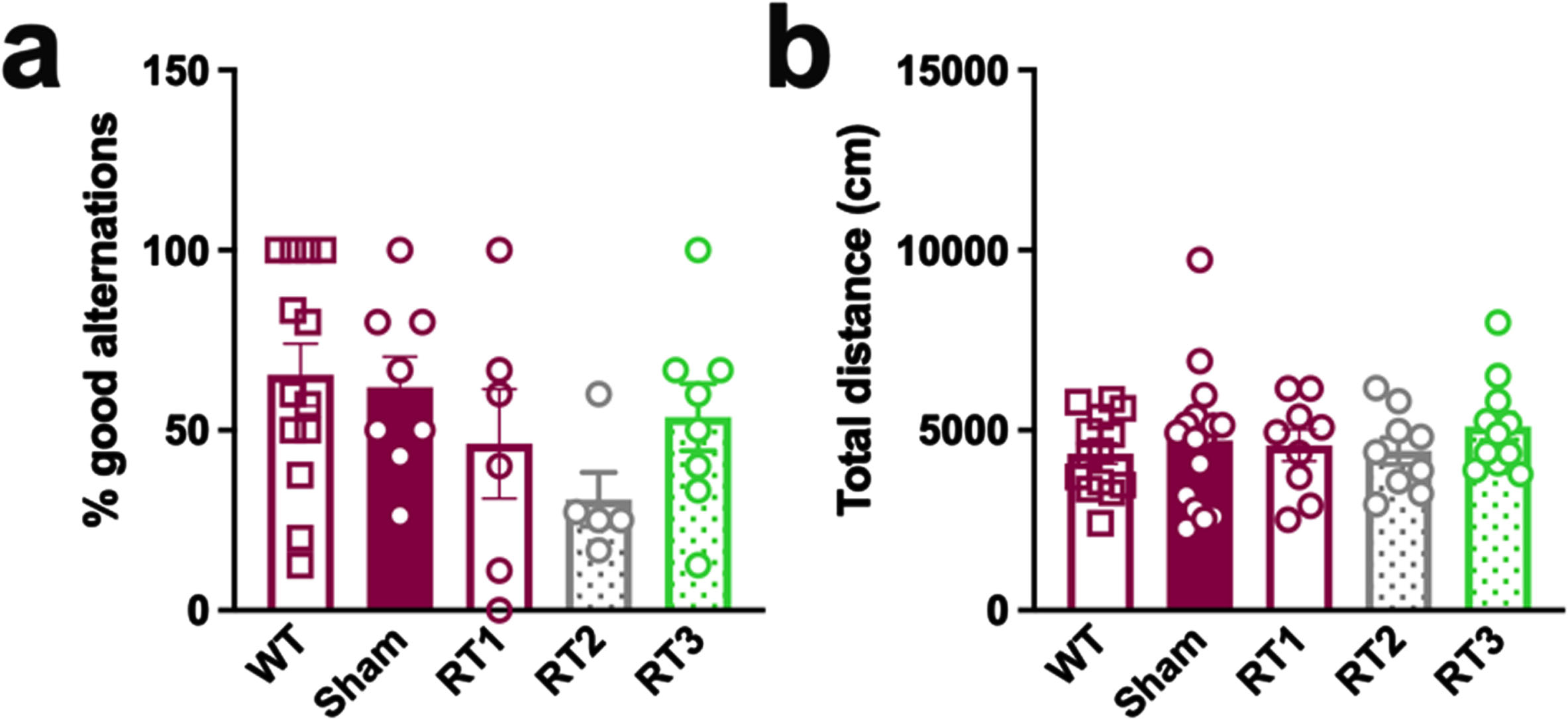

Fig. 5

LD-RT does not influence behavioral performances of TgAD rats. (a) The spatial working memory of rats was assessed 2 months after the last session of LD-RT using the alternative Y maze test. One-way ANOVA. (b) Quantification of the general locomotion of animals in the open field after LD-RT. Kruskal-Wallis test.

DISCUSSION

Low-dose radiation therapy has demonstrated encouraging results in different mouse and rat models on amyloid load, neuroinflammation [7 –13] and on cognition [10]. Here, we evaluate the effect of three regimens in 9-month-old female TgAD, including one regimen having previously shown effectiveness in male animals of the same model and age. The first regimen (named RT1 in the present study) did not influence amyloid load but reduced microglial-inflammatory markers without affecting astrocytes. Altered fractionations with longer overall treatment time, showing interesting anti-inflammatory properties in peripheral pathologies [15, 20] (RT2, RT3 regimens), were unable to reduce inflammation markers or amyloid load.

The number of studies evaluating the effect of LD-RT is rapidly increasing, but the regimens, the age of treatment and the delay post LD-RT are variable making difficult to define the most efficient protocol, and sex as possible influencing variable has been neglected. In a previous study, we demonstrated that a reference regimen of LD-RT (2 Gy×5 fractions delivered daily) significantly reduced all forms of amyloid peptides (soluble and highly aggregated forms) in addition to reduced inflammation markers in male TgAD rats at the same age [14]. However, the effects were lower or even not observed in female 3xTg-AD mice also treated at an early stage of the disease [12]. For this reason, we designed a study to replicate the experiment, proven to be effective in male animals, in 9-month-old female TgAD rats.

Using a classical behavioral test to assess spatial memory alteration, we validated that the study was realized at an early stage of the disease as both genotypes successfully explored the Y maze. The age of behavioral alteration onset is not consistent between studies in TgAD rats. Indeed, some studies described early learning and/or memory alterations at the age of 4 [21], 9–12 [16 , 22–26], 15 [16], and 24 [16, 24] months or impaired reversal learning at 6 months [27], whereas other did not report any difference compared to WT animals at 4–6 [23 , 28–30], 7–11 [23], 13 [30], 15–18 [31], and 24 [31, 32] months of age. Consequently, based on our results and the literature, we presumably model an early AD stage.

We investigated the effect of this regimen (RT1) on the different forms of amyloid peptides. Neither the soluble or poorly aggregated forms or the most aggregated forms of Aβ₄₀ and Aβ₄₂ were impacted in the females, contrary to males [14]. The absence of effect was also measured on amyloid plaques of the hippocampus. Moreover, the density of amyloid plaques does not seem to influence the treatment response as no effect was observed in the dorsal or the ventral hippocampus, showing fewer amyloid plaques than the subiculum, as already demonstrated in this model at the same age [22]. In young males, we described for the first time a stimulation of the non-amyloidogenic pathway, demonstrated by the increased levels of sAβPPα, without modulation of the amyloid production [14]. In females, neither the sAβPPα nor the sAβPPβ was modulated by LD-RT. These results clearly suggest a different response of males and females to irradiation. This difference may be due to a more advanced pathology in females than in males, leading to pathological process too deeply rooted to be reversed or significantly halted. Indeed, the sex effect in AD, with an enhanced pathology hallmarks in females, is commonly described in other AD mouse models [33 –35] and some studies suggest also this difference in TgAD rats [23 , 37]. Further studies are consequently needed to validate this difference in our model on the different amyloid peptides studied. Unfortunately, lower fractionations did not change the treatment response of females as we did not observe any modulation of amyloid peptides or plaques in the hippocampus or in the frontal cortex. However, some pathological processes seem to start earlier in male than in female TgAD rats (i.e., alterations in basal transmission at the CA3-CA1 synapses) [38], and studying the sex-specific effect of LD-RT using those outcomes could also help to refine those assumptions.

When evaluating the effect on neuroinflammation, a minor effect could also be observed in females. The presence of reactive astrocytes and reactive microglial cells was measured before the appearance of clear cognitive symptoms, highlighting the early role of glial cells in AD pathogenesis. This observation is consistent with the literature [39, 40]. We also observed a differential repartition of reactive astrocytes and CD68⁺ microglial cells in the subregions of the hippocampus. The heterogeneity of reactive microglia is consistent with the distribution of amyloid plaques in the hippocampus as shown by the positive correlation between the number of reactive microglia CD68⁺ cells and diffuse and dense-core plaques (MXO4⁺ and 4G8⁺ plaques). Interestingly, reactive astrocytes seem only to be correlated with the amount of 4G8⁺ plaques, suggesting that astrocytes are more sensitive to diffuse plaques. LD-RT1 did not reduce GFAP levels, which is consistent with our finding in young male TgAD [14]. However, at the contrary to males, no effect was observed on sCLU neither. The same results were obtained for the two other treatment schedules. Regarding microglial cells, the reduction of the expression levels of microglial genes and pro-inflammatory genes evidenced an anti-inflammatory effect of LD-RT1. These results suggest that microglial cells are more sensitive to radiation than astrocytes in females. Surprisingly, the effect was not observed for lower fractionations, which even worsened the inflammatory response.

Overall, these data suggest a different response of males and females to radiation therapy with an anti-amyloid and strong anti-inflammatory effect in males whereas LD-RT1 reduced only microglial response in females at an early stage of the pathology. As our investigation in males and females was performed in separate sessions, we cannot directly compare the data, as the specific experimental conditions might impact the quantification obtained even when all other parameters are controlled. A complementary study, performing the same experiments in animals of both sexes for those metrics, would allow to validate this hypothesis. It is important to note that both male and female TgAD rats did not display cognitive alterations before treatment at 9-month-old (Supplementary Figure 5). If the sex-specific effects of LD-RT are confirmed, it would also underscore that the anti-amyloid effect observed in males was not directly related to the reduction of inflammation but that those responses are, at least in part, two separate processes.

Sex hormones, such as estrogens, testosterone, and progesterone seem to play an important role in inflammation and oxidative stress regulation [41], two important processes observed in neurodegenerative diseases including AD. The loss of estrogen during aging and with menopause is one of the major hypotheses to explain the increased risk factor for AD in women. Moreover, testosterone could be directly involved in neuroprotective mechanism against AD, participating to Aβ processing reduction and indirect degradation as examples [42 –45]. Androgen deprivation therapy, classically used for the treatment of high-risk and locally advanced prostate cancer, is suspected to increase the risk of AD [46]. In the brain, sex hormones could act on the astrocytic and microglial response in inflammatory conditions. For example, a supplementation in testosterone or in estradiol reduced astrocyte and microglial reactivity in a model of brain injury [47]. Estradiol could also favor the M2 microglial cell population [48], an extreme class of activated microglial displaying neuroprotective properties. If sex hormones influence glial cell response to an injury, we may hypothesize that they will not react the same way to radiation exposure in the AD pathological context. Further studies must investigate these hypotheses.

Finally, in a previous study, we evaluated the LD-RT1 and LD-RT2 regimens on old female TgAD, showing an advanced pathology (high amyloid load, neuroinflammation, and cognitive deficits). The LD-RT1 schedule efficiently improved spatial memory of treated rats, without modulation of amyloid load or neuroinflammation markers [10]. This result suggests that females could also positively respond to LD-RT, but not on the same pathological outcomes, and supposes different mechanisms of actions in both sexes. Other studies are consequently necessary to see if the cognitive restoration is also observed in old males, as well as the anti-amyloid and anti-inflammatory effects, given that cognitive restoration is obviously the ultimate objective of the application of a treatment.

Conclusion

Overall, LD-RT induces only a reduction of the microglial-mediated inflammation without impacting the amyloid load, contrary to the results obtained in our previous study at the same age in males. This study suggests a sex effect in the treatment response in term of amyloid and inflammation. More studies have to be performed to understand this dichotomy and to identify mechanisms involved in the treatment response in 9-month-old male TgAD rats. Particular attention should be paid in ongoing pilot clinical trials including sex as variable for the evaluation of treatment effectiveness.

AUTHOR CONTRIBUTIONS

Kelly Ceyzériat (Conceptualization; Formal analysis; Investigation; Supervision; Visualization; Writing – original draft); Emma Jaques (Investigation; Writing – review & editing); Yesica Gloria (Investigation; Writing – review & editing); Aurélien Badina (Investigation; Writing – review & editing); Philippe Millet (Writing – review & editing); Nikolaos Koutsouvelis (Methodology; Writing – review & editing); Giovanna Dipasquale (Methodology; Writing – review & editing); Giovanni B. Frisoni (Writing – review & editing); Thomas Zilli (Conceptualization; Funding acquisition; Supervision; Writing – original draft); Valentina Garibotto (Conceptualization; Funding acquisition; Supervision; Writing – original draft); Benjamin Tournier (Conceptualization; Formal analysis; Funding acquisition; Investigation; Supervision; Writing – original draft).

Footnotes

ACKNOWLEDGMENTS

Pia Lovero, Maria Surini, Arthur Paquis, and William Harris for the technical assistance. We thank all the team of the radiation-oncology division, Geneva University Hospitals, for its help with the radiation treatments of animals. Authors also thank the Rat Resource and Research Center (RRRC, Columbia) for providing the rat model.

FUNDING

This work was supported by the Velux foundation (grant number 1123).

CONFLICT OF INTEREST

The authors have no conflict of interest to report.

DATA AVAILABILITY

The data supporting the findings of this study are available on request from the corresponding author.

The supplementary material is available in the electronic version of this article: .
