Small Molecule Decoy of Amyloid-β Aggregation Blocks Activation of Microglia-Like Cells

Abstract

Background:

Aggregated forms of the amyloid-β (Aβ) peptides which form protofibrils and fibrils in the brain are signatures of Alzheimer’s disease (AD). Aggregates are also recognized by microglia, which in early phases may be protective and in later phases contribute to the pathology. We have identified several small molecules, decoys which interfere with Aβ oligomerization and induce other aggregation trajectories leading to aggregated macrostructures which are non-toxic.

Objective:

This study investigates whether the small-molecule decoys affect microglial activation in terms of cytokine secretion and phagocytosis of Aβ peptide.

Methods:

The effects of the decoys (NSC 69318, NSC 100873, NSC 16224) were analyzed in a model of human THP-1 monocytes differentiated to microglia-like cells. The cells were activated by Aβ₄₀ and Aβ₄₂ peptides, respectively, and after treatment with each decoy the secreted levels of pro-inflammatory cytokines and the Aβ phagocytosis were analyzed.

Results:

NSC16224, which generates a double-stranded aggregate of thin protofibrils, was found to block Aβ₄₀- and Aβ₄₂-induced increase in microglial secretion of pro-inflammatory cytokines. NSC 69318, selective for neurotoxicity of Aβ₄₂, and NSC 100873 did not significantly reduce the microglial activation in terms of cytokine secretion. The uptake of Aβ₄₂ was not affected by anyone of the decoys.

Conclusions:

Our findings open the possibility that the molecular decoys of Aβ aggregation may block microglial activation by Aβ₄₀ and Aβ₄₂ in addition to blocking neurotoxicity as shown previously.

Keywords

Alzheimer’s disease amyloid-β cytokine inflammation interleukin tumor necrosis factor

INTRODUCTION

Alzheimer’s disease (AD) is a neurodegenerative disease leading to dementia and severe disabilities for those afflicted. The neuropathological characteristics in the brain consist of so-called amyloid plaques, neurofibrillary tangles, neuronal cell death and inflammation. The amyloid plaques are aggregates of amyloid-β (Aβ) peptides, derived from the amyloid-β protein precursor (AβPP). Aβ is a potent pro-inflammatory signal inducing the activation of microglial cells and astrocytes, and the ensuing production and release of proinflammatory signals such as cytokines1,2, 1,2 as well as cytotoxic factors. 3 Proinflammatory cytokines have been shown to stimulate the synthesis of AβPP and its metabolism to Aβ peptides2,4, 2,4 resulting in a vicious circle leading to continuous inflammation and nerve cell death. 5 Inflammation is normally down-regulated when the injurious agent has been removed and this process has been named resolution of inflammation. 6 The resolution is mediated by so called pro-resolving lipid mediators (SPMs) 7 and a dysfunctional resolution leads to chronic inflammation, as seen, e.g., in diseases such as cancer, rheumatoid arthritis, and periodontal disease (see 8 ). In AD, the continuous presence of Aβ peptides likely leads to a sustained inflammation. Furthermore, a dysfunction in the resolution in the AD brain is supported by reduced levels of SPMs in the brain9 –11 and cerebrospinal fluid (CSF).10,12, 10,12 Thus, together with a dysfunctional resolution, the presence of Aβ peptides would lead to a chronic inflammatory state that is harmful to the brain.

Aβ peptides readily form several different aggregates. After the first nucleation step, Aβ peptides form low-molecular weight oligomers (less than 8-mer) containing both fibrillar and non-fibrillar species.13,14, 13,14 These further form protofibrils and mature fibrils or high-molecular weight oligomers. Among the different aggregational forms, oligomeric forms have been shown to be most toxic and prone to induce inflammation. To inhibit aggregation would be a way to reduce toxicity and inflammatory responses. In early work we identified a central sequence for aggregation, Aβ_16–20 (KLVFF), and by adding this peptide (or an extended variant) we could block the aggregation. 15 We searched the NCI compound depository (https://cactus.nci.nih.gov/download/nci/) for potential inhibitors of aggregation aiming at the first step in this process. The search identified a few compounds that strongly affected the aggregation trajectory which we named decoys. Aggregates were still formed, but they showed reduced toxicity, topology of aggregates was altered, and fibril formation was blocked. 16 The remarkable topological changes might have consequences for neuroinflammation.

In the present study we investigated whether the identified compounds (decoys) also affected the pro-inflammatory effects of Aβ in a human microglia cell model. The main forms of Aβ identified in AD brain are Aβ₄₀ and Aβ₄₂, and the compounds were tested against both of these peptides.

MATERIALS AND METHODS

Small molecule compounds

Small molecule Aβ aggregation decoys have been described previously. 16 In this paper we used the chemical compound names NSC 69318, NSC 100873, and NSC 16224 which were labelled as #5, #7, and #2-2 in the previous work. Information on the compounds is available via National Cancer Institute (NCI); Downloadable structure files of NCI Open Database Compounds: Release 4.2012. https://cactus.nci.nih.gov/download/nci/ (last accessed 17 September 2022). All compounds were dissolved in 20 mM HEPES buffer (pH 7.4) to 10 mM molar concentration as a stock solution. Molecular structures are shown in the Supplementary Figure 1.

Aβ peptide preparation

The production and purification of Aβ peptides were performed as previously described.17,18, 17,18 In brief, the 40 or 42 amino acid residues of Aβ, Aβ_1–40 (Aβ₄₀) or Aβ_1–42 (Aβ₄₂) were fused to the NT^* tag and expressed in BL21(DE3) E. coli. The fusion protein NT^*-Aβ₄₀ and NT^*-Aβ₄₂ were purified with a Ni-NTA column, cleaved by NT*-Tev 18 and lyophilized. The lyophilized powder of each protein was solubilized in 20 mM Tris pH 8.0 with 7 M guanidium chloride, and the Aβ₄₀ and Aβ₄₂ monomers were isolated, respectively, by a Superdex30 26/600 column (Cytiva) in 1×phosphate buffered saline (1×PBS). The concentrations of Aβ₄₀ and Aβ₄₂ monomers were determined by measurement of absorbance at 280 nm and 300 nm with an extinction coefficient of 1424 M^–1 cm^–1 for (A280–A300). The purified Aβ₄₀ and Aβ₄₂ monomers were aliquoted in low-binding tubes and stored at –20°C. The oligomeric states of Aβ₄₂ were analyzed using Thioflavin T (ThT) with confocal laser scanning microscopy (Supplementary Figure 2). ThT molecules were excited with 458 nm laser and fluorescence was detected in 530–610 nm.

Fluorescently labelled Aβ₄₂, HiLyte Fluor^TM 488- Aβ₄₂ (Aβ42–488) was purchased from AnaSpec, Fremont CA. The lyophilized powder of Aβ42–488 was reconstituted using the company protocol (https://www.anaspec.com/assets/d84c5199-d8fe-45b2-a1fb-3222206ad00b/tds-en-as-60479-01-beta-amyloid-1-42-hilyte-fluor-488-labeled.pdf). The 0.1 mg of Aβ42-488 was reconstituted by adding 50μL 1% NH₄OH, followed by the dilution with 1×PBS as a 200μM stock solution. The stock solution was stored at –20°C.

Cell culture

Human monocytic THP-1 cells (LGC Standards, Teddington, UK) were maintained at 37°C with 5% CO₂ in RPMI1640 modified with L-glutamine, HEPES, Phenol Red, sodium pyruvate, high glucose and low sodium bicarbonate (A1049101; Gibco) and supplemented with 10% fetal bovine serum (FBS) and 50 nM β-mercaptoethanol. THP-1 cells were spun down at 200×g for 5 min. Cell pellets were suspended with culture medium described above, seeded in T175 red-capped cell culture flasks (Sarstedt, Helsingborg, Sweden).

For THP-1 cell differentiation, the pellet of THP-1 cells after the spin-down was suspended with RPMI1640 medium containing 50 ng/mL phorbol 12-myristate 13-acetate (PMA) according to previously used protocol. 19 THP-1 cells (2.5×10⁴ cells/well or 6.0×10⁵ cells/well) were seeded in 24-well plates (VWR) for ELISA or 6-well plates (VWR) for phagocytosis analysis. The cells were differentiated for 3 days.

ELISA for secreted IL-6 and TNF-α levels

Stock solutions of 179μM Aβ₄₀ and 40μM Aβ₄₂ in 1×PBS were slowly thawed on ice to avoid aggregation and diluted to 10μM Aβ₄₀ and 5μM Aβ₄₂ with RPMI1640 medium in low-binding tubes. The same molar concentration of the small molecule compounds was added to the Aβ solution (10μM in Aβ₄₀ and 5μM in Aβ₄₂ solution, respectively). The differentiated THP-1 (dTHP-1) cells were incubated with 350μL of these combined solutions, with Aβ₄₀ or Aβ₄₂ (each alone), or with the compounds alone in RPMI1640 medium as negative control at 37°C for 24 h after which the medium was collected in low-protein binding tubes and stored shortly at–20°C.

ELISA experiments were performed according to the protocol for human interleukin-6 (IL-6) DuoSet ELISA and human tumor necrosis factor (TNF)-α DuoSet ELISA (DY206-05 and DY210-05; Biotechne R& D systems). Briefly, capture antibodies were absorbed in 96-well black plates (Thermo Fisher) and excess antibodies were washed after 24 h with PBS containing 0.05% Tween-20. The plates were incubated with blocking buffer (PBS with 1% BSA). The samples of culture media were thawed and centrifuged at 1000×g for 5 min, and the supernatant collected and diluted twice with the blocking buffer, followed by adding 100μL of the mixture to the plates. On the same plates, recombinant human IL-6 or recombinant human TNF-α were added in different dilutions for the standard curves according to the instructions by the company. Following incubation with detection antibodies and Streptavidin-HRP, the plates were incubated with HRP substrate in QuantaRed Enhanced Chemifluorescent HRP Substrate Kit (Thermo Fisher) for 10 min, and the signals were recorded by a plate reader, CLARIOstar ^Plus (BMG LABTECH).

Data analysis was performed using two softwares, CLARIOstar – Data Analysis and SMART Control Data Analysis. Fitting a four-parameter logistic curve to standard data from both recombinant IL-6 and TNF-α (Supplementary Figure 3), the fluorescence signal in each sample was transformed to the concentration of IL-6 and TNF-α respectively.

Phagocytosis analysis using flow-cytometry

Stock solution of 200μM Aβ42–488 was diluted to 200 nM molar concentration with RPMI1640. The same molar concentration of the compounds was added to the Aβ42–488 solution as sample or to RPMI1640 as negative control. dTHP-1 cells seeded in 6-well plates were incubated at 37°C for 20 min with 1 mL of the following solutions: each small molecule compound alone, Aβ42–488 alone or both Aβ42–488 and compounds. Subsequently, the dTHP-1 cells were washed twice with PBS and incubated with 2 mL TryPLE Select (Gibco) at 37°C for 20 min. Bright-field microscopy confirmed detachment of the cells from the plates. The cell-containing solution was centrifuged at 1530 g for 10 min and the resulting pellet washed twice with FACS buffer (PBS with 2% FBS). After the final centrifugation, the cells were fixed with 4% paraformaldehyde in PBS at room temperature for 45 min, followed by washing twice with FACS buffer. Finally, the dTHP-1 cells were suspended in PBS and 50,000 cells were loaded in a flow-cytometer (BD Accuri™ C6 Plus Flow Cytometer) for analysis of phagocytosis of Aβ42–488. Untreated dTHP-1 cells were analyzed in the flow-cytometer to set the region of interest (ROI) for data collection by scattering light.

To calculate phagocytic cell numbers and average fluorescence intensity, a threshold of autofluorescence intensity was set as the fluorescence intensity with 1% cross-section of untreated dTHP-1 cells.

Confocal laser scanning microscopy (CLSM) imaging of Aβ₄₂ phagocytosis

The THP-1 cells (2.0×10⁴ cells/well) were differentiated on the 96-well chambered cover glass (μ-Plate 96 well Black; ibidi) for 3 days. After differentiation, the cells were incubated with 200 nM Aβ42–488 in the absence or presence of the same molar concentration of small molecule decoys (NSC 69318, NSC 100873, NSC 16224) for 20 min. The cells were washed twice with phenol-red free RPMI 1640 medium (Gibco). The cells were further stained with Hoechst33342 (NucBlue Live ReadyProbes Reagent; Invitrogen) followed by washing twice with phenol-red free RPMI 1640 medium.

CLSM imaging was performed using the LSM880 (Carl Zeiss) microscope system equipped with a 405 nm laser, 488 nm Ar-ion laser, and a water immersion objective lens (C-Apochromat, 40×, 1.2 N.A., Corr, Carl Zeiss), a gallium arsenide phosphide (GaAsP) detector and photomultiplier tube (PMT) detectors. Hoechst33342 and HiLyte488 were excited using the 405 nm laser and 488 nm laser, respectively. The pinhole size was adjusted to 1 AU (32μm in Hoechest33342 ch.; 39μm in HiLyte488 ch.). Both fluorescence signals were split by diffraction grating, introduced to a PMT detector (Hoechst33342; 410–510 nm) and a GaAsP detector (HiLyte488; 493–630 nm). To avoid crosstalk signal, the multi-track mode was used. During imaging with the laser at 488 nm, another PMT detector collected the transmitted laser to confirm intact cell morphology.

Statistics

All statistical analyses were performed using the Origin Data Analysis and Graphing Software (OriginLab Corporation, USA). The results are expressed as scatter plots in bar graphs as mean±SD. p < 0.05 was considered statistically significant. One-way ANOVA were used to test for group differences, with the Tukey post hoc test. Results of all combinations in Tukey post hoc test were shown in Supplementary Tables 1–3.

RESULTS

Small-molecule decoy reduced the pro-inflammatory effects of Aβ peptides

We have previously characterized the effects of small-molecule decoys on Aβ aggregation and cytotoxicity. 16 Since Aβ is known to induce pro-inflammatory effects, including secretion of the pro-inflammatory cytokines IL-6 and TNF-α from human microglia, 19 we assessed the effect of the small molecule decoys on the secretion of IL-6 and TNF-α (Fig. 1). The dTHP-1 cells were incubated with Aβ₄₂ and/or small-molecule decoys (NSC 69318, NSC 100873, NSC 16224). The decoy molecules alone did not affect the secretion of IL-6 or TNF-α, whereas presence of Aβ₄₂ induced their secretion from the dTHP-1 cells (Fig. 1).

NSC 16224 was found to block the Aβ₄₂-induced increase in released cytokines. Earlier studies showed that oligomeric Aβ₄₂ was more potent in inducing microglial TNF-α production than fibrillar Aβ₄₂ 20 suggesting that NSC 16224 suppressed formation of oligomeric forms of Aβ₄₂. NSC 100873 which was characterized as an inducer of sheet-like Aβ aggregates 16 had no effect (Fig. 1). NSC 69318 which was found to selectively affect Aβ₄₂ aggregation 16 slightly reduced IL-6, although not reaching statistical significance, and had no effect on the TNF-α levels (Fig. 1).

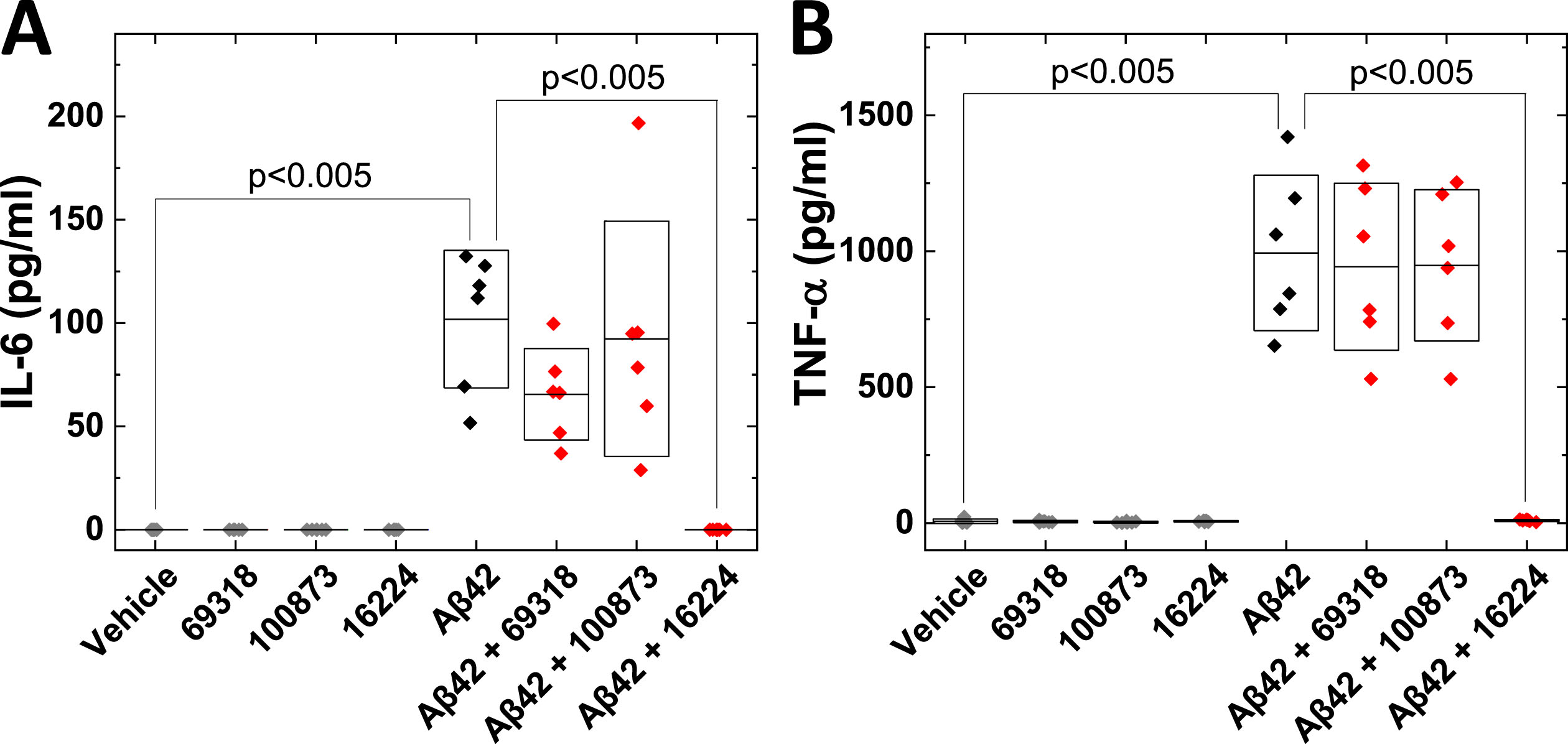

Fig. 1

Compound NSC 16224 inhibits Aβ₄₂-induced secretion of IL-6 and TNF-α from human microglia-like cells. Differentiated human THP-1 (dTHP-1) cells were incubated with vehicle, 5μM of each compound, 5μM Aβ₄₂, or 5μM Aβ₄₂ ₊ 5μM of the compound for 24 h. IL-6 (A) and TNF-α (B) were analyzed by ELISA in 6 independent experiments.

Aβ₄₀ is also a major form of Aβ found in AD brains, and we therefore further characterized the effects of small-molecule decoys on the pro-inflammatory responses induced by Aβ₄₀ (Fig. 2). Aβ₄₀ induced the secretion of both IL-6 and TNF-α, but the induction was 50–100 times less than that by Aβ₄₂ even when using the double concentration of Aβ₄₀, suggesting that the microglia-like cells are more responsive to Aβ₄₂ oligomers than to those of Aβ₄₀. NSC 16224 blocked the increase in IL-6 and TNF-α secreted from the cells induced by Aβ₄₀, similarly to Aβ₄₂. NSC 100873 had no effect as shown for Aβ₄₂. NSC 69318 showed no effect on IL-6, suggesting that this compound may have a selective effect on signaling pathways activated by Aβ₄₂ oligomers as previously found in neurotoxicity. 16

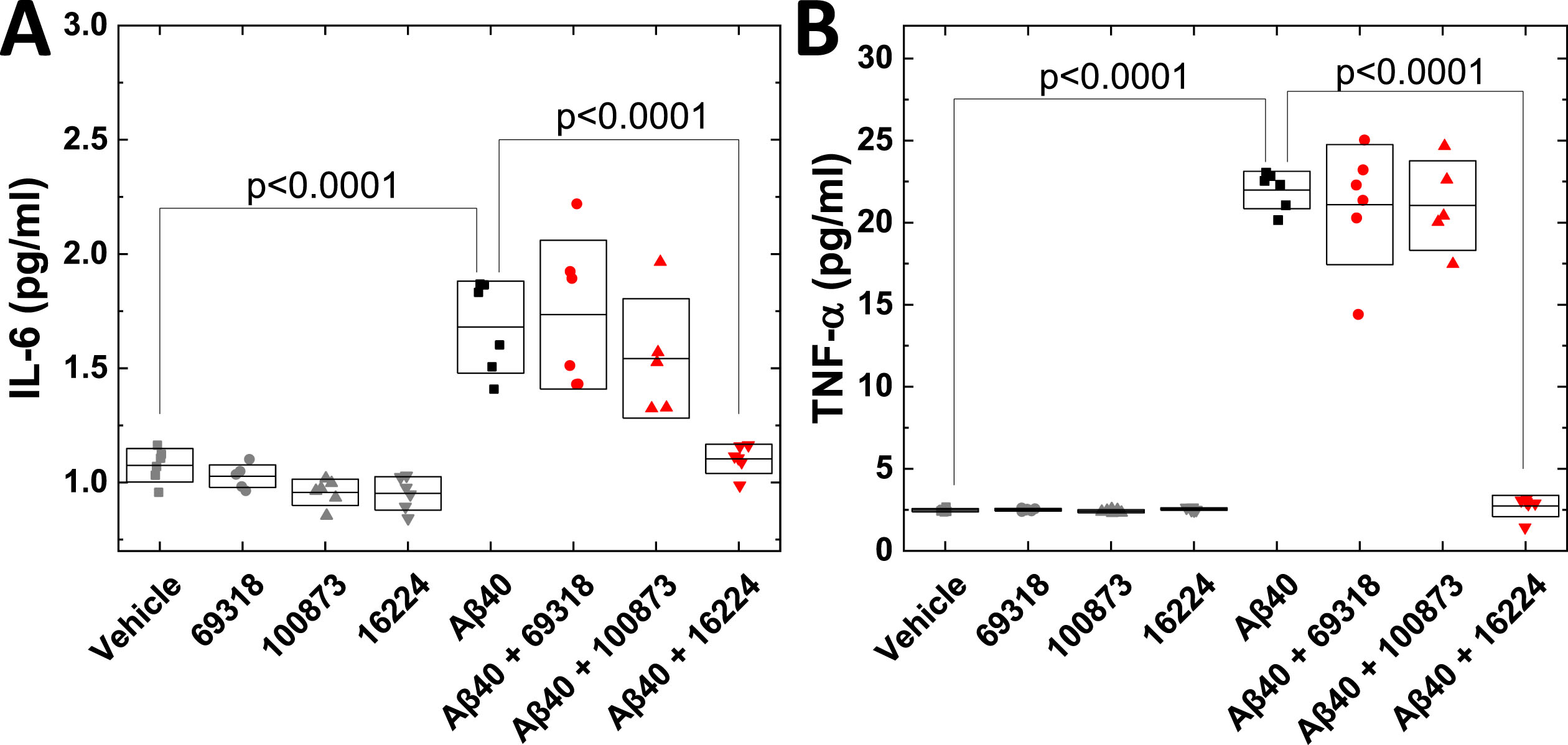

Fig. 2

Compound NSC 16224 inhibits Aβ₄₀-induced secretion of IL-6 and TNF-α from human microglia-like cells. Differentiated human THP-1 (dTHP-1) cells were treated with vehicle, 10μM of each compound, 10μM Aβ₄₀, or 10μM Aβ₄₀ + 10μM of the compound alone for 24 h. IL-6 (A) and TNF-α (B) were analyzed by ELISA. Six (6) independent experiments were performed.

Small-molecule decoys had no statistically significant effect on phagocytosis of Aβ

Microglia have been shown to take up Aβ₄₂ by phagocytosis. 20 We assessed the effects of the small molecule decoys on the phagocytosis of fluorescently labeled Aβ₄₂ (Aβ42–488). Confocal Laser Scanning Microscopy (CLSM) confirmed the phagocytosis of Aβ42–488 into live dTHP-1 cells also under the co-treatment with small molecule decoys (Supplementary Figure 4). To analyze the fluorescence intensity in each single cell we used flow cytometry. The distribution of fluorescence intensity showed no difference between treatment with decoys or vehicle, and the Aβ42-488-treated dTHP-1 cells showed higher fluorescence intensity level than decoy treatment alone (Fig. 3A). NSC 69318 and NSC 100873 had no effect on phagocytosis of Aβ42-488 by the dTHP-1 cells. NSC 16224 slightly reduced the average fluorescence intensity and the fraction of dTHP-1 cells that had taken up Aβ42–488, although not reaching statistical significance (Fig. 3). Fibrillar Aβ₄₂ is more prone to be taken up by microglia cells, 20 indicating that NSC 16224 may change the direction of aggregation from oligomeric to a non-toxic form which is not phagocytosed.

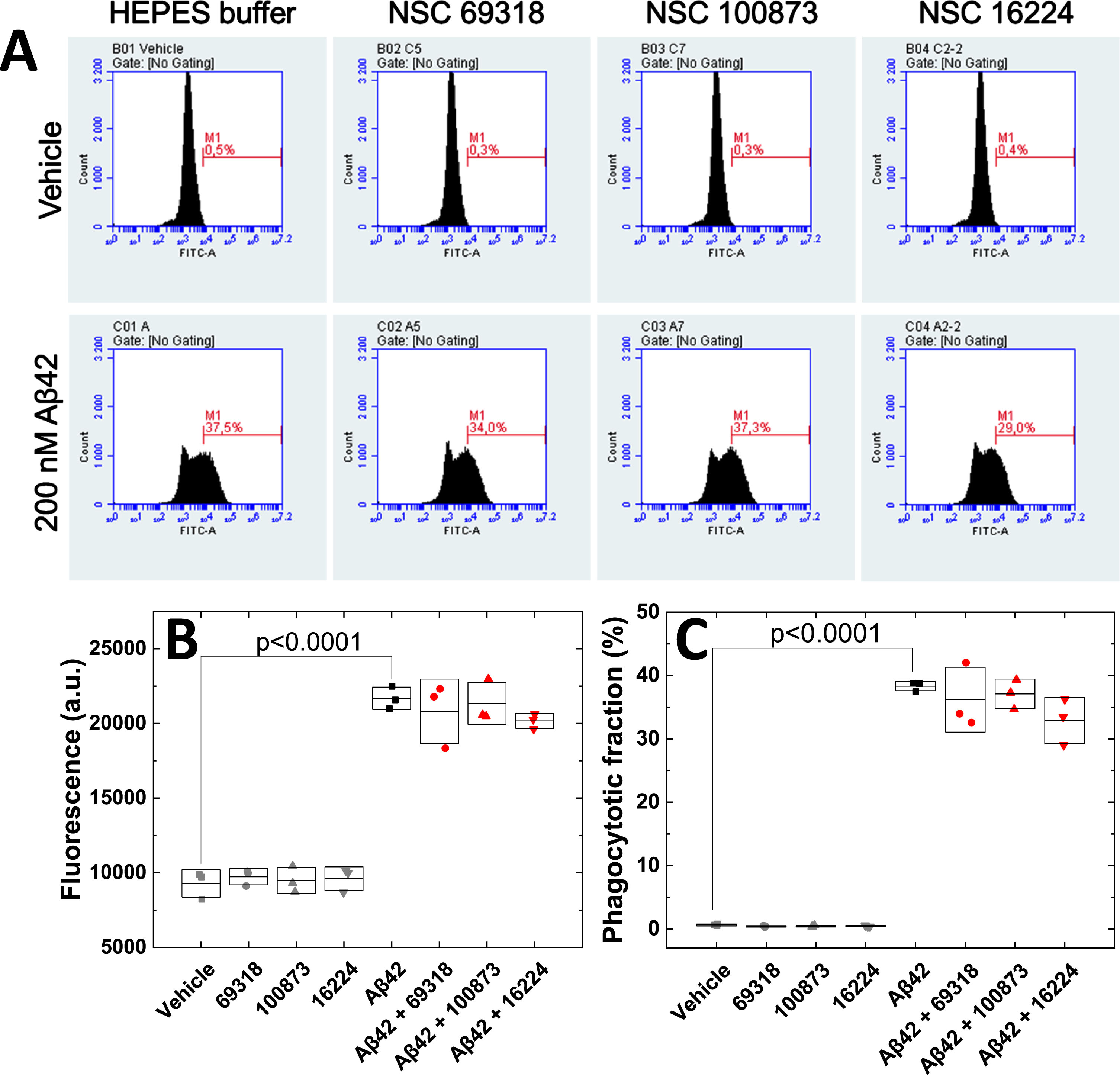

Fig. 3

Analysis of Aβ₄₂ phagocytosis by human microglia-like cells. Phagocytosis of Aβ₄₂ by differentiated human THP-1 (dTHP-1) cells was analyzed using flow-cytometry. Differentiated dTHP-1 cells were incubated with vehicle, 200 nM Aβ42-488, 200 nM of each compound, or 200 nM Aβ42-488 + the 200 nM compound. A) Distribution of fluorescence intensity of Aβ42-488 in the dTHP-1 cells. Average fluorescence intensity (B) and percentage of dTHP-1 cells that had taken up Aβ42-488 (C). Three independent experiments were performed.

DISCUSSION

The aggregation of Aβ is associated with AD. Aggregation can be initiated by seeding and is dependent on time and concentration. Under laboratory conditions it is convenient to use higher concentrations to avoid lag phase and variable kinetics.21,22, 21,22 The significance of this process receives indirect support from clinical studies of anti-amyloid antibodies: aducanumab, 23 now discontinued, lecanemab 24 and donanemab. 25 Lecanemab (Leqembi^®) is now approved by the U.S. Food and Drug Administration (FDA) for mild dementia of AD.

This study was initiated by our observation that selected small molecules named decoys interfere with Aβ aggregation toxicity. 16 These small molecules were selected to interact already at the dimerization/oligomerization stages. Several of these molecules were very potent, suggesting specific interactions. Unexpectedly, the induced aggregation pathways differed dramatically resulting in no formation of fibrils, but formation of protofibrils, with buds and branches never observed in controls, a 2D-network and a double-stranded thin protofibril. Since neuroinflammation is a characteristic of AD 26 and may even precede plaque formation, we decided to investigate whether the small molecules would interfere with the activation of microglia. Activated microglia produce and secrete inflammatory factors including cytokines1,2, 1,2 and cytotoxic factors, 3 providing an environment that when sustained for long times, such as due to continuous presence of Aβ, leads to loss of homeostasis and neuronal cell death. In the acute situation, however, the activities of microglia are beneficial by sensing and removing the injurious agent to restore homeostasis (see 27 ). The findings from studies on the effects of anti-amyloid treatment in AD mouse models 28 further emphasizes the important role of microglia in relation to amyloid and to further characterize their responses. Transcriptomic profiling studies of microglia in health and disease29 –32 add to our knowledge of the complexity and subpopulations of microglia and indicate the importance of careful characterization of cellular populations to interpret data.

Although only differing by two amino acids, Aβ₄₀ and Aβ₄₂ are distinctly different with respect to the aggregation pathway and role in neuropathology. 33 Already at the dimer stage cryo-EM shows that the Aβ₄₂ interface is longer and kinked whereas the Aβ₄₀ interface is flat. 34 Whereas Aβ₄₀ is typically detected in cerebral amyloid angiopathy, 35 there is general agreement that Aβ₄₂ is the species relevant for neurotoxicity in AD.

In our experiments, Aβ₄₂ aggregation strongly activated the microglia-like cells, whereas the Aβ₄₀ variant was considerably less potent and had lower efficacy. Interestingly, NSC 16224 completely blocked the activation by both peptides. NSC 69318 was weakly active, but only with Aβ₄₂ in line with the previously shown selective activity against Aβ₄₂-induced toxicity. 16 NSC 100873 was not active.

There are several receptors that have been shown to bind Aβ aggregates such as β1 integrin, formyl peptide receptor-like 1 (FPRL1) and receptor for advanced glycosylation end-products (RAGE), which all bind both monomeric and fibril Aβ. 36 The scavenger receptors A and BI bind only monomeric Aβ. 36 The shuttling-protein nucleolin was shown to be a receptor for Aβ on microglial cells. 37 Interestingly, nucleolin strongly associated with Aβ₄₂ and phagocytosed both the monomeric and fibril forms, whereas Aβ₄₀ was only taken up weakly. 37 The results also indicated that binding of nucleolin to Aβ₄₂ was neither ionic nor hydrophobic and that it was dependent on the structure of Aβ₄₂ contributing to its aggregation. In a recent study on rat glial cells, RNA sequencing data showed clear differences in the response to Aβ₄₀ and Aβ₄₂ fibrils. 38 This was evident in primary cultures of both astrocytes and microglia, with about 10× more genes upregulated by Aβ₄₂ than by Aβ₄₀ in rat microglia, and pathway analysis showed that Aβ₄₂ treatment resulted in induction of immune response pathways. 38 The data also showed that genes found in so called disease-associated microglia (DAM) were markedly upregulated by Aβ₄₂, whereas most of these genes were down-regulated by Aβ₄₀, notably including Trem2, a key DAM-triggering receptor gene. 38 In postmortem brains from patients with Down syndrome 39 and AD, 40 microglial cells were more often found in association with amyloid plaques containing both Aβ₄₀ and Aβ₄₂ compared to those containing only Aβ₄₂.

The interaction between amyloid and brain immunity is dynamic with a protective effect in prodromal phases of the disease. As the disease progresses, activated microglia due to continuous presence of Aβ, may have the opposite effect, releasing cytokines and other mediators which exert a neurotoxic effect. 41 This sequence of events could be blocked by one of our decoys, NSC 16224, and regarding Aβ₄₂ aggregation reduced by NSC 69318. This means that we would have a tool that can address two aspects of the disease process in the Alzheimer brain, neuroinflammation and neurotoxicity. 16

Already in our previous publication, 16 we discussed toxicology as a function of aggregate architecture recorded by TEM analysis. NSC 16224 stands out in generating a double-stranded thin filament aggregate which was shown to block both cytotoxicity 16 and now microglial activation. This profile would seem highly interesting for exploitation therapeutically. We have argued that the effect of NSC 69318 is related to its interaction with the Aβ COOH-terminus, which has been found in other studies to be very hydrophobic and significant for aggregation. 42 An exotic induction of a 2-dimensional network with NSC 100873 adds further suggestions that altered surface morphology of aggregation may lessen neurotoxicity but not necessarily microglialactivation.

It may also be significant that aggregate surface molecular patterns have a direct influence on microglia reactivity. The recent developments of neuroimplants have stimulated work on surface properties. It has been shown that a fibrous surface matrix is more challenging than a smooth area 43 and that lipid droplets are accumulated in microglia associated with plaques. 44 In analogy, the unique smooth double-stranded fibril observed with NSC 16224 may not be recognized by the microglial radar.

Aggregation mechanisms and functionality are an area of nanobiological interest. 45 As already observed, 16 Aβ has several epitopes for binding leading to aggregation. Inhibition of aggregation is therefore challenging and changing aggregation trajectory may be a mechanism for further study and eventually therapy.

Conclusions

In conclusion, the molecular decoys of Aβ open the possibility to block neurotoxicity and microglia activation of Aβ₄₀ and Aβ₄₂ by NSC 16224, or to block only Aβ₄₂ neurotoxicity and reduce microglia activation by NSC 69318. Selectivity of action is a key in drug development. Since Aβ₄₂ is more toxic, selective interaction with this peptide may be significant for further analyses. NSC 100873 was only found to block neurotoxicity but not microglial activation, another possible link to selective action. As a principle, early intervention in pathogenesis should be preferable.

Limitations to the study

Studies on human neuroinflammation at a mechanistic level require relevant and methodologically practical in vitro models. Human primary microglia are difficult to obtain, and other alternatives need to be considered. The present work was performed in a model of PMA-differentiated human THP-1 (dTHP-1) cells, a model widely used in studies on macrophages and microglia. 46 The differentiation converts the THP-1 cells, a leukemia monocytic cell line, to macrophages. Macrophages and microglia share many properties and many studies have indicated that THP-1 cells and microglia respond to Aβ in a similar pattern, and therefore Aβ-treated THP-1 cells are frequently used to study AD-like neuroinflammation.47 –51 An alternative to the dTHP-1 cells is to use peripheral monocytes from AD patients differentiated to macrophages, a model that has been used successfully rendering important findings. 52 Although this is a more relevant model compared to the THP-1 cells, the advantage of using a cell line is the unlimited supply. For future studies a further alternative is to use human pluripotent stem cells from AD patients and healthy controls for higher physiological relevance and sufficient supply for analyses requiring large materials.

The concentrations of Aβ₄₀ and Aβ₄₂ used in the present study are considerably higher than those measured in human CSF, 53 but commonly used for in vitro studies. 54 Furthermore, local concentrations of Aβ peptides in the AD brain are probably higher than levels in the CSF, 55 and reactive microglia are co-localized with amyloid plaques. 56

Promising effects obtained in in vitro studies may, however, meet with challenges to translate to in vivo applications. One challenge is passage through the blood-brain barrier (BBB) since NSC 16224 (830 Da) is larger than the restriction barrier of molecular weight (<400 Da) for a passive diffusion across the BBB. 57 Linking the compound to a transporter may be helpful for passage through the BBB. Also, intranasal administration may bypass the barrier.

AUTHOR CONTRIBUTIONS

Sho Oasa (Conceptualization; Data curation; Formal analysis; Methodology; Writing – original draft; Writing – review & editing); Gefei Chen (Methodology; Resources; Writing – review & editing); Marianne Schultzberg (Conceptualization; Funding acquisition; Methodology; Resources; Supervision; Writing – original draft; Writing – review & editing); Lars Terenius (Conceptualization; Funding acquisition; Investigation; Supervision; Writing – original draft; Writing – review & editing).

Footnotes

ACKNOWLEDGMENTS

We thank Dr. Erik Hjorth for the advice on experimental details. The test compounds were selected from the National Cancer Institute Chemotherapeutic Agency Repository, Bethesda, MD.

FUNDING

The work was supported by The Swedish Foundation for Strategic Research (Grant SBE13-0115), the Olav Thon Foundation and the Swedish Research Council (VR 2018-05337) to L. Terenius, and M. Schultzberg acknowledges the support from The Swedish Brain Foundation, Demensfonden and Åhléns foundation.

CONFLICT OF INTEREST

L. Terenius is listed as inventor on a patent related to this work. The authors declare no conflict of interest.

DATA AVAILABILITY

The data supporting the findings of this study are available within the article and/or its supplementary material.

The supplementary material is available in the electronic version of this article: .

References

Araujo

and Cotman

. β-amyloid stimulates glial cells in vitro to produce growth factors that accumulate in senile plaques in Alzheimer’s disease. Brain Res 1992; 569: 141–145.

Del Bo

, Angeretti

, Lucca

, et al. Reciprocal control of inflammatory cytokines, IL-1 and IL-6, and β-amyloid production in cultures. Neurosci Lett 1995; 188: 70–74.

Benveniste

, Nguyen

, O’Keefe

. Immunological aspects of microglia: Relevance to Alzheimer’s disease. Neurochem Int 2001; 39: 381–391.

Forloni

, Demicheli

, Giorgi

, et al. Expression of amyloid precursor protein mRNAs in endothelial, neuronal and glial cells: Modulation by interleukin-1. Mol Brain Res 1992; 16: 128–134.

Mrak

, Sheng

and Griffin

. Glial cytokines in Alzheimer’s disease: Review and pathogenic implications. Hum Pathol 1995; 26: 816–823.

Serhan

and Savill

. Resolution of inflammation: The beginning programs the end. Nat Immunol 2005; 6: 1191–1197.

Serhan

. A search for endogenous mechanisms of anti-inflammation uncovers novel chemical mediators: Missing links to resolution. Histochem Cell Biol 2004; 122: 305–321.

Serhan

and Levy

. Resolvins in inflammation: Emergence of the pro-resolving superfamily of mediators. J Clin Invest 2018; 128: 2657–2669.

Lukiw

, Cui

, Marcheselli

, et al. A role for docosahexaenoic acid-derived neuroprotectin D1 in neural cell survival and Alzheimer disease. J Clin Invest 2005; 115: 2774–2783.

10.

Wang

, Zhu

, Hjorth

, et al. Resolution of inflammation is altered in Alzheimer’s disease. Alzheimers Dement 2015; 11: 40–50.

11.

Zhu

, Wang

, Hjorth

, et al. Pro-resolving lipid mediators improve neuronal survival and increase Aβ₄₂ phagocytosis. Mol Neurobiol 2016; 53: 2733–2749.

12.

, Hjorth

, Wang

, et al. Cerebrospinal fluid profile of lipid mediators in Alzheimer’s disease. Cell Mol Neurobiol 2023; 43: 797–811.

13.

Bruggink

, Müller

, Kuiperij

, et al. Methods for analysis of amyloid-β aggregates. J Alzheimers Dis 2012; 28: 735–758.

14.

Huang

and Liu

. The toxicity and polymorphism of β-amyloid oligomers. Int J Mol Sci 2020; 21: 4477.

15.

Tjernberg

, Pramanik

, Bjorling

, et al. Amyloid β-peptide polymerization studied using fluorescence correlation spectroscopy. Chem Biol 1999; 6: 53–62.

16.

Oasa

, Kouznetsova

, Tiiman

, et al. Small molecule decoys of aggregation for elimination of Aβ-peptide toxicity. ACS Chem Neurosci 2023; 14: 1575–1584.

17.

Abelein

, Chen

, Kitoka

, et al. High-yield production of amyloid-β peptide anabled by a customized spider silk domain. Sci Rep 2020; 10: 235.

18.

Zhong

, Kumar

, Wang

, et al. Amyloid fibril formation of arctic amyloid-β1–42 peptide is efficiently inhibited by the BRICHOS domain. ACS Chem Biol 2022; 17: 2201–2211.

19.

Wang

, Leppert

, Tan

, et al. Maresin 1 attenuates pro-inflammatory activation induced by β-amyloid and stimulates its uptake. J Cell Mol Med 2021; 25: 434–447.

20.

Pan

, Zhu

, Lin

, et al. Microglial phagocytosis induced by fibrillar β-amyloid is attenuated by oligomeric β-amyloid: Implications for Alzheimer’s disease. Mol Neurodegener 2011; 6: 45.

21.

Carulla

, Zhou

, Giralt

, et al. Structure and intermolecular dynamics of aggregates populated during amyloid fibril formation studied by hydrogen/deuterium exchange. Acc Chem Res 2010; 43: 1072–1079.

22.

Harper

, Lansbury

Jr . Models of amyloid seeding in Alzheimer’s disease and scrapie: Mechanistic truths and physiological consequences of the time-dependent solubility of amyloid proteins. Annu Rev Biochem 1997; 66: 385–407.

23.

Sevigny

, Chiao

, Bussiere

, et al. The antibody aducanumab reduces Abeta plaques in Alzheimer’s disease. Nature 2016; 537: 50–56.

24.

Sims

, Zimmer

, Evans

, et al. Donanemab in early symptomatic Alzheimer disease: The TRAILBLAZER-ALZ 2 randomized clinical trial. JAMA 2023; 330: 512–527.

25.

van Dyck

, Swanson

, Aisen

, et al. Lecanemab in early Alzheimer’s disease. N Engl J Med 2023; 388: 9–21.

26.

Calsolaro

and Edison

. Neuroinflammation in Alzheimer’s disease: Current evidence and future directions. Alzheimers Dement 2016; 12: 719–732.

27.

Sarlus

and Heneka

. Microglia in Alzheimer’s disease. J Clin Invest 2017; 127: 3240–3249.

28.

Cadiz

, Gibson

, Todd

, et al. Aducanumab anti-amyloid immunotherapy induces sustained microglial and immune alterations. J Exp Med 2024; 221.

29.

Friedman

, Srinivasan

, Ayalon

, et al. Diverse brain myeloid expression profiles reveal distinct microglial activation states and aspects of Alzheimer’s disease not evident in mouse models. Cell Rep 2018; 22: 832–847.

30.

Holtman

, Raj

, Miller

, et al. Induction of a common microglia gene expression signature by aging and neurodegenerative conditions: A co-expression meta-analysis. Acta Neuropathol Commun 2015; 3: 31.

31.

Keren-Shaul

, Spinrad

, Weiner

, et al. A unique microglia type associated with restricting development of Alzheimer’s disease. Cell 2017; 169: 1276–1290e1217.

32.

Rangaraju

, Dammer

, Raza

, et al. Identification and therapeutic modulation of a pro-inflammatory subset of disease-associated-microglia in Alzheimer’s disease. Mol Neurodegener 2018; 13: 24.

33.

Cukalevski

, Yang

, Meisl

, et al. The Aβ40 and Aβ42 peptides self-assemble into separate homomolecular fibrils in binary mixtures but cross-react during primary nucleation. Chem Sci 2015; 6: 4215–4233.

34.

Schmidt

, Rohou

, Lasker

, et al. Peptide dimer structure in an Aβ(1–42) fibril visualized with cryo-EM. Proc Natl Acad Sci U S A 2015; 112: 11858–11863.

35.

Chantran

, Capron

, Alamowitch

, et al. Anti-Aβ antibodies and cerebral amyloid angiopathy complications. Front Immunol 2019; 10: 1534.

36.

Verdier

, Zarandi

, Penke

. Amyloid β-peptide interactions with neuronal and glial cell plasma membrane: Binding sites and implications for Alzheimer’s disease. J Pept Sci 2004; 10: 229–248.

37.

Ozawa

, Nakamura

, Koike

, et al. Shuttling protein nucleolin is a microglia receptor for amyloid β peptide 1– 42. Biol Pharm Bull 2013; 36: 1587–1593.

38.

Zhu

, Schrader

, Irizarry

, et al. Impact of Aβ40 and Aβ42 fibrils on the transcriptome of primary astrocytes and microglia. Biomedicines 2022; 10: 2982.

39.

Mann

, Iwatsubo

, Fukumoto

, et al. Microglial cells and amyloid β protein (Aβ) deposition; association with Aβ40-containing plaques. Acta Neuropathol (Berl) 1995; 90: 472–477.

40.

Fukumoto

, Asami-Odaka

, Suzuki

, et al. Association of Aβ 40-positive senile plaques with microglial cells in the brains of patients with Alzheimer’s disease and in non-demented aged individuals. Neurodegeneration 1996; 5: 13–17.

41.

Fan

, Brooks

, Okello

, et al. An early and late peak in microglial activation in Alzheimer’s disease trajectory. Brain 2017; 140: 792–803.

42.

Fradinger

, Monien

, Urbanc

, et al. C-terminal peptides coassemble into Aβ42 oligomers and protect neurons against Aβ42-induced neurotoxicity. Proc Natl Acad Sci U S A 2008; 105: 14175–14180.

43.

Pires

, Rocha

, Ambrosio

, et al. The role of the surface on microglia function: Implications for central nervous system tissue engineering. J R Soc Interface 2015; 12: 20141224.

44.

Claes

, Danhash

, Hasselmann

, et al. Plaque-associated human microglia accumulate lipid droplets in a chimeric model of Alzheimer’s disease. Mol Neurodegener 2021; 16: 50.

45.

Wei

, Su

, Reynolds

, et al. Self-assembling peptide and protein amyloids: From structure to tailored function in nanotechnology. Chem Soc Rev 2017; 46: 4661–4708.

46.

Mohd Yasin

, Mohd Idrus

, Hoe

, et al. Macrophage polarization in THP-1 cell line and primary monocytes: A systematic review. Differentiation 2022; 128: 67–82.

47.

Chen

, Li

, Jiang

, et al. IL-18 induced IL-23/IL-17 expression impairs Aβ clearance in cultured THP-1 and BV2 cells. Cytokine 2019; 119: 113–118.

48.

Chong

, Sung

, Shin

, et al. Effects of the β-amyloid and carboxyl-terminal fragment of Alzheimer’s amyloid precursor protein on the production of the tumor necrosis factor-alpha and matrix metalloproteinase-9 by human monocytic THP-1. J Biol Chem 2001; 276: 23511–23517.

49.

McDonald

, Bamberger

, Combs

, et al. β-Amyloid fibrils activate parallel mitogen-activated protein kinase pathways in microglia and THP1 monocytes. J Neurosci 1998; 18: 4451–4460.

50.

McDonald

, Brunden

and Landreth

. Amyloid fibrils activate tyrosine kinase-dependent signaling and superoxide production in microglia. J Neurosci 1997; 17: 2284–2294.

51.

Yates

, Burgess

, Kocsis-Angle

, et al. Amyloid β and amylin fibrils induce increases in proinflammatory cytokine and chemokine production by THP-1 cells and murine microglia. J Neurochem 2000; 74: 1017–1025.

52.

Fiala

, Lin

, Ringman

, et al. Ineffective phagocytosis of amyloid-β by macrophages of Alzheimer’s disease patients. J Alzheimers Dis 2005; 7: 221–232; discussion 255–262.

53.

Fagan

, Roe

, Xiong

, et al. Cerebrospinal fluid tau/β-amyloid(42) ratio as a prediction of cognitive decline in nondemented older adults. Arch Neurol 2007; 64: 343–349.

54.

Dear

, Michaels

TCT

, Meisl

, et al. Kinetic diversity of amyloid oligomers. Proc Natl Acad Sci U S A 2020; 117: 12087–12094.

55.

Hashimoto

, Bogdanovic

, Volkmann

, et al. Analysis of microdissected human neurons by a sensitive ELISA reveals a correlation between elevated intracellular concentrations of Aβ42 and Alzheimer’s disease neuropathology. Acta Neuropathol 2010; 119: 543–554.

56.

Venegas

, Kumar

, Franklin

, et al. Microglia-derived ASC specks cross-seed amyloid-β in Alzheimer’s disease. Nature 2017; 552: 355–361.

57.

Pardridge

. Drug transport across the blood-brain barrier. J Cereb Blood Flow Metab 2012; 32: 1959–1972.
