Machine Learning Approaches for Dementia Detection Through Speech and Gait Analysis: A Systematic Literature Review

Search strategy

Comprehensive searches were conducted in three selected databases (Scopus, PubMed, Web of Science) to identify relevant studies published from 2017 to 2022. This period captures the recent advancement in machine learning techniques with the highest accuracies and the latest tools and methodologies for increased relevance in both current and future research. The following search term was used through an iterative process of refining the search keywords to achieve comprehensive results: (Dementia OR Alzheimer OR “cognitive impairment”) AND (TUG OR “dual task” OR gait OR face OR “facial recognition” OR speech OR voice) AND (learning OR predict OR “artificial intelligence”). Table 1 shows the search keywords used in the Scopus database:

The search in Web of Science was conducted using the ‘topic’ filter which includes the title and the abstract. The PubMed search was conducted using ‘all filed’ filter which includes title, abstract, and full text. In Scopus, the search was conducted in the abstract and title. The search keywords were intended to be comprehensive and cover all the literature related to dementia detection using machine learning through gait and speech analysis. The databases were accessed on 13 January 2023.

The PICOS table is a structured framework employed in systematic literature reviews to define the research question and guide the search strategy by outlining the Population, Intervention, Comparison, Outcome, and Study Design. This approach ensures a comprehensive and focused search, enabling the identification and selection of relevant studies for inclusion in the review [33]. The PICOS table can be seen in Table 2.

Inclusion criteria

In this systematic literature review, the search was not limited to specific authors, subject areas, or document types. Instead, it was conducted by a comprehensive search across the aforementioned databases, including journals, conference proceedings, and book chapters. Through this inclusive search, the study aims to reduce the potential for publication bias. Furthermore, it included all relevant literature, both paid and subscription-based papers. This approach reduced the risk of not including valuable studies and ensures a thorough representation of the available evidence. The only restrictions that were placed were on studies that were not written in English and publications that were not published within the timeframe of 2017 to 2022. By including a wide range of sources and avoiding any narrow focus, the aim was to conduct a thorough and unbiased review of the available literature on the research topic.

The Inclusion criteria in this review were: 1) Studies written in languages other than English were excluded; 2) Studies between 2017 to 2022; 3) Studies that utilized machine learning approaches for dementia detection or studies that employ speech analysis for dementia detection; 4) Studies using gait analysis for dementia detection; 5) If speech data is automatic or both automatic and manual transcription of the speech data; 6) All types of papers (journals, conference proceedings, and book chapters). The exclusion criteria were: 1) Sensor-based methods of data collection; 2) Invasive studies for instance, MRI, PET, and EEG; 3) Simple statistics methods; 4) Examining only association without prediction; 5) Studies that focus on other neurodegenerative diseases; 6) Short conference contributions (<4 pages); 7) Public databases (DementiaBank, ADReSS Challenge dataset, and Framingham Heart Study (FHS)) and the reason is that these studies use the same dataset and same methods.

Search outcome

In total 3,819 studies were identified from the selected electronic databases as follows: Web of Science total was 1,197, Scopus total was 1,285, PubMed total was 1,337 articles. After removing the duplicates, the total was 2,655. After screening the title and abstract (n = 300) were selected for full-text evaluation. To reduce the bias of the selected studies, full-text papers (n = 300 studies) were reviewed independently by two reviewers (MA and IT) and only the papers were both reviewers selected as relevant were included. The level of agreement between the two reviewers was 90%. The reviewers discussed any disagreements and finalized the papers to be included based on the consensus. Incorporating this method enhances the objectivity and reliability of the data extraction and synthesis processes and avoids individual biases in interpreting and synthesizing the data. In total 40 publications were included, 9 for gait and 31 for speech, the distribution of the publications per year can be seen in Fig. 1. The flowchart of the methodology can be seen in Fig. 2. This figure compiles the selection process according to search methods and PRISMA flow diagram for systematic reviews [30]. After inclusion/exclusion criteria and duplicates removal, 300 reports were sought for retrieval, and after assessing eligibility, 40 studies were included in this review.

OPEN IN VIEWER

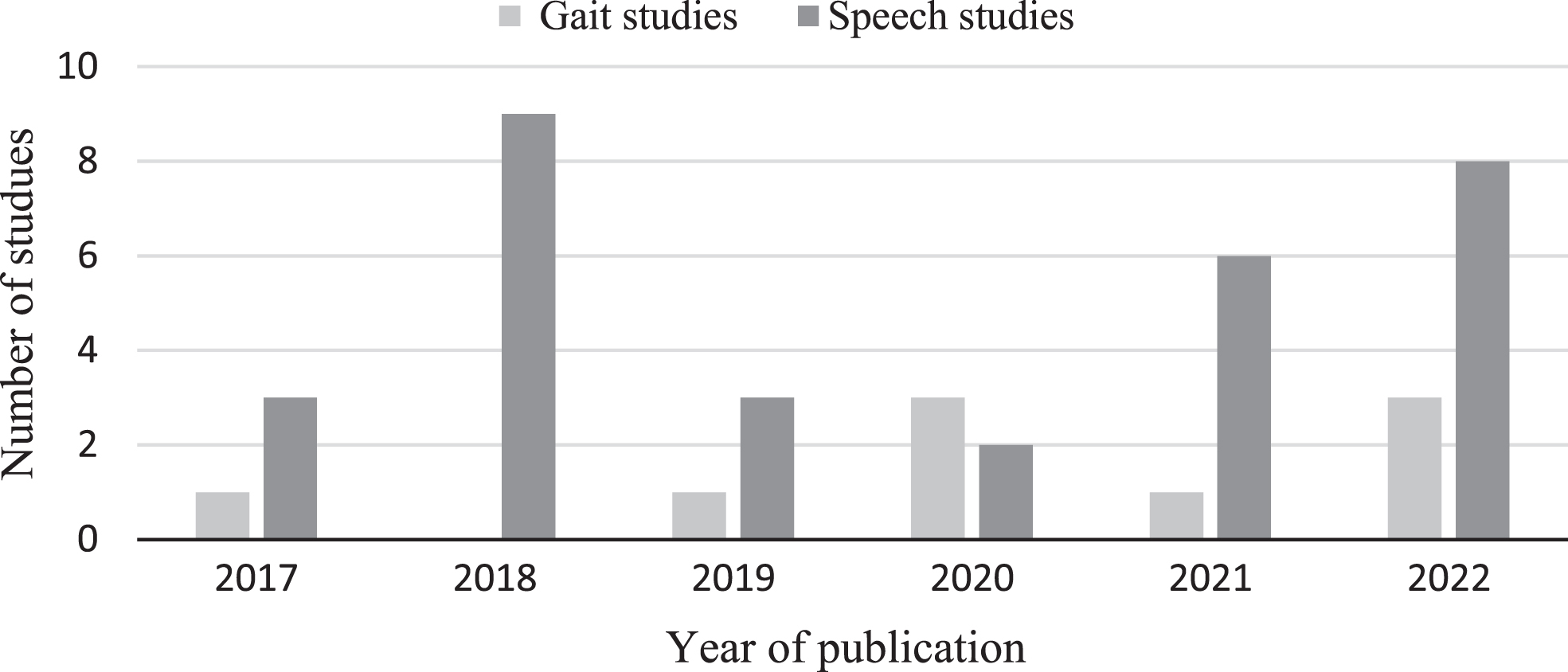

Fig. 1

Number of publication per year for gait and speech studies included for synthesis.

OPEN IN VIEWER

Fig. 2

Methodology flowchart following the PRISMA guidelines. Stages of literature selection starts by databases identification, reports screening, full text evaluation, and finally 40 papers were selected for synthesis according to the inclusion/exclusion criteria. The Figure shows the count of excluded papers with reason.

Gait analysis for dementia detection using machine learning

Gait assessment for dementia detection through machine learning has the potential to be a non-invasive tool for early diagnosis. Gait, which is the pattern of walking, has the potential to provide valuable insight into cognitive health. Figure 3 illustrates the whole process of dementia detection using machine learning. Within this part, the study starts by illustrating the machine learning techniques presented in the included gait paper studies, and features used for classification.

OPEN IN VIEWER

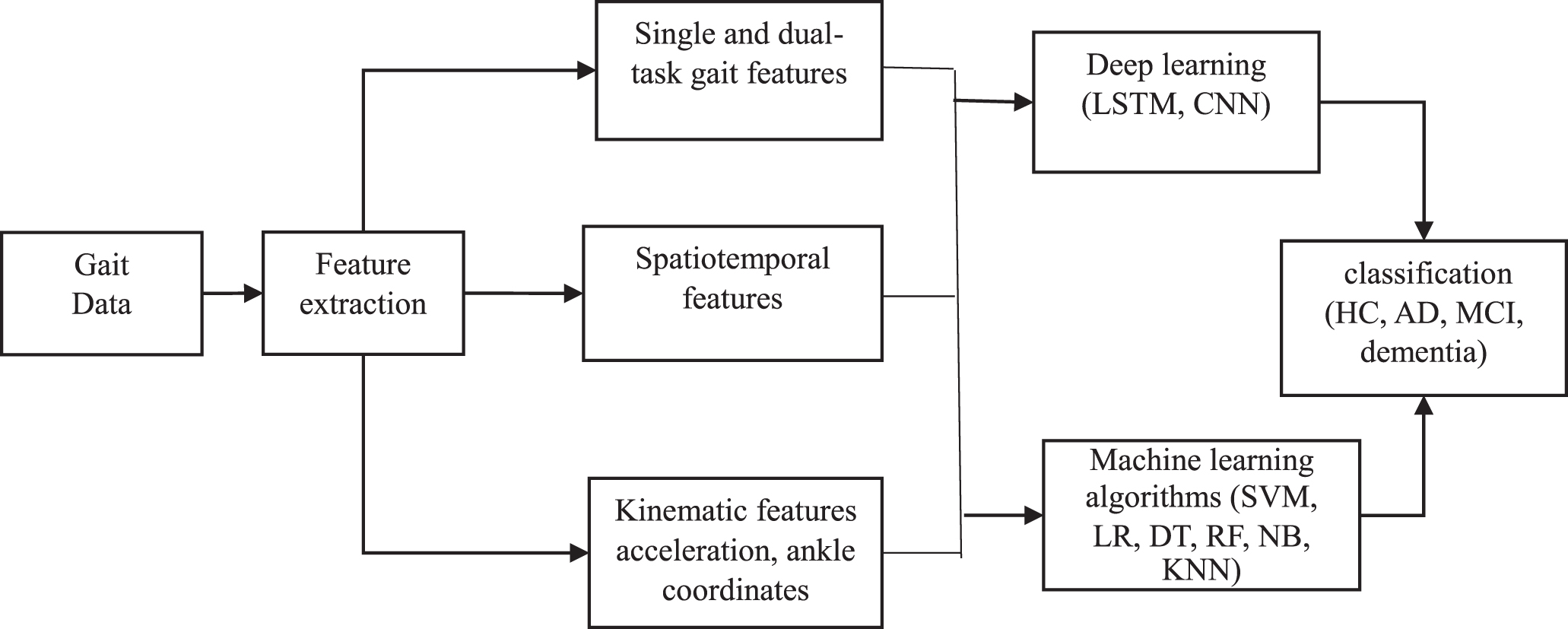

Fig. 3

Overview of identified machine learning methodology for dementia detection using gait analysis. HC, healthy controls; AD, Alzheimer’s disease; MCI, mild cognitive impairment; SVM, support vector machine; LR, logistic regression; DT, decision trees; RF, Random Forest; NB, Naïve Bays; KNN, K-Nearest Neighbor.

Machine learning techniques

All the studies reviewed for gait analysis utilized supervised learning. The most frequent machine learning algorithm that is used in the selected studies is support vector machine (SVM) (N = 5), followed by logistic regression (LR) (N = 3), then decision trees (DT) (N = 2). Only three studies used deep learning algorithms (DP) for gait analysis [34 –36]. The percentage of each algorithm is presented in Fig. 4.

OPEN IN VIEWER

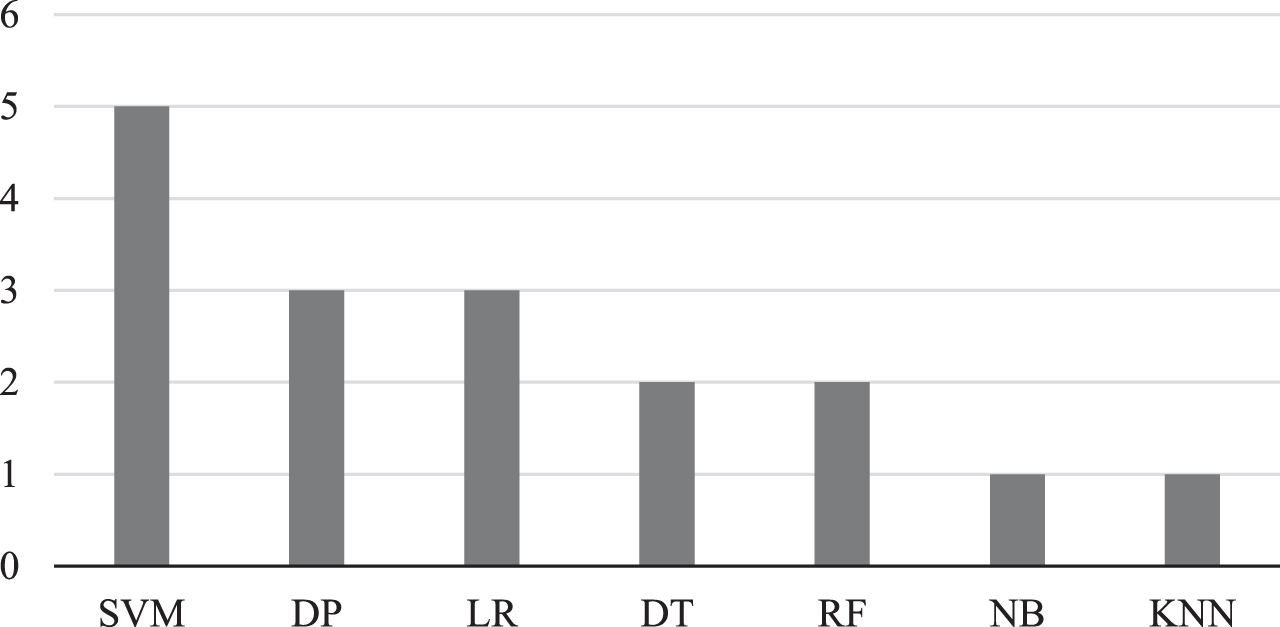

Fig. 4

Overview of the count of identified machine learning methods used in gait studies. SVM, support vector machine; DP, deep learning; LR, logistic regression; DT, decision trees; RF, Random Forest; NB, Naïve Bays; KNN, K-Nearest Neighbor.

Here is a brief description of the algorithms and how they have been used in the included studies:

Application of neural network

Neural network (NN) is a computational model inspired by the human brain. It encompasses of interconnected neurons that process the input data in a layered manner. Likewise, the human brain adjusts the synaptic weights between neurons, these architectures adjust the weights to enable them to learn and improve their performance. NNs contain activation functions to decide if a neuron should be activated or not based on the weighted sum [37].

NN was implemented by Ishibashi et al. [34], for extracting and utilizing features from Doppler radar images for dementia classification. The feature-extraction of gait data is done through image binarization, region segmentation, and pixel counting. The study compared the performance of different models, including K-Nearest Neighbors (KNN), Naïve Bayes (NB), Random Forest (RF), Decision Trees (DT), and ensemble modeling (EN). The result showed that NN outperformed other classifiers, achieving an accuracy of 82.1% for the classification of dementia subjects from healthy controls (HC). However, in terms of recall, the ensemble based on DT, RF, KNN, and NN accomplished 72.2%. SVM and NB achieved a low recall score (41.7%), and the reason might be the imbalanced dataset with many more healthy controls than patients with dementia.

You et al. [35] aimed to explore gait parameters for the early diagnosis of MCI and AD by implementing the Long-Short-Term-Memory (LSTM) and RF algorithms. The authors explored whole-body movement to identify important parameters for dementia stratification from skeleton joints captured by a Kinect sensor. The system demonstrated an increase of 4.54% accuracy when using both upper and lower body part features compared to employing only lower body features. This study utilized gait speed, gait cycle, stride length variation, gait cycle variation, hand swing, and head posture variation as features for classification. The results showed that LSTM (accuracy of 90.48%, sensitivity of 92.00%, and specificity of 88.24%) performed better than RF.

Zhang et al. [36] presented a dementia detection system using gait analysis captured through a Kinect 2.0 camera. Features were extracted from human skeleton joints from both single task and dual-task in which subjects count down from 20 and subtract 3 each time. The features learned from a Convolutional Neural Network (CNN) outperformed handcrafted features such as mean speed, standard deviation of speed, mean step length, mean gait cycle time, and mean acceleration. In the context of positive case classification, sensitivity is important to evaluation metrics, and CNN attained the highest sensitivity of 74.10%. However, in terms of accuracy, SVM achieved a better result (60.42%)

Application of support vector machines

SVM is a supervised machine learning algorithm, it was developed in the 1990 s and has commonly been used for classification tasks. SVM makes use of kernels which are mathematical functions that transform the input data into a higher-dimensional space to allow for separation between data points [38]. SVMs were utilized in five studies and are the most used machine learning technique for dementia detection research among our search results.

Seifallahi et al. [39] developed an SVM classifier and out of 61 features extracted from the TUG test they identified 12 significant gait features for the classification of AD from HC after modifying for age and Geriatric Depression Scale. This study achieved an accuracy of 97.75% and an F-score of 97.67% for five-fold cross-validation and 98.68% and 98.67% for leave-one-subject-out cross-validation. This study provides a low-cost and convenient tool for AD detection through quantifying TUG tests in older adults. The tool has the capability to enable widespread AD diagnosis in clinical or non-clinical settings, which can help in the early detection of AD.

Kondragunta et al. [40] implemented an SVM to classify healthy individuals from mild or severe cognitive impairments. 3D-based pose estimation was implemented using depth data to quantify gait parameters and gait cycles of the elderly. The estimated gait parameters and cycles were used by Dynamic Time Wrapping to compare the patterns of the gait cycle of the subjects in various trials such as Regular Gait 1 (RG1), Regular Gait 2 (RG2), Counting Backward 1 (CB1), Counting Backward 3 (CB3), Fast Gait (FG) and Words with Special Letters (WSPL) and then fed to SVM for classification. The overall accuracy is low with the highest accuracy of 69% CHI versus pMCI versus MCI. The F1 score is best for CHI versus MCI with 80%. One suggested reason for the low classification accuracy is the features selected are not sufficient. For instance, the spatiotemporal and demographic features are not used in this study, and a similar pattern of gait features among the elderly over 80 years old.

Aoki et al. [41] applied an SVM classifier and extracted gait features from the whole-body movement. The optimal MMSE cut-off score of 25 achieved the highest AUC when participants split into either positive or negative. The study showed that dual-task gait features obtained better results as compared to single gait features with ROC 59.8%, and 74.7% respectively. Moreover, the study presented that the rich features demonstrate superiority in comparison to the simple features i.e., AUC (66.6%, 74.7%) respectively.

Application of logistic regression

LR is a machine learning method that is used for binary classification in order to model the probability of an event occurring based on input. It allows for the estimation of odds ratios, which quantify the impact of predictors on the likelihood of the event. The logistic transformation is implemented to map the input value between 0 and 1 [42].

Åhman et al. [8] used LR and showed that TUGdt enhances dementia prediction beyond sole reliance on demographic variables and cognitive test alone (c-statistics from 88% to 94%) and the single-task test (c-statistics from 86% to 89%) conducted separately. Notably, the improvement in the prediction was observed in the younger patients under the age of 72 years.

Nielsen et al. [43] employed the LR model to examine the ability of the dual-task to discriminate between MCI versus HC and MCI versus AD. The dual-task incorporated the TUG test combined with backward counting starting from 100 and decreasing by one, assessing the performance decline as dual-task cost. The study achieved an AUC of 78% for discriminating between MCI from the HCs, an AUC of 73% among MCI and AD, and an AUC of 90% between HC and AD through the TUGdt (the TUGdt has a high discriminating ability between MCI and HC and a moderate discriminating ability between MCI and AD).

Ng et al. [44] implemented LR and demonstrated the decrease in the TUG test of functional mobility is prodromal to the occurrence of MCI. TUG displayed the maximum accuracy (AUC = 72.9%) in predicting incidents of MCI-dementia, followed by the Gait Speed (GS) test (AUC = 68.3%), Knee Extension Strength (KES) test (AUC = 62.4%), and the Performance Oriented Mobility Assessment (POMA) test (AUC = 56.1%). POMA is a functional assessment tool utilized to evaluate balance, gait, and mobility in elderly individuals, providing a score that indicates their risk of falls [45].

Study characteristics

Of the nine papers selected for the detection of dementia from gait, three focused on MCI, one on AD, two on both AD and MCI, and three on the broader aspect of dementia classification. In terms of gait data, two studies used the TUG test, two studies used the normal gait test, two studies performed the TUGdt, and three studies incorporated both single and dual-task. Regarding the method of collecting the gait data, five studies utilized Kinect sensors, three studies employed stopwatches, one study used video cameras, and one study used maximum isometric contraction. Five studies used cross-sectional as the study design method, two longitudinal designs, and two prospective cohort study designs. The extracted data is shown in Table 2.

Feature characteristics

Several studies have utilized diverse features for gait analysis as a tool for the early detection of dementia. Seifallahi et al. [39] identified numerous features related to sit-to-stand, turning, and stand-to-sit subtasks and important features chosen from different TUG subtasks. A novel approach by You et al. [35] incorporated the TUG test to extract features from the whole-body movement (25 joints) and discovered that joints of the legs and hands contribute to classification.

Zhang et al. [36] employed single and dual gait tests and extracted gait cycles from each gait task, other features such as mean speed and standard deviation of speed, mean step length, mean gait cycle time, and mean acceleration were extracted from the whole gait task.

Kondragunta et al. [40] applied 3D pose estimation to obtain the subject’s pose and extracted ankle coordinates. They calculated the 3D distance between the two feet for each frame using Euclidean measurement and applied Dynamic Time Warping to identify important temporal parameters.

Aoki et al. [41] demonstrated that dual-task features obtained a better performance compared to single gait features for classification. The study utilized whole-body movement and by employing a time-frequency analysis on a sequential data set comprising 3D coordinates of bodily joints derived a comprehensive set of gait features.

Nielsen et al. [43] recorded the dual-task in seconds and the time taken to complete the TUGdt is fed into LR. The features considered in Ng et al. [44] encompass the TUG metric evaluating functional mobility, rapid gait speed (GS), knee extension strength (KES), and performance-based mobility assessment.

Deep learning

Deep learning consists of multiple layers of artificial neurons to learn intricate representations of the input data. Among the search results, deep learning algorithms are used for classification (N = 14). In Vetráb et al. [46] deep learning is used for feature extraction and classification is performed with SVM (N = 14).

Themistocleous et al. [47] trained 10 deep neural network architectures based on MLP and the best performance was achieved utilizing 5-fold cross-validation to distinguish between MCI and HC with an accuracy of 83%. The authors suggested that the acoustic features that encompass vowel duration, vowel formants, and fundamental frequency along with gender and age as predictors resulted in important information for the detection of MCI.

Al-Atroshi et al. [48] introduced an automatic speech recognition model utilizing the Gaussian mixture model and deep belief network GMM-DBN and SoftMax classifier. The Method depends on the Gaussian Mixture Model (GMM) for automatic speech recognition (ASR) of the speech. The Deep Belief Network (DBN) model is used to extract feature vectors from identified speech data. The SoftMax classifier was built for the classification of MCI and AD disorders in the used speech signals. GMM-DBN achieved an F1-score of 90.19% and an accuracy of 90.28% in the detection of multiple classes, and on the binary classification, it achieved an accuracy of 86.76%.

A CNN containing three convolution blocks and three fully connected layers was employed by Chau et al. [49]. Voice spectrograms are directly used as input to CNN for the classification of MCI. The study explored the optimal threshold for MCI classification and achieved a precision of 75% and recall of 82% when the threshold was optimum.

Bertini et al. [50] implemented an autoencoder trained on spectrograms of the speech data and used MLP for classification. The MLP consists of 4 hidden layers along with 128 hidden rectified linear units. The authors reported an accuracy of 90.57% in the binary classification and 85.39% in the multiple classification (HC, MCI, eD), and outperformed the techniques relying on manual transcription and annotation of speech.

Sadeghian et al. [51] combined acoustic, MMSE test results, and linguistic features for the detection of AD from HC. A total of 236 (including four demographic) features were extracted with the aim of selecting the most informative one. According to the study, the MMSE score is the most informative parameter (accuracy of 71% alone), when combined with other features yielding the best performance. Genetic Algorithm-Support Vector Machine (GA-SVM), RF, and ANN specifically MLP were implemented, and the best accuracy was obtained with the neural network. The accuracies of automatic (94.4%) and manual transcription (95.8%) of NN were almost similar. However, Sadeghian et al. [52] demonstrated that acoustic and linguistic features were able to discriminate even if the MMSE score was not considered. The authors built MLP with one hidden layer composed of 25 neurons and the sigmoid as an activation function was used. The MLP attained an accuracy of 94.4% with five features (MMSE score, race, fraction of pauses greater than 10 sec, fraction of speech length that was pause, and the Linguistic Word Inquiry Count (LIWC)). This study shows that manual and automatic transcription produce similar accuracies of 91.7% and 93.1% respectively.

Sangchocanonta et al. [53] implemented MLP to classify between MCI, AD, and HC. The authors developed two new picture description tasks and transcribed the speech automatically. Part-of-Speech (PoS) tagger was used to create 47 types of words and grouped them into seven parts of speech. Among DT, RF, NB, LR, and Adaboost, MLP obtained the best results with an accuracy of 86.67%, sensitivity of 90.00%, and specificity of 80.00%.

Chien et al. [54] used a variant of RNN (biGRU) for the automatic assessment of AD from HC by employing a feature sequence generator. The study obtained an AUC value of 83.8% after fine-tuning the model. The authors conducted both manual and automatic transcription and the AUC was 80.0% for automatic transcription and 83.8% for manual transcription.

Traditional machine learning methods

Traditional machine learning approaches for dementia detection have been implemented after feature engineering of the speech signal. Several classifiers have been utilized to achieve a better performance in dementia disease classification. The most frequent model present in the selected studies was SVM (n = 14), see Table 4. which shows the occurrence of machine learning models in the selected studies. This section aims to outline the machine learning techniques and the most significant features used.

Application of support vector machines

An SVM was implemented by López-de-Ipiña et al. [55] for the detection of dementia. The SVM showed superior performance over CNN, KNN, and MLP with a classification error rate (CER) of 5% using the best 25 features. The second-best algorithm was CNN with a CER of 8%. Classical Features (spectral and time domain), Perceptual Features (MFCC), and nonlinear features (fractal and entropy features) were selected through a hybrid approach by nonparametric Mann–Whitney U test and SVM evaluation. Feature selection and normalization are done with the WEKA tool.

Vetráb et al. [46] aimed to classify MCI from HC by implementing sequence-to-sequence deep autoencoders for feature extraction and linear SVM for classification. The best accuracy achieved in this study was 72% and the corresponding AUC value was 0.763, which was obtained by clipping the power levels below a certain dB threshold (-75 dB). The study found that the sequence-to-sequence autoencoders outperformed x-vectors, even though they were trained on more data.

Gosztolya et al. [56] developed an SVM with a linear kernel for identifying MCI and AD based on spontaneous speech using acoustic and linguistic features. The authors evaluated the usefulness of both the acoustic and linguistic features. Applying only demographic features the accuracy obtained was 40%. Using only acoustic features, they were able to separate different groups with an accuracy of 74-82% (for the 3-class HC, MCI, mAD) and they got similar accuracy results by using only linguistic features. By combining both acoustic and linguistic features the performance improved with ranges of 80% -86%, and 78-86% of the accuracy and recall respectively.

Yu et al. [57] implemented an SVM model to monitor cognitive impairment by analyzing speech from remotely collected cognitive tests. An extended set of features including articulation, phoneme characteristics, and pitch were extracted. The SVM model achieved the highest performance (AUC = 77%) when the features were combined with the cognitive test score. However, using speech features alone, the AUC for distinguishing cognitive impairment from healthy individuals was 74%, while for the cognitive test, it was 45%. The best performance features were those combined with cognitive tests.

König et al. [58] employed an SVM for classification between HC, MCI, and AD. The study used the word count, clusters, and switches features extracted from the semantic verbal fluency speech task. The classification performance for AUC was HC versus AD = 93.9%, HC versus MCI = 75.8%, and AD versus MCI = 85.9%. The study performed both manual and automatic transcription. The authors aimed to examine whether automatic analysis of the semantic verbal fluency task can provide as accurate classification as the manual analysis and thus aid the cognitive impairment screening. For both the comparisons of HC versus AD and HC versus MCI, the models trained using automated features and manual features exhibited similar performances in terms of AUC, with values of 72.3% versus 75.8% and 95.3% versus 93.9%, respectively. However, in the context of MCI versus AD, the AUC of models trained on automated features showed a decline, with values of 85.9% compared to 77.4% for models utilizing manual features.

König et al. [59] implemented an SVM for differentiation between different classes of dementia (subjective cognitive impairment (SCI), MCI, AD, and Mixed). The study used different speech tasks, including verbal fluency, picture description tasks, free speech tasks, and counting down. Vocal markers are derived using speech signal processing. Then a subset of the most relevant vocal markers was selected by the Mann-Whitney test. The algorithm obtained the following accuracies: SCI versus AD = 92%, SCI versus MD = 92%, SCI versus MCI = 86%, MCI versus AD = 86%, and 82% for MCI versus Mixed cases. In scenarios involving multiple classes, the results stand at 78% accuracy for differentiating SCI, MCI, and AD, 74% for SCI, MCI, and Mixed; and 75% for SCI, MCI, and an alternate category (either AD or Mixed).

Tóth et al. [60] implemented an SVM to detect MCI from HC based on the analysis of spontaneous speech where acoustic parameters were extracted. The extracted acoustic parameters comprised of hesitation ratio, speech tempo, length, number of silent and filled pauses, and length of utterance. Those parameters showed a correlation to MCI, so they could be considered as biomarkers. The study demonstrated that a fully automated process was able to separate the classes with an F1-score of 78.8%. This study performed both automatic and manual transcription. SVM and RF achieved an AUC of 63.9% for automatic and 73.4% for manual and 67.6% for automatic and 73.4% for manual, respectively.

Metarugcheep et al. [61] incorporated an SVM to distinguish between MCI and HC. Feature extraction based on phonemic clustering and switching through the phonemic verbal fluency (PVF) task including acoustic, semantic, and grouping of words. In this study, Silence-based features, Similarity-based features, and cluster features were the three categories of features used for analysis. Feature selection was done by means of the chi-square test which helps in highlighting the most important features. The study used three classifiers (extreme gradient boosting (XGBoost), SVM, RF) and in terms of performance, SVM performed the best with an AUC of 73.3%.

Application of logistic regression

Shimoda et al. [62] developed machine learning algorithms for the prediction of AD from HC based on vocal features extracted from daily conversation. The proposed machine learning algorithms include XGBoost, RF, and LR in which LR performed the best in terms of AUC = 89.3%. When evaluating each participant as one data point and calculating the mean predictive value of their audio files, the AUC values for XGBoost, RF, LR, and the cognitive test questionnaire were found to be 1.00. implying perfect predictive performance.

Nagumo et al. [63] investigated whether acoustic features could discriminate HC from MCI and global cognitive impairment (GCI). The features included temporal attributes encompassing duration of utterance, number, length of pauses, and spectral features represented by fundamental frequency (F0), first formant (F1), and second formant (F2). LR was employed and achieved an AUC of 61% for the classification of HC versus MCI, AUC of 67% for HC versus GCI, and 77% for MCI with GCI.

Munthuli et al. [64] devised a new speech task called Thai Language and Cognition Assessment (TLCA) that is specified for the Thai language and culture for screening of MCI and AD from HC. The TLCA contains 21 tasks out of which 16 are speech tasks. 988 features were extracted with the OpenSMILE [65]. Feature selection using correlation-based and best-first search methods to choose the most significant features was performed. LR demonstrated superior performance compared to MLP and RF, achieving accuracy of 100%, and 100% sensitivity in the multiclass classification (HC, MCI, AD) and accuracy of 93.33% and 100% sensitivity in the binary class (HC, non-HC).

Application of K-Nearest Neighbor (KNN)

KNN is a widely used machine learning algorithm for both classification and regression. The principle of the KNN algorithm is that it classifies points based on the class of it is nearest neighbors. The distance is calculated between the data points using commonly used distance measures such as Euclidean or Manhattan distance [66].

Mirzaei et al. [67] introduced a two-phase approach for feature selection for the detection of AD using voice features to optimize the prediction accuracy. Temporal and acoustical features are used for classification. The features were normalized based on the z-score. Moreover, Mel-Frequency Cepstral Coefficients (MFCCs) and Filter Banks Energies (FBEs), were evaluated. The highest accuracy was achieved with a KNN of 62% after feature selection.

Nasrolahzadeh et al. [68] used higher-order spectral features for classifying AD subjects compared to HC. Information gain criteria were adopted for feature selection. KNN, SVM DT, and NB were implemented and achieved comparable results in terms of accuracy with 97.71, 96.46, 94.18, and 95.94%, respectively.

Application of ensemble model

Ensemble models are methods that combine the prediction of multiple algorithms. This method allows us to get the strength of the combined models to produce more accurate and robust results. The main idea behind ensemble models is that multiple weak learners merge to form a strong one as a result it significantly improves the performance [69].

The parallel classification model consisting of KNN and SVM was adopted by You et al. [70] to discriminate between high-risk and low-risk dementia. The study utilized 282 paralinguistic features for analysis and a final set of 27 features including MFCC coefficients, pitch, energy, skewness, spectral centroid, and memory test result, yielded the best classification accuracy. The Mann-Whitney U-test, Neighborhood Component Analysis (NCA), and ReliefF were used for feature selection. The ensemble classification result of the SVM and KNN was 94.7% with only paralinguistic features and 97.2% using both paralinguistic and episodic memory features.

Other traditional machine learning classifier. Weiner et al. [71] used both linguistic and acoustic features extracted from bibliographic interviews and speech recordings to predict the development of dementia. The Gaussian classifier was implemented to accomplish unweighted average recall (UAR) of 73.3% and 75.7% for the prediction of dementia five and 12 years ahead.

De Looze et al. [72] explored the relationship between speech chunking and cognitive impairment in individuals with MCI and AD. Temporal features were extracted from the reading task, including speech chunks, pauses, dysfluencies, rates, and duration. The authors found mild-to-moderate AD is related to slower speech with more chunks, pauses, and disfluencies. Linear discriminant analysis (LDA) was employed to discriminate between groups and achieved an AUC of 75% to discriminate between healthy and MCI individuals, an AUC of 90% between MCI and AD, and between AD and HC, with an AUC of 94%.

Soroski et al. [73] compared automatically transcribed speech using Google speech-to-text software to manually corrected transcripts to see the effectiveness of automatic transcription for dementia classification. The automatic transcription showed higher confidence scores and lower error rates for speech data from HCs compared with patients. Machine learning classification accuracies with the manually corrected transcripts outperformed the automatically generated transcripts for the picture description and recalling a pleasant experience task, but there is no difference for the reading task. The study found that adding manual pauses to transcripts had no impact on classification performance.

Liang et al. [74] explained that the machine learning classification algorithms built using the extracted features achieved an accuracy of 68% using features fusion and 80% -90% using DT and RF models with selected features. The Root-Mean-square Error (RMSE) result of the regression model was 3.53. The authors also analyzed the contribution of each feature set to the model output, revealing the most impactful features for cognitive assessments. Overall, the study demonstrates the potential of using Voice-Assistant Systems (VAS) for home-based cognitive assessments and early detection of cognitive decline in older adults living alone.

Study characteristics

The most used classification classes in the literature were between HC and MCI as seen in Table 6. In terms of languages used Table 7. shows the languages used in the included studies in which English language was the most used. Regarding the study design, 24 are cross-sectional studies, five are longitudinal studies, and two are retrospective studies.

Feature characteristics

Features are crucial for obtaining optimal classifier performance to discriminate between different levels of impairment. Many features have been evaluated in the literature including linguistic features, acoustic features, spectral features, or a combination of both linguistic and acoustic features for dementia detection from speech. For selecting the best features, several studies used the nonparametric Mann–Whitney U test for feature selection [55 , 79].

In the literature, feature vectors were extracted from spontaneous speech tasks. Al-Atroshi et al. [48] used The DBN model to extract the feature vector from the spontaneous speech task. Nasrolahzadeh et al. [68] used the bispectral structure of spontaneous speech. Moreover, to measure the performance of the features, they used the gain ratio method. Vetráb et al. [46] employed sequence-to-sequence deep autoencoder to extract compressed hidden states, number of chunks, I-vectors, and X-vectors from spontaneous speech tasks.

Schäfer et al. [76] extracted over 50 features from two neuropsychological assessments, Rey-Auditory Verbal Learning Test (RAVLT) and Semantic Verbal Fluency, and 27 features were selected for analysis. The study grouped the extracted features into three neurocognitive subdomains, encompassing learning and memory, executive function, and processing speed, and calculated a single global composite score from these subdomains to represent an overall measure of cognitive function based on speech patterns.

Acoustic features

Acoustic features describe the characteristics of the speech sound. Acoustic features include pitch, intensity, duration, MFFCC, prosodic features, and formants. Acoustic features are the most popular in search results.

Liang et al. [74] used a voice assistant system and extracted 163 features from each participant performing 30 per selected voice command. Two fusion strategies, early fusion, and late fusion are employed. In early fusion, all feature values are combined into a single vector from the outset. In contrast, the late fusion strategy involves training separate classifiers and then combining their outputs. Mirzaei et al. [67] Implemented a two-stage feature selection method. The study extracted features, including prosodic, temporal, quality-related measures, MFCCs, and FBEs, were extracted from speech samples. The wrapper feature selection method was employed to select the most relevant features for disease prediction.

De Looze et al. [72] employed temporal features, including sentence duration, speech chunk characteristics, pause duration, articulation rate, speech rate, and dysfluencies, were automatically extracted from annotations, and a mixed model approach with backward elimination was employed for feature selection in analyzing the effects of cognitive status and linguistic demand on speech. Nagumo et al. [63] extracted acoustic features, mainly they focus on the temporal aspect of the speech. Kálmán et al. [75] used automatic speech recognition to assess fifteen temporal parameters, including speech tempo, articulation tempo, silent pause duration rate, total pause duration rate, silent pause average duration, and total pause average duration, revealing significant differences between individuals with MCI and HCs in both English and Hungarian-speaking samples.

Shimoda et al. [62] utilized the open software tool PRAAT [80] to extract 60 vocal variables, including mean, median, minimum, maximum, 0.15 percentile, and 0.85 percentile, and successfully achieved accurate prediction of AD using these vocal features extracted from daily conversations.

Munthuli et al. [64] utilized openSMILE’s Emobase feature set, comprising 988 features derived from 19 functionals of 26 low-level descriptors extracted from 1,440 speech signal files, encompassing attributes such as intensity, loudness, MFCCs, and Zero Crossing Rate. König et al. [59] incorporated vocal features extracted from speech recordings, including low-level markers such as silence and voice duration, and selected relevant features using the Mann-Whitney test based on their significance in discriminating between cognitive different impairment groups (SCI, MCI, AD, Mixed)

Themistocleous et al. [47] used both acoustic and Sociophonetic (age and gender) Features. The features included vowel formants (F1 to F5) measured at multiple positions, fundamental frequency (F0) characteristics (mean, minimum, and maximum), vowel duration, participants’ gender, and age, resulting in 24 acoustic and sociophonetic features.

Tóth et al. [60] extracted acoustic features including speech rate, articulation rate, number of pauses, total length of pauses, and pause rate. Duration of the utterance, and average length of pauses. The study showed that those features are significantly different between MCI and HC.

Linguistic features

Linguistic features describe the structure of the spoken language. It includes word count, syntax, fluency, sentence complexity, speech fillers, vocabulary diversity, and hesitation.

Part of speech tagger (POS) is performed by Sangchocanonta et al. [53] to group words into seven different categories. POS tool is used in natural language processing to group words into their grammatical categories (e.g., verb, noun, etc.) [81]. König et al. [58] utilized features of word count, semantic clusters, mean cluster size, and the number of switches. Reeves et al. [77] analyzed linguistic features including content efficiency, speech rate, part of speech usage, and unique word counts. The study found that linguistic features varied between subjects with MCI and SCI, and thus can be used for the detection of cognitive impairment. Moreover, linguistics showed a slight improvement in the sensitivity and specificity of the narrative description test score. Using both the narrative description test and linguistic features were able to predict cognitive impairment.

Chien et al. [54] used feature sequence generator. The feature representation in the study consisted of a sequence of tokens, primarily using syllables of Mandarin Chinese, which capture various speech characteristics including pausing, repeating, and disfluency, and are generated using a Convolutional Recurrent Neural Network (CRNN) trained on speech data from multiple datasets.

Hybrid features

Several studies used different combinations of features for dementia prediction. Studies showed that the best performance is by a combination of cognitive test scores with other types of features [57, 77].

Yu et al. [57] utilized features including phonemic, pseudo-syllable, and articulatory measures. The study found that combining cognitive test scores with speech parameters, particularly the animal fluency score, improved cognitive impairment detection compared to using either one in isolation. This implies that incorporating both cognitive test scores and speech parameters may provide complementary information for more accurate cognitive impairment detection.

Sadeghian et al. [51] found that the most informative single parameter among the 237 potential features, including four demographic factors and MMSE scores, is the MMSE score itself, with acoustic and linguistic features such as pause counts, pause durations, pitch variations, vocabulary richness, word type usage, sentence complexity, content accuracy, and idea density also being considered.

Weiner et al. [71] employed a nested forward feature selection approach to effectively trim down the dimensionality of a substantial 444-dimensional feature vector. This feature reduction process was carried out for the purpose of dementia prediction, utilizing a combination of linguistic and acoustic features.

Sadeghian et al. [52]. utilized a combination of acoustic features from speech, linguistic features extracted from transcripts, and MMSE scores achieving the best results when considering all features, including MMSE scores, with a detection accuracy of approximately 94%.

Metarugcheep et al. [61] utilized a combination of silence-based, similarity-based, and cluster features extracted from audio recordings and transcribed files, with feature selection methods based on their relevance to distinguish between individuals with MCI and HC. Feature selection was done using a chi-square test, based on their relevance.

Gosztolya et al. [56] experiment on different combinations of features. The study attained accuracy of 74% to 82% using only acoustic features, similar scores with linguistic features, and improved accuracy of 80% to 86% when combining both feature types, with corresponding F1 values between 78% and 86%.

Soroski et al. [73] used both linguistic and acoustic features extracted from the picture description, reading, and experience description tasks. They utilized the correlation feature selection method to identify the most relevant features.

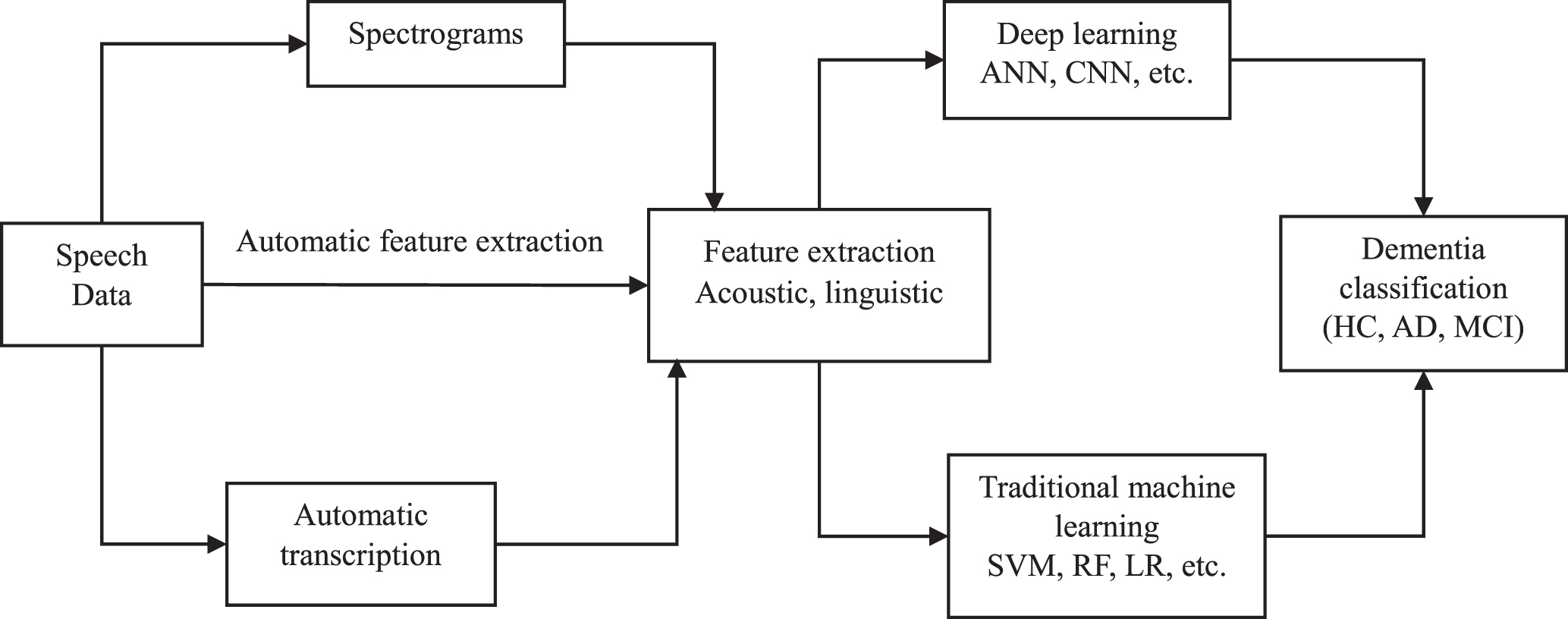

Speech analysis approach

Various studies perform different methods for analyzing the recorded speeches. In the literature review, the studies that involve manual transcription are excluded. It is seen from Table 8 that several studies relied on automatic transcription, while others combined both automatic and manual and compared their result. Additionally, a few studies utilized spectrograms, and others adopted automatic extraction of features.

Spectrograms are visual representation of the audio signal. Some studies have utilized them for the classification of different types of dementia as shown in Table 8. Spectrograms provide information about the frequency and time domain characteristics of the speech data, enabling the extraction of features that identify the subtle changes in speech.

Chau et al. [49] adapted discrete Short-Time Fourier Transformation (STFT) for building the spectrogram. The audio features were extracted from each 4-second sample using STFT, which involves applying a window function to the signal over short time intervals and then performing a Fourier transform on each of these windows to obtain the spectrogram representation of the audio data. Nasrolahzadeh et al. [68] employed the Fast Fourier Transform (FFT) for bispectrum estimation and bispectral features were extracted. Vetráb et al. [46] applied 128 log-scale Mel-spectrogram filters. The window width for the spectrogram was 0.08 ms, and there was a 0.04 ms overlap.

Automatic transcription plays an important role in the field of dementia detection from speech. This technology makes use of advanced machine learning algorithms and automatic speech recognition systems to convert speech into text with remarkable accuracy. In their research [52, 75], they developed their own ASR.

Studies utilized Google speech-to-text services for transcription [53 , 73]. In Liang et al. [74] study the transcription process involves the use of both Alexa’s ASR system and the open-source Wav2vec ASR to generate transcripts from Alexa audio recordings. Automatic transcription was performed with the help of Kaldi software [51, 52]. Schäfer et al. [76] automatically process speech using a proprietary speech analysis pipeline. This pipeline includes automatic speech recognition for transcription and feature extraction, allowing them to analyze the verbal output of participants. Reeves et al. [77] used MacSpeech scribe pro software and at least two reviewers edited for accuracy.

Several studies employed direct feature extracting to analyze the speech data. Shimoda et al. [62] and König et al. [59] employed vocal feature extraction using PAART software. A custom Python program for feature extraction was developed by Nagumo et al. [63].
