Parallel principal components algorithm for OMA following Sanger neural network

Abstract

To address the problems of singularities, sensitivity to measurement noise, and low efficiency in traditional principal component analysis (PCA)-based operational modal analysis (OMA), we present a Sanger neural network principal component analysis (SNNPCA) algorithm to identify the operational modal parameters. SNNPCA is a two-layer neural network that is trained using a generalized Hebbian algorithm to ensure that its output converges to the principal components. After SNNPCA has converged, the link weights of SNNPCA correspond to the separation matrix of PCA. In SNNPCA-based OMA, the measurement response points are set as the input neurons, modal coordinate response signals are set as the output neurons, and the link weights of the neural network represent the modal shapes. Therefore, the operational modal identification process in SNNPCA is physically meaningful and convergent. Furthermore, SNNPCA inherits the parallel nature of neural network algorithms, so it is also insensitive to measurement noise. Simulation results show that SNNPCA can identify the principal modal parameters accurately using only measurement response signals. This method can be applied in embedded devices to realize online monitoring and real-time fault diagnosis.

Keywords

Operational modal analysis principal component analysis Sanger neural network generalized Hebbian rule parallel measurement noise

1. Introduction

Vibration modal parameters (modal shapes, damping ratios, and natural frequencies) are essential for model design and validation, as well as for ensuring the safety of a structure. Moreover, modal shapes provide a mathematical description of the vibration patterns imposed when the structure operates at its natural frequencies. Therefore, these shapes play an important role in structural modeling, dynamic modification, vibration control, and structural health, as well as for damage detection in civil, mechanical, and aerospace engineering [1,2]. Modal identification can be classified into four types: analytic solutions, finite element analysis (FEA) methods, experimental modal analysis [9], and operational modal analysis (OMA). OMA has been widely applied in civil structures [3], bridges [4], and offshore platforms [5].

In recent years, some innovative OMA methods have been proposed and applied to practical engineering. Wang and coworkers [6,7] claim that there is a one-to-one relationship between the vibration modal shapes of dynamically weakly damped mechanical structures and the linear compound matrix, and a one-to-one relationship between the modal responses and principal components was demonstrated using the concept of modal coordinates. They also presented a modal identification method based on a PCA algorithm for mechanical structures. Han and Feeny [8] applied PCA and orthogonal decomposition to OMA to demonstrate the orthogonality of the principal modes for dynamic weakly damped mechanical structures. Blind source separation (BSS) techniques have been introduced into the field of OMA [10,11], whilst Kerschen [12] focused on a physical interpretation of independent component analysis in structural dynamics. Bai et al. [13] proposed a new method based on manifold learning, termed locally linear embedding, and stochastic subspace identification methods have been applied to OMA [14].

For PCA, there are three methods of implementation. Pearson et al. [15] first proposed the use of matrix decomposition to obtain the principal components; Wold et al. [16] achieved PCA by a process of self-iteration; and the third method involves neural networks. In engineering applications, embedding algorithms into hardware devices satisfies the online, parallel and real-time needs. With the development of multi-core processors, parallel methods have several advantages over serial methods. Often, parallel extraction can be achieved by a neural network [17], with the neural network generally using embedded systems or GPUs as the underlying physical implementation [18]. Hebbs’ Rule, which was first proposed in 1949 [19], formed the basis of a neural network model for principal component extraction [20], but this could only extract the first principal component. To extract more principal components through a parallel mechanism, Sanger [21,22] developed a single-layer feedforward network. Zhe et al. [23] improved the learning rules so that the network weight vector converges to the unit orthogonal eigenvector matrix when the input matrix has multiple eigenvalues. Kung et al. [24,25] then presented the adaptive principal components extraction (APEX) network, which offers lateral inhibition and significantly lower computational complexity [24,25]. Neural Network Principal Component Analysis (NNPCA) has also been applied in the field of psychometrics [26]. This paper applies Sanger’s algorithm to OMA with the aim of realizing the parallel extraction of modal parameters.

In summary, the primary contributions of this paper are as follows:

We compare the identification methods based on PCA for OMA. Our method has the advantages of a simple physical explanation, high efficiency as a result of parallel computation, lower space and time requirements, insensitivity to measurement noise, and ease of development in embedded devices.

We propose an NNPCA method that combines the Sanger neural network with PCA to identify the modal parameters in the target operating environment. This method can be applied in embedded devices to realize online monitoring and real-time fault diagnosis.

Numerical simulations are designed to verify the effectiveness of our algorithm.

The remainder of this paper is organized as follows. In Section 2, the PCA model and contrasting methods are introduced. In Section 3, we describe the SNNPCA-based OMA. The simulation results are presented in Section 4. Finally, we conclude this paper in Section 5.

2. Related work

2.1. Mathematical model of PCA

Consider a dataset of observation signals X $(t)=[\vec{x}_{1}(t),\vec{x}_{2}(t),\ldots ,\vec{x}_{m}(t)]^{T}\in \mathbb{R}^{m\times T}$ composed of n unrelated unknown latent variables Y $(t)=[\vec{y}_{1}(t),\vec{y}_{2}(t),\ldots ,\vec{y}_{n}(t)]^{T}\in \mathbb{R}^{n\times T}$ through a linear transformation matrix W = $[\vec{w}_{1},\vec{w}_{2},\ldots ,\vec{w}_{n}]\in \mathbb{R}^{m\times n}$ . We can write $\begin{eqnarray}\displaystyle \mathbf{X}(t)=\mathbf{WY }(t) & & \displaystyle\end{eqnarray}$ (1) where $\mathbf{W}\in \mathbb{R}^{m\times n}$ satisfies $\begin{eqnarray}\displaystyle \mathbf{W}^{T}\mathbf{W}=\mathbf{I}_{n\times n}. & & \displaystyle\end{eqnarray}$ (2)

The goal of PCA is to find the linear transformation matrix $\mathbf{W}\in \mathbb{R}^{m\times n}$ and n uncorrelated latent variables Y(t) using only the observed signal X(t). The n uncorrelated latent variables Y(t) are called the principle components of the m observation signals in X(t).

2.2. OMA of LTI structure based on PCA model

According to the theory of structural dynamics, for linearly time invariant (LTI) structures with m degrees-of-freedom (DOFs), the equations of vibration motion in the physical coordinates is: $\begin{eqnarray}\displaystyle \mathbf{M}\ddot{\mathbf{X}}(t)+\mathbf{C}\dot{\mathbf{X}}(t)+\mathbf{KX}(t)=\mathbf{F}(t) & & \displaystyle\end{eqnarray}$ (3) where $\mathbf{M}\in \mathbb{R}^{m\times m}$ , $\mathbf{C}\in \mathbb{R}^{m\times m}$ and $\mathbf{K}\in \mathbb{R}^{m\times m}$ are the quality matrix, damping matrix, and stiffness matrix of the LTI structure, respectively, t is the time, and F(t) is the time domain random environment dynamic motivation matrix of the LTI structure. The matrixes X(t), $\dot{\mathbf{X}}(t)$ , and $\ddot{\mathbf{X}}(t)$ represent the time domain dynamic displacement response, speed response, and acceleration response of the LTI structure, respectively.

For real modal analysis, the random vibration response signals of weakly damped mechanical structures can be decomposed into the inner product of modal shapes and modal responses in the modal coordinates: $\begin{eqnarray}\displaystyle \mathbf{X}(t)\approx \boldsymbol{\boldsymbol{\it\psi}}\mathbf{Q}(t)=\mathop{\sum }_{i=1}^{m}\vec{{\psi}}_{i}\vec{q}_{i}(t) & & \displaystyle\end{eqnarray}$ (4) where $\mathbf{X}(t)=[\vec{x}_{1}(t),\vec{x}_{2}(t),\ldots ,\vec{x}_{i}(t),\ldots ,\vec{x}_{m}(t)]^{T}\in \mathbb{R}^{m\times T}$ is the matrix composed of the output displacement $\vec{x}_{i}(t),∼i=∼1,2,\ldots ,m$ at the ith sampling point. $\boldsymbol{\boldsymbol{\it\psi}}=[\vec{{\psi}}_{1},\vec{{\psi}}_{2},\ldots ,\vec{{\psi}}_{i},\ldots ,\vec{{\psi}}_{m}]\in \mathbb{R}^{m\times m}$ is the modal shape matrix of the LTI structure composed of the ith modal shape vectors $\vec{{\psi}}_{i}\in \mathbb{R}^{m\times 1}$ , and $\mathbf{Q}(t)=[\vec{q}_{1}(t),\vec{q}_{2}(t),\ldots ,\vec{q}_{m}(t)]^{T}$ is the matrix of the corresponding modal coordinates. When the order of each natural frequency is unequal, the modal shape vector $\vec{{\psi}}_{i}\in \mathbb{R}^{m\times 1}$ becomes: $\begin{eqnarray}\displaystyle \begin{array}{@{}l@{}}{\Psi}^{T}\mathbf{M}{\Psi}=\mathbf{M}=diag[\vec{m}_{1},\vec{m}_{2},\ldots ,\vec{m}_{i},\ldots ,\vec{m}_{m}]\\[12.0pt] {\Psi}^{T}\mathbf{K}{\Psi}=\mathbf{K}=diag[\vec{k}_{1},\vec{k}_{2},\ldots ,\vec{k}_{i},\ldots ,\vec{k}_{m}].\end{array} & & \displaystyle\end{eqnarray}$ (5)

In addition, the modal response vectors $\vec{q}_{k}(t)$ are independent of each other. The matrix Q(t) then satisfies: $\begin{eqnarray}\displaystyle E[\mathbf{Q}(t)\mathbf{Q}^{T}(t)]\approx \boldsymbol{{\Lambda}}_{m\times m}. & & \displaystyle\end{eqnarray}$ (6)

The natural frequency f _i and damping ratio 𝜉_i can be identified using a fast Fourier transform (FFT) or single-DOF fitting technique with the modal coordinate response vector $\vec{q}_{i}(t)$ . Figure 1 shows a flowchart of OMA based on the PCA model.

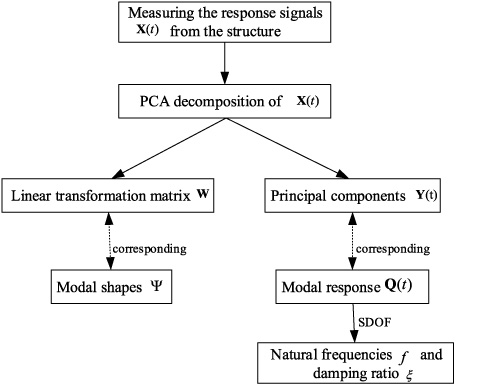

Fig. 1.

Flowchart of OMA based on PCA model.

Equations (4), (5) and the PCA decomposition show that OMA is a special case of principal component decomposition according to the mathematical description and identification of PCA. Therefore, the existence, uniqueness and deterministic nature of OMA based on the PCA algorithm can be proved by principal component decomposition.

2.3. Comparison between three realization methods of PCA and SNNPCA for OMA

Traditional batch PCA obtains the linear transformation matrix and principal components by eigenvalue decomposition (EVD) or singular value decomposition (SVD). However EVD and SVD suffer from the effects of ill-posed matrixes and singular value problems [27]. Self-iteration PCA computes the principal components through an iterative process, thus avoiding the problems of traditional batch PCA. However, self-iteration PCA is a serial algorithm that obtains the principal components one by one, so it does not meet the engineering requirements for embedded hardware devices. Additionally, because self-iteration PCA is a serial algorithm, cumulative errors build up. Table 1 compares three realizations of PCA.

Table 1
Comparison between three realizations of PCA

Realization method Ill-posed matrix problem Singular value problem Calculation methods Parallel Cumulative error

EVD and SVD Yes Yes Matrix decomposition No No

Self-iteration No No Iteration No Yes

Neural network No No Iteration Yes No

Realization method	Ill-posed matrix problem	Singular value problem	Calculation methods	Parallel	Cumulative error
EVD and SVD	Yes	Yes	Matrix decomposition	No	No
Self-iteration	No	No	Iteration	No	Yes
Neural network	No	No	Iteration	Yes	No

For OMA based on NNPCA, Oja’s method [20] only extracts the first principal component, which is insufficient for OMA applications. Furthermore, the APEX algorithm [24,25] focuses on the separated principal components, and so the weight matrix does not have any physical meaning because of the lateral inhibition matrix. If APEX is used in OMA, it cannot identify the modal shape, a serious flaw that is not outweighed by its lower computational complexity. Using Sanger’s algorithm, not only are multiple principal components extracted in parallel, but the weight matrix also corresponds to the modal shape, allowing the modal shape to be exactly identified. To summarize, Sanger’s algorithm is the most suitable NNPCA algorithm for OMA. Table 2 compares the three NNPCA algorithms.

Table 2

Comparison between three NNPCA algorithms

Network model	Order of extraction	Weight matrix	Computation
Oja	1	Corresponding to modal shape	Low
Sanger	n	Corresponding to modal shape	High
APEX	n	No practical significance	Low

3. Operational Modal Identification Based on SNNPCA

3.1. Model and training algorithm of SNNPCA

SNNPCA is a single-layer linear feedforward neural network. For the input matrix X $(t)=[\vec{x}_{1}(t),\vec{x}_{2}(t),\ldots ,\vec{x}_{i}(t),\ldots ,\vec{x}_{m}(t)]^{T}\in \mathbb{R}^{m\times T}$ and output matrix Y $(t)=[\vec{y}_{1}(t),\vec{y}_{2}(t),\ldots ,\vec{y}_{j}(t),\ldots ,\vec{y}_{n}(t)]^{T}$ $\in ∼\mathbb{R}^{n\times T}$ , m input neurons and n output neurons are connected through the weight set $\{w_{ij}\}$ , i = 1,2, …, m; j = 1,2, …, n. A schematic of the algorithm is presented in Fig. 2.

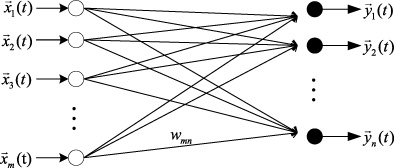

Fig. 2.

Model of SNNPCA.

Let W = $[\vec{w}_{1},\vec{w}_{2},\ldots ,\vec{w}_{j},\ldots ,\vec{w}_{n}]\in \mathbb{R}^{m\times n}$ , $\vec{w}_{j}=[w_{1j},w_{2j},\ldots ,w_{mj}]^{T}\in \mathbb{R}^{m\times 1}$ , so that: $\begin{eqnarray}\displaystyle \vec{y}_{j}(t)=\vec{w}_{j}\mathbf{X}(t). & & \displaystyle\end{eqnarray}$ (7)

The SNNPCA algorithm continuously modifies the weight matrix W until the separated principal component matrix Y(t) meets $\begin{eqnarray}\displaystyle e=\frac{\Vert \mathbf{X}(t)^{T}-\mathbf{Y }(t)^{T}\mathbf{W}\Vert _{2}}{\Vert \mathbf{X}(t)\Vert _{2}}<{\eta} & & \displaystyle\end{eqnarray}$ (8) where ∥ ∥₂ denotes the 2-norm, e is error and 𝜂 is error threshold. Finally, the principal component matrix is calculated as: $\begin{eqnarray}\displaystyle \mathbf{Y }(t)=\mathbf{WX}(t). & & \displaystyle\end{eqnarray}$ (9)

The weight matrix is calculated iteratively based on an optimally generalized Hebbian rule. This ensures that the output of SNNPCA converges to the principal components: $\begin{eqnarray}\displaystyle \left\{\begin{array}{@{}c@{}}\displaystyle {\rm\Delta}\vec{w}_{j}^{(L)}=lr^{(L)}\ast \left(\vec{y}_{j}^{(L)}(t)X^{(L)}(t)^{T}-\vec{y}_{j}^{(L)}(t)\vec{y}_{j}^{(L)}(t)^{T}\vec{w}_{j}^{(L)}-\vec{y}_{j}^{(L)}(t)\mathop{\sum }_{i=1}^{m}w_{ij}\vec{y}_{j}^{(L)}(t)^{T}\right)\\[15.0pt] \displaystyle \vec{w}_{j}^{(L+1)}=\vec{w}_{j}^{(L)}+{\rm\Delta}\vec{w}_{j}^{(L)}.\end{array}\right. & & \displaystyle\end{eqnarray}$ (10) After SNNPCA has converged, the link weights of SNNPCA correspond to the separation matrix of PCA.

3.2. Flow of OMA based on SNNPCA

For the signal matrix $\mathbf{X}(t)\in \mathbb{R}^{m\times T}$ , we initialize the learning rate lr, number of output neurons n, original weight matrix W, error threshold 𝜂, and maximum number of iterations L _max. The initial number of iterations is L = 1, and the error e is defined as Eq. (8).

The steps of SNNPCA are described as follows.

Calculate Y ^(L)(t) = W ^(L) X(t);

Calculate the weight vector by applying the learning rule in parallel ${\rm\Delta}\vec{w}_{j}^{(L+1)}=lr\ast (\vec{y}_{j}^{(L)}(t)X(t)^{T}-\vec{y}_{j}^{(L)}(t)\vec{y}_{j}^{(L)}(t)^{T}\vec{w}_{j}^{(L)}-\vec{y}_{j}^{(L)}(t)\sum _{i=1}^{m}w_{ij}^{(L)}\vec{y}_{j}^{(L)}(t)^{T})∼j=∼1,2,\ldots ,n$ ;

Update the weight matrix W ^L+1 in parallel: W ^(L+1) = W ^(L) + ΔW ^(L+1);

Calculate the error e;

If e < 𝜂 or L < L _max, return to step 1; otherwise go to step 6;

Obtain the final weight matrix W = W ^(L+1) (corresponding to the modal shape);

Calculate the principal components Y(t) = WX(t) (corresponding to the modal coordinate response).

Once we have W and Y(t), the modal parameters can be identified.

3.3. Convergence analysis of SNNPCA for OMA

In our notation, assuming that the response matrix is $\mathbf{X}(t)\in \mathbb{R}^{m\times T}$ , the separated principal component matrix $\mathbf{Y }(t)\in \mathbb{R}^{n\times T}$ is generated by a stationary white noise random stochastic process with correlation matrix Q = E (X(t)X(t)^T).

NNPCA algorithms are largely generated by Hebbian learning rules. These rules modify the weight matrix between two units by an amount proportional to the product of the activation of those units [19]. The Hebbian rules modify the weight matrix as follows: $\begin{eqnarray}\displaystyle \left\{\begin{array}{@{}c@{}}{\rm\Delta}\vec{w}_{j}^{(L)}=lr\ast (\vec{y}_{j}^{(L)}(t)X(t)^{T})\\[10.0pt] \vec{w}_{j}^{(L+1)}=\vec{w}_{j}^{(L)}+{\rm\Delta}\vec{w}_{j}^{(L)}\end{array}\right.\quad j=1,2,\ldots ,n. & & \displaystyle\end{eqnarray}$ (11) Many scholars have improved the Hebbian learning rules. For example, Oja [28] has shown that if we maintain the diagonal elements of WW ^T equal to 1, then the learning rule will cause the rows of Y(t) to converge to the principal eigenvector of Q [28]. He proposed the network learning algorithm: $\begin{eqnarray}\displaystyle \left\{\begin{array}{@{}c@{}}{\rm\Delta}\vec{w}_{j}^{(L)}=lr\ast (\vec{y}_{j}^{(L)}(t)X(t)^{T}-\vec{y}_{j}^{(L)}(t)\vec{y}_{j}^{(L)}(t)^{T}\vec{w}_{j}^{(L)})\\[10.0pt] \vec{w}_{j}^{(L+1)}=\vec{w}_{j}^{(L)}+{\rm\Delta}\vec{w}_{j}^{(L)}\end{array}\right.\quad j=1,2,\ldots ,n; & & \displaystyle\end{eqnarray}$ (12) and claimed that this can be approximated, under certain conditions on X(t) and lr, as a differential equation by writing Q = E (X(t)X(t)^T). For an arbitrary choice of initial weights, Oja proved that $\vec{w}_{j}$ will converge to the principal eigenvector.

However, Oja’s learning rule only extracts the first principal component from the input. Sanger [22] developed an algorithm in which a neural network is trained to find the eigenvectors of the autocorrelation matrix of the input distribution using only samples from that distribution. In this generalized Hebbian algorithm, the principal matrix Y(t) is varied on each iteration until it meets Eq. (8), and W varies as a result of adaptation through the training algorithm. The training algorithm is given by: $\begin{eqnarray}\displaystyle \left\{\begin{array}{@{}c@{}}\displaystyle {\rm\Delta}\vec{w}_{j}^{(L)}=lr\ast (\vec{y}_{j}^{(L)}(t)X(t)^{T}-\vec{y}_{j}^{(L)}(t)\mathop{\sum }_{i=1}^{m}w_{ij}\vec{y}_{j}^{(L)}(t)^{T})\\[15.0pt] \vec{w}_{j}^{(L+1)}=\vec{w}_{j}^{(L)}+{\Delta}\vec{w}_{j}^{(L)}\end{array}\right.\quad j=1,2,\ldots ,n. & & \displaystyle\end{eqnarray}$ (13)

TheoremA .

If W is initially assigned random weights, then Eq. (12) converges with probability 1, and W approaches the matrix whose rows are the first m eigenvectors of the input correlation matrix Q, ordered by decreasing eigenvalue.

Sanger presented a converse proof to Theorem 1, and optimized the learning rules to extract more principal components: $\begin{eqnarray}\displaystyle \text{} & \left\{\begin{array}{@{}c@{}}\displaystyle {\rm\Delta}\vec{w}_{j}^{(L)}=lr^{(L)}\ast \left(\vec{y}_{j}^{(L)}(t)X^{(L)}(t)^{T}-\vec{y}_{j}^{(L)}(t)\vec{y}_{j}^{(L)}(t)^{T}\vec{w}_{j}^{(L)}-\vec{y}_{j}^{(L)}(t)\mathop{\sum }_{i=1}^{m}w_{ij}\vec{y}_{j}^{(L)}(t)^{T}\right)\\[15.0pt] \vec{w}_{j}^{(L+1)}=\vec{w}_{j}^{(L)}+{\rm\Delta}\vec{w}_{j}^{(L)}\end{array}\right.\quad & \displaystyle \nonumber\\ \displaystyle \text{} & j=1,2,\ldots ,n. & \displaystyle\end{eqnarray}$ (14) Equation (14) shows how we can implement the algorithm using only local operations. This ability is important when training neural networks using parallel hardware, as we can compute the outputs in order for each training presentation, progressively subtracting the components from the input as we go. This corresponds to “using up” some of the input “energy” as we train each of the outputs.

OMA based on SNNPCA extracts several modal orders by setting the same number of neurons. The weight matrix $\mathbf{W}=[\vec{w}_{1},\vec{w}_{2},\ldots ,\vec{w}_{j},\ldots ,\vec{w}_{n}]$ is a separation matrix that corresponds to the modal shapes. Thus, OMA based on SNNPCA is convergent and inherits the parallelism of the neural network.

4. Numerical simulation and results analysis

4.1. Establishment of simulation model and parameter settings

(1) The simulation model considers a simply supported beam without damping. The beam has a length of 1 m, elasticity modulus of 205 GPa, Poisson’s ratio of 0.3, and density of 7850 kg/m³.

(2) The beam is divided into 1000 equal pieces and measurements are taken at 1001 points.

(3) Response data are obtained by the resonance method, with excitations given by sine signals composed of 205, 91.3, 366, 572, 824, 1121, and 22 Hz frequencies with powers of 60, 30, 30, 30, 30, 30, and 30, respectively. The loads are concentrated resistor loadings placed at intervals of 0.2 m along the beam.

(4) The sampling frequency is 4096 Hz and the sampling number is 4096.

(5) The real modal shapes and natural frequencies are all calculated by FEA.

4.2. Simulation parameter setting and modal assurance criterion

For the simulation, we set the learning rate lr = 0.01; number of output neurons n = 5; error threshold 𝜂 = 0.001; maximum number of iterations L _max = 10000; and original weight matrix W = 0. 5 ∗ I ^n×m = 0. 5 ∗ I ^5×1001.

To evaluate the accuracy of the modal shapes output in this experiment, the modal assurance criterion (MAC) is introduced [29]: $\begin{eqnarray}\displaystyle K_{MAC}=\frac{(\vec{{\varphi}}_{i}^{T}\vec{{\phi}}_{i})^{2}}{(\vec{{\varphi}}_{i}^{T}\vec{{\varphi}}_{i})(\vec{{\phi}}_{i}^{T}\vec{{\phi}}_{i})} & & \displaystyle\end{eqnarray}$ (15) where K _MAC varies between 0 (no coincidence) and 1 (complete coincidence).

4.3. Results of simulation verification

We obtained the variance contribution rate of every model through a priori knowledge. Figure 3 shows the Pareto chart of the variance contribution rate.

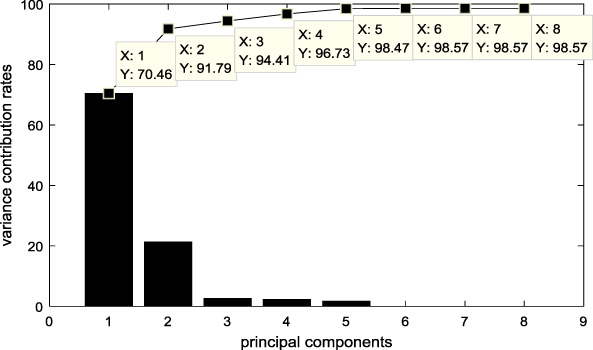

Fig. 3.

Pareto chart of variance contribution rate.

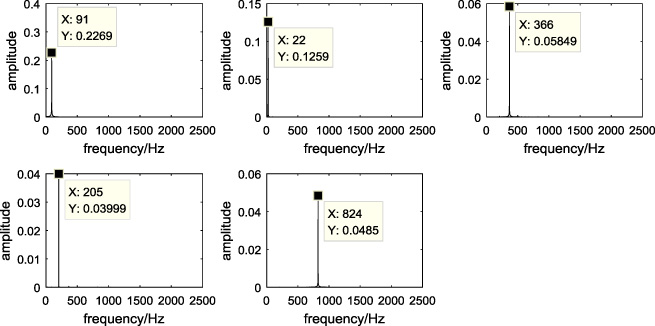

Figure 4 illustrates the FFT of each independent component, where the FFT peak frequency (horizontal axis) corresponds to the natural frequency.

Fig. 4.

Quantitative comparison of frequency and FFT of each principal component.

Table 3 lists the real frequency and the identified frequency. The relative error is also presented. Table 4 gives the MAC value of each identified modal shape.

Table 3

Comparison between identified frequency and real frequency

Order	Real frequency	Identified frequency	Error (%)
1	22.89 Hz	22 Hz	0.093
2	91.55 Hz	91 Hz	0.006
3	205.99 Hz	206 Hz	0.000
4	366.23 Hz	366 Hz	0.001
5	824 Hz	824 Hz	0.000

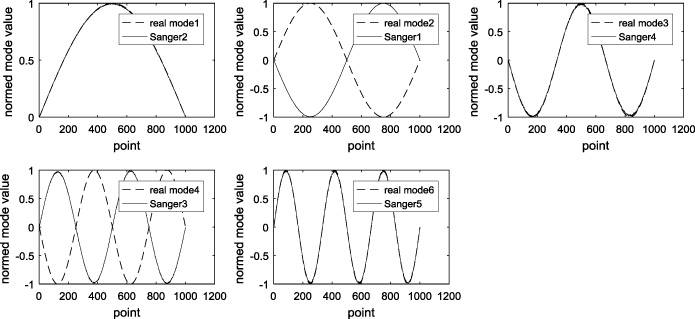

Fig. 5.

MAC values and comparison of modal shape.

Table 4

MAC values of each identified modal shape

Order	1 (22 Hz)	2 (91 Hz)	3 (206 Hz)	4 (306 Hz)	6 (824 Hz)
1 (22 Hz)	1	0	0	0	0
2 (91 Hz)	0	1	0	0	0
3 (206 Hz)	0	0	1	0	0
4 (306 Hz)	0	0	0	1	0
6 (824 Hz)	0	0	0	0	1

Figure 5 compares the identified modal shapes with the real modal shapes. Table 5 lists the MAC values calculated by Eq. (13) and compares those of the real modal shapes with those from the identified modal shapes.

Table 5

MAC values of identified modal shapes

Real modal	Identified modal	K _Mac
1	2	1.00
2	1	1.00
3	4	1.00
4	3	1.00
6	5	1.00

4.4. Analysis of identified results

From Fig. 3, the cumulative variance contribution rate of the first five orders is 98.47%, which fully satisfies the project requirements. Thus, it is reasonable to use five output neurons.

From Figs 4–5 and Tables 3–5, it is clear that SNNPCA accurately identifies the natural frequency and modal shape, and it is therefore applicable to OMA.

From Figs 4–5, it is clear that SNNPCA is a PCA algorithm, and that the order of the identified modes depends on the variance contribution.

Table 4 indicates that the MAC value of different orders is 0, which demonstrates the orthogonality between modes of different order.

5. Conclusions and prospects for future work

This paper has described a neural network principal parameter algorithm for identifying the operational modal parameters. The simulation results show that the proposed approach can identify nodal parameters accurately. Compared with traditional PCA, SNNPCA simultaneously extracts principal components in parallel according to the project requirements. This suggests that it could easily be embedded in multi-core hardware devices, thus improving the efficiency of computing and reducing the waste of resources.

However, it is difficult to choose optimal initial values, and this affects the convergence rate and accuracy of the algorithm. The next step is to embed SNNPCA into a multi-core hardware device and examine whether the time–space consumption satisfies our requirements. Verifying the modal ratio using experimental data identified by the Natural Excitation Technique (NExT) or Random Decrease Technique (RDT) will also be considered in future work.

Footnotes

Acknowledgements

This work was financially supported by the science and technology planning project of Quanzhou (Grant No. 2017G019 and 2018C110R), the National Natural Science Foundation of China (Grant No. 51305142, 51305143), China Postdoctoral Science Foundation Project (No. 2014M552429), and Postgraduate Scientific Research Innovation Ability Training Plan Funding Projects of Huaqiao University (No. 17013083018, 1511314011). We thank Stuart Jenkinson, PhD, from Liwen Bianji, Edanz Group China (), for editing the English text of a draft of this manuscript.

Conflict of Interest

The authors declare that there is no conflict of interest regarding the publication of this article and regarding the funding that they have received.

References

Goursat

Döhler

Mevel

and Andersen

, Crystal clear SSI for operational modal analysis of aerospace vehicles, in: Structural Dynamics, Springer, 2011, pp. 1421–1430.

Wang

and Xiao

J.F.

, Modal analysis for the framework of beam pumping unit based on solidworks simulation, in: Applied Mechanics and Materials, Vol. 318, Trans Tech Publications, 2013, pp. 39–43.

Bayraktar

Sevim

Altunişik

and Turker

, Analytical and operational modal analyses of Turkish style reinforced concrete minarets for structural identification, Experimental Techniques 33 (2009), 65–75.

Rebelo

Julio

Varum

and Costa

, Cable tensioning control and modal identification of a circular cable-stayed footbridge, Experimental Techniques 34 (2009), 62–68.

Uhl

Lisowski

and Kurowski

, In-Operation Modal Analysis and its Application, Publisher Department of Robotics and Machine Dynamics UMM, 2001.

Wang

Gou

Bai

and Yan

, Modal parameter identification with principal component analysis, Journal of Xi’an JiaoTong University 47(11) (2013), 97–103.

Wang

Guan

Gou

Hou

Bai

and Yan

, Principal component analysis based three-dimensional operational modal analysis, International Journal of Applied Electromagnetics and Mechanics 45(1–4) (2014), 137–144.

Han

and Feeny

, Application of proper orthogonal decomposition to structural vibration analysis, Mechanical Structures and Signal Processing 17(5) (2003), 989–1001.

Wang

B.T.

and Cheng

D.K.

, Modal analysis of mdof structure by using free vibration response data only, Journal of Sound and Vibration 311(3) (2008), 737–755.

10.

Poncelet

Kerschen

Golinval

J.C.

and Verhelst

, Output-only modal analysis using blind source separation techniques, Mechanical Systems and Signal Processing 21(6) (2007), 2335–2358.

11.

Zhou

and Chelidze

, Blind source separation based on vibration mode identification, Mechanical Systems and Signal Processing 21(8) (2007), 3072–3087.

12.

Kerschen

Poncelet

and Golinval

J.-C.

, Physical interpretation of independent component analysis in structural dynamics, Mechanical Systems and Signal Processing 21 (2007), 1561–1575.

13.

Bai

Yan

and Wang

, Modal identification method following locally linear embedding, Journal of Xi’an Jiaotong University 47(1) (2013), 85–89.

14.

Reynders

and De Roeck

, Reference-based combined deterministic–stochastic subspace identification for experimental and operational modal analysis, Mechanical Systems and Signal Processing 22(3) (2008), 617–637.

15.

Pearson LIII

, On lines and planes of closest fit to systems of points in space, The London, Edinburgh, and Dublin Philosophical Magazine and Journal of Science 2(11) (1901), 559–572.

16.

Wold

, Nonlinear Estimation by Iterative Least Squares Procedures, in: Festschrift for J. Neyman: Research Papers in Statistics David

F.N. (Hrsg)

(ed.), London, 1966.

17.

Chung

I.H.

Sainath

T.N.

Ramabhadran

Picheny

Gunnels

Austel

Chauhari

and Kingsbury

, Parallel deep neural network training for big data on blue gene/q, IEEE Transactions on Parallel and Distributed Systems 28(6) (2017), 1703–1714.

18.

Wang

and Song

, Neural network online training platform based on embedded system, Transducer and Microsystem Technologies 29(8) (2010), 100–103.

19.

Hebb

D.O.

, The organization of behavior: A Neuropsychological Approach, American Journal of Physical Medicine and Rehabilitation 30(1) (1949), 74–76.

20.

Oja

, Simplified neuron model as a principal component analyzer, Journal of Mathematical Biology 15(3) (1982), 267–273.

21.

Sanger

T.D.

, Optimal unsupervised learning, Neural Networks 1(Supplement-1) (1988), 127.

22.

Sanger

T.D.

, Optimal unsupervised learning in a single-layer linear feedforward neural network, Neural Networks 2(6) (1989), 459–473.

23.

Zhe

Yanda

and Falong

, A neural network learning algorithm for PCA and MCA, Acta ELectronica Sinica 24(4) (1996), 12–16.

24.

Diamantaras

K.I.

and Kung

S.Y.

, Principal Component Neural Networks: Theory and Application, Wiley, New York, 1996.

25.

Kung

S.Y.

and Diamantaras

K.I.

, A neural network learning algorithm for adaptive principal component extraction (APEX), in: International Conference on Acoustics, Speech, and Signal Processing (ICASSP-90), 1990, pp. 861–864.

26.

Sese

Palmer

A.L.

and Montano

J.J.

, Psychometric measurement models and artificial neural networks, International Journal of Testing 4(3) (2004), 253–266.

27.

Mishra

A.K.

and Motaung

, Application of linear and nonlinear PCA to SAR ATR, in: 2015 25th International Conference Radioelektronika (RADIOELEKTRONIKA 2015), pp. 349–354.

28.

Karhunen

and Oja

, New Methods for Stochastic Approximation of Truncated Karhunen-Loeve Expansions, Teknillinen korkeakoulu, 1981.

29.

Zhou

and Chelidze

, Blind source separation based vibration mode identification, Mechanical Systems and Signal Processing 21(8) (2007), 3072–3087.
