Characterisation of bioactive compounds in berries from plants grown under innovative photovoltaic greenhouses

2.1 PVGs, plant material and cultivation

The experiments were conducted in Avetrana (TA), Apulia region (Southern Italy, 40°20^′N, 17°43^′E). Three types of commercial greenhouses, with differing cover material, including transparent (T) polycarbonate modules, semi-transparent (S-T) integrated PV modules, and non-transparent (Non-T) traditional PV modules, were used (Fig. 1).

OPEN IN VIEWER

Fig.1

Details of greenhouse cover materials: (T) transparent modules; (S-T) semi-transparent modules; (Non-T) non-transparent modules.

The structure specification and cover material properties are presented in Table 1. The PV output terminals were connected to an inverter, to supply the PV-produced electricity for alternating current appliances. Greenhouses were located along their common east-west axis and separated by 5 m. Each greenhouse consisted of a single sloping roof pitch of 19° degrees and south-facing aspect. Ventilation was provided by manually opening front windows and by automatically opening lateral and roof windows, depending on the temperature and relative humidity inside the greenhouse.

Red raspberry (Rubus idaeus L.) cv. ‘Tulameen’, wild strawberry (Fragaria vesca L.) cv. ‘Regina delle Valli’ and blackberry (Rubus fruticosus L.) cv. ‘Loch Tay’, were investigated. The plants were grown in a soilless growing system, in greenhouses with specified characteristics (Table 1), during April−June 2013. Ten-litre pots were used, containing a mixture (1:2 v/v) of peat (Brill 3 Special, Brill Substrates, Georgsdorf, Germany) and perlite (Agrilite P3, Perlite Italiana, Corsico, Italy). The plants were fertigated by a drip irrigation system, with a nutrient solution (NS) maintaining a drainage solution level of about 20% of the total NS volume applied. The NS used for fertigation was composed of (mg L^–1) 157 N, 43 P, 165 K, 112 Ca, 17 Mg and 45 S as macronutrients, whereas micronutrients were supplied according to [13]. The well water used had the following characteristics: pH 7.1 and 1.1 dS m^–1 electrical conductivity. The NS pH was adjusted to 5.5–6.0, using 1 M H₂SO₄.

For the period of the trials (April−June), the air temperature inside the greenhouses and PAR were measured. The photosynthetic photon flux density (PPFD) (μmol m^–2 s^–1) was measured with four Li-Cor LI-190SA (Li-Cor Inc., USA) quantum sensors connected to WatchDog 1000 Series Micro Stations (Spectrum Technologies Inc., Plainfield, IL). One sensor was placed outside; three sensors were installed inside the greenhouses at the southern side of the intermediate steel columns at 1.60 m from the ground. Data were gathered every 30 min and collected using a data logger. The PPFD distribution inside the three greenhouses was estimated using the method developed by [14], based on a combination of a commercial lighting simulation software and meteorological data.

At least 100 g of healthy fruit (at the ripe stage) from three plants were harvested, thus, providing triplicates. The fruit was immediately cooled on ice and then stored at –20°C until processed (within 2 months). Fruit were ground in a Waring blender with liquid nitrogen, freeze-dried using a Freezone^® 2.5 model 76530 lyophiliser (Labconco Corp., Kansas City, MO, USA) for 48 h and stored at –20°C. This product was defined as the dry weight (DW) of the processed fruit.

Authentic standards of kuromanin chloride (cyanidin 3-O-glucoside chloride), keracyanin chloride (cyanidin 3-O-rutinoside chloride), callistephin chloride (pelargonidin 3-O-glucoside chloride) and cyanidin 3-O-sophoroside chloride were purchased from Extrasynthèse, Genay, France. Folin−Ciocalteu (F−C) phenol reagent, gallic acid, (S)-(-)-6-hydroxy-2,5,7,8-tetramethylchroman-2-carboxylic acid (Trolox), 2,2’-azino-bis (3-ethylbenzothiazoline-6-sulphonic acid) (ABTS), acetonitrile, ethanol, methanol, acetone, formic acid and acetic acid (all HPLC grade) were from Sigma-Aldrich (St. Louis, MO, USA). In all experiments, Milli-Q (Merck Millipore, Darmstadt, Germany) water was used.

2.3 Extraction of anthocyanins and polyphenols

Freeze-dried fruit (200 mg), in triplicate, were macerated with 10 mL of methanol/water/formic acid (70:28:2, v/v/v), at 4°C overnight. Samples were centrifuged at 4000 g for 10 min, and the slurry was re-extracted with an additional 10 mL on a rotary shaker for 1 h, at room temperature. Pooled supernatants were evaporated in vacuo at 32°C using an R-205 Büchi Rotavapor (Büchi Labortechnik, AG, Flawil, Switzerland), up to 5% of the initial volume. The residue was suspended in a final volume of 4 mL with acidified (0.5% formic acid) Milli-Q water, portioned and stored at –20°C.

2.4 Identification and quantification of phenolic compounds

Fruit extracts were filtered through 0.45-μm nylon membranes and analysed by an HPLC apparatus, equipped with a photodiode array (PDA) detector (Agilent 1100 series, Agilent Technologies, Santa Clara, CA, USA). Instrument control, data acquisition and processing were provided by the ChemStation software (Agilent Technologies). Separations were performed at 30°C on a Luna RP-C18 column (250×4.6 mm I.D., 5 μm) (Phenomenex, Torrance, CA, USA), equipped with a guard cartridge column. The sample was eluted following the multi-segment linear gradient employed in [15], using 5% (v/v) formic acid both in water (mobile phase A) and in acetonitrile (mobile phase B). The flow rate was 0.7 mL min⁻¹ and, after each separation, the column was equilibrated to the initial conditions for 10 min. UV-Vis spectra were recorded in the 200–800 nm range and chromatograms were acquired at 280 and 520 nm. Individual polyphenolic compounds were identified, by comparing their peak retention times and UV-Vis spectra with those of commercial standards. The identified phenolic compounds were quantified by the external standard method, using calibration graphs obtained with solutions of available authentic standards at five different concentration levels within the linear dynamic range of the UV detector. Cyanidin-based anthocyanins were quantified by using a calibration graph constructed with standard kuromanin chloride (cyanidin 3-O-glucoside chloride), whereas cyanidin 3-O-sophoroside and pelargonidin 3-O-glucoside were quantified using a calibration graph established with standard cyanidin 3-O-sophoroside chloride and callistephin chloride (pelargonidin 3-O-glucoside chloride), respectively.

2.5 Identification and quantification of sugars and organic acids

Sugars and organic acids were extracted by macerating 200 mg of sample, plus 200 mg polyvinylpolypyrrolidone in 10 mL extraction solvent (Mill-Q-water), for 1 h at room temperature. After centrifugation of the slurry (4000 g for 10 min) the supernatant was collected, then a further 10 mL of extraction solvent was added to the pellet, and the extraction continued on a rotary shaker for 1 h. The pooled supernatants were mixed, and an aliquot (1 mL) was further centrifuged (15500 g for 10 min), followed by injection into the HPLC system (Agilent 1100 Series). For the identification and quantification, the HPLC system was equipped with a pump system, an Aminex HPX-87H column (300×7.8 mm, 9 μm) (Bio-Rad, Hercules, CA, USA), maintained at 55° C, a refractive index detector for sugar analysis, and a UV/Vis detector, set at 210 nm, for organic acids analysis. The analytical conditions used were the same as reported in [15].

2.6 Antioxidant capacity of berries extracts

2.7 Statistical analysis

The effect of environmental growing conditions was tested by one-way analysis of variance (ANOVA). The means were separated by the Student-Newman-Keuls (SNK) test, while standard deviation (SD) was also calculated for the data.

3.1 Identification of anthocyanins in raspberry, strawberry (woodland), and blackberry fruits

The HPLC anthocyanin profile of raspberry extract (at λ= 520 nm) presented three peaks, identified by their respective UV-Vis absorption spectra, the chromatographic retention times of the standards and previous reports of raspberry anthocyanins [19, 20]. The two major peaks were identified as cyanidin 3-O-sophoroside (peak 1) and cyanidin 3-O-glucoside (peak 3), and the third (peak 2) was assigned to cyanidin 3-O-glucosylrutinoside, based on literature data (Fig. 2, Panel A). This profile was similar for the three growing conditions (T, S-T and Non-T), with some differences in the peak ratios.

OPEN IN VIEWER

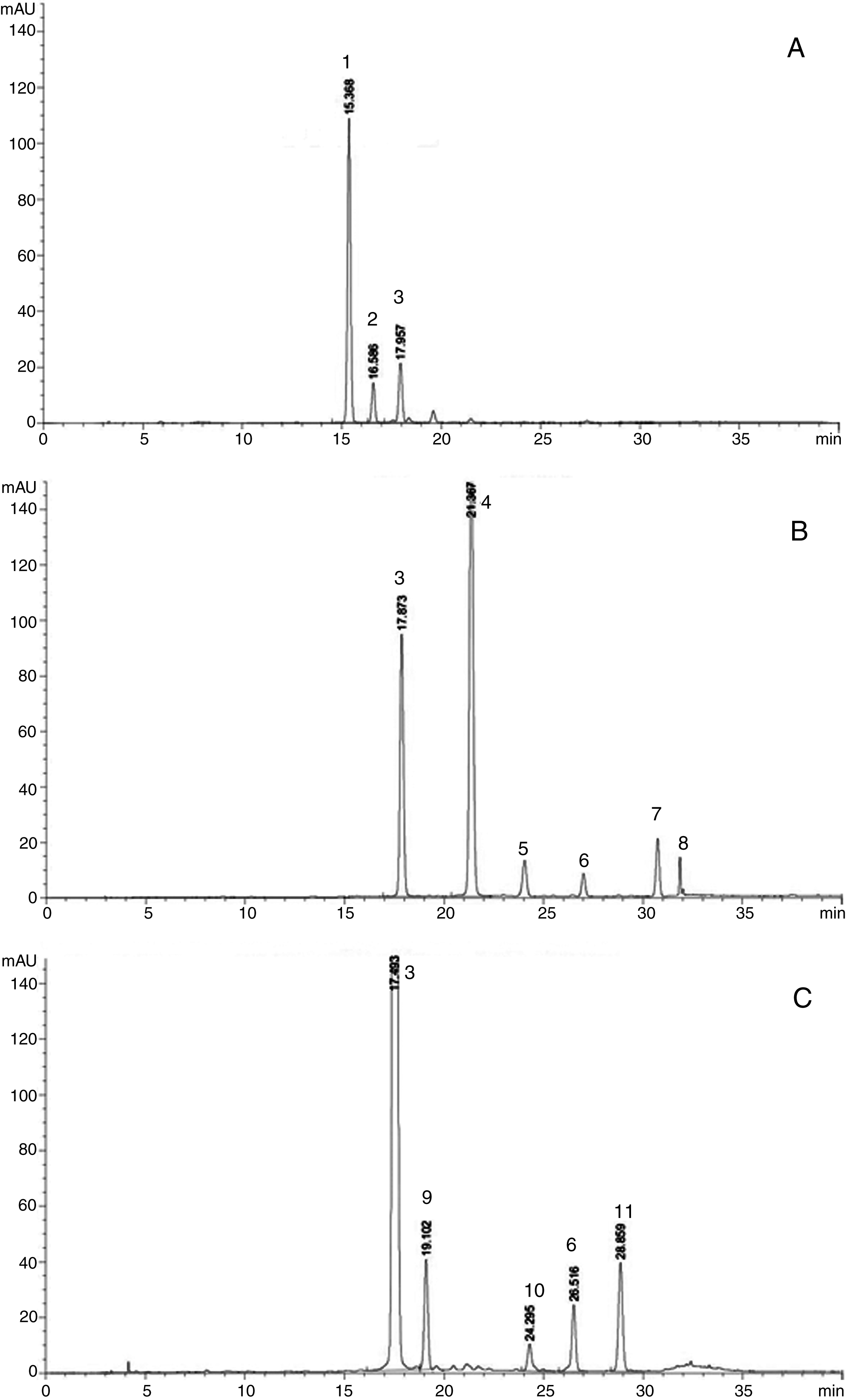

Fig.2

Chromatographic profiles of anthocyanin extracts from raspberry (panel A), strawberry (panel B) and blackberry (panel C) fruit, from plants grown in photovoltaic greenhouses. Peak assignment: 1: cyanidin 3-O-sophoroside; 2: cyanidin 3-O-glucosyl rutinoside; 3: cyanidin 3-O-glucoside; 4: pelargonidin 3-O-glucoside; 5: peonidin 3-O-glucoside; 6: cyanidin 3-O-malonyl glucoside; 7: pelargonidin 3-O-malonyl glucoside; 8: peonidin 3-O-malonyl glucoside; 9: cyanidin 3-O-rutinoside; 10: cyanidin 3-O-xyloside, and 11: cyanidin 3-O-dioxalyl glucoside.

In woodland strawberry fruit extract, two major peaks and four minor ones were detected and identified, based on their respective UV-Vis absorption spectra, the chromatographic retention times of the standards and a previous report of anthocyanins [21]. Pelargonidin 3-O-glucoside (peak 4), and cyanidin 3-O-glucoside (peak 3) (Fig. 2, Panel B) were evident, while peaks 5−8 were putatively assigned to peonidin 3-O-glucoside, cyanidin 3-O-malonylglucoside, pelargonidin 3-O-malonylglucoside and peonidin 3-O-malonylglucoside, respectively, according to literature data [21]. The same profile was observed for the three growing conditions (T, S-T and Non-T).

In blackberry, a major peak was identified as cyanidin 3-O-glucoside (peak 3) and a minor peak as cyanidin 3-O-rutinoside (peak 9), based on their respective UV-Vis absorption spectra and the chromatographic retention times of authentic standards (Fig. 2, Panel C). Some additional minor peaks (6, 10 and 11) were putatively assigned to cyanidin 3-O-xyloside, cyanidin 3-O-malonylglucoside and the newly identified cyanidin 3-O-dioxalylglucoside, in agreement with previous reports on blackberry anthocyanins [22, 23].

The individual anthocyanin content was evaluated relative to the growing conditions. Table 2 shows the % variation of the main anthocyanins found in the studied berries, under the various growing conditions. Results indicated that shading (Non-T) affected the ratios of the individual anthocyanins, with a decrease in the dominant compound and an increase in the second most abundant. This trend was evident in strawberry. However, in raspberry, shading increased the second-ranking anthocyanin, cyanidin 3-O-glucoside but also the peak tentatively assigned to cyanidin 3-O-glucosyl rutinoside, being 8.5 and 8.7% in S-T and T, respectively, compared to 14.7% in Non-T. On the contrary, for blackberry under shaded conditions, the second most abundant anthocyanin (cyanidin 3-O-rutinoside) increased at the expenses of the other minor peaks (indicated as 6, 10 and 11, in Fig. 2).

The total anthocyanins in extracts of the three, berry species grown under different conditions were determined by HPLC (Table 3). In raspberry, the anthocyanins ranged from a low of 2.3 mg g⁻¹ in the high light (T) condition to ∼2.6 mg g⁻¹ in shadow (Non-T) and a high 3.3 mg g⁻¹ in medium-shadow (S-T). In strawberry, the values were similar for T and S-T light treatments (1.07 and 1.06 mg g⁻¹, respectively), and lower than that observed for the shadow condition (∼1.6 mg g⁻¹; Non-T). In blackberry, there was an increasing effect of shade on anthocyanin content, with ∼6.1 mg g⁻¹ for high light (T), 8.9 mg g⁻¹ for medium-shadow (S-T) and 9.8 mg g⁻¹ for shadow (Non-T) conditions.

Anthocyanins are important health-promoting pigments that make a major contribution to the quality of fruit, vegetables and derived food products [24, 25]. These coloured compounds can be considered markers of ripening, as most fruit accumulate anthocyanins only in their ripening stages. Apart from the genetic background, which primarily influences the anthocyanin content of plant tissues, environmental factors including temperature, light conditions, nutritional status and biotic stresses can cause qualitative and quantitative changes in the composition of polyphenolic compounds [26]. However, the influence of environmental factors (i.e. light and temperature) on the accumulation of bioactive compounds in fruit, is inconsistent, both because of the difficulties in managing these multi-faceted agronomic studies and inability to directly compare the growing conditions (i.e. different latitude cultivation vs protected cultivation in one single site).

The biosynthesis of anthocyanins has been well characterised, and the key regulatory genes that control the pathway have been isolated in many plant species [27]. Light-regulated anthocyanin biosynthesis and distribution are associated with light perception and signal transduction through the light-inducible R2R3-MYB transcription factors [28]. Recently, new insight into anthocyanin biosynthesis in fruit has been gathered, regarding both environmental and developmental regulation [29]. Studies revealed that light exposure mainly has positive effects on anthocyanin concentration. Light exposure (within certain limits) increases, while shading decreases, the anthocyanin content in fruit [26–30]. Nevertheless, in grape, it has been found that intense sunlight caused excessive sunburn in exposed berries and reduced the anthocyanin accumulation [31]. In another study, involving fruit-zone leaf removal, the increased sunlight exposure caused sunburn damage and reduced anthocyanin accumulation [32].

The temperature during fruit development is an important factor that affects fruit quality. Fruit colour is the result of anthocyanin biosynthesis and its degradation. When dealing with the effect of light exposure on anthocyanin accumulation, the ‘temperature effect’ must also be considered. Primarily, the anthocyanin concentration is positively correlated with temperature, at least up to 25°C [33]. Thus, temperatures below 25°C favour anthocyanin biosynthesis, whereas high temperatures, such as 35°C, are associated with anthocyanin degradation and inhibition of anthocyanin accumulation [34–36]. Studies of apples and pears demonstrated that below 10°C, biosynthesis and degradation proceed at a low rate, between 10 and 20°C biosynthesis exceeds degradation and above 30°C, degradation dominates over synthesis [37, 38]. Again, in an apple study, high temperatures (30−35°C) were shown to decrease anthocyanin content in the skin [39].

In strawberry, contradictory results are reported. High temperatures were associated with redder berries and an increased anthocyanin content [40, 41], probably because those temperatures did not exceed the temperatures that promote anthocyanin degradation. On the contrary, in strawberry ‘Sachinoka’ fruit, a high air temperature was shown to cause poor fruit colouration, as the anthocyanin content decreased [42]. Moreover, the expression of the flavonoid pathway genes was lowered, displaying a pattern of expression that corresponded to anthocyanin concentration [42]. In grape, a high temperature up-regulated the expression level of MYB4, a repressor of UDP-glucose: flavonoid 3-O-glucosyltransferase (UFGT), critical for anthocyanin biosynthesis [26, 27]. Thus, for the maximum production of anthocyanins in grape berries, moderate sunlight exposure is necessary, but the extent varies among different cultivars.

From the temperature variation inside the PVG during the berries development, shading reduced the air temperature by ∼1°C on average (from T to S-T, and from S-T to Non-T, respectively). The mean air temperatures reported in Table 1 are the medium between the night and day temperatures. Nevertheless, the daily temperatures in T were always above 35°C, whereas, in S-T and Non-T, they were around 30 and 27°C, respectively, throughout the growing cycle (April−June) (data not reported). Therefore, the highest temperature registered in the T condition, even though it had a high light exposure (i.e. elevated biosynthesis of anthocyanins), exhibited a physiologically adverse influence on anthocyanin accumulation. As reported in grape [26], in the current study, raspberry, strawberry and blackberry produced fewer anthocyanins under high light (and high temperature) conditions (Table 3).

Given poor fruit colouration often reduces the market price, cultivation techniques that overcome high temperature-mediated colour suppression are valuable to commercial producers. Moreover, during the last 10 years, considerable evidence of the health benefits of anthocyanins has been experimentally reported and extensively reviewed, and mechanisms other than antioxidant ability are thought to be implicated in their health properties [24, 43].

As reported in Table 3, in raspberry, the total phenols ranged from a low 8.2 μg g⁻¹ DW (T) to 11.3 and 12.6 μg g⁻¹ DW (S-T and Non-T, respectively). For strawberry, the total phenols ranged from a low 10.5 μg g⁻¹ DW (S-T) to 12.6 and 12.9 μg g⁻¹ DW (T and Non-T, respectively). In blackberry, the total phenols increased from 17.7 μg g⁻¹ DW in high light (T), to ∼22 μg g⁻¹ DW in shade (Non-T) and 28.7 μg g⁻¹ DW in medium light (S-T).

Among the T, S-T and Non-T conditions, in raspberry, the anthocyanins were maximised under S-T, while most phenols were detected under S-T and Non-T. Also, in strawberry, the anthocyanins and phenols were higher in Non-T, and in blackberry, the anthocyanins were maximised in Non-T, while most phenols were detected under S-T conditions. This trend was also found for the TEAC antioxidant capacity. It is well established that antioxidant capacity correlates better with polyphenols than with anthocyanins [44].

The highest TEAC antioxidant activity for both, raspberry and strawberry, was recorded in shaded conditions (Non-T), whereas, for raspberry, it did not correspond to the condition where anthocyanin content was maximised (S-T). This feature could be due to the two different antioxidant contributors usually present in raspberry, ascorbic acid and ellagitannins, which are reported to increase in cold temperature growing conditions, such as in northern latitude climates [33, 46]. Strawberry is documented to have a minor ellagitannin content compared to raspberry [10]. Hence, it can be hypothesised that anthocyanins largely contributed to the high antioxidant activity recorded under the shaded condition (Non-T). Regarding ascorbic acid, it seems that our samples were deficient in this antioxidant compound, due to indirect observations that the decrease in the colourimetric value (F−C assay) after thermal treatment at 80°C for 2 h, was less than 5%, at least for raspberry (data not shown) [18]. Moreover, it has been reported that although raspberry is rich in ascorbic acid, the main contributors to its antioxidant capacity are phenolic compounds [33].

In blackberry, the best condition for maximal phenol compounds and TEAC antioxidant activity was the S-T PV module. Again, the maximum TEAC antioxidant activity was not linked to the condition where anthocyanin content was maximised (Non-T) but, instead, where substantial amounts of phenols were biosynthesised (S-T). Also, ellagitannins are reported to be the major antioxidant contributor under these conditions [47]. After all, it is well known that while strawberry prefers a woodland habitat, blackberry colonises open, marginal fields.

The ranking of TEAC antioxidant activity in the three species agrees with the report of [48]: blackberry > strawberry > raspberry. Our results on TEAC antioxidant capacity in berry grown under different light (and consequently different temperature) conditions indicated that under the T condition (where a high temperature is recorded), the antioxidant capacity of the fruit extracts is decreased (Table 3).

3.4 Organic acids and sugars

Sugar content is an important quality parameter of fruit, and the quantities of the sugars and organic acids, and their interactions are related to the flavour quality of fruit [49]. Citric acid was the predominant organic acid in raspberry and strawberry, while a lower amount of organic acids, including citric and malic acids, was detected in blackberry (Table 4). A reduction of PPFD led to an increase in tartaric, malic, succinic and shikimic acids in raspberry, of citric acid in strawberry and of tartaric and malic acids in blackberry; shading had no significant effect on the remaining values (Table 4). These results are consistent with earlier studies that found a negative correlation between radiation intensity and organic acid accumulation in tomato and strawberry [4, 50]. The literature states that organic acids aid to stabilise anthocyanins [51]. Hence, the accumulation of organic acids, together with the lower mean air temperature under the Non-T condition, could explain the increased anthocyanin content in berries grown under shading (Table 3).

Glucose and fructose concentrations of raspberries grown under different PPFD conditions remained unaffected, likewise, for fructose in blackberry. In strawberry, both sugars were statistically higher under the S-T condition, while in blackberry, glucose was lower for the S-T than T and Non-T conditions (Table 5). This behaviour is consistent with [4] for tomato, where reduction of solar intensity did not affect sugar concentration, but contrary to [52] for strawberry, where shading treatment resulted in a reduction of glucose and fructose, compared with the unshaded treatment. As mentioned above, the ‘temperature’ factor contributes to the ‘light’ factor response. Hence, even if increased light means increased photosynthetic biosynthesis of sugars [40], a negative correlation between temperature and soluble solids content/total acidity has been reported in strawberry [45, 50]. Therefore, no reduction of sugar content in berry grown under increasing shading may result from the negative effect of the high temperature measured in T greenhouse (Table 1).
