Particle swarm optimization algorithm based on parameter improvements

Abstract

Through the researches on various item improvements of particle swarm optimization algorithm, the improved particle swarm optimization algorithm is proposed for the insufficient global searching ability. This paper has improved the parameters of velocity formula and introduced new distance calculation formula to modify various parameters in the velocity formula. The improved particle swarm optimization algorithm has been tested by adopting standard test function, and the result has been compared with other particle swarm optimization algorithms. The experimental result indicated that the proposed improved particle swarm optimization algorithm in this paper got the better result for function optimization problems.

Keywords

Particle swarm optimization algorithm parameter improvement particle learning factor inertia weight

1. Introduction

Particle swarm optimization algorithm is one of evolutionary computations which was put forward by Kennedy and Eberhart in 1995 [1]. This algorithm imitates the group behaviors of fishes and birds when they forage for foods. Their similarities are that the whole group shares information in the process of searching for foods and the whole motor process of group is guided by the optimal direction of the group until they search for the optimal position. Particle swarm optimization algorithm is the same as other evolutionary algorithms. Starting from random solutions to find the optimal solution by iteration, then according to different problems, particle swarm optimization algorithm designs corresponding fitness function to evaluate the quality of the solution. Comparing with other evolutionary algorithms, the advantages of particle swarm optimization algorithm are easy to realize and understand, high solution precision and convergence speed, etc.. At present, it has been extensively applied in various research fields and practical application fields. Since particle swarm algorithm has been proposed, PSO algorithm presents a lot of merits in the practical application, but as a new algorithm, there are many imperfect places. For the defects of particle swarm algorithm, many scholars at home and abroad began to make improved researches on particle swarm algorithm. So in a short time, it has been a hot research issue in the field of evolutionary computation. For the improvement of particle swarm algorithm, the following points are generally made.

(1) (1)
Parameter improvements for the velocity formula. The parameter improvements in PSO algorithm has three main forms, namely, improvement for inertia weight value in the speed formula, introduction of new parameter in the speed formula and improvement for two learning factors. In the parameter improvement method, as the key factor of PSO algorithm balancing global searching ability and local development capability, inertia weight value has been improved by many methods. The concept of inertia weight was firstly proposed by Shi and Eberhart [2]. The purpose is to improve the opportunities that population can search for the optimal solution within the scope of reasonable iterations. Besides, the experiment indicated that the property is better when the inertia weight value is between [0.9, 1.2]. And then linearly decreasing weight particle swarm optimization (LDWPSO) was put forward [3]. Most early improved PSO algorithm is quite effective for the static optimization problems. However, many problems in the practical application are nonlinear. On this basis Chen [4] constructed three nonlinear strategies for decreasing inertia weight values through the studies and researches on inertia weight so as to enhance the global searching ability of algorithm. To make up the defects of PSO algorithm in the dynamic tracking system, Clerc and Kennedy [5] introduced new parameter constriction factor K to traditional PSO algorithm for replacing inertia weight. Compared with inertia weight, the addition of constriction factor improves local searching ability of PSO algorithm. In the early researches on PSO algorithm, learning factors c1 and c2 were usually set to constant value. With the further researches, Ratnaweera et al. were enlightened by the constriction factor concept from Clerc and proposed time-varying acceleration coefficients particle swarm optimization (PSO-TVAC) [6].
(2)
Improvements for group topological structure. In the earlier improvements, Kennedy firstly put forward wheel topological structure [7]. In the same year, Suganthan proposed one topological structure which is different from wheel topological structure [8]. In recent years, based on the characteristic that inertia weight is used for balancing global and local searching abilities, Parsopoulos and Michael [9] integrated global and local topological structures by randomly transforming inertia weight value, and put forward unified particle swarm optimization (UPSO). Zhang and Yi proposed scale-free fully informed particle swarm optimizer (SFIPSO) [10] on the basis of former studies. Montes de Oca et al. combined a variety of algorithms to show the various advantages. Then according to the structure adaptive thought, Frankenstein’s PSO algorithm was put forward [11]. In addition, Janson and Middendorf [12] dynamically stored particle by the tree architecture in data structure, and combined the characteristic of tree storage structure that each particle has father node. While according to the various specialties of population, Clerc [13] adjusted its structure dynamically and proposed improved particle swarm algorithm based on tribe for improving the searching ability of the population.
(3)
Researches on hybrid algorithm. There are many classifications for evolutionary algorithms, and each evolutionary algorithm has its own advantage. A lot of scholars derived several hybrid particle swarm optimization algorithms by learning from each evolutionary algorithm. Angeline firstly applied selection operator of genetic algorithm to particle swarm. And the experimental result highlighted its validity. Later the ways like evolution strategy, crossover operator, mutation operator and evolutionary programming, etc. were applied to improve the searching ability of particle swarm. Meanwhile many specific heuristic algorithms were also applied to particle swarm such as particle swarm optimization with simulated annealing [14] by Wang and Li, Newton local searching method [15] by Li et al., genetic particle swarm algorithm [16] by Settles and Soule, ant colony particle swarm algorithm [17] by Taher and Amiri. In 2004, Jiang and Ji put forward hybrid particle swarm optimization and gravitational search algorithm (HPSO-GSA) [19] on the basis of gravitational search algorithm (GSA) [18] proposed by Rashedi et al. Through the experiment of test function, the result demonstrated that this algorithm had good performance.

With the development of the technology, the study of particle swarm optimization algorithm is also growing widely, PSO algorithm with the characteristics just like: the implementation is simple, high efficiency and fast convergence speed, and its widely used in various fields [20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49].
2. Particle swarm optimization algorithm

PSO algorithm is one of evolutionary algorithms. It is the same as all evolutionary algorithms, and the first step is to randomly initialize one population. But the difference from other evolutionary algorithms is that each individual of PSO algorithm is a particle with its own velocity and position. The basic thought of algorithm is: a group of particles are randomly initialized in the feasible solution space, and each particle represents one feasible solution for optimization problem. Through the actual problem, the fitness function is set to evaluate particles. And each particle in the population updates its own position according to velocity variables. Each particle in the population usually moves toward the direction of current optimal particle and retains its historical optimal position in the process of motion. Finally the optimal solution is gained through generational searching.

It is assumed that the population size of particle swarm is $M$ and the searching space is D-dimensional, so the velocity updating formula and position updating formula of particle in next moment are Eqs (1) and (2) respectively:

$\displaystyle v_{id}^{t+1}=v_{id}^{t}+c_{1}r_{1}(p_{id}^{t}-x_{id}^{t})+c_{2}r% _{2}(p_{gd}^{t}-x_{id}^{t})$ (1) $\displaystyle x_{id}^{t+1}=x_{id}^{t}+v_{id}^{t+1}$ (2)

Where the position of particle $i$ in the moment $t$ is $x_{i}^{t}=(x_{i1}^{t},x_{i2}^{t},\ldots,x_{id}^{t})^{T}$ , $x_{id}^{t}\in[L_{d},U_{d}]$ . $L_{d}$ and $U_{d}$ are lower limit and upper limit of searching space; the velocity is $v_{i}^{t}=(v_{i1},v_{i2},\ldots,v_{id})^{T}$ , $v_{id}^{t}\in[v_{\min},v_{\max}]$ , where $v_{\min}$ and $v_{\max}$ are minimum and maximum velocity; the individual current optimal position is $p_{i}^{t}=(p_{i1}^{t},p_{i2}^{t},\ldots,p_{id}^{t})^{T}$ , where $1\leqslant d\leqslant D$ , $1\leqslant i\leqslant M$ . $r_{1}$ and $r_{2}$ are random numbers uniformly distributed in the range $(0,1)$ . and are called learning factor.

The steps of original PSO algorithm are as follows:

Step 2: Step 1:

Initialize. Set all involved parameters in PSO algorithm: lower limit and upper limit of searching space $L_{d}$ and $U_{d}$ , learning factors $c_{1}$ and $c_{2}$ , the maximum number of iterations of algorithm $T_{\max}$ or convergence precision $\varepsilon$ , the velocity range of particle $[v_{\min},v_{\max}]$ ; randomly initialize position and velocity of each particle.

Step 2:

Evaluate each particle. Calculate the fitness value of each particle and record current optimal position and global optimal position of each particle according to the fitness value.

Step 3:

Update the state of particle. Adopt Eqs (1) and (2) to update the velocity and position of each particle. If $v_{i}>v_{\max}$ , the velocity is set to $v_{\max}$ . On the contrary, if $v_{i}<v_{\min}$ , the velocity is set to $v_{\min}$ .

Step 4:

Verify the ending condition is reached or not. If the current number of iterations reaches preset maximum times $T_{\max}$ or the final result is less than convergence precision $\varepsilon$ , stop iteration and output optimal solution, or go back to Step 2.

As the original PSO algorithm was put forward, standard PSO algorithm is based on the original one and coordinates the global and local searching abilities of PSO algorithm through a inertia weight. The Eq. (1) is modified as:

$\displaystyle v_{id}^{t+1}=\omega v_{id}^{t}+c_{1}r_{1}(p_{id}^{t}-x_{id}^{t})% +c_{2}r_{2}(p_{gd}^{t}-x_{id}^{t})$ (3)

$\omega$ is inertia weight and its size decides how much can the particle inherit the current velocity. Selecting an appropriate $\omega$ is conducive for PSO to balance its exploration ability and developing capability. The improvements for PSO algorithm are based on this formula.

3. Particle swarm optimization algorithm based on parameter improvements

PSO algorithm has many characteristics. For example, it is easy to implement and has rapid convergence speed. But the optimization handling ability for the discrete problems is poor and it is easy to be trapped in the local optimization. The existing improved methods focus on parameter improvement, improvement of topological structure and hybrid algorithm improvement. Through the researches on particle swarm algorithm, this paper aims at the disadvantage that PSO algorithm is easy to be trapped in local optimization. By improving particle swarm parameters, the new improved PSO algorithm is proposed to improve global searching ability of particle.

3.1 Parameter improvements

In the PSO algorithm, each particle updates its own position according to individual current optimal value, global optimal value and random velocity value. Inertia weight value reflects the effect of history velocity to the whole process or the dependence between history velocity and current motion of population. While learning factors c1 and c2 influence the motion track of particle. For these parameters, the corresponding parameter improvement methods are put forward in this paper:

(1) (1)
Import new distance calculation formula. To improve the global searching ability of particle swarm, the particle is introduced to move toward the global optimal position. Increasing the leading-force of “social knowledge” factor c2 and calculating the distance between each particle and global optimal particle are to modify inertia weight w and learning factor c2. The following is distance calculation formula:

$\displaystyle d_{i}=\sum\limits_{l=1}^{m}{|\textit{gBest}_{l}-x_{il}|}$ (4)

When a particle is close to the current global optimal position, inertia weight value is increased and c2 is reduced. The specific way is as follows [50]:

$\displaystyle\omega(i)=\begin{cases}{\omega_{\min}}&{(\text{if }d_{i}\geqslant d% _{ave})}\\ {\omega_{\max}-{\displaystyle\frac{d_{i}}{d_{ave}}}(\omega_{\max}-\omega_{\min% })}&{(\text{if }{\rm 1}<d_{i}<d_{ave})}\\ {1.1}&{(\text{if }d_{i}\leqslant 1)}\\ \end{cases}$ (5) $\displaystyle c_{2}(i)=\begin{cases}{c_{2\max}}&{(\text{if }d_{i}\geqslant d_{% ave})}\\ {c_{2\min}+{\displaystyle\frac{d_{i}}{d_{ave}}}(c_{2\max}-c_{2\min})}&{(\text{% if }1<d_{i}<d_{ave})}\\ 0&{(\text{if }d_{i}\leqslant 1)}\\ \end{cases}$ (6)

Where $d_{ave}=(\sum_{i=1}^{n}{d_{i}})/n$ , $m$ is dimension value of particle. $n$ is population size, $c_{2\max}=$ 2, $c_{2\min}=$ 0.5, $\omega_{\max}=$ 1.1, $\omega_{\min}=$ 0.4.
(2)
Dynamically modify learning factor c1. This paper allocates the value of c1 for each particle in the light of evolutionary algebra dynamics. The value of c1 depends on “social knowledge” factor c2 and updates its “cognitive knowledge” on the basis of “social knowledge”. When “social knowledge” factor c2 is bigger, the population is significantly influenced by the current “social knowledge”; when “cognitive knowledge” factor c1 is bigger, the individual in the population has a great influence on the whole. The way of mutual restriction and mutual learning can make better adaptability to society for each particle and influence the development of the whole population, which is conducive to modifying the motion trail of population. And the following is specific alter mode:

$\displaystyle c_{1}(i)=4.0-c_{2}(i)$ (7)

3.2 Improved algorithm process

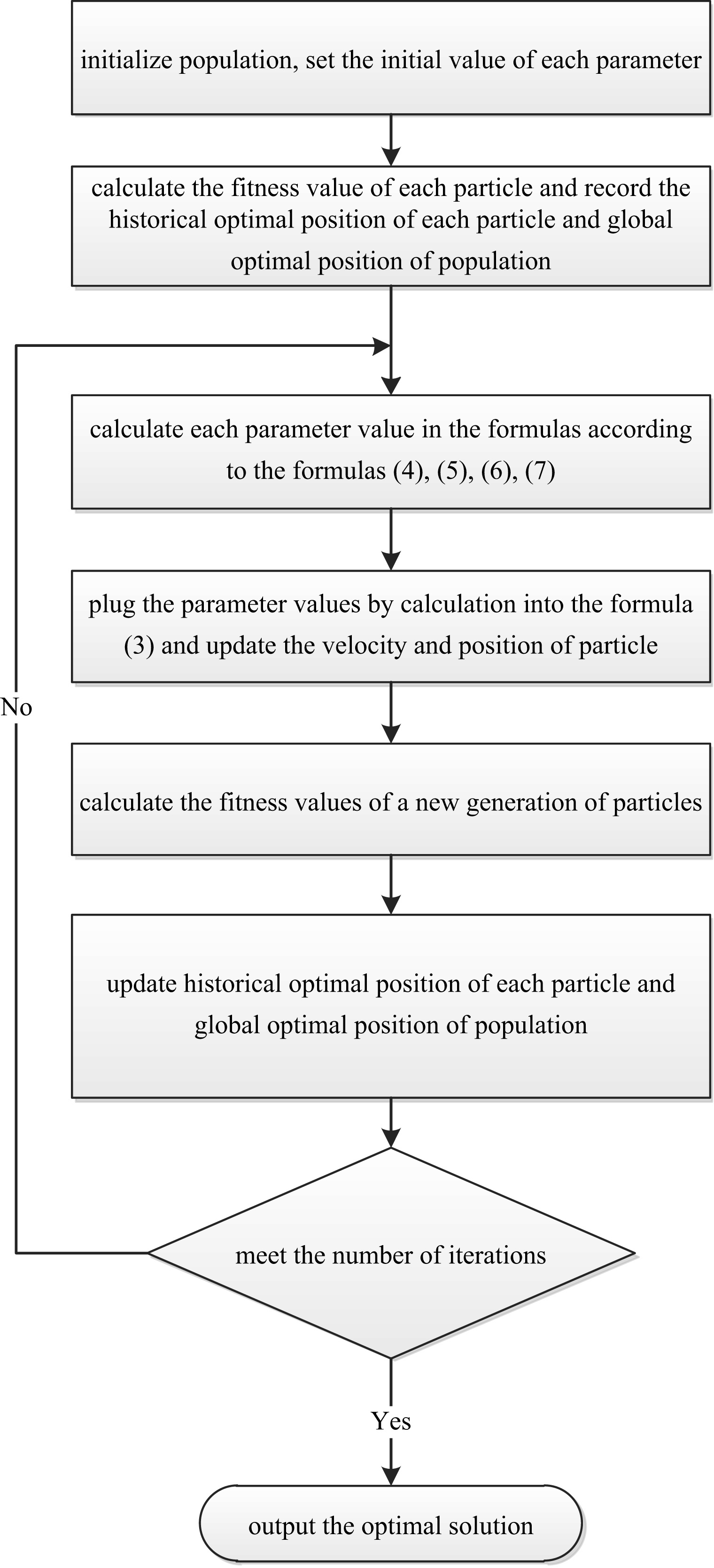

The flowchart of new improved PSO algorithm is shown in Fig. 1.

Figure 1.

Flowchart of improved PSO algorithm.

4. Experimental results and analysis

4.1 Experimental environment and test function

This paper uses standard function to test standard particle swarm optimization algorithm (SPSO), reference algorithm [20] and the proposed improved algorithm. And 9 representative functions are selected in the experimental test. All experiments are conducted in the same environment and the experimental parameters are the same.

Experimental environment: the processor is Intel(R) Pentium(R) CPU G850 @ 2.90 GHz. Installing memory is 8.0 GB. Operating system is 64-bit Windows 8 operating system and processor is based on x64. The programming language is C $++$ and developing tool is Visual Studio 2012.

This paper uses 9 functions from standard Benchmark functions to make experimental verification, and the specific functions are illustrated as follows:

Rastrigrin function:

$f1:\min f(x_{1},x_{2})=20+x_{1}^{2}+x_{2}^{2}-10\ast(\cos 2\pi x_{1}+\cos 2\pi x% _{2}),-4\leqslant x_{i}\leqslant 4$

Rosenbrock function:

$f2:\min f(x_{1},x_{2})=100\ast(x_{1}^{2}-x_{2})^{2}+(1-x_{1})^{2},-2.048% \leqslant x_{i}\leqslant 2.048$

Sphere Model function:

$f3:\min f(x_{1},x_{2})=x_{1}^{2}+x_{2}^{2},-1\leqslant x_{i}\leqslant 1$

Camel function:

$f4:\min f(x_{1},x_{2})=\left(4-2.1x_{1}^{2}+\frac{x_{1}^{4}}{3}\right)\ast x_{% 1}^{2}+x_{1}x_{2}+(-4+4x_{2}^{2})x_{2}^{2},-100\leqslant x_{i}\leqslant 100$

Unimodal function:

$f5:\min f(x_{1},x_{2})=0.5x_{1}^{2}+x_{2}^{2}+0.5\ast(1-\cos 2x_{2}),-4% \leqslant x_{i}\leqslant 4$

Shubert function:

$f6:\min f(x_{1},x_{2})=\left\{{\sum\limits_{i={\rm 1}}^{5}{i\cos[(i+1)x_{1}+i]% }}\right\}\ast\left\{{\sum\limits_{i=1}^{5}{i\cos[(i+1)x_{2}+i]}}\right\},-10% \leqslant x_{i}\leqslant 10$

Hansen function:

$f7:\min f(x_{1},x_{2})=\left\{{\sum\limits_{i=1}^{5}{i\cos[(i-1)x_{1}+i]}}% \right\}\ast\left\{{\sum\limits_{i=1}^{5}{i\cos[(i+1)x_{2}+i]}}\right\}-10% \leqslant x_{i}\leqslant 10$

Goldstein-Price’s function:

$\displaystyle f8:\min f(x_{1},x_{2})=\left\{{1+(x_{1}+x_{2}+1)^{2}(19-14x_{1}+% 3x_{1}^{2}-14x_{2}+6x_{1}x_{2}+3x_{2}^{2})}\right\}$ $\displaystyle\quad∼{}\ast\left\{{30+(2x_{1}-3x_{2})^{2}(18-32x_{1}+12x_{1}^{2}% +48x_{2}-36x_{1}x_{2}+27x_{2}^{2})}\right\},$ $\displaystyle\quad∼{}-50\leqslant x_{i}\leqslant 50$ $\displaystyle f9:\min f(x_{1},x_{2})=-[x_{1}\sin(9\pi x_{2})+x_{2}\cos(25\pi x% _{1})+20],-10\leqslant x_{i}\leqslant 10$

In this paper, the theoretical optimal values of experimental test functions f1, f2, f3 and f5 are 0.0. In addition, the theoretical optimal values of functions f4, f6, f7, f8 and f9 are $-$ 1.031628, $-$ 186.7309, $-$ 176.541793, 3 and $-$ 39.944506 respectively.

4.2 Experimental results and analysis

The experiments of all functions in this paper are conducted in the same environment and the experimental parameters are the same. The population size of particle swarm is $N=$ 15. Particle dimension is $D=$ 2 and number of iterations is Iteration $=$ 20000. $c_{2\max}=$ 2, $c_{2\min}=$ 0.5, $\omega_{\max}=1.1$ , $\omega_{\min}=0.4$ . In this paper, each test function is run independently for 20 times to test the stability of algorithm. The average optimal results, the best optimal results and the worst optimal results of these three algorithms in 20 independent runs are counted in the experimental results which are shown in Tables 1–3; to compare the optimization stability of these algorithms, the optimal result graph of each function in the 20 runs is given as shown in Figs 3–10.

Table 1
Experimental result comparisons of mean

Test	Mean			Theoretical
functions	SPSO	Reference [20]	Improved algorithm	optimal values
f1	6.63E-05	7.57302E-05	0	0
f2	2.62E-06	4.122E-06	3.02982E-11	0
f3	1.96E-08	1.60065E-06	8.05086E-08	0
f4	$-$ 1.0302335	$-$ 1.03163	$-$ 1.03163	$-$ 1.03163
f5	3.89E-07	6.0138E-07	3.79059E-35	0
f6	$-$ 186.7119	$-$ 186.7305	$-$ 186.731	$-$ 186.731
f7	$-$ 176.5355	$-$ 176.5417	$-$ 176.542	$-$ 176.542
f8	3.0169135	3.000014	3	3
f9	$-$ 39.870745	$-$ 39.908375	$-$ 39.873885	$-$ 39.944506

Table 2

Experimental result comparisons of the best results

Test	Best			Theoretical
functions	SPSO	Reference [50]	Improved algorithm	optimal values
f1	3.97E-06	0.000002384	0	0
f2	3.27E-07	4.63407E-08	7.14768E-15	0
f3	2.03E-09	6.37433E-08	3.93238E-10	0
f4	$-$ 1.03152	$-$ 1.03163	$-$ 1.03163	$-$ 1.03163
f5	1.04E-11	6.30852E-09	1.2994E-44	0
f6	$-$ 186.731	$-$ 186.731	$-$ 186.731	$-$ 186.731
f7	$-$ 176.542	$-$ 176.542	$-$ 176.542	$-$ 176.542
f8	3.00045	3	3	3
f9	$-$ 39.9445	$-$ 39.9445	$-$ 39.9445	$-$ 39.944506

Table 3

Experimental result comparisons of the worst results

Test	Worst			Theoretical
functions	SPSO	Reference [50]	Improved algorithm	optimal values
f1	0.000278641	0.000323274	0	0
f2	8.49795E-06	1.98498E-05	1.70107E-10	0
f3	1.05749E-07	5.22322E-06	4.4201E-07	0
f4	$-$ 1.02697	$-$ 1.03163	$-$ 1.03163	$-$ 1.03163
f5	1.23124E-06	2.65015E-06	7.10047E-34	0
f6	$-$ 186.605	$-$ 186.728	$-$ 186.731	$-$ 186.731
f7	$-$ 176.476	$-$ 176.54	$-$ 176.542	$-$ 176.542
f8	3.06907	3.00004	3	3
f9	$-$ 39.7922	$-$ 39.8334	$-$ 39.7899	$-$ 39.944506

Figure 2.

Function f1 running result contrast curve.

Figure 3.

Function f2 running result contrast curve.

Figure 4.

Function f3 running result contrast curve.

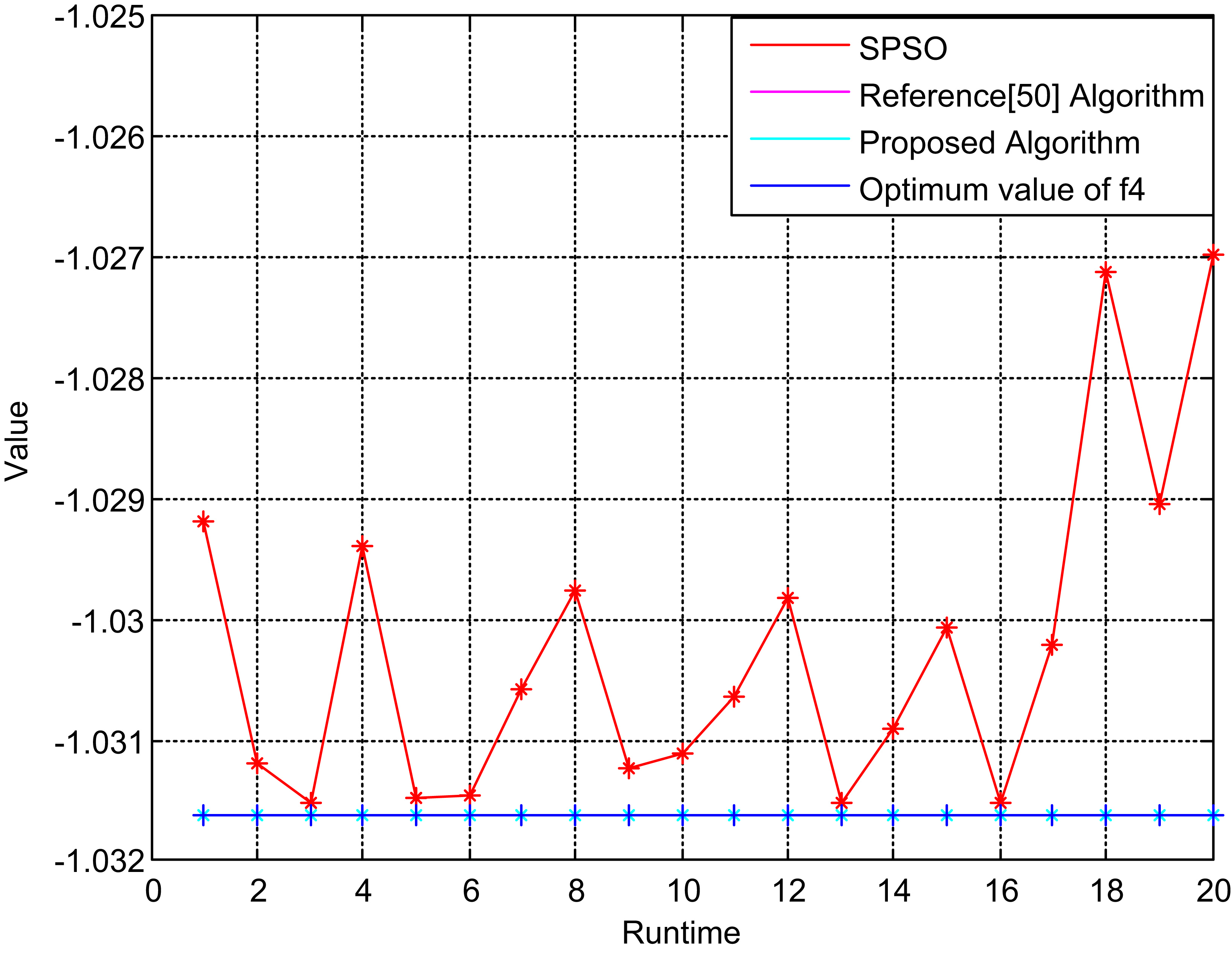

Figure 5.

Function f4 running result contrast curve.

The black and bold parts in the tables indicate that the improved algorithm in this paper is more optimal than SPSO algorithm and reference [50] algorithm. It can be seen from Tables 1–3 that the improved algorithm in this paper can solve the optimal solution or approximate solution of each test function. For functions f1, f4, f6, f7 and f8, every time the proposed algorithm can search for optimal solution values of these test functions, which illustrates that the proposed algorithm has extremely obvious effect on the problem of solving optimal function and strong stability; For functions f1, f2, f3 and f5, the optimal solutions cannot be solved absolutely, but no matter the optimal result is Mean, Best or Worst, it has already been close to theoretical optimal value. In a certain sense, the actual result can be considered to be equal to theoretical optimal value and is more optimal to the former two algorithms; although Mean and Worst values of function f9 are inferior to those of the reference [50] algorithm, it can be seen form Best value that the proposed algorithm in this paper still can search for the optimal solution and the result is more optimal than standard particle swarm algorithm.

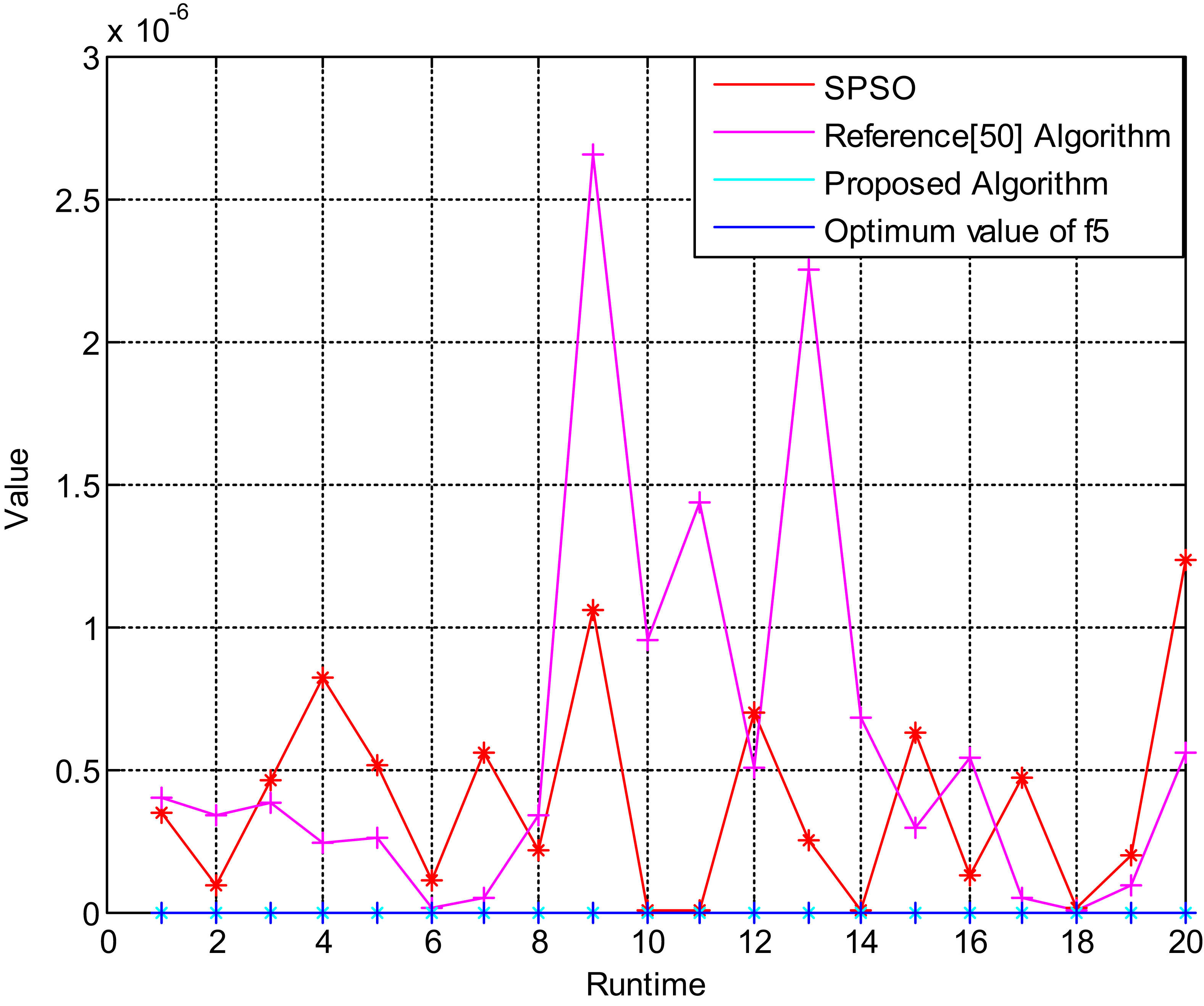

Figure 6.

Function f5 running result contrast curve.

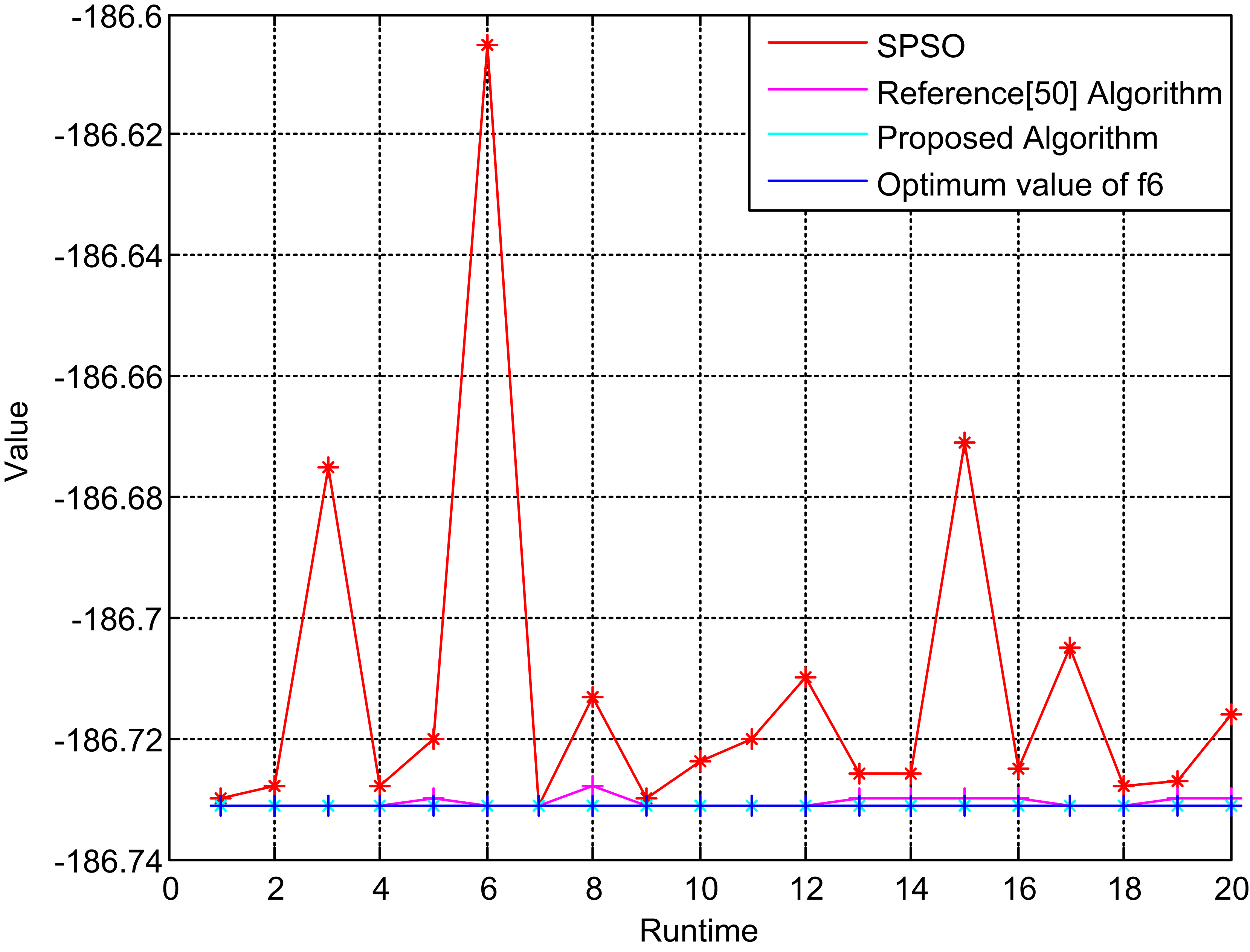

Figure 7.

Function f6 running result contrast curve.

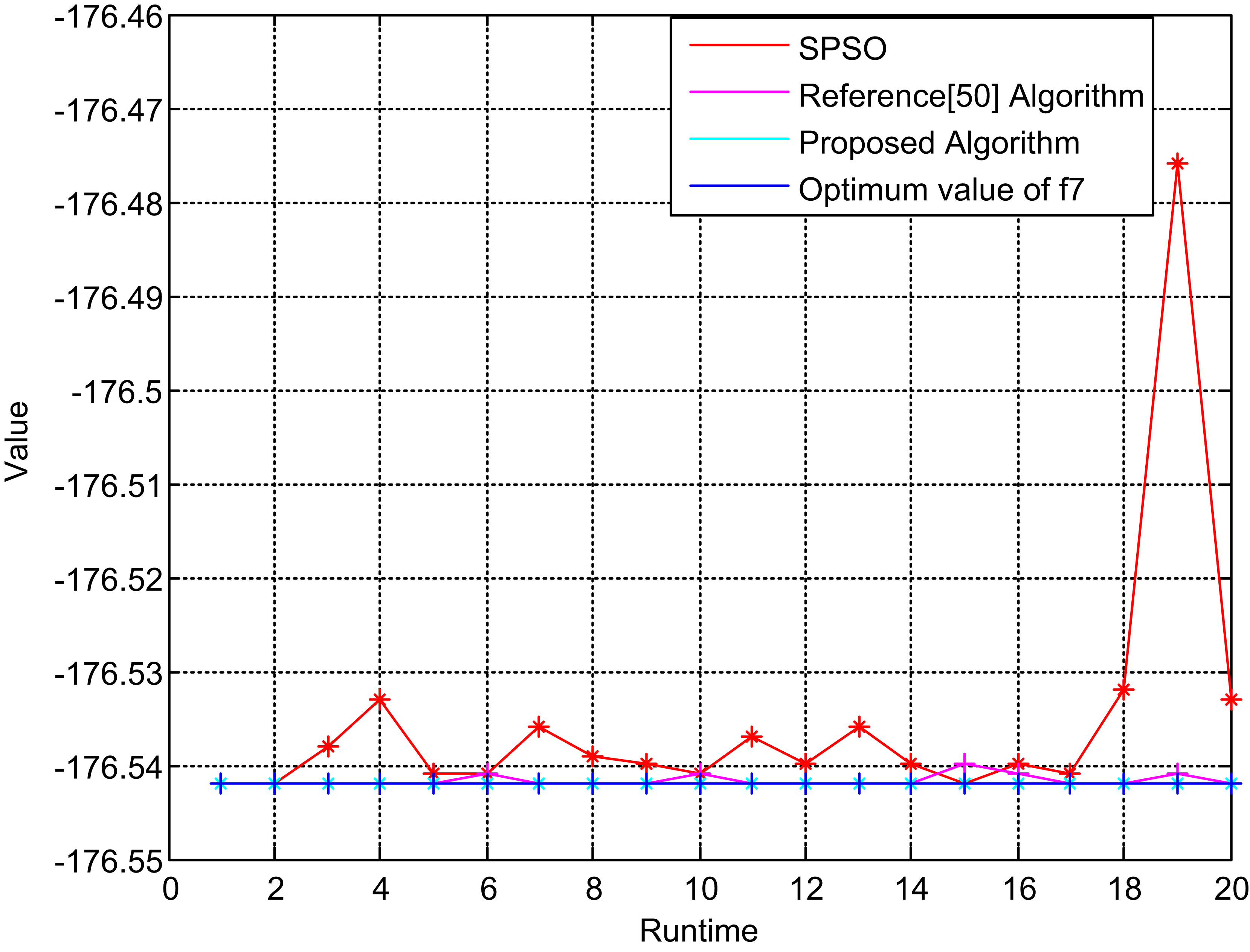

Figure 8.

Function f7 running result contrast curve.

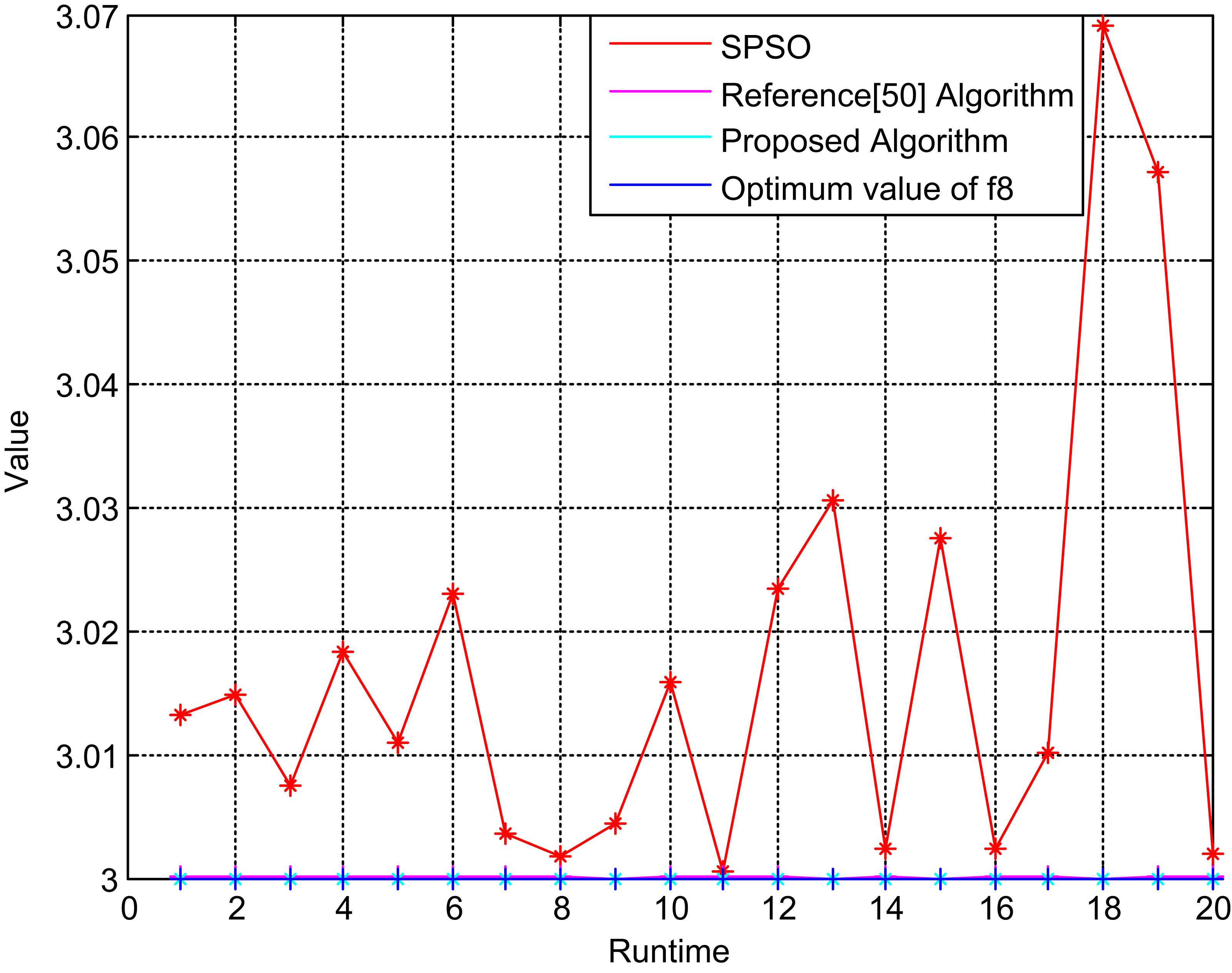

Figure 9.

Function f8 running result contrast curve.

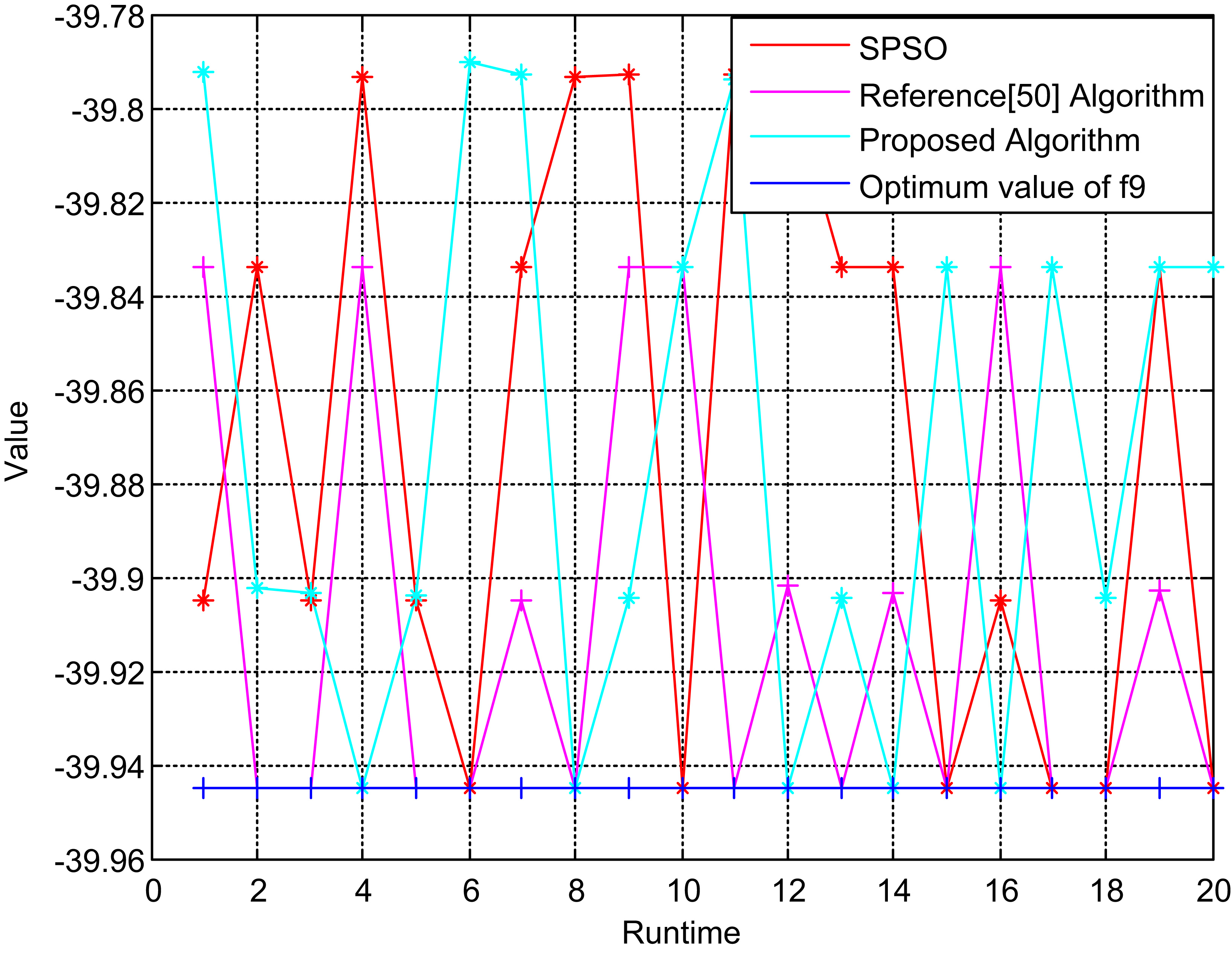

Figure 10.

Function f9 running result contrast curve.

From Figs 3–10, it is very stable that the proposed improved PSO algorithm in this paper solves the optimal results of former 8 test functions, which verifies the stability of the algorithm; it can be found through optimal curve that for the former 8 functions, the optimal value optimized by this algorithm can be considered to be equal to theoretical optimal value, which verifies effectiveness of this algorithm; function f9 is one with higher complexity for proving the actual effect of the algorithm. From the graphs, it can be seen that the result of each optimization algorithm fluctuates greatly and is not stable, but the optimization algorithm still can optimize the optimal result. Comparing with the traditional algorithms which are incapable of optimizing the optimal result, PSO algorithm embodies its advantages.

5. Conclusion

This paper has described the source, theory, implement mechanism and research status of PSO algorithm. Through the researches on various improved items of PSO algorithm, the methods based on parameter improvements are changing inertia weight and learning factor, etc. and importing new parameters into traditional velocity formula. Besides, the improvements based on topological structure include static topology improvement and dynamic topology improvement. The research of hybrid algorithm is mainly blending some heuristic searching algorithms and PSO algorithm to improve the properties of PSO algorithm including the blend of various algorithms such as selection operator, evolutionary strategy, crossover operator, chaotic motion, immunization, difference and ant colony, etc., For the insufficient global searching ability of PSO algorithm, the PSO algorithm based on parameter improvement was proposed. The improved algorithm has been tested by adopting standard test function and the result has been compared with other PSO algorithms. The experimental results indicated that the proposed improved algorithm obtained better result for function problems.

Footnotes

Acknowledgments

This paper is supported by Natural Science Foundation of China. (No. 41404076, 61673354), supported by Open Research Project of The Hubei Key Laboratory of Intelligent Geo-Information Processing (KLIGIP201603, KLIGIP201607, KLIGIP201611) and supported by the Fundamental Research Funds for the Central Universities, China University of Geosciences (Wuhan).

References

Kennedy

and Ceberhart

, Particle swarm optimization, in: Proceedings of IEEE International Conference on Neural Networks (1995), 1942–1948.

Shi

Y.H.

and Eberhart

, A modified particle swarm optimizer, in: IEEE International Conference on Evolutionary Computation, Anchorage, Alaska, (1988), 69–73.

Shi

Y.H.

and Eberhart

, Empirical study of particle swarm optimization, in: International Conference on Evolutionary Computation, Washington, USA: IEEE, (1999), 1945–1950.

Chen

G.M.

Jia

J.Y.

and Han

, Study on the strategy of decreasing inertia weight in particle swarm optimization algorithm, Journal of Xi’an Jiaotong University 40(1) (2006), 53–61.

Clerc

and Kennedy

, The particle swarm-explosion, stability, and convergence in a multidimensional complex space, IEEE Transactions on Evolutionary Computation 6(1) (2002), 58–73.

Ratnaweera

Halgamuge

S.K.

and Watson

H.C.

, Self-organizing hierarchical particle swarm optimizer with time-varying acceleration coefficients, IEEE Transactions on Evolutionary Computation 8(3) (2004), 240–255.

Kennedy

, Small worlds and mega-minds: Effects of neighborhood topology on particle swarm performance, in: The 1999 Congress on Evolution Computation, Piscataway, NJ: IEEE Press, (1999), 1931–1938.

Suganthan

P.N.

, Particle swarm optimizer with neighborhood operator, in: Proceedings of the IEEE Congress on Evolutionary Computation (CEC), Piscataway, IEEE, (1999), 1958–1962.

Parsopoulos

K.E.

and Michael

N.V.

, Parameter selection and adaptation in unified particle swarm optimization, Mathematical and Computer Modelling 46(1) (2007), 198–213.

10.

Zhang

and Yi

, Scale-free fully informed particle swarm optimization algorithm, Information Sciences 181(20) (2011), 4550–4568.

11.

Marco de Oca

M.A.

et al., Frankenstein’s PSO: A composite particle swarm optimization algorithm, IEEE Transactions on Evolutionary Computation 13(5) (2009), 1120–1132.

12.

Stefan

and Middendorf

, A hierarchical particle swarm optimizer and its adaptive variant, IEEE Transactions on System Man and Cybernetics, Part B: Cybernetics 35(6) (2005), 1272–1282.

13.

Clerc

, Particle swarm optimization, John Wiley & Sons, 2010.

14.

Wang

and Li

, Hybrid particle swarm optimization with simulated annealing, in: Proceedings of 2004 International Conference on Machine Learning and Cybernetics, IEEE, (2004), 2402–2405.

15.

S.T.

et al., A hybrid PSO-BFGS strategy for global optimization of multimodal functions, IEEE Transactions on Systems Man and Cybernetics, Part B: Cybernetics 41(4) (2011), 1003–1014.

16.

Settles

and Soule

, Breeding swarms: A GA/PSO hybrid, in: Proceedings of the 7th Annual Conference on Genetic and Evolutionary Computation, ACM, (2005), 161–168.

17.

Taher

and Amiri

, An efficient hybrid approach based on PSO, ACO and k-means for cluster analysis, Applied Soft Computing 10(1) (2010), 183–197.

18.

Esmat

Nezamabadi-Pour

and Saryazdi

, GSA: Gravitational search algorithm, Information Science 179(13) (2009), 2232–2248.

19.

Jiang

S.H.

and Ji

Z.C.

, An improved HPSO-GSA with adaptive evolution stagnation cycle, in: Proceedings of the 33rd Chinese Control Conference, Nanjing, China, (28–30 July 2014), 8601–8606.

20.

Semwal

V.B.

et al., Business and social behaviour intelligence analysis using PSO, IJIMAI 2(6) (2014), 69–74.

21.

Joaquín

M.Z.

et al., MOVPSO: Vortex multi-objective particle swarm optimization, Applied Soft Computing 52 (2017), 1042–1057.

22.

Joaquín

M.Z.

et al., Statistical analysis of a multi-objective optimization algorithm based on a model of particles with vorticity behavior, Soft Computing 20(9) (2016), 3521–3536.

23.

Sankalap

and Singh

, An effective hybrid butterfly optimization algorithm with artificial bee colony for numerical optimization, Changes 26 (2017), 14–21.

24.

Hassan

et al., Multilayer perceptron: Architecture optimization and training, IJIMAI 4(1) (2016), 26–30.

25.

Zhang

Y.D.

et al., Binary PSO with mutation operator for feature selection using decision tree applied to spam detection, Knowledge-Based Systems 64 (2014), 22–31.

26.

Abdulhamit

, Classification of EMG signals using PSO optimized SVM for diagnosis of neuromuscular disorders, Computers in Biology and Medicine 43(5) (2013), 576–586.

27.

Patricia

et al., Optimal design of fuzzy classification systems using PSO with dynamic parameter adaptation through fuzzy logic, Expert Systems with Applications 40(8) (2013), 3196–3206.

28.

Masoud

and ELMekkawy

T.Y.

, Multi-objective optimal design of hybrid renewable energy systems using PSO-simulation based approach, Renewable Energy 68 (2014), 67–79.

29.

Hannah

I.H.

Azar

A.T.

and Jothi

, Supervised hybrid feature selection based on PSO and rough sets for medical diagnosis, Computer Methods and Programs in Biomedicine 113(1) (2014), 175–185.

30.

Bahrami

Hooshmand

R.A.

and Parastegari

, Short term electric load forecasting by wavelet transform and grey model improved by PSO (particle swarm optimization) algorithm, Energy 72 (2014), 434–442.

31.

Hugues

et al., A PSO-based global MPPT technique for distributed PV power generation, IEEE Transactions on Industrial Electronics 62(2) (2015), 1047–1058.

32.

Jordehi

A.R.

, Enhanced leader PSO (ELPSO): A new PSO variant for solving global optimisation problems, Applied Soft Computing 26 (2015), 401–417.

33.

Selakov

et al., Hybrid PSO-SVM method for short-term load forecasting during periods with significant temperature variations in city of Burbank, Applied Soft Computing 16 (2014), 80–88.

34.

Nahavandi

S.K.

et al., A novel adaptive compression technique for dealing with corrupt bands and high levels of band correlations in hyperspectral images based on binary hybrid GA-PSO for big data compression, International Journal of Computer Applications 109(8) (2015), 18–25.

35.

Wang

S.H.

et al., Feed-forward neural network optimized by hybridization of PSO and ABC for abnormal brain detection, International Journal of Imaging Systems and Technology 25(2) (2015), 153–164.

36.

Mamta

Sarin

R.K.

and Uddin

, Evolutionary design of efficient type-2 fuzzy models from noisy data using hybrid PSO model, International Journal of Swarm Intelligence 1(2) (2014), 156–178.

37.

Michal

et al., On the behavior and performance of chaos driven PSO algorithm with inertia weight, Computers & Mathematics with Applications 66(2) (2013), 122–134.

38.

Vandana

et al., A three diode model for industrial solar cells and estimation of solar cell parameters using PSO algorithm, Renewable Energy 78 (2015), 105–113.

39.

Zuo

X.Q.

Zhang

G.X.

and Wei

, Self-adaptive learning PSO-based deadline constrained task scheduling for hybrid IaaS cloud, IEEE Transactions on Automation Science and Engineering 11(2) (2014), 564–573.

40.

Bao

Y.K.

Z.Y.

and Xiong

, A PSO and pattern search based memetic algorithm for SVMs parameters optimization, Neurocomputing 117 (2013), 98–106.

41.

Tonnizam

M.E.

et al., Prediction of the unconfined compressive strength of soft rocks: A PSO-based ANN approach, Bulletin of Engineering Geology and the Environment 74(3) (2015), 745–757.

42.

Jordehi

A.R.

et al., Enhanced leader PSO (ELPSO): A new algorithm for allocating distributed TCSC’s in power systems, International Journal of Electrical Power & Energy Systems 64 (2015), 771–784.

43.

Nieto

P.J.G.

et al., Hybrid PSO-SVM-based method for forecasting of the remaining useful life for aircraft engines and evaluation of its reliability, Reliability Engineering & System Safety 138 (2015), 219–231.

44.

Nima

et al., A hybrid PSO algorithm for a multi-objective assembly line balancing problem with flexible operation times, sequence-dependent setup times and learning effect, International Journal of Production Economics 141(1) (2013), 99–111.

45.

Liu

Z.W.

et al., Multi-fault classification based on wavelet SVM with PSO algorithm to analyze vibration signals from rolling element bearings, Neurocomputing 99 (2013), 399–410.

46.

Yang

L.F.

and Fu

S.Y.

, An improved PSO-based charging strategy of electric vehicles in electrical distribution grid, Applied Energy 128 (2014), 82–92.

47.

Jamshid

et al., Distribution expansion planning considering reliability and security of energy using modified PSO (Particle Swarm Optimization) algorithm, Energy 65 (2014), 398–411.

48.

Chen

J.J.

et al., A variant of group search optimizer for global optimization, Journal of Computational Methods in Sciences and Engineering 16(2) (2016), 219–230.

49.

Luo

X.W.

and Zuo

Y.L.

, Study on the particle swarm optimization based on double mutation, Journal of Computational Methods in Sciences and Engineering 15(4) (2015), 635–644.

50.

Wang

Zhao

D.M.

and Zhang

, Reactive power optimization in regional grids by improved PSO algorithm, in: Fourth International Conference on Instrumentation and Measurement, Computer, Communication and Control (2014), 121–125.

Particle swarm optimization algorithm based on parameter improvements

Abstract

Keywords

1. Introduction

3.1 Parameter improvements

4.1 Experimental environment and test function

4.2 Experimental results and analysis

Table 1 Experimental result comparisons of mean

Footnotes

Acknowledgments

References

Table 1
Experimental result comparisons of mean
