An improved predictor for identifying recombination spots based on support vector machine

Abstract

Meiotic recombination has a crucial role in the biological process involving double-strand DNA breaks. Recombination hotspots are regions with a size varying from 1 to 2 kb, which is closely related to the double-strand breaks. With the increasement of both sperm data and population data, it has been demonstrated that computational methods can help us to identify the recombination spots with the advantages of time-saving and cost-saving compared to experimental verification approaches. To obtain better identification performance and investigate the potential role of various DNA sequence-derived features in building computational models, we designed a computational model by extracting features including the position-specific trinucleotide propensity (PSTNP) information, the electron-ion interaction potential (EIIP) values, nucleotide composition (NC) and dinucleotide composition (DNC). Finally, the supporting vector machine (SVM) model was trained by using the 172-dimensional features selected by means of the $F$ -score feature ranking mode, and the accuracy of the predictor reached 98.24% in the jackknife test, which elucidates this model is a potential way for identifying recombination spots.

Keywords

Recombination spots support vector machine feature extraction

1. Introduction

Meiotic recombination [1] is a special kind of cell division caused by double stranded DNA breakage. During the reduction of eukaryotic cells, it affects the exchange of genetic information between non-sister chromosomes of homologous chromosomes. In this process, some regions of the genome showed higher rates of recombination relative to neutral expectations, which were named hotspots, and others were named coldspots [2, 3]. Identifying the hotspots and coldspots is one of the most important ways to understand the molecular mechanisms and the evolution of genomes.

The computational method is superior to the traditional experimental method in saving time and reducing cost. In recent years, researchers in bioinformatics and computational biology have developed several computing models based on machine learning. Jiang et al. [4] built the first computational predictor, RF-DYMHC, using to detect the hotspots and coldspots of yeast meiosis recombination from the genome sequences, in which the random forest (RF) was employed as a predictor, and the gapped dinucleotide composition information was extracted as discrimination features. This predictor achieved an accuracy of 82.05% by implementing the 2-fold cross-validation [4]. The relative recombination rate of Saccharomyces cerevisiae was estimated utilizing DNA microarrays with single-gene resolution, and 6200 genes were obtained by repeating the experiments seven times [5]. Jiang et al. [4] collected 5266 sequences from the dataset of Gerton et al., and for every sequence, the authors took its median to denote the relative recombination rate. Those sequences with a relative hybridization ratio exceed to 1.5, and a relative hybridization ratio lower than 0.82 are marked as hotspots and coldspots, respectively. As a result, the 490 hotspots and 591 coldspots were made up of the benchmark dataset. What’s more, the benchmark dataset they built lays a solid foundation for further design of computational schemes of identifying the recombination spots. Qiu et al. [6] created the predictor iRSpot-TNCPseAAC by incorporating feature extraction information, including pseudo amino acid components (PseAAC) and trinucleotide composition (TNC) with the SVM classification algorithm. In the jackknife test, the sensitivity, specificity, and accuracy of iRSpot-TNCPseAAC were 87.14%, 79.59%, and 83.72%, respectively. Similarly, iRSpot-SF was constructed by Al Maruf et al. [7], which extracted the features vector by fusing multiple feature extracting methods, 17 effective features were selected on the basis of the recursive feature elimination technique, and 84.58% accuracy was obtained by performing ten-fold cross-validation. The authors utilized an approach for recursively extracting features by combining with linear kernel SVM, the comprehensive feature vectors were sorted, and the optimal features were extracted, the overall accuracy of this method was 84.09% on the jackknife test [8]. Kabir and Hayat [9] established an ensemble predictor iRSpot-GAEnsC by embedding eight base classifiers, the final results were integrated by the simple genetic algorithm and majority voting, and the accuracy of it was 84.46%. Chen et al. [10] constructed a prediction model named iRSpot PseDNC by extracting pseudo-dinucleotide composition (PseDNC) information and local structure characteristics of DNA as feature vectors. The accuracy of iRSpot-PseDNC in the jackknife test and 5-fold cross-validation reached 82.01% and 85.19%, respectively.

By analyzing various information in biological sequences, we developed a new prediction model to further improve the performance of computational models in identifying recombination spots. The feature extraction methods fully considered the sequence information, and the physical property of the nucleotides and the position information are potential information sources for identifying the recombination spots. In this study, we attempt to design a predictor with the help of SVM classifier to identify the recombination spots by considering position-specific propensity (PSTNP) information, electron-ion inter pseudo potentials (EIIPs) values, nucleotide composition (NC) and dinucleotide composition (DNC). The optimal feature subset was selected with the aid of $F$ -score feature selection and incremental feature selection (IFS). In order to examine the performance of the design model using relevant prediction methods, we conducted some experimental studies. The test results meant that an informative feature subset and an efficient classifier could provide a collusive and promotive function for enhancing the performance of identification. The developed model could be a potential way to detect recombination hotspots accurately.

The research flowchart of this paper is provided in Fig. 1. The study is implemented below: Section 2 supplies the material and methods, including the benchmark database, feature extraction, feature selection, and a basic introduction to SVM; In Section 3, we show the results based on the designed method and offers some comparisons among the existing recombination spots predictors; some conclusions are given in Section 4.

Figure 1.

The flowchart of the proposed model.

2. Materials and methods

All the experiments were conducted by using MATLAB 2020b and LIBSVM package 3.22 (https://www.npackd.org/p/libsvm/3.22) on a personal computer with an intel i7 CPU, 16 GBmemory, and 512 GB hard disk. Computational schemes with Chou’s 5-step rule [11] provided some powerful and practical tools for identifying the recombination spots at high performance. Along with Chou’s 5-step scheme, there are a series of publications [6, 10, 12, 13, 14, 15, 16, 17] for analyzing biological sequences. Chou’s 5-step scheme consists of the following steps: (i) build a sound benchmark dataset for learning and testing predictors; (ii) biological sequences are transformed into mathematical expressions to accurately express the intrinsic correlation of biological sequences; (iii) develop an ideal predictor (or engine); (iv) validate the identifying performance by using cross-validation tests, jackknife tests, or independent tests; and (v) develop an accessible web-server to the public. The first four steps focus on designing a computing model, and the final step (setting up the web-server) is dedicated to achieving a simple and friendly user interface. Herein, we offer a detailed description of the steps required to design an improved computational model.

2.1 Benchmark dataset

The training dataset with high quality is a critical condition for developing computational models and comparing performance [18]. The first dataset used to identify the hotspots and coldspots was built in [9], including 490 recombination hotspots and 591 coldspots. Then, Yang et al. [19] made a compact version of the first dataset by considering the sequence length distributed information. They unified the sequence length to 131 bp for the reason that studies have shown that hotspots are correlated in high GC content regions [5]. It should be pointed out that 131 bp was selected as the sequence length due to the limitation of the shortest sequence length in their dataset, if the length of the sequence was larger than 131 bp, the part with maximum GC content was chosen. Finally, as shown in Table 1, Yang’s dataset contained 490 hotspots and 591 coldspots with the equal sequence length of 131 bp. In order to make the comparison comprehensive and unbiased, this paper uses Yang’s dataset as the benchmark dataset, and provides detailed information in the supplementary materials. For convenience, the hotspot sequences mentioned in the following description are the positives, and the coldspot sequences to the negatives.

Table 1
Benchmark datasets for different species

Species	Attribute	Number of sample	Length of sequence
Hotspots	Positive	490	131 bp
Coldspots	Negative	591	131 bp

2.2 Feature information extraction

Feature vector extraction from the biological sequences plays a pivotal role in the design of the computational model, which is conducted before learning classification algorithms. The function of cells is influenced by multiple factors, therefore, it is necessary to extract sequence information from various aspects [20]. In this section, we transformed each DNA sample into a vector with the aid of four feature-extracting strategies.

Suppose the DNA sample $P$ with the length $S$ , which expression is as follows:

$\displaystyle P=L_{1}L_{2}L_{3}\ldots L_{S}$ (1)

2.2.1 Position-specific trinucleotide propensity (PSTNP)

Position-specific trinucleotide propensity (PSTNP) [21, 22, 23] characterizes the position information of the sequence by accounting trinucleotide composition. For the sequence with length $S$ , its PSTNP can be represented in the form of a $4^{3}\times\left({S-2}\right)$ matrix as shown in Eq. (2). Herein, $4^{3}=64$ means the number of trinucleotides, i.e., $\textit{AAA, AAC},\ldots,\textit{TTT},(S-2)$ denotes the number of positions, and $Y_{i,j}$ can be realized from Eq. (3).

$\displaystyle Y=\left[{{\begin{array}[]{cccc}{y_{1,1}}&{y_{1,2}}&\ldots&{y_{1,% 129}}\\ {y_{2,1}}&{y_{2,2}}&\ldots&{y_{2,129}}\\ \vdots&\vdots&\vdots&\vdots\\ {y_{64,1}}&{y_{64,2}}&\ldots&{y_{64,129}}\\ \end{array}}}\right]$ (2)

$\displaystyle y_{i,j}=F^{+}(\textit{trinucleotide}_{i}\mid j)-F^{-}(\textit{% trinucleotide}_{i}\mid j){(i=1,2,\ldots,64;\,\,j=1,2,\ldots 129)}$ (3)

where $F^{+}(\textit{trinucleotide}_{i}\mid j)$ and $F^{-}(\textit{trinucleotide}_{i}\mid j)$ mean the occurrence rate of the $i$ -th trinucleotide at the $j$ - th position in positive and negative samples, respectively. The matrix $Y$ can form a 129 dimensional feature vector, thus each recombination spots DNA samples can be expressed in the following manner:

$\displaystyle S=[\phi_{1},\phi_{2},\ldots,\phi_{u},\ldots,\phi_{129}]^{\prime}$ (4)

where the symbol ‘ ${}^{\prime}$ ’ in the superscript represents the transpose operator, $\phi_{u}$ is defined below:

$\displaystyle\phi_{u}=\left\{{{\begin{array}[]{ll}{y_{1,u},}&{\text{if}\ L_{u}% L_{u+1}L_{u+2}=\textit{AAA}}\\ {y_{2,u},}&{\text{if}\ L_{u}L_{u+1}L_{u+2}=\textit{AAC}}\\ {y_{3,u},}&{\text{if}\ L_{u}L_{u+1}L_{u+2}=\textit{AAG}}\\ \vdots&\vdots\\ {y_{64,u},}&{\text{if}\ L_{u}L_{u+1}L_{u+2}=\textit{TTT}}\\ &{(1\leqslant u\leqslant 129).}\\ \end{array}}}\right.$ (5)

2.2.2 Electron-ion interaction potential (EIIP)

Nair and Sreenadhan [24] proposed the Electron-ion interaction potential (EIIP) to express the electron-ion energy distribution information along the DNA sequence [25]. EIIP is an appealing feature encoding way with a remarkable distinguish function, which was also used in the enhancer and non-enhancer discrimination [21], DNA $N^{4}$ -methylcytosine sites prediction [22]. In this paper, the average EIIP values of trinucleotides are used as the feature vectors. In total, there are 64-dimensional features as follows:

$\displaystyle D=[\textit{EIIP}_{\textit{AAA}}\cdot f_{\textit{AAA}},\textit{% EIIP}_{\textit{AAC}}\cdot f_{\textit{AAC}},\ldots,\textit{EIIP}_{\textit{TTT}}% \cdot f_{\textit{TTT}}]^{\prime}$ (6)

where the subscripts denote different types of trinucleotides. $\textit{EIIP}_{xyz}$ denotes the sum of EIIP values of the corresponding $\text{trinucleotide}_{xyz}$ , $x,y,z\in\{A,C,G,T\}$ [23, 26], $f_{xyz}$ represents the normalized value of the occurrence rate of $\text{trinucleotide}_{xyz}$ . Table 2 reports the EIIP values for each nucleotide.

Table 2

EIIP values of nucleotides

Nucleotide	EIIP
A	0.1260
C	0.1340
T	0.0806
G	0.1335

2.2.3 Nucleotide composition (NC)

The occurrence rate of each nucleotide of the recombination spots sample in Eq. (1) can be expressed in the following form [27]:

$\displaystyle X=[r(A),r(C),r(G),r(T)]^{\prime}$ (7)

where $r(x)$ denotes the rate of occurrence of the corresponding nucleotide $x$ and $x\in\{A,C,G,T\}$ .

2.2.4 Dinucleotide composition (DNC)

Besides the nucleotide composition information, the dinucleotide composition (DNC) has underlying discriminant information for identifying the recombination spots [28], which was employed to construct the features vectors

$\displaystyle X=[r(\textit{AA}),r(\textit{AC}),r(\textit{AG}),r(\textit{AT}),% \ldots,r(\textit{TT})]^{\prime},$ (8)

where $r(xy)$ denotes the occurrence rate of the corresponding nucleotide pair $x y$ and $x,y\in\{A,C,G,T\}$ . And $4\times 4=16$ dimensional feature vectors can be obtained by using the feature extraction method DNC.

2.3 Feature selection

As a classical feature evaluation filtering method based on statistical measurement, $F$ -score is widely used in various fields [29, 30]. We sorted the features due to the statistical values derived from the method following the rule that the element with a high value has good discrimination ability. The IFS adds features from high to low according to the $F$ -score value. When a feature is added, a new feature set is formed and sorted according to the $F$ -score value to find the optimal subset. We can select the one as the optimal combination by observing the performance of each prediction model.

2.4 Support vector machine and model evaluation

Support vector machine (SVM) is an effective supervised learning method, which can be used to solve classification or regression problems, and has a critical application in bioinformatics [31, 32, 33, 34]. In this study, the SVM model with radial basis function (RBF) is established utilizing the LIBSVM package [35], in which the penalty parameter $C$ (cost) and kernel parameter $g$ (gamma) are located in [2 ${}^{-10}$ , 2 ${}^{10}$ ] and [2 ${}^{-10}$ , 2 ${}^{10}$ ]. The optimization parameters $C=45.2548$ and $g=4$ were allocated to detect the hotspots and coldspots.

In the evaluation of the computational model, three methods are usually used, namely jackknife test, k-fold cross-validation test and the independence test. The jackknife test is the most commonly used test method. Each sample will be alternately selected as the test set and the rest as the training set in the process of test. By performing the above procedure, each sample plays a role in the training and test sets. It is known from the process of the jackknife test that the results are relatively objective, so the jackknife test is usually used as the performance evaluation of the predictor. Four measurements sensitivity (Sn), specificity (Sp), accuracy (Acc) and Matthew’s correlation coefficient (MCC) [18, 36, 37, 38] are employed in this part as below:

$\displaystyle\textit{Sn}=1-\frac{N_{-}^{+}}{N^{+}},0\leqslant\textit{Sn}% \leqslant 1,$ (9) $\displaystyle\textit{Sp}=1-\frac{N_{+}^{-}}{N^{-}},0\leqslant\textit{Sp}% \leqslant 1,$ (10) $\displaystyle\textit{Acc}=1-\frac{N_{-}^{+}+N^{-}_{+}}{N^{+}+N^{-}},0\leqslant% \textit{Acc}\leqslant 1,$ (11) $\displaystyle\textit{MCC}=\frac{1-\frac{N_{-}^{+}+N_{+}^{-}}{N^{+}+N^{-}}}{% \sqrt{\left({1+\frac{N_{+}^{-}-N_{-}^{+}}{N^{+}}}\right)\left({1+\frac{N_{-}^{% +}-N_{+}^{-}}{N^{-}}}\right)}},-1\leqslant\textit{MCC}\leqslant 1,$ (12)

where $N^{+}$ denotes the total number of hotspots samples, $N_{-}^{+}$ represents the number of hotspots samples wrongly predicted as coldspots samples, $N^{-}$ is the total number of coldspots samples, and $N_{+}^{-}$ is the number of coldspots samples wrongly predicted as hotspots samples.

3. Results and discussion

3.1 Features optimization

Feature selection is an essential step in establishing a computational model, which also directly affects the performance of identifying the recombination spots. The feature vectors can be evaluated by employing filter approaches, wrapper methods and embedded approaches [39, 40]. To obtain higher performance of the computing model, potential feature information is extracted from all aspects, but at the cost of high-dimensional features and poor computing efficiency. Feature selection approaches are usually used to find optimize features subset to improve identification efficiency [28, 41, 42, 43]. As mentioned in Section 2, four kinds of feature vectors were extracted from different perspectives. To get the best prediction model, we utilized the $F$ -score and IFS to obtain an ideal subset and reduce the computational costs accordingly. In this study, we tried two ways to get the feature subset. The first way was to rank the feature type by type using $F$ -score, and then we applied the IFS method to get the optimal feature subcollection with step of 1. Finally, the four optimized feature subsets were combined as the final feature vector. The second way was to combine all of features first, then $F$ -score is employed to sort all the features, and IFS with the step size of 1 is used to select the top feature.

3.1.1 Single feature subset optimization

Firstly, we ranked each feature type using $F$ -score, and then employed IFS to find the optimized subset. The prediction performances achieved by IFS method are shown in Fig. 2. As we can see, NC feature has no change after the feature selection, and the best accuracy is obtained when the feature number takes 4. Whereas, for PSTNP information, the model constructed by the top 101 elements achieved the best Acc of 97.22%, which is slightly higher than the original Acc of 96.48% obtained by employing 129 elements; for EIIP and DNC, SVM equipping with 40 elements and 14 elements achieved highest Acc of 77.61% and 77.34%, which 1.01% and 0.74% higher than the original Acc obtained by 64 elements and 16 elements, respectively. The finally selected dimension of each feature subset and the jackknife test results are reported in Table 3.

Table 3
Optimal performances of each feature extraction method by using jackknife test

Feature extraction method (dimension)	Sn(%)	Sp(%)	Acc(%)	MCC
PSTNP (129)	95.92	96.95	96.48	0.929
Optimized PSTNP (101)	96.94	97.46	97.22	0.944
EIIP (64)	64.69	86.46	76.60	0.528
Optimized EIIP (40)	66.12	87.16	77.61	0.549
NC (4)	58.16	92.22	76.78	0.544
Optimized NC (4)	58.16	92.22	76.78	0.544
DNC (16)	61.63	89.00	76.60	0.532
Optimized DNC (14)	62.24	89.85	77.34	0.548

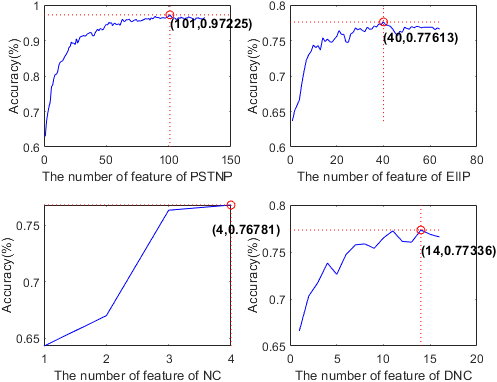

Figure 2.

IFS curves for each type of feature.

Secondly, the optimized PSTNP as primary feature vector combined with three other optimal subsets together and tested by using the jackknife test, the performances of different feature combinations are shown in Table 4. In the first step, we combined the optimized PSTNP and the optimized EIIP features, which achieved the first-best and the second-best prediction performance. The combination of the optimized PSTNP and optimized EIIP has more improvement than a single type of feature, and then the NC was added furtherly. However, the new combination reduced the prediction performance. The same situation happened when we combined the features of the optimized PSTNP, the optimized EIIP and DNC. Therefore, the integration of the optimized PSTNP with 101 elements and the optimized EIIP with 40 elements was used as the final feature vector to compare with hybrid features optimization.

Table 4

Performances of the different optimized feature combination by using jackknife test

Feature extraction method(dimension)	Sn(%)	Sp(%)	Acc(%)	MCC
Optimized PSTNP (101) $+$ Optimized EIIP (40)	96.73	97.80	97.32	0.946
Optimized PSTNP (101) $+$ Optimized EIIP (40) $+$ NC (4)	95.92	97.63	96.85	0.937
Optimized PSTNP (101) $+$ Optimized EIIP (40) $+$ Optimized DNC (14)	95.92	97.63	96.85	0.937

3.1.2 Hybrid features optimization

In this part, we first combined the features, and then employed feature selection methods to optimize the feature combination. The identification performances with different hybrid features are listed in Table 5. As shown in Table 5, the feature dimensions with the hybrid features can reach 213, with the Acc of 97.32%. Then the 213 elements were ranked by $F$ -scores, and we selected the top elements one by one to find the best feature subset. Through the IFS curve, as depicted in Fig. 3, we can observe that the best accuracy can reach 98.24% when the dimension is fixed to 172.

Table 5
Performances of the hybrid features by using jackknife test

Features (dimension)	Sn(%)	Sp(%)	Acc(%)	MCC
PSTNP (129)	95.92	96.95	96.48	0.929
PSTNP $+$ EIIP(193)	96.73	97.12	96.95	0.938
PSTNP $+$ EIIP $+$ NC (197)	97.14	97.29	97.22	0.944
PSTNP $+$ EIIP $+$ NC $+$ DNC(213)	97.14	97.46	97.32	0.946
Optimized features (172)	98.37	98.14	98.24	0.965

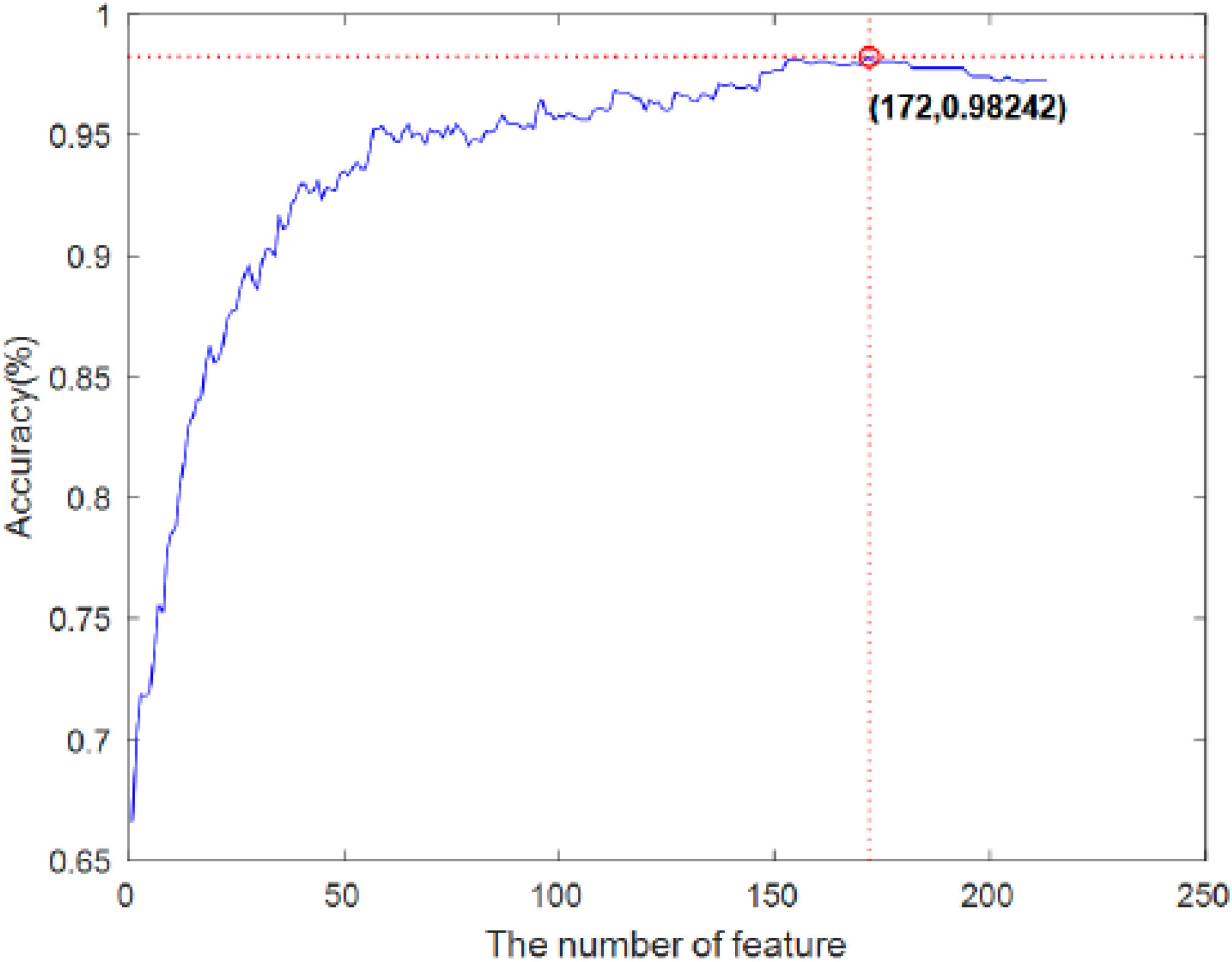

Figure 3.

IFS curve for hybrid features optimization.

By comparing the best results of Tables 4 and 5, we can find that the performance of the second combination mode is better than that of the first one, which may be due to information loss in the first method. Ranking the $F$ -score values in each feature extraction method may ignore features that have low discriminative ability in the same feature method but above those obtained by other methods. We can also explain this phenomenon from the following perspective, the former considers local optimization, while the latter considers global optimization. From the above analysis, the second method of feature selection was chosen to construct the prediction model for identifying the hotspots and coldspots.

3.2 Comparison with other classifiers

Classifier selection and feature extraction method are both critical to target identification. It is a common way to improve performance to consider the collaborative effect of feature subset and classifier. To choose an ideal classifier on the same feature subset, five classifiers most commonly used in solving bioinformatics tasks were selected as possible classifiers, which are K-Nearest Neighbor (KNN), Random Forest, Ensembles for Boosting, Discriminatory analysis and SVM. The performances of the five classifiers via the jackknife test are reported in Table 6. The Sn, Sp, Acc and MCC values of support vector machine are the highest, which are 98.37%, 98.14%, 98.24% and 0.965 respectively. In view of this, SVM model was selected as the final classifier in the design of identifying recombination spots model.

Table 6
Comparison of different predictors for identifying hotspots and coldspots

Classifier	Sn(%)	Sp(%)	Acc(%)	MCC
SVM	98.37	98.14	98.24	0.965
KNN ( $K=$ 3)	78.57	93.06	86.49	0.730
Random forest	87.55	97.80	93.15	0.864
Ensembles for adaboost ${}^{1}$	91.43	93.40	92.51	0.849
Discriminatory analysis	95.51	97.29	96.48	0.929

${}^{1}$ Using AdaBoostM1, 150 learning cycles to train a decision tree ensemble.

Figure 4.

Comparison of existing predictors for identifying hotspots and coldspots.

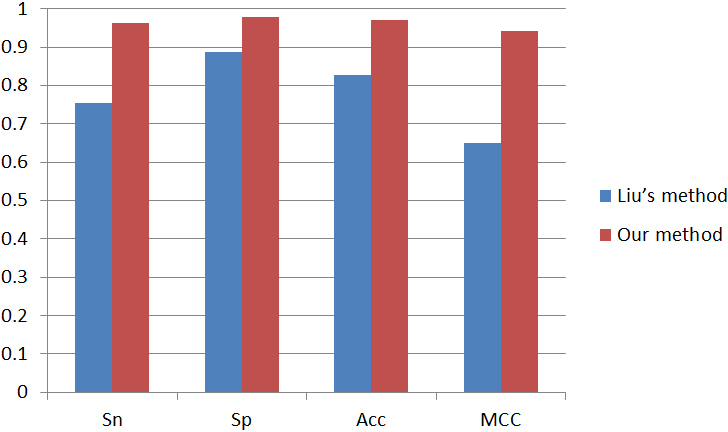

Figure 5.

Comparison between Liu’s method and our method on the same dataset of identifying hotspots and coldspots on 5-fold cross validation test.

3.3 Comparison with other methods

In recent years, based on different feature extraction and classification methods [6, 7, 8, 9, 10, 19], several prediction factors have been proposed to identify recombination spots. To verify the performance of our predictor, we used the jackknife test to compare different models on the same dataset. It can be seen from Fig. 4 that our method has the best performance, the Sn, Sp, Acc and MCC are 18.29%, 10.07%, 13.78%, 0.275 higher than iRSpot-GAEnsC [9], respectively. It should be noticed that iRSpot-GAEnsC has the best performance on Acc among the known methods. In addition, Liu et al. [13] further processed the training dataset with the CD-HIT software to reduce redundancy. After cutting off the sequences which the similarity higher than 75%, 478 positive samples and 572 negatives were obtained. What’s more, the Sn, Sp, Acc and MCC obtained by this method are 75.29%, 88.81%, 82.65% and 0.651, respectively. The comparisons are shown in Fig. 5.

All the test results mean that our method can perform better than the existing methods. One of the underlying reasons is that an informative feature subset and an efficient classifier can provide a collusive and promotive function for enhancing the performance of identification.

4. Conclusion

This paper mainly studied the role of feature extraction and classification algorithms in the prediction of recombination hotspots. We designed an improved model for predicting recombination hotspots by combining PSTNP, EIIP, NC, DNC features and an SVM classifier with RBF kernel. Some effective features were selected from the hybrid features by using $F$ -score and IFS method. In order to examine the performance of the design model using relevant prediction methods, we conducted some experimental studies. The test results meant that an informative feature subset and an efficient classifier could provide a collusive and promotive function for enhancing the performance of identification. The developed model could be a potential way to detect recombination hotspots accurately. In next step, we shall make efforts in our future work to provide a web-server for the prediction method presented. The matlab codes for identifying the recombination spots can available online at https://github.com/LHKongDLOU/Identifying-Recombination-Spots.git.

Footnotes

Acknowledgments

The authors acknowledge the General Research Project of Education Department of Liaoning Province (Grant: JL202014).

References

Petes

. Meiotic recombination hot spots and cold spots. Nature Reviews Genetics. 2001; 2(5): 360-369.

Lichten

Goldman

. Meiotic recombination hotspots. Annual Review of Genetics. 1995; 29(1): 423-444.

Hansen

Kim

Mariño Ramírez

Landsman

. Analysis of biological features associated with meiotic recombination hot and cold spots in Saccharomyces cerevisiae. Plos One. 2011; 6(10): e29711.

Jiang

Wei

Sang

Sun

. RF-DYMHC: detecting the yeast meiotic recombination hotspots and coldspots by random forest model using gapped dinucleotide composition features. Nucleic Acids Research. 2007; 35(suppl_2): W47-W51.

Gerton

DeRisi

Shroff

Lichten

Brown

Petes

. Global mapping of meiotic recombination hotspots and coldspots in the yeast Saccharomyces cerevisiae. Proceedings of the National Academy of Sciences. 2000; 97(21): 11383-11390.

Qiu

Xiao

Chou

. iRSpot-TNCPseAAC: identify recombination spots with trinucleotide composition and pseudo amino acid components. International Journal of Molecular Sciences. 2014; 15(2): 1746-1766.

Al Maruf

Shatabda

. iRSpot-SF: Prediction of recombination hotspots by incorporating sequence based features into Chou’s Pseudo components. Genomics. 2019; 111(4): 966-972.

Xiao

Huang

Zheng

Zhou

Yang

. Sequence-based identification of recombination spots using pseudo nucleic acid representation and recursive feature extraction by linear kernel SVM. BMC Bioinformatics. 2014; 15: 1-9.

Kabir

Hayat

. iRSpot-GAEnsC: identifing recombination spots via ensemble classifier and extending the concept of Chou’s PseAAC to formulate DNA samples. Molecular Genetics and Genomics. 2016; 291: 285-296.

10.

Chen

Feng

Lin

Chou

. iRSpot-PseDNC: identify recombination spots with pseudo dinucleotide composition. Nucleic Acids Research. 2013; 41(6): e68-e68.

11.

Chou

. Some remarks on protein attribute prediction and pseudo amino acid composition. Journal of Theoretical Biology. 2011; 273(1): 236-247.

12.

Liu

Xing

Cai

. Using weighted features to predict recombination hotspots in Saccharomyces cerevisiae. Journal of Theoretical Biology. 2015; 382: 15-22.

13.

Liu

Wang

Long

Chou

. iRSpot-EL: identify recombination spots with an ensemble learning approach. Bioinformatics. 2016; 33(1): 35-41.

14.

Jia

Liu

Xiao

Liu

Chou

. iPPI-Esml: an ensemble classifier for identifying the interactions of proteins by incorporating their physicochemical properties and wavelet transforms into PseAAC. Journal of Theoretical Biology. 2015; 377: 47-56.

15.

Jia

Liu

Xiao

Liu

Chou

. pSuc-Lys: predict lysine succinylation sites in proteins with PseAAC and ensemble random forest approach. Journal of Theoretical Biology. 2016; 394: 223-230.

16.

Jia

Zuo

. S-SulfPred: A sensitive predictor to capture S-sulfenylation sites based on a resampling one-sided selection undersampling-synthetic minority oversampling technique. Journal of Theoretical Biology. 2017; 422: 84-89.

17.

Zhang

Marquez-Lago

Leier

Fan

Kwoh

Chou

Song

Jia

. MULTiPly: a novel multi-layer predictor for discovering general and specific types of promoters. Bioinformatics. 2019; 35(17): 2957-2965.

18.

Wang

Zhang

. Towards Computational Models of Identifying Protein Ubiquitination Sites. Current Drug Targets. 2019; 20(5): 565-578.

19.

Yang

Qiu

Liu

Guo

Chen

Chou

Lin

. iRSpot-Pse6NC: Identifying recombination spots in Saccharomyces cerevisiae by incorporating hexamer composition into general PseKNC. International Journal of Biological Sciences. 2018; 14(8): 883.

20.

Chen

Zhao

Marquez-Lago

Leier

Revote

Zhu

Powell

Akutsu

Webb

. iLearn: an integrated platform and meta-learner for feature engineering, machine-learning analysis and modeling of DNA, RNA and protein sequence data. Briefings in Bioinformatics. 2020; 21(3): 1047-1057.

21.

Jia

. EnhancerPred2.0: predicting enhancers and their strength based on position-specific trinucleotide propensity and electron-ion interaction potential feature selection. Molecular BioSystems. 2017; 13(4): 767-774.

22.

Jia

Zou

. 4mCPred: machine learning methods for DNA N4-methylcytosine sites prediction. Bioinformatics. 2019; 35(4): 593-601.

23.

Jia

Yang

Zou

. NucPosPred: Predicting species-specific genomic nucleosome positioning via four different modes of general PseKNC. Journal of Theoretical Biology. 2018; 450: 15-21.

24.

Nair

Sreenadhan

. A coding measure scheme employing electron-ion interaction pseudopotential (EIIP). Bioinformation. 2006; 1(6): 197.

25.

Sahu

Panda

. Efficient localization of hot spots in proteins using a novel S-transform based filtering approach. IEEE/ACM Transactions on Computational Biology and Bioinformatics (TCBB). 2010; 8(5): 1235-1246.

26.

Cheng

Yang

Liu

Feng

Ding

Chen

Lin

. Prediction of bacteriophage proteins located in the host cell using hybrid features. Chemometrics and Intelligent Laboratory Systems. 2018; 180: 64-69.

27.

Liu

Wang

Chen

Fang

Chou

. Pse-in-One: a web server for generating various modes of pseudo components of DNA, RNA, and protein sequences. Nucleic Acids Research. 2015; 43(W1): W65-W71.

28.

Zou

Zeng

Cao

. A novel features ranking metric with application to scalable visual and bioinformatics data classification. Neurocomputing. 2016; 173: 346-354.

29.

Jia

Duan

Zou

. 70ProPred: a predictor for discovering sigma70 promoters based on combining multiple features. BMC Systems Biology. 2018; 12: 99-107.

30.

Huang

Yan

Liu

Zhu

Zhang

Chen

. F-score feature selection based Bayesian reconstruction of visual image from human brain activity. Neurocomputing. 2018; 316: 202-209.

31.

Zhu

Feng

Lai

Chen

Hao

. Predicting protein structural classes for low-similarity sequences by evaluating different features. Knowledge-Based Systems. 2019; 163: 787-793.

32.

Feng

Yang

Ding

Lin

Chen

Chou

. iDNA6mA-PseKNC: Identifying DNA N6-methyladenosine sites by incorporating nucleotide physicochemical properties into PseKNC. Genomics. 2019; 111(1): 96-102.

33.

Chen

Feng

Yang

Ding

Lin

Chou

. iRNA-3typeA: identifying three types of modification at RNA’s adenosine sites. Molecular Therapy-Nucleic Acids. 2018; 11: 468-474.

34.

Tang

Zhao

Zou

Zhang

Chen

Huang

Lin

. HBPred: a tool to identify growth hormone-binding proteins. International Journal of Biological Sciences. 2018; 14(8): 957.

35.

Chang

Lin

. LIBSVM: a library for support vector machines. ACM Transactions on Intelligent Systems and Technology (TIST). 2011; 2(3): 1-27.

36.

Wang

Zhang

. Fu-SulfPred: Identification of Protein S-sulfenylation Sites by Fusing Forests via Chou’s General PseAAC. Journal of Theoretical Biology. 2019; 461: 51-58.

37.

Jia

Zuo

Zou

. O-GlcNAcPRED-II: an integrated classification algorithm for identifying O-GlcNAcylation sites based on fuzzy undersampling and a K-means PCA oversampling technique. Bioinformatics. 2018; 34(10): 2029-2036.

38.

Gao

. A KNN model based on manhattan distance to identify the SNARE proteins. Ieee Access. 2020; 8: 112922-112931.

39.

Bolón-Canedo

Sánchez-Maroño

Alonso-Betanzos

. A review of feature selection methods on synthetic data. Knowledge and Information Systems. 2013; 34: 483-519.

40.

Guo

Liu

, et al., iRspotDCC: Recombination hot/cold spots identification based on dinucleotide based correlation coefficient and convolutional neural network. Journal of Intelligent and Fuzzy Systems. 2021; 41(7): 1309-1317.

41.

Peng

Long

Ding

. Feature selection based on mutual information: criteria of max-dependency, max-relevance, and min-redundancy. IEEE Transactions on Pattern Analysis & Machine Intelligence, 2005; 27(8): 1226-1238.

42.

Wei

Xing

Shi

Zou

. Fast prediction of protein methylation sites using a sequence-based feature selection technique. IEEE/ACM Transactions on Computational Biology and Bioinformatics. 2017; 16(4): 1264-1273.

43.

Zou

Wan

Tang

Zeng

. Pretata: predicting TATA binding proteins with novel features and dimensionality reduction strategy. BMC Systems Biology. 2016; 10(4): 401-412.
