Fabric: Building open distributed systems securely by construction

1.1. Federation and decentralized security

Fabric provides a shared computational and storage substrate implemented by an essentially unbounded number of Internet hosts. As with the Web, there is no notion of an “instance” of Fabric, and there is no centralized control over admission to Fabric. New nodes – even untrustworthy ones – can join the system freely, and begin interacting and sharing information with other nodes without prior arrangement. Interactions between nodes in this decentralized system are made secure by limiting the exchange of information and computation according to the trust that nodes have expressed (or have not expressed) in each other.

Because Fabric is fully decentralized in design, it is able to address an important security challenge: the need for systems that integrate information and computation from independent administrative domains. Such systems are federated: each domain has its own security and privacy requirements, but does not fully trust other domains. Integrating information and code in this setting of heterogeneous trust is attractive – it enables new services and capabilities including mashups, multi-cloud applications, and distributed web services. Because Fabric does not assume any central authority, it can be used to construct various kinds of federated systems while enforcing security and privacy on behalf of all participants.

To illustrate the challenges of building federated systems securely, consider the scenario of medical institutions that want to securely and quickly share patient information – with each other, with their patients, and with the patients’ insurance companies. In fact, incomplete patient information is a leading cause of the more than 44,000 deaths that result annually from preventable medical errors in the United States alone [64]. However, information sharing must respect the security and privacy policies of the two institutions, as mandated by law in many countries. Current information systems lack a principled way to share medical information under verifiable security and privacy guarantees.

We take a holistic view of security: all participants’ security requirements must be enforced. But in a federated system, some host nodes are at least partly distrusted by some participants. What does it mean, then, to correctly enforce security? Our guiding principle for security is that one’s security should never depend on components of the system that one does not trust. We call this the decentralized security principle. More precisely, it says that the enforcement of a given security policy should not depend on the behavior of any component that is not trusted by the owner of the policy.

Fabric enforces information security through a combination of mechanisms at the language and system levels. To decide whether these mechanisms enforce security in accordance with the decentralized security principle, we need to know what security policies are supposed to be enforced and which host nodes are trusted to enforce which policies. Therefore, Fabric makes both policies and trust explicit in the programming model. With policies and trust made explicit, the decentralized security principle becomes a valuable guide for understanding where enforcement mechanisms are needed, and where they are not.

1.2. Mobile code

Data is exchanged between trust domains rather freely in modern computing systems. So is code. This mobile code adds new challenges for making distributed systems secure. Web applications have made mobile code a part of everyday life: visiting a web page typically loads JavaScript code from multiple providers into your browser. In fact, many web pages are already federated systems! Web services such as Facebook allow third parties to provide applications that are dynamically combined with their core functionality. And even traditional desktop applications dynamically download plugins from external providers.

Over the past few years an ecosystem of mobile-code development has sprung up in which web programmers reuse and customize JavaScript code found on the Web for their own purposes. Sometimes programmers simply copy code and modify it for their purposes; web applications commonly import large JavaScript libraries such as JQuery [61] via URLs. Other mobile-code web platforms such as ActionScript, used by Flash, are not fundamentally different. While JavaScript is the most common mobile-code system, studying mobile-code security in the clean-slate setting of Fabric has the advantage of addressing a more general, abstract instantiation of the real problems. The solutions should be correspondingly more reusable.

The benefits of freely sharing mobile code come at a cost: dynamically combining code from multiple sources might yield an insecure application. On the Web now, the main security safeguard is the same-origin policy [130], which attempts to limit web applications to communication with their originating website. This policy prevents many useful applications yet also fails to address all the ways that untrusted code can create security vulnerabilities [12]. Limitations on expressive power force developers to work around the same-origin policy, potentially introducing additional vulnerabilities [56].

Fabric supports free and flexible distributed sharing of code and data that developers clearly want, while enforcing information security. Confidentiality and integrity of information are protected even when sharing happens between nodes lacking mutual trust. Not only is each individual application component secure, but assemblies of code and data from various providers also satisfy all participants’ security requirements.

1.3. The Fabric programming model

Most distributed systems code is currently written using low-level abstractions that obscure application logic, leading to bugs and vulnerabilities. An essential part of the Fabric philosophy is to raise the level of abstraction so programmers can focus on the core application logic, including its security implications.

Central to this abstraction is the representation of many entities as objects that can be used by Fabric code in a uniform way. These objects may be persistent or nonpersistent. They may be stored locally on the same node, or stored elsewhere in the distributed system. Host nodes, principals, and code are all represented at the language level as objects. This uniform representation allows the same security reasoning and mechanisms to be applied throughout the system.

The Fabric programming language is an extension to the Jif programming language [86,90], which is in turn based on Java 1.4 [48]. Like Jif, the Fabric language has built-in security mechanisms centered around information flow control. In the context of Fabric, these security mechanisms keep untrusted nodes from violating confidentiality and integrity. All objects in Fabric are labeled with policies from an extended version of the decentralized label model (DLM) [87]. In this model, security requirements are captured by information flow labels expressed in terms of principals (e.g., users and organizations). Information flow control based on these labels allows principals to control the extent to which other principals (and nodes) can learn about and affect their information. A node that is not trusted by a given principal is prevented from compromising the security policies of that principal.

Despite its high-level programming model, Fabric supports a variety of ways to organize distributed computation and storage for good performance. Fabric supports both data shipping, in which data moves to where computation is happening, and function shipping, in which computation moves to where data resides. Data shipping enables Fabric nodes to compute using cached copies of remote objects, with good performance when the cache is populated. Function shipping enables computations that span multiple nodes; like database server queries, computations can be shipped to the node where the data is stored persistently. To simplify reasoning about complex computations involving multiple nodes, Fabric provides strong consistency. Inconsistency is prevented by performing all updates within distributed, linearizable transactions.

Of course, there has been much previous work on making distributed systems both easier to build and more secure. Prior mechanisms for remotely executing code, such as CORBA [119], Java RMI [57], SOAP [123] and web services [17], generally offer only limited support for information security, consistency, and data shipping. J2EE persistence (EJB) [36] provides a limited form of transparent access to persistent objects, but does not address distrust or distributed computation. Peer-to-peer content-distribution and wide-area storage systems (e.g., [32,42,67,101]) offer high data availability, but do little to ensure that data is neither leaked to nor damaged by untrusted users. Nor do they ensure consistency of mutable data. Prior distributed systems that enforce confidentiality and integrity in the presence of distrusted nodes (e.g., [25,27,133,136]) have not supported consistent computations over persistent data.

1.4. Threat model

Fabric makes few assumptions about attackers, which yields stronger security assurance. In particular, host nodes in Fabric may be malicious and can behave arbitrarily. They are not assumed to behave in ways allowed by the Fabric programming language, and they need not faithfully follow the distributed protocols by which Fabric nodes communicate. Fabric principals are able to express complete or partial trust in Fabric nodes. If a principal expresses trust in a node, the compromise of that node might harm the security of that principal. The goal of Fabric is to ensure that the degree of trust expressed in a node bounds the degree to which security might be violated from the perspective of that principal.

The runtime exposes more information than what is available at the language level, such as object identifiers and cryptographic keys, which malicious nodes can misuse. However, without the appropriate cryptographic keys, nodes are assumed to be unable to learn encrypted content or forge digital signatures. Because Fabric uses TLS [38] for communication between nodes, we also assume that adversaries cannot tamper with network messages and that they do not learn anything about the contents of network messages unless they control the intended recipient.

A network adversary might use traffic analysis to infer something from the existence of a message, its source and destination, its size, or its timing. We ignore these traffic analysis channels, as do most systems. Fake traffic, predictive mitigation [134], and onion routing [39] might mitigate these channels, though at a cost. Network adversaries can also prevent the delivery of messages. The availability of services written using Fabric depends on an assumption that network messages are eventually delivered.

Fabric also does not handle abort channels, a side channel arising from the interaction of transactions at different security levels, in which a higher-security transaction can cause a lower-security transaction to abort [110]. Abort channels are not observable to programs written in the Fabric language but could be exploited by a malicious node that shares access to an object on which transactions conflict.

Like almost all work on distributed system security, Fabric largely ignores some challenging side channels, arising from timing, termination [105], and progress [7]. Termination and progress channels usually have low bandwidth, but timing channels can have high bandwidth [98]. There are two kinds of timing channels: external and internal [106]. We do not attempt to control covert external timing channels in this work: adversarial nodes are assumed not to time when messages arrive. Run-time mitigation methods (e.g., [65,134]) may be useful for limiting the bandwidth of external timing channels. Internal timing channels arise when code running within the system measures time, either explicitly or implicitly by constructing a race among concurrent threads. Fabric does not support fine-grained concurrency; a top-level transaction must be sequential. Races between threads therefore involve external communication with a store, and can be considered external timing channels. Resource exhaustion attacks (e.g., by allocating large objects on remote hosts) are also not addressed, although one instance is studied in [76].

1.5. Contributions

Fabric integrates many ideas from prior work – including compile-time and run-time information flow, access control, and optimistic transactions – while solving problems that arise from the interactions between these ideas. In fact, it does not seem feasible to provide a high-level programming model like that of Fabric by simply layering existing abstractions. Several new ideas make Fabric possible:

Fabric is a mostly clean-slate approach to developing secure systems, and there is work left to be done on interoperability with existing standards. However, Fabric does not require application developers to abandon other standards and methodologies; Fabric can interoperate with other standards. In fact, Fabric already interoperates with existing Java application code, and a library for building web services with Fabric already exists. Other standard abstractions and APIs can be implemented using Fabric. It also seems feasible to implement Fabric nodes by encapsulating other services such as databases. Other than its support for language-based security policies, the Fabric programming model should be familiar to users of existing, popular object-relational mapping frameworks such as the Java Persistence API (JPA) [16] or Django [40]. It provides transactional access to distributed, persistent objects, with stronger guarantees.

1.6. Overview

The rest of the paper is organized as follows. Section 2 introduces a running example. Section 3 presents the key programming abstractions of the Fabric language. Sections 4 and 5 discuss the language support for information-flow security and secure mobile code. Section 6 describes the design of the Fabric runtime system. Some details of the Fabric implementation are discussed in Section 7. Except for certain features mentioned in Section 7, the design described in this paper has been implemented in an open-source prototype [4]. We report on our evaluation of this implementation, including results for the expressiveness of Fabric (Section 8) and the performance of a substantial application built using Fabric (Section 9). Related work is covered in Section 10, lessons learned and future work are discussed in Section 11, and Section 12 concludes.

OPEN IN VIEWER

Fig. 1.

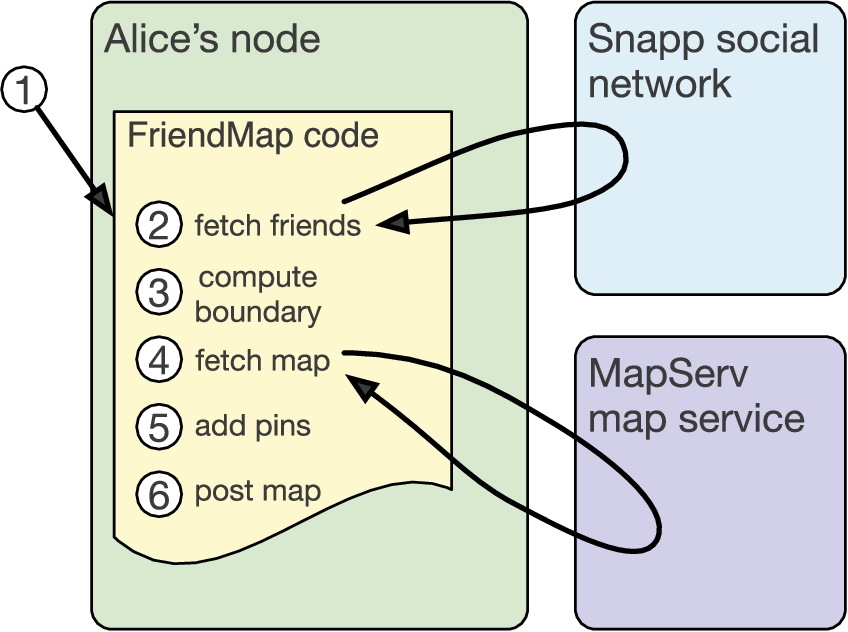

The FriendMap social mashup.

2.1. Security considerations

Even this simple example has complex security requirements because the principals may trust each other to differing degrees. For example, suppose Alice trusts MapServ to learn some information about her friends, but her friend Bob does not trust MapServ at all. In that case, FriendMap must avoid using Bob’s location to compute the map request.

Similarly, although Bob trusts Alice to see his location, he may not trust Alice’s friends with the same information. If so, FriendMap must either avoid posting the resulting map where Alice’s friends can see it or omit Bob’s location from the map.

In real applications, policies are more nuanced than lists of entities allowed to learn information. In the FriendMap example, Bob may consider his exact location confidential, but be willing to release some information about where he is, such as the city he is in. Alternatively, he may not mind letting the public know where he was yesterday, but may wish to keep his current location secret.

These more complex policies for allowed information flows can be modeled as a controlled downgrading of the information security policy: Bob is willing to declassify his location information if its precision is truncated, or if it is more than 24 hours old. In general, downgrading is implemented by application code, and it is critical that the code be authorized to do the downgrading. Any code that declassifies Bob’s location must be either provided by or endorsed by Bob.

Enforcing security becomes even more challenging if none of the involved principals trust the provider of the FriendMap code – if the code is downloaded from an untrusted site, much like JavaScript code is in many current web pages. In this case, a mechanism is needed to ensure that the downloaded code enforces all principals’ policies; any principal who controls this mechanism or the node on which it operates must be trusted to enforce these policies. In this example, Bob trusts Alice to enforce the confidentiality of his location. Alice’s node is therefore responsible for this enforcement, even if the FriendMap code tries to violate it.

2.2. Compositionality of information flow

Standard security mechanisms are not compositional, and therefore fail to meet the security requirements of modern applications, which, like FriendMap, often need to share information across security domains. Isolation mechanisms such as the same-origin policy (SOP) [130] and software fault isolation (SFI) [124] are secure but prevent sharing. For instance, the SOP would prohibit FriendMap from accessing the locations of Alice’s friends, since the locations are hosted by Snapp.

Since isolation makes intended functionality impossible, programmers must open channels for communication across isolation boundaries, which can reintroduce vulnerabilities. The next step is to try to control these channels using access control mechanisms such as capabilities. But these attempts seem doomed to fail, because access control is not compositional. Applied to FriendMap, once Alice’s client is able to see her friends’ locations, access control would not prevent the application from leaking the data to MapServ, her personal bulletin board, or even FriendMap’s developers. Access control mechanisms do not take into account what information is being communicated – any communication is allowed, as long as it is performed by an authorized principal.

In contrast, information flow control is inherently compositional, making for an appealing security mechanism. When system components that independently enforce information flow policies are combined, the combination also enforces those policies across the whole, as long as policies agree at the interfaces where information crosses between components. Additionally, information flow mechanisms can be proved to ensure strong, extensional security properties such as noninterference and robust declassification [105].

The benefits of compositionality have led to the use of information flow control mechanisms and policies for enforcing confidentiality and integrity in some previous decentralized systems [88,89,104,131–133,136]. However, these systems do not support secure sharing of mobile code, and they provide a lower-level programming interface.

2.3. Software construction and evolution

Modern applications are built from components developed by different organizations and upgraded on different schedules. In a decentralized environment, different principals may trust different software developers and providers, making the challenges even greater. Every user must have confidence that the integrity of the data that they care about is maintained, even if the software manipulating that data comes from an incompletely trusted source.

These requirements conflict with the ability for applications and open services to be upgraded over time. For instance, in the FriendMap example, a service provider like Snapp should be able to update its service to add and remove features and to fix bugs, without coordinating with the open-ended set of application developers using the platform. Similarly, FriendMap should be able to upgrade their software to make use of new features as they become available, without having to coordinate their upgrades with all of the APIs that they rely on.

Components that make up today’s software are typically gathered together at least twice: once by the developer for compilation and testing, and once on behalf of the end user for execution. Programs in more dynamic systems – like JavaScript libraries on the Web – may be refetched and reassembled every time a page is displayed. In fact, because such code may be cached, one cannot even be sure that all of the components of the application were fetched at the same time. While this approach allows software to be upgraded piecemeal over time, it can also break assumptions developers have made about the software, potentially creating vulnerabilities.

Fabric provides software interoperability and evolution while enforcing end-to-end information security policies on users’ data against any parties these users do not trust. Fabric does this by tracking the provenance of code in the system through integrity labels on the code. Code may also be assigned a confidentiality label by its developers. Such policies allow developers to protect the confidentiality of code and the results computed from it. For instance, the computed results might reveal information about the confidential code itself. Prior information flow systems ignore these kinds of information flows.

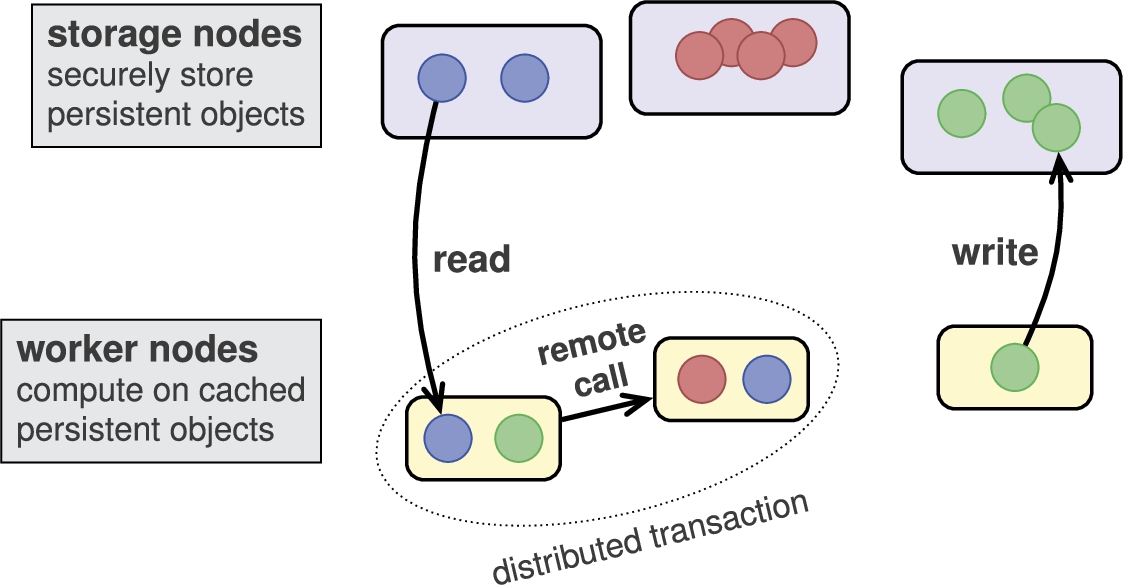

Fabric presents to the programmer a two-tier system model, illustrated in Fig. 2. The system has two kinds of nodes. Storage nodes (or stores) are the data repositories in the system. They persistently store data objects and are responsible for the security of those objects. Computation in Fabric is performed by worker nodes (or workers), using both their own objects and possibly cached copies of objects from other nodes.

Object model. Fabric uses objects to represent all code and data in the system, including security principals, information flow labels, remote nodes, local and remote data, and mobile code. Like Java objects, Fabric objects maintain state in mutable fields and have a name that other objects can refer to. But unlike Java, object names in Fabric are not capabilities, because objects have explicit security policies governing their use. Object names can therefore be published outside Fabric – for example, as URLs.

Fabric objects are persistent and distributed: each object is stored on a named host, the storage node of the object. Fabric does not provide persistence by reachability [10] because it can lead to unintended persistence. Instead, invocations of class constructors are annotated to indicate the store on which the newly created object should be made persistent. The syntax new C@s(...) creates a new object of class C on the store identified by the variable s. The @s annotation may be omitted from constructor calls in instance methods, in which case the new object is created at the same store as the current (this) object. Objects may have non-final fields that are marked transient. Transient fields are not saved persistently, which is similar to their treatment by Java serialization [50].

Computational model. Unlike most previous languages for distributed programming, Fabric aims to support multiple styles of distributed computation. A single Fabric computation can span multiple workers, access objects from multiple stores, and dynamically download and execute code. This model is more general than web applications, for example, in which computations cannot span multiple clients.

Subject to security constraints, any Fabric worker can use any object, regardless of where the object is stored. When a computation requires an object, a copy of the object is sent to the worker; when the computation completes, updates to the copy are pushed back to the store that holds the authoritative version of the object. Thus, the default mode of computation in Fabric is data shipping, in which data moves to the hosts where computation is happening.

However, Fabric programs can also explicitly transfer execution to a different worker by making a remote call. The syntax o.m@w(...) indicates that the method m of object o should be invoked on the worker w. Like any other method, m can contain arbitrary Fabric code, including remote calls back to the worker calling m. We refer to the ability to transfer control to remote workers as function shipping. Remote calls in Fabric differ from those in previous language-based RPC mechanisms (e.g., Network Objects [14], CORBA [119], and Java RMI [96]):

One important use of remote calls is to invoke an operation on a worker colocated with a store. Since a colocated worker has low-cost access to persistent data, this kind of remote call can improve performance substantially, and is analogous to database queries and stored-procedure calls in conventional database applications. However, remote calls in Fabric have the advantage that they can run arbitrary Fabric code, which can make further remote calls. Moreover, Fabric enforces information flow security throughout the distributed computation.

Together, function and data shipping can model a variety of architectures used for distributed software. In the FriendMap example, Alice’s worker initiates and coordinates the computation. Data shipping allows the worker to use objects stored on Snapp and MapServ. To improve performance, the application makes a remote call to the MapServ worker to generate maps. The data structure representing the resulting map is fetched by Alice’s worker as FriendMap processes it for display.

3.2. Transactions

A key challenge for distributed systems is how to provide efficient access to remotely located, mutable data. For low-latency access to data, it is desirable to cache or replicate data widely; however, making sure that the various caches or replicas stay in sync involves relatively expensive distributed protocols. For this reason, many recent distributed storage systems provide only weak consistency guarantees (e.g., [35,68]).

Despite the recent popularity of weak (e.g., eventual) consistency, we believe that strong consistency is important for building high-level abstractions about which programmers can reason correctly. Weak consistency makes weaker guarantees about what happens when data is read or written, which means programmers have to reason more carefully about whether their code works correctly in all possible program executions. Perhaps as a consequence, exploration of stronger consistency guarantees has been a popular theme of recent research on distributed storage systems (e.g., [31,41,77,114,126,127]).

Therefore, Fabric provides transactions with strong consistency guarantees; our expectation is that when Fabric programmers actually want weak consistency, such as when building a low-latency georeplicated system, they will implement weakly consistent replication on top of the strong consistency provided by Fabric. This strategy is likely simpler than trying to build strong consistency above weak consistency, and also offers a cleaner programming model. It may make sense to integrate some form of weaker consistency into Fabric, but we leave this to future work.

Transactions are indicated in the Fabric language by marking blocks of code atomic, or by making remote calls. Each transaction is executed atomically and in isolation from all other computations in Fabric. It appears to commit instantaneously, and all later transactions should observe the same or newer state. In other words, committed Fabric transactions are strictly serializable [99] or, equivalently, linearizable [54].

Linearizability allows programmers to program as if theirs is the only program in the world that is executing for the duration of a transaction. Reasoning about correctness is greatly simplified when programmers can rule out interference from concurrent computations accessing the same data. Linearizable transactions are also important for security: our information flow analysis relies on the fact that when a program dynamically performs label comparisons, the results of that comparison are meaningful. Linearizability ensures that the results of security-critical label comparisons and dynamic authorization checks are correct at the time they are performed by the transaction, and remain correct during the remainder of the transaction as long as the transaction does not itself change the outcome of these checks by modifying trust relationships among principals.

To cleanly handle application-defined failures, transactions may be aborted by exceptions. If a transaction body throws an exception, the transaction is considered to have failed, and is aborted by rolling back its side effects. Failure due to conflict with other transactions causes the atomic block to be retried automatically with exponential back-off.

Transactions can be nested, so atomic blocks may be used even during a transaction. Not only do nested transactions allow for finer-grained rollback, but they also make code compositional: programmers can enforce atomicity at any layer of abstraction within a system. In contrast, transactions that do not support nesting can only be used at the “top level” of the program. Object fields may be read outside of transactions, but updates must occur within transactions; a field update that occurs outside a transaction is automatically wrapped in its own top-level transaction.

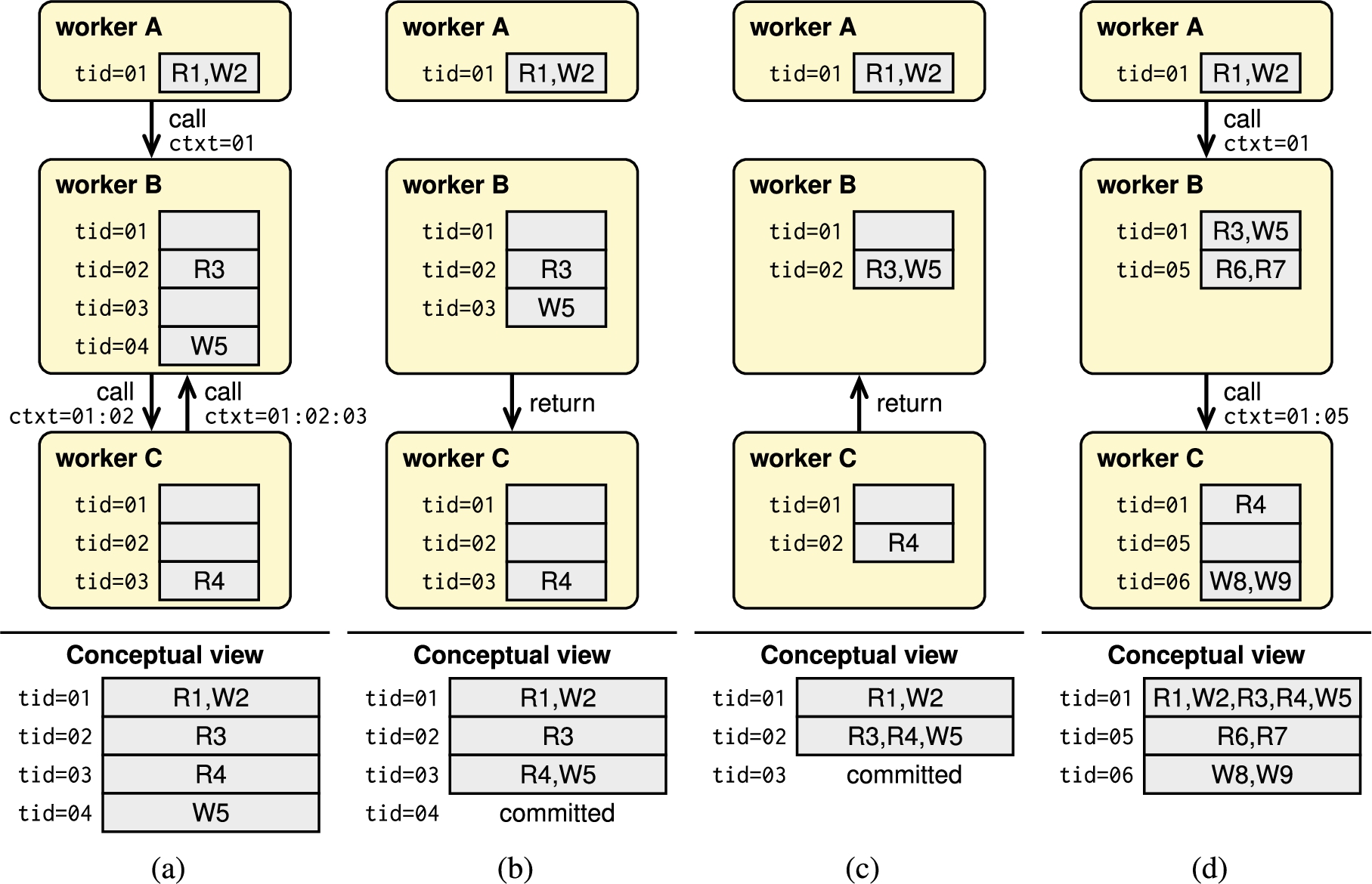

Computing with remote calls results in a transaction that spans all workers involved, with each remote call in its own subtransaction. The Fabric runtime system ensures that when multiple workers use the same object within a transaction, updates to the object are propagated between them as necessary.

Individual transactions are single-threaded; new threads cannot be started inside a transaction. This choice was made largely to simplify the implementation, though it maps well onto the OLTP-style1

However, Fabric workers are multithreaded and can concurrently serve remote-call requests from other workers. Applications can also start transactions that run concurrently. To increase the effective size of the worker’s cache, these concurrent transactions share access to the same underlying cached objects. Interference between concurrent transactions at the same worker is prevented using reader–writer locks.

The features of the Fabric language can significantly simplify code. As an example, consider the FriendMap application described in Section 2. Atomic transactions and transparent distribution allow its code to be written in a way that is very similar to what would be written for a nondistributed, nonpersistent version of the same application.

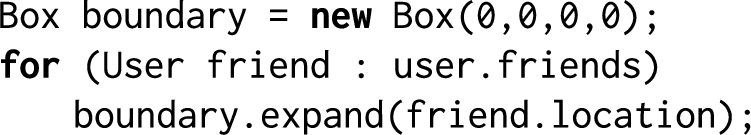

The core computation of the application needs to aggregate all the locations of the user’s friends into a bounding box. Ignoring security concerns for the moment, this computation can be written very simply, even though it accesses data (the friends’ locations) that is stored at a remote node. No explicit communication or data conversion is needed:

Once the boundary has been computed, a remote call is used to ship this data to the map service, which runs on a worker node referenced by the variable ms:

Finally, we augment the map with the friends’ locations. This computation also transparently uses remotely stored information:

This code is much shorter and simpler than the equivalent code that would be needed for other distributed computing frameworks.

However, the code as written is not yet secure: additional checks must be added to the code to make sure that the friends accept having their location leaked to the map service, and that they are okay with having their location marked with a pin in the application output. In Section 4.9, we show how the security aspects of the Fabric language force the programmer to add dynamic checks that ensure the friends’ privacy is in fact not violated.

3.4. Java interoperability and FabIL

Fabric applications can be written using a mixture of Java, Fabric, and FabIL (the Fabric intermediate language). FabIL is an extension to Java that supports transactions, remote calls, and access control. A key difference between Fabric and FabIL is that FabIL does not enforce information flow security.

More concretely, FabIL supports the features described in this section: it provides atomic blocks, supports the syntax new C@s(...) for constructing persistent objects on stores, and gives the ability to make remote calls with the syntax o.m@w(...). Transaction management is performed on Fabric and FabIL objects but not on Java objects, so the effects of failed transactions on Java objects are not rolled back. Additionally, objects created in FabIL are equipped with a programmer-specified access control policy for protecting the object at run time.

FabIL and Java code is considered trusted, and workers only execute trusted code that is stored on their local file system. This design is compatible with the decentralized security principle because the effects of trusted FabIL and Java code are confined to principals that already trust the nodes running the code.

FabIL can be convenient for code whose security properties are not accurately captured by static information-flow analysis, making the labels of the full Fabric language inconvenient. One example is code implementing cryptography, where the annotation burden of labels is not worth the cost; a second example is the code implementing internals of Fabric, such as its built-in label and principal objects.

4.1. Background

Principal model. Like Jif, Fabric uses abstract principals to represent entities that can trust or be trusted, such as users, roles, groups, organizations, and privileges (and Fabric nodes). In the FriendMap example, alice, bob, snapp, friendmap, and mapserv are all principals.

Principals express their trust relationships through the acts-for relation [89]. If a principal p acts for a principal q (written p ≽ q ), then q trusts p completely, and q is said to delegate to p. The principal p may perform any action that q may perform. For example, p may read any data that q can read, update any data that q may update, or downgrade policies that q can downgrade. The acts-for relation is transitive and reflexive, making it a preorder. We refer to the set of principals under the acts-for relation as the principal hierarchy.

There is a top principal ⊤ that acts for all principals,2

While the acts-for relation represents complete trust, programs can create auxiliary principals to represent finer-grained notions of trust. Delegations from these auxiliary principals encode which other principals are sufficiently trusted to carry out certain actions. For example, each user principal in the FriendMap application has an associated friends principal that can be used in the specification of policies. As shown in Fig. 3, the principal alice.friends, representing Alice’s group of friends, delegates to Alice and each of her friends (e.g., Bob). However, Alice does not delegate to her group of friends; this allows her to retain privileges that she does not extend to them. Additionally, each user has a locGrp principal that delegates to those principals that are trusted with the user’s location. For example, Alice doesn’t trust her friends to keep her location secret, so alice.friendsalice.locGrp, whereas Bob trusts his friends with his location (bob.friends ≽ bob.locGrp).

OPEN IN VIEWER

Fig. 3.

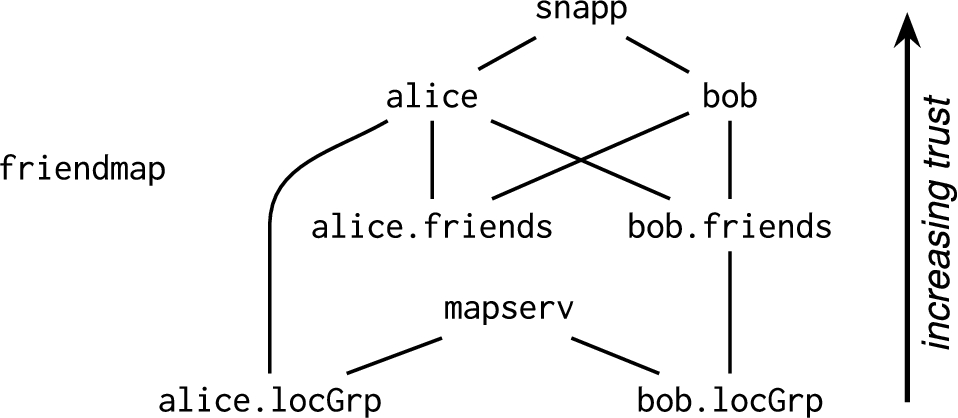

Trust relationships in the FriendMap example.

Label model. Fabric programs express security policies using labels, which are drawn from the decentralized label model (DLM) [89]. Each label is a set of policies that are expressed in terms of principals. Labels are decentralized: each policy is owned by a principal, and the policies in a label can have distinct owners. This keeps track of whose security is being enforced, which is useful for Fabric, where principals need to cooperate despite mutual distrust.

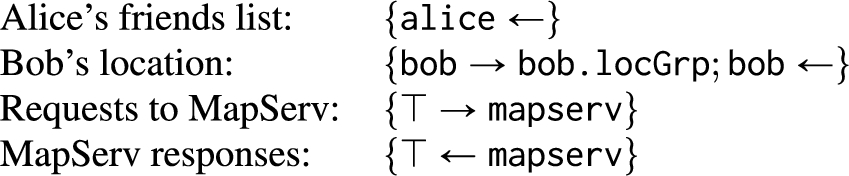

For example, Bob might protect information about his location with the confidentiality policybob→bob.locGrp, which states that Bob controls the policy on the data, but he allows the data to flow to the bob.locGrp principal (and implicitly to himself3

A label is written as a set of confidentiality and integrity policies, such as {bob→bob.locGrp;bob←}. A principal can learn about a value only when that principal satisfies all confidentiality components in the value’s label, and can influence a value only when it satisfies any integrity component in the label. Figure 4 gives some of the labels in the FriendMap example. Requests to the map service are labeled {⊤ →mapserv}, indicating that everyone (⊤) agrees that MapServ is permitted to read those requests. Similarly, responses from the map service have a label indicating that everyone agrees that MapServ has affected those responses. We use C ( ℓ ) and I ( ℓ ) to mean the confidentiality and integrity halves of a label ℓ, respectively.

OPEN IN VIEWER

Fig. 4.

Labels in the FriendMap example.

Fine-grained principals like a user’s friend group enable dynamic control over the meanings of policies by changing the principal hierarchy. For example, in Fig. 3, Bob has allowed all of his friends to read his location by making the bob.locGrp principal delegate to bob.friends. When Bob makes a new friend, say with Carol, then Carol will be able to learn Bob’s location once he adds the delegation carol ≽ bob.friends.

Flows-to relation. Labels are part of types in the Fabric language. The label in a program variable’s type bounds the information that has affected the value of the variable. As part of type checking at compile time, label checking ensures that the information flows in the program are safe according to an information flow ordering on labels. When flow from label ℓ 1 to label ℓ 2 is secure, we say that ℓ 1 flows to ℓ 2 and write ℓ 1 ⊑ ℓ 2 . The flows-to relation is derived from the acts-for relation ≽.

Confidentiality policies allow public data to affect secret data. For example, we have alice→bob ⊑ carol→dora exactly when the new owner acts for the old owner (carol ≽ alice) and the new readers act for the old readers (dora ≽ bob ∨ alice). Integrity works the opposite way, because integrity policies allow flows from trusted sources to untrusted recipients: the relationship alice←bob ⊑ carol←dora holds exactly when alice ≽ carol and bob ≽ dora ∨ carol. These rules are justified in more detail elsewhere [87].

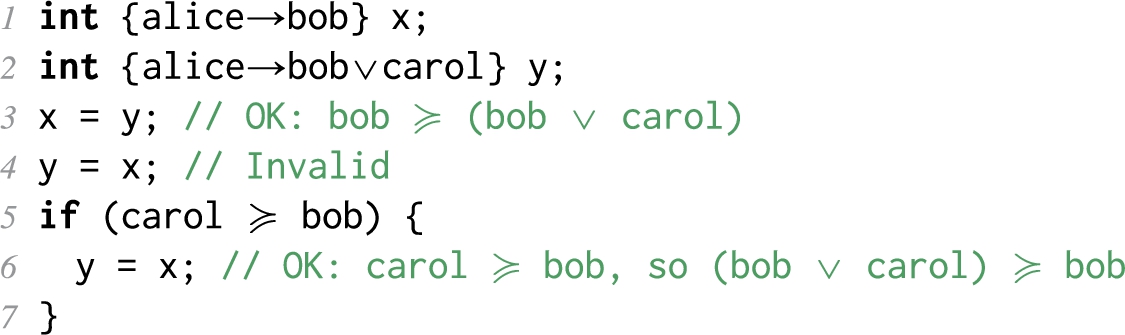

The following code illustrates these rules. The assignment from y to x (line 3) type-checks and is secure because the information in y can be learned by fewer readers (only Bob rather than both Bob and Carol). The assignment from x to y (line 4) is rejected by the compiler, because it permits Carol to read the information. However, the second assignment from x to y (line 6) is allowed because it occurs in a context where Carol is known to act for Bob, and can therefore already read any information that Bob can.

The flows-to relation is a preorder on labels. We can construct an information flow lattice by defining an equivalence relation ℓ 1 ≡ ⊑ ℓ 2 ⇔ ( ℓ 1 ⊑ ℓ 2 and ℓ 2 ⊑ ℓ 1 ) , and taking equivalence classes to be lattice elements. We refer to joins and meets in this lattice as flow joins and flow meets, respectively. The least label { ⊤ ← } describes information that can flow anywhere, because it is public and completely trustworthy. The greatest label is { ⊤ → }, which describes information that can flow nowhere, because it is completely secret and completely untrustworthy.5

Implicit flows. Information can be conveyed by program control flow. If not controlled, these implicit flows can allow adversaries to learn about confidential information from control flow, or to influence high-integrity information by affecting control flow.

Fabric controls implicit flows through the program-counter label, written pc, which captures the confidentiality and integrity of control flow. The program-counter label works by constraining side effects; to assign to a variable x with label L x , Fabric requires pc ⊑ L x . If this condition does not hold, either information with a stronger confidentiality policy could leak into x, or information with a weaker integrity policy could affect x.

Implicit flows cross method-call boundaries, both local and remote. To track these flows, object methods are annotated with a _begin label_ that constrains the program-counter label of the caller, as well as the effects of the method. The pc of the caller must flow to the begin label, which in turn must flow to the label of any variables assigned by the method. This ensures that the caller’s pc can flow to the method’s assignments. Implicit flows via exceptions and other control-flow mechanisms are also tracked [86].

Authority and downgrades. In general, the flows-to relation ⊑ only approximates the true information security requirements of an application; sometimes it prevents flows that applications need. Like other systems with information flow control, Fabric allows these flows using downgrading operations. Declassification is a downgrading operation that reduces confidentiality; endorsement is one that boosts integrity.

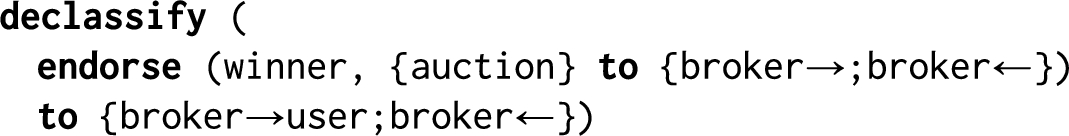

Downgrading can be dangerous to security, so the syntax of Fabric makes all declassification and endorsement explicit. Additionally, all policy-downgrading code must possess the authority of a principal that authorizes the downgrade. This principal must act for the owner of any policy that is weakened. Further, declassification and endorsement may only happen in code whose control flow is unaffected by low-integrity information. This restriction enforces robust downgrading [8], which prevents the adversary from causing these operations to be misused.

Code can obtain the authority of a principal p in two ways. First, a class can declare it has the authority of p by using a clause authority(p). A method of the class can then claim this authority with a clause where authority(p). Second, authority can be delegated via a method call, if the method being called is annotated with a clause where caller(p). A method with authority delegated in this way can be called only from code that possesses the authority of p. While this model of delegating authority has similarities to Java stack inspection [125], it differs in that authority is statically checked except at remote method calls, where the receiver checks that the calling node is sufficiently trusted to act for the claimed authority.

Principals have both identity and state (such as their delegation information), so at the language level, Fabric represents principals as objects that may be persisted on stores. If the FriendMap program refers to alice or bob, these are program variables that refer to specific principal objects, so the names alice and bob can refer to the same principals no matter where the program is running. All Fabric principals are instances of the Fabric class fabric.lang.security.Principal or of one of its subclasses. Applications may define their own principal classes, for example to implement application-specific authentication mechanisms.

Fabric nodes are also principals. At the language level, a Fabric node is a first-class object that can represent the node as a principal in labels and security checks. For example, a storage node might be represented as a variable s of type fabric.worker.Store. The expression s actsfor p tests whether a principal p trusts s.

Principals control their acts-for relationships by implementing a method p.delegatesTo(q), which tests whether q directly acts for p. This method allows a principal to say who can directly act for it. In addition, a principal is always considered to delegate to the store at which the principal object is stored. The Fabric runtime system at each worker node automatically computes the transitive closure of the direct acts-for relationships computed by delegatesTo.

In general, worker nodes may have different partial views of the acts-for relation. The monotonicity of the label system ensures that security decisions based on these partial views are sound: adding more acts-for relationships to a worker’s partial view would only make the worker’s security decisions more permissive [89].

OPEN IN VIEWER

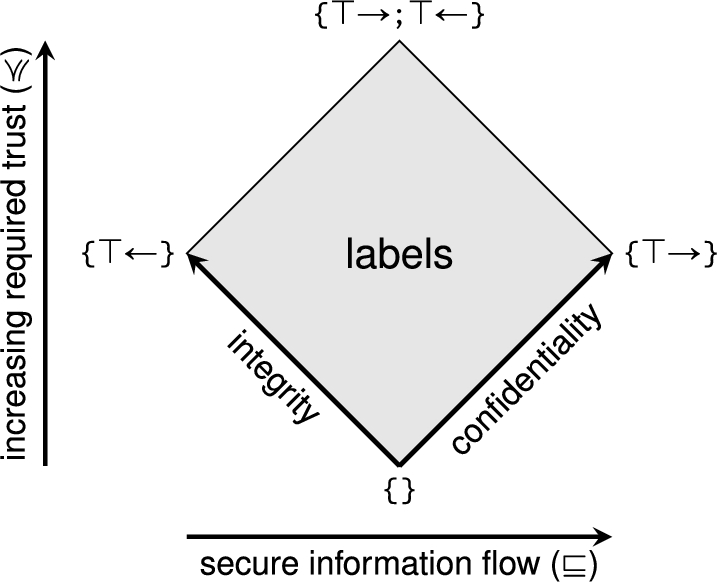

Fig. 5.

Orderings on the space of labels.

Fabric extends the DLM by defining a second ordering on labels, the trust ordering, which is also derived from the acts-for relation. This ordering is useful for reasoning about the enforcement of policies by a partially trusted platform. A label ℓ 1 may require at least as much trust as a label ℓ 2 , written ℓ 1 ≽ ℓ 2 by analogy with the trust ordering on principals. If ℓ 1 requires at least as much trust as ℓ 2 , then any platform trusted to enforce ℓ 1 is also trusted to enforce ℓ 2 . This happens when ℓ 1 describes confidentiality and integrity policies that are at least as strong as those in ℓ 2 ; unlike in the information-flow ordering, integrity is not opposite to confidentiality in the trust ordering. Therefore, both confidentiality and integrity use the same rules in the trust ordering: both alice→bob ≽ carol→dora and alice←bob ≽ carol←dora are true exactly when alice ≽ carol and bob ≽ dora ∨ carol. The trust ordering is a preorder. We can lift it to a partial order just as we did for flows-to, with equivalences defined by ℓ 1 ≡ ≽ ℓ 2 ⇔ ( ℓ 1 ≽ ℓ 2 and ℓ 2 ≽ ℓ 1 ) , which induces a trust lattice with a trust join and a trust meet.

Figure 5 depicts how the two label orderings relate. In the diagram, information flows rightward and required trust increases upward. The least label { ⊤ ← } and the greatest label { ⊤ → } in the information flow ordering are shown as the leftmost and rightmost elements, respectively. In the trust ordering, the least label (at the bottom of the diagram) describes information that requires no trust to enforce its security, because it is completely public and completely untrustworthy: {}. The greatest label, at the top of the diagram, is for information that is maximally secret and trustworthy: { ⊤ → ; ⊤ ← }. Recent work on Flow-Limited Authorization [5] explores the trust ordering further by unifying principals and labels as elements of the same lattice. In Fabric, however, principals and labels remain distinct entities.

4.4. Enforcing labels

Every Fabric object has an associated update label that summarizes the trust needed to enforce the object’s security. Because the security requirements of every field must be enforced, the update label is the trust join of the labels of the object’s fields. The update label acts as an access control policy, determining which nodes can securely read, write, and persistently store the object. An object may be securely stored on a storage node only if the node is trusted to enforce the update label. A worker wishing to read and directly compute on an object only needs to be trusted to enforce the confidentiality half of the update label; to update an object, a worker must be trusted to enforce the integrity half.

Recalling that nodes are principals, we say a principal p enforces a label ℓ, written p ≽ ℓ ,6

In the FriendMap example, if Snapp were untrustworthy, it could release the locations of the users to third parties. This is a risk that the users are willing to take. In Fig. 3, Bob designates this by declaring snapp ≽ bob.locGrp, allowing Snapp to obtain Bob’s location object, according to the labels in Fig. 4. On the other hand, the users are not willing to believe that the FriendMap application provider is trustworthy. For example, friendmapbob.locGrp, which prevents FriendMap from obtaining Bob’s location object.

Taking the trust join of the fields’ labels is a conservative choice for the object’s update label. As part of our recent work on abort channels [110], the compiler in the latest Fabric release [4] recovers per-field precision by performing object splitting – a level of indirection is added to the object graph, so that the fields of each object in the system have the same label.

The decentralized security principle says that security of a principal does not depend on any part of the system that it considers to be an adversary. However, who the adversary is depends on whom you ask. From a principal p’s perspective, the adversary is some untrusted principal . In the FriendMap principal hierarchy in Fig. 3, Alice and Bob both treat the FriendMap application provider as an adversary since they don’t trust it. Similarly, Snapp and MapServ do not delegate to anyone, so they consider everyone to be adversaries. For simplicity, we assume that Alice and Bob delegate to Snapp, so Snapp is not an adversary for them.

The system should be secure from the perspective of every participating principal, so any principal may be considered an adversary. Fabric’s security mechanisms are designed to enforce security regardless of the choice of adversary. Therefore, we analyze security with respect to arbitrary adversary principal A.

Our goal is to allow secure interaction despite distrust, so adversaries are able to read and update certain objects stored at trustworthy nodes. A node n allows a node A to read an object with a low confidentiality label ℓ; that is, if A ≽ C ( ℓ ) . Similarly, A can update objects with low integrity labels; that is, if A ≽ I ( ℓ ) . Objects that represent mobile code are particularly important examples of objects that adversaries might affect. Adversaries can provide mobile code to trustworthy nodes, as long as the code has a low integrity label. Section 5 describes mechanisms that prevent this code from compromising security.

In a decentralized system like Fabric, there is no global _trusted computing base_ (TCB). In fact, the decentralized security principle generalizes TCBs, because each label ℓ has its own trusted computing base, consisting of the enforcement mechanisms on nodes n where n ≽ ℓ . The decentralized security principle is also more precise than TCBs, since it defines which security policies ℓ may be violated if some set of components is compromised.

4.6. Access labels

When following a reference to a Fabric object, the worker may need to fetch the object from its store. This means that the store may learn that the worker is accessing the object, which may reveal information about the pc at the point of dereference. We refer to this kind of covert channel as a read channel [131].7

The update label does not prevent read channels since it only protects the information in the object itself. To prevent read channels, we need to protect information in the context that is accessing an object. In other words, we need to ensure that the store of the object is permitted to see the pc. This means that the compiler needs some static representation of what store will be contacted when a remote reference is followed.

This representation appears in the language as a second, confidentiality-only label on each object field, called the _access label_. It ensures that the field is stored on a node that is trusted to learn about all the accesses to it, and it prevents the field from being accessed in a context that is too confidential. The access label has no integrity component – Fabric does not consider an integrity dual to read channels, though enforcement of referential integrity in a distributed system may lead to such a dual [76].

A field’s access label is written as part of the field’s type declaration. A label annotation ℓ u @ ℓ a on a field indicates that the field has the update label ℓ u and the access label ℓ a , meaning that updates to the field are protected by ℓ u and that the field’s value is hosted by a store that enforces confidentiality ℓ a . Just as there is an object-level update label that summarizes the update labels of an object’s fields, there is also an object-level access label, defined as the join of the access labels of the fields.8

Access labels require two static checks in Fabric code. First, to prevent accesses from leaking information, all reads and writes of fields must occur in a context whose label flows to the access label. Specifically, the program-counter label pc must flow to the access label ( pc ⊑ ℓ a ) at each field access (read or update). This is in addition to the implicit-flow check, mentioned in Section 4.1, that requires pc ⊑ ℓ u at each update.

Second, an object may only be allocated on a store trusted to enforce the object’s access label. To allocate at a node n an object with access label ℓ a requires n ≽ ℓ a , because node n will observe future accesses to the object.9

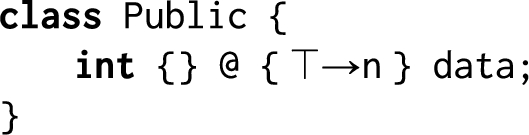

For example, the following class contains public information in a field data; accesses to this field are visible to a node n:

Even though the information is public and untrusted (update label {}), objects of this class can be stored only on nodes that are at least as trusted as n. Then, given a reference o to an instance of Public, the expression o.data will type-check only if the pc flows to { ⊤ → n}. If we had instead given the field data the annotation {} @ {} , the object could be stored on any node, but the type system would prevent accesses from non-public contexts. In other words, the expression o.data would type-check only if pc is public.

OPEN IN VIEWER

Fig. 6.

A remote call in Fabric.

Fabric programs use remote calls to explicitly transfer execution between workers. Figure 6 shows an example in which a method m1 dynamically looks up a remote worker rw using its hostname and, in line 5, transfers control to rw to call a method m2 on the current (this) object. The two workers participating in a remote call have security concerns regarding the information sent and received during the call. These concerns are satisfied with four kinds of checks, illustrated in Fig. 7. The checks are made before the receiving worker executes the call, and relate the calling worker cw, the receiving worker rw, the set L c of labels on the information sent by cw, and the set L r of labels on the information returned by rw.

The left side of Fig. 7 shows that the compiler permits a remote call only if it can determine that the call is secure from the perspective of the caller. This requires that the receiving worker rw pass two kinds of _caller-side checks_. First, rw should enforce the confidentiality of the information sent in the call: rw ≽ C ( ℓ ) for every ℓ ∈ L c . The contents of L c is taken from the signature of the method being called, and includes the begin label and the labels on the method parameters. The worker receiving the call should also enforce the integrity of the information returned, so the second kind of caller-side check is rw ≽ I ( ℓ ) for ℓ ∈ L r . The set L r is also taken from the method signature, and includes the label on the return value and on any exceptions thrown.

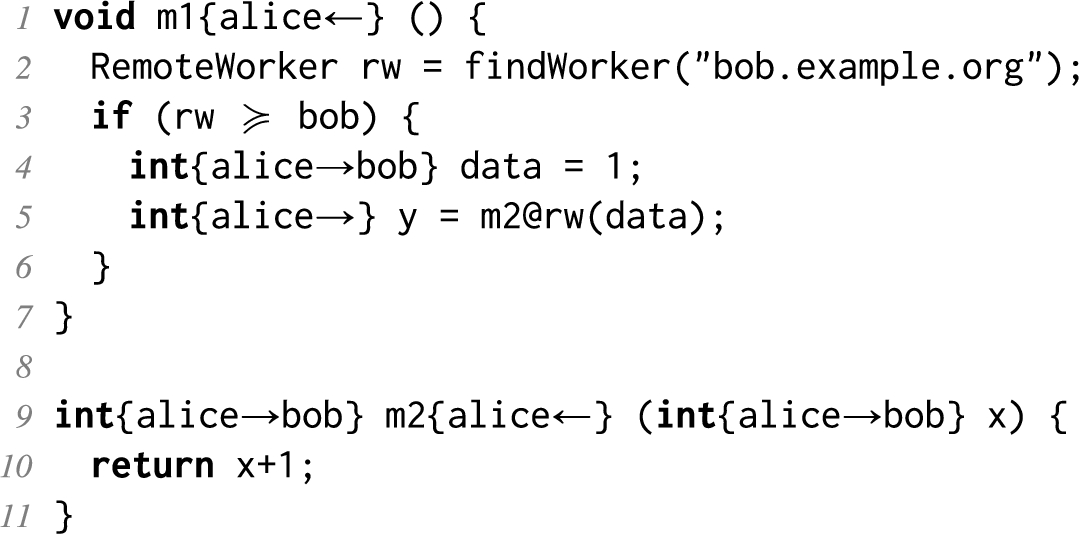

For example, in Fig. 6, the method parameter x on line 9 is labeled {alice→bob}, so the method m2 can be called on bob only because the call happens in a context where it is known that rw ≽ {alice→bob}. This is established by the test rw ≽ bob on line 3. Without this test, the compiler would reject the program.

OPEN IN VIEWER

Fig. 7.

Manual and compiler-generated checks for remote calls.

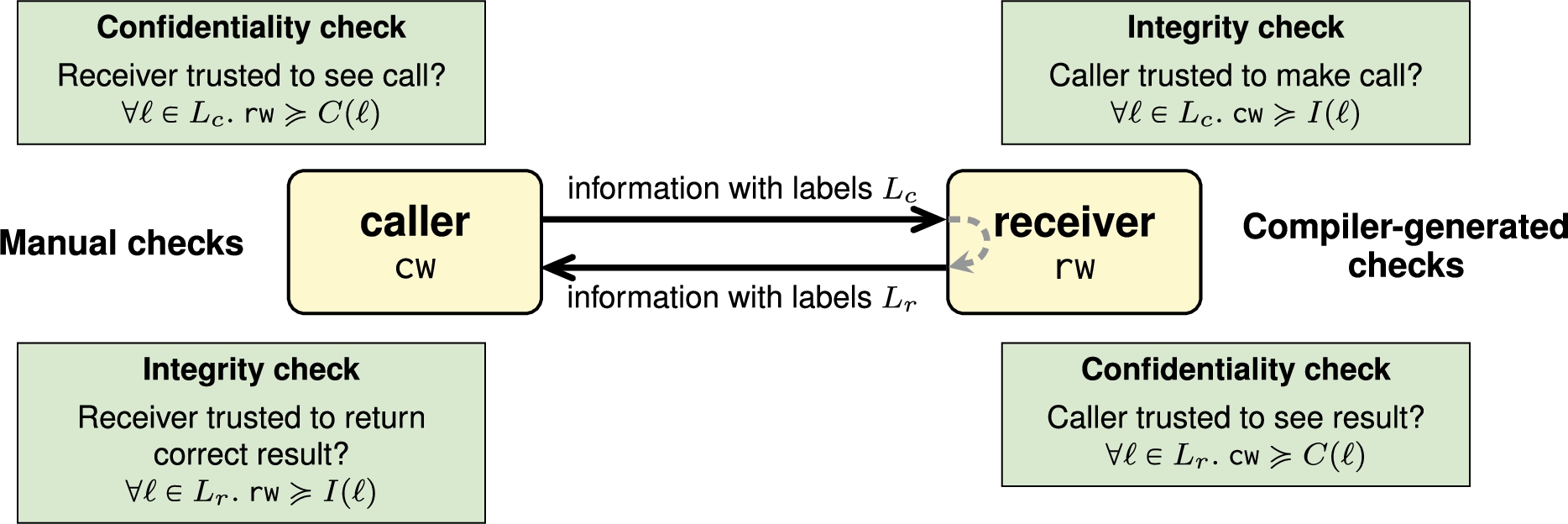

The right side of Fig. 7 shows the two kinds of receiver-side checks that rw makes when receiving a call. These are analogous to the caller-side checks: the calling worker cw should enforce the integrity of all information that it sends (cw ≽ I ( ℓ ) for ℓ ∈ L c ), and cw should enforce the confidentiality of the information returned (cw ≽ C ( ℓ ) for ℓ ∈ L r ). In Fig. 6, the method m2 has a begin label that requires the integrity { a l i c e ← } . Therefore, when bob.example.org receives the remote call to m2, it will check that the calling worker enforces that integrity: cw ≽ {alice←}. The compiler generates code for these receiver-side checks, and additionally ensures that the checks themselves do not leak information.

Fabric supports the revocation of acts-for relationships. Revocation creates a trade-off between security and performance (or availability), often encountered in the design of public-key infrastructures [115]. To make sound authorization decisions, revocations should rapidly propagate to all who might rely on the revoked authority. However, rapid propagation comes at a performance cost, and the propagation mechanism itself can be vulnerable to denial-of-service attack.

Fabric does not guarantee immediate notification of revoked acts-for relationships, so revocations generally do not take immediate effect. Suppose a principal p keeps the state of its delegations in an object d. A worker that has cached d will not see a revocation of “q acts for p” until it receives an updated copy of d. The worker might not receive this update until a transaction attempts to commit, after having made authorization decisions based on the revoked acts-for relationship. For instance, the worker might allow a remote call to another worker that is no longer trusted, creating flows of information that would not otherwise be permitted with an up-to-date copy of d. This has implications for confidentiality: the remote worker might no longer be permitted to learn the information embodied in the remote call. Integrity is maintained, however, because the transaction will be rolled back and retried with the new version of d, just like any other transaction that observes stale data. Confidentiality guarantees could be improved, at the cost of increased latency, by immediately checking the freshness of the objects used by the transaction before each remote call, but this is not currently done in Fabric.

OPEN IN VIEWER

Fig. 8.

An important part of the FriendMap code. Some details have been changed for clarity (e.g., Fabric does not currently support Java’s enhanced for-loop syntax, and some error handling has been elided).

We now revisit the key code from the FriendMap example of Sections 2 and 3.3, to illustrate how Fabric’s security features help the programmer write secure code. Recall that the application runs on Alice’s worker, and integrates code from FriendMap, MapServ, and Snapp with data from Snapp and MapServ. Figure 8 shows the entirety of the createMap method, which provides the key functionality of the application. The code of this method, without any security annotations or checks, was previewed in Section 3.3. As before, the method computes a bounding box of a user’s friends (lines 8–13), uses that bounding box to fetch an image from MapServ (line 16), and then annotates that map with the user’s friends’ locations (lines 19–22).

The method takes the dynamic labels resultL and friendAccess as arguments. The resultL argument describes the policy on the created map, and is used in two flows-to tests to ensure that private locations of friends will not affect the resulting map. One test is on line 12 (where resultL is part of fetchLabel) and another is on line 21. Each friend’s location is only viewable by principals in that friend’s location group, specified by the dynamic principal friend.locGrp. If the result label is too permissive for a particular friend (i.e., if {friend→friend.locGrp}resultL), then the two tests fail; the boundary is not expanded to include the friend (line 12), and the friend’s location is not added to the map (line 21).

The friendAccess argument allows the caller to specify a bound on the access labels of the friends who are fetched. This allows a user to plot friends stored on other social networks (modeled in the example as different stores), while preventing the user from fetching those objects if the friends’ social networks are not trusted to learn about the state of the computation. Specifically, a friend’s location may cause a fetch of a user object from the friend’s social network. Therefore, on lines 11 and 20, before accessing the friend’s location, FriendMap checks to ensure that the friend’s store friend.store is permitted to learn information as restrictive as the friendAccess label. If not, then the friend is omitted from the map and the object is never accessed, preventing unsafe communication with the friend’s social network.

In addition to these dynamic checks, this code requires further relationships between various labels in order to be considered secure. These relationships are demanded by the where clauses on lines 2–5, which are verified to be true in any method that calls createMap.

For example, the first clause (on lines 3–4) is concerned with information from three sources: the code itself (labeled provider and MapService.provider),10

Fabric requires the FriendMap developers to insert these checks. Without them, the application would fail to compile, and thus users would not be able to execute the code. Indeed, omitting any of the where clauses or the dynamic checks in this example could lead to exploitable information flows in the FriendMap application. Hence, these checks are not an artifact of Fabric; any secure implementation of the application would have to include similar checks to protect users’ privacy. Fabric gives developers compile-time guidance about where run-time security checks are needed to achieve information security.

For local code, label checking of the sort performed in previous languages such as Jif is enough to ensure that all flows in code obey the information flow ordering. However, Jif-style label checking is not enough to stop adversary-provided code from introducing vulnerabilities. For example, Fig. 10(a) demonstrates how integrity could be harmed if label checking worked the way it does in Jif and prior information-flow mechanisms. The method changePassword label-checks in Jif, because only high-integrity information appears to influence the high-integrity variable password: both the literal “weakpassword” and the method’s begin label are high-integrity. The literal “weakpassword” is considered trusted since it is a constant, and the pc at any invocation of this method must flow to {user←}. However, if the adversary convinces a trusted worker node to use this code, it might be used to change the password to a string of the adversary’s choosing, creating a clear security vulnerability.

Fabric eliminates such vulnerabilities by treating the code itself as information that taints the results it produces. Like other objects stored in Fabric, each class object is given an update label. We refer to this label as the class’s provider label. Class source may explicitly refer to the provider label of any class, including its own, using the name classname.provider.12

When label-checking code, we taint the pc label with the provider label. This makes sense because the code provider affects the statements that are executed. If the code of Fig. 10(a) is provided by an adversary, its low-integrity provider label will effectively make the pc label low-integrity, preventing any assignments to high-integrity variables such as the password. We refer to this analysis as provider-bounded label checking. This approach also preserves important features of the Fabric programming model like polymorphic labels in method signatures. A more direct approach to provider checking, such as ensuring the integrity of begin labels are bounded by the provider label at load time, would require method signatures to be concrete.

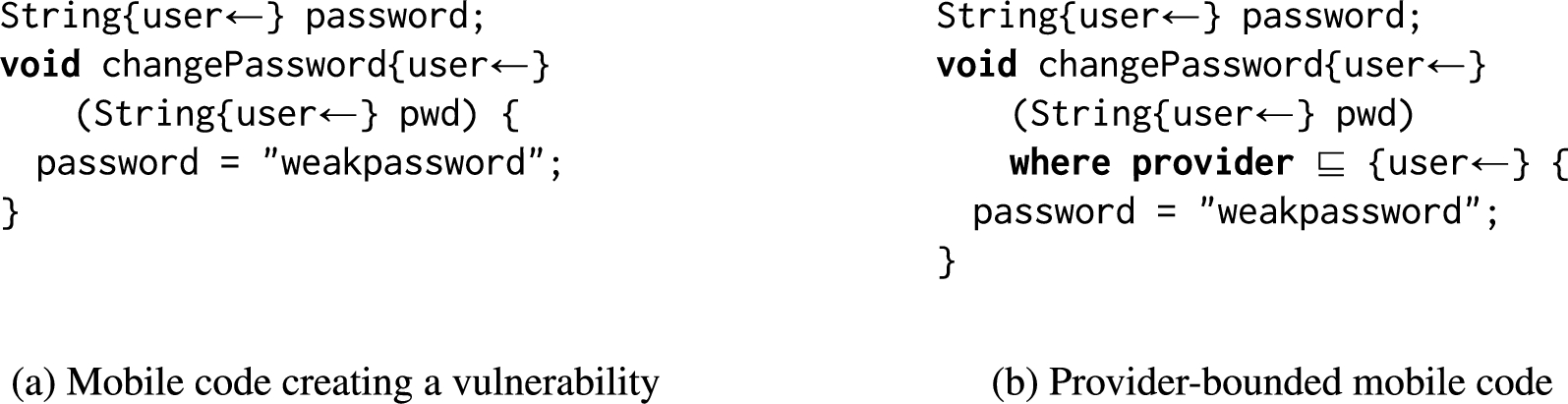

Figure 10(b) demonstrates the use of the provider label in a where-clause, asserting that the provider label flows to {user←}. This allows the compiler to assume that the provider is sufficiently trusted by user to change the password. This constraint is then enforced at all call sites of changePassword, ensuring the password may only be updated by this code when its provider has sufficiently high integrity.

As an additional benefit, the provider label makes a new feature possible using the same mechanism: confidential code. By creating code with a high-confidentiality provider label, code publishers can safely put code into Fabric that contains sensitive information such as proprietary algorithms.

A confidentiality label on a class object prevents untrusted nodes from viewing that code directly. Provider-bounded label checking enforces a stronger notion of security, however: it prevents any data affected by the code from flowing to untrusted nodes. Furthermore, it ensures (via access-label checks) that objects accessed by confidential code must be at least as high as the confidentiality of the code. These checks strictly protect the confidentiality of code by default, but providers of the code may explicitly declassify results or accesses when desired.

The provider label also enforces robust downgrading since it prevents the adversary from exploiting downgrading to affect confidentiality and integrity. A provider label with low integrity prevents the adversary from using declassification and endorsement in provided code directly; it also prevents the adversary from indirectly influencing declassification and endorsement occurring in other code not provided by the adversary.

Another curb on the misuse of downgrading operations is the requirement that code possess the authority to perform these operations. Code cannot weaken a confidentiality or integrity policy through declassification or endorsement, unless the principal whose policy is being weakened grants the code that authority.

Authority placed in mobile code cannot exceed the authority of the code developer. This is expressed using a check on integrity: for code that claims the authority of the principal p, Fabric ensures the condition I(provider) ≽ { ⊤ ← p }.

Fetching a mobile Fabric class on demand introduces a new kind of read channel. Therefore, the class object of a persistent object must be stored on a node that is trusted to enforce the object’s access label. To satisfy this requirement without unnecessary restrictiveness, we can ensure that when an object is created on a node, its class object is stored at a suitably trusted node. Since the node storing the object itself must be such a node, the class object can be replicated onto the same node as the object if necessary. Since class objects are immutable and distinguished by their fingerprints (Section 6.5), their replication is harmless in Fabric.

Mobile classes are identified by their class object. However, instead of requiring programmers to insert Fabric references (i.e., URLs) to class objects directly into their source code, we allow programmers to name classes using the familiar Java naming scheme of qualified identifiers. To map class names to mobile classes, the compiler is provided with a codebase object, which serves a role similar to that of a Java classpath. A codebase maps from qualified class names to global, persistent references to published class objects.

Each mobile class is published with a reference to its associated home codebase, which the compiler uses to resolve the direct dependencies for that class. This mechanism enables independent nodes to resolve external dependencies in a uniform way without resorting to a global namespace. In contrast, Java offers no guarantee that the class linked by the JVM at run time is the same class the code was compiled against.

Because Fabric types include security policies, it is important that hosts agree on the type signature of a remote call or persistent object. Resolving names dynamically could result in errors that are difficult to diagnose. For example, a client could experience a run-time error because objects created by remote hosts resolved names differently. Furthermore, resolving names statically removes the possibility that name resolution could be used as a covert channel. Thus, mapping class names to type signatures statically is important for the security and programmability of Fabric programs.

This approach also ensures a kind of backward compatibility: new code cannot break existing instances of persistent objects. Class objects and codebases are immutable, so codebases bind class names to specific, fixed versions of the linked libraries. Similarly, once an object is created, its class is fixed to a specific class object. Hence, the object remains associated with the class version it was created with. New code must be backward-compatible when processing legacy objects. To “update” a legacy object to a new class version, a new object must be made. Only source-level names are resolved at compile time, so binding names to types through their codebases does not affect late binding. In fact, method dispatch can cause the fetching, compilation, and loading of code that didn’t exist at compile time, similar to dynamic class loading and linking in Java.

OPEN IN VIEWER

Fig. 11.

Two classes linked under different scenarios.

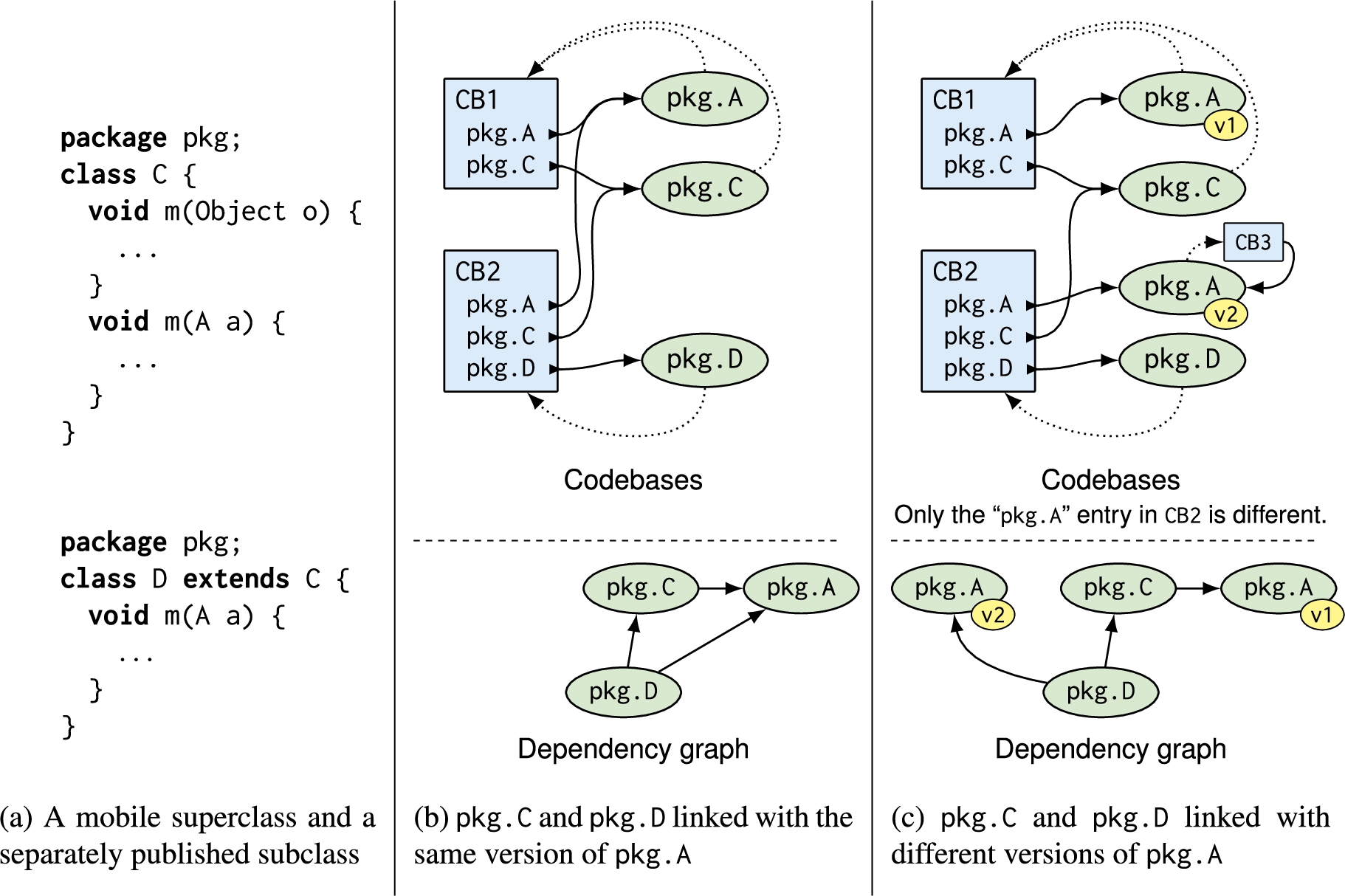

Figure 11(a) shows an example of two separately published classes, pkg.C and a subclass, pkg.D. Both classes depend on a third class, pkg.A. The top of Fig. 11(b) depicts the resulting codebases when C and D are linked against the same version of A. Solid arrows indicate the class object a particular class name resolves to, and dotted lines indicate the home codebase of a class.

Before running the code stored in the mobile class D, the worker invokes the Fabric compiler to verify D. During verification, the compiler resolves the superclass by consulting D’s codebase, CB2. The entry for “pkg.C” contains a reference to the specific class object used to resolve the dependency. Likewise, when verifying C the compiler uses C’s codebase (CB1) to resolve dependencies. This process ensures that all nodes will resolve D’s dependencies in the same way, including transitive dependencies (e.g., the dependencies of C).

Classes share the same home codebase when they are published together. In Fig. 11(b), A and C were published together, and therefore have a common home codebase. Class D has a different home codebase, because it was published later. Because C’s home codebase is different, it may contain entries not present in D’s home codebase.

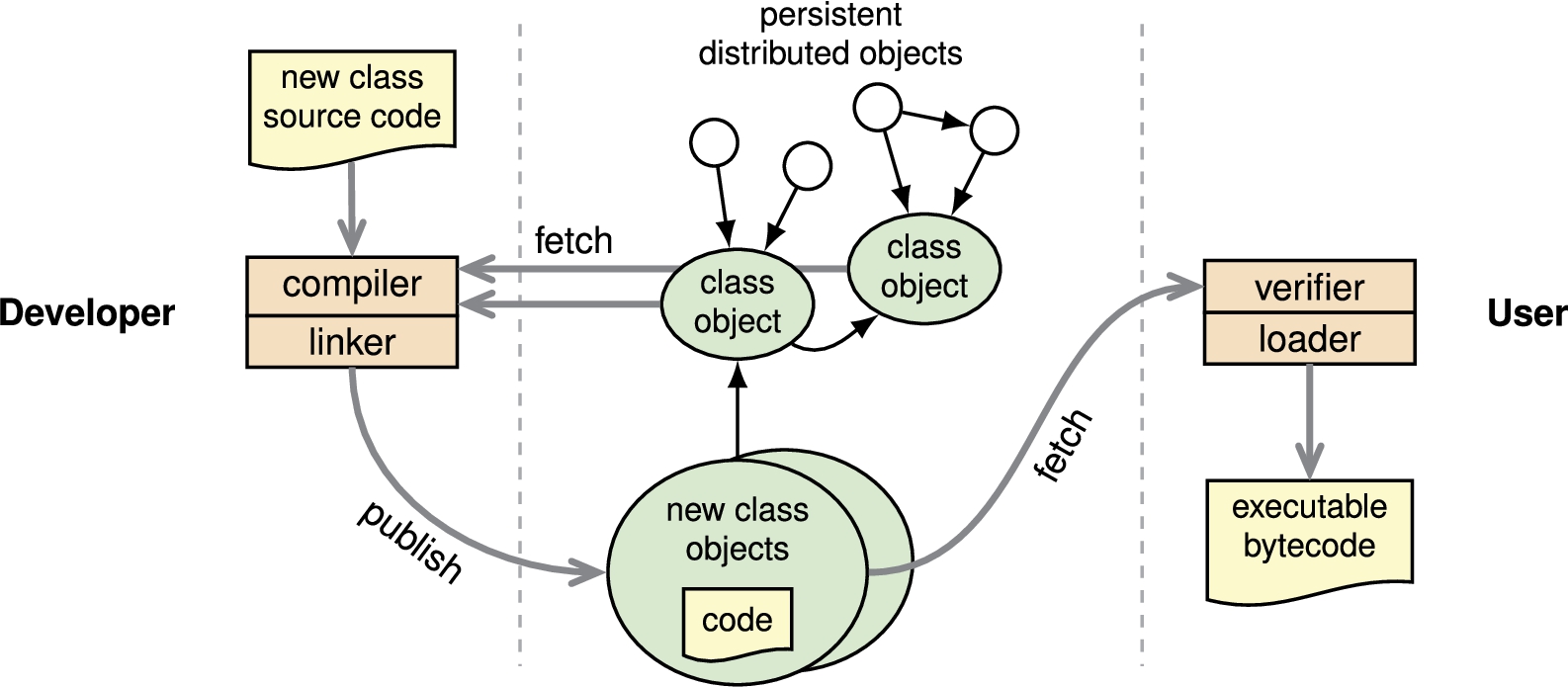

Rather than forcing developers to create codebases by hand, the Fabric compiler generates a codebase automatically from the classpath and sourcepath specified during publication. This feature makes the potentially complex process of linking and publishing reusable mobile components similar to compiling programs with a traditional Java compiler and linking with local libraries. Usually, classpath entries refer to the codebases of dependencies already published in Fabric, while sourcepath entries refer to local directories containing source that will be published with the new codebase.

To protect the linkage of classes resolved by a codebase, codebases have integrity labels that are at least as high as the provider labels of the classes they are published with. The compiler checks that this invariant holds at link time to prevent an adversary from exploiting codebases that violate the invariant.

Programs are often built from components that share common dependencies. Usually, these dependencies must resolve identically for all components. For instance, a dependency might define an interface through which the components interact. But in some cases, a component’s use of a dependency is isolated from other components. For example, two components might require different versions of a regular expression library for manipulating strings internally. In principle, it should be safe to load both versions, since their usage is isolated. Unfortunately, identifying whether two conflicting dependencies are truly isolated from each other is difficult.

Consider the code fragments shown in Fig. 11(a). Imagine pkg.D extends a previously published class pkg.C. Whether the method in D overrides C.m(A) depends on how A is resolved. If A resolves to the same class used by C, then D’s method overrides m, otherwise it overloadsm. This behavior is consistent with that of Java. Interestingly, both cases can result in fully type-checked code. Figure 11(b) shows the former case, in which the two codebases resolve A identically; Fig. 11(c) shows the latter case, where A is resolved differently by D’s codebase, CB2. The bottom of the figures show the dependency graphs induced by the two scenarios. Nodes in the graph are published class objects, and each edge is the resolution of a dependency using the source node’s codebase. In Fig. 11(c), two implementations are reachable for pkg.A – the program’s namespace is ambiguous, or inconsistent.

Allowing programs with inconsistent namespaces could result in subtle and surprising behavior. For example, Fabric, like Java, dispatches calls to overloaded methods based on the static types of their arguments. Consider the code below:

Let us assume that the code is compiled using CB2 to resolve names with the dependency graph in Fig. 11(c). This code creates an instance d of class pkg.D, and then calls m on it twice, passing in a parameter of type pkg.A from CB2. How each call to m is dispatched depends on the type of the reference to d. On line 3, the reference has type D, so D.m(A) is called, as one might expect. However, on line 6, the reference has type C. Although C defines a method m(A), it uses the version of pkg.A from CB1, which is incompatible with the version from CB2 used by the actual argument. The call on line 6 is therefore statically dispatched to C.m(Object). While the author of the code might have intended this behavior, it is also likely to be unintentional.

Another reason for namespace consistency is to support _external principals_ [28], a feature inherited from Jif that supports principals implemented with the singleton design pattern [45]. Programs mention external principals by class name, so namespace consistency ensures that when two compilation units mention the same name, they are talking about the same principal. Otherwise, information might be implicitly relabeled when it passes between compilation units.

Since errors related to inconsistent namespaces are difficult to detect and debug, we require that the static dependencies of mobile code must have a namespace that is consistent. In the dependency graph of Fig. 11(c), two implementations are reachable for pkg.A, so the compiler would reject the publication of pkg.D. However, if the programmer truly intends to link against two versions of pkg.A, Section 5.4 shows how this can be done with explicit codebases.

The consistency constraint applies to the static dependencies of a class and does not constrain the dynamic type of objects beyond normal type safety. At run time, a reference may point to an object whose class type is neither in the codebase of the reference’s type, nor consistent with the program’s namespace. There is no possibility for confusion, because our constraint ensures that dependent code only interacts with the object via an unambiguously resolved supertype.

To avoid publishing code with inconsistent namespaces, the Fabric compiler checks code at publication time for namespace consistency. At run time, the code is checked again for namespace consistency during verification, before being loaded and executed.

5.4. Explicit codebases

To support code evolution and reuse, Fabric has explicit codebases, which allow components to refer to multiple implementations of a dependency. An explicit codebase is an alias for a previously published codebase object. A programmer may use this alias to qualify dependencies that should be resolved through the specified codebase rather than through the home codebase of the dependent class. Explicit codebases may appear at the root of any fully qualified type name. When a name is qualified with an explicit codebase, the namespace of the specified dependency is isolated from that of the dependent class. Explicit codebases are resolved when code is published, and are exempt from namespace-consistency checks since the programmer’s intention is unambiguous.

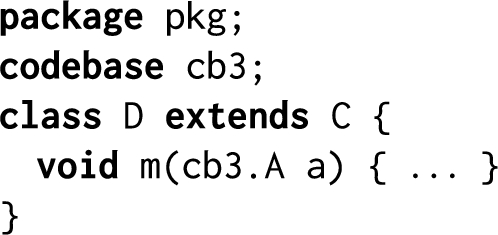

For instance, in Fig. 11(a), to overload C.m(A) with a different version of A, the definition of D should read as shown in Fig. 12. When publishing this class, the command line associates the alias “cb3” with a Fabric reference to codebase CB3.

We expect explicit codebases to have two main uses. The most common use is to support evolving published code. Using explicit codebases, classes may provide methods or implement interfaces that preserve compatibility with code and persistent objects from older class versions. A second use for explicit codebases is for composing software components with conflicting dependencies. If software components have conflicting dependencies that do not otherwise affect program functionality, it may be desirable to isolate the namespace of each component using an explicit codebase.

OPEN IN VIEWER

Fig. 12.

Using an explicit codebase.

Instead of using dynamic linking to evolve software, Fabric relies on the inheritance and subtyping features of its object-oriented language. In Fabric, new versions of classes are stored in separate class objects, so that they can coexist and interact in the same system. If the new versions of classes are backward-compatible, then they should be subtypes of the old versions; this allows existing software that links against the old version to interact with objects using the new version. If the new version is incompatible with the old version, then it should not be a subtype: this forces software that relies on the old functionality to be updated as well. In short, there are no different versions of “the same” class: if two versions of a class are different, then Fabric considers them to be different classes.

To explain the process of software evolution, consider a possible upgrade path for the FriendMap application. Suppose that Snapp decides to extend their service by adding a mood field to the com.snapp.User class. They would do so by creating a new class, also called com.snapp.User. The new class would explicitly extend the old class, which means that the existing FriendMap code (which the Snapp developers have no control over) can continue to work, even with objects of the new User type.

At a later time, the developers of FriendMap may wish to release a new version that uses the mood of the user’s friends to color the annotations that are placed on the map. FriendMap cannot assume that all users have the new User type (and thus the mood field). For example, the existing users Alice and Bob may not yet be upgraded to the new versions. Therefore, FriendMap must decide how it should handle old users.

One possibility would be to change the FriendMap interface so that it only accepts objects of the new User type. This would prevent the new FriendMap from being a subtype of the old FriendMap. Alternatively, the new FriendMap application could use dynamic downcasting to detect and use the new mood field, and remain backward-compatible.

The key point is that the language forces the FriendMap developers to consider the ramifications of updating their application. They may indicate whether new versions are backward-compatible by subclassing the old versions, or not.

OPEN IN VIEWER

Fig. 13.

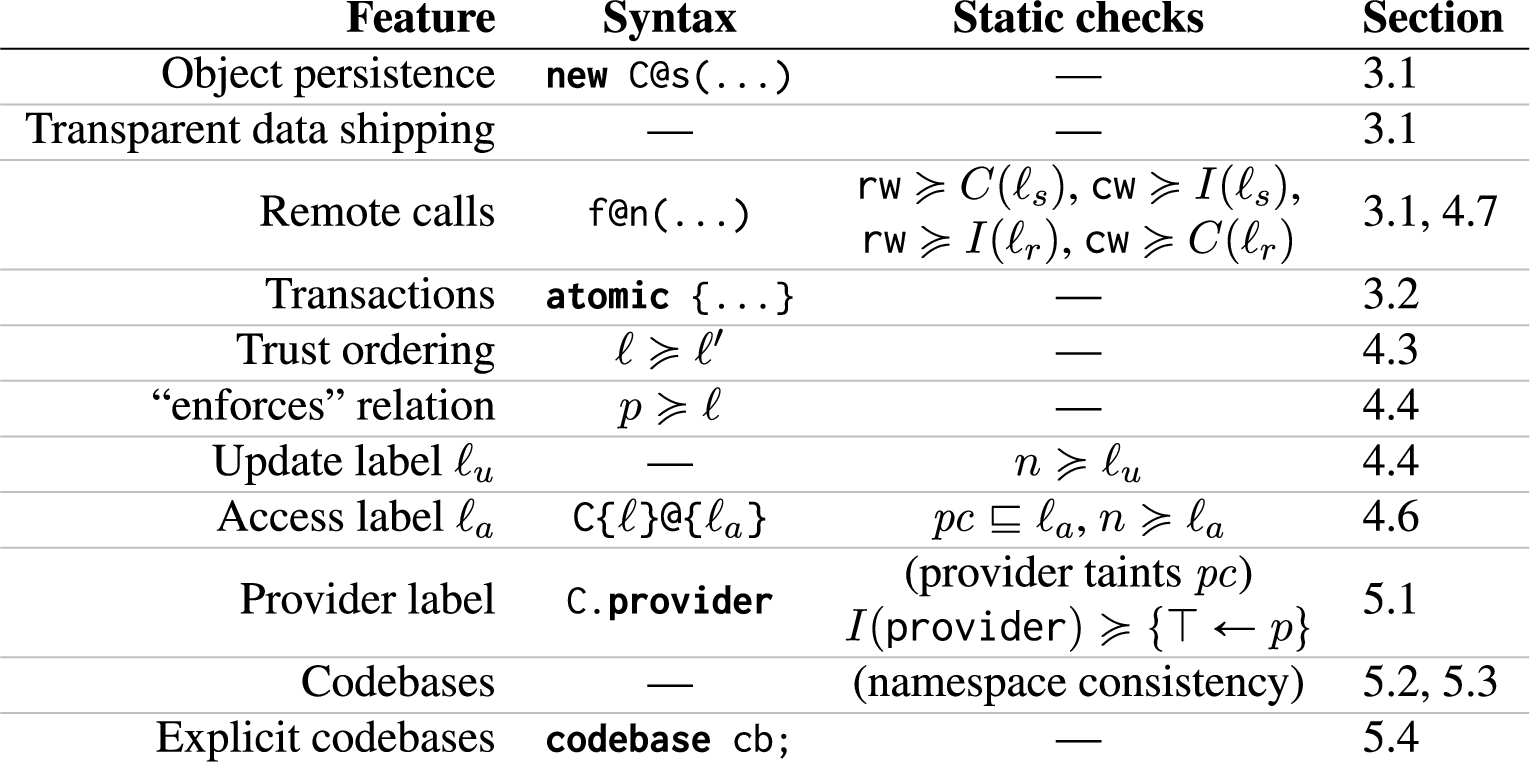

Summary of features that Fabric adds to Jif.

To aid the reader in keeping track of the many language features discussed here, the table in Fig. 13 summarizes the language features, syntax, and static checks that Fabric introduces on top of Jif, along with pointers to the section of the paper discussing each such feature.

Fabric objects are named by object identifiers (oids). An oid has two parts: the name of the object’s store, and a 64-bit object number (onum) that is unique within the store. Object identifiers are global and persistent; they can be exported from Fabric by writing them as Fabric URLs of the form fab:// store / onum . Fabric applications can also implement their own naming schemes using Fabric objects. For example, a naming scheme based on directories and path names is easy to implement using a persistent hash map.

Each object identifier is permanent in the sense that it continues to refer to the same object for the lifetime of that object, and the identifier can always be used to find the object. If an object moves to a different store, it acquires an additional oid. The original identifier still works as long as the original store keeps a forwarding pointer in a surrogate object.14

Knowing the oid of an object gives the power to name the object, but not the power to access it: _oids are not capabilities_ [37]. If object names were capabilities, then knowing the name of an object would confer the power to access any object reachable from it. To prevent covert channels that might arise because adversaries can see object identifiers, object numbers are generated by a cryptographically strong pseudorandom number generator. Therefore, we assume an adversary cannot feasibly probe for the existence of a particular object, and that an oid itself conveys no information other than the name of the node that persistently stores the object.

Fabric objects can be mutable. Each object has a _current version number_, which is incremented when a transaction that updates the object is committed. The version number distinguishes current and old versions of objects. If a worker node tries to compute with out-of-date object versions, the transaction will fail on commit and will be retried with the current versions. The version number is an information channel with the same confidentiality and integrity as the fields of the object; therefore, it is protected by the same mechanisms.

Fabric programs identify Fabric nodes using DNS hostnames. In the runtime, each node has two additional forms of identity: a public key and a principal object. The public key is used by TLS to establish encrypted communications and to sign certificates. The principal object places the node in the principal hierarchy and is used in dynamic enforcement checks, described in Sections 4.4 and 4.7. Fabric uses X.509 certificates [55] to bind these three identities together. Certificate authorities (CAs) are therefore the roots of trust, as they are in the Web. Whether the certificates of a given CA are accepted is decided by the Fabric node receiving them.

Fabric nodes mutually authenticate when communicating over the network. Authentication establishes the remote node’s principal object, so that it can be used in dynamic checks. Figure 14 shows a protocol sequence diagram for the mutual authentication of nodes A and B, which occurs in two phases. First, A connects to B and performs a client-authenticated TLS handshake. Every node B has a _server certificate_, which is an X.509 certificate signed by a CA.15

Every node A has a principal certificate for performing TLS client authentication. This is an X.509 certificate that binds the oid of A’s principal object (A’s principal oid) to A’s public key, and is signed by the store S A that hosts the principal object. When combined with S A ’s server certificate, this gives a CA-rooted certificate chain for A’s principal oid.

After a successful TLS handshake, A knows it has contacted the correct node, because it knows the remote node has B’s private key. Similarly, B knows A’s principal oid because of TLS client authentication, so A is authenticated to B.

In the second phase, B completes the mutual authentication by sending its principal certificate to A. This authenticates B if A can validate the certificate’s signature, and can match the public key in the certificate with the one in B’s server certificate.

OPEN IN VIEWER

Fig. 14.

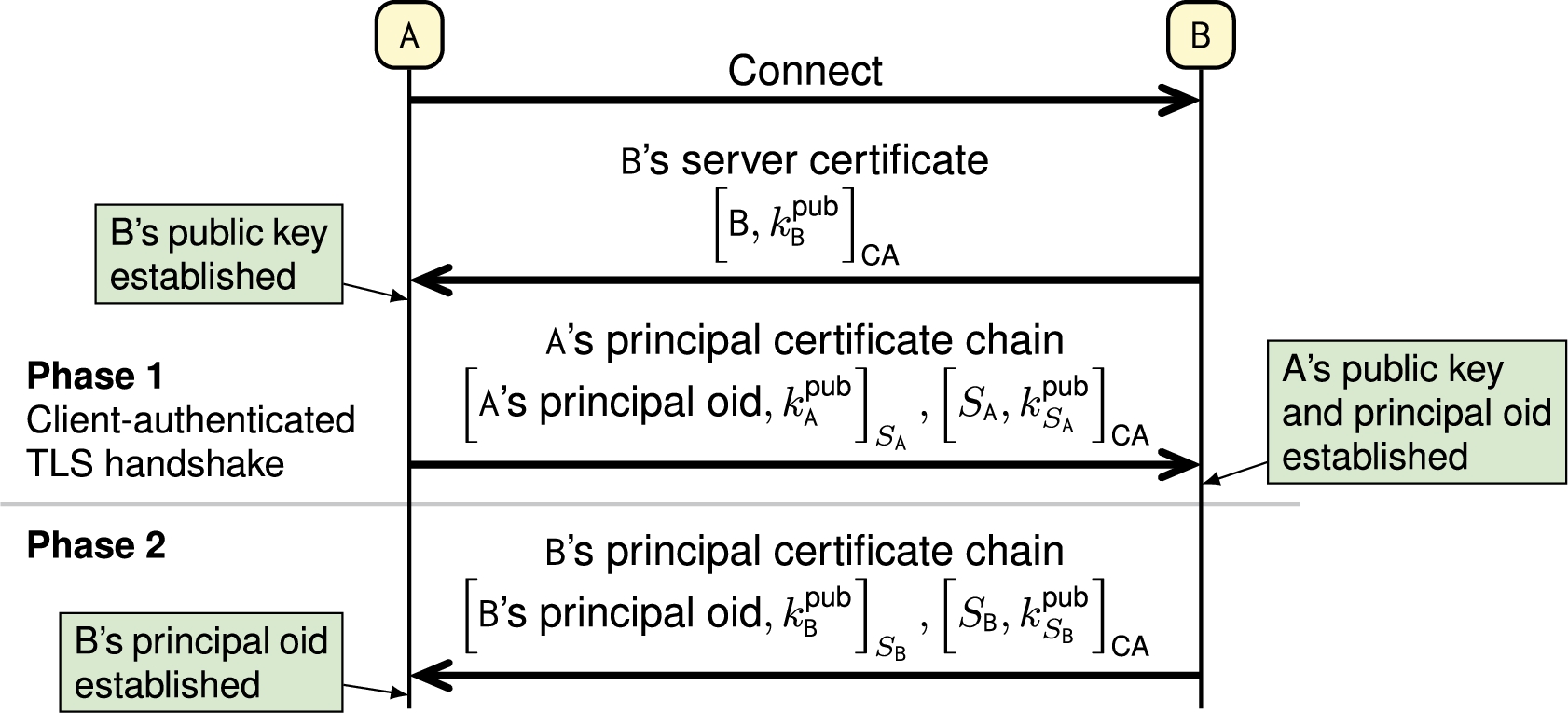

Authentication protocol sequence. For simplicity, only certificate messages are shown in the TLS handshake.

OPEN IN VIEWER

Fig. 15.

Fabric hierarchy of caches.

When a Fabric program follows an object reference, the worker ensures that there is an in-memory copy of the object for the program to use. It does this through a hierarchy of caches, shown in Fig. 15.

First, it checks to see whether a copy of the object is already present in memory. If not, the worker then consults a local cache of prefetched objects. These are local copies of objects that the worker has received, but not yet deserialized. The worker may have prefetched objects; when it requests an object from a store, the worker receives a group of related objects in an object group, amortizing both the cost of fetching and the cost of performing dynamic authorization checks at the stores.

Storage nodes dynamically construct and cache object groups based on the object graph, update labels, and dynamic access patterns. The binding between an object and its group is not permanent; the store constructs object groups as needed and discards infrequently used object groups. To improve locality, the store tries to create object groups from objects that are connected in the object graph and that have the same confidentiality policy. Having a single confidentiality policy for the entire group allows the store to treat the group uniformly with respect to confidentiality: when an authorized worker requests any member of the group, the store can safely respond with the whole group.

6.4. Dynamic authorization

Fabric performs three kinds of dynamic authorization checks when objects are accessed over the network. An example will illustrate these checks. Suppose Alice’s worker runs a transaction that accesses and updates an object with update label ℓ u and access label ℓ a on Bob’s store.

When Alice fetches the object,16

On receiving the request, Bob examines the confidentiality part of the object’s update label. If Alice is trusted to read the object (alice ≽ C ( ℓ u ) ), then Bob responds with the object. When Alice updates the object and commits, she sends the updated object to Bob. Before accepting the update, Bob checks that Alice is trusted with the integrity part of the object’s update label: alice ≽ I ( ℓ u ) . Both of these checks are done in a fresh top-level transaction at a worker colocated with Bob.

The security of Fabric requires that trustworthy nodes agree on the types of classes. This agreement is especially important when untrusted nodes can provide class objects. Suppose Alice’s worker wishes to make a remote call to Bob’s worker to execute an attacker-provided method harmlessMethod. The attacker can try to provide two different implementations of the method to the two nodes. Suppose Alice sees the code on the left, whereas Bob receives the implementation on the right:16 Both of these methods type-check. Alice is willing to make this remote call in a context that would reveal confidential data (alice→bob), because the begin label of harmlessMethod prevents it from having any public side effects. On the other hand, Bob is willing to execute the method even though it has a public side effect, because its begin label requires it to be called in a context that does not reveal any sensitive information.

However, if the two implementations can be combined, the type mismatch allows the attacker to trick Bob into revealing confidential information. It is not enough that the methods both type-check in isolation; Alice and Bob must agree on the types.

To ensure that the caller and the receiver of a remote call agree on the types appearing in remotely called methods, a fingerprint [14] is sent with each remote call request. The receiver checks that the invoked method has a matching fingerprint. The fingerprint is computed as a cryptographic hash over the entire source code of the method’s class, including the source code of all superclasses.

Fingerprinting ensures more type agreement than is strictly necessary, but there is no harm in it, since the same fingerprint has other uses. For instance, a similar vulnerability exists if an attacker can cause nodes to disagree about the labels on the object’s fields by changing the class associated with the object. To prevent this attack, each object stores its class fingerprint along with the pointer to its class object. The fingerprint is checked against the class actually loaded to verify that the class accurately describes the object, including security policies on its fields.

6.6. Transaction management

Fabric uses a mix of pessimistic and optimistic concurrency control. To coordinate threads running on the same worker, Fabric uses pessimistic concurrency control, in which threads acquire locks on objects. However, in the distributed setting, Fabric is optimistic: worker nodes compute on cached copies of objects that may be out of date, while a distributed two-phase commit protocol [49] ensures consistency at commit time.

Within a single worker, multiple threads may execute concurrently. Every thread in the worker has a transaction manager that maintains the state of the thread’s transaction, and each object in the worker’s cache has a reader–writer lock. During computation, the transaction manager logs the version numbers of objects that are read or written, and the identities of the objects that are created. When a thread reads or writes an object, the transaction manager acquires a read or write lock for the object. The thread blocks if the lock would conflict with another lock held by a different thread.

Updates to objects in a transaction are logged in an undo log: upon the first write to each object during a transaction, the transaction manager logs the prior state of the object in an object history. This is used to restore the object’s state in case the transaction fails.

Transaction logs and object histories are hierarchical because transactions can be nested. When a local subtransaction is created, it inherits the locks held by its parent. When the subtransaction commits, its log is merged with the parent transaction log, and its locks are transferred to the parent transaction. If the subtransaction aborts, it discards its log, relinquishes the locks it has acquired, and restores the state of the objects it has modified.

To reduce logging overhead, the copy of each object at a worker has a reader stamp, which is a reference to the last transaction that read the object. No logging needs to be done for a read access if the current transaction matches the reader stamp. Similarly, each object has a writer stamp for the last transaction that modified the object, and no logging is needed if the current transaction matches the writer stamp. Obtaining the write lock clears the reader stamp.

When a worker commits a top-level transaction, it initiates a two-phase commit protocol with the stores for the objects accessed during the transaction. The information sent to each store includes the version numbers of objects accessed during the transaction and the new data for written objects. For security, the store performs the authorization checks described in Section 6.4 to ensure that the worker is trusted to modify the written objects.

The store also checks that its authoritative version numbers match the version numbers reported by the worker. A mismatch means that another worker has updated an object that was accessed during the transaction. In this case, the transaction fails, and the store informs the worker which objects involved in the transaction were out of date and provides fresh copies of the objects. The worker then replaces the stale objects in its cache before retrying the transaction.

Transactions can also fail if the state of the objects read by the transaction are not mutually consistent. Inconsistent objects might break invariants that the application code relies upon, causing errors in the execution of the application. Errors that lead to incorrectly computed results are not a problem because they will be detected and rolled back at commit time. Errors that cause exceptions are also possible, but as discussed earlier, exceptions also cause transaction failure and rollback. Finally, an application’s computation might diverge rather than terminate. Fabric handles divergence by retrying transactions that are running too long. On retry, the transaction is given more time in case it is genuinely a long-running transaction. By geometrically growing the retry timeout, the expected running time of long-running transactions is inflated by only a constant factor.

The use of reader–writer locks at workers means deadlocks are possible. Fabric implements local deadlock detection and aborts transactions detected to be deadlocked. Though distributed deadlocks may occur in Fabric, there are well-known techniques (e.g., edge chasing [24]) for detecting and avoiding them in a non-federated context. Transactions stuck in distributed deadlocks eventually time out and are retried. We leave to future work the design and implementation of secure, federated deadlock detection.

6.7. Security cache

At run time, Fabric applications perform acts-for tests and label comparison tests that are needed for security, but that add performance overhead. Fabric reduces this overhead by memoizing the results of these tests in a security cache. The cache has separate partitions for positive and negative results of acts-for tests and label comparisons, similar to the cache used by SIF [29].

Soundness is maintained in two ways. First, the cache is adjusted when the application changes the principal hierarchy. The negative partition is cleared when a principal delegation is added. Similarly, when a delegation is revoked, any positive-cache entries that depend on that delegation are removed.

Second, the security cache is tied to the transaction manager, so concurrent transactions are isolated. Each transaction has its own security cache, and because transactions can be nested, the security cache is hierarchical. When a subtransaction is created, it inherits the cache entries from its parent. When the subtransaction commits, its cache is merged with the parent cache; if the subtransaction aborts, its cache is discarded. Thus, the security cache of the parent transaction is isolated from changes to the principal hierarchy made within an aborted subtransaction that may have computed trust using inconsistent data.

6.8. Writer maps

Remote calls cause transactions to be distributed across multiple workers. Several challenges arise when objects are shared and updated by the workers in a distributed transaction. For consistency, workers need to compute on the latest version of a shared object as it is updated. For performance, workers should be able to locally cache objects that are shared but not updated. For security, a worker should only learn about updates to an object if the worker is trusted with the object’s confidentiality.

Fabric addresses these challenges with writer maps, a cryptographic data structure that allows workers to efficiently check for updates to cached objects, while protecting the confidentiality of those updates. Every transaction has a writer map that associates each updated object with its writer, the worker that last wrote to the object during the transaction. An object’s writer, therefore, stores the definitive copy of the object for the transaction.

The writer map is threaded through the control flow of the distributed computation: it is included in every remote-call request, and is returned with the result of the call. During computation, when a transaction on a worker w accesses an object, the transaction manager checks the writer map. If a writer w ′ is found, then the worker w verifies that w ′ enforces the object’s integrity before fetching the latest version of the object from w ′ .

If the object is being written, one of two things happen. First, if w can enforce the access label ℓ a on the object ( w ≽ ℓ a ), then w ′ is notified to relinquish its role as writer. The notifying worker w becomes the new writer, and this change is recorded in the writer map. Notification of the old writer w ′ is not a covert channel, because the program counter label pc of the write must flow to the object’s update label ℓ u , which the old writer is already trusted to read: pc ⊑ ℓ u ⊑ { ⊤ → w ′ } . Otherwise, if w does not enforce the access label (), then w buffers its writes to the object, and furnishes its updates to w ′ on the next remote-call transfer, leaving w ′ as the writer.17

OPEN IN VIEWER

Fig. 16.

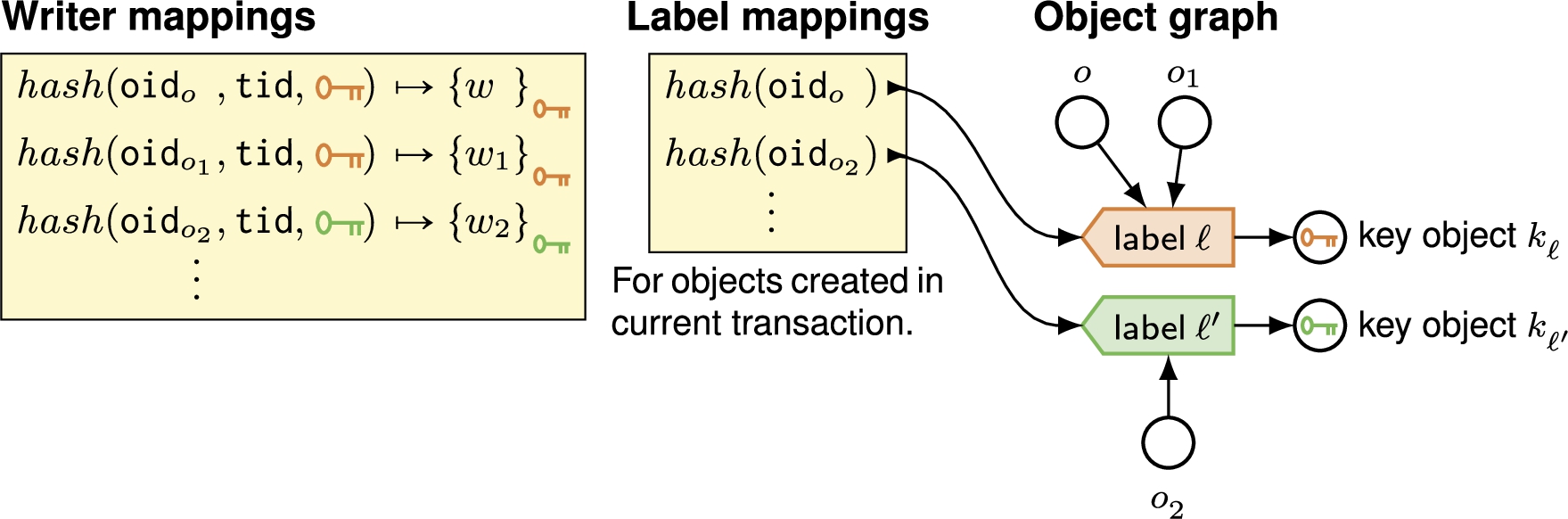

Writer maps.

Writer maps cryptographically associate the oid of each updated object with the object’s writer, as shown in Fig. 16. When a worker w updates an object o, it adds a writer mapping, shown on the left side of the figure. Writer mappings have the form hash ( o i d o , t i d , k e y ) ↦ { w } k e y . The hash is a cryptographic hash function (and therefore collision resistant); o i d o is the oid of the updated object o; tid is the identifier for the top-level transaction;18

A worker in possession of an object’s encryption key can use the writer mapping to learn whether there is an entry in the writer map for that object, and to determine which node is currently the object’s writer. Workers lacking the key cannot exploit these mappings, because the hash cannot be computed without the key. Nor can they watch for the appearance of the same mapping across multiple transactions, because the top-level transaction id is included in the hash.

Encryption keys are stored in key objects, shown in the object graph on the right side of Fig. 16. Key objects are referenced from the update labels of objects. Each instance ℓ of an update label has a different key object k ℓ , created at the same time as ℓ. The update label of k ℓ is ℓ itself, so objects have the same confidentiality and integrity as their key objects. Different instances of a label have different key objects. However, the cost of obtaining a key object is amortized, because objects with the same update label instance have the same key object.

A worker can obtain the key object for an object o by first obtaining the update label ℓ of o, and then following the reference in ℓ. The update label ℓ can be obtained in one of three ways. First, every object has an immutable reference to its update label, so if the worker has o cached, it can simply follow this reference to obtain the update label. This works even when the cache is out of date because the reference is immutable. Second, if o is not cached, but was created in a previous transaction, the worker can obtain a copy of o from its store and then follow the reference in o to obtain the update label.

Third, if o is not cached and was created in the current transaction, then it has not yet been written to a store. To handle this, the writer map contains label mappings, shown in the middle of Fig. 16. The creation of a new object o with oid o i d o adds a mapping from hash ( o i d o ) to the oid of o’s update label. Label mappings allow a worker to find the encryption key for newly created objects and then to check for a writer mapping.

To reduce the overhead of checking the writer map, each worker in the computation keeps a local version number for the writer map, which is incremented when the worker receives new writer-map information from an incoming remote-call request or a remote-call result. Each cached object at a worker has a local writer-map stamp, which records the version number of the writer map used during the previous access. No fetch needs to be done if the current writer-map version number matches the writer-map stamp.

The writer map is an append-only structure, so if an untrusted worker fails to maintain a mapping, it can be restored. The size of the writer map is a side channel, but the capacity of this channel is bounded by always padding out the number of writer map entries added by each worker to the next largest power of 2, introducing dummy entries containing random data as needed. Therefore, a worker that modifies n objects leaks O ( lg lg n ) bits of information at each control transfer, and a computation modifying n objects across c control transfers leaks O ( c lg lg n ) bits. This leakage bound for a distributed computation is conservative but should be small in practice, since lg lg n grows slowly and we expect the number of control transfers within a transaction to be small in typical use.

The management of a distributed transaction is itself distributed across the workers participating in the transaction. Each worker maintains transaction logs for the top-level transactions it is involved in. For security, workers are responsible for logging their own actions, because they may contain confidential information that other workers should not observe. For example, in the code below, the existence of a or b in the transaction log can reveal the value of secret.

Figure 17 illustrates the log structures that might result during a distributed transaction involving three workers, A, B, and C. Each transaction, including nested transactions, is identified by a randomly generated transaction id (tid). For clarity of presentation, however, the figure uses sequential tids. Each remote-call request includes the tids for the call’s entire transactional context. This allows the receiving worker to synchronize its transaction state with that of the calling worker.

In Fig. 17(a), a transaction (tid=01) starts on worker A, then calls a method on worker B, which starts a nested subtransaction (tid=02) there. Because the request from worker A includes the context ctxt=01, worker B knows that tid=02 occurs within tid=01. The method then calls to worker C, starting another subtransaction (tid=03), which finally calls back to worker B, starting subtransaction tid=04. Conceptually, all the transaction logs together form a single log that is distributed among the participating workers, as shown at the bottom of the figure.

When worker B returns to worker C, it commits tid=04, resulting in the state shown in Fig. 17(b). The procedure for committing a subtransaction with a distributed transaction log is the same as for a transaction with a non-distributed log. To commit tid=04, worker B merges its portion of the log for tid=04 with that of tid=03. Though worker C also has a portion of the log for tid=03, the two parts are kept separate.

OPEN IN VIEWER

Fig. 17.

Distributed transaction logs.

Figure 17(c) shows the state of the distributed transaction log after worker C returns to worker B, and tid=03 has committed. Before returning, worker C commits its portion of tid=03, so it merges its log for tid=03 with that of tid=02.

When control returns from a remote call, the worker always commits up to the context in which the remote call occurred. Therefore, when worker B receives control, it also commits its portion of tid=03 so it can continue working within tid=02. This merges worker B’s portion of tid=03 (which includes entries from tid=04) with tid=02.

The return from worker B to worker A is elided. The diagram looks like Fig. 17(c), except worker B has merged tid=02 into tid=01. Although a similar merge does not happen at worker C, this is not a problem, because the merge will occur when the top-level transaction commits, or when worker C receives control again. Figure 17(d) shows the latter case. Worker A calls worker B again, which starts tid=05 and calls worker C, starting tid=06.

When a worker receives a remote call, it compares its transactional context with the one it receives. The worker synchronizes its transaction log by committing up to the most recent common ancestor of the two contexts, and starting any transactions it has missed. Therefore, when worker C receives the remote call, it compares its transactional context (01:02) with the one it receives (01:05). It commits up to the most recent common ancestor, tid=01, and starts the transaction it has missed, tid=05, before starting tid=06 for the incoming call.

When the top-level transaction commits, the three workers participate in a hierarchical commit protocol to communicate with the stores of the objects they have accessed, using their respective parts of the logs.

OPEN IN VIEWER

Fig. 18.

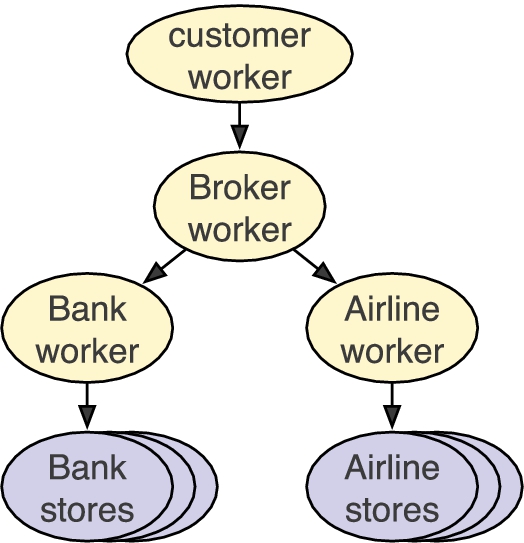

A hierarchical, distributed transaction.

A transaction may span worker nodes that do not trust each other, creating both integrity and confidentiality concerns. An untrusted node cannot be relied to commit its part of a transaction correctly. More subtly, an insecure commit protocol might cause an untrusted node to learn information it should not. For instance, simply learning the identities of other nodes that participated in a transaction may reveal sensitive information. Fabric’s _hierarchical two-phase commit_ protocol addresses these problems.

Consider the transaction shown in Fig. 18, in which a customer buys an air ticket. The bank and the airline do not necessarily trust each other; nor do they trust the customer purchasing the ticket. Therefore some computation is run on workers managed respectively by the bank and the airline. When the transaction is to be committed, some updates to persistent objects are recorded on these different workers.

Because the airline and the bank do not trust the customer, their workers will reject remote calls from the customer – the customer’s worker lacks sufficient integrity. Therefore, this scenario requires the customer to find a trusted third party. As shown in the figure, a third-party broker can receive requests from the customer, and then invoke operations on the bank and airline. Because the broker runs at a higher integrity level than the customer that calls it, Fabric’s endorsement mechanism must be used to boost integrity. This rule is needed because the security policy of the broker says that anyone is allowed to make requests of the broker. It is the responsibility of the broker to sanitize and check the customer request before explicitly endorsing it and proceeding with the transaction.

The commit protocol is a hierarchical version of the usual two-phase commit protocol. The first phase begins with the worker that started the top-level transaction. It initiates the commit by contacting all the stores for whose objects it is the current writer in the writer map, and all the other workers to which it has issued remote calls. These other workers then recursively do the same, so the first phase of the protocol constructs a commit tree, a spanning tree of the transaction’s remote-call graph. This process allows all the stores involved in a transaction to be informed about the transaction commit, without relying on untrusted workers to choose which nodes to contact and without revealing to workers which other nodes are involved in the transaction lower down in the commit tree.

The two-phase commit protocol then proceeds as usual, except that messages are passed up and down the commit tree rather than directly between a single coordinator and the stores. The first phase of the protocol not only constructs the commit tree but also causes each participating store to validate the transaction by checking permissions and comparing version numbers. Each store that successfully validates the transaction prepares to commit it. The second phase of the protocol informs all participants whether the prepared transaction should be committed or aborted.

Of course, a worker in this tree could be compromised and fail to correctly carry out the protocol, causing some stores to be updated in a way that is inconsistent with other stores. However, this worker could already have introduced this inconsistency by simply failing to update some objects or by failing to issue some remote method calls. In our example above, the broker could cause payment to be rendered without a ticket being issued, but only by violating the trust that was placed in it by the bank and airline. The customer’s power over the transaction is merely to prevent it from happening at all, which is not a security violation.

Once a transaction is prepared in the first phase of the two-phase commit, it is important for the availability of the objects involved that the transaction is committed quickly. The transaction coordinator should remain available, and if it fails after the first phase of the transaction, it must recover rapidly. An unavailable transaction coordinator could become an availability problem for Fabric, and the availability of the coordinator is therefore a trust assumption. To prevent denial-of-service attacks, prepared transactions are timed out and aborted if the coordinator is unresponsive. In the example given, the broker can cause inconsistent commits by permanently failing after telling only the airline to commit, in which case the bank will abort its part of the transaction. This failure is considered a violation of trust, but in keeping with the security principles of Fabric, the failing coordinator can only affect the consistency of objects whose integrity it is trusted to enforce. This design weakens Fabric’s consistency guarantees in a circumscribed way, in exchange for stronger availability guarantees.

The store implementation uses Berkeley DB [94] as a backing store in a simple way: each object is entered individually with its onum as its key and its serialized representation as the corresponding value. The performance of this simple approach is reasonable for the applications we have studied, probably because of the use of aggressive caching elsewhere in the system: recall that stores cache both object groups and object versions in memory, and workers cache objects across transactions. For write-intensive workloads, object clustering in the backing store might improve performance, but we leave this to future work.

It is important for performance to keep the representation of an object at a store and on the wire compact. Therefore, references in an object are stored as onums rather than as full oids. A reference to an object located at a different store is stored as an onum that refers to a surrogate object containing a forwarding pointer. This representation is compact if most references are to an object in the same store.

7.2. Class loading

Workers load and run mobile code using a custom Java class loader that we implemented in 79 lines of FabIL code. When the JVM requests a new class, the class loader fetches the corresponding Fabric FClass object, which contains the class’s source code and references to the home codebase. To specify which codebase should be used, the Fabric compiler mangles class names mentioned in mobile code to include their home codebases.

After fetching a class object, the custom loader invokes the Fabric compiler on the source code to verify the class and generate bytecode. Important context information, such as the worker’s principal, the run-time provider label of the code, and the codebase, are also passed to the compiler. The resulting bytecode is cached locally in memory and on disk, so that compilation can be reused. The custom loader then reads the bytecode from the cache and uses the Java class loader API to load it into the JVM. For bootstrapping purposes, some system classes are treated specially. They are loaded from bytecode on disk, in much the same way as by the default Java classloader.

7.3. Memory management

Workers cache persistent objects across transactions, which means that a mechanism is needed to evict objects from cache when they are no longer needed and the memory they occupy is needed for other purposes. The current implementation uses Java’s SoftReference feature to evict objects that aren’t needed by active transactions. References to an object via a SoftReference do not prevent garbage collection of the object. However, using SoftReference does introduce an extra indirection when following each reference between Fabric objects. With more direct control over code generation and the run-time platform, this indirection could be removed, likely improving the performance of worker computation. However, we leave this to future work.

Note that the eviction of an object is not observable at the level of the Fabric language, so this eviction mechanism does not create a side channel between different threads at a Fabric worker.

7.4. Unimplemented features

Most of the Fabric design described in this paper has been implemented in the currently available prototype. A few features are absent, though no real difficulties are foreseen in implementing them, and their absence should not have any significant effect on the results reported here. Distributed deadlock detection via edge chasing [24], timeout-based abort of possibly divergent computations, timeout-based abort of prepared transactions for availability, class-object replication, and path compression for forwarding chains of surrogate objects [33,44,62] are unimplemented. Full support of run-time enforcement of access labels in multi-worker transactions is incomplete. Workers also do not currently verify that the writers obtained from the writer map can enforce the objects’ integrity (Section 6.8). When an object is fetched from a remote node, a dynamic check is done to ensure that its class is a subtype of the expected type of the reference to the object. Currently this check does not consider parameters of parameterized types. Including these parameters is possible and conceptually straightforward but, in the current architecture, would require a major change to FabIL to better support parameterized types. The check comparing the remote node with the access label, described in Section 6.4, is also unimplemented.

Fabric does not currently support garbage collection for persistent objects. Garbage collection has security implications for referential integrity, studied in [76]. Designing a secure, distributed garbage-collection protocol for the federated setting remains an open problem.

8.1. FriendMap example

The prototype of Section 2’s FriendMap example contains roughly 1,800 lines of Fabric code, about 44 of which implement the extended versions of FriendMap and Snapp described in Section 5.5. We added a second version of the Snapp codebase that introduces a mood field to User objects. The version 2 classes use the explicit codebase feature to refer to the version 1 classes, and the User class in version 2 extends the User class in version 1.

We also extended the FriendMap application to make use of this added functionality. FriendMap version 2 extends FriendMap version 1, and overrides the implementation of the addPin method to color the added pin to represent the user’s mood. Because version 2 is a backward-compatible extension of version 1, it must be able to handle version 1 User objects that have no moods. The implementation uses explicit codebases to perform dynamic type checks, and falls back to version 1 behavior if version 1 users are encountered.

8.2. BiddingAgent example

In our second major example, a user supplies an agent for choosing between ticket offers made by two different airlines. The choice may depend on factors confidential to the user, such as preferred price or expected service level. Airlines, in turn, supply agents that compete for the best offer to provide to the user, while maximizing profit. This example comprises about 580 lines of code.

OPEN IN VIEWER

Fig. 19.

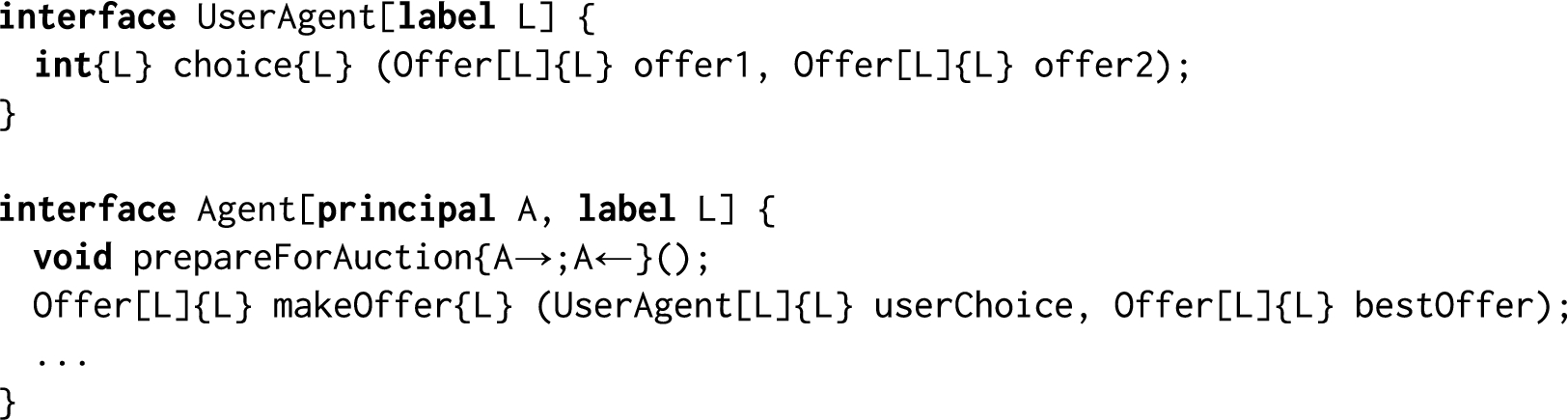

Interfaces provided by Broker.

Four parties participate: a trusted broker, two airlines, and the user. They are represented by Fabric principals broker, airlineA, airlineB, and user. The broker is trusted by others: broker ≽ airlineA, broker ≽ airlineB, and broker ≽ user. No other trust relationships are assumed. Every principal is associated with a Fabric store.

To facilitate interaction of different mobile agents, the broker publishes interfaces, illustrated in Fig. 19, for the airlines’ and user’s agents. The interfaces use principal and label parameterization, a Fabric language feature (inherited from Jif) that facilitates modular development and genericity. Interface UserAgent has a label parameter L that corresponds to the security level of the offers that it chooses from. The choice function returns -1 if the first offer is preferred, 1 if the second offer is preferred, and 0 if offers are equally preferred.

Interface Agent for airline agents has two parameters: A for the airline principal and L for the label of the offers. Two noteworthy methods here are prepareForAuction and makeOffer. Method prepareForAuction may be called before bidding starts. The begin label of this method, {A→;A←}, permits airline A to observe calls to this method. This allows airline agents to fetch new information from their airlines, such as seat availability or the current lowest prices.

Method makeOffer is called during the bidding phase to generate a new offer to the user’s agent. The signature of this method demonstrates the key feature of our mobile-code framework: the user’s agent is passed in as the method argument userChoice, and can be called internally by the airline agent. Similarly, the current best offer is passed as another argument, allowing the agent to find an offer better than the current best according to the user – while still trying to maximize profit. The enforcement of information-flow policies ensures that no confidential information (such as the user’s maximum price or offers from competing airlines) flows from the agents to the principals that provided them, despite the fact that these agents process this sensitive information directly.

OPEN IN VIEWER

Fig. 20.

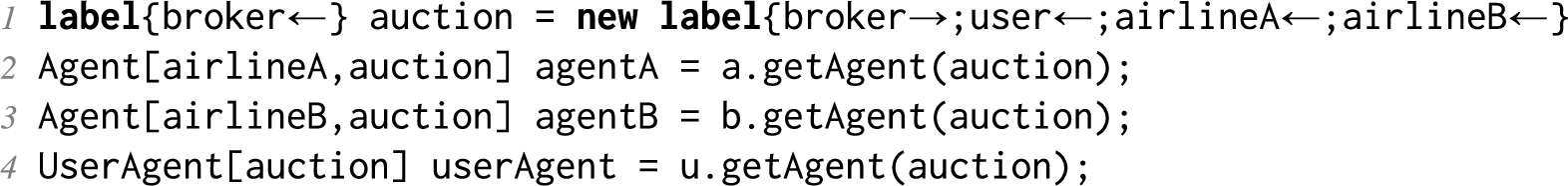

Initializing airline and user agents.

Figure 20 shows how mobile agents are initialized. Line 1 declares a label auction at which offers are produced. The confidentiality component of this label, {broker→}, records that an offer may only be read by the broker; the integrity component of this label, {user←;airlineA←;airlineB←}, records that the choice of an offer may be influenced by all three principals (the user and both airlines). Lines 2–4 initialize the airline and user agents, and illustrate how principal and label parameters are provided. To inform the user of the auction result, the winning agent and offer need to be declassified. This requires the authority of the broker; for example, the broker code to declassify the winner looks as follows:

Before declassifying the value of winner, this code endorses it to integrity {broker←}. Without this endorsement, the declassification would not be robust, because a potentially untrusted principal user can influence what confidential information they learn. Direct endorsement ensures that the programmer has explicitly acknowledged this influence. Declassification of the winning offer is justified similarly.

9.1. Course management system

To compare the performance of Fabric to current standard alternatives, we ported a portion of the CMS course management system to FabIL. The production version of CMS is a 38k-line Java web application, backed by a conventional SQL database. It has been used at Cornell University to manage course assignments and grading since 2005; at present, it is used by more than 50 courses and more than 4,000 students.

CMS has a model–view–controller architecture. In the production version, the model is implemented with Enterprise JavaBeans (EJB) using Bean-Managed Persistence. For performance, hand-written SQL queries are used to implement lookup and update methods, while generated code manages object caches and database connections. The model contains 35 Bean classes encapsulating students, assignments, courses, and other abstractions. Each Bean class corresponds to a table in a SQL database, and EJB maps instances of these classes to rows of these tables. The view is implemented using Java Server Pages.

EJB programs access persistent Bean instances using an interface based on Java Collections. Porting CMS to FabIL involved replacing this interface with a FabIL collections library based on a port of GNU Classpath. We ported the entire data schema and partially implemented the query functionality of the model. By replacing complex SQL queries with object-oriented code using loops and standard data structures, we were able to greatly simplify the model code; fully porting five of the Bean classes reduced 3,100 lines of code to 740 lines, while the view and controller remained mostly unchanged.

To guide our port, we used the trace from the production CMS server described below. This ensured our port focused on the most important application features: of the 101 types of user requests in the production application, the 11 most popular were fully ported, covering 93% of the requests captured in the trace. Many of the ported request types contain significant computation and data usage. For instance, the “course” request displays an overview of all relevant course information, including announcements, outstanding assignments and their due dates, as well as graded assignments and their grade distributions. The port was completed in less than two months by an undergraduate initially unfamiliar with Fabric. It contains 18k lines of code. These results suggest that porting web applications to FabIL is not difficult and results in shorter, simpler code.

A complete port of CMS to Fabric would have the benefit of federated, secure sharing of CMS data across different administrative domains, such as different universities, assuming that information is assigned labels in a fine-grained way. It would also permit secure access to CMS data from applications other than CMS. We leave this to future work.

Workload. We obtained a trace from Cornell’s production CMS server from three weeks in 2013, a period that encompassed multiple submission deadlines for several courses. To drive our performance evaluation, we took 10 common request types from the trace. Each transaction in the trace is a complete user request including generation of an HTML web page, so most request types access many objects. Using JMeter [59] as a workload generator, we sampled the traces, transforming query parameters as necessary to map to objects in our test database with a custom JMeter plugin.

9.2. CMS comparison baseline: Hibernate/HSQLDB

To provide a credible baseline for performance comparisons, we ported our FabIL implementation of CMS to the industry-standard Java Persistence API (JPA) [16], an API for object–relational mapping (ORM) that, like Fabric, offers a transactional programming abstraction with persistent objects. The JPA programming model lacks security policies or security enforcement, and is roughly similar to that of FabIL, though its persistence is not orthogonal and explicit calls to the transaction manager must be inserted to ensure persistence and consistency. At a high level, the JPA code for CMS is very similar to the FabIL code, using essentially the same schema and the same algorithms.

We evaluated performance of this baseline implementation using the widely used Hibernate implementation of JPA 2, running on HyperSQL (HSQLDB), a popular in-memory database. We ran HSQLDB in “READ COMMITTED” mode, a weaker level of consistency than the strict serializability provided by Fabric. We refer to this configuration as JPA.

9.3. Multiuser OO7 benchmark

The OO7 benchmark was designed to model a range of typical object-oriented database applications. The database consists of several modules, which are tree-based data structures. The leaves of the trees each contain a randomly connected graph of 20 objects. In our experiments we used the “small”-sized database according to the OO7 benchmark specification. Each OO7 transaction performs 10 random traversals on either the shared module or a private module specific to each client. When the traversal reaches a leaf of the tree, it performs either a read or a write action on each of the 20 objects. These transactions are relatively heavyweight when compared to many current benchmarks; each transaction reads about 460 persistent objects and modifies up to 200 of them. If implemented in a straightforward way with a key–value store, each transaction would perform hundreds of get and put operations. Transactions in the commonly used TPC-C benchmark are roughly an order of magnitude smaller [121], and in the YCSB benchmarks [128], smaller still.

OO7 stresses a database’s ability to handle read and write contention, because its transactions are relatively large, and because of the tree structure of the database. However, since updates only occur at the leaves of the tree, writes are uniformly distributed in the OO7 specification. To better model updates to popular objects, we modified traversals to make read operations at the leaves of the tree exhibit a power-law distribution with α = 0.7 [19]. Writes to private objects were also made to be power-law distributed, but remained uniformly distributed for public objects.

9.4. Experimental setup

We ran our experiments on two different system configurations: one for demonstrating the performance of Fabric using OO7 and CMS, and another for measuring the performance effects of mobile code using FriendMap and BiddingAgent.

When measuring performance of distributed servers, the choice of load model has been shown to have a large effect [108]. Often performance has been measured with a closed system model, in which the number of clients generating requests is fixed. In an open system model, user requests arrive independently at some average rate. This is usually considered more realistic and a better way to evaluate system scalability because it models the burstiness of requests in real systems. Our OO7 and CMS performance experiments use a compromise that we call a semi-open system model. In the open model, worker nodes execute transactions at exponentially distributed intervals while meeting a specified _average request rate_. Consequently, each worker is usually running many transactions in parallel. Overall system throughput is the total throughput from all workers. Our semi-open model follows the open model, but due to experimental resource constraints, there are a fixed number of workers, each with limited capacity to run concurrent transactions. Under extreme system loads, a worker might be unable to start a new transaction (due to too many concurrent threads), and the load generated would therefore be lower than that of a truly open system. To find the maximum system throughput, the average request rate is increased slowly until the target throughput cannot be achieved.

These experiments are run on a Eucalyptus cluster. Each store runs on a virtual machine with a dual-core processor and 8 GiB of memory. Worker machines are virtual machines with 4 cores and 16 GiB of memory. The physical processors are 2.9 GHz Intel Xeon E5-2690 processors.

The performance effects of mobile code were measured in a non-distributed setting, on an Intel Core i7-860 system with 4 GiB of memory.

OPEN IN VIEWER

Fig. 21.

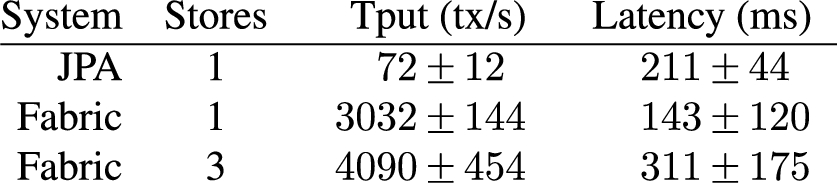

CMS throughput and latency on various systems. Reported results are averaged over 10 s at max throughput, across three runs.

Figure 21 reports the performance of the CMS application in various configurations. In the three-store configuration for Fabric, two stores each held data for multiple courses, while the third store contained metadata. We present results only for a single JPA database instance. Even in this single-store setting, and even with Hibernate running in a weaker-consistency mode (“optimistic locking”), Fabric significantly outperforms it in our experiment. Moreover, because the CMS workload is read-biased, we expect JPA with pessimistic locking to perform even worse [63,113].

Although the JPA implementation enforces weaker consistency, Fabric’s more precise object invalidation helps performance as contention increases. This comparison shows that the performance of Fabric is competitive with an industry-standard framework offering a transactional language-level abstraction.

OPEN IN VIEWER

Fig. 22.

OO7 maximum throughput on a 2%-write workload as the number of stores increases.

Increases in throughput would be less compelling if they came at the cost of high latency. Figure 21 also reports the latency measured with the CMS workload on the various systems, showing that they are comparable.

We evaluated the scalability of Fabric using the OO7 benchmark with varying numbers of stores. Recall that the OO7 database consists of several tree-like modules: a private module for each client, and a shared module. In our setup, a “shared store” was reserved for the modules’ inner nodes. The leaves of the shared module were also placed on the shared store, while the leaves of each private module were distributed evenly across the remaining stores. Results presented are the average of three runs.

Figure 22 shows maximum throughput in total transactions committed per second by 36 workers, as the number of stores increases. Error bars show the standard deviation of the measurements. The large variation appears to be result of garbage collection. Since the shared store is a bottleneck, this benchmark is decidedly not a best case for measuring scalability. However, Fabric is able to add roughly 130 tx/s per additional store.20

OPEN IN VIEWER

Fig. 23.

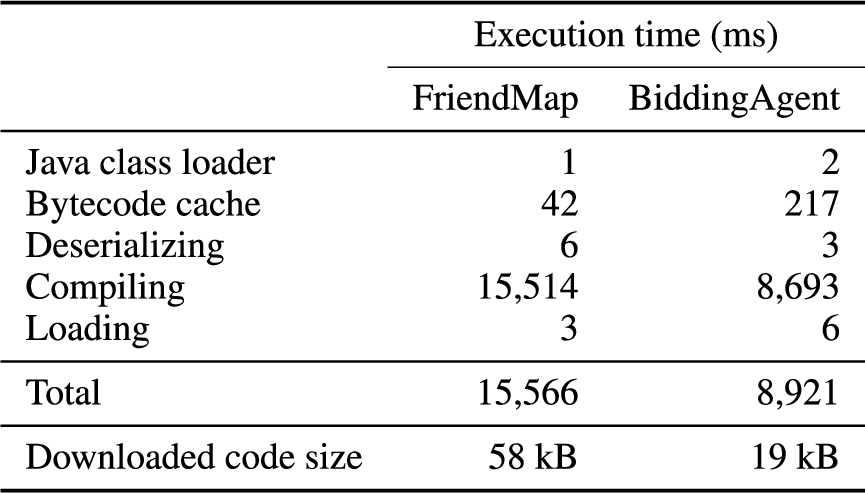

Execution time for the steps required to verify and load dynamically compiled mobile code, averaged over five runs.

To show the effect of mobile code on performance, we break down the execution time of the FriendMap and BiddingAgent examples. Figure 23 gives the execution time of each step required to load the mobile classes from Fabric into the JVM.

As expected, almost all the time is spent invoking the compiler to analyze the code and generate bytecode. Our compiler has not yet been optimized for run-time compilation, so we expect that that time could be reduced significantly. Additionally, a lower-level intermediate representation such as annotated bytecode, would likely support verification with less overhead. Developing such a representation and analysis was beyond the scope of our research goals. More importantly, the analysis can often be avoided entirely – when either the worker has compiled the class in the past and retains a cached copy, or the worker trusts the provider of the code to correctly compile it. The implementation currently only leverages the former case.

To demonstrate this, Fig. 24 shows the time required to load the classes in our examples, in two scenarios: with all classes dynamically compiled at load time, and with all classes pre-compiled and locally cached. We have also written a non-mobile version of the bidding agent example, and give the load time for that as well. These results show that the initial cost of dynamically compiling code is quickly amortized when code is used more than once. Sharing pre-compiled code among trusted nodes would reduce overhead even further.

OPEN IN VIEWER

Fig. 24.

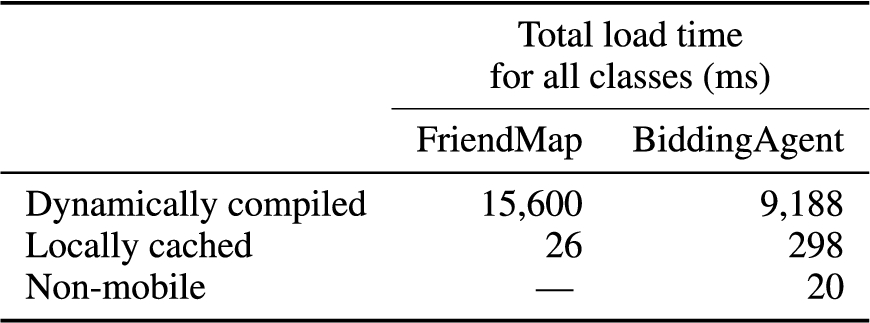

Total time spent in the class loader, under different conditions. We present the mean over five runs.

OPEN IN VIEWER

Fig. 25.

Running time of the mobile-code examples.

To focus on the run-time overhead of mobile code, we ran the benchmarks both with and without caching compiled bytecode locally. The results of this benchmark are shown in Fig. 25.

For comparison, the second row of Fig. 25 gives the execution time for uncached code, excluding the dynamic compilation time. For both FriendMap and BiddingAgent, this result is less than the cached execution time (second row of Fig. 25). This shows that compiling code has side effects, such as populating the object cache, that would have been performed anyway. The benefits of these compilation effects may vary from application to application, however. FriendMap appears to benefit from compilation effects significantly more than BiddingAgent does.
