A study on a feasible no-root approach on Android

Abstract

Root is the administrative privilege on Android, which is however inaccessible on stock Android devices. Due to the desire for privileged functionalities and the reluctance of rooting their devices, Android users seek for no-root approaches, which provide users with part of root privileges without rooting their devices. Existing no-root approaches require users to launch a separate service via Android Debug Bridge (ADB) on an Android device, which would perform user-desired tasks. However, it is unusual for a third-party Android application to work with a separate native service via sockets, and it requires the application developers to have extra knowledge such as Linux programming in application development. In this paper, we propose a feasible no-root approach based on new functionalities added on Android, which creates no separate service but an ADB loopback. To ensure such no-root approach is not misused in a proactive instead of reactive manner, we examine its dark side. We find out that while this approach makes it easy for no-root applications to work, it may lead to a “permission explosion,” which enables any third-party application to attain shell permissions beyond its granted permissions. The permission explosion can further lead to exploits including privacy leakage, account takeover, application UID abuse, and user input inference. A practical experiment is carried out to evaluate the situation in the real world, which shows that many real-world applications from Google Play and four third-party application markets are indeed vulnerable to these exploits. To mitigate the dark side of the new no-root approach and make it more suitable for users to adopt, we identify the causes of the exploits, and propose a permission-based solution. We also provide suggestions to application developers and application markets on how to prevent these exploits.

Keywords

Android root no-root approach permission explosion Android Debug Bridge (ADB)exploits analysis

1. Introduction

Android devices are popular in recent years, dominating 78% of the market share in the first quarter of 2015 [28]. As an operating system, Android has 23 main versions (i.e., API levels) since the initial release in September 2008. While all versions are in use nowadays, the later Android versions from API level 15 to 22 take up to 95.7% in the distribution of Android devices according to the official statistics [20]. Android is a Linux-based system with discretionary access control enforcement. Root access, which is part of traditional Linux systems, is blocked on stock Android devices for security reasons. If users would like to gain a complete control over their Android devices with administrative permissions, they could root their devices at their own risks, such as device bricking, warranty turning void, and malware breaching security protections.

To avoid the risks of rooting their Android devices, users turn to no-root approaches which enable them to attain their desired permissions but without rooting their devices. The motivation of using such no-root approaches might be strong since Android devices do not always provide all easy-to-use but desperately needed features. For example, popularly desired features such as screen capture, wireless tether, and application backup are not available before Android 4.0 for normal users. It is a natural choice for users to resort to no-root approaches for the desired features if they do not want to risk rooting their devices. It is notable that even some of the features are added to the newer versions, users are still fond of no-root applications either because of the user-friendly interfaces and good user experiences or the continuation of user’s habit. For example, Helium [13], which provides no-root data backup service, is still popular after Android provides backup service after version 4.0. Consequently, some popular no-root applications [1,2,13,25], have achieved millions of downloads and high reputations in Google Play.

The existing no-root applications [1,2,13,25–27] are primarily based on the power of Android Debug Bridge (ADB) [4]. ADB is the official command-line debugging tool for Android. It wraps a set of protocols for debugging jobs, including file transfer, command execution, and other necessary testing tools. The existing no-root approach requires a USB-cable connection between a development computer and a target Android device, through which a user may use ADB commands on the development computer to launch a separate executable program as background service on the target device. Since the background service is started by ADB, it inherits the ADB privileges which are originally assigned to ADB for debugging purposes. The background service can be designed such that it responds to the user’s requests made from certain no-root applications running on the target device and performs certain privileged tasks which the no-root applications are not authorized to perform.

However, it is unusual for an Android application (hereinafter, “app” for short) to work with a separate native service by communicating via sockets. It requires app developers to have extra knowledge such as Linux programming so as to develop the separate native service. In this paper, we propose a feasible no-root approach leveraging the new ADB functionality provided on Android. This no-root approach has its advantage compared to the other no-root approaches in that it creates an ADB loopback instead of a separate native service. After the ADB loopback is created, a no-root app on the target device can run as a debugger to execute ADB commands in the TCP mode, as long as it has the internet permission.

Though we have not found any wild sample using this new no-root approach, it may appear in the market at any time in any form, e.g., malicious apps pretending to be no-root apps. To ensure that such no-root approach is not misused in a proactive instead of reactive manner, we examine the dark side of this approach, and find out that it can be potentially exploited to launch many serious attacks. In particular, it may lead to a “permission explosion,” which enables any third-party app with the internet permission to attain all shell permissions beyond its granted permissions. Once an ADB loopback is set up, it may be misused by any internet-enabled apps running on the user’s device due to the permission explosion.

While it is well known that ADB is powerful and it may lead to many attacks due to its debug privilege, it is not clear before about the impact and prevalence of such attacks. We reveal that the attacks can be launched from an app on a standalone victim device instead of on a development computer connected to the victim device. We examine typical attacks exploiting this no-root approach, including privacy leakage, account takeover, application UID abuse, and user input inference. Based on the attacks we identified, we evaluate the vulnerabilities that can cause such attacks on an app dataset collected from Google Play and third-party markets. It shows that many real-world apps are vulnerable to these attacks.

To avoid the exploits brought by the no-root approach, we discuss the causes of the exploits and suggest how to mitigate them. The root cause of the exploits is the ADB loopback, which is further due to the availability of the ADB client and the TCP mode of ADB connection on Android devices. We reported the issue to Google security team. The latest Android 6.0 takes action to remove ADB client and ADB server to avoid the attacks. While it would be a simple solution to block ADB loopback in the future versions of Android, it is not ideal due to sacrificing much benefit/convenience of ADB debugging and no-root apps. To address this problem, we propose an alteration permission-based solution, which introduces no significant change to the current security mechanism on Android, but adds one more permission to control the use of ADB. Except for the permission-based solution on the Android’s side, we also provide suggestions to app developers and app markets, since it is observed in our analysis that their negligence contributes a big part to exposing apps to the dark-side exploits.

The rest of this paper is organized as follows. Section 2 introduces the background knowledge on ADB and no-root apps. Section 3 presents a new feasible no-root approach based on ADB loopback, and describes the permission explosion it may cause. Section 4 provides details on typical exploits on the dark side of ADB loopback, including privacy leakage, account takeover, application UID abuse, and user input inference. Section 5 discusses the causes of the exploits, proposes a permission-based solution, and suggests to app developers and app markets on how to mitigate the exploits. Section 6 summarizes the related work, and Section 7 concludes the paper.

2. Background

2.1. ADB

ADB is a debug system for Android that allows developers to connect development computers and Android devices (or emulators). Developers can debug Android devices on separate development computers equipped with other operating systems via ADB. As shown in Figure 1, ADB includes three components, i.e., ADB client, ADB server, and ADB daemon. In practice, ADB server is implemented in the same binary as ADB client. A developer issues an ADB command via the ADB client on a development computer. The ADB server on the development computer, passes the command from ADB client to the ADB daemon which runs on a target Android device. When the response of the ADB command is ready, it passes back to the developer along the same route. Before debugging, there is a switch to be enabled in the Settings→Developer options.

Fig. 1.

The ADB architecture.

Taking security into consideration, the debugging connection is performed with RSA authentication since Android 4.2.2. On these new versions, an Android device authenticates a development computer it is connected to by verifying the RSA signature of the development computer. In addition to the authentication, ADB connection requires a manual confirmation. Each time a development computer requests to connect, there’s a pop-up dialog on the connected Android device showing the MD5 hash of the RSA public key of the development computer which the user can use to confirm the approval of debugging from this development computer. The confirmation is to make sure that the debugger indeed has the access to the target device, capable of unlocking the device and responding to the pop-up dialog correctly. The confirmation dialog could be also waived, once “Always allow from this computer” has been checked during the confirmation of the connection from this computer.

ADB capability can be categorized into two parts: ADB commands and shell commands. ADB commands fulfil the functionalities for debugging purpose, such as device connection, app (un)installing, data transfer, and shell starting. Shell commands can be used after the shell starting, when a shell user, whose UID is 2000 on Android, is born with shell permissions. The permissions for the shell user are listed in Table 7 in Appendix. The majority of shell permissions have protection levels higher than “dangerous.” Any permissions at “signature” level or “signatureOrSystem” level are either hidden or not for use by third-party apps, and such permissions account for more than half (43 out of 65) of the shell permissions. High-level shell permissions are necessary for debugging as debugging requires close inspection and precise control of system status and resources. It is because of ADB’s powerful debugging functionalities and high-level permissions that we need to make sure that ADB is not misused for malicious purposes.

2.2. No-root applications

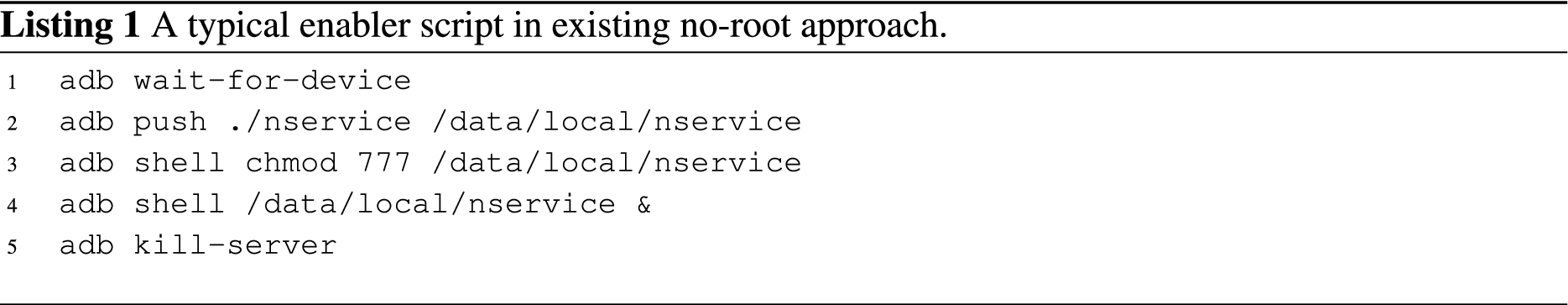

ADB is commonly adopted by existing no-root apps during their preprocessing [1,13,25–27]. The preprocessing usually includes two manual operations. The first is to connect the Android device to a development computer and switch on the debug mode in the Settings→Developer options. The second is to run a provisioned enabler on the development computer which has been downloaded separately from a no-root app’s website. To understand the purpose of using an enabler, we introduce a typical enabler script, which is shown in Listing 1. In Listing 1, “nservice” denotes the native service that performs a target task which requires certain high-level permissions. The executable of this service is pushed to the Android device using a command “adb push” (Line 2), and its access permission is changed to “executable” for all users (Line 3). Then, the service is started by ADB shell (Line 4) so that it inherits the shell permissions for exercising some privileged functionalities such as screen shot. After that, the no-root app which directly interacts with users, is able to work by delegating some of its tasks to the running service through sockets.

3. A feasible no-root approach

In contrast to the existing approach, whose privilege resides in a separate service, we propose a feasible no-root approach that requires no separate service but attains the full shell capability. It achieves no-root via ADB loopback which works on 95.7% of the distribution of Android devices [20].

3.1. ADB loopback

An Android device from API level 15 to 22 can debug another Android device, because these new versions have introduced the ADB components, which are originally on development computers, to Android systems, i.e., ADB client and ADB server (shown as the dashed ADB Binary in Figure 2). In addition, the connection mode is not limited to using USB cable. A TCP mode newly added since version 4.0 allows a development computer using TCP links to connect to the target Android device (shown as the dashed TCP connection between the development computer and the Android device in Figure 2). However, an inconspicuous side consequence is that an Android device gains the capability of debugging itself by connecting its ADB server to its local ADB daemon (shown as the dashed ADB loopback in Figure 2). Based on such ADB loopback, we propose a feasible no-root approach.

Fig. 2.

ADB loopback.

Similar to existing no-root approaches, this approach takes a preprocessing. What a user needs to do in this preprocessing is to run a script which we name as “Looper” on a development computer connected to the target Android device via a USB cable. Looper can work on any platform that supports Android ADB. Listing 22

In Looper, it must be done on a development computer to change ADB connection mode to TCP mode (Line 1), whereas the rest could be alternatively executed on the target Android device without prefix “adb shell.”

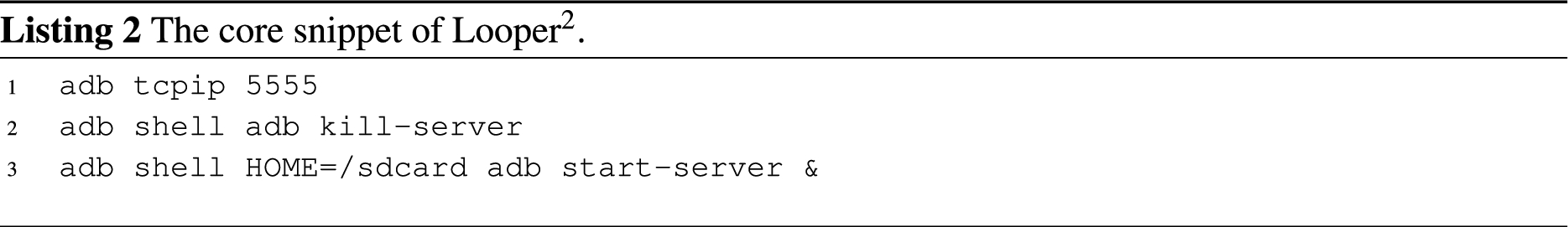

shows the core snippet of Looper. First of all, Looper turns on the TCP mode at port 5555 on the target Android device (Line 1). Then, Looper kills the existing ADB server on the target Android device in case it is running (Line 2) and restarts it, setting “/sdcard” as HOME folder (Line 3). The purpose of setting “/sdcard”1

We use “/sdcard” folder for brief illustration. It can be set to any folder that can be accessed by the shell user.

as HOME folder is to guarantee that Looper should work as well on Android 4.2.2 and higher. This is because since Android 4.2.2, ADB introduces the RSA authentication for an ADB daemon on an Android device to authenticate an ADB server on a development computer. In our case of ADB loopback, the ADB server is located on the same Android device hosting the ADB daemon. When an ADB server requests to connect to local ADB daemon, it generates and stores the RSA key pair on the Android device in a sub-folder of HOME folder (“HOME”/.android/) for authentication. Note that the HOME folder by default is “/data” which is inaccessible to the shell user. Therefore, we change the HOME folder to shell-user-accessible “/sdcard”, so that the RSA key pair of the ADB server can be stored successfully for later authentication. The confirmation dialogs showing the hash values of the RSA keys of the development computer (while changing ADB connection mode to TCP mode) and the target Android device itself (while establishing ADB loopback locally) will be prompted correspondingly after Line 1 and Line 3 in Listing 2. The confirmation dialog only pops up once during the establishment of ADB debug connection. There would be no further popping up during the use of no-root apps. Though the confirmation dialogs are only popped up during the preprocessing, when a user is responding to a confirmation dialog, (s)he is encouraged to check “Always allow from this computer”, in which “this computer” refers to his/her computer or Android device. This allowance would waive the confirmation dialog when an ADB connection is established from the user’s computer or Android device again.

After ADB loopback is established, a no-root app with the permission to connect to local TCP ports can play the role of a debugger. The permissions of ADB that are intended for remote development computers are now available on stand-alone Android devices for such apps. As a result, by using ADB loopback, no-root apps can perform privileged tasks as long as they can connect to local TCP ports.

3.2. Permission explosion

No-root has always been a double-edged sword.3

³
It is shown that the existing no-root approach could lead to privacy leakage due to the insecure socket communication between the no-root app and its native service [16].

Though we have not found any wild samples using this no-root approach, they may appear in the market at any time in any form (e.g., a malicious app pretending to be a no-root app) since they are easy to implement. Once the no-root approach via ADB loopback is set up, any installed app with the permission to connect to the local ports may exploit the ADB loopback and attain shell privileges.

Recall on Android, permission control is the basic security mechanism. Sensitive resources and system functions are all protected by permissions. Apps request for permissions explicitly during installation. The grant procedure varies according to the protection levels of requested permissions. There are four protection levels for permissions, which are “normal”, “dangerous”, “signature”, and “signatureOrSystem.” The normal level permissions are automatically granted as they are considered harmless. The permissions listed on screen during installation are mostly at dangerous level, which should be approved by users explicitly. The signature level permissions are granted only if the requesting app is signed with the same certificate as the app that declares the permissions. Specifically, for the permissions defined by Android system, the certificate of the app that declares the permissions is the system certificate. The signatureOrSystem level permissions are granted either the requesting app satisfies the grant condition of signature level permissions or the app is built in the Android system image. Hence, the permissions requested by an app represent the app’s capability. There are already many solutions proposed to model an app’s capability through permission analysis, based on which advanced security mechanisms can be developed [6,9,35].

A “permission explosion” happens when an Android app plays the role of a debugger and attains shell privileges by ADB loopback. The only permission needed is “android.permission.INTERNET”, which is the permission needed for connecting to the local ports so as to establish the ADB loopback. On an Android device that has adopted the no-root approach via ADB loopback, an app can act as a debugger to issue ADB or shell commands by invoking ADB client on the device. The commands are passed to ADB daemon via the TCP connection. It is the ADB daemon (adbd), which runs in shell UID, that truly performs the privileged operations. Therefore, when Android checks whether the process performing privileged operations has certain permission, the check is enforced on ADB daemon instead of the calling app without that permission. In this case, an app only with the internet permission can obtain all capabilities under the protection of shell permissions including the permissions at the signature level and signatureOrSystem level. The permission declaration in AndroidManifest.xml no longer reflects the whole capability of any app with the internet permission. Consequently, any existing analysis and protection mechanisms based on app permissions would be in vain.

It is known that the shell privileges are just part of the total control of Android. What permission explosion makes things worse is, however, the capability of misusing the package (un)installation permission which could (un)install APK files silently even when “Unknown sources” is disabled. This would enable malwares to settle down on target devices. With this capability, there is no need for a malware to request for all necessary but suspicious permissions since it can install more malwares silently and conclude with them in attacks. Collusion with sound job division [8] is hard to detect based on analysing app individually [18]. In addition, this capability makes it possible to replace a benign app with a malicious one displaying similar icon and UI in app phishing [11], which may steal users’ input such as account credentials without users’ awareness.

The no-root approach we propose is easy to implement, and it meets the user’s requirement for no-root. We need to ensure that this no-root approach is not misused, since an app using this no-root approach may come to market at any time. Thus, it is necessary to estimate the potential threats to other existing apps from such no-root approach.

4. Exploits on the dark side

The no-root approach may lead to permission explosion which is due to the locally available ADB functionalities. While it is well known that ADB is powerful and may lead to many attacks due to its debug privilege, it is not clear before about the exact impact and prevalence of such attacks. We investigate these attacks for the purpose of preventing them proactively. In particular, we set up a no-root environment and discover that the no-root approach can be potentially exploited to launch many serious attacks, including privacy leakage, account takeover, application UID abuse and user input inference. Moreover, we evaluate on a real-world dataset to see how prevalent the exploits are. According to the evaluation results, we would say that some of the attacks are not merely due to the permission explosion. The negligence of apps developers and app markets is another important reason.

4.1. Adversary model & experiment setup

The scenario of our investigation is that a user has a device which is not rooted. (S)he has installed a no-root app that adopts our no-root approach on his/her Android device for the purpose of enjoying privileged functions without rooting the device. We investigate the potential threats from a malicious app only with the internet permission, i.e., how much the other installed apps on the same device would suffer from the malicious one in terms of security and privacy.

After identifying the threats, we test the vulnerabilities causing the threats on a recently collected dataset to find out how prevalent the exploits are among real-world apps. Table 1 shows about 100,000 apps we collected between June and December 2014 from Google Play and four third-party app markets from United States (US) and China (CN), including Android Freeware (US), Anzhi Market (CN), Eoe Market (CN), and Slide Me (US).

Table 1
The distribution of our application dataset

Markets #

Google Play 26,548

Android Freeware (US) 3,543

Anzhi Market (CN) 59,474

Eoe Market (CN) 4,330

Slide Me (US) 6,475

Markets	#
Google Play	26,548
Android Freeware (US)	3,543
Anzhi Market (CN)	59,474
Eoe Market (CN)	4,330
Slide Me (US)	6,475

Two Android devices without root privilege, i.e., Nexus 4 and Nexus 5, which have been preprocessed by Looper, are used in our experiments. It is verified that this new no-root approach works on the Android versions ranging from 4.0.4 to 5.1.1.

4.2. Privacy leakage via application logs

Android provides a logging system for collecting and inspecting debugging outputs. The access to log messages is regulated by callers’ UIDs. Normal users, i.e., third-party apps without root privilege, can only access the logs related to themselves, whereas the shell user is not limited by such restriction. Therefore, when an app attains the shell privileges via the no-root approach we propose, it can get all system-wide logs using logcat which is the official tool for dumping log messages.

Since the system-wide logs are readable, we investigate whether a malicious app can obtain any sensitive information from the logs of other apps. In fact, Android documents suggest that logs should be managed according to their types. The logs of verbose type should never be compiled into an app except during development, and the logs of debug type can be compiled in but should be stripped at runtime [3]. The negligence of logging informative data has also been pointed out previously [17]. If there is no sensitive data being logged, a malicious app can get nothing even with the capability of dumping log messages. We are interested to know what the situation is in app markets nowadays. Do app developers remove their logs as required? The answer is “no” according to our investigation.

We need to clarify in this case what information is sensitive. We classify the sensitive information on mobile devices into four categories, i.e., device parameters, app account information, user interaction indications, and others. The first category is the device parameters which reflect the characteristics of devices, including Android version, device model, manufacturer, root status, and SIM card related information such as phone number, IMEI, and IMSI. The second category, i.e., app account information, is on the application level, which includes account ID, account credential, and personal profile. The third category is the user interaction indications, which indicate the operations a user performs at different time, such as opening an activity and inputting a password. In addition, geographic information (e.g., location, latitude/longitude, and country code) and network status (e.g., SSID, gateway IP, and network quality) are classified into the last category along with other information.

To evaluate the risk of leaking sensitive information against the privacy leakage exploit, we select top 10 account-sensitive apps from the top free list from Google Play and Anzhi Market, respectively. We run these 20 target apps on our experiment device, and test them manually according to their functionalities. The observation on the messages logged by these apps begins from the time when they are launched, and lasts the entire runtime till there’s no further operation. Experimental results show that 11 of the 20 top-ranked apps log some sensitive data. The apps with respect to their logged sensitive information are shown in Table 2. According to the location of logging code (i.e., the code generating logs), we categorize the logs of sensitive information into two types.

Table 2
The sensitive information collected from log messages of the top free account-sensitive applications

Applications Device parameters Account information User interactions Others

org.mozilla.firefox (G) ✓ ✓ – –

com.tencent.mtt (A) – ✓ – –

com.taobao.taobao (A) ✓ ✓ – –

com.sinovatech.unicom.ui (A) ✓ ✓ ✓ ✓Location

com.skype.polaris (G) ✓ – – ✓User agent string, country code

com.tencent.mobileqq (A) – – – ✓Gateway IP, SQL statement, established connections, network info and quality test

com.google.android.youtube (G) ✓ – – ✓Country code, network info

com.facebook.katana (G) – ✓ – ✓Gateway IP, GPS data

com.cleanmaster.mguard (A) ✓ – ✓ –

com.snapchat.android (G) – – ✓ –

co.vine.android (G) – – ✓ –

Applications	Device parameters	Account information	User interactions	Others
org.mozilla.firefox (G)	✓	✓	–	–
com.tencent.mtt (A)	–	✓	–	–
com.taobao.taobao (A)	✓	✓	–	–
com.sinovatech.unicom.ui (A)	✓	✓	✓	✓Location
com.skype.polaris (G)	✓	–	–	✓User agent string, country code
com.tencent.mobileqq (A)	–	–	–	✓Gateway IP, SQL statement, established connections, network info and quality test
com.google.android.youtube (G)	✓	–	–	✓Country code, network info
com.facebook.katana (G)	–	✓	–	✓Gateway IP, GPS data
com.cleanmaster.mguard (A)	✓	–	✓	–
com.snapchat.android (G)	–	–	✓	–
co.vine.android (G)	–	–	✓	–

We test top 10 free account-sensitive applications from Google Play (G) and Anzhi Market (A), respectively.

Only those with sensitive information in logs are shown.

“✓” means that the corresponding category of sensitive information is spotted in logs.

The first type is logged by apps themselves. One example of such app is “com.sinovatech.unicom.ui” which is the service app of China Unicom.4

⁴

China Unicom is one of the largest mobile carriers in China, which operates with about 300 million subscribers.

The logs of this app contain much sensitive information. User account information is spotted, including phone numbers, account balances, monthly real-time costs, and bonus points. Besides, user interactions are recorded. For example, each time a user navigates to the activity for password reset, a log message is recorded indicating the title of the activity – “password reset.”

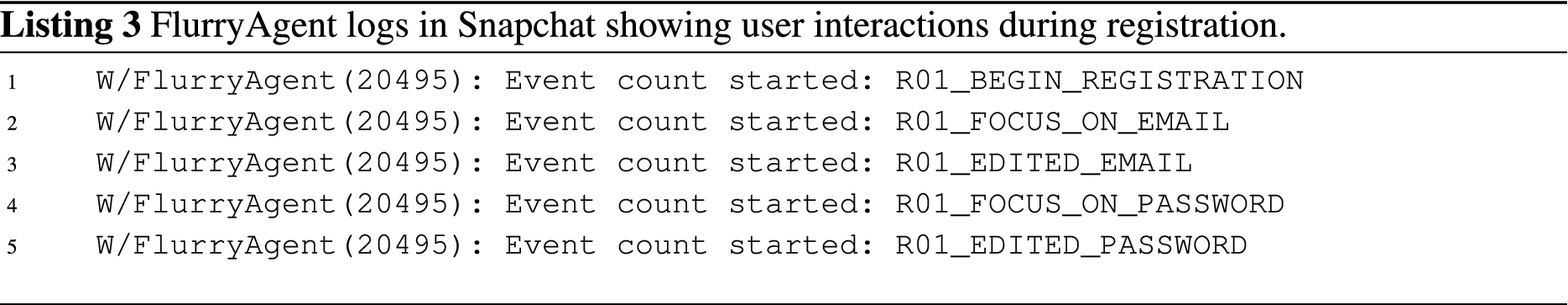

The second type of logs is from third-party SDKs. For example, Snapchat [29] and Vine [31] both use Flurry [12] SDK to help their developers to know how the apps are used by users according to accurate usage data analytics. Flurry defines log APIs, including FlurryAgent.setLogEnabled() and FlurryAgent.setLogLevel(), for developers to monitor the runtime behaviours of apps during developing and debugging. It is observed that due to the developers’ improper use of FlurryAgent, it logs some of the user operations when a user interacts with an activity shown on screen. One of such cases, which happens during registration, is demonstrated in Listing 3. It can be inferred from its logs that Snapchat first focuses on the email field (Line 2), and then the edit on this filed begins (Line 3). After that, it focuses on the password filed waiting for inputs (Line 4). Once a user starts inputting his/her password, it immediately outputs the corresponding log (Line 5). Even though there’s no direct leakage of email or password, the information about focusing and editing can be used by a malicious app to know the accurate time of entering usernames and passwords, and such accurate time is important for launching other attacks such as keylogger attacks.

4.3. Account takeover via ADB backup

On Android, a third-party app stores private data in its private folder, the access to which by other third-party apps is prohibited so as to avoid account takeover. A private folder is thus only accessible to Android system and its owner app. Even the shell privileges cannot access such data directly. We show that however, there is an alternative way to achieve account takeover without knowing any account credentials.

ADB backup is an ADB mechanism which performs the backup and restore task on Android. It can be used to back up all the data files in an app’s private data folder, including databases and shared preferences, to a single file.5

⁵
The file containing backup data is not protected by default. A user can choose to use password to encrypt backup file by setting Developer options→Desktop backup password. In this section, we assume that the setting is by default, i.e., with no password.

This backup is enabled on the condition that the application attribute “allowBackup” is set to “true”, which by default is. A good use of ADB backup is to backup apps’ data and then restore them on the same device after system upgrade or data corruption. However, on the dark side, it is possible to restore the backup data on a different device.

Account credentials are rarely stored in plain text locally, thus it is of little use to obtain the data in apps’ private folders. Nevertheless, when restored on a different device, an app’s account login status could be kept the same as they were on the former device. Hence, a malicious app can take over other apps’ private data protected in the account circuitously by backing up target apps and then restoring them on a fully-controlled device. In such case, even the attacker does not know the account credential, (s)he can perform any operation to the target app with a logged-in account on the restored device. To avoid becoming a victim, an app should detect any new runtime device and protect its private data accordingly, e.g., logging out of the account if a different runtime device is detected. In the following, we investigate how many real-world apps in our collected dataset allow backup, and whether some most popular apps enforce any protection on their private data when restored on a different device.

In the first part of our investigation, we focus on the usage of “allowBackup” in the dataset we collected from multiple markets (Table 1). The results are shown in Table 3. We observe that most apps do not set “false” explicitly to the backup attribute either by intention or ignorance, which means that they are potential victims of the above-mentioned account takeover exploit. A small portion of apps set “allowBackup” to “false”, which accounts for 6.95% in Google Play dataset. This proportion is lower in alternative market datasets; the lowest proportion is 0.01% in Anzhi Market. It is both reasonable to set “allowBackup” to either “true” or “false.” However, it is critical for an app with true (or default) value in “allowBackup” to enforce some necessary protection on the backup data.

Table 3

The usage of “allowBackup” in our application dataset

	Google Play		Anzhi Market		Eoe Market		Android Freeware		Slide Me
allowBackup	True	False	True	False	True	False	True	False	True	False
By definition	8,778	1,846	29	8	1,876	234	1,052	165	1,967	223
By default	15,924	–	59,437	–	2,220	–	2,326	–	4,285	–

In the second part of our investigation, we focus on whether some popular apps that allow backup would lead to account takeover. Unlike the first investigation which can be performed in a large scale, this investigation requires a manual analysis of a small number of apps so as to verify account takeover. In this investigation, we choose two categories of apps for which it is important to protect users’ data against account takeover (i.e., mail apps and browser apps), and the most popular apps in these categories (i.e., top 5 apps). Specifically, we target at the top 5 free mail apps (i.e., K-9 Mail, myMail, Microsoft Outlook, Yahoo Mail, and Mail.Ru) and top 5 free browser apps (i.e., Chrome Browser, Opera browser for Android, UC Browser, Dolphin Browser for Android, and Firefox Browser for Android) in Google Play. The values of the backup attribute show that all of the 10 apps can be backed up.

The mail apps are used for handling emails, such as logging in, sending/receiving mails and saving drafts. We inspect into account login status, inbox/outbox mails, and draft content after restoring a user’s account data to a different device. Table 4 shows that three out of five mail apps keep their accounts logged in on the different device to which they are restored as they were logged in on the original device. In such case, the whole account data is accessible and arbitrary mailing operations can be performed on the restored device, which leads to the takeover of their mail accounts. In contrast, the other two apps have adopted certain protections, both of which require re-login after being restored on a different device. A minor difference is that Yahoo Mail needs both username and password to complete the re-login, whereas myMail prompts the username as a hint and requests the password only.

Table 4

Data accessible status for mail applications after being backed-up on one device and restored on a different device

Application	Account	In/Outbox	Draft
com.fsck.k9	✓	✓	✓
com.my.mail	✗ *	✗	✗
com.outlook.Z7	✓	✓	✓
com.yahoo.mobile.client.android.mail	✗	✗	✗
ru.mail.mailapp	✓	✓	✓

“✓” means accessible, “✗” otherwise.

Username is obtained.

For browser apps, we care about the data related to user privacy and account safety, including browser account login status, saved passwords (for other websites), history, bookmarks, and downloads. Table 5 shows whether the above-mentioned data is accessible by an attacker after restoring a user’s account data to a different Android device. History data and bookmarks are accessible for all five browser apps on the different device. Although no downloaded file is available, because the “Downloads” folder, which is the recommended location to store downloaded files on Android, is not within the browsers’ backup scale (i.e., private data folders), two of the five browsers still leak valuable information about users’ downloads by either filenames or URLs. Except Chrome, all tested browsers that support account login fail in detecting the change of runtime device, and keep their accounts logged in on the restored device. A more serious problem is that some browsers provide the choice of saving login credentials for users. Such browsers can fill in the login forms of visited websites with saved usernames and passwords. In our testing, four browsers (i.e., Chrome Browser, Opera browser for Android, Dolphin Browser for Android, and Firefox Browser for Android) provide this functionality. Except for Dolphin Browser (i.e., mobi.mgeek.TunnyBrowser), the other three browsers fill in web forms on the different device to which they are restored with the account information saved on the original device. It is worth noting that the auto-fill of saved passwords in Chrome still works, although Chrome has detected the different runtime device and logged out of its account.

Table 5

Data accessible status for browser applications after being backed-up on one device and restored on a different device

Application	Account	Saved pwds	History	Bookmarks	Downloads
com.android.chrome	✗	✓	✓	✓	✗
com.opera.browser	–	✓	✓	✓	✓, filename
com.UCMobile.intl	–	–	✓	✓	✗
mobi.mgeek.TunnyBrowser	✓	✗	✓	✓	✓, filename and URL
org.mozilla.firefox	✓	✓	✓	✓	✗

“✓” means accessible, “✗” otherwise, and “–” indicates no support for the function.

4.4. UID abuse of debuggable applications

The application attribute “debuggable” defines whether an app can be debugged, even when running on a device in user mode. During the app development, “debuggable” needs to be explicitly set to “true”; however, sometimes it fails to be set back to “false” when the release version is produced. Any app with true “debuggable” attribute value registers itself to ADB daemon by connecting to the local socket @jdwp-control which is opened by ADB daemon. When a debugger requests for a connection to a debuggable app, the ADB daemon is responsible for establishing such connection. This connection is based on standard Java Debug Wire Protocol (JDWP), which is designed to be used in debugging by the debugger to control the debuggable app and execute necessary testing code in the context of the debuggable app. When a malicious app takes the role of the debugger on a stand-alone device, which is the exact situation in the no-root environment with ADB loopback, it attains the full control of the debuggable app and can run arbitrary code in the debuggable context with the same UID as the debuggable app. In other words, the malicious debugger can exercise the debuggable app’s permissions and access its sensitive data. As a result, Android access control based on UID is not effective in this setting.

To mitigate this threat, it is prohibited to publish apps with the true “debuggable” value on Google Play since late 2013. Unfortunately, according to our evaluation, the third-party markets still put apps on shelves without enforcing any restriction on the debuggable attribute.

We investigate how many apps in our dataset (see Table 1) collected from Google Play and four third-party app markets are subject to UID abuse by examining whether the “debuggable” attribute in AndroidManifest.xml holds a true value. The usage of “debuggable” attribute in these apps is shown in Table 6. It is discovered that Google Play still hosts a small portion of its published apps being debuggable (1.67%). Even though Google Play’s prohibition of publishing debuggable apps is effective since late 2013, the debuggable apps uploaded before that and never updated afterwards are still on shelf. In the four third-party markets, the situation is not very optimistic. For example, 13.75% apps are debuggable in Anzhi Market.

Table 6
The usage of “debuggable” in our application dataset

Google Play Anzhi Market Eoe Market Android Freeware Slide Me

debuggable True False True False True False True False True False

By definition 444 3,868 8,175 6,009 229 474 84 511 112 1,382

By default – 22,236 – 45,290 – 3,627 – 2,948 – 4,981

	Google Play	Anzhi Market	Eoe Market	Android Freeware	Slide Me
debuggable	True	False	True	False	True	False	True	False	True	False
By definition	444	3,868	8,175	6,009	229	474	84	511	112	1,382
By default	–	22,236	–	45,290	–	3,627	–	2,948	–	4,981

4.5. User input inference

User input inference is a way to capture user private information such as account credential. Previous research targets on user input inference from various channels such as device sensors [7,19], the clipboard [10,33], sound from voice response systems [24], screen captures [16], and indirect shoulder surfing [23]. While the existing inference approaches can still work in no-root environment, a malicious app in no-root environment can obtain more accurate information about user’s input, including the input characters and the time of the input.

Inference of Input Characters. The characters that a user inputs on a touch-screen can be inferred from knowing both the touch position on screen and the software keyboard layout.

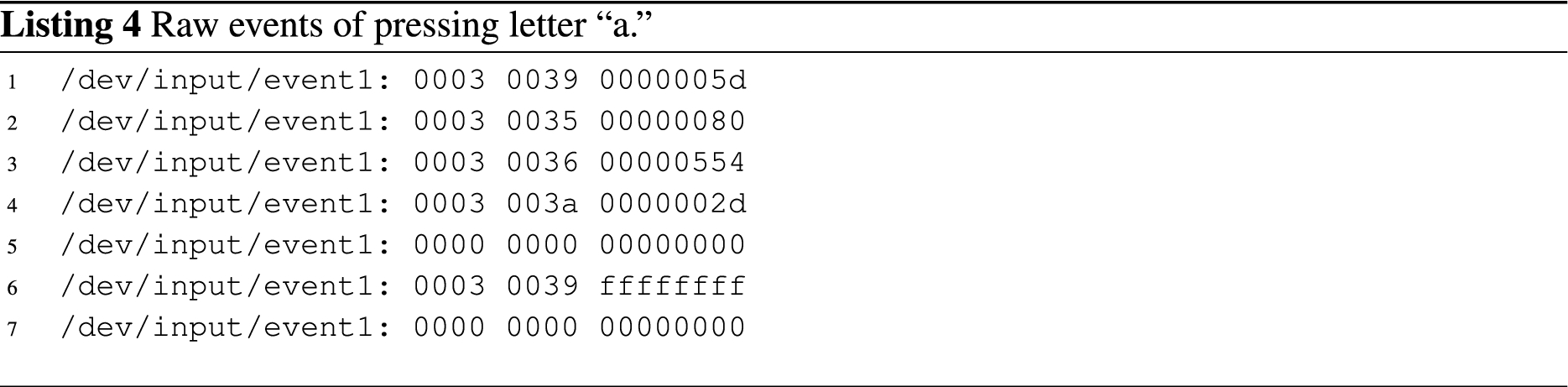

First, let us consider the inference of touch positions. In Android, a touch screen registers the absolute position of each click in its coordinates, i.e., ABS_MT_POSITION_X and ABS_MT_POSITION_Y. There’s only one activity shown on screen each time. The dispatch destination of each click position is supposed to be the app running on screen only. However, the no-root approach we propose makes it feasible for another app on the same device to access directly to the touch coordinates using the shell command getevent no matter it is running on screen or not. We set up an app running in background which gets the coordinates of user clicks via getevent. Listing 4 shows the raw events obtained by this app when a user neatly presses letter “a” using the English (US) Google Keyboard with “QWERTY” layout on Nexus 5, where /dev/input/event1 represents the touch screen, and the three hex numbers following a colon represent type, code, and value, respectively. For example, in Lines 2 and 3, type ‘0003’ denotes an absolute event, followed by codes ‘0035’ and ‘0036’ denoting X coordinate and Y coordinate, respectively, and followed by the coordinate value. It ensures accurate inference of user input by parsing these raw events directly as the Android system does for the app running on screen.

Second, let us consider the inference of keyboard layout, whose varieties are introduced by different vendors. Even for the input methods that endorse the same “QWERTY” layout, the position of each key is slightly different due to the appearance adjustment by vendors. The information about the input method (e.g., its name and whether it is invoked) is available using dumpsys which is another shell command that becomes available to apps with the internet permission in no-root environment. As a result, a malicious app obtains the combination of user click positions and the keyboard layout and thus the input characters.

Good Timing of Credential Input. From an attacker’s point of view, it is important to determine the good timing at which a user is ready to input his/her account credentials to an app so as to capture the user’s input of such information. This is because a screen touch happens frequently, but not every time it means a valuable input to a malicious app. Detecting the good timing of user credential input would enable a malicious app to know when to start inferring the input characters for user credentials.

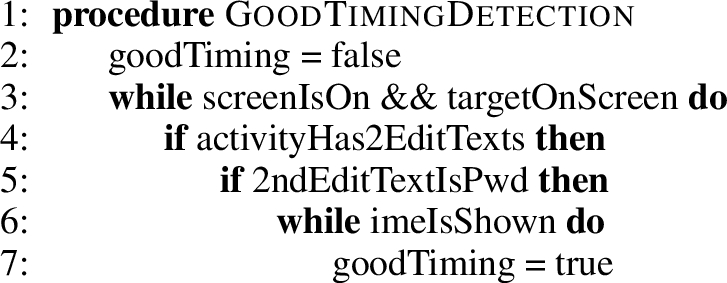

Algorithm 1 illustrates our good timing detection algorithm in pseudo code. The good timing is a logical variable which is detected to be true when the login activity of a target app is shown and an input keyboard is invoked. The goodTiming being true indicates that the user is ready for inputting his/her account credentials.

Algorithm 1

Good timing detection

Login activities share a common pattern which can be used to detect them. A login activity normally consists of at least two EditText fields for inputting a username and a password, respectively. Among the two, the second EditText field conceals the password content by representing each input character in a black dot or asterisk, as attribute inputType (one of the attributes of EditText) is set to password-related by developers. Therefore, a login activity can be detected by seeing this pattern. A malicious app in no-root environment can obtain the activity layout in XML using the shell command uiautomator which is usually used in user interface tests. The layout describes an activity hierarchy composed of a variety of layout widgets, each of which has its type (e.g., EditText) and many attributes of this type (e.g., inputType). This activity layout, along with the information of whether any input method is invoked which can be obtained using the shell command dumpsys, provides a malicious app with all parameters used in Algorithm 1.

We test our good timing detection algorithm with the top 20 finance apps in Google Play. The protection of users’ credentials is critical for these apps since any leakage may lead to financial loss. These target apps are installed on the test device on which our good timing detection algorithm runs in the background. Volunteers are recruited to operate on the device at will, e.g., playing games, browsing websites, and logging in the target apps with provided accounts. For demonstration purpose, we add one more component to the good timing detection service to take a screenshot using shell command screencap when any good timing is detected for the input of users’ credentials. The screenshots are stored with the filenames which are named according to the corresponding good timing timestamps. If our detection algorithm is accurate, there should be a screenshot showing a login form with an input keyboard invoked if and only if a volunteer is about to input an account credential in a target app. During the experiment, all of the 20 apps have been invoked by volunteers. We obtain 15 apps’ screenshots in the end. According to our further inspection, the other five apps do not support user login. It proves that the good timing detection works perfectly for all 15 apps which support user login.

5. Mitigation

In this section, we discuss how to prevent the no-root approach from being misused in a proactive manner. All exploits presented in the previous section rely on ADB loopback, which can be set up due to the availability of the ADB client and the TCP mode of ADB connection on Android. While it would be a simple solution to block ADB loopback by removing TCP connection mode or ADB binary in the future versions of Android, it is not ideal due to sacrificing much benefit/convenience provided by ADB debugging and no-root apps. We thus propose a permission-based solution without blocking the ADB loopback. We also provide suggestions to app developers and app markets on how to prevent the exploits.

5.1. Permission-based solution

Once the ADB loopback is set up, a benign no-root app can access the ADB client (one of the ADB components introduced in Section 2.1) to meet users’ requirements. However, malicious apps may abuse ADB client, which helps them to access the resources beyond their granted permissions. The ADB client cannot distinguish whether the calls are from benign no-root apps or malicious apps. All of the exploits presented in this paper rely on unauthorised calls to ADB client from malicious third-party apps. Consequently, the exploits can be mitigated by thwarting unauthorised calls to ADB client.

A preferred solution should mitigate the ADB loopback exploits while still making it work for benign no-root apps. It is thus not an optimal choice to shut down the ADB loopback on Android. One possible solution is to extend the existing Android permission mechanism properly without introducing too much modification to it.6

⁶
We assume that the permission mechanism of the current Android system is effective as designed. We do not address any problem on current permission-based mechanism, such as permission re-delegation [22] or how users treat the permission declaration [21]. It is out of the scope of this paper.

In Android frameworks, a wide variety of permissions is defined to control the access to critical resources such as equipped hardware resources, system API functions, and file systems. An app cannot access any protected resources unless it has the required permissions. The enforcement of permission checking is located at two different layers, including Framework layer and Linux kernel layer. The checkpoints at the Framework layer mainly deal with the Android API callings to some sensitive resources such as contacts. Other checkpoints in Linux kernel are responsible for checking file system and network related permissions. Android assigns a unique Group ID (GID) to each type of permissions that are checked in Linux kernel. If any permission is granted to an app, this app will include the corresponding GID to its GIDs field which is a set of GIDs for each app maintained by system. When the app requests to access any protected resource, the checkpoint in Linux kernel checks whether the app has the required GID.

Since ADB is an open-sourced protocol, a third-party app can implement it and communicate with ADB server as ADB client does. Previous research [14] suggests to verify whether the entity communicating with ADB server is truly the system ADB client. It requires that only ADB client can communicate with ADB server. In our solution, we focus more on how to protect the ADB client.

To prevent unauthorized calls to ADB client, we propose to add one extra permission to the current permission system. In particular, we add android.permission.DEBUG_ADB to the permission group DEVELOPMENT_TOOLS. To make this permission work, we need to declare it first as shown in Listing 5. Due to the fact that ADB is not managed by any Android service manager, the checkpoint of this permission should be located at the Linux kernel layer. It thus requires a unique GID for permission checking in Linux kernel. In Listing 6, we show how to map this new permission to a GID named adb_debug. After that, we need to assign a GID number to the ADB debug permission in Listing 7. Till now, the new permission for ADB debug is declared, and it has its own GID which can be used during the enforcement of permission.

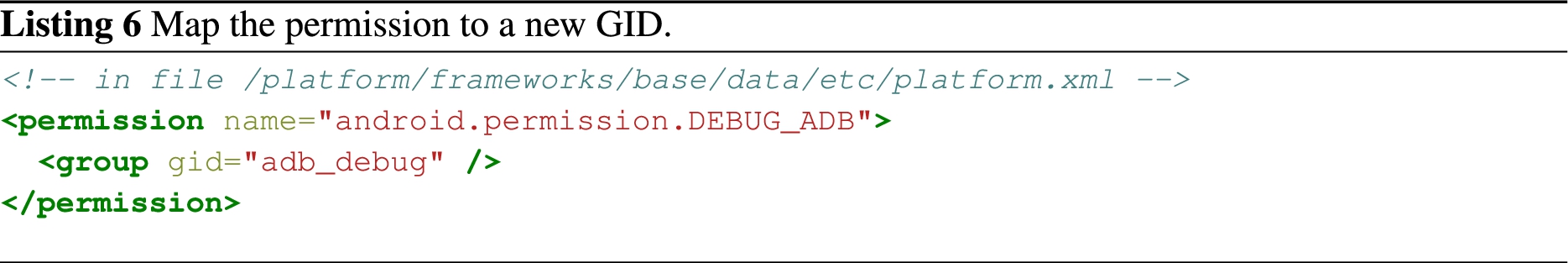

Having defined the new permission, we need to specify the constraint related to this permission for ADB client. We add a permission check function at the beginning of ADB source code so that the DEBUG_ADB permission is checked whenever the ADB client is called. We check whether the calling process has the DEBUG_ADB permission. As mentioned previously, the permission check in Linux layer depends on the GIDs of the calling process, which should include the AID_ DEBUG_ADB for the DEBUG_ADB permission. In order to obtain the GIDs of the calling process, we read the /proc/ pid /status file indexed by pid and get the Groups field. The Groups field is a set of integers each of which indicates a group the process includes, i.e., a permission of the process. If there is no “3009”, the GID number of AID_DEBUG_ADB, in the calling app’s Groups field, the access request is denied. However, if Groups field shows that the calling process indeed has the ADB debug permission, we do not allow it to access ADB immediately. A skilful malicious app without the ADB debug permission may call the ADB client by circuitously invoking function system(cmd) or issuing command sh -c cmd. In this situation, the calling process of ADB client is the bash that directly launches ADB client, rather than the app itself. Therefore, our permission check function is applied to all the parent processes along the call chain till zygote which is the parent process that spawns all apps on Android, or reaching the process with parent process ID 0 without passing by zygote which means the calling is directly from shell or system. If any process along the call chain does not have the ADB debug permission, the permission check for the ADB debug permission is terminated and the call is denied.

We also need to maintain the original usage of ADB for shell user. We declare the use of DEBUG_ADB permission for shell user in its manifest file /platform/frameworks/base/packages/Shell/AndroidManifest.xml, so that shell can get this permission and face no security exception when debugging. Similarly, this permission is also granted to the system user and the root user. It is worth noting that this solution modifies neither definitions nor enforcement of any other permissions; therefore, it affects no apps but the ones accessing ADB client.

Once the above permission-based solution takes effect, any app which requires access to ADB client should require for android.permission.DEBUG_ADB in its manifest file. An app cannot invoke ADB client on an Android device unless the user of the device explicitly grants the permission during the app’s installation. An app which positions itself as a benign no-root app or development tool must convince the user to grant the ADB debug permission to it. The mitigation solution introduces insignificant change to the current Android system. It prevents any app without the DEBUG_ADB permission from invoking the ADB client, and thus mitigates the dark-side exploits of the no-root approach based on ADB loopback by thwarting unauthorized access to the ADB client.

5.2. Suggestions to developers and markets

Besides the permission-based solution which can be enforced on the Android side, we also give some suggestions for app developers and app markets based on our observation that the negligence from both sides may lead to exploits.

On the app developers’ side, proper coding and configuration would help protect apps against some malicious exploits. It is common that app developers sometimes insert logging code or use logging APIs from SDKs in their apps in the development phase for testing purposes. Probably due to negligence, some of them leave the logging code without change when they release their final products. In the no-root environment with ADB loopback, such apps are subject to the privacy leakage exploit. This exploit can be mitigated by cleaning the logging code before releasing their apps. Besides cleaning unnecessary logging code, app developers need to check for the configuration of the application attribute “allowBackup.” It is reasonable to set the value either to “true” or “false”. If it is set to “true” (explicitly or by default), necessary protection must be enforced on the backup data, e.g., logging out of account once the app is restored on a different device; otherwise, the app is subject to the account takeover exploit. Lastly, app developers should check for the misconfiguration of application attribute “debuggable.” If it is set to “true” in the development phase, it should be set to “false” in the released version so as to mitigate the application UID abuse exploit.

On the app markets’ side, it is suggested that app markets enforce effective vetting processes. Google Play has set up an example of using its bouncer [5], which checks for malicious operations and certain vulnerabilities in each app submitted to Google Play and suggests whether or not Google Play should accept the app. One of the jobs that bouncer do is to ensure that debuggable apps should not appear in the market since late 2013. This would help mitigate the application UID abuse exploit due to the permission explosion. On the other hand, we discover that several popular third-party markets, including Android Freeware, Anzhi Market, Eoe Market, and Slide Me, still host a considerable portion of apps that can be debugged. They may consider to improve their vetting systems to catch up with Google Play in prohibiting the debuggable apps. Besides blocking debuggable apps, we suggest that Android markets should check for the apps with debug or verbose logging code so as to avoid leaking sensitive information in logs.

5.3. Discussion

Impact of SEAndroid. Since Android version 4.4, SEAndroid is enforced by default. Our no-root approach may not trigger the existing constraints from SEAndroid unless specific SEAndroid rules are defined so as to restrict the use of TCP-mode connections and debugging capabilities. The reason is that our no-root approach leverages on a side effect of combining two legitimate features introduced in Android 4.0 and later versions, including the connection channel via TCP mode and the debugging capability of mobile system. After the establishment of ADB loopback, an application can serve as a legitimate debugger and use the normal ADB functions. It is verified that our no-root approach works on Nexus 5, Android 5.1 with SEAndroid enforced. To prevent the exploits of our no-root approach, SEAndroid rules should be defined to distinguish regular use from misuse of ADB. However, this is challenging since it may not be always possible to distinguish between benign no-root apps and untrusted third-party apps by Android platform provider or device manufacturers. Note that SEAndroid policies are defined by Android platform provider, which can be modified and extended by device manufacturers.

Users’ Security Awareness. The security awareness of users is always a key to the security of digital systems. A no-root user may not fully understand the purpose and consequence of the preprocessing steps. In this case, an attacker may entice users to push malicious executables into their devices. For example, an attacker may pretend to be a no-root application and instruct users to push an ADB binary to mobile devices in the preprocessing steps. Using this ADB binary, the attacker can bypass our permission-based solution and exploit the dark side analysed in this paper. Therefore, it is helpful to educate users to understand the purpose and consequence of the operations they perform on their devices. On the other hand, smartphone manufacturers may leverage on SELinux/SEAndroid to prevent such breach by defining access policies to restrict the execution of untrusted executable files pushed in by ADB shell. Under the premise that users are willing to adopt the no-root approach, the best protection is to ensure that the no-root approach is indeed used by the no-root app instead of any other apps.

Google’s Solution. After we verify that the no-root approach can work on Android versions from 4.0.4 to 5.1.1, which is the latest version at that time, we reported to Google about the feasible no-root approach along with its dark side in August 2015. Google admitted soon that the no-root approach can work as intended, and so do the exploits on its dark side. Later in October 2015, Google removed the ADB client and ADB server from the release of Android 6.0. These two components are responsible for accepting debug commands and communicating with the ADB daemon, respectively. Therefore, an Android device cannot be used to debug other Android devices. In contrast, the permission-based solution we propose in Section 5.1 prevents ADB client from being misused while keeping the debugger functionality, which could be more desirable in practice.

6. Related works

In this section, we summarize the related works and compare them with ours.

ADB is the official debugging tool provided by Android. A set of ADB based attacks has been identified before. Vidas et al. [30] mentioned in their survey that an untrusted ADB connection via USB could result in security breaches when an attacker is physically close to the target device. Recently, Symantec detected a Windows malware which may infect Android devices with ADB [32] via USB connections. Hwang et al. [14] presented some feasible stealthy operations which can be performed within ADB capabilities by enumerating a series of attacks. Such attacks cannot be easily identified because they take advantage of normal ADB commands. Different from these works, we propose a feasible no-root approach that based on ADB loopback which is due to the available of the ADB client and the ADB TCP mode newly added in Android. If this no-root approach is adopted for any reason on an Android device with ADB, it brings along the dark side that all the ADB capabilities are available to any app with the internet permission on the standalone device, including those contributed to the attacks identified by Hwang et al. [14]. The typical exploits of this no-root approach are complementary to the ADB based attacks identified before in terms of providing a better understanding on how ADB can be misused.

Previous research has shown that some existing no-root applications can be misused or attacked. Lin et al. [16] attacked some existing no-root screenshot apps and abused their screenshot functionalities. It was shown that user input can be inferred by analysing the screenshots taken by these apps. In this paper, to explore the dark side of the new no-root approach, we also identify a user input inference exploit, for which the characters of user input can be obtained. In addition, the good timing detection algorithm, Algorithm 1, can be used to capture the exact time point when a user is ready to input his/her account credentials.

Developers’ negligence in code regulation leads to various attacks. It is demonstrated in previous research [17] that a malicious app can read SMS, obtain contacts and access location by selectively reading the system logs in earlier versions of Android. However, this attack cannot work on Android 4.1 and later versions, since on these new versions, an app is restricted to read its own log only. Nonetheless, it is still not a secure way to log sensitive information. In this paper, we show that despite the restriction enforced since Android 4.1, the system-wide log is available to any apps with the internet permission on the device due to the exploit of this new no-root approach. We examine the usage of log on top-listed real-world apps. We discover that many of them still log informative data which leads to severe privacy leakage.

Developer’s negligence in attribute configuration also leads to various attacks. Davi et al. [8] showed that malicious apps can escalate their granted permissions due to the misconfiguration of component attribute “exported” in victim apps. Zhou et al. [15] disclosed a type of passive content leakage on Android as a result of improper true “exported” value of content providers. Instead of focusing on the component attribute “exported”, we evaluate the use of the application attributes “allowBackup” and “debuggable” in apps collected from Google Play and four third-party markets. It is shown that the configuration of “allowBackup” with true or default value along with the lack of necessary protection on backup data leads to the account takeover. The misconfiguration of “debuggable” leads to the application UID abuse, which is prohibited in Google Play but still can be discovered in all of the markets we test.

About the protection of ADB capabilities, it is proposed that the ADB server should add certain authentication so as to make sure its functionalities can only be invoked by the original ADB client [14]. Different from this work, we emphasise on the protection of the ADB client in the mitigation part since the ADB loopback exposes the ADB client to a wide range of apps with the internet permission. We propose a permission-based solution to prevent the misuse of the ADB client, which allows only those apps with granted ADB permission to access the ADB client.

Loosely related to our evaluation of vulnerable apps in different markets, the health condition of third-party markets has been measured in previous research. For example, Zhou et al. [34] studied the repackaging problem in third-party markets. They discovered that repackaged apps either steal advertisement revenue or add malicious payload, both of which contribute to an unhealthy and unfair market. DroidRanger [36] showed that the malware ratio is 10 to 23.5 times higher in third-party markets than Google Play. Consistent to the previous research, we discover that third-party markets enforce less restrictions on publishing “debuggable” apps in comparison with Google Play.

7. Conclusions

In this paper, we propose a new feasible no-root approach working on Android devices. This no-root approach has its advantage of performing privileged operations based on ADB loopback instead of a separate service as in other no-root approaches. To ensure that this no-root approach is not misused in a proactive instead of reactive manner, we investigate the dark-side exploits of it, and evaluate them with a large number of apps downloaded from Google Play and four third-party markets. We discover that a large number of apps are vulnerable to the exploits, and that the exploits are due to not only the ADB loopback but also the negligence of app developers and app markets. We further attempt to mitigate the exploits from different perspectives, including proposing a permission-based solution and providing suggestions to app developers and app markets.

Footnotes

Acknowledgment

This material is based on research work supported by the Singapore National Research Foundation under NCR Award Number NRF2014NCR-NCR001-012, and National Natural Science Foundation of China (Grant No. 61502468).

Table 7

Permissions and protection levels of shell on Android 5.1.0

Permission name	Protection level
ACCESS_COARSE_LOCATION	dangerous
ACCESS_CONTENT_PROVIDERS_EXTERNALLY	signature
ACCESS_FINE_LOCATION	dangerous
ACCESS_LOCATION_EXTRA_COMMANDS	normal
ACCESS_NETWORK_STATE	normal
ACCESS_SURFACE_FLINGER	signature
ACCESS_WIFI_STATE	normal
BACKUP	signatureOrSystem
BATTERY_STATS	signatureOrSystem
BIND_APPWIDGET	signatureOrSystem
BLUETOOTH	dangerous
BLUETOOTH_STACK	signature
BROADCAST_STICKY	normal
CALL_PHONE	dangerous
CHANGE_CONFIGURATION	signatureOrSystem
CLEAR_APP_USER_DATA	signature
DELETE_CACHE_FILES	signatureOrSystem
DELETE_PACKAGES	signatureOrSystem
DEVICE_POWER	signature
DUMP	signatureOrSystem
EXPAND_STATUS_BAR	normal
FORCE_BACK	signature
FORCE_STOP_PACKAGES	signatureOrSystem
FRAME_STATS	signature
GET_ACCOUNTS	normal
GET_DETAILED_TASKS	signature
GRANT_REVOKE_PERMISSIONS	signature
INJECT_EVENTS	signature
INSTALL_LOCATION_PROVIDER	signatureOrSystem
INSTALL_PACKAGES	signatureOrSystem
INTERACT_ACROSS_USERS	signatureOrSystem
INTERACT_ACROSS_USERS_FULL	signature
INTERNAL_SYSTEM_WINDOW	signature
KILL_BACKGROUND_PROCESSES	normal
MANAGE_DEVICE_ADMINS	signatureOrSystem
MANAGE_USERS	signatureOrSystem
MODIFY_APPWIDGET_BIND_PERMISSIONS	signatureOrSystem
READ_CALENDAR	dangerous
READ_CONTACTS	dangerous
READ_EXTERNAL_STORAGE	normal
READ_FRAME_BUFFER	signatureOrSystem
READ_USER_DICTIONARY	dangerous
REAL_GET_TASKS	signatureOrSystem
REORDER_TASKS	normal
RETRIEVE_WINDOW_CONTENT	signatureOrSystem
RETRIEVE_WINDOW_TOKEN	signature
SEND_SMS	dangerous
SET_ACTIVITY_WATCHER	signature
SET_ALWAYS_FINISH	signatureOrSystem
SET_ANIMATION_SCALE	signatureOrSystem
SET_DEBUG_APP	signatureOrSystem
SET_KEYBOARD_LAYOUT	signature
SET_ORIENTATION	signature
SET_PROCESS_LIMIT	signatureOrSystem
SET_SCREEN_COMPATIBILITY	signature
SIGNAL_PERSISTENT_PROCESSES	signatureOrSystem
STOP_APP_SWITCHES	signatureOrSystem
UPDATE_APP_OPS_STATS	signatureOrSystem
WRITE_CALENDAR	dangerous
WRITE_CONTACTS	dangerous
WRITE_EXTERNAL_STORAGE	dangerous
WRITE_MEDIA_STORAGE	signatureOrSystem
WRITE_SECURE_SETTINGS	signatureOrSystem
WRITE_SETTINGS	normal
WRITE_USER_DICTIONARY	normal

References

Clockworkmod tether (no root). https://play.google.com/store/apps/details?id=com.koushikdutta.tether.

No root screenshot it. https://play.google.com/store/apps/details?id=com.edwardkim.android.screenshotitfullnoroot.

Log. http://developer.android.com/reference/android/util/Log.html.

Android debug bridge. http://developer.android.com/tools/help/adb.html.

Android security. http://googlemobile.blogspot.sg/2012/02/android-and-security.html.

Barrera,

Güneş Kayacik,

P.C.

van Oorschot and

Somayaji, A methodology for empirical analysis of permission-based security models and its application to Android, in: Proceedings of the 17th ACM Conference on Computer and Communications Security, 2010, pp. 73–84.

Cai and

Chen, Touchlogger: Inferring keystrokes on touch screen from smartphone motion, in: HotSec, 2011.

Davi,

Dmitrienko,

A.-R.

Sadeghi and

Winandy, Privilege escalation attacks on Android, in: Information Security, 2011, pp. 346–360. doi:10.1007/978-3-642-18178-8_30.

Enck,

Ongtang and

McDaniel, On lightweight mobile phone application certification, in: Proceedings of the 16th ACM Conference on Computer and Communications Security, 2009, pp. 235–245.

10.

Fahl,

Harbach,

Oltrogge,

Muders and

Smith, Hey, you, get off of my clipboard, in: Financial Cryptography and Data Security, 2013, pp. 144–161. doi:10.1007/978-3-642-39884-1_12.

11.

A.P.

Felt and

Wagner, Phishing on Mobile Devices, 2011.

12.

Flurry. http://www.flurry.com/.

13.

Helium - app sync and backup. https://play.google.com/store/apps/details?id=com.koushikdutta.backup.

14.

Hwang,

Lee,

Kim and

Ryu, Bittersweet adb: Attacks and defenses, in: Proceedings of the 10th ACM Symposium on Information, Computer and Communications Security, 2015, pp. 579–584.

15.

Y.Z.X.

Jiang, Detecting passive content leaks and pollution in Android applications, in: NDSS, 2013.

16.

C.-C.

Lin,

Li,

Zhou and

Wang, Screenmilker: How to milk your Android screen for secrets, in: NDSS, 2014.

17.

Lineberry,

D.L.

Richardson and

Wyatt, These aren’t the permissions you’re looking for. https://www.defcon.org/images/defcon-18/dc-18-presentations/Lineberry/DEFCON-18-Lineberry-Not-The-Permissions-You-Are-Looking-For.pdf (2010).

18.

Marforio,

Francillon,

Capkun,

Capkun and

Capkun, Application Collusion Attack on the Permission-Based Security Model and Its Implications for Modern Smartphone Systems, Department of Computer Science, ETH, Zurich, 2011.

19.

Owusu,

Han,

Das,

Perrig and

Zhang, Accessory: Password inference using accelerometers on smartphones, in: Proceedings of the Twelfth Workshop on Mobile Computing Systems & Applications, HotMobile ’12, 2012, pp. 9:1–9:6.

20.

Platform versions distribution. http://developer.android.com/about/dashboards/index.html.

21.

Porter Felt,

Ha,

Egelman,

Haney,

Chin and

Wagner, Android permissions: User attention, comprehension, and behavior, in: Proceedings of the Eighth Symposium on Usable Privacy and Security, ACM, 2012, p. 3.

22.

Porter Felt,

H.J.

Wang,

Moshchuk,

Hanna and

Chin, Permission re-delegation: Attacks and defenses, in: USENIX Security Symposium, 2011.

23.

Raguram,

A.M.

White and

Goswami, Fabian Monrose, and Jan-Michael Frahm. ispy: Automatic reconstruction of typed input from compromising reflections, in: Proceedings of the 18th ACM Conference on Computer and Communications Security, 2011, pp. 527–536.

24.

Schlegel,

Zhang,

Zhou,

Intwala,

Kapadia and

Wang, Soundcomber: A stealthy and context-aware sound trojan for smartphones, in: NDSS, 2011, pp. 17–33.

25.

Screenshot free. https://play.google.com/store/apps/details?id=com.androidscreenshotapptool.free.

26.

Screenshot shakeshot trial. https://play.google.com/store/apps/details?id=com.designkontrol.screenshottrial.

27.

Screenshot ultimate. https://play.google.com/store/apps/details?id=com.icecoldapps.screenshotultimate.

28.

Smartphone OS market share, q1 2015. http://www.idc.com/prodserv/smartphone-os-market-share.jsp.

29.

Snapchat. https://play.google.com/store/apps/details?id=com.snapchat.android.

30.

Vidas,

Votipka and

Christin, All your droid are belong to us: A survey of current Android attacks, in: WOOT, 2011, pp. 81–90.

31.

Vine. https://play.google.com/store/apps/details?id=co.vine.android.

32.

Windows malware attempts to infect android devices. http://www.symantec.com/connect/blogs/windows-malware-attempts-infect-android-devices.

33.

Zhang and

Du, Attacks on Android clipboard, in: Detection of Intrusions and Malware, and Vulnerability Assessment, 2014, pp. 72–91.

34.

Zhou,

Jiang and

Ning, Detecting repackaged smartphone applications in third-party Android marketplaces, in: Proceedings of the Second ACM Conference on Data and Application Security and Privacy, 2012, pp. 317–326.

35.

Zhou and

Jiang, Dissecting Android malware: Characterization and evolution, in: 2012 IEEE Symposium on Security and Privacy (SP), 2012, pp. 95–109. doi:10.1109/SP.2012.16.

36.

Zhou,

Wang,

Zhou and

Jiang, Hey, you, get off of my market: Detecting malicious apps in official and alternative Android markets, in: NDSS, 2012.

A study on a feasible no-root approach on Android

Abstract

Keywords

1. Introduction

2. Background

2.1. ADB

3. A feasible no-root approach

3.1. ADB loopback

3 It is shown that the existing no-root approach could lead to privacy leakage due to the insecure socket communication between the no-root app and its native service [16].

4.1. Adversary model & experiment setup

Table 1 The distribution of our application dataset Markets # Google Play 26,548 Android Freeware (US) 3,543 Anzhi Market (CN) 59,474 Eoe Market (CN) 4,330 Slide Me (US) 6,475

5 The file containing backup data is not protected by default. A user can choose to use password to encrypt backup file by setting Developer options→Desktop backup password. In this section, we assume that the setting is by default, i.e., with no password.

5.1. Permission-based solution

6 We assume that the permission mechanism of the current Android system is effective as designed. We do not address any problem on current permission-based mechanism, such as permission re-delegation [22] or how users treat the permission declaration [21]. It is out of the scope of this paper.

5.3. Discussion

6. Related works

7. Conclusions

Footnotes

Acknowledgment

References

³
It is shown that the existing no-root approach could lead to privacy leakage due to the insecure socket communication between the no-root app and its native service [16].

Table 1
The distribution of our application dataset

Markets #

Google Play 26,548

Android Freeware (US) 3,543

Anzhi Market (CN) 59,474

Eoe Market (CN) 4,330

Slide Me (US) 6,475

⁵
The file containing backup data is not protected by default. A user can choose to use password to encrypt backup file by setting Developer options→Desktop backup password. In this section, we assume that the setting is by default, i.e., with no password.

⁶
We assume that the permission mechanism of the current Android system is effective as designed. We do not address any problem on current permission-based mechanism, such as permission re-delegation [22] or how users treat the permission declaration [21]. It is out of the scope of this paper.
