Benchmarking frameworks and comparative studies of Controller Area Network (CAN) intrusion detection systems: A review

2.1. Controller area network

CAN is a serial multi-master communication protocol and is one of the most commonly used for internal vehicular networks. It particularly finds use for subsystems such as powertrain and chassis, which are integral to the operation of a vehicle and include functionality such as transmission, braking, and steering [4].

The CAN protocol spans the physical and data link layers of the Open Systems Interconnection (OSI) model. It is a message-based protocol whereby ECUs (i.e., nodes) communicate information related to the current state of the vehicle via message broadcasts that are received by all the other nodes on the network. A CAN message mainly consists of an arbitration identifier (AID) and a message payload of up to 8 bytes, along with other fields like the data length code (DLC) and cyclic redundancy check (CRC). The AID is used in the bit-wise arbitration process in the event of collision, whereby AIDs with lower values have higher priority. CAN also provides error checking and error confinement mechanisms [22].

2.2. CAN attack model

The CAN protocol was designed at a time when the internal vehicular network operated in isolation from external networks. Therefore, the protocol does not provide for security in its design and lacks encryption and authentication. Aspects of the CAN protocol, such as the arbitration mechanism, can also be exploited. These factors, along with the fact that modern vehicles are equipped with various interfaces for external communication, make the CAN bus vulnerable to a range of cyber attacks that can disrupt the operations of a vehicle and cause dangerous – even fatal – accidents.

Cho and Shin [17] provide an attack model for the CAN bus that is used in several works, such as [36,90]. This attack model assumes a compromised node on the CAN bus and uses the following terminology: a weakly compromised ECU is one that has been silenced or suspended by an attacker but cannot be used by the attacker to inject messages; on the other hand, a fully compromised ECU is one that the attacker has full control over and can use to inject messages into the CAN bus. This attack model classifies CAN bus attacks into the following categories:

The attacks thus described range in their sophistication and in the methods that would be effective for detecting them. Attacks such as DoS and fuzzing do not require knowledge of the meaning and semantics of CAN broadcasts, which is often confidential, proprietary information and can vary among vehicle makes and models. They can also be detected by simpler methods, such as those that analyse the timing of AIDs. On the other hand, a masquerade attack is an advanced attack requiring greater skill to mount and would also require detection methods that analyse the payload of the messages [90].

3.1. CAN intrusion detection

Apart from the development of CAN encryption and authentication methods, the development of intrusion detection systems has been one of the main approaches being taken to secure the CAN bus [4]. This is because it is possible to implement a CAN IDS in the resource-constrained environment of an internal vehicular network without impacting CAN bus traffic or requiring changes to the CAN protocol [2,41,91].

A large number of CAN IDS have been proposed in the literature that vary in terms of the techniques used, features used, deployment location, etc., with several survey works enumerating and categorising them. Young at al. [93] provide an earlier survey of eight CAN IDS that are organised into message timing, signature-based, and anomaly-based techniques. Anomaly-based techniques encompass a variety of techniques such as cyberphysical, entropy, message rate, and CAN-field anomaly detection. In their survey of in-vehicle network (IVN) CAN IDS, Wu et al. [91] categorise attacks spanning different layers and discuss the characteristics of IVN IDS and constraints associated with their design and implementation. CAN IDS are organised into (i) fingerprints-based methods that operate on the bus level, (ii) parameter monitoring-based methods on the message level, (iii) information theoretic-based methods on the data-flow level, and (iv) machine learning (ML)-based methods. They further discuss datasets, tools, and evaluation metrics used for CAN IDS evaluation and present observations from comparing results of the surveyed CAN IDS before discussing trends and opportunities for future work.

Aliwa et al. [4] not only survey CAN IDS, but also include cryptographic schemes that aim to enable CAN message authentication and encryption. The approach taken to classifying CAN IDS is similar to that in the present work, with CAN IDS divided into signature-based IDS and anomaly detection-based IDS, depending on the technique. For anomaly detection-based IDS, they distinguish between statistical, ML, and physical characteristic-based approaches. Limitations of the state-of-the-art are also identified – lack of global attack signatures for signature-based techniques, high computational resource requirements for ML-based approaches, and detection of low-volume attacks by entropy and throughput methods.

Al-Jarrah et al. [3] also review CAN IDS and organise them into flow-based, payload-based, and hybrid IDS. Furthermore, the features and feature selection methods used for detection, datasets used, targeted attack types, evaluation metrics, and benchmark models used in these works are examined and the challenges in each of these aspects are identified. This survey is extended by Nappi [56], who uses the same classification scheme as in [3] but reports more recently published CAN IDS works. The author compares the results of this survey with those in [3] and zeroes in on the challenge of reducing detection latency by providing a theoretical exploration of hardware solutions based on Field Programmable Gate Arrays (FPGA).

Rajapaksha et al. [65] focus on reviewing only AI-based CAN IDS and provide a taxonomy for classifying the same. This taxonomy distinguishes between IDS that use only AID, only payload, the entire CAN frame, and physical features. This survey includes a total of 102 works that employ supervised and unsupervised algorithms and include traditional ML, deep learning, sequence learning, and hybrid models. An overview of feature selection techniques employed in the surveyed works and publicly available CAN intrusion datasets are provided before findings and opportunities for future work are discussed.

Given the increasing numbers of not just CAN IDS works but also surveys thereof, Karopoulos et al. [41] draws on these numerous surveys and various classification schemes to propose a unified meta-taxonomy for CAN IDS that consider different characteristics. It distinguishes between network- and host-based CAN IDS depending on location; signature-based, anomaly-based, and hybrid IDS based on technique; single- and cross-layer IDS depending on the OSI layer data used; and active and passive IDS depending on how the IDS reacts to intrusions. Recent CAN IDS are thus catalogued according to this taxonomy. This work also covers datasets and simulation tools not just for CAN, but also other in-vehicle network technologies such as Ethernet, GPS, Wi-Fi, and Bluetooth.

As highlighted in Table 1, these works survey IDS for vehicular CAN and invariably discuss evaluation methods, datasets, and evaluation metrics. However, the present work differs from these by surveying CAN IDS benchmark frameworks and comparative evaluation works to understand current approaches and challenges to CAN IDS evaluation and benchmarking. Such work has been carried out in literature related to conventional computer network IDS, which are also listed in Table 1 and described in detail in the following subsection.

OPEN IN VIEWER

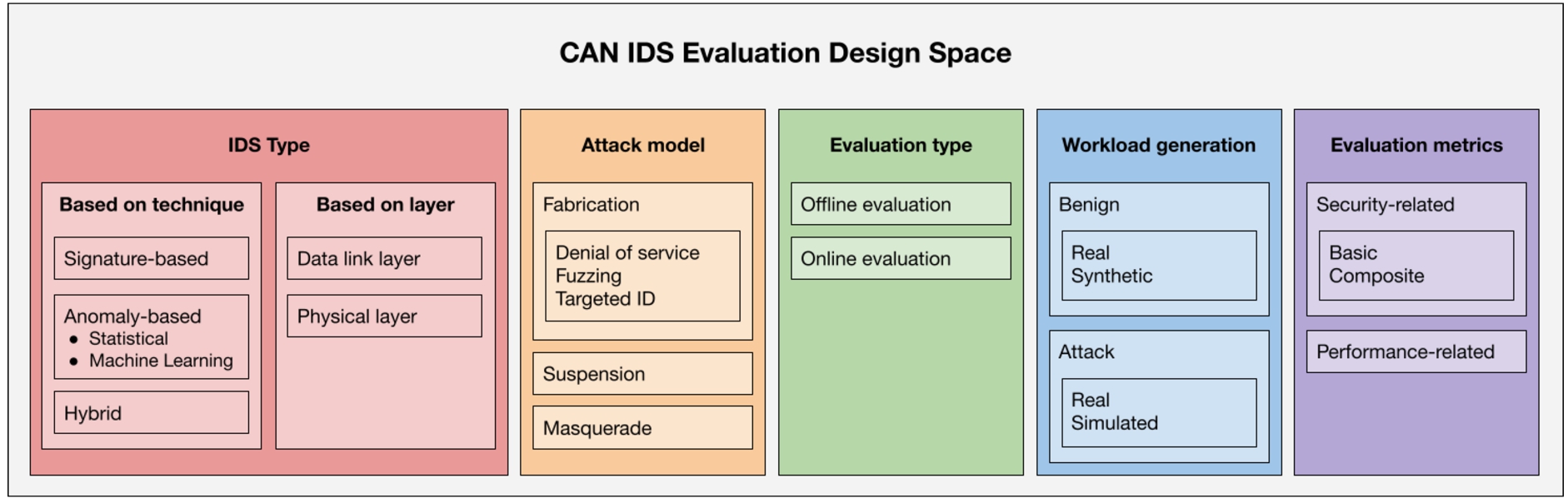

Fig. 1.

CAN IDS evaluation design space.

Depending on the technique used for intrusion detection, we adopt the following classification of CAN IDS (shown in Fig. 1), which is similar to that proposed in [4] and the classification by type proposed by Karopoulos et al. [41] in their metataxonomy. For each category, we cite representative works and guide the reader to more detailed surveys of CAN IDS such as [3,4,91,93]:

CAN IDS can also be divided into two categories depending on the layer of the OSI model on which they operate:

As discussed in [87], the nature of the CAN in-vehicle network – characterised by limited computing resources, real-time response requirements, and a lack of sender and receiver identification – makes the design of CAN IDS different from those meant for computer networks. As such, a CAN IDS should ideally have low resource requirements, be able to detect and report attacks immediately, and be able to process the large number of CAN messages that are generated on the bus. In terms of attack detection accuracy, a CAN IDS should have a low false negative rate as well as a low false positive rate. Since CAN bus communications are used to control safety-critical subsystems in a vehicle, a low false negative rate is required to ensure that as many attacks as possible are detected. A low false positive rate is also required so that the CAN IDS does not raise an impractically large number of false alarms. ML-based IDS methods should also be designed to resist evasive, adversarial attacks.

We find a larger number of works that utilise Layer 2 features like AIDs and data fields for intrusion detection, as opposed to physical characteristics-based CAN IDS, which are still a burgeoning area of study. Al-Jarrah et al. [3] also note the same, while also finding that most works focus on evaluating detection capability by reporting security-related metrics and do not report performance metrics like detection and training time. They also identify a lack of benchmark models and benchmark datasets for CAN IDS evaluation. Nappi [56] also finds that more CAN IDS works now contextualise their findings through comparison with some benchmark models. However, there still remains a lack of standard benchmark models, and works that report detection latency still number in the minority.

A brief overview of prior work in CAN IDS evaluation frameworks has been provided in [2], whereby prior evaluation frameworks [23,25] have been reviewed to highlight key features and distinguish the proposed framework. Apart from these, there have not been any comprehensive surveys of benchmarking and comparison efforts for CAN IDS, to the best of our knowledge.

Similar reviews of comparative studies have been carried out for conventional computer network IDS, which mainly focus on the comparison of ML methods and have been included in Table 1. Panigrahi et al. [62] note that central to the research into the usage of ML for intrusion detection is the selection of the most appropriate classifier for building IDS. Therefore, they provide a review of comparative studies that examine supervised learning methods for network intrusion detection, summarising the classification models evaluated, datasets used, evaluation metrics reported, and findings of the studies. An analysis of a total of 54 classifiers from six categories of classification models has also been presented, with 13 metrics related to detection capability reported. Similarly, Almomani et al. [5] also enumerate comparative studies of ML classifiers for network intrusion detection and present an evaluation of 10 supervised learning methods, reporting accuracy, precision, and F1-score. Finally, Kilincer et al. [43] conducted a survey of ML approaches to network intrusion detection by focusing on five datasets that are most commonly used for network IDS research. The authors note that network IDS studies are generally limited to a few datasets, examine only one or few classification methods, and examine only a few attack types. To address these issues, classical ML models like SVM, kNN, and DT have been developed and evaluated using the five datasets as benchmark models. Results of experiments are compared against prior work utilising the same datasets, thus contextualising past results.

Conventional computer network intrusion detection literature is surveyed by Milenkoski et al. [50] to examine methods employed in the evaluation of IDS, and an evaluation design space is proposed in an effort to categorise these common methods. A design space is described by Baum et al. [11] as a “multidimensional space of design choices,” consisting of a set of relevant dimensions that can be used to classify and describe entities in a specific domain. The IDS evaluation design space proposed by Milenkoski et al. [50] consists of three elements: workload, metrics, and measurement methodology. Workloads for evaluating IDS are classified as benign, malicious, and mixed, based on the presence of attacks in the workload. The authors also distinguish between workloads in executable forms for live testing of CAN IDS and trace forms for later replay. Metrics are classified as security-related and performance-related metrics. The measurement methodology part of the design space identifies IDS properties that are of interest and the workload and metrics that are employed to evaluate these properties. This evaluation design space not only serves as a basis for categorising the literature but is also aimed at facilitating the planning of IDS evaluation exercises. The present work thus attempts to propose a design space for the context of CAN IDS evaluation, not only to categorise current comparative evaluation methods but also to provide a guideline for designing IDS evaluations for CAN, which differs from conventional computer networks in features and complexity.

3.3. Comparison with related works

Our work aims to contribute to the CAN IDS literature by proposing an evaluation design space as well as by surveying benchmarking and comprehensive efforts for CAN IDS, both of which are thus far available only for computer network IDS. Table 1 highlights the points of difference between this and related works. Like the surveys in [3,4,41,56,65,91,93], the present work concerns itself with intrusion detection for CAN IDS, as opposed to conventional computer networks. Since our focus is on benchmarking and evaluation, we discuss aspects of evaluation such as IDS classification, evaluation approaches, datasets, attack types, and evaluation metrics, as done by other IDS surveys. However, unlike CAN IDS surveys that enumerate CAN intrusion detection techniques, we survey benchmarking and comparative evaluation studies of CAN IDS. While such work has been done for conventional computer network intrusion detection methods [5,43,62], there is a lack of such studies for CAN IDS that needs to be addressed given the large number and variety of CAN IDS in the literature and the numerous recent efforts at benchmarking these. We do not perform and report new benchmarking experiments as in [5,43,62], but we organise and discuss the surveyed works using our evaluation design space for CAN IDS, which is comparable to the design space proposed by Milenkoski et al. [50] for computer networks, to understand current trends in benchmarking and evaluation techniques. Finally, we use the insights gathered from compiling the design space and surveying the benchmarking studies to identify avenues for further work, as has been done in both CAN and computer network IDS works.

4.1. IDS type

As described in Section 3.1, a CAN IDS can be either signature-based, anomaly-based, or hybrid, depending on the detection technique used. Anomaly-based methods are further divided into statistical and ML-based methods. Depending on the features used and the OSI layer they operate on, CAN IDS can either be a data link layer or a physical layer IDS.

The classification of a particular CAN IDS informs the type of data or workload required for its evaluation – while a physical layer CAN IDS would require Layer 1 data, a data link layer CAN IDS would require logs containing CAN message frames. As a further example, a CAN IDS based on analysis of AID sequences would require only the AIDs of CAN broadcasts, while a CAN IDS that incorporates timing-based features would require high precision message timestamps.

The detection technique employed by a given CAN IDS also informs the types of attacks that can be detected by the IDS and are relevant for inclusion in its assessment. This is because different attacks manifest as changes in different features of CAN bus traffic, and CAN IDS differ in the features used. Timing and frequency-based CAN IDS [14,52,60,74,93] can be good at detecting fabrication and suspension attacks, which alter the timing and frequencies of AIDs, but ineffective for masquerade attacks, which are observed as manipulated payloads. Masquerade attacks can instead be detected by CAN IDS that analyse the data fields of CAN messages, such as the Hamming distance CAN IDS [76] or ML-based CAN IDS [47]. Physical characteristics-based CAN IDS, which fingerprint CAN IDS using physical features that are difficult to spoof, are capable of identifying malicious nodes and can thus not only detect fabrication and suspension attacks but also masquerade attacks [17,70].

4.2. Evaluation type

This part of the CAN IDS evaluation design space identifies two types of evaluations: offline and online evaluations. In an offline evaluation, a CAN IDS is used to analyse a CAN bus log or dataset that has already been collected from a real or simulated CAN bus. This is opposed to an online assessment, where a CAN IDS performs real-time analysis of CAN bus data from a real vehicular CAN bus, testbed, simulation, or data log replay. The physical characteristic-based CAN IDS proposed in [17,18] are evaluated in CAN bus prototypes with nodes consisting of Arduino boards and CAN shields, and with a real vehicle whereby the IDS is implemented on a node connected to the CAN bus via the OBD-II port. Ujiie et al. [88] implement their rule-based CAN IDS on an ATMega162 microcontroller and test it against both a simulated CAN bus in Vector CANoe as well as with a real vehicle. Unlike these works, Desta et al. [24] evaluate their CAN IDS, which uses an LSTM model for AID sequence prediction, by replaying a CAN bus data log and using the SocketCAN API to perform detection.

Using real vehicles is advantageous in that they most closely resemble the real-world environment in which an in-vehicle CAN IDS would operate. However, it is relatively difficult to use real vehicles for CAN IDS assessments. Not only is it expensive to acquire and use a real vehicle for security testing, but mounting attacks like targeted ID, suspension, and masquerade on a real vehicular CAN bus can be difficult, time-consuming, and also pose a risk to passengers and bystanders [66,90]. To address these problems, a testbed for the purpose of online CAN IDS evaluation has been developed in [37], which uses CARLA car simulator in combination with the Vector CANoe CAN bus simulator to generate realistic driving scenarios. The assessment of a clustering-based ML CAN IDS demonstrated inferior detection performance in the online assessment using the testbed compared to an offline experiment with a dataset collected from the same testbed, which highlights the importance of online assessment regardless of its drawbacks.

On the other hand, offline assessments with collected CAN bus logs (as well as online tests by replaying logs) can be performed repeatedly with relative ease to obtain statistically significant evaluation results. A large number of works, such as [14,47,49,57,74,76,96], use collected CAN bus logs to assess their proposed CAN IDS. These datasets are commonly collected either via the OBD-II port available in all vehicles or by tapping into the in-vehicle CAN bus. Offline evaluation is a good starting point to understand the detection capability in terms of accuracy, false positive rates, etc. of a CAN IDS before using online evaluations to understand performance aspects of the CAN IDS such as detection times. Using publicly available datasets further enhances the reproducibility of CAN IDS works and allows direct comparison with results from other CAN IDS assessments performed with the same datasets.

4.3. Workload

Workload can be described as the work that must be performed by a system and can be viewed as input to the system [29]. In the context of a CAN IDS, its workload comes from CAN bus traffic or measurements of physical characteristics. While CAN IDS datasets serve as the most common source of data to evaluate CAN IDS, in this paper we borrow the term ‘workloads’ from the wider conventional IDS literature to describe any input to a CAN IDS under test regardless of the source it originates from – which could be not just datasets but real-time CAN bus traffic or measurements of physical quantities from a vehicle, testbed, or simulation in an online test.

The workload used to evaluate an IDS may be generated in various ways [50]. For CAN IDS evaluation, we may distinguish between benign, attack-free workloads and malicious workloads containing attacks. Benign CAN IDS workloads may be from a real vehicle (real) or artificially generated (synthetic). Attack workloads can be obtained by conducting attacks on a real CAN bus (real attacks) or via simulation, which can be by manipulating a collected benign CAN trace to include attacks or by artificially generating malicious CAN workloads (simulated attacks). These various types of workloads are outlined in Fig. 2.

OPEN IN VIEWER

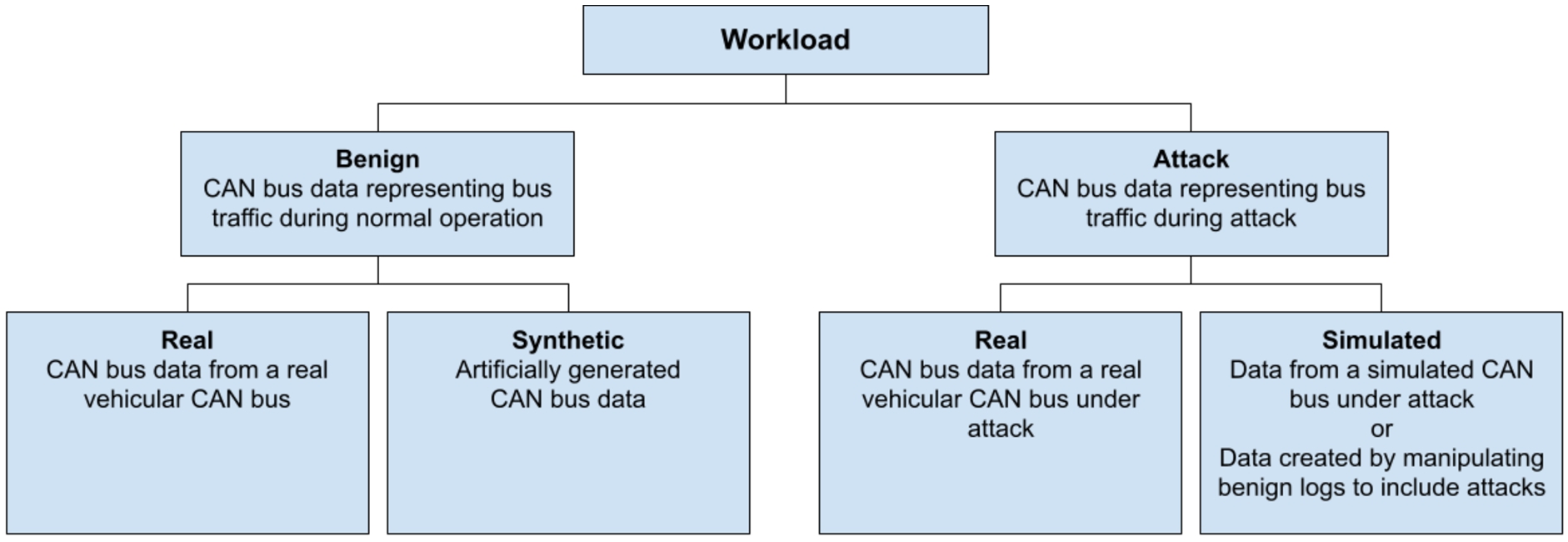

Fig. 2.

CAN IDS workload types.

A number of publicly available CAN datasets have been published in recent years, which has made them a popular choice for the design and evaluation of CAN IDS [56]. The Hacking and Countermeasures Research Lab (HCRL) has published three CAN intrusion datasets [33,46,71], which contain benign CAN bus logs as well as logs of fabrication attacks such as DoS, fuzzing, and targeted ID conducted on a real in-vehicle CAN bus. These datasets have been used in [10,36,38,42,63,72] among others. Verma et al. [90], who also provide a comprehensive survey of CAN intrusion datasets, present the Real ORNL Dynamometer (ROAD) dataset, consisting of real benign samples and samples of fuzzing, targeted ID (flam delivery), and masquerade attacks. While the fabrication attacks were conducted on a real vehicle CAN bus, the masquerade attack samples were created by manipulating the targeted ID logs. This dataset has been used in [53].

The dataset provided in [26] consists of logs collected from both a CAN bus prototype as well as real vehicles. Unlike the datasets mentioned thus far, the attack samples are simulated in that the benign data from vehicles has been augmented to create attack datasets (except the attack samples collected from the prototype). This dataset has been used in works such as [14,73]. In a similar vein, the CrySyS lab has published real benign CAN bus logs and provided a log infector tool that can be used to manipulate benign logs to create masquerade attack samples. This tool has been used to create the attack samples used to evaluate the statistical CAN IDS in [30]. A completely synthetic dataset, SynCAN, with simulated targeted ID, suspension, and masquerade attacks is published by the authors of [34], where they use it to evaluate their LSTM autoencoder-based CAN IDS. It has also been used in [44,58], which are also autoencoder-based CAN IDS. Apart from ROAD, SynCAN is the only dataset providing translated signal values instead of raw CAN data fields.

Physical fingerprinting-based CAN IDS, unlike data link layer CAN IDS, cannot be evaluated using the aforementioned datasets. Towards this end, Foruhandeh et al. [28] have published a dataset consisting of voltage measurements from a real vehicle along with their Single-frame based Physical-Layer (SIMPLE) identification solution that can detect intrusions and identify the sending ECU for each message. This dataset is also used in [45] for the detection of a hill-climbing style masquerade attack whereby an attacker attempts to evade detection and alter ECU fingerprints to do so. Popa et al. [64] have also made available clock skew and voltage data from a total of 54 ECUs across 10 vehicles, which can be used for the development of physical layer CAN IDS.

The attack model considered in this design space is the same as the one described in Section 2.2.

As discussed in Section 4.1, the attack types that can be detected by a CAN IDS depend on the features and techniques used by the CAN IDS. However, this is not the only consideration a researcher has to make when selecting attack types for CAN IDS assessment. Fabrication attacks are relatively less complex compared to suspension and masquerade attacks and form the most common class of attacks found in the CAN IDS literature [90], which is reflected in the fact that real attack datasets are available for only these attack types [33,46,71,90]. On the contrary, while CAN intrusion datasets with suspension and masquerade attacks are available, these are simulated attack samples created either from a purely synthetic benign dataset [34] or a real benign dataset [26]. The advantage of using real attacks over simulated attacks is that in the former case, the attacks are known to have caused an effect on the operations of the vehicle, i.e., the effects are physically verified. For example, while creating the ROAD dataset, the authors of [90] noted abnormal behaviour such as accelerator pedals becoming ineffective, false displays on speedometer, and incorrect reverse light status. With simulated attacks, not only is it impossible to verify their physical effects, but the attack simulation method (such as manipulating benign CAN bus logs) may result in an unrealistic attack sample.

Another important consideration in selecting attack datasets for evaluation is the “difficulty” of the detection problem captured in the dataset [89]. Verma et al. [90] find that datasets such as [46] and [71] that are commonly used consist of unstealthy attacks with high-frequency injection of malicious messages that can be detected by trivial, timing-based detectors and are less suitable for assessing more sophisticated CAN IDS that should be able to detect low rate fabrication attacks [82,90].

Since the usage of real test vehicles is outside the reach of many researchers, there is a need for comprehensive CAN intrusion datasets consisting of real attack traces of all known attack types, ranging from simple, easily detected attacks to complex, stealthy attacks, for robust CAN IDS evaluation and benchmarking. This has become necessary for physical layer CAN IDS as well, most of which continue to be evaluated with real vehicles and testbeds.

4.5. Evaluation metrics

As per [50], the metrics selected and reported while evaluating an IDS should depend on the properties of the IDS being assessed. Metrics can be security-related metrics, which quantify attack detection capability, or performance-based metrics, which quantify non-functional aspects of an IDS such as resource consumption. The authors of [50] also distinguish between basic security metrics, which quantify individual attack detection properties, and composite security metrics, which combine basic metrics.

Security-related metrics allow assessment of attack detection properties such as attack detection accuracy and resistance to evasive attacks. These include classification accuracy, precision, recall, F1-score, and false positive rate, which have been reported in [6,24,44,74,93,96] among others. Basic security metrics such as true positive rate, false positive rate, false negative rate, true negative rate, precision, and recall must be reported and analysed together to understand the performance of a given CAN IDS [50]. Some works choose to report receiver operator characteristics (ROC) and area under curve (AUC) [47,60], which are considered composite security metrics, to indicate the detection performance of an IDS at multiple operating points.

An important problem to consider when using CAN datasets for assessment is the class imbalance in such datasets, whereby malicious messages that are a part of attack traffic are usually present as a very small percentage of the total captured CAN bus traffic. This is further reason to not rely on a single metric like accuracy, which would yield high values for a detector that only predicts the normal class for a highly imbalanced dataset, and instead use a suite of security metrics to understand the ability of the IDS to distinguish between normal and attack traffic. While some may choose to counter the imbalanced dataset problem by reporting balanced accuracy, Chicco et al. [16] recommend the use of the Matthews Correlation Coefficient (MCC), which has been described as a single metric that summarises the performance of a binary detector. MCC is especially suited for CAN intrusion detection since it is equally important for a CAN IDS to correctly classify both normal and attack traffic, i.e., to keep both false positive and false negative rates low. The MCC is reported alongside other security metrics in [57].

Considering the safety-critical nature and real-time requirements of the in-vehicle network, it may be argued that attack detection latency is an important metric that should be considered in assessing the attack detection capabilities of a CAN IDS [3,21,56]. Detection latency, or Time To Detection (TTD), has been defined as the time taken to classify a CAN message from the time it was received [56] and has been reported in [61]. Nichelini et al. [57] report Testing Time per Packet (TTP) as the ratio of the total detection time and the number of messages in their test dataset, which gives the average time taken by the CAN IDS to evaluate a single CAN message. Unlike these works, Sunny et al. [81] report best-case and worst-case computation time to examine if their proposed CAN IDS can be used for real-time evaluation of CAN messages, which can be published every 2 ms.

Apart from detection latency, non-functional properties of a CAN IDS like resource consumption, performance overhead, and workload processing capacity are also of interest, particularly since they are expected to be deployed in the resource-constrained environment of the in-vehicle network. A CAN IDS that is highly accurate in detecting attacks may still become impractical for implementation in the in-vehicle network if it is not able to process rapidly generated CAN bus traffic in time or requires significant computing resources to maintain quick response times. An analysis of computational complexity and memory requirement has been provided for the Hamming distance-based CAN IDS in [76]. Unlike works with offline assessment using datasets, memory footprint in kilobytes and inference time (similar to TTD) of the autoencoder-based detector in [44] have been measured by implementing the IDS on an automotive-grade microcontroller.

Ji et al. [39] is one of the first works to present a comparative study of lightweight, statistical CAN intrusion detection methods from the literature. Four statistical-based intrusion detection methods are evaluated, which are based on analysing information entropy, clock skew, ID sequences, and CAN bus throughput, respectively. These methods use only AID and arrival timestamps as features. Four simulated attack datasets have been used for evaluation, which, like many other attack datasets, are highly imbalanced. The clock skew approach was found to be the best overall across the tested attack scenarios, with almost perfect true positive rates (TPR) and false positive rates (FPR). Among the other methods, the throughput approach was best at detecting flooding, while the ID sequences method was good at detecting the injection of forged messages. However, the entropy approach did not yield good results for replay attacks, where the entropy of the CAN bus stream is not significantly changed.

Dupont et al. [25] present a unified framework for CAN IDS evaluation as well as a publicly available dataset created for the same. This includes benign data collected from two live vehicles and a CAN bus prototype. Various fabrication attacks as well as a suspension attack are simulated on the benign dataset to create the attack dataset (except for one real targeted ID attack on the prototype). Two other publicly available datasets consisting of real attacks have also been used. It was found that most of the methods are only able to detect attacks that cause drastic changes, as in the case with flooding. The methods are described as relying on narrow indicators of compromise and producing too many false positives. The authors suggest that content-aware methods that take into account not just the bit representation but also the semantics of CAN messages would yield better results.

The benchmark framework by Stabili et al. [77] allows the evaluation of four IDS algorithms from the literature against a threat model consisting of three attack types: replay, fuzzing, and disruption. The attack datasets used for testing, representing seven attack scenarios, have been created by simulating attacks on a real benign dataset collected from a vehicle. The four algorithms chosen use different features of CAN bus traffic for anomaly detection: entropy, AID sequences, payloads, and timing. It was found that while the message sequence algorithm showed efficacy in all attack scenarios, the other IDS were effective only for certain attacks.

Agbaje et al. [2] identify inconsistencies in three aspects that hinder comparative evaluation of CAN IDS: disparate training datasets, disparate evaluation datasets, and disparate evaluation metrics. To address these inconsistencies, a flexible evaluation framework is provided to enable consistent and repeatable evaluation of CAN IDS. This work differs from previous art in that it allows the addition of new datasets and algorithms alongside the ones that have been compared in this work. A variety of intrusion detection methods have been evaluated that differ in the features and techniques used. It is observed that different methods have their own strengths and weaknesses and are not equally capable of detecting all attacks. The authors conclude that more generalised methods that take into account the interrelationships between messages, such as graph- and ML-based methods, could be better suited to detect a large variety of attacks.

The study by Blevins et al. [13] uniquely focuses on benchmarking only timing-based intrusion detection methods against the ROAD dataset [90], which consists of real attacks with verified physical effects. Alongside fuzzing attacks, the dataset also includes targeted ID attacks using flam delivery, which makes them stealthy attacks with minimum numbers of injected messages. Four statistical methods utilising timing of CAN messages have been evaluated against fuzzy attack and targeted ID attack logs. The binning and mean inter-message time methods performed well, both with and without outliers, as opposed to the methods relying on fitting a distribution curve to the data. Binning was the best detector in terms of both the area under curve (AUC) of the PR-curve and the F1-score, and was implemented in an OBD-II plug-in prototype. While the experiments reported here are offline experiments, a detection latency analysis is provided for the binning algorithm.

Stachowski et al. [78] provide an assessment methodology for evaluating and comparing intrusion detection products designed for the automotive CAN bus. This evaluation methodology differs from the rest of the surveyed works in that it involves online evaluation of CAN IDS – all the CAN IDS being evaluated are integrated into test vehicles for real-time intrusion detection. Three anomaly-based CAN IDS products have been evaluated to demonstrate this methodology, but further details on the vendors or intrusion detection methods have not been provided. While the methodology includes qualitative and quantitative metrics, the assessment carried out used only quantitative metrics related to attack detection accuracy. A large number of targeted ID attacks were carried out on the CAN bus of test vehicles while the vehicles were stationary and in motion. The IDS were also tested in driving scenarios with no attacks being carried out. Furthermore, evaluations were carried out in two phases, with IDS vendors given the opportunity to fine-tune their IDS for the second phase. As a result, the evaluated CAN IDS were generally found to perform better in the second phase, with higher true positive rates (TPR) and lower false positive rates (FPR). However, none of the IDS evaluated were found to be effective in detecting all attacks.

5.2. ML-based intrusion detection methods

Taylor et al. [85] develop IDS based on two types of recurrent neural networks (RNN) – long short-term memory (LSTM) and gated recurrent units (GRU) – and compare them against Markov models. To facilitate IDS evaluation, a comprehensive attack framework is proposed with parametrised attack descriptions that can be used to generate realistic, representative attack simulations. This attack framework has been used to create attack datasets for 537 test cases with different types of fuzzing and targeted ID attacks. It is found that the RNN models generally perform very well with high AUC measures, with the large LSTM model deemed the best. On the other hand, Markov models were not much better than chance at anomaly detection. The effect of changing attack parameters has also been reported, whereby the performance of the LSTM detection model is found to vary depending on the variability of the CAN signals, AIDs, and attack types.

Berger et al. [12] examine the performance of four supervised and unsupervised learning methods against the same datasets containing DoS, fuzzing, and targeted ID attacks. Experiments were performed by varying the number of training samples (for OCSVM and SVM) and the number of neurons (for neural networks and LSTM). OCSVM demonstrated a high bias towards predicting the normal class. On the other hand, SVM and neural network provided high accuracies, but require attack samples for training, which is disadvantageous. Although LSTM demonstrated diminished performance and is the most computationally intensive method tested, the authors conclude that it can be improved and is a viable method of intrusion detection.

The comparative study of Moulahi et al. [54] differs from the works discussed thus far in that the IDS models implemented are multi-class classification models with three attack classes. Four traditional classification algorithms have been evaluated with a feature set that not only includes the AID and payload data of each CAN message but also the AIDs of the previous three messages. While the remote impersonation attack is detected with near-perfect metrics, the performances of the evaluated models suffer when it comes to the fuzzing and DoS attacks, due to the lower number of examples of the latter attack types in the dataset. The findings of this work have also been put into context by comparing the results with previous work using the same dataset. Overall, the random forest (RF) model in this work is found to be the best in terms of both detection accuracy and training and testing times.

The benchmark framework provided by Costa Cañones [23] evaluates Isolation Forest, OCSVM, and autoencoder intrusion detection models against various simulated attack datasets. Apart from three basic attack scenarios, this work uniquely presents two sophisticated adversarial attack scenarios to examine IDS evasion. The IF and OCVSVM were shown to have inferior performance compared to the autoencoder detectors, particularly in terms of accuracy and recall. Furthermore, it is shown that the autoencoder detectors that also took into consideration time sequences were effective for detecting attacks with valid payloads. They were also more resilient against adversarial attacks designed to evade them.

Like in [13], Swessi & Idoudi [83] study a particular type of intrusion detection models – ensemble learning – for the detection of fuzzing attacks. Fuzzing attacks can be difficult to detect, especially when the injected messages use legitimate AIDs. This extensive study compares 11 different ensemble algorithms against three real fuzzing attack datasets. Ensemble learning methods were generally found to be very effective with very high accuracies, but bagging, extreme Gradient Boosting (XGB), light gradient boosting (LGB), and category gradient boosting (CGB) were the best in terms of both detection rates as well as training and testing times.

Anyanwu et al. [7] conducted a comparative study of a total of 22 different ML models across six types, to determine the best algorithm for CAN intrusion detection. Although the attack model or attacks tested are not described in this work, the documentation of the datasets used for evaluation describes them as containing fuzzing and DoS attacks. Decision trees, KNN, SVM, and ensemble models gave accuracies of 100%. Training time and the number of misclassifications were used to differentiate among these models with perfect accuracies; the decision tree classifier of the type Fine was deemed the best considering all these factors.

Okokpujie et al. [59] also conducted a comparative study between Feedforward Neural Network (FNN) and SVM models against four different real attack datasets. The SVM models evaluated include those with linear, polynomial, radial basis, and sigmoid kernels. As in [54], intrusion detection has been modeled as a multi-class classification problem that includes attack type classification. The authors note that accuracy in itself is not a sufficient measure of detection performance, particularly with unbalanced attack datasets, and therefore also report precision, recall, and F1-score. Considering all reported metrics, SVM with the radial basis kernel was found to be the best, while the FNN model was not able to detect some of the attack types at all.

6.1. IDS type

Regarding the type of CAN IDS, anomaly-based intrusion detection methods are clearly seen as the way forward for CAN intrusion detection – anomaly-based methods are the only type of IDS that was found to have been benchmarked and compared in the surveyed works. In the wider CAN IDS literature, anomaly-based IDS are indeed the most common type of IDS proposed [4,41]. Signature-based methods are not very common since complete CAN attack signatures do not exist, and such databases are difficult to create as the implementation of CAN messaging differs among vehicles of different models and makes [4].

Among the anomaly-based methods, each of the surveyed studies restricted themselves to either one of two types of IDS: statistical methods or ML-based methods. The exception to this is the evaluation framework in [2], where a neural network IDS is included along with the other statistical methods. Papers benchmarking statistical methods [2,25,39,77] include a variety of IDS that use different types of features and techniques for attack detection, including timing and frequencies of AIDs, AID sequences, Hamming distances in payload, and entropy of CAN messages. Meanwhile, studies of ML-based methods have applied algorithms like SVM, decision trees, Isolation Forest, ensemble algorithms, as well as various types of neural networks.

Since intrusion detection methods are not equally effective at detecting all attack types, some studies focus on particular intrusion detection techniques or attack types. Blevins et al. [13] benchmark only timing-based intrusion detection methods, which are computationally inexpensive but are effective only against attacks that alter the timing of CAN messages on the CAN bus. This is why only fuzzing and targeted ID attacks are used for evaluation and not masquerade attacks, which do not impact message timing. Another work [83] examines the detection of fuzzing attacks in particular, which can be difficult to detect, using ensemble learning algorithms that use timestamps, AIDs, and payload data as features.

It is also observed that while most of the surveyed works treat anomaly detection as a binary classification problem, two of these – [54] and [59] – model intrusion detection as a multi-class classification problem aiming to classify attack data into attack types. Attack classification can indeed be a useful addition to an IDS since the type of attack can inform attack mitigation responses.

Finally, we find no benchmarking or comparative evaluation study that includes physical characteristics-based CAN IDS. Review of physical layer CAN IDS reveals that they are commonly evaluated in online tests with testbeds and real vehicles. These evaluation methods are not common in the surveyed works, which take advantage of publicly available datasets. This indicates a need for comparative evaluation frameworks for online testing as well as datasets (such as [28,64]), which would encourage similar benchmarking studies of physical layer CAN IDS.

6.2. Evaluation type

If we distinguish between offline and online evaluations, almost all of the works surveyed have performed benchmarking with offline evaluations, whereby the assessed CAN IDS analyse collected CAN bus datasets. This can be explained by the proliferation of publicly available datasets covering common attack types in the literature, such as fabrication attacks. With comprehensive documentation, offline experiments using datasets can be replicated easily. Offline assessments can also be conveniently used to evaluate multiple IDS on an equal footing against the same dataset under equivalent test conditions.

On the other hand, the assessment methodology in [78] is the only one among the surveyed works to include online evaluations of CAN IDS, whereby IDS products have been integrated into test vehicles for evaluation in different scenarios. As noted in Section 6.2, online tests are relatively difficult to perform with a real vehicle due to costs and safety risks. Notably, we did not find any studies that utilise testbeds (such as that proposed in [37]) or simulations (such as Vector CANoe, as used in [88]) for the purpose of benchmarking, both of which are options that provide a more realistic environment for assessing detection capability and performance without the disadvantages of using real vehicles. This indicates a need for mature frameworks for real-time assessment and benchmarking of CAN IDS that can not only be implemented without the costs and risks associated with test vehicles but also allow repeatable assessments of CAN IDS under identical experimental conditions.

6.3. Workload

As mentioned in the previous subsection, the most common method used for comparative evaluation of CAN IDS is using datasets for offline experiments. The popularity of real CAN bus datasets in the broader CAN literature is reflected among the surveyed benchmarking frameworks and comparative studies, wherein all the datasets used are derived from the CAN bus of real vehicles. However, they differ in whether the attacks themselves are real or simulated. Half of the works surveyed use publicly available datasets from HCRL [33,40,46,71], which consist of real attack traces. Another dataset including real attacks with physically verified effects is the ROAD dataset [90], which was more recently published and has been used in only two of the surveyed works [13,83]. Other than these, the attack datasets that are used have been created by modifying logs of real CAN bus traffic to simulate attacks on the CAN bus. One of the earliest works [39] performed their comparative evaluation with an unpublished dataset whereby benign data collected from a real car is replayed in a CAN bus simulation software, where attack scenarios are conducted to generate attack samples. The study by Taylor et al. [85] is unique in that they propose a method for generating attack samples using a parametrised attack framework. While it may be argued that approaches such as these [39,85] may not produce realistic attack samples, these methods provide a customisable way of generating attack samples, enabling assessment against a variety of attack scenarios – from high-frequency message injection attacks to low rate injection attacks and masquerade attacks.

Unlike the remaining studies, [78] perform online evaluations on real test vehicles, the CAN buses of which are made to undergo different types of targeted ID attacks generated using attack scripts.

6.4. Attack model

Among all the works surveyed, fabrication attacks are the most common attack type tested, which is due to the fact that fabrication attacks comprise the majority of attacks found in CAN IDS literature, and there are several CAN datasets that provide real CAN bus logs with real attack samples [90]. On the other hand, few works evaluate intrusion detection methods against suspension and masquerade attacks. Only one study [25] performed IDS evaluations against all attack types in our attack model, but with simulated attack datasets. This highlights the need for realistic samples of these attack types.

The benefit of using real attacks over simulated attacks is realised in the online assessments in [78], where the physical effects of attacks like doors locking could be observed and verified and the evaluated CAN IDS could be confirmed to be effective in realistic attack scenarios. This is also the case for studies that use datasets like [71,90] that were collected from a real vehicle undergoing cyberattacks. However, real attack datasets that have been used in the surveyed works have their limitations. For instance, the dataset [71] used in [2,25] does not provide a difficult detection challenge since it consists of fabrication attacks that can be easily detected by trivial IDS methods and may not sufficiently test IDS methods that are capable of detecting more subtle attacks [90].

Apart from the attack classes identified in Section 2.2, ML-based CAN IDS have also been demonstrated to be vulnerable against adversarial attacks [19] that are designed to evade detection. The benchmark framework in [23] also evaluates the IDS under test against adversarial attack samples generated using Generative Adversarial Networks (GAN) and heuristics.

6.5. Evaluation metrics

From the evaluation metrics described in Section 4.5, we find that the surveyed studies all focus on examining attack detection accuracy by presenting security-related metrics almost exclusively. These metrics include classification accuracy, precision, recall, false positive rate (FPR), and receiver operator characteristic (ROC) curve. In order to avoid the pitfalls associated with relying on only a single metric like classification accuracy [79], the majority of the works report multiple metrics to provide a complete picture of attack detection capability. The study in [83] also reports balanced accuracy in addition to other metrics to account for class imbalance in attack datasets. Furthermore, as noted in Section 6.4, resistance to evasive attacks is evaluated in the benchmark framework provided in [23].

On the contrary, performance metrics are not widely reported in the surveyed studies. None of the surveyed works report detection latency, with only one work [13] providing an analysis of detection latency in terms of the computational time of the detection algorithms. Detection speed and latency to filter benign messages are included in the suite of metrics in the online assessment by Stachowski et al. [78], but they are ultimately not recorded and reported. Another study [83] reports testing execution time in addition to training time as a means of indicating performance. This trend can be explained by the fact that, unlike the security-related metrics that can be obtained in offline experiments with datasets, obtaining precise measurements of detection latency requires some form of online testing, such as simulations or testbeds. This further highlights the necessity of online testing for benchmarking CAN IDS. We also find a limited examination of non-functional properties such as resource consumption, performance overhead, and workload processing capacity.
