Visual Dysfunction in Huntington’s Disease: A Systematic Review

Abstract

It is well-documented that patients with Huntington’s disease (HD) exhibit specific deficits in visual cognition. A less well-documented literature also exists that suggests people with HD experience a number of disease-related changes to more rudimentary sensory visual processing. Here, we review evidence for the effects of HD on the integrity of the early visual pathways in humans along with changes to low-level visual sensitivity. We find evidence for reduced structural and functional integrity of the visual pathways, marked by retinal thinning, reduced VEP amplitude, and cell loss and thinning in visual cortex. We also find evidence of visual perceptual deficits, particularly for colour and motion. We suggest that future studies with well-defined HD and HD-related groups in appropriate numbers that systematically examine the relationship between structural changes to the visual system, basic visual perceptual deficits and disease stage/severity are therefore likely to yield promising results.

Keywords

Huntington’s disease vision retina visual pathways primary visual cortex colour vision contrast sensitivity motion perception

INTRODUCTION

Huntington’s disease (HD) is a progressive neurodegenerative condition caused by an expanded CAG repeat in the huntingtin gene, which encodes an abnormally long polyglutamine repeat in the huntingtin protein [1]. Inherited as an autosomal dominant trait, each child of an affected parent has a 50% risk of carrying the gene mutation. Core symptoms include motor problems, psychiatric disturbances and cognitive deficits. Symptom onset typically occurs between 30 and 50 years. There is no cure and the disease is fatal [2]. Motor symptoms represent the most outwardly distinct symptoms and are marked by chorea, dystonia, bradykinesia and akinesia [3]. Psychiatric symptoms often manifest in the early stages of the disease, prior to the onset of motor symptoms and include depression, anxiety, impulsivity, and irritability, which can be accompanied by aggressiveness and obsessive-compulsive behaviour [3]. Cognitive symptoms such as poor executive control and working memory deficits are also common and can be evident at least 15 years before diagnosis [4]. Predictive genetic testing is now readily available for at-risk individuals. However, a genetic diagnosis gives no indication of an individual’s clinical state at the time of testing or when symptoms will become apparent [5]. Clinical diagnosis of manifest HD is typically made using the Unified Huntington Disease Rating Scale (UHDRS) which assesses motor function, cognitive function, behavioural abnormalities, and functional capacity [6].

Cognitive deficits represent a core feature of HD and the majority of tests used to assess cognition rely on visual representations of objects. As such, deficits in ‘higher-level’ visual functions that require cognitive control are consistently documented. These include deficits in visual search [7, 8], visual selective attention [9], mental rotation [8, 10] and some aspects of visuo-spatial working memory [7, 11]. In such cases, it is difficult to tease the relative contributions of reduced bottom-up, sensory neurotransmission and top-down cognitive control to performance impairments, although it is likely that cognitive disturbances have a marked effect on performance on some visual sensory tasks.

Deficits in oculomotor control may also impact upon performance on some visual sensory and/or visuo-cognitive tasks, particularly tasks that require eye-movement driven aspects of visual attention. Principal eye movement disturbances include impaired saccade initiation, reduced saccade velocity, increased saccade latencies, an increase in square-wave jerks and increased distractibility when required to fixate a single point. These oculomotor disturbances are pronounced in HD manifest patients and there is also evidence that they are also present, albeit to a lesser extent, in pre-manifest HD2 .

Although deficits in visual cognition and eye movement control are typically regarded as the principal vision-related dysfunctions in HD, there is a parallel, somewhat disregarded literature concerning its effects on more basic visual perceptual processing. Here, we review the effects of this neurodegenerative disease on the integrity of the early visual pathways and the associated visual perceptual changes in humans.

MATERIALS AND METHODS

A search was undertaken using Web of Science from January 1980 to May 2018, using the following search terms: “Huntington’s”, ‘visual’, “vision”, “visual acuity”, “contrast sensitivity”, “depth”, “stereo”, “colour vision”, “form perception”, “motion”, “retina”, “visual cortex”. 26 articles were ultimately included in the review, identified in accordance with PRISMA guidelines [15] as summarised in Fig. 1.

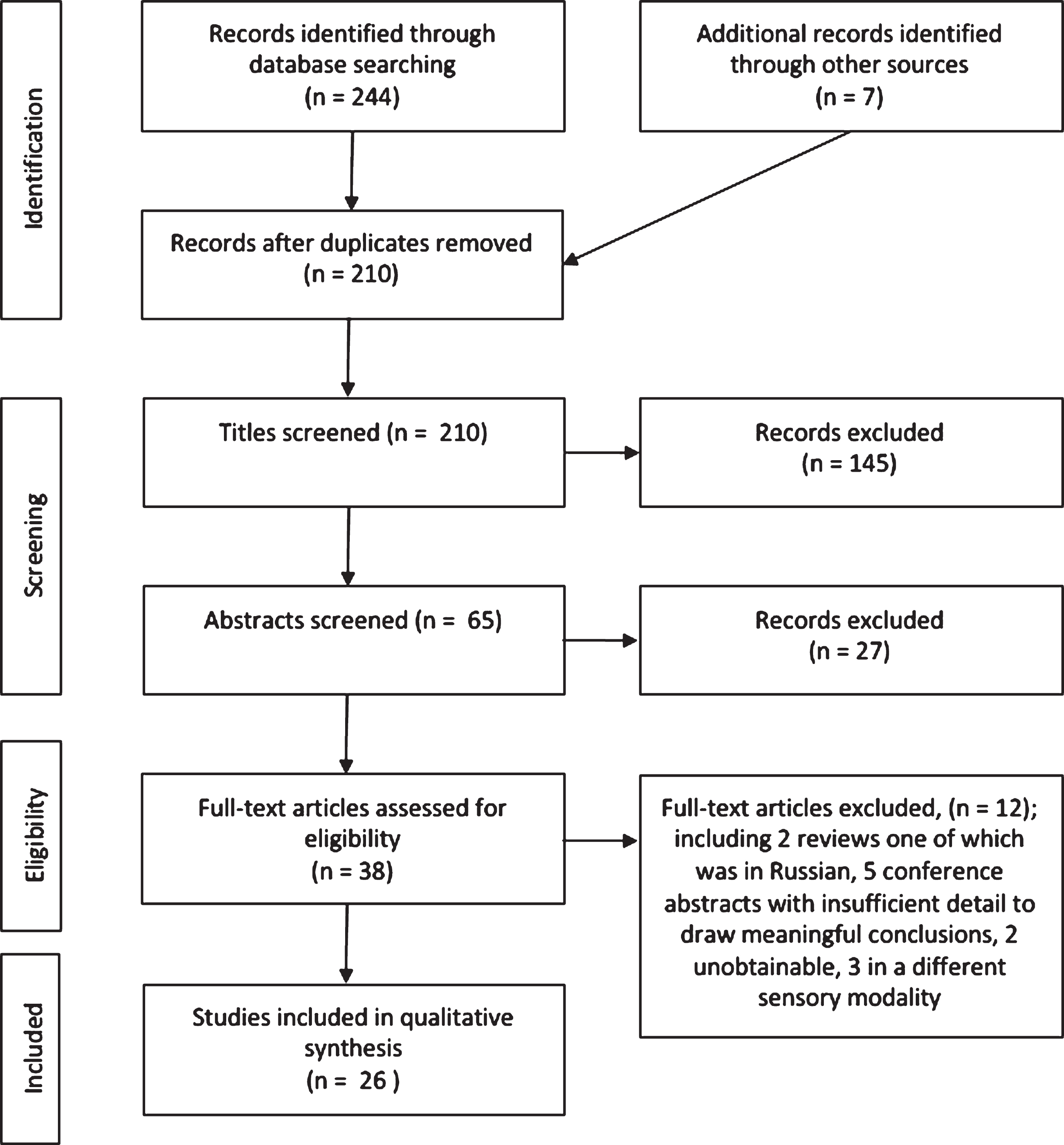

Fig.1

A search was undertaken using Web of Science from January 1980 to May 2018, using the following search terms: “Huntington’s”, ‘visual’, “vision”, “visual acuity”, “contrast sensitivity”, “depth”, “stereo”, “colour vision”, “form perception”, “motion”, “retina”, “visual cortex”. Articles were identified in accordance with PRISMA guidelines (after Moher et al., [15]). 38 full text articles were screened of which 26 were included in the review.

RESULTS

Changes to the integrity of the visual pathways

A number of studies have reported HD-related effects on the structural and functional integrity of the visual pathways, where changes have been documented in the retina and in visual cortical areas.

The retina

Until recently, very few studies had assessed the effects of HD on the human retina. An early study reported that HD patients had higher increment detection thresholds for a foveal blue test than controls [16]. More recently, two studies have examined the possible effects of HD on the retina using electroretinograms (ERGs). Pearl et al. [17] reported increased ERG amplitudes across a range flash intensities but no differences in their latency. Conversely, Knapp et al. [18] reported reduced ERG amplitudes in single case study of a 25-year-old asymptomatic gene carrier with no differences in latencies. Comparable results were also reported for multifocal electroretinogram (mfERG) where P1 amplitudes were reduced in both eyes in the central retina whereas latencies appeared normal. Although Knapp et al. [18] report findings from a single case study, it is of note that reduced ERG amplitudes are in keeping with results from mouse models of HD [19]. Moreover, a key difference between the two studies is that whereas Knapp et al. [18] report data from an unmedicated premanifest subject, Pearl et al. [17] report data from a group of HD-manifest patients. Some medications prescribed to HD patients, such as haloperidol have been shown to enhance ERG amplitudes in non-human primates, causing them to appear normal [20]. As such, these findings may be due, at least in part, to medication rather than the disease per se.

A number of recent studies have used high-resolution retinal imaging techniques such as optical coherence tomography and have begun to uncover HD-related changes to the morphology of the retina. Temporal retinal nerve fibre layer (RNFL) thickness has been shown to be significantly lower in an HD group where both manifest and pre-manifest patients differed significantly from controls [21]. Within the HD group, there was no difference between manifest and pre-manifest HD. Although there was no overall significant difference in macular volume between the HD group and controls, decreased macular volume in HD patients was associated with increasing disease duration and there was a negative correlation between macular volume and motor scores (determined by the Total Motor Score of the Unified Huntington’s Disease Rating Scale (TMS-UHDRS) [22]. Reduced macular choroidal thickness in HD patients compared to controls has also been reported [23]. Furthermore, although there was no significant difference in macular retinal thickness measurements between the HD and control eyes, in HD patients, there was a negative association between macular retinal thickness and motor scores on the TMS-UHDRS. More recently, reduced temporal, inferotemporal and superotemporal RNFL thickness, increased nuclear and outer retinal layer thickness and lower inner plexiform layer, retinal pigment epithelium and outer macular volume has been documented in HD compared to controls [24]. A number of correlations with indicators of disease progression were also reported. Of particular note were associations between mRNFL and ganglion cell layer thinning and disease progression. Finally, a single case study of an asymptomatic gene carrier found no evidence of any macular changes using OCT [18]. Additional details of retinal studies and their findings are summarised in Table 1.

Table 1

Summary of retinal findings in Huntington’s Disease

Authors	Participant groups	Technique	Main findings
Paulus et al. (1993)	19 HD patients 61 controls	Maxwellian View System	•Higher increment detection thresholds for a foveal blue test in HD group
Pearl et al. (2017)	18 HD patients 10 controls	Electroretinogram (ERG)	•Increased ERG amplitudes in HD group •No differences in latencies
Knapp et al. (2018)	1 asymptomatic HD gene carrier 19 controls	Electroretinogram (ERG) Multifocal Electroretinogram (mfERG) Optical Coherence Tomography (OCT)	•Reduced ERG amplitudes in HD gene carrier •No differences in latencies •Reduced P1 amplitudes in HD gene carrier •No differences in latencies •No differences in the macular retina
Kersten et al. (2015)	20 eyes of 20 HD patients	Optical Coherence Tomography (OCT)	•No differences in average, nasal, superior or inferior peripapillary RNFL thickness
	6 eyes of 6 pre-manifest HD		•Temporal RNFL thickness reduced in HD group
	29 eyes of 29 controls		•No differences in total macular volume or macular thickness
			•Disease duration was negatively associated with temporal RNFL thickness (when premanifest individuals were removed from the analysis) and macular volume; Motor scores were negatively associated with macular volume.
Andrade et al. (2016)	15 eyes of 8 HD patients 16 eyes of 8 controls	Optical Coherence Tomography (OCT)	•No differences in peripapillary RNFL thickness
			•No differences in choroid thickness
			•No differences in macular thickness
			•Average, central and inferior macular choroidal thickness reduced in HD patients. Temporal, nasal, superior macular choroidal thickness reduction approached significance
			•TMS-UHDRS scores were negatively associated with average, nasal, superior and macular retinal thickness
Gulmez Sevim et al. (2018)	15 eyes of HD patients^*	Optical Coherence Tomography (OCT)	•No differences in average, nasal, inferonasal or superonasal peripapillary RNFL thickness
	15 eyes of controls		•Temporal, inferotemporal and superotemporal RNFL thickness reduced in HD group
			•Outer nuclear and outer retinal layers were thicker in HD patients.
			•Inner plexiform layer, retinal pigment epithelium and outer macular volume were lower in HD group

RNFL, retinal nerve fibre layer. ^*Note that in the Gulmez Sevim et al., (2018), the text states that 15 eyes of 15 patients and 15 eyes of healthy controls were included. However, in Tables 1, 2 and 4, n = 30 is given for patients and controls, which suggests that both eyes were included in the analysis. We have reported the group numbers stated explicitly the text, rather than that from the data tables in the paper.

Visual evoked potentials

Visual evoked potentials (VEPs) are electrical potentials, elicited by the brief presentation of visual stimuli. They are recorded from the scalp overlying the occipital lobe (visual cortex) and provide a measure of the functional integrity of the visual pathways [25] in that they measure the amplitude (strength) and latency (timing) of visual system responses. A number of early studies examined the effects of HD on visual processing using visual evoked potentials (VEPs), the results of which are relatively conclusive [26 –30]. The amplitude of VEPs were consistently reduced in HD patients compared to controls [29, 30]. VEP amplitude was typically normal in at risk offspring of HD patients [26, 29], although there was a reduction in a subset of some offspring [27]. VEP latency was unaffected, being normal in patients and their offspring [26 –30]. Further study details are provided in Table 2.

Table 2

Summary of visual evoked potential (VEP) studies in Huntington’s disease

Study	Participants	VEP Amplitude	VEP Latency
Ellenberger et al. (1978)	18 HD patients	Reduced in HD group	No differences between groups
	13 at risk offspring	Normal in offspring
	50 controls
Oepen et al. (1981)	13 HD patients	Reduced in HD group	No differences between groups
	9 at risk offspring	Reduced in 4 offspring
	40 controls
Josiassen et al. (1984)	21 HD patients	Reduced in HD group	No differences between groups
	21 controls
Lawson et al. (1984)	13 HD patients	Reduced in HD group No difference	No differences between groups
	18 at risk offspring	between HD group and offspring
	15 Controls
Hennerici et al. (1985)	36 HD patients, 36 controls	Reduced in HD group and offspring	No differences between groups
	55 at risk offspring, 55 controls

These early studies that assessed the effects of HD on VEPs were conducted before routine genetic testing for the disease. As such, whether at risk offspring had actually inherited the disease would have been unknown. Furthermore, although VEP studies provide useful insights into changes in the functional integrity of the visual system, abnormal VEPs can reflect changes anywhere between the retina and the visual cortex. However, it is worth noting that reduced VEP amplitude, as shown consistently in HD, is characteristic of optic nerve atrophy [31], a notion supported by recent findings from OCT studies for temporal RNFL thinning [21, 24] which suggest optic nerve axonal damage.

Visual cortex

Magnetic resonance imaging studies have revealed occipital atrophy in HD and premanifest HD, particularly in occipitolateral, occipitotemporal and lingual regions [8 , 32–36]. Additionally, there appear to be associations between visual cortical thickness and visuo-cognitive task performance [8 , 36] and disease burden [36]. HD-related reductions in cell number in visual cortex have also been reported, although the precise nature and extent of damage in early visual cortical regions remains unresolved. An early study reported a reduction in cell numbers in BA17/V1 in the post-mortem brains of 5 advanced HD patients compared to 5 age and sex-matched controls [37]. More recent studies have shown some similar results where, although the extent of cell loss varied considerably within and between HD brains, widespread cell loss was identified for neurons and pyramidal cells in the parietal, temporal, and occipital lobes of 14 HD patients and 15 controls [38]. Although this pattern was least marked in primary visual cortex, it is of note that cell loss in primary and secondary visual cortices was associated with HD motor symptom profiles. Other studies have shown cell loss in the primary visual cortex of 7 HD patients compared to 7 controls, where a 32 percent reduction in the estimated absolute number of BA17/V1 nerve cell numbers has been documented [39].

Changes to visual sensitivity

That effects of HD on the integrity of the visual pathways, particularly the retina and the visual cortex, are such that it is likely that there exist HD-related changes to basic visual function. Indeed, this seems to be the case whereby problems encoding both spatial (stationary) and temporal (moving) visual patterns have been reported. Below, we summarise these changes to basic visual function and, where possible, attempt to map such changes onto HD-related visual pathway damage.

Colour vision

Acquired colour vision deficits are common in neurodegenerative disorders and reflect damage to the retina and/or the optic nerve. Performance on the Ishihara Colour Plate Test, a test for red-green colour deficiencies, has been found to be compromised in HD [21, 24]. HD patients have also been shown to exhibit significantly worse colour/hue discrimination on the Farnsworth Maunsell 100 Hue Test, a chromatic discrimination test based on coloured cap-sorting. Deficits were characterised by greater total error scores (poorer overall colour discrimination) and partial scores on both red-green and blue-yellow axes [40]. Further details are given in Table 3.

Table 3

Summary of visual sensitivity deficits in Huntington’s Disease

	Authors	Participant groups	Main findings
Colour vision	Buttner et al., (1994)	16 HD patients 18 controls	•HD group exhibited poorer colour discrimination scores on FM-100 Hue Test, particularly on red-green and blue-yellow axes
	Kersten et al., (2015)	26 HD group (20 manifest HD+6 pre-manifest HD)	•HD group performed significantly worse on the Ishihara Colour Vision Plates.
		29 controls	•50% of the HD group misidentified at least one plate (out of a maximum of 14).
			•Performance did not differ between manifest and pre-manifest groups.
			•Pre-manifest HD and controls were not compared directly, although it is unlikely that they differed significantly, given group performance (Pre-manifest HD: 13.38/14 (0.41 SD); Controls: 13.97/14 (0.91 SD), from Kersten et al. 2015; Table 1).
	Sevim et al., (2018)	15 HD patients	•HD group misidentified significantly more plates on the Ishihara Colour Vision Plates
		15 controls
Form perception	O’Donnell et al. (2008)	36 HD patients (HD)	•No differences between groups for distinguishing between a circle and a square embedded in visual noise
	32 pre-diagnostic gene carriers with moderate neurological abnormalities (PD2)
	20 pre-diagnostic gene carriers with mild neurological abnormalities (PD1)
	201 controls
	Nasr &Rosas (2016)	12 HD patients	•HD patients were worse at distinguishing between a circle and a triangle embedded in visual noise
	12 controls
Spatial Contrast Sensitivity	Spengelmeyer et al. (1996)	13 HD patients17 controls	•No differences between groups on VISTECH Contrast Sensitivity Test, except for highest spatial frequency (18 c/deg) for which HD group performed better
	Hennenlotter et al. (2004)	9 pre-symptomatic gene carriers9 controls	•No differences between groups on VISTECH Contrast Sensitivity Test.
	O’Donnell et al. (2003)	9 HD patients9 pre-symptomatic gene carriers20 controls	•No differences between groups for detecting stationary sinusoidal gratings (0.53, 2.13, 10.5 c/deg)
	O’Donnell et al. (2008)	36 HD patients (HD)	•No differences between groups for detecting stationary sinusoidal grating (9.9 c/deg)
		32 pre-diagnostic gene carriers with moderate neurological abnormalities (PD2)
		20 pre-diagnostic gene carriers with mild neurological abnormalities (PD1)
		201 controls
TemporalContrastSensitivity	O’Donnell et al. (2008)	36 HD patients (HD)	•HD group had poorer contrast sensitivity compared PD1 group and controls at all temporal frequencies (2.1, 9.3, 18.8 Hz)
		32 pre-diagnostic gene carriers with moderate neurological abnormalities (PD2)	•HD group exhibited poorer contrast sensitivity compared to PD2 group at 2.1 Hz
		20 pre-diagnostic gene carriers with mild neurological abnormalities (PD1)	•PD2 group exhibited poorer contrast sensitivity compared to PD1 group and controls at 9.3 Hz
		201 controls
Global motion perception	O’Donnell et al. (2003)	9 HD patients	•HD group were more susceptible to visual noise (had lower noise thresholds) than controls when required to discern the direction of signal dots embedded in noise dots
		9 pre-symptomatic gene carriers	•No differences between pre-symptomatic gene carriers and controls
		20 controls	•Statistical comparison between HD group and pre-symptomatic gene carrier task performance is not provided
	O’Donnell et al. (2008)	36 HD patients (HD)	•No differences between groups for discerning the direction of signal dots embedded in noise dots
		32 pre-diagnostic gene carriers with moderate neurological abnormalities (PD2)
		20 pre-diagnostic gene carriers with mild neurological abnormalities (PD1)
		201 controls

The deleterious effects of HD on colour vision [21 , 40], particularly the reduced ability to discriminate between different hues [40], adds weight to the findings of ERG and OCT studies and to the notion that HD affects the retina and the optic nerve. However, mapping colour vision deficiencies onto specific HD-related pathology in the visual system is not possible based on the existing literature. For example, whether colour vision deficiency is congenital or acquired in HD patients is not clear, although it is likely that it is acquired. Acquired blue-yellow deficits that precede red-green anomalies are often indicative of retinal disease, whereas red-green deficits, which may be accompanied by some blue-yellow loss, are more likely to reflect damage to the retinostriate pathway (including the optic nerve) (Kollner’s rule). However, there are examples of many ocular diseases that violate this assumption [41]. As such, although colour vision deficits may represent visual markers of HD, their clinical/diagnostic utility are, at present, unknown. For example, whether they are present in pre-manifest HD is presently unclear because only 6 pre-manifest patients have been included in one study [21]. In that study, there was no difference between pre-manifest HD and HD patients. Given the small number of participants, no firm conclusions can be drawn at present. There are also no longitudinal studies to determine the precise nature or time-course of colour vision deficits. Another cautionary note concerns recent findings that FM100 performance is not purely a measure of colour discrimination but instead also reflects general nonverbal ability [42]. Given evidence that non-verbal fluency is reduced even in prodromal HD [43], the FM100 may not represent a suitable means of testing colour discrimination in this group.

Form perception

Studies that have investigated the effects of HD on form perception (the ability to recognise and distinguish between objects) have investigated both simple, low-level visual discrimination tasks and those that require higher levels of cognitive control. Deficits in higher level tasks that require the ability to spatially manipulate visual information (e.g., mental rotation) are consistently impaired in pre-manifest and manifest HD [8, 10]. However, these deficits are likely to reflect deficits in cognitive control, rather than deficits in visual function per se. The effects of HD on the ability to make simple visual form judgements remains unresolved. Whilst some studies report that the ability to distinguish between simple shapes is preserved in HD [44], others report that it is deleteriously affected [45].

Spatial contrast sensitivity

A number of studies have sought to determine the effects of HD on spatial contrast sensitivity. Contrast sensitivity refers to the ability to distinguish low contrast objects from each other and from their background. Contrast sensitivity deficits can be present even when there is no detectable impairment in visual acuity and can reveal abnormal visual processing at the level of the retina and in the cortical and subcortical visual pathways [46]. Studies that have examined spatial contrast sensitivity have done so using the Vistech Contrast Test System and psychophysical contrast thresholding procedures. The Vistech Contrast Test System is a contrast sensitivity chart made up of 5 rows of gratings depicting spatial frequencies of 1.5, 3, 6, 12, 18 cycles per degree of visual angle (c/deg) (top to bottom). Grating contrast (9 levels) decreases along each row (from left to right). Observers judge the orientation of each grating pattern (left, right, vertical). The lowest contrast grating for which the orientation is correctly identified determines the contrast sensitivity score. Psychophysical contrast thresholding procedures use carefully-controlled computer-generated sinusoidal grating patterns, across a range of spatial frequencies. Contrast thresholds correspond to the minimum difference between the light and dark transition at a border or an edge of a pattern or object that allows an individual to reliably detect its presence. Psychophysical techniques therefore provide a more sensitive measure of contrast detection than contrast charts. Contrast sensitivity has been determined in HD patients and HD gene carriers using both The Vistech Contrast Test System [47, 48] and psychophysical contrast thresholding techniques [44, 49] and no evidence of spatial contrast sensitivity deficits have been found (Table 3).

Temporal contrast sensitivity

Temporal contrast sensitivity deficits are often heralded as a means to uncover visual pathway-specific damage. For example, deficits that are most pronounced at low spatial and/or high temporal frequencies are typically regarded as reflecting a magnocellular problem, affecting magnocellular neurons that project preferentially to the dorsal visual stream. Those that are most pronounced at high spatial and/or low temporal frequencies are typically regarded as reflecting a parvocellular problem, affecting parvocellular neurons that project preferentially to ventral visual stream structures (although see [50] for a review). A single study has examined the effects of HD on contrast sensitivity for moving test patterns [44]. Participants judged the direction (left vs. right) of 1.3 c/deg sinusoidal grating patterns drifting at 2.1, 9.3 or 18.8 Hz. Temporal contrast sensitivity was markedly reduced in patients compared to both a group of pre-diagnostic gene carriers with mild neurological abnormalities and controls at all temporal frequencies. Some temporal-frequency selective differences were also evident between groups (see Table 3 for further details). These deficits are likely to reflect changes in the local motion, contrast-sensitive stage of the motion processing pathway, typically associated with primary visual cortex (area V1). Future studies should examine a wider range of spatial and temporal frequencies, which may reveal a more detailed understanding of the spatiotemporal frequency-specificity of contrast sensitivity deficits and provide greater insight into the underlying disease-related pathology in the visual system.

Global motion perception

Global motion refers to instances in which the individual motion trajectories of local elements combine to create a larger aggregate moving stimulus. Although the local (individual) moving elements move along different trajectories, their combined direction appears to move coherently. Real world examples include the movement of a swarm of bees or a flock of birds. This type of motion can be simulated using random dot kinematogram (RDK) patterns in which some individual dots move in the same direction (signal dots) whilst others move randomly (noise dots). The greater the proportion of individual dots that move in the same direction (signal) and/or the fewer dots that move randomly (noise), the easier it is to judge the motion of the overall pattern. Two studies have investigated the effects of HD on global motion perception but have produced mixed results. One study [49] showed HD-related deficits in the ability to accurately determine the overall direction of RDK patterns. This was reflected in lower noise thresholds for HD patients compared to controls (i.e., the proportion of noise dots, relative to signal dots, required to impair performance was significantly less in HD). However, a later study by the same group [44] found no differences between HD and controls. The authors suggest that the differences between studies is most likely caused by differences in severity between the HD patient samples in the 2 studies, specifically, that participants in their earlier study were in the later stages of the disease. It is certainly plausible that this is the case. Differences in RDK stimulus parameters might also feasibly contribute to the disparity between studies. In other groups such as the aged, for whom global motion perception is differentially compromised, deficits are specific to particular stimulus parameters, such as the contrast, spatial displacement, or speed of local moving elements [52]. Future studies are therefore required to determine the precise nature and extent of global motion deficits in HD and HD-related samples.

Global motion processing deficits reflect damage to the extrastriate areas of the dorsal visual processing stream (e.g., MT, MSTd) in which the output of local motion detectors earlier in the motion processing pathway (e.g., V1) are pooled or combined [51]. If reliably established, deficits in in this domain would indicate degraded output of local motion detectors early in the cortical visual processing pathway (e.g., V1), a reduced ability of neurons in extrastriate visual areas (e.g., MT) to integrate/pool the output of local motion detectors across visual space, or a combination of both. Of particular note is that motion processing deficits fit well with reports of cell loss in layers IVc and VI of BA17/V1 [39], both of which have been implicated in transmitting neural signals concerning visual motion up-stream from area V1 to extrastriate visual areas such as MT, via the magnocellular processing stream [53].

SUMMARY AND CONCLUSIONS

In recent years, genetic testing has allowed better classification of HD and advances in imaging techniques have allowed more precise analysis of its effects on the structural and functional integrity of the visual system. Key changes to the visual system include retinal thinning, reduced VEP amplitude, reduced cell numbers in visual cortex, reduced occipital cortex thickness, impaired colour vision and poor motion perception. However, studies to date typically include small numbers of participants and the direct associations between structural changes to the visual pathway and visual perceptual deficits are relatively unknown. In addition, although changes are evident in HD manifest groups, they are less well-established in pre-manifest gene carriers. Future studies with well-defined HD and HD-related groups in appropriate numbers that systematically examine the relationship between structural changes to pathway, basic visual perceptual deficits and disease stage/severity are therefore likely to yield promising results.

CONFLICT OF INTEREST STATEMENT

The authors have no conflict of interest to report.

Footnotes

Eye movement dysfunction is beyond the scope of this review and is comprehensively reviewed elsewhere [12 –].
