A model driven approach for assessing survivability requirements of critical infrastructures

Abstract

Critical infrastructures are complex networked systems. They must be able to provide essential services, even when they are compromised by intentional or accidental threats. Guaranteeing essential services means to ensure survivability with an adequate Quality of Service (QoS). This paper proposes a model-driven approach for the assessment of survivability requirements. In particular, we propose a graphical Survivability Assessment Model (SAM), based on UML. It is automatically derived from a UML specification that encompasses essential services, service modes, threats and survivability strategies. Furthermore, model-driven techniques are used to assess the SAM. Then, we propose some preliminary property verifications to discover flaws in the specification. The model driven paradigm is used to ensure high level of usability and abstraction of the artifacts that are key issues in communication among stakeholders. The approach has been applied to a scaled-down model of a smart grid, an evolution of traditional power grids based on high performance and dependable computer networks.

Keywords

Security requirement elicitation UML misuse case service survivability model transformations networked systems security

1. Introduction

The integration of computer networks within complex critical infrastructures introduces new threats and technological issues. They can compromise the infrastructure correct functioning and also harm human life. An example of critical infrastructure is constituted by smart energy grids. These are computing and communication infrastructures used to gather information about suppliers and consumers. The aim is for optimizing the energy supply, then improving the overall efficiency, reliability, and sustainability in an autonomic way. In this context, it is a crucial need to ensure service survivability; this is the capability of a system to provide “essential services” with a specified Quality of Service despite the occurrence of threats or attacks [6].

Eliciting survivability requirements in such infrastructures can be a hard task. Consider that the earliest phases of system development are the most critical. This is because an incomplete and/or inconsistent requirement specification can bring to vulnerable systems. We consider models as first class citizens in the assessment of requirements for critical systems. Then, we propose a Survivability Assessment Model (SAM), that can be formally verified. It will be an important support for requirement engineers in identifying gaps and/or errors in the system specification.

In this paper, we then propose an approach to generate a SAM using model-driven techniques. The approach consists of two steps. First, an improved Misuse Case Diagram (MUCD) specification is produced. It considers system essential services, service modes, threats and mitigation strategies. Second, a state-based SAM is automatically generated from the MUCD specification, by means of model-driven techniques. The SAM enables engineers to easily discover flaws in the system specification.

This work builds on the results presented in [3], where a Petri Net model was generated from the SAM to verify survivability properties through model checking. The original contribution of this paper is to support the verification of such properties directly on the SAM by means of model queries without generating state-based models that scale hard with the dimension of the system.

The proposed approach is applied for the survivability assessment of a scaled-down model of a smart grid.

The structure of the paper is the following. Section 2 introduces the Smart Grid case study. Section 3 overviews the proposed approach. Section 4 describes the system specification process and applies it to the Smart Grid case study. Section 5 focuses on the verification process of SAM survivability properties. Section 6 provides a review of the related literature. Finally, Section 7 provides closing remarks.

2. The smart micro grid case study

Traditional power grids rely on dated architecture where the generation is centralized – mostly based on non-renewable sources. Moreover, the energy is delivered to passive consumers through the transmission and distribution lines [14]. Very often they are affected by blackout events, especially during peak energy periods (e.g., [9]), cascading failures (e.g., [12]), energy lacks and thefts along the distribution line. On the other hand, they are also a sensitive target for terrorist attacks (e.g., [1]). Such limitations clearly show that traditional power grids are not able to cope with a higher energy demand, higher security and reliability, lower environmental impacts and reduced operating costs.

To face such issues, several governments and energy agencies are promoting a radical change in electrical distribution on the grid to close energy consumers and consumers. Distributed Energy Resources (DERs) encompass new assets like, e.g, renewable sources such as wind, hydro and/or Solar power. In particular, Distributed Generators or Energy Storages (EGs) that absorb energy peaks and avoid lacks of energy. Finally, the demand-response management policy enables to define a set of modifications in final customers electricity usage, in response to changes in the price of energy or to reduce the energy consumption when the system reliability is compromised [26]. DERs enable customers to take energy from the distribution grid but also to generate energy themselves to satisfy their needs and, possibly, to sell the surplus of energy back to the distribution operator.

The management of such new power grids requires an advanced Information and communication technology (ICT) infrastructure that is able to provide monitoring and measurement functionalities; the effects are to detect incorrect behaviors and failures, to enhance a QoS-aware consumption and to provide billing and accounting functionalities [7,19]. Security is also a primary issue but it has been traditionally coped by experimental approaches – e.g., PMUs [5], other monitoring technologies [20], big data analysis [30].

Fig. 1.

Smart Micro Grid architecture.

The DER approach, currently addressed by several European governments, consists in clustering the whole distribution grid in smaller areas, namely Smart Micro Grids [17]. Figure 1 shows a typical architecture, which has been defined considering the requirements collected from surveys [28] and [2]. Electricity consumers (e.g., private houses, public or commercial enterprises) are connected to the distribution lines. Some, or even all, of them own a local power generator to satisfy the local demand. Moreover, they are equipped with a smart meter, a device that periodically records the consumption of energy and transmits data to the distribution system operator for metering and billing purposes. Along the distribution lines EGs gather all the energy that has been locally generated but not consumed. Smart Micro Grids provide several advantages for both customer and distribution operator. Customers can (i) receive invoices on real consumption, (ii) issue tailored tariffs, and (iii) obtain savings in billing. Operators can (i) obtain peak shaving, (ii) realize energy efficiency and CO₂ reduction, (iii) reduce commercial and technical losses.

In a more futuristic vision, the appliances connected to the grid will get smarter. For example, to perform more efficient and productive use of electricity (e.g., reducing power consumption during peak hours and operating during those hours when power costs less). Also they will have two-way communication links, allowing commands to be sent toward the smart appliances for multiple purposes as for example the remote service disconnections.

3. Approach overview

The approach focuses on the survivability assessment of the system. In particular, the aim is to produce an improved system requirement specification and to leverage it for verifying system survivability properties. Figure 2 provides an overview of the approach by highlighting the main tasks and produced artifacts – specifications or models – which are described in the following.

Essential Services and Service Modes specification. During the requirements elicitation stage, the engineer identifies the system essential services, i.e., services that must operate even when affected by faults or attacks. Also the engineer identifies QoS metrics related to services, which lead to the definition of the system service modes.

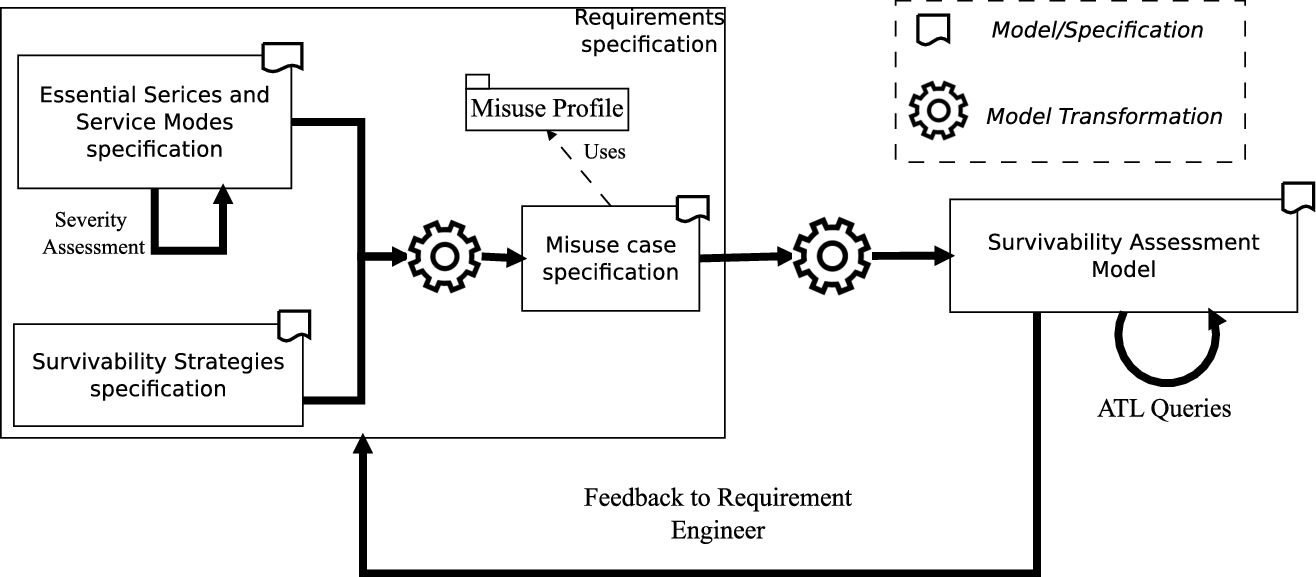

Fig. 2.

Approach overview.

Severity assessment. This activity is aimed to grade the service modes by their severity. We conform to the severity concept adopted by Symantec [24] where higher is the severity, higher the damage in case the service mode is entered.

Survivability strategies specification. During the requirements elicitation, potential threats to the system and related countermeasures – i.e., resistance, recognition and recovery strategies [6] – need to be identified.

Misuse case specification. Using the Misuse Case UML profile [22] the specifications produced in the previous steps are used to generate a misuse case specification (MUCD) using a text-to-model (T2M) transformation.

Survivability Assessment Model. The misuse case specification is used to generate, by means of a model-to-model (M2M) transformation, the survivability assessment model (SAM). The SAM is a UML state machine model.

Survivability Properties Verification. This activity is aimed to verify some predefined system survivability properties by submitting specific queries on the SAM. The results of this activity provide a feedback to the engineer, enabling him/her to discover non correct and non complete points in the misuse case specification – such as attacks that have not been addressed by a proper recovery.

4. Requirements specification

This section describes the requirements elicitation process that enables to produce the misuse case specification (MUCD) of the system. The Smart Micro Grid, introduced in Section 2, is used as running example.

Table 1
Specification of severity levels and QoS metric values for each service mode

Severity level QoS metric Essential services

Ask energy prices Report account and balance Estimate state Demand response

FF – ssAvail – – (99.99%,min) (99.99%,min)

confLevel (medium,min) (medium,min) (high,min) –

integLevel – (medium,min) (high,min) (high,min)

DI L4 ssAvail – – (99.99%,min) (99.99%,min)

confLevel (medium,min) (medium,min) (high,min) –

integLevel – (low,min) (medium,min) (medium,min)

DC L3 ssAvail – – (99.99%,min) (99.99%,min)

confLevel (low,min) (low,min) (medium,min) –

integLevel – (low,min) (medium,min) (medium,min)

DA L2 ssAvail – – (99.9%,min) (99.9%,min)

confLevel (low,min) (low,min) (medium,min) –

integLevel – (low,min) (medium,min) (medium,min)

MD L1 ssAvail – – (99.0%,min) (99.0%,min)

confLevel (low,min) (low,min) (medium,min) –

integLevel – (low,min) (medium,min) (medium,min)

	Severity level	QoS metric	Essential services
FF	–	ssAvail	–	–	(99.99%,min)	(99.99%,min)
confLevel	(medium,min)	(medium,min)	(high,min)	–
integLevel	–	(medium,min)	(high,min)	(high,min)
DI	L4	ssAvail	–	–	(99.99%,min)	(99.99%,min)
confLevel	(medium,min)	(medium,min)	(high,min)	–
integLevel	–	(low,min)	(medium,min)	(medium,min)
DC	L3	ssAvail	–	–	(99.99%,min)	(99.99%,min)
confLevel	(low,min)	(low,min)	(medium,min)	–
integLevel	–	(low,min)	(medium,min)	(medium,min)
DA	L2	ssAvail	–	–	(99.9%,min)	(99.9%,min)
confLevel	(low,min)	(low,min)	(medium,min)	–
integLevel	–	(low,min)	(medium,min)	(medium,min)
MD	L1	ssAvail	–	–	(99.0%,min)	(99.0%,min)
confLevel	(low,min)	(low,min)	(medium,min)	–
integLevel	–	(low,min)	(medium,min)	(medium,min)

4.1. Essential services and service modes specification

An initial task consists in identifying the system service modes, that are defined in terms of the Quality of Service (QoS) of the essential services. This phase produces a table (Table 1) that specifies the service modes of a Smart Micro Grid ICT infrastructure. Among the services offered by the system, the engineer – possibly with the help of domain experts – selects those that need to survive despite faults or attacks. For our case study, four essential services are identified [28]. Two of these services concern the exchange of information between a smart meter and a distribution system operator: they are the request of energy prices (Ask Energy Prices) and the transmission of customer’s account and balance information (Report Account and Balance). The other two services are provided by the distribution operator: they are related to the estimation of the current state of the grid (Estimate State) and the management of energy production and consumption (Demand Response).

The QoS of an essential service is defined by assigning acceptable threshold values to a subset of metrics of interest. For example, three metrics have been defined for the case study: the steady state availability (ssAvail), the confidentiality level (confLevel) and the integrity level (integLevel). Table 1 – row labelled FF – specifies the Full Functionality system service mode that represents the best QoS offered by the system [21,25] for the identified essential services. Observe that essential services can be characterised by different threshold values and all the metrics values express required minimum thresholds. The other rows of the table, i.e., Degraded Integrity (DI), Degraded Confidentiality (DC), Degraded Availability (DA) and Maximum Degradation (MD), specify different system service modes considering possible – although still acceptable – degraded values of (a subset of) the QoS metrics.

Severity assessment. Once the system service modes have been defined, they are ranked. The rank considers the relevance of the degraded QoS metrics and their minimum threshold values. Therefore, we can provide different priorities for intervention, just in case the system is threatened by attacks. In the case study, the steady state availability is considered the QoS metric of major importance followed by the confidentiality level. The integrity level is instead the QoS metric with minor relevance. Table 1 – second column – shows the severity level associated to each degraded service mode of the case study, where the lowest level corresponds to the highest degradation in compliance with Symantec [24]. In particular, the DI service mode corresponds to a minor degradation. This is because only the integrity level, i.e., the QoS metric with minor relevance, has a threshold value that is degraded with respect to the one in the fully operational service mode (i.e., FF). The DC service mode has lower severity level (i.e., $L 3$ ) than the previous mode since the confidentiality level, i.e., the QoS metric of medium relevance, is degraded. The DA service mode is characterised by the degradation of the steady state availability, that is the QoS metric of major relevance, then it is more severe than the DC mode. Finally the MD service mode has the lowest severity level, since the steady state availability is even more degraded.

4.2. Survivability strategies specification

According to [6], once we have identified the essential services we need to carry out two tasks: an intrusion analysis based on the system environment; and a survivability analysis to identify key countermeasures that may include resistance, recognition and recovery strategies [6].

Intrusion analysis identifies threats to essential services. This is a process carried out by an expert, basically for each threat he/she analyses the consequences for the system in terms of the degradation that occurs. We summarise the intrusion analysis through a table (e.g., Table 2).

Table 2
Summary of the Smart Grid intrusion analysis

Essential services Threats

Data injection Spoofing Eavesdropping Flooding EMI

Ask Energy Prices DC

Report Acc. & Bal. DI DC

Estimate State DI DC DA

Demand Response DI DA MD

Essential services	Threats
Ask Energy Prices			DC
Report Acc. & Bal.	DI	DC
Estimate State	DI	DC		DA
Demand Response	DI			DA	MD

DI: Degraded Integrity; DC: Degraded Confidentiality; DA: Degraded Availability; MD: Max. Degradation

Survivability analysis is a process carried out by a domain expert, who identifies for each threat countermeasures of resistance, recognition or recovery. We summarise the survivability analysis through a table (Table 3).

In the following, we report the intrusion and survivability analyses for the case study. An ICT infrastructure of a Smart Micro Grid can be threaten by attacks against: a) the availability, to disrupt the energy delivery; b) the confidentiality, to stole information from customers and/or the distributor operator; and c) the integrity, to introduce fake commands that can compromise the grid. In particular, we identified the following threats (see Table 2):

Data Injection is an attack to disrupt integrity, and it mostly threats the Report Account and Balance, Estimate State and Demand Response essential services.

Spoofing threats confidentiality through the Report Account and Balance and Estimate State services.

Eavesdropping threats confidentiality of the Smart Grid, essentially through the Ask Energy Prices service.

Flooding threats availability of the Grid by sending a large number of packets. The services exposed are Estimate State and Demand Response.

Electromagnetic Interference (EMI) is a disturbance of the communication channel that can degrade or totally disrupt the service. The source can be a specific device (malicious attack) or a natural phenomena (accidental threats). The Demand Response is the target service.

Concerning the survivability analysis, we relied on the work of Wang and Lu [27] that identifies several countermeasures. We classified them according to the survivability strategy terminology – introduced by [6] – as follows:

Resistance is the capability to repel attacks and allows the system to remain in full functionality [6]. The analysis devises Encryption (RES1) and Point-to-Point Authentication (RES2). The former mitigates the threats against confidentiality and the latter those against integrity.

Recognition is the capability to detect attacks as they occur and to evaluate the extent of damage and compromise [6]. The analysis devises: Signal-based detection (DET1) for EMI; Packet-based detection (DET2) for flooding; and Anomaly-based network detection (DET3) for Data Injection, Spoofing and Eavesdropping.

Recovery is the capability to maintain essential services during attack, limit the extent of damage, and restore services following attack [6]. The analysis devises: a) Rate-limiting (REC1) to mitigate threats again system availability; b) Spread Spectrum protocols (REC2) to mitigate effects due to physical attacks as EMI; and c) Reconfiguration (REC3) to change network topology and reduce the effect of flooding attacks.

Table 3

Summary of the Smart Grid survivability analysis

Threats	Strategies

	RES2	DET3	RES1	DET2	REC1	DET1	REC2	REC3
Data Injection	resistance	recognition
Spoofing		recognition	resistance
Eavesdropping		recognition	resistance
Flooding				recognition target = FF	recovery
EMI						recognition target = DA	recovery target = FF	recovery

4.3. Misuse case specification

The table-based specification created so far is used to produce an improved misuse case diagram (MUCD). Use cases [10] are a well-known technique for eliciting requirements and likely the most popular. Although they are a suitable technique to capture functional requirements, they are not likewise suited for eliciting non-functional ones, in particular safety and security requirements. To address this lack, misuse cases were proposed [23] where use case diagrams are extended to encompass the misuse of the system by a hostile actor. Herein, MUCD have been enhanced by adding new extensions (see Table 4 – bold part) in order to use them for the specification of the survivability requirements. The misuse case extensions have been implemented via UML profiling, which is a lightweight approach to extend the UML meta-modeling elements, e.g., the use cases. The meta-modeling approach enables the interoperability between CASE tools (i.e., exchange of MUCD), whereas the table-based specification does not. Moreover, it supports M2M transformations, as the one we propose in Section 5 for survivability assessment. In the following, we describe informally the T2M transformation that, provided in input the table-based specification, produces the MUCD of the Smart Micro Grid case study (see Fig. 3). The transformation includes the following steps:

Table 4
Misuse case extensions used in the approach

Stereotype	Description	Tags	Extended UML metaclass
misuse	A threat scenario	targetServiceMode (name,severityLevel)	Use case
threatens	A threat to a service		Dependency
mitigates	A threat mitigation		Dependency
resistance	A resistance strategy		Use case
recognition	A recognition strategy		Use case
recovery	A recovery strategy	targetServiceMode (name)	Use case

Each essential service of the Intrusion analysis table (row names of Table 2) is transformed into a use case (left-hand side of Fig. 3).

Each threat of the Intrusion analysis table (column names of Table 2) is mapped to a misuse case (right-hand side of Fig. 3). Moreover:

Each misuse case has a tag – i.e., targetServiceMode – that indicates the service mode reached as a consequence of the threat. The tagged-value is derived from the table entries corresponding to the mapped threat.

A threatens dependency is created between a misuse case and a use case when the table entry corresponding to the mapped threat and essential service is not empty (central part of Fig. 3).

Each strategy of the survivability analysis table (Table 3) is mapped to a new use case that is stereotyped according to the table entries corresponding to the mapped strategy (central part of Fig. 3). Moreover:

Each recovery use case has a tag – i.e., targetServiceMode – indicating the service mode reached as a result of the strategy. The tagged-value is derived from the table entries corresponding to the mapped strategy.

A mitigates dependency is created between a resistance (or recognition) use case and the misuse case it mitigates when the table entry corresponding to the mapped strategy and threat is not empty.

Finally, the engineer needs to take the following decisions/actions to complete the misuse case diagram:

Identify, in the problem domain, the actors of the use cases and the hostile actors of the misuse cases. In our case study, the actors are: the Smart Meter, the Distributor Operator, the Energy Storage. The hostile actor is the Attacker.

Reorganize use cases that represent essential services, using inheritance or inclusion if it is convenient (see Fig. 3 in our case).

For each recovery use case, indicate the recognition use case it extends. The rational is that a recovery process is launched due to a previous threat recognition. For example, see in Fig. 3, the recovery strategies Reconfigure and SpreadSpectrumProtocols extend the recognition strategy SignalBasedDetection.

Fig. 3.

Misuse case diagram of the Smart Micro Grid.

Specify both, use cases and misuse cases, using for example the Cockburn template [4].

5. Survivability assessment

5.1. Survivability assessment model

This section describes the model-driven process that enables to automatically obtain the Survivability Assessment Model (SAM). The SAM is a UML state machine where the states represent the system service modes specified in Section 4.1 (see Table 1). Transitions, instead, represent changes of service modes that are triggered by either succeeding attacks or the execution of survivability strategies. The SAM is obtained from the misuse case diagram through a M2M transformation, which has been implemented using the ATL language [13]. The mapping rules of the transformation are described in the following:

The main rule generates the UML state machine that contains a Full Functionality (FF) state, which is stereotyped serviceMode. Indeed, we assume that every system has always an optimal service mode.

For each misuse case of the MUCD, a new serviceMode state is generated – if not already created – considering the degraded service mode associated to the misuse case (targetServiceMode tagged-value). The state is tagged with its corresponding severity level. For the transition generation, two different cases are considered:

If the misuse case is mitigated by a resistance use case, a choice node and three transitions are generated: 1) a transition from the full state and to the choice node, 2) a transition from the choice node back to the full state, which models the succeeding of the resistance strategy, and 3) a transition from the choice node to the degraded state, which models the failure of the resistance.

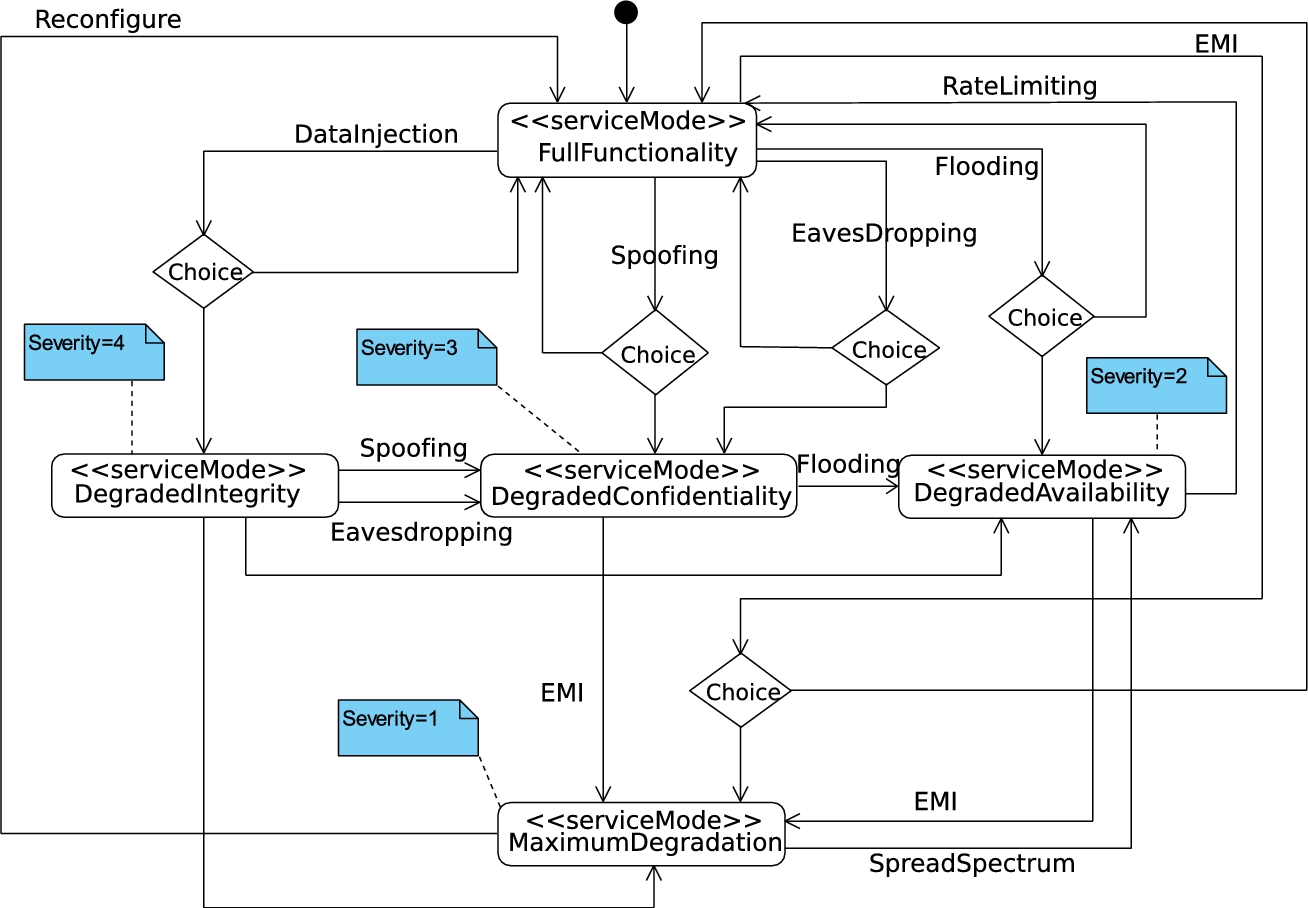

Fig. 4.

Survivability Assessment Model (SAM).

Otherwise, a single transition from the full state to the degraded state is generated.

For each generated service mode X, each misuse case is again considered and a transition is created from X to the degraded service mode Y, indicated by the targedServiceMode tagged-value associated to the misuse case, only if the severity level of Y is less than the one of X.

Finally, for each recovery use case a new transition is added from the degraded service mode – indicated by the tagged-value of the misuse case mitigated by the strategy – to the service mode specified by the targetServiceMode tagged-value of the use case.

Figure 4 shows the SAM obtained by the M2M transformation from the MUCD in Fig. 3.

5.2. Survivability properties verification

The assessment of the MUCD can be performed by verifying survivability properties and providing proper feedback to the engineer about eventual flaws in the system specification. To this aim we use the SAM, obtained via M2M transformation from the MUCD, as input model together with a set of queries that express the properties to be verified. Herein, queries are defined by exploiting the mechanisms provided by the ATL language, already used for the M2M transformation.

Considering that the SAM represents the system service modes and the change of service modes due to threats and survivability strategies, it may be interesting to check the following survivability properties:

P1 Whenever the threat T occurs, then the survivability strategy S aimed to mitigate T will be executed.

P2 It is always possible to recover the system from a degraded state.

P3 It is always possible to reach the fully operational state from any degraded state.

The verification of P1 is quite straightforward since, for each threat T the query has to check if there is an outgoing transition, from the service mode associated to T, that represents the considered survivability strategy S. A more interesting case is represented by the property P2. In this second case, there is the need to prove that, from each degraded state in the SAM, there is always an outgoing transition which has as target state either the full functionality or a less severe service mode. The ATL query that allows to verify P2 is showed in Listing 1. In order to perform the query, several helpers have been defined that are not reported for sake of space.

Listing 1.

ATL query for P2 verification

The execution of the query reported in Listing 2, shows that not all the degraded states have at least one outgoing transition directed either to a less severe service mode or to the full functionality state. In particular, such states are the degraded confidentiality state, associated to the Spoofing and Eavesdropping threats, and the degraded integrity state, associated to the DataInjection threat. This feedback is useful since the requirement engineer can correct the specification, introducing proper missing mitigation strategies.

The P3 property is an example of property that is not possible to verify using the mechanism of the ATL queries. P3 can be easily expressed with temporal logics and, therefore, by translating the property verification problem to a model checking problem. The translation to a model checking problem allows the verification of complex properties and it is currently one of the most relevant future works we are addressing.

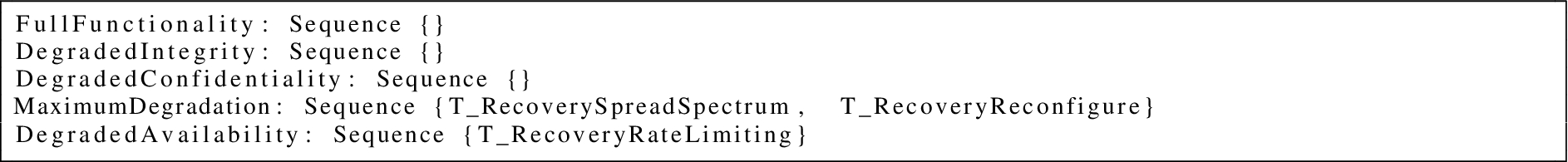

Listing 2.

Result of ATL Query for P2 verification

6. Related work

The survivability assessment of critical infrastructures is a relevant research trend that, from literature review, appears to be desirable at early stages of system development. Laplante [16] suggests to adopt formal methods for the verification of the specification of critical systems, and reducing as much as possible ambiguities.

In this context, a valuable contribution is in the work by Yue et al. [29] where an approach to generate a finite state machine from user requirements is provided. The state machine, expressed in an ad-hoc language, is derived from a modified version of a misuse case diagram. Nevertheless, work addresses exclusively systems functional requirements while we are interested also in non-functional ones. Gomes et al. [8] propose on a model-driven approach that allows deriving a system state machine from use case diagrams. The purpose of the approach is, in this case, to generate executable code of the system rather than the verification of the system specifications.

Jamhour and Penna proposed a study of the restoration (i.e., recovery) schemes for optical networks based on Continuous Time Markov Chains (CTMCs) [11].

Trivedi et al. deal with the modeling of non functional properties [18]: in this paper, vulnerabilities of an intrusion-tolerant system are evaluated considering both the attacker behavior and system response. In such a work, a state-transition model is proposed that takes into account each behavior of the system under attack. Starting from the full-working state of the system, the authors consider each phase of the attack (error detection, assessment of damage, recovery and the treatment of the attack) and produce a finite-state machine representing global levels of service of the system. The approach of Knight et al. [15] addresses the survivability of critical systems: in this work, the main difference between a reliable and a survivable system is that the former has to guarantee the same level of service, whereas the latter has to guarantee the essential services when failures happen. For these reasons the concept of graceful degradation is introduced. The running example of the paper, in fact, shows a state machine describing a set of systems service modes and possible transition between them.

7. Conclusion

Security is a primary issue in the design of modern high interconnected critical infrastructures. In this paper, model-driven techniques have been proposed to automatically obtain a survivability assessment, which that can be used for performing formal verification as well as in peer-review with system stakeholders. The approach exploits model transformations for the generation of the SAM from the MUCD. In particular, the model-to-model transformation is able to infer from the MUCD single-event chains triggering the transitions from one service mode to another. In addition, model queries are used to verify some simple properties on the generated SAM with the aim of providing feedback to the engineer about missing survivability strategies.

As shown in the paper, the transitions in the survivability assessment model represent exclusively single attacks or single repair actions. This can constitute a limitation of the approach that we plan to overcome in future works. Nevertheless, the approach constitutes a first step in the generation of a complete SAM from the UML models. Future work will extend the results of this paper in order to provide support for performing a more fine grained analysis: in particular, quantitative evaluation of the likelihood of attacks success will be investigated.
