A new version of distance and similarity measures for hesitant fuzzy linguistic term sets and its application

Abstract

In this paper, a new version of distance measure for hesitant fuzzy linguistic term sets is developed. The new version of distance measure provides an objective way to handle the diverse dimensions of two HFLTSs, i.e., without shortening the HFLTS to be a linguistic interval or extending the shorter one by adding linguistic terms. The Hamming distance, the Euclidean distance and the corresponding forms are put forward. By the relationship between the distance measure and the similarity measure, some parallel similarity measures are also investigated. As applications of the proposed measures, the issues of pattern recognition, clustering analysis and multi-criteria decision making are considered.

Keywords

Distance measure similarity measure hesitant fuzzy linguistic term sets pattern recognition decision making

1 Introduction

The concept of hesitant fuzzy linguistic term sets (HFLTSs) was first introduced by Rodríguez, Martínez and Herrera [1, 5], which was applied to express the hesitant preferences when evaluating using a linguistic term set. Different from the 2-tuple linguistic model [22, 25], the hesitant fuzzy linguistic term sets represent a hesitant among more than one linguistic terms, while the 2-tuple linguistic model considers a certain hesitant degree with given linguistic term. Thus, HFLTSs can be seen as a continuation of 2-tuple linguistic model [25 –27].

Since the notion of HFLTSs has been developed, it has been widely studied and applied to practical issues. Beg and Rashid [2] proposed the TOPSIS (Technique for Order Preference by Similarity to an Ideal Solution) method for HFLTSs to aggregate the subjective evaluations given by experts in decision making. Chen and Hong [3] provided a multi-criteria linguistic decision method with HFLTSs using the pessimistic and the optimistic attitude of the decision maker. Yavuz, et al. [4] and Montes, et al. [9] applied the hesitant fuzzy linguistic model to the evaluation of alternative-fuel vehicles and to the housing market, respectively. Lee and Chen [6, 7] gave the likelihood-based comparison relations of HFLTSs and proposed some hesitant fuzzy linguistic aggregation operators, such as the hesitant fuzzy linguistic weighted average (HFLWA) operator, the hesitant fuzzy linguistic weighted geometric (HFLWG) operator, et al. Wang, et al. [8] developed a novel outranking rational system of HFLTSs and also introduced a dominance relation by using the outranking degrees. Rodríguez, Martínez and Herrera [10] utilized the comparative linguistic expressions, which is closer to human being’s cognitive models for expressing linguistic preferences on the basis of HFLTSs. Liu and Rodríguez [11] presented a new representation of HFLTSs by means of a fuzzy envelope to carry out the computing with words process (CWW).

As a type of information, in the process of data analysis and data mining with HFLTSs, the difference between units needs to be measured, so the similarity and category of the unit can be determined. Liao, Xu and Zeng [11] investigated a family of distance and similarity measures for HFLTSs and analyzed for discrete and continuous cases. Liao and Xu [12] introduced another family of distance and similarity measures for HFLTSs, such as the cosine distance and similarity measures, the weighted and continuous cases.

Similar to the way that dealt with hesitant fuzzy sets [13], Liao, Xu and Zeng [11] and Liao and Xu [12] extended the shorter HFLTS so that the compared HFLTSs have equal lengths. However, such way has a little drawback when it is applied under the hesitant fuzzy linguistic environment. For example, for two HFLTSs $H_{S}^{1} = {s_{1}, s_{2}}$ and $H_{S}^{2} = {s_{- 3}, s_{- 1}, s_{3}}$ , where S = {s_α|α = -3, …, -1, 0, 1, …, 3} (Liao, Xu and Zeng [11], Example 2), by using the extending way, $H_{S}^{1}$ is extended to $H_{S}^{1} = {s_{1}, s_{1.5}, s_{2}}$ , but the extended $H_{S}^{1}$ is not a HFLTS, i.e., the elements in the extended $H_{S}^{1}$ are not consecutive linguistic terms of S. Thus, it’s of theoretical and practical meanings to provide a different way to define the distance and similarity measures for HFLTSs.

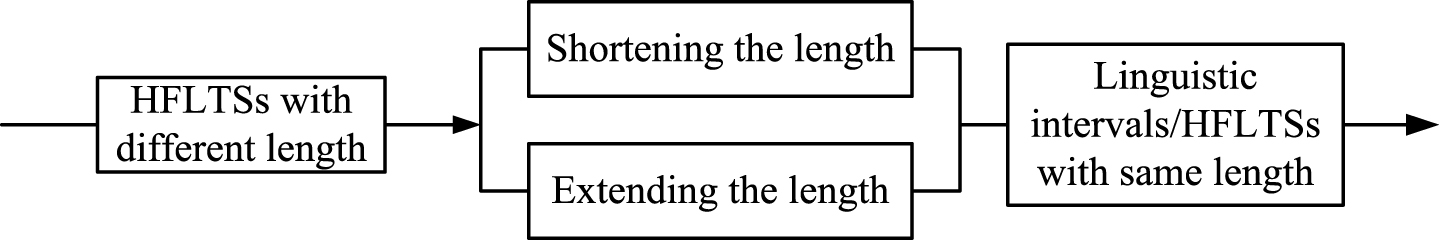

Figure 1.1 shows the existing ways to handle the different dimensions in defining the distance measure and similarity measure.

Fig.1.1

Existing ways to handle HFLTSs with different dimensions.

The shortening way can be finished according to Beg and Rashid [2] and Wang, et al. [8], which utilized the envelope of HFLTS and transformed a HFLTS into a linguistic interval. Next, the extending way was given by Liao, et al. [11], which provided a similar way as dealing with the hesitant fuzzy sets [14].

However, as mentioned above, both of the two existing methods have certain drawbacks, i.e., the shortening way will loss the information provided by the evaluator and the extending way will be affected by the attitude of the evaluator. Thus, a new way to handle the dimension problem will be developed in this paper, which can avoid the two drawbacks. Recently, Dong, Chen and Herrera [28] developed a difference measure between two HFLTSs, which can be seen as a certain distance measure for HFLTSs by considering the numbers of two HFLTSs’ union and intersection. The difference measure provides a relative distance measure for HFLTSs, which is a relative way to handle the drawbacks mentioned above and is not easy to be extended to the case of interval-valued hesitant fuzzy linguistic term sets (IVHFLTSs) [29]. While in practical issues, a direct way may be needed.

To do this, the rest of this paper is arranged as follows:

In Section 2, we briefly review some elementary concepts which are needed in this paper. Section 3 discusses a new version of distance and similarity measure for HFLTSs. Section 4 provides the application of the defined distance and similarity measures to some real problems. Section 5 gives some conclusions and remarks of this paper.

2 Preliminaries

In this section, we mainly review some relevant concepts so as to facilitate further discussions.

Let S = {s₀, s₁, …, s_g} be a linguistic term set, where g is an even number and the element s_i represents a possible value for corresponding linguistic variable, and the following characteristics are valid:

The set is ordered: s_α > s_β, if α > β;

There is a negation operator: neg (s_α) = s_g-α;

If s_α > s_β, then $min {s_{α}, s_{β}} = s_{β}, max {s_{α}, s_{β}} = s_{α} .$

To express the hesitancy when using linguistic variables, Rodríguez, et al. [1] introduced the following concept of hesitant fuzzy linguistic term set (HFLTS).

Definition 2.1. [1] Let S be a linguistic term set. A hesitant fuzzy linguistic term set H_S is an ordered finite subset of consecutive linguistic terms of S.

Hereinafter, without special instructions, the notations $R (S)$ , S (has the same elements with S) and Ø are denoted as the set of all HFLTSs, the full HFLTS and the empty HFLTS, respectively.

The envelope of a HFLTS is defined as follows:

Definition 2.2. [1] The envelope of the HFLTS H_S, denoted as env (H_S), is a linguistic interval whose limits are the lower bound (min) and the upper bound (max), i.e., $env (H_{S}) = [H_{S^{-}}, H_{S^{+}}] = [min_{s_{j} \in H_{S}} {s_{j}}, max_{s_{j} \in H_{S}} {s_{j}}]$

Example 2.1. In order to evaluate the performance of a student, the linguistic term set S = {s₀: none, s₁: very bad, s₂: bad, s₃: medium, s₄: good, s₅: very good, s₆: perfect} is used. Then, $H_{S}^{1} = {good, very good, perfect}$ and $H_{S}^{2} = {medium, good}$ are two HFLTSs on S, and $env (H_{S}^{1}) = [good, perfect]$ , $env (H_{S}^{2}) = [medium, good]$ .

In Rodríguez, et al. [1], the following context-free grammar G_H is defined to produce simple but rich linguistic expressions that can be easily represented by means of HFLTSs.

Definition 2.3. [1, 8] Given that S is a linguistic term set, and E_{G
_H} is a function that transforms the linguistic expression ll, produced by a context-free grammar G_H, into an HFLTS H_S: E_{G
_H} : ll → H_S.

According to the production rules, different ways can be utilized to transform linguistic expressions into HFLTS, which can be shown as below:

E_GH (s_i) = {s_i|s_i∈ $S$ } ;

E_GH (less than s_i) = {s_j|s_j∈ $S$ and s_j ≤ s_i} ;

E_GH (greater than s_i) = {s_j | s_j ∈ $S$ and s_j ≥ s_i} ;

E_GH (between s_i and s_j) = {s_k | s_k ∈ $S$ ands_i ≤ s_k ≤ s_j} .

The distance measure and similarity measure of HFLTSs is defined according to

Definition 2.4. [8, 11] Let S be a linguistic term set, $H_{S}^{1}$ , $H_{S}^{2}$ and $H_{S}^{3}$ be three arbitrary HFLTSs on S, the distance measure between $H_{S}^{1}$ and $H_{S}^{2}$ is defined as $d (H_{S}^{1}, H_{S}^{2})$ , which satisfies:

$d (H_{S}^{1}, H_{S}^{2}) \geq 0$ , $d (H_{S}^{1}, H_{S}^{2}) = 0$ if and only if $H_{S}^{1} = H_{S}^{2}$ ;

$d (H_{S}^{1}, H_{S}^{2}) = d (H_{S}^{2}, H_{S}^{1});$

$d (H_{S}^{1}, H_{S}^{2}) \leq d (H_{S}^{1}, H_{S}^{3}) + d (H_{S}^{3}, H_{S}^{2}) .$

Definition 2.5. [11] Assume that S is a linguistic term set, $H_{S}^{1}$ and $H_{S}^{2}$ are two arbitrary HFLTSs on S, the similarity measure between $H_{S}^{1}$ and $H_{S}^{2}$ is defined as $ρ (H_{S}^{1}, H_{S}^{2})$ , which satisfies:

$0 \leq ρ (H_{S}^{1}, H_{S}^{2}) \leq 1;$

$ρ (H_{S}^{1}, H_{S}^{2}) = 1$ if and only if $H_{S}^{1} = H_{S}^{2}$ ;

$ρ (H_{S}^{1}, H_{S}^{2}) = ρ (H_{S}^{2}, H_{S}^{1}) .$

With the definitions mentioned above, Wang, et al. [8] gave the Euclidean distance measure of HFLTSs, in which the envelope of HFLTS is utilized, while Liao, et al. [11] defined several families of distance and similarity measures by using the distance and similarity measures of hesitant fuzzy set [14].

Property 2.1. If the distance measure is set in the range [0, 1], it can be easily concluded that $d (H_{S}^{1}, H_{S}^{2}) + ρ (H_{S}^{1}, H_{S}^{2}) = 1$ , i.e., the distance measure (or similarity measure) can be derived according to the similarity measure (or distance measure).

3 New versions of distance measures for two sets of HFLTSs

For the reason of possible different dimensions of HFLTSs, Wang, et al. [8] and Liao, et al. [11] provided two models to deal with the dimensions, i.e., shortening the HFLTSs by using the envelope or extending the HFLTSs by adding linguistic labels so that the dimensions are the same. In this section, we will give a different way to solve the dimension problem.

Before developing the new version of distance measures between two sets of HFLTSs, we first consider the following new distance of HFLTSs.

The notion of distance is used to measure the difference between two objects. When the distance measure is applied to HFLTSs, an effective way is comparing the elements of two HFLTSs one by one (see Fig. 3.1).

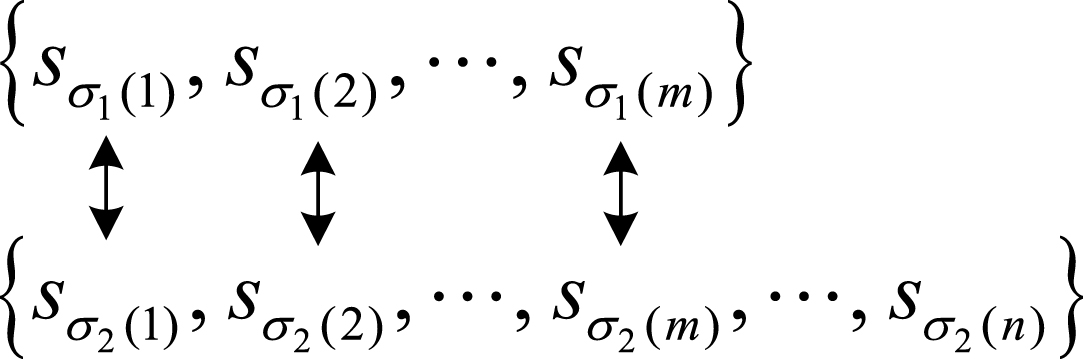

Fig.3.1

Comparison between two HFLTSs-Mode I.

Assume that $H_{S}^{1} = {s_{σ_{1} (1)}, s_{σ_{1} (2)}, \dots, s_{σ_{1} (m)}}$ and $H_{S}^{2} = {s_{σ_{2} (1)}, s_{σ_{2} (2)}, \dots, s_{σ_{2} (n)}}$ are two HFLTSs and m ≤ n. According to Fig. 3.1, because the elements are arranged in increasing order, one can determine the difference between two HFLTSs by comparing the elements one by one.

Actually, the comparison between two HFLTSs can also be finished in the following way:

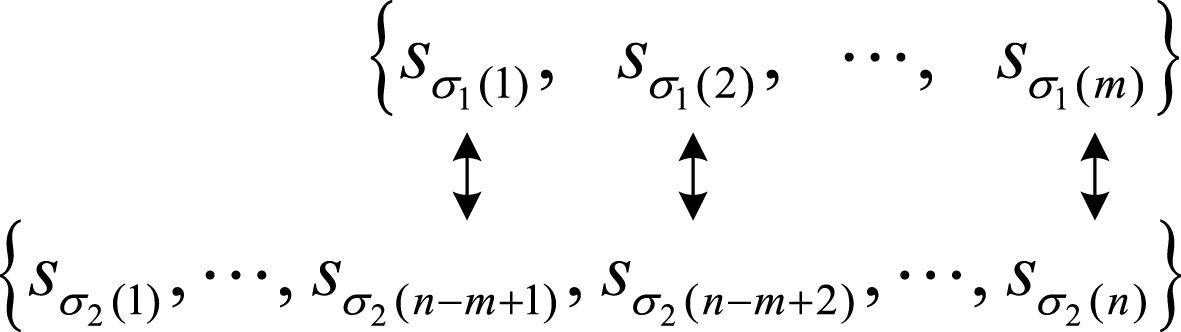

From Fig. 3.2, the comparison between two HFLTSs can start from the ends of two HFLTSs (named as Mode II), which is different from Mode I shown in Fig. 3.1. It can be obtained that both of the two modes can measure the difference between two HFLTSs. Hereinafter, the first mode will be used.

Fig.3.2

Comparison between two HFLTSs-Mode II.

Therefore, the following concept of distance measure for HFLTSs is valid:

Definition 3.1. Let $H_{S}^{1} = {s_{σ_{1} (1)}, s_{σ_{1} (2)}, \dots, s_{σ_{1} (m)}}$ and $H_{S}^{2} = {s_{σ_{2} (1)}, s_{σ_{2} (2)}, \dots, s_{σ_{2} (n)}}$ be two HFLTSs and m ≤ n, then the distance measure between $H_{S}^{1}$ and $H_{S}^{2}$ is $d (H_{S}^{1}, H_{S}^{2}) = \sum_{k = 1}^{m} | σ_{1} (k) - σ_{2} (k) | + \sum_{k = m + 1}^{n} | σ_{2} (k) |$ (1) which is said to be the Hamming distance measure of HFLTSs.

Similarly, the Euclidean distance measure can be defined as below:

Definition 3.2. Let $H_{S}^{1} = {s_{σ_{1} (1)}, s_{σ_{1} (2)}, \dots, s_{σ_{1} (m)}}$ and $H_{S}^{2} = {s_{σ_{2} (1)}, s_{σ_{2} (2)}, \dots, s_{σ_{2} (n)}}$ be two HFLTSs and m ≤ n, then the Euclidean distance measure between $H_{S}^{1}$ and $H_{S}^{2}$ is

$\begin{matrix} d (H_{S}^{1}, H_{S}^{2}) \\ = \sqrt{\sum_{k = 1}^{m} {(σ_{1} (k) - σ_{2} (k))}^{2} + \sum_{k = m + 1}^{n} σ_{2}^{2} (k)} \end{matrix}$ (2)

From Equations (1) and (2), two conclusions can be listed in the following:

Proposition 3.1. Equations (1) and (2) satisfy the properties of distance measure given in Definition 2.4.

Proposition 3.2. Given that $H_{S}^{1}, H_{S}^{2}$ and $H_{S}^{3}$ are three HFLTSs, if $H_{S}^{1} \subseteq H_{S}^{2} \subseteq H_{S}^{3}$ , then $d (H_{S}^{1}, H_{S}^{2}) \leq d (H_{S}^{1}, H_{S}^{3})$ and $d (H_{S}^{2}, H_{S}^{3}) \leq d (H_{S}^{1}, H_{S}^{3}) .$

Proof. Firstly, we prove that $d (H_{S}^{1}, H_{S}^{2}) \leq d (H_{S}^{1}, H_{S}^{3})$ is valid.

Assume that $H_{S}^{1} = {s_{σ_{1} (1)}, s_{σ_{1} (2)}, \dots, s_{σ_{1} (l)}}$ , $H_{S}^{2} = {s_{σ_{2} (1)}, s_{σ_{2} (2)}, \dots, s_{σ_{2} (m)}}$ and $H_{S}^{3} = {s_{σ_{3} (1)}, s_{σ_{3} (2)}, \dots, s_{σ_{3} (n)}}$ .

Since $H_{S}^{1} \subseteq H_{S}^{2} \subseteq H_{S}^{3}$ , then l ≤ m ≤ n, the following cases are considered.

Case 1. If l ≤ m = n, then $H_{S}^{1} \subseteq H_{S}^{2} = H_{S}^{3}$ and $d (H_{S}^{1}, H_{S}^{2}) \leq d (H_{S}^{1}, H_{S}^{3})$ ;

Case 2. If l = m < n, because $d (H_{S}^{1}, H_{S}^{2}) = 0$ and $d (H_{S}^{1}, H_{S}^{3}) > 0$ , the result that $d (H_{S}^{1}, H_{S}^{2}) \leq d (H_{S}^{1}, H_{S}^{3})$ is right.

Case 3. If l < m < n, it can always suppose that m = l + 1 and n = l + 2. Otherwise, according to the concept of distance measure (Taking Hamming distance as an example), the distance will be enlarged.

For the reason that the linguistic term $H_{S}^{2} - H_{S}^{1} = s_{σ_{1} (1) - 1} or s_{σ_{1} (l) + 1}$ and $H_{S}^{3} - H_{S}^{1} = {s_{σ_{1} (1) - 1}, s_{σ_{1} (1) - 2}}$ or {s_σ₁(l)+1, s_σ₁(l)+2} or {s_σ₁(1)-1, s_σ₁(l)+1}, then

If $H_{S}^{2} - H_{S}^{1} = s_{σ_{1} (1) - 1}$ and $H_{S}^{3} - H_{S}^{1} = {s_{σ_{1} (1) - 1}, s_{σ_{1} (1) - 2}}$ , then $\begin{matrix} H_{S}^{1} & = & {s_{σ_{1} (1)}, s_{σ_{1} (2)}, \dots, s_{σ_{1} (l)}}, \\ H_{S}^{2} & = & {s_{σ_{1} (1) - 1}, H_{S}^{1}} \end{matrix}$ and $H_{S}^{3} = {s_{σ_{1} (1) - 2}, s_{σ_{1} (1) - 1}, H_{S}^{1}}$ .

We have $d (H_{S}^{1}, H_{S}^{2}) = 2 l$ and $d (H_{S}^{1}, H_{S}^{3}) = 4 l - 1$ , since l ≥ 1, the conclusion is right.

If $H_{S}^{2} - H_{S}^{1} = s_{σ_{1} (1) - 1}$ and $H_{S}^{3} - H_{S}^{1} = {s_{σ_{1} (l) + 1}, s_{σ_{1} (l) + 2}}$ , then $\begin{matrix} H_{S}^{1} & = & {s_{σ_{1} (1)}, s_{σ_{1} (2)}, \dots, s_{σ_{1} (l)}}, \\ H_{S}^{2} & = & {s_{σ_{1} (1) - 1}, H_{S}^{1}} \end{matrix}$ and $H_{S}^{3} = {H_{S}^{1}, s_{σ_{1} (l) + 1}, s_{σ_{1} (l) + 2}}$ .

Thus, $d (H_{S}^{1}, H_{S}^{2}) = 2 l$ and $d (H_{S}^{1}, H_{S}^{3}) = 2 l + 1$ , the conclusion is right.

If $H_{S}^{2} - H_{S}^{1} = s_{σ_{1} (1) - 1}$ and $H_{S}^{3} - H_{S}^{1} = {s_{σ_{1} (1) - 1}, s_{σ_{1} (l) + 1}}$ , then $\begin{matrix} H_{S}^{1} & = & {s_{σ_{1} (1)}, s_{σ_{1} (2)}, \dots, s_{σ_{1} (l)}}, \\ H_{S}^{2} & = & {s_{σ_{1} (1) - 1}, H_{S}^{1}} \end{matrix}$ and $H_{S}^{3} = {s_{σ_{1} (1) - 1}, H_{S}^{1}, s_{σ_{1} (l) + 1}}$ .

So $d (H_{S}^{1}, H_{S}^{2}) = 2 l$ and $d (H_{S}^{1}, H_{S}^{3}) = 4 l + 1$ , the conclusion is right.

If $H_{S}^{2} - H_{S}^{1} = s_{σ_{1} (l) + 1}$ and $H_{S}^{3} - H_{S}^{1} = {s_{σ_{1} (1) - 1}, s_{σ_{1} (1) - 2}}$ , then $\begin{matrix} H_{S}^{1} & = & {s_{σ_{1} (1)}, s_{σ_{1} (2)}, \dots, s_{σ_{1} (l)}}, \\ H_{S}^{2} & = & {H_{S}^{1}, s_{σ_{1} (l) + 1}} \end{matrix}$ and $H_{S}^{3} = {s_{σ_{1} (1) - 2}, s_{σ_{1} (1) - 1}, H_{S}^{1}}$ .

We have $d (H_{S}^{1}, H_{S}^{2}) = l + 1$ and $d (H_{S}^{1}, H_{S}^{3}) = 4 l - 1$ , since l ≥ 1, the conclusion is valid.

If $H_{S}^{2} - H_{S}^{1} = s_{σ_{1} (l) + 1}$ and $H_{S}^{3} - H_{S}^{1} = {s_{σ_{1} (l) + 1}, s_{σ_{1} (l) + 2}}$ , then $\begin{matrix} H_{S}^{1} & = & {s_{σ_{1} (1)}, s_{σ_{1} (2)}, \dots, s_{σ_{1} (l)}}, \\ H_{S}^{2} & = & {H_{S}^{1}, s_{σ_{1} (l) + 1}} \end{matrix}$ and $H_{S}^{3} = {H_{S}^{1}, s_{σ_{1} (l) + 1}, s_{σ_{1} (l) + 2}}$ .

Thus, $d (H_{S}^{1}, H_{S}^{2}) = l + 1$ and $d (H_{S}^{1}, H_{S}^{3}) = 2 l + 1$ , the conclusion is right.

If $H_{S}^{2} - H_{S}^{1} = s_{σ_{1} (l) + 1}$ and $H_{S}^{3} - H_{S}^{1} = {s_{σ_{1} (1) - 1}, s_{σ_{1} (l) + 1}}$ , then $\begin{matrix} H_{S}^{1} & = & {s_{σ_{1} (1)}, s_{σ_{1} (2)}, \dots, s_{σ_{1} (l)}}, \\ H_{S}^{2} & = & {H_{S}^{1}, s_{σ_{1} (l) + 1}} \end{matrix}$ and $H_{S}^{3} = {s_{σ_{1} (1) - 1}, H_{S}^{1}, s_{σ_{1} (l) + 1}}$ .

So $d (H_{S}^{1}, H_{S}^{2}) = l + 1$ and $d (H_{S}^{1}, H_{S}^{3}) = 4 l + 1$ , the conclusion is right.

The conclusion that $d (H_{S}^{2}, H_{S}^{3}) \leq d (H_{S}^{1}, H_{S}^{3})$ is similar to be proved.

Therefore, the conclusion is valid. □

Remark 3.1. Equations (1) and (2) are two objective distance measures, which do not loss the information of two HFLTSs.

With the distance measures of HFLTSs, the distance measure of two sets of HFLTSs can be derived. The main problem of defining the distance between two sets of HFLTSs can be summarized as follows:

The diverse dimensions of elements in two sets of HFLTSs;

The different dimensions of two sets of HFLTSs, i.e., let $Θ_{1} = {H_{s}^{11}, H_{S}^{12}, \dots, H_{S}^{1 m}}$ and $Θ_{2} = {H_{s}^{21}, H_{S}^{22}, \dots, H_{S}^{2 n}}$ be two sets of HFLTSs, $H_{s}^{1 p} = {s_{σ_{p}^{1} (1)}, \dots, s_{σ_{p}^{1} (m_{p})}}$ , $H_{s}^{2 q} = {s_{σ_{q}^{2} (1)}, \dots, s_{σ_{q}^{2} (n_{q})}}$ and m, n ∈ N⁺, p = 1, …, m, q = 1, …, n (see Fig. 3.3).

Fig.3.3

Comparisons between two sets of HFLTSs.

Similar to the way that handle HFLTSs, the distance measure of two sets of HFLTSs can be defined as follows:

Definition 3.3. Given that $Θ_{1} = {H_{s}^{11}, \dots, H_{S}^{1 m}}$ and $Θ_{2} = {H_{s}^{21}, \dots, H_{S}^{2 n}}$ are two sets of HFLTSs (m ≤ n, m, n ∈ N⁺), where $H_{s}^{1 p} = {s_{σ_{p}^{1} (1)}, \dots, s_{σ_{p}^{1} (m_{p})}}$ and $H_{s}^{2 q} = {s_{σ_{q}^{2} (1)}, \dots, s_{σ_{q}^{2} (n_{q})}}$ , p = 1, 2, …, m, q = 1, 2, … n, then the Hamming distance measure between Θ₁ and Θ₂ can be defined according to

$\begin{matrix} d_{H} (Θ_{1}, Θ_{2}) \\ = \sum_{k = 1}^{m} d (H_{s}^{1 k}, H_{S}^{2 k}) + \sum_{k = m + 1}^{n} d (H_{s}^{2 k}, \emptyset) \end{matrix}$ (3) where $d (H_{s}^{2 k}, \emptyset) = \sum_{l = 1}^{n_{k}} | σ_{k} (l) |, k = m + 1, \dots, n$ and $d (H_{s}^{1 k}, H_{S}^{2 k}), k = 1, 2, \dots, m$ are defined according to Equation (1).

Thus, the Euclidean distance measure between Θ₁ and Θ₂ is written by

$\begin{matrix} d_{E} (Θ_{1}, Θ_{2}) \\ = \sqrt{\sum_{k = 1}^{m} d^{2} (H_{s}^{1 k}, H_{S}^{2 k}) + \sum_{k = m + 1}^{n} d^{2} (H_{s}^{2 k}, \emptyset)} \end{matrix}$ (4) where $d (H_{s}^{2 k}, \emptyset) = \sum_{l = 1}^{n_{k}} σ_{k}^{2} (l), k = m + 1, \dots, n$ and $d (H_{s}^{1 k}, H_{S}^{2 k}), k = 1, 2, \dots, m$ are defined by Equation (2).

Proposition 3.3. Equations (3) and (4) satisfy the properties of distance measure given in Definition 2.4.

To show the application of the proposed distance measures, the following example is valid:

Example 3.1. Let S = {s₀ = Very Poor, s₁ = Poor, s₂ = Medium Poor, s₃ = Fair, s₄ = Medium Good, s₅ = Good, s₆ = Very Good}, Θ₁ = {{s₂, s₃} , {s₄, s₅, s₆} , {s₀, s₁, s₂} , {s₄, s₅}} and Θ₂ = {{s₃} , {s₂, s₃, s₄} , {s₂, s₃} , {s₆}} are two sets of HFLTSs, then the distance measures between Θ₁ and Θ₂ can be listed in Table 3.1. From Table 3.1, it can be concluded that the values are non-negative, but the levels are different. For comparative purposes, the normalized Hamming distance measure and the normalized Euclidean distance measure are put forward, i.e.,

Table 3.1

Distance measures between Θ₁ and Θ₂

Distance	Wang, et al. [8]	Liao, et al. [11]	Hamming distance	Euclidean distance
Value	$\sqrt{19}$	14.5/7	23	$\sqrt{63}$

$\begin{matrix} d_{nH} (Θ_{1}, Θ_{2}) \\ = \frac{1}{max {{len}_{Θ_{1}}, {len}_{Θ_{2}}}} \frac{1}{g} \cdot (\frac{1}{max {{len}_{H_{s}^{1 k}}, {len}_{H_{s}^{2 k}}}} \sum_{k = 1}^{m} d (H_{s}^{1 k}, H_{S}^{2 k}) + \sum_{k = m + 1}^{n} \frac{1}{{len}_{H_{s}^{2 k}}} d (H_{s}^{2 k}, \emptyset)) \end{matrix}$ (5) where $d (H_{s}^{2 k}, \emptyset) = \sum_{l = 1}^{n_{k}} | σ_{k} (l) |, k = m + 1, \dots, n$ and $d (H_{s}^{1 k}, H_{S}^{2 k}), k = 1, 2, \dots, m$ are defined according to Equation (1), len_* represents the length of the set of HFLTS.

$\begin{matrix} d_{nE} (Θ_{1}, Θ_{2}) & = & \frac{1}{max {{len}_{Θ_{1}}, {len}_{Θ_{2}}}} \frac{1}{g} \cdot \\ \sqrt{(\sum_{k = 1}^{m} \frac{1}{max {{len}_{H_{s}^{1 k}}, {len}_{H_{s}^{2 k}}}} d^{2} (H_{s}^{1 k}, H_{S}^{2 k}) + \sum_{k = m + 1}^{n} \frac{1}{{len}_{H_{s}^{2 k}}} d^{2} (H_{s}^{2 k}, \emptyset))} \end{matrix}$ (6) where $d (H_{s}^{2 k}, \emptyset) = \sum_{l = 1}^{n_{k}} σ_{k}^{2} (l), k = m + 1, \dots, n$ and $d (H_{s}^{1 k}, H_{S}^{2 k}), k = 1, 2, \dots, m$ are defined according to Equation (2).

Proposition 3.4. Equations (5) and (6) satisfy the properties of distance measure given in Definition 2.4.

Example 3.2. Following Example 3.1, the normalized Hamming distance measure and the normalized Euclidean distance measure between Θ₁ and Θ₂ are 19/48 and $\sqrt{2} / 6$ .

From Example 3.2 and Equations (5, 6), it can be known that the normalized Hamming distance and the normalized Euclidean distance measure are located in the range of [0, 1].

The normalized generalized distance measure for two sets of HFLTSs can be defined as below:

$\begin{matrix} d_{nG} (Θ_{1}, Θ_{2}) & = & \frac{1}{max {{len}_{Θ_{1}}, {len}_{Θ_{2}}}} \frac{1}{g} \cdot \\ {((\sum_{k = 1}^{m} \frac{1}{max {{len}_{H_{s}^{1 k}}, {len}_{H_{s}^{2 k}}}} d^{λ} (H_{s}^{1 k}, H_{S}^{2 k}) + \sum_{k = m + 1}^{n} \frac{1}{{len}_{H_{s}^{2 k}}} d^{λ} (H_{s}^{2 k}, \emptyset)))}^{\frac{1}{λ}} \end{matrix}$ (7) where $d (H_{s}^{1 k}, H_{S}^{2 k}), k = 1, \dots, m$ and $d (H_{s}^{2 k}, \emptyset)$ are defined by Equations (1, 2), λ > 0.

Known by Equation (7), d_nH (Θ₁, Θ₂) and d_nE (Θ₁, Θ₂) are two special cases of d_nG (Θ₁, Θ₂).

By Property 2.1 and the normalized distance measures, we can get corresponding similarity measures.

4 Applications

In this section, several examples will be developed to show the application of proposed measures in the fields of pattern recognition, fuzzy clustering and multiple attribute decision making.

4.1 Hesitant fuzzy linguistic approach to pattern recognition

Example 4.1. The application of linguistic approach to pattern recognition has been widely studied by scholars. For instance, Narasimhan [16] introduced a linguistic approach to pattern recognition, Feder [17] made a literature survey of the linguistic approach to pattern recognition. Recently, Cai, et al. [18] developed a pattern recognition method based on linguistic ordered weighted distance measure. In many real applications, the HFLTS is often used to identify an object’s true features. An illness can be determined by the doctor through the descriptions of the patient and an offender may also be locked according to the identifications of witness are such cases.

Assume that there are four patterns (adapted from Li, et al. [15] and Du & Hu [19]), which are all represented by the HFLTS, denoted as Θ₁, Θ₂, Θ₃, Θ₄ (see Table 4.1), F = {F₁, F₂, F₃, F₄} is the set of features for recognition. Now, there is an unknown sample B, a practical issue is to justify which pattern the unknown sample B belongs to.

Table 4.1
Patterns description

F ₁ F ₂ F ₃ F ₄

Θ ₁ {s₂, s₃} {s₄, s₅, s₆, s₇} {s₀, s₁, s₂} {s₄, s₅}

Θ ₂ {s₃} {s₂, s₃, s₄} {s₂, s₃} {s₆}

Θ ₃ {s₃, s₄} {s₃, s₄} {s₄} {s₀, s₁, s₂, s₃}

Θ ₄ {s₄, s₅, s₆} {s₄} {s₂, s₃, s₄} {s₃, s₄}

B {s₅, s₆} {s₃, s₄, s₅} {s₃, s₄} {s₂}

	F ₁	F ₂	F ₃	F ₄
Θ ₁	{s₂, s₃}	{s₄, s₅, s₆, s₇}	{s₀, s₁, s₂}	{s₄, s₅}
Θ ₂	{s₃}	{s₂, s₃, s₄}	{s₂, s₃}	{s₆}
Θ ₃	{s₃, s₄}	{s₃, s₄}	{s₄}	{s₀, s₁, s₂, s₃}
Θ ₄	{s₄, s₅, s₆}	{s₄}	{s₂, s₃, s₄}	{s₃, s₄}
B	{s₅, s₆}	{s₃, s₄, s₅}	{s₃, s₄}	{s₂}

Herein, S = nothing (s₀), very low (s₁), low (s₂), medium (s₃), high (s₄), very high (s₅), perfect (s₆) is the basic linguistic term set used for evaluating the degree that four patterns and the unknown example fit for the features.

By Equations (5) and (6), Table 4.2 shows two distance measures between Θ_i (i = 1 ∼4) and B.

Table 4.2

Distance measures’ results

	d (Θ₁, B)	d (Θ₂, B)	d (Θ₃, B)	d (Θ₄, B)	Max Doc^(j)
d_nH (Θ, Θ′)	0.4861	0.4167	0.3403	0.4375	0.3194
d_nE (Θ, Θ′)	0.2759	0.2569	0.2097	0.2673	0.1710

The notation Doc^(j) represents the confidence of an distance metric in recognizing a given sample that belongs to the pattern (j), which is introduced by Hatzimichailidis, et al. [20], Papakostas, et al. [21] and can be defined by: ${Doc}^{(j)} = \sum_{\begin{matrix} i = 1 \\ i \neq j \end{matrix}}^{n} | d (Θ_{i}, B) - d (Θ_{j}, B) |$ (8)

The greater the value of Doc^(j) is, the more confident the result would be.

From Table 4.2, both of the two distance measures show that the given sample B should be classified to Pattern 3.

When using the normalized generalized distance measure d_nG (Θ, Θ′), with the changing of parameter λ, the results are shown in Fig. 4.1.

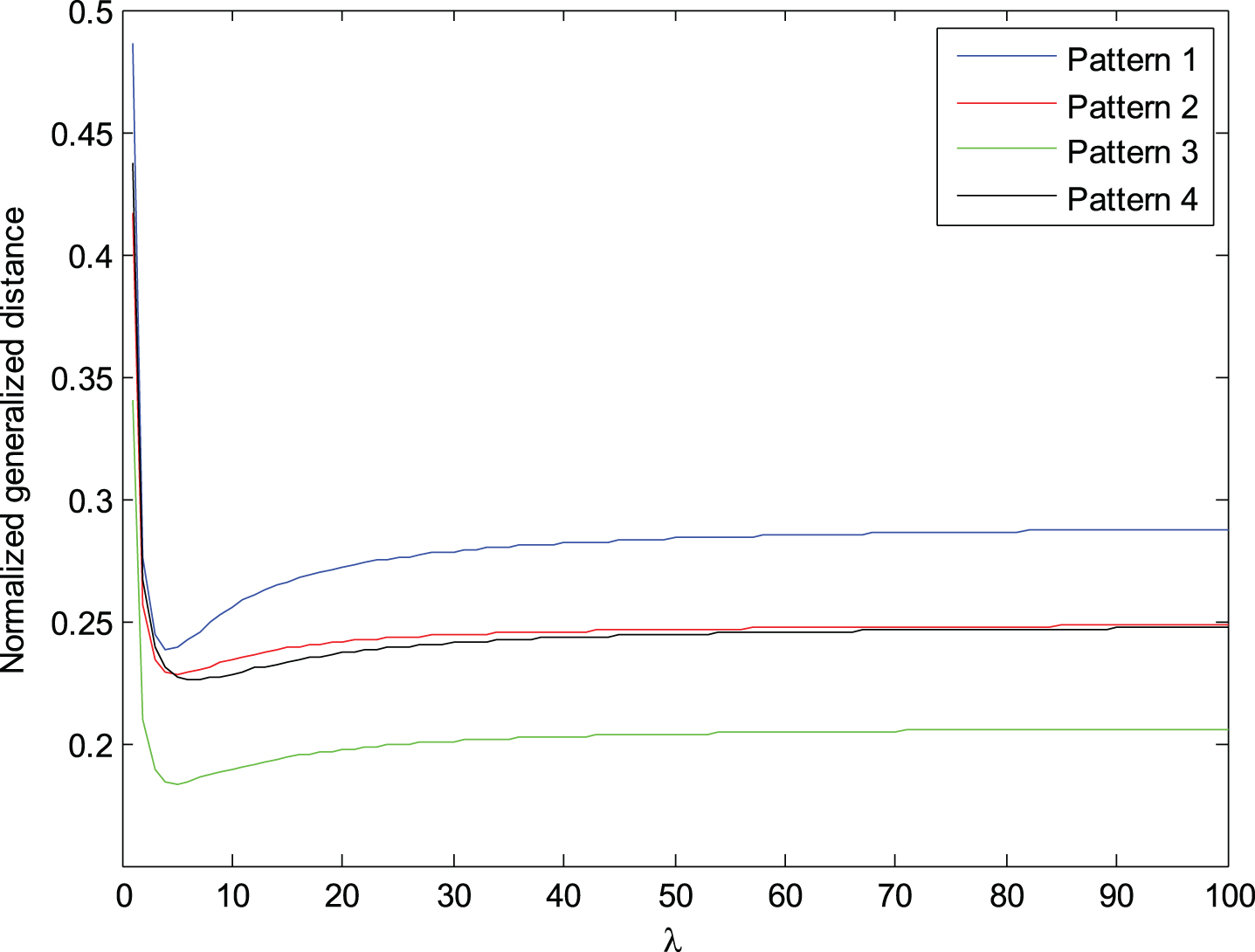

Fig.4.1

The affection of parameter λ to the recognition.

According to Fig. 4.1, with the changing of the parameter λ, the comparison between d (Θ₂, B) and d (Θ₄, B) is also changing. However, the given unknown sample B should always be classified to Pattern 3, i.e., the distance between Pattern 3 and sample B is always the least one among the four distances.

Table 4.3 shows the recognition produced by some existing distance measures.

Table 4.3

Recognition given by other distance measures

	Distance measure	d (Θ₁, B)	d (Θ₂, B)	d (Θ₃, B)	d (Θ₄, B)
[2]	Hamming distance	20	17	9	7
[8]	Euclidean distance	$2 \sqrt{10}$	7	$\sqrt{15}$	3
[11]	Hamming distance	0.8750	0.4286	0.3750	0.2857
	Euclidean distance	0.5546	0.3643	0.3625	0.2315

From Table 4.3, it can be concluded that the given sample B should be classified to Pattern 4, the result is different from the recognition produced by our method. Actually, by comparing the corresponding linguistic term in two HFLTSs, from a global aspect, Pattern 3 is closer to sample B. However, when the lengths of two HFLTSs are unified to be the same by using the envelope (or adding some linguistic label(s)), the initial meanings of the hesitant fuzzy linguistic evaluations have been changed.

Thus, compared with the existing distance measures, our proposed approach is objective and is able to avoid too much information loss.

Example 4.2. (Clustering analysis, adapted from Du & Hu [19]). Given that there exists 9 patterns, denoted as HFLTS in E = {x}. The 9 patterns are listed as follows: $\begin{matrix} A_{1} & = & {x, {vl, l, m}}, A_{2} = {x, {h, vh}}, \\ A_{3} & = & {x, {h}}, A_{4} = {x, {l, m}}, \\ A_{5} & = & {x, {m}}, A_{6} = {x, {n, vl, l}}, \\ A_{7} & = & {x, {h, vh, p}}, A_{8} = {x, {vl, l}}, \\ and A_{9} & = & {x, {m, h, vh}}, \end{matrix}$ where the basic linguistic term set S is the same as in Example 4.1.

Herein, the similarity measure generated by the normalized Euclidean distance measure d_nE (Θ₁, Θ₂) is considered. Table 4.4 shows the similarities between the 9 patterns.

Table 4.4

Similarities between the 9 patterns

	A ₁	A ₂	A ₃	A ₄	A ₅	A ₆	A ₇	A ₈	A ₉
A ₁	1.000	0.875	0.889	0.931	0.903	0.972	0.875	0.958	0.917
A ₂	0.875	1.000	0.896	0.917	0.875	0.861	0.917	0.875	0.903
A ₃	0.889	0.896	1.000	0.896	0.958	0.903	0.847	0.896	0.861
A ₄	0.931	0.917	0.896	1.000	0.917	0.917	0.861	0.958	0.875
A ₅	0.903	0.875	0.958	0.917	1.000	0.875	0.833	0.917	0.875
A ₆	0.972	0.861	0.903	0.917	0.875	1.000	0.875	0.944	0.875
A ₇	0.875	0.917	0.847	0.861	0.833	0.875	1.000	0.833	0.958
A ₈	0.958	0.875	0.896	0.958	0.917	0.944	0.833	1.000	0.875
A ₉	0.917	0.903	0.861	0.875	0.875	0.875	0.958	0.875	1.000

By using the hierarchical clustering method, the clustering results are listed in the following Table 4.5.

Table 4.5

Clustering results with different levels based on d_nE

α	Clustering results
0.972 < α ≤ 1	{A₁} , {A₂} , {A₃} , {A₄} , {A₅} , {A₆} , {A₇} , {A₈} , {A₉}
0.958 < α ≤ 0.972	{A₁, A₆} , {A₂} , {A₃} , {A₄} , {A₅} , {A₇} , {A₈} , {A₉}
0.917 < α ≤ 0.958	{A₁, A₄, A₆, A₈} , {A₂} , {A₃, A₅} , {A₇, A₉}
0 ≤ α ≤ 0.917	{A₁, A₂, A₃, A₄, A₅, A₆, A₇, A₈, A₉}

According to Table 4.5, the hierarchical clustering shows the partitions that determined by levels of α. Given a value α in [0, 1], for instance, α = 0.92, then {A₁, A₄, A₆, A₈} forms a cluster, {A₂} is a cluster with only one pattern and {A₃, A₅} , {A₇, A₉} form another two distinct clusters.

4.2 TOPSIS method for multi-criteria decision making with HFLTSs

Multi-criteria decision making is an important branch of decision theories, which has been widely studied and applied to many practical issues. The combination of HFLTS and multi-criteria decision making has also been widely researched [1 , 12]. With the concept of distance measure of HFLTSs, Beg and Rashid [2] considered the ‘Technique for Order Preference by Similarity to an Ideal Solution’ (TOPSIS) method of multi-criteria decision making with HFLTSs. To illustrate the application of proposed distance/similarity measures, the following TOPSIS method with new measures is given.

Example 4.3. (Adapted from Liu and Rodríguez [23]) According to Robert Parker Jr.’s theory, 4 factors can be used to evaluate a wine, i.e., Colour and appearance (C₁), Aroma and bouquet (C₂), flavor and finish (C₃), overall quality level or potential (C₄). After a preliminary screening, 4 alternatives, denoted as X = {x₁, x₂, x₃, x₄}, have remained in the candidate list for further consideration. The basic linguistic term set is S = {s₀: Nothing(N), s₁: Very bad(VB), s₂: Bad(B), s₃: Medium(M), s₄: Good(G), s₅: Very good(VG), s₆: Perfect(P)}.

The assessments are listed in Table 4.6.

Table 4.6
The assessments provided for this problem

C ₁ C ₂ C ₃ C ₄

x ₁ {M, G, VG} {M} {G, VG, P} {VG, P}

x ₂ {G, VG, P} {VG, P} {M, G} {B, M}

x ₃ {VG, P} {B, M} {G, VG} {G, VG, P}

x ₄ {M, G} {VG, P} {G, VG} {N, VB, B}

	C ₁	C ₂	C ₃	C ₄
x ₁	{M, G, VG}	{M}	{G, VG, P}	{VG, P}
x ₂	{G, VG, P}	{VG, P}	{M, G}	{B, M}
x ₃	{VG, P}	{B, M}	{G, VG}	{G, VG, P}
x ₄	{M, G}	{VG, P}	{G, VG}	{N, VB, B}

The solution can be summarized as follows:

Transforming the hesitant fuzzy linguistic term sets to linguistic labels

To be convenient for analysis, by transforming the hesitant fuzzy linguistic term sets to linguistic labels Table 4.6 can be rewritten by

Determining the positive and negative ideal points

By comparing the evaluated HFLTSs under the same criteria, the positive ideal point (HFLTS⁺) and negative ideal point (HFLTS^-) can be obtained, i.e., $\begin{matrix} {HFLTS}^{+} & = & ({s_{5}, s_{6}}, {s_{5}, s_{6}}, {s_{4}, s_{5}, s_{6}}, \\ {s_{5}, s_{6}}), \\ {HFLTS}^{-} & = & ({s_{3}, s_{4}}, {s_{2}, s_{3}}, {s_{3}, s_{4}}, \\ {s_{0}, s_{1}, s_{2}}) . \end{matrix}$

Calculating the distance/similarity between each alternative and the ideal points

Take the Hamming distance measure as an example, the results are shown in Table 4.8.

Let HFLTS_i = (HFLTS_i₁, HFLTS_i₂, HFLTS_i₃, HFLT S_i₄) be the evaluated hesitant fuzzy linguistic term set of the i-th alternative. Then, the distance between the i-th alternative and the positive (or negative) ideal point is denoted as $d_{i}^{+}$ (or $d_{i}^{-}$ ), where $d_{i}^{+} = d ({HFLTS}^{+}, {HFLTS}_{i}) (d_{i}^{-} = d ({HFLTS}^{-}, {HFLTS}_{i}), i = 1, 2, 3, 4)$ . The results are listed in Table 4.8.

Computing the closeness coefficients of all alternatives

With the distances between the ideal points and the alternatives, the closeness coefficient of the i-th alternative can be computed according to $\begin{matrix} c_{i} \\ = \frac{d_{i}^{-} ({HFLTS}^{-}, {HFLTS}_{i})}{d_{i}^{-} ({HFLTS}^{-}, {HFLTS}_{i}) + d_{i}^{+} ({HFLTS}^{+}, {HFLTS}_{i})}, \\ i = 1, 2, 3, 4 \end{matrix}$ (9)

By Equation (9) and Table 4.8, the closeness coefficients of all alternatives are calculated, the results are shown in the last row of Table 4.8.

Ranking the alternatives

Noting that the larger the alternative’ closeness coefficient is, the better the alternative would be. Therefore, the order of all alternatives (Hamming distance with mode I) can be produced, i.e., $x_{1} ≻ x_{2} ≻ x_{3} ≻ x_{4}$ where the notation ‘a ≻ b’ represents that a is dominant to b.

The best choice is x₁.

It can also be derived that the order of all alternatives (Hamming distance with mode II) is x₁ ≻ x₃ ≻ x₂ ≻ x₄, i.e., the best choice is x₁.

Therefore, x₁ is the best alternative.

It’s worth noting that our result is different from the conclusion given by Liu and Rodríguez [23], i.e., the best choice is x₃. From Table 4.7, when considering the criteria of Aroma and bouquet (C₂), flavor and finish (C₃) and overall quality level or potential (C₄), it can be seen that x₁ are all dominant to x₃. So our result is relatively intuitive.

Table 4.7

The assessments provided for this problem

	C ₁	C ₂	C ₃	C ₄
x ₁	{s₃, s₄, s₅}	{s₃}	{s₄, s₅, s₆}	{s₅, s₆}
x ₂	{s₄, s₅, s₆}	{s₅, s₆}	{s₃, s₄}	{s₂, s₃}
x ₃	{s₅, s₆}	{s₂, s₃}	{s₄, s₅}	{s₄, s₅, s₆}
x ₄	{s₃, s₄}	{s₅, s₆}	{s₄, s₅}	{s₀, s₁, s₂}

Table 4.8

Hamming distance between each alternative and the ideal points

d	x ₁	x ₂	x ₃	x ₄
HFLTS ⁺	17	22	20	22
HFLTS ^-	29	20	18	8
Closeness coefficient I	0.6304	0.4762	0.4737	0.2667
Closeness coefficient II	0.6389	0.4706	0.5294	0.3077

4.3 Comparisons with existing methods

To compare the feasibility and efficiency of our developed distance and similarity measures, we give some comparisons among diverse measures from both theoretically and practically.

Theoretically, given any two HFLTSs with dimensions m, n (m ≤ n ≤ g), the comparisons among existing approaches are listed in Table 4.9. Herein, by Table 4.9, the following conclusions can be derived:

Table 4.9
Comparisons among existing distance/similarity masures

	Complexity	Processing	Correlation	Scale
[2]	o (n)	shorten	no	[0, 2g]
[8]	o (n)	shorten	no	$[0, \sqrt{2} g]$
[11]	o (n)	enlarge	no	[0, 1]
Our method	∼n	natural	yes	[0, mg -m (m + 1)/ - 2]

The complexity of the developed method is the largest, but there does not exist information loss during the calculation;

The reason that our method keeps the information in the processing is the two HFLTSs don’t need to be shortened or enlarged through the calculation. Noting that a certain information loss would happen if the HFLTSs is shortened to be the envelope or is enlarged so that the dimensions of two HFLTSs are the same;

In Refs. [2 , 11], the forms of Hamming distance and Euclidean distance are utilized. Correspondingly, the correlation between two variables can not be reflected, i.e., the case that more than one variable of the same characteristic would not be measured very well when using such distance/similarity measures. For instance, to compare the distances among $H_{S}^{1} = {s_{3}, s_{4}, s_{5}}, H_{S}^{2} = {s_{3}, s_{4}, s_{5}, s_{6}}, H_{S}^{3} = {s_{3}, s_{4}, s_{5}, s_{6}, s_{7}}$ and $H_{S}^{4} = {s_{3}, s_{4}, s_{5}, s_{6}, s_{7}, s_{8}}$ , the results produced by these three measures are: $\begin{matrix} d^{[2]} (H_{S}^{1}, H_{S}^{2}) & = & 1, d^{[2]} (H_{S}^{1}, H_{S}^{3}) = 2, \\ d^{[2]} (H_{S}^{1}, H_{S}^{4}) & = & 3; d_{hd}^{[8]} (H_{S}^{1}, H_{S}^{2}) = 1 / 19, \\ d_{hd}^{[8]} (H_{S}^{1}, H_{S}^{3}) & = & 4 / 19, d_{hd}^{[8]} (H_{S}^{1}, H_{S}^{4}) = 9 / 19; \\ d^{[11]} (H_{S}^{1}, H_{S}^{2}) & = & 1, d^{[11]} (H_{S}^{1}, H_{S}^{3}) = 2, \\ d^{[11]} (H_{S}^{1}, H_{S}^{4}) & = & 3 . \end{matrix}$

When using our method, the result is $d (H_{S}^{1}, H_{S}^{2}) = 6, d (H_{S}^{1}, H_{S}^{3}) = 13, d (H_{S}^{1}, H_{S}^{4}) = 21$

Therefore, from the angle of jumpy and nonlinearity of human thinking, the distance given by our method is more intuitive.

In accordance with the natural processing way, the largest scale allows us to measure the distance/similarity among HFLTSs without any data compression.

5 Conclusions

The article introduced a new version of distance and similarity measure for HFLTSs. It is worth mentioning that the existing ways in defining the distance (or similarity) measures of HFLTSs usually loss the information either or contain certain subjective factors. For the reason that the distance (or similarity) measure is used to describe the difference (or similarity) between two HFLTSs and the measuring process can be finished by comparing the elements in two HFLTSs one-by-one, the new version of distance/similarity measure is developed. The Hamming distance, the Euclidean distance and their corresponding normalized ones are investigated. As applications of the proposed measures, three practical issues including the pattern recognition, the clustering analysis and the multi-criteria decision making are studied.

In the future, we consider the importance of each HFLTS in two series of HFLTSs and put forward the weighted distance/similarity measures. Besides, some other objective information measures of HFLTSs, for example, the entropy measure, are also meaningful to be considered. Moreover, the new version of distance/similarity measures can also be extended to hesitant fuzzy sets [13 –15].

Footnotes

Acknowledgments

The work was supported by National Natural Science Foundation of China (Nos. 71301001, 71371011, 71501002). Philosophy and social science planning project in Anhui Province (No. AHSKQ2016D13), Provincial Natural Science Research Project of Anhui Colleges (Nos. KJ2015A379, KJ2016A250).

References

Rodríguez

R.M.

, Martínez

and Herrera

, Hesitant fuzzy linguistic term sets for decision making, IEEE Transaction on Fuzzy Systems 20 (2012), 109–119.

Beg

and Rashid

, TOPSIS for hesitant fuzzy linguistic term sets, International Journal of Intelligent Systems 00 (2013), 1–10.

Chen

S.-M.

and Hong

J.-A.

, Multicriteria linguistic decision making based on hesitant fuzzy linguistic term sets and the aggregation of fuzzy sets, Information Sciences 286 (2014), 63–74.

Yavuz

, Oztaysi

, Onar

S.C.

and Kahraman

, Multi-criteria evaluation of alternative-fuel vehicles via a hierarchical hesitant fuzzy linguistic model, Expert Systems with Applications 42 (2015), 2835–2848.

Rodríguez

R.M.

, Martínez

and Herrera

, Hesitant fuzzy linguistic term sets, in: Wang

and Li

(Eds.): Foundations of Intelligent Systems, AISC 122, pp. 287–295

Lee

L.-W.

and Chen

S.-M.

, Fuzzy decision making based on hesitant fuzzy linguistic term sets, in: Selamat

et al. (Eds.): ACIIDS 2013, Part I, LNAI 7802, pp. 21–30. 2013.

Lee

L.-W.

and Chen

S.-M.

, Fuzzy decision making based on likelihood-based comparison relations of hesitant fuzzy linguistic term sets and hesitant fuzzy linguistic operators, Information Sciences 294 (2015), 513–529.

Wang

J.Q.

, Wang

, Chen

Q.H.

, Zhang

H.Y.

and Chen

X.H.

, An outranking approach for multi-criteria decision-making with hesitant fuzzy linguistic term sets, Information Sciences 280 (2014), 338–351.

Montes

, Sánchez

A.M.

, Villar

and Herrera

, A web tool to support decision making in the housing market using hesitant fuzzy linguistic term sets, Applied Soft Computing 35 (2015), 949–957.

10.

Rodríguez

R.M.

, Martínez

and Herrera

, A group decision making model dealing with comparative linguistic expressions based on hesitant fuzzy linguistic term sets, Information Sciences 241 (2013), 28–42.

11.

Liao

H.C.

, Xu

Z.S.

and Zeng

X.J.

, Distance and similarity measures for hesitant fuzzy linguistic term sets and their application in multi-criteria decision making, Information Sciences 271 (2014), 125–142.

12.

Liao

H.C.

and Xu

Z.S.

, Approaches to manage hesitant fuzzy linguistic information based on the cosine distance and similarity measures for HFLTSs and their application in qualitative decision making, Expert Systems with Applications 42 (2015), 5328–5336.

13.

Z.S.

and Xia

M.M.

, Distance and similarity measures for hesitant fuzzy sets, Information Sciences 181 (2011), 2128–2138.

14.

Torra

, Hesitant fuzzy sets, International Journal of Intelligent Systems 25 (2010), 529–539.

15.

D.Q.

, Zeng

W.Y.

and Li

J.H.

, New distance and similarity measures on hesitant fuzzy sets and their applications in multiple criteria decision making, Engineering Applications of Artificial Intelligence 40 (2015), 11–16.

16.

Narasimhan

, A linguistic approach to pattern recognition (Illinois. University. Digital Computer Laboratory. Report); 1962.

17.

Feder

, The linguistic approach to pattern analysis: A literature survey, New York Univ Bronx Lab for Electroscience Research; 1966.

18.

Cai

, Gong

Z.W.

, Wu

D.Q.

and Wu

M.J.

, A pattern recognition method based on linguistic ordered weighted distance measure, Journal of Intelligent & Fuzzy Systems 27(4) (2014), 1897–1903.

19.

W.S.

and Hu

B.Q.

, Aggregation distance measure and its induced similarity measure between intuitionistic fuzzy sets, Pattern Recognition Letters 60-61 (2015), 65–71.

20.

Hatzimichailidis

A.G.

, Papakostas

G.A.

and Kaburlasos

V.G.

, A novel distance measure of intuitionistic fuzzy sets and its application to pattern recognition problems, International Journal of Intelligent Systems 27(4) (2012), 396–409.

21.

Papakostas

G.A.

, Hatzimichailidis

A.G.

and Kaburlasos

V.G.

, Distance and similarity measures between intuitionistic fuzzy sets: A comparative analysis from a pattern recognition point of view, Pattern Recognition Letters 34(14) (2013), 1609–1622.

22.

Z.S.

, Linguistic decision making: Theory and methods, Science Press Beijing and Springer-Verlag Berlin Heidelberg; 2012.

23.

Liu

B.H.

,and Rodríguez

R.M.

A fuzzy envelope for hesitant fuzzy linguistic term set and its application to multicriteria decision making, Information Sciences 258 (2014), 220–238.

24.

Tao

Z.F.

, Chen

H.Y.

, Zhou

L.G.

and Liu

J.P.

, On new operational laws of 2-tuple linguistic information using Archimedean t-norm and s-norm, Knowledge-Based Systems 66 (2014), 156–165.

25.

Herrera

and Martínez

, A 2-tuple fuzzy linguistic representation model for computing with words, IEEE Transactions on Fuzzy Systems 8 (2000), 746–752.

26.

Dong

Y.C.

and Herrera-Viedma

, Consistency-driven automatic methodology to set interval numerical scales of 2-tuple linguistic term sets and its use in the linguistic GDM with preference relations, IEEE Transactions on Cybernetics 45 (2015), 780–792.

27.

Dong

Y.C.

, Zhang

G.Q.

, Hong

W.-C.

and Yu

, Linguistic computational model based on 2-tuples and intervals, IEEE Transactions on Fuzzy Systems 21 (2013), 1006–1018.

28.

Dong

Y.C.

, Chen

and Herrera

, Minimizing adjusted simple terms in the consensus reaching process with hesitant linguistic assessments in group decision making, Information Sciences 297 (2015), 95–117.

29.

Wang

J.Q.

, Wu

J.-T.

, Wang

, Zhang

H.-Y.

and Chen

X.-H.

, Interval-valued hesitant fuzzy linguistic sets and their applications in multi-criteria decision-making problems, Information Sciences 288 (2014), 55–72.

A new version of distance and similarity measures for hesitant fuzzy linguistic term sets and its application

Abstract

Keywords

1 Introduction

3 New versions of distance measures for two sets of HFLTSs

4.1 Hesitant fuzzy linguistic approach to pattern recognition

Table 4.1 Patterns description F 1 F 2 F 3 F 4 Θ 1 {s2, s3} {s4, s5, s6, s7} {s0, s1, s2} {s4, s5} Θ 2 {s3} {s2, s3, s4} {s2, s3} {s6} Θ 3 {s3, s4} {s3, s4} {s4} {s0, s1, s2, s3} Θ 4 {s4, s5, s6} {s4} {s2, s3, s4} {s3, s4} B {s5, s6} {s3, s4, s5} {s3, s4} {s2}

Table 4.6 The assessments provided for this problem C 1 C 2 C 3 C 4 x 1 {M, G, VG} {M} {G, VG, P} {VG, P} x 2 {G, VG, P} {VG, P} {M, G} {B, M} x 3 {VG, P} {B, M} {G, VG} {G, VG, P} x 4 {M, G} {VG, P} {G, VG} {N, VB, B}

Table 4.9 Comparisons among existing distance/similarity masures

Footnotes

Acknowledgments

References

Table 4.6
The assessments provided for this problem

C ₁ C ₂ C ₃ C ₄

x ₁ {M, G, VG} {M} {G, VG, P} {VG, P}

x ₂ {G, VG, P} {VG, P} {M, G} {B, M}

x ₃ {VG, P} {B, M} {G, VG} {G, VG, P}

x ₄ {M, G} {VG, P} {G, VG} {N, VB, B}

Table 4.9
Comparisons among existing distance/similarity masures
