Would wider adoption of reproducible research be beneficial for empirical software engineering research?

1 Introduction

This paper reports some recent research results that have cast doubts about the reliability of current empirical software engineering research results. In the context of data mining studies, software engineering researchers have proposed reproducible research (RR) as a means to improve research practice (e.g. [36], and [15]). In this paper we ask the question “Would wider adoption of reproducible research be beneficial for empirical software engineering research involving human-centric experiments?”.

In Section 2, we discuss what we mean by reproducible research (RR) which is one of the methods being proposed to address problems with empirical research in software engineering data mining studies and other disciplines. We discuss the origin and scope of reproducible research, but also how it differs from, but supports, the concept of replication in human-centric software engineering studies. We report, in Section 3, problems found with recent empirical software engineering research. We also emphasize that the discussed problems are not unique to the software engineering domain. In Section 4, we examine how RR is currently being adopted in empirical software engineering research. To confirm the viability of RR, we identify, in Section 5, a set of free and open-source tools that we have been able to use in practice to produce reproducible research. In Section 6, we present an intentionally simple example of the RR process to help other researchers to understand how to construct reproducible research. We also highlight, in Section 7, the problems and benefits associated with RR from the viewpoint of software engineering researchers, as well as major initiatives related to RR. Finally, we present conclusions in Section 8. This is primarily a discussion paper. Our main contribution is to discuss the use of RR to address some of problems observed in software engineering experiments and to confirm the viability of RR with a small practical example of its use.

2 Reproducible research: Origins and definition

Gandrud [12] attributes the term reproducible research to Professor Claerbout of Stanford University who, in 1990, imposed the standard of makefiles for all the figures and computational results published by the Stanford Exploration Project. Furthermore, in 2000, he and his students shared their experience of creating a reproducible research environment [38].

RR refers to the idea that the ultimate product of research is the paper plus its computational environment. That is, a reproducible research document incorporates the textual body of the paper (including any necessary supplementary materials, e.g., protocols or appendices) plus the data used by the study, and the analysis steps (algorithms) used to process the data, in the context of an open access environment that is used to compile these pieces of information into the resulting document. This triple is called the compendium by Gentleman and Lang [13]. Having access to this information, an independent researcher or data analyst can reproduce the results, verify the findings, and create new work based on the original research, for example, conduct alternative analyses of the same data, or replicate the original analysis on an updated or new data set. In addition, it should be easier to aggregate the outcomes of replicated studies using meta-analysis [23].

When reading the literature on RR, we noticed that some researchers (for example, Gandrud [12]) appear to use the terms reproducibility and replication interchangeably. However, in this paper we make a distinction between the concepts. Replication involves repeating an experiment with different participants or experimental materials to investigate whether previous experimental results are repeatable. However as Gomez et al. [14] point out many researchers talk about reproducibility in the context of replication. For example, Carver et al. talk about results being reproduced [6], and Runeson et al. [37] use the term reproduction to refer to a replication performed by independent researchers. In this paper, we take a restricted view of reproducible research defining it as the extent to which the report of a specific scientific study can be reproduced (in effect, compiled) from the reported text, data and analysis procedures, and thus validated by other researchers. Although we emphasise that reproducibility and replication are different things, it is also the case that research incorporating reproducibility is likely to be easier to replicate than research that does not.

RR is particularly important in the context of studies of computational algorithms where, as Vandewalle et al. [45] point out, details such as the “exact data set, initialization or termination procedure, and precise parameter values are often omitted” for reasons such as “a lack of space, a lack of self-discipline, or an apparent lack of interest to the readers”. In software engineering, this would apply to the data mining studies discussed by Robles and his colleagues (e.g. [15, 36]), such as comparative studies of algorithms for test automation, comparative studies of cost estimation and of defect prediction, and any studies investigating the performance of evolutionary and machine learning algorithms. In this paper, we discuss, whether RR is also relevant to human-intensive experiments.

3 Problems with empirical software engineering practice

Recent results in empirical software engineering have cast some doubts on the validity of our software engineering research results. For example, Shepperd et al. [39] analyzed the results of 42 papers reporting studies comparing methods for predicting fault-proneness. They found that the explanatory factor that accounted for the largest percentage of the differences among studies (i.e., 30%) was research group. In contrast prediction method, which was the main topic of research, accounted for only 1.3% of the variation among studies. They commented that “It matters more who does the work than what is done.” and “Until this can be satisfactorily addressed there seems little point in conducting further primary studies”. The papers overlapped in terms of the data sets used, and the defect prediction modelling methods used in primary papers. The fact that their results are inconsistent with respect to the impact of the fault prediction methods suggests significant reproducibility failures.

In the area of cost estimation, Kitchenham and Mendes pointed out that reported accuracy statistics for cost estimation studies claiming to use a specific method on a particular data set were inconsistent with the results they obtained using the specific method on the same data set [21]. More recently, Whigham et al. found that claims made in two recent cost estimation studies could not be confirmed by independent analyses [47]. RR emphasizes the need to specify, fully, any statistical analysis, in order to address problems such as these.

In the context of experiments and quasi-experiments, Vegas et al. [46] reviewed 39 papers using crossover designs (which are a form of repeated measures design) and found 58% of the papers did not use an analysis method consistent with the design, which could “compromise the validity of the findings”. Papers that used the invalid analysis are valueless scientifically, unless their raw data is available for re-analysis. RR practices require the publication of the raw data to address this problem.

In another recent study, Jørgensen et al. [19] suggested that the trustworthiness of software engineering experiments needs to be improved. They were particularly concerned about low power, researcher bias, and publication bias. Among their recommendations they include improving the reporting of study design, analysis and results, making data available, emphasising effect sizes and their confidence intervals, and undertaking more replications and meta-studies. The first two issues are directly supported by reproducible research requirements to make data and analysis available. The issues related to effect sizes and meta-analysis are supported by reproducible research, since if data is fully reported, subsequent studies can easily reanalyse the data to calculate effect sizes and perform meta-analysis.

Overall, these studies suggest that both our data intensive studies and human-centric experiments sometimes fail to provide reliable evidence to support technology adoption decisions. Reported issues also suggest that RR should be adopted more widely within the software engineering community.

Problems such as those discussed above are not unique to the software engineering domain. For example, in the context of drug trials, Osherovich reports that “an ‘unspoken rule’ among early stage VCs [Venture Capitals] is that at least 50% of published studies, even those in top-tier academic journals, can’t be repeated with the same conclusions by an industrial lab” [32]. In addition, Ioannidis and his colleagues reported that only 2 of 18 research papers published by Nature Genetics journal (one of the highest ranked journals in the world, with the impact factor about 30) could be fully reproduced [18]. The reasons for this included data sets and home made software disappearing, or the specification of data processing and analysis being incomplete. Probably the most striking summary of the research crisis in multiple disciplines is given by Ioannidis who (in his seminal paper with 3600+ citations) claims that “Most Research Findings Are False for Most Research Designs and for Most Fields” [17].

4 Reproducibility in software engineering

Within the context of software engineering experiments, there has been discussion of laboratory packages, which were pioneered by Basili and his colleagues with the aim of assisting replications by providing additional detailed information about specific experiments, such as experimental materials, detailed instructions related to the experimental process and the methods used for data analysis (see [2], or [40]). However, laboratory packages were concerned with replication rather than reproducibility, and therefore did not emphasize the inclusion of data sets. Nonetheless, they could easily be extended to include the information needed for reproducibility.

Robles and his colleagues have discussed the importance of reproducibility from the view point of studies involving data mining from software repositories. Robles [35] undertook a systematic review of papers published in the former International Workshop on Mining Software Repositories (MSR) (2004–2006) and now Working Conference on MSR (2007–2009). He checked 171 papers for i) the public availability of the data used as case study, ii) the public availability of the processed dataset used by researchers and iii) the public availability of the tools and scripts. He found researchers mainly used publicly available data but the availability of the processed data used in specific studies was low. In the majority of papers, he could not find references to any tools even when authors said they had produced one. He concluded that there was a need for the community to address replicability in a formal way.

Robles and German [36] discuss best practices for supporting reproducibility, in particular providing a snapshot of the data as it was used in the study, versioning data sets, identifying the conditions under which the data can be used, making the data set available in a public repository, making tools available to others, licensing software, and providing the infrastructure to support tools via a forge. They also point out additional benefits of reproducibility to the data mining community such as providing worked examples for software engineering students and improved benchmarking.

González-Barahona and Robles [15] provide a method of assessing the reproducibility of a data mining study that is useful not only to other researchers but also to authors who can judge the main barriers to reproducing their study and reviewers who can assess whether a study will allow for easy reproduction.

In the context of software maintenance research, Dit et al. [10] have constructed a publicly available library of components and experiments aiming to improve the reproducibility and extensibility of software maintenance experiments.

In addition, Bowes et al. [5] have developed the SLuRp tool which provides the elements needed to support reproducibility for systematic reviews.

5 Tools for reproducible research

We discuss the concept of Literate Programming behind RR and some of the tools that can be used to adopt RR, in Sections 5.1 and 5.2, respectively. Furthermore, we present a small working example of the RR approach in Section 6.

6 An example of the RR process

To assist the uptake of RR this section presents a small working example of the RR approach. We will use a real data set recently analysed by Madeyski and Jureczko [28] and available from the reproducer R package [27]. The analytic example presented in this section is based on empirical comparison of simple and advanced software defect prediction models performed on thirty-four (15 industrial and 19 open source) versions of software projects. The study investigated whether an advanced model, which includes both product metrics and the process metric NDC (Number of distinct committers), outperforms a simple model, which includes only product metrics. The performance of models was measured by the percentage of classes that must be tested in order to find 80% of the software defects.

It is worth mentioning that our example is deliberately simple so it can provide a starting point for novices. Researchers with more experience of RR concepts can view the reproducer R package [27] including data sets analyzed in our recently published research papers [20, 28].

The steps needed to produce reproducible research follow indicating in each case the goal of the specific step:

Goal: Setup the basic RR environment.

Steps: Install R, LaTeX (e.g., TeX Live, MacTeX or Miktex) and RStudio (an integrated development environment which supports both, R and LaTeX) 1 .

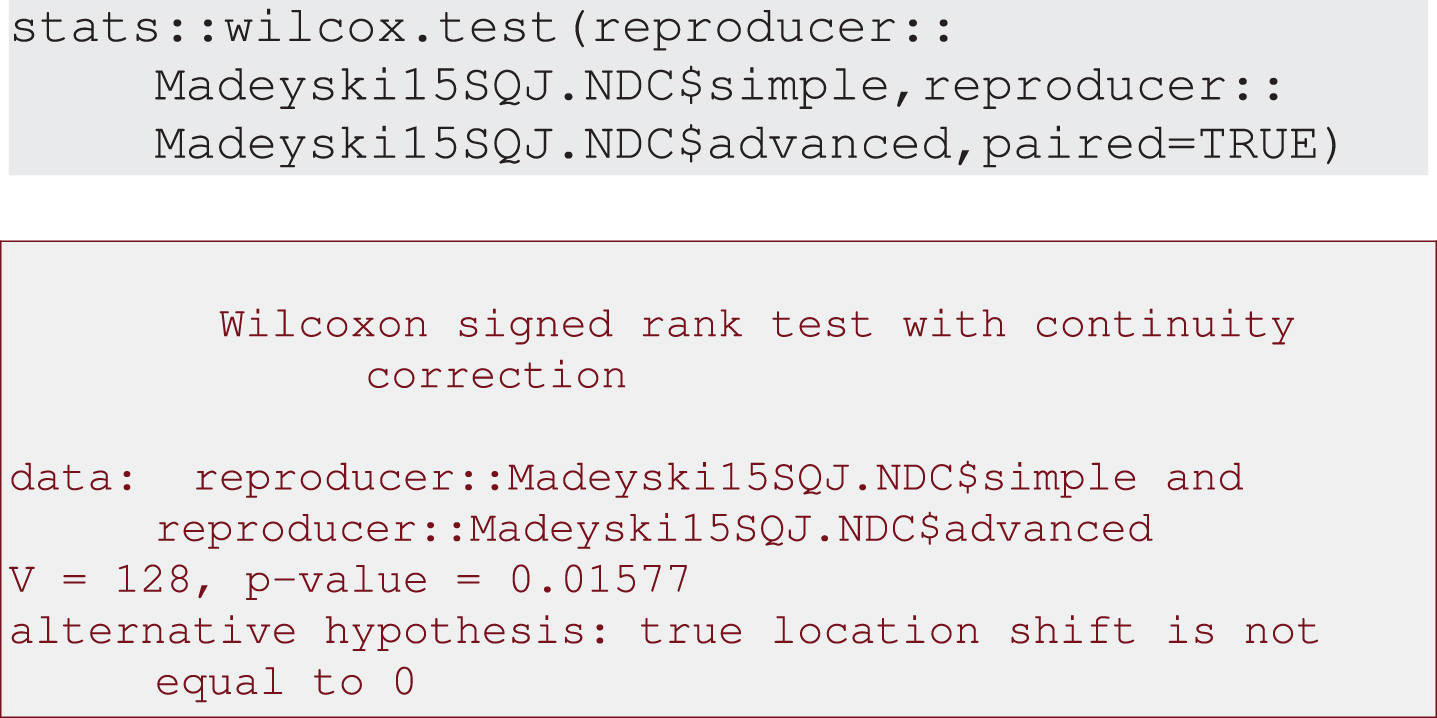

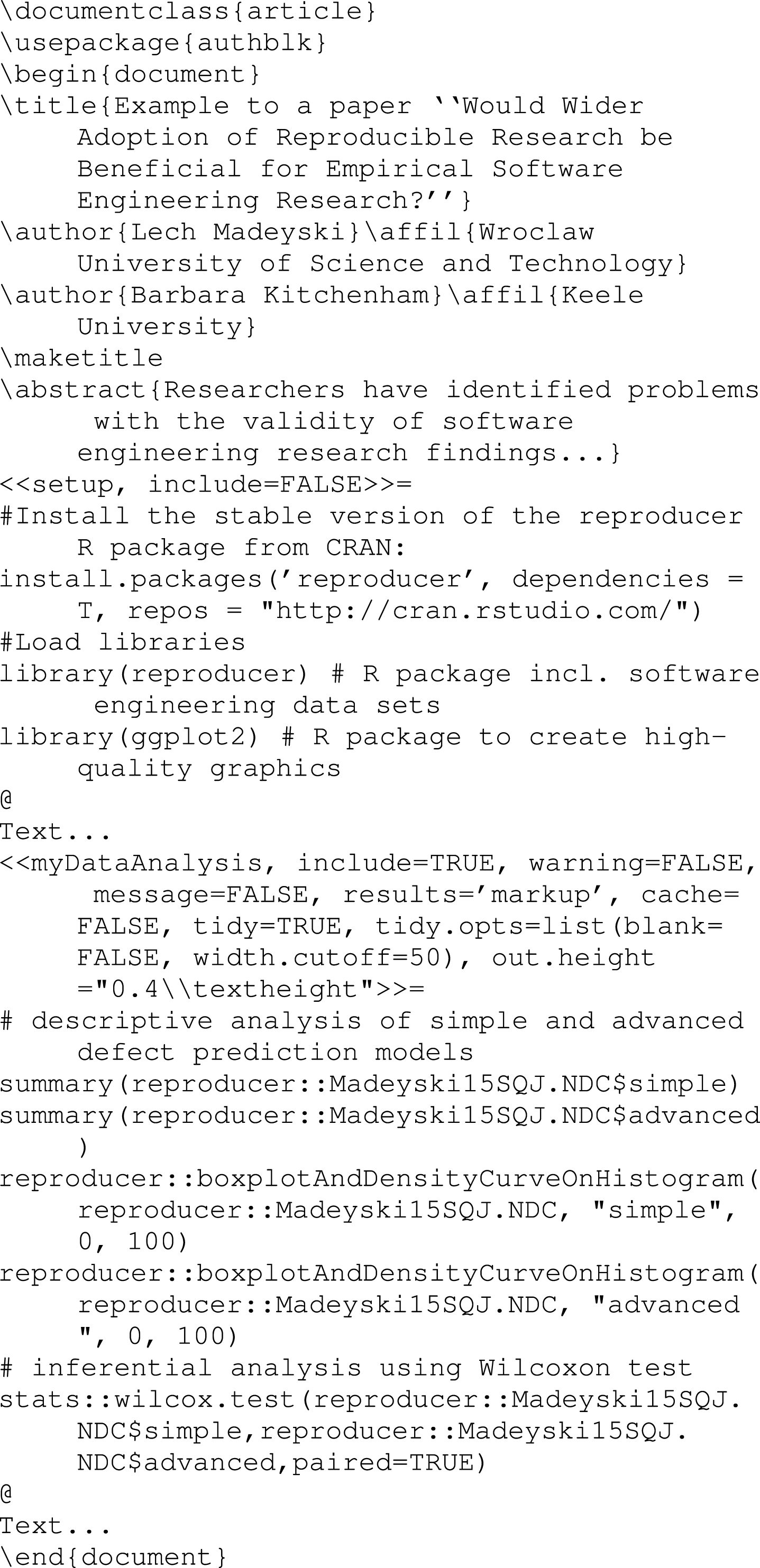

Subsequent steps of data analysis, from the Example.Rnw file, and respective results (automatically embedded in this paper with the help of the knitr package) are briefly presented below 2 :

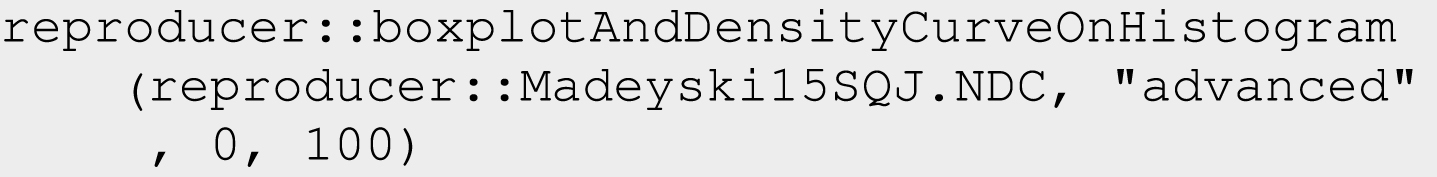

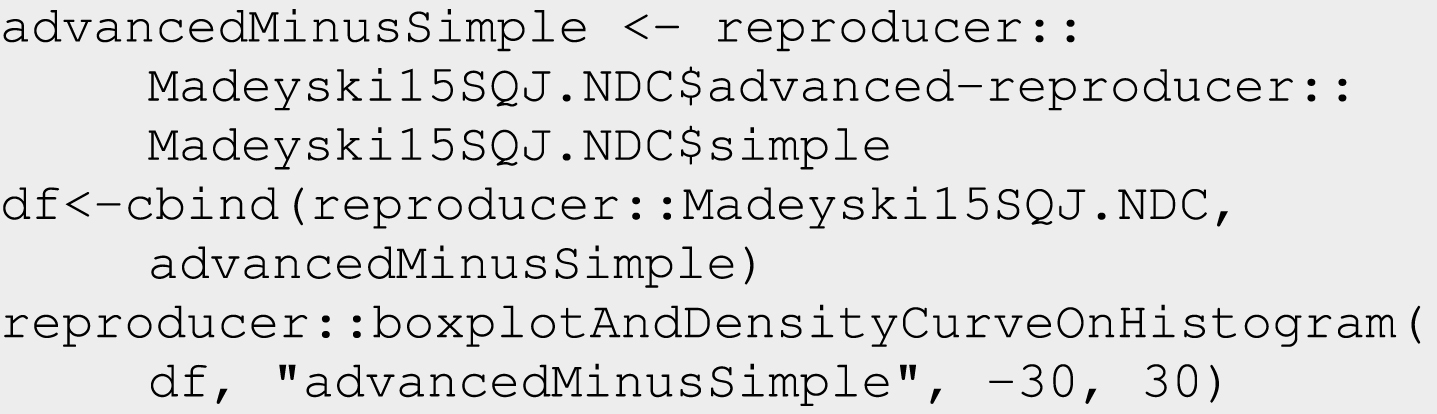

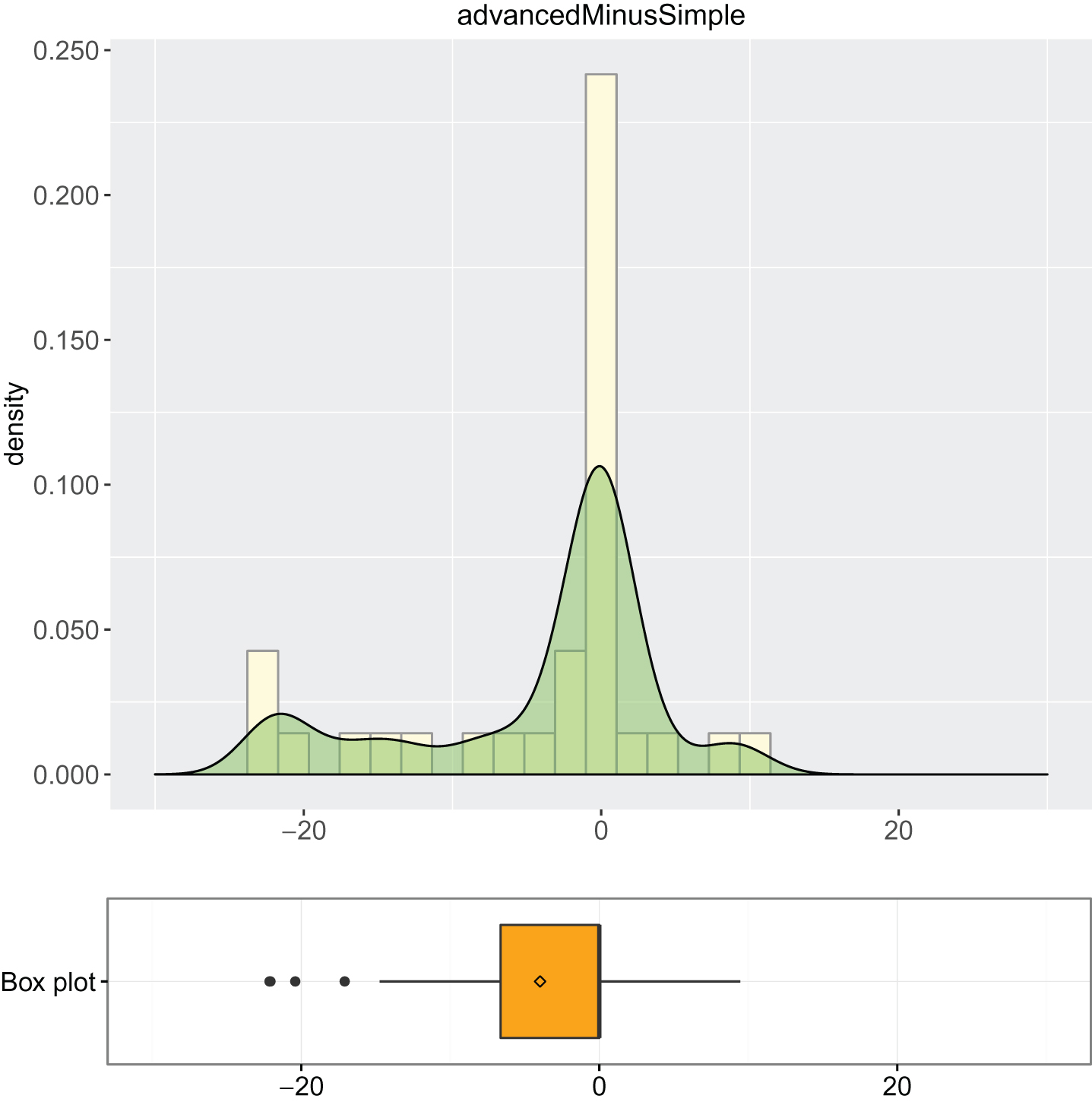

Descriptive analysis of simple and advanced models: summary of descriptive statistics (Output 1 and Output 2) and box plot combined with density curve laid out on histogram (Output 3, Output 4 and Output 5).

The detailed description of the data set, as in case of other R packages, is available from CRAN(https://cran.r-project.org/web/packages/reproducer/reproducer.pdf).

Readers are invited to reproduce our small working example of reproducible research. All of our analyzes, as well as data, are encapsulated in the reproducer R package we created and made available from CRAN—the official repository of R packages [27]. Our simple working example (Example.Rnw file) is now available at http://madeyski.e-informatyka.pl/download/R/Example.Rnw.

We used the method proposed by González-Barahona and Robles [15] to assess reproducibility of our example, as shown in Table 1. The reproducer R package itself supports the availability, persistence and flexibility of the data set, whilst the use of R scripts (code chunks), which use functions embedded in R packages, helps to ensure that parameters of analysis are identified. In our case, the data set is held in the R package which is in effect the data source. The data used in our analysis (referred to as the Raw Data in [15]) is accessed by the R code chunks. Furthermore, all the tools we describe are freely available at no cost. An added benefit of using CRAN, is that it ensures that the data set variables and analysis package parameters are fully documented in the package. It is hard to overestimate the significance of such documentation. It should be noted that our example is quite simple because we do not need to extract the data set from a separate independent data source. When data are held in independent data sources, the tools we recommend do not address the issue of identifying and preserving the data source, however, the retrieval methodology and the raw data set can be specified in the R package.

7 Discussion

In this section we discuss some of the pros and cons of reproducible research, as well as major RR initiatives.

8 Conclusions

We have identified studies criticising the current software engineering practices. In our view these criticisms are serious enough that we need to consider carefully how we establish the validity of our research outcomes. Following ideas proposed in the data mining community and adopted in other empirical disciplines, we raise the question of whether it would be beneficial for researchers undertaking human-centric studies to adopt RR. In software engineering, particular research groups investigating specific topic areas are using RR principles, but there is little general agreement about whether the ideas should be more widely adopted. Critical issues are the extent to which researchers are willing to share their data and the time and effort needed to make data available for sharing. However, if we continue as we are, we run the risk of publishing more and more invalid and incorrect results with no systematic methods of correcting them.

RR, as discussed in this paper, concerns the extent to which the report of a specific study can be deemed trustworthy. It supports only the minimum level of validity that we should expect of research outcomes. It would, however, address problems currently being found in software engineering research by various leading researchers ([19, 39 and 46]). The example of reproducible research reported in this paper identifies free-to-use tools that are currently available to support RR. Our example shows how they can be integrated to adopt an RR approach. It should help other researchers to try out the RR approach for themselves. Other empirical software engineering researchers willing to share their data sets, and related analytic procedures, via the reproducer package may contact the first author—the maintainer of the package on CRAN.
