Chaos-enhanced flower pollination algorithms for global optimization

Abstract

The flower pollination algorithm (FPA) is a recently developed meta-heuristic algorithm inspired by the pollination process of flowers. Similar to other meta-heuristic algorithms, it encounters two probable problems, i.e., entrapment in local optima and slow convergence speed, in solving challenging complex real world problems. Similar to the chaos in actual flower pollination process, this paper proposes new FPAs that employ chaotic maps for adjustment of parameters with the aim to improve the convergence rate and prevent the FPAs to get trapped on local optima. This is achieved by employing chaotic number generators every time, a random number is needed by the classical FPA. Two new chaotic FPAs have been proposed and various test problems are used for their performance evaluation. To check the effectiveness of the proposed algorithms, they are tested on various benchmark functions and engineering design problems with different characteristics having real world applications. The simulation results demonstrate that the chaotic maps are able to significantly boost the performance of FPAs.

Keywords

Flower pollination algorithm chaos global optimization engineering design problems

1 Introduction

Optimization is a process of searching the most optimal solution among all available solutions of a particular problem. In consideration of the nature of optimization algorithms, these can be categorized broadly into two groups, i.e., deterministic algorithms and stochastic intelligent algorithms [1, 2]. In the case of deterministic algorithms, identical solutions are produced if its initial starting values are same when solving the same problem. These are gradient restricted methods which move rigorously towards the optimal solution [3]. In contradiction to deterministic algorithms, stochastic algorithms are gradient free techniques in which random steps are to be taken to reach the optima [4]. In these techniques, the optimization process cannot be repeated under any conditions. However, same final optimal solutions can be achieved by both of them in most of the cases. Stochastic algorithms are further classified into two types, i.e., heuristic algorithms and meta-heuristic algorithms [5]. Heuristic, as the name suggests, is the process of finding the solutions by trial and error method [6]. Many heuristic algorithms are being used in optimization area for example Bat Swarm Optimization (BSO) [7], Hill Climbing (HC) [8] and Simulated Annealing (SA) [9]. Meta-heuristic algorithms are the algorithms which solve the optimization problems stochastically having some prior knowledge about the random search. It is a process of optimization which starts with a random solution, then explores and exploits the search space randomly with a specific probability [10]. Since the last two decades, nature inspired meta-heuristic algorithms have become very popular due to their powerful and efficient performance in dealing with complex real world problems [11, 12]. These algorithms have the ability to exploit the useful information of the population in order to find the optimal solutions. Until now, substantial research has been done by various researchers on these algorithms and several nature inspired meta-heuristic algorithms have been introduced such as Particle Swarm Optimization (PSO) [13], Genetic algorithm (GA) [14], Differential Evolution (DE) [15], Firefly Algorithm (FA) [16, 17], Gravitational Search Algorithm (GSA) [18], Harmony Search (HS) [19, 20], Butterfly Optimization Algorithm (BOA) [21], Water Cycle Algorithm (WCA) [22, 23] and Flower Pollination Algorithm (FPA) [24]. These efficient and robust nature inspired meta-heuristic algorithms are utilized to tackle various problems such as economic dispatch optimization [25], optimization of operation sequencing in computer-aided process planning [26, 27], traveling salesman problem [28, 29], combinatorial optimization [30], tuning of fractional order proportional-integral-derivative controllers [31], feature selection [32] and optimal controller design [33].

FPA, in fact, is a recent meta-heuristic algorithm, inspired by the flower pollination process of flowering plants. This population based meta-heuristic has the ability to avoid local optima stagnation to some extent. It also has good convergence ability towards the optima. In general, FPA advances itself strongly to exploitation. However, it cannot always implement global search well. Thus, in some cases, FPA fails to find the global optimal solution. The search strategy used in basic FPA is mainly based on random walks and lèvy flights. Thus, it cannot always deal with the problem successfully.

With the development of the nonlinear dynamics, chaos theory has been widely employed in several applications [34]. In this perspective, one of the most well-known applications is the combination of chaos theory with various optimization techniques [35]. Till now, the chaos theory has been successfully introduced into various nature inspired optimization algorithms. Some of the important contributions in this field includes FA [36], PSO [37], DE [38], BOA [39], GAs [40], GSA [41], ABC [42], Imperialist Competitive Algorithm (ICA) [43] and Grey Wolf Optimization (GWO) [44]. Recently, chaos has been hybridized with flower pollination algorithm by using chaotic proximity probability p to switch between global and local pollination. The validation of this algorithm is done by employing the proposed method to solve definite integral [45] and integer programming problems [46]. However, there are various other possibilities of hybridizing the chaos theory with flower pollination and effective techniques must be used in order to properly validate the algorithms. In this study, sequences which are generated from various chaotic maps are replaced with random numbers for various parameters of FPA where random-based preference is a necessity. In order to achieve this task, various FPA methods which employ chaotic maps as a proficient substitute to random series have been proposed. By this way, it is aimed to accelerate the rate of global convergence and to prevent the FPAs to stuck on local optima. As these techniques do not follow the uniform distribution, so it is usually difficult to estimate how good most chaotic random number generator is, by applying statistical tests. The simulation results demonstrate that in order to improve the performances of FPA, the substitution of random sequences with deterministic chaotic signals may prove an efficient approach.

The rest of the paper is organized as follows. Review of FPA is summarized in Section 2. The selected ten chaotic maps are described in Section 3. Section 4 describes the proposed methods, i.e., Chaotic flower pollination algorithms, shortly CFPAs. Section 5 provides the simulation platform and different benchmark test problems used for comparisons of the proposed methods. In Section 6, the testing of the proposed methods using different benchmark test problems are carried out and the simulation results are compared. To evaluate the performance of the proposed CFPAs over engineering problems, i.e., spring design, welded beam design and gear train design have been solved and results are discussed in Section 7. Finally, the conclusions and further directions of research are drawn in Section 8.

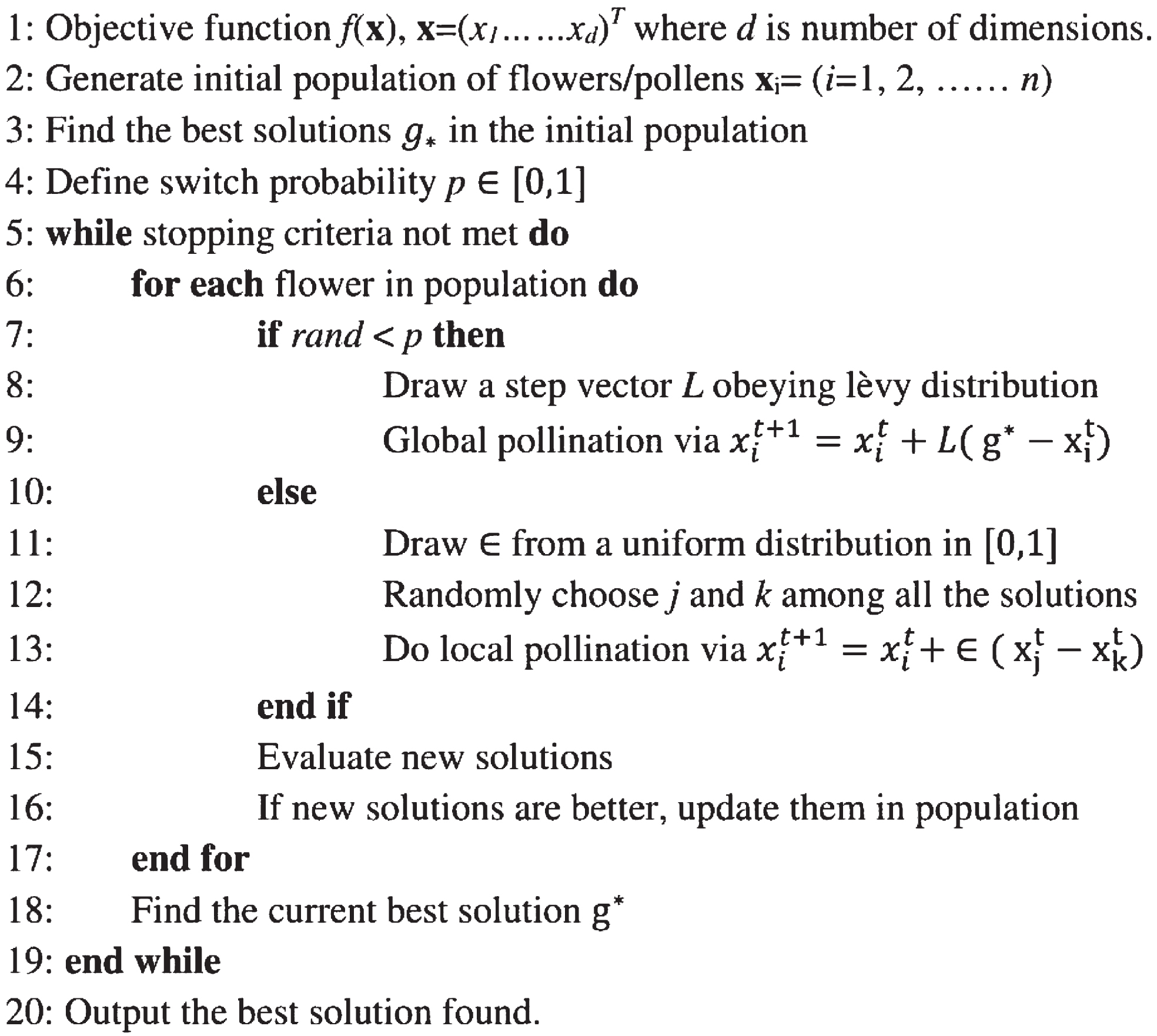

Algorithm 1 Flower Pollination algorithm

2 Flower pollination algorithm

Flower Pollination Algorithm (FPA) is inspired by the flower pollination process of flowering plants [24]. Biologically, a flower can achieve pollination by cross-pollination or self-pollination. Generally speaking, cross-pollination can be defined as the way of pollination which takes place from pollen of a flower of a different plant, whereas self-pollination can be defined as the fertilization of a flower from pollen of the identical flower or different flowers of the identical plant, which often happens due to the unavailability of reliable pollinator. Cross-pollination is considered as the global pollination and self-pollination is considered as local pollination. These two processes are mathematically represented in Equations (1) and (2). ${x_{i}}^{t + 1} = {x_{i}}^{t} + L (g^{*} - {x_{i}}^{t})$ (1) where x_i^t represents the pollen i or solution vector x_i at iteration t, and g^* is the current best solution found among all solutions at the current iteration. Here L is a scaling factor to control the step size and is drawn from a lèvy distribution L > 0 [24]. ${x_{i}}^{t + 1} = {x_{i}}^{t} + ε ({x_{j}}^{t} - {x_{k}}^{t})$ (2) where x_j^t and x_k^t are pollens from different flowers of the same plant species. Here ε represents a random number drawn from the range [0, 1]. Proximity probability p is used to switch between local pollination and global pollination. The pseudocode of the FPA algorithm is illustrated in Algorithm 1.

3 Chaotic maps

In general terms, chaos is a deterministic, random- like method found in non-linear, dynamical system, which is non-periodic, non-converging and bounded. Mathematically, chaos is the randomness of a simple deterministic dynamical system and chaotic system may be considered as a source of randomness [47]. The nature of chaos is apparently random and unpredictable and it also possesses an element of regularity. Chaos employs chaotic variables rather than random variables [36]. Therefore, it can perform downright searches at higher speeds compared to the stochastic searches that mainly rely on probabilities [36]. Merely a few functions (chaotic maps) and few parameters (initial conditions) are needed even for very long sequences. In addition, an enormous number of different sequences can be generated simply by changing its initial condition. Moreover, these sequences are deterministic and reproducible. Furthermore, it has a very sensitive dependence upon its initial condition and parameter [47, 48].

A wide variety of different chaotic maps is available in optimization field [49]. In the present work, 10 most widely used uni-dimensional chaotic maps have been used [50]. The mathematical modulation of these chaotic maps used is described in the Sections 3.1 to 3.10.

3.1 Chebyshev map

The Chebyshev map is formulated as: $x_{k + 1} = cos (k {cos}^{- 1} (x_{k}))$ (3)

3.2 Circle map

The Circle map is defined as: $x_{k + 1} = x_{k} + b - (P - 2 π) sin (2 π x_{k}) / \mod (1)$ (4)

This equation will generate chaotic numbers between (0, 1) by using P = 0.5 and b = 0.2. P is taken as a control parameter here.

3.3 Gauss map

The equations of the Gauss map are defined as follows: $x_{k + 1} = {\begin{matrix} 0 & x_{k} = 0 \\ \frac{1}{x_{k} \mod (1)} & otherwise \end{matrix}$ (5) $\frac{1}{x_{k} \mod (1)} = \frac{1}{x_{k}} - [\frac{1}{x_{k}}]$ (6)

This map also generates chaotic sequences in (0, 1).

3.4 Iterative map

The Iterative chaotic map equation is expressed as: $x_{k + 1} = sin (\frac{P π}{x_{k}})$ (7) where P ∈ (0, 1) is a suitable parameter.

3.5 Logistic map

The Logistic map is represented by the following equation: $x_{k + 1} = P x_{k} (1 - x_{k})$ (8) where P = 0.4 is used for the experiments.

3.6 Piecewise map

The family of Piecewise map can be represented as: $\begin{matrix} x_{k + 1} = {\begin{matrix} \frac{x_{k}}{P} & 0 \leq x_{k} \leq P \\ \frac{x_{k} - P}{0.5 - P} & P \leq x_{k} \leq 0.5 \\ \frac{1 - P - x_{k}}{0.5 - P} & 0.5 \leq x_{k} \leq 1 - P \\ \frac{1 - x_{k}}{P} & 1 - P \leq x_{k} \leq 1 \end{matrix} \end{matrix}$ (9) where 0 < P ≤ 0.5.

3.7 Sine map

This map is defined as follows: $x_{k + 1} = \frac{a}{4} sin (π x_{k})$ (10)

P is the control parameter having values in the range (0, 4).

3.8 Singer map

The singer map is formulated as:

$\begin{matrix} x_{k + 1} & = & P (7.86 x_{k} - 23.31 x_{k}^{2} \\ + 28.75 x_{k}^{3} - 13.302875 x_{k}^{4}) \end{matrix}$ (11) where P is the control parameter whose values lies in the range (0.9, 1.08).

3.9 Sinusoidal map

This map is defined as follows: $x_{k + 1} = {Px}_{k}^{2} sin (π x_{k})$ (12)

In this paper, the simplified equation of this map is used by using P = 2.3 and x₀ = 0.7 which can be formulated as: $x_{k + 1} = sin (π x_{k})$ (13)

3.10 Tent map

The equation of the tent map can be represented as: $\begin{matrix} x_{k + 1} = {\begin{matrix} \frac{x_{k}}{0.7} & x_{k} < 0.7 \\ \frac{10}{3} (1 - x_{k}) & x_{k} \geq 0.7 \end{matrix} \end{matrix}$ (14)

4 Chaotic flower pollination algorithms

Recently, chaotic sequences have been employed as a replacement for random sequences and interestingly, to some extent superior results have been revealed in various applications such as DNA computing [51], secure transmission [52, 53], nonlinear circuits [54] and image processing [55]. The choice of chaotic sequences is justified theoretically by their unpredictability, i.e., by their ergodic properties and spread-spectrum characteristics.

Random initialization of FPA and the proximity probability which is selected randomly may affect the convergence speed of the algorithm. In order to improve the global convergence rate, new techniques which incorporate the chaotic maps with irregularity, ergodicity and the stochastic property in FPA are proposed in this research work. The use of chaotic sequences in FPA can be useful to escape more easily from local minima in comparison to the standard FPA. New chaotic FPA (CFPA) algorithms may be simply classified and described as follows:

4.1 Chaotic CFPA1

As depicted in Fig. 1, the initial population (flowers) is generated by iterating the selected chaotic maps until reaching to the population size. A member of the population can be represented as x_i,j, where i is the member and j is the dimension.

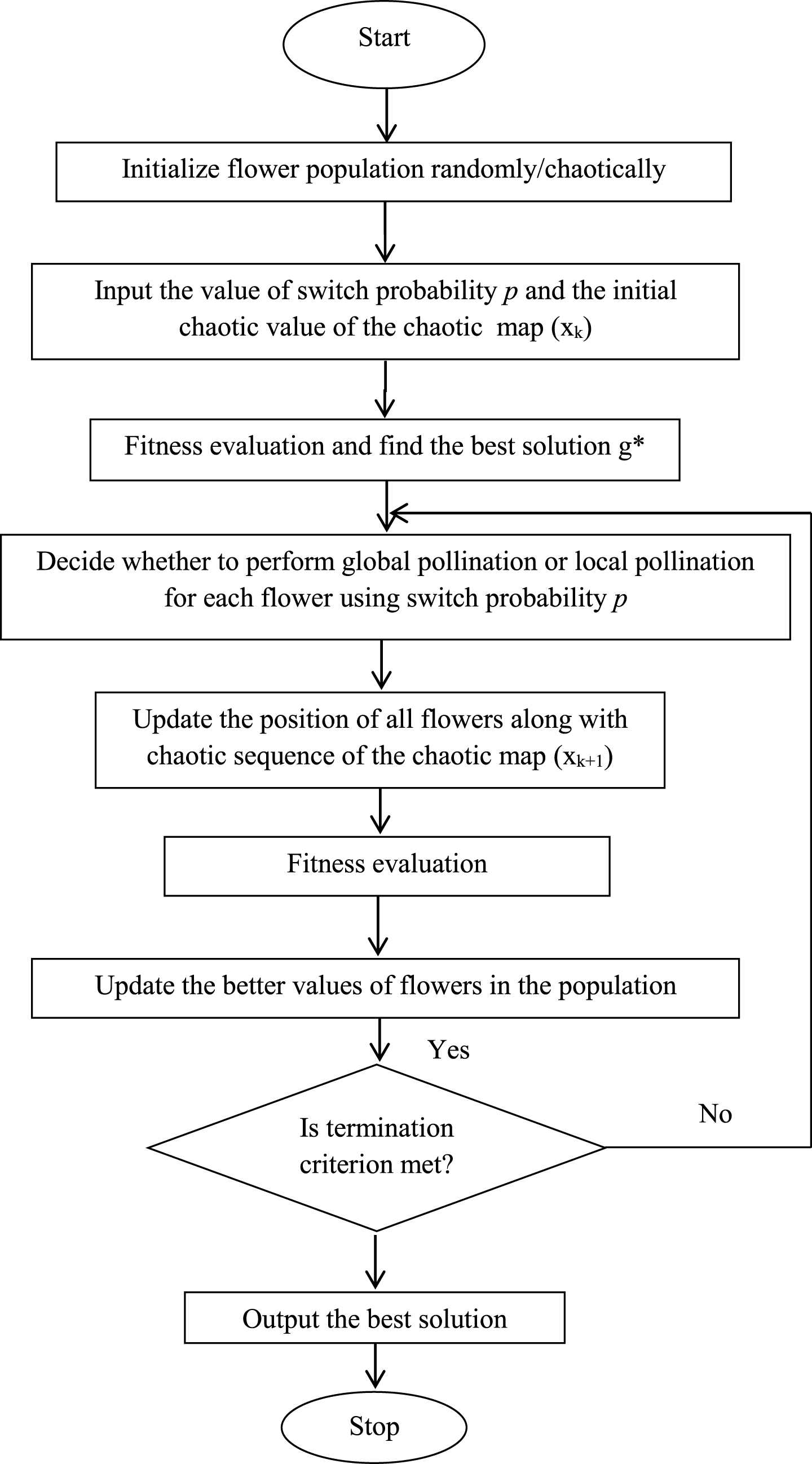

Fig.1

Flowchart of the proposed CFPAs.

4.2 Chaotic CFPA2

In this algorithm, the switch probability p which controls the global and local searching abilities of the FPA is replaced with a chaotic number. CFPA2 is similar to the chaotic FPA algorithms proposed in the literature [45, 46].

4.3 Chaotic CFPA3

CFPA1 and CFPA2 are combined, i.e., the initial population is generated by iterating the selected chaotic maps and a chaotic variable controls the intensification and diversification of the algorithm as shown in Algorithm 2.

For FPA, the time complexity is O(nt) where n is the population size and t is the number of iterations because there is a single loop for going through the population. Therefore, in this case, for our proposed Chaotic FPAs, the time complexity is O(nt) because in the same loop next chaotic sequence will be calculated. As n is small (in this case, n = 30), and t is large (in this case, t = 500), the additional computation cost is relatively inexpensive because the algorithm’s complexity is linear in terms of t. The main computational cost will be in the iterations of the objective function. Moreover, only the current chaotic value is required to calculate the next value of the chaotic sequence, so the addition of chaos theory doesn’t affect the space complexity of the proposed algorithms.

Algorithm 2 Chaotic flower pollination algorithm

5 Optimization testbed and simulation platforms

5.1 Benchmark numerical experiments

Every novel optimization algorithm must be subjected to well-defined benchmark functions in order to measure and test its performance. There are many benchmark functions available, however, there is no standardized set of benchmark functions which is agreed upon for validating new algorithms [56]. Therefore, in order to validate and benchmark the performance of proposed Chaotic Flower Pollination Algorithms (CFPAs), simulations on one unimodal (containing only one optima) as well as on two multimodal (containing many local optima, but only one global optimum) benchmark functions are conducted [39, 42]. These testbed benchmark functions are chosen in order to determine various features of the algorithm such as fast convergence, ability to jump out of local optima and avoid premature convergence. Table 1 shows the major properties of the selected benchmark functions used in the simulations. CFPAs are implemented in C++ and compiled using Nokia Qt Creator 2.4.1 (MinGW) under Microsoft Windows 8 operating system. All the simulations are carried out on a computer with an Intel(R) Core(TM) i5 - 3210 @ 2.50GHz CPU.

Table 1
Mathematical benchmark problems

Benchmark Function Formula Dim Range Optima

Sphere $f (x) = \sum_{i = 1}^{n} x_{i}^{2}$ 30 (–100, 100) 0

Griewank $f (x) = 1 + \frac{1}{4000} \sum_{i = 1}^{n} x_{i}^{2} - \prod_{i = 1}^{n} cos (\frac{x_{i}}{\sqrt{i}})$ 30 (–600, +600) 0

Rastrigin $f (\vec{x}) = \sum_{i = 1}^{n} (x_{i}^{2} - 10 cos (2 π x_{i}) + 10 n)$ 30 (–5.12, 5.12) 0

Benchmark Function	Formula	Dim	Range
Sphere	$f (x) = \sum_{i = 1}^{n} x_{i}^{2}$	30	(–100, 100)
Griewank	$f (x) = 1 + \frac{1}{4000} \sum_{i = 1}^{n} x_{i}^{2} - \prod_{i = 1}^{n} cos (\frac{x_{i}}{\sqrt{i}})$	30	(–600, +600)
Rastrigin	$f (\vec{x}) = \sum_{i = 1}^{n} (x_{i}^{2} - 10 cos (2 π x_{i}) + 10 n)$	30	(–5.12, 5.12)

5.2 Initialization and parameter studies

The final simulation results are observed to be almost independent of the initial supposition. In order to measure the performance of the algorithms, statistical measures such as best, mean, and worst objective values along with their standard deviations are used. In the main text, many tables are provided to demonstrate this method. Some extensive sensitivity studies of parameters such as the population size are carried out for most cases in our implementation. Our simulations study suggested that the population size n = 30 will be adequate for most of the problems. The maximum number of iterations is fixed to 500 and a fixed number of n flowers is used at each run.

5.3 Criterion of success

As another investigation, success rates of all the algorithms are calculated in order to discover the potential of the algorithms and carry out more meaningful statistical analysis. For a fair evaluation, the whole population of each algorithm is initialized in regions which include global optimum. It is worth pointing out here that the goal of this experiment is not to find global optimum value but to find out the potential of the algorithms. There are various criteria for evaluating the performance of the algorithms available in the literature. In the current study, an algorithm’s success rate is defined as [36]: $S = 100 \times \frac{{NR}_{successful}}{{NR}_{total}}$ (15) where S represents the success rate of an algorithm; NR_successful and NR_total represents the number of successful runs and the total number of runs taken by the algorithm, respectively. The total number of trials, i.e., NR_total taken here is 50. In this study, a run is considered as a successful run when it is very near to the global optimum. It is worth pointing that this distance is changed for different search space [36]. The criteria for a successful run is defined as: $| X^{gb} - X^{*} | ⩽ (UB - LB) \times 10^{- 4}$ (16) where X^* is the actual location of the global optima and X^gb is the obtained global best by the proposed algorithms; UB and LB are upper and lower bounds, respectively.

6 Simulation results and discussion

6.1 Statistical results

The statistical results such as best, mean, median, worst and standard deviation of runs obtained by the standard FPA and CFPAs for the Sphere, Griewank and Rastrigin functions are presented in Tables 2–11 respectively. In CFPA1, the initial population of flowers is generated by iterating the selected chaotic map. Here, the initial random value of flowers is replaced with different chaotic maps introduced in Section 3. In order to achieve this, all the maps are normalized between lower bound and upper bound range of the given benchmark function.

Table 2
Statistical results of standard FPA for benchmark functions

Best Mean Std. Dev. Median Worst

Sphere 3.36E-11 1.02E-07 1.77E-08 2.41E-09 5.48E-08

Griewank 8.21E-07 9.81E-06 9.97E-08 9.82E-07 1.15E-06

Rastrigin 2.03E-08 5.67E-07 4.53E-08 3.46E-08 1.55E-07

	Best	Mean	Std. Dev.	Median	Worst
Sphere	3.36E-11	1.02E-07	1.77E-08	2.41E-09	5.48E-08
Griewank	8.21E-07	9.81E-06	9.97E-08	9.82E-07	1.15E-06
Rastrigin	2.03E-08	5.67E-07	4.53E-08	3.46E-08	1.55E-07

Table 3

Statistical results of CFPA1 for Sphere function

Chaotic Map	Best	Mean	Std. Dev	Median	Worst
Chebyshev	2.99E-25	8.12E-20	2.45E-19	6.59E-22	7.78E-19
Circle	3.99E-25	6.69E-20	2.09E-19	6.72E-23	6.63E-19
Gauss	6.38E-27	4.19E-19	1.28E-18	1.97E-22	4.07E-18
Iterative	1.41E-24	2.82E-20	6.96E-20	5.28E-21	2.25E-19
Logistic	5.92E-24	1.56E-18	4.94E-18	1.43E-21	1.56E-17
Piecewise	2.16E-23	3.28E-18	1.04E-17	1.48E-21	3.28E-17
Sine	5.74E-29	3.35E-19	7.23E-19	3.59E-21	2.08E-18
Singer	1.23E-29	5.03E-21	1.21E-20	9.70E-23	3.90E-20
Sinusoidal	4.32E-28	7.59E-22	1.40E-21	1.17E-23	4.08E-21
Tent	6.55E-26	3.13E-19	9.35E-19	1.01E-22	2.97E-18

Table 4

Statistical results of CFPA1 for Griewank function

Chaotic Map	Best	Mean	Std. Dev	Median	Worst
Chebyshev	8.24E-11	1.13E-10	1.75E-11	1.10E-10	1.42E-10
Circle	1.05E-10	1.21E-10	1.30E-11	1.18E-10	1.46E-10
Gauss	8.56E-11	1.17E-10	3.23E-11	1.12E-10	1.76E-10
Iterative	8.10E-11	1.18E-10	2.36E-11	1.17E-10	1.52E-10
Logistic	8.12E-11	1.27E-10	3.84E-11	1.19E-10	1.86E-10
Piecewise	5.45E-11	1.09E-10	2.80E-11	1.05E-10	1.61E-10
Sine	6.38E-11	1.13E-10	3.26E-11	1.11E-10	1.52E-10
Singer	8.64E-11	1.09E-10	1.83E-11	1.05E-10	1.38E-10
Sinusoidal	6.36E-11	1.05E-10	2.53E-11	1.18E-10	1.31E-10
Tent	6.42E-11	1.14E-10	2.93E-11	1.25E-10	1.45E-10

Table 5

Statistical results of CFPA1 for Rastrigin function

Chaotic Map	Best	Mean	Std. Dev.	Median	Worst
Chebyshev	2.95E-14	8.20E-14	6.37E-14	4.61E-14	1.92E-13
Circle	1.34E-14	1.05E-13	6.05E-14	1.26E-13	1.71E-13
Gauss	4.06E-14	1.37E-13	1.27E-13	9.23E-14	4.57E-13
Iterative	1.62E-14	1.01E-13	8.99E-14	8.42E-14	3.23E-13
Logistic	2.80E-14	1.24E-13	1.02E-13	8.36E-14	2.92E-13
Piecewise	7.22E-15	1.21E-13	2.06E-13	6.39E-14	6.99E-13
Sine	2.67E-14	8.12E-14	6.29E-14	6.13E-14	2.01E-13
Singer	2.82E-14	7.67E-14	4.45E-14	5.68E-14	1.40E-13
Sinusoidal	1.19E-14	5.85E-14	4.99E-14	4.08E-14	1.76E-13

Table 6

Statistical results of CFPA2 for Sphere function

Chaotic Map	Best	Mean	Std. Dev	Median	Worst
Chebyshev	4.16E+07	8.78E+07	3.91E+07	8.44E+07	1.75E+08
Circle	3.53E-16	4.08E-13	4.87E-13	1.16E-13	1.23E-12
Gauss	2.93E-08	3.13E-08	1.18E-09	3.16E-08	3.35E-08
Iterative	9.36E-23	1.87E-17	4.98E-17	8.17E-20	1.59E-16
Logistic	4.97E-32	7.09E-27	2.20E-26	3.20E-30	6.96E-26
Piecewise	1.21E-19	7.57E-17	1.91E-16	1.05E-17	6.18E-16
Sine	8.32E-29	1.69E-25	2.37E-25	6.57E-26	6.93E-25
Singer	2.91E-38	2.50E-32	7.79E-32	4.45E-35	2.47E-31
Sinusoidal	3.05E-08	3.13E-08	6.82E-10	3.14E-08	3.24E-08
Tent	2.97E-20	1.05E-16	2.19E-16	2.01E-18	5.93E-16

Table 7

Statistical results of CFPA2 for Griewank function

Chaotic Map	Best	Mean	Std. Dev	Median	Worst
Chebyshev	5.94E-02	7.26E-02	4.49E-03	6.67E-02	7.25E-02
Circle	1.71E-09	2.02E-09	9.69E-11	1.88E-09	1.96E-09
Gauss	1.96E-08	2.32E-08	7.93E-10	2.15E-08	2.21E-08
Iterative	1.85E-09	2.28E-09	1.36E-10	2.07E-09	2.30E-09
Logistic	3.47E-11	4.18E-11	2.62E-12	3.82E-11	4.25E-11
Piecewise	5.38E-10	6.70E-10	5.18E-11	6.13E-10	6.91E-10
Sine	1.53E-10	2.04E-10	1.88E-11	1.88E-10	2.15E-10
Singer	5.48E-12	8.47E-12	1.50E-12	8.11E-12	1.01E-11
Sinusoidal	1.99E-08	2.29E-08	4.88E-10	2.10E-08	2.16E-08
Tent	2.33E-10	3.04E-10	3.15E-11	2.90E-10	3.23E-10

Table 8

Statistical results of CFPA2 for Sphere function

Chaotic Map	Best	Mean	Std. Dev.	Median	Worst
Chebyshev	1.41E-01	7.80E-01	3.10E-01	9.01E-01	1.14E+00
Circle	2.16E-13	2.64E-11	5.76E-11	1.33E-12	1.76E-10
Gauss	2.16E-06	4.85E-06	4.38E-06	2.27E-06	1.29E-05
Iterative	3.53E-14	3.43E-12	2.42E-12	3.49E-12	7.87E-12
Logistic	1.12E-20	4.49E-19	3.85E-19	2.91E-19	1.29E-18
Piecewise	1.80E-14	2.05E-13	2.28E-13	9.96E-14	6.58E-13
Sine	1.12E-18	4.02E-16	4.89E-16	1.11E-16	1.15E-15
Singer	9.81E-26	8.28E-22	7.99E-22	6.87E-22	2.18E-21
Sinusoidal	2.18E-06	3.35E-06	2.50E-06	2.22E-06	9.48E-06
Tent	1.98E-16	2.62E-14	1.69E-14	2.92E-14	5.40E-14

Table 9

Statistical results of CFPA3 for Sphere function

Chaotic Map	Best	Mean	Std. Dev	Median	Worst
Chebyshev	1.94E+07	4.41E+07	1.89E+07	4.56E+07	7.35E+07
Circle	4.10E-23	2.04E-18	4.43E-18	8.14E-20	1.41E-17
Gauss	7.40E-16	1.90E-13	2.45E-13	9.76E-14	6.79E-13
Iterative	2.83E-08	2.97E-08	7.43E-10	2.99E-08	3.07E-08
Logistic	9.67E-34	2.20E-29	4.37E-29	7.06E-31	1.38E-28
Piecewise	2.77E-21	3.27E-19	7.54E-19	4.84E-20	2.46E-18
Sine	9.58E-33	8.77E-25	2.77E-24	2.31E-28	8.75E-24
Singer	3.12E-38	8.37E-35	1.95E-34	4.07E-36	6.22E-34
Sinusoidal	2.91E-08	3.02E-08	7.86E-10	3.01E-08	3.17E-08
Tent	5.95E-22	1.37E-16	4.33E-16	3.17E-20	1.37E-15

Table 10

Statistical results of CFPA3 for Griewank function

Chaotic Map	Best	Mean	Std. Dev	Median	Worst
Chebyshev	2.35E-03	2.37E-03	1.35E-05	2.36E-03	2.40E-03
Circle	8.30E-09	8.42E-09	6.70E-11	8.44E-09	8.50E-09
Gauss	3.86E-10	4.09E-10	1.64E-11	4.09E-10	4.34E-10
Iterative	2.92E-10	3.05E-10	1.29E-11	3.01E-10	3.31E-10
Logistic	2.80E-12	3.04E-12	1.40E-13	3.07E-12	3.24E-12
Piecewise	9.10E-11	9.98E-11	5.36E-12	1.01E-10	1.08E-10
Sine	1.78E-11	1.92E-11	9.20E-13	1.94E-11	2.06E-11
Singer	2.85E-13	3.37E-13	3.64E-14	3.44E-13	3.85E-13
Sinusoidal	8.12E-09	8.42E-09	1.66E-10	8.45E-09	8.70E-09
Tent	3.79E-11	4.36E-11	2.94E-12	4.53E-11	4.63E-11

Table 11

Statistical results of CFPA2 for Rastrigin function

Chaotic Map	Best	Mean	Std. Dev.	Median	Worst
Chebyshev	4.49E-01	1.62E+00	8.57E-01	1.79E+00	3.06E+00
Circle	3.44E-11	6.72E-11	3.38E-11	6.51E-11	1.31E-10
Gauss	9.62E-06	1.02E-05	4.06E-07	1.02E-05	1.10E-05
Iterative	1.35E-19	3.73E-19	1.67E-19	3.74E-19	6.08E-19
Logistic	1.85E-12	5.35E-12	2.80E-12	4.60E-12	1.09E-11
Piecewise	2.21E-13	4.97E-13	1.95E-13	4.94E-13	8.86E-13
Sine	4.69E-16	9.97E-16	3.59E-16	9.62E-16	1.70E-15
Singer	2.23E-21	5.04E-21	2.26E-21	4.58E-21	9.58E-21
Sinusoidal	1.02E-05	1.05E-05	2.65E-07	1.05E-05	1.11E-05
Tent	1.23E-14	2.76E-14	1.30E-14	2.40E-14	5.28E-14

It is worthwhile to mention that for solving unimodal sphere functions, the chaotic maps are more effective. From Tables 3–5, it is observed that in comparison with other chaotic maps and standard FPA, the Sinusoidal map has the best performance in solving sphere function.

As it is mentioned, one of the main parameters of FPA is the proximity probability p. Here, this value, p, is substituted with values generated by various chaotic maps in order to improve the performance of FPA. To accomplish this, normalization of all the maps is done between 0 and 1. The simulation results obtained by the CFPA2 are presented in Tables 6–8 for the test functions.

From the simulation results, it can be observed that the statistical results obtained by the CFPAs are very good. As it is seen, the best values and means values obtained by the CFPAs are far better than those of the standard FPA. It appears that in comparison with other chaotic maps, the Singer map has shown superior performance in both the benchmark functions and the results from statistical tests also confirm this.

As demonstrated in Tables 3–8, tuning of the initial population and proximity probability are both effective. Another possible chaotic FPA, i.e., CFPA3 in which both the parameters, initial population and proximity probability, are tuned by chaotic maps.

The results for the CFPA3 algorithm using the different chaotic maps are demonstrated in Tables 9–11. The statistical results suggest that there is a significant improvement when both the parameters are substituted with the values produced by the chaotic maps. Further, it is also analyzed that the best chaotic algorithm is the one using the Singer map. The performance of this algorithm is considerably better than the standard FPA and otherCFPAs.

6.2 Convergence analysis

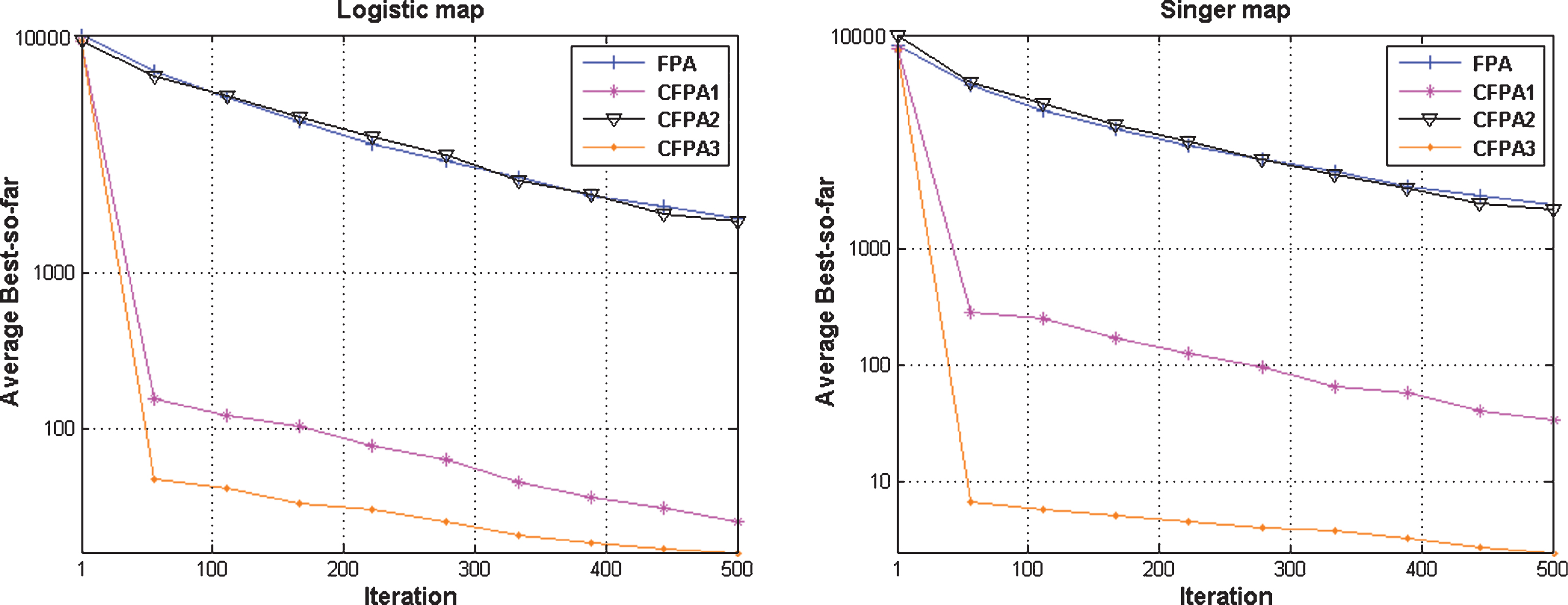

Figure 2 shows the functions values for Sphere function on Logistic and Singer map. Sphere function can also be regarded as a unimodal function. It is clear from Fig. 2 that when CFPA3 utilize Logistic map, it greatly overtakes all other algorithms. CFPA3 reaches the optimal solution considerably earlier than the other algorithms. Analogous to the Logistic map, Singer map also enhances the performance of FPA. In this case, CFPA3 has the stable convergence rate towards the global solution and overtakes all other algorithms in this unimodal benchmark function. Logistic and Singer map are not able to improve the performance of CFPA1, while the performance of CFPA2 is inferior to CFPA3.

Fig.2

Convergence curves of FPAs on sphere function.

Figure 3 illustrates the functions values for the Rastrigin function which is a difficult multimodal function with a unique global minimum of 0 and several local optima. At first glance, it is obvious that CFPA3 has the fastest convergence rate towards the global solution in the whole optimization process. In this case also, the performance of CFPA2 is almost equal to FPA which means the chaotic maps were not able to improve the performance of FPA. CFPA3 reaches the optimal solution significantly earlier than other algorithms using the Chebyshev and Piecewise map. This indicates that the performance of FPA can be boosted by utilizing Chebyshev and Piecewise map in terms of not only exploration but also exploitation.

Fig.3

Convergence curves of FPAs on rastrigin function.

Figure 4 reveals the function values for Griewank function which has a strange property, as it is much easier to solve for higher dimensions than lower dimensions. From Fig. 4, it can be seen that Circle map has improved the performance of CFPA3 and it has the best performance for this benchmark. Similarly, Sinusoidal map has also enhanced the performance of FPA. It is worth mentioning that the convergence curves of FPA, CFPA1 and CFPA2 are worse than those of CFPA3 in this case too. This is due to boosting the exploration of the FPA utilizing these chaotic maps simultaneously, whereby the FPA can avoid local optima much better. Considering the results shown in Figs. 2–4, it can be concluded that the performance of CFPA3 is superior to the other algorithms. Moreover, the implementation of CFPAs is simple and easy, and no effect is made to fine-tune the parameters. The results demonstrate that the CFPA3 to be robust over all kinds of benchmark functions.

Fig.4

Convergence curves of FPAs on griewank function.

6.3 Criterion of success

Using different chaotic maps, success rates of CFPA methods for Sphere, Griewank and Rastrigin function are shown in Tables 12, 13 and 14, respectively. The simulation results demonstrate the enhancement of the newly proposed algorithms due to the application of chaotic variables in place of constant values. Success rates and statistical results of the CFPAs confirm that the proposed CFPAs clearly enhance the quality of the results and also improve the reliability of the global optimality. The underlying reason behind better performance of CFPAs is that by the introduction of deterministic chaotic signals, the tradeoff between exploration and exploitation is improved. The chaotic variable also facilitates the CFPAs to explore the search space more randomly which helps the algorithms to avoid local optima stagnation and hence reach the optima more quickly. Thus, it can be said that the performance of the proposed CFPAs is better. In fact, most of the results obtained from CFPA1 and CFPA3 are superior to that from classical FPA and CFPA2.

Table 12
Success rates of CFPAs for the Sphere benchmark function

Chaotic Map CFPA1 CFPA2 CFPA3

Chebyshev 95 0 0

Circle 100 98 100

Gauss 96 92 100

Iterative 96 96 100

Logistic 98 92 100

Piecewise 100 97 100

Sine 100 98 100

Singer 98 96 100

Sinusoidal 100 100 100

Tent 100 97 100

Chaotic Map	CFPA1	CFPA2	CFPA3
Chebyshev	95	0	0
Circle	100	98	100
Gauss	96	92	100
Iterative	96	96	100
Logistic	98	92	100
Piecewise	100	97	100
Sine	100	98	100
Singer	98	96	100
Sinusoidal	100	100	100
Tent	100	97	100

Table 13

Success rates of CFPAs for the Griewank benchmark function

Chaotic Map	CFPA1	CFPA2	CFPA3
Chebyshev	82	0	0
Circle	79	72	83
Gauss	62	59	75
Iterative	86	81	89
Logistic	82	77	86
Piecewise	81	79	83
Sine	73	70	80
Singer	80	76	86
Sinusoidal	79	72	84
Tent	83	80	86

Table 14

Success rates of CFPAs for the Rastrigin benchmark function

Chaotic Map	CFPA1	CFPA2	CFPA3
Chebyshev	94	0	0
Circle	97	90	100
Gauss	98	92	100
Iterative	93	97	100
Logistic	100	98	100
Piecewise	100	100	100
Sine	98	95	100
Singer	95	92	100
Sinusoidal	96	92	100
Tent	95	92	100

It is worthwhile to mention that the performance of an algorithm varies according to the chaotic maps embedded, however for a particular problem, a unique best chaotic map cannot be selected as there are usually some chaotic maps which can demonstrate equal performance. So, without doing actual simulations, selecting a chaotic map is not an easy task. Nevertheless, from our simulation results, it is observed that better results can be achieved by employing those chaotic maps which have a unimode centered around the middle of maps, and Sinusoidal and Singer map belongs to this category, and indeed they are very effective.

7 CFPA for classical engineering problems

It has been proved that considering certain assumptions, any single algorithm cannot be considered as the best on average for all problems [57]. It means that an algorithm might be able to solve some problems better than the other algorithms and some problems worse than other algorithms. Therefore, to appropriately evaluate the optimization power of the proposed CFPAs without a biased conclusion, three popular engineering design problems, i.e., spring design, welded beam design and gear train design problem are considered and solved.

Each constrained optimization problem has different nature of objective functions, decision variables, equality and inequality constraints and a penalty function. The parameters of penalty function must be set to correct values in order to get optimal solution. When constrained handling mechanism directly affects the position of the search agents using specific fitness function, it becomes very challenging to solve the constrained optimization problem. A complex penalty function is also used in the problems mentioned which penalize the search agents according to the level of violation done by them. If penalty is given to the best flower then it will make the best flower less fit. Then, that less fit flower will get replaced with a fitter flower in next iteration. For each engineering design problem, the number of iterations for CFPAs is fixed to 500. It is worthwhile to mention that no attempt has been made to optimize the parameter settings of CFPAs.

7.1 Tension/compression spring design

The main goal of this engineering design problem is to minimize the weight of the spring involving three decision variables which are wire diameter (d), mean coil diameter (D), and the number of active coils (N), as illustrated in Fig. 5. The minimization process is subject to some constraints such as shear stress, surge frequency, and minimum deflection [58, 59].

Fig.5

Schematic representation of spring.

The mathematical formulation of this problem is as follows: $\begin{matrix} Consider \\ \vec{x} = [x_{1} x_{2} x_{3}] = [dDN], \\ Minimize \\ f (\vec{x}) = (x_{3} + 2) x_{2} x_{1}^{2}, \\ Subject to \\ g_{1} (\vec{x}) = 1 - \frac{x_{2}^{3} x_{3}}{717854 x_{1}^{4}} \leq 0, \\ g_{2} (\vec{x}) = \frac{4 x_{2}^{2} - x_{1} x_{2}}{12566 (x_{2} x_{1}^{3} - x_{1}^{4})} + \frac{1}{5108 x_{1}^{2}} \leq 0, \\ g_{3} (\vec{x}) = 1 - \frac{140.45 x_{1}}{x_{2}^{2} x_{3}} \leq 0, \end{matrix}$ (17) $\begin{matrix} g_{4} (\vec{x}) = \frac{x_{1} + x_{2}}{1.5} - 1 \leq 0, \\ Variable range \\ 0.05 \leq x_{1} \leq 2.00, ThickSpace ThickSpace 0.25 \leq x_{2} \leq 1.30, \\ 2.00 \leq x_{3} \leq 15.00 \end{matrix}$

The simulation results of CFPAs are compared with GWO [60], GSA [61], PSO [62], Evolution Strategy (ES) [63], GA [64], HS [65], and DE [66]. The mathematical approaches that have been used to tackle this problem are Numerical Optimization Technique (NOT) [68] and Mathematical Optimization Technique (MOT) [69]. The comparison of results of these techniques and CFPAs are provided in Table 16 which suggests that CFPA finds a design with the minimum weight for this problem.

Table 15

Success rates of standard FPA for the benchmark functions

Sphere	Griewank	Rastrigin
75	72	67

Table 16

Comparison of results for spring design problem

Algorithm	Optimum variables			Optimum Weight
	d	D	N
CFPA	0.0512	0.3542	10.3626	0.01095
GWO [60]	0.0516	0.3567	11.2888	0.01266
GSA [61]	0.0502	0.3236	13.5254	0.01270
PSO [62]	0.0517	0.3576	11.2445	0.01267
ES [63]	0.0519	0.3639	10.8905	0.01268
GA [64]	0.0514	0.3516	11.6322	0.01270
HS [65]	0.0511	0.3498	12.0764	0.01267
DE [66]	0.0516	0.3547	11.4108	0.01267
MOT [58]	0.0533	0.3991	9.18540	0.01273
NOT [67]	0.0500	0.3159	14.2500	0.01283

7.2 Welded beam design

The goal of this engineering design problem is to minimize the cost of fabrication of a welded beam as shown in Fig. 6 [64]. This problem has four variables such as length of attached part of the bar (l), thickness of weld (h), thickness of the bar (b) and height of the bar (t). The constraints are bending stress in beam (h), shear stress (s), end deflection of the beam (d), buckling load on the bar (P_c) and the side constraints. This problem can be mathematically defined as: $\begin{matrix} Consider \\ \vec{x} = [x_{1} x_{2} x_{3} x_{4}] = [hltb], \\ Minimize \\ f (\vec{x}) = 1.10471 x_{1}^{2} x_{2} ThickSpace \\ + 0.04811 x_{3} x_{4} (14.0 + x_{2}), \\ Subject to \\ g_{1} (\vec{x}) = τ (\vec{x}) - τ_{\max} \leq 0, \\ g_{2} (\vec{x}) = σ (\vec{x}) - σ_{\max} \leq 0, \\ g_{3} (\vec{x}) = δ (\vec{x}) - δ_{\max} \leq 0, \\ g_{4} (\vec{x}) = x_{1} - x_{4} \leq 0, \end{matrix}$ (18) $\begin{matrix} g_{5} (\vec{x}) = P - P_{c} (\vec{x}) \leq 0, \\ g_{6} (\vec{x}) = 0.125 - x_{1} \leq 0, \\ g_{7} (\vec{x}) = 1.10471 x_{1}^{2} ThickSpace \\ + 0.04811 x_{3} x_{4} (14.0 + x_{2}) - 5.0 \leq 0, \\ Variable range \\ 0.1 \leq x_{1} \leq 2, ThickSpace ThickSpace 0.1 \leq x_{2} \leq 10, \\ 0.1 \leq x_{3} \leq 10, ThickSpace ThickSpace 0.1 \leq x_{4} \leq 2 \\ where \\ τ (\vec{x}) = \sqrt{{τ^{'}}^{2} + 2 τ^{'} τ^{″} \frac{x_{2}}{2 R} + {τ^{″}}^{2}} \\ τ^{'} = \frac{P}{\sqrt{2} x_{1} x_{2}} \\ τ^{″} = \frac{MR}{J} \\ M = P (L + \frac{x_{2}}{2}), ThickSpace \\ R = \sqrt{\frac{x_{2}^{2}}{4} + {(\frac{x_{1} + x_{3}}{2})}^{2}} \\ δ (\vec{x}) = \frac{6 {PL}^{3}}{E x_{3}^{2} x + x_{4}} \\ J = 2 {\sqrt{2} x_{1} x_{2} [\frac{x_{2}^{2}}{4} {(\frac{x_{1} + x_{3}}{2})}^{2}]} \\ σ (\vec{x}) = \frac{6 PL}{x_{4} x_{3}^{2}} \\ P_{c} (\vec{x}) = \frac{4.013 E \sqrt{\frac{x_{3}^{2} x_{4}^{6}}{36}}}{L^{2}} (1 - \frac{x_{3}}{2 L} \sqrt{\frac{E}{4 G}}) \\ σ_{\max} = 30000 psi \\ L = 14 in . \\ δ_{\max} = 0.25 in . \\ E = 30 \times 10^{6} psi \\ G = 12 \times 10^{6} psi \\ τ_{\max} = 13600 psi \\ P = 6000 lb \end{matrix}$

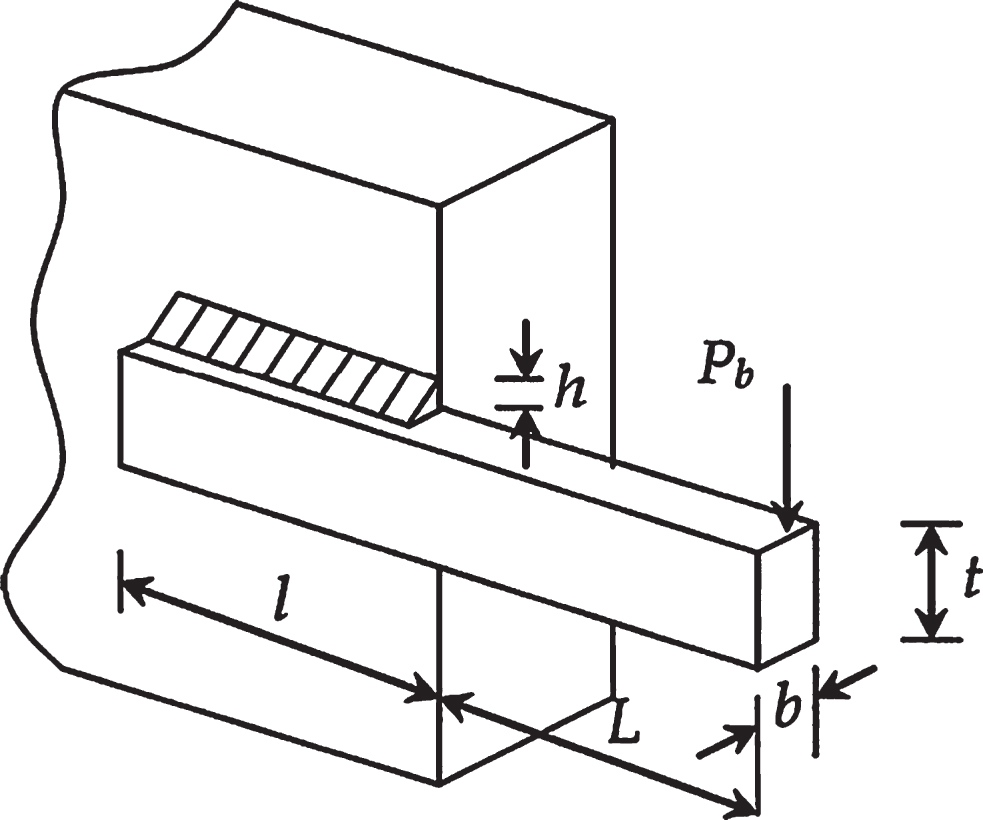

Fig.6

Schematic representation of welded beam.

In the past, this problem is solved by GWO [60], GSA [61], HS [70] and GA [71 –73]. Various mathematical approaches viz. Richardson’s random method, Simplex method, Davidon-Fletcher-Powell, Griffith and Stewart’s successive linear approximation have also been employed to solve this problem [68]. According to the results shown in Table 17, CFPA finds a design with the minimum cost in comparison to other approaches.

Table 17

Comparison results of welded beam design problem

Algorithm	Optimum variables				Optimum
	h	l	t	b	cost
CFPA	0.20319	2.5410	9.03218	0.2059	1.5961
GWO [60]	0.2056	3.4783	9.0368	0.2057	1.7262
GSA [61]	0.1821	3.8569	10.000	0.2023	1.8799
GA [71]	n/a	n/a	n/a	n/a	1.8245
GA [72]	n/a	n/a	n/a	n/a	2.3800
GA [73]	0.2489	6.1730	8.1789	0.2533	2.4331
HS [70]	0.2442	6.2231	8.2915	0.2443	2.3807
Random [68]	0.4575	4.7313	5.0853	0.6600	4.1185
Simplex [68]	0.2792	5.6256	7.7512	0.2796	2.5307
David [68]	0.2434	6.2552	8.2915	0.2444	2.3841
APPROX [68]	0.2444	6.2189	8.2915	0.2444	2.3815

7.3 Gear train design

Gear train design problem is a discrete optimization problem which was introduced by Sandgran [69]. The objective of this problem is to minimize the gear ratio cost of the gear train. It consists of four integer variables viz. T_a, T_b, T_d and T_f, ranging between 12 and 60.

This problem comprises of minimizing the cost of the gear ratio of a compound gear train (see Fig. 7). Mathematically, the gear ratio can be writtenas: $Gear ratio = \frac{Angular velocity of the output shaft}{Angular velocity of the input shaft}$ where T_i signifies the number of teeth of the ith wheel which must be integers. It is essential to find the numbers of teeth on the wheels with the aim of achieving a gear ratio of 1/6.931. Consequently, the objective function can be mathematically formulated as: $f (T_{a}, T_{b}, T_{d}, T_{f}) = (\frac{1}{6.931} - \frac{T_{b} T_{d}}{T_{a} T_{f}})$ (19)

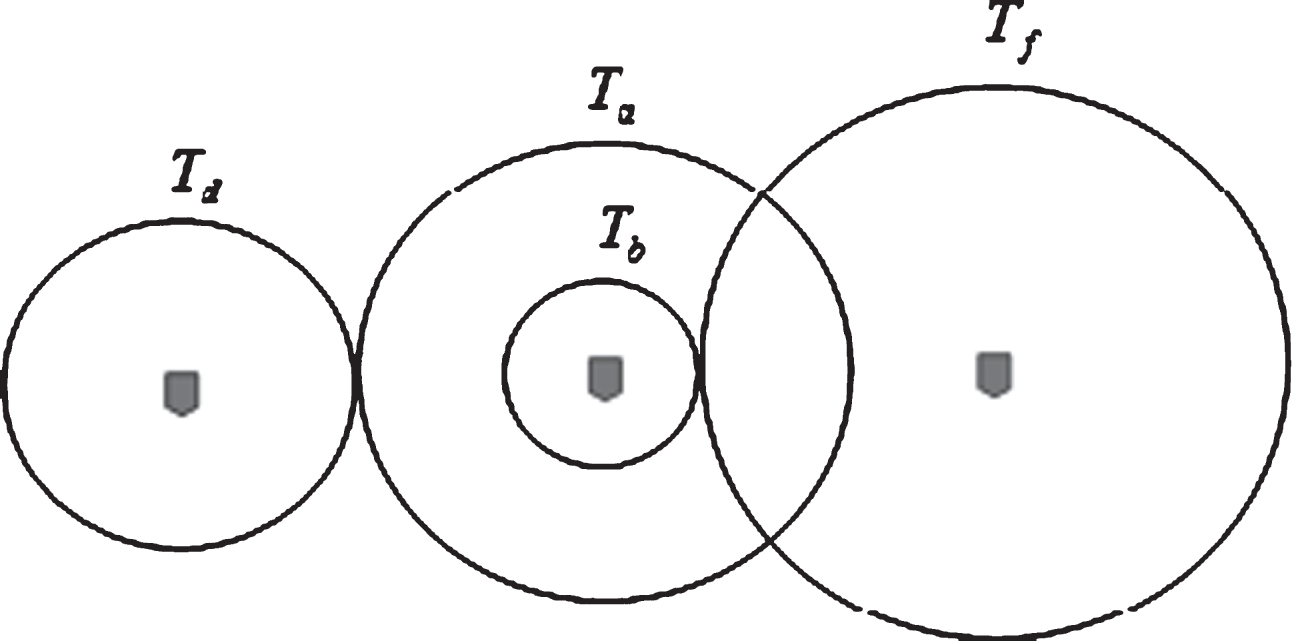

Fig.7

Schematic representation of gear.

This problem has also been popular among researchers and optimized in various studies. The methods that have been adopted to optimize this problem are PSO [75], CAPSO [37], CS [74], GeneAS [77], SA [79] and GA [81]. Various other approaches used to solve to this problem are nonlinear integer and discrete programming (NLDP) [69], Sequential Linearization approach (SL) [76], Mixed Integer Discrete Continuous Optimization (MIDCO) [82], Mixed Integer Discrete Continuous Programming (MIDCP) [80] and Mixed Variable Evolutionary Programming (MVEP) [78]. According to the simulation results demonstrated in Table 18, the solution obtained by the proposed CFPA is equivalent to the results in the literature.

Table 18

Comparison results of gear train design problem

Algorithm	Optimum variables				Gear	f _ min
	T _a	T _b	T _d	ratio
CFPA	43	16	19	49	0.1442	2.7×10^–12
CAPSO [37]	49	19	16	43	0.1442	2.7×10^–12
CS [74]	43	16	19	49	0.1442	2.7×10^–12
PSO [75]	43	16	19	49	0.1442	2.7×10^–12
SL [76]	42	16	19	50	0.1447	0.2×10^–6
GeneAS [77]	33	14	17	50	0.1442	1.3×10^–9
MVCP [78]	52	15	30	60	0.1442	2.3×10^–9
SA [79]	52	15	30	60	0.1442	2.3×10^–9
MIDCP [80]	47	29	14	59	0.1464	4.5×10^–6
GA [81]	n/a	n/a	n/a	n/a	n/a	2.3×10^–7
MIDCO [82]	33	15	13	41	0.1441	2.1×10^–8
NLDP [69]	45	22	18	60	0.1467	5.7×10^–6

8 Conclusion

The chaos theory and flower pollination algorithm are hybridized in order to design novel improved Chaotic Flower Pollination Algorithms (CFPAs) for solving global optimization problems. Several chaotic maps are employed to adapt the parameters of FPA. In this research work, two novel CFPAs are proposed and ten chaotic maps are analyzed in the test functions. The simulation results suggest that there is substantial enhancement of the proposed algorithms with the employment of deterministic chaotic signals instead of constant values. The statistical results demonstrate that the tuned CFPA significantly enhances the quality of the solutions and the reliability of the global optimality. In this study, the performance of the proposed CFPAs seems to significantly better than the other CFPAs proposed in the literature. The simulation results of CFPA on classical engineering problems proved that the proposed CFPAs can be successfully applied to complex real-world problems as well.

Further studies on convergence analysis may prove fruitful. It is anticipated that different chaotic maps may demonstrate different convergence rate on different types of problems. Additionally, CFPAs can be used to solve discrete optimization problems and mixed-type problems.

References

Vasant

P.M.

, Meta-heuristics optimization algorithms in engineering, business, economics, and finance. IGI Global, 2012.

Vasant

, Handbook of Research on Artificial Intelligence Techniques and Algorithms, 2 Volumes, IGI Publishing, Information Science Reference-Imprint of, 2015.

Vasant

, Handbook of research on novel soft computing intelligent algorithms: Theory and practical applications, IGI Global, 2013.

Vasant

, Sustaining Power Resources through Energy Optimization and Engineering, IGI Global, 2016.

Vasant

, Innovation in Power, Control, and Optimization: Emerging Energy Technologies: Emerging Energy Technologies, IGI Global, 2011.

Vasant

, Handbook of Research on Holistic Optimization Techniques in the Hospitality, Tourism, and Travel Industry, IGI Global, 2016.

Jordehi

A.R.

, Chaotic bat swarm optimisation (cbso), Applied Soft Computing26 (2015), 523–530.

Skalak

D.B.

, Prototype and feature selection by sampling and random mutation hill climbing algorithms, in Proceedings of the Eleventh International Conference on Machine Learning, 1994, pp. 293–301.

Aarts

and Korst

, Simulated annealing and boltzmann machines, 1988.

10.

Vasant

, Handbook of Research on Emergent Applications of Optimization Algorithms, IGI Global, 2016.

11.

Vasant

, Handbook of Research on Modern Optimization Algorithms and Applications in Engineering and Economics, IGI Global, 2016.

12.

Yang

X.-S.

, Gandomi

A.H.

, Talatahari

and Alavi

A.H.

, Metaheuristics in water, geotechnical and transport engineering, Newnes, 2012.

13.

Eberhart

R.C.

, Kennedy

, et al., A new optimizer using particle swarm theory, in Proceedings of the Sixth International Symposium on Micro Machine and Human Science, vol. 1, New York, NY, 1995, pp. 39–43.

14.

Goldberg

D.E.

and Holland

J.H.

, Genetic algorithms and machine learning, Machine Learning3(2) (1988), 95–99.

15.

Storn

and Price

, Differential evolution–a simple and efficient heuristic for global optimization over continuous spaces, Journal of Global Optimization11(4) (1997), 341–359.

16.

Arora

, Singh

and Sharma

, Mutated firefly algorithm, in Parallel, Distributed and Grid Computing (PDGC), 2014 International Conference on, IEEE (2014), pp. 33–38.

17.

Arora

and Singh

, The firefly optimization algorithm: Convergence analysis and parameter selection, International Journal of Computer Applications69(3) (2013), 48–52.

18.

Rashedi

, Nezamabadi-Pour

and Saryazdi

, Gsa: A gravitational search algorithm, Information Sciences179(13) (2009), 2232–2248.

19.

Geem

Z.W.

, Kim

J.H.

and Loganathan

, A new heuristic optimization algorithm: Harmony search, Simulation76(2) (2001), 60–68.

20.

Ameli

, Alfi

and Aghaebrahimi

, A fuzzy discrete harmony search algorithm applied to annual cost reduction in radial distribution systems, Engineering Optimization48(9) (2016), 1529–1549.

21.

Arora

and Singh

, Butterfly algorithm with l’evy flights for global optimization, in Signal Processing, Computing and Control (2015 ISPCC), 2015 International Conference on, IEEE2015.

22.

Eskandar

, Sadollah

, Bahreininejad

and Hamdi

, Water cycle algorithm–a novel metaheuristic optimization method for solving constrained engineering optimization problems, Computers & Structures110 (2012), 151–166.

23.

Pahnehkolaei

S.M.A.

, Alfi

, Sadollah

and Kim

J.H.

, Gradient-based water cycle algorithm with evaporation rate applied to chaos suppression, Applied Soft Computing53 (2017), 420–440.

24.

Yang

X.-S.

, Flower pollination algorithm for global optimization, in Unconventional Computation and Natural Computation, Springer, (2012), pp.240–249.

25.

dos Santos Coelho

and Mariani

V.C.

, Combining of chaotic differential evolution and quadratic programming for economic dispatch optimization with valve-point effect, IEEE Transactions on Power Systems PWRS21(2) (2006), 989.

26.

Nallakumarasamy

, Srinivasan

, Raja

K.V.

and Malayalamurthi

, Optimization of operation sequencing in capp using superhybrid genetic algorithms-simulated annealing technique, ISRN Mechanical Engineering2011 (2011).

27.

Nallakumarasamy

, Srinivasan

, Raja

K.V.

and Malayalamurthi

, Optimization of operation sequencing in capp using simulated annealing technique (sat), The International Journal of Advanced Manufacturing Technology54(5-8) (2011), 721–728.

28.

Elloumi

, El Abed

, Abraham

and Alimi

A.M.

, A comparative study of the improvement of performance using a pso modified by aco applied to tsp, Applied Soft Computing25 (2014), 234–241.

29.

Rokbani

, Abraham

and Alimi

A.M.

, Fuzzy ant supervised by pso and simplified ant supervised pso applied to tsp, in Hybrid Intelligent Systems (HIS), 2013 13th International Conference on, IEEE2013, pp. 251–255.

30.

Neumann

and Witt

, Bioinspired computation in combinatorial optimization: Algorithms and their computational complexity, in Proceedings of the 15th Annual Conference Companion on Genetic and Evolutionary Computation, ACM2013, pp. 567–590.

31.

Mousavi

and Alfi

, A memetic algorithm applied to trajectory control by tuning of fractional order proportional-integral-derivative controllers, Applied Soft Computing36 (2015), 599–617.

32.

Hamdani

T.M.

, Alimi

A.M.

and Karray

, Distributed genetic algorithm with bi-coded chromosomes and a new evaluation function for features selection, in Evolutionary Computation, 2006 CEC 2006 IEEE Congress on, IEEE2006, pp. 581–588.

33.

Arab

and Alfi

, An adaptive gradient descent-based local search in memetic algorithm applied to optimal controller design, Information Sciences299 (2015), 117–142.

34.

Pecora

L.M.

and Carroll

T.L.

, Synchronization in chaotic systems, Physical Review Letters64(8) (1990), 821.

35.

Yang

, Li

and Cheng

, On the efficiency of chaos optimization algorithms for global optimization, Chaos, Solitons & Fractals34(4) (2007), 1366–1375.

36.

Gandomi

, Yang

X.-S.

, Talatahari

and Alavi

, Firefly algorithm with chaos, Communications in Nonlinear Science and Numerical Simulation18(1) (2013), 89–98.

37.

Gandomi

A.H.

, Yun

G.J.

, Yang

X.-S.

and Talatahari

, Chaos-enhanced accelerated particle swarm optimization, Communications in Nonlinear Science and Numerical Simulation18(2) (2013), 327–340.

38.

Yuan

, Zhang

, Wang

and Yuan

, An enhanced differential evolution algorithm for daily optimal hydro generation scheduling, Computers & Mathematics with Applications55(11) (2008), 2458–2468.

39.

Arora

and Singh

, An improved butterfly optimization algorithm with chaos, Journal of Intelligent & Fuzzy Systems32(1) (2017), 1079–1088.

40.

Han

and Chang

, An intelligent noise reduction method for chaotic signals based on genetic algorithms and lifting wavelet transforms, Information Sciences218 (2013), 103–118.

41.

Han

and Chang

, A chaotic digital secure communication based on a modified gravitational search algorithm filter, Information Sciences208 (2012), 14–27.

42.

Alatas

, Chaotic bee colony algorithms for global numerical optimization, Expert Systems with Applications37(8) (2010), 5682–5687.

43.

Talatahari

, Azar

B.F.

, Sheikholeslami

and Gandomi

, Imperialist competitive algorithm combined with chaos for global optimization, Communications in Nonlinear Science and Numerical Simulation17(3) (2012), 1312–1319.

44.

Kohli

and Arora

, Chaotic grey wolf optimization algorithm for constrained optimization problems, Journal of Computational Design and Engineering (2017). https://www-sciencedirect-com.web.bisu.edu.cn/science/article/pii/S2288430016301142

45.

Abdel-Raouf

, Abdel-Baset

and El-henawy

, An improved flower pollination algorithm with chaos, International Journal of Education and Management Engineering2 (2014), pp. 1–8.

46.

El-henawy

and Ismail

, An improved chaotic flower pollination algorithm for solving large integer programming problems, International Journal of Digital Content Technology & its Applications8(3) (2014).

47.

dos Santos Coelho

and Mariani

V.C.

, Use of chaotic sequences in a biologically inspired algorithm for engineering design optimization, Expert Systems with Applications34(3) (2008), 1905–1913.

48.

, Wang

, Fei

and Qiu

, The effects of using chaotic map on improving the performance of multiobjective evolutionary algorithms, Mathematical Problems in Engineering2014 (2014). https://www.hindawi.com/journals/mpe/2014/924652/

49.

, He

, Jiang

L.-G.

, Zhu

H.-W.

and Hu

G.-R.

, Chaotic characteristics of a one-dimensional iterative map with infinite collapses, Circuits and Systems I: Fundamental Theory and Applications, IEEE Transactions on48(7) (2001), 900–906.

50.

Tavazoei

M.S.

and Haeri

, Comparison of different onedimensional maps as chaotic search pattern in chaos optimization algorithms, Applied Mathematics and Computation187(2) (2007), 1076–1085.

51.

Doria

V.L.A.

, Dna computing based on chaos, 1997.

52.

Suneel

, Chaotic sequences for secure cdma, arXiv preprint nlin/0602018, 2006.

53.

Wong

K.-W.

, Man

K.-P.

, Li

and Liao

, A more secure chaotic cryptographic scheme based on the dynamic look-up table, Circuits, Systems and Signal Processing24(5) (2005), 571–584.

54.

Arena

, Caponetto

, Fortuna

, Rizzo

and La Rosa

, Self-organization in nonrecurrent complex systems, International Journal of Bifurcation and Chaos10(05) (2000), 1115–1125.

55.

Han

, Hu

, Yu

and Wang

, Fingerprint images encryption via multi-scroll chaotic attractors, Applied Mathematics and Computation185(2) (2007), 931–939.

56.

Arora

and Singh

, An effective hybrid butterfly optimization algorithm with artificial bee colony for numerical optimization, International Journal of Interactive Multimedia and Artificial Intelligence4(4) (2017), 14–21.

57.

Wolpert

D.H.

and Macready

W.G.

, No free lunch theorems for optimization, Evolutionary Computation, IEEE Transactions on1(1) (1997), 67–82.

58.

Belegundu

A.D.

and Arora

J.S.

, A study of mathematical programming methods for structural optimization. part i: Theory, International Journal for Numerical Methods in Engineering21(9) (1985), 1583–1599.

59.

Coello

C.A.C.

and Montes

E.M.

, Constraint-handling in genetic algorithms through the use of dominance-based tournament selection, Advanced Engineering Informatics16(3) (2002), 193–203.

60.

Mirjalili

, Mirjalili

S.M.

and Lewis

, Grey wolf optimizer, Advances in Engineering Software69 (2014), 46–61.

61.

Mirjalili

and Lewis

, Adaptive gbest-guided gravitational search algorithm, Neural Computing and Applications25(7-8) (2014), 1569–1584.

62.

and Wang

, An effective co-evolutionary particle swarm optimization for constrained engineering design problems, Engineering Applications of Artificial Intelligence20(1) (2007), 89–99.

63.

Mezura-Montes

and Coello

C.A.C.

, An empirical study about the usefulness of evolution strategies to solve constrained optimization problems, International Journal of General Systems37(4) (2008), 443–473.

64.

Coello

C.A.C.

, Use of a self-adaptive penalty approach for engineering optimization problems, Computers in Industry41(2) (2000), 113–127.

65.

Mahdavi

, Fesanghary

and Damangir

, An improved harmony search algorithm for solving optimization problems, Applied Mathematics and Computation188(2) (2007), 1567–1579.

66.

Huang

F.-Z.

, Wang

and He

, An effective co-evolutionary differential evolution for constrained optimization, Applied Mathematics and Computation186(1) (2007), 340–356.

67.

Arora

J.S.

, Introduction to optimum design 2004, Elsevier Academic Press.

68.

Ragsdell

and Phillips

, Optimal design of a class of welded structures using geometric programming, Journal of Manufacturing Science and Engineering98(3) (1976), 1021–1025.

69.

Sandgren

, Nonlinear integer and discrete programming in mechanical design optimization, Journal of Mechanical Design112(2) (1990), 223–229.

70.

Lee

K.S.

and Geem

Z.W.

, A new meta-heuristic algorithm for continuous engineering optimization: Harmony search theory and practice, Computer Methods in Applied Mechanics and Engineering194(36) (2005), 3902–3933.

71.

Coello Coello

C.A.

, Constraint-handling using an evolutionary multiobjective optimization technique, Civil Engineering Systems17(4) (2000), 319–346.

72.

Deb

, Optimal design of a welded beam via genetic algorithms, AIAA Journal29(11) (1991), 2013–2015.

73.

Deb

, An efficient constraint handling method for genetic algorithms, Computer Methods in Applied Mechanics and Engineering186(2) (2000), 311–338.

74.

Gandomi

A.H.

, Yang

X.-S.

and Alavi

A.H.

, Cuckoo search algorithm: A metaheuristic approach to solve structural optimization problems, Engineering with Computers29(1) (2013), 17–35.

75.

Parsopoulos

K.E.

and Vrahatis

M.N.

, Unified particle swarm optimization for solving constrained engineering optimization problems, in Advances in Natural Computation, Springer, 2005, pp. 582–591.

76.

Loh

H.T.

and Papalambros

P.Y.

, A sequential linearization approach for solving mixed-discrete nonlinear design optimization problems, Journal of Mechanical Design113(3) (1991), 325–334.

77.

Deb

and Goyal

, A combined genetic adaptive search (geneas) for engineering design, Computer Science and Informatics26 (1996), 30–45.

78.

Cao

and Wu

, Mechanical design optimization by mixedvariable evolutionary programming, in IEEE Conference on Evolutionary Computation IEEE Press, 1997, pp. 443–6.

79.

Zhang

and Wang

, Mixed-discrete nonlinear optimization with simulated annealing, Eng Optim21 (1993), pp. 277–91.

80.

J.-F.

, Fenton

R.G.

and Cleghorn

W.L.

, A mixed integerdiscrete-continuous programming method and its application to engineering design optimization, Engineering Optimization17(4) (1991), 263–280.

81.

S.-J.

and Chow

P.-T.

, Genetic algorithms for nonlinear mixed discrete-integer optimization problems via metagenetic parameter optimization, Engineering Optimization+ A3524(2) (1995), 137–159.

82.

Kannan

and Kramer

S.N.

, An augmented lagrange multiplier based method for mixed integer discrete continuous optimization and its applications to mechanical design, Journal of Mechanical Design116(2) (1994), 405–411.

Chaos-enhanced flower pollination algorithms for global optimization

Abstract

Keywords

1 Introduction

2 Flower pollination algorithm

3.1 Chebyshev map

4.1 Chaotic CFPA1

4.3 Chaotic CFPA3

5 Optimization testbed and simulation platforms

5.1 Benchmark numerical experiments

5.3 Criterion of success

6.1 Statistical results

Table 2 Statistical results of standard FPA for benchmark functions Best Mean Std. Dev. Median Worst Sphere 3.36E-11 1.02E-07 1.77E-08 2.41E-09 5.48E-08 Griewank 8.21E-07 9.81E-06 9.97E-08 9.82E-07 1.15E-06 Rastrigin 2.03E-08 5.67E-07 4.53E-08 3.46E-08 1.55E-07

Table 12 Success rates of CFPAs for the Sphere benchmark function Chaotic Map CFPA1 CFPA2 CFPA3 Chebyshev 95 0 0 Circle 100 98 100 Gauss 96 92 100 Iterative 96 96 100 Logistic 98 92 100 Piecewise 100 97 100 Sine 100 98 100 Singer 98 96 100 Sinusoidal 100 100 100 Tent 100 97 100

7.1 Tension/compression spring design

References

Table 2
Statistical results of standard FPA for benchmark functions

Best Mean Std. Dev. Median Worst

Sphere 3.36E-11 1.02E-07 1.77E-08 2.41E-09 5.48E-08

Griewank 8.21E-07 9.81E-06 9.97E-08 9.82E-07 1.15E-06

Rastrigin 2.03E-08 5.67E-07 4.53E-08 3.46E-08 1.55E-07

Table 12
Success rates of CFPAs for the Sphere benchmark function

Chaotic Map CFPA1 CFPA2 CFPA3

Chebyshev 95 0 0

Circle 100 98 100

Gauss 96 92 100

Iterative 96 96 100

Logistic 98 92 100

Piecewise 100 97 100

Sine 100 98 100

Singer 98 96 100

Sinusoidal 100 100 100

Tent 100 97 100
