A new reasoning approach combining information systems and interval type-2 fuzzy sets

Abstract

In this research, we succeeded in introducing a new reasoning procedure which applies interval type-2 fuzzy sets into a rule induction process. Our proposal allows information granulation which resulted in achieving good experimental results. We introduced decision tables with elements assumed as interval type-2 fuzzy sets which greatly generalize information. Next, by applying corresponding rule induction procedure, we introduced the possibility to generate directly from a benchmark data fuzzy rulebases for type-2 fuzzy inference models. We strongly believe that our reasoning approach will be a proper solution for different research issues such as classification or ranking procedures as well as determining knowledge for fuzzy inference models. The method proposed was tested in a classification problem verified by using medical benchmark data.

Keywords

Fuzzy sets fuzzy reasoning interval type-2 fuzzy sets data classification data discovery pawlak’s information system information granulation rule induction fuzzy rules

1 Introduction

As a general research problem, there has been introduced a number of fuzzy reasoning approaches which aim to solve different practical tasks and data analysis issues. The fuzzy techniques, applied in various applications might be divided into two basic groups: those related to the classical type-1 fuzzy sets, introduced by Zadeh [32] and those related to new concepts, concerning the type-2 fuzzy sets [12, 13]. In practice, the interval type-2 fuzzy sets [11] which are special case of the type-2 fuzzy sets, are commonly used for their reduced computational cost. What more, in many research publications, it is demonstrated that interval type-2 fuzzy concepts are better able to handle uncertainties than type-1 fuzzy approaches [2 , 26]. Interval type-2 fuzzy sets are especially useful when it is difficult to determine the exact membership functions of the fuzzy sets applied.

On the other hand, in order to deal with information issues, data discovery techniques are widely used. Data discovery is considered as the computational process of discovering patterns in data and allow to induce knowledge. Information systems and rough sets [17 –19] are applied in order to represent knowledge. The combination of fuzzy techniques and data discovery seems very attractive for analysis of ‘real-world’ data. Very important applications of these theories combined may be found, for example in the very important field of medicine, concerning breast cancer diagnosis [16].

Distinguished from existing approaches, in our research we aimed to apply type-2 fuzzy sets into a data discovery procedure, by corresponding information granulation. Information granulation, combined with fuzzy sets, have already been introduced as well [33]. For instance, in [20] feature analysis through information granulation and fuzzy sets was introduced, where features are considered to be granular than numeric.

Our approach differs by assuming that values of decision tables may be interpreted as fuzzy sets, which allows to generate fuzzy rulebase by data mining. Next, a proposition of transformation into interval type-2 fuzzy sets is given, which allows to apply type-2 fuzzy sets based reasoning.

The paper is organized as follows: in Section 2, the preliminaries of type-2 fuzzy sets and Pawlak’s information systems based data discovery are briefly explained, in Section 3 a combination of data exploration and type-2 fuzzy sets is proposed, in Section 4 some experiments are carried out and finally, Sections 5 and 6 draw discussion and conclusions.

This paper is an extended version of recent research [24], published on the ICCCI’2018 international conference proceedings. We have extended significantly our work by providing general methodology which is not limited to a specific application and adding research and experiments with interval type-2 fuzzy sets.

2 Theoretical background

In this section, the of fuzzy type 2 reasoning [12, 29] and rule induction based on Pawlak’s information systems [21], are briefly explained.

2.1 Interval type 2 fuzzy sets

A type-2 fuzzy set, denoted $\tilde{A}$ , is characterized by a type-2 membership function [12] 0≤ $μ_{\tilde{A}} (x, u)$ ≤1, where x ∈ X and u∈ J_x ⊆ [0, 1], i.e.: $\begin{matrix} \tilde{A} =_{df} {((x, u), μ_{\tilde{A}} (x, u)) | \forall x \in X, \\ \forall u \in J_{x} \subseteq [0, 1]} \end{matrix}$ (1)

$\tilde{A}$ might be also introduced as follows: $\tilde{A} =_{df} \int_{x \in X} \int_{u \in J_{x}} μ_{\tilde{A}} (x, u) / (x, u) J_{x} \subseteq [0, 1]$ (2) where smallintsmallint denotes union over all admissible x and u.

Currently, interval type-2 (IT2) fuzzy sets [12] as a special case of type-2 fuzzy sets, are the most widely used because of their acceptable computational complexity and easy interpretation. In this case, the amplitude of $μ_{\tilde{A}} (x, u)$ equals 1 for ∀x ∈ X and ∀u∈ J_x ⊆ [0, 1].

Uncertainty about $\tilde{A}$ is conveyed by the so called footprint of uncertainty (FOU) of $\tilde{A}$ , defined as follows: $FOU (\tilde{A}) =_{df} ⋃_{x \in X} J_{x}, J_{x} \subseteq [0, 1]$ (3)

The size of an FOU (the corresponding surface) is directly related to the uncertainty that is conveyed by an interval type-2 fuzzy set and what follows, an FOU with more area is more uncertain than one with less area.

The upper membership function and lower membership function of $\tilde{A}$ are two type-1 membership functions $\underline{A}$ and $\bar{A}$ that bound the FOU, which might be used to describe J_x_, i.e.: $J_{x} =_{df} [μ_{\underline{A}} (x), μ_{\bar{A}} (x)]$ (4) which leads to the following as well: $FOU (\tilde{A}) =_{df} ⋃_{x \in X} [μ_{\underline{A}} (x), μ_{\bar{A}} (x)]$ (5)

An illustration of the above definitions, is given in Fig. 1.

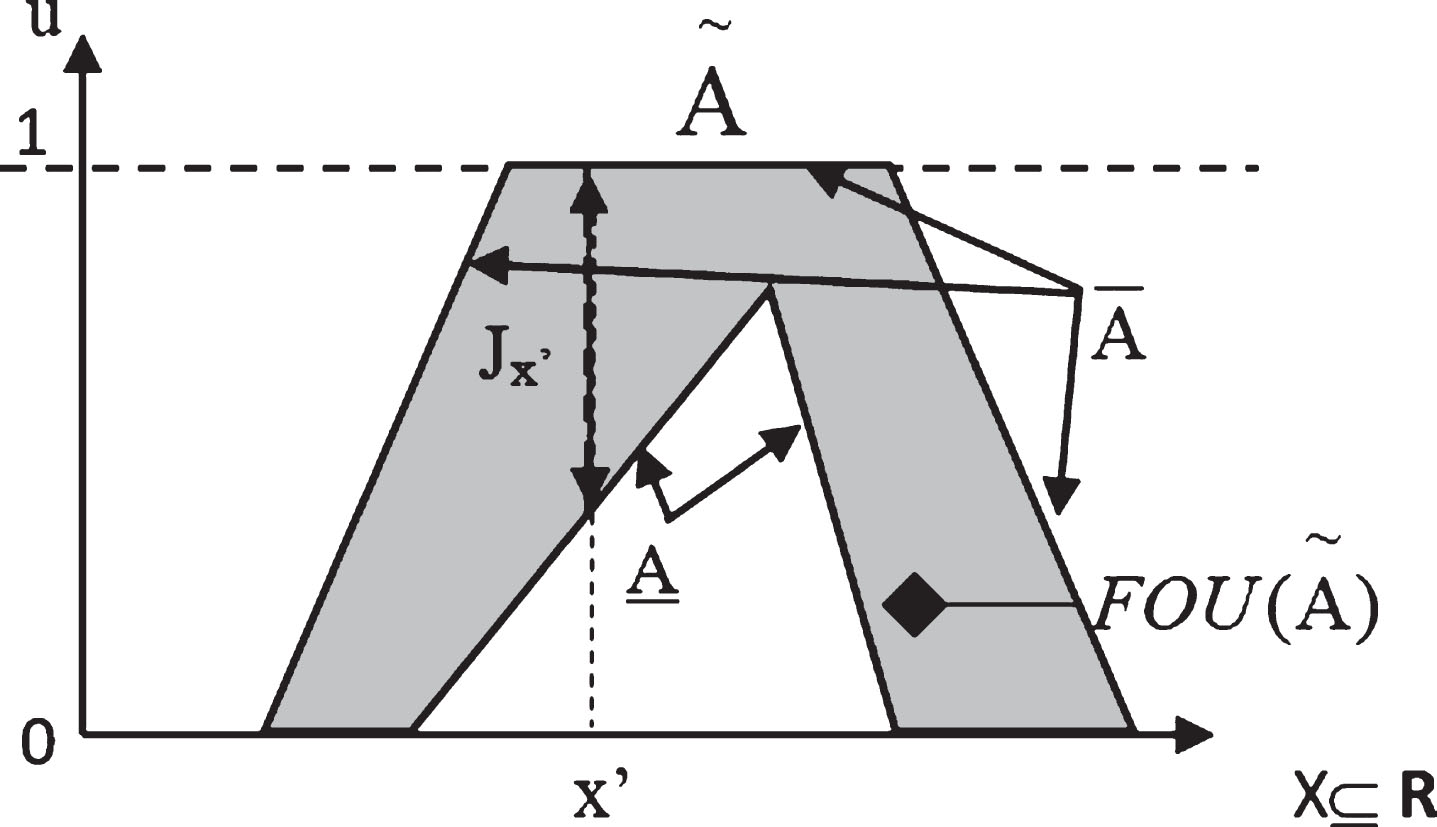

Fig.1

An interval type-2 fuzzy set $\tilde{A}$ .

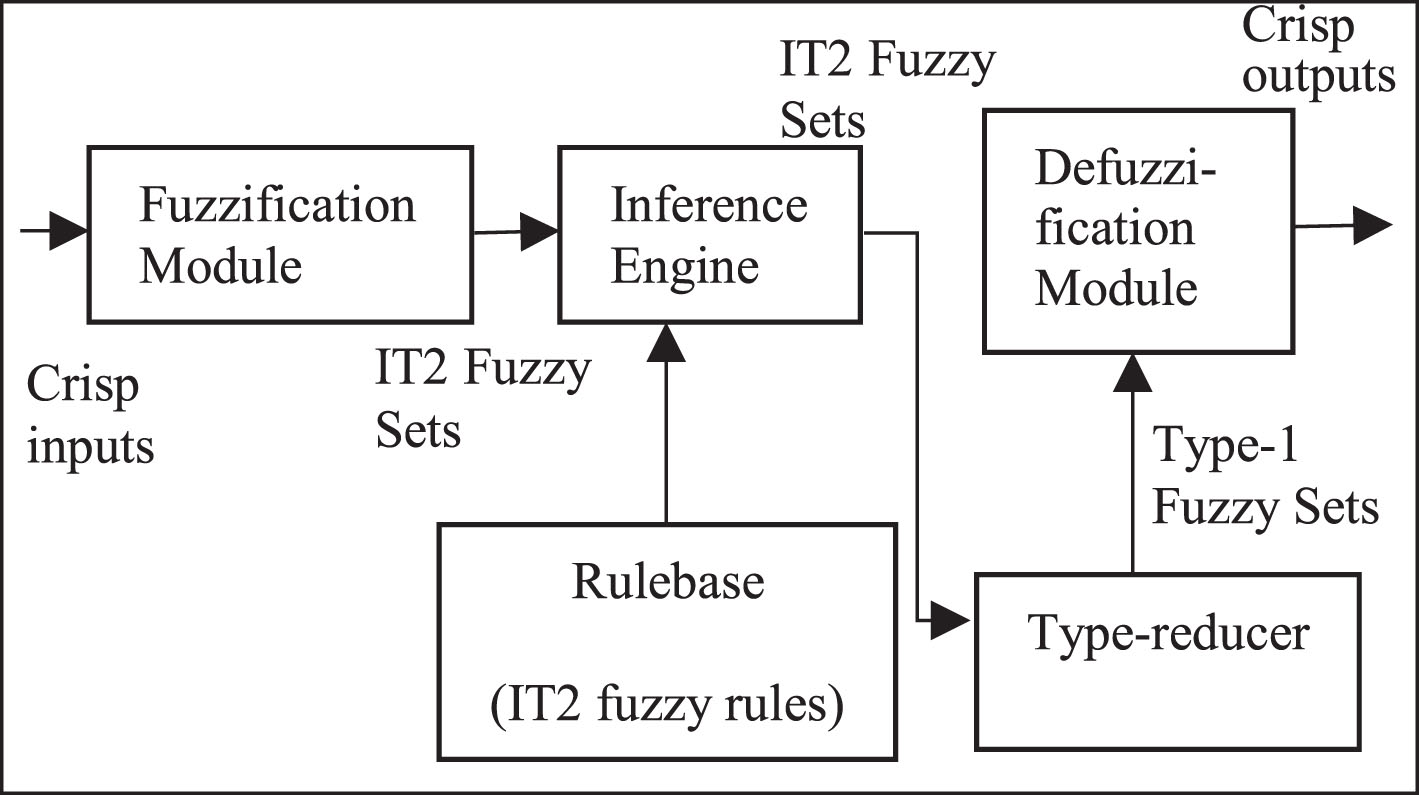

Fig.2

Information flow within an IT2 fuzzy controller.

2.2 Interval type 2 fuzzy reasoning

Figure 2 shows the information flow within an IT2 fuzzy system (fuzzy controller as a classic example). It is very similar to its type-1 analogue. The major difference or specific is that because of the IT2 fuzzy sets used in the rulebase, the outputs of the inference engine are IT2 fuzzy sets, and a type reducer [8, 11] must be applied to convert them into a type-1 fuzzy sets in order to enable defuzzification procedure.

Below, we give a brief description of the basic steps of the computations in an IT2 fuzzy system [29]. Let consider the rulebase of an IT2 fuzzy system consisting of N rules taking the following form: ${\tilde{R}}^{n} :_{df} IF (x_{1} is {\tilde{X}}_{1}^{n}) o . . . o (x_{i} is {\tilde{X}}_{i}^{n}) THEN y is Y^{n}$ (6)

where ${\tilde{X}}_{i}^{n}$ (i = 1, …, I ; n = 1, …, N) are IT2 fuzzy sets defined over corresponding domains, $Y^{n} = [{\underline{y}}^{n}, {\bar{y}}^{n}]$ is an interval which might be assumed as the centroid [9, 11] of the rule consequent and o∈ { ⊗ , ⊕ }, where ⊗ and ⊕ are binary operators defined over [0, 1] (⊗ , ⊕ : [0, 1] ² → [0, 1]) which are commutative, associative, monotonic, and has 1 and 0 as unit elements, respectively. Any such operators are called to be t- and s- norms. The t-norm operator provides the characterization of the AND operator, while the s-norm provides the characterization of the OR operator [1].

Assuming an input vector $\bar{x} = {x_{1}^{^{'}}, x_{2}^{^{'}}, x_{3}^{^{'}}, . . ., x_{i}^{'}}$ , typical computations of an IT2 fuzzy system consist of the following steps:

Compute the membership intervals of $x_{i}^{'}$ on each ${\tilde{X}}_{i}^{n}, [μ_{{\underline{X}}_{i}^{n}} (x_{i}^{'}), μ_{{\bar{X}}_{i}^{n}} (x_{i}^{'})], i = 1, \dots, I; n = 1, \dots, N$

Compute the firing interval of the n^th rule: $\begin{matrix} F^{n} (\bar{x}) =_{df} [μ_{{\underline{X}}_{1}^{n}} (x_{1}^{'}) o . . . o μ_{{\underline{X}}_{i}^{n}} (x_{i}^{'}), \\ μ_{{\bar{X}}_{1}^{n}} (x_{1}^{'}) o . . . o μ_{{\bar{X}}_{i}^{n}} (x_{i}^{'})] \equiv [{\underline{f}}^{n}, {\bar{f}}^{n}] \end{matrix}$ (7)

Apply type reduction to combine $F^{n} (\bar{x})$ with corresponding rule consequents. There are some methods of type reduction [11 , 31], but the most commonly used one is the center-of-sets (COS) type reducer [11]:

$Y_{COS} (\bar{x}) =_{df} ⋃_{f^{n} \in F^{n} (\bar{x}) y^{n} \in Y^{n}} \frac{\sum_{n = 1}^{N} f^{n} y^{n}}{\sum_{n = 1}^{N} f^{n}} = [y_{l}, y_{r}]$ (8) where [11 , 27]: $\begin{matrix} y_{l} =_{df} min_{k \in [1, N - 1]} \frac{\sum_{n = 1}^{k} {\bar{f}}^{n} {\underline{y}}^{n} + \sum_{n = k + 1}^{N} {\underline{f}}^{n} {\underline{y}}^{n}}{\sum_{n = 1}^{k} {\bar{f}}^{n} + \sum_{n = k + 1}^{N} {\underline{f}}^{n}} \equiv \\ \equiv \frac{\sum_{n = 1}^{L} {\bar{f}}^{n} {\underline{y}}^{n} + \sum_{n = L + 1}^{N} {\underline{f}}^{n} {\underline{y}}^{n}}{\sum_{n = 1}^{L} {\bar{f}}^{n} + \sum_{n = L + 1}^{N} {\underline{f}}^{n}} \end{matrix}$ (9) $\begin{matrix} y_{r} =_{df} max_{k \in [1, N - 1]} \frac{\sum_{n = 1}^{k} {\underline{f}}^{n} {\bar{y}}^{n} + \sum_{n = k + 1}^{N} {\bar{f}}^{n} {\bar{y}}^{n}}{\sum_{n = 1}^{k} {\underline{f}}^{n} + \sum_{n = k + 1}^{N} {\bar{f}}^{n}} \equiv \\ \equiv \frac{\sum_{n = 1}^{R} {\underline{f}}^{n} {\bar{y}}^{n} + \sum_{n = R + 1}^{N} {\bar{f}}^{n} {\bar{y}}^{n}}{\sum_{n = 1}^{R} {\underline{f}}^{n} + \sum_{n = R + 1}^{N} {\bar{f}}^{n}} \end{matrix}$ (10) with L and R points determined by the dependencies: $\begin{matrix} {\underline{y}}^{L} \leq y_{l} \leq {\underline{y}}^{L + 1} \\ {\bar{y}}^{R} \leq y_{r} \leq {\bar{y}}^{R + 1} \end{matrix}$ (11) assuming ${{\underline{y}}^{n}}$ and ${{\bar{y}}^{n}}$ to be sorted in ascending order.

The y_l and y_r may be computed by the Karnik-Mendel algorithms [8, 11] or their variants [27, 28].

Compute the defuzzified output as: $y =_{df} \frac{y_{l} + y_{r}}{2}$ (12)

2.3 Information systems – rule induction

In the eighties and nineties of the last century Zdzislaw Pawlak introduced the fundamentals of information systems [17] and rough sets [18]. An information system (IS) in defined by the following elements: $IS =_{df} (U, A, V, f)$ (13) where U is a universe, A is a set of attributes, V represents attributes domains:V = _df ∪ _aV_a, where V_a is the domain of the a^th attribute (a ∈ A) and f is the so called information function: f : U × A → V, ∀ _x∈U,a∈Af (u, a) ∈ V_a Important role in the theory plays the introduced indiscernibility binary relation, defined over U : IND (B) = _df {(x, y) ∈ U × U : ∀_a∈Bf (x, a) = f (y, a)}, under which the lower and upper approximations of any subset of U can be defined, respectively: $\begin{matrix} B ↓ X =_{df} {x \in U : {[x]}_{IND} \subseteq X}, \\ B ↑ X =_{df} {x \in U : {[x]}_{IND} \cap X \neq Ø}, \end{matrix}$ (14) where B ⊆ A and X ⊆ U.

The above approximations define a rough set. The concept of rough sets has been extended in the direction of fuzzy theory as well, by introducing fuzzy rough sets [3, 15] with many applications.

Information systems can be interpreted as a decision tables if a decision attribute is introduced. With this assumption, a decision making approach was introduced by A. Skowron and Z. Suraj [21], which generates a set of rules for any decision attribute value. The procedure consists of the following steps:

Define an information system with decision attribute,

Eliminate object ‘conflicts’ (i.e. objects with same information function values, but different decision values) by applying lower or upper approximation precision analysis,

Provide attribute reduct using discernibility matrix,

Apply rule induction algorithm on the so defined new information system (completing step 2 and 3) and thus, define set of rules for each decision attribute value, which correctly cover the decision problem.

Below, the above procedures are explained in more details and with corresponding examples, starting with step 2.

For an input decision table DT = (U, A ∪ { a^* } , V ∪ V_a*, f), where a^* denotes the decision attribute, the considered rule induction procedure consists of the following steps:

Step 2. Eliminate object conflicts

Let X ⊆ U (X ≠ Ø) and B ⊆ A (B ≠ Ø) The lower approximation precision of the set X regarding to the subset B is defined as follows:

$γ_{B} (X) =_{df} \frac{| B ↓ X |}{| U |}$ (15)

Algorithm 1:

Input: DT

Output: DT \{objects which cause conflicts}

Let x_i and x_j are in ‘conflict’ (x_i, x_j ∈ U) and let f (x_i, a^*) = d₁, f (x_j, a^*) = d₂, then:

Define

X₁ = _df {x ∈ U : f (x, a^*) = d₁} ,

X₂ = _df {x ∈ U : f (x, a^*) = d₂} , (X₁, X₂ ⊆ U)

Calculate γ_B (X₁) and γ_B (X₂) (B ⊆ A), next eliminate the object that is member of the set with the lower approximation precision.

Step 3. Define corresponding reduct over the set of attributes

Calculate the so called attribute reduct, which is defined as the set of the most distinguishing attributes in DT. The reduct calculation is an interesting problem itself with proposed solutions [5]. In our research, for the simplicity of calculations, we used a greedy approach which simply count the number of the most distinguishing attributes in DT (see algorithm 2, below). But, in order to apply it, first we need to calculate the discernibility matrix M(DT) of the information system: $\begin{matrix} M (DT) =_{df} [m_{i, j}]_{i, j = 1, . . ., n} = \\ = {a \in A : f (x_{i}, a) \neq f (x_{j}, a), n = | U |} \end{matrix}$ (16)

Algorithm 2:

Input: M(DT)

Output: Reduct ⊆ A

while (∃_{[m_i,j]∈M(DT)} [m_i,j]≠ Ø) do

{

Count the number of appearance of each attribute in matrix M(DT),

Select the attribute with the highest number of appearance,

Set the attribute selected in step 2 as an element of the Reduct,

Erase all elements of M(DT) that include the chosen attribute.

}

Exception – 2):

If multiple attributes have the highest number of appearance, then select randomly one of them.

Step 4. Rule induction

Generate the set of decision rules that correctly cover the decision problem (see algorithm 3, below).

Algorithm 3:

Input: DT

Output: Corresponding Decision Rules

To generate the optimal set of rules over a decision table, the following steps should be taken:

Generate corresponding matrixes M_k (k = 1, . . . , n ; n = |U|) . The matrixes are constructed using M(DT) and are used to define the so called ‘implicants’ for each object,

Define the object implicants,

Define the target set of decision rules.

Presenting the first point of algorithm 3 in more detail:

Let c_ij are the elements of M(SI), $\overset{\land}{c_{ij}}$ are the elements of M_k (with respect to k, k = 1, . . . , n ; n = |U|) . and a* is the decision attribute, then:

For each k = 1, . . . , n :

If i ≠ k then $\overset{\land}{c_{ij}} = Ø$ ,

If (c_kj ≠ Ø) and ( $d_{a^{*}}^{B} (x_{j}) \neq d_{a^{*}}^{B} (x_{i})$ ) then $\overset{\land}{c_{ij}} =_{df} c_{kj} \cap B$ else $\overset{\land}{c_{ij}} =_{df} Ø$ ,

where B ⊆ A and $\begin{matrix} d_{a^{*}}^{B} (x_{k}) =_{df} {v \in V_{a^{*}} | \underset{y \in U}{\exists} (x_{k} IND (B) y) \land \\ \land f (y, a^{*}) = v} \end{matrix}$ (17)

For clarity of the presentation, a simple example of the above algorithm 3 is considered below.

Example 1:

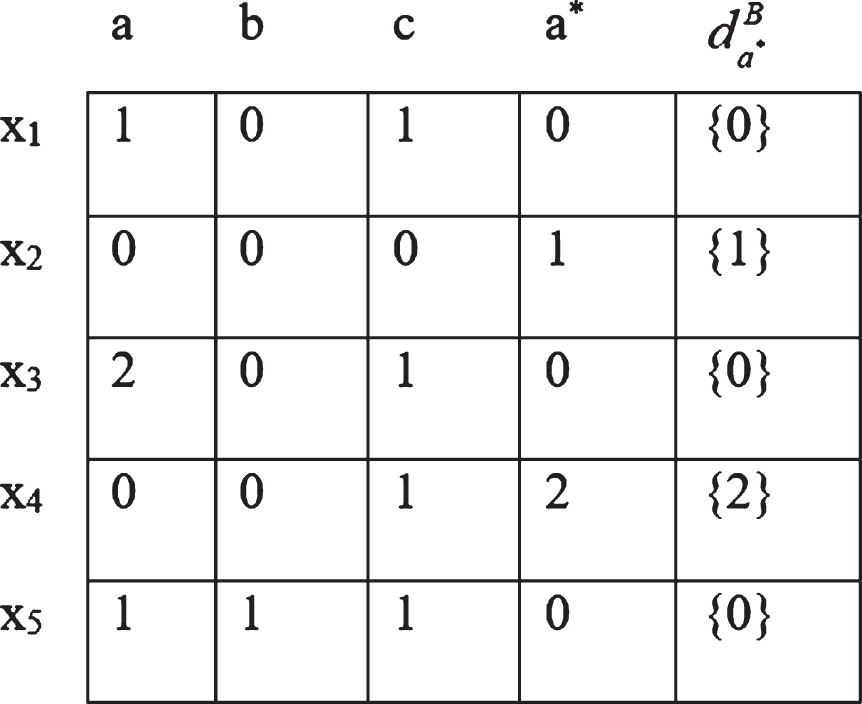

Let consider the following decision table (extended with the corresponding $d_{a^{*}}^{B}$ values) and let A = B = { a, b, c } , V = V_a* = { 0, 1, 2 }) :

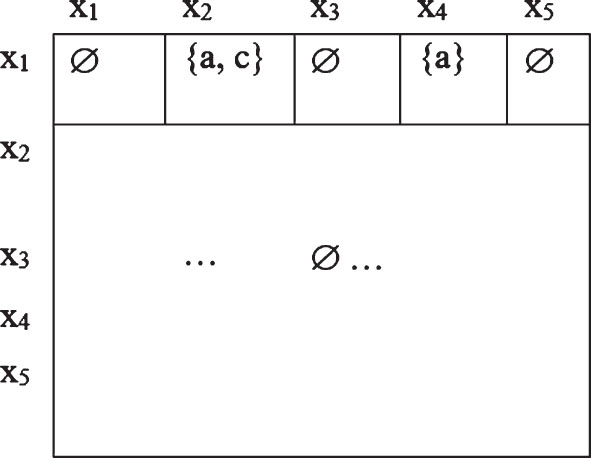

The corresponding discernibility matrix (which is symmetric) takes the form:

Next, by applying Algorithm 3 and considering point 1, we can generate the matrix M₁ (k = 1) :

as: $\begin{matrix} d_{a^{*}}^{B} (x_{2}), d_{a^{*}}^{B} (x_{4}) \neq {0}, therefore \\ \overset{\land}{c_{ij}} = c_{1 j} \cap B (j = 2, 4), and so : \\ \overset{\land}{c_{1, 2}} = {a, c} \cap B = {a, c}, \overset{\land}{c_{1, 4}} = {a} \cap B = {a} . \end{matrix}$

Next, we can determine the set of ‘objects implicants’ from each matrix:

Implicant 1: derived from M₁ i.e. related to object x₁ : x₁ ⇒ (a ∨ c) ∧ a

We may simplify this implication, by applying corresponding Boolean algebra reduction rules: x ∧ x = x = x ∨ x, x ∧ (x ∨ y) = x and x (x ∧ y) = x .

Therefore, implicant 1:x₁ ⇒ a,

Implicant 2: derived from M₂ : X₂ ⇒ c,

Implicant 3: derived from M₃ : X₃ ⇒ a,

Implicant 4: derived from M₄ : X₄ ⇒ a ∧ c,

Implicant 5: derived from M₅ : X₅ ⇒ a ∨ b,

The object implicants can be considered as indications concerning which attributes are strongly related to which objects.

Finally, using the implicants defined we can generate the target set of rules, derived from the considered decision table. Each rule concerns one decision value and it is defined as a sum of the implicants of all objects related to that decision, i.e. - concerning decision value ‘0’, we have: f (x₁, a^*) = f (x₃, a^*) = f (x₅, a^*) = 0) , and therefore:

Rule₁ = _df.f (x₁, a) ∨ f (x₃, a) ∨ (f (x₅, a) ∨ f (x₅, b)) ⇒ (decision : 0) ,

by analogy:

Rule₂ = _df.f (x₂, c) ⇒ (decision : 1) ,

Rule₃ = _df.f (x₄, a) ∨ f (x₄, c) ⇒ (decision : 2).

The only disadvantage with this decision making approach is that the induced rules are very crisp, i.e. rule₂ is strictly interpreted as follows: if object of x₂ type has information function value for the attribute ‘c’ exactly equal to ‘0’ then make decision ‘1’.

2.4 Type 1 fuzzy information system

The above-mentioned disadvantage of the rule induction process lays in the basics of the re-search proposed. It is enough to involve fuzzy sets in the process of rule induction and thus, to achieve information generalisation. Therefore, the new proposal is to modify the information function introduced, by defining all attribute values as fuzzy sets which actually is information granulation. What more, for any numerical attribute the basic fuzzy sets low, medium and high can be defined by using directly the data assuming Gaussian type distributions.

Therefore, for any attribute $A_{i} =_{df} {a_{1}^{i}, a_{2}^{i}, . . ., a_{n}^{i}}$ with respect to all considered objects, a normal distribution of the attributes is assumed in purpose to define the fuzzy set medium, as follows: $μ_{medium} (a) =_{df} e \frac{- (a - a_{0)}}{2 σ^{2}}$ (18) determining the expected value (a₀) and the standard deviation (σ) directly from the set A_i. Next, the fuzzy sets low and high attribute values can be easily defined as well:

$\begin{array}{l} μ_{l o w} (a) =_{d f} {\begin{matrix} 1 - e^{\frac{- (a - a_{0})}{2 σ^{2}}} \\ 0 : a \geq a_{0} \end{matrix} : a < a_{0}}; \\ μ_{h i g h} (a) =_{d f} {\begin{matrix} 0 : a < a_{0} \\ 1 - e^{\frac{- (a - a_{0})}{2 σ^{2}}} : a \geq a_{0} \end{matrix}} \end{array}$ (19)

With these assumptions, an exemplary fuzzy information system could take the following form:

Table 1

Fuzzy information system decision table

	Attribute₁	Attribute₂	Decision attribute
Object ₁	low	medium	D ₁
Object ₂	medium	low	D ₁
Object ₃	high	low	D ₂

with the interpretation of the information function for example pair object/attribute (object₁ and attribute₁) as follows: f_fuzzy(object₁, attribute₁)=low, meaning f(object₁, attribute₁) has the highest degree of membership to the fuzzy set low, defined over the domain of the attribute₁.

The decision attribute values can be defined as fuzzy sets as well, representing the degree of decision. So, under this interpretation of a fuzzy information system, the rules induced are very simple to be transformed into fuzzy rules.

For example, if a rule is induced as follows:

f(object₁,attribute₁) ∧ f(object₂,attribute₁) ⇒

decision: D₁,

it can be naturally transformed into the fuzzy rule:

IF (f(object₁,attribute₁) is ‘small’) ⊗ (f(object₂,attribute₁) is ‘medium’) THEN (decision is D₁).

Example 2:

Suppose that we want to sort a set of images with respect to a certain colour criteria – a set of violet/blue images of flowers with respect to the degree of ‘violet colour’. Let assume that the fuzzy term ‘very violet’ corresponds to ‘dark-blue’ colours and the fuzzy term ‘low violet’ corresponds to ‘bright-violet’ colours. The goal is to find the most ‘violet’ images. Under these assumptions, the below decision table can be introduced for a certain learning set (Table 2).

Table 2

fuzzy values

Digital images (learning set)	F ₁	F ₂	F ₃	F ₄	Decision attribute
	Medium	High	High	Medium	Average Violet
Image 1
	Low	Medium	Medium	Low	Low Violet
Image 2
	High	High	High	High	Very Violet
Image 3
… Image_n		. . .			. . .

F₁ (Feature₁)=mean(S), HSV colour model. F₂ (Feature₂)=mean(R), RGB colour model. F₃ (Feature₃)=mean(G), RGB colour model. F₄ (Feature₄)=mean(mean(|B-R|), RGB colour model.

Considering the values of the information function, for instance: f(image₁, feature₁)=‘medium’, since: $\begin{matrix} μ_{medium} (x_{{image}_{1}}) \geq max {μ_{low} (x_{{image}_{1}}), \\ μ_{high} (x_{{image}_{1}})}, x \in V_{{feature}_{1}} \end{matrix}$

This assumption along with the fuzzification concept applied (see Section 2.4) implies a very important property of our method. Namely, the decision table is filled with values without the need of expert knowledge, relying only on the dataset used.

Next, by applying the concept proposed combining rule induction and fuzzy reasoning, it is possible to generate numerical values in accordance with the Mamdani inference model [10]. The values correspond to the input recognition criteria (see Table 3).

2.5 Interval type 2 fuzzy information system

In order to apply type-2 fuzzy sets in the presented methodology, a very simple extension is proposed. After the generation of type-1 rulebase from an introduced decision table, we change the fuzzification functions used, by modifying the standard deviation parameter of the ‘medium’ fuzzy set and therefore, we define the bounds of the FOU for the corresponding type-2 fuzzy set $\tilde{medium}$ (see Fig. 3 (a) – (b)). Of course, this gives the possibility to define $\tilde{low}$ and $\tilde{high}$ type-2 fuzzy sets as well.

Table 3
Achieved results for a sample test set

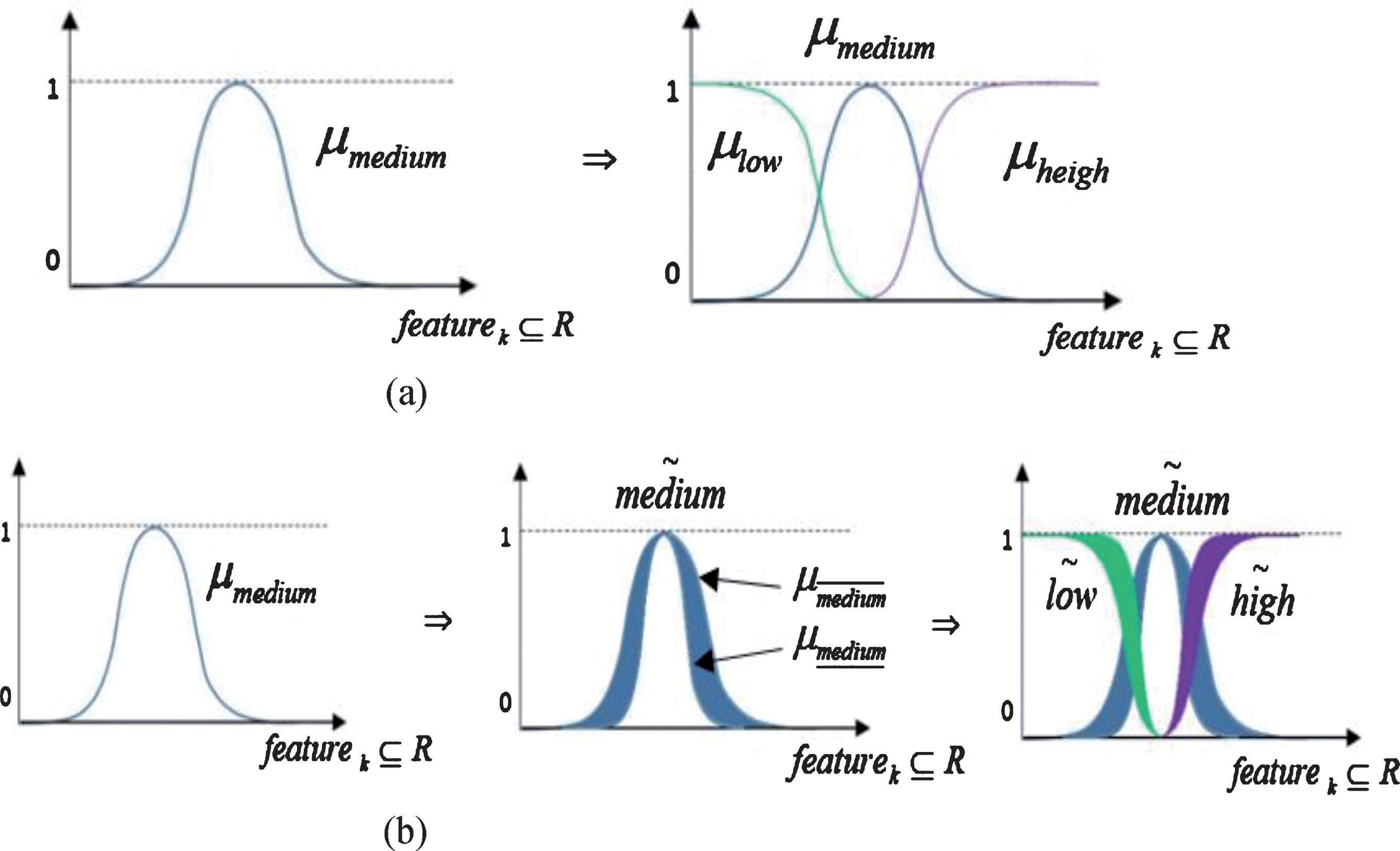

Fig.3

(a) Type-1 fuzzification proposal. (b) Type-2 fuzzification proposal.

Using the above extension to type-2 fuzzy sets, we are able combine the rule induction mechanism introduced, with type-2 fuzzy inference.

Therefore, we gain the possibility to develop computer systems embedded reasoning mechanism, starting from data ordered in a decision table and implemented as decision support systems, fuzzy controllers or ranking systems, based on fuzzy type-2 inference.

3 Applications of the reasoning concept proposed

We have already applied the combination of rule induction with fuzzy sets of type 1 with respect to the main concept proposed in various applications with success. In [23] a decision support system for histopathological diagnosis of HER2 type (human epidermal growth factor receptor 2) breast cancer using Pawlak’s information system and Mamadani type fuzzy control was proposed. The main idea of the application in medical image domain was very similar to example 2, providing the degree of HER2 overexpression, by analyzing histopathology images which is very important information in the cancer therapy.

Recently, the same idea was used to build a recommender system [24] using completely different type of data (not image data) and different goal. The application aimed to predict the degree of subjective customer satisfaction with respect to his previous reviews.

All this proves the generality of the method proposed.

The proposed extension to interval type 2 fuzzy sets and reasoning in this paper was applied on medical data in a classification problem. The Breast Cancer Wisconsin Data Set from UCI repository 1 has been used to test the accuracy of our method.

3.1 Benchmark data description

The Breast Cancer Wisconsin (Diagnostic) is a well-known dataset provided by the University of California Irvine (UCI) Machine Learning Repository. The dataset consists of 699 data instances with 65.5% classified as benign and 34.5% as malignant. The classification is based in FNA (Fine Needle Aspirates) test. From the test nine different visually attributes were extracted and assigned an integer value between 1 and 10. Table 4 shows the attributes information of the dataset.

Table 4
Description of the benchmark attributes

# Attribute Domain

1. Sample Code Number ID number

2. Clump Thickness {1, …, 10 } ⊆ N

3. Uniformity of Cell Size {1, …, 10 } ⊆ N

4. Uniformity of Cell Shape {1, …, 10 } ⊆ N

5. Marginal Adhesion {1, …, 10 } ⊆ N

6. Single Epithelial Cell Size {1, …, 10 } ⊆ N

7. Bare Nuclei {1, …, 10 } ⊆ N

8. Bland Chromatin {1, …, 10 } ⊆ N

9. Normal Nucleoli {1, …, 10 } ⊆ N

10. Mitoses {1, …, 10 } ⊆ N

11. Class (decision attribute) 2 for benign, 4 for malignant

# Attribute	Domain
1. Sample Code Number	ID number
2. Clump Thickness	{1, …, 10 } ⊆ N
3. Uniformity of Cell Size	{1, …, 10 } ⊆ N
4. Uniformity of Cell Shape	{1, …, 10 } ⊆ N
5. Marginal Adhesion	{1, …, 10 } ⊆ N
6. Single Epithelial Cell Size	{1, …, 10 } ⊆ N
7. Bare Nuclei	{1, …, 10 } ⊆ N
8. Bland Chromatin	{1, …, 10 } ⊆ N
9. Normal Nucleoli	{1, …, 10 } ⊆ N
10. Mitoses	{1, …, 10 } ⊆ N
11. Class (decision attribute)	2 for benign, 4 for malignant

Fig.4

Steepness and midpoint parameters changes.

This dataset presents us a binary classification problem: classify a presented case as to whether it is benign or malignant. There has been a lot of research with this dataset and with good results. B. Fatima and Ch. M. Amine [4] reached 98,25% of accuracy using a neuro-fuzzy inference approach. They combined neural network and fuzzy theory to present a hybrid learning algorithm. T. Sridevi and A. Murugan [22] presented an Intelligent Classifier based on K-Means Clustering and Rough Set. They applied rough set theory in combination of K-means algorithm to find the minimal optimal reduct subset of attributes. The classification process by means of SVM was performed by using these features and the best accuracy they obtained was 99%. A. Onan [16] presented a fuzzy-rough nearest neighbour classifier combined with consistency-based subset evaluation and instance selection for automated diagnosis of breast cancer. It used fuzzy-rough instance selection to eliminate those instances that are considered useless or erroneous. And in the classification phase the fuzzy-rough nearest algorithm was used.

3.2 The reasoning proposed

Our classification approach consists of three main phase:

Fuzzyfication of the input dataset. We fuzzified the values of the attributes regarding three different fuzzy sets: low, medium and high (see Section 2.4 and 2.5).

Pawlak’s information system. We create decision table with values defined as interval type 2 fuzzy sets. Next, using corresponding methodology assumptions of Pawlak’s information systems and rule induction procedure, automatically define rules to be applied by our inference mechanism (see Section 2.3).

Type-2 fuzzy inference mechanism. Rules extracted are considered over type-2 fuzzy sets and Karnik-Mandel algorithm is used to obtain a crisp output (see Section 2.2). Then a corresponding threshold value (see Table 5 below) is applied to classify between benign or malignant instances.

The clue of the decision support method presented in this publication, is our proposition to combine rule induction based on Pawlak’s information systems with Type-2 fuzzy control mechanism. This process gives us a numerical output that can be interpreted by a decision making support system. A threshold value is chosen to decide whether a tumour is benign or malignant (i.e. IF threshold < = output then benign, else malignant).

Having the method’s specification clarified, the important issue here is to define the rule consequences in the rulebase used, as type-1 fuzzy sets according to the Mamdani concept. The function used to model our conclusions is the logistic function, a common sigmoid curve defined as: $f (x) =_{df} \frac{L}{1 + e^{- k (x - x_{0})}},$ (20) where x₀ is the x-value of the sigmoid’s midpoint, L is the curve’s maximum value, and k is the steepness of the curve. While the parameter steepness changes the slope of the curve the sigmoid’s midpoint changes the crossing point in the x-axis between the functions (Fig. 4).

The above figure shows in blue the function used to represent the conclusion ‘high aggressiveness’ and in red the conclusion ‘low aggressiveness’ as well. In order to choose appropriate function parameters, a corresponding data analysis experiment has been performed. We have split the benchmark dataset in Learning and Validation data set, 80% and 20% respectively. Different computations testing steepness from 0.2 to 2.0 with step size of 0.2 and midpoint from -4 to 3 with step size 1 were performed. Parameters with best results were used for the next experiments, in our case: steepness = 1 and midpoint = 2.

The computation of the needed Yⁿ intervals (see Section 2.2, Equation 6) which define the corresponding rule consequences, was performed by applying the inverse functions of the above logistic functions (the logit functions), i.e.: $Y^{n} = [{\underline{y}}^{n}, {\bar{y}}^{n}] =_{df} [logit ({\underline{f}}^{n}), logit ({\bar{f}}^{n})]$ (21)

Once we have intervals that define the rule consequences and corresponding type-2 fuzzification of the data used (see Fig. 3 (b)), the Karnik-Mendel algorithm (see Section 2.2, Equation 12) is applied to compute crisp outputs.

4 Experiments and results

In order to provide proper experiments, we have splitted the set randomly into two parts:

Benchmark dataset: It is used to perform a 10-fold cross validation (see Table 5). It contains 70% of the instances. Here, the training is aimed to find the best threshold values and best (in terms of the introduced fuzzy rule induction process – see Sections 2.4 and 3) rulebase.

Test dataset: it is the remaining 30% of the dataset. The test set was never used during the training phase as it simulates the ‘real world data’ and should give us a good understanding of how well your algorithm will do in the real world.

Threshold value and rules from the best results in Benchmark dataset are used by our inference mechanism.

The accuracy average of the 10-fold cross validation over the Benchmark dataset is 96.4% . In order to compare with well-known algorithms, WEKA 2 data mining software has been used over the Breast Cancer Dataset. Table 6 shows a comparison between these algorithms.

Finally, using rules extracted from fold 4 that has 100% of accuracy and using also threshold value from this fold (which additionally does not deviate much from the average value of all folds), the test dataset was applied. Table 7 shows the results obtained in this case.

Notice, that an adjustment of the threshold value can decrease or increase PPV and NPV. If we decrease the threshold value, we may increase NPV and probably decrease PPV. And the opposite would happen if we increase the threshold value.

For experimental purposes we have decided to use the same threshold value as in our best result. However, in a real case an expert could decide whether to increase or decrease this value.

Table 5
10-fold Cross Validation over Benchmark dataset

Fold Accuracy (%) Threshold value

1 97.87 –0.511805

2 91.49 –1.04547

3 97.8723 –1.70336

4 100 –1.24951

5 100 0.55141

6 97.8723 –1.33551

7 91.49 –1.98142

8 91.49 –2.30074

9 95.75 –1.26414

10 100 –0.594089

Fold	Accuracy (%)	Threshold value
1	97.87	–0.511805
2	91.49	–1.04547
3	97.8723	–1.70336
4	100	–1.24951
5	100	0.55141
6	97.8723	–1.33551
7	91.49	–1.98142
8	91.49	–2.30074
9	95.75	–1.26414
10	100	–0.594089

Table 6

Comparison with other classification methods

Method	Accuracy (%)
Naive Bayes	96.49
DecisionTreeJ48	95.17
Random Forest	95.46
MultiLayer Perceptron	96.2
Our proposal
Pawlak’s information system (rule induction)	96.4
&Type-2 Fuzzy Inference

Table 7

Results obtained with the test dataset

Accuracy (%)	False Positives	False Negatives	Positive predictive	Negative predictive
			value PPV(%)	valueNPV(%)
95.61	2	7	98.5	90.28

5 Discussion

The main advantages of our proposal are: combination of type-2 fuzzy set reasoning with rule induction procedure and a fuzzification procedure which define decision tables directly from data without the need of expert knowledge. This allows generating rulebase of type-2 fuzzy rules in automatic manner. By defining decision table values as fuzzy sets, we achieve information granulation which implicates generalizations. All these improvements allow the usage of our proposal in variety of applications based on ‘real world’ data analysis, such as: classification, ranking procedures and fuzzy control.

However, there are some disadvantages which show the directions of further research:

The data fuzzification proposed, certainly will not give good results for any data. We assume normal distribution of the features, which will not be preserved in some cases. We expect good performance in biomedical domains, because the nature of natural processes often corresponds to Gaussian type distribution. Nevertheless, it should be noted that we are applying this assumption just to define membership functions. These functions don’t have to be related to the real specifics of the data distribution. What more, if the data distribution should be considered it won’t change the common assumptions of our proposal. It will impose only the necessity of more data dependent defining of the fuzzy sets applied.

The method proposed, does not relieve from the requirement to define the appropriate rule consequences. Therefore, optimization procedures for a certain data, in order to investigate corresponding parameters should be applied. Nevertheless, it should be noted as well that the last issue is a common problem in all fuzzy reasoning models.

6 Conclusions

In this research, a new reasoning approach is presented. The proposal combines data discovery and interval type-2 fuzzy sets. A corresponding data fuzzification procedure is introduced as well. Our proposal may be applied in various applications which use ‘a real world’ data characterized by incomplete, inexact, uncertain or vague information. The applied fuzzy sets, used as values in decision tables, provide information granulation. The data exploration applied induces fuzzy rules. Additionally, a transformation of the rulebase induced into type-2 fuzzy rules which allow to apply type-2 inference and to improve achieved results, is introduced as well. The concept proposed, should be considered as a common approach and may find applications in classification and ranking procedures as well as in fuzzy control. The results obtained from the experiments over medical benchmark data, demonstrate the quality of the concept.

Footnotes

The Breast Cancer Wisconsin Data Set, URL:

(a data mining software, provided by the Machine Learning Group at the University of Waikato, New Zealand)

References

Bronstein

I.N.

, Semendjajew

K.A.

, Musiol

and Mühlig

, Taschenbuch der Mathematik, Verlag Harri Deutsch (2001), pp. 1258.

Castillo

and Melin

, Type-2 Fuzzy Logic Theory and Applications, Berlin, Germany: Springer-Verlag 2008.

De Cock

, Cornelis

and Kerre

E.E.

, Fuzzy rough sets: The forgotten step, IEEE Trans on Fuzzy Systems 15(1) (2007),121–130.

Fatima

and Amine

Ch.M.

, A Neuro-Fuzzy Inference Model for Breast Cancer Recognition, International Journal of Computer Science & Information Technology (IJCSIT) 4(5) (2012).

Geng

and Zhu

, A New Rough set-based Heuristic Algorithm for Attribute Reduct, in Proceedings of the 6th World Congress on Intelligent Control and Automation, June 21–23, (2006), Dalian, China.

Hagras

, A hierarchical type-2 fuzzy logic control architecture for autonomous mobile robots, IEEE Trans on Fuzzy Systems 12 (2004), pp. 524–539.

Hagras

, Type-2 FLCs: A new generation of fuzzy controllers, IEEE Computational Intelligence Magazine 2(1) (2007),30–43.

Karnik

N.N.

, Mendel

J.M.

and Liang

, Type-2 fuzzy logic systems, IEEE Trans Fuzzy Syst 7(6) (1999),643–658.

Karnik

N.N.

and Mendel

J.M.

, Centroid of a type-2 fuzzy set, Inf Sci 132 (2001),195–220.

10.

Mamdani

E.H.

and Assilian

, An experiment in linguistic synthesis with a fuzzy logic controller, International Journal of Man-Machine Studies 7(1) (1975),1–13.

11.

Mendel

J.M.

, Uncertain Rule-Based Fuzzy Logic Systems, Introduction and New Directions, Upper Saddle River, NJ: Prentice–Hall (2001).

12.

Mendel

J.M.

and John

R.I.

, Type-2 fuzzy sets made simple, IEEE Trans on Fuzzy Systems 10(2) (2002),117–127.

13.

Mendel

J.M.

, Type-2 Fuzzy Sets and Systems: How to Learn About Them, IEEE SMC eNewsletter, Issue #27, June 583 (2009).

14.

Mendel

J.M.

and Wu

, Perceptual Computing, Aiding People in Making Subjective Judgments, Hoboken, NJ: Wiley-IEEE Press (2010).

15.

Nanda

and Majumdar

, Fuzzy rough sets, Fuzzy Sets and Systems 45(2) (1992),157–160.

16.

Onan

, A fuzzy-rough nearest neighbor classifier combined with consistency-based subset evaluation and instance selection for automated diagnosis of breast cancer, Expert Syst Appl 42(20) (2015),6844–6852.

17.

Pawlak

, Information systems – theoretical foundations, Information Systems 6 (1981),205–218.

18.

Pawlak

, Rough Sets: Theoretical Aspects of Reasoning about Data, System Theory, Knowledge Engineering and Problem Solving, vol. 9, Kluwer Academic Publishers, Dordrecht, The Netherlands, (1991).

19.

Pawlak

, Rough sets. Basic notions, Report no 431, Institute of Computer Science, Polish Academy of Sciences, 1981. Also in International Journal of Computer and Information Sciences 11 (1982),344–356.

20.

Pedrycz

and Vukovich

, Feature analysis through information granulation and fuzzy sets, Pattern Recognition 35 (2002),825–834.

21.

Skowron

and Suraj

, A Rough Set Approach to Real-Time State Identification for Decision Making, Institute of Computer Science Report 18/93, Warsaw University of Technology (1993), pp. 27.

22.

Sridevi

and Murugan

, An Intelligent Classifier for Breast Cancer Diagnosis based on K-Means Clustering and Rough Set, International Journal of Computer Applications 85(11) (2014),38–42.

23.

Tabakov

, Rodak

, Podhorska-Okolow

, Pula

and Grzegrzolka

, Decision support system for histopathological diagnosis of HER2 breast cancer using Pawlak’s information system and Mamadani type fuzzy control, Journal of Intelligent Computing (2013), vol. 4, nr 1, s. 30–42.

24.

Tabakov

, Recommender system based on fuzzy reasoning and information systems, Computational collective intelligence: 10th International Conference, ICCCI 2018, Springer, cop (2018), pp. 248–259.

25.

and Tan

W.W.

, Genetic learning and performance evaluation of type-2 fuzzy logic controllers, Eng Appl Artif Intell 19(8) (2006),829–841.

26.

and Tan

W.W.

, A simplified type-2 fuzzy controller for real-time control, ISA Trans 15(4) (2006),503–516.

27.

and Mendel

J.M.

, Enhanced Karnik– Mendel algorithms, IEEE Trans Fuzzy Syst 17(4) (2009),923–934.

28.

and Nie

, Comparison and practical implementation of type reduction algorithms for type-2 fuzzy sets and systems, in Proc IEEE Int Conf Fuzzy Syst, Taipei, Taiwan, Jun (2011), pp. 2131–2138.

29.

, On the Fundamental Differences Between Interval Type-2 and Type-1 Fuzzy Logic Controllers, IEEE Trans on Fuzzy Systems 20(5) (2012).

30.

, An overview of alternative type-reduction approaches for reducing the computational cost of interval type-2 fuzzy logic controllers, in Proc IEEE World Congr Comput Intell, Brisbane, Australia, Jun (2012).

31.

, Approaches for reducing the computational cost of interval type-2 fuzzy logic systems: Overview and comparisons, IEEE Trans Fuzzy Syst 21(1) (2013), pp. 80–99.

32.

Zadeh

, Fuzzy sets, Information and Control 8 (1965), pp. 338–353.

33.

Zadeh

, Toward a theory of fuzzy information granulation and its centrality in human reasoning and fuzzy logic, Fuzzy Sets and Systems 90 (1997),111–127.

A new reasoning approach combining information systems and interval type-2 fuzzy sets

Abstract

Keywords

1 Introduction

2 Theoretical background

2.1 Interval type 2 fuzzy sets

Table 3 Achieved results for a sample test set

3.1 Benchmark data description

Table 5 10-fold Cross Validation over Benchmark dataset Fold Accuracy (%) Threshold value 1 97.87 –0.511805 2 91.49 –1.04547 3 97.8723 –1.70336 4 100 –1.24951 5 100 0.55141 6 97.8723 –1.33551 7 91.49 –1.98142 8 91.49 –2.30074 9 95.75 –1.26414 10 100 –0.594089

6 Conclusions

Footnotes

References

Table 3
Achieved results for a sample test set

Table 5
10-fold Cross Validation over Benchmark dataset

Fold Accuracy (%) Threshold value

1 97.87 –0.511805

2 91.49 –1.04547

3 97.8723 –1.70336

4 100 –1.24951

5 100 0.55141

6 97.8723 –1.33551

7 91.49 –1.98142

8 91.49 –2.30074

9 95.75 –1.26414

10 100 –0.594089
