Derived operators on M -fuzzifying convex spaces

Abstract

The main objective of this paper is to provide some characterizations of M-fuzzifying convex structures in terms of derived operators. We first introduce the notion of M-fuzzifying convexly derived operators, and then establish the one-to-one correspondence between M-fuzzifying convexly derived operators and M-fuzzifying convex structures. Additionally, it is proved that M-fuzzifying CP mappings can be expressed as formulas of derived sets. Finally, we introduce the notion of M-fuzzifying restricted convexly derived operators and prove that it is isomorphic to M-fuzzifying convex structures.

1 Introduction

Convexity theory, which is inspired by the shape of some convex figures, has been accepted to be of increasing importance in recent years in many areas of applied mathematics. In 1993, M.L.J. van de Vel collected the theory of convexity systematically in the famous book [30]. In 1994, Rosa [17] firstly generalized convex spaces to fuzzy case. In 2009, Y. Maruyama generalized it to L-fuzzy setting in [10], where L is a completely distributive lattice. In 2014, F.G. Shi and Z.Y. Xiu gave a new approach to fuzzification of convexity in a completely different way and proposed the concept of M-fuzzifying convexity [27]. Subsequently, many properties of convexity theory are generalized to M-fuzzifying convexity[9 , 38–40] or L-convexity [5 , 18– 20]. Afterwards, abstract convexity was extended to (L, M)-fuzzy convexity in [29].

The concept of derived sets was first introduced by Georg Cantor in 1872, and he developed set theory in large part to study derived sets on the real line. In mathematics, it is well known that derived sets and derived operators are very important in topology, modal logic [6, 21], etc.

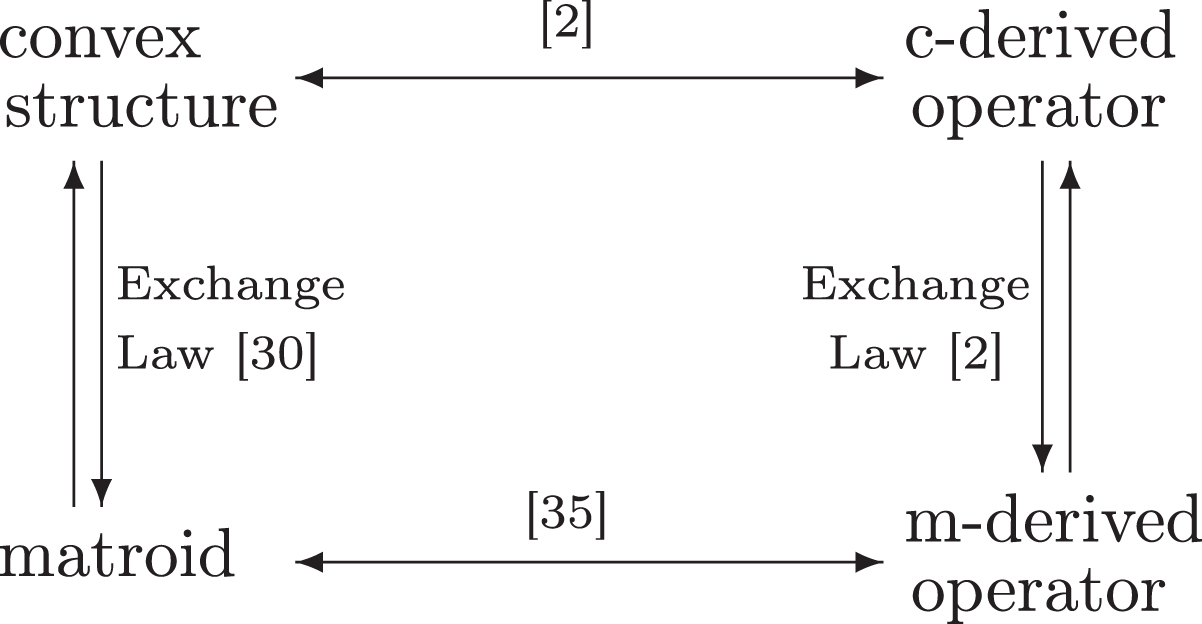

In 2010, Xin and Shi [35] firstly applied derived operators to matroids in the sense of Whitney (see [32]). They proposed the notion of m-derived operators and used it to characterize to matroids. As noted in [30], there is a one-to-one correspondence between Whitney’s matroids (called independent structures in [30]) and convex structures satisfying the Exchange Law (see Chapter I, Section 2 in [30] for detail). Based on this conclusion, Chen and Shen recently provide a characterization of convex structures byc-derived operators [2]. Also, the relationship between m-derived operators and c-operators are investigated, as shown as follows.

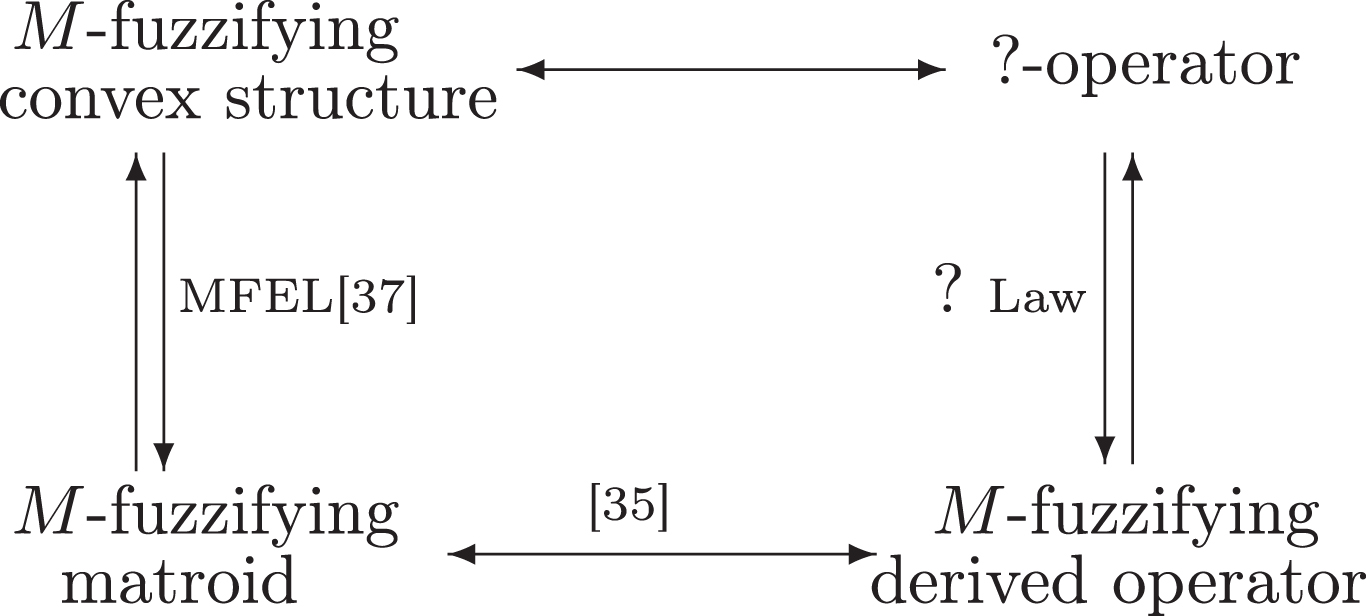

A natural idea is that does the relations in the above diagram hold in the fuzzy case? In 2009, Shi proposed the concept of M-fuzzifying matroids in [26], which is a generalization of matroids. Later in [35], Xin and Shi introduced the concept of M-fuzzifying derived operators and showed its isomorphism to M-fuzzifying matroids. In a completely different way, Zhong and Shi also proposed a new approach to M-fuzzifying derived operators on M-fuzzifying matroids, which is parallel to M-fuzzifying derived operators on topologies [41]. Recently, Yang do some research on M-fuzzifying convex structures satisfying the M-fuzzifying Exchange Law (MFEL for short) [37]. From his work, one can deduce that Shi’s M-fuzzifying matroids are isomorphic to M-fuzzifying convex structures satisfying the MFEL. According to the existing work, we now obtain the following diagram:

So it will be interesting and meaningful to accomplished the above diagram. The layout of the paper is as follows. In Section 2, we recall some basic notions and results that will be used in the subsequent sections. In Sections 3 and 4, we introduce the notions of M-fuzzifying convexly derived operators and M-fuzzifying restricted convexly derived operators, which are isomorphic to M-fuzzifying convex structures.

2 Preliminaries

Throughout this paper, (M, ∨ , ∧ , ′) denotes a completely distributive lattice with an order-reversing involution ^′ . The smallest element and the largest element in M are denoted by ⊥ and ⊤, respectively. Also, we adopt the convention that ∧∅ = ⊤ and ∨∅ = ⊥. For S ⊆ M, write ⋁S for the supremum of S and ⋀S for the infimum of S, respectively.

An element a in M is called a co-prime element if for any b, c ∈ M, a ≤ b ∨ c implies a ≤ b or a ≤ c. An element a in M is called a prime element if for any b, c ∈ M, a ≥ b ∧ c implies a ≥ b or a ≥ c. The set of non-zero co-prime elements in M is denoted by J (M). For a, b ∈ M, we say that a is wedge below b, in symbols a ≺ b, if for any subset D ⊆ M, b ≤ ⋁ D implies the existence of d ∈ D with a ≤ d [3]. We denote β (a) = {x ∈ M ∣ x ≺ a} and β^∗ (a) = β (a) ∩ J (M). Moreover, we define ≺^op as follows: a ≺ ^opb if and only if for every subset D ⊆ M, ⋀D ≤ a always implies d ≤ b for some d ∈ D. Therefore a ≺ b if and only if b′ ≺ ^opa′. We denote α (a) = {x ∈ M ∣ a ≺ ^opx}. Two classic results on M due to Wang [31] is that

a = ⋁ β (a) = ⋀ α (a).

α is a ⋀-⋃ mapping, that is, α (⋀ _i∈Ωa_i) = ⋃ _i∈Ωα (a_i), where {a_i ∣ i ∈ Ω} ⊆ M .

Let X be a non-empty set. We denote the set of all subsets (resp., all finite subsets) of X by 2^X (resp., $2_{fin}^{X}$ ). Denote by M^X the set of all M-sets on X. Usually, we do not distinguish a crisp subset A of X and its characteristic function χ_A.

Definition 2.1 ([25]). For each a ∈ M and each A ∈ M^X, we define A_[a] = {x ∈ X ∣ A (x) ≥ a},

A^[a] = {x ∈ X ∣ a ∉ α (A (x))} .

More properties and applications on above two cut sets can be found in [4 , 22– 24].

Next, we will review some basic concepts and results on the convexity theory. For notions related to convex structures used in the paper, the reader can refer to [30].

Definition 2.2 ([30]). Let X be a non-empty set. A convex structure on X is a subfamily C of 2^X satisfying the following conditions:

∅, X ∈ C;

for any non-empty family {A_i ∣ i ∈ Ω} ⊆ C, ⋂_i∈ΩA_i ∈ C;

for any directed family {A_i ∣ i ∈ Ω} ⊆ C, ⋃_i∈ΩA_i ∈ C.

The pair (X, C) is called a convex space if C is a convex structure on X.

Definition 2.3. Let (X, C) be a convex space. For any A ∈ 2^X, the hull of A is defined by $co (A) = ⋂ {C \in C ∣ A \subseteq C} .$ The operator co is called the hull operator in (X, C).

Recently, Chen and Shen [2] prove that convex structures, like topologies, can be completely described by derived operators.

Definition 2.4 ([2]). Let X be a non-empty set. A convexly derived operator (c-derived operator for short) is a mapping d : 2^X ⟶ 2^X satisfying the following axioms:

Normalization: d (∅) = ∅;

Representation: x ∈ d (A) implies x ∈ d (A - {x});

Idempotency: d (d (A) ∪ A) ⊆ d (A) ∪ A;

Domain-finiteness: $d (A) = ⋃_{F \in 2_{fin}^{A}} d (F)$ .

The pair (X, d) is called a convexly derived space (c-derived space) if d is a convexly derived operator on X.

Theorem 2.5 ([2]). Let X be a non-empty set. Each convex structure C on X can induce a c-derived operator d_C : 2^X ⟶ 2^X by $d_{C} (A) = {x \in X ∣ x \in co (A - {x})} .$ Conversely, every c-derived operator d on X can induce a convex structure C_d ⊆ 2^X by $C_{d} = {C \subseteq X ∣ d (C) \subseteq C} .$ Also, it holds that d_{C
_d} = d and C_{d
_C} = C.

Definition 2.6 ([2]). A mapping f : (X, d_X) ⟶ (Y, d_Y) between c-derived spaces is called a derived homomorphism provided that $\forall A \subseteq X, f (d_{X} (A)) \subseteq f (A) \cup d_{Y} (f (A)) .$

In [27], Shi and Xiu extend the notion of convex structures to the lattice-valued case, which are called M-fuzzifying convex structures.

Definition 2.7 ([27]). Let X be a non-empty set. An M-fuzzifying convex structure on X is a mapping C : 2^X ⟶ M satisfying the following conditions:

C (∅) = C (X) = ⊤;

for any non-empty family {A_i ∣ i ∈ Ω} ⊆2^X, ⋀_i∈ΩC (A_i) ≤ C (⋂ _i∈ΩA_i);

for any directed family {A_i ∣ i ∈ Ω} ⊆2^X, ⋀_i∈ΩC (A_i) ≤ C (⋃ _i∈ΩA_i) .

The pair (X, C) is called an M-fuzzifying convex space if C is an M-fuzzifying convex structureon X.

Definition 2.8 ([27, 28]). Let X be a non-empty set. An M-fuzzifying hull operato ron X is a mapping co : 2^X ⟶ M^X satisfying the followingconditions:

co (∅) (x) = ⊥ ;

for any x ∈ A, co (A) (x) =⊤ ;

for any x ∉ A, $co (A) (x) = ⋀_{x \notin B \supseteq A} [⋁_{y \notin B} co (B) (y)];$

$co (A) (x) = ⋁ {co (F) (x) ∣ F \in 2_{fin}^{A}} .$

There is a one-to-one correspondence between M-fuzzifying convex structures and M-fuzzifying hull operators, shown as follows:

Theorem 2.9 ([27]). Let X be a non-empty set. Every M-fuzzifying convex structure C on X can determine an M-fuzzifying hull operator co_C : 2^X ⟶ M^Xby ${co}_{C} (A) (x) = ⋀_{x \notin B \supseteq A} C (B)^{'} .$

Conversely, every M-fuzzifying hull operator co : 2^X ⟶ M^X can induce an M-fuzzifying convex structure C_co : 2^X ⟶ M by $C_{co} (A) = ⋀_{x \notin A} [co (A) (x)]^{'} .$

Furthermore, C_{co
_C} = C and co_{C
_co} = co.

Definition 2.10 ([37]). An M-fuzzifying convex structure C on X is called an M-fuzzifying matriod if it satisfies the following condition:

∀x, y ∈ X, ∀A ∈ 2^X, co (A ∪ {y}) (x) ≤ co (A ∪ {x}) (y) ∨ co (A) (x).

Definition 2.11 ([27]). A mapping f : (X, C_X) ⟶ (Y, C_Y) between two M-fuzzifying convex spaces is called an M-fuzzifying convexity preserving mapping (MCP for short) provided that $\forall B \subseteq Y, C_{X} (f^{- 1} (B)) \geq C_{Y} (B) .$

Theorem 2.12 ([36]). Let f : (X, C_X) ⟶ (Y, C_Y) be a mapping between M-fuzzifying convex spaces. Then the following statements are equivalent.

f is MCP.

∀A ∈ 2^X, co_{C
_X} (A) (x) ≤ co_{C
_Y}f (A) (f (x)).

$\forall F \in 2_{fin}^{X}, {co}_{C_{X}} (F) (x) \leq {co}_{C_{Y}} f (F) (f (x))$ .

3 M-fuzzifying convexly derived operators

In this section, the notion of M-fuzzifying convexly derived operators is introduced and its isomorphic relationship to M-fuzzifying convex structures is constructed.

Definition 3.1. Let X be a non-empty set. An M-fuzzifying convexly derived operator on X is a mapping d : 2^X ⟶ M^X satisfying the following conditions:

∀x ∈ X, d (∅) (x) = ⊥;

∀x ∈ X and ∀A ∈ 2^X, d (A) (x) = d (A - {x}) (x);

∀x ∈ X and ∀A ∈ 2^X, d (A) (x) = ⋀ _{x∉B⊇A-{x}} [⋁ _y∉Bd (B) (y)];

∀x ∈ X and ∀A ∈ 2^X, $d (A) (x) = ⋁_{F \in 2_{fin}^{A}} d (F) (x)$ .

The pair (X, d) is called an M-fuzzifying convexly derived space if d is an M-fuzzifying convexly derived operator on X.

The notation d (A) (x) can be interpreted as the degree that the point x belongs to the derived set of A. In the crisp situation, that is, M = {⊥ , ⊤}, (MCD1)–(MCD4) can reduce to (CD1)–(CD4) in Definition, respectively. In this sense, the notion of M-fuzzifying convexly derived operators is a reasonable generalization of the c-derived operators.

Lemma 3.2. Let (X, d) be an M-fuzzifying convexly derived space.

For any A, B ∈ 2^X, A ⊆ B implies d (A) ≤ d (B) .

Axiom (MCD3) is equivalent to each of the following statements:

∀A ∈ 2^X and ∀x ∉ A, d (A) (x) = ⋀ _x∉B⊇A [⋁ _y∉Bd (B) (y)];

∀A ∈ 2^X and ∀a ∈ J (M), d (A ∪ d (A) _[a]) _[a] ⊆ A ∪ d (A) _[a];

∀A ∈ 2^X and ∀a ∈ α (⊥), d (A ∪ d (A) ^[a]) ^[a] ⊆ A ∪ d (A) ^[a].

Proof. {(1) It is trivial by (MCD4).

(2) It is straightforward that (MCD3) ⇒ (MCD3′).

(MCD3′) ⇒ (MCD3). Let A ∈ 2^X and x ∈ X. It is trivial if x ∉ A. Now suppose x ∈ A. Since x ∉ A - {x}, by assumption and (MCD2), we have $\begin{matrix} d (A) (x) & = & d (A - {x}) (x) \\ = & ⋀_{x \notin B \supseteq A - {x}} [⋁_{y \notin B} d (B) (y)] . \end{matrix}$

Therefore, (MCD3) holds.

(MCD3′) ⇒ (MCD3^′′). Suppose a ∈ J (M) and x ∉ A ∪ d (A) _[a]. Then x ∉ A and x ∉ d (A) _[a]. By (MCD3′), we have $d (A) (x) = ⋀_{x \notin B \supseteq A} [⋁_{y \notin B} d (B) (y)] ≱ a .$

Then there exists B_* ∈ 2^X such that x ∉ B_* ⊇ A and $\begin{matrix} ⋁_{y \notin B_{*}} [d (B_{*}) (y)] ≱ a \\ \Rightarrow & \forall y \notin B_{*}, d (B_{*}) (y) ≱ a \\ \Rightarrow & \forall y \notin B_{*}, y \notin d (B_{*})_{[a]} \\ \Rightarrow & d (B_{*})_{[a]} \subseteq B_{*} . \end{matrix}$

It follows that d (A) _[a] ⊆ d (B_*) _[a] ⊆ B_* . Additionally, we have $d {(d (A)_{[a]} \cup A)}_{[a]} \subseteq d (B_{*} \cup A)_{[a]} = d (B_{*})_{[a]} \subseteq B_{*} .$ Since x ∉ B_*, we have x ∉ d (B_*) _[a], which implies x ∉ d (d (A) _[a] ∪ A) _[a].

Therefore, d (A ∪ d (A) _[a]) _[a] ⊆ A ∪ d (A) _[a].

(MCD3^′′) ⇒ (MCD3′). Suppose A ∈ 2^X and x ∉ A. If B ∈ 2^X such that x ∉ B ⊇ A, then by (1) we have $d (A) (x) \leq d (B) (x) \leq ⋁_{y \notin B} d (B) (y) .$

Therefore d (A) (x) ≤ ⋀ _x∉B⊇A [⋁ _y∉Bd (B) (y)]. Conversely, suppose a ∈ J (M) such that a≰d (A) (x). Then there exists b ∈ β^∗ (a) such that b≰d (A) (x). Let B_* = A ∪ d (A) _[b]. Then it satisfies that x ∉ B_* ⊇ A. By (MCD3), we have B_* = d (B_*) _[b]. Thus $\begin{matrix} \forall y \notin B_{*}, y \notin d (B_{*})_{[b]} \\ \Rightarrow & \forall y \notin B_{*}, b ≰ d (B_{*}) (y) . \end{matrix}$

Since b ∈ β^∗ (a), we have $a ≰ ⋁_{y \notin B_{*}} d (B_{*}) (y) \geq ⋀_{x \notin B \supseteq A} ⋁_{y \notin B} d (B) (y) .$

It follows that anleq ⋀ _x∉B⊇A ⋁ _y∉Bd (B) (y). By the arbitrariness of a, we obtain $⋀_{x \notin B \supseteq A} [⋁_{y \notin B} d (B) (y)] \leq d (A) (x) .$

Thus d (A) (x) = ⋀ _x∉B⊇A [⋁ _y∉Bd (B) (y)].

(MCD3′) ⇒ (MCD3^′′′). Let a ∈ α (⊥) and x ∉ A ∪ d (A) ^[a]. Then x ∉ d (A) ^[a], i.e., a ∈ α (d (A) (x)). Since α (·) is a ⋀ -⋃ mapping and (MCD3′), we have $\begin{matrix} a & \in & α (d (A) (x)) \\ = & α (⋀_{x \notin B \supseteq A} [⋁_{y \notin B} d (B) (y)]) \\ = & ⋃_{x \notin B \supseteq A} α (⋁_{y \notin B} d (B) (y)) \\ \subseteq & ⋃_{x \notin B \supseteq A} ⋂_{y \notin B} α (d (B) (y)) . \end{matrix}$

Thus there exists B_* ∈ 2^X such that x ∉ B_* ⊇ A, and that $\begin{matrix} \forall y \notin B_{*}, a \in α (d (B_{*}) (y)) \\ \Rightarrow & \forall y \notin B_{*}, y \notin d (B_{*})^{[a]} \\ \Rightarrow & d (B_{*})^{[a]} \subseteq B_{*} . \end{matrix}$

From A ⊆ B_*, it follows that $A \cup d (A)^{[a]} \subseteq A \cup d (B_{*})^{[a]} \subseteq A \cup B_{*} = B_{*} .$

By (MCD3′), we have $\begin{matrix} a & \in & ⋂_{y \notin B_{*}} α (d (B_{*}) (y) \\ = & α (⋁_{y \notin B_{*}} d (B_{*}) (y)) \\ \subseteq & ⋃_{x \notin B \supseteq A \cup d (A)^{[a]}} α (⋁_{y \notin B} d (B) (y)) \\ = & α (⋀_{x \notin B \supseteq A \cup d (A)^{[a]}} ⋁_{y \notin B} d (B) (y)) \\ = & α (d (A \cup d (A)^{[a]}) (x)) . \end{matrix}$

This implies a ∈ α (d (A ∪ d (A) ^[a]) (x)) , i.e., x ∉ d (d (A) ^[a] ∪ A) ^[a].

Therefore, d (A ∪ d (A) ^[a]) ^[a] ⊆ A ∪ d (A) ^[a].

(MCD3^′′′) ⇒ (MCD3′). Let x ∈ X and A ∈ 2^X with x ∉ A. Suppose a ∈ α (⊥) such that a ∈ α (d (A) (x)). Then there exists b ∈ J (M) satisfying a ∈ α (b) and b ∈ α (d (A) (x)). It follows that x ∉ d (A) ^[b] ∪ A . Let B_* = A ∪ d (A) ^[b]. Then x ∉ B_* ⊇ A. By (MCD3^′′′), B_* = d (B_*) ^[b], which implies that $\begin{matrix} \forall y \notin B_{*}, y \notin d (B_{*})^{[b]} \\ \Rightarrow & \forall y \notin B_{*}, b \in α (d (B_{*}) (y)) . \end{matrix}$

In addition, since a ∈ α (b), we have $\begin{matrix} a & \in & α (⋁_{y \notin B_{*}} d (B_{*}) (y)) \\ \subseteq & α (⋀_{x \notin B \supseteq A} ⋁_{y \notin B} d (B) (y)) . \end{matrix}$

Hence, d (A) (x) ≥ ⋀ _x∉B⊇A [⋁ _y∉Bd (B) (y)]. The converse can be shown using the same method of (MCD3^′′) ⇒ (MCD3′). Thus (MCD3^′) holds.□

Definition 3.3. A mapping f : (X, d_X) ⟶ (Y, d_Y) between M-fuzzifying convexly derived spaces is called an M-fuzzfying convexly derived homomorphism if for any x ∈ X and A ∈ 2^X, d_X (A) (x) ≤ f (A) (f (x)) ∨ d_Y (f (A)) (f (x)) .

Proposition 3.4. Let f : (X, d_X) ⟶ (Y, d_Y) be a mapping between M-fuzzifying convexly derived spaces. Then the following statements are equivalent.

f is an M-fuzzifying convexly derived homomorphism.

∀x ∈ X and $\forall F \in 2_{fin}^{X}$ , d_X (F) (x) ≤ d_Y (f (F)) (f (x)) ∨ f (F) (f (x)).

Proof. (1) ⇒ (2). It is straightforward.

(2) ⇒ (1). Let x ∈ X and A ∈ 2^X. We have $\begin{matrix} d_{X} (A) (x) \\ = & ⋁_{F \in 2_{fin}^{A}} d_{X} (F) (x) \\ \leq & ⋁_{F \in 2_{fin}^{A}} f (F) (f (x)) \lor d_{Y} (f (F)) (f (x)) \\ \leq & f (A) (f (x)) \lor d_{Y} (f (A)) (f (x)) . \end{matrix}$

Thus d is an M-fuzzifying convexly derived homomorphism.□

Next, we will study the relationship between M-fuzzifying convexly derived operators and M-fuzzifying convex structures.

Proposition 3.5. Let d : 2^X ⟶ M^X be an M-fuzzifying convexly derived operator. Define a mapping C_d : 2^X ⟶ M as follows: $\forall A \in 2^{X}, C_{d} (A) = ⋀_{x \notin A} [d (A) (x)]^{'} .$ Then C_d is an M-fuzzifying convex structure on X.

Proof. We need to check (MFC1)–(MFC3).

(MFC1) Since {x ∣ x ∉ X} = ∅ , we conclude that C_d (X) = ⋀ ∅ = ⊤ . By (MCD1), we have $C_{d} (\emptyset) = ⋀_{x \notin \emptyset} [d (\emptyset) (x)]^{'} = ⋀_{x \in X} ⊥^{'} = ⊤ .$

(MFC2) Suppose {A_i ∣ i ∈ Ω} ⊆2^X is non-empty. If x ∉ ⋂ _i∈ΩA_i, then there exists i_x ∈ Ω such that x ∉ A_{i
_x} . By Lemma 3, we have $\begin{matrix} [d (⋂_{i \in Ω} A_{i}) (x)]^{'} & \geq & [d (A_{i_{x}}) (x)]^{'} \\ \geq & ⋀_{y \notin A_{i_{x}}} [d (A_{i_{x}}) (y)]^{'} \\ = & C_{d} (A_{i_{x}}) \\ \geq & ⋀_{i \in Ω} C_{d} (A_{i}) . \end{matrix}$

Then C_d (⋂ _i∈ΩA_i) ≥ ⋀ _i∈ΩC_d (A_i) .

(MFC3) Suppose {A_i ∣ i ∈ Ω} ⊆2^X be is directed by inclusion. By Definition, we get $\begin{matrix} C_{d} (⋃_{i \in Ω} A_{i}) = ⋀_{x \notin ⋃_{i \in Ω} A_{i}} {[d (⋃_{i \in Ω} A_{i}) (x)]}^{'} \\ = & ⋀_{x \notin ⋃_{i \in Ω} A_{i}} [⋁_{F \in 2_{fin}^{⋃_{i \in Ω} A_{i}}} d (F) (x)]^{'} \\ = & ⋀_{x \notin ⋃_{i \in Ω} A_{i}} [⋁_{i \in Ω} ⋁_{F \in 2_{fin}^{A_{i}}} d (F) (x)]^{'} \\ = & ⋀_{x \notin ⋃_{i \in Ω} A_{i}} ⋀_{i \in Ω} ⋀_{F \in 2_{fin}^{A_{i}}} [d (F) (x)]^{'} \\ \geq & ⋀_{i \in Ω} ⋀_{x \notin A_{i}} ⋀_{F \in 2_{fin}^{A_{i}}} [d (F) (x)]^{'} \\ \geq & ⋀_{i \in Ω} ⋀_{x \notin A_{i}} d (A_{i}) (x)^{'} = ⋀_{i \in Ω} C_{d} (A_{i}) . \end{matrix}$

The proof is completed. □

Proposition 3.6. Let d : 2^X ⟶ M^X be an M-fuzzifying convexly derived operator. Then for any x ∈ X and A ∈ 2^X, ${co}_{d} (A) (x) = d (A) (x) \lor A (x),$ where co_d is the M-fuzzifying hull operator on C_d.

Proof. If x ∈ A, the proof is completed. Otherwise, by Theorem 2 and (MCD3) of Definition 2, we have $\begin{matrix} {co}_{d} (A) (x) & = & ⋀_{x \notin B \supseteq A} [C_{d} (B)]^{'} \\ = & ⋀_{x \notin B \supseteq A} [⋁_{y \notin B} d (B) (y)] \\ = & d (A) (x) = d (A) (x) \lor A (x), \end{matrix}$

completing the proof. □

Proposition 3.7. Let f : (X, d_X) ⟶ (Y, d_Y) be an M-fuzzifying convexly derived homomorphism between M-fuzzifying convexly derived spaces. Then f : (X, C_{d
_X}) ⟶ (Y, C_{d
_Y}) is an MCPmapping.

Proof. Denote by co_X and co_Y the M-fuzzifying hull operators on C_{d
_X} and C_{d
_Y}, respectively. Let x ∈ X and A ∈ 2^X. If f (x) ∈ f (A), then it is trivial by Theorem 2. Now suppose f (x) ∉ f (A). Then x ∉ A. By Proposition 3, we have $\begin{matrix} {co}_{X} (A) (x) & = & d_{X} (A) (x) \lor A (x) \\ = & d_{X} (A) (x) \\ \leq & d_{Y} (f (A)) (f (x)) \lor f (A) (f (x)) \\ = & {co}_{Y} (f (A)) (f (x)) . \end{matrix}$

Therefore, f is an MCP mapping. □

Theorem 3.8. Let C be an M-fuzzifying convex structure on X. Define a mapping d_C : 2^X ⟶ M^X as follows: $d_{C} (A) (x) = {co}_{C} (A - {x}) (x)$ for all x ∈ X and A ∈ 2^X. Then d_C is an M-fuzzifying convexly derived operator on X.

Proof. We need to check (MCD1)–(MCD4).

That (MCD1) and (MCD2) are trivial.

(MCD3) It can be proved by the following equations: $\begin{matrix} d_{C} (A) (x) \\ = & {co}_{C} (A - {x}) (x) \\ = & ⋀_{x \notin B \supseteq A - {x}} [⋁_{y \notin B} co (B) (y)] \\ = & ⋀_{x \notin B \supseteq A - {x}} [⋁_{y \notin B} co (B - {y}) (y)] \\ = & ⋀_{x \notin B \supseteq A - {x}} [⋁_{y \notin B} d (B) (y)] . \end{matrix}$ (MCD4) First, we have $\begin{matrix} d_{C} (A) (x) & = & {co}_{C} (A - {x}) (x) \\ = & ⋁_{F \in 2_{fin}^{A - {x}}} co (F) (x) \\ = & ⋁_{F \in 2_{fin}^{A - {x}}} co (F - {x}) (x) \\ = & ⋁_{F \in 2_{fin}^{A - {x}}} d_{C} (F) (x) \\ \leq & ⋁_{F \in 2_{fin}^{A}} d_{C} (F) (x) . \end{matrix}$

The inverse inequality holds obviously. □

Example 3.9 Let X = {x, y, z} and I = [0, 1]. Define C : 2^X → I by $\begin{matrix} C (\emptyset) = C (X) = 1; \\ C ({x}) = 0.61, C ({y}) = 0.4, C ({z}) = 0.8; \\ C ({x, y}) = 0.3, C ({x, z}) = 0.5, C ({y, z}) = 0.71 . \end{matrix}$

Then C satisfies (MFC1)–(MFC3), and hence C is an I-fuzzifying convex structure. By Theorem 3, we obtain the I-fuzzifying convex structure and its I-fuzzifying convexly derived operator, as illustrated in Table 1.

Table 1
I-fuzzifying convex structure (X, C) and its I-fuzzifying convexly derived operator

A C (A) d_C (A) (x) d_C (A) (y) d_C (A) (z)

X 1 0.29 0.5 0.7

{x, y} 0.3 0.29 0.39 0.7

{x, z} 0.5 0.2 0.5 0.39

{y, z} 0.71 0.29 0.2 0.6

{x} 0.61 0 0.39 0.39

{y} 0.4 0.29 0 0.6

{z} 0.8 0.2 0.2 0

∅ 1 0 0 0

A	C (A)	d_C (A) (x)	d_C (A) (y)	d_C (A) (z)
X	1	0.29	0.5	0.7
{x, y}	0.3	0.29	0.39	0.7
{x, z}	0.5	0.2	0.5	0.39
{y, z}	0.71	0.29	0.2	0.6
{x}	0.61	0	0.39	0.39
{y}	0.4	0.29	0	0.6
{z}	0.8	0.2	0.2	0
∅	1	0	0	0

The following theorem shows that M-fuzzifying convex structures can be completely determined by derived operators.

Theorem 3.10. M-fuzzifying convex structures are isomorphic to M-fuzzifying convex derived operators.

Proof. Suppose C is an M-fuzzifying convex structure on X and d is an M-fuzzifying convexly derived operator on X. It suffices to prove C_{d
_C} = C and d_{C
_d} = d .

Let x ∈ X and A ∈ 2^X. On one hand, we have $\begin{matrix} C_{d_{C}} (A) & = & ⋀_{x \notin A} [d_{C} (A) (x)]^{'} \\ = & ⋀_{x \notin A} [{co}_{C} (A - {x}) (x)]^{'} \\ = & ⋀_{x \notin A} [{co}_{C} (A) (x)]^{'} = C (A) . \end{matrix}$

On the other hand, we have $\begin{matrix} d_{C_{d}} (A) (x) & = & {co}_{C_{d}} (A - {x}) (x) \\ = & d (A - {x}) (x) \lor (A - {x}) (x) \\ = & d (A - {x}) (x) = d (A) (x) . \end{matrix}$

The proof is completed.

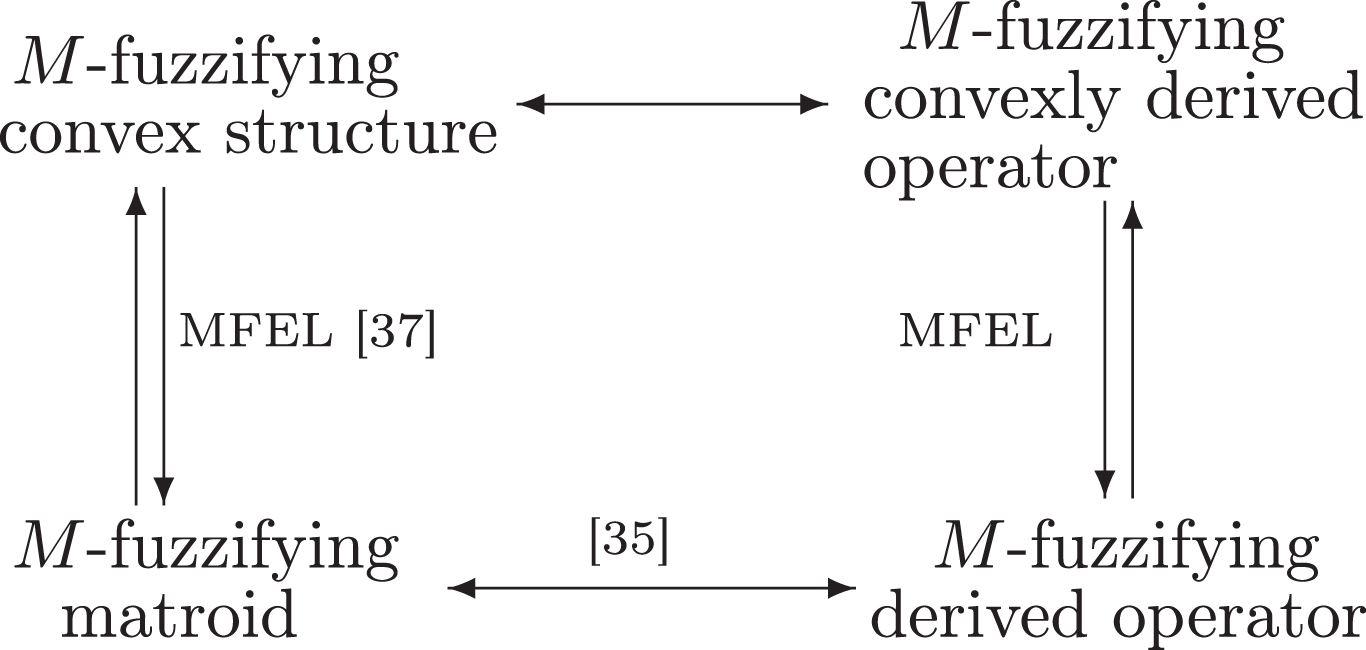

From Definition 2 and Theorem 3, we obtain the following diagram.

Theorem 3.11. Let f : (X, C_X) ⟶ (Y, C_Y) be an MCP mapping between M-fuzzifying convex spaces. Then f : (X, d_{C
_X}) ⟶ (Y, d_{C
_Y}) is an M-fuzzifying convexly derived homomorphism.

Proof. It suffices to check $d_{C_{X}} (A) (x) \leq f (A) (f (x)) \lor d_{C_{Y}} (f (A)) (f (x)) .$

It is trivial when f (x) ∈ f (A). Now suppose f (x) ∉ f (A), which implies x ∉ A. Since f : (X, C_X) ⟶ (Y, C_Y) is an MCP mapping, we have $\begin{matrix} d_{C_{X}} (A) (x) = {co}_{C_{X}} (A - {x}) (x) \\ = & {co}_{C_{X}} (A) (x) \leq {co}_{C_{Y}} (f (A)) (f (x)) \\ = & {co}_{C_{Y}} (f (A) - {f (x)}) (f (x)) \\ = & d_{C_{Y}} (f (A)) (f (x)) \\ \leq & d_{C_{Y}} (f (A)) (f (x)) ⋁ f (A) (f (x)) . \end{matrix}$

The proof is completed. □

4 M-fuzzifying restricted convexly derived operators

In this section, we will introduce the notion of M-fuzzifying restricted convexly derived operators which is isomorphic to M-fuzzifying restricted hull operators.

Definition 4.1 ([28]). A mapping $h : 2_{fin}^{X} ⟶ M^{X}$ is called an M-fuzzifying restricted hull operator if it satisfies the following conditions:

∀x ∈ X, h (∅) (x) = ⊥;

$\forall F \in 2_{fin}^{X}$ and ∀x ∈ F, h (F) (x) =⊤;

$\forall G, F \in 2_{fin}^{X}$ and ∀x ∈ X, $h (G) (x) \land [⋀_{y \in G} h (F) (y)] \leq h (F) (x) .$

Remark 4.2.If a mapping $h : 2_{fin}^{X} ⟶ M^{X}$ satisfies (MH1) and (MH2), then (MH3) is equivalent to the following condition:

∀x ∈ X, and $\forall F, G \in 2_{fin}^{X}$ , h (G) (x) ∧ [⋀ _y∈G-Fh (F) (y)] ≤ h (F) (x) .

Definition 4.3. ([2])A mapping $\bar{d} : 2_{fin}^{X} ⟶ 2^{X}$ is called a restricted convexly derived operator provided for any $F, G \in 2_{fin}^{X}$ , it satisfies the following conditions:

$\bar{d} (\emptyset) = \emptyset$ ;

F ⊆ G implies $\bar{d} (F) \subseteq \bar{d} (G)$ ;

$\forall x \in \bar{d} (F)$ , $x \in \bar{d} (F - {x})$ ;

$G \subseteq \bar{d} (F)$ implies $\bar{d} (G \cup F) \subseteq \bar{d} (F) \cup F$ .

Remark 4.4. It can be easily proved that (RD4) can be replaced by the following condition:

$G \subseteq \bar{d} (F) \cup F$ implies $\bar{d} (G) \subseteq \bar{d} (F) \cup F .$

Next, we will extend the notion of restricted convexly derived operator to the fuzzy case.

Definition 4.5A mapping $\bar{d} : 2_{fin}^{X} ⟶ M^{X}$ is called an M-fuzzifying restricted convexly derived operator provided for any x ∈ X and $F, G \in 2_{fin}^{X}$ , it satisfies the following conditions:

$\bar{d} (\emptyset) (x) = ⊥$ ;

F ⊆ G implies $\bar{d} (F) \leq \bar{d} (G)$ ;

$\bar{d} (F) (x) = \bar{d} (F - {x}) (x)$ ;

∀x ∉ F, $\bar{d} (G) (x) \land [⋀_{y \in G - F} \bar{d} (F) (y)] \leq \bar{d} (F) (x)$ .

If M = {⊥ , ⊤}, then (MRD1)–(MRD3) can be simplified to (RD1)–(RD3). By Remark 4, we prove the equivalence of (MRD4) and (RD4^′).

(MRD4) ⇒ (RD4^′). Let F, G ∈ 2^X with $G \subseteq \bar{d} (F) \cup F$ . We needs to show $\bar{d} (G) \subseteq \bar{d} (F) \cup F .$ Suppose $x \in \bar{d} (G)$ and x ∉ F. It follows that $\bar{d} (G) (x) = ⊤$ and $G - F \subseteq (\bar{d} (F) \cup F) - F \subseteq \bar{d} (F)$ , implying $\bar{d} (G) (x) \land [⋀_{y \in G - F} \bar{d} (F) (y)] = ⊤ .$ By (MRD4), $\bar{d} (F) (x) = ⊤$ . Hence $x \in \bar{d} (F)$ . The converse implication is trivial.

In this sense, the notion of M-fuzzifying restricted convexly derived operators is a reasonable generalization of restricted convexly derived operator.

Proposition 4.6.If a mapping $\bar{d} : 2_{fin}^{X} ⟶ M^{X}$ satisfies (MRD1)–(MRD3), then the following conditions are equivalent.

∀x ∉ F and $\forall F, G \in 2_{fin}^{X}$ , $\bar{d} (G) (x) \land [⋀_{y \in G - F} \bar{d} (F) (y)] \leq \bar{d} (F) (x)$ .

∀x ∉ F and $\forall F, G \in 2_{fin}^{X}$ , $\bar{d} (G) (x) \land [⋀_{y \in G} \bar{d} (F) (y) \lor F (y)] \leq \bar{d} (F) (x)$ .

∀x ∈ X and $\forall F, G \in 2_{fin}^{X}$ , $\bar{d} (G) (x) \land [⋀_{y \in G} \bar{d} (F) (y) \lor F (y)] \leq \bar{d} (F) (x) \lor F (x)$ .

Proposition 4.7.Let $\bar{d} : 2_{fin}^{X} ⟶ M^{X}$ be an M-fuzzifying restricted convexly derived operator on X. Then the mapping $h_{\bar{d}} : 2_{fin}^{X} ⟶ M^{X}$ defined by $\forall F \in 2_{fin}^{X}, h_{\bar{d}} (F) = F \lor \bar{d} (F)$ is an M-fuzzifying restricted hull operators.

Proof. The verifications of (MH1) and (MH2) are trivial. We only verify (MH3).

Let x ∈ X and $F, G \in 2_{fin}^{X}$ . By (MRD4^′′), it is trivial whenever x ∈ F ∪ G. Now suppose x ∉ G ∪ F, It follows from (MRD4^′) that $\begin{matrix} h_{\bar{d}} (G) (x) \land [⋀_{y \in G} h_{\bar{d}} (F) (y)] \\ = & \bar{d} (G) (x) \land [⋀_{y \in G} \bar{d} (F) (y) \lor F (y)] \\ \leq & \bar{d} (F) (x) \lor F (x) \leq h_{\bar{d}} (F) (x) . \end{matrix}$ The proof is completed. □

Proposition 4.8. Let $h : 2_{fin}^{X} ⟶ M^{X}$ be an M-fuzzifying restricted hull operator on X. Then the mapping ${\bar{d}}_{h} : 2_{fin}^{X} ⟶ M^{X}$ defined by $\forall F \in 2_{fin}^{X}, {\bar{d}}_{h} (F) (x) = h (F - {x}) (x)$ is an M-fuzzifying restricted convexly derived operator.

Proof. The verifications of (MRD1)–(MRD3) are straightforward, and (MRD4) holds by using Remark 4. □

Theorem 4.9.M-fuzzifying restricted convexly derived operators are isomorphic to M-fuzzifying restricted hull operators.

Proof. Let $\bar{d}$ and h be an M-fuzzifying restricted convexly derived operator and an M-fuzzifying restricted hull operator on X, respectively. It suffices to prove (1) ${\bar{d}}_{h_{\bar{d}}} = \bar{d}$ and (2) $h_{{\bar{d}}_{h}} = h$ .

(1) For any x ∈ X and $F \in 2_{fin}^{X}$ , we have $\begin{matrix} {\bar{d}}_{h_{\bar{d}}} (F) (x) & = & h_{\bar{d}} (F - {x}) (x) \\ = & (F - {x}) (x) \lor \bar{d} (F - {x}) (x) \\ = & \bar{d} (F - {x}) (x) = \bar{d} (F) (x) . \end{matrix}$

(2) Let $F \in 2_{fin}^{X}$ . We have $\begin{matrix} h_{{\bar{d}}_{h}} (F) (x) & = & F (x) \lor {\bar{d}}_{h} (F) (x) \\ = & F (x) \lor h (F - {x}) (x) . \end{matrix}$ It is trivial when x ∈ F. Now suppose x ∉ F. It follows that $h_{{\bar{d}}_{h}} (F) (x) = h (F - {x}) (x) = h (F) (x) .$ The proof is completed.□

In [28], it is proved that there is a one-to-one correspondence between M-fuzzifying restricted hull operators and M-fuzzifying convex structures. Thus, by Theorem 4, the following result is trivial.

Theorem 4.10. M-fuzzifying restricted convexly derived operators is isomorphic to M-fuzzifying convex structures.

5 Conclusions and remarks for further work

In this paper, we study the derived operators on M-fuzzifying convex spaces, proposing the notions of M-fuzzifying convexly derived operators and M-fuzzifying restricted convexly derived operators. It is then shown that M-fuzzifying convexly derived operators, M-fuzzifying restricted convexly derived operators and M-fuzzifying convex structures are isomorphic. This result fully demonstrates the validity of derived operators to characterize M-fuzzifying convex structures.

The following are some related problems and tasks for further study on this topic.

In [35], the notion of M-fuzzifying difference derived operators is introduced, which can also characterize M-fuzzifying matroids. Can it characterize M-fuzzifying convex structures?

Recently, Shen and Shi provided some characterizations of L-convex structures via domain theory [19]. Is it possible to provide a characterization of L-convex structures in terms of derived operators?

Try to apply derived operators to more set-structures, such as L-convex systems [18], topological hypergroupoids [1], topological convex structures [30], etc.

Footnotes

Acknowledgments

The authors would like to express their sincere thanks to the anonymous reviewers and the area editor for their careful reading and constructive comments.

This work is supported by the National Natural Science Foundation of China(11871097) and the China Scholarship Council (201806030073).

References

Al Tahan

, Hošková-Mayerova

and Davvaz

, An overview of topological hypergroupoids, Journal of Intelligent & Fuzzy Systems 34(3) (2018), 1907–1916.

Chen

F.H.

and Shen

, Characterizations of convex spaces and anti-matroids via Derived Operators, Open mathematics 17(1) (2019), 331–342.

Dwinger

, Characterizations of the complete homomorphic images of a completely distributive complete lattice I, Indagationes Mathematicae (Proceedings) 85(4) (1982), 403–414.

Huang

H.L.

and Shi

F.G.

, L-fuzzy numbers and their properties, Information Sciences 178(4) (2008), 1141–1151.

Jin

and Li

L.Q.

, On the embedding of convex spaces in stratified L-convex spaces, Springer Plus 5(1) (2016), 1–10.

Kelly

J.L.

, General Topology, New York, Springer, 1955.

and Shi

F.G.

, L-fuzzy convexity induced by L-convex fuzzy sublattice degree, Iranian Journal of Fuzzy Systems 14(5) (2017), 83–102.

L.Q.

, On the category of enriched (L, M)-convex spaces, Journal of Intelligent and Fuzzy Systems 33(6) (2017), 3209–3216.

E.Q.

and Shi

F.G.

, Some properties of M-fuzzifying convexities induced by M-orders, Fuzzy Sets and Systems 350 (2018), 41–54.

10.

Maruyama

, Lattice-valued fuzzy convex geometry, RIMS Kokyuroku 164 (2009), 22–37.

11.

Negoita

C.V.

, Ralescu

D.A.

, Applications of Fuzzy Sets to Systems Analysis, Interdisciplinary Systems Research Series, Vol. 11, Birkhäuser, Basel, Stuttgart and Halsted Press, New York, 1975.

12.

Pang

and Zhao

, Characterizations of L-convex spaces, Iranian Journal of Fuzzy Systems 13(4) (2016), 51–61.

13.

Pang

and Shi

F.G.

, Subcategories of the category of L-convex structures, Fuzzy Sets and Systems 313 (2017), 61–74.

14.

Pang

, Zhao

and Xiu

Z.Y.

, A new definition of order relation for the introduction of algebraic fuzzy closure operators, International Journal of Approximate Reasoning 92 (2018), 87–96.

15.

Pang

and Shi

F.G.

, Fuzzy counterparts of hull operators and interval operators in framework of L-convex space, Fuzzy Sets and Systems (2018). doi:10.1016/j.fss.2018.05.012.

16.

Pang

and Xiu

Z.Y.

, Lattice-valued interval operators and its induced lattice-valued convex structures, IEEE Transactions on Fuzzy Systems 26(3) (2018), 1525–1534.

17.

Rosa

M.V.

, A study of fuzzy convexity with special reference to separation properties, Cochin University of science and Technology, Cochin, India, 1994.

18.

Shen

and Shi

F.G.

, L-convex systems and the categorical isomorphism to Scott-hull operators, Iranian Journal of Fuzzy Systems 15(2) (2018), 23–40.

19.

Shen

and Shi

F.G.

, Characterizations of L-convex spaces via domain theory, Fuzzy Sets and Systems (2019). doi:10.1016/j.fss.2019.02.009.

20.

Shi

F.G.

and Pang

, Categories isomorphic to the category of L-fuzzy closure system spaces, Iranian Journal of Fuzzy Systems 10(5) (2013), 127–146.

21.

Shi

F.G.

, The fuzzy derived induced by the derived operator of ordinary set and fuzzy topology induced by the fuzzy derived operator, Fuzzy Systems and Mathematics 5 (1991), 32–37.

22.

Shi

F.G.

, Theory of L_β-nested sets and L_α-nested sets and its applications, Fuzzy Systems and Mathematics 4 (1995), 65–72, (in Chinese).

23.

Shi

F.G.

, L-fuzzy sets and prime element nested sets, J Mathematical Research and Exposition 16 (1996), 398–402, (in Chinese).

24.

Shi

F.G.

, Theory of molecular nested sets and its applications, J Yantai Teachers University (Natural Science) 12 (1996), 33–36, (in Chinese).

25.

Shi

F.G.

, L-fuzzy relation and L-fuzzy subgroup, Journal of Fuzzy Mathematics 8(2) (2000), 491–499.

26.

Shi

F.G.

, A new approach to the fuzzification of matroids, Fuzzy Sets and Systems 160(5) (2009), 696–705.

27.

Shi

F.G.

and Xiu

Z.Y.

, A new approach to the fuzzification of convex structures, Journal of Applied Mathematics 2014 (2014), 1–12.

28.

Shi

F.G.

and Li

E.Q.

, The restricted hull operator of M-fuzzifying convex structures, Journal of Intelligent and Fuzzy Systems 30(1) (2016), 409–421.

29.

Shi

F.G.

and Xiu

Z.Y.

, (L, M)-fuzzy convex structures, Journal of Nonlinear Sciences and Applications 10(7) (2017), 3655–3669.

30.

van de Vel

M.L.J.

, Theory of convex structures, North-Holland, Amsterdam, 1993.

31.

Wang

G.J.

, Theory of topological molecular lattices, Fuzzy Sets and Systems 47(3) (1992), 351–376.

32.

Whitney

, On the abstract properties of linear dependence, American Journal of Mathematics 57 (1935), 509–533.

33.

X.Y.

and Bai

S.Z.

, On M-fuzzifying JHC convex structures and M-fuzzifying Peano interval spaces, Journal of Intelligent & Fuzzy Systems 30(4) (2016), 2447–2458.

34.

X.Y.

, Li

E.Q.

and Bai

S.Z.

, Geometric properties of M-fuzzifying convex structures, Journal of Intelligent & Fuzzy Systems 32(6) (2017), 4273–4284.

35.

Xin

, Shi

F.G.

and Li

S.G.

, M-fuzzifying derived operators and difference derived operators, Iranian Journal of Fuzzy Systems 7(2) (2010), 71–81.

36.

Xiu

Z.Y.

and Shi

F.G.

, M-fuzzifying interval spaces, Iranian Journal of Fuzzy Systems 14(1) (2017), 145–162.

37.

Yang

S.J.

and Shi

F.G.

, M-fuzzifying independence spaces, Journal of Intelligent & Fuzzy Systems 34(1) (2018), 11–21.

38.

Xiu

Z.Y.

and Pang

, M-fuzzifying cotopological spaces andM-fuzzifying convex spaces asM-fuzzifying closure spaces, Journal of Intelligent and Fuzzy Systems 33(1) (2017), 613–620.

39.

Xiu

Z.Y.

and Pang

, Base axioms and subbase axioms in M-fuzzifying convex spaces, Iranian Journal of Fuzzy Systems 15(2) (2018), 75–87.

40.

Zhong

and Shi

F.G.

, Derived operators of M-fuzzifying matroids, Journal of Intelligent & Fuzzy Systems 35(4) (2018), 4673–4683.

41.

Chen

F.H.

, Zhong

and Shi

F.G.

, M-fuzzifying derived operators, Journal of Intelligent & Fuzzy Systems 36(1) (2019), 79–89.

Derived operators on M -fuzzifying convex spaces

Abstract

1 Introduction

2 Preliminaries

3 M-fuzzifying convexly derived operators

Table 1 I-fuzzifying convex structure (X, C) and its I-fuzzifying convexly derived operator A C (A) d C (A) (x) d C (A) (y) d C (A) (z) X 1 0.29 0.5 0.7 {x, y} 0.3 0.29 0.39 0.7 {x, z} 0.5 0.2 0.5 0.39 {y, z} 0.71 0.29 0.2 0.6 {x} 0.61 0 0.39 0.39 {y} 0.4 0.29 0 0.6 {z} 0.8 0.2 0.2 0 ∅ 1 0 0 0

5 Conclusions and remarks for further work

Footnotes

Acknowledgments

References
