Abstract
The principle assaults on a Wireless Sensor Network (WSN) essentially influence the uprightness and accessibility of the data gathered, for example, Deni-al of Service, Blackhole, Wormhole, and assault on the data being transmitted. Privacy is not an important security objective because the data caught by the sensors are typically not delicate or mystery from individuals. A remote sensor organizes applied to shrewd metering frameworks might be adequately powerful as far as robotization and adjustment of the information that is gathered, however, if the system doesn’t have satisfactory security, both the client and the organization offering the support might be influenced by assaults on the respectability and accessibility of the data transmitted. This research proposes the use of MESH encryption techniques and Star topology to find the best combination that meets the requirements of a Smart Metering System.
Introduction
On the planet wherein the use of energy has emerged as necessary, it is important to have a tool known as a meter, which indicates the strength intake in homes [1]. Currently, those meters are evolving with the era, giving upward thrust to the Smart Metering System as cited in [2], with which the power thing of energy consumption is stepped forward. In [3], the development of wise metering systems is proposed, highlighting as benefits of those systems, the greater manipulate and optimization of billing, and the reduction inside the number of employees. Additionally, in [4–6] they show the utility of protection in those networks thinking about routing protocols. Regarding WSN, numerous encryption answers have been proposed, inclusive of the following research [7–10], wherein they recommend answers based on uneven encryption of the use of both public and private keys [11]. Furthermore, using the Elliptic Curve Cryptography (ECC) approach is advised because of the short size of its keys, that are appropriate for the confined potential of the nodes in a WSN, in place of strategies along with the Advanced Encryption Standard (AES) or even RSA [12–13].
A variety of boundaries inside these encryption procedures has even been made, as in [14], where the use of the Elliptic Curve Digital Signature Algorithm (ECDSA) is applied. This calculation joins RSA with elliptic bends, and the examination infers that its utilization is prescribed because of its short keys, however, that its primary confinement is in the utilization of memory [15]. Considering execution boundaries in cryptography, for example, memory use, encryption time, and security level, relative investigations were done on various cryptography procedures applied to WSN, for example, in [16], in which MD5, SHA-1, AES cryptography methods were applied to BTNode physical sensors created by ETH Zurich. In [17], security is proposed for genuineness dependent on a character-based cryptography strategy (IBS), which is a variation of the lopsided encryption proposed by Shamir. In this method, check of the credibility of open keys is not, at this point required, since there is a Trust Authority (TA) that is liable for giving open keys dependent on some identifier of the holder, and dependent on these keys, the private key is given, as on account of typical awry encryption.
The referenced investigations proposed answers for remote sensor arranges when all is said in done, or proposition dependent on the steering conventions of wise metering frameworks. Thus, this examination proposes a security answer for a WSN utilizing encryption strategies.
The point of this paper is to propose an answer that ensures the security of shared data in a system of remote sensors applied to wise metering frameworks, by utilizing encryption and hash methods without influencing the necessary execution of the system regarding data conveyance time. Situations with star and work geography are proposed, just as the security issues dependent on HASH and awry encryption, which are prescribed because of the figuring restriction of the hubs inside a WSN. Also, it is proposed to incorporate an authenticator hub that checks pernicious hubs inside the WSN.
Attacks and techniques in WSN
Among the related examinations, a few sorts of assaults and encryption techniques for WSN have been proposed. On account of the Smart Metering Systems, the most significant viewpoints are featured dependent on the primary necessity of honesty and accessibility of the data.
Common attacks to WSN
DoS - Denied of Service, is the sending of expected data to every node, in this way diminishing the chance of offering the assistance satisfactorily, and any event, obliterating the availability in the system. In a WSN applied to Smart Metering System the testing time of each bundle is basic thinking about that its usefulness works continuously. Because of this, a disavowal of administration assault would build this time and would straightforwardly influence the accessibility of the gathered information.
Assaults in Information Transmission, taking into account that the remote sensor systems are inclined to be assaulted by Eavesdropping or data sneaking around, the assailant could take the data and change it. On the off chance that the aggressor’s registering limit is high, it could even assault the data transmitted from a few hubs [18]. On account of savvy metering frameworks, this data adjustment could cause a wrong charging in the clients’ utilization, accordingly, it would straightforwardly influence the honesty of the gathered information.
Wormhole assault, where the assailant figures out how to incorporate or change over a hub into a vindictive one which, by requiring the refreshing of neighborhoods or the sending of bundles, makes the getting hub have another transmitter hub address (Fig. 1), which isn’t reachable at the steering level, causing the messages not to show up and causing loss of correspondence on the system [19, 20]. This assault influences the accessibility of data, and the directing uprightness of the system.

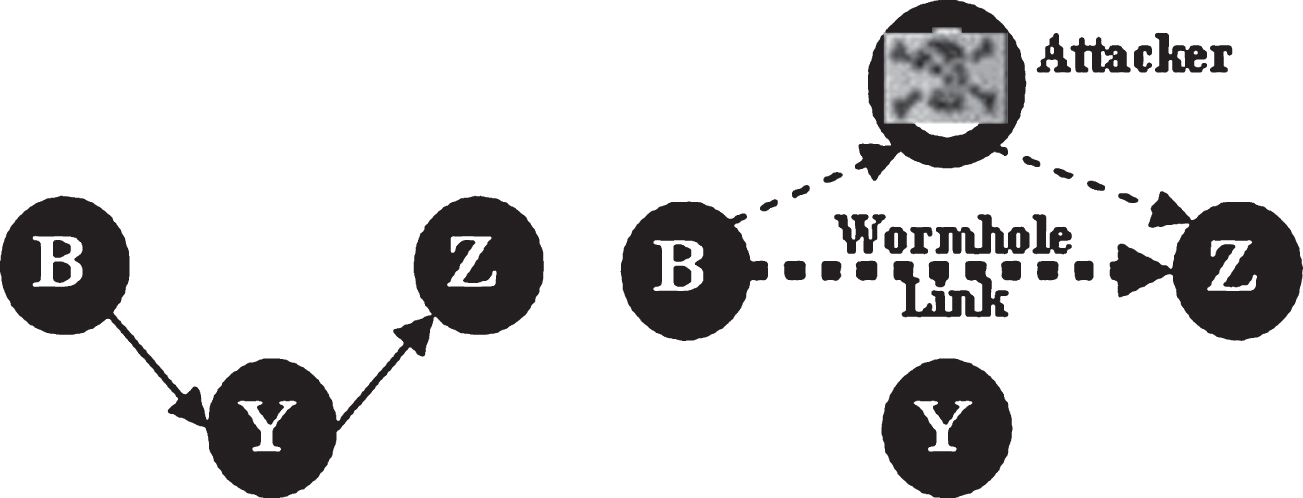

Wormhole attack within a WSN. Source: [21].
Blackhole assault, in this sort of assault the malignant node covers all the traffic of the sensor organize without permitting them to arrive at the Gateway (Fig. 2), subsequently, the information gathered can’t be transmitted to the client. Inside applications concerning metering frameworks, it is straightforwardly identified with the accessibility of the data and regardless of whether the aggressor needs to, it could influence the trustworthiness of the gathered information and send it to the Gateway which would transmit bogus data.
Blackhole attack within a WSN. Source: [21].
Inside a system of remote sensors, as they are conveyed in open conditions, any individual/aggressor can get to the system, by inciting an assault as well as by joining a few of them, can apply a Blackhole and simultaneously incorporate a refusal of-administration assault. In a system that is likewise utilized for charging purposes, for example, keen metering frameworks, this can cause incredible monetary and believability misfortunes to organizations, and clients can get confounded and incredulous of the framework they are utilizing for their administrations.
ECC encryption is an awry encryption technique, which utilizes both open and private keys. It utilizes the discrete elliptic bend logarithm known as ECDLP, which gives a similar degree of security as the RSA strategy, additionally lopsided encryption, with the distinction that ECC has littler key lengths [22]. ECC decides its scientific procedure on the elliptic bend utilizing condition 1, where each estimation of an and b speaks to an alternate elliptic bend. The focuses (x, y) inside the condition are inside the expressed elliptic bend [22]. ECC utilizes the ECDSA calculation [23], which requires the private and open keys to be acquired.
The private key d is an arbitrary worth gotten from the span [1, n-1], where n is the request for the base point P (a, b). The open key Q is equivalent to the private key increased by the generator point.
When the keys are acquired, the computerized mark is performed, posting the d, Q keys. In the first place, the connection kP = (a1, b1) is resolved. The principal boundary to be determined is r, in which
The second boundary of the computerized mark is determined dependent on equation 4, where H(m) compares to the Hash of the message to be marked m, the algorithm to be utilized is SHA-1.
HASH MD5/SHA-1, as appeared in Fig. 3, Hash is a fixed-length hexadecimal code contingent upon the HASH procedure utilized, to authenticate the honesty of the data gave [24]. MD5 works with 128 bits of yield while SHA-1 has 160 bits of yield. SHA-1 is coherently more powerful than MD5 as far as impacts, however, this has an expense in time and preparing, so it makes MD5 a quick HASH, which meets the necessities for continuous applications.

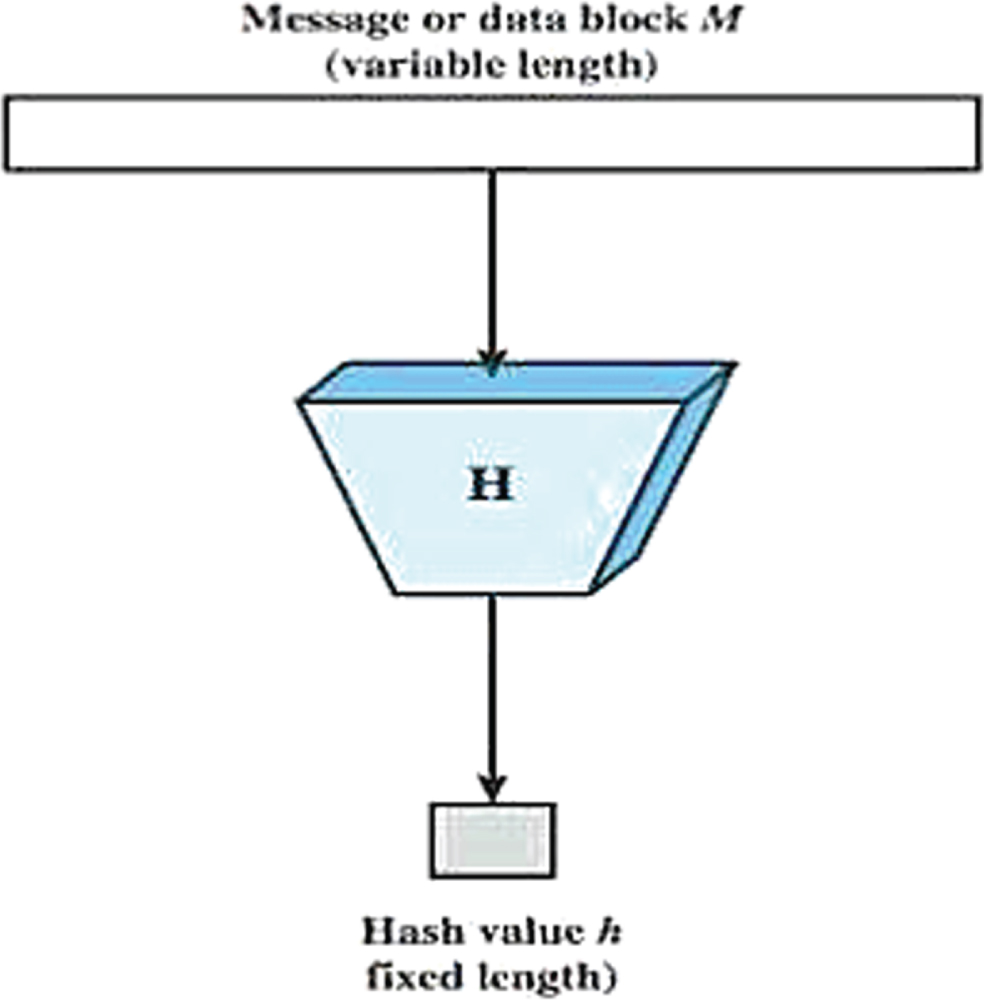

HASH Operation. Source: [25].
For the proposed version, using programmable nodes could be taken into consideration, as it’s far the case of Waspmote - Libelium sensors or nodes constructed primarily based on Arduino structures or different associated [26] with ZigBee transmission modules. For the proposed model, the topologies to be used in the fashions might be certain first. From that point onward, arrangements will be proposed dependent on writing and ongoing prerequisites.
WSN topologies
Two situations are proposed for the arrangement of a system of remote sensors: Star Topology and Mesh Type. In the Star geography, all the hubs will send the data to a Gateway node, that is, the jobs inside this geography will be either end hubs or Gateway nodes associated with a server or PC to process the gathered data. As appeared in Fig. 4, the data is transmitted just a single way. That is, the end nodes just go about as transmitters of the detected data. The most ruinous assaults for this sort of system would be Blackhole and Wormhole since all the nodes will send their data to a solitary node that could be malignant.

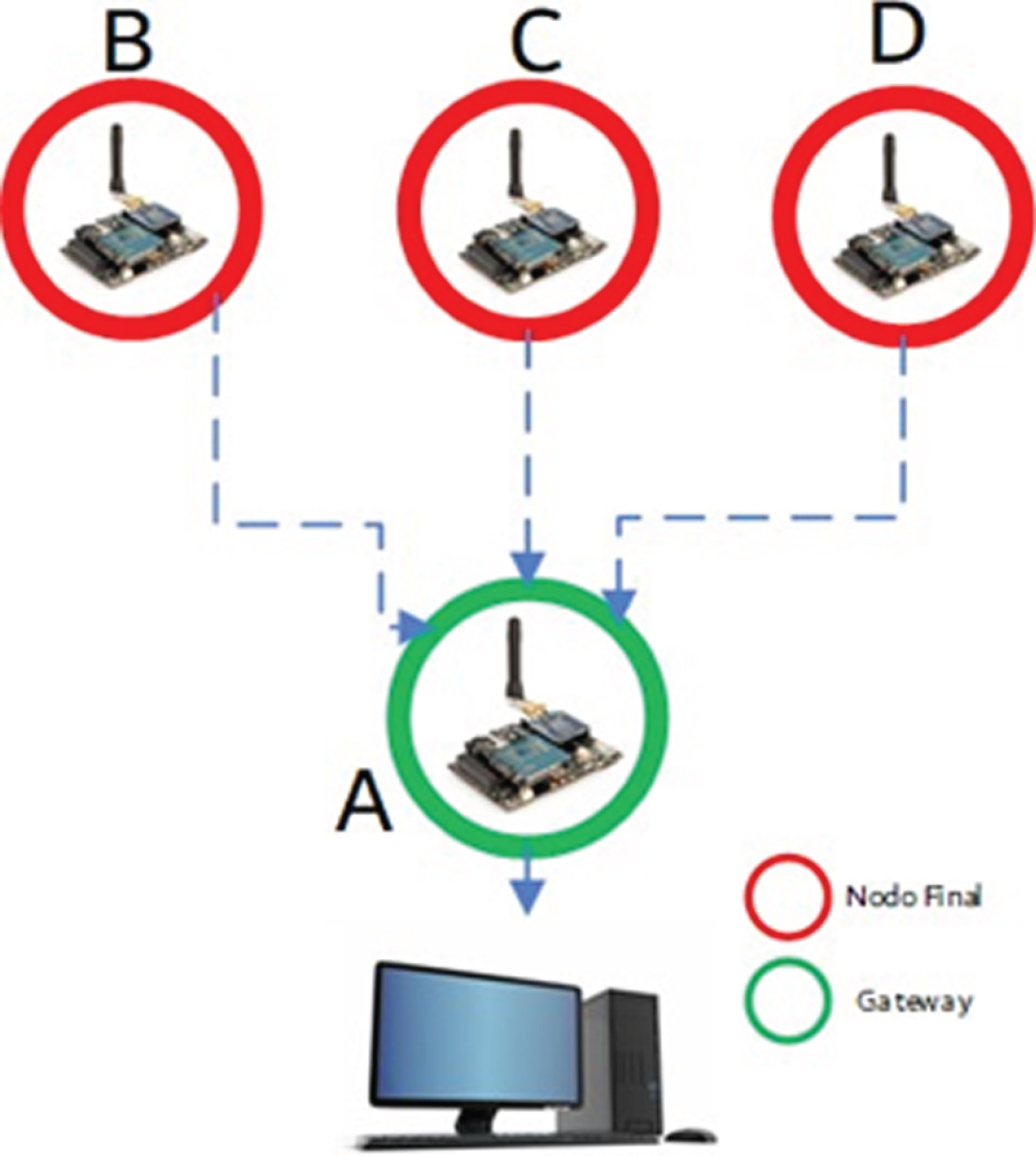

Distribution of Star Topology nodes.
Mesh topology is portrayed by three kinds of nodes in the system: end nodes, switches, and the Gateway (Fig. 5). The switch nodes have a restricted level of preparation and can get data and transmit it with the limit for self-association. In this kind of topology, Wormhole can be forestalled because its steering takes into account excess ways to arrive at their goal utilizing their neighbors. Regardless of having an increasingly vigorous structure as far as security and lost bundles, this kind of geography can build the time required for information transmission, a negative factor continuously frameworks, so it is important to search for encryption procedures with low figuring costs.
Distribution of Mesh Topology nodes.
Cryptography in star type topology works with low asset hubs in handling. To ensure the honesty and accessibility of the data, the utilization of the accompanying methodology is proposed, taking into account that classification isn’t underscored, because the information detected isn’t networking touchy information: Information HASH work (every one of the end hubs will remember for its transmission outline the HASH estimation of the information to be sent [27], and when the Gateway gets the data, it will watch that the data is as per the HASH esteem. Consider that every node is equipped for arranging its inspecting period.
The HASH work that is proposed to apply is MD5, which restores a code of 32 hexadecimal characters. This technique is applied thinking that its execution time is not exactly SHA-1 as appeared in paper [28] with times under 100MS including the postpone time of transmission from the end hub to the Gateway appropriate for keen metering frameworks. This technique looks for that the Gateway can ensure the honesty of the data transmitted by every one of the hubs, keeping away from the assault in sent bundles. ECC Encryption to encode the sent information thinking about that, because of its short keys, its expense in organizing isn’t high. As referenced in [29,30, 29,30], this strategy is utilized thinking that the handling limit is very constrained at long last hubs. For the administration of both open and private keys, it would be suggested that they are disseminated by particular substances, on account of Ecuador, the Ministry of Public Infrastructure, which will be viewed as a Trusted Authority (TA) (Fig. 7). Each end hub will encode its data with an interesting private key for every hub. Similarly, its goal is to supplement the respectability of the data without permitting any aggressor from outside the system to incorporate data not as per the enumeration. Authenticator Node, which is proposed to incorporate a hub that demands data on its IP address +ID from all the hubs that are on the system, end hubs, and Gateway. All together not to meddle with the memory utilized by the hub, the HASH capacity will be gotten in general from the information sent. This data will be mentioned normally, and if the hash of a subsequent solicitation isn’t reliable with the past hash, the authenticator hub will continue to inform the Trusted Authority, which will continue to check the arrangement and new hubs that are in the system (Fig. 8). This arrangement is proposed to forestall the presence of noxious hubs that look to influence the accessibility of the system.

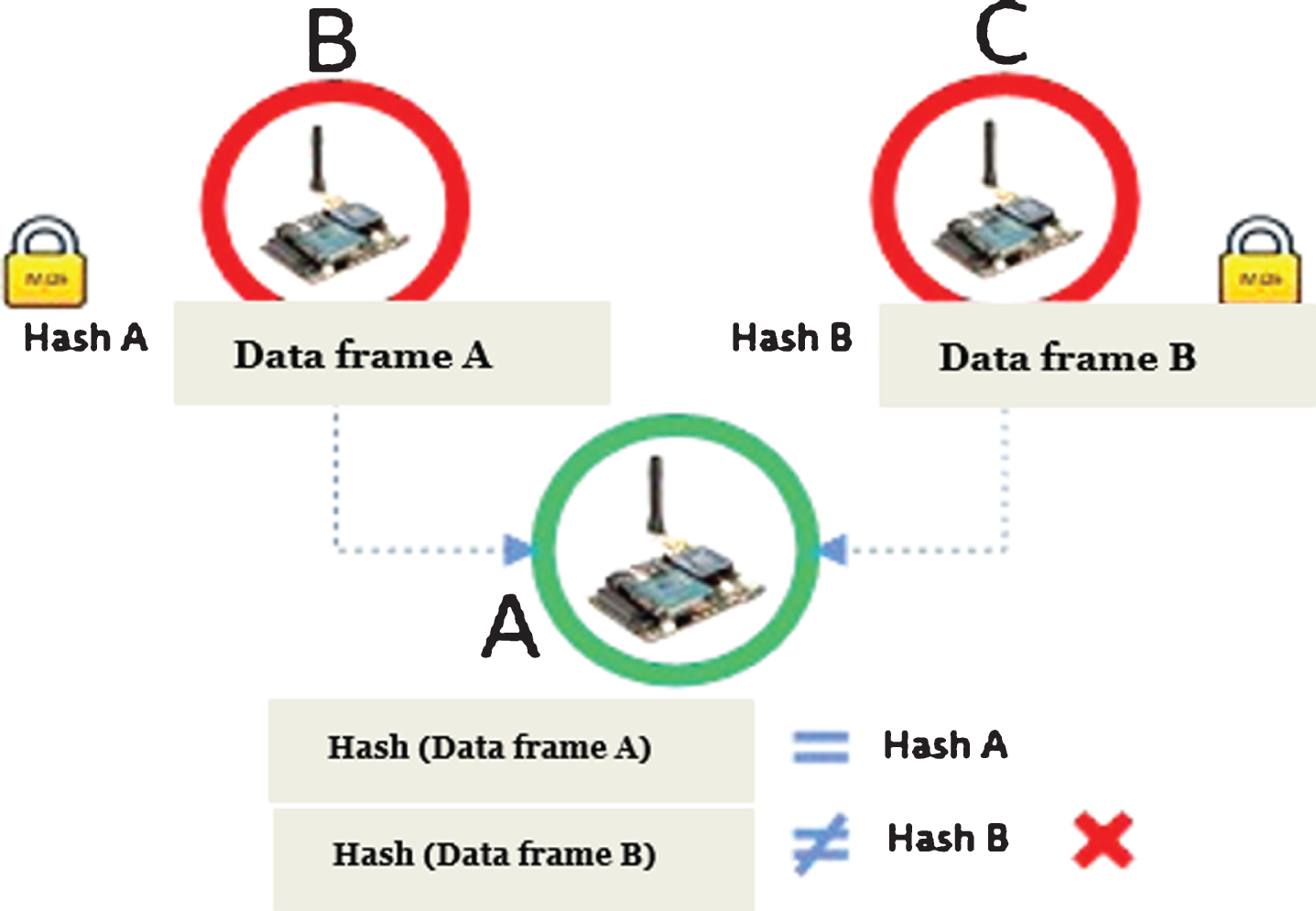

HASH Application in information transmitted by end nodes.

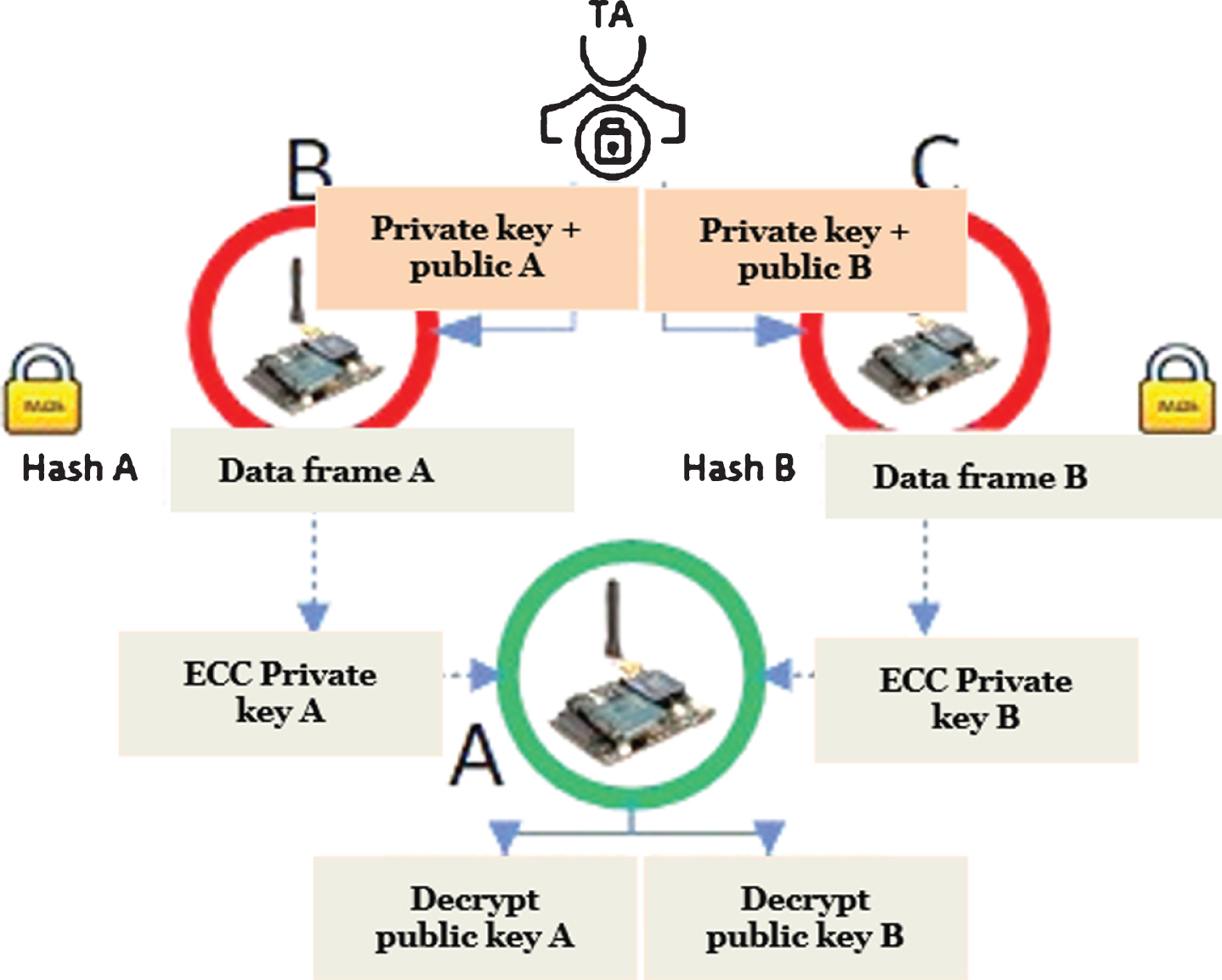

ECC Asymmetric Encryption in information transmitted by end nodes.
Authenticator Node Functionality.
As referenced in past areas, the Mesh geography has hubs with a more prominent handling limit than the end hubs, which are known as Router hubs. In light of this, encryption procedures will be proposed to keep up harmony among security and the prerequisites of a Wireless Sensor Network for continuous frameworks, for example, shrewd metering. Tree with HASH work: It is viewed as the start of Merkle’s Tree [31]. For this situation, the leaves will be the last hubs which will send HASH of their detected data to the switch hubs, which must watch that the data got to be equivalent to the HASH data. When the data is confirmed, it will take its detected data and connect it with the data gave by the principal hub, apply HASH, and send it to the following hub in its directing rundown.
This procedure will be done until it arrives at the system’s root or entryway hub. This procedure varies from the one initially applied in the Merkle tree since HASH isn’t performed on the HASH connection, however on the transmitted data link. It is considered to utilize the MD5 technique, because the more the connected data of every hub builds, the more the HASH execution time will be, as appeared in [32]. Different techniques, for example, SHA-1, show bigger additions of time as more data is assembled. Likewise, applying this HASH control ensures that the Gateway hub gets the genuine data that was detected, as appeared in Fig. 9.

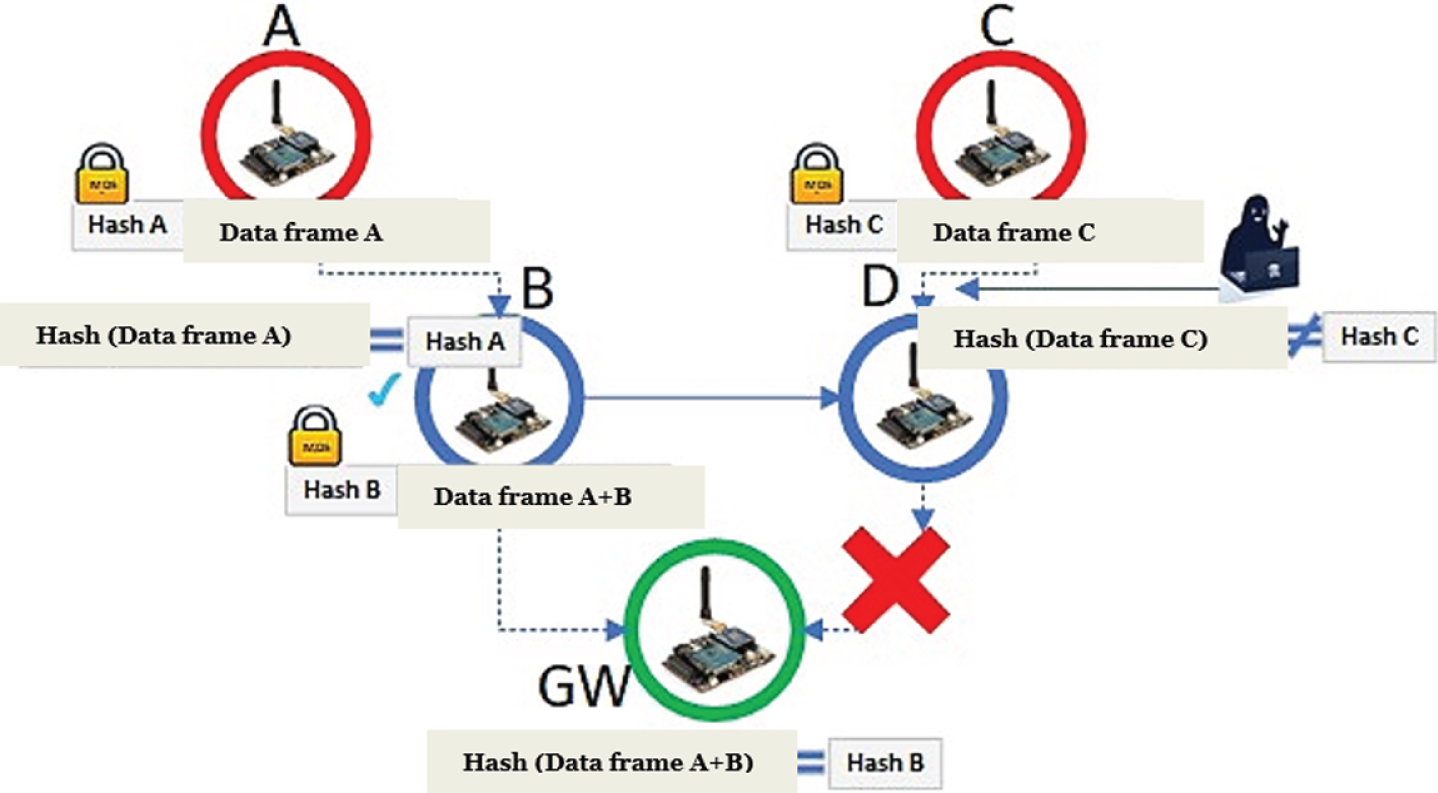

HASH tree applied in MESH-type topology.
Encryption: This paper proposes again the unbalanced ECC encryption. Even though the switch hubs have more noteworthy handling limits, methods, for example, balanced encryption require higher processing costs [33], which would expand the time it takes to send the data, even though this isn’t prescribed because the data appeared to clients would not work progressively.
Authenticator Node: This node has a similar capacity as the one clarified in the area of the Star-type geography, which appeared in Fig. 8.
When the cryptographic methods to be applied to every geography are proposed, their preferences and detriments are dissected, as appeared in Table 1. The ideal Tim: for this situation, the Star-type geography makes some lower memories for executing and transmitting the data, considering that the hubs send the data simultaneously, and the time spent in the execution of HASH is comparative in all the hubs. In any case, in regards to the Mesh-type geography, every hub expands its time for sending and executing the HASH, taking into account that, in each hub bounce, the data builds its size. Preparing: taking into account that in the Mesh type geography every hub must make HASH of data bundles with a higher size, its handling must be more noteworthy as it arrives at the base of the Gateway tree. Security: Both models meet the proposed security objectives, which are honesty and accessibility, however thinking about that the Star-type geography presents a more prominent likelihood of losing bundles, for example, detected data, its accessibility results influenced at any rate level, which grants to presume that MESH-type geography is more secure than the Star geography. DoS hazard: the two geographies are presented tasks since all the hubs are in free-get to situations, so the assailant can taint a hub and on account of Star-type geography, it isn’t permitted to arrive at the Gateway hub, and on account of Mesh-type geography, it can change its steering records. Trustworthiness: by applying HASH cryptography and the authenticator hub, it is ensured that the data conveyed is the data enrolled both in Star-type and Mesh-type geography. Along these lines, the point is to dodge Blackhole and Wormhole assaults by executing a hub committed to the verification of the remote sensor organize. At long last, hub limit: in a star type geography, the limit of hubs is restricted considering the impacts delivered in the Gateway.
Comparison of topologies and proposed cryptographic techniques
Comparison of topologies and proposed cryptographic techniques
The security executed to remote sensor systems applied in Smart Metering System must be in parity and as per the ongoing prerequisites. Because of this, the utilization of cryptography procedures, for example, MD5 and ECC for encryption have been proposed to expand the preparation, and thusly, the expansion of data transmission time isn’t counterproductive for these frameworks. The proposition of the confirmation node is primarily to keep noxious hubs from being remembered for the system and changing directing records or detaching hubs from their data transmission. At the end of the day, it tries to keep assaults from Blackhole and Wormhole. Future undertakings could incorporate the usage of a firewall inside this node with the goal that assaults stay in this node and doesn’t enter the system. On account of MESH-type geography, encryption methods could be saved and firewall conventions could be applied to every one of the switch nodes looking for a convention with registering necessities that ensures transmission time as per the necessary continuous.
This paper talks about the security inside the remote sensor arrange, however, it is essential to consider what occurs after the data arrives at the Gateway hub whatever the geography, which is the most ideal approach to guarantee security in the transmission of the Gateway to the cloud. Hilter kilter encryption can be thought of similarly, or the utilization of Blockchain where the diggers are foundations, for example, the proposed Trusted Authority. The practicality investigation of these security frameworks can be a future venture to guarantee the security of the whole data stream of a WSN.
