Vision based distance estimation from single RGB camera using field of view and magnification measurements –an AI based non triangulation technique for person distance estimation in surveillance areas

Abstract

Depth data from conventional cameras in monitoring fields provides a thorough assessment of human behavior. In this context, the depth of each viewpoint must be calculated using binocular stereo, which requires two cameras to retrieve 3D data. In networked surveillance environments, this drives excess energy and also provides extra infrastructure. We launched a new computational photographic technique for depth estimation using a single camera based on the ideas of perspective projection and lens magnification property. The person to camera distance (or depth) is obtained from understanding the focal length, field of view and magnification characteristics. Prior to finding distance, initially real height is estimated using Human body anthropometrics. These metrics are given as inputs to the Gradient-Boosting machine learning algorithm for estimating Real Height. And then magnification and Field of View measurements are extracted for each sample. The depth (or distance) is predicted on the basis of the geometrical relationship between field of view, magnification and camera at object distance. Using physical distance and height measurements taken in real time as ground truth, experimental validation is performed and it is inferred that with in 3m–7 m range, both in indoor and outdoor environments, the camera to person distance (Pred_dist) anticipated from field of view and magnification is 91% correlated with actual depth at a confidence point of 95% with RMSE of 0.579.

Keywords

Focal length magnification field of view sensor size perspective projection anthropometrics

1 Introduction

Motivation: Depth (or distance) information extracted from conventional cameras in surveillance areas provides comprehensive analysis of human actions. As depth data is a prerequisite for discriminating motion data of action sequences, several mechanisms of depth sensing such as stereoscopic vision, structured light, time of flight, and light field imaging are floated in the research community. One of the main advantages of a structured light imaging system is that it eliminates the correspondence problem [1] of stereo vision models, as disparity maps are calibrated from the distortions acquired in the projected images with reference to the known pattern of interest. Using Structured Light imaging, number of potential disparities could be minimized in smooth areas using depth discontinuities. But the limitation is grid lines width must be sufficiently high in order to obtain desired accuracy in depth values.

Microsoft’s latest version of kinect [2] circumvents the above problem by utilizing the time of flight principle. This theory unlike the previous version uses only single view point for computing depth with in a complete scene in a single shot. But while operating in dynamic scenes, especially where there is a motion, time of flight camera also requires multiple shots. In such circumstances, camera may shake in motion and induce a blur in depth map and as a result, motion artifacts get corrupted.

Compared with 2D images, 4D structures encoding angular information provide better solutions for vision and scene understanding, especially when dealing with video stabilization, object detection, tracking and recognition problems. Nevertheless, the light field imaging [3] also suffers from spatial resolution, poor reconstructed depth quality and large storage requirements.

Considering all the implications, selected for their practicality and action ability, we have built an idea of mapping a real world 3D object to 2D image plane of a sensor, i.e. perspective projection and relating the three fundamental parameters: Field of View, objective magnification and camera to object distance in the photograph. The work is accomplished in two phases. In the first phase, human anthropometrics are feeded as inputs to the machine learning algorithm in order to predict the real height of a person. Knowing the real height and image height of a person, Magnification (M), Field of View (FoV) and camera to object distance (or depth) measurements are taken from the relation obtained in the second phase. This model neither requires additional hardware nor special software to interact with the existing underlying surveillance infrastructure. Hence, it is affordable to be used both in indoor and outdoor environments.

1.1 Research contributions

A relation is established between Field of view, lens magnification and camera to object distance using the definitions of Field of view and magnification.

An Image Dataset is created for Anthropometric Based Real height Estimation

Anthropometric based feature extraction is introduced for real height estimation.

A standard error estimated for consideration in order to deal with perspective errors that arise in lens properties.

An error model is introduced to characterize the influence of Field of View and magnification parameters on camera to person distance (or depth) for a variable focal length and fixed sensor size.

State of Art is presented in Section 2; proposed work is presented in Section 3, Results & Interpretation including privileged Real height and Distance Prediction, Estimation of measurement errors, Method Validation are discussed in Section 4. Rest of the paper is concluded in Section 5.

2 State of art

It is well known that traditional 2D approaches are no longer suitable and also lack ability in achieving the required level of accuracy in 3D imaging. However, in today’s consumer landscape, three technologies namely [4] stereo triangulation, time of flight and structured light are available in market for 3D imaging.

The stereo triangulation technique in [5] the disparity map between the corresponding features of test and reference images seen by the left and right eyes respectively. In the literature of computer vision, disparity is treated as inverse relationship to depth, especially, D Scharstein et al. [6 –8], have evolved sequences of steps viz. matching cost computation, cost aggregation and disparity map computation. The matching cost [9, 10] is generally expressed as sum of squared Differences (SSD), Absolute Intensity Differences (AID) and correlation. Overall, the pixel to pixel correspondence is determined either with maximum correlation or with minimum SSD or SAD, and a disparity map is constructed. However, the construction of disparity map needs the knowledge of camera configuration with epipolar geometry constraint. Also, occlusions in the monitoring environment creates mismatch in pixel to pixel correspondence, which in turn leads to ambiguity in estimating the disparity map.

Jian Sun et al. [11] have addressed these problems by deriving a better solution through a Bayesian approach and also handled the uncertainties through defining prior constraints such as spatial smoothness and occlusions. However, these methods show poor results, when subjected to changes in illumination and contrast. Fradi et al. [12] have opined that, introducing bidirectional matching in occluded and low textured areas resolve image ambiguity problem.

In real time scenarios, correlation methods are employed to retain the smoothness in disparity map. High variation and distortion in information inside a window area leads to less matching accuracy in correlation based models. As a design alternative, the symbolic features derived from intensity images rather than image intensities themselves are considered to serve the purpose. It is evident from On-uma Pramote et al. [13] that, about 22–25% accuracy and speed up is observed after testing algorithm on Middlebury stereo image data set. But, the Feature based strategies fail in selecting an appropriate interpolation method for non-featured areas, where reconstruction of 3D surface is a prerequisite. For a better refinement of disparity map, Nadia Baha et al. [14] have trained a neural correlation network with training data comprising hundred pairs of matched and unmatched pixels, which is a burden to the resource constrained surveillance cameras. Even though, stereo vision systems work well in many environments, it is primitively limited by baseline distance.

Yujiao Chen [31] has used SSD correlation disparity method for depth extraction. In this process, initially SIFT feature points corresponding to the object region in both images are extracted. The corresponding matching feature point pertaining to the object is obtained for each feature point in one image using Sum of squared difference disparity estimation technique. The depth is computed knowing the disparity map, micro lens pitch and distance between image plane and micro lens array.

As highlighted in our literature, the matching points always induces pixel to pixel correspondence problem especially in occluded environments. Whenever there is a discontinuity at the boundaries, SSD correlation fails and as a result information flow in surveillance gets disrupted.

Kulkarni et al. [15] have highlighted these pitfalls and proposed a triangulation technique in his three tier camera sensor network design. This approach requires at least two visual sensor nodes for depth information retrieval which adds a burden to the infrastructure.

A single view point of ToF depth sensor [2, 16] offers a significant benefit in providing accurate depth measurements without being affected by ambient lightning, shadows and occlusions. Here the design itself provides illumination and also phase measurement is taken as criteria for depth measurement but not the intensity. As on Today CW-ToF (Continuous Wave ToF) sensors are dominating the consumer electronics and low end robotics space with certain limitations. As stated in [17] the design mainly suffers from three fundamental issues. One is the range which is limited by power consumption and eye safety considerations. Second is accuracy which is adversely affected by illumination affects. And finally the interference comes in to picture when they start operating in bulk amount in indoor and outdoor environments. Further in order to evaluate depth range accuracy, Plenoptic cameras [18 –20] design came in to existence. This camera uses not only the intensity of light in the scene but also the directional information of light distribution in scene for retrieving depth of the surface. But with poor reconstruction depth quality and large storage requirements, human action recognition in surveillance systems is impossible and hence the design is not recommended.

Owing to economic and technical feasibility addressed in the literature, we have proposed a theory by relating the three parameters namely Field of View, object distance and sensor size. This theory can be well established in all existing surveillance camera systems without any additional hardware and software. The entire theory can be embedded in to a single RGB camera providing depth (or distance) from a single view point.

3 Proposed work

3.1 Prerequisites

3.1.1 Focal Length:

Consider an object ‘O’ placed at a certain distance say, ’Obj_dist’, which is photographed by rectilinear convex lens with a focal length ‘f’ to form an image at a distance say, ‘Img_dist’ from the image plane as shown in Fig. 1.

Fig. 1

Mathematical Model of Lens.

From the thin lens equation [21] it is known that $\frac{1}{{Obj}_{dist}} + \frac{1}{{Img}_{dist}} = \frac{1}{f}$ (1)

In many imaging applications, always object distance from lens is considerably greater than image distance. Hence, the above equation can be approximated as $\frac{1}{{Img}_{dist}} \approx \frac{1}{f}$ (2)

3.1.2 Field of view

The angle of view always remains constant for a given sensor size ‘dim’ and lens of fixed focal length ‘f’ but the coverage distance of lens (termed as Field of View ) varies with the distance of the object being filmed as illustrated in Fig. 2:

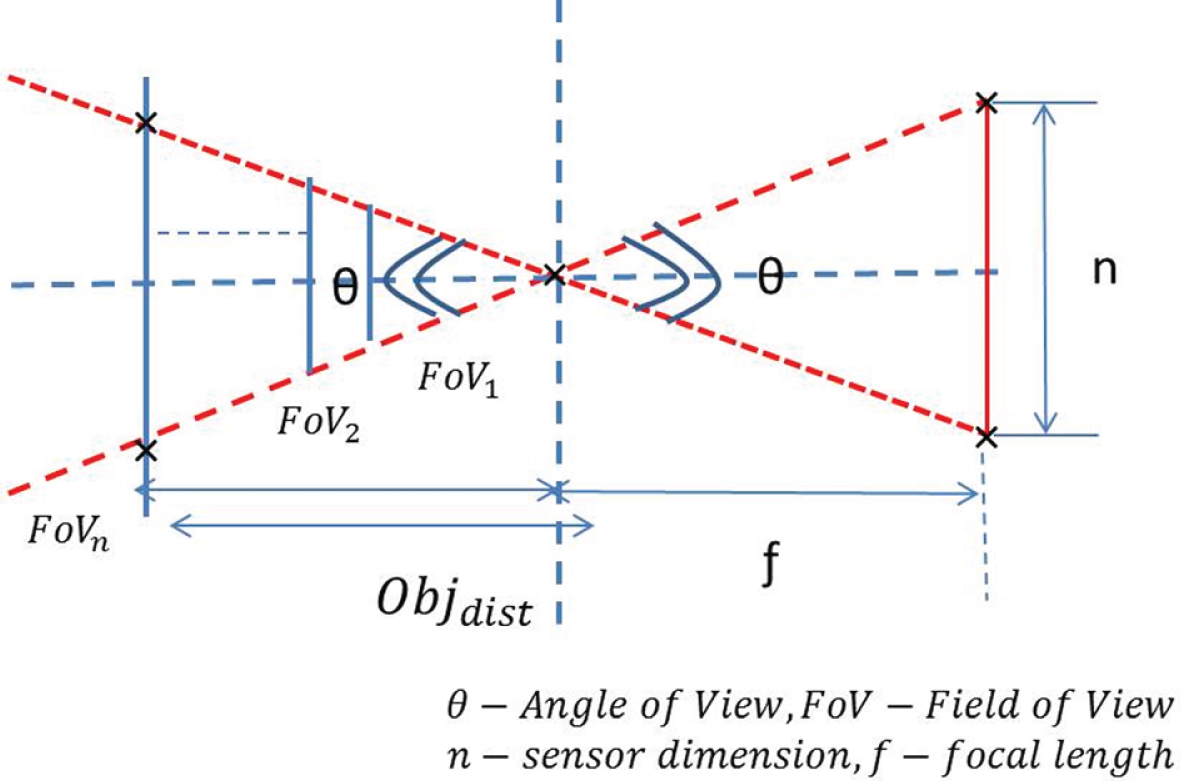

Fig. 2

Relationship between Field of View, Sensor size and Object distance.

3.1.3 Sensor size

For conventional cameras, the sensor is film plane. The film plane is a place where an image is formed. But in case of digital cameras, it is an imaging sensor usually a CCD array. The sensor size refers to physical dimensions (i.e. width and height). In our experimental set up, we used Nikon D5300 camera with 23.5×15.6 mm Full frame CMOS sensor. Here 23.5 and 15.6 mm are refereed as physical dimensions (i.e. width (m) and height (n)) of sensor.

As our primary objective is to estimate the distance of the Person from lens center(i.e. camera to object distance), it can be derived from the relation involving focal length, Field of View and sensor size as shown in Fig. 2. $Focal length \times Field of View = {Obj}_{dist} \times sensor size$ (3)

3.1.4 Objective magnification

In general, an increase in size of object image, ‘Img_ht’ relative to true size, ‘Real_ht’ of an object is seen, when lens project the person on to 2D image plane. This is termed as Objective Magnification ‘m’. $Objective Magnification (m) = \frac{{Img}_{ht}}{{Real}_{ht}}$ (4)

3.1.5 Relating total magnification and field of view

In the conventional camera systems, lenses are structured [22] in such a way that always relative consistent person image size is seen on camera sensor (or) image plane. Hence higher magnifications are seen at the smaller Field of View (FoV) measurement. This inverse relationship says, the parameter Field of View (FoV) can be obtained from the magnification measurement for a given sensor size (dim). $\begin{matrix} magnification (m) \propto \frac{1}{FoV} \\ magnification (m) = \dim \times \frac{1}{FoV} \\ FoV = \frac{\dim}{m} \\ \dim : sensorsize \end{matrix}$ (5)

By substituting Equation (5) in Equation (3), we obtain ${Obj}_{dist} = \frac{f \times \dim}{m}$ (6)

By substituting Equation (4) in Equation (6), we obtain ${Obj}_{dist} = \frac{f \times \dim}{{Img}_{ht} / {Real}_{ht}}$ (7)

3.2 Creating image dataset for anthropometric based real height estimation

The study aims at measuring the depth of an person using single camera by understanding the Field of View and magnification parameters for a given sensor size and lens of variable focal length. In this perspective, a DSLR Nikon camera with 18–55 mm zoom lens(known as conventional lenses with variable angle of View) is used for focusing the object at different working distances in order to obtain corresponding Field of Views(FoV’s).

In order to regulate the amount of light entering the camera F_stop is used. And at the same time some fixed time duration is required to keep the shutter open till sensor receives the required amount of light.

On the other hand, ISO settings are adjusted to obtain better quality picture in different light conditions. A perfect combination of F_stop, shutter speed and ISO is chosen for better exposure. F_stop, Shutterm speed and ISO, parameters are tuned in desired proportions for attaining exact light on sensor. The device and its exposure are mentioned in Tables 1 and 2. The experiments are carried out both indoor and outdoor on subjects (say person) in standing posture and with frontal exposure.

Table 1
Experimental Device Details for Photogrammetry Experiment

Devices Values

Camera Model Nikon D5300

Image sensor 23.5×15.6 mm CMOS sensor

Image size(pixels) 6000×4000

Pixel size 3.9 micron

Lenses Nikon AF-S Nikkor 18–55mm

Devices	Values
Camera Model	Nikon D5300
Image sensor	23.5×15.6 mm CMOS sensor
Image size(pixels)	6000×4000
Pixel size	3.9 micron
Lenses	Nikon AF-S Nikkor 18–55mm

Table 2

Parameter influencing the Camera Exposure

Exposure settings	Values
ISO	2000
Aperture(F_stop)	f / 16
Exposure time(shutter speed)	1 / 5seconds

As shown in Fig. 3, starting at 381 cm distance from camera axial line, person keep moving away from camera until 681 cm is reached. A total of 506 photographs are shot continuously on standing postures with in 30 cm interval by varying the focal length in indoor environment. And then subsequently for our outdoor visual data collection, a total of 450 photographs are shot continuously on 50 persons with in 10 mts range using 50 mm Nikkor prime lens. All these images are preprocessed and are used for real height and distance prediction.

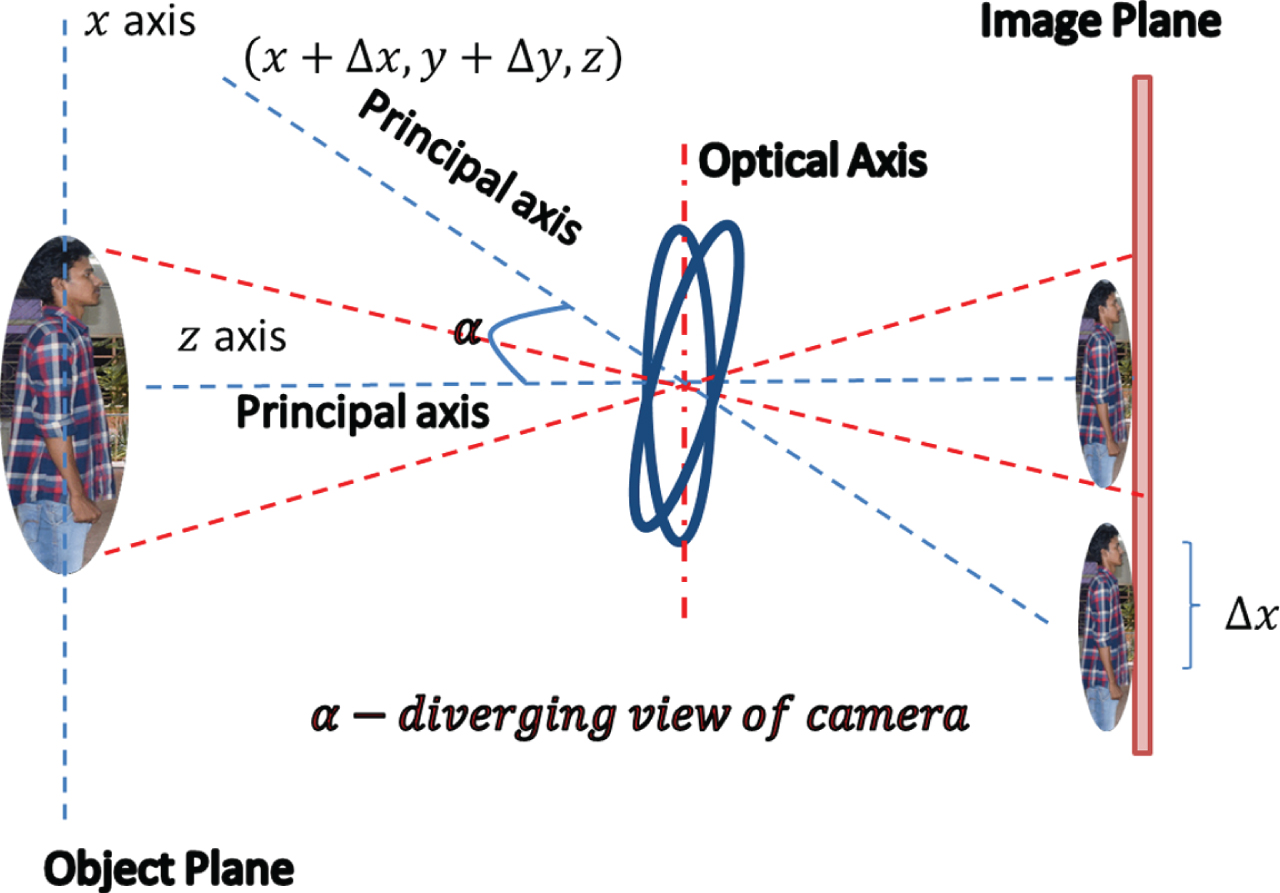

Fig. 3

Standing Posture of Person along Camera Axial line.

As mentioned in [23] we invited 33 distinct subjects (22 males and 11 females) for our data collection and captured 506 image samples with a fixed camera view point as shown in Fig. 3 at different focal lengths using Nikon D5300 DSLR with Nikon AF-S Nikkor 18–55 mm under the supervision of SICA (Southern Indian Cinematographer Association) and details are discussed in Section 3.1. In order to show the variation and diversity of the data set used in our experiment(s), the age of subjects is considered to range between six years and 35 years and consequently between 110 cm and 190 cm in height. A few samples of subjects with variation in gender, age and height are depicted in Table 3.

Table 3

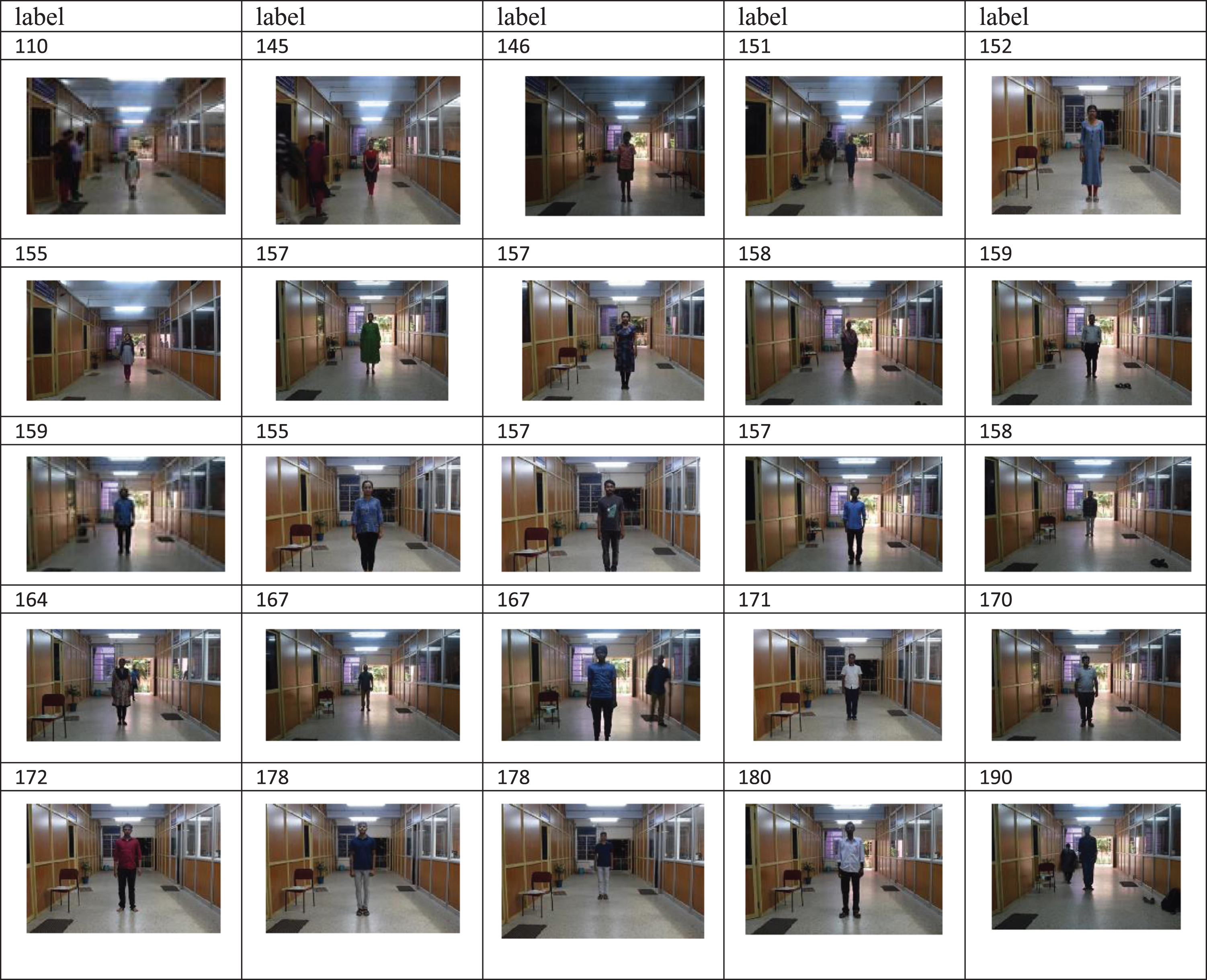

Sample photographs of subject(s) taken at different working distances considering the age, gender and height variations

Similarly We invited 50 distinct subjects(say persons) for our outdoor visual data collection and captured 450 images(9 classes with 50 instances each) using a DSLR Nikon camera with 18–55 mm zoom lens(known as conventional lenses with variable angle of View). For images captured in daylight, mid of the day and in moon light, illumination effects are also considered. A few samples of subjects taken under different lightning condition throughout the day are depicted in Table 4.

Table 4

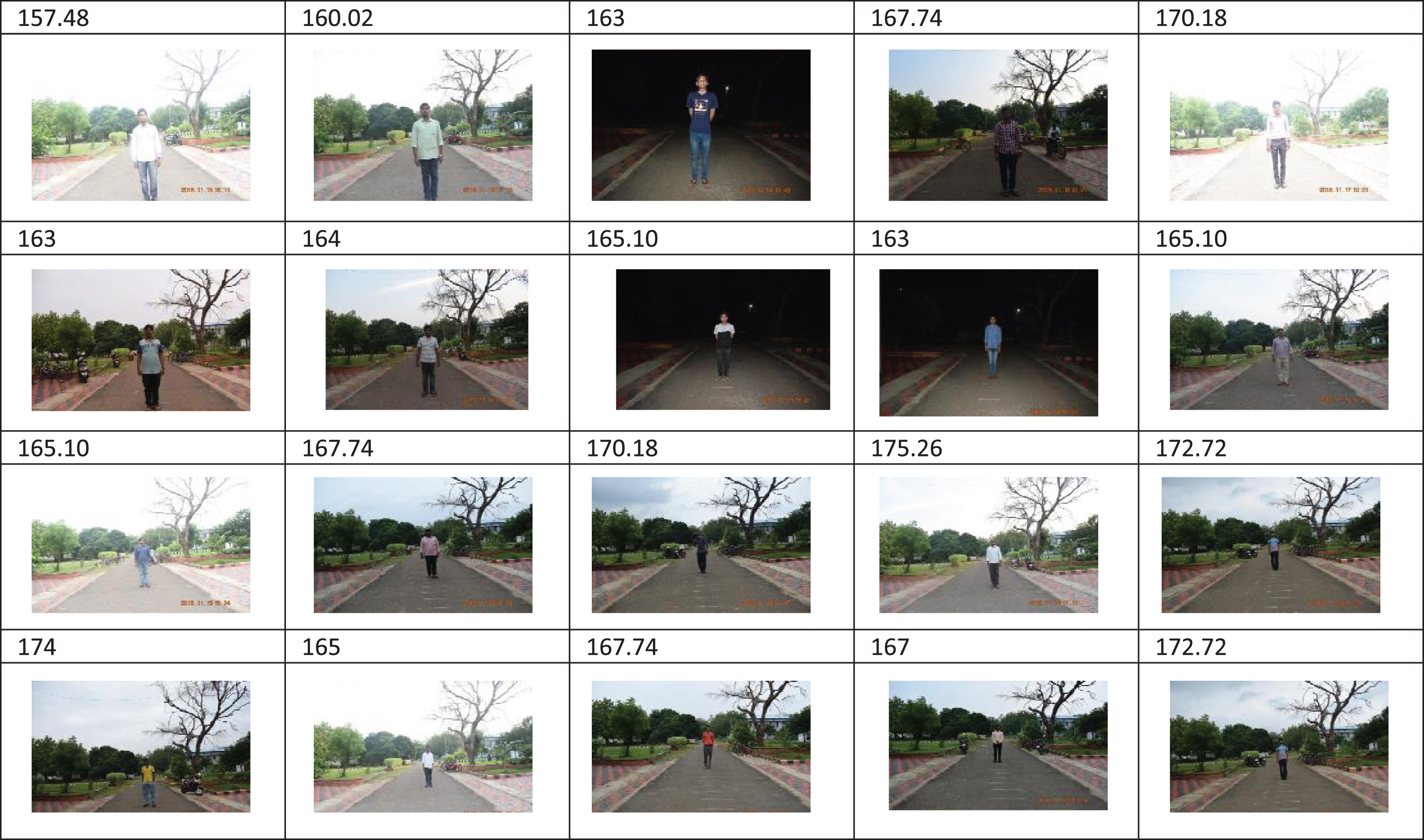

Sample photographs of subject(s) taken at different working distances in outdoor environment under different lightning conditions

For removal of blur [24, 25] in image due to linear motion or unfocussed optics, filtering operation is applied. As it is known that Wiener filters are suitable for reconstruction of original from the noisy image and hence it is chosen for image filtering operation. Finally dilation and erosion operations are applied for removal of image imperfections.

As mentioned in our previous work [23] initially we have considered all nine anthropometrics namely 1. stature (hairline to feet) 2. Acromial length (from base of feet to acromion) 3. neck height (from base of feet to and the trapezius) 4. head length(from stomion to the top of the hairline) 5. centerof stomion to the top of hair line, 6. forehead to chin distance(lowest point of hairline to chin distance).7. Sellion to chin distance 8. biocular distance (distance between outer corner of eyes) 9. bitragion distance(distance between left and right regions) for real height estimation. Anthropometric statistics obtained for 22 males and 11 females is analyzed in terms of mean, standard deviation measures and is compared with seminal anthropometric statistical survey in [26, 27]. The details are given in Table 5.

Table 5

Anthropometric statistics (in cms) for Males and Females

S.no	Reference document	Category	Number of samples	Mean	Standard deviation (SD)	Standard error (S.E)
1	[28] with data set of size of 108	M	20	175.5	6.68	4.47
2	proposed method with data set of size 264	M	22	170.23–171.39	4.211	0.05–0.29
3	[28] with data set of size of 108	F	7	162.9	6.36	2.403
4	proposed method with data set of size 264	F	11	146.96–150.97	2.04–3.86	0.22–0.38

On evaluating the performance of samples in indoor environment, the experiment is further extended to outdoor environment. Including indoor and outdoor environment around 956photographs of different person(s) in upright standing pose without slouching or leaning are considered for real height prediction. Among nine anthropometrics, only six metrics namely Body_height (head to foot distance), Face_height (face to chin distance), Neck_height, Mouth_to_Forehead_Distance, Eye_to_Chin_Distance and binocular distance are used for real height estimation.

3.3 Depth estimation using field of view and magnification measurements

3.3.1 Feature Extraction for Real height prediction

Given Photograph as an input, initially haar features are used for extracting the frontal face, full body, and mouth and eye regions.

As shown in Algorithm 1, all multi scale possible instances are stored in tuples of 4 in ‘rects’. Each tuples is (x,y,w,h), where (x,y) is left top most point, w = width and h = height. Here we defined three parameters namely cascade of item (body/face/mouth/eye) to be detected. Test image in which item to be detected and a temp variable which decides the mode of operation. For temp = 1, best possible body/face coordinates are selected. For temp = 2, best possible mouth and for temp = 3, best possible eyes coordinates are extracted.

Algorithm 1: Extract_Anthropomertric_Measurements
Input : Image(s) and Dimension
Output : Body_height, Face_height, Neck_height, Mouth_to_Forehead_Distance, Eye_to_Chin_ Distance,
Binocular_distance
Initialize Params :
1. Load the XML files of pre trained cascade classifiers of frontal face, full body, mouth and eye in to the home
directory and enable the face detection.
Steps:
For I in inputs:
1 Read TestImg
2 gray = convertToGray(TestImg)
3 body = detect(haar_cascade_body, TestImg) top_left
=max_loc
4 Body_height = body
5 face = detect(haar_cascade_face, TestImg)
6 Face_height = face
7 Neck height = body_height-face_height
8 mouth = detect Outer(haar_cascade_mouth, TestImg,
pep = 0)
9 Mouth_to_Forehead_Distance = mouth
10 eye1 = detect Outer(haar_cascade_eye, TestImg, ∖∖
pep = 1)
11 Eye_to_Chin_Distance = face-eye
12 eye2 = detect Outer(haar_cascade_eye, TestImg, ∖∖
pep = 1)
13 Binocular_Distance = eye2
end – For

If test Image contains body/face the height of the corresponding bounding box itself taken as maximum length (Body_height/Face_height) as illustrated in Algorithm 2. The difference of Body_height and Face_height is taken as Neck_height.

If test image contains face, store all the possible instances in tuples of 4 (x,y,w,h) in ‘rects’ variable. Crop and store the best fitting face as illustrated in Algorithm 3 and then best possible mouth (max y + h) is extracted. The max y + h represent mouth to forehead distance. Similarly the top most point (min y) gives best possible eye. The difference of max y + h and min y gives Eye_to_Chin_Distance.

In order to calculate the Binocular_distance, the width of the eyes are to be determined. For this purpose as shown in Algorithm 4, from the test image, eyes are detected and then left most point on the left eye (min x) and rightmost point of the right eye (max x + w) are extracted and then their difference is taken.

Algorithm 2: detect(haar_cascade_item, TestImg, temp)
Input : Cascade of the item (Body/face/mouth/eye) to be detected, TestImg, temp
Output : Image, Body/mouth coordinates_Distance, Binocular_distance
Initialize Params :
1. maxi = 0
2. maxY = 0
3. minY = 8000.
Declaration(s) : temp
Steps:
1. detect all the Multi scale possible chances of item and store them ∖∖ in tuples of 4 in ‘rects’
//each tuple is (x,y,w,h),(x,y) left top most point, w = width,
h = height
2. For-each (x,y,w,h) in ‘rects’
3. if(temp = = 1):
4. calculate the max length(maxi)
//BEST POSSIBLE BODY, FACE
5. Else if (temp = = 2):
6. Calculate the bottom most point(max y + h)
//BEST POSSIBLE MOUTH
7. Else if(temp = = 3):
8. Calculate the top most point(minY)
//BEST POSSIBLE EYE
9. End-If
10. EndFor

Algorithm 3: detectOuter(haar_cascade_item in face, TestImg, pep)
Input : Cascade of the item (face) to be detected, TestImg, temp
Output : mouth/eye/ coordinates
Declaration(s) : pep, op
Steps:
1. make image copy
2. get gray image
3. detect all the Multi scale possible chances of item and store them in tuples of 4 in ‘rects’
//each tuple is (x,y,w,h),(x,y) left top most point, w = width,
h = height
4. For-each (x,y,w,h) in ‘rects’:
5. select the best fitting face
6. EndFor
7. crop and store the best fitting face
8. if (pep = = 0):
9. op = detect(haar∖textunderscore cascade∖textunderscore item, TestImg, temp = 2)
//for mouth
10. else-if (pep = = 1):
11. op = detect(haar_cascade_item, TestImg, temp = 3)
//for eye
12. else :
13. op = detectHorizontal(haar_cascade_item, crop)

Following the procedure illustrated in Algorithms 2–4, for about 956 images all six anthropometric namely Body_height, Face_height, Neck_height, Mouth_to_Forehead_Distance, Eye_to_Chin_Distance, Binocular_distance are extracted. Few of them are listed in Tables 6 and 7.

Algorithm 4: detectHorizontal(haar_cascade_item in eye, TestImg)
Input : Cascade of the item (face) to be detected, TestImg, temp
Output : Image, Diff(left ∖textunderscore eye, right ∖textunderscore eye)
Initialize Params :
1. lx = 10000
2. rx = 0.
Steps:
1. make image copy
2. get gray image
3. detect all the Multi scale possible chances of item and store
them in tuples of 4 in ‘rects’
//each tuple is (x,y,w,h),(x,y) left top most point, w = width,
h = height
4. For-each (x,y,w,h) in ‘rects’:
5. calculate left point of the left_eye (minX)
6. calculate rightmost point of the right∖textunderscore ∖∖
eye (max x + w)
7. EndFor

Table 6
Extraction of anthropometrics from samples taken in indoor environment

S No Real _ht D1 D2 D3 D4 D5 D6

1 110 0.3389 0.0534 0.2800 0.0415 0.0252 0.0229

2 146 0.6696 0.1077 0.5728 0.0745 0.0471 0.0539

3 152 0.8899 0.0968 0.7818 0.0851 0.0512 0.0532

4 155 0.5479 0.0775 0.4572 0.0593 0.0340 0.0317

5 157 0.5266 0.0624 0.4640 0.0511 0.0280 0.0291

6 158.49 0.9006 0.1228 0.7468 0.0947 0.0616 0.0602

7 161 1.2010 0.1687 1.0278 0.1307 0.0732 0.0754

8 163 0.9782 0.1298 0.8356 0.1001 0.0547 0.0596

9 163 0.6545 0.0883 0.5707 0.0674 0.0407 0.0369

10 167 1.1439 0.1435 0.9547 0.1142 0.0702 0.0695

11 168 1.0168 0.1370 0.8629 0.1075 0.0702 0.0602

12 169 0.8216 0.1049 0.6987 0.0844 0.0627 0.0451

13 169 0.6537 0.0904 0.5504 0.0760 0.0470 0.0376

14 170.68 0.9828 0.1435 0.8335 0.1086 0.0603 0.0632

15 170 1.0531 0.1191 0.9166 0.0908 0.0540 0.0518

16 171 0.7376 0.0889 0.6380 0.0695 0.0450 0.0365

17 171 0.7014 0.0983 0.5912 0.0837 0.0386 0.0383

18 172 1.0305 0.1449 0.8783 0.1179 0.0668 0.0576

19 173.73 0.6288 0.0890 0.5332 0.0689 0.0400 0.0340

20 174 1.0396 0.1327 0.8896 0.0951 0.0638 0.0560

21 177.69 0.8443 0.1069 0.7301 0.0894 0.0477 0.0454

22 178 1.0305 0.1449 0.8783 0.1179 0.0668 0.0576

23 179.4 0.6638 0.0796 0.5582 0.0638 0.0365 0.0568

24 180 0.6877 0.0983 0.5854 0.0789 0.0435 0.0362

25 184 1.1689 0.1564 1.0131 0.1270 0.0681 0.0633

S No	Real _ht	D1	D2	D3	D4	D5	D6
1	110	0.3389	0.0534	0.2800	0.0415	0.0252	0.0229
2	146	0.6696	0.1077	0.5728	0.0745	0.0471	0.0539
3	152	0.8899	0.0968	0.7818	0.0851	0.0512	0.0532
4	155	0.5479	0.0775	0.4572	0.0593	0.0340	0.0317
5	157	0.5266	0.0624	0.4640	0.0511	0.0280	0.0291
6	158.49	0.9006	0.1228	0.7468	0.0947	0.0616	0.0602
7	161	1.2010	0.1687	1.0278	0.1307	0.0732	0.0754
8	163	0.9782	0.1298	0.8356	0.1001	0.0547	0.0596
9	163	0.6545	0.0883	0.5707	0.0674	0.0407	0.0369
10	167	1.1439	0.1435	0.9547	0.1142	0.0702	0.0695
11	168	1.0168	0.1370	0.8629	0.1075	0.0702	0.0602
12	169	0.8216	0.1049	0.6987	0.0844	0.0627	0.0451
13	169	0.6537	0.0904	0.5504	0.0760	0.0470	0.0376
14	170.68	0.9828	0.1435	0.8335	0.1086	0.0603	0.0632
15	170	1.0531	0.1191	0.9166	0.0908	0.0540	0.0518
16	171	0.7376	0.0889	0.6380	0.0695	0.0450	0.0365
17	171	0.7014	0.0983	0.5912	0.0837	0.0386	0.0383
18	172	1.0305	0.1449	0.8783	0.1179	0.0668	0.0576
19	173.73	0.6288	0.0890	0.5332	0.0689	0.0400	0.0340
20	174	1.0396	0.1327	0.8896	0.0951	0.0638	0.0560
21	177.69	0.8443	0.1069	0.7301	0.0894	0.0477	0.0454
22	178	1.0305	0.1449	0.8783	0.1179	0.0668	0.0576
23	179.4	0.6638	0.0796	0.5582	0.0638	0.0365	0.0568
24	180	0.6877	0.0983	0.5854	0.0789	0.0435	0.0362
25	184	1.1689	0.1564	1.0131	0.1270	0.0681	0.0633

D1: Body_height D2: Face_height D3: Neck_height D4: Mouth_to_Forehead_Distance D5: Eye_to_Chin_Distance D6: Binocular_distance.

Table 7

Extraction of anthropometrics from samples taken in outdoor environment

S No	Real _ht	D1	D2	D3	D4	D5	D6
1	157.48	0.5234	0.0634	0.4840	0.0515	0.0252	0.0279
2	160.02	1.1924	0.1577	1.0168	0.1274	0.0741	0.0693
3	163	0.9799	0.1281	0.9851	0.1151	0.0512	0.0532
4	167.74	1.1479	0.1575	1.1572	0.1493	0.0840	0.1217
5	170.18	0.9266	0.1124	1.1140	0.1211	0.0480	0.1191
6	163	0.9006	0.1278	0.7468	0.0947	0.0416	0.0323
7	164	1.2020	0.1687	1.0278	0.1307	0.0732	0.0754
8	165.10	0.9782	0.1298	0.8356	0.1001	0.0547	0.0596
9	163	0.6545	0.0883	0.5707	0.0674	0.0407	0.0369
10	165.10	1.1439	0.1435	1.1372	0.1239	0.0702	0.0957
11	165.10	1.1068	0.1370	1.1629	0.1075	0.0672	0.0620
12	167.74	0.1268	0.1490	1.1867	0.1484	0.0740	0.1454
13	170.18	0.6537	0.0940	1.0956	0.0960	0.0470	0.1186
14	175.26	0.6373	0.1353	0.8335	0.1086	0.0503	0.1362
15	172.72	0.7819	0.1238	0.9737	0.1148	0.0492	0.1276
16	174	0.7497	0.0889	0.6380	0.0695	0.0450	0.0365
17	165	1.0896	0.1492	0.9317	0.1154	0.0639	0.0675
18	167.74	0.1362	0.1494	1.1783	0.1479	0.0766	0.1576
19	167	0.1315	0.1492	1.1825	0.1481	0.057	0.1530
20	172.72	0.7367	0.1327	0.9788	0.1109	0.0468	0.01243

D1: Body_height D2: Face_height D3: Neck_height D4: Mouth_to_Forehead_Distance D5: Eye_to_ Chin_Distance D6: Binocular_distance.

4 Results and interpretation

4.1 Privileged real height and distance prediction

A Gradient boosting Regressor(GBR) is trained with six anthropometrics along with Act_ht, D_i=0to5 as mentioned in Section 3.5 in order to obtain Pred_ht. The Real height Pred_ht. prediction rate is evaluated using RMSE and pearson’s correlation coefficient(r)for various proportions of test and train samples. Once Real height is predicted, subsequently for the corresponding test and train samples, Pred_{Obj
_dist} is obtained from the Equation (9). The Algorithm 5 is as follows.

Algorithm 5: Predict_Height_Distance
Input : Act _ ht, D_i=0to5, focal length, sensor_size, pixel_size
Output : Pred_ht(cms),Pred_dist(cms)
Initialize Params :
Test_size = 0.2, iteration(k) = 200, batch_size = 956, hiddenlayer_size = 200, activaltion = relu, learning rate_init = .001, early_stopping = true
Steps:
1. X ←Extract_metrics_from_Dataset(D_i=0to5)
2. Y ← Extract_Label from_Dataset(ht_i=110to190)
//splitting of data
3.Train_X, Test_X,Train_y, Test_y←split(X,y,test_size = 0.3)
//Training of model
4.For i = 1 to K do
5. grb ← GBR model trained onTrain_XTest_y)
6. EndFor
7. predictions ←predict(Test_X)
8. Evaluate RMSE,r
9. vir ← pixel_size
10. h,w ←sensor_size
11.Act_ht ← Test_y
12.Pred_ht ← predictions
13. M ←D_i×vir
14. H_FoV ← h/M
15. V_ FoV ←w/M
16.Pred_dist ←f / M

The magnification and the Field of View measurements are calculated from Equations (5) and (6). The camera to object distance is obtained from Equation (8). The results are tabulated as shown in Tables 8 –11.

Table 8
Predicted Height and Distance Measurements of Persons in Indoor Environment with respect obtained Magnification and Field of View Measurements

Act _ ht Pred _ ht M FoV f Act _{Obj
_dist} Pred _{Obj
_dist} Figure

110 113.37 0.002989 519.57 1.8 591 602.07

146 156.83 0.004269 365.36 2.1 441 491.83

152 164.93 0.005395 289.12 2.7 441 500.40

155 155.90 0.003510 444.33 1.8 531 512.68

157 153.57 0.003429 454.93 2.4 681 699.89

158.49 159.80 0.005636 276.77 2.4 381 425.81

161 169.92 0.007068 220.69 2.9 381 410.27

163 169.81 0.005761 270.78 2.2 381 381.87

163 170.08 0.003848 405.33 2.2 561 571.62

167 171.96 0.006618 235.70 2.9 411 438.16

168 157.86 0.003364 463.63 2.3 681 683.55

169 167.03 0.004865 320.65 2.5 531 513.87

169 165.07 0.003960 393.91 2.5 651 631.26

Act _ ht	Pred _ ht	M	FoV	f	Act _{Obj _dist}	Pred _{Obj _dist}
110	113.37	0.002989	519.57	1.8	591	602.07
146	156.83	0.004269	365.36	2.1	441	491.83
152	164.93	0.005395	289.12	2.7	441	500.40
155	155.90	0.003510	444.33	1.8	531	512.68
157	153.57	0.003429	454.93	2.4	681	699.89
158.49	159.80	0.005636	276.77	2.4	381	425.81
161	169.92	0.007068	220.69	2.9	381	410.27
163	169.81	0.005761	270.78	2.2	381	381.87
163	170.08	0.003848	405.33	2.2	561	571.62
167	171.96	0.006618	235.70	2.9	411	438.16
168	157.86	0.003364	463.63	2.3	681	683.55
169	167.03	0.004865	320.65	2.5	531	513.87
169	165.07	0.003960	393.91	2.5	651	631.26

Table 9

Predicted Height and Distance Measurements of Persons in Indoor Environment with respect obtained Magnification and Field of View Measurements

Act _ht	Pred _ht	M	FoV	ƒ	Act _{Obj _dist}	Pred _{Obj _dist}	Figure
170.68	165.35	0.005943	262.46	2.3	381	386.96
170	171.57	0.006138	254.14	3.4	531	553.90
171	168.80	0.004	356.96	2.9	651	663.59
171	172.98	0.004337	384.73	2.4	621	591.89
172	169.03	0.006096	255.87	2.8	471	459.26
173.73	163.51	0.003845	405.63	2.4	621	624.05
174	172.86	0.006029	258.71	2.9	471	480.94
177.69	170.58	0.004949	315.15	2.4	501	484.85
178	170.22	0.006002	259.89	2.3	381	383.17
179.8	166.11	0.003996	390.38	2.4	591	600.58
180	173.13	0.003972	392.70	2.1	561	528.64
184	170.66	0.006849	227.75	2.4	381	350.38

Table 10

Predicted Height and Distance Measurements of Persons in Outdoor Environment with respect obtained Magnification and Field of View Measurements

Act _ht	Pred _ht	M	FoV	ƒ	Act _{Obj _dist}	Pred _{Obj _dist}	Figure
157.48	153.14	0.006257	375.56	1.8	300	287.66
160.02	167.92	0.00602	390.36	1.8	300	299
163	168.24	0.007114	330.32	1.8	300	253.01
167.74	164.11	0.005459	430.50	1.8	350	329.74
170.18	171.57	0.004437	529.62	1.8	350	405.66
s163	169.56	0.005327	441.15	1.8	400	337.90
164	167	0.004794	490.15	1.8	400	375.43
165.10	167	0.004538	517.90	1.8	400	396.69
163	157.16	0.003809	616.93	1.8	500	472.54
165.1	168.33	0.003906	601.59	1.8	500	460.79
165.1	161.23	0.003626	648.10	1.8	550	496.42
167.74	171.09	0.003387	693.75	1.8	550	531.39
170.18	171	0.002774	847.15	1.8	600	648.88

Table 11

Predicted Height and Distance Measurements of Persons in Outdoor Environment with respect obtained Magnification and Field of View Measurements

Act _ht	Pred _ht	M	FoV	ƒ	Act _{Obj _dist}	Pred _{Obj _dist}	Figure
175.26	172.34	0.00308	763.01	1.8	600	584.43
172.72	169.05	0.002614	899.05	1.8	650	688.64
174	172.87	0.002822	832.65	1.8	650	637.77
165	166.1	0.002658	884.15	1.8	700	677.22
167.74	164.23	0.002619	897.18	1.8	700	687.20
167	166.98	0.002695	871.89	1.8	700	667.83
172.72	163.14	0.002639	890.41	1.8	700	682.02

4.2 Estimation of measurement errors

In general, perspective errors [29] are seen compressed or expanded around the center of an image when captured by the camera using conventional lenses. As shown in Fig. 4, due to variation in the diverging view of camera ‘α’ and the lateral displacement of an object from the point where it is placed, lens is subjected to perspective errors.

Fig. 4

Perspective Errors caused by out of plane displacement.

As a result, some significant changes in lens magnification properties are seen. This in turn affects the accuracy in predicted object distance measurement as shown in Tables 8 –11. In order to deal with the accuracy of error prediction in estimated distance from actual, it is essential to include the error in observed measurement.

From Fig. 4 the Perspective Error (Δx) is [30] computed as follows: $Perspective Error (Δ x) = Δ z \times \tan α$ (8)Δz –out of plane displacement.

The camera to object distance estimated Pred_{Obj
_dist}cm)) is corrected with a factor ±Δx $\begin{matrix} {Pred}_{{Obj}_{dist}} Corrected \\ = {Pred}_{{Obj}_{dist}} + Δ x if {Pred}_{{Obj}_{dist}} < {Act}_{{Obj}_{dist}} \\ = {Pred}_{{Obj}_{dist}} - Δ x if {Pred}_{{Obj}_{dist}} > {Act}_{{Obj}_{dist}} \end{matrix}$ (9)

Where Δx=σ √ n

n: number of samples = 956

The data obtained from Tables 8 –11 fits the multiple linear regression models forming the relation between dependent variable Pred_{Obj
_dist} (cm) and independent variables. ${Pred}_{{Obj}_{dist}} = p_{1} \times FoV + p_{2} \times m + p_{3} \times f + c$ (10)

Where Pred_{Obj
_dist} = is an observed score on the dependent variable, c is the intercept, p₁ and p₂ are slopes, FoV, m and f are observed scores on the independent variables.

4.2.1 Method validation

For Validation purpose we have taken a statistical Analysis tool named SPSS (Statistical Package for Social Sciences) for consideration for consideration. Initially we made an attempt to assess the goodness-of-fit for linear regression analysis using R-squared and Adjusted R-squared. In order to figure out whether experimental results are significant or not, we have undergone Analysis of Variance (ANOVA) test. The F statistic is used in conjunction with the p value in order to determine the significance of overall results.

The Table 12 provides the R, R², Adj R² and standard error of estimate (Δx) determines, how well a regression model fits the data.

Table 12
Determining how well Model fits: Model Summary^b

R R ² AdjR ² Δx

0.992^a 0.984 0.983 13.3396

R	R ²	AdjR ²	Δx
0.992^a	0.984	0.983	13.3396

a: Predictors(constant), FoV, objective magnification(m), focal length (f). b: Dependent variables (Pred_{Obj
_dist}).

The R column represents multiple correlation coefficients, which is considered to be the measure quality of prediction of dependent variable. A value of 0.992 indicates good level of prediction. The R² column represents proportion of variance in dependent variable. We can see from the value of 0.992 that our independent variables explain 99.2% of the variability of our dependent variable.

With reference to F-Table, the critical of F-ratio is 2.79. The obtained F-ratio from Table 13 is 1006.237 which are larger than above. Hence we conclude the obtained F-ratio likely to occur by chance with p<0.05. And also the output shows that the independent variables statistically significantly predict the dependent variable (Pred_{Obj
_dist}), F(3, 49) = 1006.237, p<0.05.

Table 13

ANOVA Table-Statistical Significance^a

Model	SS	df	MS	F	Sig
Regression	482585.603	3	160861.868	1006.237	0.000^b
Residual	7833.371	49	159.865
Total	490418.974	52

Predictors(constant), FoV, objective magnification(m), focal length(f). b: Dependent variables(Pred_{Obj
_dist}). SS- sum of squares. MS-mean square.

As shown in ‘Sig’ column of Table 14 all independent variables coefficients are significantly different from 0 (zero), and p<0.05 concludes that the coefficients are significantly different to 0 (zero). Hence from Table 14 general forms of an equation to predict distance from FoV, m and f is expressed as:

$\begin{matrix} {Pred}_{{Obj}_{dist}} = 200.354 \times f + 0.556 \times FoV \\ - 45972.428 \times m - 28.769 \end{matrix}$ (11)

Table 14

Estimated Model Coefficients-Statistical significance of Independent variables

Model	B	Std.Err	Beta	t	Sig
(Constant)	–28.769	75.095	–3.83	0.703
Objective	–45972.428	7204.566	–0.527	–6.381	0.000
magnification
(m)
Field of View	0.556	0.072	0.654	7.736	0.000
(FoV)
Focal length (f)	200.354	6.142	0.708	32.623	0.000

B, Std. Error: Standardized Coefficients, Beta: standardized coefficients.

Putting up all together, a multiple regression has been computed to predict the Estimated Pred_{Obj
_dist} from magnification, Field of View and focal length. These variables statistically significantly predicted the Pred_{Obj
_dist}, F(3, 49) = 1006.237, p < 0.05, R²= 0.984. All four variables added statistically significantly to the prediction, p < 0.05.

4.2.2 State of art comparison

It is found from Table 15 that our model is equally performing well with Yujiao Chen et al. [31] C.Q. Farias et al. [32] and Said Pertuz et al. [33] Palmieri, L et al. [34] depth estimation techniques by showing high consistency among the predicted (estimated) Pred_{Obj
_dist} and reference (actual) distance values (Act_{Obj
_dist} with a Pearson’s correlation coefficient of r = 0.81.

Table 15
State of Art comparison with reference to recent existing methods in terms of Experimental Set up and Techniques

Sno RefDoc Experimental Set up Technique Limitation/Merits

1 Chen, Y (2016) et al. [31] Considerations: •central plane of an object is taken •Micro lens array •elemental image array captured from plenoptic camera •SSD for computing disparity •Calculating micro lens pitch Distance between image plane and micro lens array, $D = \frac{(p \times g)}{d}$ •Using two lens (micro lens and ordinary lens) for capturing 2 d image adds burden to surveillance infrastructure. •And also there is a necessity of using two images for computing depth from disparity

2 C Q Farias (2016) et al. [32] Considerations: Background Subtraction:

•Parallel stereo system mount setup with two identical cameras for determining position (center of mass) in both cameras. •Stereo vision imaging incorporating triangulation for depth computation adds burden to surveillance infrastructure in

•Optical table for calibration •Compute the disparity between the two points. terms of energy consumption and cost

•Apply the triangulation method for distance measurement

3 Said Pertuz (2018) Considerations: Light Field Refocusing

et al. [33], Palmieri, L (2019) et al. [34] •Target, main lens •Micro lens array, Sensor •Find the pixel pitch (μ) •Finding the focal length of micro lens (β) •The light field imaging ∖citeliu2017introduction suffers from spatial resolution,

•Finding micro lens diameter (D) poor reconstructed depth

•Finding the separation between real and synthetic focal plane (Δx) quality, large storage requirements.

•computing refocusing parameter (ρ) from the relation $ρ = \frac{μ}{β \times D} \times Δ x$

•Computing the focusing distance (or) depth = $Z_{0} \times \frac{1 - α_{o} p}{1 - α_{1} p}$ where $Z_{0} = \frac{β \times D}{μ x_{o}}$ , $a_{1} = Z_{o}^{2} / f$ $a_{o} = \frac{x_{of}}{x_{o} - f}$

4 Proposed technique •DSLR nikkor 50 mm Prime lens (DSLR nikkor 18–55 mm zoom lens (singleRGB camera) Micro lens array, Sensor Relating real height of a person and camera to object distance. •Single RGB camera for depth computation •Single Nikor lens with 18–55 mm zoom

•Tripoid •Extract Anthropometrics six anthropometrics, namely body height, face height, neck height, mouth to front distance, eye to chin distance and binocular distance •Non Triangulation method eliminating pixel to pixel correspondence •Camera Minimization in surveillance areas using non triangulation

•Predicting The Real height from above six metrics using ML model •Using optical properties like Field of View (FoV) and Magnification for depth

•Finding the Magnification (m) computation (m)

•Finding Field of View (FoV) •Finding Camera to object distance (or depth) from the relation derived •Incorporating Machine learning approach in surveillance camera in perceiving the depth from a single RGB image using optical properties.

Sno	RefDoc	Experimental Set up	Technique	Limitation/Merits
1	Chen, Y (2016) et al. [31]	Considerations: •central plane of an object is taken •Micro lens array •elemental image array captured from plenoptic camera	•SSD for computing disparity •Calculating micro lens pitch Distance between image plane and micro lens array, $D = \frac{(p \times g)}{d}$	•Using two lens (micro lens and ordinary lens) for capturing 2 d image adds burden to surveillance infrastructure. •And also there is a necessity of using two images for computing depth from disparity
2	C Q Farias (2016) et al. [32]	Considerations:	Background Subtraction:
		•Parallel stereo system mount setup with two identical cameras	for determining position (center of mass) in both cameras.	•Stereo vision imaging incorporating triangulation for depth computation adds burden to surveillance infrastructure in
		•Optical table for calibration	•Compute the disparity between the two points.	terms of energy consumption and cost
			•Apply the triangulation method for distance measurement
3	Said Pertuz (2018)	Considerations:	Light Field Refocusing
	et al. [33], Palmieri, L (2019) et al. [34]	•Target, main lens •Micro lens array, Sensor	•Find the pixel pitch (μ) •Finding the focal length of micro lens (β)	•The light field imaging ∖citeliu2017introduction suffers from spatial resolution,
			•Finding micro lens diameter (D)	poor reconstructed depth
			•Finding the separation between real and synthetic focal plane (Δx)	quality, large storage requirements.
			•computing refocusing parameter (ρ) from the relation $ρ = \frac{μ}{β \times D} \times Δ x$
			•Computing the focusing distance (or) depth = $Z_{0} \times \frac{1 - α_{o} p}{1 - α_{1} p}$ where $Z_{0} = \frac{β \times D}{μ x_{o}}$ , $a_{1} = Z_{o}^{2} / f$ $a_{o} = \frac{x_{of}}{x_{o} - f}$
4	Proposed technique	•DSLR nikkor 50 mm Prime lens (DSLR nikkor 18–55 mm zoom lens (singleRGB camera) Micro lens array, Sensor	Relating real height of a person and camera to object distance.	•Single RGB camera for depth computation •Single Nikor lens with 18–55 mm zoom
		•Tripoid	•Extract Anthropometrics six anthropometrics, namely body height, face height, neck height, mouth to front distance, eye to chin distance and binocular distance	•Non Triangulation method eliminating pixel to pixel correspondence •Camera Minimization in surveillance areas using non triangulation
			•Predicting The Real height from above six metrics using ML model	•Using optical properties like Field of View (FoV) and Magnification for depth
			•Finding the Magnification (m)	computation (m)
			•Finding Field of View (FoV) •Finding Camera to object distance (or depth) from the relation derived	•Incorporating Machine learning approach in surveillance camera in perceiving the depth from a single RGB image using optical properties.

In design point of view, unlike micro-lens and parallel stereo system arrangement in Yujiao Chen et al. [31] and C.Q. Farias et al. [32] we used DSLR nikkor 18–55 mm zoom lens for taking 2D images. Unlike the disparity and distance between image planes and micro lens, we used the inherent properties of camera, like Field of view and lens magnification for distance measurement. Nowhere binocular vision strategies are applied in the proposed method and instead a single 2D image is taken from depth measurement.

A quantitative comparison has also been made on proposed method with reference to recent existing works of C.Q. Farias (2016) et al. [31], Said Pertuz (2018) et al. [33] in terms of two regression performance metrics namely Root mean Square Error (RMSE), R-Squared. In order to know how well the model is performing, RMSE is used and on the other hand R square when used in linear regression model context tell about the amount of variability in predicted distance that is explained by model. There is another metric pearson’s correlation coefficient (r) taken for consideration in order to examine the strength of linear association between predicted and ground truth (or actual) distance. It is observed from Table 16 our model on par with the existing works exhibiting 98.4 % correlation in predicting the dependent variable with RMSE of 0.579.

Table 16

Quantitative comparison of camera to person distance estimation methods on the Test Images: The Values Show the Root Mean Square Error (RMSE), Regression Correlation Coefficient (R²), Pearson’s Correlation Coefficient(r) between Predicted and Ground Truth (Actual) Distance values

SNo	Refdoc	Distance Range	RMSE	R ²	r
1	C.Q. Farias (2016) [32]	0.279 m–0.813 m	0.667	0.97	0.97
2	Said Pertuz (2018) [33].,	0.2 m–1.6 m	0.76	0.945	0.99
	Palmieri, L (2019) [34]
3	ours (proposed)	3 m–7 m	0.579	0.984	0.91

5 Conclusion

This work presented a theory in relating the Field of View and magnification for camera to object distance (or depth) estimation. Close range photography was employed for this purpose in order to investigate the influence of magnification and Field of View on Camera to object distance and also the impact of perspective errors while estimating the object distance from lens center. A nikkon DSLR camera model with AF-P Nikkor 18–55 mm zoom lenses are used for extracting the Field of View and magnification measurements up to 6.81 m in 30 cm interval in indoor and up to 7 m in outdoor with reference to camera lens center.

The proposed model was tested on data set taken in indoor and outdoor environments in distance range of 3 m–7 m. For estimating real height of person 22 males and 11 females with each of 11 instances at different distances with varying focal lengths are taken initially and later the experiment is extended to outdoor environment. Around 50 persons with each of 9 instances with in 3 m–7 m are photographed under different lightning conditions(early hours, mid-day and sunset) using 18 mm Nikkor zoom lens. Considering human body anthropometrics, real height is estimated and subsequently the depth values are obtained from Field of view and magnification measurements. The study developed a multiple regression model governed by Field of View and Magnification parameters with camera to object distance with R and R² as 0.984 & 0.983. And also the model seemed to be competing with the recent works reported, by providing high consistency among the referenced and observed measurements with 0.91 pearson’s correlation coefficient value.

Footnotes

Acknowledgments

The research is supported by Viswesvaraya Ph.D. scheme for Electronics & IT [Order No: PhD-MLA/4(16)/2014], a division of the Ministry of Electronics & IT, Govt of India.

We gratefully acknowledge the association of SICA (Southern Indian Cinematographers), Chennai, for creating the Dataset to validate the proposed theory. The author would also like to thank the Student society, Department of Computer Applications who have been with us and supported us in Dataset creation.

References

Kadambi

, Bhandari

and Raskar

, 3d depth cameras in vision: Benefits and limitations of the hardware. In Computer Vision and Machine Learning with RGB-D Sensors (2014), (pp. 3–26). Springer, Cham.

Sarbolandi

, Lefloch

and Kolb

, Kinect range sensing: Structured-light versus Time-of-Flight Kinect, Computer Vision and Image Understanding 139 (2015), 1–20.

Liu

, Fang

, Gutierrez

, Wang

, Yu

and Wu

, Introduction to the issue on light field image processing, IEEE Journal of Selected Topics in Signal Processing 11(7) (2017), 923–925.

Chen

, Wei

and Ferryman

, A survey of human motion analysis using depth imagery, Pattern Recognition Letters 34(15) (2013), 1995–2006.

D. Man and A. Vision, A computational investigation into the human representation and processing of visual information. (1982).

Scharstein

, View synthesis using stereo vision, Springer-Verlag (1999).

Scharstein

and Szeliski

, Stereo matching with nonlinear diffusion, International Journal of Computer Vision 28(2) (1998), 155–174.

Scharstein

and Szeliski

, A taxonomy and evaluation of dense two-frame stereo correspondence algorithms, International Journal of Computer Vision 47(1–3) (2002), 7–42.

Anandan

, A computational framework and an algorithm for the measurement of visual motion, International Journal of Computer Vision 2(3) (1989), 283–310.

10.

Hannah

M.J.

, Computer matching of areas in stereo images (No. STAN-CS-74-438), Stanford Univ Ca Dept Of Computer Science (1974).

11.

Qayyum

, Malik

A.S.

, Saad

M.N.B.M.

, Abdullah

and Iqbal

, Disparity map estimation based on optimization algorithms using satellite stereo imagery. In 2015 IEEE International Conference on Signal and Image Processing Applications (ICSIPA) (2015), (pp. 127–132). IEEE.

12.

Fradi

and Dugelay

J.L.

, Improved depth map estimation in stereo vision. In Stereoscopic Displays and Applications XXII (Vol. 7863, p. 78631U), International Society for Optics and Photonics (2011).

13.

Pramote

O.U.

and Piamsa-nga

, Improve accuracy of disparity map for stereo images using SIFT and weighted color model. In 2015 7th International Conference on Knowledge and Smart Technology (KST) (2015), (pp. 109–114). IEEE.

14.

Baha

and Larabi

, Neural disparity map estimation from stereo image, Parameters 6(7) (2009), 17–23.

15.

Kulkarni

, Ganesan

, Shenoy

and Lu

, SensEye: a multi-tier camera sensor network. In Proceedings of the 13th annual ACM international conference on Multimedia (2005), (pp. 229–238).

16.

Langmann

, Wide Area 2D/3D Imaging: Development, Analysis and Applications. Springer. (2014).

17.

Achar

, Bartels

J.R.

, Whittaker

W.L.R.

, Kutulakos

K.N.

and Narasimhan

S.G.

, Epipolar time-of-flight imaging, ACM Transactions on Graphics (ToG) 36(4) (2017), 1–8.

18.

Wang

T.C.

, Efros

A.A.

and Ramamoorthi

, Depth estimation with occlusion modeling using light-field cameras, IEEE Transactions on Pattern Analysis and Machine Intelligence 38(11) (2016), 2170–2181.

19.

Monteiro

N.B.

, Marto

, Barreto

J.P.

and Gaspar

, Depth range accuracy for plenoptic cameras, Computer Vision and Image Understanding 168 (2018), 104–117.

20.

Pertuz

, Pulido-Herrera

and Kamarainen

J.K.

, Focus model for metric depth estimation in standard plenoptic cameras, ISPRS Journal of Photogrammetry and Remote Sensing 144 (2018), 38–47.

21.

Kingslake

and Johnson

R.B.

, Lens design fundamentals, Academic Press. (2009).

22.

Bass

, DeCusatis

, Enoch

, Lakshminarayanan

, Li

, Macdonald...

and Van Stryland

, Handbook of optics, Volume II: Design, fabrication and testing, sources and detectors, radiometry and photometry, McGraw-Hill, Inc. (2009).

23.

Sriharsha

K.V.

and Alphonse

P.J.A.

, Anthropometric based Real Height Estimation using Multi layer peceptron ANN architecture in surveillance areas. In 2019 10th International Conference on Computing, Communication and Networking Technologies (ICCCNT) (2019), (pp. 1–6). IEEE.

24.

Sriharsha

K.V.

and Rao

N.V.

, Dynamic scene analysis using Kalman filter and mean shift tracking algorithms. In 2015 6th International Conference on Computing, Communication and Networking Technologies (ICCCNT) (2015), (pp. 1–8). IEEE.

25.

Vijayan

and Ramasundaram

, Moving object detection using vector image model, Optik 168 (2018), 963–973.

26.

Gordon

C.C.

, 1988 anthropometric survey of US Army personnel: Methods and summary statistics, Technical Report Natick/TR-89/044. (1989).

27.

Guan

Y.P.

, Unsupervised human height estimation from a single image, Journal of Biomedical Science and Engineering 2(06) (2009), 425.

28.

Ben Abdelkader

and Yacoob

, Statistical estimation of human anthropometry from a single uncalibrated image, Computational Forensics (2008), 200–220.

29.

Sciammarella

, Considine

and Gloeckner

, Erratum: Experimental and Applied Mechanics, Volume 4. In Experimental and Applied Mechanics, Volume 4 (2016), (pp. E1-E1). Springer, Cham.

30.

Yoshizawa

, (Ed.). Handbook of optical metrology: Principles and Applications, CRC Press (2017).

31.

Chen

, Wang

and Zhang

, Depth extraction method based on the regional feature points in integral imaging, Optik 127(2) (2016), 763–768.

32.

Sánchez-Ferreira

, Mori

J.Y.

, Farias

M.C.

and Llanos

C.H.

, A real-time stereo vision system for distance measurement and underwater image restoration, Journal of the Brazilian Society of Mechanical Sciences and Engineering 38(7) (2016), 2039–2049.

33.

Monteiro

N.B.

, Marto

, Barreto

J.P.

and Gaspar

, Depth range accuracy for plenoptic cameras, Computer Vision and Image Understanding 168 (2018), 104–117.

34.

Palmieri

, Scrofani

, Incardona

, Saavedra

, Martínez-Corral

and Koch

, Robust depth estimation for light field microscopy, Sensors 19(3) (2019), 500.

Vision based distance estimation from single RGB camera using field of view and magnification measurements –an AI based non triangulation technique for person distance estimation in surveillance areas

Abstract

Keywords

1 Introduction

1.1 Research contributions

2 State of art

3 Proposed work

3.1 Prerequisites

3.1.1 Focal Length:

Table 1 Experimental Device Details for Photogrammetry Experiment Devices Values Camera Model Nikon D5300 Image sensor 23.5×15.6 mm CMOS sensor Image size(pixels) 6000×4000 Pixel size 3.9 micron Lenses Nikon AF-S Nikkor 18–55mm

3.3.1 Feature Extraction for Real height prediction

4.1 Privileged real height and distance prediction

Table 12 Determining how well Model fits: Model Summaryb R R 2 AdjR 2 Δx 0.992a 0.984 0.983 13.3396

Footnotes

Acknowledgments

References

Table 1
Experimental Device Details for Photogrammetry Experiment

Devices Values

Camera Model Nikon D5300

Image sensor 23.5×15.6 mm CMOS sensor

Image size(pixels) 6000×4000

Pixel size 3.9 micron

Lenses Nikon AF-S Nikkor 18–55mm

Table 12
Determining how well Model fits: Model Summary^b

R R ² AdjR ² Δx

0.992^a 0.984 0.983 13.3396
