Fault diagnosis method for rolling element bearing with variable rotating speed using envelope order spectrum and convolutional neural network

Abstract

Features of raw bearing vibration signals aren’t invariant with the change of rotating speed. As a result, determining the proper features is essential for the feature learning based intelligent fault diagnosis method for rolling element bearing with varying rotating speed. To address this issue, a convolutional neural network (CNN) based fault diagnosis approach is proposed. In the proposed method, envelope order spectra extracted from the raw vibration signals are used to provide abundant information about the fault characteristic orders, which are features invariant to the rotating speed. Subsequently, to extract these representative features automatically, a CNN model is constructed and employed, which avoid the manual feature selection. Finally, the type of bearing defects can be recognized successfully. In the experimental verification, the CNN is trained using a data set corresponds to one revolution per minute (RPM), while the data sets correspond to other RPMs are employed to verify the classification accuracy of the trained CNN, which can reflect the effectiveness of proposed method for bearing fault detection under different rotating speed. Experimental results show the satisfactory performance of fault-pattern recognition for the proposed method. When compared with some other approaches using intelligence-based fault diagnosis method, the results show the superiority of the proposed method.

Keywords

Convolutional neural network envelope order spectrum rolling element bearing fault diagnosis

1 Introduction

Process monitoring and fault diagnosis has been a highly significant research direction in the past few decades [1], which can enhance the safety and reliability of the whole system so as to increase the economical profits for the industrial processes [2]. Rolling element bearings (REBs) are widely used as crucial elements in all kinds of rotating machinery. However, their harsh work conditions often result in bearing defects, which have significant influence on the healthy working of the whole machine. As a result, accurate and timely bearing fault detection is of great importance and has draw considerable attention.

To address this issue, vibration based fault feature extraction is accepted as an useful tool for the condition monitoring of REBs [3] and many useful signal processing methods have been proposed, such as envelope analysis [4], wavelet transform [5], spectral kurtosis [6], singular value decomposition (SVD) [7], empirical mode decomposition (EMD) [8], variation mode decomposition (VMD) [9] and so on. However, some problems still exist, for example, both proper center frequency and filtering bandwidth are needed for the envelope analysis. SVD is an efficient denoising method which may still be useless if the original vibration signal has low signal-to-noise ratio (SNR). EMD is usually used for noise reduction due to its excellent signal decomposition ability, however, the performance of EMD may still suffer from end effects and mode mixing greatly. What’s more, all these approaches highly depend on the expertise to achieve ideal results.

With the rapid development of the intelligent technology, machine learning has received more and more attention and has been applied to the fault diagnosis of REBs, which aims to identify the work condition of bearings automatically. Ju et al. [10] proposed an improved multi-scale entropy based fault diagnosis method for REBs and the support Vector Machine (SVM) is employed for fault classification. Singh et al. [11] combined the stockwell transform and SVM together for the detection of bearing fault in a three-phase induction motor. A time-frequency atoms-driven SVM method was proposed by Liu et al. [12] to identify the bearing defect. Jiang et al. [13] developed an probabilistic neural network (PNN) based fault recognition method for rotating machinery. The wavelet neural network was employed along with manifold learning by Wu et al. [14] to improve the accuracy of fault diagnosis of REBs. Apart from SVM and neural network, some other machine learning approaches are also applied, such as the extreme learning machine [15] and k-nearest neighbour [16]. However, manual feature extraction is usually essential for the above intelligent fault diagnosis approaches [17], which may be easily influenced by the background noise. Therefore, to ensure a high recognition accuracy, proper selection of fault features is of great importance.

Recently, deep learning (DL) has show significant advantages in feature extraction, which can learn the representation features from raw signals automatically and avoid the manual feature selection [18]. The DL methods such as auto-encoder, deep belief network (DBN), restricted boltzmann machine (RBM) and recurrent neural network (RNN) have been applied for the fault diagnosis of rotating machinery [19]. Shao et al. [20] developed an optimization DBN for the fault identification of REBs, and the structure of DBN is optimized by the particle swarm optimization (PSO). Chen et al. [21] employed the deep neural network for the diagnosis of rolling element bearings. Lu et al. [22] proposed the stacked denoising auto-encoder based fault diagnosis method for rotary machinery components. Jiang et al. [23] proposed an improved RNN for intelligent fault diagnosis of rolling bearings. Though excellent performance has be achieved by DL compared with some traditional machine learning methods, especially for large data sets [19], the DL based fault diagnosis method is still developing [24].

As one of the DL approaches, the CNN has achieved numerous investigation and has been employed to the fault diagnosis, including the REBs. Since the CNN is usually applied with two-dimensional (2-D) images as the input, to use this kind of CNN model, the measured one-dimensional (1-D) signals used for fault recognition should be converted to 2-D format while the time-frequency representation is usually employed [25 –27]. Han et al. [28] also proposed an adaptive spatiotemporal feature learning approach to extract features from the 1-D signals in the 2-D format, which can elevate the diagnostic accuracy of CNN. Moreover, to avoid the complex preprocessing step above, fault detection based on the features of raw time-domain signals in 2-D domain is adopted [29] and the 2-D gray images are applied to the CNN models for the fault diagnosis [30 –32]. In addition, 1-D CNN model uses raw signals have also been developed without the hand-craft feature extraction process. Zhang et al. [33] proposed a convolution neural network with training interference (TICNN) for bearing fault diagnosis, which worked directly on raw vibration signals. Jing et al. [34] applied the multi-sensor signals together to the CNN model for the fault diagnosis of planetary gearbox. Jia et al. [35] developed the deep normalized CNN for imbalance fault classification of machinery.

Though the CNN based fault diagnosis method have achieved great progress, due to complex working conditions of the REBs, the proper design and use of CNN is still a great challenge. Based on the existence research, the majority of CNN based bearing fault detection methods are verified using the training and testing data from the same source, which means the working condition of REBs are stable. However, in real application, the rotating speed may change, which has an impact on the features of raw vibration signals so as to influence the accurate identification of bearing defects. As a result, designing the CNN model which trained and tested using data corresponds to different rotating speed may be more meaningful, To address the problem, several researches are conducted [36 –38]. Appana et al. [39] combined the envelope spectrum and CNN for reliable fault diagnosis of bearings with varying rotating speed, which concluded that the proposed method can improve the classification accuracy. However, features of the envelope spectrum may still change greatly if the RPMs have great variations.

In this paper, the fault characteristic orders which are features invariant to rotating speed is employed and a novel fault diagnosis method based on the envelope order spectrum and CNN is proposed. First, raw vibration signals collected under different RPMs are resampled from time-domain to angle-domain, and then the envelope order spectra are acquired based on the combination of Hilbert transform and fast fourier transform (FFT) which are stored in the form of 2-D images. Second, an effective CNN is established to extract features of these 2-D images. Finally, the performance of the proposed method is demonstrated through two experimental studies. The main contributions of this paper are summarized as follows. First, in order to provide features invariant to the change of rotating speed, envelope order spectrum is employed as the input of CNN. Second, to get rid of the manual feature extraction and selection, an effective CNN is utilized to automatically learn features from the input data. Third, the proposed method show significant improvement for the detection of bearing defects when the training and testing data are acquired under different rotating speed when compared with other DL and traditional intelligent methods.

The remainder of this paper is organized as follows. Section 2 provides brief introduction of CNN. The detailed process of the proposed method is described in Section 3, including the structure of the CNN model and the conversion method from time-domain signals to envelope order spectrum. Verification is presented in Section 4 using experimental bearing fault signals and some comparisons are also provided. Conclusions are draw in Section 5.

2 The basic theory of CNN

CNN is an important type of the deep neural networks which is inspired by visual structure [34], which has been widely accepted as an effective tool for numerous classification problems. A typical CNN consists three main layers, which are convolutional layer, polling layer and full-connected layer. The detailed describe of these layers are shown as follows.

2.1 Convolutional layer

In a convolutional layer, the input features maps are convolved with a number of 2-D trainable kernels [30], and the outputs are used as the input for the next layers. Different from other traditional neural networks, each kernel used in convolutional layer shares the same weighted parameters for all the patches of the input feature maps, so that the training time can be reduced, which can be called weights share. Supposing that the convolutional layer is the l-th layer in the CNN, and the convolution operation can be expressed as [17]: $x_{j}^{l} = f (\sum_{i \in M_{j}} x_{i}^{l - 1} * k_{ij}^{l} + b_{j}^{l})$ (1) where i is the index of the input feature map and j is the index of the output feature maps, M_j represents the input set of feature maps, * denotes the 2-D convolution operator; $k_{ij}^{l}$ represents the j-th kernel connected with the i-th input feature maps; $b_{j}^{l}$ is the bias related to j-th kernel; f is nonlinear activate function which is essential part of the convolution layer. The typical activate functions include sigmoid function, hyperbolic tangent function and rectified linear unit (ReLU), in this paper, ReLU is determined as the activate function that can be calculated as [30]: $y_{ijk} = max (0, x_{ijk})$ (2) where x_ijk is the component located in (i, j) of the k-th feature maps.

2.2 Pooling layer

Pooling layer is another important layer in CNN, which is employed to reduce the revolution of the input feature maps. In the pooling layer, the input feature maps are divided into sub-regions (the size of sub-regions can be selected in different types), and the average operator or the max operator is used to generate the output of these sub-regions. In this paper, the max pooling is chosen that can be expressed as [30]: $y_{ijk} = \max (y_{mnk} : i \leq m \leq i + p, j \leq n \leq j + q)$ (3) where p and q denote the length and width of of the pooling window, respectively. Hence, the maximum value of the data within the neighbour is determined as the value of the region, which provides a lower revolution feature map for the next layer.

2.3 Full-connected layer

The full-connected layer is the last layer in the CNN, which follows a serious of combination of convolutional layer and pooling layer. Similar to the traditional multi-layer neural network, each neuron in the full-connected layer is connected to every neuron in the previous layer, which consists one or several hidden layers and a classification layer using the softmax function. The output of softmax function can be calculated as [28]:

$\begin{matrix} O_{j} = & [\begin{matrix} p (y = 1 | x; θ) \\ p (y = 2 | x; θ) \\ \dots \\ p (y = k | x; θ) \end{matrix}] \equiv \frac{1}{\sum_{j = 1}^{k} exp (θ^{j} x)} \\ [\begin{matrix} exp (θ^{1} x) \\ exp (θ^{2} x) \\ \dots \\ exp (θ^{k} x) \end{matrix}] \end{matrix}$ (4) where θ^j is the parameter in the classification layer, k represents of number of categories.

3 The proposed method

3.1 2-D image construction method

In this paper, the CNN model is trained with a data set corresponds to one RPM while the fault diagnosis should be able to conduct based on the data sets correspond to the other RPMs. Hence, features invariant to rotating speed should be available in the 2-D images as the input of CNN. Since the fault characteristic orders are typical features for defective bearings that are constant with the change of rotating speed and usually applied for the bearing fault diagnosis under fluctuant rotating speed, the envelope order spectrum is adopted as the 2-D image in this study which can be acquired by applying the FFT to the angle domain signal. What’s more, to show more prominent fault features and reduce the influence of background noise, the envelope order spectrum within a certain range around the fault characteristic order is used.

To acquire enough training samples for the CNN model, a moving window is applied to the original measured signal to create numerous sub-signals. As shown in Fig. 1, the total length of the signal is L, the step is L_s and the length of sub-samples is assumed as L_t, then the maximum number of samples n_s is: $n_{s} = ⌊ \frac{(L - L_{t})}{L_{s}} ⌋ + 1$ (5) where ⌊· ⌋ denotes the operator pulls the element to the lower bound of the integer and L_t is constant in this paper.

Fig. 1

Technique to acquire sub-signals.

Assuming that x (t) is one of the 1-D sub-signals, then the envelope order spectrum is obtained via the following steps:

Step 1 The time-domain signal should be converted to angle domain. As the rotating frequency f_r is constant for x (t), the angular speed can be calculated as: $V_{a} = 2 π f_{r}$ (6)

Then the angle corresponds to the time for signal x (t) is: $a (n) = \frac{V_{a} \times n}{Fs}$ (7) where Fs denotes the sampling frequency of x_t and n < = L_t is the index for x (t). As a result, the angle domain signal x (a) is acquired.

Step 2 The envelope signal is acquired using the Hilbert transform: $E [x (a)] = \sqrt{x^{2} (a) + h^{2} (a)}$ (8) $h (a) = H {x (a)}$ (9) where E [x (a)] is the envelope of signal x (t) , H {.} represents the Hilbert transform which is defined as: $H {x (a)} = \frac{1}{π} \int_{- \infty}^{+ \infty} \frac{x (α)}{a - α} d α$ (10)

Step 3 The envelope signal E [x (a)] is subjected to FFT and the envelope order spectrum of x (t) is obtained.

All the envelope order spectra of the sub-signals are stored as grey-scale images, size of these images are determined to be 128×128 in this study.

3.2 Network parameters

Once the raw signals have been converted to the 2-D images, a CNN model can be trained and classify these images [24]. Based on the input size of 2-D grey-scale images, a CNN model is established, the parameters are listed in Table 1 and the structure of the proposed CNN model is exhibited in Fig. 2. Five convolutional layers are applied to learn the features from the envelope order spectra, where the filter size is 5×5 for the first two convolutional layers and 3×3 for the other three convolutional layers, while the number of kernels ranges from 16 to 256. The max-pooling layers are located after each convolutional layers whose sizes are 2×2, respectively. The ReLU is chosen as the activate function and the Batch Normalization is added before the activate function to improve the training efficiency of the network and enhance the generalization ability. Dropout (the neurons are randomly frozen with a probability P for each training process, and P = 0.5 in this study) is employed before the full-connected layer to prevent the over-fitting which further improve the generalization ability of the CNN model. Moreover, zero-padding is applied on the CNN model (displayed in Table 1) which can prevent the dimension loss of the feature maps.

Table 1
Parameters of the CNN model

Layer types Kernel size Kernel channel size Stride Output size Padding

Input layer 128×128×1

C1 5×5 16 1 128×128×16 Yes

P2 2×2 16 2 64×64×16 No

C2 5×5 32 1 64×64×32 Yes

P2 2×2 32 2 32×32×32 No

C3 3×3 64 1 32×32×64 Yes

P3 2×2 64 2 16×16×64 No

C4 3×3 128 1 16×16×128 Yes

P4 2×2 128 2 8×8×128 No

C5 3×3 256 1 6×6×256 No

P5 2×2 256 2 3×3×256 No

Layer types	Kernel size	Kernel channel size	Stride	Output size	Padding
Input layer				128×128×1
C1	5×5	16	1	128×128×16	Yes
P2	2×2	16	2	64×64×16	No
C2	5×5	32	1	64×64×32	Yes
P2	2×2	32	2	32×32×32	No
C3	3×3	64	1	32×32×64	Yes
P3	2×2	64	2	16×16×64	No
C4	3×3	128	1	16×16×128	Yes
P4	2×2	128	2	8×8×128	No
C5	3×3	256	1	6×6×256	No
P5	2×2	256	2	3×3×256	No

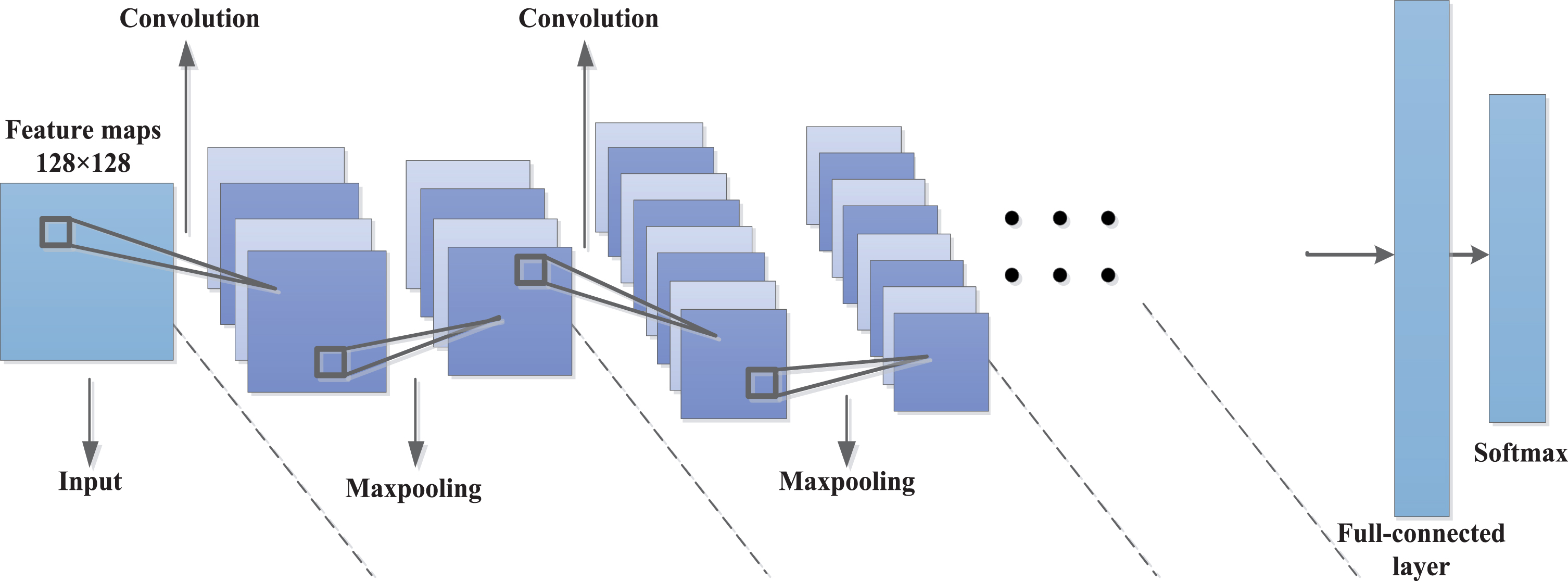

Fig. 2

Structure of the proposed CNN model.

3.3 Summary of the proposed method

The proposed fault diagnosis method for the REBs with variable rotating speed mainly comprises the following steps and a flowchart is presented inFig. 3:

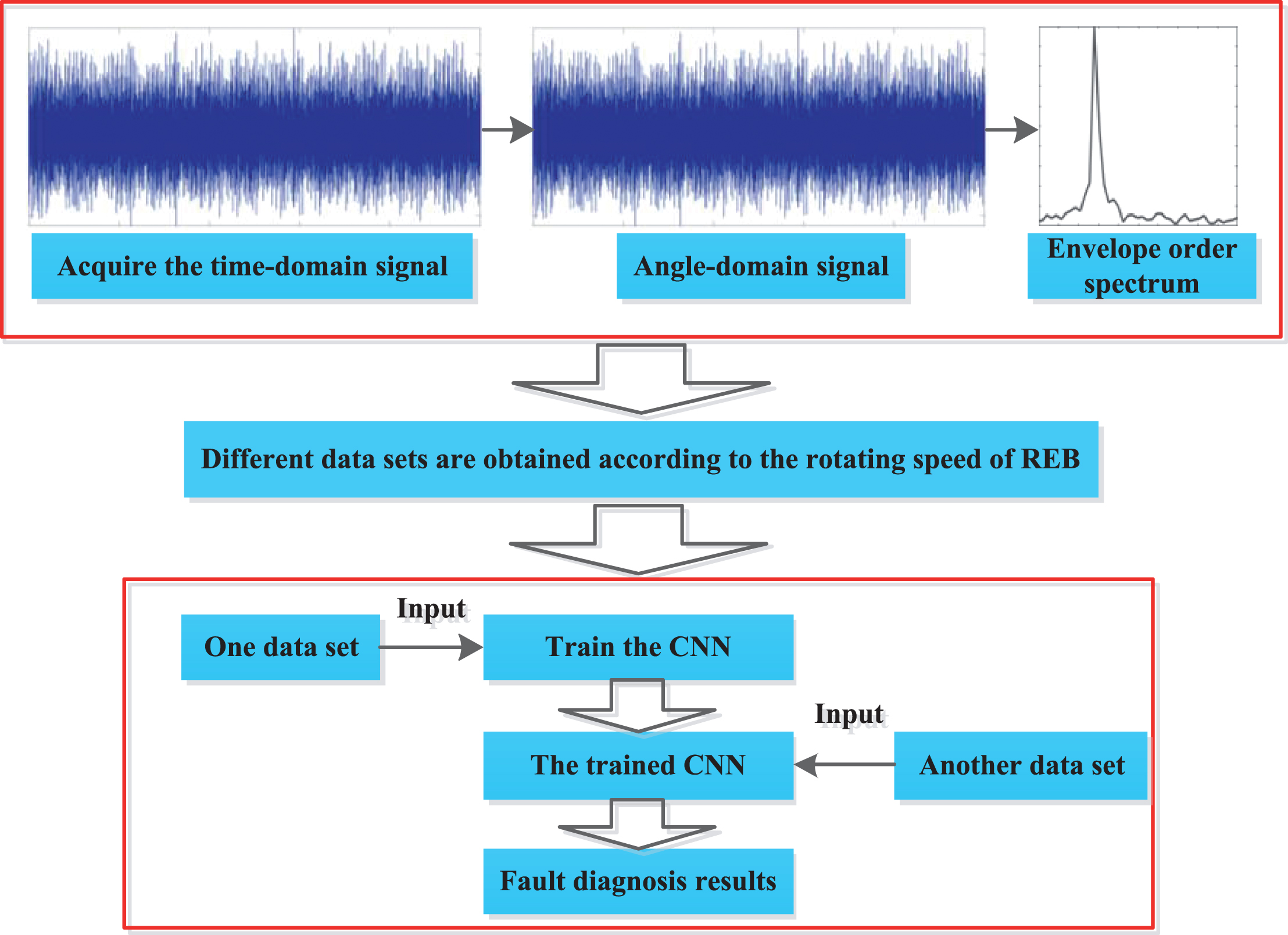

Fig. 3

Flowchart of the proposed method.

Step 1: Several experimental vibration signals of bearings with different type of defects are collected. Meanwhile, signals under different rotating speed are also measured.

Step 2: The raw time-domain signals are converted to angle-domain based on the rotating speed and the envelope order spectra are acquired in the form of 2-D images. Images with the same rotating speed is considered as one date set.

Step 3: The CNN is constructed based on the parameters described in Section 3.2 and Table 1.

Step 4: Training the CNN with a data set while the fault diagnosis is conducted based on the samples randomly selected from another data set.

4 Experimental verification

In this part, experimental signals are employed to verify the effectiveness of the proposed CNN-based fault diagnosis method. The CNN model and other comparison intelligence based methods are written in Matlab, the model of CPU and GPU are Intel Core i5-4200 and NVIDIA GeForce GT 750M, respectively.

4.1 Case 1: Study on well-known fault diagnosis data set

In this section, the experimental signals are from Case Western Reserve University [40]. Four bearing conditions are simulated in the experiment, including normal (No), inner race fault (IF), outer race fault (OF) and roller fault (RF), signals of drive end bearing with the fault diameter of 0.54mm are selected in this verification. Meanwhile, three motor speeds are selected (1797RPM, 1772RPM and 1750RPM), while the load are 0hp to 2hp respectively. Each signal is recorded at the sample frequency of 12000Hz.

The fault characteristic orders for different localized defects can be calculated by the following equations: $O_{i} = \frac{1}{2} Z (1 + \frac{d}{D} cos α)$ (11) $O_{o} = \frac{1}{2} Z (1 - \frac{d}{D} cos α)$ (12) $O_{r} = \frac{1}{2} \frac{D}{d} (1 - {(\frac{d}{D} cos α)}^{2})$ (13) where O_i, O_o and O_r represent the fault characteristic orders for inner race fault, outer race fault and roller fault, respectively. Z and d denote the number and diameter of rolling elements. D ans a denote the pitch diameter and contact angle of the bearing. Hence the theoretical O_i, O_o and O_b for the drive end bearing SKF 6205-2RS is 5.41, 3.58 and 4.71, respectively.

4.1.1 Image conversion results

To ensure enough resolution for the order spectrum, the length of sub-signals are determined to be L_t = 4000 in this verification. Based on the fault characteristic orders, all the envelope order spectra used for CNN model are shown range from 2.5 to 8 order. In addition, all the envelope order spectra are normalized in advance to ensure the amplitude of all components range from 0 to 1.

Three data sets with 450×4 samples (450 samples for each condition) are established with the rotating speed of 1797r/min, 1772r/min and 1750r/min, respectively. The randomly selected conversion results are presented in Fig. 4.

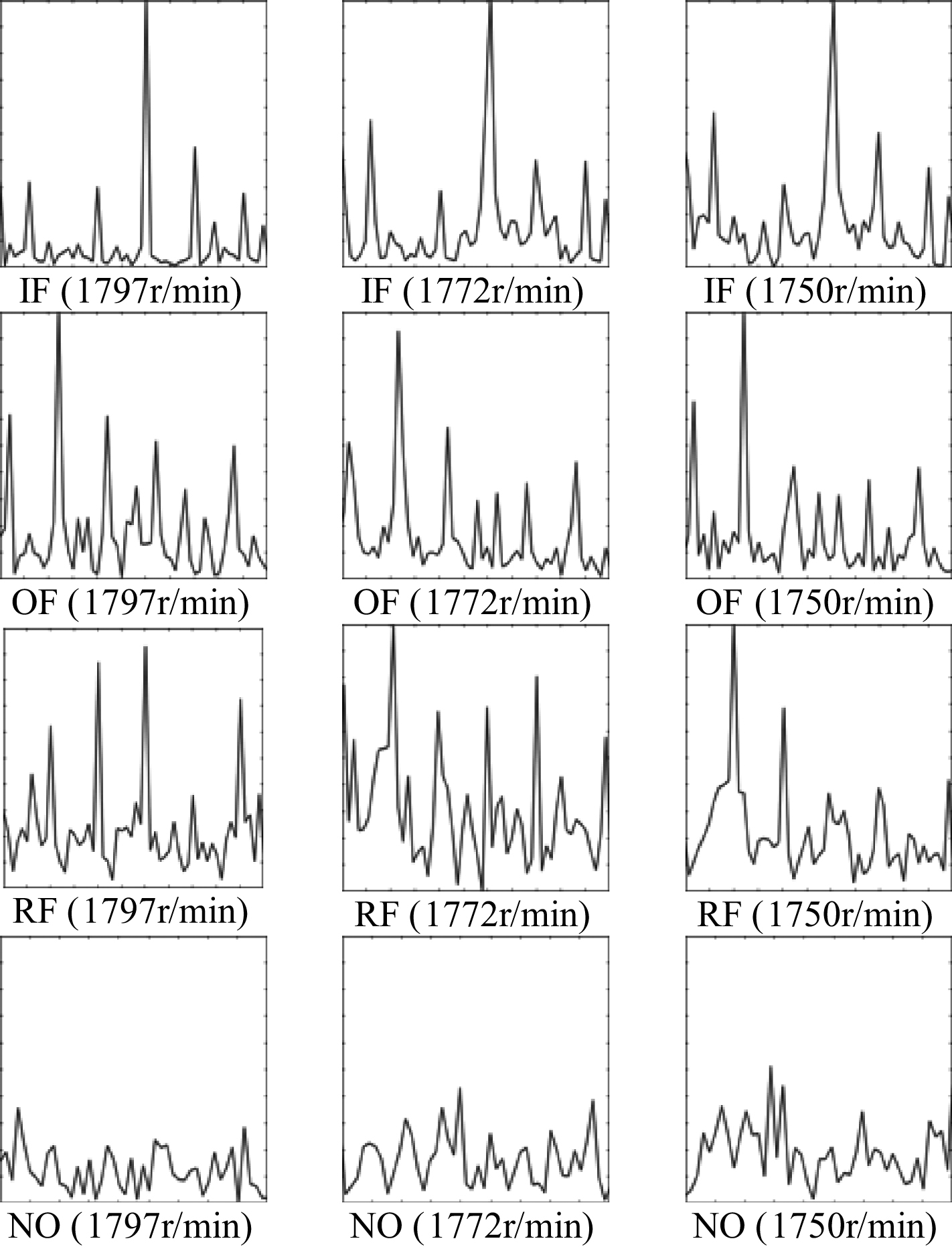

Fig. 4

Conversion results for all bearing conditions.

4.1.2 Diagnosis performance of the proposed method

Stochastic gradient descent with momentum optimizer is employed for training the CNN to reach the minimum value of loss function, and cross entropy is adopted as the loss function. In the training progress of this study, the maximum number of epochs is 20. To prevent over-fitting, early-stopping method is used which stops the training if the value of loss function on the validation set can be larger than or equal to the previously smallest loss for 5 times. According to the results of numerous trials, the learning rate and batch size are determined to be 0.002 and 50, respectively.

Six tests are conducted where the training and testing data are from the different data sets, detailed information of these tests are presented in Table 2. For each test, total samples 1800 of training data set are employed for network training, while 600 samples (150 samples for each bearing condition) are randomly selected in the testing data set for network validation and test. Each test is performed for ten trails, and the average results are presented in Table 3. Meanwhile, the time for training and classification is also recorded.

Table 2
Detailed information of the six tests in case 1

Test Data set RPM Data set RPM

(training data set) (testing data set)

1 1797 1772

2 1797 1750

3 1772 1797

4 1772 1750

5 1750 1797

6 1750 1772

Test	Data set RPM	Data set RPM
1	1797	1772
2	1797	1750
3	1772	1797
4	1772	1750
5	1750	1797
6	1750	1772

Table 3

Results of the four methods

Test	Method	Classification accuracy (%)				Average classification accuracy (%)	Time for training (classification) (s)
		IF	OF	RF	NO
1	The proposed method	99.59	100	100	92.77	98.1	311.7(1.68)
	CNN in Ref. [24]	93.87	100	100	100	98.72	171.3(1.1)
	DBN	98	100	51.33	100	87.33	21.58(0.02)
	SAE	85.33	95.33	62.67	98.67	85.50	8.72(0.009)
2	The proposed method	93.47	99.87	100	92.27	96.38	341.5(1.68)
	CNN in Ref. [24]	57.73	100	10.13	98.93	66.70	56.35(1.05)
	DBN	100	100	17.33	100	79.33	21.41(0.019)
	SAE	83.33	97.33	34.00	99.33	78.50	9.24(0.008)
3	The proposed method	100	95.87	100	100	98.96	218.3(1.71)
	CNN in Ref. [24]	100	100	95.73	100	98.58	226.65(1.15)
	DBN	100	78.66	16.67	100	73.83	21.33(0.016)
	SAE	99.33	100	16.00	100	78.83	9.06(0.009)
4	The proposed method	100	100	96.91	99.87	99.22	135.8(1.64)
	CNN in Ref. [24]	68.40	100	27.73	100	73.04	56.76(1.04)
	DBN	100	66.00	55.33	100	80.33	21.15(0.014)
	SAE	96	100	96.00	100	98.00	9.02(0.009)
5	The proposed method	100	98.67	91.73	100	97.60	214.8(1.65)
	CNN in Ref. [24]	90.67	100.00	72.00	100	90.64	102.38(1.1)
	DBN	62.13	99.33	15.87	100	69.00	21.31(0.016)
	SAE	47.33	100	17.33	100	66.17	8.97(0.015)
6	The proposed method	100	99.60	94.00	100	98.42	129.4(1.64)
	CNN in Ref. [24]	90.67	100	44.67	100	83.96	61.95(1.17)
	DBN	86	96.00	90.00	100	93.00	21.19(0.016)
	SAE	73.33	89.33	91.33	100	91.00	9.36(0.009)

From results displayed in Table 3, Test 4 achieves the best result, its mean accuracy is 99.22%, while test 2 achieves the minimum accuracy of 96.38%. All six tests achieve high classification accuracy using the proposed fault diagnosis method. which reveals that the proposed method can effectively and stably detect bearing fault with varying rotating speed.

4.1.3 Comparison analysis

Three comparison methods are applied to further demonstrate the superiority of the proposed method for bearing fault diagnosis under varying rotating speed, which are the CNN based approach proposed in Ref. [24] with one full-connected layer, the DBN based approach with two hidden layers and the stacked auto encoder (SAE) based approach with only one hidden layers. For the DBN and SAE based methods, the number of neuron in each layer is 200, the learning rate is 1 and the epoch for the training stage is chosen to be 100. The feature vectors for DBN and SAE is constructed according to Ref. [21] using features of time domain, frequency domain and time-frequency domain, and the level for wavelet packet decomposition is set to be 5. According to the pre-test, all the three comparison can achieve high diagnostic accuracy if the training and testing samples are from the same data set.

Results of the three comparison methods are still presented in Table 3. To show the comparison results more clearly, the average classification accuracy of the six tests using all four methods are exhibited in Fig. 5. As shown in Table 3 and Fig. 5, the diagnostic accuracy of the three comparison for test 1 to test 6 are not stable, for example, the best result for SAE is 98% for test 4 while the worst result is only 66.17% for test 5. What’s more, in the same test, almost all the best results are achieved by the proposed method, which further demonstrates the effectiveness of the proposed method.

Fig. 5

Analyzed results of test 1 to test 6 using the four methods.

Due to five convolutional layers are employed and the size of 2-D input images are bigger than those in Ref. [24], the proposed method is more time-consuming for both training and classification process when compared with other three methods. But the time for classification is only around 1.65 seconds for each test using the proposed method with 600 testing samples. Hence, if the proposed method is applied for real-time fault detection, and the CNN model is trained offline in advanced, the time for online implementation phase could be acceptable.

Meanwhile, the construction of input samples of the proposed method is simple compared with the DBN and SAE based method (this time is not included in the training and classification time shown in Table 3), which makes the proposed method suitable for real-time application.

4.2 Case2: Study on experimental signals with large rotating speed variation

As in case 1, signals with little rotating speed variation are employed which may not have a big influence on the features of raw vibration signals with the change of rotating speed. Hence, to further demonstrate the validity of the proposed method, the experimental signals acquired from a test rig with larger speed variation is used in this section.

4.2.1 The experimental data

The test rig showed in Fig. 6(a) consists several main components which are bearing support structure, main shaft, experimental bearing, lubricating oil system, servo-driven motor, radial loading device, axial loading device and control system.

Fig. 6

The experimental setup in case 2: (a) the test rig, (b) bearing with inner race fault, (c) bearing with outer race fault, (d) bearing with roller fault.

Two measuring points are selected to collect the vibration signals, one (point 1) is near the defective bearing while the other (point 2) is away from the defect bearing. The type of test bearing is NSK 7010c, the outer and inner diameter of the bearing are 80mm and 50mm respectively, thus the pitch diameter is D = 65mm; the diameter and number of rolling elements are d = 8.7mm and Z = 19; the contact angle is α=15°. Hence, the theoretical O_j, O_o and O_b is calculated as 10.71, 8.27 and 3.67, respectively. The experimental signals are collected by the B&K vibration test system, the models of the acceleration sensor, the signal conditioning and acquisition module are B&K4354B-004 and B&K3053-B-120, respectively.

During the experiment, four conditions of REBs are also used, inner race fault (shown in Fig. 6(b)), outer race fault (shown in Fig. 6(c)), roller fault (shown in Fig. 6(d)) and normal conditions (NO). Meanwhile, three rotating speeds are employed which are f_{r
₁} = 2000r/min, f_{r
₂} = 3000r/min and f_{r
₃} = 4000r/min. The sampling frequency of the data acquisition device is 32768 Hz. Figure 7 displays the vibration signals of four bearing conditions under all three rotating speeds.

Fig. 7

Experimental signals in case 2.

4.2.2 Image conversion results

In this section, the length of sub-signals are chosen to be L_t = 8192, and the length of step L_s =L_t/2 = 4096. For the measured signal with roller fault, the amplitude of the 2th harmonic of the fault characteristic order is more prominent in the envelope order spectrum than other components, therefore, all the envelope order spectra used for CNN model are shown range from 7 to 12 order and the normalization is also conducted. Three data sets with 450×4 samples (450 samples for each condition) are established with the rotating speed of 2000r/min, 3000r/min and 4000r/min, respectively. The conversion results are exhibited in Fig. 8.

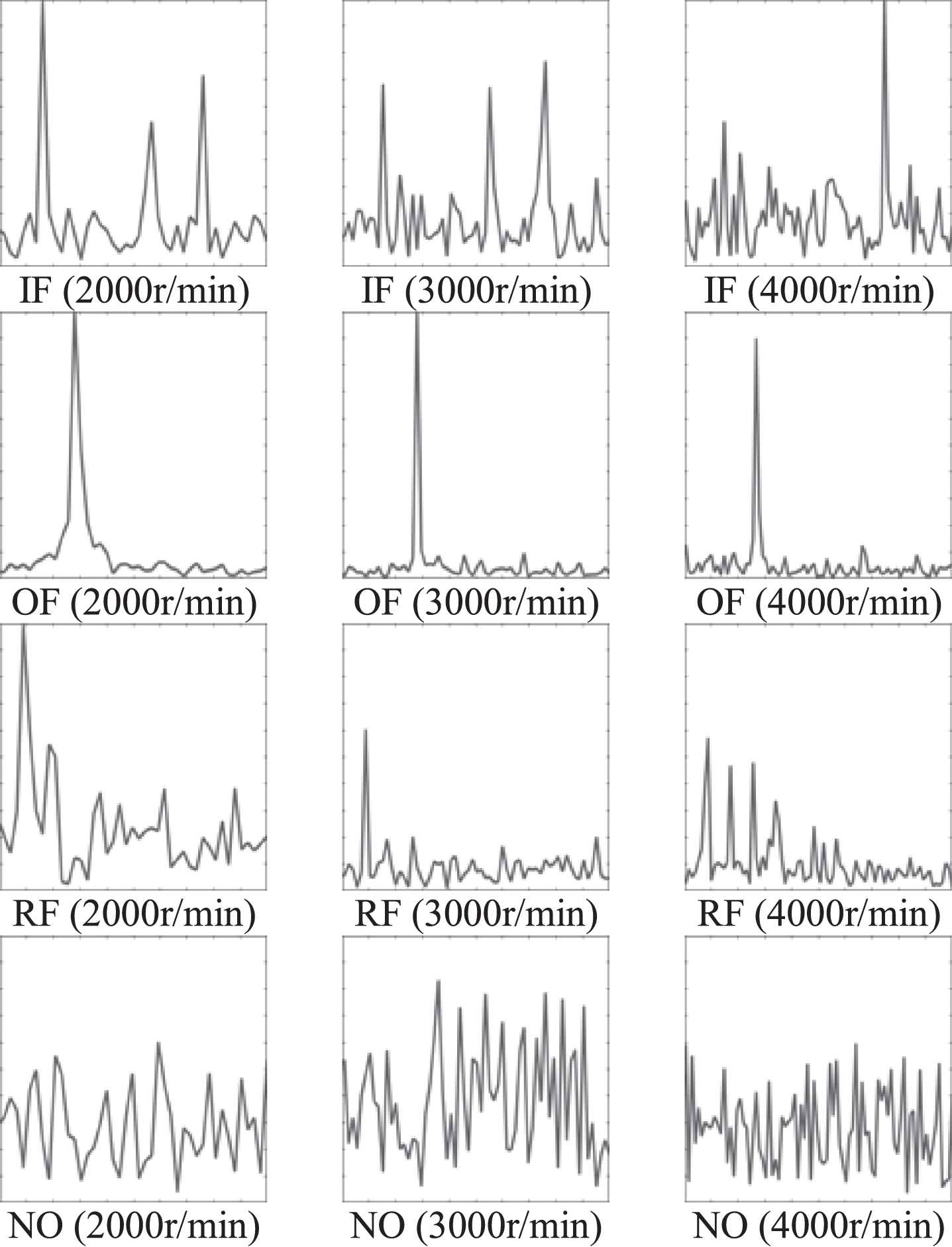

Fig. 8

Conversion results for all bearing conditions.

4.2.3 Diagnosis performance of the proposed method

The basic structure of the CNN and the diagnosis process in this case are the same with case 1. Six tests are used to show the performance of the proposed method, and the detailed information of these tests are shown in Table 4.

Table 4
Detailed information of the six tests in case 2

Test Data set RPM Data set RPM

(testing data set) (testing data set)

1 2000 3000

2 2000 4000

3 3000 2000

4 3000 4000

5 4000 2000

6 4000 3000

Test	Data set RPM	Data set RPM
1	2000	3000
2	2000	4000
3	3000	2000
4	3000	4000
5	4000	2000
6	4000	3000

As point 2 is away from the defective bearing, the vibration signals measured at this point may contain more noise and interference components, which may influence the the performance of the proposed method. As a result, the experimental signals measured at point 2 are firstly used and the results are shown in Table 5.

Table 5

Results of the proposed method using signals measured on point 2

Test	Classification accuracy (%)				Average classification accuracy (%)	Standard deviation (%)
	IF	OF	RF	NO
1	85.07	100	100	100	96.27	1.1
2	75.80	95.00	100	100	92.70	2.65
3	100.00	100.00	81.19	98.40	94.90	2.7
4	100.00	91.07	99.00	99.33	97.35	0.66
5	96.20	100.00	91.87	99.93	97.00	0.61
6	97.53	100.00	91.07	100.00	97.15	3.85

From results displayed in Table 5, the proposed fault diagnosis method provide a reliable diagnostic performance. All six tests achieve high classification accuracy with low standard deviation, which reveals that the proposed method can effectively and stably detect bearing fault with large rotating speed variation.

To show the influence of the complicated transmission path, signals measured at point 1 are employed. Furthermore, a fault feature enhancement approach is utilized based on the maximum second-order cyclostationary blind deconvolution (CYCBD) [41], and the preprocessed signals are then used for analysis using the proposed method. Therefore, three types of signal are employed in the next step, which are the raw signal at point 1, the raw signal at point 2 and the preprocessed signal at point 2.

Six tests are also conducted and the results are presented in Fig. 9. The results show that: (1) due to the spectral analysis method is highly sensitive in noisy conditions, hence, signals with little noise and interference components may provide more prominent features in the envelope order spectra, which is benefit for the fault diagnosis under varying rotating speed using the proposed method. As a result, better performance is achieved using raw signal at point 1; (2) a good performance can be achieved using the preprocessed signals, which indicates that some simple signal processing approach can enhance the diagnostic ability of the proposed method, especially for raw signals with low signal-to-noise ratio.

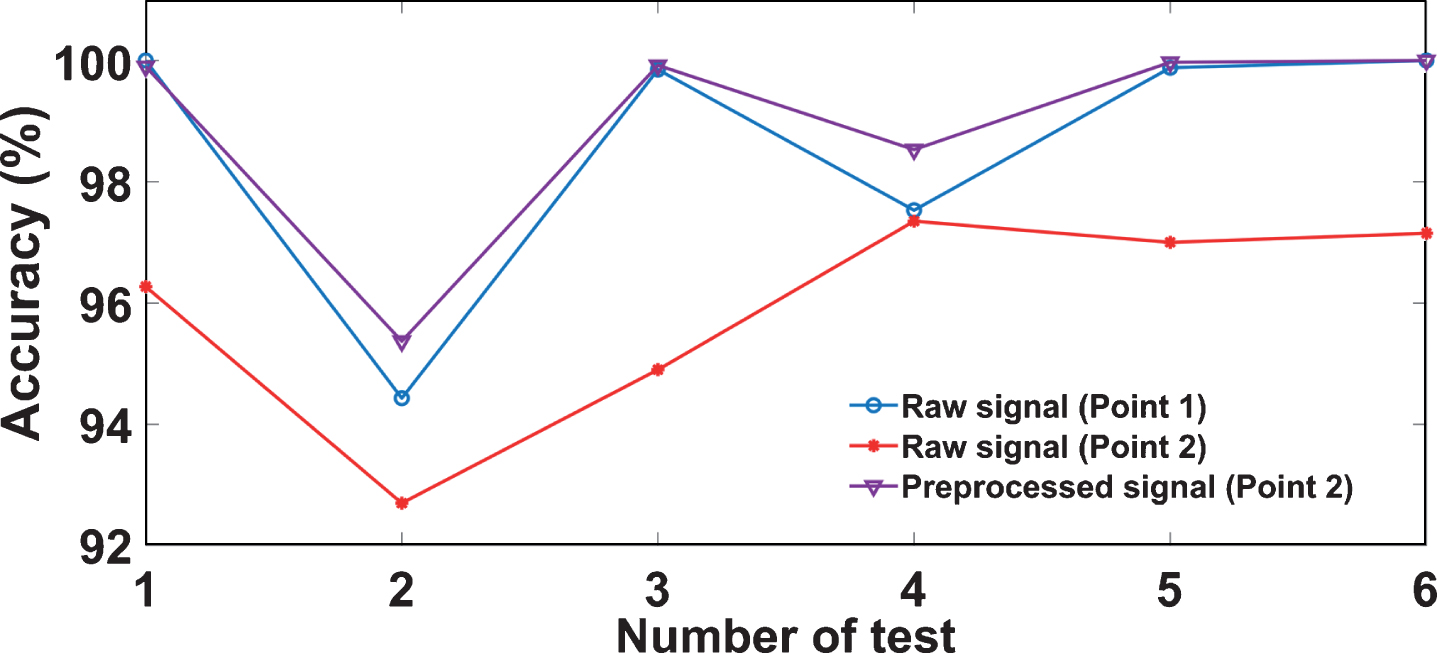

Fig. 9

Analyzed results of test 1 to test 6 using the three type signals.

What’s more, the effectiveness of the proposed method is also demonstrated using the training and testing samples from the same data set. For each data set, 350×4 samples are randomly selected for training while the other 100×4 are testing samples, the analyzed results are presented in Fig. 10 using the three type signals described above. Results in Fig. 10 show that nearly 100% diagnostic accuracy can be achieved despite the difference of input samples, even the worst accuracy achieved from the preprocessed signal at point 2 is 99.9% (parameters in the CNN isn’t very appropriate may account for the worst result), which further shows the effectiveness of the proposed method.

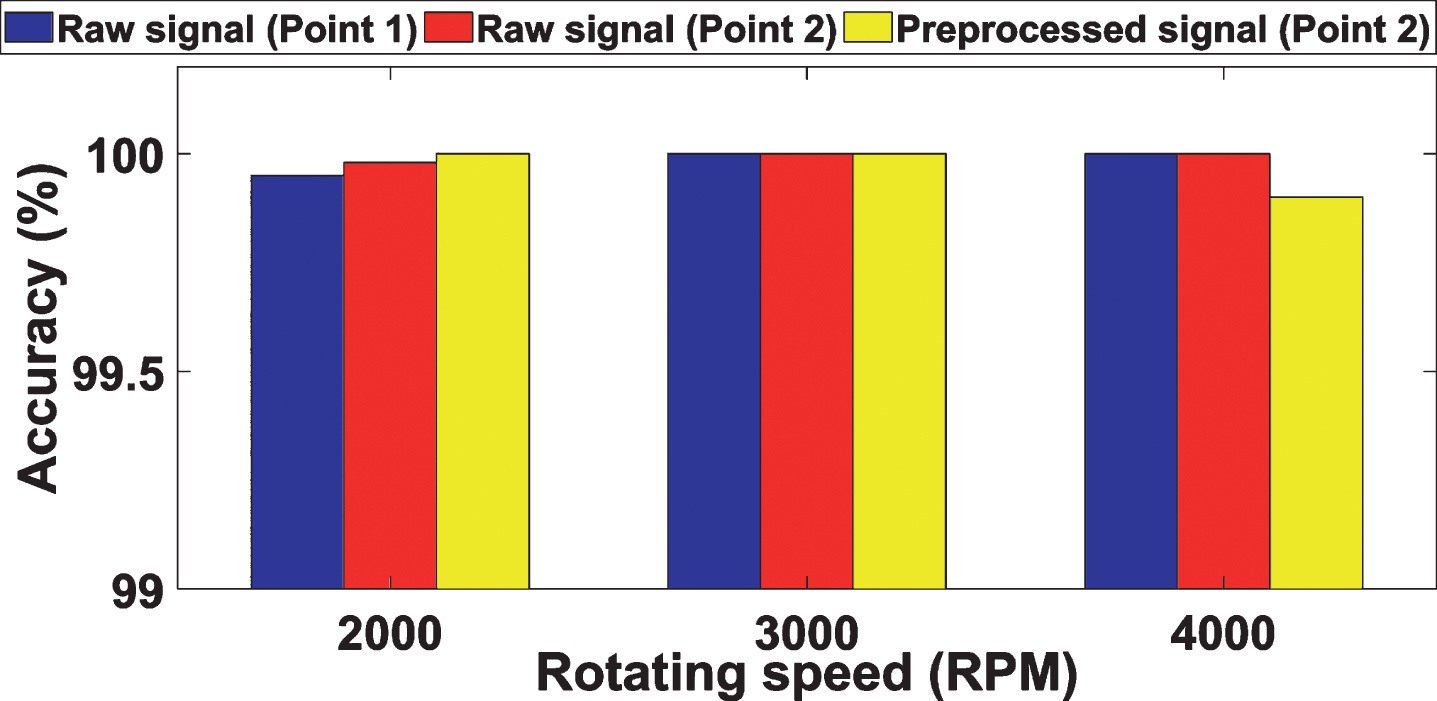

Fig. 10

Analyzed results when training and testing samples are from the same data set.

4.2.4 Comparison analysis

The results of the proposed CNN based method are still compared with the results achieved by three DL methods. Moreover, another two machine learning approaches are also employed, including the SVM based method and the PNN based method. All the methods use the experimental signals collected at point 1. As for the traditional intelligent fault diagnosis method, manual feature extraction should be conducted in advance, hence, ten statistical features shown in Table 6 [30, 42] are selected for SVM and PNN. Radial basis function (RBF) is employed as the kernel function in SVM and the spread is chosen as 0.6 in PNN. Table 7 shows average classification accuracy of the six tests using the five comparison approaches and the results are also plotted in Fig. 11.

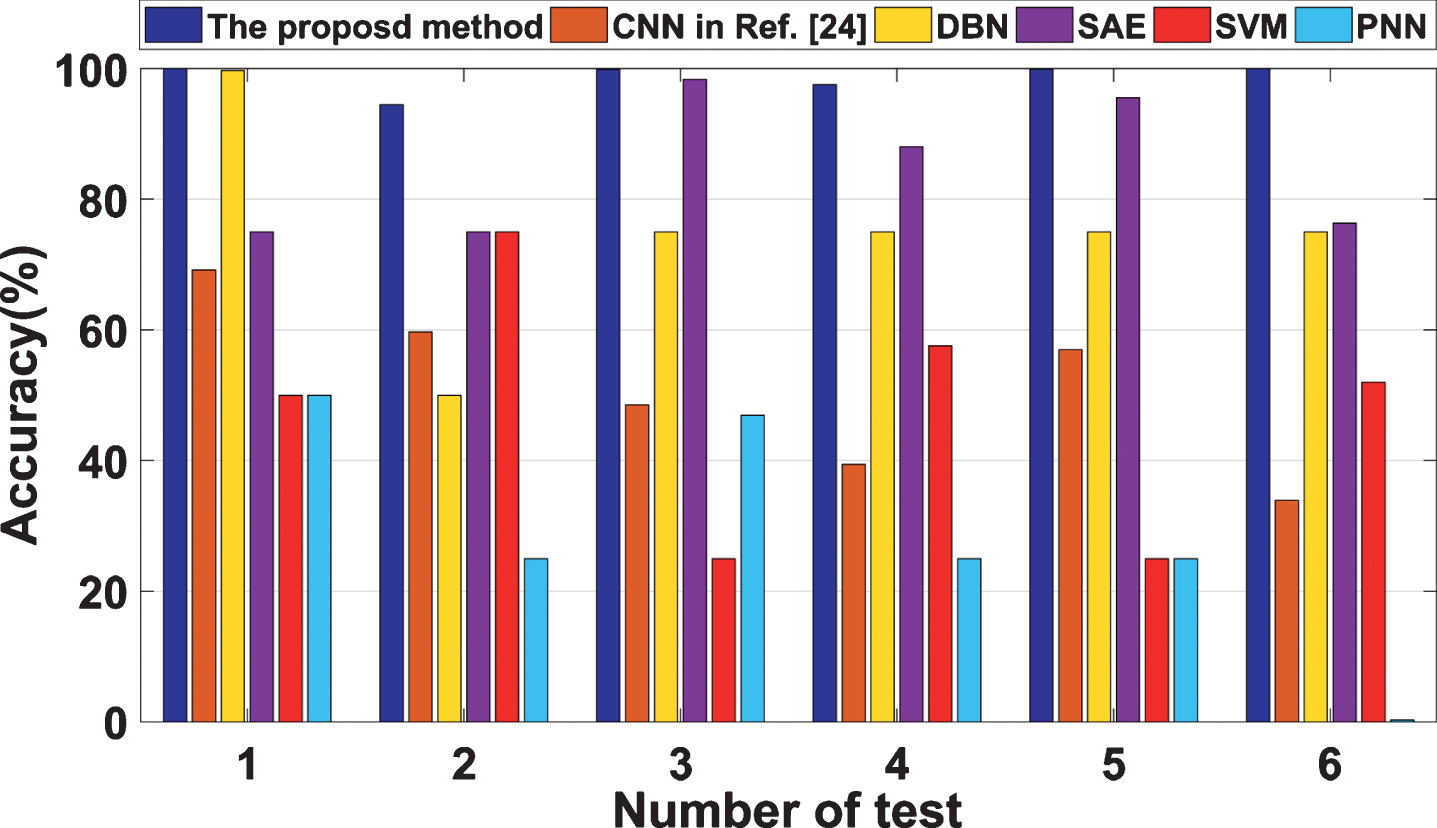

Fig. 11

Analyzed results of test 1 to test 6 using the six methods.

Table 6

Ten statistical features for SVM and PNN

Mean value	$C_{1} = \sum_{i = 1}^{N} x (i) / N$	Square root amplitude value	$C_{2} = {(\sum_{i = 1}^{N} \sqrt{\| x (i) \|} / N)}^{2}$
Mean square value	$C_{3} = \sqrt{\sum_{i = 1}^{N} x {(i)}^{2} / N}$	Absolute maximum value	$C_{4} = \max (\| x (i) \|)$
Impulse indicator	$C_{5} = C_{4} / C_{1}$	Standard deviation	$C_{6} = \sqrt{\sum_{i = 1}^{N} {(x (i) - C_{1})}^{2} / N}$
Skewness	$C_{7} = \sum_{i = 1}^{N} {((x (i) - C_{1}) / C_{6})}^{3} / N$	Kurtosis	$C_{8} = \sum_{i = 1}^{N} {((x (i) - C_{1}) / C_{6})}^{4} / N$
Variance	$C_{9} = \sum_{i = 1}^{N} {(x (i) - C_{1})}^{2} / N$	Crest factor	$C_{10} = C_{4} / C_{3}$

Table 7

Comparison results using signals measured at point 1

Test	Method	classification accuracy (%)				Average classification accuracy (%)
		IF	OF	RF	NO	Average classification accuracy (%)
1	The proposed method	100	100	100	100	100
	CNN in Ref. [24]	1.80	100	74.93	100	69.18
	DBN	100	98.66	100	100	99.67
	SAE	100	0	100	100	75
	SVM	0	0	100	100	50
	PNN	100	0	0	100	50
2	The proposed method	90.8	100	86.93	100	94.43
	CNN in Ref. [24]	0.33	70	68.33	100	59.68
	DBN	0	100	100	100	75
	SAE	0	100	100	100	75
	SVM	0	0	100	100	50
	PNN	100	0	0	0	25
3	The proposed method	99.93	100	100	99.47	99.85
	CNN in Ref. [24]	4.97	0	90.07	99.07	48.53
	DBN	0	100	100	100	75
	SAE	93.33	100	100	100	98.33
	SVM	0	0	0	100	25
	PNN	93.47	0	0	100	46.95
4	The proposed method	98.67	100	91.53	99.93	97.53
	CNN in Ref. [24]	0	7.73	50	100	39.43
	DBN	0	100	100	100	75
	SAE	100	58.66	100	100	88
	SVM	100	28.8	0	100	57.58
	PNN	100	0	0	0	25
5	The proposed method	100	100	100	99.53	99.88
	CNN in Ref. [24]	93.93	0.73	94.6	38.67	56.98
	DBN	0	100	100	100	75
	SAE	100	82	100	100	95.5
	SVM	0	0	0	100	25
	PNN	100	0	0	0	25
6	The proposed method	100	100	100	100	100
	CNN in Ref. [24]	7.47	0	73.47	54.76	33.92
	DBN	0	100	100	100	75
	SAE	5.33	100	100	100	76.33
	SVM	0	100	10.67	100	51.98
	PNN	4.67	0	0	0	0.33

From the results, it can clearly seen that the proposed CNN method outperforms five comparison methods in terms of the mean accuracy, which can also achieve more stable results in the six tests. The comparison results indicate that with the change of rotating speed, the features of the raw vibration signals are also changed, which pose a great challenge to the fault diagnosis method based on feature learning. Meanwhile, as the envelope order spectra can provide features invariant to rotating speed, which results in the superior ability for the fault diagnosis under varying rotating speed using the proposed method.

5 Conclusions

In this paper, a new fault classification algorithm based on the CNN and the envelope order spectrum is proposed to detect fault type of REBs under variable rotating speed. Envelope order spectrum is employed as the input of CNN, which can provide fault related features invariant to rotating speed. Subsequently, a robust CNN is constructed to automatically learn underlying fault features for completing fault classification. Experimental signals are employed to demonstrate the effectiveness ofthe proposed method. Analyzed results show that the proposed method can achieve high diagnostic accuracy under different rotating speed. Meanwhile, the proposed method is more effective and robust than some other intelligent approaches, and the diagnostic ability of the proposed method can also be improved combined with proper signal preprocessing method. However, some limitations are still exist in the proposed method, more work is need to optimize the construction method of CNN model and demonstrate the performance when analysis the bearing signals with compound faults.

References

Jiang

and Yin

, Recent advances in key-performance-indicator oriented prognosis and diagnosis with a matlab toolbox: DB-LIT, IEEE Transactions on Industrial and Infomatics, 2018.

Jiang

, Yin

and Yan

, Comparison of KPI related fault detection algorithms using a newly developed MATLAB toolbox: DB-KIT, IECON 2016-42nd Annual Conference of the IEEE Industrial Electronics Society. IEEE, 2016.

Gong

, Yuan

, Lei

and Wang

, Application of tentative variational mode decomposition in fault feature detection of rolling element bearing, Measurement 135 (2019), 481–492.

Sui

, Osman

and Wang

, An adaptive envelope spectrum technique for bearing fault detection, Measurement Science and Technology 25 (2014), 095004.

Chen

, Shen

, Chen

, Tian

, Xiao

, Zhang

and Zhao

, Fault diagnosis method based on integration of RSSD and wavelet transform to rolling bearing, Measurement 131 (2019), 400–411.

Antoni

, The spectral kurtosis: A useful tool for characterising non–stationary signals, Mechanical Systems and Signal Processing 20(2) (2016), 282–307.

Yang

, Lin

and Ding

, Sliding window denoising K-Singular Value Decomposition and its application on rolling bearing impact fault diagnosis, Journal of Sound and Vibration 421 (2018), 205–219.

, Cai

and Ding

, An enhanced bearing fault diagnosis method based on TVF-EMD and a high-order energy operator, Measurement Science and Technology, 29(9) (2018), 095108.

Zhao

and Li

, Fault diagnosis of wind turbine bearing based on variational mode decomposition and Teager energy operator, Iet Renewable Power Generation 11(4) (2016), 453–460.

10.

, Zhang

, Liu

, Lu

and Dai

, A feature extraction method using improved multi-scale entropy for rolling bearing fault diagnosis, Entropy, 20(4) (2018), 212.

11.

Singh

and Shaik

A.G.

, Faulty bearing detection, classification and location in a three-phase induction motor based on Stockwell transform and support vector machine, Measurement 131 (2019), 524–533.

12.

Liu

, Yang

, Zhang

, Wang

and Chen

, Time-frequency atoms-driven support vector machine method for bearings incipient fault diagnosis, Mechanical Systems and Signal Processing 75 (2016), 345–370.

13.

Jiang

, Shen

, Li

and Xu

, New Fault. Recognition Method for Rotary Machinery Based on Information Entropy and a Probabilistic Neural Network, Sensors 18(2) (2018), 337.

14.

, Yao

, Peng

and Guan

, Fault Diagnosis of roller bearings based on a wavelet neural network and manifold learning, Applied Sciences 7(2) (2017), 158.

15.

Liang

, Su

, Hu

, Ge

and Novel

, Faults Diagnosis Method for Rolling Element Bearings Based on ELCD and Extreme Learning Machine, Shock and Vibration 2018.

16.

Yan

, Jia

and Zhao

, A novel intelligent detection method for rolling bearing based on IVMD and instantaneous energy distribution-permutation entropy, Measurement 130 (2018), 435–447.

17.

Fuan

, Jiang

J.H.

, Shao

, Duan

and Wu

, An adaptive deep convolutional neural network for rolling bearing fault diagnosis, Measurement Science and Technology, 28(9) (2017), 095005.

18.

Schmidhuber

, Deep learning in neural networks: An overview, Neural networks 61 (2015), 85–117.

19.

Liu

, Yang

, Zio

and Chen

, Artificial intelligence for fault diagnosis of rotating machinery: A review, Mechanical Systems and Signal Processing 108 (2018), 33–47.

20.

Shao

, Jiang

, Zhang

and Niu

, Rolling bearing fault diagnosis using an optimization deep belief network, Measurement Science and Technology 26(11) (2015), 115002.

21.

Chen

, Deng

, Chen

, Li

, Sanchez

R.V.

and Qin

, Deep neural networks-based rolling bearing fault diagnosis, Microelectronics Reliability 75 (2017), 327–333.

22.

, Wang

, Qin

and Ma

, Fault diagnosis of rotary machinery components using a stacked denoising autoencoder-based health state identification, Signal Processing 130 (2017), 377–388.

23.

Jiang

, Li

, Shao

and Zhao

Intelligent fault diagnosis of rolling bearing using improved deep recurrent neural network, Measurement Science and Technology 2018.

24.

Wen

, Li

, Gao

, Zhang

and New

, Convolutional, Neural Network-Based Data-Driven Fault Diagnosis Method, IEEE Transactions on Industrial Electronics 65(7) (2018), 5990–5998.

25.

Guo

, Zeng

, Chen

and Yang

, Deep-Learning-Based Earth Fault Detection Using Continuous Wavelet Transform and Convolutional Neural Network in Resonant Grounding Distribution Systems, IEEE Sensors Journal 18(3) (2018), 1291–1300.

26.

Sun

, Yao

, Zeng

, Chen

, He

, Cao

and He

, An intelligent gear fault diagnosis methodology using a complex wavelet enhanced convolutional neural network, Materials 10(7) (2017), 790.

27.

Zeng

, Liao

and Li

, Gearbox fault classification using S-transform and convolutional neural network, Sensing Technology (ICST), 2016 10th International Conference on. IEEE (2016), 1–5.

28.

Han

, Liu

, Wu

, Sarker

and Jiang

, An adaptive spatiotemporal feature learning approach for fault diagnosis in complex systems, Mechanical Systems and Signal Processing 117 (2019), 170–187.

29.

Chong

U.P.

, Signal model-based fault detection and diagnosis for induction motors using features of vibration signal in two-dimension domain, Strojniški vestnik-Journal of Mechanical Engineering 57(9) (2011), 655–666.

30.

Xia

, Li

, Xu

, Liu

and de Silva

C.W.

, Fault Diagnosis for Rotating Machinery Using Multiple Sensors and Convolutional Neural Networks, IEEE/ASME Transactions on Mechatronics 23(1) (2018), 101–110.

31.

Zhang

, Peng

and Li

, Bearings fault diagnosis based on convolutional neural networks with 2-d representation of vibration signals as input, MATEC Web of Conferences. EDP Sciences, 2017.

32.

Hoang

D.T.

and Kang

H.J.

, Rolling element bearing fault diagnosis using convolutional neural network and vibration Image, Cognitive Systems Research 53 (2019), 42–50.

33.

Zhang

, Li

, Peng

, Chen

and Zhang

, A deep convolutional neural network with new training methods for bearing fault diagnosis under noisy environment and different working load, Mechanical Systems and Signal Processing 100 (2018), 439–453.

34.

Jing

, Wang

, Zhao

and Wang

, An adaptive multi-sensor data fusion method based on deep convolutional neural networks for fault diagnosis of planetary gearbox, Sensors 17(2) (2017), 414.

35.

Jia

, Lei

, Lu

and Xing

, Deep normalized convolutional neural network for imbalanced fault classification of machinery and its understanding via visualization, Mechanical Systems and Signal Processing 110 (2018), 349–367.

36.

Tra

, Khan

S.A.

and Kim

J.M.

, Diagnosis of bearing defects under variable speed conditions using energy distribution maps of acoustic emission spectra and convolutional neural networks, The Journal of the Acoustical Society of America 144(4) (2018), 322–327.

37.

Hasan

M.J.

and Kim

J.M.

, Bearing Fault Diagnosis under Variable Rotational Speeds Using Stockwell Transform-Based Vibration Imaging and Transfer Learning, Applied Sciences 8(12) (2018), 2357.

38.

Zhang

, Li

S.K.

and

N.G.

Intelligent Fault Diagnosis Under Varying, Working, Conditions Based on Domain Adaptive Convolutional Neural Networks, IEEE Access 6 (2018), 66367–66384.

39.

Appana

D.K.

, Prosvirin

and Kim

J.M.

, Reliable fault diagnosis of bearings with varying rotational speeds using envelope spectrum and convolution neural networks, Soft Computing (2018), 1–11.

40.

Smith

W.A.

and Randall

R.B.

, Rolling element bearing diagnostics using the Case Western Reserve University data: A benchmark study, Mechanical Systems and Signal Processing 64–65 (2015), 100–131.

41.

Buzzoni

, Antoni

and D‘Elia

, Blind deconvolution based on cyclostationarity maximization and its application to fault identification, Journal of Sound and Vibration 432 (2018), 569–601.

42.

Guo

, Chen

and Shen

, Hierarchical adaptive deep convolution neural network and its application to bearing fault diagnosis, Measurement 93 (2016), 490–502.

Fault diagnosis method for rolling element bearing with variable rotating speed using envelope order spectrum and convolutional neural network

Abstract

Keywords

1 Introduction

2 The basic theory of CNN

2.1 Convolutional layer

3.1 2-D image construction method

4.1 Case 1: Study on well-known fault diagnosis data set

Table 2 Detailed information of the six tests in case 1 Test Data set RPM Data set RPM (training data set) (testing data set) 1 1797 1772 2 1797 1750 3 1772 1797 4 1772 1750 5 1750 1797 6 1750 1772

4.2.1 The experimental data

Table 4 Detailed information of the six tests in case 2 Test Data set RPM Data set RPM (testing data set) (testing data set) 1 2000 3000 2 2000 4000 3 3000 2000 4 3000 4000 5 4000 2000 6 4000 3000

References

Table 2
Detailed information of the six tests in case 1

Test Data set RPM Data set RPM

(training data set) (testing data set)

1 1797 1772

2 1797 1750

3 1772 1797

4 1772 1750

5 1750 1797

6 1750 1772

Table 4
Detailed information of the six tests in case 2

Test Data set RPM Data set RPM

(testing data set) (testing data set)

1 2000 3000

2 2000 4000

3 3000 2000

4 3000 4000

5 4000 2000

6 4000 3000
