Abstract
In this paper, the notion of soft set-valued mappings and E-soft fixed points are introduced. These ideas are used to establish some analogues of classical fixed point theorems in the literature. Some Examples are given to support the hypotheses of the theorems. A few graphical and tabular illustrations are also provided so as to visualize the novel concepts pictorially. Moreover, as an application of one of the presented results, an existence condition for a solution of nonlinear discrete-type delay differential equation is provided.
Keywords
Introduction and Preliminary
A number of problems in economics, management sciences, engineering, environmental sciences, medical sciences,etc., involve vagueness and the complexities of modeling uncertain data. Some of these difficulties are basically subjective in nature and hence based on human feelings, understanding, vision system and the like, while others are based on existing facts, yet they are firmly embedded in an imprecise environment. Conventional mathematical tools which require all notions to be exact, are not always sufficient to handle imprecisions in a wide variety of practical fields. In recent time, a large number of theories have been proposed for handling vagueness in a more effective way. Some of these are probability and fuzzy set theory [41, 49], intuitionistic fuzzy sets [3], rough sets [36], etc. First of these theories was the fuzzy sets introduced by Zadeh [49],in 1965. Fuzzy sets provide an appropriate framework for representing and processing vague concepts by allowing partial memberships. Each of these earlier tools has its inherent drawbacks. As pointed out by Molodtsov [30], all the weakness of earlier mathematical methods are as a result of inadequate parametrization tools. Consequently, Molodtsov [30] initiated a novel concept, called soft theory. This theory is free from the difficulties affecting earlier mathematical techniques to a large extent. Presently, more than a handful of significant results have so far been investigated in theoretical realm of soft set theory [19]. The basic properties of soft sets were proposed in [20, 32]. Following the basic operations presented by Maji et al [32], Ali et al. [2] proposed some new algebraic operations for soft sets. Thereafter, Maji et al. [31] and Majumdar and Samanta [33] extended the notion of soft sets to fuzzy soft sets. Recently, Ma et al. [29] provided a comprehensive review of some decision making methods based on soft sets and put forward several algorithms in decision making problems by combining various kinds of existing hybrid models. Meanwhile, soft set theory has gained enormous applications in several fields such as machine learning, robotic engineering, computer science, game theory, operation research, Riemann integration, etc. Some advancements in the applications of soft set theory can be found in [1, 47].
On the other hand, fixed point theory in the framework of metric spaces is one of the most useful mathematical tools in nonlinear functional analysis. Banach contraction principle [11] is the first limelight result in this field. Over the years, the result has witnessed several improvements in different directions. Edelstein [17] first provided a version of Banach contraction theorem by replacing a complete metric with a compact metric space. Also, he established a generalization of the contraction theorem for mappings satisfying less restrictive Lipschitz inequality such as local contraction [18] and locally contractive mappings [17]. In 1969, Nadler [34] generalized the Banach contraction theorem by using the idea of multivalued mappings and contractions. Also, he initiated the idea of multi-valued locally contractive mapping, thereby extending a fixed point theorem of Edelstein [17]. Afterwards, Edelstein’s results were studied by more than a few researchers; see, for example, [5, 25] and references therein.
In continuation of the above development, Azam eta al [4] extended two Edelstein’s results in [17, 18] on contractive mappings defined on a compact metric space to fuzzy globally and locally contractive mappings and hence obtained fuzzy fixed point of the said mappings. Along the line, the concept of fuzzy mappings was introduced by Heilpern [24] which is a fuzzy generalization of Banach contraction theorem. He also introduced the existence of fuzzy fixed point theorem which improved Nadler’s [34] fixed point theorem for multivalued mappings. Since then, several papers have come up with fixed point theory and fuzzy fixed point theorems of various definitions of contractive mappings. For example, see [23, 45] and references therein.
In this paper, the concept of soft set-valued mappings is introduced. First, we define the main idea and provide a few examples of the novel scheme. Thereafter, by using the new notion, an analogue of Nadler’s fixed point theorem, Edelstein’s type fixed point theorem on fuzzy globally contractive mappings and fuzzy locally contractive mappings on compact connected metric space are established. In general, our concepts are soft set extensions of fixed point theorems for point-to-point and point-to-set maps presented in [14, 34] and related results in the literature. Moreover, as an application, we employ one of our results to establish an existence condition for solutions of a delay differential equation.
Let X be an initial universe set and E be a set of parameters. Molodstov [30] defined the notion of soft set in the following manner.
In other words, the soft set (F, E) is a parameterized family of subsets of the set X. For each e ∈ E, every set F (ɛ), from this family may be considered as the set of e-elements of (F, E), or as the set of ɛ-approximate elements of the soft set.
In what follows, we initiate the study of soft set-valued mappings. Hereafter, an element e ∈ E associated with a point x ∈ X, shall be written as a (x). In other words, a (x) is not a function of x but rather a notation representing an element of the parameter set E.
Soft Set-Valued Mappings
In this section, we reintroduce the notion of soft set-valued mapping, i.e., a mapping with values in the family of soft sets. Whereas, this idea was first time floated by Akbar Azam in “The 11th International Workshop on Dynamical Systems and Applications, June 26–28 (2012), Cankaya University, Ankara, Turkey” in an invited talk entitled: Coincidence Points of Fuzzy Mappings. See [9]. This concept is continued as follows.
Let X be an initial universe, I = [0, 1] and E be a set of parameters. Let A ⊂ E and P (X) be the power set of X. Recall that (F, A) is called a soft set over X, where F : A ⟶ P (X). Denote by [P (X)] E , the set of all soft sets over X.
A clear picture of the concept of soft set-valued mappings can be seen in Fig. 1, where X (theinitialuniverse) = {x1, x2, x3, ⋯} E (setofparameters) = {e1, e2, e3, ⋯}

Pictorial representation of soft set-valued mappings.

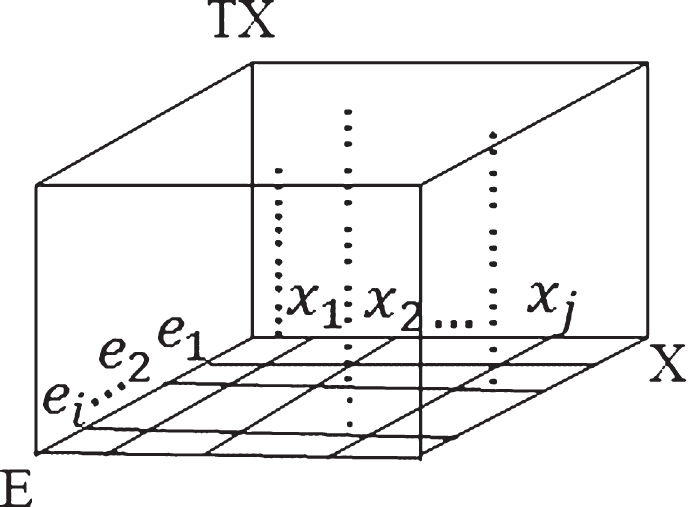

A soft set-valued mapping T : X ⟶ [P (X)] E can also be seen geometrically by a 3 dimensional(3D) graph as shown in Fig. 2.

3D representation of soft set-valued mappings.
Notice that in Fig. 2, at the cross of e i and x j , a dotted vertical line (in the direction of Tx) is the representation of the set (Tx j ) (e i ) ∈ P (X) for each i = 1, 2, 3, ⋯ and j = 1, 2, 3, ⋯.
Figure 4 is a three-dimensional(3D) graphical representation of the soft set-valued mapping in Example 2.2.
In the following example, we elaborate the concept of soft set-valued mapping and its expected role in decision making problems.
Let the initial universe of all players be given by X = {x1, x2, x3, x4, x5, x6, x7, x8, x9, x10, x11, x12, x13, x14, x15} and M ⊂ E be given by M = {e1, e2, e3}, where e1, e2, and e3 stand for batting, bowling, and fielding, respectively. The independent opinions from the three coaches
f (e2) = {x1, x2, x5, x6, x8, x10, x13, x14, x15} ,
f (e3) = {x1, x2, x3, x5, x6, x8, x10, x11, x12, x13, x14, x15} ,
g (e1) = {x1, x2, x3, x5, x7, x8, x10, x11, x12, x13, x14} ,
g (e2) = {x1, x2, x4, x5, x6, x9, x10, x11, x12, x13, x14} ,
g (e3) = {x1, x2, x4, x5, x6, x8, x11, x12, x13, x14, x15, }
h (e1) = {x3, x4, x6, x7, x9, x10, x13, x15} ,
h (e2) = {x1, x2, x3, x7, x8, x11, x13, x14, x15} ,
h (e3) = {x3, x4, x8, x10, x13, x14} .

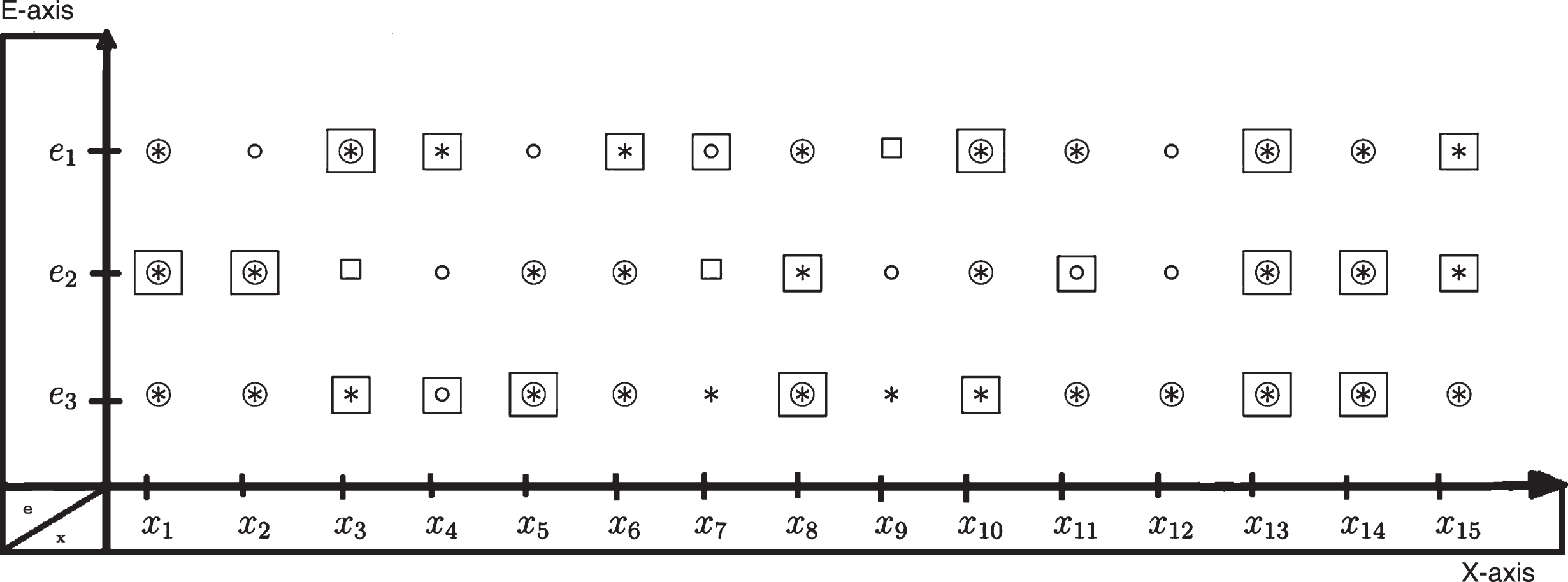

This phenomenon can be seen in Fig. 3.

Graphical representation of Example 2.3.

3D representation of the soft set-valued mappings in Example 3.2.

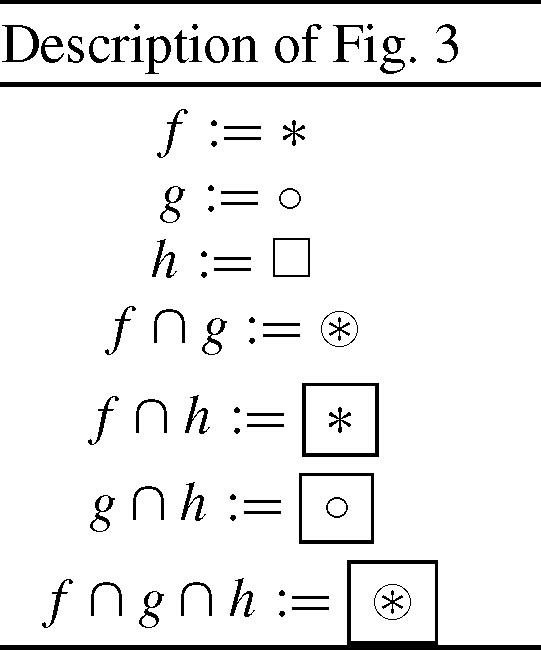

Key representation of Fig. 3 is shown in Table 1.
Keys
Note that in Fig. 3, at the cross of x1 and e1, ⊛ means the player x1 is fit for batting according to the opinion of two coaches f and g, but this player is not fit for batting according to the opinion of coach h. At the cross of x1 and e2, boxed⊛ means the player x1 is fit for bowling according to the opinion of the three coaches. At the cross of x1 and e3, ⊛ means the player x1 is fit for fielding according to the opinion of two coaches f and g, but the player is not fit for fielding in the opinion of coach h. Thus, the total score of the player x1 is 7 according to the opinion of the three coaches. Similarly, the total scores of the rest players are calculated accordingly. At a glance from the table, one can see that the first two best players are x13 and x14 with respective scores 9 and 8. Also, players x1, x8 and x10 have a tie in the second position with a score of 7.
Next, the opinions of the players regarding the best coach of their choices is represented in Table 2.
Opinion Polls of the Players
According to Table 2, coach f has the highest opinion polls of the players and hence is considered as the best coach for the national cricket team.
Now, define a soft set-valued mapping T : X ⟶ [P (X)]
E
as
For computer purpose, the soft set-valued mapping in Example 2.3 may be presented in tabular form as in Table 3.
Tabular representation of soft set-valued mapping
Similarly, every fuzzy mapping S : X ⟶ I
X
can be thought as soft set-valued mapping Ω
S
: X ⟶ [P (X)] [0,1], defined by
Notice that X ⟼ P (X) is embedding by x ⟶ {x} and P (X) ⟼ I
X
is embedding by A ⟶ χ
A
, for every subset A of P (X); where χ
A
is the characteristic function of the crisp set A. Similarly, I
X
⟼ [P (X)] [0,1] is embedding by F ⟶ Γ
F
, for every F in I
X
; where
In short words, every fuzzy mapping is a special kind of soft set-valued mapping. Therefore, it is reasonable to study the properties of soft set-valued mapping regarding solution of functional equations in connection with fixed point theorems.
Now, we present a few fixed point results in the setting of soft set-valued mappings. First, we give the following preliminary definitions/concepts. For a metric space X, let CB (X) and C (X) denote the set of all nonempty closed bounded and compact subsets of X, respectively. Consider two soft sets (F, A) and (G, B), (a, b) ∈ A × B. Assume that F (a) , G (b) ∈ CB (X). For ∊ > 0, define N
d
(∊, F (a)),
Now, by using triangle inequality along with the definition of
Next, we give an example to validate the assumptions of Theorem 3.1.
A well-known fixed point theorem due to Edelstein [17] states that if (X, d) is a compact metric space and T : X ⟶ X is a contractive mapping (i . e d (Tx, Ty) < d (x, y) , ∀ x, y ∈ X), then T has a unique fixed point in X. This result has been generalized and applied in different directions. A few of these extensions can be found in [4, 25]. In the next theorem, we extend this idea to a soft contractive mapping in the setting of soft set-valued mapping.
Another important result due to Edelstein [17] states that if (X, d) is a compact and connected metric space and T : X ⟶ X is a locally contractive mapping (that is, for each x ∈ X, there exists an open set G containing x such that for any y, z ∈ X with y ≠ z, d (Ty, Tz) < d (y, z)), then T has a unique fixed point in X. This theorem has been extended by several authors (see, for example [4, 15]). In what follows, we extend this concept to soft locally contractive mappings.
Now,
This implies that
Applications
As an application of the E-soft fixed point result (Theorem 3.1), in this subsection, we obtain fixed points of fuzzy mappings and multi-valued mappings of Heilpern [24, Th. 3.1] and Nadler [34, Th. 5].
Application to delay differential equations
A delay differential equation is a differential equation where the differential coefficient at a given current time depends on the solution at previous time. Such equations are also called differential equations with retarded argument. Strictly speaking. It is a specific example of a functional differential equation in which the functional part of the differential equation is the evaluation of a functional on the past of the process.
If x (t) is a function of time, then the delay η in the argument of x (t - η) is called a discrete delay and delay differential equations involving only discrete delay are said to be of discrete delay type. For some introductory terminologies on delay differential equations, the interested reader may consult [46]. In this subsection, using Theorem 3.1, we establish an existence result for a solution of nonlinear discrete-type delay differential equation:
for all
Then problem (3.12) has a solution in
Conclusion
In this paper, some fundamental concepts of soft set theory and fixed point theorems are unified. Motivated by the ideas of fuzzy set-valued and multivalued mappings of Heilpen and Nadler, respectively, we considered mappings whose range set is a soft set-the soft set-valued mappings. On the basis that the soft set theory can be applied to a wide range of problems in economics, engineering, physics, game theory, and so on, we provided an example (Example 2.3) as a simple application of the notion of soft set-valued mappings to highlight its prospect in decision making problems. In the process, the idea of e-soft fixed point is established. The study of fixed points of fuzzy set-valued mappings hinges largely on d∞ metric which is useful in computing Hausdorff dimensions. It has been established that these dimensions help to understand the ɛ∞-space with enormous applications in high energy physics and geometric problems. In this direction, we defined a distance function
Moreover, existence and uniqueness of solutions of delay differential equations(DDEs) is obtained usually by method of steps, appealing to classical ODE results. However, more general delay differential equations require specialized techniques of nonlinear functional analysis. This includes some peculiar notion endemic to the problem and identification of the appropriate solution space. To this effect, Theorem 3.1 is applied to establish an existence condition for solution of a nonlinear DDE. In a nutshell, our results are soft set generalizations of fixed pint theorems for point -to-point and point-to-set maps. Knowing that mapping is a fundamental concept in mathematics and related areas of sciences and engineering, the authors are hopeful that this paper will contribute not only to the field of soft set theory but to the entire realm of science and engineering where mappings have applications.
