Hybrid grasshopper optimization algorithm and differential evolution for global optimization

Abstract

Grasshopper optimization algorithm (GOA) is proposed for imitating grasshopper’s behavior in nature, which has the disadvantages of slow convergence speed and unbalanced exploration and exploitation, etc. Therefore, an algorithm called GOA_jDE, which combines GOA and jDE is proposed to improve the optimization performance. Firstly, the adaptive strategy is introduced into DE to improve the global search ability in the proposed algorithm. Secondly, the combination of jDE and GOA greatly improves the convergence efficiency while maintaining the population diversity. Finally, it can be observed in the work that the proposed algorithm improves the convergence speed and calculation precision. In the subsequent experiments, 14 well-known test benchmark functions are used to compare the advantages of GOA_jDE. The experimental results illustrate that the performance of proposed algorithm has significant improvement, which also proves the feasibility and effectiveness. Considering the complexity of engineering problems, three classical engineering design problems (tension/compression spring, welded beam, and pressure vessel designs) are used to evaluate the performance of the proposed algorithm. In addition, the classical engineering design results proves the merits of this algorithm in solving real problems with unknown search spaces.

Keywords

Grasshopper optimization algorithm differential evolution self-adapting based algorithm hybrid optimization functions optimization

1 Introduction

Many practical problems in engineering field can be reduced to the optimization of a certain mathematical model. Therefore, effective optimization algorithms have a vital impact on the solution of engineering problems. However, there are still some drawbacks that limit the wide application of the optimization algorithms. The traditional methods are easy to be trapped in local optimization for the high-dimensional complex optimization. Meta-heuristic algorithm can solve complex optimization problems, and has the advantages of simple parameters, good robustness and easy to combine with other algorithms. With the deepening of research, a wide range of algorithms have been proposed to deal with engineering problems, such as GOA [1], differential evolution (DE) [2], multi-verse optimizer (MVO) [3], and particle swarm optimization (PSO) [4], etc.

In recent years, scholars have not stopped their research on optimization algorithms. Y. mousavi et al., proposed a memetic algorithm applied in trajectory control to enhance the accuracy of solutions by increasing global and local search in 2015 [5]. And in the same year, an adaptive gradient descent memetic algorithm has been proposed by A. Arab et al. to improve the accuracy and convergence speed [6]. In 2018, S propose a new Search Group Algorithm (SGA) which introduces an adaptive parameters control using fuzzy logic, namely fuzzy SGA, to r enhance the solution quality of the basic SGA [7]. Meanwhile, Y. mousavi et al. proposed a method that combines the firefly algorithm (FA) with memory term to enhance the performance of the basic FA by controlling its convergence speed [8]. In 2019, A concept called Augmented Lagrangian Particle Swarm Optimization with Fractional Order Velocity (ALPSOFV) has been introduced by E. Sadat Alaviyan Shahri et al. to improve the convergence speed [9].

The GOA is a swarm intelligence optimization algorithm proposed by Saremi et al. which mimic grasshopper behavior in nature. Since put forward it has attracted wide attention of scholars. In the fields such as financial pressure prediction [10], feature selection [11], and analysis of vibration signals from rotating machinery [12] GOA has shown significant performance. However, the performance of GOA algorithm still needs to be strengthened in order to greatly deal with different engineering problems. Obviously, the GOA has the disadvantages of slow convergence speed and unbalanced exploration and exploitation [13, 14]. Furthermore, the computation time is so long that it can’t solve the problem in time. Therefore, we need propose a improved algorithm to enhance the above ability. By introducing the OBL strategy in the initialization and update stages, the improved grasshopper optimization algorithm called IGOA improves the search efficiency and avoid the local optimum [15]. The adaptive grasshopper optimization algorithm named AGOA using natural selection strategy and democratic decision-making mechanism was adopted to jump out of local best trap [16]. The success of above applications using other strategy inspires us to combine GOA with effective strategies.However, the improved version of GOA still has disadvantages such as low precision, poor stability, and long time. Therefore, the algorithm proposed in paper can be suitable for the engineering problems.

DE [2] is an effective algorithm with simple parameters, which can improve search efficiency obviously and maintain the population diversity effectively by combining with other algorithms. In 2018, xiong et al. proposed a hybrid DE with whale optimization algorithm (WOA) to improve the ability of exploration (WOADE) [17]. In 2017, a hybridization of artificial bee colony (ABC) and DE algorithms has been proposed by Jadon et al. to build a new method with improved convergence speed and population diversity (ABCDE) [18]. The results mean that there is significant property improvement of DE in hybrid models. In fact, some of the hybrid algorithms available such as hybrid jDE (hjDE) [19], modified GOA (MGOA) [20], and β DE (BDE) [21] still have disadvantages. Therefore, a hybrid algorithm of GOA and jDE is proposed to improve the precision and convergence.

The rest of this paper is structured as follows: Section 2 introduces the basic principle of GOA algorithm briefly; The improved GOA-jDE algorithm is described in Section 3; Section 4 mainly illustrates the simulation experiments and results analysis; And the engineering problem is shown in Section 5; The last part is Section 6: Summary and discussion.

2 Grasshopper optimization algorithm

GOA is firstly proposed by Shahrzad Saremi to apply in structural optimization [1]. Just like other swarm optimization algorithms, the grasshopper position vectors are delimiting in d-dimensional space, where d represents the number of decision variables for optimization problems. Therefore, the population X of n grasshopper individuals can be expressed by a n×d dimensional matrix, which is indicated clearly in Equation (1). $X = [\begin{matrix} x_{1, 1} & x_{1, 2} & \dots & x_{1, d} \\ x_{2, 1} & x_{2, 2} & \dots & x_{2, d} \\ ⋮ & ⋮ & \dots & ⋮ \\ x_{n, 1} & x_{n, 2} & \dots & x_{n, d} \end{matrix}]$ (1)

There are three main elements affecting individual movement of the grasshopper:social communication, power of gravity and wind advection. And the mathematical model of their swarm behaviors is shown by the following formula: $X_{i} = S_{i} + G_{i} + A_{i}$ (2) where X_i is the location of the ith grasshopper. S_i, G_i, and A_i respectively represent the social communication, power of gravity and wind advection of the ith grasshopper. $S_{i} = \sum_{j = 1, j \neq i}^{N} s (d_{ij}) {\hat{d}}_{ij}$ (3) $d_{ij} = | x_{j} - x_{i} |$ (4) ${\hat{d}}_{ij} = (x_{j} - x_{i}) / d_{ij}$ (5) $s (r) = {fe}^{- r / l} - e^{- r}$ (6) where d_ij shows the distance between the ith grasshopper and jth grasshopper, and ${\hat{d}}_{ij}$ is a unit vector from the ith grasshopper to the jth grasshopper. f and l are two constants that can affect the social forces. And the s function has ‘zero’ when the parameters f and l are within a certain range. This is called the comfort zone and the conceptual model is shown in Fig. 1. And the s function cannot present strong social force when the distance between grasshoppers is large, so, the authors mapped the distance in the interval [1, 4] to overcome the above drawback.

Fig. 1

Primitive corrective patterns between grasshopper individuals [22].

The gravity force on the ith grasshopper is calculated as follows: $G_{i} = - g {\hat{e}}_{g}$ (7) where g is the gravitational constant and ${\hat{e}}_{g}$ is a unit vector towards the center of earth.

The wind advection of the ith grasshopper is presented as follows: $A_{i} = u {\hat{e}}_{w}$ (8) where u is a constant drift and ${\hat{e}}_{w}$ is a unity vector in the direction of wind.

However, Equation (2) cannot be directly utilized to solve optimization problems. The authors presented an improved version that defined as: $X_{i}^{d} = c (\sum_{j = 1, j \neq i}^{N} c \frac{{ub}_{d} - {lb}_{d}}{2} s (| x_{j}^{d} - x_{i}^{d} |) \frac{x_{j} - x_{i}}{d_{ij}}) + {\hat{T}}_{d}$ (9) where ub_d and lb_d indicate the upper and lower limits of the d dimension respectively. ${\overset{⌢}{T}}_{d}$ represents the value of the dth dimension in the optimal solution acquired so far. C is a important parameter of GOA which can balance the explored and exploited for the best optimization. It decreases with the number of iterations and can be calculated as follows: $c = c_{max} - t \frac{c_{max} - c_{min}}{t_{max}}$ (10) where C_max and C_min are the maximum and minimum values respectively. t is the current iteration and t_max represents the maximum number of iterations. And pseudocode of traditional GOA for global optimization is given in Algorithm 1.

Algorithm 1. Pseudocode of grasshopper optimization algorithm for optimization problem

1. Begin

2. Initialize the position of grasshopper x_i;

3. Initialize the best search agent

{\hat{T}}_{d}

;

4. whilet < t_max

5. Evaluate c using Equation (10);

6. fori = 1:n

7. Calculate the objective value of each grasshopper

8. Update the best search agent

{\hat{T}}_{d}

;

9. Normalize the distance between grasshoppers in [1, 4];

10. Update the position of grasshopper salp using

Equation (9);

11. Correct the position of the current grasshopper if it is

beyond the border;

12. end for

13. end while

14. return

{\hat{T}}_{d}

, which represents the optimal position of

optimization;

15. End

3 Proposed methodology

A hybrid GOA algorithm with DE is introduced in this section. Firstly of all, the DE algorithm and its version, jDE are retrospected. Then, the hybrid model is discussed profoundly. Last, the proposed algorithm called GOA-jDE is applied to global optimization domain, and the correlative flowchart has been given in the following content.

3.1 Differential evolution

Differential evolution (DE) was firstly proposed by Storn and Price in 1997. DE has attracted extensive attention of scholars in the past few decades because of its simple and powerful evolutionary method [23]. It has three main operators called “mutation”, “crossover”, and ”selection” in the standard DE algorithm [24]. There are two important parameters, scaling factor SF and crossover probability CR, influencing the exploration of optimization.

3.1.1 Mutation

During the mutation operation of DE algorithm, the process can be defined as follows: $m_{i}^{t + 1} = x_{r 1}^{t} + SF \times (x_{r 2}^{t} - x_{r 3}^{t})$ (11) where $m_{i}^{t + 1}$ is the mutant individual in the (t + 1) th iteration. $x_{r 1}^{t}$ , $x_{r 2}^{t}$ , and $x_{r 3}^{t}$ represent three different individuals in the population. More concretely, r₁, r₂, and r₃ are not same. The scaling factor (SF) is a constant here.

3.1.2 Crossover

After the mutation process, the trial individual $c_{i}^{t + 1}$ is selected from the current individual $x_{i}^{t}$ or the mutant subject $m_{i}^{t + 1}$ to improve the population diversity. The crossover operation of DE algorithm is specifically expressed as follows: $c_{i}^{t + 1} = {\begin{matrix} m_{i}^{t + 1} & if rand \leq CR \\ x_{i}^{t} & if rand > CR \end{matrix}$ (12) where rand is a random number distributed evenly in the interval [0, 1]. CR is a constant representing crossover probability.

3.1.3 Selection

In the selection process, the trial individual $c_{i}^{t + 1}$ were compared with the current individual $x_{i}^{t}$ to obtain an individual of (t + 1) th generation. For a minimization problem, the selection operation is mathematically calculated as: $x_{i}^{t + 1} = {\begin{matrix} c_{i}^{t + 1} & if f (c_{i}^{t + 1}) < f (x_{i}^{t}) \\ x_{i}^{t} & otherwise \end{matrix}$ (13) where f denotes the objective function for the unresolved optimization problem.

3.2 Self-Adapting Differential Evolution (jDE)

There are two significant parameters, scaling factor SF and crossover probability CR, in DE algorithm as mentioned above. Meanwhile, the value of these parameters can affect the optimization capability. In traditional DE algorithm, the two control parameters are invariant through the whole evolutionary process. However, the fixed value cannot be well adapted to all kinds of problem, especially for complex problems with high dimensions. Thus, Brest et al. [25] introduced a modified DE that can be adaptively set to control parameters. In the modified version of DE, called jDE, the control parameters SF and CR can be specifically expressed as follows: ${SF}_{i}^{t + 1} = {\begin{matrix} {SF}_{l} + {rand}_{1} \times {SF}_{u} & if {rand}_{2} < τ_{1} \\ {SF}_{i}^{t} & otherwise \end{matrix}$ (14) ${CR}_{i}^{t + 1} = {\begin{matrix} {rand}_{3} & if {rand}_{4} < τ_{2} \\ {CR}_{i}^{t} & otherwise \end{matrix}$ (15) where τ₁ and τ₂ indicate the conversion probability set to 0.1 here. SF_l and SF_u point out the limit of scaling factor. The initialization of SF and CR are set to 0.5 and 0.9 respectively.

It can be shown from Equations (14) and (15) that each search agent has its own SF and CR. The value of these two parameters may change with the process of iteration, but the transition probability represented by τ is small. The pseudocode of jDE algorithm is given in Algorithm 2.

Algorithm 2. Pseudocode of jDE algorithm for optimization problem

1. Begin

2. Initialize the position of search agent x_i;

3. Initialize the best search agent x_best;

4. whilet < t_max

5. fori = 1 : n

6. Calculate the objective value of each search agent;

7. Update the best search agent x_best;

8. Evaluate the control parameters SF and CR of each search agent according Equations (14)–(15);

9. Mutation: Generate a mutant individual using Equation (11), and then check the position;

10. Crossover: Choose the trial individual from current individual and mutant individual through Equation (12);

11. Selection: Select the better individual that will be preserved for the next generation by Equation (13);

12. end for

13. end while

14. return x_best, which represents the optimal position of optimization;

15. End

3.3 Hybrid Algorithm of GOA and jDE (GOA-jDE)

In 2019, the moth search differential evolution (MSDE) algorithm for cloud computing task scheduling is proposed by Elaziz et al. [26]. DE is used for local search method in MSDE, and roulette wheel method is served to determine which strategy to adopt. In 2018, a hybrid algorithm based on self-adaptive gravitational search algorithm (GSA) and differential evolution named SGSADE has been proposed. In this paper, DE algorithm is adopted to improve exploitation ability and maintain population diversity [27]. In 2017, Zhao et al. put forward a hybrid optimization algorithm of chaotic differential evolution and estimation of distribution [28]. The novel algorithm can achieve a high precision solution.

The success of these applications using hybrid algorithm with DE inspires us to utilize them, and then get an adjusted version of GOA. In this paper, the combination of GOA algorithm and jDE improves the search precision and retain the diversity of population especially in subsequent iterations. Meanwhile, DE algorithm is put forward for the purpose of local search strategy in the proposed algorithm, but this does not mean that its ability to explore can be neglected. Therefore, an modified version of DE called jDE is adopted to replace the traditional DE.

In GOA-jDE algorithm, according to the authors’ opinion, the average objective value of population shows the overall quality of search agents among the current generation. For a problem to be minimized, if the fitness function value of individual is inferior to the average, it represents that the contiguous search area of the particle is potential and expectable. Thus, the strategy of strengthening local search should be used. Conversely, if the fitness function value is preferable than the average, the local search strategy will not be adopted. In addition, the introduction of jDE will not let the algorithm convergence prematurely, because the differences between scaling individuals causes the population to be more randomly distributed. This characteristic can effectively retain the population diversity, especially in the subsequent evolution process. Furthermore, the flowchart of GOA-jDE algorithm is shown in Fig. 2.

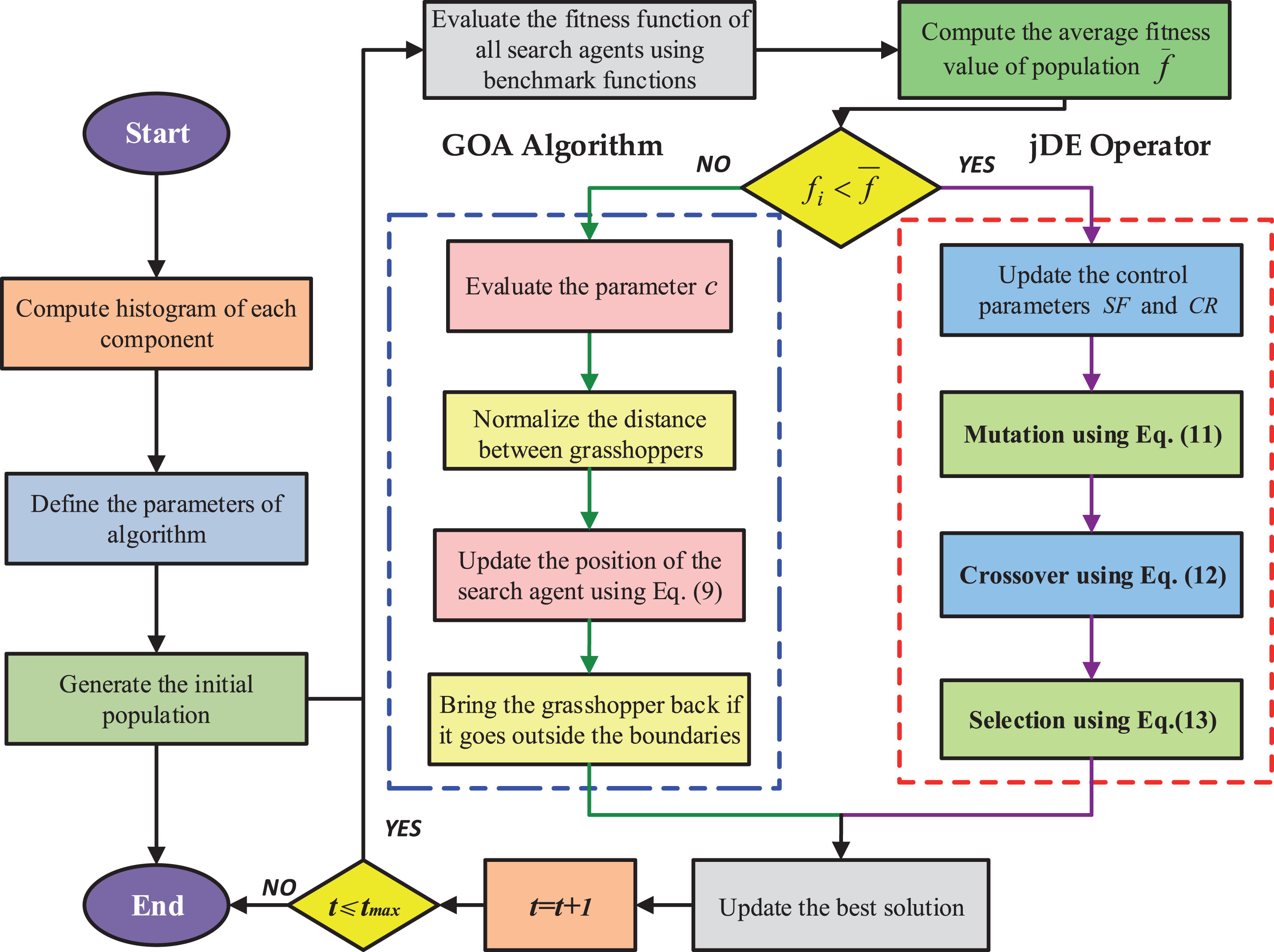

Fig. 2

Framework of the GOA-jDE based method [22].

Fig. 3

Schematic of the spring.

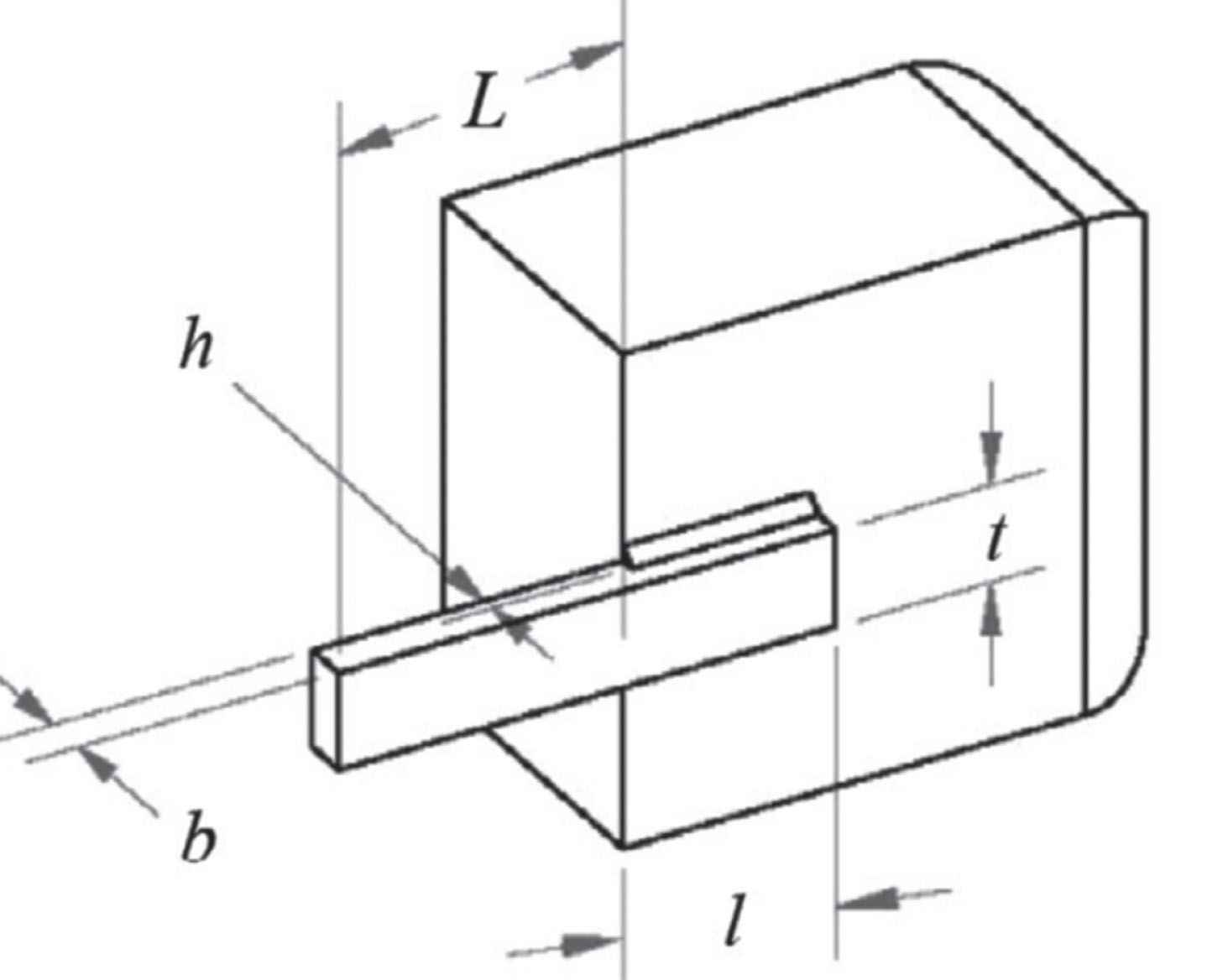

Fig. 4

Schematic of the welded beam.

Fig. 5

Schematic of the pressure vessel.

4 Experimental results and discussion

In this section, in order to study the performance of the proposed algorithm, a set of experimental series is performed by using 14 unconstrained benchmark functions. The functions can be divided into two types: the first type is the unimodal functions which is used to assess the solution precision and the convergence rate of the proposed algorithm. These functions are from F1 to F7.

The another type called multimodal is chosen to evaluate the performance of the algorithm to avoid the local optimum and to reach the global solution. The example functions are from F8 to F14. And the functional composition, dimension, range limitation and optimal position of 14 functions has been given in Table 1.

Table 1
Benchmark functions

Function Dim Range f_min

$f_{1} (x) = \sum_{i = 1}^{n} x_{i}^{2}$ 30 [–100,100] 0

$f_{2} (x) = \sum_{i = 1}^{n} {| x}_{i} | + \prod_{i = 1}^{n} | x_{i} |$ 30 [–10,10] 0

$f_{3} (x) = \sum_{i = 1}^{i} (\sum_{j - 1}^{i} x_{j})^{2}$ 30 [–100,100] 0

f₄ (x) = max {|x_i|, 1 ≤ i ≤ n} 30 [–100,100] 0

$f_{5} (x) = \sum_{i = 1}^{n - 1} [100 (x_{i + 1} - x_{i}^{2})^{2} + (x_{i} - 1)^{2}]$ 30 [–30,30] 0

$f_{6} (x) = \sum_{i = 1}^{n} ([x_{i} + 0.5])^{2}$ 30 [–100,100] 0

$f_{7} (x) = \sum_{i = 1}^{n} {ix}_{4} + random [0, 1)$ 30 [–1.28,1.28] 0

$F_{8} (x) = \sum_{i = 1}^{n}$ 30 [–5.12,5.12] 0

$F_{9} (x) = - 20 exp - 0.2 \sqrt{\frac{1}{n} \sum_{i = 1}^{n} x_{i}^{2}}) - exp (\frac{1}{n} \sum_{i = 1}^{n} cos (2 π x_{i})) + 20 + e$ 30 [–32,32] 0

$F_{10} (x) = \frac{1}{4000} \sum_{i = 1}^{n} x_{i}^{2} - \prod_{i = 1}^{n} cos (\frac{x_{i}}{\sqrt{i}}) + 1$ 30 [–600,600] 0

$\begin{matrix} F_{11} = \frac{π}{n} {10 sin (π y_{1}) + \sum_{i = 1}^{n - 1} (y_{i} - 1)^{2} [1 + 10 {sin}^{2} (π y_{i + 1}) + (y_{n} - 1)^{2}} \end{matrix}$

$\begin{matrix} + \sum_{i = 1}^{n} u (x_{i}, 10, 100, 4) + \sum_{i = 1}^{n} u (x_{i}, 10, 100, 4) y_{i} = 1 + \frac{x_{i} + 1}{4} \\ u (x_{i}, a, k, m) = {\begin{matrix} k (x_{i} - a)^{m} \\ 0 \\ k (- x_{i} - a)^{m} \end{matrix} \begin{matrix} x_{i} > a \\ - a < x_{i} < a \\ x_{i} < a \end{matrix} \end{matrix}$ 30 [–50,50] 0

$F_{12} (x) = 0.1 {{sin}^{2} (3 π x_{1}) + \sum_{i = 1}^{n} (x_{i} - 1^{2} [1 + {sin}^{2} (3 π x_{i} + 1)] + (x_{n} - 1)^{2} [1 + {sin}^{2} (2 π x_{n})]}$ 30 [–50,50] 0

$+ \sum_{i = 1}^{n} u (x_{i}, 5, 100, 4)$

$F_{13} = (\frac{1}{500} + \sum_{j = 1}^{25} \frac{1}{j + \sum_{i = 1}^{2} (x_{i} - a_{ij})^{6}})^{- 1}$ 2 [–65,65] 1

$F_{14} = \sum_{i = 1}^{11} [a_{i} - \frac{x_{1} (b_{i}^{2} + b_{i} x_{2})}{b_{i}^{2} + b_{i} x_{3} + x_{4}}]^{2}$ 4 [–5,5] 0.0003

Function	Dim	Range	f_min
$f_{1} (x) = \sum_{i = 1}^{n} x_{i}^{2}$	30	[–100,100]	0
$f_{2} (x) = \sum_{i = 1}^{n} {\| x}_{i} \| + \prod_{i = 1}^{n} \| x_{i} \|$	30	[–10,10]	0
$f_{3} (x) = \sum_{i = 1}^{i} (\sum_{j - 1}^{i} x_{j})^{2}$	30	[–100,100]	0
f₄ (x) = max {\|x_i\|, 1 ≤ i ≤ n}	30	[–100,100]	0
$f_{5} (x) = \sum_{i = 1}^{n - 1} [100 (x_{i + 1} - x_{i}^{2})^{2} + (x_{i} - 1)^{2}]$	30	[–30,30]	0
$f_{6} (x) = \sum_{i = 1}^{n} ([x_{i} + 0.5])^{2}$	30	[–100,100]	0
$f_{7} (x) = \sum_{i = 1}^{n} {ix}_{4} + random [0, 1)$	30	[–1.28,1.28]	0
$F_{8} (x) = \sum_{i = 1}^{n}$	30	[–5.12,5.12]	0
$F_{9} (x) = - 20 exp - 0.2 \sqrt{\frac{1}{n} \sum_{i = 1}^{n} x_{i}^{2}}) - exp (\frac{1}{n} \sum_{i = 1}^{n} cos (2 π x_{i})) + 20 + e$	30	[–32,32]	0
$F_{10} (x) = \frac{1}{4000} \sum_{i = 1}^{n} x_{i}^{2} - \prod_{i = 1}^{n} cos (\frac{x_{i}}{\sqrt{i}}) + 1$	30	[–600,600]	0
$\begin{matrix} F_{11} = \frac{π}{n} {10 sin (π y_{1}) + \sum_{i = 1}^{n - 1} (y_{i} - 1)^{2} [1 + 10 {sin}^{2} (π y_{i + 1}) + (y_{n} - 1)^{2}} \end{matrix}$
$\begin{matrix} + \sum_{i = 1}^{n} u (x_{i}, 10, 100, 4) + \sum_{i = 1}^{n} u (x_{i}, 10, 100, 4) y_{i} = 1 + \frac{x_{i} + 1}{4} \\ u (x_{i}, a, k, m) = {\begin{matrix} k (x_{i} - a)^{m} \\ 0 \\ k (- x_{i} - a)^{m} \end{matrix} \begin{matrix} x_{i} > a \\ - a < x_{i} < a \\ x_{i} < a \end{matrix} \end{matrix}$	30	[–50,50]	0
$F_{12} (x) = 0.1 {{sin}^{2} (3 π x_{1}) + \sum_{i = 1}^{n} (x_{i} - 1^{2} [1 + {sin}^{2} (3 π x_{i} + 1)] + (x_{n} - 1)^{2} [1 + {sin}^{2} (2 π x_{n})]}$	30	[–50,50]	0
$+ \sum_{i = 1}^{n} u (x_{i}, 5, 100, 4)$
$F_{13} = (\frac{1}{500} + \sum_{j = 1}^{25} \frac{1}{j + \sum_{i = 1}^{2} (x_{i} - a_{ij})^{6}})^{- 1}$	2	[–65,65]	1
$F_{14} = \sum_{i = 1}^{11} [a_{i} - \frac{x_{1} (b_{i}^{2} + b_{i} x_{2})}{b_{i}^{2} + b_{i} x_{3} + x_{4}}]^{2}$	4	[–5,5]	0.0003

4.1 Experimental setup

All the experimental series were carried out on MATLAB R2014b, and the computer was configured as Intel(R) Core (TM) i5-5200U CPU @2.20 GHz, using Microsoft Windows 8 system.

4.2 Comparison of each algorithm’s performance

In this paper, a sequence of experiments are carried out to evaluate the performance of GOA-jDE algorithm. For the experiment, the most advanced and conventional optimization algorithm for global optimization are adopted, such as the traditional GOA and DE, multi-verse optimizer (MVO) [3], particle swarm optimization (PSO) [4] hybrid jDE (hjDE) [19], modified GOA (MGOA) [20], and βDE (BDE) [21]. The parameter values are set according to Table 2. And the population size N is set to 30 and the number of iterations t_max is set to 500 for fair comparison. Meanwhile, all experiments are conducted 30 times and the best result has been highlighted in boldface in Table 3.

Table 2
Parameters of the algorithms

Reference Algorithm Parameters setting

— GOA_jDE CR=0.9, SF=0.5, τ₁ = τ₂ = 0.1 SF^LOW = 0.5, SF^UP = 0.9

[1] GOA C ∈ [0.00001,1]

[2] DE CR=0.9, SF=0.5

[3] MVO WEP ∈ [0.2,1], TDR ∈ [0,1] Random parameters r₁, r₂, r₃∈ [0,1]

[4] PSO C₁ = C₂ = 2, W∈ [0.4,0.9], V_max = 25.5

[19] hjDE p_α = 0.25 (switchingprobability)

[20] MGOA β = 0.8(Levy flight parameter)

[21] BDE α∈ [0,1](beta distribution parameter)

Reference	Algorithm	Parameters setting
—	GOA_jDE	CR=0.9, SF=0.5, τ₁ = τ₂ = 0.1 SF^LOW = 0.5, SF^UP = 0.9
[1]	GOA	C ∈ [0.00001,1]
[2]	DE	CR=0.9, SF=0.5
[3]	MVO	WEP ∈ [0.2,1], TDR ∈ [0,1] Random parameters r₁, r₂, r₃∈ [0,1]
[4]	PSO	C₁ = C₂ = 2, W∈ [0.4,0.9], V_max = 25.5
[19]	hjDE	p_α = 0.25 (switchingprobability)
[20]	MGOA	β = 0.8(Levy flight parameter)
[21]	BDE	α∈ [0,1](beta distribution parameter)

Table 3

Comparative results on benchmark functions

Functions	Alogrithm
	GOA	DE	MVO	PSO	BDE	hjDE	GOA_jDE	MGOA
f ₀₁	3.24E-08	3.47E-37	6.56E-03	2.65E-14	2.82E-28	2.97E-05	1.50E-50	8.88E-16
f ₀₂	5.01E-05	4.55E-21	1.79E-02	2.65E-18	4.00E-18	9.85E-03	1.21E-26	6.06E-03
f ₀₃	1.63E-03	1.40E-03	1.92E-02	0.00E+00	1.12E-07	1.19E-04	2.41E-18	3.85E-07
f ₀₄	2.69E-04	1.35E-10	3.56E-02	2.54E-13	8.31E-08	2.58E-03	6.23E-14	3.65E-07
f ₀₅	3.66E+00	4.14E+00	4.83E+00	4.00E+00	1.89E-01	1.99E-02	1.22E-08	2.46E-09
f ₀₆	7.21E-08	2.50E-09	4.22E-03	2.50E+00	6.03E-20	5.13E-05	0.00E+00	5.17E-06
f ₀₇	5.22E-03	3.97E-04	6.23E-04	2.18E-05	8.69E-04	6.83E-04	0.00E+00	3.12E-05
f ₀₈	1.69E+01	0.00E+00	6.97E+00	0.00E+00	0.00E+00	6.37E-03	0.00E+00	0.00E+00
F ₉	1.02E-04	8.88E-16	3.66E-02	7.58E-15	7.54E-14	8.22E-03	4.44E-15	2.29E-03
f ₁₀	7.90E-04	0.00E+00	9.66E-02	0.00E+00	0.00E+00	4.88E-06	0.00E+00	2.37E-06
f ₁₁	1.03E-05	7.68E-11	2.39E-04	4.71E-32	3.78E-19	8.34E-06	4.71E-32	4.71E-32
f ₁₂	2.93E-06	1.67E-10	7.25E-04	1.34E-32	9.06E-19	6.71E-05	1.25E-32	1.48E-01
f ₁₃	9.86E-01	9.68E-01	1.09E+00	9.87E-01	9.98E-01	9.25E-01	1.00E+00	9.98E-01
f ₁₄	4.44E-04	3.07E-04	3.12E-04	1.05E-02	3.07E-04	1.70E-03	3.07E-04	2.785E-04

In Table 3, the performance of GOA-jDE algorithm is evaluated according to the best value. It can be observed from the Table 3 that the proposed method presents the lowest value in most cases. Although few algorithms show competitive result in some cases, this result still proves that the optimal solution obtained by the proposed method is high-quality. In GOA-jDE, the entire population is separated into two parts based on the average fitness value. Compared with the traditional GOA and DE, it increases the probability of achieving global optimization for the balanced exploration and exploitation strategy of optimization. Compared to other algorithms, GOA-jDE algorithm can keep the population diversity in the subsequent iteration. Therefore, the ability to jump out from local optimization has enhanced.

The convergence curve of each algorithm on 14 benchmark functions is shown in Table 6. It can be seen from the experimental results that the performance of GOA-jDE algorithm is superior to other methods in most cases. The GOA-jDE algorithm has advantage in balancing the exploration and exploitation, neither premature convergence nor convergence speed. Therefore, the results represent that GOA-jDE has remarkable performance in most cases, which is appropriate for optimization of solution problems.

Consider	$\vec{x} = [\begin{matrix} x_{1} & x_{2} & x_{3} \end{matrix}] = [\begin{matrix} d & D & N] \end{matrix}$
Minimize	$f (\vec{x}) = (x_{3} + 2) x_{2} x_{1}^{2}$
Subject to	$g_{1} (\vec{x}) = 1 - \frac{x_{2}^{3} x_{3}}{71785 x_{1}^{4}} \leq 0$
	$g_{2} (\vec{x}) = \frac{4 x_{2}^{2} - x_{1} x_{2}}{12566 (x_{2} x_{1}^{3} - x_{1}^{4})} + \frac{1}{5108 x_{1}^{2}} \leq 0$
	$g_{3} (\vec{x}) = 1 - \frac{140.45 x_{1}}{x_{2}^{2} x_{3}} \leq 0$
	$g_{4} (\vec{x}) = \frac{x_{1} + x_{2}}{1.5} - 1 \leq 0$
Variable range	0.05 ≤ x₁ ≤ 2.00
	0.25 ≤ x₂ ≤ 1.30
	2.00 ≤ x₃ ≤ 15.0

In Table 4, it can be found that PSO is faster than any other available algorithms, but it cannot attain the optimal values of the above indicators. The DE algorithm sometimes shows competitive results, and is slightly slower than PSO in the whole experiment. At the same time, the computation time of GOA-jDE is between GOA and DE owing to the hybrid model. But this does not represent that the improved algorithm is ineffective. As mentioned above, the standard for evaluating performance should be more objective. Although the proposed algorithm is not the fastest, the performance is significant in many aspects. Generally speaking, GOA-jDE is a good algorithm that can improve the precision remarkably without increasing runtime.

Table 4

Computation time

Average time	Alogrithm
	GOA	DE	MVO	PSO	BDE	hjDE	GOA_jDE	MGOA
	10.015978	0.940526	2.515224	0.472262	0.914389	0.968227	1.055930	10.302754

In this section, the stability of every algorithm is evaluated by STD value and boxplot. The corresponding data are given in Tables 5 and 6. It can be seen from the tables that GOA-jDE usually gives the lowest value of STD, which represents good stability. A lower position represents excellent property for the boxplot in this test. As it can be seen from the boxplot, the proposed algorithm’s optimize performance is most stable and its standard deviation is the smallest.

Table 5

The STD values of benchmark functions

Functions	Alogrithm
	GOA	DE	MVO	PSO	BDE	hjDE	GOA_jDE	MGOA
f ₀₁	4.39E-07	4.33E-33	9.45E-03	3.46E+00	3.44E-23	3.66E-05	2.10E-43	7.59E-09
f ₀₂	1.82E+00	1.00E-19	1.20E-02	1.66E+00	8.20E-15	4.67E-03	6.67E-23	5.16E-08
f ₀₃	3.66E-01	1.34E+00	6.11E-02	4.84E+00	1.04E-01	2.91E-04	8.95E-14	2.01E-09
f ₀₄	2.20E-02	3.93E-07	3.11E-02	3.46E-01	3.20E-05	2.50E-03	5.19E-10	3.79E-09
f ₀₅	1.64E+01	2.08E+01	1.73E+02	4.24E+04	2.50E+01	2.60E+00	1.89E+00	2.35E+00
f ₀₆	1.64E-07	3.36E-02	6.93E-03	2.54E+01	4.15E-12	6.67E-05	5.11E-30	1.31E-08
f ₀₇	1.51E-02	2.61E-03	1.41E-03	3.69E+00	2.96E-03	2.10E-03	6.71E-03	1.72E-01
f ₀₈	1.96E+01	1.30E+00	6.99E+00	2.32E+01	0.00E+00	9.18E-03	0.00E+00	0.69E+00
f ₉	3.39E+00	9.01E-16	7.47E-01	5.75E+00	3.46E-12	3.25E-03	1.16E-16	4.68E-06
f ₁₀	1.27E-01	1.24E-02	1.43E-01	1.14E-02	2.83E-03	1.21E-02	0.00E+00	2.82E-01
f ₁₁	5.04E-01	5.68E-02	1.43E-01	1.42E-01	5.68E-02	1.05E-05	5.68E-04	0.00E+00
f ₁₂	6.01E-03	1.32E-02	7.51E-03	2.62E-01	1.79E-02	1.27E-04	2.79E-04	3.43E-03
f ₁₃	6.00E-01	2.42E+00	3.52E-01	1.81E-01	3.62E-01	2.90E+00	1.27E-01	2.34E-01
f ₁₄	9.37E-03	5.02E-03	8.82E-03	4.42E-02	4.71E-04	3.29E-03	2.51E-03	5.76E-01

Table 6

The convergence curve and Boxplot

Function	Convergence curve	Boxplot
f ₀₁
f ₀₂
f ₀₉
f ₁₂
f ₁₃
f ₁₄

Consider	$\vec{x} = [\begin{matrix} x_{1} & x_{2} & x_{3} & x_{4} \end{matrix}] = [\begin{matrix} h & l & t & b \end{matrix}]$
Minimize	$f (\vec{x}) = 1.10471 x_{1}^{2} x_{2} + 0.04811 x_{3} x_{4} (14.0 + x_{2})$
Subject to	$g_{1} (\vec{x}) = τ (\vec{x}) - τ_{max} \leq 0$
	$g_{2} (\vec{x}) = σ (\vec{x}) - σ_{max} \leq 0$
	$g_{3} (\vec{x}) = δ (\vec{x}) - δ_{\max} \leq 0$
	$g_{4} (\vec{x}) = x_{1} - x_{4} \leq 0$
	$g_{5} (\vec{x}) = P - P_{c} (\vec{x}) \leq 0$
	$g_{6} (\vec{x}) = 0.125 - x_{1} \leq 0$
	$\begin{matrix} g_{7} (\vec{x}) = 1.10471 x_{1}^{2} x_{2} + 0.04811 x_{3} x_{4} (14.0 + x_{2}) \\ \begin{matrix} \end{matrix} - 5.0 \leq 0 \end{matrix}$
Variable range	0.1 ≤ x₁ ≤ 2
	0.1 ≤ x₂ ≤ 10
	0.1 ≤ x₃ ≤ 10
	0.1 ≤ x₄ ≤ 2
where	$τ (\vec{x}) = \sqrt{(τ^{'})^{2} + 2 τ^{'} τ^{″} \frac{x_{2}}{2 R} + (τ^{″})^{2}}$
	$τ^{'} = \frac{P}{\sqrt{2} x_{1} x_{2}}, τ^{″} = \frac{MR}{J}, M = P (L + \frac{x_{2}}{2})$
	$R = \sqrt{\frac{x_{2}^{2}}{4} + {(\frac{x_{1} + x_{3}}{2})}^{2}}$
	$J = 2 {\sqrt{2} x_{1} x_{2} [\frac{x_{2}^{2}}{4} + {(\frac{x_{1} + x_{3}}{2})}^{2}]}$
	$σ (\vec{x}) = \frac{6 PL}{x_{4} x_{3}^{2}}, δ (\vec{x}) = \frac{6 {PL}^{3}}{{Ex}_{3}^{2} x_{4}}$
	$P_{c} (\vec{x}) = \frac{4.013 E \sqrt{\frac{x_{3}^{2} x_{4}^{6}}{36}}}{L^{2}} (1 - \frac{x_{3}}{2 L} \sqrt{\frac{E}{4 G}})$
	$P = 6000 lb, \begin{matrix} \end{matrix} L = 14 in, \begin{matrix} \end{matrix} E = 30 \times 1^{6} psi, \begin{matrix} \end{matrix}$
	$τ_{max} = 13600 psi, \begin{matrix} \end{matrix} σ_{max} = 30000 psi$

Consider	$\vec{x} = [\begin{matrix} x_{1} & x_{2} & x_{3} & x_{4} \end{matrix}] = [\begin{matrix} T_{s} & T_{h} & R & L \end{matrix}]$
Minimize	$\begin{matrix} f (\vec{x}) = 0.6224 x_{1} x_{3} x_{4} + 1.7781 x_{2} x_{3}^{2} \\ \begin{matrix} \end{matrix} + 3.1661 x_{1}^{2} x_{4} + 19.84 x_{1}^{2} x_{3} \end{matrix}$
Subject to	g₁ (x) = - x₁ + 0.0193x₃ ≤ 0
	$g_{2} (\vec{x}) = - x_{3} + 0.00954 x_{3} \leq 0$
	$g_{3} (\vec{x}) = - π x_{3}^{2} x_{4} - \frac{4}{3} π x_{3}^{3} + 1296000 \leq 0$
	$g_{4} (\vec{x}) = x_{4} - 240 \leq 0$
Variable range	0 ≤ x₁ ≤ 99
	0 ≤ x₂ ≤ 99
	10 ≤ x₃ ≤ 200
	10 ≤ x₄ ≤ 200

All experiments available are the same, so it is necessary for a statistical tests. The non-parametric statistical test, Wilcoxon’s rank sum test [29], is used to evaluate the property of all algorithms, with 5% considered significant level.A more detailed description of Wilcoxon’s rank sum test can be found in literature [30].

The experimental results can be found in following Table 7. The p-value greater than 0.05 means that there is no obvious difference between the two sets of data, while the p-value less than 0.05 indicates significant difference. Hence, there are remarkable differences between the proposed algorithm and others. Certainly, the experiment result is not appear by accident.

Table 7

P-values of the Wilcoxon rank-sum test over 30 runs (p > 0.05 has been in bold)

Functions	GOA_jDE vs GOA	GOA_jDE vs DE	GOA_jDE vs MVO	GOA_jDE vs PSO	GOA_jDE vs BDE	GOA_jDE vs hjDE
f ₀₁	3.02E-10	3.19E-10	3.19E-10	3.02E-10	3.19E-10	3.19E-10
f ₀₂	3.19E-10	3.23E-10	3.44E-10	3.24E-10	3.05E-10	316E-10
f ₀₃	3.12E-10	3.19E-10	3.19E-10	3.19E-10	3.19E-10	0.149449
f ₀₄	1.16E-11	0.016285	5.97E-09	3.20E-09	3.19E-10	3.19E-10
f ₀₅	3.19E-10	1.29E-11	1.10E-11	1.01E-11	1.43E-11	1.22E-11
f ₀₆	2.76E-11	1.17E-11	5.97E-09	3.98E-11	2.89E-11	1.13E-11
f ₀₇	1.08E-11	1.16E-11	0.057679	3.29E-11	2.54E-11	1.16E-11
f ₀₈	1.16E-11	1.16E-11	5.97E-09	2.01E-11	1.16E-11	3.09E-11
f ₉	0.195245	5.97E-09	7.74E-09	5.97E-09	1.16E-11	1.16E-11
f ₁₀	2.32E-11	3.08E-11	1.56E-11	2.08E-09	3.08E-11	2.98E-11
f ₁₁	6.67E-11	2.19E-11	1.79E-11	0.307634	4.50E-11	9.76E-11
f ₁₂	1.49E-11	2.15E-11	5.57E-11	5.97E-11	9.76E-11	4.50E-11
f ₁₃	2.23E-11	1.97E-11	2.54E-11	3.90E-11	2.09E-11	1.76E-11
f ₁₄	1.09E-11	2.97E-11	6.67E-11	3.34E-11	2.08E-11	3.73E-11

5 GOA_jDE for classical engineering problems

In this section, three classical engineering design problems: tension/compression spring, welded beam, and pressure vessel designs, are tested and the results are shown in the following tables.

5.1 Tension/compression spring design

The first chosen engineering problem is the tension/compression spring design problem, which is to minimize the weight of a spring with three structural parameters: wire diameter (d), mean coil diameter (D), and the number of active coils (N). The following figure has shown the spring and its parameters [31]. And the optimum design is associated to constraints on shear stress, surge frequency, and minimum deflection. These constraints and the problem are formulated as follows:

This problem has been tested with the proposed algorithm and seven additional algorithms. As it is shown in the Table 8, the GOA_jDE performs very effectively when solving this problem and offers the best design.

Table 8
Comparison results of tensions/compression spring design

Algorithm Optimum variables Optimum

d D N weight

GOA_jDE 0.0501 0.3174 14.0278 0.0126

GOA 0.0509 0.3387 13.9628 0.0129

DE 0.0510 0.3563 14.1919 0.0138

MVO 0.0573 0.3962 14.0226 0.0148

PSO 0.0575 0.4164 14.9463 0.0187

hjDE 0.0502 0.3234 14.7250 0.0154

MGOA 0.0586 0.4112 14.6832 0.0192

BDE 0.0695 0.4225 14.7727 0.0201

Algorithm	Optimum variables	Optimum
GOA_jDE	0.0501	0.3174	14.0278	0.0126
GOA	0.0509	0.3387	13.9628	0.0129
DE	0.0510	0.3563	14.1919	0.0138
MVO	0.0573	0.3962	14.0226	0.0148
PSO	0.0575	0.4164	14.9463	0.0187
hjDE	0.0502	0.3234	14.7250	0.0154
MGOA	0.0586	0.4112	14.6832	0.0192
BDE	0.0695	0.4225	14.7727	0.0201

5.2 Welded beam design

As it named, this problem deals with designing a welded beam to minimize the fabrication cost [32]. The minimization process is subject to some constraints such as shear stress, bending stress in the beam, buckling load on the bar, end deflection of the beam, and side constraints. And this optimum design has four parameters: thickness of weld (h), length of the clamped bar (l), height of the bar (t), and thickness of the bar (b). The mathematical formulation is illustrated as follows:

This problem has also tested and the results are shown in the Table 9. It is shown that the proposed algorithm can find the lowest cost design. Thus, it is reasonable to think that the proposed algorithm is feasible in solving such problems.

Table 9
Comparison results of the welded beam design

Algorithm Optimum variables Optimum

h l t b cost

GOA_jDE 0.2057 3.4924 9.0366 0.2057 1.8182

GOA 0.5673 3.0880 5.7152 0.5673 2.7372

DE 0.1990 4.3124 9.0368 0.2057 1.9522

MVO 0.2410 6.7949 9.6322 0.2029 2.2234

PSO 0.3872 5.6256 7.7512 0.4796 2.5307

hjDE 0.8475 5.9001 5.1622 0.8589 3.1936

MGOA 0.9945 4.7454 5.1558 0.9416 3.6719

BDE 0.2189 3.8515 9.6791 0.2028 1.8522

Algorithm	Optimum variables	Optimum
GOA_jDE	0.2057	3.4924	9.0366	0.2057	1.8182
GOA	0.5673	3.0880	5.7152	0.5673	2.7372
DE	0.1990	4.3124	9.0368	0.2057	1.9522
MVO	0.2410	6.7949	9.6322	0.2029	2.2234
PSO	0.3872	5.6256	7.7512	0.4796	2.5307
hjDE	0.8475	5.9001	5.1622	0.8589	3.1936
MGOA	0.9945	4.7454	5.1558	0.9416	3.6719
BDE	0.2189	3.8515	9.6791	0.2028	1.8522

5.3 Pressure vessel design

The objective of this problem is to minimize the total cost of the vessel with four variables: Thickness of the shell (Ts). Thickness of the head (Th). Inner radius (R). Length of the cylindrical section without considering the head(L) [33]. And the optimum design is subjected to constraints on material, forming, and lding of a cylindrical vessel. The mathematical formulation of this optimization is as follows:

This test results has shown in the following Table 10. As it represents, the proposed algorithm can reach the lowest cost design. Therefore, it is hopefully that the proposed algorithm is suitable for such problems.

Table 10
Comparison results of the pressure vessel design

Algorithm Optimum variables Optimum

T_s T_h R L cost

GOA_jDE 0.7781 0.3846 40.3198 199.997 5885.33

GOA 1.3826 0.6834 71.6378 65.5202 6135.25

DE 0.7982 0.3847 41.3257 199.914 5895.63

MVO 1.0576 0.5218 54.6965 65.2332 6059.81

PSO 0.8125 0.4735 42.0984 176.640 5998.35

hjDE 0.7793 0.7819 40.3467 199.993 6332.12

MGOA 1.1253 0.6251 55.9586 84.4542 6526.21

BDE 1.0984 0.6429 57.9166 51.4551 6085.33

Algorithm	Optimum variables	Optimum
GOA_jDE	0.7781	0.3846	40.3198	199.997	5885.33
GOA	1.3826	0.6834	71.6378	65.5202	6135.25
DE	0.7982	0.3847	41.3257	199.914	5895.63
MVO	1.0576	0.5218	54.6965	65.2332	6059.81
PSO	0.8125	0.4735	42.0984	176.640	5998.35
hjDE	0.7793	0.7819	40.3467	199.993	6332.12
MGOA	1.1253	0.6251	55.9586	84.4542	6526.21
BDE	1.0984	0.6429	57.9166	51.4551	6085.33

6 Conclusions

The algorithm combining GOA and jDE called GOA_jDE is proposed in this paper, in order to improve the slow convergence speed, unbalanced exploration and exploitation and the problem of falling into local optimum easily. The proposed algorithm improves the convergence speed and calculation precision and enhances the ability of global search. The improved algorithm is testing for 20 benchmark functions. And the experimental results show that the optimization performance of GOA_jDE is greatly improved compared with the traditional GOA algorithm. In most cases, the optimal fitness value of improved algorithm is the first and the standard deviation is relatively small. The promising results show that the algorithm is relatively stable and feasible. In future research, the proposed algorithm can be used in other fields, such as financial pressure prediction [10], feature selection [11], analysis of vibration signals from rotating machinery [12], etc.

Footnotes

Acknowledgment

This work was supported under Fundamental Research Funds for the Central Universities (No. 2572019BF04), and Northeast Forestry University Horizontal Project (No. 43217002, No. 43217005, No. 43219002).

References

Saremi

, Mirjalili

and Lewis

, Grasshopper Optimisation Algorithm: Theory and application, Adv Eng Software 105 (2017), 30–47.

Storn

and Price

, Differential Evolution – A Simple and Efficient Heuristic for global Optimization over Continuous Spaces, J Global Optim 11 (1997), 341–359.

Mirjalili

, Mirjalili

S.M.

and Hatamlou

, Multiverse Optimizer: A nature-inspired algorithm for global optimization[J], Neural Comput Appl 27 (2016), 495–513.

Kennedy

and Eberhart

R.C.

, Particle swarm optimization, Proceedings of IEEE International Conference on Neural Networks 4 (1995), 1942–1948in.

Mousavi

and Alfi

, A memetic algorithm applied to trajectory control by tuning of fractional order proportional-integral-derivative controllers, Appl Soft Comput 36 (2015), 599–617.

Arab

and Alfi

, An adaptive gradient descent-based local search in memetic algorithm applied to optimal controller design, Inf Sci 299 (2015), 117–142.

Seyedeh Fa’ezeh Hosseini

and Alireza

, Adaptive parameter control of search group algorithm using fuzzy logic applied to networked control systems, Soft Comput 22 (2018), 7939–7960.

Mousavi

and Alfi

, Fractional calculus-based firefly algorithm applied to parameter estimation of chaotic systems, Chaos Solitons Fractals 114 (2018), 202–215.

Sadat Alaviyan Shahri

, Alfi

and Tenreiro Machado

J.A.

, Fractional fixed-structure H¡Þ controller design using Augmented Lagrangian Particle Swarm Optimization with Fractional Order Velocity, Appl Soft Comput 77 (2019), 688–695.

10.

Luo

, Chen

, Zhang

, Xu

, Huang

and Zhao

, A. An improved grasshopper optimization algorithm with application to financial stress prediction, Appl Math Modell 64 (2018), 654–668.

11.

Mafarja

, Aljarah

, Faris

, Hammouri

A.I

, Al-Zoubi

A.M.

and Mirjalili

, Binary grasshopper optimization algorithm approaches for feature selection problems, Expert Syst Appl 117 (2019), 267–286.

12.

Zhang

, Miao

, Zhang

and Wang

, A parameter-adaptive VMD method based on grasshopper optimization algorithm to analyze vibration signals from rotating machinery, Mech Syst Sig Process 108 (2018), 58–72.

13.

Črepinšek

, Mernik

and Liu

S.H.

, Analysis of exploration and exploitation in evolutionary algorithms by ancestry trees, Int J Innovative Comput Appl 1 (2011), 11–19.

14.

Črepinšek

, Liu

S.H.

and Mernik

, Exploration and Exploitation in Evolutionary Algorithms: A Survey[J], ACM Computing Surveys 45 (2013), Article 35.

15.

Ewees

A.A.

, Elaziz

M.A.

and Houssein

E.H.

, Improved grasshopper optimization algorithm using opposition-based learning, Expert Syst Appl 112 (2018), 156–172.

16.

, Wang

, Li

, Yao

, Huang

, Su

and Yu

, Distributed trajectory optimization for multiple solar-powered UAVs target tracking in urban environment by Adaptive Grasshopper Optimization Algorithm, Aerosp Sci Technol 70 (2017), 497–510.

17.

Xiong

, Zhang

, Yuan

, Shi

, He

and Yao

, Parameter extraction of solar photovoltaic models by means of a hybrid differential evolution with whale optimization algorithm, Solar Energy 176 (2018), 742–761.

18.

Jadon

S.S.

, Tiwari

, Sharma

and Bansal

J.C.

, Hybrid Artificial Bee Colony algorithm with Differential Evolution, Appl Soft Comput 58 (2017), 11–24.

19.

Mlakar

, Potočnik

and Brest

, A hybrid differential evolution for optimal multilevel image thresholding, Expert Syst Appl 65 (2016), 221–232.

20.

Liang

, Jia

, Xing

, Ma

and Peng

, Modified Grasshopper Algorithm-Based Multilevel Thresholding for Color Image Segmentation, IEEE Access 7 (2019), 11258–11295.

21.

Bhandari

A.K.

, A novel beta differential evolution algorithm-based fast multilevel thresholding for color image segmentation, Neural Comput Appl (2018),1–31. https://doi.org/10.1007/s00521-018-3771-z.

22.

Jia

, Lang

, Oliva

, Song

and Peng

, Hybrid Grasshopper Optimization Algorithm and Differential Evolution for Multilevel Satellite Image Segmentation, Remote Sens 11 (2019), 1134.

23.

Mafarja

, Aljarah

, Heidari

A.A.

, Hammouri

A.I.

, Faris

, Al-Zoubi

A.M.

and Mirjalili

, Evolutionary Population Dynamics and Grasshopper Optimization approaches for feature selection problems, Knowledge Based Syst 145 (2018), 25–45.

24.

Yüzgeç

and Eser

, Chaotic based differential evolution algorithm for optimization of baker’s yeast drying process, Egypt Inf J 19 (2018), 151–163.

25.

Lin

, Zhu

, Huang

, Chen

, Ming

and Yu

, A novel hybrid multi-objective immune algorithm with adaptive differential evolution, Comput Oper Res 62 (2015), 95–111.

26.

Brest

, Greiner

, Boskovic

, Mernik

and Zumer

, Self-Adapting Control Parameters in Differential Evolution: A Comparative Study on Numerical Benchmark Problems, IEEE Trans Evol Comput 10 (2006), 646–657.

27.

Elaziz

M.A.

, Xiong

, Jayasena

K.P.N.

and Li

, Task scheduling in cloud computing based on hybrid moth search algorithm and differential evolution, Knowl-Based Syst 169 (2019), 39–52.

28.

Zhao

, Xue

, Zhang

, Ma

, Zhang

and Song

, A hybrid algorithm based on self-adaptive gravitational search algorithm and differential evolution, Expert Syst Appl 113 (2018), 515–530.

29.

Frank

, Individual Comparisons of Grouped Data by Ranking Methods, J Econ Entomol 39 (1946), 269–270.

30.

Derrac

, García

, Molina

and Herrera

, A practical tutorial on the use of nonparametric statistical tests as a methodology for comparing evolutionary and swarm intelligence algorithms, Swarm Evol Comput 1 (2011), 3–18.

31.

Mirjalili

, Mirjalili

S.M.

and Lewis

, Grey Wolf Optimizer, Adv Eng Software 69 (2014), 46–61.

32.

Keshtegar

, Bagheri

and Yaseen

Z.M.

, Shear strength of steel fiber-unconfined reinforced concrete beam simulation: Application of novel intelligent model, Compos Struct 212 (2019), 230–242.

33.

Mirjalili

and Lewis

, The Whale Optimization Algorithm, Adv Eng Software 95 (2016), 51–67.
