Pythagorean fuzzy set (PFS) introduced by Yager (2013) is the extension of intuitionistic fuzzy set (IFS) introduced by Atanassov (1983). PFS is also known as IFS of type-2. Pythagorean fuzzy soft set (PFSS), introduced by Peng et al. (2015) and later studied by Guleria and Bajaj (2019) and Naeem et al. (2019), are very helpful in representing vague information that occurs in real world circumstances. In this article, we introduce the notion of Pythagorean fuzzy soft topology (PFS-topology) defined on Pythagorean fuzzy soft set (PFSS). We define PFS-basis, PFS-subspace, PFS-interior, PFS-closure and boundary of PFSS. We introduce Pythagorean fuzzy soft separation axioms, Pythagorean fuzzy soft regular and normal spaces. Furthermore, we present an application of PFSSs to multiple criteria group decision making (MCGDM) using choice value method in the real world problems which yields the optimum results for investment in the stock exchange. We also render an application of PFS-topology in medical diagnosis using TOPSIS (Technique for Order Preference by Similarity to an Ideal Solution). The applications are accompanied by Algorithms, flow charts and statistical diagrams.
To tackle real world problems, the techniques usually employed in classical mathematics are not always beneficial due to uncertainties and vagueness present in these problems. There are numerous techniques, like theory of probability and the interval mathematics which can be thought of as mathematical models for coping with uncertainties and vagueness. Unluckily, all these models have their own drawbacks and limitations. Zadeh [53] initiated the idea of fuzzy sets as an extension of the traditional crisp set. A fuzzy set is a momentous mathematical model to typify an assembling of bits and pieces possessing incomprehensible boundary. Pursuing the path of Zadeh, Atanassov [5–7] proposed the idea of intuitionistic fuzzy sets as an extension of fuzzy set by introducing the concepts of membership (denoted by μ (x)) and non-membership grades (denoted by ν (x)) along with the restriction that sum of these two grades must not exceed unity. Atanassov [8] portrayed geometrical elucidation of the elements of intuitionistic fuzzy entities. Molodtsov [29] originated the notion of a new kind of sets conventionally known as soft sets, as another model for sorting out uncertainties.
Fuzzy sets, soft sets and their hybrid structures are strong mathematical models for solving many real world problems. Indeed, the real power of these models is in their ability to handle and manipulate verbally-stated information based on perceptions rather than equations. Mathematical modeling on real world problems often involve multi-attribute, multi-agent, multi-polar information, uncertainties and vagueness. Recently, the researchers have introduced different mathematical models including fuzzy soft set (FS-set) introduced by Çağman et al. [12] and Maji et al. [27], fuzzy parameterized soft set (FP-soft set) introduced by Çağman et al. [13], fuzzy parameterized fuzzy soft set (FPFSS) introduced by Çağman et al. [14], and Zorlutuna and Atmaca [61]. Maji et al. [28] familiarized the concept of intuitionistic fuzzy soft set (IFS-set).
Topological structure on these sets have many applications towards decision making problems, medical diagnosis, artificial intelligence, pattern recognition, forecasting and image processing etc. Soft topology was introduced by Bashir and Sabir [10], Çağman et al. [11], Hazra et al. [23], Roy and Samanta [45], Shabir and Naz [46], and Varol et al. [47]. Aygunoglu et al. [9] introduced fuzzy soft topological spaces. Zorlutuna and Atmaca [61] introduced fuzzy parameterized fuzzy soft topology (FPFS-topology). Osmanoglu and Tokat [32], and Li and Cui [25] introduced intuitionistic fuzzy soft topology (IFS-topology). Riaz et al. [37–39] introduced N-soft topology and soft rough topology with applications to multi-criteria group decision making (MCGDM). Yu et al. [51] presented consensus reaching for MAGDM with multi-granular hesitant fuzzy linguistic term sets. Zhang et al. [60] presented managing multigranular unbalanced hesitant fuzzy linguistic information in multiattribute large-scale group decision making based on linguistic distribution approach. Yu et al. [52] studied extended TODIM for multi-criteria group decision making based on unbalanced hesitant fuzzy linguistic term sets.
Yager [48–50] introduced Pythagorean fuzzy set as an extension of Atanassov’s intuitionistic fuzzy set and presented Pythagorean membership grades with applications to multi-criteria decision making (MCDM). The eminent characteristics of PFSs is that the sum of squares of membership degree and nonmembership degree to each alternative is less than or equal to 1. Obviously, PFSs have more capability than IFSs to model the vagueness in practical MCDM problems.
Fuzzy sets, Pythagorean fuzzy sets, soft sets, rough sets, neutrosophic sets and their hybrid structures have been studied by many researchers including Akram et al. [1–3], Eraslan and Karaaslan [15], Feng et al. [16, 17], Garg [19, 20], Guleria and Bajaj [18], Hashmi et al. [21], Hashmi and Riaz [22], Kumar and Garg [24], Naeem et al. [30, 31], Peng and Yang [33], Peng and Selvachandran [34], Peng et al. [36], Riaz et al. [40–44], Zhang and Xu [57], Zhan et al. [54–56], Zhang and Zhan [58], and Zhang et al. [59].
The goal of this paper is to introduce PFS-topology on PFSS. PFS-topology is the extension of IFS-topology. In order to solve the real world problems, IFS-topology cannot deal with the situation if the sum of membership degree and non-membership degree of the parameter is larger than 1. It makes the MCGDM limited, and affects the optimum decision. PFSS and PFS-topology provide a large number of applications to MCGDM for such real world problems.
Rest of the paper is sorted out as pursues. In Section 2, we recall some primary notions of fuzzy set, soft set, IFS, PFS and PFSS. In Section 3, we introduce PFS-topology and its properties with the help of examples. In Section 4, we construct Pythagorean fuzzy soft separation axioms, Pythagorean fuzzy soft regular and normal spaces along with related results. In Section 5, we present an application of PFSSs using choice value method based on MCGDM which yields the optimum results for investment in the stock exchange using hypothetical data. In Section 6, we render an application of TOPSIS in medical diagnosis where PFS-topology is used. Finally, in Section 7, we have ended with conclusion and some future directions.
Preliminaries
In this section, we concisely review some primary concepts related to different kinds of sets including fuzzy set, soft set, intuitionistic fuzzy set, Pythagorean fuzzy set and Pythagorean fuzzy soft set that would be employed in the remnant part of the paper.
Definition 2.1. [53] Let X be a classical set and μA : X → [0, 1] be the membership function. Then a fuzzy set A can be written in the form
The value of the mapping μA at ρ ∈ X i.e. μA (ρ) denotes the degree of membership of ρ to the fuzzy set A. The aggregate of all fuzzy sets in X is designated as .
Definition 2.2. [5–7] An intuitionistic fuzzy set (IFS) over the universe X comprises ordered triplets , where ρ ∈ X. The mappings and map elements of X to the unit closed interval [0, 1], with the restriction that their sum must not exceed unity, are respectively termed as degrees of association and non-association of the element ρ to . This set in set builder form is usually symbolized as
Definition 2.3. [29] Supposing X to be a crisp set and E a non-void assembly of attributes. Further assume that 2X is the power set of X and A is a non-void sub-collection of E. A doublet (ψ, A), where ψ : A → 2X is a mapping, is termed as soft set over X. Thus, in set-builder form, we write
The pair (ψ, A) is also shortly written ψA.
Definition 2.4. [13] Take X to be a crisp set and A the sub-family of attribute’s set E. Suppose that stands for assembly of all fuzzy sets defined over X. A collection of ordered doublets
is termed as fuzzy soft set (or an fs-set) over X. Here such that γA (e) = φ whenever e ∉ A, is known as fuzzy approximate function of ΓA. The value γA (e) is a set commonly referred to as e-element of the fs-set, for all e ∈ E.
The aggregate of all fuzzy soft sets over X is designated as FS (X).
Definition 2.5. [26] Understand that X is a crisp set endowed with A as the sub-family of attribute’s set E. Assume that IFX stands for assembly of all IF-subsets defined over X. A multi-valued mapping ψ that drags elements of A to IFX is termed as an intuitionistic fuzzy soft set (IFS-set) over X is designated as (ψ, A) or sometimes as ψA. For any attribute e ∈ A, ψ (e) yields the value in the form of an an IFS.
The set of all IFS-sets over the universe X having set of attributes from E is acknowledged as IFS-class, designated as IFS (X, E).
Definition 2.6. [48–50] A Pythagorean fuzzy set, abbreviated as PFS, is a family of the form
where μP and νP are mappings from some crisp set X to the unit interval with the restriction that sum of their squares should not exceed unity i.e. , called correspondingly the grade of association and non-association of ρ ∈ X to the set P. The doublet (μp, νp) is called Pythagorean fuzzy number, abbreviated as PFN.

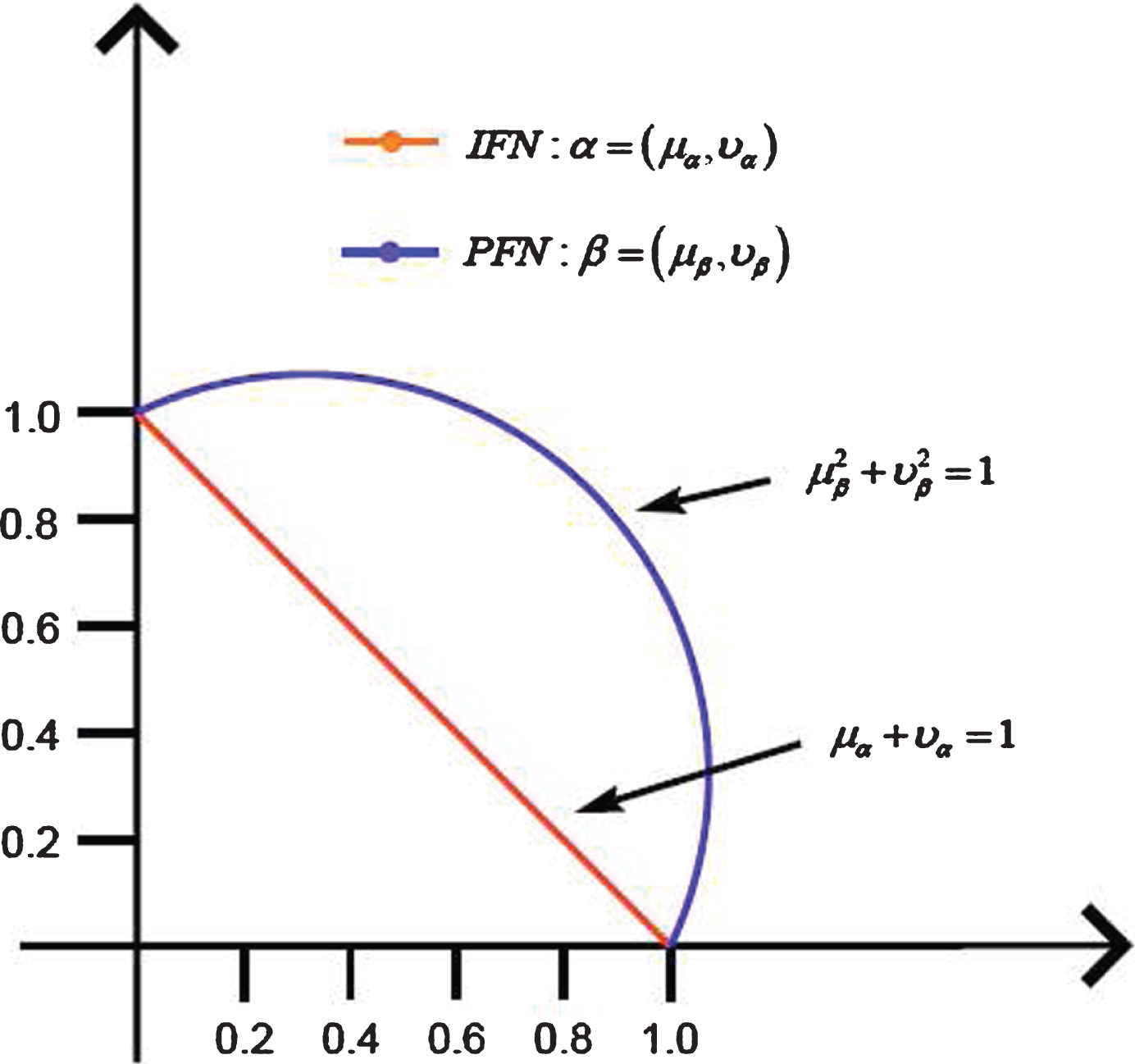

The space for a PFS is a unit circular arc in the first quadrant whereas it was a right isosceles triangle having length of the base and altitude each equal to unity in case of an IFS. Hence we have an enlarged space for PFSs as compared to IFSs as can be seen in Fig. 1. In fact we have included extra area for PFSs.
Spaces of PFSs & IFSs
Definition 2.7. [57] The score function for any PFN p = (μp, νp) is defined as
where -1 ≤ s (p) ≤1. If pi and pj are two Pythagorean fuzzy numbers, then
If s (pi) < s (pj) then pi precedes pj i.e. pi ≺ pj,
If s (pi) > s (pj) then pi succeeds pj i.e. pi ≻ pj,
If s (pi) = s (pj) then pi ∼ pj.
Remark. If we choose p1 = (0.1, 0.1) and p2 = (0.7, 0.7), then according to Definition 2.7, we have p1 ∼ p2 which does not seem to be reasonable. So the idea of accuracy function is floated to amend the comparison rules.
Definition 2.8. [57] The accuracy function for any PFN p = (μp, νp) is defined as
where 0 ≤ a (p) ≤1. Assume that pi and pj are two PFNs.
If s (pi) and s (pj) coincide and a (pi) exceeds a (pj) then pi ≻ pj,
If both s (pi) & s (pj) and a (pi) & a (pj) coincide then pi ∼ pj.
Definition 2.9. Let X be the universe and E the set parameters. Assume that A ⊆ E and PFX represent the class of all Pythagorean fuzzy subsets over X. A Pythagorean fuzzy soft set (PFSS) on X is denoted as (ψ, A) or ψA, where ψ : A → PFX is a mapping, and defined by
where μψA and νψA are well-defined maps that drag elements of X to the unit closed interval [0, 1] along with the property that sum of their squared values should not exceed unity are termed as Pythagorean fuzzy numbers (PFNs). In particular, μψA (ρ) represents the grade of association and νψA (ρ) denotes degree of non-association of the constituent ρ ∈ X to the set (ψ, A).
For any attribute e, ψ (e) yields the output of multi-valued map at e which is all the time a Pythagorean fuzzy set. Hence, a PFSS (ψ, A) is described by the multi-valued mapping ψ : A → 2X.
The throng of all PFSSs over X endued with assortment of traits from E is called PFS-class and is designated as PFS (X, E).
If we write μij = μψA (ej) (ρi) and νij = νψA (ej) (ρi) where i and j run, respectively, from 1 to m and from 1 to n then the PFSS ψA may be represented in tabular form as in Table 1.
Tabular representation of the PFSS ψA
ψA
e1
e2
⋯
en
ρ1
(μ11, ν11)
(μ12, ν12)
⋯
(μ1n, ν1n)
ρ2
(μ21, ν21)
(μ22, ν22)
⋯
(μ2n, ν2n)
⋮
⋮
⋮
⋱
⋮
ρm
(μm1, νm1)
(μm2, νm2)
⋯
(μmn, νmn)
The corresponding matrix form is
This matrix is called Pythagorean fuzzy soft matrix or shortly PFS-matrix.
Definition 2.10. [30] Let and be PFSSs over X. Then is PFS-subset of i.e. , if
A1 ⊆ A2, and
ψ(1) (e) is PFS-subset of ψ(2) (e) for all e ∈ A1.
It is worth mentioning that does not require that every element of is also in , as is desired in classical set theory.
Definition 2.11. [30] Let (ψ1, A1) and (ψ2, A2) be PFSSs defined over X. Then their union is defined as where A = A1 ∪ A2 and for all e ∈ A,
where ψ1 (e) ∪ ψ2 (e) is the union of two PFSSs.
Definition 2.12. [30] The intersection of two PFSSs (ψ1, A1) and (ψ2, A2) is a PFSS , where A = A1 ∩ A2 ≠ φ and ψ (e) = ψ1 (e) ∩ ψ2 (e) for all e ∈ A.
Definition 2.13. [30] The difference (ψ, A) of two PFSSs (ψ1, A1) and (ψ2, A2) over X is described by (ψ, e) = (ψ1, e) \ (ψ2, e) ; ∀ e ∈ E and is designated as . Hence,
where
Definition 2.14. [30] The complement of a PFSS (ψ, A) is a mapping ψc : A → PFX given by ψc (e) = [ψ (e)] c, for all e ∈ A. It is represented as (ψ, A) c or sometimes by (ψc, A). Thus, if
then
for all e ∈ A.
Definition 2.15. [30] A PFSS (ψ, E) over X is known as null PFSS, symbolized as ψφ or Φ, if ∀ e ∈ E we have , where denotes null Pythagorean fuzzy set. Hence,
Definition 2.16. [30] A PFSS (ψ, E) over X is called absolute PFSS, denoted by , if . Here denotes absolute Pythagorean fuzzy set. Hence,
Definition 2.17. [30] A Pythagorean fuzzy soft set PFSS (ψ, A) is called Pythagorean fuzzy soft point (PFS-point), denoted as ϑψ, if for the element ϑ ∈ A we have
ψ (ϑ) ≠ ψφ, and
ψ (ϑ′) = ψφ, for all ϑ′ ∈ A - {ϑ}.
Definition 2.18. [30] A PFS-point ϑψ belongs to a PFSS (ψ1, A) i.e. if ϑ ∈ A ⇒ ψ (ϑ) ⊆ ψ1 (ϑ).
Example 2.19. Let X = {c, m, t} and A = {ϑ1, ϑ2}, then
and
are two distinct PFS-points contained in the PFSS ψA = {(ϑ1, {(c, 0.52, 0.31) , (m, 0.47, 0.19)}) , (ϑ2, {(c, 0.76, 0.35) , (t, 0.81, 0.13)})} Observe that i.e. a PFSS is union of its Pythagorean fuzzy soft points.
It is important to note that any PFS-point (say) is also known as a singleton subset of the PFSS ψA. It is so because it contains one parameter and its ψ-approximate element.
Pythagorean fuzzy soft topology
In this section, the notion of PFS-topology is defined on a PFSS. The concepts of PFS-extended union and PFS-restricted intersection are used in the construction of PFS-topology. Certain properties of PFS-topology are defined and related illustrations are well presented.
Definition 3.1. Let PFS (X, E) be the collection of all PFS-subsets of the absolute PFSS . For A, B ⊆ E, a subcollection of PFS (X, E) is called Pythagorean fuzzy soft topology (PFS-topology) on if following properties hold:
,
If then ,
If , then .
The doublet or simply is called PFS-topological space. The members of are known as PFS-open sets and their complements are titled PFS-closed sets.
Definition 3.2. Assume that is a PFS-topology. For some Y ⊆ X bestowed with E as set of parameters, is a PFS-topology on Y whose PFS-open sets are , where are PFS-open sets of , are PFS-open sets of and is absolute PFSS on Y. Then is taken as the PFS-subspace (or PFS sub-topology) of . It can be written as
Example 3.3. Let X = {ρ1, ρ2, ρ3} be the universe and E = {ei : i = 1, 2, ⋯ , 4} be the aggregate of decision variates. Take two subcollections A = {e1, e2} and B = {e1, e2, e3} of E. Assume that and Then,
is a PFS-topology on X.
Now, absolute PFSS on Y = {ρ2, ρ3} ⊆ X is
Since , so
is a PFS sub-topology of .
Definition 3.4. Let be a PFS-topological space and .
The interior of ψA is PFS-union of all PFS-open subsets of ψA. It is worth noticing that is the largest PFS-open subset of ψA.
The closure of ψA is the PFS-intersection of all PFS-closed supersets of ψA. Further, is the smallest PFS-closed superset of ψA.
The boundary or frontierFr (ψA) of ψA is defined as
The exteriorExt (ψA) of ψA is defined as
We elaborate these notions with the assistance of following example.
Example 3.5. Take X = {ρ1, ρ2} as the universal set with E = {e1, e2} as the assembly of attributes. If then the collection of PFS subsets of is a PFS-topology. The members of are obviously PFS open sets. The corresponding closed PFSSs are Consider the PFSS so that . The PFS-interior of ψE is .
The PFS-closure of ψE is
Now, . Hence, PFS-frontier of ψE is . Finally, the PFS-exterior of ψE is
Theorem 3.6.Let be a PFS-topological space and , then
, and
.
Proof. Straight forward.□
Theorem 3.7.Let be a PFS-topological space and , then .
Proof. In accordance with definition,
□ Definition 3.8. Believe that X is a crisp set having E as the aggregate of attributes, then PFS (X, E) and are termed as, in order, discrete and indiscrete PFS-topologies. Notice that is the largest whereas is the smallest PFS-topology on .
Remark. The intersection of two PFS-topological spaces is always a PFS-topological space but their union need not to be so. Next example advocates this observation.
Example 3.9. Let X = {ρ1, ρ2} be the universe and E = {ei : i = 1, 2, 3, 4} be the collection of attributes. Let A = {e1, e2} , B = {e3, e4} ⊆ E with corresponding PFSSs . Then,
and
are PFS-topologies on X but
is not so.
Definition 3.10. Let and be PFS-topological spaces. If then is acknowledged as coarser or weaker than and is referred to as finer or stronger than . In either case and are called comparable.
Example 3.11. Let X = {ρ1, ρ2} be the universe and E = {e1, e2, e3} be the set of decision variables with A = {e1, e2} ⊂ E. Consider PFSSs ; and . It can be seen that and are two PFS-topologies. Since so is coarser than .
Remark. The well-known laws "law of excluded middle" and "law of contradiction" of crisp set theory do not make sense for IFSs. This characteristic is inherited in PFSS theory due to which some results in PFS-topology deviate from classical topology. The forthcoming illustration advocates our view-point.
Example 3.12. Let X = {ρ1, ρ2, ρ3} be the universe and E = {ei : i = 1, 2, 3, 4} be the family of attributes with A = {e1, e2} ⊆ E. Assume that . Clearly
fails to be a PFS-topology on X for neither nor .
Definition 3.13. Let be a PFS-topological space. Then is acknowledged as a PFS-basis for if for each , there exists such that .
Example 3.14. Let X = {ρ1, ρ2} be the universe and E = {e1, e2} be attributes’ set with A ⊆ E. Think through PFSSs and . The collection
serves as a PFS-basis for the PFS-topology
Theorem 3.15.If is a PFS-basis for then, for each e ∈ E, serves as a PFS-basis for the PFS-topology .
Proof. Let ψ(1) (e) ∈ τ (e) for some . Since is a PFS-basis for so, in accordance with definition, there exists such that and hence , where .□
Theorem 3.16. Let be a PFS-topological space. A collection
is a PFS-basis for if and only if for any PFSS ψU and any PFS-element ϑψ ∈ ψU, there is a such that .
Proof. Suppose that is a PFS-basis for . Then for any PFS open set ψU of , there are PFSSs ψBγ, such that . Thus, for any , there is a Bγ such that
Conversely, suppose that for every PFS-open set ψU and any ϑψ ∈ ψU, there is a ψB in such that . Then,
so that
which is union of PFSSs in .□
PFS-separation axioms
In this section, the concept of PFS-soft points, PFS-open sets and PFS-closed sets are used to define PFS-separation axioms.
Definition 4.1. A PFS-topological space is called as a PFS T0-space if for every pair of distinct PFS-points there exists at least one PFS-open set ψA containing exactly one of the PFS-points.
Example 4.2. Every discrete PFS-topological space PFS (X, E) is a PFS T0-space for there exists an open set that clearly contains but not .
Remark. The property of being a PFS T0-space of any PFS-topological space is hereditary. i.e. every subspace of a PFS T0-space is PFS T0-space.
Definition 4.3. A PFS-space is PFS T1-space if for any two distinct PFS-points of , there exist two PFS-open sets ψC and ψD such that , and , .
Example 4.4. Every discrete PFS-topological space PFS (X, E) is a PFS T1-space. If and are two distinct points in , then there are PFS open sets and such that whereas .
Theorem 4.5. The following statements about a PFS-topological space are equivalent:
is a PFS T1-space.
Every PFS singleton subset of is PFS-closed.
Every PFS-subset ψA of is the intersection of all its PFS-open supersets.
Proof. Straight forward.□
Remark. The property of being a PFS T1-space of any PFS-topological space is hereditary. i.e. every subspace of a PFS T1-space is PFS T1-space.
Definition 4.6. A PFS-space is called a PFS T2-space or PFS-Hasdorff space if for any two distinct PFS-points and of , there exist two PFS-open sets ψC and ψD such that , and .
Example 4.7. Consider the discrete PFS-topological space . If and are two distinct PFS-points in , then clearly and are disjoint PFS open sets such that and . Thus is a PFS T2-space.
Theorem 4.8. A PFS-topological space is a PFS T2-space if and only if for any two distinct PFS-points and , there are PFS-closed sets ψC1 and ψC2 such that , , , and .
Proof. Suppose that is a PFS T2-space and let and be two distinct PFS-points of . Then, by definition, there must exist two PFS-open sets ψU1 and ψU2 such that , , , and . But then, and , . , .
Conversely, suppose that for any two distinct PFS-points , there are PFS-closed sets ψC1 and ψC2 such that , , , and . Then {ψC1} c and {ψC2} c are PFS-open sets such that , , , and
Hence, is a PFS T2-space.□
Remark. The property of being a PFS T2-space of any PFS-topological space is hereditary. i.e. every subspace of a PFS T2-space is PFS T2-space.
Definition 4.9. A PFS-topological space is called a PFS-regular space if for any PFS-closed set ψA and any PFS-point ϑψ ∉ ψA, there are PFS-open sets ψC and ψD such that and .
Definition 4.10. A PFS-topological space is reckoned as PFS T3-space if it is a PFS-regular T1-space.
Definition 4.11. A PFS-topological space is said to be a PFS-normal space if for any two PFS-closed disjoint subsets ψA and ψB of , there are PFS-open sets ψC and ψD such that , and .
A PFS-normal T1-space is called a PFS T4-space.
Remark. We have the following chain for different PFS-spaces discussed above:
for 0 ≤ i ≤ 3. The reverse chain, however, may not hold. The following example supports this observation.
Example 4.12. Let X = {ρ1, ρ2, ρ3, ρ4}, A = {e1, e2} ⊂ E = {ei : i = 1, 2, 3, 4} and . Then, is a PFS-T0 space but fails to be a PFS-T1 space.
Theorem 4.13.Every PFS T4-space is PFS-regular i.e. every PFS-normal T1-space is PFS-regular.
Proof. Let be a PFS T4-topological space. Let ϑψ be a PFS-point in . Then, by Theorem 4, {ϑψ} is a closed PFSS in . Let ψA be a closed PFSS not containing ϑψ. Since is PFS-normal, there are open PFSS namely ψU, ψV such that
But then
Thus is PFS-regular.□
Multi-criteria group decision making by using pythagorean fuzzy soft information
Comprehensive decision making is a dynamic part of business, economics, social sciences and real world problems. It marks out from daily low level operational assessments at low-ranking management level to long-term strategic planning faced by senior administration. Conclusions that are produced at any level can cause serious or bad consequences, but is there any explicit layout that decision makers should adopt in order to assure success, or should override the regular plan of attack?
The decision makers should hire many factors into account before reaching a unanimous decision. So it is essential to ascertain all these components are taken before the determination is finalized. In parliamentary law to ensure that all the indispensable facts and figures are scrutinized, it is indispensable to coordinate the decision making development with a taxonomic attitude.
Above and beyond other colossal applications, Mathematics also assists us in reaching conclusions on scientific evidence. In this fragment, we render an algorithm for tackling multiple criteria group decision making problem using choice value method under PFS environment supported by an illustration from business world.
Algorithm 1 Choice Value Method
Input X = {ρi : i = 1, 2, ⋯ , m} as a set of objects and E = {ei : i = 1, 2, ⋯ , n} as a set of parameters. Then construct the PFSS.
Compute the corresponding PFS-matrix.
Assign weight to each attribute.
Compute the matrix of choice values using .
Compute the value of score function s for each ρi.
The ρi for which s (ρi) is maximum is the desired alternative.

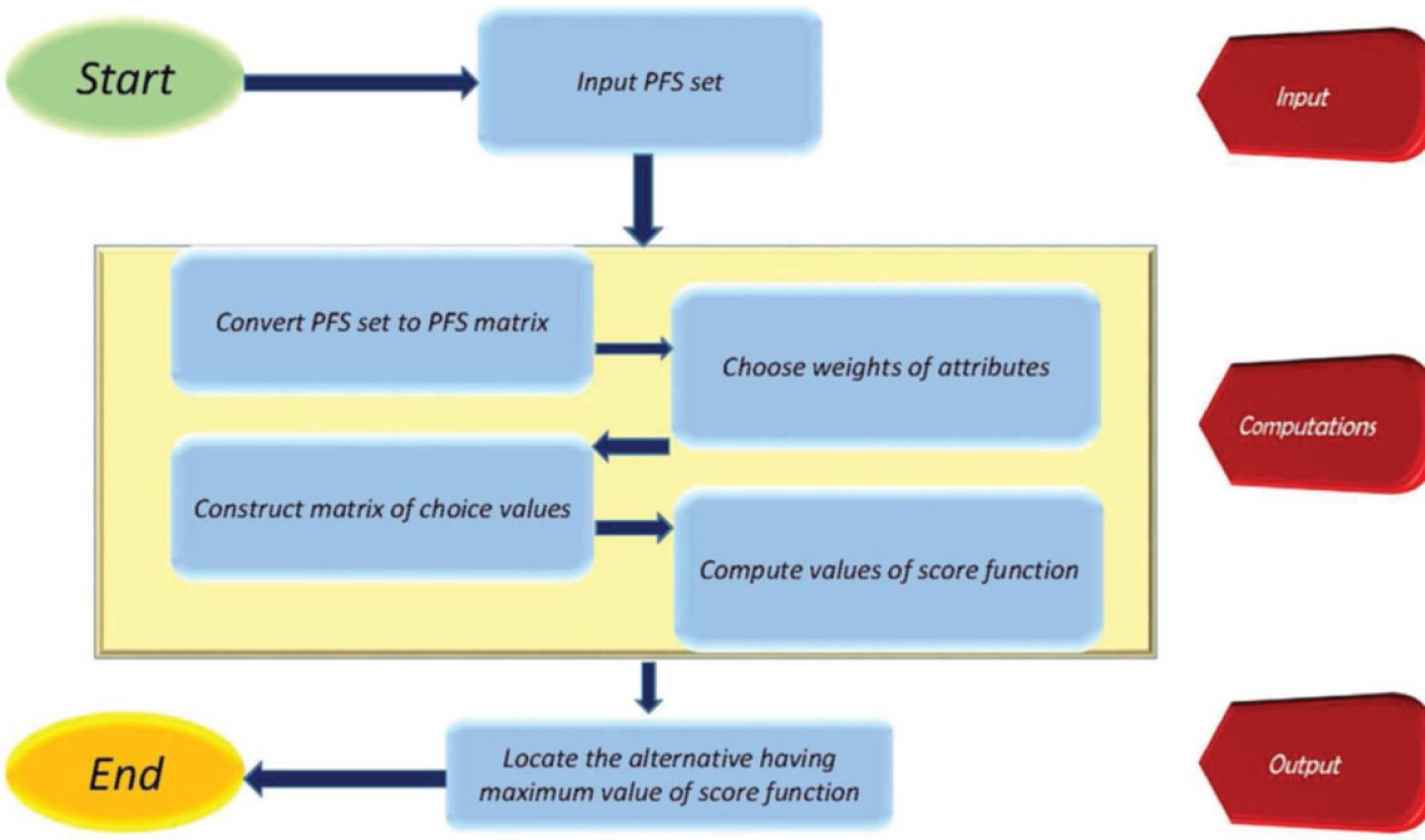

The flow chart of the procedural steps of Algorithm 1 is as in Fig. 2.
Flow chart of Algorithm 1
As a case study, we employ Algorithm 1 on stock exchange investment problem using hypothetical data in the forthcoming example.
Example 5.1. Assume that a firm plans to invest some money in stock exchange by purchasing some shares of best four companies. Let X = {ρi : i = 1, 2, ⋯ , 10} be the collection of companies under consideration.
In order to minimize the risk factor, they decide to invest their money in percentage of 40%, 30%, 20% and 10% in accordance with the top ranked four companies. After consulting the fiscal experts, they choose the set of parameters as E = {ei : i = 1, 2, ⋯ , 6}, where
Keeping in view the track record of these companies, the technical team of the firm arranges the gathered information in the form of Table 2 of the PFSS ψE.
Tabular representation of ψE
ψE
e1
e2
e3
e4
e5
e6
ρ1
(0.47,0.63)
(0.59,0.34)
(0.82,0.21)
(0.64,0.63)
(0.28,0.36)
(0.43,0.59)
ρ2
(0.23,0.19)
(0,1)
(0.79,0.18)
(0.89, 0.32)
(0.26,0.17)
(0,1)
ρ3
(0.26,0.35)
(0.78,0.15)
(0,1)
(0.54,0.41)
(0.27,0.28)
(0.76,0.64)
ρ4
(0.85,0.42)
(0.19,0.12)
(0.33,0.47)
(0.36,0.64)
(0.54,0.87)
(0.81,0.25)
ρ5
(0.26,0.18)
(0.33,0.67)
(0.45,0.61)
(0.85,0.28)
(0,1)
(0.16,0.16)
ρ6
(0.72,0.12)
(0.63,0.26)
(0,1)
(0.27,0.34)
(0.88,0.43)
(0.17,0.26)
ρ7
(0.27,0.31)
(0.81,0.18)
(0.11,0.22)
(0.45,0.44)
(0.17,0.12)
(0.55,0.56)
ρ8
(0.81,0.29)
(0.91,0.12)
(0.21,0.19)
(0,1)
(0.45,0.45)
(0.28,0.29)
ρ9
(0.64,0.37)
(0.45,0.61)
(0.23,0.31)
(0.28,0.29)
(0.17,0.15)
(0.61,0.18)
ρ10
(0.37,0.71)
(0.72,0.19)
(0.19,0.47)
(0.14,0.08)
(0.03,0.16)
(0.07,0.12)
The corresponding PFS-matrix is
Next, the weighted values for the parameters are chosen separately as W (e1) =0.5, W (e2) =0.4, W (e3) =0.8, W (e4) =0.3, W (e5) =0.6, W (e6) =0.3 so that ΣW (ei) =2.9. Hence, Thus, the PFS-matrix for choice values is

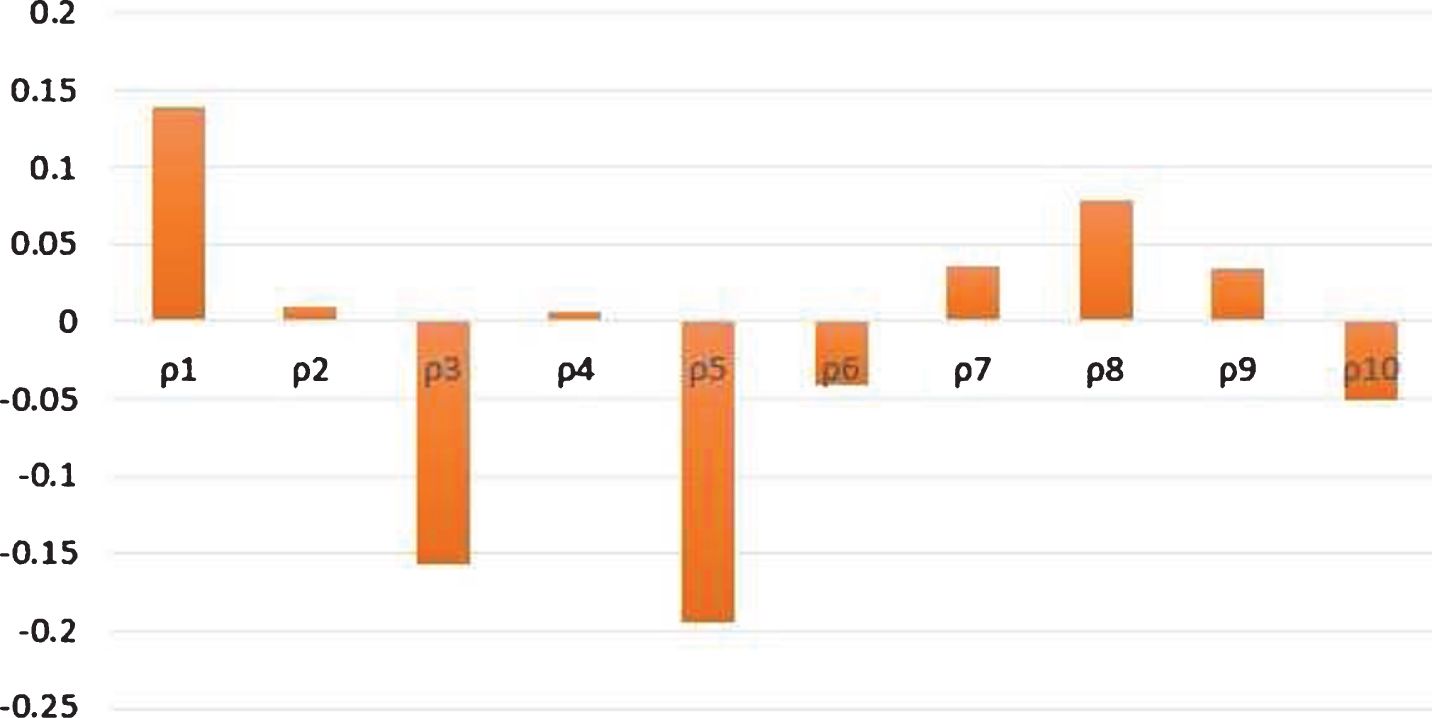

The values of the score function for different alternatives and their relative ranking appear in Table 3.
In view of this ranking, it may be concluded that the firm should invest 40% of the capital on ρ1, 30% on ρ8, 20% on ρ7 and the rest 10% on ρ9.
TOPSIS approach for medical diagnosis with pythagorean fuzzy soft topology
In this section, we study how PFS-topology may be utilized in multiple criteria group decision making (MCGDM). First of all, we shall extend TOPSIS to PFSS and then shall consider a problem of medical diagnosis with alike symptoms where PFS-topology may be used. Amongst enormous techniques found in literature, TOPSIS holds a central position in tackling such problems. Depending upon the nature of the problem under consideration, every technique has its own pros and cons. Since medical diagnosis involves similarities (in symptoms), so TOPSIS is best suitable for handling such situations.

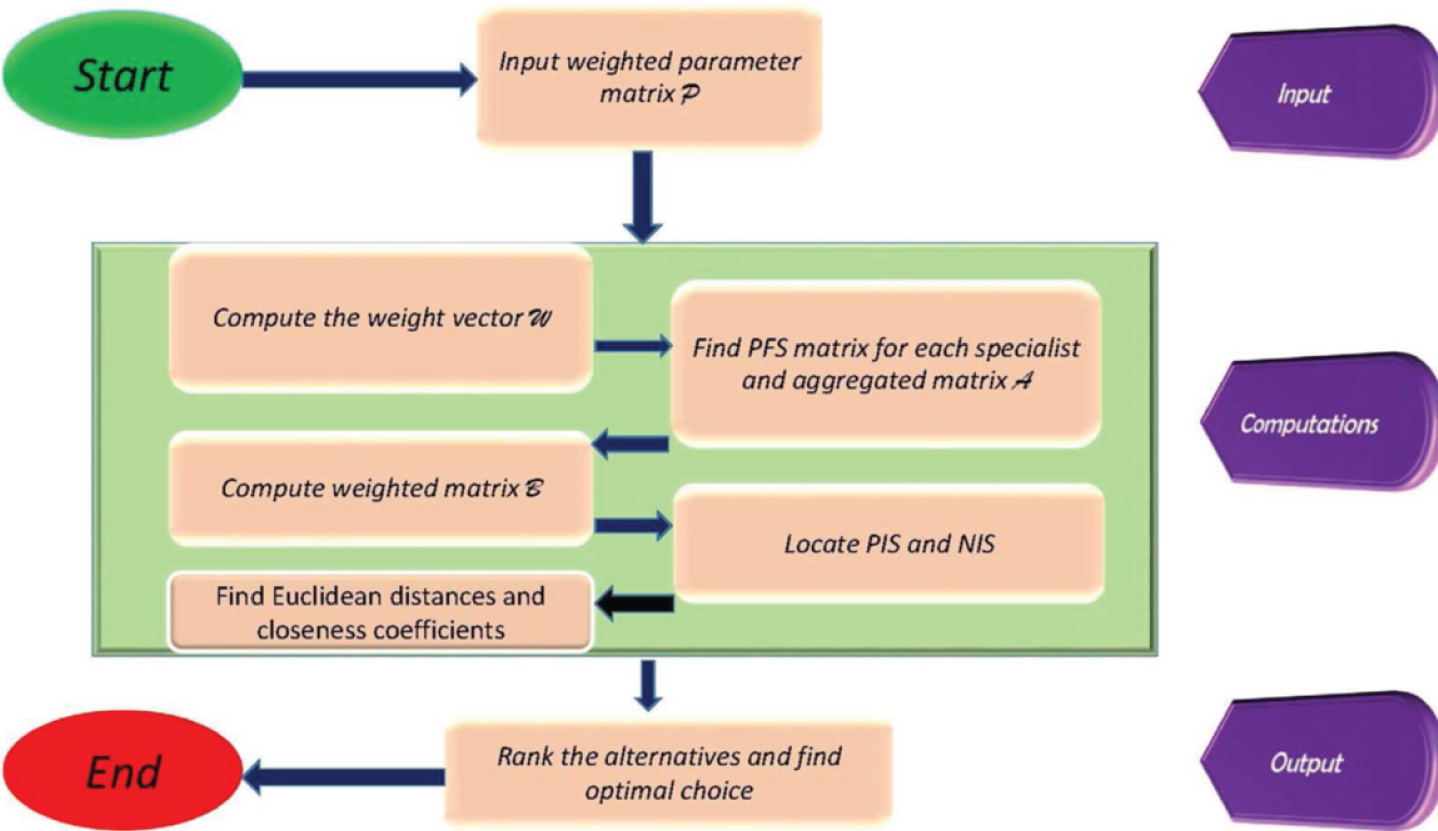

We make an inception by explaining the proposed technique step by step. The proposed PFS-TOPSIS is generalization of fuzzy soft TOPSIS presented by Eraslan and Karaaslan [15].
Algorithm 2 Extention of TOPSIS to PFS-Topology
Identifying the problem: Assume that is a finite set of decision makers/experts, is the finite collection of alternatives and D = {pi : i ∈ ℕ} is a finite family of parameters/criterion.
By selecting the linguistic terms from Table 4, constructing weighted parameter matrix as
where wij is the weight assigned by the expert to the alternative by considering linguistic variables as given (for example) in Table 4.
Construct normalized weighted matrix
where and obtaining the weighted vector , where and . Notice that represents sum of weights of ith row in the matrix cited at step 2 above.
Construct PFS decision matrix
where is a PFS-element, for ith decision maker so that Di makes PFS-topolgy for each i. Then obtain the aggregating matrix
Obtain the weighted PFS decision matrix
where .
In general, two sorts of criteria are thought of in daily life decision making which are named benefit (D1) and the cost (D2). In order to obtain PFS-valued positive ideal solution (PFSV-PIS) and PFS-valued negative ideal solution (PFSV-NIS), we employ in order
and
where ∨ stands for PFS union and ∧ represents PFS intersection.
Compute PFS-Euclidean distances of each alternative from PFSV-PIS and PFSV-NIS, respectively, utilizing
and
Compute the closeness coefficient of each alternative with ideal solution by making use of
Rank the alternatives in decreasing (or increasing) order to get the preference order of the alternatives.
Linguistic terms for judging alternatives
Linguistic terms
Fuzzy weights
Very Critical (VC)
0.80
Critical (C)
0.70
Medium (M)
0.50
Un-Critical (U)
0.20
Very Un-Critical (V)
0.10
The flow chart of these procedural steps is as in Fig. 4.
Flow chart of Algorithm 2.
Example 6.1. As an illustration of Algorithm 2, we discuss a medical diagnosis problem following the procedural steps given in Algorithm 2.
Suppose that a medical board wants to make a diagnosis about correct disease in a patient with compound symptoms. According to indications of the patient, the panel gets a pre-diagnosis. They match to test the patient for four possible diseases, namely, epidemiologic fever, malaria, enteric fever and dengue. The panel wants to make a collective assessment with an accurate diagnosis of the above assumed maladies with analogous symptoms. Assume that E = {Di : i = 1, 2, 3, 4} is the set of medical specialists, is the set of four possible diseases mentioned above, and D = {pi : i = 1, 2, 3, 4} is the set of alternatives/symptoms, where
Choose linguistic terms from Table 4, construct weighted parameter matrix
where wij is the weight provided by the medical specialist Di (row-wise) to each parameter pj (column-wise).
The normalized weighted matrix is
and hence the weighted vector is
The PFS decision matrix Di of each specialist is provided in which alternatives are represented row-wise whereas parameters are represented column-wise so that the aggregate of all Di’s makes a PFS topology. Assume that
Hence, the aggregated decision matrix comes out to be
The weighted PFS decision matrix
where .
Now, we find PFS-valued positive ideal solution (PFSV-PIS) and PFS-valued negative ideal solution (PFSV-NIS), respectively, as follows:
The PFS-Euclidean distances of each alternative from PFSV-PIS and PFSV-NIS, respectively, are computed as
and
The closeness coefficient of each alternative with ideal solution is computed as
The preference order of the alternatives, therefore, is

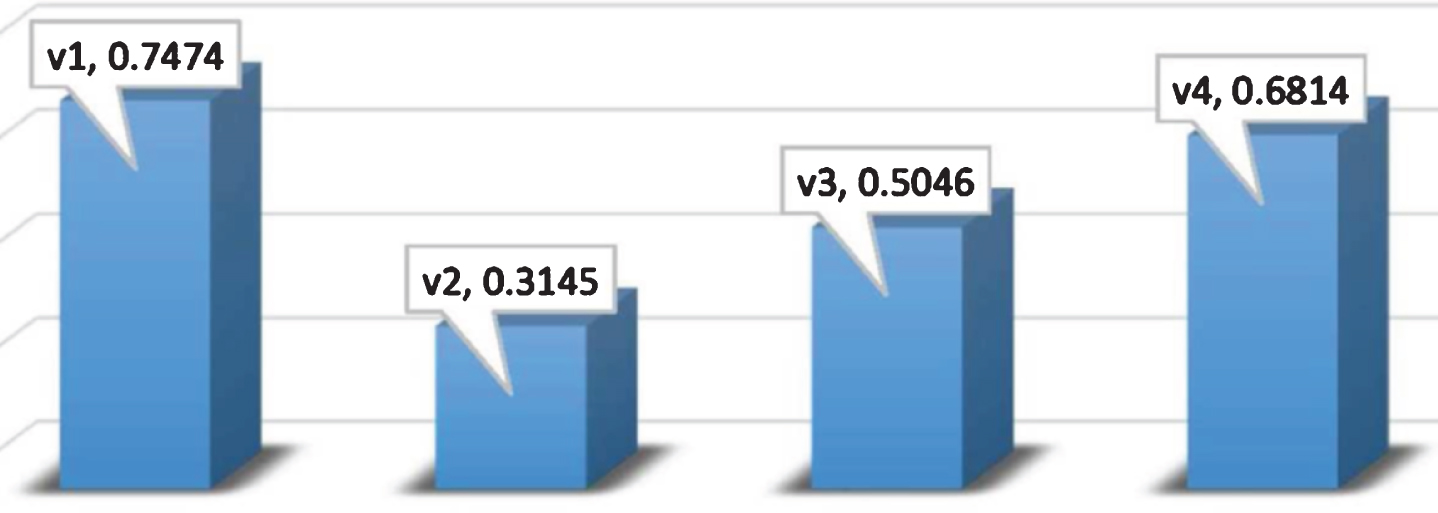

This ranking order is depicted in Fig. 5.
Since the ranking of is highest, so we conclude that the patient under consideration is likely to suffer from epidemiologic fever.
Ranking of diseases.
Comparison Analysis
The proposed method i.e. Algorithm 2 is compared with some existing methods as indicated in Table 5 listing optimal choice. It can be observed from the comparison Table 5 that the best selection made by the proposed method is comparable with the already established methods which is expressive in itself and approves the reliability and validity of the proposed method.
Multi-criteria group decision making (MCGDM) has been intensively studied by numerous researchers. The techniques developed for this task mainly depend on the type of decision problem under consideration. Most of the real-life situations are uncertain, imperfect, imprecise and vague. The existing models of soft sets, fuzzy sets, intuitionistic fuzzy sets and Pythagorean fuzzy sets are very helpful in solving real world problems under uncertainty. Pythagorean fuzzy soft sets (PFSSs) are very helpful in representing vague information that occurs in real world circumstances when a set of objects is analyzed with a set of attributes by the decision makers in a broader uncertain space for membership and non-membership grades. In this article, we studied some elementary characteristics of Pythagorean fuzzy soft topological space. The concepts of PFS-extended union and PFS-restricted intersection are used in the construction of PFS-topology. Meanwhile, various properties of PFS-topology are defined like PFS-open sets, PFS-closed sets, PFS-interior, PFS-closure, PFS-exterior and so on. Additionally, the separation axioms Ti (i = 1, 2, 3, 4), regular space and normal space are redefined in the aspect of Pythagorean fuzzy soft sets. A suitable number of examples is also included to conceive the notions effectively. PFS-topology is the extension of soft topology and intuitionistic fuzzy topology. PFS-topology is a strong approach towards uncertainty that owns a large number of applications in many real world problems. Two MCGDM applications of PFSSs and PFS-topology from real world situations are well presented with choice value method and TOPSIS approach, respectively. The corresponding algorithms and flow charts are developed to conceive the procedural steps with ease. With each application, we presented the final findings with the assistance of statistical diagram to make the comparison between different alternatives and comprehend the notion effectively. The philosophies solidified in this article have potential to be extended to other hybrid structures of fuzzy sets. The ideas floated may be used in many real world problems including medical sciences, pattern recognition, artificial intelligence, robotics, image processing, business, economics, political science and many more. We expect that this article will open new doors for the researchers in this field.
Footnotes
Acknowledgement
The authors are highly thankful to the Editor-in-chief and the referees for their valuable comments and suggestions for improving the quality of our paper.
The authors “c” extend their appreciation to the Deanship of Scientific Research at King Khalid University for funding this work through research groups program under grant number RGP-30-41.
References
1.
AkramM. and NazS., Energy of Pythagorean fuzzy graphs with applications, Mathematics6(8) (2018), 1–27.
2.
AkramM., HabibA., IlyasF. and DarJ.M., Specific types of Pythagorean fuzzy graphs and application to decision-making, Mathematical and Computational Applications23(3) (2018), 1–28.
3.
AkramM. and AliG., Hybrid models for decision making based on rough Pythagorean fuzzy bipolar soft information, Granular Computing5 (2020), 1–15.
4.
AliM.I., FengF., LiuX.Y., MinW.K. and ShabirM., On some new operations in soft set theory, Computers and Mathematics with Applications57 (2009), 1547–1553.
5.
AtanassovK.T., Intuitionistic fuzzy sets, in: V. Sgurev, Ed., VII ITKRs Session, Sofia, June 1983, (Central Sci and Techn Library, Bulg Academy of Sciences, 1984).
6.
AtanassovK.T. and StoevaS., Intuitionistic fuzzy sets, in: Polish Symp. On Interval & Fuzzy Mathematics, Poznan (1983), 23–26.
7.
AtanassovK.T., Intuitionistic fuzzy sets, Fuzzy Sets and Systems20 (1986), 87–96.
8.
AtanassovK.T., Geometrical interpretation of the elements of the intuitionistic fuzzy objects, International Journal of Bioautomation20(S1) (2016), S27–S42.
9.
AygunogluA., CetkinV. and AygunH., An introduction to fuzzy soft topological spaces, Hacettepe Journal of Mathematics and Statistics43(2) (2014), 193–204.
10.
AhmadB. and HussainS., On some structures of soft topology, Mathematical Sciences6(64) (2012), 1–7.
11.
ÇağmanN., KarataşS. and EnginogluS., Soft topology, Computers and Mathematics with Applications62 (2011), 351–358.
12.
ÇağmanN., EnginogluS. and ÇitakF., Fuzzy soft set theory and its applications, Iranian Journal of Fuzzy Systems8(8) (2011), 137–147.
13.
ÇağmanN., ÇitakF. and EnginogluS., FP-soft set theory and its applications, Annals of Fuzzy Mathematics and Informatics2(2) (2011), 219–226.
14.
ÇağmanN., ÇitakF. and EnginogluS., Fuzzy parameterized fuzzy soft set theory and its applications, Turkish Journal of Fuzzy Systems1(1) (2010), 21–35.
15.
EraslanS. and KaraaslanF., A group decision making method based on TOPSIS under fuzzy soft environment, Journal of New Theory3 (2015), 30–40.
16.
FengF., JunY.B., LiuX. and LiL., An adjustable approach to fuzzy soft set based decision making, Journal of Computational and Applied Mathematics234(1) (2010), 10–20.
17.
FengF., LiC., DavvazB. and AliM.I., Soft sets combined with fuzzy sets and rough sets, a tentative approach, Soft Computing14(9) (2010), 899–911.
18.
GuleriaA. and BajajR.K., On Pythagorean fuzzy soft matrices, operations and their applications in decision making and medical diagnosis, Soft Computing23 (2019), 7889–7900.
19.
GargH., A new generalized Pythagorean fuzzy information aggregation using Einstein operations and its application to decision making, International Journal of Intelligent Systems31(9) (2018), 886–920.
20.
GargH., Generalized Pythagorean fuzzy geometric aggregation operators using Einstein t-norm and t-conorm for multicriteria decision-making process, International Journal of Intelligent Systems32(16) (2017), 597–630.
21.
HashmiM.R., RiazM. and SmarandacheF., m-polar neutrosophic topology with applications to multi-criteria decisionmaking in medical diagnosis and clustering analysis, International Journal of Fuzzy Systems22(1) (2020), 273–292.
22.
HashmiM.R. and RiazM., A novel approach to censuses process by using Pythagorean m-polar fuzzy Dombi’s aggregation operators, Journal of Intelligent & Fuzzy Systems38(2) (2020), 1977–1995.
23.
HazraH., MajumdarP. and SamantaS.K., Soft Topology, Fuzzy Information Engineering (1) (2012), 105–115.
24.
KumarK. and GargH., TOPSIS method based on the connection number of set pair analysis under interval-valued intuitionistic fuzzy set environment, Computational and Applied Mathematics37(2) (2018), 1319–1329.
25.
LiZ. and CuiR., On the topological structure of intuitionistic fuzzy soft sets, Annals of Fuzzy Mathematics and Informatics5(1) (2013), 229–239.
26.
MajiP.K., BiswasR. and RoyA.R., Soft set theory, Computers and Mathematics with Applications45 (2003), 555–562.
27.
MajiP.K., BiswasR. and RoyA.R., Fuzzy soft sets, Journal of Fuzzy Mathematics9(3) (2001), 589–602.
28.
MajiP.K., BiswasR. and RoyA.R., Intuitionistic fuzzy soft sets, Journal of Fuzzy Mathematics9(3) (2001), 677–691.
29.
MolodtsovD., Soft set theory-first results, Computers and Mathematics with Applications37 (1999), 19–31.
30.
NaeemK., RiazM., PengX.D. and AfzalD., Pythagorean fuzzy soft MCGDM methods based on TOPSIS, VIKOR and aggregation operators, Journal of Intelligent & Fuzzy Systems37(5) (2019), 6937–6957.
31.
NaeemK., RiazM. and AfzalD., Pythagorean m-polar fuzzy sets and TOPSIS method for the selection of advertisement mode, Journal of Intelligent & Fuzzy Systems37(6) (2019), 8441–8458.
32.
OsmanogluI. and TokatD., On intuitionistic fuzzy soft topology, Gen Math Notes19(2) (2013), 59–70.
33.
PengX.D. and YangY., Some results for Pythagorean fuzzy sets, International Journal of Intelligent Systems30(11) (2015), 1133–1160.
34.
PengX.D., YuanH.Y. and YangY., Pythagorean fuzzy information measures and their applications, International Journal of Intelligent Systems32(10) (2017), 991–1029.
35.
PengX.D. and SelvachandranG., Pythagorean fuzzy set: state of the art and future directions, Artificial Intelligence Review52 (2019), 1873–1927.
36.
PengX.D., YangY.Y., SongJ. and JiangY., Pythagorean fuzzy soft set and its application, Computer Engineering41(7) (2015), 224–229.
37.
RiazM., ÇağmanN., ZareefI. and AslamM., N-soft topology and its applications to multi-criteria group decision making, Journal of Intelligent & Fuzzy Systems36(6) (2019), 6521–6536.
38.
RiazM., SmarandacheF., FirdousA. and FakharA., On soft rough topology with multi-attribute group decision making, Mathematics7(67) (2019), 1–18.
39.
RiazM., DavvazB., FirdousA. and FakharA., Novel concepts of soft rough set topology with applications, Journal of Intelligent & Fuzzy Systems36(4) (2019), 3579–3590.
40.
RiazM. and HashmiM.R., MAGDM for agribusiness in the environment of various cubic m-polar fuzzy averaging aggregation operators, Journal of Intelligent & Fuzzy Systems37(3) (2019), 3671–3691.
41.
RiazM. and HashmiM.R., Linear Diophantine fuzzy set and its applications towards multi-attribute decision making problems, Journal of Intelligent & Fuzzy Systems37(4) (2019), 5417–5439.
42.
RiazM. and HashmiM.R., Soft rough Pythagorean m-polar fuzzy sets and Pythagorean m-polar fuzzy soft rough sets with application to decision-making, Computational and Applied Mathematics39(1) (2020), 1–36.
43.
RiazM. and TehrimS.T., Cubic bipolar fuzzy ordered weighted geometric aggregation operators and their application using internal and external cubic bipolar fuzzy data, Computational & Applied Mathematics38(2) (2019), 1–25.
44.
RiazM. and TehrimS.T., Multi-attribute group decision making based cubic bipolar fuzzy information using averaging aggregation operators, Journal of Intelligent & Fuzzy Systems37(2) (2019), 2473–2494.
45.
RoyS. and SamantaT.K., A note on a soft topological space, Punjab University Journal of Mathematics46(1) (2014), 19–24.
46.
ShabirM. and NazM., On soft topological spaces, Computers and Mathematics with Applications61 (2011), 1786–1799.
47.
VarolB.P., ShostakA. and AygunH., A new approach to soft topology, Hacettepe Journal of Mathematics and Statistics41(5) (2012), 731–741.
48.
YagerR.R., Pythagorean fuzzy subsets, IFSA World Congress andNAFIPS Annual Meeting 2013 Joint, Edmonton, Canada, IEEE (2013), 57–61.
49.
YagerR.R. and AbbasovA.M., Pythagorean membership grades, complex numbers, and decision making, International Journal of Intelligent Systems28(5) (2013), 436–452.
50.
YagerR.R., Pythagorean membership grades in multicriteria decision making, IEEE Transactions on Fuzzy Systems22(4) (2014), 958–965.
51.
YuW., ZhangZ. and ZhongQ., Consensus reaching for MAGDM with multi-granular hesitant fuzzy linguistic term sets: a minimum adjustment-based approach, Annals of Operations Research (2019), https://doi.org/10.1007/s10479-019-03432-7
52.
YuW., ZhangZ., ZhongQ. and SunL., Extended TODIM for multi-criteria group decision making based on unbalanced hesitant fuzzy linguistic term sets, Computers & Industrial Engineering114 (2017), 316–328.
53.
ZadehL.A., Fuzzy sets, Information & Control8 (1965), 338–356.
54.
ZhanJ., LiuQ. and HerawanT., A novel soft rough set: soft rough hemirings and its multicriteria group decision making, Applied Soft Computing54 (2017), 393–402.
55.
ZhanJ., AliM.I. and MehmoodN., On a novel uncertain soft set model: Z-soft fuzzy rough set model and corresponding decision making methods, Applied Soft Computing56 (2017), 446–457.
56.
ZhanJ. and AlcantudJ.C.R., A novel type of soft rough covering and its application to multicriteria group decision making, Artificial Intelligence Review (2018), doi.org/10.1007/s10462-018-9617-3
57.
ZhangX.L. and XuZ.S., Extension of TOPSIS to multiple criteria decision making with Pythagorean fuzzy sets, International Journal of Intelligent Systems29 (2014), 1061–1078.
58.
ZhangL. and ZhanJ., Fuzzy soft β-covering based fuzzy rough sets and corresponding decision-making applications, International Journal ofMachine Learning and Cybernatics10 (2019), 1487–1502.
59.
ZhangL., ZhanJ. and AlcantudJ.C.R., Novel classes of fuzzy soft β-coverings-based fuzzy rough sets with applications to multi-criteria fuzzy group decision making, Soft Computing23 (2019), 5327–5351.
60.
ZhangZ., YuW., MartinezL. and GaoY., Managing multigranular unbalanced hesitant fuzzy linguistic information in multiattribute large-scale group decision making: A linguistic distribution-based approach, IEEE Transactions on Fuzzy Systems (2019), DOI: 10.1109/TFUZZ.2019.2949758
61.
ZorlutunaI. and AtmacaS., Fuzzy parameterized fuzzy soft topology, New Trends in Mathematical Sciences4(1) (2016), 142–152.
